AGA AMCHD36 User manual

36" AGA Rangehood
Model # AMCHD36
1
High powered and sleek, the AGA 36" range vent hood
brings both good looks and functionality to your kitchen.
• Three-speed 600 CFM fan, blower included
• Includes charcoal fi lters to remove cooking odors
• Internal and External venting available; includes
recirculation kit for inside venting
• Removable stainless steel baffl es fi t in most dishwasher
for easy clean-up
• Two (2) 20 watt halogen lights on underside of hood
• Adjustable duct cover included
Available in 4 Finishes
GLOSS BLACK
AMCHD44-BLK
STAINLESS STEEL
AMCHD44-SS
IVORY
AMCHD44-IVY
WHITE
AMCHD44-WHT
Technical Specifi cations
Vent Hood Width 35 7/16"
Duct Cover Width 8 ¼"
Vent Hood Height 9 7/16"
Duct Cover Minimum Height 18 5/16"
Duct Cover Maximum Height 30 5/16"
Duct Cover Depth 8 ¼"
Electrical Requirements 120v, 60hz, 15amps
Warranty 1 year limited warranty
on all parts and labor
Optional 24" chimney extension (Part# SAG-1120316720)
replaces the upper half of the two-piece chimney which
will give you a maximum of 41" chimney height.

36" AGA Rangehood
Model # AMCHD36
2
Specifi cations are subject to change without notice. Visit www.aga-ranges.com for the most up-to-date information.
Installation
• Check that the main voltage corresponds to that
indicated on the rating plate fi xed to the inside of the hood.
• The electrical supply must be properly and suffi ciently
grounded.
• Connect the extractor to the exhaust fl ue through a pipe of
minimum diameter 6". The route of the fl ue must be as short
as possible.
• Do not connect the extractor hood to exhaust ducts carrying
combustion fumes (boilers, fi replaces, etc.).
• If the extractor is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a suffi cient degree
of aeration must be guaranteed in the room in order to
prevent the backfl ow of exhaust gas. The kitchen must have an
opening communicating directly with the open air in order to
guarantee the entry of clean air.
Use
• The range hood has been designed exclusively for domestic
use to eliminate kitchen odors.
• Never use the hood for purposes other than for which it has
been designed.
• Never leave high naked fl ames under the hood when it is in
operation.
• Adjust the fl ame intensity to direct it onto the bottom of the
pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use:
overheated oil can burst into fl ames.
• The hood should not be used by children or persons
not instructed in its correct use.

36" AGA Rangehood
Model # AMCHD36
3
ELECTRICAL CONNECTION
• Remove the cover from the Field Wiring Compartment with a
Phillips screwdriver.
• Feed the Power Supply Cable through the electrical knockout.
Connect the Power Supply Cable to the rangehood cable.
Attach the Power Supply Cable grounding lead to the green
screw provided. Attach the White lead of the power supply
to the White lead of the rangehood with a twist-on type
wire connector. Attach the Black lead of the power supply
to the Black lead of the rangehood with a twist on type wire
connector.
• Replace the cover.
CHIMNEY ASSEMBLY
Upper Exhaust Chimney
• Slightly widen the two
sides of the upper
chimney and hook them
behind the brackets
7.2.1, making sure that
they are well seated.
• Secure the sides to the
brackets using the 4
screws 12c supplied.
Lower Exhaust Chimney
• Slightly widen the two sides of the chimney and hook
them between the upper chimney and the wall, making
sure that they are well seated.
• Fix the lower part laterally to the hood body using the 2
screws 12c supplied.

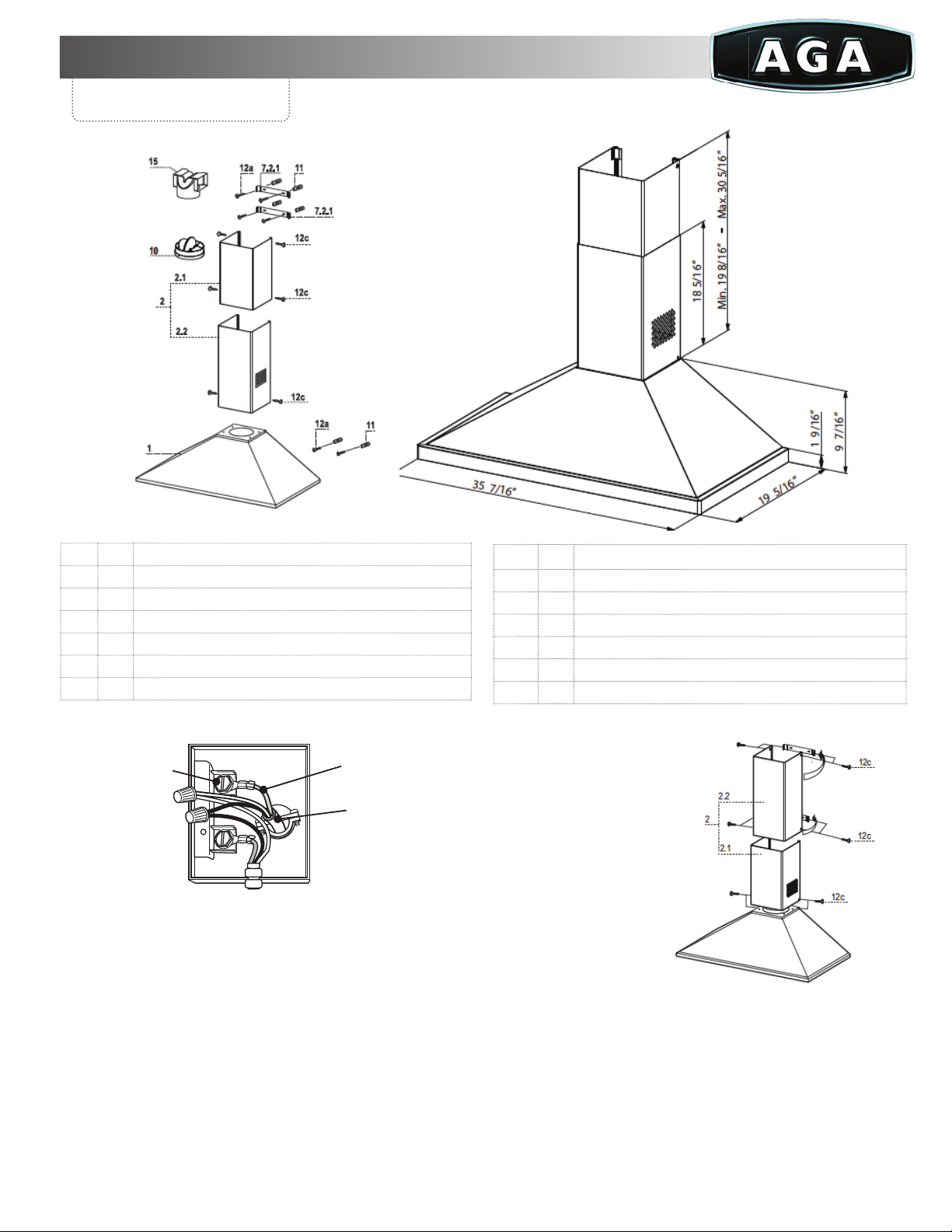

Dimensions
and Parts
Specifi cations are subject to change without notice. Visit www.aga-ranges.com for the most up-to-date information.
EN 1
12
ELECTRICAL CONNECTION
• Remove the cover from the Field Wiring Com-
partment with a Phillips screwdriver.
• Feed the Power Supply Cable through the electrical
knockout. Connect the Power Supply Cable to the
rangehood cable. Attach the Power Supply Cable
grounding lead to the green screw provided. Attach
the White lead of the power supply to the White
lead of the rangehood with a twist-on type wire
connector. Attach the Black lead of the power sup-
ply to the Black lead of the rangehood with a twist-
on type wire connector.
• Replace the cover.
For the 36"
Knockout is located in the junction box on the lef
t
side of the hood facing the front approx. 9-3/8" from
the left to the right and 3-3/8" up from the bottom o
f
the hood.
For the 44" model
Knockout is located in the junction box on the Left
side of the hood facing the front approx. 13-3/8" from
the left to the right and 3-3/8" up from the bottom o
f
hood.
Chimney assembly
Upper exhaust Chimney
• Slightly widen the two sides of the upper chimney
and hook them behind the brackets 7.2.1, making
sure that they are well seated.
• Secure the sides to the brackets using the 4 screws
12c supplied.
Lower exhaust Chimney
• Slightly widen the two sides of the chimney and
hook them between the upper chimney and the
wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body using
the 2 screws 12c supplied.











Ref Qty Product Components
1 1 Hood Body, complete with: Controls, Light, Blower,Filters
2 1 1 Telescopic Chimney comprising:
2.1 1Upper Section
2.2 1Lower Section
10 1Damper
15 1Air Outlet Connection
Ref Qty Installation Components
7.2.1 2Upper Chimney Section Fixing Brackets
11 6Wall Plugs (if supplied)
12a 6Screws 3/16" x 1 3/4"
12c 6Screws 1/8" x 3/8"
Qty Documentation
1Instruction Manual
