Aga Cooker hood User manual

Libretto Istruzioni

Instruction Manual

Manuel d’Instructions

Bedienungsanleitung

Gebruiksaanwijzing

Bruksanvisning

CONTENTS

Dear Customer,

If you follow the recommendations con-

tained in this Instruction Manual, your

appliance will give you constant high

performance and will remain efcient

for many years to come.

RECOMMENDATIONS AND SUGGESTIONS 12

CHARACTERISTICS 13

INSTALLATION 14

USE 16

MAINTENANCE 17

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages

resulting from incorrect or improper installation.

• The minimum safety distance between the cooker top and the

extractor hood is 650 mm.

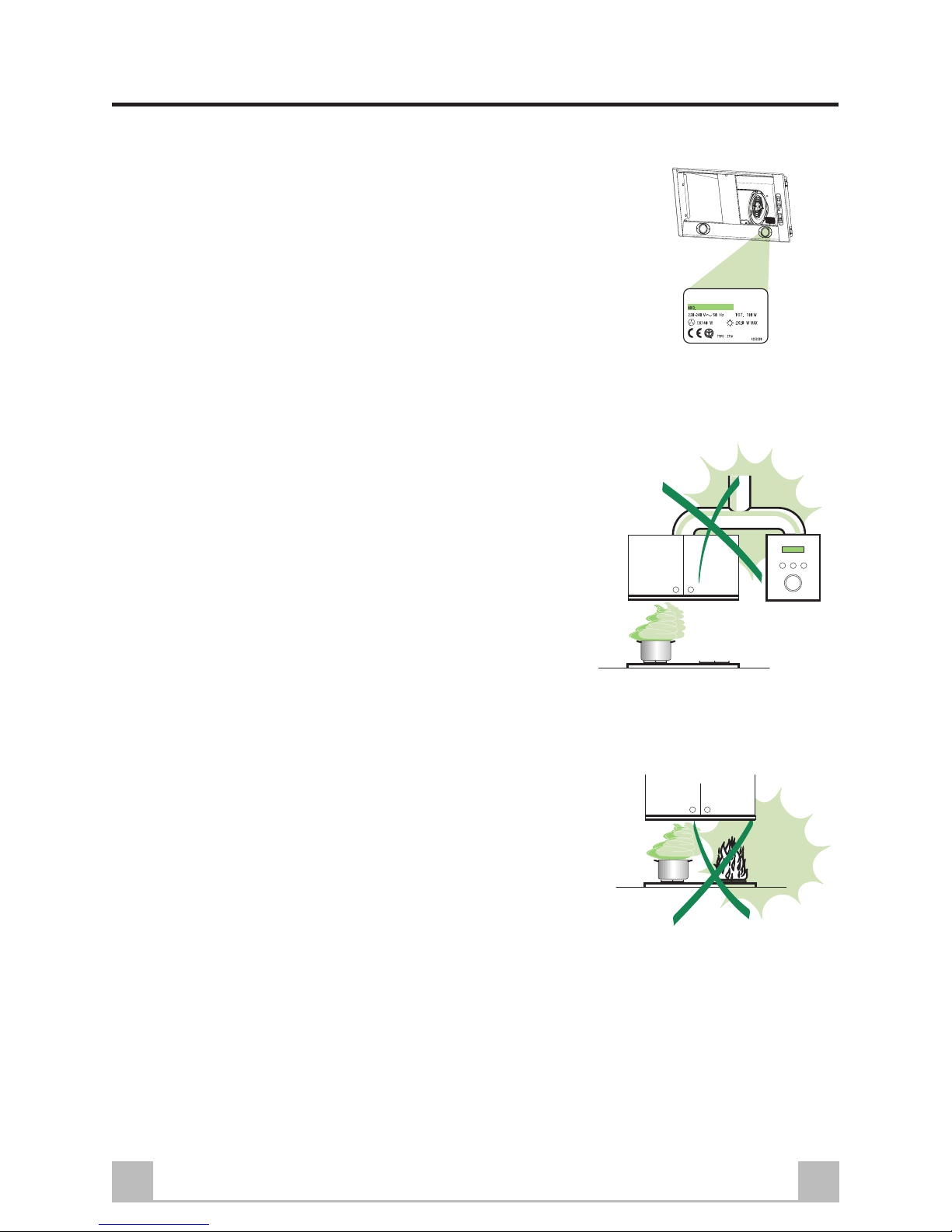

• Check that the mains voltage corresponds to that indicated

on the rating plate xed to the inside of the hood.

• For Class I appliances, check that the domestic power supply

guarantees adequate earthing.

Connect the extractor to the exhaust ue through a pipe of

minimum diameter 120 mm. The route of the ue must be as

short as possible.

• Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, replaces, etc.).

• If the extractor is used in conjunction with non-electrical

appliances (e.g. gas burning appliances), a sufcient degree

of aeration must be guaranteed in the room in order to pre-

vent the backow of exhaust gas. The kitchen must have an

opening communicating directly with the open air in order

to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for dome-

stic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has

ben designed.

• Never leave high naked ames under the hood when it is in

operation.

• Adjust the ame intensity to direct it onto the bottom of the

pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use:

overheated oil can burst into ames.

• The hood should not be used by children or persons not

instructed in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply

before carrying out any maintenance work.

• Clean and/or replace the Filters after the specied time pe-

riod.

• Clean the hood using a damp cloth and a neutral liquid deter-

gent.

CHARACTERISTICS

Dimensions

Components

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light,

Blower, Filters

91 Reducer Flange ø 150-120 mm

Ref. Q.ty Installation Components

12c 2 Screws 2,9 x 6,5

Q.ty Documentation

1 Instruction Manual

1 Electric Diagram





INSTALLATION

Drilling the Support surface and Fitting the Hood

The Hood can be tted directly to the underside of the Wall units (min. 650 mm above the cooker

top) with snap-on side supports, which are set up for a support panel thickness of between 15 mm

and 30 mm.

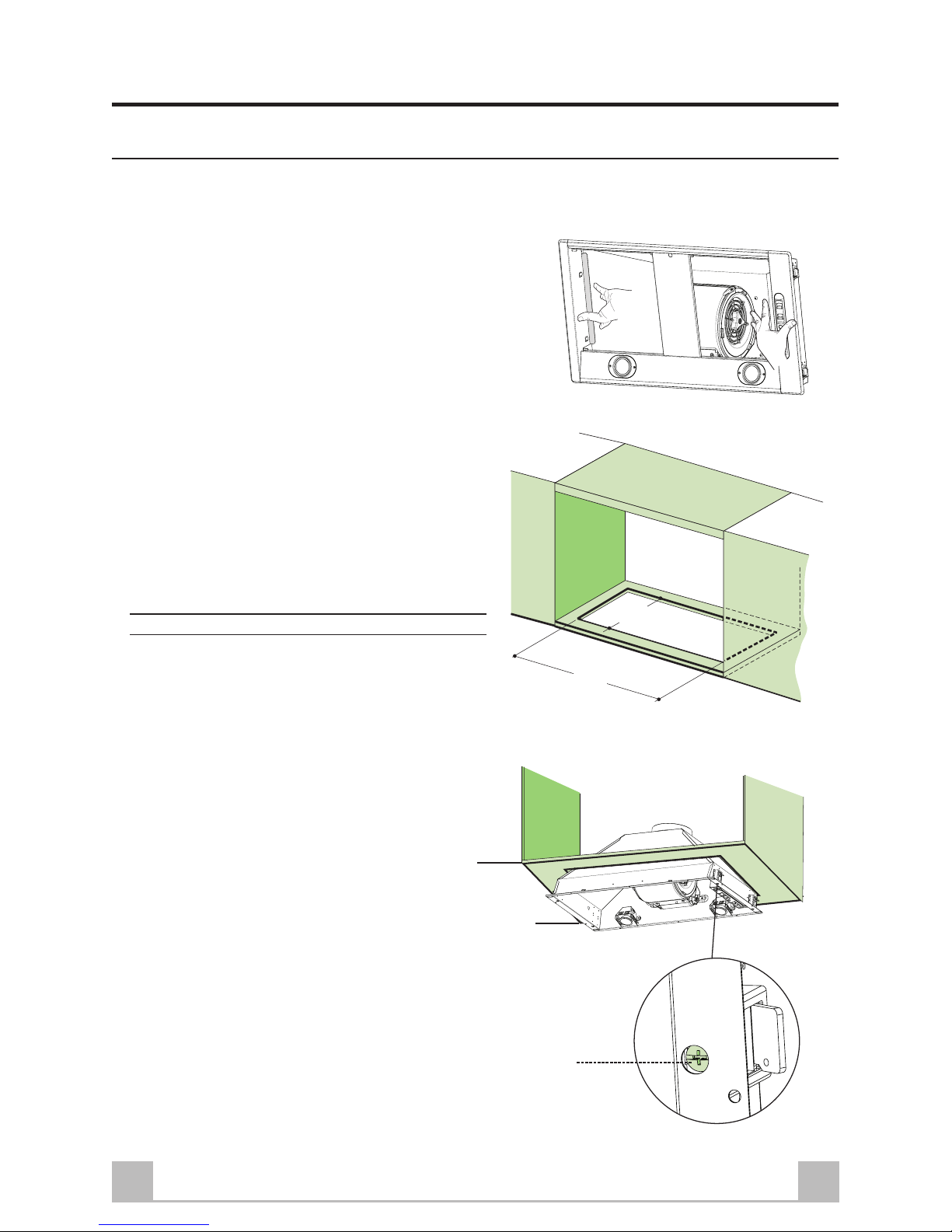

• Cut a tted opening in the bottom surface of the

wall unit, as shown.

• Remove the metal grease lters (see par. on

Maintenance).

• Disconnect the lter support by turning the

internal handles provided.

• Insert the hood until the side supports snap into

place.

• Lock in position by tightening the screws Vf

from underneath the hood.







Hood Type 54 72

L2 515 695

• Replace the lter support

• Screw the lter support using the 2 screws 12c (2,9 x 6 ,5) pro-

vided.

• Replace the grease lters make sure that the handle is visible on

the outside.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

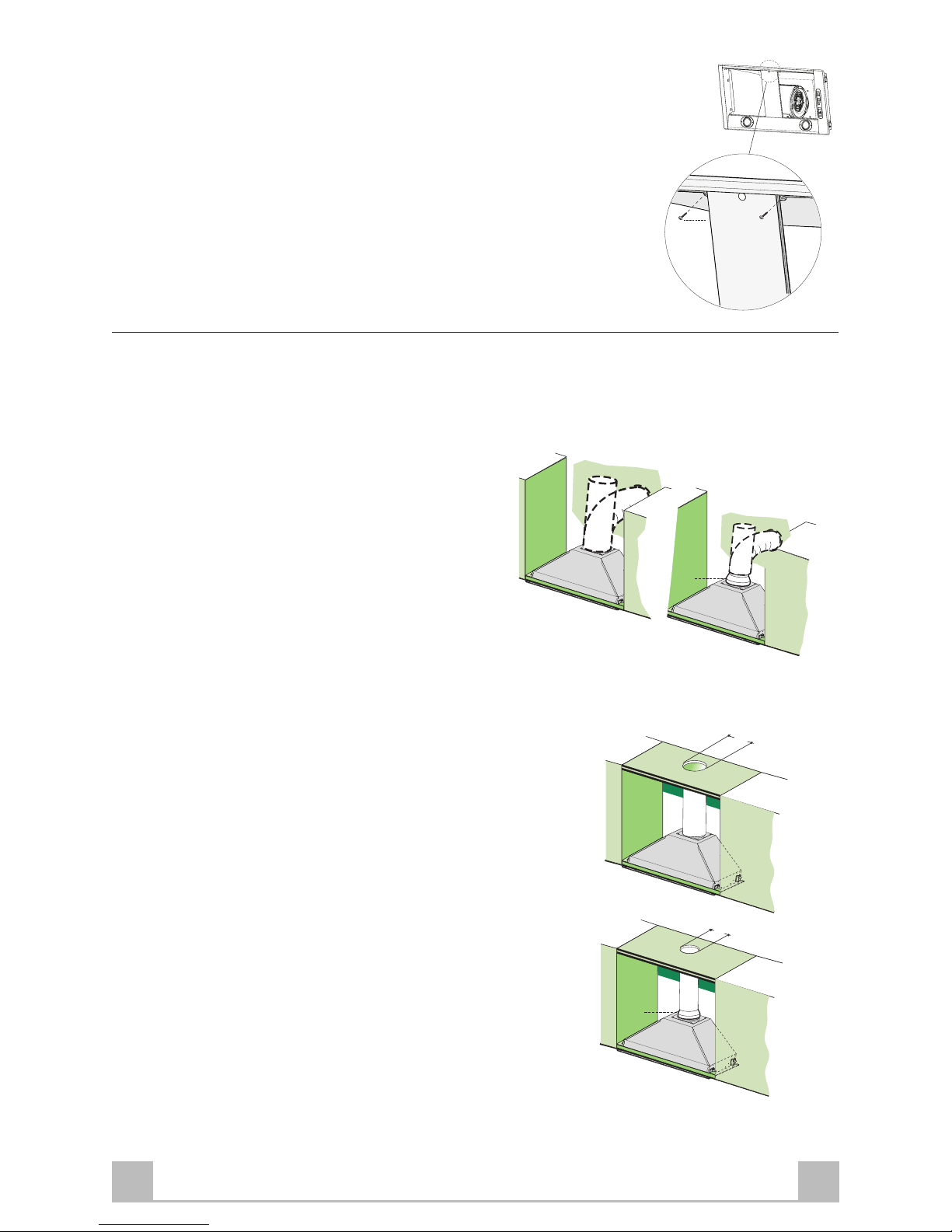

When installing the ducted version, connect the hood to the chimney using either a exible or rigid

pipe ø 150 or 120 mm, the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection,

insert the reducer ange 9 on the hood body

outlet.

• Fix the pipe in position using sufcient pipe

clamps (not supplied).

• Remove any activated charcoal lters.

RECIRCULATION VERSION AIR OUTLET

• Drill a hole ø 120 or 150 mm in the shelf above the hood

and connect the hood canopy outlet to the top part of

the wall unit by means of a rigid or exible pipe of the

same diameter, the choice of which is at the discretion

of the installer.

• To install a ø 120 mm air exhaust connection, insert the

reducer ange 9 on the hood body outlet.

• Fix the pipe in position using sufcient pipe clamps (not

supplied).

• Ensure that the activated charcoal lters have been

inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3

mm.















USE

Control Panel

The hood can be switched on pushing directly onto the requested speed without rstly having to

select 0/1 button.

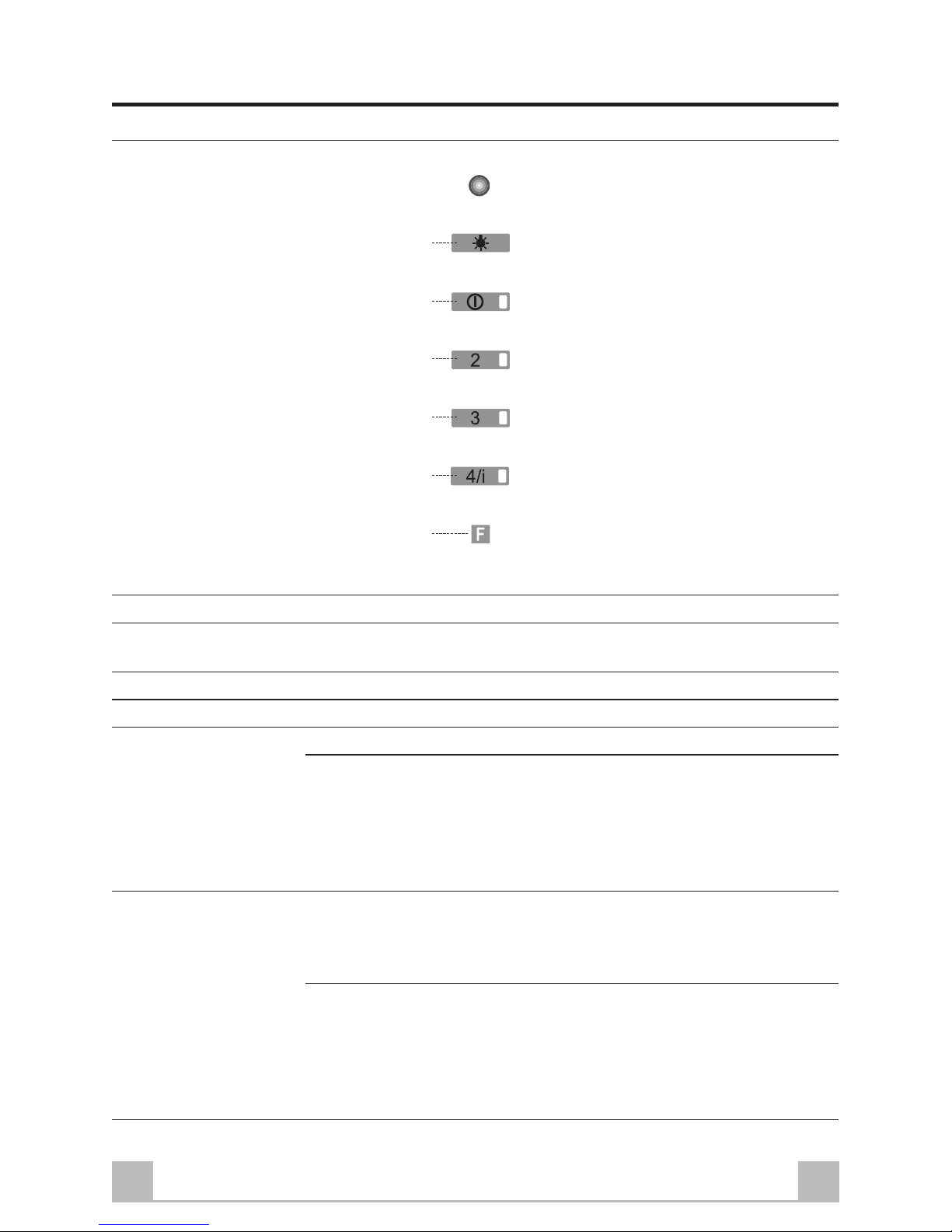

KEY LED FUNCTIONS

L 0/1 Light Turns lighting on and off.

T1 0/1 Motor on First speed.

When pressed for about 2 seconds the motor is switched off.

T2 Speed on Second speed.

T3 Speed on Third speed.

T4 Speed Fixed Max. speed

Flashing Intensive speed.

Suitable for the strongest cooking vapours and odours.

The function becomes active when the button is pushed

for about 2 seconds. After 10 minutes of functioning it

turns off automatically. This function can be interrupted

by means of pressing any of the buttons.

S1 Led Fixed Indicates that the Metal grease lters saturation alarm

has been triggered, and the lters need to be washed.

The alarm is triggered after 100 working hours. (Reset;

check the Maintenance-paragraph)

Flashing indicates that the activated charcoal odour lter satu-

ration alarm has been triggered, and the lter has to be

replaced; the metal grease lters must also be washed.

The activated charcoal odour lter is triggered after

200 working hours. (Activation and Reset; check the

Maintenance-paragraph)













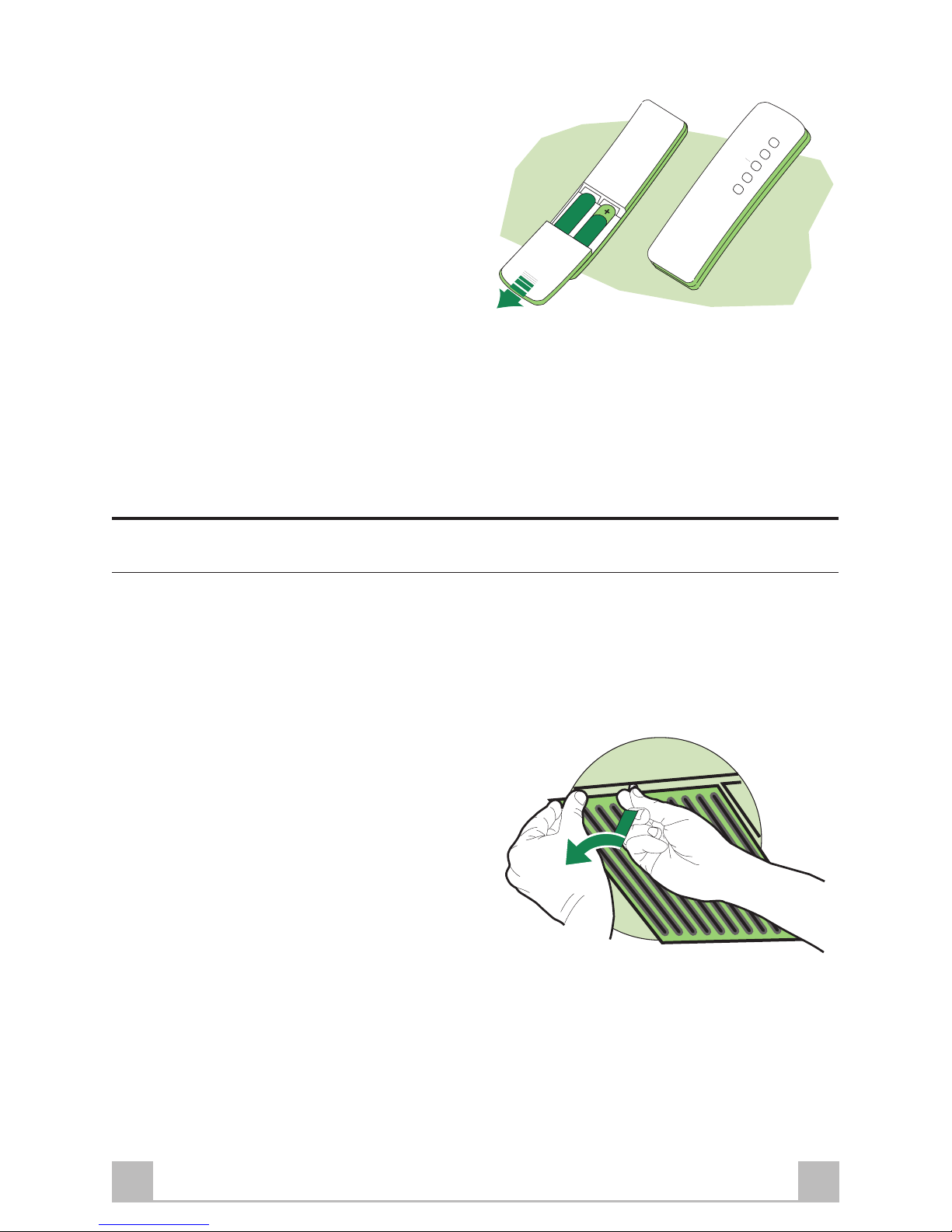

REMOTE CONTROL (OPTIONAL)

The appliance can be controlled using a remote

control powered by a 1.5 V carbon-zinc alkaline

batteries of the standard LR03-AAA type.

• Do not place the remote control near to heat

sources.

• Used batteries must be disposed of in the proper

manner.

MAINTENANCE

Grease lters

CLEANING METAL GREASE FILTERS

Alarm signal reset

• Switch of the lights and extractor motor.

• Press button T3 for at least 3 seconds, until the

leds start to ash.

Cleaning the lters

• The lters are washable and must be cleaned

when led S1 ashes or at least every 2 months

of operation, or more frequently for particularly

heavy usage.

• Remove the lters one at a time, supporting

them with one hand and turning the safety

knobs (pull and turn).

• Wash the lters, taking care not to bend them.

Allow them to dry before retting.

• Replace them and x them using the safety

knobs provided (pull and turn).





Activated charcoal lter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The lter is not washable and cannot be regene-

rated. It must be replaced when led S1 ashes

or at least every 4 months. The alarm signal

will only light up when the extractor motor is

switched on.

Alarm signal reset

• Switch off the lights and extractor motor.

• Press button T3 for at least 3 seconds, until the

leds start to ash.

Replacing the Filter

• Remove the grease lters.

• Remove the saturated activated charcoal lters

as shown (A).

• Fit new lters (B).

• Replace the grease lters.

Alarm signal activation

• In Recirculation version Hoods, the Filter saturation alarm can be enabled on installation or at a

later date.

• Turn the Lights and the suction Motor off.

• Disconnect the Hood using the Main switch or the double-pole switch on the mains power sup-

ply.

• Restore the connection by pressing and holding T1.

• Release the button. All ve LEDs are turned on

• Within 3 seconds press T1 until LEDs T1 and T4 ash in conrmation:

LED ashes twice - Activated charcoal lter saturation alarm ENABLED

LED ashes once - Activated charcoal lter saturation alarm DISABLED

Lighting

LIGHT REPLACEMENT

50 W halogen light.

• Remove the 2 screws xing the light cover.

• Remove the lamp by gripping the protruding

part and turning to the left.

• Replace with a new lamp with the same cha-

racteristics, making sure that you insert the two

pins properly into their housings.

• Replace the cover and x it in position using

the two screws removed as above

436004417_01
