Agio 294448 User manual

1
ART08100
5 PIECE WOVEN SEATING SET WITH FIRE
ITM. / ART. 294448
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
WARNING: If the information in this
manual is not followed exactly, a fire
or explosion may result causing
property damage, personal injury or
loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS.
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier
equipment.
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for future reference.
WARNING: Improper installation, adjustment
alteration, service, or maintenance can cause injury
or property damage. Read the installation,
operating, and maintenance instructions thoroughly
before installing or servicing this equipment.This
appliance must be installed and the gas cylinder
stored in accordance with the regulations in force.
WARNING: For Outdoor Use Only
FOR USE WITH 5KG PATIO GAS PROPANE
CYLINDER (NOT SUPPLIED) WITH CLIP-ON CONNECTION
OR USE WITH NATURAL GAS AFTER CONVERSION KIT
(SUPPLIED) IS INSTALLED.
WARNING: Do Not Burn Wood or any other
materials in this fire
p
it.
WARNING:
USE FACTORY APPROVED REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE OF UNAPPROVED PARTS OR
ACCESSORIES CAN VOID THE WARRANTY ON THIS
PRODUCT AND RESULT IN A HAZARDOUS CONDITION.
PLEASE CONTACT US FOR INFORMATION REGARDING
REPLACEMENT HOSES, THERMOCOUPLES,
ELECTRODES, IGNITION MODULES, LAVA ROCKS, LOGS,
ETC.
Conditions for use of the product: This product is for
outdoor use only. Not for commercial use.
WARNING: A parasol shall not be placed on it or
shall be used with a se
p
arate base.
Questions, Problems, Missing Parts? Before
returning to your retailer, call our customer service
department in the US and Canada at
1-888-383-1932, Monday-Friday, 9 a.m. – 5 p.m
Eastern Time. English and French, or you may
Email [e-mail] International
Regions: Please visit
http://www.agio-usa.com/service-center/costco-inte
rnational
WARNING: It is UNSAFE to use this product for
cookin
g
!
WARNING: Before placing the burner cover on,
make sure the firepit has been shut off and the
burner has completely cooled down.

2
TABLE OF CONTENTS
Important Safety Information..........................................................................3
Important Information about Propane ............................................................4
Specification...................................................................................................4
Parts Identification List............................................................................... 5-6
Installation.................................................................................................. 6-7
Natural Gas Conversion............................................................................. 8-9
Batteries.........................................................................................................9
Maintenance ................................................................................................10
Lighting Instructions .....................................................................................10
Burner Cover Assembly ...............................................................................10
Troubleshooting Guide.................................................................................11

3
IMPORTANT SAFETY INFORMATION
The appliance area must be kept clear and free from combustible materials, gasoline, and
other flammable vapors and liquids.
Do not use this appliance if any part has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of the control system and
any gas control which has been under water.
Children and adults should be alerted to the hazards of high surface temperatures and
kept at a safe distance to avoid burns or clothing ignition.
Young children should be carefully supervised when they are anywhere near the
appliance.
Clothing or other flammable material should not be hung from the appliance, or placed
on or near the appliance.
Any screen or guard removed for servicing an appliance must be replaced prior to
operating the appliance.
Installation and repair should be done by a qualified service person. The appliance
should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required as necessary. It is imperative that the control
compartments, burners and circulating air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
Do NOT ignite the burner before pouring all of the burner media (lava rock or fire glass) into
the burner pan. The media must be evenly distributed over the burner.
During initial firing of firepit, please stay away from the firepit for 20 minutes as fire media
(lava rock or fire ice) may pop and hit someone on the face or eyes.
Do NOT ignite or use the firepit if the burner media (lava rock or fire glass) are wet. Ensure
the burner media are completely dry before igniting as intense heat could cause the media to
crack and pop.
It is UNSAFE to use this product for cooking!
CAUTION: The propane gas pressure regulator provided with this appliance must be used.
This regulator is set for an outlet pressure of 37 mbar.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or
boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank Drawer and inspect
the LP Hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be
replaced prior to the gas appliance being put into operation. Use only the replacement hose
assembly specified in this manual. Inspect the burner before each use of the appliance. The
burner must be replaced prior to the appliance being put into operation if it is evident that the
burner is damaged. Use only the burner listed in these instructions.
Keep the fuel supply hose away from any heated surfaces. Check the tubing or the flexible
hose (at least once per month and each time the cylinder is changed). If it shows signs of
cracking, splitting or other deterioration it shall be exchanged for new hose of the same length
and of the equivalent quality; The tubing or the flexible hose must be changed within the
prescribed intervals Shut off the valve at the gas cylinder or the regulator before moving the
appliance Be careful, accessible parts may be very hot. Keep away from young children
Do Not move the appliance during use.

4
IMPORTANT SAFETY INFORMATION ABOUT
PROPANE (LP) GAS
The cylinder supply system must be arranged for vapor withdrawal.
This appliance shall be used only outdoors in a well-ventilated space and shall not be
used in a building, garage, or any other enclosed space.
When this appliance is not in use, the gas must be turned off at the supply cylinder.
Storage of this appliance indoors is permissible only if the cylinder is disconnected and
removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the reach of children.
Disconnected cylinders must have protective caps installed and must not be stored in a
building, garage, or any other enclosed areas.
Change the gas cylinder in an amply ventilated area, away from any ignition source
(candle, cigarettes, other flame producing appliances).
Check that the regulator seal is correctly fitted and able to fulfill its function.
Do not obstruct the ventilation holes of the cylinder housing.
Use only the type of gas and the type of cylinder specified by the manufacturer.
In case of violent wind particular attention must be taken against tilting of the appliance.
This appliance is for use only with a 5KG Patio Gas Cylinder unless converted for use with
Natural Gas with the provided gas conversion kit. The cylinder must be equipped for a clip-on
regulator. See Figure 1.
Figure 1
SPECIFICATIONS
Appliance Category II2H3P Appliance Type A Country GB
INPUT High Fire Low Fire
Propane(G31) 16 kW 1144 gr per hr. 7.5 kW 536 gr per hr.
Natural Gas (G20) 16 kW 4.0 kW
Propane Regulator Pressure 37 mbar 2.05 mm Injector, Marking: 2.05
Natural Gas Inlet Pressure 20 mbar 3.20 mm Injector, Marking: 3.20
Clearances to combustible
surfaces
Sides 24 in / 60.96 cm Top: 72 in / 182.88 cm

5
PART DESCRIPTION PART# QTY
A CONTROL KNOB FP2329 1
B GAS VALVE FP2330 1
C THERMOCOUPLE FP2331 1
D FLEX CONNECTOR FP2332 1
E ELECTRODE FP2333 1
F IGNITION MODULE FP2334 1
G CHAIN FP1736 1
H PROPANE ORIFICE FP2205 1
I LP REGULATOR HOSE FP2025 1
J FOOT CAPS FC0759 4
K “AA” BATTERY HW0905 1
L AIR SHUTTER FP1922 1
M FIRE ICE FP2006 2
N NATURAL GAS ORIFICE FP2511 1
O M4 SCREW HW0898 2
P 1/4” X20 MM BOLT HW0036 4
Q WASHERS HW0594 4
R HEX BOLT DRIVER HW0006 1
S
CROSS POINT
SCREWDRIVER HW0900 1
T
BURNER PAN PROTECTIVE
RING FP3005 1
U
FIREPAN/BURNER
ASSEMBLY FP3006 1
PARTS IDENTIFICATION LIST

6
V BURNER COVER FP3007 1
W FIREPIT BASE FP3008 1
X FIREPIT TABLE TOP FP3009 1
INSTALLATION
1. Carefully unpack all items from the box. Place the base in the final position. There must be a
minimum of 60.96 cm / 24 inches of clearance from the side of the table top to any combustible
walls.
2. Place the firepit tabletop onto the firepit base. Secure the tabletop to the firepit base by using
the 1/4 x 20 mm bolts and washers that are provided. See Figure 2.
Figure 2
3. Place the burner pan protective ring into the firepan/burner assembly as shown in Figure 3.
Align the holes in the burner pan protective ring with the pre-drilled holes on the firepan/burner
assembly. Secure the burner pan protective ring to the firepan/burner assembly by using the
M4 screws as shown in Figure 3.
Figure 3

7

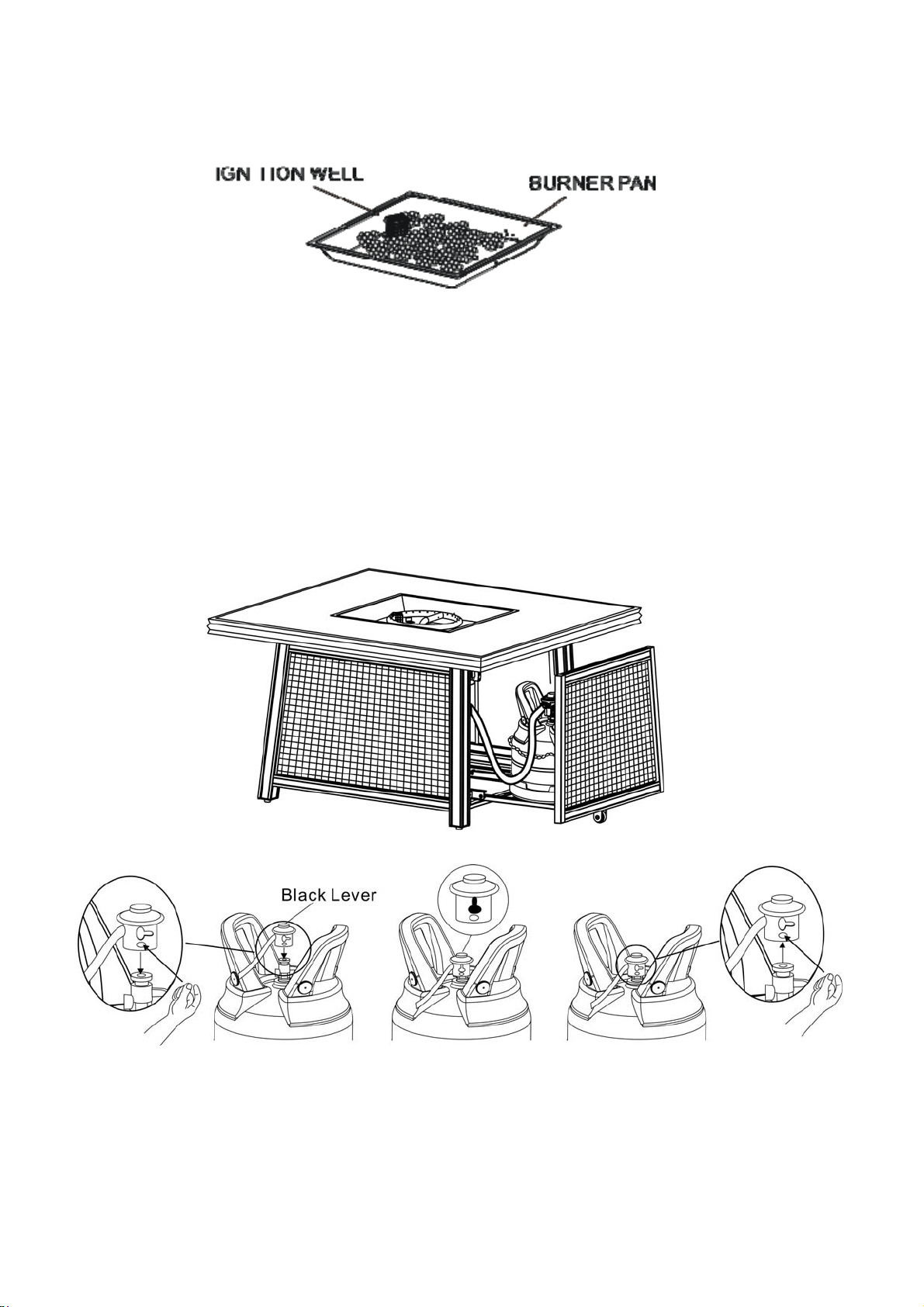

4. Pour ALL of the provided media (fire ice or lava rock) into the burner pan. The burner MUST
be completely covered to ensure the appliance functions properly and safely. Remove any lava
rocks or fire ice on top of the ignition well. See figure4.
Figure 4
5. Slide the tank drawer out, place the LP tank (not provided) in the drawer and secure it with
the chain as shown in Figure 5. With the BLACK lever in the “down/off” position as shown in
Figure 6, firmly push the regulator onto the tank valve. To open the valve, lift the BLACK lever
and turn the handle 90° clockwise to the “ON” position. See Figure 7. Apply a solution of soapy
water to the tank-regulator connection and to the valve-hose connection to check for leaks. If
soap bubbles continue to form, the connection has a leak. If a leak is found, close the tank valve
and tighten all connections. NEVER USE A FLAME TO CHECK FOR LEAKS. In case of gas
leakage; for instance, in the event of gas leakage, the appliance shall not be used or if alight,
the gas supply shall be shut off and the appliance shall be investigated and rectified before it is
used again. To remove the regulator, turn the Black Lever counterclockwise and press straight
in. See Figure 8.
Figure 5
Figure6 Figure7 Figure8

8
Natural gas conversion must be performed only by your natural gas provider or service
company.
1. SHUT OFF THE GAS SUPPLY TO THE UNIT AND ANY NEARBY ELECTRICAL SOURCE
OR APPLICANCES
2. Below the burner, carefully disconnect flex connector attached to the orifice holder (see step1).
3. Carefully unscrew the orifice holder from the burner pipe (see step2).
4. Remove the propane orifice from the holder and replace with the natural gas orifice (see step2).
5. Install the air shutter over the burner pipe to cover the air holes. Then reattach the orifice holder
to the burner pipe (see step3). Special attention should be payed to the leakage between the
holder and natural gas orifice. Do the leakage test with the valve opening.
6. Reattach the flex connector to the orifice holder. (see step 4).
7. To convert the regulator from propane to natural gas, the appliance must be isolated from the
gas supply piping system by closing its individual manual shut off valve. Ensure any pressure
testing of the gas supply piping system is at test pressure equal to or less than 1/2 psi(3.5KPA)
8. Remove the propane rubber hose from valve and replace with 5/8” natural gas pipe (see step5,
natural gas pipe package is not provided).
Flex
connector
Orifice
holder
Propane
orifice
Air
shutter
NaturalGas
orifice
Step1 Step2
Step3 Step4

9
9. Restore your gas supply and check ALL of the connections for leaks using a solution of soapy
water. If a leak is discovered and any bubbles are seen, close the main gas valve and re-tighten
ALL of the connections. NEVER USE A FLAME TO CHECK FOR GAS LEAKS!
Step5
10. Stick the conversion label on the rating plate as shown in Figure 9.
Metal Rating Plate






Conversion Label
BATTERIES
Make sure the control knob is in the "OFF" position. Unscrew the
push button cap on the ignition module located on the control
panel to access the battery compartment. The ignition module
requires one Alkaline AA size battery. The negative (-) end goes in
first. See Figure 10. Dispose of the battery safely as it may
explode or leak if charged or disposed of in a fire. Make sure of the
polarity. Mercury and cadmium free.
CAUTIONS: BATTERY INSTRUCTIONS
●Always purchase the correct size and grade of battery most suitable for the intended use.
●Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or batteries of different types.
●Clean the battery contacts and also those of the device prior to battery installation.
●Ensure the batteries are installed correctly with regard to polarity (+ and -).
●Remove batteries from equipment which is not to be used for an extended period of time.
●Remove used batteries promptly.
For recycling and disposal of batteries to protect the environment, please check the internet or your local
phone directory for local recycling centers and / or follow local government regulations.
Figure 10
Serial Number _________________ Model Number: ART08100
PIN: 0063CT7348
Appliance Type A Country: GB
Minimum clearance from combustible constructions: Rear: 60.9 cm. Top 182.8 cm.
This appliance has been converted to use Natural Gas G20.
2H @ 20 mBar Nom. Heat Input (gross) 16KW High, 4.0 kW Low
Figure 9

10
MAINTENANCE
The flames should look like those in Figure 11. To clean the
burner, use a soft brush after the burner has cooled
completely. Never use a vacuum cleaner on the burner. It is
recommended to store the fire pit indoors during winter if it
will be subjected to freezing temperatures. The LP cylinder
must be disconnected and removed from the appliance
before the appliance can be stored indoors.
Figure11
LIGHTING INSTRUCTIONS
Warning: If these instructions are not followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
1. Read instructions before lighting.
2. Push in on the control knob and turn to the ON position.
3. With the control knob pressed in, also push the igniter button to light the burner. Release the
control knob after 15 seconds. If the burner does not light, wait 5 minutes, repeat.
4. Adjust the flame to the desired height by using the control knob. See Figure 12.
BURNER COVER ASSEMBLY
Place the burner cover on the table top as shown in Figure13.
WARNING: BEFORE PLACING THE BURNER COVER ON, MAKE
SURE THE FIREPIT HAS BEEN SHUT OFF AND THE BURNER HAS
COMPLETELY COOLED DOWN.
Figure 13
IGNITER BUTTON CONTROL KNOB
Figure 12

11
TROUBLESHOOTING GUIDE
PROBLEM CAUSE REMEDY
No propane gas at burner
Check that the gas tank valve is open.
Turn the control knob to “ON” and push
the control knob in. Make sure tank has
propane gas.
No spark at electrode
Check that the AA battery is installed
with the negative (-) end first and has a
charge. Check that the wire is
connected to the ignition module.
Check that the electrode is not cracked
or broken.
Burner Won’t Light
Lack of oxygen Remove excess fire ice from around
the ignition well.
Thermocouple not in
Flame
Check that the tip of the thermocouple
is even with the top of the ignition well.
Remove any fire ice from the ignition
well.
Thermocouple connection
at the main control valve is
loose.
Tighten the thermocouple nut at the
back of the valve.
Burner won’t stay
lit after lighting
No fire ice on burner Cover the burner with fire ice per the
instructions.

12
1) For use outdoors or in amply ventilated areas.
2) An amply ventilated area must have a minimum of 25% of the surface area open.
3) The surface area is the sum of the walls surface.
The hose should comply with the standard EN16436;
The regulator should comply with the standard EN16129;
Close the gas supply at the valve of the gas cylinder or the regulator after use;
Do not connect the gas cylinder directly to the appliance without the regulator;
The recommended cylinder size is-max diameter: 310mm, max height: 400mm.
AUSTRALIA: Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Costco Wholesale UK Ltd /
Costco Online UK Ltd
Hartspring Lane
Watford, Herts
WD25 8JS
United Kingdom
01923 213113
www.costco.co.uk
Costco Wholesale Spain S.L.U.
Polígono Empresarial Los Gavilanes
C/ Agustín de Betancourt, 17
28906 Getafe (Madrid) España
NIF: B86509460
900 111 155
www.costco.es
Costco Wholesale Iceland ehf.
Kauptún 3-7, 210 Gardabaer
Iceland
www.costco.is
Costco France
1 avenue de Bréhat
91140 Villebon-sur-Yvette
France
01 80 45 01 10
www.costco.fr
MADE IN CHINA
FABRIQUÉ EN CHINE
HECHO EN CHINA

MADE IN CHINA
1
5 PIECE WOVEN SEATING SET WITH FIRE
ITM. / ART. 294448
AGT02823
ART08100
CARE AND MAINTENANCE
SPECIAL WARNINGS
FRAMES
Cleaning
Maintenance
- Use mild soap and warm water. Do not use abrasive materials, cleansers or
bleach products. Rinse with clean water and dry thoroughly.
- Periodically clean and dry thoroughly. Be sure to drain any water
accumulated inside the frames. To thoroughly drain frames, remove foot caps and tilt the
frames, if necessary, to remove all water. This is critical. Water allowed to accumulate
inside the frames and then exposed to sub-freezing temperatures can cause damage to the
frame tubing. Such damage is not covered under warranty. Always clean, drain and dry
thoroughly before storing for the winter. For best results, always store or cover your
furniture when not in use.
** When cleaning or moving large or heavy items, always have two people work
together. Never drag furniture.
FABRICS (CUSHIONS/SLINGS)
THIS ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY, NOT FOR
COMMERCIAL USE.
Sunbrella fabric should be cleaned regularly. Brush off any loose dirt and wash with a
mild soap and lukewarm water solution. For stubborn stains and mildew, wash with a
solution of 236.6 ml / 1 cup of bleach and 59.2 ml / 0.25 cup of mild soap per
3.79L / 1 gallon of water. Rinse thoroughly to remove soap. Allow fabric to air dry.
- The best way to maintain the beauty of cushions and slings is to store them
in a dry area and out of the elements when not in use, or cover with commercially
available outdoor furniture covers.
Maintenance
R
Agio International Corporation
900 E. Hamilton Avenue,
Suite 100, Campbell,
CA 95008, USA
AUSTRALIA: Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
IMPORTANT,
RETAIN FOR FUTURE
REFERENCE: READ
CAREFULLY
PATIO FURNITURE
ASSEMBLY INSTRUCTIONS
MISSING PARTS OR DAMAGED PARTS?
Please call our customer service
or contact email address at [email protected]
CUSTOMER SERVICE HOURS ARE 9:00AM - 5:00PM
MONDAY - FRIDAY EST.
International Regions:
Please visit http://www.agio-usa.com/service-center/costco-international/
or contact email address at [email protected]
FOR ADDITIONAL SUPPORT ON CARE AND MAINTENANCE OF
YOUR AGIO OUTDOOR FURNITURE PLEASE VISIT OUR WEBSITE
AT: www.agio-usa.com/support
US & Canada : 1-888-383-1932 (English and French)

IMPORTANT INFORMATION ABOUT CLAY AND PORCELAIN TILE
Clay / Porcelain Tabletop
About Clay / Porcelain Tile
Care and Maintenance
Clay / Porcelain Tile is a material that is compressed and heated at high temperatures.
Though the material is stain resistant, the grout is porous and could stain. Your tabletop
has been sealed and protected with a specially formulated, high quality sealer to
minimize staining.
The tabletop can retain heat depending on the outside temperature. In sunny hot weather
conditions, care should be exercised when touching the tabletop.
Your tabletop is protected with our specially formulated factory sealer that offers a high
level of protection from all stains and acidic liquids and should not break down over
time or with normal outdoor use.
The tabletop should not require frequent reapplication of sealer to maintain its durability
and the sealer can be easily repaired if it becomes scratched or damaged. However,
should you choose to seal your tabletop, you should use only the sealer that was applied
to your tabletop during its factory production.
Chemical formulations of sealer products vary and could be incompatible with the sealer
that was originally used on your tabletop. Using any sealer other than our factory sealer
might produce undesirable results and will void any applicable warranty. Before you
reseal your tabletop or to obtain our factory sealer, please visit our website at www.agio-
usa.com/claycare or www.agio-usa.com/porcelaincare or call our Customer Service
Center in the US and Canada at 1-888-383-1932.
Cleaning
Spills
Recommendations
Clay and porcelain are virtually maintenance free. Just keep the table clean with mild
soap and water to keep mold & mildew from forming. Simply use clean water and mild
dish soap. Clean the tabletop with a soft, clean, white cloth or sponge.
Never use scouring creams, abrasive cleansers, acids, or petroleum based products.
Rinse with plenty of clean water to remove soap residue. Dry thoroughly after cleaning
to prevent buildup of any residue from minerals that might be present in your water,
even with softened water.
Accidental spills should be cleaned immediately even though your tabletop is sealed.
Wipe spills with a clean, soft white cloth. Rinse with clean, warm water and dry
thoroughly. The special factory sealer forms a protective barrier that will minimize
potential damage to the tabletop by allowing more clean-up time for accidental spills.
To help protect the sealer, use coasters and placemats when dining. Coasters will help
absorb sweating by beverage containers and prevent hot containers such as mugs from
leaving rings. Placemats will catch spills and prevent dishes from scratching the sealer if
dragged across the tabletop. Use trivets or hot pads between dishes and the tabletop to
minimize rapid heat transfer. The tabletop can rapidly draw heat from a hot dish and
potentially crack the dish. Cover your dining set with an outdoor furniture cover when
not in use.
For additional and more detailed information on clay / porcelain tabletop care, sealing
the tabletop or to repair damages, visit our website at www.agio-usa.com/claycare or
www.agio-usa.com/porcelaincare or call our Customer Service Center in the US and
Canada at 1-888-383-1932.
2

5 PIECES ENSEMBLE DE PATIO AVEC TABLE-BRASÉRO
ITM. / ART. 294448
3FABRIQUÉ EN CHINE
AGT02823
ART08100
SOINS ET ENTRETIEN
AVERTISSEMENTS SPÉCIAUX!
CADRES
:
TISSUS (COUSSINS/LANIÈRES)
CET ARTICLE EST CONÇU UNIQUEMENT POUR UNE UTILISATION NON
COMMERCIALE À L'EXTÉRIEUR.
Nettoyage
Entretien
Entretien
utiliser un savon doux et de l’eau tiède. Ne pas utiliser d’abrasifs, de
détergents, ou d’agents de blanchiment. Rincer à l’eau claire et bien sécher.
: périodiquement, nettoyer et sécher soigneusement. Bien drainer toute l’eau
accumulée dans les cadres. Pour ce faire, enlever le capuchon de pattes et incliner les
cadres, si nécessaire, pour en faire sortir toute l’eau. Ceci est très important. L’eau qui
s’accumule dans les cadres, puis est exposée à des températures sous zéro, peut
endommager les tubes des cadres. De tels dommages ne sont pas couverts par la garantie.
Toujours nettoyer, drainer et sécher soigneusement avant d’entreposer pour l’hiver. Pour
de meilleurs résultats, toujours entreposer ou recouvrir le mobilier qui n’est pas utilisé.
Il est recommandé que deux personnes nettoient ou bougent les articles lourds ou
encombrants. Ne jamais traîner le mobilier.
Le tissu Sunbrella doit être nettoyé régulièrement. Brossez le tissu pour retirer la
poussière et lavez-le avec une solution d’eau tiède et de savon doux. Pour les taches
tenaces et la moisissure, utilisez une solution composée de 236.6 ml / 1 tasse d’eau de
Javel et de 59.2 ml / 0.25 tasse de savon doux pour
3.79L / 1 gal d’eau. Rincez abondamment pour retirer le savon. Laissez sécher à l’air.
: pour préserver l’esthétique des coussins, nous recommandons de ranger le
mobilier dans un endroit sec à l’abri des intempéries ou de le couvrir avec une housse
pour meubles d’extérieur lorsqu’il n’est pas utilisé.
R
Agio International Corporation
900 E. Hamilton Avenue,
Suite 100, Campbell,
CA 95008, USA
AUSTRALIE : Nos articles sont offerts avec des garanties qui ne peuvent connaître
d'exclusions au regard de la loi australienne sur la protection des consommateurs.
Vous avez droit au remplacement ou au remboursement en cas de défaillance
majeure de votre article ainsi qu'à une compensation en cas de perte ou de
dommage prévisible. Vous avez aussi droit à la réparation ou au remplacement de
l'article s'il n'est pas d'une qualité acceptable et que la défaillance n'est pas
majeure.
IMPORTANT,
À CONSERVER POUR DE
FUTURS BESOINS DE
RÉFÉRENCE : À LIRE
SOIGNEUSEMENT
INSTRUCTIONS D’ASSEMBLAGE POUR
MOBILIER DE PATIO
DES PIÈCES MANQUENT OU SONT ENDOMMAGÉES?
Veuillez communiquer avec notre service à la clientèle
Au Canada et aux États-Unis, téléphoner au 1-888-383-1932
ou envoyer un courrier électronique à [email protected].
HEURES D’OUVERTURE DU SERVICE À LA CLIENTÈLE :
9hà17h(HNE) DU LUNDI AU VENDREDI.
Régions internationales :
Veuillez visiter http://www.agio-usa.com/service-center/costco-international/
ou contacter via l'adresse courriel [email protected].
POUR UN SOUTIEN VIDÉO ADDITIONNEL À L’ASSEMBLAGE, POUR
RÉSOUDRE DES PROBLÈMES OU POUR L’ENTRETIEN DU MATÉRIEL DE
PATIO AGIO, SE RENDRE SUR NOTRE SITE WEB :
http://www.agio-usa.com/support(en anglais seulement)

INFORMATIONS IMPORTANTES SUR
Vos Carreaux De Argile / Porcelaine
Les carreaux de argile / porcelaine
Soins et entretien
La argile / porcelaine est un matériau comprimé et chauffé à haute température. Si elle
résiste aux taches, le lait de ciment, lui, est poreux et pourrait être taché. Votre dessus de
table a été scellé et protégé par un scellant spécialement conçu et de grande qualité qui
devrait minimiser la formation de taches.
Le dessus de table peut retenir la chaleur en fonction de la température à l’extérieur.
Lors de journées ensoleillées et chaudes, il faudrait faire attention en touchant le dessus.
Votre dessus de table en argile / porcelaine est protégé grâce à un scellant d’usine
spécialement préparé à cet effet. Ce produit offre une protection élevée contre les taches
et les liquides acides sans se décomposer avec le temps ou un usage normal à l’extérieur.
Pour maintenir le dessus de table en bon état, il n’est pas nécessaire d’y appliquer de
scellant fréquemment. Si le dessus de table est gravé ou endommagé, on peut facilement
remédier aux dommages causés au scellant. Si vous optez pour sceller votre dessus de
table, utilisez seulement le scellant appliqué en usine.
Les formules chimiques peuvent varier d’un scellant à l’autre et être incompatibles avec
le scellant d’origine utilisé pour votre dessus de table. Le fait d’utiliser un scellant autre
que celui de l’usine pourrait donner des résultats non souhaités et annulera toute garantie
applicable. Avant de sceller de nouveau votre dessus de table ou pour obtenir le scellant
de l’usine, veuillez visiter le site Web www.agio-usa.com/claycare ou
www.agio-usa.com/porcelaincare ou contacter le Centre de service à la clientèle aux
États-Unis et au Canada en composant le 1 888-383-1932.
Nettoyage
Déversements
Recommandations
La argile / porcelaine n’exige à peu près pas d’entretien. Il suffit de nettoyer la table avec
du savon doux et de l’eau pour prévenir la formation de moisissures et de champignons.
Passer sur la table un chiffon blanc, doux et propre ou bien une éponge. Ne jamais
utiliser de crème à récurer, de nettoyant corrosif, d’acide ou de produit à base de pétrole.
Rincer avec beaucoup d’eau propre pour enlever les traces de savon. Sécher
complètement après le nettoyage pour prévenir la formation de résidus provenant de
minéraux éventuels contenus dans l’eau, même s’il s’agit d’une eau purifiée.
Même si le dessus de la table de argile / porcelaine est scellé, les déversements
accidentels devraient être nettoyés immédiatement. Les essuyer avec un linge blanc
doux et propre, puis sécher complètement. Le scellant spécial de l’usine forme une
couche protectrice qui minimisera les dommages éventuels causés à la table, car on
dispose de plus de temps pour nettoyer les déversements.
Au moment des repas, utiliser des dessous de verre et des napperons afin de protéger le
scellant. Les dessous de verre aideront à absorber la buée provenant des boissons et à
empêcher que des récipients chauds (comme les tasses) laissent des traces sur la table.
Les napperons protégeront contre les déversements et empêcheront que les plats rayent
le scellant si on les glisse dessus.
Use salvamanteles o almohadillas para recipientes calientes entre los platos y la
superficie de la mesa para minimizar la transferencia rápida de calor. La superficie de la
mesa puede extraer rápido el calor de un plato caliente y quebrar potencialmente el
plato. Cubra el set de comedor con una funda para muebles de exteriores cuando no lo
use.
Pour supplémentaire et plus d'information détaillée sur le soin de table d'argile /
porcelaine, le scellant la table ou la réparation de dommages, visiter notre site Web :
www.agio-usa.com/claycare ou www.agio-usa.com/porcelaincare ou téléphoner à notre
service à la clientèle à les États-Unis et Canada au 1-888-383-1932.
4

5
5 PIEZAS JUEGO DE SALA TEJIDA CON CHIMENEA
ITM. / ART. 294448
HECHO EN CHINA
AGT02823
ART08100
CUIDADO Y MANTENIMIENTO
ADVERTENCIAS ESPECIALES
ARMAZONES
TELAS (COJINES/ASIENTOS)
ESTE ARTÍCULO ESTÁ DISEÑADO SOLAMENTE PARA USO DOMÉSTICO
EN EXTERIORES, NO PARA USO COMERCIAL.
Limpieza
Mantenimiento
Mantenimiento
- Use un jabón suave y agua tibia. No utilice materiales abrasivos, limpiadores o
productos con blanqueador. Enjuague con agua limpia y seque por completo.
- Limpie periódicamente y seque bien. Asegúrese de vaciar el agua
acumulada dentro del armazón. Para vaciar los armazones, retire las tapas de las patas e
incline los armazones, si es necesario, para sacar toda el agua. Esto es importante. Si se
permite que se acumule el agua dentro de los armazones y luego se exponen a
temperaturas de congelación, puede ocasionar un daño a la tubería del armazón. Tal daño
no lo cubre la garantía. Siempre limpie, vacíe y seque bien antes de almacenar durante el
invierno. Para mejores resultados, siempre guarde o cubra el mueble cuando no lo use.
** cuando limpie o mueva artículos grandes y pesados, siempre deben hacerlo entre dos
personas. Nunca arrastre el mueble.
La tela Sunbrella debe limpiarse periódicamente. Quite todo el polvo suelto con un
cepillo y lave con una solución de jabón suave y agua tibia. Para manchas más difíciles y
moho, lave con una solución de 236.6 ml / 1 taza de blanqueador y 59.2 ml / 0.25 de taza
de jabón suave por cada 3.79L / 1 galón de agua. Enjuague bien para eliminar el jabón.
Deje que la tela se seque al aire.
- La mejor forma de mantener la belleza de los cojines y de los asientos es
guardarlos en un área seca y lejos de la intemperie cuando no se usen o taparlos con
fundas para muebles al aire libre disponibles en el mercado.
R
Agio International Corporation
900 E. Hamilton Avenue,
Suite 100, Campbell,
CA 95008, USA
AUSTRALIA: Nuestros productos cuentan con garantías que no se pueden excluir
bajo las Leyes del Consumidor de Australia. Usted tiene derecho a un cambio o
devolución en caso de un fallo importante y a una compensación por cualquier otra
pérdida o daño razonablemente previsible. También tiene derecho a la reparación o
reemplazo de los bienes, si éstos no cumplen con una calidad aceptable y el fallo no
constituye un fallo importante.
IMPORTANTE:
CONSERVE PARA FUTURA
REFERENCIA. LEA
CUIDADOSAMENTE
INSTRUCCIONES DE ENSAMBLE DE
MUEBLES PARA PATIO
HORARIO DE SERVICIO AL CLIENTE DE 9:00 a.m. – 5:00 p.m.
(HORA DEL ESTE) LUNES - VIERNES
(TELÉFONOS Y SERVICIOS NO VÁLIDOS EN ESPAÑA)
Regiones internacionales:
Por favor vista http://www.agio-usa.com/service-center/costco-international/
o envíe un correo electrónico a [email protected]
PARA SOPORTE ADICIONAL EN VIDEO SOBRE EL ENSAMBLE, SOLUCIÓN
DE PROBLEMAS, CUIDADO Y MANTENIMIENTO DEL MUEBLE AGIO PARA
EXTERIORES, VISITE NUESTRA PÁGINA WEB EN:
www.agio-usa.com/support
¿PARTES DAÑADAS O FALTANTES?
Favor de llamar a nuestro servicio al cliente
E.U.A. y Canadá :1-888-383-1932
o enviar un correo electrónico a [email protected].

INFORMACIÓN IMPORTANTE ACERCA DE LOS AZULEJOS DE
CERÁMICA (ARCILLA) Y DE PORCELANA
Superficies de Mesa de Cerámica (arcilla)
y Porcelana
Acerca de los azulejos de cerámica (arcilla) y de porcelana
Cuidado y mantenimiento
Los azulejos o losetas de cerámica (arcilla) y de porcelana son materiales que están comprimidos
y calentados a altas temperaturas.
Aunque la cerámica (arcilla) y la porcelana son resistentes a las manchas, la lechada es porosa y
podría mancharse. La superficie de la mesa ha sido sellada y protegida con un sellador de alta
calidad especialmente formulado para minimizar las manchas.
La superficie de la mesa puede conservar el calor dependiendo de la temperatura del exterior. En
condiciones de clima cálido y soleado, se debe tener cuidado al tocar la superficie de la mesa.
La superficie de la mesa, ya sea de cerámica (arcilla) o de porcelana, está protegida con nuestro
sellador de fábrica especialmente formulado que ofrece un alto nivel de protección contra todas
las manchas y líquidos ácidos y no debe acabarse con el tiempo o con el uso normal en exteriores.
La superficie de la mesa no debería requerir que se aplique con frecuencia el sellador para
mantener su durabilidad y el sellado se puede reparar fácilmente si se raya o daña. Sin embargo,
si elije sellar la superficie de la mesa, debe usar sólo el sellador que se le aplicó a la superficie de
cerámica (arcilla) o porcelana durante su producción en fábrica.
Las fórmulas químicas de los productos selladores varían y pueden ser incompatibles con el
sellador que se utilizó originalmente en la superficie de la mesa. Utilizar un sellador diferente a
nuestro sellador de fábrica puede producir resultados indeseables y anulará cualquier garantía
aplicable. Antes de volver a sellar la superficie de la mesa o de obtener nuestro sellador de
fábrica, favor visite nuestra página web en www.agio-usa.com/claycare o www.agio-
usa.com/porcelaincare o llame a nuestro Centro de Servicio al Cliente en los E.U.A y Canadá al
1888-383-1932.
(TELÉFONO Y SERVICIOS NO VÁLIDOS EN MÉXICO)
Limpieza
Derrames
Recomendaciones
La cerámica (arcilla) y la porcelana están virtualmente libres de mantenimiento. Sólo mantenga la
mesa limpia con jabón suave y agua para evitar la formación de moho. Simplemente use agua
limpia y jabón lavatrastos suave. Limpie la superficie de la mesa con un paño blanco suave y
limpio o con una esponja. Nunca use cremas para tallar, limpiadores abrasivos, ácidos o
productos a base de petróleo. Enjuague con abundante agua para retirar los residuos de jabón.
Seque bien después de limpiar para evitar la formación de residuos de minerales que puedan estar
presentes en el agua, incluso en el agua blanda.
Los derrames accidentales deben limpiarse de inmediato aunque la superficie de la mesa, tanto de
cerámica (arcilla) o porcelana estén selladas. Limpie los derrames con un paño blanco limpio y
suave. Enjuague con agua limpia y tibia y seque bien. El sellador especial de fábrica forma una
barrera protectora que minimizará el daño potencial de la superficie de la mesa permitiendo así
mantenerse limpia durante más tiempo en caso de derrames accidentales.
Para ayudar a proteger el sellador, use portavasos y manteles individuales cuando coma. Los
portavasos ayudarán a absorber la humedad de los recipientes con bebidas y a prevenir las marcas
que los recipientes calientes tales como tarros pueden dejar. Los manteles individuales captarán
derrames e impedirán que los platos rayen el sellador si se arrastran por la superficie de la mesa.
Use salvamanteles o almohadillas para recipientes calientes entre los platos y la superficie de la
mesa para minimizar la transferencia rápida de calor. La superficie de la mesa puede extraer
rápido el calor de un plato caliente y quebrar potencialmente el plato. Cubra el juego de comedor
con una funda para muebles de exteriores cuando no lo use.
Importado por: Importadora Primex S.A. de C.V. Blvd., Magnocentro No. 4,
San Fernando La Herradura, Huixquilucan, Estado de México, C.P. 52765,
RFC: IPR-930907-S70, Tel: [phone], www.costco.com.mx
Para obtener información adicional y más detallada acerca de los cuidados para las superficies de
mesa de cerámica (arcilla) y de porcelana, sellando la superficie de mesa, o la reparación de
daños, por favor visite nuestro sitio web en www.agio-usa.com/claycare o
www.agio-usa.com/porcelaincare o llame a nuestro
Centro de Servicio al Cliente en los Estados Unidos y Canadá al teléfono 1-888-383-1932.
(TELÉFONO Y SERVICIOS NO VÁLIDOS EN MÉXICO)
6

A1ZZT00712
*NOTE:PARTSSHOWNONPARTSLISTARENOTTOSCALE.
* NOTE : LES PIÈCES ILLUSTRÉES NE SONT PAS À L'ÉCHELLE.
*NOTA: LAS PIEZAS MOSTRADAS EN LA LISTA DE PARTES NO ESTÁN A ESCALA.
FURNITURE COVER
HOUSSE DE PROTECTION
CUBIERTA DE LOS MUEBLES
QTY
QTÉ
CANT
PARTS LIST
LISTA DE PARTES
LISTE DES PIÈCES
DESCRIPTION
DESCRIPTION
DESCRIPCIÓN
ORDER PART #
# PARTE PARA ORDENAR
COMMANDER LA PIÈCE N°
7
*The furniture cover (A) is designed to protect your investment from the elements and will repel water. Please note the cover is not 100% waterproof and moisture may seep in if allowed to collect.
*La housse de protection (A) est conçue pour protéger le mobilier et repoussera l'eau. Il faut toutefois noter qu'elle n'est pas entièrement imperméable et que de l'humidité pourrait suinter si on laisse l'eau s'accumuler.
*La cubierta de los muebles (A) está diseñada para proteger su inversión de la intemperie y repelerá el agua. Observe que la cubierta no es 100% a prueba de agua y la humedad se puede filtrar si se deja acumular
12
3
A

8
Costco Wholesale UK Ltd /
Costco Online UK Ltd
Hartspring Lane
Watford, Herts
WD25 8JS
United Kingdom
01923 213113
www.costco.co.uk
Costco Wholesale Spain S.L.U.
Polígono Empresarial Los Gavilanes
C/ Agustín de Betancourt, 17
28906 Getafe (Madrid) España
NIF: B86509460
900 111 155
www.costco.es
Costco Wholesale Japan Ltd.
3-1-4 Ikegami-Shincho
Kawasaki-ku, Kawasaki-shi,
Kanagawa 210-0832 Japan
0570-032600
www.costco.co.jp
Costco Wholesale Korea, Ltd.
40, Iljik-ro
Gwangmyeong-si
Gyeonggi-do, 14347, Korea
1899-9900
www.costco.co.kr
Distributed by:
Costco Wholesale Corporation
P.O. Box 34535
Seattle, WA 98124-1535
USA
1-800-774-2678
www.costco.com
Costco Wholesale Canada Ltd.*
415 W. Hunt Club Road
Ottawa, Ontario
K2E 1C5, Canada
1-800-463-3783
www.costco.ca
* faisant affaire au Québec sous le
nom les Entrepôts Costco
Costco Wholesale Iceland ehf.
Kauptún 3-7, 210 Gardabaer
Iceland
www.costco.is
Costco President Taiwan, Inc.
No. 656 Chung-Hwa 5th Road
Kaohsiung, Taiwan
Company Tax ID: 96972798
449-9909 or 02-449-9909 (if cellphone)
www.costco.com.tw
Costco France
1 avenue de Bréhat
91140 Villebon-sur-Yvette
France
01 80 45 01 10
www.costco.fr
Costco Wholesale Australia Pty Ltd
17-21 Parramatta Road
Lidcombe NSW 2141
Australia
www.costco.com.au
Importado por:
Importadora Primex S.A. de C.V.
Blvd. Magnocentro No. 4
San Fernando La Herradura
Huixquilucan, Estado de México
C.P. 52765
RFC: IPR-930907-S70
(55)-5246-5500
www.costco.com.mx
Shanghai Minhang Costco Trading Co., Ltd
No.235 ZhuJian Road
Minhang District, Shanghai
China 201106
[phone]
