Agio AGQ08134 User manual

AGQ08129
Page 2
IMPORTANT!! PLEASE READ ENTIRE INSTRUCTION SHEET BEFORE ASSEMBLY!!
TO EXPEDITE ANY FUTURE WARRANTY CLAIMS, PLEASE KEEP INSTRUCTION SHEET, WARRANTY CARD AND RECEIPT
Step 1:
Do not attempt to assemble the chair if
any parts are damaged or missing.
IMPORTANT NOTE: This item is to be used with and assembled to item .
Step 2:
Hand tighten only.
Do not over tighten.
Step 3:
IMPORTANT NOTE: Damage to welds or frames resulting from over tightened bolts or improper assembly is not
covered under our warranty. Please read all instructions carefully before assembly. If you have any questions
regarding your assembly, call our Customer Service Center at 1-800-416-3511.
Identify all parts packed in carton against the parts list. Remove all protective materials. Place parts on a
non-abrasive surface to avoid scratching. If you are missing any parts or are unsure how to proceed with assembly,
please call our Customer Service Center immediately at 1-800-416-3511.
Position items A 08 and A 08 3 as shown in diagram. Using bolts and washers as shown,
join items by attaching metal plate to the cross bars of the seat. Guide the bolts through the holes in the metal plates
and into the pre-drilled holes in the seat cross bar of chair. After making any necessary
adjustments to the alignment of all parts (items), tighten bolts. Tighten bolts a few revolutions at a time, alternating
between bolt joints until all bolts are tight.
Your sectional seating set is now ready for use. If you have any questions, please call our Customer Service Center
at 1-800-416-3511
,
.
AGQ08134&AGQ08133
AGQ08134 GQ 129 GQ 1 3
*NOTE:PARTSSHOWNONPARTSLISTARENOTTOSCALE
FC0030
CHAIR FRAME 1
A
B
C
D
E
F
1/4" X 18 MM BOLT
Ø6.5 X 1.0 MM
WASHER
PART LIST DESCRIPTION ORDER PART # QTY
HEX BOLT DRIVER HW0006
HW0004
1
FOOT CAP
FACTORY ASSEMBLY
HW0035 4
4
2
METAL PLATE
4
BOLT COVER HW0105
F
FOOT CAP
AGQ08133
AGQ08134
C
HW0743
B
AK0763
D
A

ACOV018
Page 1
CARE AND MAINTENANCE
LIMITED WARRANTY
FRAMES
FABRICS (CUSHIONS/SLINGS)
STRAPS
Frames.
Finishes.
Fabrics.
Straps and/or wicker.
Umbrellas
Table tops
Warranty limitations:
Warranty exclusions:
Some states do not allow exclusion or limitation of incidental or consequential damages, so that limitation above may not apply
to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Cleaning
Maintenance
Cleaning -
Maintenance
Cleaning -
Maintenance -
- Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and
dry thoroughly.
- Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. To thoroughly drain
frames, remove foot caps and tilt the frames, if necessary, to remove all water. This is critical. Water allowed to accumulate inside the
frames and then exposed to sub-freezing temperatures can cause damage to the frame tubing. Such damage is not covered under
warranty. Always clean, drain and dry thoroughly before storing for the winter. For best results, always store or cover your furniture
when not in use. We recommend commercially available outdoor furniture covers. Any small nicks or scratches can be covered with a
light application of touch-up paint.
** When cleaning or moving large or heavy items, always have two people work together. Never drag furniture.
Wipe minor spills immediately. Clean with mild soap, warm clean water and soft cloth. Do not use abrasive materials,
cleansers or bleach products. Although fabric has been treated to resist stains, occasional use of commercially available fabric cleaners
may be necessary. Follow manufacturer's instructions.
- The best way to maintain the beauty of cushions and slings is to store them in a dry area and out of the elements when
not in use or cover with commercially available outdoor furniture covers.
Wash frequently with mild soap, warm water and a soft cloth. Rinse thoroughly with warm, clean water. Do not use
abrasive materials, cleansers or bleach products.
Periodic application of commercially available vinyl cleaners and vinyl protectors will enhance the look and prolong the
life of straps. If your strap chair has cushions, make sure any vinyl protectors applied are completely dry before placing cushion back
on the chair.
Frame construction is warranted against defects in material and workmanship for seven years from purchase date.
Damage to frames or welds resulting from improper assembly or exposure to water and/or sub-freezing temperatures is not
covered.
Paint finishes are warranted against peeling, cracking and blistering for one year from purchase date provided the unit
has not been scratched or abraded. Chips and scratches resulting from normal wear and tear are not covered.
Fabric and cushions (if applicable) are warranted against separation at the seams for one year from purchase date.
Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or any other cause is not
covered.
Straps and/or wicker weave (if applicable) are warranted against separation and tearing for one year
from purchase date. Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or any
other cause is not covered.
. Umbrellas (if applicable) are warranted against defects in material and workmanship only for one year from
purchase date. Umbrella bases (if applicable) are not covered under any circumstance.
. Natural stone tabletops only are warranted against defects in materials or workmanship only for one year from
purchase date. All other table tops (including without limitation glass and faux stone) are not covered under any circumstances.
This warranty is subject to the limitations set forth above. In addition, this warranty is made to the original
purchaser only, and is effective only when item(s) is purchased from one of our authorized dealers. This warranty is not transferable.
For warranty replacements based on warranty claims submitted within the first year of purchase, we will pay shipping and handling
charges within the continental North America. After the first year, shipping and handling charges are your responsibility. We will not
be responsible for charges associated with shipments outside the continental North America at any time or for any reason.
This warranty is subject to the exclusions as set forth above. In addition, the following are excluded from
coverage under this warranty: any item used for commercial, contract or any other non-residential purpose; clearance items, display
models or items purchased "as is"; freight damage; items subject to misuse, abuse, neglect or lack of proper care and maintenance
(including without limitation as provided in any "care and maintenance guide"); normal wear and tear; damage caused by acts of
nature, acts of force majeure, vandalism, fire or other casualty, or improper assembly; hardware against corrosion or rusting; purchased
or replacement parts; and all plastic parts. Also excluded are loss of use or time; inconvenience; money; travel; packaging; or
incidental, special or consequential damages of any kind. Replacement of defective items as provided herein shall constitute your sole
and exclusive remedy for items which are not as warranted. In no event shall our responsibility exceed the purchase price of the items
found to be other than as warranted. This warranty is the exclusive statement of your rights with respect to the defects in the items you
have purchased and supersedes any other express warranty or statement, written or oral, made in connection with the purchase and sale
of such items. When used herein, the term "item" when used in the singular, refers to the specific item found to be defective, and not to
the entire set of which the item is a part.
·
·
·
·
·
·
AGIO INTERNATIONAL COMPANY LTD.
SHUNDE SHIAN FURNITURE INDUSTRIES CO. LTD.
PATIO FURNITURE & ACCESSORIES
ASSEMBLY INSTRUCTIONS
1-800-416-3511
STOP - IMPORTANT
If you have any problems with this product (missing or damaged parts,
assembly issues), please
where you purchased the product. Call our Customer Service Hotline at:
Between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday
Or visit our website at: www.agio-usa.com
DO NOT RETURN TO THE RETAILER/STORE
To expedite any future warranty claims, retain the instruction sheet, warranty
card, and receipt for future use. you are encouraged to register your purchase
on our website at www.agio-usa.com
For additional online video support on assembly, troubleshooting, and care
and maintenance of your outdoor furniture, please visit our website at:
www.agio-usa.com/support

AGQ08133
Page 2
IMPORTANT!! PLEASE READ ENTIRE INSTRUCTION SHEET BEFORE ASSEMBLY!!
TO EXPEDITE ANY FUTURE WARRANTY CLAIMS, PLEASE KEEP INSTRUCTION SHEET, WARRANTY CARD AND RECEIPT
Step 1:
Do not attempt to assemble the chair if
any parts are damaged or missing.
IMPORTANT NOTE: This item is to be used with and assembled to item 29(or 4).
Step 2:
Hand tighten only.
Do not over tighten.
Step 3:
IMPORTANT NOTE: Damage to welds or frames resulting from over tightened bolts or improper assembly is not
covered under our warranty. Please read all instructions carefully before assembly. If you have any questions
regarding your assembly, call our Customer Service Center at 1-800-416-3511.
Identify all parts packed in carton against the parts list. Remove all protective materials. Place parts on a
non-abrasive surface to avoid scratching. If you are missing any parts or are unsure how to proceed with assembly,
please call our Customer Service Center immediately at 1-800-416-3511.
Position items 3 and A 08 29 as shown in diagram. Using bolts and washers as shown, join items by
attaching metal plate to the cross bars of the seat. Guide the bolts through the holes in the metal plates and into the
pre-drilled holes in the seat cross bar of chair. After making any necessary adjustments to the
alignment of all parts (items), tighten bolts. Tighten bolts a few revolutions at a time, alternating between bolt
joints until all bolts are tight.
Your sectional seating set is now ready for use. If you have any questions, please call our Customer Service Center
at 1-800-416-3511
AGQ081 AGQ0813
AGQ0813 GQ 1
*NOTE:PARTSSHOWNONPARTSLISTARENOTTOSCALE
FC0030
CHAIR FRAME 1
A
B
C
D
E
F
1/4" X 18 MM BOLT
Ø6.5 X 1.0 MM
WASHER
PART LIST DESCRIPTION ORDER PART # QTY
HEX BOLT DRIVER HW0006
HW0004
1
FOOT CAP
FACTORY ASSEMBLY
HW0035 2
2
1
METAL PLATE
2
BOLT COVER HW0105
B
F
FOOT CAP
AGQ08134 AGQ08129
AGQ08133
AGQ08129
C
AK0766
HW0743
D
A

ACOV018
Page 1
CARE AND MAINTENANCE
LIMITED WARRANTY
FRAMES
FABRICS (CUSHIONS/SLINGS)
STRAPS
Frames.
Finishes.
Fabrics.
Straps and/or wicker.
Umbrellas
Table tops
Warranty limitations:
Warranty exclusions:
Some states do not allow exclusion or limitation of incidental or consequential damages, so that limitation above may not apply
to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Cleaning
Maintenance
Cleaning -
Maintenance
Cleaning -
Maintenance -
- Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and
dry thoroughly.
- Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. To thoroughly drain
frames, remove foot caps and tilt the frames, if necessary, to remove all water. This is critical. Water allowed to accumulate inside the
frames and then exposed to sub-freezing temperatures can cause damage to the frame tubing. Such damage is not covered under
warranty. Always clean, drain and dry thoroughly before storing for the winter. For best results, always store or cover your furniture
when not in use. We recommend commercially available outdoor furniture covers. Any small nicks or scratches can be covered with a
light application of touch-up paint.
** When cleaning or moving large or heavy items, always have two people work together. Never drag furniture.
Wipe minor spills immediately. Clean with mild soap, warm clean water and soft cloth. Do not use abrasive materials,
cleansers or bleach products. Although fabric has been treated to resist stains, occasional use of commercially available fabric cleaners
may be necessary. Follow manufacturer's instructions.
- The best way to maintain the beauty of cushions and slings is to store them in a dry area and out of the elements when
not in use or cover with commercially available outdoor furniture covers.
Wash frequently with mild soap, warm water and a soft cloth. Rinse thoroughly with warm, clean water. Do not use
abrasive materials, cleansers or bleach products.
Periodic application of commercially available vinyl cleaners and vinyl protectors will enhance the look and prolong the
life of straps. If your strap chair has cushions, make sure any vinyl protectors applied are completely dry before placing cushion back
on the chair.
Frame construction is warranted against defects in material and workmanship for seven years from purchase date.
Damage to frames or welds resulting from improper assembly or exposure to water and/or sub-freezing temperatures is not
covered.
Paint finishes are warranted against peeling, cracking and blistering for one year from purchase date provided the unit
has not been scratched or abraded. Chips and scratches resulting from normal wear and tear are not covered.
Fabric and cushions (if applicable) are warranted against separation at the seams for one year from purchase date.
Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or any other cause is not
covered.
Straps and/or wicker weave (if applicable) are warranted against separation and tearing for one year
from purchase date. Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or any
other cause is not covered.
. Umbrellas (if applicable) are warranted against defects in material and workmanship only for one year from
purchase date. Umbrella bases (if applicable) are not covered under any circumstance.
. Natural stone tabletops only are warranted against defects in materials or workmanship only for one year from
purchase date. All other table tops (including without limitation glass and faux stone) are not covered under any circumstances.
This warranty is subject to the limitations set forth above. In addition, this warranty is made to the original
purchaser only, and is effective only when item(s) is purchased from one of our authorized dealers. This warranty is not transferable.
For warranty replacements based on warranty claims submitted within the first year of purchase, we will pay shipping and handling
charges within the continental North America. After the first year, shipping and handling charges are your responsibility. We will not
be responsible for charges associated with shipments outside the continental North America at any time or for any reason.
This warranty is subject to the exclusions as set forth above. In addition, the following are excluded from
coverage under this warranty: any item used for commercial, contract or any other non-residential purpose; clearance items, display
models or items purchased "as is"; freight damage; items subject to misuse, abuse, neglect or lack of proper care and maintenance
(including without limitation as provided in any "care and maintenance guide"); normal wear and tear; damage caused by acts of
nature, acts of force majeure, vandalism, fire or other casualty, or improper assembly; hardware against corrosion or rusting; purchased
or replacement parts; and all plastic parts. Also excluded are loss of use or time; inconvenience; money; travel; packaging; or
incidental, special or consequential damages of any kind. Replacement of defective items as provided herein shall constitute your sole
and exclusive remedy for items which are not as warranted. In no event shall our responsibility exceed the purchase price of the items
found to be other than as warranted. This warranty is the exclusive statement of your rights with respect to the defects in the items you
have purchased and supersedes any other express warranty or statement, written or oral, made in connection with the purchase and sale
of such items. When used herein, the term "item" when used in the singular, refers to the specific item found to be defective, and not to
the entire set of which the item is a part.
·
·
·
·
·
·
AGIO INTERNATIONAL COMPANY LTD.
SHUNDE SHIAN FURNITURE INDUSTRIES CO. LTD.
PATIO FURNITURE & ACCESSORIES
ASSEMBLY INSTRUCTIONS
1-800-416-3511
STOP - IMPORTANT
If you have any problems with this product (missing or damaged parts,
assembly issues), please
where you purchased the product. Call our Customer Service Hotline at:
Between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday
Or visit our website at: www.agio-usa.com
DO NOT RETURN TO THE RETAILER/STORE
To expedite any future warranty claims, retain the instruction sheet, warranty
card, and receipt for future use. you are encouraged to register your purchase
on our website at www.agio-usa.com
For additional online video support on assembly, troubleshooting, and care
and maintenance of your outdoor furniture, please visit our website at:
www.agio-usa.com/support

AGQ08134
Page 2
IMPORTANT!! PLEASE READ ENTIRE INSTRUCTION SHEET BEFORE ASSEMBLY!!
TO EXPEDITE ANY FUTURE WARRANTY CLAIMS, PLEASE KEEP INSTRUCTION SHEET, WARRANTY CARD AND RECEIPT
Step 1:
Do not attempt to assemble the chair if
any parts are damaged or missing.
IMPORTANT NOTE: This item is to be used with and assembled to item 29(or ).
Step 2:
Hand tighten only.
Do not over tighten.
Step 3:
IMPORTANT NOTE: Damage to welds or frames resulting from over tightened bolts or improper assembly is not
covered under our warranty. Please read all instructions carefully before assembly. If you have any questions
regarding your assembly, call our Customer Service Center at 1-800-416-3511.
Identify all parts packed in carton against the parts list. Remove all protective materials. Place parts on a
non-abrasive surface to avoid scratching. If you are missing any parts or are unsure how to proceed with assembly,
please call our Customer Service Center immediately at 1-800-416-3511.
Position items and A 08 29 as shown in diagram. Using bolts and washers as shown, join items by
attaching metal plate to the cross bars of the seat. Guide the bolts through the holes in the metal plates and into the
pre-drilled holes in the seat cross bar of chair. After making any necessary adjustments to the
alignment of all parts (items), tighten bolts. Tighten bolts a few revolutions at a time, alternating between bolt
joints until all bolts are tight.
Your sectional seating set is now ready for use. If you have any questions, please call our Customer Service Center
at 1-800-416-3511
AGQ081 AGQ08133
AGQ08134 GQ 1
*NOTE:PARTSSHOWNONPARTSLISTARENOTTOSCALE
FC0030
CHAIR FRAME 1
A
B
C
D
E
F
1/4" X 18 MM BOLT
Ø6.5 X 1.0 MM
WASHER
PART LIST DESCRIPTION ORDER PART # QTY
HEX BOLT DRIVER HW0006
HW0004
1
FOOT CAP
FACTORY ASSEMBLY
HW0035 2
2
1
METAL PLATE
2
BOLT COVER HW0105
B
FFOOT CAP AGQ08134 AGQ08129
AGQ08133
AGQ08129
C
AK0769
HW0743
D
A

ACOV018
Page 1
CARE AND MAINTENANCE
LIMITED WARRANTY
FRAMES
FABRICS (CUSHIONS/SLINGS)
STRAPS
Frames.
Finishes.
Fabrics.
Straps and/or wicker.
Umbrellas
Table tops
Warranty limitations:
Warranty exclusions:
Some states do not allow exclusion or limitation of incidental or consequential damages, so that limitation above may not apply
to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Cleaning
Maintenance
Cleaning -
Maintenance
Cleaning -
Maintenance -
- Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and
dry thoroughly.
- Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. To thoroughly drain
frames, remove foot caps and tilt the frames, if necessary, to remove all water. This is critical. Water allowed to accumulate inside the
frames and then exposed to sub-freezing temperatures can cause damage to the frame tubing. Such damage is not covered under
warranty. Always clean, drain and dry thoroughly before storing for the winter. For best results, always store or cover your furniture
when not in use. We recommend commercially available outdoor furniture covers. Any small nicks or scratches can be covered with a
light application of touch-up paint.
** When cleaning or moving large or heavy items, always have two people work together. Never drag furniture.
Wipe minor spills immediately. Clean with mild soap, warm clean water and soft cloth. Do not use abrasive materials,
cleansers or bleach products. Although fabric has been treated to resist stains, occasional use of commercially available fabric cleaners
may be necessary. Follow manufacturer's instructions.
- The best way to maintain the beauty of cushions and slings is to store them in a dry area and out of the elements when
not in use or cover with commercially available outdoor furniture covers.
Wash frequently with mild soap, warm water and a soft cloth. Rinse thoroughly with warm, clean water. Do not use
abrasive materials, cleansers or bleach products.
Periodic application of commercially available vinyl cleaners and vinyl protectors will enhance the look and prolong the
life of straps. If your strap chair has cushions, make sure any vinyl protectors applied are completely dry before placing cushion back
on the chair.
Frame construction is warranted against defects in material and workmanship for seven years from purchase date.
Damage to frames or welds resulting from improper assembly or exposure to water and/or sub-freezing temperatures is not
covered.
Paint finishes are warranted against peeling, cracking and blistering for one year from purchase date provided the unit
has not been scratched or abraded. Chips and scratches resulting from normal wear and tear are not covered.
Fabric and cushions (if applicable) are warranted against separation at the seams for one year from purchase date.
Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or any other cause is not
covered.
Straps and/or wicker weave (if applicable) are warranted against separation and tearing for one year
from purchase date. Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or any
other cause is not covered.
. Umbrellas (if applicable) are warranted against defects in material and workmanship only for one year from
purchase date. Umbrella bases (if applicable) are not covered under any circumstance.
. Natural stone tabletops only are warranted against defects in materials or workmanship only for one year from
purchase date. All other table tops (including without limitation glass and faux stone) are not covered under any circumstances.
This warranty is subject to the limitations set forth above. In addition, this warranty is made to the original
purchaser only, and is effective only when item(s) is purchased from one of our authorized dealers. This warranty is not transferable.
For warranty replacements based on warranty claims submitted within the first year of purchase, we will pay shipping and handling
charges within the continental North America. After the first year, shipping and handling charges are your responsibility. We will not
be responsible for charges associated with shipments outside the continental North America at any time or for any reason.
This warranty is subject to the exclusions as set forth above. In addition, the following are excluded from
coverage under this warranty: any item used for commercial, contract or any other non-residential purpose; clearance items, display
models or items purchased "as is"; freight damage; items subject to misuse, abuse, neglect or lack of proper care and maintenance
(including without limitation as provided in any "care and maintenance guide"); normal wear and tear; damage caused by acts of
nature, acts of force majeure, vandalism, fire or other casualty, or improper assembly; hardware against corrosion or rusting; purchased
or replacement parts; and all plastic parts. Also excluded are loss of use or time; inconvenience; money; travel; packaging; or
incidental, special or consequential damages of any kind. Replacement of defective items as provided herein shall constitute your sole
and exclusive remedy for items which are not as warranted. In no event shall our responsibility exceed the purchase price of the items
found to be other than as warranted. This warranty is the exclusive statement of your rights with respect to the defects in the items you
have purchased and supersedes any other express warranty or statement, written or oral, made in connection with the purchase and sale
of such items. When used herein, the term "item" when used in the singular, refers to the specific item found to be defective, and not to
the entire set of which the item is a part.
·
·
·
·
·
·
AGIO INTERNATIONAL COMPANY LTD.
SHUNDE SHIAN FURNITURE INDUSTRIES CO. LTD.
PATIO FURNITURE & ACCESSORIES
ASSEMBLY INSTRUCTIONS
1-800-416-3511
STOP - IMPORTANT
If you have any problems with this product (missing or damaged parts,
assembly issues), please
where you purchased the product. Call our Customer Service Hotline at:
Between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday
Or visit our website at: www.agio-usa.com
DO NOT RETURN TO THE RETAILER/STORE
To expedite any future warranty claims, retain the instruction sheet, warranty
card, and receipt for future use. you are encouraged to register your purchase
on our website at www.agio-usa.com
For additional online video support on assembly, troubleshooting, and care
and maintenance of your outdoor furniture, please visit our website at:
www.agio-usa.com/support

AGIO INTERNATIONAL COMPANY LTD.
SHUNDE SHIAN FURNITURE INDUSTRIES CO. LTD.
PATIO FURNITURE & ACCESSORIES
ASSEMBLY INSTRUCTIONS
STOP - IMPORTANT
If you have any problems with this product (missing or damaged
parts, assembly issues), please
DO NOT RETURN TO THE RETAILER/STORE
where you purchased the product. Call our Customer Service
Hotline at:
1-800-416-3511
Between 9:00 AM and 5:00 PM Eastern Time, Monday through
Friday
Or visit our website at: www.agio-usa.com
To expedite any future warranty claims, retain the instruction sheet,
warranty card, and receipt for future use. you are encouraged to
register your purchase on our website at www.agio-usa.com
For additional online video support on assembly, troubleshooting,
and care and maintenance of your outdoor furniture, please visit our
website at: www.agio-usa.com/support

ASSEMBLY INSTRUCTIONS
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
WARNING:
USE FACTORYAPPROVED
REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE
OF UNAPPROVED PART OR
ACCESSORIES CAN VOID
THE WARRANTY ON THIS
PRODUCTAND RESULT IN
AHAZARDOUS CONDITION.
PLEASE CONTACT US FOR
INFORMATION REGARDING
REPLACEMNT
HOSES,THERMOCOUPLES,
ELECTRODES,IGNITION
MODULES,LAVAROCKS,LO
GS, FIRE ICE, ETC.
WARNING:
Improper installation, adjustment alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
FOR USE WITH 20LB (9KG) PROPANE
CYLINDER WITH TYPE 1 CONNECTION OR FOR
USE WITH NATURAL GAS AFTER CONVERSION
KIT IS INSTALLED (MUST BE PROFESSIONALLY
INSTALLED) ALSO THE LP REGULATOR MUST
BE SUPPLIED BY THE MANUFACTURER.
Aug-14-2013
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for future reference.
WARNING: For Outdoor Use Only
Questions, Problems, Missing Parts? Before returning to
your retailer, call our customer service department in the
US and Canada at 1-800-416-3511, Monday-Friday, 9 a.m.–
5 p.m.Eastern Time.
Thi
s app
li
ance can pro
d
uce car
b
on
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
DANGER CARBON MONOXIDE HAZARD
CSA Model98900 ARQ03400
1

TABLE OF CONTENTS
Important Safety Information 3
Information about Propane 4
Specifications 4

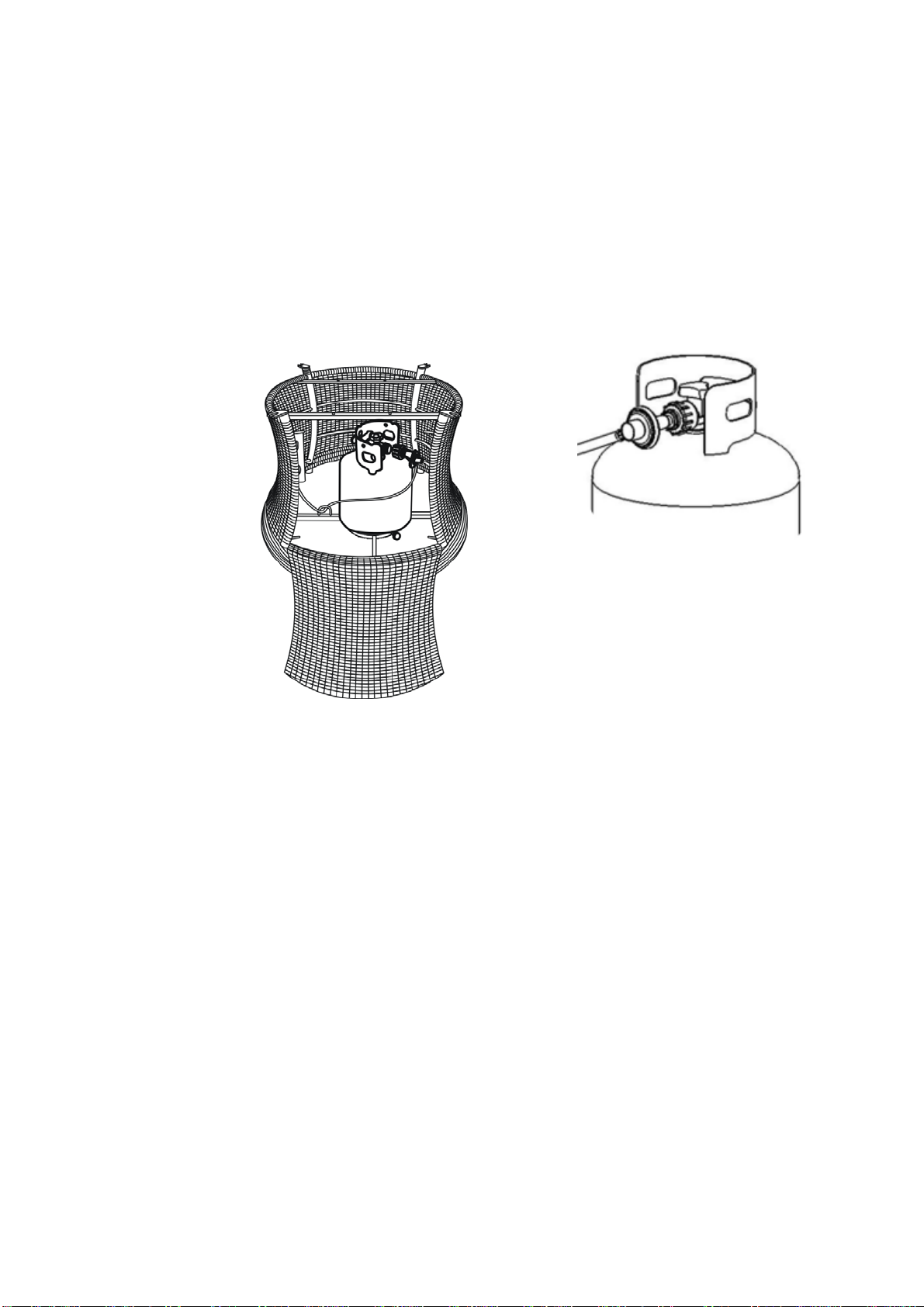

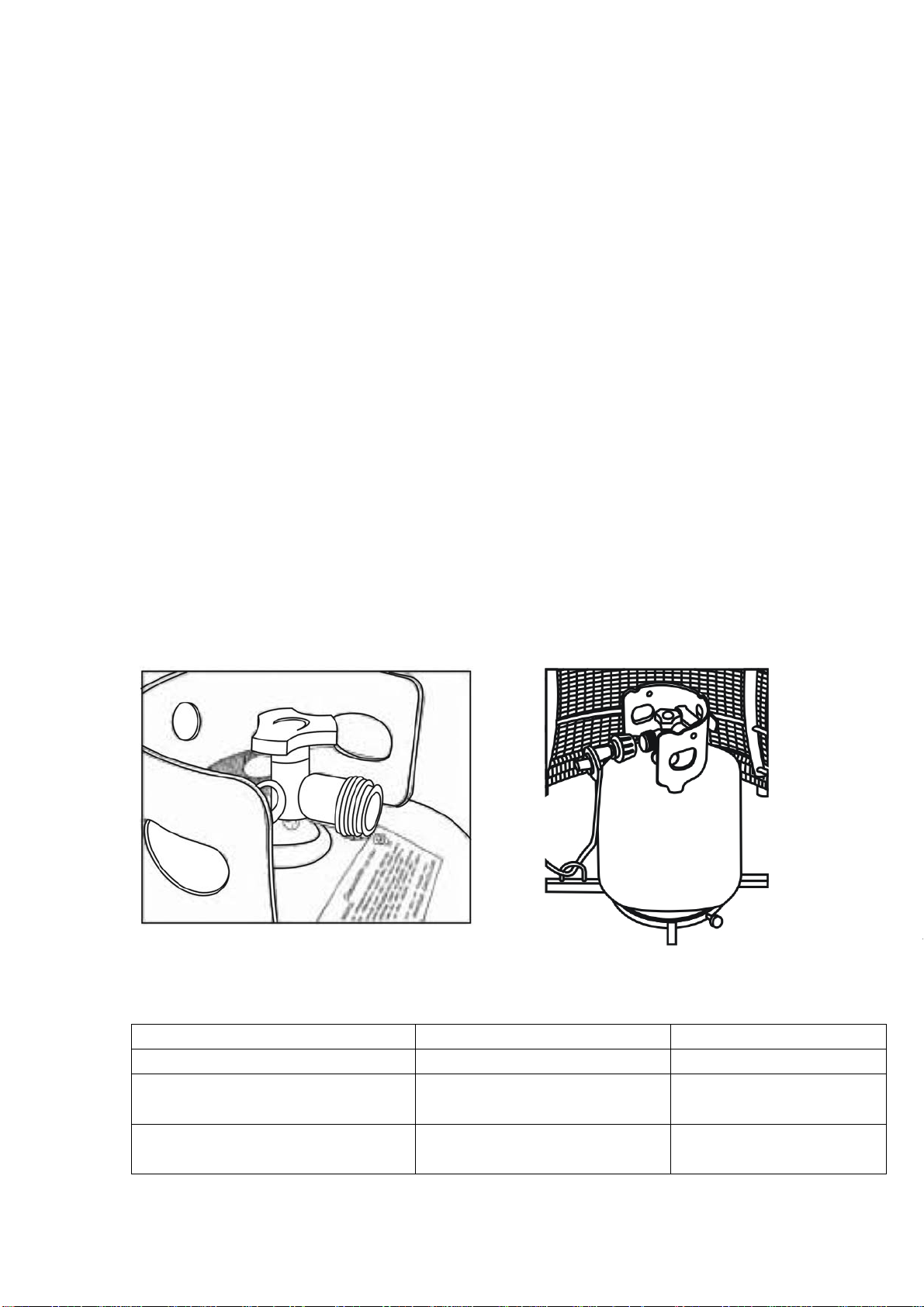

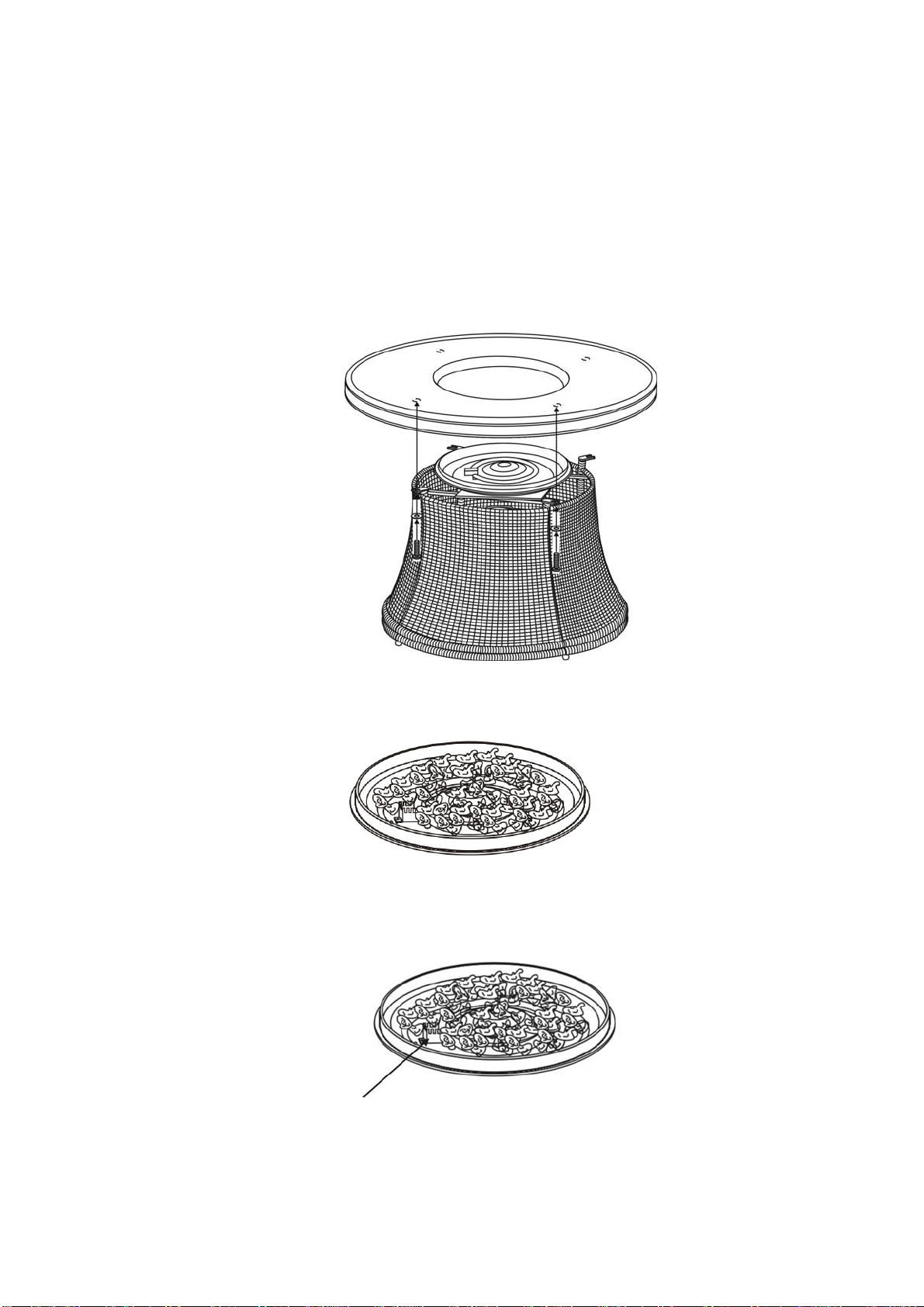

Installation 5

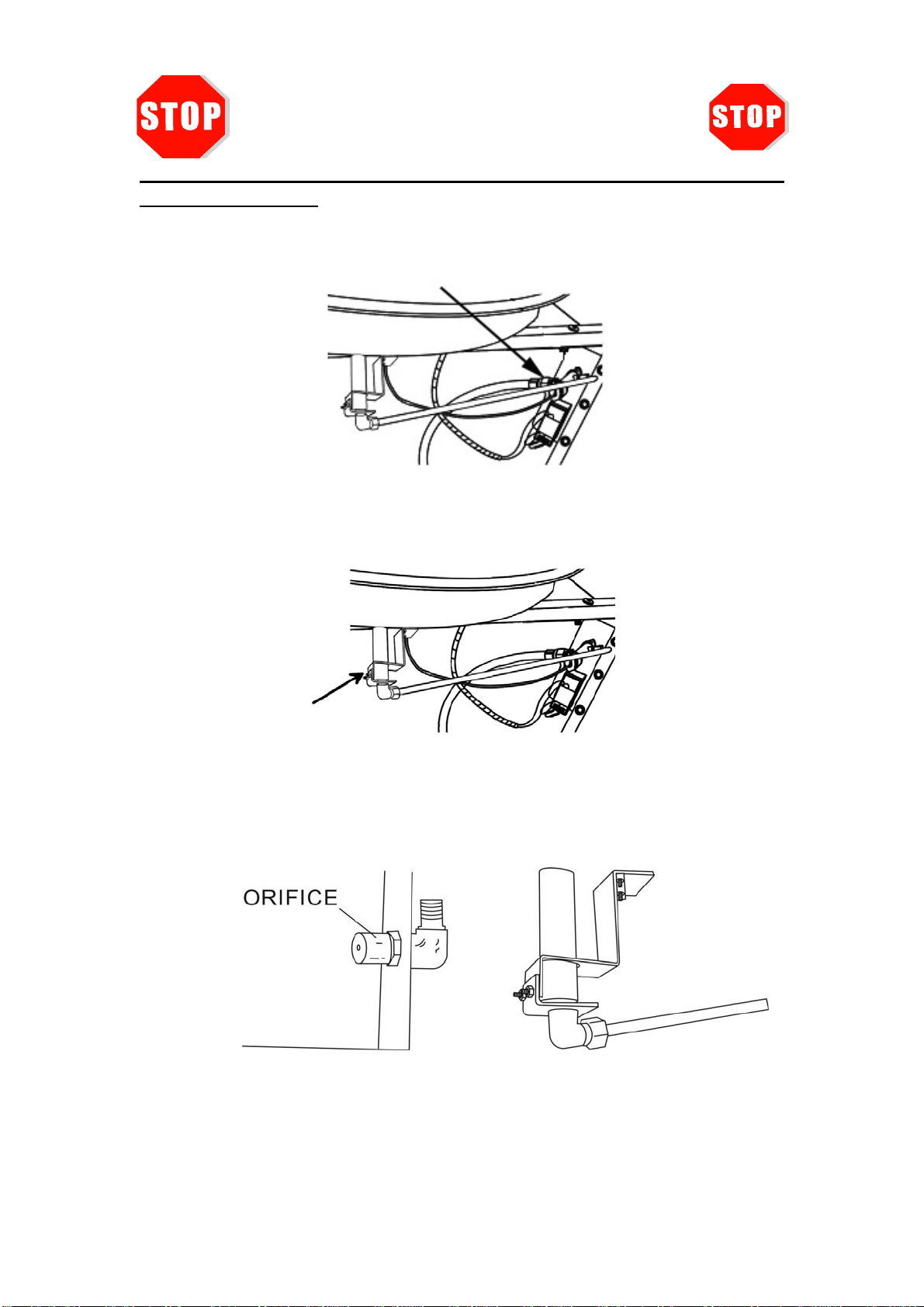

Natural Gas Conversion 7

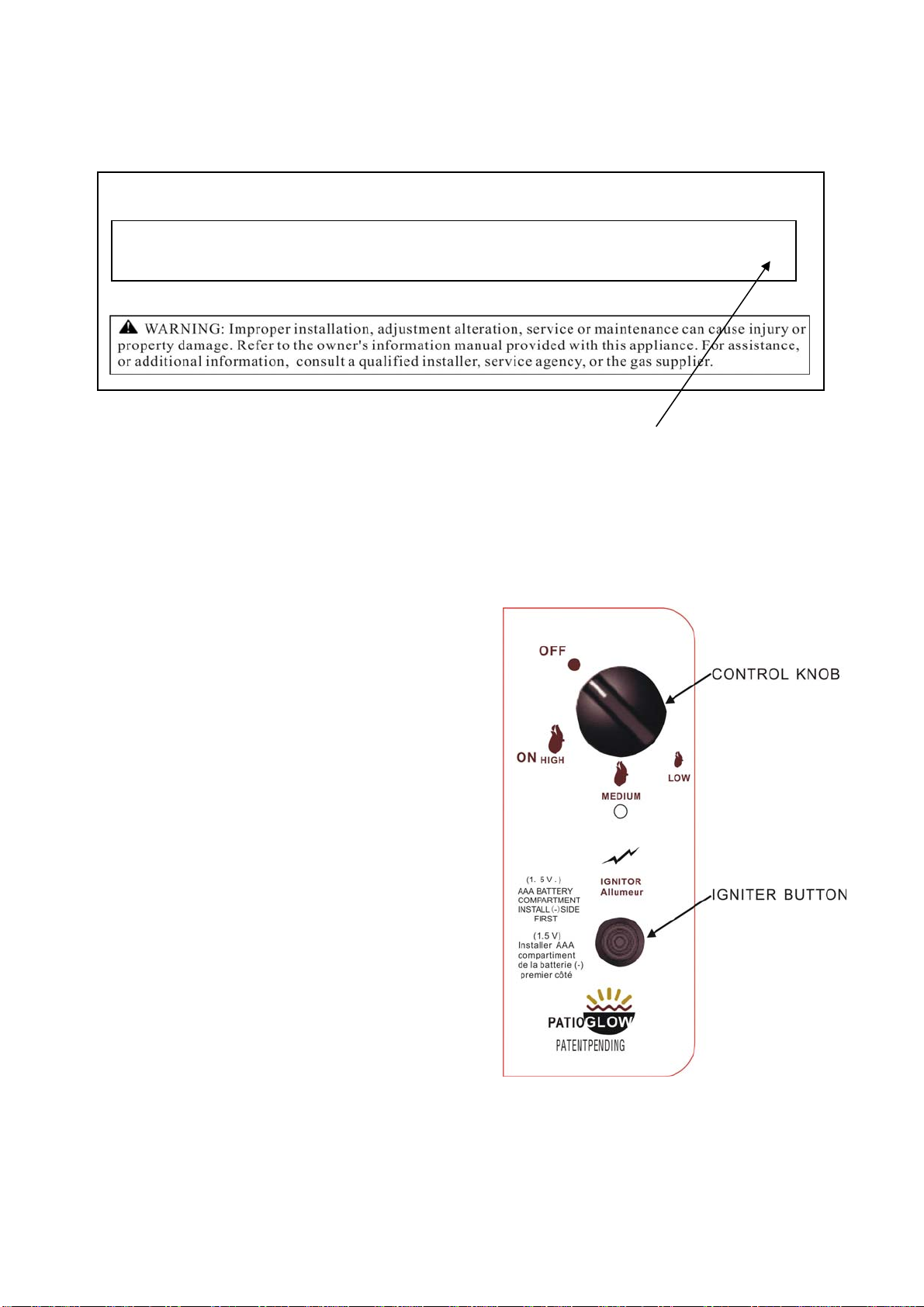

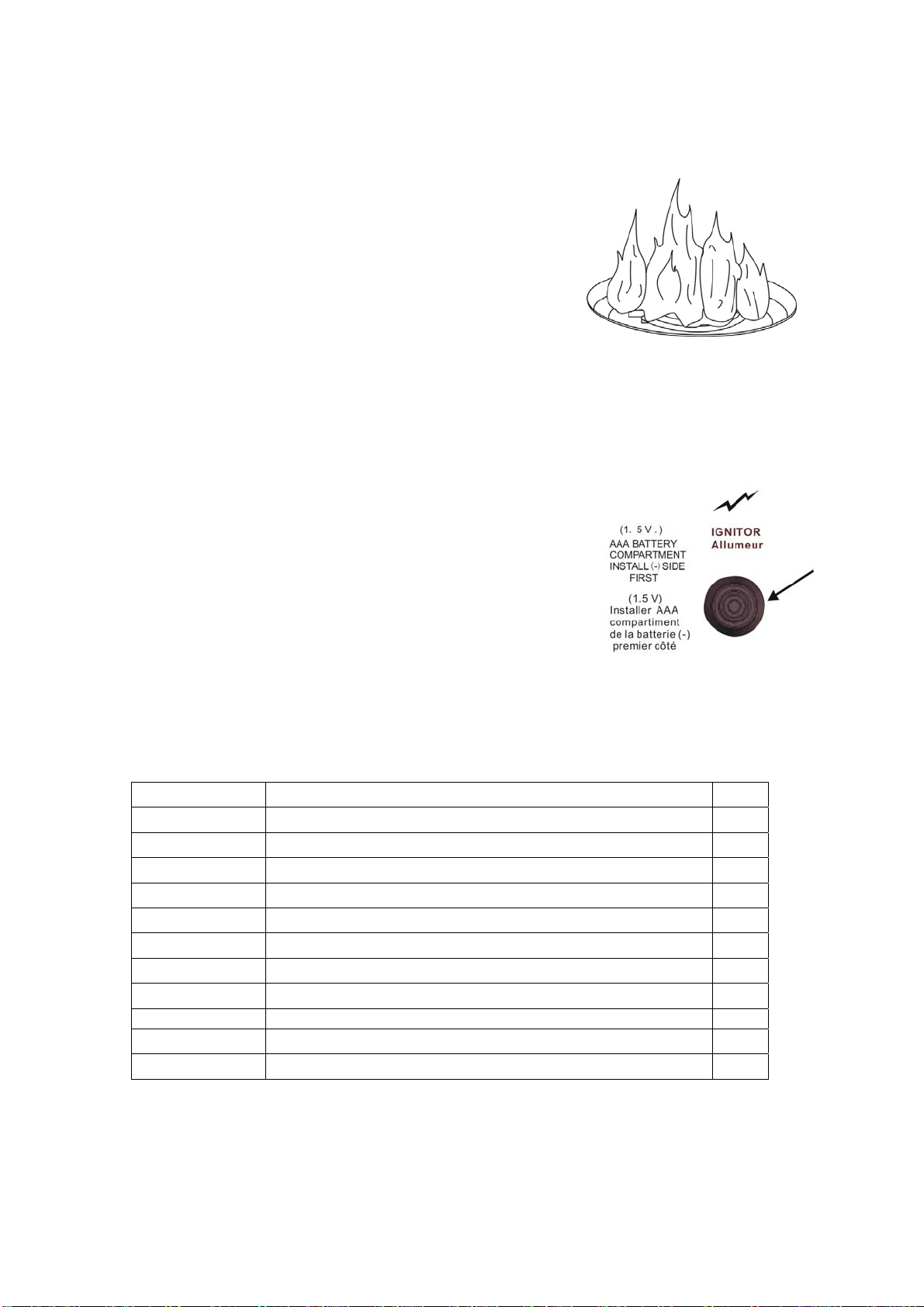

Lighting Instructions 8
Maintenance 9
Batteries 9
Parts List 9
Warranty 10
2

IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of local codes,
with the National Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel
Gas Code. ; Natural Gas and Propane Installation Code, CSA B149.1; or
Propane Storage and Handling Code, B149.2, as applicable.
The appliance and its appliance main gas valve must be disconnected from
the gas supply piping system during any pressure testing of that system at test
pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing
its equipment shutoff valve during any pressure testing of the gas supply
system at test pressure equal to or less than 1/2 psi (3.5kPa).
The appliance area must be kept clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
Do not use this appliance if any part has been under water. Immediately call a
qualified service technician to inspect the appliance and to replace any part of
the control system and any gas control which has been under water.
Children and adults should be alerted to the hazards of high surface
temperatures and kept at a safe distance to avoid burns or clothing
ignition.
Young children should be carefully supervised when they are anywhere
near the appliance.
Clothing or other flammable material should not be hung from the
appliance, or placed on or near the appliance.
Any screen or guard removed for servicing an appliance must be
replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person. The
appliance should be inspected before use and at least annually by a
professional service person. More frequent cleaning may be required as
necessary. It is imperative that the control compartments, burners and
circulating air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
CAUTION: The propane gas pressure regulator provided with this appliance
must be used. This regulator is set for an outlet pressure of 11 inches water
column.
This outdoor gas appliance is not intended to be installed in or on recreational
vehicles and/or boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank
Drawer and inspect the LP Hose. If there is evidence of excessive abrasion or
wear, or the hose is cut, it must be replaced prior to the gas appliance being
put into operation. Use only the replacement hose assembly specified in this
manual. Inspect the burner before each use of the appliance. The burner must
be replaced prior to the appliance being put into operation if it is evident that
the burner is damaged. Use only the burner listed in these instructions.
Keep the fuel supply hose away from any heated surfaces.
3

IMPORTANT SAFETY INFORMATION ABOUT
PROPANE (LP) GAS
A self contained LP-gas cylinder for use with this appliance must have a
capacity of 20 lbs. and must be equipped with a Type 1 connector and an OPD
(overfill protection device). See Figure 1.
The LP-gas supply cylinder to be used must be constructed and marked in
accordance with the specification for LP-gas cylinders of the U.S. Department
of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339,
Cylinder, Sphere and Tubes for the Transportation of Dangerous Goods.
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and
shall not be used in a building, garage or any other enclosed space.
When this appliance is not is use, the gas must be turned off at the supply
cylinder.
Storage of this appliance indoors is permissible only if the cylinder is
disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the
reach of children .Disconnected cylinders must have threaded valve plugs
tightly installed and must not be stored in a building, garage or any other
enclosed areas.
CSA (Canadian Standards Association) certified to ANSI Z21.97•CSA
2.41-2012 “ Outdoor Decorative Gas Appliances”. The gas hose is routed
through a “U” bolt to prevent the hose from coming in contact with the burner.
DO NOT remove the hose from the “U” bolt. See Figure 2.
Figure1 Figure2
SPECIFICATIONS
INPUT 40,000 Btu/hr 30,000 Btu/hr Low fire
Propane Regulator Pressure 11 inches water column
Natural Gas Minimum Inlet
Pressure 7 inches water column
Clearances to combustible
surfaces Sides 24in./61cm Top: 72 in. / 183 cm
4

INSTALLATION
1. Carefully unpack all items from the box. Place the table in its final position.
There must be a minimum of 24 inches of clearance from the side of the
table top to any combustible walls.
2. Place the table top on the base. There are blocks on the underside of the
table top that are used to position the top on the frame. Bolt the top down
with the nuts and washers that are provided. See Figure 3.
Figure 3
3. Pour all of the lava rock into the burner pan. Completely cover the burner
tube with lava rocks as shown in Figure 4.
Figure 4
4. Remove the cardboard cover from the ignition well as shown in Figure 5.
Remove any lava rock or fire ice on top of ignition well.
Figure 5
Cardboard cover
5

5.Take out the door and place the LP tank in the bottom frame. Connect the
regulator as shown in Figure 6. Screw the black handle clock-wise to tighten.
Turn the handle counterclock-wise to remove. The hose must point down.
Open the control door and check that the valve is turned all the way clockwise
to the “OFF” position. Open the tank valve. Apply a solution of soapy water to
the tank-regulator connection and to the valve-hose connection to check for
leaks. If soap bubbles continue to form, the connection has a leak. If a leak is
found, close the tank valve and tighten all connections. NEVER USE A
FLAME TO CHECK FOR LEAKS.
Figure 6
6

NATURAL GAS CONVERSION
Natural gas conversion must be performed only by natural gas provider
or service company.
1. Disconnect the gas hose from the gas valve. See Figure 7.
Figure 7
2. Disconnect the gas tube from the orifice and remove the orifice holder as
shown in Figure 8.
Figure 8
3. Replace the propane orifice (See Figure 9 with the natural gas orifice from
the kit and reinstall the orifice holder by tightening the nuts as shown in
Figure 10. Reconnect and tighten the gas tube to the orifice.
Figure9 Figure10
Apply a solution of soapy water to all connections to check for leaks. If soap
bubbles continue to form, the connection has a leak. If a leak is found, close
the tank valve and tighten all connections. NEVER USE A FLAME TO CHECK
FOR LEAKS
7

4. Stick the conversion label on the rating plate as shown in Figure 11
Metal Rating Plate
5.
6.
7.
8.
Figure11 Conversion Label
LIGHTING INSTRUCTIONS
1. Locate the control and igniter panel.
Make sure the control knob is in the
“OFF” position. See Figure 12.Open the
tank door and open the tank valve all
the way.
2. Push in the igniter button. You will hear
a slight clicking sound. With the igniter
button pushed in, push and turn the
control knob to the “ON” position. The
fire should light within
a few seconds. Once the flame is lit,
release the igniter button and continue
to hold the control knob in for 10 to 15
seconds. Release the control knob. The
control knob should pop back out and
the fire should remain lit. Note: If the fire
does not light, turn the knob to the
“OFF” position and wait five (5) minutes
before trying again.
3. To turn down the flame, push the control
knob in slightly and turn to the Medium
(medium flame) or Low (small flame).
4. To shut down the fire pit, turn the control
knob to the “OFF” position and turn off the
tank valve
Figure 12
8
Serial Number _________________ Model Number: 98900
CAUTION: The gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure of
11 inches water column. (2.7 kPa).The gas supply must be turned off at the LP-gas supply cylinder when this appliance is
not in use.
Gas: Propane Input: 40,000Btu/hr
Minimum clearance from combustible constructions: Sides: 24 in.609 mm. Top 72 in. 1828 mm.
FOR OUTDOOR USE ONLY. If stored indoors, detach and leave cylinder outdoors.
This appliance has been converted to use Natural Gas. Input 40,000 Btu/hr.
Max Gas Supply Pressure 7 inch w.c. (1.74 kPa) Min. Gas Supply Pressure 5 inch w.c. (1.24 kPa)

MAINTENANCE
The flames should look like those in Figure 13 To
clean the burner, use a soft brush after the burner
and lava rocks have cooled completely. Never use a
vacuum cleaner on the lava rocks. It is
recommended that the lava rocks be stored indoors
during the winter if they will be subjected to freezing
temperatures. The propane cylinder must be
disconnected and removed from the appliance
before the appliance can be stored indoors.
Figure 13
BATTERIES
Make sure the control knob is in the “OFF” position.
Unscrew the push button cap on the ignition module
located on the control panel to access the battery
compartment. The ignition module requires one AAA
size battery. See Figure 14.
Figure 14
Parts List
Part Number Description Qty
FP0002 LAVA ROCKS 1
FP0003 ELECTRODE 1
FP0004 THERMOCOUPLE 1
FP0006 IGNITION MODULE 1
FP0008 NATURAL GAS FLEXIBLE CONNECTION HOSE 1
FP1045 FIREPIT TABLETOP 1
FP1046 FIREPIT BASE 1
HW0036 1/4 X 20 MM BOLT 4
HW0591 Ø6.5x2.0 MM WASHER 4
HW0006 HEX BOLT DRIVER 4
FC0660 FOOTCAP (FACTORY ASSEMBLED) 4
9

90-DAY LIMITED WARRANTY
What is Covered Under This Warranty?
The item you have purchased is warranted against defects in materials and workmanship for
the following parts as outlined below only when unit is installed and operated in accordance
with the instructions in this Owner’s Manual and in compliance with local building and fire
codes:
Burner Assembly
Firepit Base
Firepit Top
How Do I Obtain Warranty Service?
To obtain warranty service, you must contact our customer service center within the relevant
warranty period and provide us with a copy of your dated register receipt as proof of the
purchase date. We reserve the right to request photographs and/or return of the defective
item(s) and/or such other evidence relating to any claim as we shall reasonably require.
Please call our customer service center at 1-800-416-3511 for additional warranty claim details
and procedures.
What are the Limitations and Exclusions of this Warranty?
Warranty Limitations:
This warranty is subject to the limitation set forth above. In addition, this warranty is made to
the original purchaser only and is effective only if items are purchased from one of our
authorized dealers. This warranty is not transferable. For warranty replacements based on
warranty claims submitted within ninety (90) days of purchase, we will not be responsible for
charges associated with shipments outside continental North America at any time or for any
reason.
Warranty Exclusions:This warranty is subjected to the exclusions set forth above. In addition,
the following are excluded from coverage under this warranty: any item used for commercial,
contract or any other non-residential purpose; clearance items, display models or items
purchased “as is”; freight damage; items subject to misuse, abuse, neglect or lack of proper
care or maintenance (including without limitation as provided in any “care and maintenance
guide” or similar information we provide); normal wear and tear; damage caused by acts of
nature, acts of force majeure, vandalism, fire or other causality, or improper assembly;
hardware against corrosion or rusting; purchased or replacement parts; and all plastic parts.
Also excluded are loss of use or time; inconvenience; money; travel; packaging; or incidental,
special or consequential damages of any kind. Replacement of defective items or parts as
provided herein shall constitute your sole and exclusive remedy for items which are not as
warranted. In no event shall our responsibility exceed the purchase price of the item found to
be other than as warranted. This warranty is the exclusive statement of your rights with respect
to items you have purchased and supersedes any other express warranty or statement, written
or oral, made in connection with the purchase and sale of such items. The term ”item” when
used herein in the singular refers to the specific piece found to be defective, and not to the
entire set of which the item is a part.
Some states do not allow exclusion or limitation of incidental or consequential damage, so that
limitation may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights that vary from state to state.
10
