Agio Heritage AAS25601 User manual

FOOT CAP
Page 2
NOTE: MAKE SURE ARROWS
FROM BOTH THE "U" BAR
AND ROCKER ASSEMBLY
ARE POINTING IN THE
SAME DIRECTION!
IMPORTANT!! PLEASE READ ENTIRE INSTRUCTION SHEET BEFORE ASSEMBLY!!
TO EXPEDITE ANY FUTURE WARRANTY CLAIMS, PLEASE KEEP INSTRUCTION SHEET, WARRANTY CARD AND RECEIPT
FC0017
FOOT CAP
FACTORY ASSEMBLY
AAS25601
HEX WRENCH-1 HW0008 1
HEX WRENCH-2 HW0007 1
G0141
QTY
PARTS LIST DESCRIPTION ORDER PART #
*NOTE:PARTSSHOWNONPARTSLISTARENOTTOSCALE
BOLT COVER HW0028 8
QTY
SWIVEL BASE &
ROCKER
ASSEMBLY
5/16" X 43 MM
BOLT
HW0003
5/16" NUT HW0015
"U" METAL
PLATE
CHAIR FRAME
PARTS LIST DESCRIPTION ORDER PART #
2
4
4
4
1
1
HW0450
HW0297
A
B
C
D
E
F
G
ROCKER PLATE
FACTORY ASSEMBLY
A
B
AR1108
AR1107
Ø8.0 X 2.3 MM
SPRING WASHER
COVER
FACTORY ASSEMBLY G0161
SEAT DESIGNS MAY
VARY BUT THE ASSEMBLY
IS THE SAME

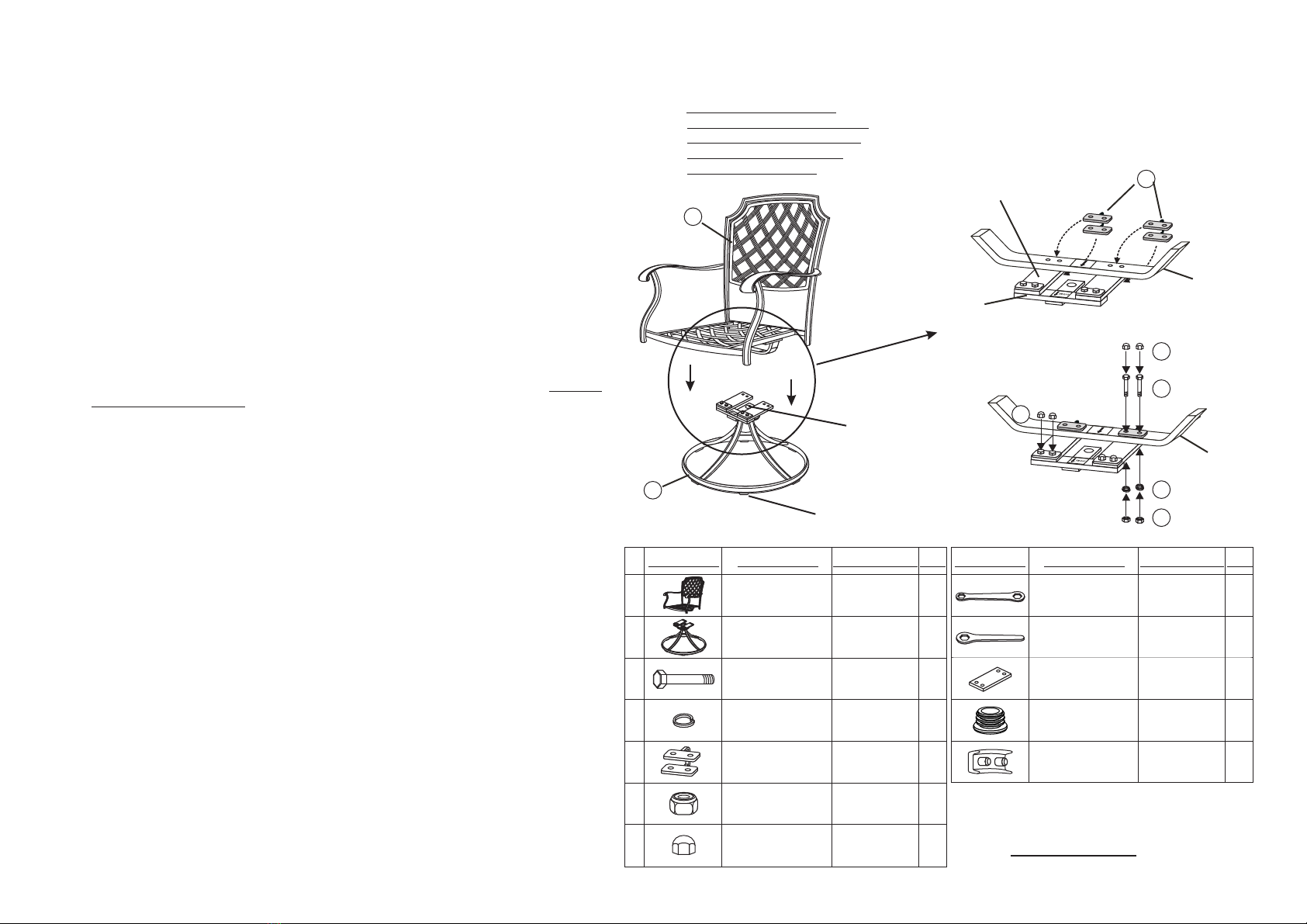

Figure 1
Figure 2
ROCKER PLATE E
G
C
D
F
"U" BAR
ROCKER
ASSEMBLY
"U" BAR
G
Step 1:
Do not attempt assembly if any parts are missing or damaged.
Step 2:
Step 3: Important: We recommend 2 people work together to assemble the chair.
If chair frame has
been properly positioned on the rocker assembly, all arrows on the "U" bar and rocker
assembly will be pointing in the same direction.
Step 4: Critical Step: The "U" metal plates must be installed in the proper location.
Hand
tighten nuts 3-4 revolutions only.
CAUTION: Failure to place "U" metal plates under the rocker plates and above the
"U" bar exactly as shown in diagram will cause the bolt heads and nuts to damage the
structure of the rocker plates and the "U" bar. Damage due to over tightening of bolts
or improper assembly could cause injury and may void your warranty.
Step 5: Ensure the bolts are FULLY
tightened.
Step 6:
Identify all parts packed in the carton against the parts list. Remove all protective materials.
Place parts on a non-abrasive surface to avoid scratching. If you are missing any parts or are
unsure as how to proceed with the assembly, call our Customer Service Center at
1-800-416-3511.
Place the swivel base (with rocker assembly) on a flat, solid surface. Make sure the rocker
assembly is positioned all the way into the base. It may have shifted or vibrated out during
shipment.
Note the
arrow labels on the "U" bar and the rocker assembly. Also note the horseshoe shape of the
rocker plate. Point the open end of the horseshoe away from you. The arrows on the rocker
assembly should be pointing towards you. Set the chair frame on the rocker assembly with
front of the seat facing you and the arrows on the "U" bar pointing towards you as shown
in . This is very important for a safe, balanced rocking motion.
Insert the "U" metal plate, so that the "U" bar and rocker plate
are between both sides of the "U" metal plate. Make sure that the holes in the "U" metal
plate are completely aligned with the holes in the "U" bar as shown in . Guide the
bolts through the holes on the top side of the "U" metal plate, through the holes in the
"U" bar portion of the chair, through the holes in the rocker plate and then, most importantly,
through the holes in the bottom side of the "U" metal plate. It is very important that the
holes in the bottom portion of the "U" metal plate be placed directly beneath the holes in the
rocker plate. Add a spring washer and a nut to each bolt as shown in .
Repeat the same procedure on the other side.
Tighten all nuts and bolts with the hex wrenches provided.
Remove arrow labels from "U" bar and rocker assembly. Cover bolts with
bolt covers.
Your chair should be ready for use. If your chair is not rocking properly, double-check your
assembly procedure, especially Step 3. If the chair rocks too far forward to or is difficult to
rock backwards, you have probably installed the seat frame backwards on the rocker
assembly. If you need further assistance, please call our Customer Service Center
at 1-800-416-3511.
Figure 1
Figure 1
Figure 2
Read this
step and carefully examine.
IMPORTANT NOTE: Damage to frames or spring plates resulting from not FULLY
tightening the bolts, is not covered under warranty. Please read all instructions carefully
before assembly. If you have any questions regarding your assembly, call our Customer
Service Center at 1-800-416-3511.
COVER

ACOV018
Page 1
CARE AND MAINTENANCE
LIMITED 7 YEAR WARRANTY
FRAMES
FABRICS (CUSHIONS/SLINGS)
STRAPS
Frames.
Finishes.
Fabrics.
Straps and/or wicker.
Umbrellas
Table tops
Warranty limitations:
Warranty exclusions:
Some states do not allow exclusion or limitation of incidental or consequential damages, so that limitation above may not apply
to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Cleaning
Maintenance
Cleaning -
Maintenance
Cleaning -
Maintenance -
- Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and
dry thoroughly.
- Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. To thoroughly drain
frames, remove foot caps and tilt the frames, if necessary, to remove all water. This is critical. Water allowed to accumulate inside the
frames and then exposed to sub-freezing temperatures can cause damage to the frame tubing. Such damage is not covered under
warranty. Always clean, drain and dry thoroughly before storing for the winter. For best results, always store or cover your furniture
when not in use. We recommend commercially available outdoor furniture covers. Any small nicks or scratches can be covered with a
light application of touch-up paint.
** When cleaning or moving large or heavy items, always have two people work together. Never drag furniture.
Wipe minor spills immediately. Clean with mild soap, warm clean water and soft cloth. Do not use abrasive materials,
cleansers or bleach products. Although fabric has been treated to resist stains, occasional use of commercially available fabric cleaners
may be necessary. Follow manufacturer's instructions.
- The best way to maintain the beauty of cushions and slings is to store them in a dry area and out of the elements when
not in use or cover with commercially available outdoor furniture covers.
Wash frequently with mild soap, warm water and a soft cloth. Rinse thoroughly with warm, clean water. Do not use
abrasive materials, cleansers or bleach products.
Periodic application of commercially available vinyl cleaners and vinyl protectors will enhance the look and prolong the
life of straps. If your strap chair has cushions, make sure any vinyl protectors applied are completely dry before placing cushion back
on the chair.
Frame construction is warranted against defects in material and workmanship for seven years from purchase date.
Damage to frames or welds resulting from improper assembly or exposure to water and/or sub-freezing temperatures is not
covered.
Paint finishes are warranted against peeling, cracking and blistering for one year from purchase date provided the unit
has not been scratched or abraded. Chips and scratches resulting from normal wear and tear are not covered.
Fabric and cushions (if applicable) are warranted against separation at the seams for one year from purchase date.
Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or any other cause is not
covered.
Straps and/or wicker weave (if applicable) are warranted against separation and tearing for one year
from purchase date. Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or any
other cause is not covered.
. Umbrellas (if applicable) are warranted against defects in material and workmanship only for one year from
purchase date. Umbrella bases (if applicable) are not covered under any circumstance.
. Natural stone tabletops only are warranted against defects in materials or workmanship only for one year from
purchase date. All other table tops (including without limitation glass and faux stone) are not covered under any circumstances.
This warranty is subject to the limitations set forth above. In addition, this warranty is made to the original
purchaser only, and is effective only when item(s) is purchased from one of our authorized dealers. This warranty is not transferable.
For warranty replacements based on warranty claims submitted within the first year of purchase, we will pay shipping and handling
charges within the continental North America. After the first year, shipping and handling charges are your responsibility. We will not
be responsible for charges associated with shipments outside the continental North America at any time or for any reason.
This warranty is subject to the exclusions as set forth above. In addition, the following are excluded from
coverage under this warranty: any item used for commercial, contract or any other non-residential purpose; clearance items, display
models or items purchased "as is"; freight damage; items subject to misuse, abuse, neglect or lack of proper care and maintenance
(including without limitation as provided in any "care and maintenance guide"); normal wear and tear; damage caused by acts of
nature, acts of force majeure, vandalism, fire or other casualty, or improper assembly; hardware against corrosion or rusting; purchased
or replacement parts; and all plastic parts. Also excluded are loss of use or time; inconvenience; money; travel; packaging; or
incidental, special or consequential damages of any kind. Replacement of defective items as provided herein shall constitute your sole
and exclusive remedy for items which are not as warranted. In no event shall our responsibility exceed the purchase price of the items
found to be other than as warranted. This warranty is the exclusive statement of your rights with respect to the defects in the items you
have purchased and supersedes any other express warranty or statement, written or oral, made in connection with the purchase and sale
of such items. When used herein, the term "item" when used in the singular, refers to the specific item found to be defective, and not to
the entire set of which the item is a part.
·
·
·
·
·
·
AGIO INTERNATIONAL COMPANY LTD.
SHUNDE SHIAN FURNITURE INDUSTRIES CO. LTD.
PATIO FURNITURE & ACCESSORIES
ASSEMBLY INSTRUCTIONS
1-800-416-3511
STOP - IMPORTANT
If you have any problems with this product (missing or damaged parts,
assembly issues), please
where you purchased the product. Call our Customer Service Hotline at:
Between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday
Or visit our website at: www.agio-usa.com
DO NOT RETURN TO THE RETAILER/STORE
To expedite any future warranty claims, retain the instruction sheet, warranty
card, and receipt for future use. you are encouraged to register your purchase
on our website at www.agio-usa.com
For additional online video support on assembly, troubleshooting, and care
and maintenance of your outdoor furniture, please visit our website at:
www.agio-usa.com/support

D
F
G
E
F
H

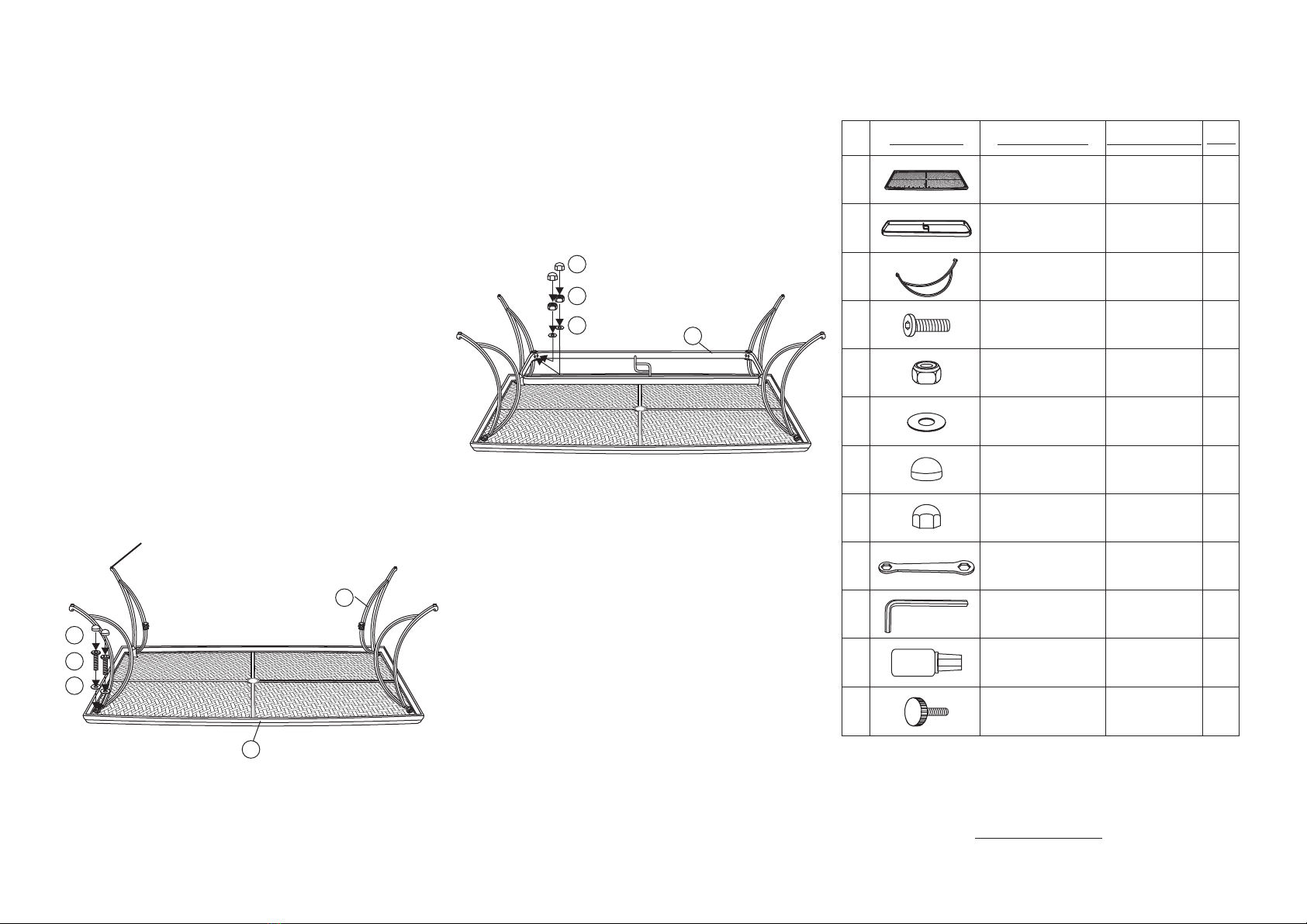

ALQ61015
PARTS LIST DESCRIPTION ORDER PART #
NUT COVER
BOLT COVER
HEX BOLT DRIVER
HEX WRENCH
1/4" NUT
1/4" X 18 MM BOLT
TABLE LEG
LEG CONNECTOR
BRACKET
TABLE TOP
QTY
8
8
1
1
16
8
8
4
1
1
HW0027
HW0105
HW0006
HW0009
HW0004
HW0014
HW0035
AT7466
AT7465
AT7464
FC0007
FOOT CAP
FACTORY ASSEMBLY
FOOT CAP
A
B
C
D
E
F
G
H
I
J
KG0003 1
TOUCH-UP PAINT
Page 2
IMPORTANT!! PLEASE READ ENTIRE INSTRUCTION SHEET BEFORE ASSEMBLY!!
TO EXPEDITE ANY FUTURE WARRANTY CLAIMS, PLEASE KEEP INSTRUCTION SHEET, WARRANTY CARD AND RECEIPT
Step3:
Hand tighten 3-4 revolutions only. Do
not tighten completely.
Attach a leg to the leg connector bracket by carefully
guiding the bolts already in place on the table legs
(each leg has two bolts) through the holes in the leg
connector bracket. Add a washer and a nut to the end
of each bolt.
Repeat on other three legs.
Step 4:
Note:
Do not over tighten
Step 5:
After making any necessary adjustments to the
alignment of the table legs and the leg connector
bracket, use the hex bolt driver and hex wrench to
tighten all nuts and bolts. each bolt and nut
must be tightened a few revolutions at a time. In
order to apply equal pressure to all bolt joints, we
recommend working in a cross corner ( X fashion).
Repeat until all bolts are tight. .
Over tightening may strip bolts. Cover all nuts and
bolts with covers.
With the help of another person, turn the table in the
upright position. Your table is now ready for use. If
you have any questions, please call our Customer
Service Center at 1-800-416-3511.
If you have any
questions, please call our Customer Service Center
at 1-800-416-3511.
IMPORTANT NOTE: Damage to welds or frames
resulting from over tightened bolts or improper assembly
is not covered under our warranty. Please read all
instructions carefully before assembly.
*NOTE:PARTSSHOWNONPARTSLISTARENOTTOSCALE
Step 1:
Do not attempt assembly if any
parts are missing or damaged.
Remove all protective materials and set parts on a flat,
non-abrasive surface. Identify parts packed in carton
against the parts list.
Do not attempt assembly if any parts are missing or
damaged.
If you are missing
any parts or are unsure how to proceed with assembly,
call our Customer Service Center at 1-800-416-3511.
Step 2:
Hand tighten three to four turns only. Do not
tighten completely.
Place the table top upside down on a flat, non-abrasive
surface. Attach table leg to table rim using a bolt and
washer as shown in diagram. Place the leg beneath the
table rim corner bracket. Guide bolt through hole in
table rim corner bracket and into pre-drilled hole in table
leg.
Some adjustments may be
necessary to ensure proper alignment of the table legs.
Repeat for other three legs.
Ø6.5 X 1.0 MM
WASHER
A
C
B

ACOV007
Page 1
CARE AND MAINTENANCE
SPECIAL WARNINGS!!!
LIMITED WARRANTY
FRAMES
UMBRELLA USAGE WARNING!
Frames.
Finishes.
Fabrics.
Straps and/or wicker.
Umbrellas
Table tops
Warranty limitations:
Warranty exclusions:
Some states do not allow exclusion or limitation of incidental or consequential damages, so that limitation above may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Cleaning
Maintenance
- Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water
and dry thoroughly.
- Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. To thoroughly
drain frames, remove foot caps and tilt the frames, if necessary, to remove all water. This is critical. Water allowed to accumulate
inside the frames and then exposed to sub-freezing temperatures can cause damage to the frame tubing. Such damage is not
covered under warranty. Always clean, drain and dry thoroughly before storing for the winter. For best results, always store or
cover your furniture when not in use. We recommend commercially available outdoor furniture covers. Any small nicks or
scratches can be covered with a light application of touch-up paint.
** When cleaning or moving large or heavy items, always have two people work together. Never drag furniture.
If you will be using an umbrella with your table, make sure the plastic umbrella ring is inserted into the hole in the center of the
table. Place the umbrella through the opening and into an umbrella stand made of cast iron, wrought iron, steel plate or blow
molded plastic filled with 20-50 lbs or 9-22 kgs of sand or water. If your table is 72" or 182 cm or larger, we recommend a weight
of at least 50 lbs or 22 kgs or more. NEVER USE AN UMBRELLA WITH A TABLE WITHOUT USING AN UMBRELLA
BASE OR RING AS DESCRIBED ABOVE. ALWAYS REMOVE YOUR UMBRELLA FROM THE TABLE WHEN NOT IN
USE. NEVER USE AN UMBRELLA DURING STORMS OR WINDY CONDITIONS.
Frame construction is warranted against defects in material and workmanship for seven years from purchase date.
Damage to frames or welds resulting from improper assembly or exposure to water and/or sub-freezing temperatures is not
covered.
Paint finishes are warranted against peeling, cracking and blistering for one year from purchase date provided the
unit has not been scratched or abraded. Chips and scratches resulting from normal wear and tear are not covered.
Fabric and cushions (if applicable) are warranted against separation at the seams for one year from purchase date.
Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or any other cause is not
covered.
Straps and/or wicker weave (if applicable) are warranted against separation and tearing for one year
from purchase date. Fading and/or discoloration resulting from exposure to the elements, oils, spills, fluids, chemicals, or
any other cause is not covered.
. Umbrellas (if applicable) are warranted against defects in material and workmanship only for one year from
purchase date. Umbrella bases (if applicable) are not covered under any circumstance.
. Natural stone tabletops only are warranted against defects in materials or workmanship only for one year from
purchase date. All other table tops (including without limitation glass and faux stone) are not covered under any
circumstances.
This warranty is subject to the limitations set forth above. In addition, this warranty is made to the original
purchaser only, and is effective only when item(s) is purchased from one of our authorized dealers. This warranty is not
transferable. For warranty replacements based on warranty claims submitted within the first year of purchase, we will pay shipping
and handling charges within the continental North America. After the first year, shipping and handling charges are your
responsibility. We will not be responsible for charges associated with shipments outside the continental North America at any time
or for any reason.
This warranty is subject to the exclusions as set forth above. In addition, the following are excluded from
coverage under this warranty: any item used for commercial, contract or any other non-residential purpose; clearance items, display
models or items purchased "as is"; freight damage; items subject to misuse, abuse, neglect or lack of proper care and maintenance
(including without limitation as provided in any "care and maintenance guide"); normal wear and tear; damage caused by acts of
nature, acts of force majeure, vandalism, fire or other casualty, or improper assembly; hardware against corrosion or rusting;
purchased or replacement parts; and all plastic parts. Also excluded are loss of use or time; inconvenience; money; travel;
packaging; or incidental, special or consequential damages of any kind. Replacement of defective items as provided herein shall
constitute your sole and exclusive remedy for items which are not as warranted. In no event shall our responsibility exceed the
purchase price of the items found to be other than as warranted. This warranty is the exclusive statement of your rights with respect
to the defects in the items you have purchased and supersedes any other express warranty or statement, written or oral, made in
connection with the purchase and sale of such items. When used herein, the term "item" when used in the singular, refers to the
specific item found to be defective, and not to the entire set of which the item is a part.
·
·
·
·
·
·
AGIO INTERNATIONAL COMPANY LTD.
SHUNDE SHIAN FURNITURE INDUSTRIES CO. LTD.
PATIO FURNITURE & ACCESSORIES
ASSEMBLY INSTRUCTIONS
1-800-416-3511
STOP - IMPORTANT
If you have any problems with this product (missing or damaged parts,
assembly issues), please
where you purchased the product. Call our Customer Service Hotline at:
Between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday
Or visit our website at: www.agio-usa.com
DO NOT RETURN TO THE RETAILER/STORE
To expedite any future warranty claims, retain the instruction sheet, warranty
card, and receipt for future use. you are encouraged to register your purchase
on our website at www.agio-usa.com
For additional online video support on assembly, troubleshooting, and care
and maintenance of your outdoor furniture, please visit our website at:
www.agio-usa.com/support
