AGP DM62 User manual

CAUTION:
Machine equipped with overheat thermal protection. When the thermal protection kicks in, always
remove from the worpiece and run at no load for at least 3 minutes to allow motor to cool before
returning to operation.
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ORIGINAL INSTRUCTIONS
DRY DIAMOND CORE
DRILLING MACHINE
D-Handle Model
Pistol-Handle Model

2
TECHNICAL DATA
1. Motor
2. Tubular Spirit Level
3. Gear Selector
4. Release Button
5. Lock Screw (Side Handle)
6. Spindle
7. Percussion Selector
8. Side Handle
9. Trigger Switch
10. Lock Button
11. Main Handle
12. Power Supply Cable
13. Port
14. Bull's Eye Level
15. Indicator Light
123
7
4
5
6
8
13
9
11
12
10
Power Input 220V: 2000W, 110V: 1700W
Voltage See machine nameplate
No Load /Full Load min-1 Speed 1 1250 / 750
Speed 2 1900 / 1140
Percussion Frequency
(No Load/Full Load)
Speed 1 25,000 bpm / 15,000 bpm
Speed 2 38,000 bpm / 22,800 bpm
Arbor Thread 1-1/4-7 UNC male x 1/2" BSP female
Capacity - Dry (Reinforced Concrete) 162mm (6-1/4")
Capacity - Dry (Brick) 262mm (10-5/16")
Dimensions (mm) 430mm x 290mm x 122mm
Neck Diameter 60mm
Net Weight 6.2kg (13.64 Lbs)
13
D-Handle Model
Pistol-Handle Model 6
58
4
123
7
11
9
15
14
15
14

3
General Safety Rules
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock,  re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1. WORK AREA SAFETY
a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of  ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
d. Never leave the electric power tool unattended. Only leave the machine when the tool in use has come
to a complete standstill.
2. ELECTRICAL SAFETY
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodi ed plugs and matching outlets will reduce risk of
electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. PERSONAL SAFETY
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.

4
c. Prevent unintentional starting. Ensure the switch is in the o-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your  nger on
the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dustrelated hazards.
h. Do not let familiarity gained from freuquent use of tools allow you to become complacent and
ignore, tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. POWER TOOL USE AND CARE
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or battery pack from the power tool before making
any adjustments, changing accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of
untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may aect the power tool‘s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions taking into
account the working conditions and the work to be performed. Use of the power tool for operations
dierent from those intended could result in a hazardous situation.
h. Keep handles dry, clean and free of oil and grease. Slippery handles do not allow for safe handling and
control of the tool in unexpected situations.
5. SERVICE
a. Have your power tool serviced by a qualied repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
b. Only use original parts for repair and maintenance. The use of incompatible accessories or spare parts
can result in electric shocks or other injuries.

5
DRILL SAFETY WARNINGS
1. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
2. Use auxiliary handle. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may
make exposed metal parts of the power tool "live" and could give the operator an electric shock.
4. Check the ground (earth) connection of the electrical plug.
5. Block off the working area and place warning signs on both sides of the wall when drilling through
from one side to the other.
INTRODUCTION
The machine is equipped with vertical and horizontal spirit levels to aid in aligning when drilling.
By positioning the machine so that the bubble is in the center of the window one can drill a straight hole.
This machine is for the intended purpose of diamond core drilling of concrete, masonry, stone and similar
materials. It may also be mounted on a rig (drilling stand).
All other uses which are not for the intended purpose are prohibited.
It is equipped with a two speed gearbox.
All models are equipped with a mechanical safety clutch.
All models have electronics for soft start, overload protection, and thermal protection.
ELECTRICAL CONNECTION
The network voltage must conform to the voltage indicated on the tool name plate.
Under no circumstances should the tool be used when the power supply cable is damaged. A damaged
cable must be replaced immediately by an authorized Customer Service Center. Do not try to repair the
damaged cable yourself. The use of damaged power cables can lead to an electric shock.
Symbols used in this manual
V…….........volts
A…….........amperes
Hz…….......hertz
W……........watt
~………....alternating current
n ………...rated speed
min-1….......revolutions or reciprocation
per minute
.........warning of general danger
.…..class II tool
.......read these instructions
......always wear eye protection
......always wear a dust mask.
.....always wear hearing protection
.....wear safety-approved hard hat
do not dispose of electric tools,
accessories and packaging together
with household waste material

6
ASSEMBLY
Mount the handle clamp of the side handle onto the gearbox neck. Position the side handle perpendicular to
the main handle. Use the lock screw to tighten the clamp.
LIST OF CONTENTS
• Diamond core drilling machine.
• Side handle assembly
OPERATING INSTRUCTIONS
Mounting the core bit
CAUTION: Ensure that the threads of the spindle and the core bit match. Attempting to mount
mismatched threads will result in damage to both threads.
Ensure both the core bit and the machine spindle are clean. Any debris could cause excessive run-out of the
mounted core bit. Excessive run-out can cause premature failure of the core bit and/or a safety hazard.
Tighten the bit to the spindle using two wrenches. Only use correct sized wrenches to avoid damage to the
spindle or bit.
Choosing the correct core bit for the job:
Ensure that the bit you are using is suitable for the material you are drilling. There are two main types of
diamond core bit:
Dry bits and wet bits. This machine should only be used with dry bits.
DRY DRILLING
Dry drilling is a different process from wet drilling.
When dry drilling, you must not push too hard. Allow the tool to work at its own pace.
Dry drilling is normally done in softer materials. This machine may also drill dry in reinforced concrete using
special dry diamond core bits.
DRY DRILLING OF REINFORCED CONCRETE
This requires the use of special diamond core bits designed for this application.
Effective dust collection is essential for this process.
Use the soft percussion function.
Always use a drill stand for diameters above 80mm.

7
SELECTING SPEEDS
There are 2 speed ranges to suit the bit size and work piece hardness.
CAUTION: Never attempt to change gears on a running machine! Only
adjust when the machine is at rest.
Select the desired gear range by pressing the release button and then turning
the gear selector either clockwise or counterclockwise into the desired gear. It will usually be necessary to turn
the spindle by hand a little to get it to shift all the way.
DRY DRILLING RECOMMENDED GEARS (soft materials)
DRY DRILLING RECOMMENDED GEARS (reinforced concrete)
PERCUSSION SELECTOR
The percussion function can be turned on and off.
To select , push the button on the side with the "Hammer" symbol for soft
percussion or the "No Hammer" symbol to turn the percussion OFF.
NOTE: When turning the percussion OFF, it is usually necessary to first pull
the spindle to allow button to release.
The main purpose of soft percussion function on this machine is to keep
the diamond segments sharp. If the bit is staying sharp without it, the
percussion function may be turned off. If the bit glazes easily, it should be
turned on.
Release Button
Gear Selector
24mm 45mm 122mm 162mm 182mm
BitØ
Gang
Gear 2
Gear 1
Impossible /
Not recommended Possible Ideal
52mm 92mm 162mm 232mm 262mm
BitØ
Gear
Gear 2
Gear 1
Percussion Selector ON
Percussion Selector OFF

8
THE SWITCH
The machine has a lockable trigger switch. Squeeze the trigger to start
the machine. To lock the switch on, press the lock button while holding
the trigger switch on. To release, squeeze the trigger and release.
WARNING: Never lock the switch on when drilling hand-held. Only
lock the switch on when mounted to a rig.
OVERLOAD PROTECTION AND OVERHEAT PROTECTION

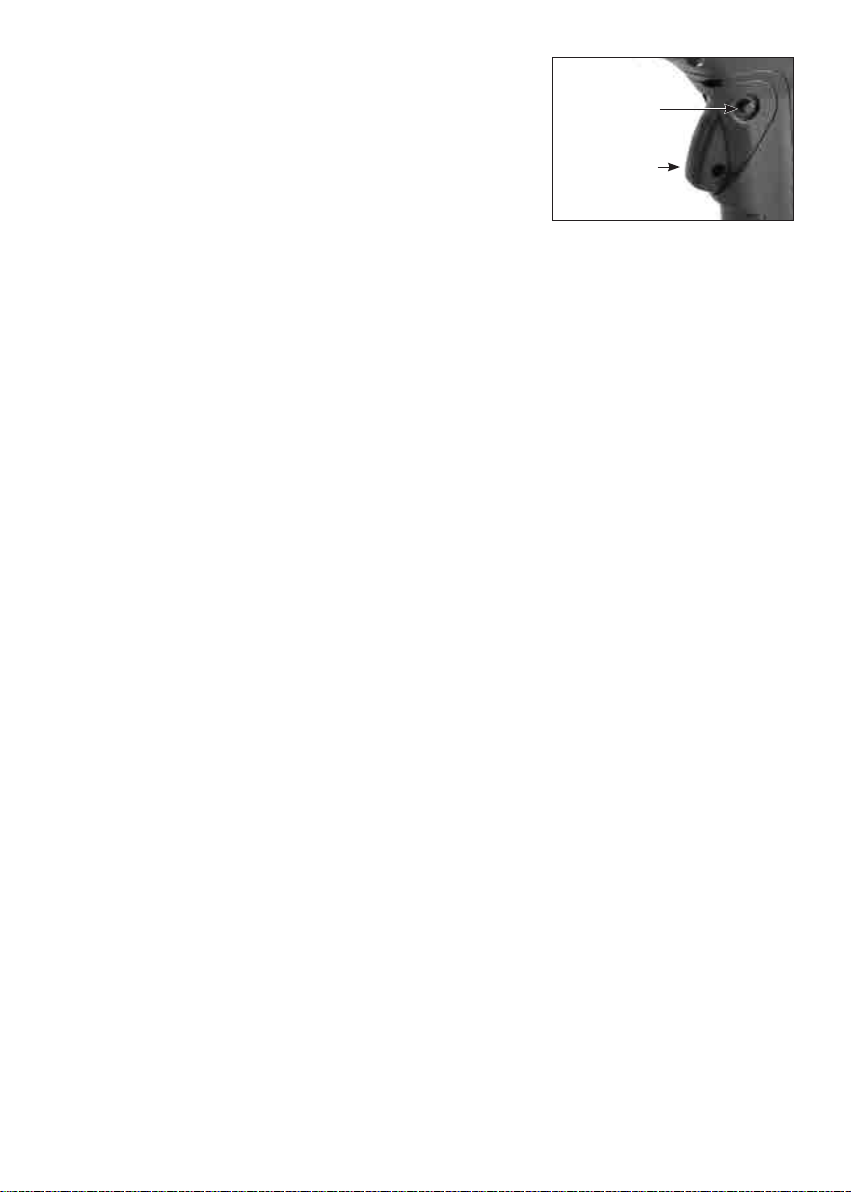

Indicator Light:
The LED load indicator light will glow green when the load is within the normal range. When load is
approaching overload, the indicator light will flash red.
Overload:
If the excessive load is sustained too long, the motor will shut down completely. and the indicator light will
glow solid red. In this case, the motor must be restarted by turning OFF and then back ON the switch.
Overheat Thermal Protection:
If the temperature of the motor gets too high, the thermal protection will shut the motor down. and the
indicator light will glow solid red. When this happens, do not immediately put a load on the motor after
restarting. Always run the machine at no load for a few minutes to return to a normal operating temperature
before continuing.
CAUTION: The motor will be damaged if it is repeatedly overloaded or overheated. Always cool the
motor by running at no load for a few minutes whenever it stops from either overheat or overload.
SAFETY CLUTCH
This machine is equipped with a mechanical clutch to protect the operator and machine from excessive torque
forces. After the clutch slips many times, it will become worn and slip at lower and lower torque levels. When
this happens, it must be serviced by an authorized service provider. The recommended torque of the clutch nut
is 21 Nm.
DIAMOND CORE DRILLING
1. Very gently begin the cut. If holding by hand, use the optional centering pilot, or start the cut by
approaching at an angle of about 30 degrees to the cutting surface. (A large piece of wood with a large V
notch cut in it will help prevent the bit from wandering at the beginning.) Once about a third of the arc is
cut, straighten the bit to the correct perpendicular angle while keeping enough feed pressure on the bit
to prevent it from wandering.
2. Once in the cut, use steady feed pressure .
3. When breaking through, hold the machine tightly and reduce feed pressure .
WARNING: Always keep your face away from the machine.
Trigger Switch
Lock Button

9
The diamond impregnated segments in diamond core bit operate on a principle of controlled erosion. The
bond matrix holding the diamonds is continually worn away by abrasion with the work piece, exposing
the harder diamonds to stand proud from the bond matrix.
With not enough erosion of the bond matrix (the diamonds not exposed) and the bit becomes dull.
This is called glazing. If the bit seems to refuse to cut anymore, it is glazed.
See below: ”SHARPENING A GLAZED BIT ”
Never use a sharp motion or the bit will be damaged. Conversely, don’t feed too gently or the diamond
segments will become glazed. Keep the bit steadily working.
If holding by hand, take great care to keep the bit aligned to the hole. If the bit is crooked, it will easily bind.
CAUTION: If the bit gets stuck, do not try to rock it loose by turning the switch on and off. That is
hazardous and could damage the motor. Rather, unplug the machine and use a wrench on the bit
mounting to work it loose.
CAUTION: Drilling operations are very stressful to the motor and at the end of the cut, the motor
temperature will be very hot, always run the motor at no load for a few minutes until the temperature
returns to a normal range before shutting off.
Then turn off the switch and allow the coasting bit to stop before setting it down.
RESHARPENING A GLAZED BIT
If the bit becomes glazed, resharpen and true it up is by dressing with an appropriate alumina oxide or
silicon carbide dressing stone. Simply drill into the stone as many times as necessary to restore its cutting
performance.
VIBRATION TROUBLESHOOTING
If vibration occurs and it is not caused by embedded steel, stop drilling to find the cause and remedy.
CAUTION: Do not operate with vibration or there will be serious hazard and the diamond core bit
will surely be destroyed.
Vibration is usually caused by:
1. A bit with too much runout
SOLUTION: Replace bit.
2. A bit with diamond segments broken off
SOLUTION: Repair or replace bit.
MAINTENANCE
Every 50 hours of operation blow compressed air through the motor while running at no load to clean out
accumulated dust.
Always check for a damaged power supply cable, check for loose fasteners and always keep alert for
unusual noises and vibration when operating.

10
WARNING: Never operate a damaged machine. Always tag a damaged machine and take it out of
service until repairs can be made.
Maintenance which should be performed by an authorized service center, include the following:
• Replace water seals as needed.
• Replace the carbon brushes as needed
• Change the gearbox grease about every 100 hours of operation
• Replace the clutch discs and spring as needed.
THE CARBON BRUSHES
The carbon brushes are a normal wearing part and must be replaced when they reach their wear limit. This
machine is equipped with auto-stop carbon brushes. If the machine comes to a stop unexpectedly, the brushes
should be checked. The auto-stop brush design protects the motor by stopping the machine before the carbon
brushes are completely worn out.
Caution: Always replace the brushes as a pair.
To replace:
1. Remove the 12 screws (pistol handle models) or 14 screws (D handle models) to open up the handle
halves. Carefully move the parts to one side, taking care not to strain the wiring.
2. Using pliers rotate the brush spring out of the way and slide the old carbon brush out of the brush
holder.
3. Unscrew the screw to remove the brush lead. The old carbon brush may now be lifted away.
4. Install a new brush. Installation is the reverse of removal.
5. Replacement is the reverse of removal. Take care not to pinch any wires when reassembling.
If the replacement of the power supply cord is necessary, this has to be done by the manufacturer or
their agent in order to avoid a safety hazard.
WARNING: All repairs must be entrusted to an authorized service center. Incorrectly performed repairs
could lead to injury or death.
Do not throw electric power tools into the household waste!
In accordance with the European Directive 2002/96/EG on Waste Electrical and Electronic Equipment and
transposition into national law, used electric power tools must be collected separately and recycled in an
environmentally friendly manner.

11
WIRING
1
2
1
2
AC
BRUSH
BRUSH
STATOR
BLACK BLACK
BLACK BLACK
BLACK
(TEMP. SENSOR)
ELECTRONICS UNIT
SWITCH
WHITE WHITE
TERMINAL CONNECTOR
BLOCK

12

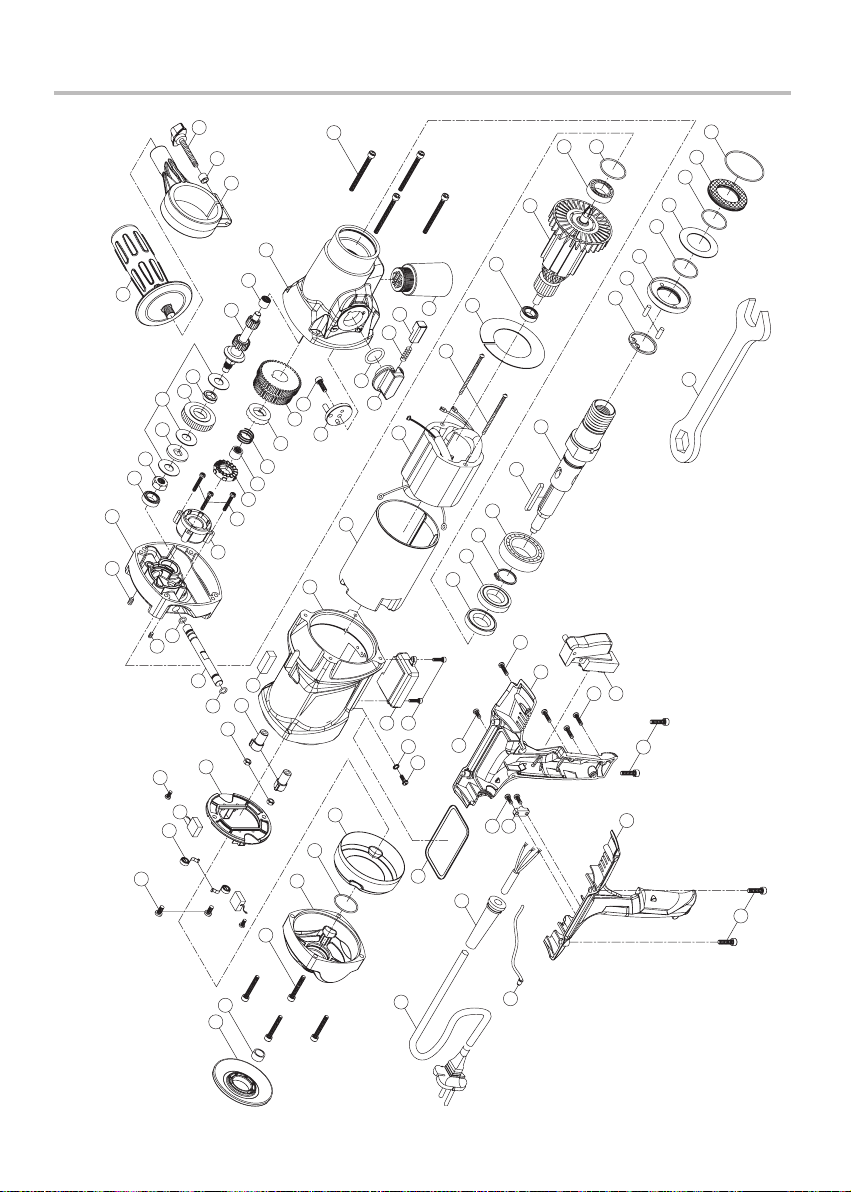

Pistol-Handle Model Exploded View
82
81
80
79
79
78
77
33
34
35
37
38
39
40
24
23
30
29
76
NO.01~87 Version 1.0
87
16
18
19
21
20
25 83
36
17
22
27
31
32
85
84
28
50 51
52
53
49
47
46
48
55
54
56 57 58
59
60 62
63
41
61
69
65
64
66 67
68
75
74
72
71
70
73
26
45
44
42
43
42
09
08
10
12
12
11
05 04
07
01
03
06
10
15
14
13
86

13
Pistol-Handle Model Parts List
NO. Parts Name Q'TY
1 POWER SUPPLY CABLE 1.5(16A)x3Cx3.5M-H07RNF 1
2 N/A -
3 CORD ARMOR 1
4 CABLE CLIP 1
5 PANHEAD TAPPING SCREW M4x14 2
6 SWITCH 12.5(12.5)A250V 22(22)A125V(110V&220V) 1
7 LED OVERLOAD LAMP (15cm)(110V&220V) 1
8 HANDLE HALF-RIGHT 1
9 HANDLE HALF-LEFT 1
10 PANHEAD TAPPING SCREW M4x16 4
11 PANHEAD TAPPING SCREW M4x8 1
12 SOCKET CAP SCREW M5x20 4
13 BUTT PLATE 1
14 BULLS-EYE LEVEL 1
15 SOCKET CAP SCREW M5x30 4
16 MOTOR END CASTING 1
17 O-RING Ø30 x 1.5 1
18 INSULATING COVER 1
19 PANHEAD TAPPING SCREW M4x12 2
20 BRUSH SPRING 0.4x4x3T 2
21 CARBON BRUSH 7x17x19 2
22 PANHEAD MACHINE SCREW M4x6 2
23 BRUSH HOLDER PLATE ASSY. 1
24 NYLOCK NUT M5 2
25 INSULATING SLEEVE 2
26 SPIRIT LEVEL 10x10x29 1
27 MOTOR HOUSING 1
28 GASKET 1
29 ELECTRONICS UNIT 220V 1
30 PANHEAD MACHINE SCREW M4x10 2
31 EXTERNAL STAR WASHER M4 1
32 PANHEAD MACHINE SCREW M4x8 1
33 MOTOR INSULATION SLEEVE 1
34 STATOR 220V-81x45.8x70 1
35 PANHEAD MACHINE SCREW M5x95 2
36 FAN BAFFLE Ø48xØ87.5x1 1
37 BALL BEARING 6200-LLU 1
38 ARMATURE 220V-81x45.8x70 1
39 BALL BEARING 6201 1
40 O-RING Ø32 x 1.5 1
41 GEAR PLATE 1
42 O-RING Ø7 x 1.5 2
43 PERCUSSION SELECTOR 1
44 SOCKET SET SCREW M4x10 1
NO. Parts Name Q'TY
45 DETENT UNIT M5x10 1
46 BALL BEARING 608 ZZ 1
47 CLUTCH NUT M10xP1.25x 17x 8.1 1
48 CLUTCH DISC SET 1
49 PRESSURE DISC Ø12.1xØ28x2.65 1
50 INPUT GEAR M1.0x38T 1
51 BUSHING Ø12xØ18x5 1
52 INPUT SHAFT M1.25 x 14T x 10T 1
53 NEEDLE BEARING HK 0810 1
54 PRESSURE PLATE 1
55 PANHEAD MACHINE SCREW M4x25 3
56 CAM PLATE 1
57 NEEDLE BEARING TA1212 1
58 SPRING Ø1.0xØ17.2xØ19.2x3Tx15L 1
59 CAM PLATE 1
60 SPINDLE GEAR M1.25 x 40T x 44T 1
61 GEAR HOUSING 1
62 SOCKET CAP SCREW M5x12 1
63 SELECTOR DISC 1
64 O-RING Ø20 x 3 1
65 GEAR SELECTOR 1
66 SPRING Ø0.6xØ3.8xØ5x11Tx35 1
67 RELEASE PIN 1
68 VACUUM ADAPTOR 1
69 SOCKET CAP SCREW M5x60 4
70 OIL SEAL Ø27 x Ø42 x 7 1
71 OIL SEAL Ø27 x Ø45 x 8 1
72 INTERNAL CIRCLIP IS28 1
73 BALL BEARING 60/28 2RS 1
74 PARALLEL KEY 5x5x45 1
75 SPINDLE 1
76 INTERNAL CIRCLIP R-52 1
77 DOWEL PIN Ø4 x 11.8 2
78 ANTI-SEIZE CUP 1
79 O-RING Ø32 x 1.5 2
80 THRUST RING 1
81 ANTI-SEIZE RING 1
82 O-RING Ø49 x 1.5 1
83 HANDLE CLAMP 1
84 SPACER Ø6.1xØ12x10 1
85 THUMB SCREW M6x55 1
86 FRONT HANDLE M12 1
87 COMBINATION WRENCH M32 1

14

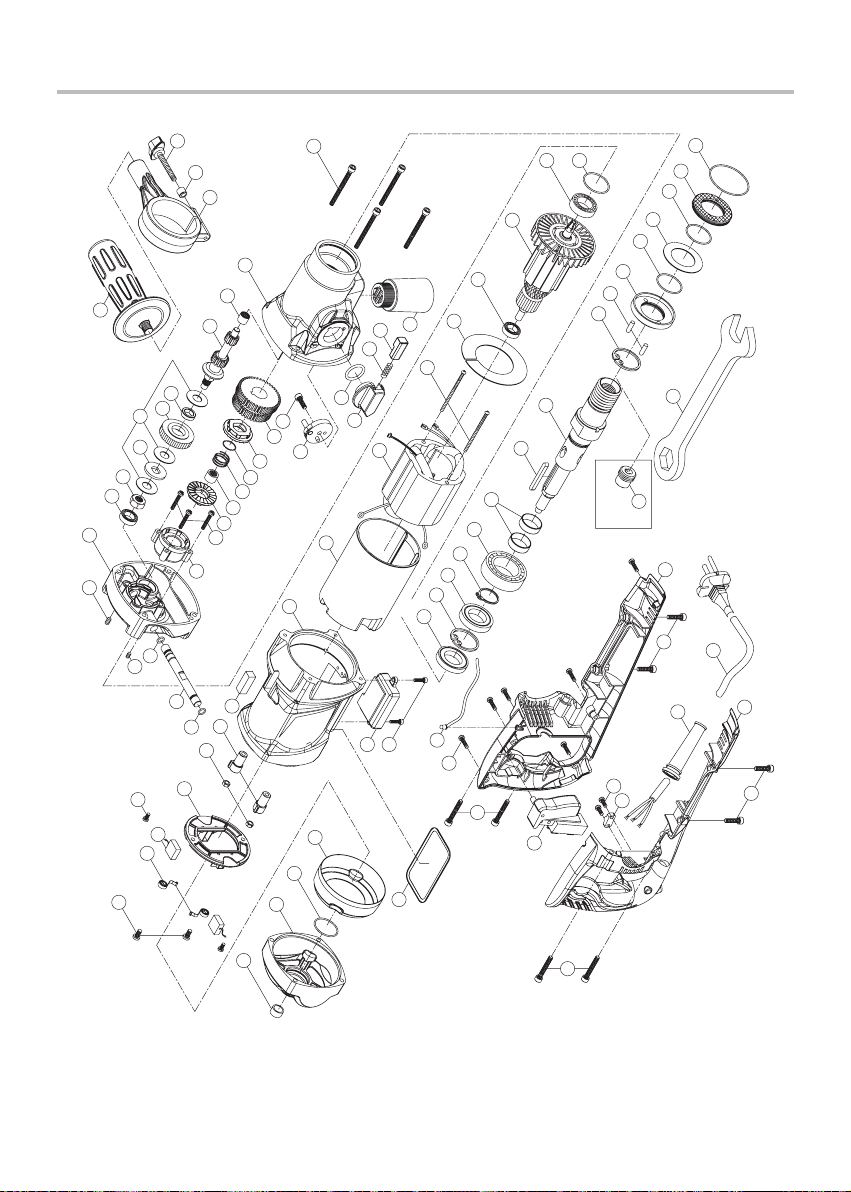

D-Handle Model Exploded View
82
81
80
40
40
79
78
33
34
35
37
38
39
40
24
23
30
29
77
NO.01~88 A1 Version 1.1
87
16
18
19
21
20
25 83
36
17
22
27
85
84
28
50 51
52
53
49
47
46
48
55
54
56 57
56
60 62
63
41
61
69
65
64
66 67
68
76
75
72
71
70
73
26
45
44
42
43
42
86
58 59
74
11
11
06
04 05
10
12
12
09
08
03
01
07
14
OPTIONAL
A1
88

15
D-Handle Model Parts List
NO. Parts Name Q'TY
1 POWER SUPPLY CABLE 1
2 N/A -
3 CORD ARMOR 1
4 CABLE CLIP 1
5 PANHEAD TAPPING SCREW (M4x14) 2
6 SWITCH (110V&220V) 1
7 LED OVERLOAD LAMP (110V&220V) 1
8 D-HANDLE HALF-RIGHT 1
9 D-HANDLE HALF-LEFT 1
10 PANHEAD TAPPING SCREW (M4x16) 6
11 SOCKET CAP SCREW (M5x40xP0.8) 4
12 SOCKET CAP SCREW (M5x16xP0.8) 4
13 N/A -
14 BULLS-EYE LEVEL 1
15 N/A -
16 MOTOR END CASTING 1
17 O-RING (Ø30x1.5) 1
18 INSULATING COVER 1
19 PANHEAD TAPPING SCREW (M4x12) 2
20 BRUSH SPRING (0.4x4x3T) 2
21 CARBON BRUSH (7x17x19)(110V) 2
21 CARBON BRUSH (7x17x20)(220V) 2
22 PANHEAD MACHINE SCREW (M4x6xP0.7) 2
23 BRUSH HOLDER PLATE ASSY. 1
24 NYLOCK NUT (M5xP0.8) 2
25 INSULATING SLEEVE 2
26 SPIRIT LEVEL (10x10x29) 1
27 MOTOR HOUSING (GRAY-RAL7016) 1
28 GASKET (BLACK) 1
29 ELECTRONICS UNIT (110V/220V) 1
30 PANHEAD MACHINE SCREW (M4x10xP0.7) 2
31 N/A -
32 N/A -
33 MOTOR INSULATION SLEEVE 1
34 STATOR (110V/220V-81x45.8x70) 1
35 PANHEAD MACHINE SCREW (M5x95xP0.8) 2
36 FAN BAFFLE (Ø48xØ87.5x1) 1
37 BALL BEARING (6200) 1
38 ARMATURE (110V/220V-81x45.8x70) 1
39 BALL BEARING (6201) 1
40 O-RING (Ø32x1.5) 3
41 GEAR PLATE 1
42 O-RING (Ø10x1.55) 2
43 PERCUSSION SELECTOR 1
44 SOCKET SET SCREW (M4x10xP0.7) 1
NO. Parts Name Q'TY
45 DETENT UNIT (M5x10xP0.8) 1
46 BALL BEARING (608) 1
47 CLUTCH NUT (M10xP1.25x8.1T) 1
48 CLUTCH DISC SET 1
49 PRESSURE DISC (Ø12.1xØ28x2.65) 1
50 INPUT GEAR (M1.0x38T) 1
51 BUSHING (Ø12xØ18x5) 1
52 INPUT SHAFT (M1.25x14Tx10T) 1
53 NEEDLE BEARING (HK 0810) 1
54 PRESSURE PLATE 1
55 PANHEAD MACHINE SCREW (M4x25xP0.7) 3
56 CAM PLATE 2
57 NEEDLE BEARING (TA1212) 1
58 SPRING (Ø1.0xØ17.2xØ19.2x3Tx15L) 1
59 RETAINING RING (Ø0.8xØ15.5) 1
60 SPINDLE GEAR (M1.25x40Tx44T) 1
61 GEAR HOUSING 1
62 SOCKET CAP SCREW (M5x12xP0.8) 1
63 SELECTOR DISC 1
64 O-RING (Ø20x3) 1
65 GEAR SELECTOR 1
66 SPRING (Ø0.6xØ3.8xØ5x11Tx35L) 1
67 RELEASE PIN 1
68 UNIVERSAL PORT 1
69 SOCKET CAP SCREW (M5x60xP0.8) 4
70 OIL SEAL (Ø27xØ42x7) 1
71 OIL SEAL (Ø27xØ45x8) 1
72 INTERNAL CIRCLIP (IS28) 1
73 BALL BEARING (60/28) 1
74 STAINLESS BUSHING 2
75 PARALLEL KEY (5x5x45) 1
76 SPINDLE (1/4"-7 x PS1/2") 1
77 INTERNAL CIRCLIP (R-52) 1
78 DOWEL PIN (Ø4x11.8) 2
79 ANTI-SEIZE CUP 1
80 THRUST RING (3252) 1
81 ANTI-SEIZE RING 1
82 O-RING (Ø49x1.5) 1
83 HANDLE CLAMP 1
84 SPACER (Ø6.1xØ12x10) 1
85 THUMB SCREW (M6x55xP1.0) 1
86 FRONT HANDLE (M12xP1.75) 1
87 COMBINATION WRENCH (M32) 1
88 INTERNAL CIRCLIP (R-42) 1
A1 PILOT DRILL SOCKET 1
