AGP DM51P User manual

Pistol-Handle Model
D-Handle Model
CAUTION:
Machine equipped with overheat thermal protection. When the thermal protection kicks in,
always remove from the worpiece and run at no load for at least 3 minutes to allow motor to
cool before returning to operation.
DIAMOND CORE
DRILLING MACHINE
Original instructions

2
TECHNICAL DATA

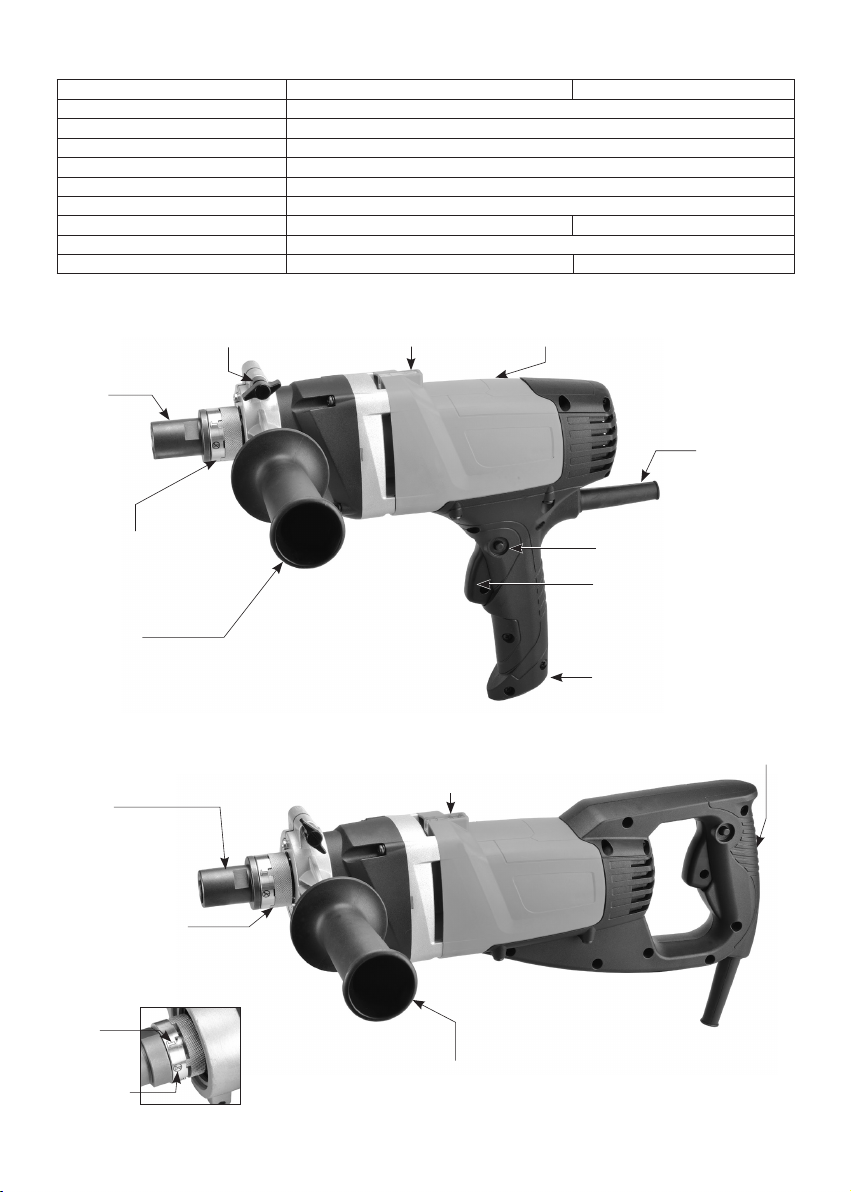

Pistol-Handle Model
Spindle
Percussion Selector
(optional)
Side Handle
Lock Screw Tubular Spirit Level
Main Handle
Lock Button
Trigger Switch
Power Supply
Cable
Motor
DM51P,51D
Percussion Selector
Hammer
(Percussion
ON)
No Hammer
(Percussion
OFF)
Model Pistol-Handle Model D-Handle Model
Power Input 1800W
Voltage 110-120V~ 50-60Hz, 220-240V~ 50-60Hz
No Load /Full Load min-1 3600 / 2160
Percussion Frequency 56,000 bpm
Arbor Thread 1/2" BSP or M18-2.5 (Specify when ordering)
Capacity-Dry 102mm (4")
Dimensions 390 x 90 x 280 450 x 90 x 210
Neck Diameter 60mm
Net Weight 4.6 kg 4.6 kg
D-Handle Model Main Handle
Tubular Spirit Level
Spindle
Side Handle
Percussion Selector
(optional)

3
GENERAL SAFETY INSTRUCTIONS
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool.
1) Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2) Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious
personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves

4
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-related
hazards.
4) Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous situation.
5) Service
Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
Symbols used in this manual
V…….......volts
A…….......amperes
Hz……......hertz
W……......watt
~………....alternating current
n
0
………..no load speed
min-1….....revolutions or reciprocation
per minute
......warning of general danger
.….class II tool
.…with electrical earth
.......read these instructions
......always wear eye protection
......always wear a dust mask.
.....always wear hearing protection
.....wear safety-approved hard hat
do not dispose of electric tools,
accessories and packaging together
with household waste material

5
DRILL SAFETY WARNINGS
1. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may
make exposed metal parts of the power tool "live" and could give the operator an electric shock.
4. The locking screw for the ground/earth cable may never be loosened, otherwise there is acute
danger to life!
5. Check the ground (earth) connection of the electrical plug.
6. Take care not to damage gas, water, power and other conduits in the area of the drilling operation.
Drain or shut off these conduits as required.
7. Block off the working area and place warning signs on both sides of the wall when drilling through
from one side to the other.
8. Take appropriate precautions to ensure that, in the event of a drilling core dropping out, no
personal injury or material damage will result.
9. When drilling hollow components, check the flow route of the cooling water in order to prevent
damage.
10. Always hold the machine tightly. Diamond core drilling bits can become stuck at any time during core
drilling, there is a danger of the machine jumping out of control.
11. WARNING: Pull the plug out of the socket before making device settings or changing accessories.
Many accidents are caused by accidental starting of power tools.
INTRODUCTION
The machine is equipped with a tubular spirit level to aid in aligning when drilling horizontally. By positioning
the machine so that the bubble is in the center of the window one can drill a straight hole.
This machine is for the intended purpose of dry diamond core drilling of concrete, masonry, stone and similar
materials. It may also be mounted on a rig (drilling stand). The rig is not included.
All other uses which are not for the intended purpose are prohibited.
It is equipped with switchable soft percussion to aid in drilling.
Some models are equipped with switchable soft percussion.
It is equipped with a mechanical safety clutch.
It has electronics for overload protection, and thermal protection and a unique overload.
ELECTRICAL CONNECTION
The network voltage must conform to the voltage indicated on the tool name plate.
Under no circumstances should the tool be used when the power supply cable is damaged. A damaged
cable must be replaced immediately by an authorized Customer Service Center. Do not try to repair the
damaged cable yourself. The use of damaged power cables can lead to an electric shock.

6
ASSEMBLY
Mount the handle clamp of the side handle onto the gearbox neck. Position the side handle perpendicular to
the main handle. Use the lock screw to tighten the clamp.
LIST OF CONTENTS
• Diamond core drilling machine.
• Side handle assembly
OPERATING INSTRUCTIONS
Mounting the core bit
CAUTION: Ensure that the threads of the spindle and the core bit match. Attempting to mount
mismatched threads will result in damage to both threads.
Ensure both the core bit and the machine spindle are clean. Any debris could cause excessive run-out of the
mounted core bit. Excessive run-out can cause premature failure of the core bit and/or a safety hazard.
Tighten the bit to the spindle using two wrenches.
Choosing the correct core bit for the job:
Ensure that the bit you are using is suitable for the material you are drilling. There are two main types of
diamond core bit:
Dry type diamond core bits and wet type-sintered (impregnated) diamond core bits.
This machine should only use Dry type bits:
Dry type core bits are suitable for less hard materials. They tend to work well with softer, abrasive materials like
brick. Only dry type bits are suitable for use with soft percussion function.
Water should always be used to cool and lubricate the bit and to flush out abrasive particles formed while
SPECIAL INSTRUCTIONS FOR DRY DRILLING: (Dry drilling models only)
Dry drilling is a different process from wet drilling. It is more of a cutting process and you must use a much
lighter touch.
When dry drilling, you must not push too hard. Allow the tool to work at its own pace.
Dry drilling is normally done in softer materials. Note that in very hard materials it may not be possible to drill
dry.

7
PERCUSSION SELECTOR
The percussion function can be turned on and off. Unlike a hammer
drill, the percussion function's main purpose on a diamond core drill is
to keep the diamonds sharp. If the core bit which you are using tends to
stay sharp without percussion, then the percussion function will not be
necessary and will not speed up the drilling process. If the core bit does
tend to get dull, then the percussion function will be helpful to keep it
sharp.
The selector is a knurled collar at the front of the gearbox. To select,
first unplug the machine, then push down on the collar against the spring tension to disengage the teeth of
the selector from the slots. It is sometimes helpful to pull out on the spindle to give the collar enough room to
push in. Observe the symbol laser engraved on the selector and turn to either the "Hammer" symbol for soft
percussion or the "No Hammer" symbol to turn off the percussion.
THE SWITCH
The machine has a lockable trigger switch. Squeeze the trigger to start
the machine. To lock the switch on, press the lock button while holding
the trigger switch on. To release, squeeze the trigger and release.
WARNING: Never lock the switch on when drilling hand-held. Only
lock the switch on when mounted to a rig.
OVERLOAD PROTECTION AND OVERHEAT PROTECTION
Overload:
If the excessive load is sustained too long, the motor will shut down completely. In this case, the motor must be
restarted by turning OFF and then back ON the switch. When this happens, the motor will very likely be near
overheating, so it is also a good idea to run the motor at no load for a few minutes to cool it before continuing.
Overheat Thermal Protection:
If the temperature of the motor gets too high, the thermal protection will shut the motor down. When this
happens, do not immediately put a load on the motor after restarting. Always run the machine at no load for a
few minutes to return to a normal operating temperature before continuing.
CAUTION: The motor will be damaged if it is repeatedly overloaded or overheated. Always cool the
motor by running at no load for a few minutes whenever it stops from either overheat or overload.
SAFETY CLUTCH
This machine is equipped with a mechanical clutch to protect the operator and machine from excessive torque
forces. When the preset maximum torque level is reached, the clutch will slip. After the clutch slips many times,
Trigger Switch
Lock Button
Hammer (percussion ON)
No Hammer (percussion OFF)

8
it will become worn and slip at lower and lower torque levels. When this happens, it must be serviced by an
authorized service provider. The recommended torque of the clutch nut is 21 Nm.
DIAMOND CORE DRILLING
WARNING: When coring through a floor, the core will fall down. Take precautions to avoid injury or
damage below.
NOTE: When drilling with a new bit for the first time, use less than normal feed pressure for a time
until it breaks-in.
1. Squeeze the trigger switch to turn the machine on.
WARNING: Hold the machine tightly with both hands to counteract the torque reaction force when
the bit begins to turn.
2. Very gently begin the cut. If holding by hand, start the cut by approaching at an angle of about 30
degrees to the cutting surface. (A large piece of wood with a large V notch cut in it will help prevent the
bit from wandering at the beginning.) Once about a third of the arc is cut, straighten the bit to the correct
perpendicular angle while keeping enough feed pressure on the bit to prevent it from wandering.
(If using a rig, use very light feed pressure to prevent the bit from wandering until the bit is fully
penetrated into the cut.)
3. Once in the cut, use steady feed pressure .
4. When the cut is almost finished and the bit is about to break through, the bit will be very liable to get
stuck. Take extra care gripping the machine tightly and reduce feed pressure at this point.
NOTE: If a pilot drill or centering aid is being used, once the kerf is established, stop and remove the
pilot bit before continuing to finish the hole.
WARNING: Whenever drilling by hand, always hold the drill in a position so that you can resist the
considerable twisting forces created when the bit grabs. Never
operate without the side handle tightly in place.
WARNING: When the bit grabs, the machine will always twist in
the counterclockwise direction. If you are drilling into the floor,
make sure that the side handle is in front of your left leg, never
between your legs.
WARNING: Always keep your face away from the machine.
Arrange the power supply cable with minimal slack and oriented in
such a way that if the machine gets out of control and spins, it will immediately unplug its own cable.
CAUTION: If the bit gets stuck, do not try to rock it loose by turning the switch on and off. That is
hazardous and could damage the motor. Rather, unplug the machine and use a wrench on the bit
mounting to work it loose.
Right Wrong

9
When the cut is finished keep the motor running until the bit is removed from the cut to avoid it getting
stuck.
CAUTION: Drilling operations are very stressful to the motor and at the end of the cut, the motor
temperature will be very hot, always run the motor at no load for a few minutes until the temperature
returns to a normal range before shutting off.
Then turn off the switch and allow the coasting bit to stop before setting it down.
VIBRATION TROUBLESHOOTING
If vibration occurs and it is not caused by embedded steel, stop drilling to find the cause and remedy.
CAUTION: Do not operate with vibration or there will be serious hazard and the diamond core bit
will surely be destroyed.
Vibration is usually caused by:
1. A bit with too much runout
SOLUTION: Replace bit.
2. A bit with diamond segments broken off
SOLUTION: Repair or replace bit.
KEEP TOOL CLEAN
Wipe down the machine at the end of each work day with a damp cloth.
NEVER use solvents to clean plastic parts. They could possibly dissolve or otherwise damage the material.
Periodically blow low-pressure compressed air through the ventilation slots with the motor running to keep
the motor clean so that motor can be cooled normally.
Wear safety glasses while using compressed air.
CAUTION: When drilling in a position with the motor near to the floor, take measures to prevent dust,
debris and slurry from being sucked into the motor's cooling slots
MAINTENANCE
Every 50 hours of operation blow compressed air through the motor while running at no load to clean out
accumulated dust. (If operating in especially dusty conditions, perform this operation more often.)
To keep your diamond coring machine in top condition, periodic maintenance must be performed. In
addition always check for a damaged power supply cable, check for loose fasteners and always keep alert
for unusual noises and vibration when operating.

10
WARNING: Never operate a damaged machine. Always tag a damaged machine and take it out of
service until repairs can be made.
Maintenance which should be performed by an authorized service center, include the following:
• Replace the carbon brushes as needed
• Change the gearbox grease about every 100 hours of operation
• Replace the clutch discs and spring as needed.
Each year perform a full mechanical inspection, cleaning and re-lubrication.
THE CARBON BRUSHES
The carbon brushes are a normal wearing part and must be replaced when they reach their wear limit. This
machine is equipped with auto-stop carbon brushes. If the machine comes to a stop unexpectedly, the brushes
should be checked. The auto-stop brush design protects the motor by stopping the machine before the carbon
brushes are completely worn out.
Caution: Always replace the brushes as a pair.
To replace:
1. Remove the 12 screws (pistol handle models) or 14 screws (D handle models) to open up the handle
halves. Carefully move the parts to one side, taking care not to strain the wiring.
2. Using pliers rotate the brush spring out of the way and slide the old carbon brush out of the brush
holder.
3. Unscrew the screw to remove the brush lead. The old carbon brush may now be lifted away.
4. Install a new brush. Installation is the reverse of removal.
5. Replacement is the reverse of removal. Take care not to pinch any wires when reassembling.
If the replacement of the power supply cord is necessary, this has to be done by the manufacturer or
their agent in order to avoid a safety hazard.
WARNING: All repairs must be entrusted to an authorized service center. Incorrectly performed repairs
could lead to injury or death.
Do not throw electric power tools into the household waste!
In accordance with the European Directive 2002/96/EG on Waste Electrical and Electronic Equipment and
transposition into national law, used electric power tools must be collected separately and recycled in an
environmentally friendly manner.

11
WIRING
1
2
1
2
AC
BRUSH
BRUSH
STATOR
BLACK BLACK
BLACK BLACK
BLACK
(TEMP. SENSOR)
ELECTRONICS UNIT
SWITCH
WHITE WHITE
TERMINAL CONNECTOR
BLOCK

12
Pistol-Handle Model Exploded View
20
21
14
15 16
18
22
23
24
25
26
27
38
37
35
33 32
40
41
46
42
47
57
58
59
60
67 66
56
68
69
70
48
73
72
30
31
17 19
45
44
NO.01~80 Version 2.6
29 28 19
B
61
62
63
E
64
78
13
06
13
09
10
11
04 05
08
12
D
C
74
F03
01
07 02
A
75
76
71A 71C
OPTIONAL
77
79
80
30-2
45A
30-2A

13
Pistol-Handle Model Exploded View
NO. Parts Name Q'TY
1 POWER SUPPLY CABLE (UK-1.5x3Cx3M-H07RNF) 1
1 POWER SUPPLY CABLE (VDE-1.0x3Cx3M-H07RNF) 1
2 PRCD INTERRUPTER PROTECTION (110V/220V) 1
3 CORD ARMOR 1
4 CABLE CLIP 1
5 PANHEAD TAPPING SCREW (M4x14) 2
6 SWITCH (110V&220V) 1
7 TERMINAL CONNECTOR BLOCK (PA-8-H) 1/12
8 ELECTRONICS UNIT (110V/220V) 1
8 ELECTRONICS UNIT (110V/220V-AVR) 1
9 HANDLE HALF-RIGHT 1
10 HANDLE HALF-LEFT 1
11 PANHEAD TAPPING SCREW (M4x20) 5
12 PANHEAD TAPPING SCREW (M4x35) 3
13 TORX PANHEAD TAPPING SCREW (M5x20) 4
14 PANHEAD TAPPING SCREW (M4x8) 4
15 BRUSH SPRING (0.4x4x3T) 2
16 CARBON BRUSH HOLDER (7x17) 2
17 INSULATION PLATE (10x38x1) 2
18 CARBON BRUSH (7x17x19)(110V) 2
18 CARBON BRUSH (7x17x20)(220V) 2
19 PANHEAD MACHINE SCREW (M4x6xP0.7) 3
20 SPIRIT LEVEL (10x10x29) 1
21 MOTOR HOUSING 1
22 STATOR (110V/220V-81x45.6x60) 1
23 PANHEAD TAPPING SCREW (3/16"x3") 2
24 FAN SHROUD 1
25 BALL BEARING (6200) 1
26 ARMATURE (110V/220V-81x45.8x60) 1
27 BALL BEARING (6201) 1
28 EXTERNAL STARWASHER (M4) 1
29 EARTH WIRE (Ø3x200MM) 1
30.) GEAR PLATE 1
30-2 CAM PLATE 1
30A GEAR PLATE 1
30A-2 CAM PLATE 1
30 GEAR PLATE 1
31 GASKET 1
32 BALL BEARING (608) 1
33 CLUTCH NUT (M10xP1.25x8.1T) 1
34 N/A -
35 PRESSURE DISC (Ø12.1xØ28x2.65) 1
36 N/A -
NO. Parts Name Q'TY
37 INPUT GEAR (M1.0x34T) 1
38 BUSHING (Ø12xØ18x4.2) 1
39 N/A -
40 INPUT SHAFT (DP20x21T) 1
41 NEEDLE BEARING (HK 0810) 1
42 NEEDLE BEARING (HK 1010) 1
43 N/A -
44 SPRING (Ø1.0xØ17.2xØ19.2x3Tx15L) 1
45 CAM PLATE 1
45A CAM PLATE 1
46 EXTERNAL CIRCLIP (S-20) 1
47 OUTPUT GEAR (DP20x32T) 1
48 GEAR HOUSING 1
49~55 N/A -
56 TORX PANHEAD TAPPING SCREW (M5x55) 4
57 OIL SEAL (Ø24xØ40x7) 1
58 OIL SEAL (Ø24xØ42x8) 1
59 EXTERNAL CIRCLIP (S-25) 1
60 BALL BEARING (6005) 1
61 SPRING (Ø1.2xØ25.2xØ27.6x5Tx40L) 1
62 IMPACT SELECTOR COLLAR 1
63 ENGAGEMENT COLLAR 1
64 PARALLEL KEY (5x5x8) 1
65 N/A -
66 BEARING PLATE 1
67 SOCKET CAP SCREW (M4x8xP0.7) 3
68 HANDLE CLAMP 1
69 SPACER (Ø6.1xØ12x10) 1
70 THUMB SCREW (M6x55xP1.0) 1
71A FRONT HANDLE (M12xP1.75) 1
71B N/A -
71C FRONT HANDLE (M12xP1.75) 1
72 WATER FEED CONNECTOR KIT 1
73 WATER COUPLING (1/2') 1
74 SOCKET SET SCREW-SUS (PT1/4") 1
75 CLUTCH DISC SET 1
76 O-RING (Ø32x1.5) 1
77 PILOT DRILL SOCKET 1
78 SPINDLE (1/2"BSP-159.5MM) 1
78 SPINDLE (1 1/4"-7x1/2"BSP-162MM) 1
78 SPINDLE (M18xP2.5-150.5) 1
79 STAINLESS BUSHING 2
80 FLAG TERMINAL 1

14
D-Handle Model Exploded View
20
21
14
15 16
18
22
23
24
25
26
27
13
13
05
04
08
09
10
12
11
06
38
37 75
35
33 32
40
41
46
47
57
58
59
60
67 66
56
68
69
70
48
73
72
30
31
17 19
44
NO.01~80 Version 2.6
29 28 19
B
D
61
62
63
E
64
78
C
74
F
03
01
07 02
A
76
71A 71C
OPTIONAL
77
79
80
30-2
42
30-2A
30A
45
45A

15
D-Handle Model Parts List
NO. Parts Name Q'TY
1 POWER SUPPLY CABLE (UK-1.5x3Cx3M-H07RNF) 1
1 POWER SUPPLY CABLE (VDE-1.0x3Cx3M-H07RNF) 1
2 PRCD INTERRUPTER PROTECTION (110V/220V) 1
3 CORD ARMOR 1
4 CABLE CLIP 1
5 PANHEAD TAPPING SCREW (M4x14) 2
6 SWITCH (110V&220V) 1
7 TERMINAL CONNECTOR BLOCK (PA-8-H) 1/12
8 ELECTRONICS UNIT (110V/220V) 1
8 ELECTRONICS UNIT (110V/220V-AVR) 1
9 D-HANDLE HALF-RIGHT 1
10 D-HANDLE HALF-LEFT 1
11 PANHEADTAPPING SCREW-B (M4x25) 7
12 PANHEADTAPPING SCREW-B (M4x35) 3
13 TORX PANHEAD TAPPING SCREW (M4x8) 4
14 PANHEAD TAPPING SCREW (M4x8) 4
15 BRUSH SPRING (0.4x4x3T) 2
16 CARBON BRUSH HOLDER (7x17) 2
17 INSULATION PLATE (10x38x1) 2
18 CARBON BRUSH (7x17x19)(110V) 2
18 CARBON BRUSH (7x17x20)(220V) 2
19 PANHEAD MACHINE SCREW (M4x6xP0.7) 3
20 SPIRIT LEVEL (10x10x29) 1
21 MOTOR HOUSING 1
22 STATOR (110V/220V-81x45.6x60) 1
23 PANHEAD TAPPING SCREW (3/16"x3") 2
24 FAN SHROUD 1
25 BALL BEARING (6200) 1
26 ARMATURE (110V/220V-81x45.8x60) 1
27 BALL BEARING (6201) 1
28 EXTERNAL STARWASHER (M4) 1
29 EARTH WIRE (Ø3x200MM) 1
30 GEAR PLATE 1
30-2 CAM PLATE 1
30A GEAR PLATE 1
30A-2 CAM PLATE 1
30 GEAR PLATE 1
31 GASKET 1
32 BALL BEARING (608) 1
33 CLUTCH NUT (M10xP1.25x8.1T) 1
34 N/A -
35 PRESSURE DISC (Ø12.1xØ28x2.65) 1
36 N/A -
NO. Parts Name Q'TY
37 INPUT GEAR (M1.0x34T) 1
38 BUSHING (Ø12xØ18x4.2) 1
39 N/A -
40 INPUT SHAFT (DP20x21T) 1
41 NEEDLE BEARING (HK 0810) 1
42 NEEDLE BEARING (HK 1010) 1
43 N/A -
44 SPRING (Ø1.0xØ17.2xØ19.2x3Tx15L) 1
45 CAM PLATE 1
45A CAM PLATE 1
46 EXTERNAL CIRCLIP (S-20) 1
47 OUTPUT GEAR (DP20x32T) 1
48 GEAR HOUSING 1
49~55 N/A -
56 TORX PANHEAD TAPPING SCREW (M5x55) 4
57 OIL SEAL (Ø24xØ40x7) 1
58 OIL SEAL (Ø24xØ42x8) 1
59 EXTERNAL CIRCLIP (S-25) 1
60 BALL BEARING (6005) 1
61 SPRING (Ø1.2xØ25.2xØ27.6x5Tx40L) 1
62 IMPACT SELECTOR COLLAR 1
63 ENGAGEMENT COLLAR 1
64 PARALLEL KEY (5x5x8) 1
65 N/A -
66 BEARING PLATE 1
67 SOCKET CAP SCREW (M4x8xP0.7) 3
68 HANDLE CLAMP 1
69 SPACER (Ø6.1xØ12x10) 1
70 THUMB SCREW (M6x55xP1.0) 1
71A FRONT HANDLE (M12xP1.75) 1
71B N/A -
71C FRONT HANDLE (M12xP1.75) 1
72 WATER FEED CONNECTOR KIT 1
73 WATER COUPLING (1/2') 1
74 SOCKET SET SCREW-SUS (PT1/4") 1
75 CLUTCH DISC SET 1
76 O-RING (Ø32x1.5) 1
77 PILOT DRILL SOCKET 1
78 SPINDLE (1/2"BSP-159.5MM) 1
78 SPINDLE (1 1/4"-7x1/2"BSP-162MM) 1
78 SPINDLE (M18xP2.5-150.5) 1
79 STAINLESS BUSHING 2
80 FLAG TERMINAL 1
