AGPRO AGTL105 User manual

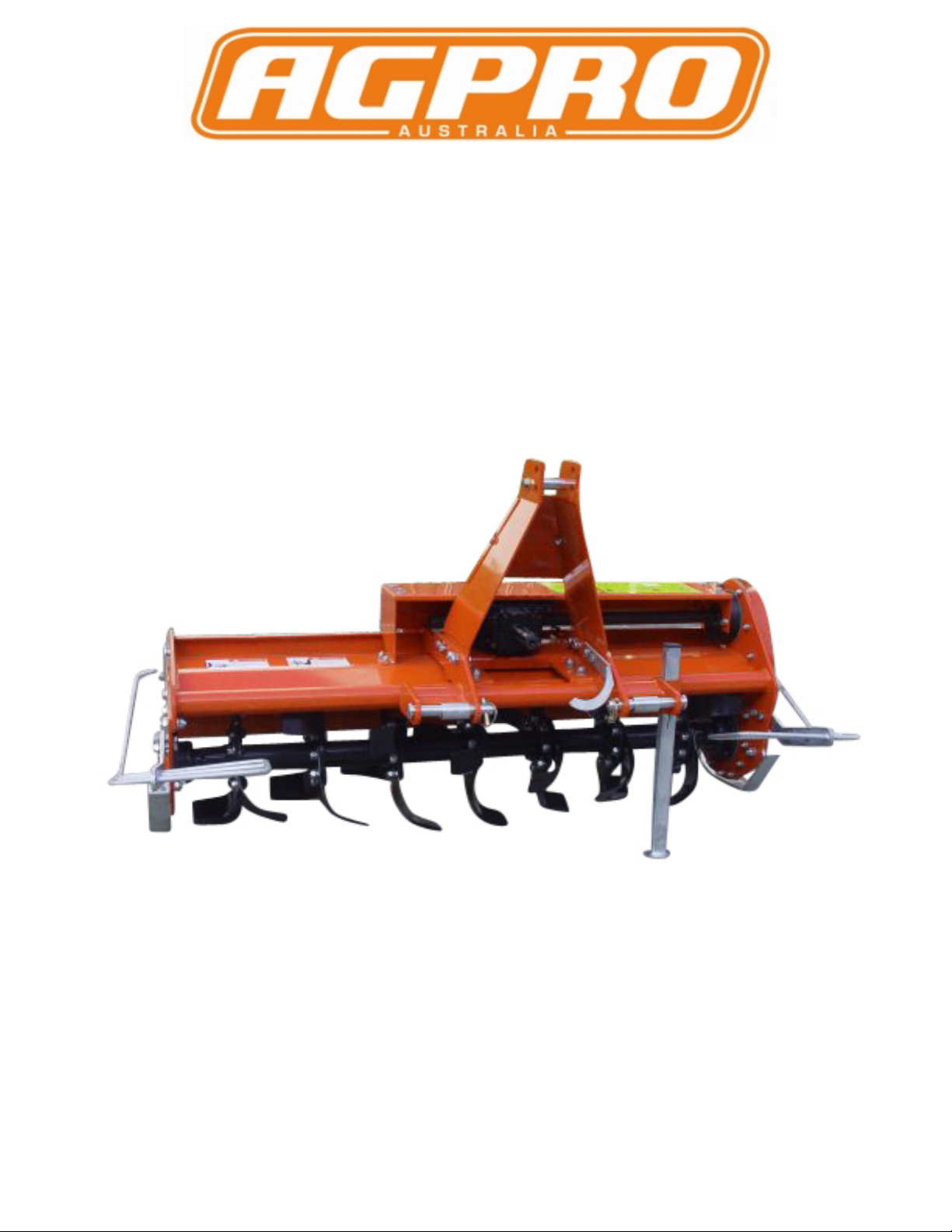

MEDIUM DUTY ROTARY HOE
AGTL105/125
OPERATION MANUAL
Ag Pro Australia Pty Ltd
3730 Harmony Way
Harcourt
Victoria 3453
1300 121 131
[email protected]

2
I. GUARANTEE
Materials made by us have guaranteed that no defects are on the materials
themselves or that there is no blemish during manufacturing. This guarantee
will have no effect after the expiry.
Exception conditions:
(1) It is unworkable due to damaging (lake of care or maintenance), abnormal
operations, overused or abnormal abrasion.
(2) Material is changed, fitting or dismount, even if only perceivable part
or surface.
(3) Our technical service is only available for defective parts. The parts
with possible defects should be returned to our company with an attached
Demand of Requirements. We are not responsible for the laboring fees of any
dismount of installation of the fee and result for handling with the
materials.
(4) To enjoy your guarantee rights, clients should let us know the material
limitation and offer all evidences. Under such condition, if the material
is not returned, or client appoints a third side to disassemble or repair
in advance, the guarantee terms will not work.
(5) Work pieces always go wrong and after accepting our technical service
guarantee the work pieces are not returned to us.
(6) Our obligation is limited in the range of the above written guarantee
terms. In no case a concurrent affair caused by anyone or things can be
guaranteed. So do the sold products.
(7) Property Retaining: According to the term 20.335 of the rules of May
12.1980, we will retain the property ownership of the sold products until
all charge is paid.
(8) Disagreement: If disagreement appears, a court with a certain lever has
right for judgment.
(9) Treaty or statute can't be changed. Adjudication cannot be violated.

3
II
HAND-OPERATING MILLING CUTTERS
Seeing this symbol means possible danger to you, so please pay enough
attention to this symbol.
ⅢAFTY & PREVENTIVE STEPS FOR ACCIDENT
During operation, you should always remind yourself to be careful to maintain
and replace parts and to obey rules to avoid accident.
To operate the machine in a better way, please follow safety rules including
these:
(1) Stop tractor, waiting all moving parts to stop. Stop the machine
vertically on ground. Lift universal shaft and then begin adjusting,
washing or maintenance.
(2) Before using, adjust the elasticity of nuts and bolts,
especially adjust blade well.
(3) After operation is finished, cardan shaft should still get
care and kept in good condition. Replace the old one if necessary.
(4) Before and during operation, all people must leave the field, because
some small clod can be cashed out.
(5) Choose the tractors with protective booth if you can.

4
(6) Don't let machine operate without human control.
(7) When you maintain, repair or keep the key of tractor, keep the machine
from moving forward.
(8) Don't wear tights to avoid being rolled. Wear glove when cutting
parts.
(9) Don't let anybody seat on implements and tractor.
(10) Cardan shaft should always be kept in good condition. Fit a small chain
to make it easy for stopping rotation. Once default or abrasion is found,
the part should be replaced.
To get part under guarantee, use original parts and follow the instructions
well.
ⅣOPERATION & TRAVEL
1. Before using, looks though Operation Manual. Keep center bonnet and side
cover level and fill with EP80W90 engine oil.
2. After 30 work hours, screw out plug and bread out bonnets and engine cases
before a second operation. Control oil level with meter and break out
again after 200 work hours.
3. Before operation, tractor should have the right output power of 540rpm
to avoid damaging machine.

5
4. Operation speed is better to be 1.2-1.5 km/h.
ⅤTENSILITY OF CHAIN
1. Tensility of chain is caused by elasticity inside bonnet. If the machine
has noise or works for successive 200 hours, adjust elasticity and chain.
Adjust parts and components in special workshop. Install bonnet with new
fastening. This maintenance can keep chain and machine bolts in good
condition.
2. Adjust operation depth. Stop engine of tractor. After the parts and
components stop working, loose bolt(6),screw down bolt(7), adjust left
and right braking blocks of adjuster(8), and tighten loosen bolts for
a proper height.
ⅥTRANSMISSION
1. When milling cutter is fixed on tractor, adjust length of cardan shaft.
If it is so long that it cuts the outside protective device, file the
bushing short. In a working positing, bushing should be inset into the
other bushing at least 150mmm (see the picture).
When cutting tool is fixed
on tractor, it should get some adjustment.
2. Adjust and install transmission gear (cardan shaft) in special workshop.

6
If there is damage on protective gear, replace it completely. Generally,
a chain should be fitted on protective device not only under working
condition.
3. When an implement is fitted on tractor, always use pins to lock the
crankshaft. If pins go wrong, replace them.
4. When implements are locked on tractor, cardan shaft should be fixed and
lock on both ends through pins. The protective device of cardan should
be in good condition and kept still during machine running. When safety
device is damaged. For safety, use a small chain that is ready to replace
it.
5. When machine stops work, let tractor come away from hook. To avoid
stopping on the ground, an extra chain of cardan shaft can be used. When
fix cardan shaft, make sure it is locked up.
ⅦCUTTING TOOL REPLACIN
G
1. Before changing operation of the implement, stop engine of tractor, and
after all moving parts and components stops, disconnect cardan shaft with
force.
2. Stop the implement on a plain ground and do as the following: screw down
all the bolts(1), replace used or damaged cutting tools, install left
and right(4) carefully, tighten bolts(1) with shim(2) and nut (3), and
tighten bolt(1).
3. For good performance of implement, use original cutting tools only.

7
CE
ⅨINFORMATION SYMBOLS
1. Label No. 1 means the model.
2. To transport easily, machine
can be delivered without engine
oil.
3. Read Operation Instruction carefully before using.
4. Output power is 540rpm.
5. Pay attention to the small clods casted out. Frequent inspection
for the working parts and components is necessary.
6. Don't interfere the working machine by compelling and keep yourself away
from it.

8

9
Ser. No. Name Qty Ser. No Name Qty
1 Bolts 8 35 Stop washer 1
2 Nuts 8 36 Chain 1
3 Shield protective cover 1 37 Oil seal ring 1
4 Washer 8 38 Oil filler plug 1
5 Lower suspension pin 2 39 Side chain gear box 1
6 Small bevel gear 1 40 Oil drain plug 1
7 Bearing 1 41 Circular nut 1
8 Oil seal ring 2 42 Circlip 1
9 Cap 1 43 Big sprocket wheel 1
10 Bolts 8 44 Spring 1
11 Washer 8 45 Tension plate 1
12 Bolts 4 46 U-bolts 2
13 Cap 1 47 Main frame pipe 1
14 Washer 4 48 Foot pedal 1
15 Oil seal ring 1 49 Cap 1
16 Intermediate gearbox 1 50 Oil seal 1
17 Circlip 1 51 Bearing 1
18 Big bevel gear 1 52 First shaft 1
19 Bearing 1 53 Anti-friction plate 2
20 Oil seal 1 54 Connection plate 2
21 Oil seal ring 2 55 Stay bar 1
22 Bolts 4 56 Pin 1
23 Main frame pipe 1 57 Oil seal ring 2
24 Bolts 8 58 Bearing 2
25 Washer 8 59 Oil seal 2
26 Washer 8 60 Bearing seat 2
27 Nut 61 Blades shaft 1
28 Chain 1 62 Left-bent blade
29 Hook 1 63 Right-bent blade
30 Tail plate 1 64 Blades bolt
31 2nd shaft 1 65 Blades nut
32 Bearing 1 66 Upper suspension pin 1
33 Rod 1 67 Spring lock pin 1
34 Small sprocket wheel 1 68
