Agri-Fab LST 42A User manual

Model No.
LST 42A
OWNERS
MANUAL
PRINTED IN U.S.A. FORM NO. 49784 (6/05)
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
• Safety
• Assembly
• Operation
• Maintenance
• Parts
42" SNOW THROWER
the fastest way to purchase parts
www.speedepart.com
™

2
TABLE OF CONTENTS
SAFETY RULES
.....................................................................................................................................................................
3
FULL SIZE HARDWARE CHART
...........................................................................................................................................
4
CARTON CONTENTS
............................................................................................................................................................
5
ASSEMBLY INSTRUCTIONS
.................................................................................................................................................
6
OPERATION
.........................................................................................................................................................................
18
MAINTENANCE
...................................................................................................................................................................
19
SERVICE AND ADJUSTMENTS
..........................................................................................................................................
20
STORAGE
............................................................................................................................................................................
21
TROUBLESHOOTING
..........................................................................................................................................................
21
REPAIR PARTS
...................................................................................................................................................................
22
SLOPE GUIDE
.....................................................................................................................................................................
27
PARTS ORDERING
...............................................................................................................................................
Back Cover
IMPORTANT:
Rear wheel weights and tire chains are required to provide extra traction and
stability when using this snow thrower attachment. These items are available
where you purchased your tractor.
WHEEL WEIGHTS TIRE CHAINS

3
SAFETY
Any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment.
Exercise caution at all times, when using power equipment.
•
Read this owner's manual carefully and know how to
operate your snow thrower and how to stop the unit and
disengage the controls quickly.
•
Never allow children to operate the equipment.
•
Never allow adults to operate the equipment without
proper instruction.
•
Keep the area of operation clear of all persons, especially
small children, and pets.
•
Thoroughly inspect the area where the equipment is to
be used and remove all door mats, sleds, boards, wires
and other foreign objects.
•
Disengage all clutches and shift into neutral before
starting engine.
•
Do not operate equipment without wearing adequate
winter outer garments.
•
Wear substantial footwear which will protect feet and
improve footing on slippery surfaces.
•
Check fuel before starting the engine. Do not remove the
fuel cap or fi ll the fuel tank while the engine is running
or hot. Do not fi ll the fuel tank indoors. Gasoline is an
extremely fl ammable fuel.
•
Make sure the snow thrower height is adjusted to clear
the type surface it will be used on.
•
Do not use the snow thrower without the rear weight
attached to the tractor.
•
Never make any adjustments while the engine is
running.
•
Always wear safety glasses or eye shield during operation
or while performing and adjustment or repair.
•
Do not place hand or feet near rotating parts. Keep clear
of the discharge opening at all times.
•
Use extreme caution when operating on or crossing
gravel surfaces.
•
Do not carry passengers.
•
After striking a foreign object, stop the engine, remove
the wire from the spark plug and then thoroughly inspect
the snow thrower for damage. Repair any damage before
restarting and operating the snow thrower.
•
If the snow thrower starts to vibrate abnormally, stop the
engine immediately and check for the cause. Vibration
is generally a warning of trouble.
•
Stop the engine whenever you leave the operating
position, before unclogging the snow thrower or making
any adjustments or inspections.
•
Take all possible precautions when leaving the unit
unattended. Disengage the attachment clutch lever or
switch, lower the snow thrower, shift into neutral, set the
parking brake, stop the engine and remove the key.
•
When cleaning, repairing or inspecting, make certain all
moving parts have stopped. Disconnect the spark plug
wire and keep it away from the plug to prevent accidental
starting.
•
Do not run engine indoors except when transporting the
snow thrower in or out of the building. Open the outside
doors. Exhaust fumes are dangerous.
•
Do not clear snow across the face of slopes. Exercise
extreme caution when changing direction on slopes.
Do not attempt to clear steep slopes. Refer to the slope
guide on page 27 of this manual.
•
Never operate the snow thrower without guards, plates
or other safety protection devices in place.
•
Never operate the snow thrower near glass enclosures,
automobiles, window wells, drop offs etc. without proper
adjustment of the snow thrower discharge angle.
•
Never direct discharge at bystanders or allow anyone in
front of the snow thrower.
•
Never run the snow thrower into material at high
speeds.
•
Do not overload the machine capacity by attempting to
clear snow at too fast a rate.
•
Never operate the machine at high transport speed
on slippery surfaces. Look behind and use care when
backing.
•
Watch for traffi c and stay alert when crossing or operating
near roadways.
•
Disengage power to the snow thrower when transporting
or when not in use.
•
Use only attachments and accessories approved by
the manufacturer of the snow thrower (such as wheel
weights, counter weights, cabs etc.)
•
Never operate the snow thrower without good visibility
or light.
Look for this symbol to point out important safety precautions. It means —
Attention!! Become
alert!! Your safety is involved.

4
HARDWARE PACKAGE CONTENTS
REF. QTY. DESCRIPTION
REF. QTY. DESCRIPTION
REF. QTY. DESCRIPTION
REF. QTY. DESCRIPTION
Q 6 Hex Lock Nut, 1/4"
Q 6 Hex Lock Nut, 1/4"
Q 6 Hex Lock Nut, 1/4"
R 1 Whizlock Nut, 5/16"
R 1 Whizlock Nut, 5/16"
R 1 Whizlock Nut, 5/16"
S 8 Hex Nut, 5/16"
S 8 Hex Nut, 5/16"
S 8 Hex Nut, 5/16"
T 4 Hex Lock Nut, 5/16" (2 pcs. spare parts)
T 4 Hex Lock Nut, 5/16" (2 pcs. spare parts)
T 4 Hex Lock Nut, 5/16" (2 pcs. spare parts)
U 9 Hex Lock Nut, 3/8"
U 9 Hex Lock Nut, 3/8"
U 9 Hex Lock Nut, 3/8"
V 3 Hairpin Cotter, 1/8"
V 3 Hairpin Cotter, 1/8"
V 3 Hairpin Cotter, 1/8"
W 3 Hairpin Cotter, 5/64"
W 3 Hairpin Cotter, 5/64"
W 3 Hairpin Cotter, 5/64"
X 1 Hairpin Cotter, 3/32"
X 1 Hairpin Cotter, 3/32"
X 1 Hairpin Cotter, 3/32"
Y 2 Shear Bolt (spare parts)
Y 2 Shear Bolt (spare parts)
Y 2 Shear Bolt (spare parts)
Z 1 Chain, Tensioning
Z 1 Chain, Tensioning
Z 1 Chain, Tensioning
AA 1 Spring
AA 1 Spring
AA 1 Spring
BB 3 Chute Keeper
BB 3 Chute Keeper
BB 3 Chute Keeper
CC 1 Trunnion
CC 1 Trunnion
CC 1 Trunnion
DD 2 Lock Pin
DD 2 Lock Pin
DD 2 Lock Pin
EE 1 Spacer
EE 1 Spacer
EE 1 Spacer
FF 1 Plastic Cap
FF 1 Plastic Cap
FF 1 Plastic Cap
GG 2 Nylon Tie
GG 2 Nylon Tie
GG 2 Nylon Tie
A 4 Hex Bolt, 3/8" x 1" (Thread Forming)
A 4 Hex Bolt, 3/8" x 1" (Thread Forming)
B 2 Hex Bolt, 5/16" x 1-3/4"
B 2 Hex Bolt, 5/16" x 1-3/4"
B 2 Hex Bolt, 5/16" x 1-3/4"
C 6 Hex Bolt, 1/4" x 1"
C 6 Hex Bolt, 1/4" x 1"
C 6 Hex Bolt, 1/4" x 1"
D 4 Carriage Bolt, 3/8" x 1"
D 4 Carriage Bolt, 3/8" x 1"
D 4 Carriage Bolt, 3/8" x 1"
E 2 Carriage Bolt, 5/16" x 1-3/4"
E 2 Carriage Bolt, 5/16" x 1-3/4"
E 2 Carriage Bolt, 5/16" x 1-3/4"
F 2 Carriage Bolt , 5/16" x 1-1/4"
F 2 Carriage Bolt , 5/16" x 1-1/4"
F 2 Carriage Bolt , 5/16" x 1-1/4"
G 2 Carriage Bolt, 5/16" x 1"
G 2 Carriage Bolt, 5/16" x 1"
G 2 Carriage Bolt, 5/16" x 1"
H 2 Carriage Bolt, 5/16" x 3/4"
H 2 Carriage Bolt, 5/16" x 3/4"
H 2 Carriage Bolt, 5/16" x 3/4"
I 4 Shoulder Bolt, 3/8" x 5/8"
I 4 Shoulder Bolt, 3/8" x 5/8"
I 4 Shoulder Bolt, 3/8" x 5/8"
J 10 Lock Washer, 3/8"
J 10 Lock Washer, 3/8"
J 10 Lock Washer, 3/8"
K 10 Lock Washer, 5/16"
K 10 Lock Washer, 5/16"
K 10 Lock Washer, 5/16"
L 7 Washer, 1/4"
L 7 Washer, 1/4"
L 7 Washer, 1/4"
M 2 Washer, 5/16"
M 2 Washer, 5/16"
M 2 Washer, 5/16"
N 1 Washer, 3/8"
N 1 Washer, 3/8"
N 1 Washer, 3/8"
O 2 Washer, 1/2"
O 2 Washer, 1/2"
O 2 Washer, 1/2"
P 2 Bowed Washer
P 2 Bowed Washer
P 2 Bowed Washer
A B CD E FGH
Q
M
N
L
I
JK
O
T
U
S
CC
X
Y
V
Z
BB
AA
NOT SHOWN ACTUAL SIZE
SHOWN ACTUAL SIZE
W
Store these two bolts and nuts in a safe
place until needed. (See page 20.)
T
EE GG
DD FF
SPARE PARTS BAG
P
R

5
CARTON CONTENTS
1. Right Hand Side Plate (Stamped "R")
2. Left Hand Side Plate (Stamped "L")
3. Anti-rotation Bracket
4. Engagement Rod
5. Engine Pulley Keeper
6. Left Hand Hanger Bracket (Stamped "L")
7. Right Hand Hanger Bracket (Stamped "R")
8. Chute Crank Rod Assembly
9. Support Tube, Crank Rod
10. Lift Handle Tube and Cable
11. Clutch Idler Assembly
12. Cable Bracket
13 Housing Assembly
14. V Belt, Drive
15 V Belt, Auger (Attached to Housing Assembly)
16. Chute and Control Cable Assembly
Hardware Package (Stored inside Plastic Keg)
ASSEMBLY

6
1. Remove all parts and hardware packages from the
carton. Lay out parts and hardware and identify using
the illustrations on pages 4 and 5.
NOTE:
Not all of the supplied parts and hardware will be
needed for your particular tractor. Unneeded items may
be discarded after you have completed assembly.
REMOVAL OF PARTS FROM CARTON
(2) 7/16" Wrenches
(2) 1/2" Wrenches
(2) 9/16" Wrenches
(2) 3/4" Wrenches
(1) Knife
ADDITIONAL ITEMS REQUIRED
General Purpose Grease
TOOLS REQUIRED FOR ASSEMBLY
ITEMS REMOVED FROM TRACTOR
1. Store all tractor parts that you remove and do not need
to re-use to assemble the snow thrower.
TRACTOR PREPARATION
Before performing these instructions, refer to the Service
and Adjustments section of your tractor owner's manual for
specifi c safety instructions.
1. Allow engine, muffl er and exhaust defl ector to cool before
beginning.
2. Remove any front or rear attachment which is mounted
to your tractor.
3.
Remove the mower deck. Refer to your tractor owner's
manual for removal instructions. Mark all loose parts
and save for re-assembly.
4. Remove the tractor hood and grill assembly. Refer to
your tractor owner's manual for removal instructions.
CAUTION
:
Before starting
to
assemble
the snow thrower, remove the spark plug
wire(s), set the parking brake and remove
the key from the tractor ignition.
INSTALLING SIDE PLATES ON TRACTOR
Right hand (R.H.) and left hand (L.H.) side of the tractor
are determined from the operators position while seated
on the tractor.
TRACTORS WITH FRAME MOUNTED FRONT
SUSPENSION BRACKETS
(See page 7 for tractors
with axle mounted front suspension brackets.)
1.
Remove any bolts that are present in the two holes
shown as empty in fi gure 1.
2. If there is a bolt in the third hole shown in fi gure 1, remove
the nut and washer but leave the bolt in place.
FIGURE 1 RIGHT SIDE VIEW
3.
Assemble the R.H. Side Plate (marked "R") to the two
now empty holes in the side of the tractor frame. Use
two 3/8" x 1" hex bolts and 3/8" lock washers as shown
in fi gure 2. Repeat for the L.H. side.
4.
If you removed a nut and washer from the bolt in fi gure
1, assemble a whizlock nut onto the bolt.
NOTE:
If you remove the side plates, be sure to reassemble
all bolts to tractor frame .
FIGURE 2 RIGHT SIDE VIEW
FRONT
SUSPENSION
BRACKET
REMOVE NUT & WASHER
AND LEAVE BOLT (IF PRESENT)
THESE HOLES
MUST BE EMPTY
3/8" x 1"
HEX BOLT
3/8" LOCK
WASHER
5/16" WHIZLOCK NUT
(IF BOLT IS PRESENT IN TRACTOR)
R.H. SIDE
PLATE
This end for
16" front tires
This end for all
smaller tires

7
2.
Attach the R.H. Side Plate (marked "R") to the right side
of the tractor frame as shown in fi gure 5. For the front
hole use a 3/8" x 1" hex bolt, a 3/8" lock washer, and a
1/2" fl at washer. Use the fl at washer as a shim between
the frame and the side plate. For the rear hole use a
3/8" x 1" hex bolt, and a 3/8" lock washer. Repeat for
the L.H. side.
NOTE:
If the bolt inserts freely into the front hole, the 3/8"
lock washer along with a 3/8" hex lock nut must be assembled
onto the bolt from inside the tractor frame.
5.
Assemble a shoulder bolt, a 3/8" lock washer and a 3/8"
hex lock nut to the bottom hole in each side plate. See
fi gure 3.
6.
Proceed to page 8.
3.
Assemble a shoulder bolt, a 3/8" lock washer and a 3/8"
hex lock nut to the bottom hole in each side plate. See
fi gure 6.
FIGURE 5 RIGHT SIDE VIEW
FIGURE 6 RIGHT SIDE VIEW
FIGURE 4 RIGHT SIDE VIEW
FIGURE 3 RIGHT SIDE VIEW
TRACTORS WITH AXLE MOUNTED FRONT
SUSPENSION BRACKETS
1.
Remove any bolts present in the holes shown in fi gure
4 on both sides of the tractor frame.
3/8" SHOULDER BOLT
3/8" HEX
LOCK NUT
R. H. SIDE PLATE
3/8" LOCK
WASHER
This end for
16" front tires
This end for all
smaller tires
THESE HOLES
MUST BE EMPTY
FRONT
SUSPENSION
BRACKET
3/8" LOCK
WASHER
R.H. SIDE
PLATE
1/2" FLAT
WASHER
3/8" x 1"
HEX BOLT
3/8" HEX
LOCK NUT
This end for
16" front tires
This end for all
smaller tires
3/8" SHOULDER BOLT
3/8" HEX LOCK NUT
3/8" LOCK
WASHER
This end for
16" front tires
This end for all
smaller tires

8
FIGURE 10 RIGHT SIDE VIEW
INSTALLING HANGER BRACKETS
For better clearance, lower the tractor's suspension arms
using the attachment lift lever.
On Tractors With Foot Rest Brackets
(Figure 7)
1.
Remove the bolt and nut that fasten the L.H. and R.H.
foot rest brackets to the frame. See fi gure 7.
2.
Attach the L.H. Hanger Bracket (marked "L") to the inside
of the tractor frame using two 3/8" x 1" carriage bolts,
3/8" lock washers and 3/8" hex lock nuts. The bolt heads
go on the inside of the tractor frame. Repeat for the R.H.
side. See fi gure 7.
FIGURE 8 LEFT SIDE VIEW
FIGURE 7 LEFT SIDE VIEW
On Tractors Without Foot Rest Brackets
(Figure 8)
3.
Find the empty hole beneath the foot rest. Attach the
L.H. Hanger Bracket (marked "L") to the inside of the
frame using a 3/8" x 1" carriage bolt (head to inside), a
3/8" lock washer and a 3/8" hex lock nut. See fi gure 8.
Repeat for the R.H. side.
2. Assemble a shoulder bolt and 3/8" hex lock nut to the
R.H. side of the tractor frame, using the fi rst empty hole
to the rear of the R.H. hanger bracket. See fi gure 10.
FIGURE 9 LEFT SIDE VIEW
INSTALLING SHOULDER BOLTS
All Tractors
1.
Remove the bolt, washer and nut which fasten the sway
bar bracket to the L.H. side of the tractor frame. Replace
with a shoulder bolt and a 3/8" hex lock nut as shown in
fi gure 9.
BOLT REMOVED
FROM THIS HOLE
3/8" x 1"
CARRIAGE
BOLT
3/8" LOCK
WASHER
3/8" HEX
LOCK NUT
L.H. HANGER
BRACKET
SUSPENSION ARM
3/8" x 1"
CARRIAGE
BOLT
3/8" LOCK
WASHER 3/8" HEX
LOCK NUT
L.H. HANGER
BRACKET
SUSPENSION ARM
BOLT REMOVED
FROM THIS HOLE
SWAY BAR
BRACKET
SHOULDER BOLT
3/8" HEX
LOCK NUT
SHOULDER BOLT
3/8" HEX
LOCK NUT
R.H. HANGER BRACKET

9
FIGURE 13 RIGHT SIDE VIEW
INSTALLING CLUTCH/IDLER ASSEMBLY
This section covers the installation of the Clutch/Idler
assembly to tractors with attachment clutches that are either
rod operated (p. 9), cable operated (p. 10) or electric (p. 12).
Use the appropriate instructions for your tractor.
MANUAL (ROD OPERATED) ATTACHMENT CLUTCH
1.
Move the attachment clutch lever on the dash panel to
the disengaged (down) position.
2.
Screw the trunnion onto the end of the snow thrower
engagement rod as shown in fi gure 11.
3. Locate the clutch arm (where the mower clutch rod was
connected) underneath the right hand side the tractor,
just to the inside of the suspension arm.
If there is an
extension
attached to the clutch lever, the extension,
bolt and nut must be removed and stored with the mower
deck.
IMPORTANT: Re-attach the extension
to the clutch lever
before reinstalling the mower deck.
4.
Position the engagement rod to the inside of the clutch
arm and insert the drilled end of the rod through the
arm. Secure with a 5/64" hairpin cotter. See fi gure 11.
5.
Be sure to lift up the front end of the engagement rod (as
shown in fi gure 12) when performing the next operation.
You can temporarily support the rod using a rubber band
tied to the engine pulley keeper.
6.
Attach the clutch/idler assembly to the tractor frame as
follows. Hook the assembly's notched arms onto the two
shoulder bolts you assembled to the inside of the tractor
frame. Lift the front of the assembly and attach it to the
R.H. and L.H. hanger brackets using two pivot lock pins
and 1/8" hairpin cotters. See fi gure 12.
FIGURE 12 RIGHT SIDE VIEW
7.
Make sure the attachment clutch lever on the dash panel
is in the disengaged (down) position.
8.
Pivot the upper idler arm so that it rests against the
stop bolt and is pointing toward the front as shown in
fi gure 13. Screw the trunnion along the threads of the
engagement rod until it is aligned at the front end of the
idler arm slot. Attach the trunnion to the slot using the
3/8" fl at washer and a 5/64" hairpin cotter. See fi gure
13.
9.
Remove the engine pulley keeper from the side of the
tractor frame by removing the washer and nut that secure
the keeper. Attach the new pulley keeper supplied with
the snow thrower, reusing the original bolt, washer and
nut. See fi gure 13.
NOTE:
Some tractors may already be equipped with an
identical pulley keeper.
FIGURE 11 RIGHT SIDE VIEW
PIVOT LOCK PIN
(use second hole)
1/8" HAIRPIN COTTER
ENGAGEMENT
ROD
IDLER ARM
5/64" HAIRPIN
COTTER
TRUNNION
STOP BOLT
3/8" FLAT
WASHER
NEW ENGINE PULLEY KEEPER WITH
ORIGINAL BOLT, NUT AND WASHER
ENGAGEMENT ROD
5/64" HAIRPIN
COTTER
TRACTOR'S CLUTCH ARM
SUSPENSION ARM
TRUNNION
REMOVE EXTENSION,
BOLT AND NUT
(IF PRESENT)

10
10.
Assemble the short "V" belt onto the engine pulley
and then onto the large pulley on top of the clutch/idler
assembly. The belt must be placed to the inside of the
engine pulley keeper, the idler pulley and the keeper
bolt located beside the large pulley. See fi gure 14.
IMPORTANT:
Do Not
assemble the "V" belt around the
outside of the engine pulley keeper or the keeper bolt.
Hold this drawing above you while viewing the
Clutch/Idler Assembly from underneath the
tractor. Right and left in the drawing will be the
reverse of the viewer's right and left.
FIGURE 15
FIGURE 14 VIEWED FROM UNDERNEATH
FIGURE 16
CABLE OPERATED ATTACHMENT CLUTCHES
1.
Assemble the cable bracket to the clutch/idler assembly
using two 5/16" x 3/4" carriage bolts,
5/16" lock washers and 5/16" hex locknuts. Use the two
front holes in the cable bracket if your tractor has a 42"
mower deck. Use the two rear holes if your tractor has
a 46" mower deck. See fi gure 15.
2.
Move the attachment clutch lever on the dash panel to
the disengaged (down) position.
3.
Lay the clutch/idler assembly beneath the tractor.
4.
Attach the tractor's clutch cable to the cable bracket.
Secure the cable housing guide (groove down) to the
cable bracket using the original collar and retainer spring
removed from the mower deck. See fi gure 16.
5.
Place a spacer on the welded pin on the idler arm. Hook
the end of the clutch spring over the pin and secure it
with a 1/4" washer and a 5/64" hair cotter pin. See fi gure
16.
11.
Proceed to page 13.
ENGINE
PULLEY
KEEPER BOLT
IDLER
PULLEY
ENGINE
PULLEY
KEEPER
Left Side
of Tractor
CABLE
BRACKET
5/16" x 3/4"
CARRIAGE BOLT
5/16" LOCK
WASHER
5/16" HEX
LOCK NUT
42"
DECKS
46"
DECKS
5/64" HAIR
COTTER PIN
SPACER
GROOVE
1/4" WASHER
TRACTOR'S
CLUTCH CABLE

11
Hold this drawing above you while viewing the
Clutch/Idler Assembly from underneath the
tractor. Right and left in the drawing will be the
reverse of the viewer's right and left.
FIGURE 18 VIEWED FROM UNDERNEATH
FIGURE 17
6. Remove the engine pulley keeper from the side of the
tractor frame by removing the washer and nut that secure
the keeper. Attach the new pulley keeper supplied with
the snow thrower, reusing the original bolt, washer and
nut. See fi gure 17.
NOTE:
Some tractors may already be equipped with an
identical pulley keeper.
7.
Attach the clutch/idler assembly to the tractor frame as
follows. Hook the assembly's notched arms onto the two
shoulder bolts you assembled to the inside of the tractor
frame. Lift the front of the assembly and attach it to the
R.H. and L.H. hanger brackets using two pivot lock pins
and 1/8" hairpin cotters. See fi gure 17.
8.
Assemble the short "V" belt onto the engine pulley
and then onto the large pulley on top of the clutch/idler
assembly. The belt must be placed to the inside of the
engine pulley keeper, the idler pulley and the keeper
bolt located beside the large pulley. See fi gure 18.
IMPORTANT:
Do Not
assemble the "V" belt around the
outside of the engine pulley keeper or the keeper bolt.
8.
Proceed to page 13.
ENGINE
PULLEY
KEEPER BOLT
IDLER
PULLEY
ENGINE
PULLEY
KEEPER
Left Side
of Tractor
NEW ENGINE PULLEY KEEPER WITH
ORIGINAL BOLT, NUT AND WASHER
PIVOT LOCK PIN
(use second hole)
1/8" HAIRPIN COTTER

12
FIGURE 20 VIEW OF BOTTOM
5.
Attach the clutch/idler assembly to the tractor frame as
follows. Hook the assembly's notched arms onto the two
shoulder bolts you assembled to the inside of the tractor
frame. Lift the front of the assembly and attach it to the
R.H. and L.H. hanger brackets using two pivot lock pins
and 1/8" hairpin cotters. See fi gure 21.
ELECTRIC ATTACHMENT CLUTCHES
1.
Turn the clutch/idler assembly upside down and place
the extra tensioning chain through the left front hole as
shown in fi gure 19.
FIGURE 19
FIGURE 21 RIGHT SIDE VIEW
2.
Hook the loose spring through the end of the tensioning
chain. See fi gure 20.
3.
Hook the other end of the spring onto the bottom of the
bolt and nut which secure the idler pulley to the upper
idler arm. Hold the bolt head and assemble a 3/8" hex
lock nut onto the bolt, leaving it loose enough for the
spring to pivot freely between the two nuts. See fi gure
20.
4. Attach a 3/32" hairpin cotter to the chain, placing it in
the fi fth link from the spring. See fi gure 20.
CHAIN
(L.H. SIDE)
3/32" HAIR
COTTER PIN
5TH LINK
LEFT
SIDE
3/8" HEX
LOCK NUT
SPRING
RIGHT
SIDE
TENSIONING CHAIN
PIVOT LOCK PIN
(use second hole)
1/8" HAIRPIN COTTER

13
ASSEMBLY OF THE SNOW THROWER
1. Place the lift handle into the lift bracket on the right side
of the snow thrower. Fasten the handle to the bracket
using two 5/16" x 1-3/4" hex bolts, 5/16" lock washers
and 5/16" hex nuts. See fi gure 23.
FIGURE 24 RIGHT SIDE VIEW
FIGURE 23 RIGHT SIDE VIEW
6.
Assemble the short "V" belt onto the engine pulley
and then onto the large pulley on top of the clutch/idler
assembly. The belt must be placed to the inside of the
engine pulley keeper, the idler pulley and the keeper
bolt located beside the large pulley. See fi gure 22.
7. Place tension on the belt by pulling the left side tensioning
chain out as far as the 5/64" hairpin cotter will allow.
Secure the chain in this position by inserting a 1/8"
hairpin cotter through the chain. See fi gure 22.
IMPORTANT:
Do Not
assemble the "V" belt around the
outside of the engine pulley keeper or the keeper bolt.
Hold this drawing above you while viewing the
Clutch/Idler Assembly from underneath the tractor.
Right and left in the drawing will be the reverse of
the viewer's right and left.
FIGURE 22 VIEWED FROM UNDERNEATH
NOTE:
Be sure the lift release cable's plastic covering
remains inserted into the trigger assembly while performing
the next step.
2. Push the lift handle down into the locked position. Insert
the end of the cable wire into the hole in the lift rod.
Place the threaded fi tting into the slot in the lift bracket,
with one hex nut above and one hex nut and the lock
washer below the slot. Tighten the nuts, adjusting them
to eliminate slack in the cable wire. See fi gure 24. Refer
also to the Service and Adjustments section on page 20
in this manual.
HINT:
For easier assembly of the lift release cable, tilt the
snow thrower forward onto the spiral auger.
1/8" HAIRPIN
COTTER
ENGINE
PULLEY
ENGINE
PULLEY
Left Side
of Tractor
ENGINE
PULLEY
KEEPER
KEEPER
BOLT
IDLER
PULLEY
LIFT RELEASE
CABLE
HEX NUT
LOCK
WASHER
HEX NUT
CABLE
WIRE
LIFT
ROD
TRIGGER
ASSEMBLY

14

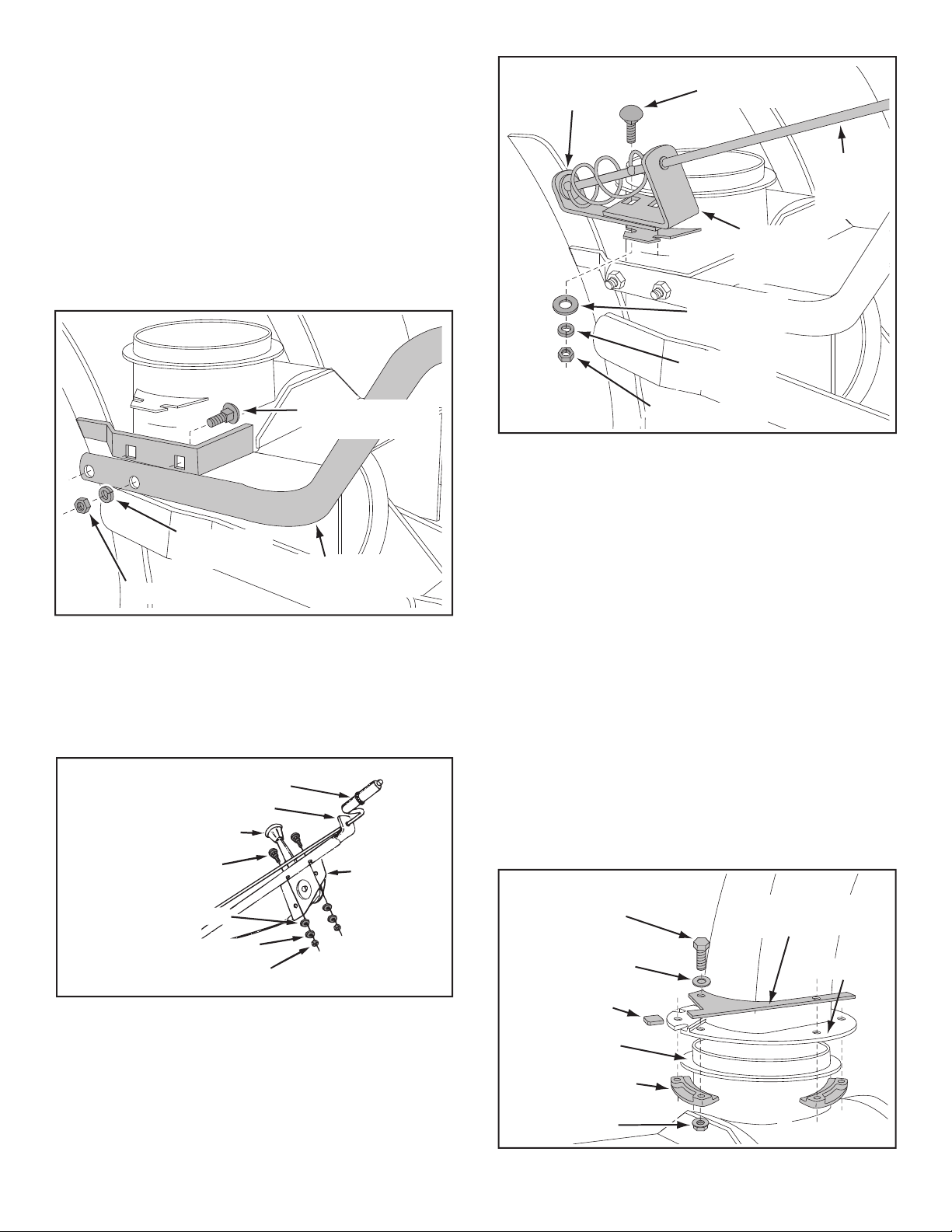

FIGURE 27 LEFT SIDE VIEW
FIGURE 28 RIGHT SIDE VIEW
9.
Coat the top of the ring around the discharge opening
with general purpose grease. See fi gure 28.
10. Place the discharge chute (facing forward) onto the
ring. Place the anti-rotation bracket on top of the chute
fl ange, aligning it with the holes on the right hand side
of the fl ange. Attach the three chute keepers (right side
up as shown) to the bottom of the fl ange using six 1/4"
x 1" hex bolts, 1/4" fl at washers and 1/4" hex lock nuts.
Tighten carefully
so that the nuts are snug but do not
dig into the plastic chute keepers. See fi gure 28.
11. Place the plastic cap onto the short end of the anti-rotation
bracket. See fi gure 28.
12. Position the crank rod spiral so that it does not rub against
the bottoms of the notches in the chute fl ange.
Tighten
the nuts. See fi gure 27.
13. Check if the crank rod rotates the chute freely. If not,
loosen by 1/4 turn each of the six hex bolts holding the
chute keepers to the chute fl ange.
14. Secure the control cables to the crank rod support tube
using a nylon tie.
8. Attach the chute crank rod assembly brackets to the
plastic bracket on the left side of the thrower housing.
Align the chute crank bracket beneath the rod support
bracket and assemble both to the plastic bracket using
two 5/16" x 1" carriage bolts, 5/16" fl at washers, 5/16"
lock washers and 5/16" hex nuts.
Do not tighten yet.
See fi gure 27.
FIGURE 26 LEFT SIDE VIEW
7. Attach the chute tilt control assembly to the top side of
the crank support tube using two 5/16" x
1-3/4" carriage bolts, bowed washers, 5/16" lock washers
and 5/16" hex nuts. See fi gure 26.
FIGURE 25 LEFT SIDE VIEW
3. Tilt the snow thrower back down to the ground.
4.
Remove the nylon tie which fastens the auger drive belt
to the discharge housing, leaving the belt assembled
around the pulleys.
5.
Remove the nylon tie which fastens the chute crank rod
to the crank rod support tube.
6. Assemble the crank rod support tube to the bracket on
the left side of the thrower housing using two 5/16" x
1-1/4" carriage bolts, 5/16" lock washers and 5/16" hex
nuts. See fi gure 25.
5/16" HEX NUT
5/16" LOCK
WASHER
5/16" x 1-1/4"
CARRIAGE BOLT
CRANK ROD
SUPPORT TUBE
CHUTE CRANK ROD
CRANK SUPPORT TUBE
TILT CONTROL HANDLE
5/16" x 1-3/4"
CARRIAGE BOLT
BOWED WASHER
5/16" LOCKWASHER
5/16" HEX NUT
TILT
CONTROL
ASSEMBLY
5/16" HEX NUT
5/16" LOCK
WASHER
CHUTE CRANK
BRACKET
5/16" FLAT
WASHER
CHUTE
CRANK
ROD
ROD
SUPPORT
BRACKET
5/16" x 1"
CARRIAGE BOLT
CHUTE KEEPER
ANTI-ROTATION
BRACKET
1/4" HEX
LOCK NUT
1/4" FLAT
WASHER
1/4" x 1"
HEX BOLT
PLASTIC CAP
GREASED
SURFACE
FLANGE

15
NOTE:
An
a
dditional person's help may be required to mount
the snow thrower to the front of the tractor.
1. Place the tractor and snow thrower on a fl at, level surface
so that the tractor can be rolled forward to attach the
snow blower.
2. Remove the Attachment Pin from the snow thrower.
3. Extend the belt out behind the snow thrower, making
sure the belt is still looped over the top of the large
drive pulley and underneath the two idler pulleys. The
"V" side of the belt must be seated in the grooves of all
three pulleys.
4. Roll the tractor up behind the snow thrower, centering
it between the snow thrower's mounting plates.
5. Raise the rear of the snow thrower by lifting up on the
lift handle until the notches in the mounting plates align
with the shoulder bolts in the tractor's side plates. Guide
the bolts into the notches.
6. To ease the assembly of the auger drive belt, delay the
installation of the attachment pin shown in fi gure 29 until
you have assembled the belt as instructed for fi gures 30
and 31.
ATTACHING SNOW THROWER TO TRACTOR
INSTALLING THE AUGER BELT
7. The auger belt comes preassembled to the pulleys on
the snow thrower housing. Make sure the belt passes
over the top of the auger pulley and then twists 1/4 turn
to pass underneath each side idler pulley. The "V" side
of the belt must mate with the grooves of the pulleys.
See fi gure 30.
FIGURE 31 VIEWED FROM UNDERNEATH
Hold this drawing above you while viewing the
Clutch/Idler Assembly from underneath the tractor.
Right and left in the drawing will be the reverse of
the viewer's right and left.
8.
Push the lift handle down to increase slack in the belt
(attachment pin must fi rst be removed).
9.
Remove the 1/8" hairpin cotter that secures the end of
the idler arm spring to the right side of the clutch idler
assembly. Swing the idler arm to the left side. See fi gure
31.
10. Place the auger belt around the rear pulley and between
the two pulleys on the idler arm. The "V" side of the belt
must be seated in the grooves of the "V" pulleys. See
fi gure 31.
FIGURE 30
FIGURE 29 RIGHT SIDE VIEW
IDLER
ARM
REAR
PULLEY
LEFT SIDE
OF
TRACTOR
1/8" HAIRPIN
COTTER
(Removed from
end of spring)
ATTACHMENT PIN
1/8" HAIRPIN
COTTER
SHOULDER
BOLT
SIDE
PLATE
MOUNTING PLATE
IDLER
PULLEY
AUGER PULLEY TWIST
1/4 TURN
TWIST
1/4 TURN
IDLER
PULLEY

16
INSTALLING THE ATTACHMENT PIN
11. Lift the front of the snow blower to align the holes in
the mounting plates and the side plates. From the left
side of the tractor install the attachment pin through the
holes, securing it with the 1/8" hairpin cotter. Refer back
to fi gure 29 on page 15.
SETTING THE AUGER BELT TENSION
12. Pull the tensioning chain until the end of the spring is
pulled through the hole in the side of the Clutch/Idler
assembly. Install the 1/8" hairpin cotter through the end
of the spring, securing it on the outside of the Clutch/Idler
assembly. See fi gure 32.
IMPORTANT:
For correct belt tension, the 1/8" hairpin
cotter
must attach
to the end of the spring,
not
to the
chain.
Hold this drawing above you while viewing the
Clutch/Idler Assembly from underneath the
tractor. Right and left in the drawing will be the
reverse of the viewer's right and left.
FIGURE 32 VIEWED FROM UNDERNEATH
CHECKLIST
Before you operate your snow thrower, please review the
following checklist to help ensure that you will obtain
the best performance from your snow thrower.
1. All assembly instructions have been completed with all
bolts and nuts properly tightened.
2. Check the engine belt and the auger belt. Make sure
they are routed properly around pulleys and inside all
belt keepers.
3. Check discharge chute for proper rotation.
4. Check operation of tilt control for upper chute.
5. Verify that the lift handle will lock into and release from
the raised transport position. (Refer to the Service and
Adjustments section.)
6. Check skid shoe adjustment. (Refer to the Service and
Adjustments section.)
Operating instructions begin on page 17.
END OF
SPRING
1/8"
HAIRPIN
COTTER
LEFT SIDE
OF
TRACTOR
FLAT
PULLEY
INSTALLING THE REAR REFLECTORS
13. If your tractor is not equipped with rear refl ectors,
assemble the supplied rear refl ectors to the rear fender.
Place the refl ectors as close to the bottom of the fender
and as far apart as the shape of the fender will allow.
See fi gure 33.
FIGURE 33
REAR REFLECTORS

17
OPERATION
KNOW YOUR SNOW THROWER
Read this owner's manual and safety rules before operating your snow thrower.
Compare the illustration below with your snow thrower to familiarize yourself with the various controls and their locations.
CHUTE TILT HANDLE
Pivots the Upper Chute up or
down to control the angle and distance of discharge.
CRANK ROD
Rotates the Lower and Upper Chutes to
control the direction of discharge.
LIFT HANDLE
Used to lift or lower the snow thrower
to transport or operating position.
LIFT RELEASE TRIGGER
Releases the lock which
holds the snow thrower in the transport position
UPPER AND LOWER DISCHARGE CHUTE
Controls
direction and height of snow discharge.
SCRAPER PLATE
Replaceable plate that absorbs
wear and impact from contact with ground.
SKID SHOE
Controls amount of clearance between
the scraper plate and the ground.
SPIRAL AUGER, R.H. & L.H.
Feed snow to the
impeller fan at the center of the housing.
BEFORE STARTING
1.
Use the end of assembly checklist to verify that all
instructions have been properly completed.
2. Make sure the skid shoes are adjusted to maintain
adequate ground clearance between the snow thrower
and the type of surface to be cleared. (Refer to the
Service and Adjustments section.)
3. Make sure the tractor engine has the correct oil for
winter operation (SAE 5W-30). Refer to tractor owner's
manual.
HOW TO START YOUR SNOW THROWER
1.
The tractor should be sitting with the engine running at
full throttle. Move the attachment clutch to the engaged
position, starting the snow thrower before the tractor's
transmission is engaged.
HOW TO STOP YOUR SNOW THROWER
1. To stop the snow thrower, disengage the tractor's
attachment clutch lever for manual clutches or the clutch
switch for electric clutches. Refer to your tractor owner's
manual.
CAUTION
: Never
direct discharge
towards bystanders or windows. Do not
allow anyone in front of unit.
CONTROLLING SNOW DISCHARGE
1. To control the direction snow is thrown, the discharge
chute has 180 degrees of rotation. Turn the crank rod
clockwise to rotate the chute to the right. Turn the crank
rod counterclockwise to rotate the chute to the left.
2. To control the distance snow is thrown, the upper
section of the discharge chute pivots up and down. Push
forward on the chute tilt handle to pivot the chute down,
decreasing the distance snow is thrown. Pull back on
the handle to pivot the chute up, increasing the distance
snow is thrown.
HOW TO USE YOUR SNOW THROWER
LIFT HANDLE
LIFT RELEASE TRIGGER
CRANK ROD
CHUTE TILT HANDLE
UPPER CHUTE
LOWER CHUTE
SPIRAL AUGERS, R.H. & L.H.
SKID SHOE
SCRAPER PLATE

18
RAISING AND LOWERING
3. To raise, push down on the lift handle until the snow
thrower locks in the raised transport position.
4. To lower, push down slightly on the lift handle and pull
the trigger. With the trigger pulled, slowly lower the snow
thrower until it reaches the ground.
CAUTION
: Do not
operate the snow
thrower without rear wheel weights and tire
chains attached to the tractor to provide
extra traction and stability.
DANGER
:
Shut off engine and
disengage snow thrower before
unclogging discharge chute. Unclog using
a wooden stick, not your hands.
REMOVING SNOW
Snow removal conditions vary greatly from light fl uffy snowfall
to wet heavy snow. Operating instructions must be fl exible
to fi t the conditions encountered. The operator must adapt
the lawn tractor and snow thrower to depth of snow, wind
direction, temperature and surface conditions.
5. Before beginning operation, thoroughly inspect the area
of operation and remove all door mats, sleds, boards,
wires and other foreign objects.
6. The spiral auger speed is directly related to engine
speed. For maximum snow removal and discharge,
maintain high engine r.p.m. (full throttle). It is advisable
to operate the lawn tractor at a slow ground speed (1st
gear) for safe and effi cient snow removal.
7. In deep, drifted or banked snow it will be necessary to
use full throttle and a slow ground speed (1st gear). Drive
forward into the snow, depress the tractor's clutch-brake
pedal and allow the spiral auger to clear the snow. Repeat
this method until a path is cleared. On the second pass,
overlap the fi rst enough to allow the snow thrower to
handle the snow without repeated stopping and starting
of forward motion.
8. In extremely deep snow, raise the snow thrower from the
ground to remove the top layer and drive forward only
until the tractors front tires reach the uncleared bottom
layer of snow. Depress the tractor's clutch-brake pedal
and allow the spiral auger to clear the snow. Reverse
the tractor and lower the snow thrower to the ground.
Drive the tractor forward until the snow again becomes
too deep. Repeating this process into and out of drifts
will eventually clear even the deepest of snow piles.
9. If the snow thrower becomes clogged with snow or
jammed with a foreign object, disengage the snow thrower
immediately and shut off the tractor engine. Unclog the
snow thrower before resuming operation.
OPERATING TIPS
1. Discharge snow down wind whenever possible.
2. To help prevent snow from sticking to the snow thrower,
allow the snow thrower to reach outdoor temperature
before using it. A light coat of wax may also be applied
to the inside surface of the snow thrower housing and
discharge chute.
3. Use tire chains to improve traction.
4. Use rear wheel weights to improve traction.
5. Before the fi rst snowfall, remove all stones, sticks and
other objects which could become hidden by the snow.
Permanent obstacles should be marked for visibility.
6. Overlap each pass slightly to assure complete snow
removal.
LUBRICATION
1.
Oil all pivot points on the snow thrower.
2. Oil the pivot points of the two idler arms on the clutch/idler
assembly.
3. Apply penetrating oil to the control cables of the discharge
chute.
4. Apply a good grade of spray lubricant to the trigger
assembly and the chute tilt control assembly.
CHECK SCRAPER AND SHOES FOR WEAR
(Refer to fi gures 34 and 35 on page 19.)
5. The scraper plate and skid shoes on the bottom of the
snow thrower are subject to wear. To prevent damage
to the spiral auger housing, replace plate and shoes
before wear is excessive.
Service Dates
Check for loose fasteners X
Check for loose fasteners X
Check scraper and shoes for wear X X
Check scraper and shoes for wear X X
Check scraper and shoes for wear X X
Check scraper and shoes for wear X X
Check scraper and shoes for wear X X
Check scraper and shoes for wear X X
Cleaning X
Cleaning X
Cleaning X
Cleaning X
Cleaning X
Cleaning X
Lubrication Section X
Lubrication Section X
Lubrication Section X
Lubrication Section X
Lubrication Section X
Lubrication Section X
Lubrication Section X
Lubrication Section X
MAINTENANCE SCHEDULE
MAINTENANCE SCHEDULE
Fill in dates as you
complete regular service.
complete regular service.
Before each use
Before each use
After each use
Every season
Before storage
Before storage
MAINTENANCE
CUSTOMER RESPONSIBILITIES
Read and follow the maintenance schedule and the maintenance procedures listed in this section.

19
SERVICE AND ADJUSTMENTS
CAUTION
:
Before servicing or adjusting the
snow thrower, shut off the engine, remove the
spark plug wire(s), set the parking brake and
remove the key from the tractor ignition.
FIGURE 35
FIGURE 34
REPLACING AUGER BELT
1. Disengage the tractor's attachment clutch.
2.
Lower the snow thrower to the ground.
3. Remove the attachment pin.
4. Lock the snow thrower's lift handle in the down position
to decrease belt tension.
5. Release the spring tension from the auger belt idler arm
on the bottom of the clutch/idler assembly.
6. Remove the auger drive belt from the clutch/idler
assembly and from the spiral auger housing.
7. Install new belt over top of large auger drive pulley and
under the two side idler pulleys. Twist the belt 1/4 turn to
seat the "V" of the belt in the groove of each idler pulley.
Refer to fi gure 30 on page 15.
8. Assemble the belt onto the clutch/idler assembly. Refer
to fi gures 31 and 32 on pages 15 and 16.
SKID SHOE ADJUSTMENT
1. The skid shoes are mounted on each side of the spiral
auger housing. They regulate the distance the scraper
plate is raised above the plowing surface. When removing
snow from a gravel driveway or and uneven surface, it
is advisable to keep the scraper plate as high above the
surface as possible to prevent possible damage to the
spiral auger. On blacktop or concrete surface, keep the
scraper plate as close to the surface as possible.
2. Raise the snow thrower off the ground and place a block
under each end of the scraper plate. Loosen the six hex
nuts securing the skid shoes to the housing. Adjust the
skid shoes up or down and retighten the nuts securely.
Adjust both skid shoes to the same height to keep the
housing and the scraper plate level. See fi gure 34.
LIFT RELEASE CABLE ADJUSTMENT
1. If the lift rod does not lock the snow thrower securely
in the transport position, loosen the upper hex nut on
the lift bracket a few turns and tighten the lower hex nut.
Refer to fi gure 24 on page 13.
2. If the lift rod fails to unlock completely to lower the snow
thrower, loosen the lower hex nut on the lift bracket a
few turns and tighten the upper hex nut. Refer to fi gure
24 on page 13.
CLUTCH DISENGAGEMENT ADJUSTMENT
(Only tractors with clutch engagement rods.)
If the spiral auger on the snow thrower does not stop when
the attachment clutch lever on the tractor is disengaged,
then adjustment is necessary. Proceed as follows. Refer
back to fi gure 13 on page 9.
1. Place the attachment clutch lever in the disengaged
position.
2. Remove the hairpin cotter from the engagement rod
trunnion and lift the trunnion out of the hole in the idler
arm.
3. Screw the trunnion a few turns towards the front end of
the rod.
4. Replace the trunnion into the hole in the idler arm and
secure it with the hairpin cotter.
Check the operation of the snow thrower. If the spiral
augers still do not stop, repeat the above steps until the
augers stop when the attachment clutch lever is placed
in the disengaged position.
SPIRAL AUGERS
1. The spiral augers are secured to the auger shaft with two
shear bolts and hex lock nuts. If you hit a foreign object
or if ice jams the augers, the snow thrower is designed
so that the bolts will shear.
2. If the augers will not turn, check to see if the shear bolts
have sheared. See fi gure 35. Two replacement shear
bolts and hex lock nuts have been provided with the snow
thrower. For future use order part number 710-0890A
shear bolt and number 43064 hex lock nut.

20
PARTS TO REMOVE AT END OF SEASON
1. Remove the drive belt from the engine pulley.
2. Remove the clutch/idler assembly. (The two hanger
brackets and the two shoulder bolts may be left attached
to the tractor frame.)
3. Remove the engine pulley keeper and replace it with
the tractor's original engine pulley keeper (rod or cable
operated attachment clutches only).
4. Remove the engagement rod from the tractor's clutch
arm (rod operated attachment clutches only). See fi gure
11 on page 9.
5. If a front mounted attachment is to be used, remove
the side plates from the tractor. Be sure to assemble
bolts back into the empty holes in the tractor frame. See
fi gures 1 and 2 on page 6.
STORAGE RECOMMENDATIONS
1.
Lower the snow thrower to the ground.
2. Remove the snow thrower from the tractor.
3. Clean the snow thrower thoroughly. Wash off any salt
deposit which may have dried on the thrower and
housing.
4. Any bare metal that has become exposed should be
painted or coated with a light oil to prevent rust.
5. Store in a dry place.
REMOVING THE SPIRAL AUGER HOUSING
1.
Lower the snow thrower to the ground.
2. Remove the attachment pin. See fi gure 29 on page
15.
3. Lock the snow thrower's lift handle in the down position
to decrease belt tension.
4. Release the spring tension from the auger belt idler arm
on the bottom of the clutch/idler assembly.
5. Remove the auger drive belt from the clutch/idler
assembly. See fi gure 31 on page 15.
6. Pull the spiral auger housing assembly off of the
tractor.
CAUSE
PROBLEM
CORRECTION
Clogged discharge chute
Spiral augers don't turn
Snow thrower stalls tractor engine
TROUBLESHOOTING
STORAGE
1. Upper or lower V belt too loose 1. Increase tension on V belt
1. Upper or lower V belt too loose 1. Increase tension on V belt
2. Upper or lower V belt broken 2. Replace V belt
2. Upper or lower V belt broken 2. Replace V belt
3. Shear bolts are sheared. 3. Replace shear bolts
3. Shear bolts are sheared. 3. Replace shear bolts
1. Tractor ground speed too fast 1. Use lower tractor gear
1. Tractor ground speed too fast 1. Use lower tractor gear
2. Tractor throttle set too low 2. Increase to full throttle
2. Tractor throttle set too low 2. Increase to full throttle
3. Snow too deep 3. Raise the snow thrower
3. Snow too deep 3. Raise the snow thrower
4. Snow melts during contact with 4. Allow snow thrower to cool to
4. Snow melts during contact with 4. Allow snow thrower to cool to
the snow thrower outdoor temperature before using
the snow thrower outdoor temperature before using
Front wheels slide instead of steering
Snow thrower rides up over snow
1. Object jammed in spiral auger 1. Stop engine, disengage the snow
1. Object jammed in spiral auger 1. Stop engine, disengage the snow
thrower clutch and clear the auger
thrower clutch and clear the auger
2. Hard or heavy snow 2. Increase to full throttle and
2. Hard or heavy snow 2. Increase to full throttle and
decrease ground speed
decrease ground speed
Not enough traction at front wheels 1. Increase scraper plate clearance
Not enough traction at front wheels 1. Increase scraper plate clearance
by lowering skid shoes
by lowering skid shoes
2. Pull down on lift handle to
2. Pull down on lift handle to
increase weight on front wheels
increase weight on front wheels
1. Tractor ground speed too fast 1. Reduce ground speed
1. Tractor ground speed too fast 1. Reduce ground speed
2. Bottom snow is icy or hard packed 2. Lower the skid shoes so that front
2. Bottom snow is icy or hard packed 2. Lower the skid shoes so that front
of skid shoe is lower than the rear
of skid shoe is lower than the rear
