Agrison HP ULTRA Series User manual

Operation Manual

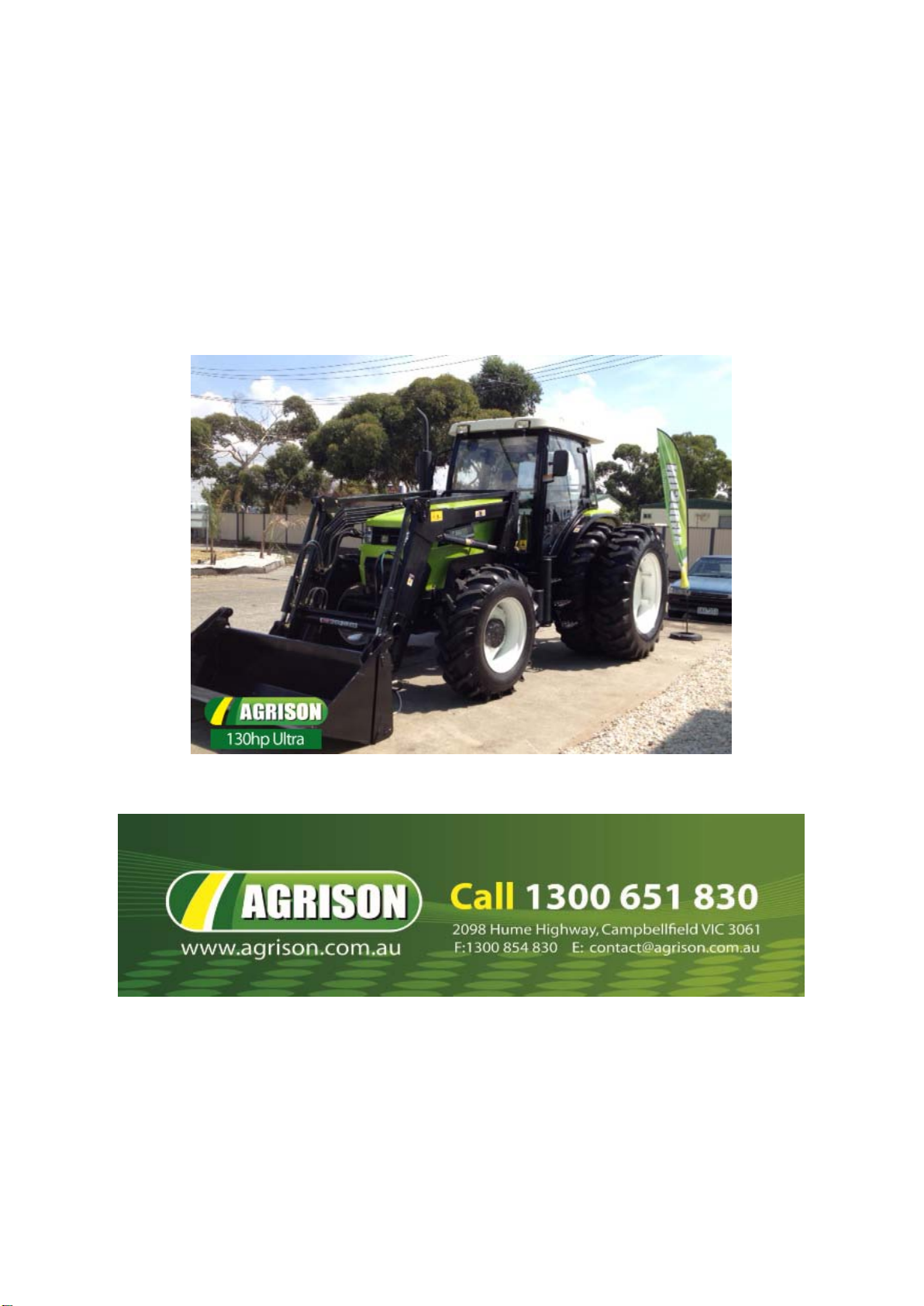

110HP-130HP ULTRATRACTOR
IMPORTANT!
You must ensure all operators of this machine read and understand these instructions and any additional instructions provided prior to
operation

Product Identification marks record form
Trade name:
Model Type:
Identification number of Tractor:
Identification number of Chassis:
Engine type:
Identification number of Engine:
Time of acquisition:
Place of purchase and contact:
User name:
Manufacturer’s Name:
Manufacturer’s Address:
Manufacturer’s Phone:
Note: 1. Please users fill out the above form carefully at time of purchasing.
2. The number in the table shall be completely written (including letters).
1104 /1204/1254/1304 Wheeled Tractors
Operation Specification
* * *
Number: BF-SM-E-01.1

Instruction to Users
Instruction to Users
Valued Customer:
Thank you for your belief in our company, and purchasing wheeled tractors of our company.
For the sake of correct, reasonable and effective operation of tractors, please pay attention to the
following information.
1、Before operating the tractor, please read this specification carefully whether you have
experience of driving or not before, because it will help you operate tractor more reasonably and
effectively.
2、For the sake of more economic benefit to you and longer service life of tractor, before
operation, please read carefully this operation specification and operation instruction of matching
engine and agricultural implements, and manipulate and maintain tractor closely as required in
operation specification for the purpose of full use of performance of tractor.
3、Please don’t modify tractors randomly for fear of effect on tractor performance and
unexpected accident, or even the consequence that it is hard to performance guarantee service.
4、Due to great difference in agriculture and soil condition, there are diversified purposes,
parameters, matching agricultural implements and operation efficiency recommended in this
operation specification accordingly. Please users make a choice according to practical conditions.
5、The tractor can be only manipulated, maintained and repaired by persons familiar with
characteristics of tractor, and relevant safe operation knowledge.
6、Drivers must have the license of agricultural vehicles and tractors issued by local traffic
department.
7、Local safety rules and road traffic regulations shall be observed at any time for fear of
unexpected accident.
8、Tractor shall be used in accordance with requirements of this operation specification;
Otherwise, it will probably lead to degradation or failure of tractor.
9、This operation specification is not a quality warranty. Therefore users must not put forward
any requirements on the basis of data, illustration or instruction in the operation specification.
10、The contents said in this operation specification shall be subject to the published product
structure. The contents are subject to change without further notice. Please users pay attention to
it.
11、The products in operation specification accord with the up-to-date standard before the
date of manufacturing.

General Description
General Description
The operation specification introduces in detail the safe operation rules, operation precautions,
main technical specification, and methods of wearing, operation, technical maintenance,
adjustment, and trouble clearing etc. of series 80 of wheeled tractors for reference of tractor
drivers and .service man.
In this operation specification, safety sign indicate important safety information. When
seeing this sign, please pay attention to it to avoid possible injury. Read carefully the following
information of the sign and inform other operators of it.
Warning: denote that if not avoided, there will possibly be potential danger, such as
casualties or serious personal injury.
Attention: denote that if not avoided, there will be potential danger such as low and
medium degree personal injury.
Warning: denote that if not avoided, there will possibly be machinery breakdown or
damage to environment.
Note: specifying supplementary information.
This operation specification is an important part of products. It will be supplied to users along
with tractors. Pleas users keep it properly.
In case of incomprehension of part in the operation specification, you can dial service hotline
for consultation.
Intended Use
This series of wheeled tractors are multipurpose agricultural wheeled tractors. This type of
tractors is characterized by compact structure, convenience manipulation, flexible steering, great
tractive force, wide application, and maintenance and repair convenience etc. if fitted with
appropriate agricultural implements, the tractors will be able to conduct plowing, harrowing,
sowing and harvesting operations etc. fitted with a trailer, they can be used for agricultural
transportation; trailer and tractor mass ratio (specific value between gross mass of trailer and
unladen mass of tractor) shall not be more than 3. By power output shaft, they can be coupled with
straw returning machine to conduct straw returning operation. They can be also used as motive
power of water pump and threshing machine. Please fit agricultural implements correctly as
required in this operation specification for the sake of maximum economic benefit. Users shall
closely comply with prescribed service, maintenance and repair conditions of manufactory, as well
as basic requirements for intended use. The use for other operation will deviate from intended use
of tractors.
The tractors can be only operated, maintained and repaired by persons familiar with their
characteristics, as well as relevant safe operation knowledge.
Users must comply with the rules against unexpected accident, other safety regulations and
road traffic regulations at any time.
Manufactory shall assume no responsibility for degradation of reliability, machinery
breakdown or personal injury caused from random modification, or use for the operation going
against intended use of tractors.

Contents
Contents
1. Safety Notes– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 1
1.1 Safety regulations and notes for use – – – – – – – – – – – – – – – – – – – – – – – – – – 1
1.2 Safety Warning Signs– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 7
2. Operation Instruction– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 12
2.1 Product description– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 12
2.2 Operating mechanism and instrument of tractor– – – – – – – – – – – – – – – – – – – – – 12
2.3 Start of engine – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 13
2.4 Start of tractor – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 15
2.5 Steering of tractor– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 16
2.6 Gear shift of tractor – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 16
2.7 Operation of Differential Lock – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 17
2.8 Using of Front Drive Axle – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 18
2.9 Braking of the Tractor – – – – – – – – – – – – – – – – – – – – – – – – – – – –– – – –– – – 19
2.10 Stopping of Tractor Stop and Flameout of Engine– – – – – – – – – – – – – – – – – – – 19
2.11 Adjusting of Tread– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –– – – – 20
2.12 Using, Dismounting and Mounting of Tyre– – – – – – – – – – – – – – – – – – – – – – – 21
2.13 Using of Balance Weight – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 23
2.14 Adjustment of the Driver’s Seat– – – – – – – – – – – – – – – – – – – – – – – – – – – – – 23
2.15 Covering panels of the Tractor– – – – – – – – – – – – – – – – – – – – – – – – – – – – – 24
2.16 Using of the working device of the tractor– – – – – – – – – – – – – – – – – – – – – – –
24
2.17 Running-in of tractor – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 30
2.18 Frequent faults and solutions of tractor – – – – – – – – – – – – – – – – – – – – – – – – 34
3. Accessories, Spare parts and Quick-Wearing Parts – – – – – – – – – – – – – – – 41
3.1 Accessories – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 41
3.2 Spare parts – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 42
3.3 Quick-Wearing Parts – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 43

Contents
Content
4. Maintenance Instructions – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 44
4.1 Technical maintenance rules – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 44
4.2 Technical maintenance operation – – – – – – – – – – – – – – – – – – – – – – – – – – – – 47
4.3 Adjustment of tractor chassis – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 53
4.4 Adjustment of hydraulic suspension system– – – – – – – – – – – – – – –– – – – – – – – 56
4.5 Attention for the operation of full hydraulic steering system– – – – – – – – – – – – – – – 57
5. Storage– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 59
5.1 Reasons for damage of tractor during storage period– – – – – – – – – – – – – – – – – – 59
5.2 Sealing and storing the tractor – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 59
5.3 Service during the period of sealing and storing tractor– – – – – – – – – – – – – – – – – 60
5.4 Unsealing tractor – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 60
6. Delivery, Acceptance and Transportation – – – – – – – – – – – – – – – – – – – – – 62
6.1 Delivery and acceptance – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 62
6.2 Transportation – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 62
7. Technical Specification – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 63
7.1 Producing Standard – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 63
7.2 Product Sign location– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 63
7.3 Product Specification– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 64
8. Disassembly & Disposal – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 76
9. Warranty Items – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
77
9.1 Basis of Warranty– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 77
9.2 Situations beyond warranty– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 77
10. Appendix – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –– – – 78
10.1 Oil and Solution for tractors – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 78
10.2 Tightening torque table of main bolts and nuts – – – – – – – – – – – – – – – – – – – – – 79
10.3 Implements and accessories for wheel tractor – – – – – – – – – – – – – – – – – – – – – 80

Contents

Safety Notes
-1-
1. Safety Notes
1.1 Safety regulations and notes for use
Please carefully read the following information before operation
1. Must be fully read and understand the operator’s manuals and safety warning signs;
2. Must be remembered the correct operation and working method.
Qualified operator
1. When operating the machine, the operator must have enough judgment;
2. Those who feel unwell or suffer from sleep insufficiency, those who are intoxicated,
pregnant woman, those who are color-blind and those who are below 18 years old shall not
operate the machine;
3. The driver shall obtain a driving license after receiving the special training, and shall
receive the examination and check on time.
4. Before getting familiar with the operation, the operators who operate the machine for the
first time shall make the machine run at a low speed.
Clothing appropriate for driver
When operation, the driver shall wear suitable and close-fitting work clothes, and shall not
baggy coat and shirt, or wear a tie.
Oil use
1. The fuel is inflammable, so smoking and fire shall be prohibited when use.
2. Before oil is filled into the fuel tank, the engine shall be stopped;
3. No smoking when oiling and inspection & repair of fuel system;
4. When the fuel or machine oil overflows, please clean it out with a clean rag;
5. The quality of fuel and lubricating oil shall strictly comply with the requirements of the
“appendix”.
Placement of waste oil
1. The replaced machine oil is waste oil, and it shall not be discarded randomly;
2. The replaced storage battery acid will cause environmental pollution, and it shall not be
dumped randomly.

Safety Notes
-2-
When the pipeline has leakage phenomenon
Do not directly contact the high pressure oil leaking out from the oil pipe with hands; thick
paper or wood board can be used to detect the possible positions suffering from leakage.
Emergency response
1. When there is brake failure, stabilize the steering wheel, and immediately stop the machine
after reaching a safe place, and stop the engine;
2. When the steering wheel has a failure, brake immediately and then stop the engine;
3. When the machine catches fire, immediately stop the engine. If there is fire extinguisher,
spray downwards by making the fire extinguisher aim at the flame root; if there is no fire
extinguisher, can put out the fire with sand.
4. After a safety accident occurs, the emergency call of local emergency center, hospital or
fire department shall be made immediately according to the actual conditions.
Warning:
1. For your life safety and property safety and for your relatives’ happiness, please
operate safely.
2. Before the tractor is started, observe if there is any barrier on the road, and if there is
person between the tractor and agricultural implement/ trailer; and whistling sound shall be
made for warning, so as to prevent accident and risk caused by sudden start of the tractor;
3. Do not start and operate the tractor by leaving the driver's seat. When the tractor is
started, it shall be ensured that the gear shift levers are at the neutral position; the power
take off operating handle and the front drive operating handle are at the separation status;
and the lifter operating handle is at the neutral position, so as to prevent accident and risk
caused by sudden start of the tractor;
4. The engine shall not be started by bridging of short circuit terminal, otherwise when
the gear box is put into gear, the tractor will move automatically, which may cause accident
and risk;
5. The motion of pedals shall not be hindered, and all the pedals must be able to return
to the normal position without being hindered. The things that may hinder the pedal stroke
shall not be placed under the floor and pedal, and the articles that may roll or slide when
the pedal is treaded shall not be placed. Additional foot carpet or other cushions shall not
be placed around the pedals, so as to prevent the risks caused by the pedal action. The
lever shall be at the neutral position; the power take off operating handle and the front drive
operating handle are at the separation status; lifter;

Safety Notes
-3-
6. Nobody shall get on/off the tractor when the tractor is moving; and nobody shall be
under the tractor when the engine is running; Inspection and repair shall be performed to
prevent accident and risk;
7. After tractor is stopped, before getting off the tractor, the driver must draw out the
key; make the gear shift levers turned to the neutral position; and lock the brake handle for
parking, so as to prevent accident and risk caused by sudden start of the tractor that may
lead to auto action (out of control);
8. When transport, the left and right brake pedals must be interlocked, and the speed
shall be reasonably controlled; when passing through culverts and bridges, notice whether
the stipulated height is exceeded; when making a turn, sufficient deceleration shall be
made in advance, so as to prevent accident (turnover, crash);
9. When uphill or downhill driving, the minimum gear stage shall be used, and the
throttle control shall be reasonably applied. It is forbidden to make the tractor downhill with
the gear shift at neutral position or by treading the clutch pedal; and it is forbidden to
perform gear shift when uphill or downhill, so as to prevent turnover risk;
10. The tractor shall not make a sharp turn when high-speed driving, and the sharp turn
shall not be made by adopting unilateral braking, so as to prevent turnover risk;
11. Pay attention to traffic signs when driving the tractor on road, and the traffic rules
shall be well complied with, so as to prevent turnover risk;
12. When transfer, the traffic rules shall be well complied with; and the distance
between two vehicles shall be 60m at least, so as to prevent accident and risk (crash);
13. The road bed near trench, hole and dike is vulnerable and the weight of the tractor
may damage it, so please detour, or accident and risk may be caused;
14. The tractor shall not be used under overload conditions, so as to prevent overload
of machine members (which may cause machine damage and even personal injury);
15. There shall be proper lighting equipment when night work of tractor, so as to
prevent the working effect of the tractor from being affected and prevent accident and risk;
16. When the tractor is performing reaping or backyard operation, spark annihilator
shall be installed on the exhaust pipe, so as to prevent fire risk;
17. When operation in rainy and snowy days, the running speed must be reduced, so
as to prevent the turnover risk caused by sloppy road and ground;
18. When power take off operation, it must be ensured that the connection and
protection are reliable, so as to prevent movable parts from loosening (which may cause
personal injury);
19. When connection and traction of implements, it must be ensured that all the hinge
pins are reliably and firmly connected, so as to prevent the crash risk caused by falling
hinge pins. When loosening and articulation of implements, it shall be ensured that the

Safety Notes
-4-
hinge pins are at separation status, so as to avoid machine damage and personal injury
caused by unclear separation;
20. When lifting, pay attention to the control over the engine throttle, so as to prevent
machine damage and personal injury caused to too high lifting speed;
21. When charging of storage battery, it shall be guaranteed that the exhaust hole of
the filling piston is unblocked; and it shall be kept away from open fire. The power supply
shall be cut off firstly after the charging is completed, so as to prevent explosion;
22. The safety height allowed by high voltage transmission line shall be strictly
complied with, so as to prevent accident and risk;
23. When the tractor performs such operations as reaping, threshing and transport of
inflammable materials, fire extinguisher shall be provided, so as to prevent fire accident;
24. Failure warning sign shall be prepared by user when the tractor performs transport
operation. When the tractor has failure and it is necessary to repair, the failure warning
sign shall be placed at the coming direction, so as to warn other vehicles of the repair and
prevent risk;
Notes:
1. The bolts, nuts and other parts that are liable to loosen at connection positions (such
as the fixing nut of front and rear drive wheel, connecting nut of steering rod, tight nut of
steering wheel, etc.) shall be inspected frequently, and they shall be screwed down in time
in case of any looseness, so as to prevent accident and risk;
2. Power take off shaft safety cover shall be installed during the running of the power
take off shaft of the tractor, and personnel shall not approach the power take off shaft.
When the power take off shaft is loaded, the tractor shall not make a sharp turn, so as to
prevent the damage of cardan joint or the power take off shaft of the tractor. When the
power take off shaft is not used, the handle shall be at the separation position, so as to
prevent accident and risk;
3. After the tractor is stopped, before flameout of the engine, the driver shall not leave
the tractor, so as to prevent accident and risk caused by sudden start of the tractor that
may lead to auto action (out of control);
4. When the tractor has to be stopped at an inclined slope, the manual brake handle
shall be at work status; the engine shall be stopped and put into gear (uphill position:
forward gear; downhill position: back gear). Parking braking must be used and triangular
brake shoe shall be used to stop up the rear wheels, so as to prevent accident caused by
auto action (out of control) of tractor;
5. The installation and adjustment of tire only can be carried out by experienced

Safety Notes
-5-
professionals with proper special tools, and serious accidents will be caused if the tire is
not properly installed;.
6. When the water tank is cleaned, the engine shall be stopped firstly, and the cleaning
shall be performed after the water tank cools, so as to prevent scald accident and damage
of water tank;
7. Before installation and use of parts and connected implements, please pay attention
to your safety and carefully read the safety signs and user manual.
Important notes:
1. For the newly delivered tractor and the tractor given heavy repair, wear in must be
carried out according to the requirements for tractor;
2. The various solutions used for the tractor shall be used according to requirements.
The fuel shall precipitate for at least 48h for purification; the lubricating oil used for drive
system only can be filled after being filtered by the oil filter that has the same filter fineness
with that of lifter.
3. Before the tractor is started, the oil circuit, circuit and cooling water shall be
inspected; pay attention to the indications of instruments after start.
4. Before the power take off shaft is used to drive the agricultural implement, the
matching reasonableness between the tractor and the driven agricultural implement shall
be inspected. When farming, the included angle between the power take off shaft and the
cardan joint drive shaft shall be no larger than 15°; when the hydraulic control is normal,
after the agricultural implement is lifted when turning, the included angle between the
power take off shaft, the output shaft of agricultural implement and drive shaft shall be no
larger than 20°. It is forbidden to make the rotary cultivator inserted into soil before the
power take off shaft is connected, or the damage of rotary cultivator and serious damage of
tractor clutch will be caused (to improve the working efficiency, it is unnecessary to cut off
the power source when making a turn, but the lifting height of the implements must be
about 200mm (from ground);
5. When the agricultural implement is hung on the tractor for transfer, the agricultural
implement position shall be locked; when the driver leaves the tractor, the agricultural
implement must be lowered to ground;
6. If the temperature in winter is below 0℃, anti-freeze fluid must be used;
7. The front drive axle of tractor is only used when field work and tire skid on sloppy
road; It shall not be used under other circumstances, or premature wear of tire and drive
system is liable to occur;
8. During the running of tractor, the driver’s feet shall not place on the brake pedal and
clutch pedal, so as to prevent the early damage of brake or clutch;

Safety Notes
-6-
9. When the agricultural implement is hung on the tractor for transfer, the upper pull
rod of the suspension device shall be adjusted to the shortest status, and the limit rod shall
be adjusted to prevent the left-right swing of the agricultural implement. In the meantime,
the locking nut of the upper pull rod and limit rod shall be screwed down, so as to ensure
safety and prevent the risk in damage of machine and agricultural implement;
10. The parts meeting quality requirements shall be used for tractor repair.
Unscrew the radiator cover
When the engine is still at hot status, you shall be careful to unscrew the radiator cover. After
several minutes’ idle running, make the radiator cover unscrewed to the first stage position after
the engine is stopped and cools; and screw it out after the pressured is released.
When repair of electrical parts
1. Make the switch key of the electric lock drawn out.
2. Electrical repair only can be performed after the earth wire is disconnected with storage
battery.
When the tractor has abnormal phenomenon
1. The tractor shall not work under faulty conditions. In particular, if there are such
phenomena as zero oil pressure, too low oil pressure, over high water temperature and abnormal
sound, the tractor shall be stopped immediately for inspection, eliminating the fault.
2. The engine shall be stopped when lubrication for maintenance and adjustment on
farmland.

Safety Notes
-7-
1.2 Safety warning signs
Notes:
1.The safety warning signs must be kept clear and legible; if they are dirty, wash them
with soap water, or clean them with soft rag;
2. If the safety warning signs are lost or unclear, contact the distribution department or
manufacturer in time for replacement;
3. If the parts with safety warning signs are to be replaced, then the safety warning
signs also shall be replaced when the parts are replaced;
4. The contents of safety warning signs involve personal safety, so they shall be well
implemented.
Meaning:
It is forbidden to sit at the non-passenger position of
the tractor, or falling accident may occur!
Application position:
Middle position of left and right fender boards.
Figure1-1 Safety warning signs
Meaning:
Certain distance shall be kept with the hot machine
surface during the machine operation, or scald
accident may be caused!
Application position: Outside of silencer.
Figure1-2 Safety warning signs

Safety Notes
-8-
Meaning:
When the lifting lever control mechanism works, keep
away from the lifting area or personal injury may be
caused!
Application position: Rear side of left fender board.
Figure1-3 Safety warning signs
Meaning:
Before the tractor is repaired, maintained and
adjusted, stop the engine and draw out the key
according to the requirements of the user manual!
Application position:
Right side of instrumentation console.
Figure1-4 Safety warning signs
Meaning:
The driver must start the engine while sitting on the
driver’s seat.
Application position:
Right side of instrumentation console.
Figure1-5 Safety warning signs

Safety Notes
-9-
Meaning:
Please read the operator’s manuals to understand the
meaning of the letterless signs.
Application position:
Left side of instrumentation console
Figure1-6 Safety warning signs
Meaning:
Lock-up sign of differential lock.
Application position: Inside of right fender board.
Figure1-8 Safety warning signs
Meaning：
1. It should be far from power, when PTO works.
2. It should be stop controlling
, when PTO shaft
connect agricultural implements.
Application position: Near the PTO shaft
图1-8 Safety warning signs

Safety Notes
-10-
Meaning:
1.
Make sure the gear lever in the neutral position
before starting tractors.
2. Make sure lock the left and right driving pedal
Application position:
Foreside of right fender boards
Figure1-11 Safety warning signs
Meaning:
Make sure the power source separate with battery,
When repairing electric parts; Driver mustn’t press
braking pedal and clutch pedal when tractors driving.
Application position:
Foreside of right fender board.
Figure1-12 Safety warning signs
Meaning:
Mustn’t near fire to protect make a fire disaster.
Application position:
Foreside of right fender board.
Figure1-13 Safety warning signs

Safety Notes
-11-
Meaning:
Must make park braking after parking.
Application position:
Near parking braking control handle.
Figure1-14 Safety warning signs
Meaning:
1. It should far from lifter region, when controlling
hydraulic lifters.
2. Three point suspension device is only used for its
matching agricultural implements.
Application position: Rear side of left fender board.
Figure1-15 Safety warning signs
Meaning:
1. It should far from lifter region, when controlling
hydraulic lifters.
2. Three point suspension device is only used for its
matching agricultural implements.
Application position:
Foreside of left fender board.
Figure1-16 Safety warning signs

Safety Notes
-12-

Appendix
--
78
10．Appendix
10.1 Oil and solution for tractors
Table 10-1 Oil and solution for tractors
Engine oil: 20/50
Gearbox oil: 85/140
Hydraulic Oil: ISO68
Oil ring
National
standard
GB/T 7324 General purpose lithium lubricating grease
International
standard
D-217 grease lubricant ,meet the requirements of National Lubricating
Grease Institute (USA), viscosity grade: 2.
Brake
system
National
standard
The three-purpose oil for tractor transmission, hydraulic and brake system
International
standard
Viscosity grade :SAE 10W; Quality grade :API CD
Windshield Used for wind shield cleaner. -10℃: --45# Antifreeze (SH/T0521)
Important matters:
1. The three-purpose oil for tractor transmission, hydraulic and brake system, diesel oil,
and diesel engine oil must go through at least 48h sedimentation before it is put into servic e.
2. It is forbidden to mix oil of different grades and from different manufactures.
3.
In winter, the tractor with heating system or air-conditioning system must use antifreeze.
10.2 Tightening torque table of main bolts and nuts
Table 10-2 Tightening torque table of main bolts and nuts
Connection Parts Thread
specification
Tightening
Torque(N·m)
Connecting bolts and nuts between engine and gearbox housing M10 60-70
Connecting bolts and nuts between engine and gearbox housing M12×1.5 90-110
Connecting bolts and nuts between engine and gearbox housing M14×1.5 122-149
Connecting bolts and nuts between engine and gearbox housing M16×1.5 182-222
Connecting bolts between gear box and rear axle housing M12×1.5 90-110
Connecting bolts between gear box and rear axle housing M16×1.5 182-222
