Husqvarna YTH18K46 Owner's manual

English
581 50 98-49
Repair Parts Manual
IPL Manual
YTH18K46/96043014300
Please read the operator's manual carefully and make sure
you understand the instructions before using the machine.
.

2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor when ordering repair parts. The
illustrations may or may not represent the actual assemblies; therefore, it is not recommended to use this manual as a guide to assemble
or disassemble the tractor. Some hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “TRACTOR”
• MODEL NUMBER - “YTH18K46" (96043014300)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC .......................................................................................................................................................................3
ELECTRICAL.................................................................................................................................................................. 4-5
CHASSIS ........................................................................................................................................................................ 6-7
DRIVE.............................................................................................................................................................................. 8-9
ENGINE....................................................................................................................................................................... 10-11
STEERING .................................................................................................................................................................. 12-13
MOWER DECK ........................................................................................................................................................... 14-15
MOWER LIFT....................................................................................................................................................................16
SEAT .................................................................................................................................................................................17
DECALS............................................................................................................................................................................18

3
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
SCHEMATIC
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
SM
B
GL
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH10
IGNITION SWITCH
CIRCUITPOSITION
OFF B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
03107
ATTACHMENT CLUTCH
(CLUTCH OFF)
REGULATOR STATOR
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-16 AMP DC @ 3600 RPM
RED
BLACK
BLACK /WHITE
ORANGE
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
DER
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)

4

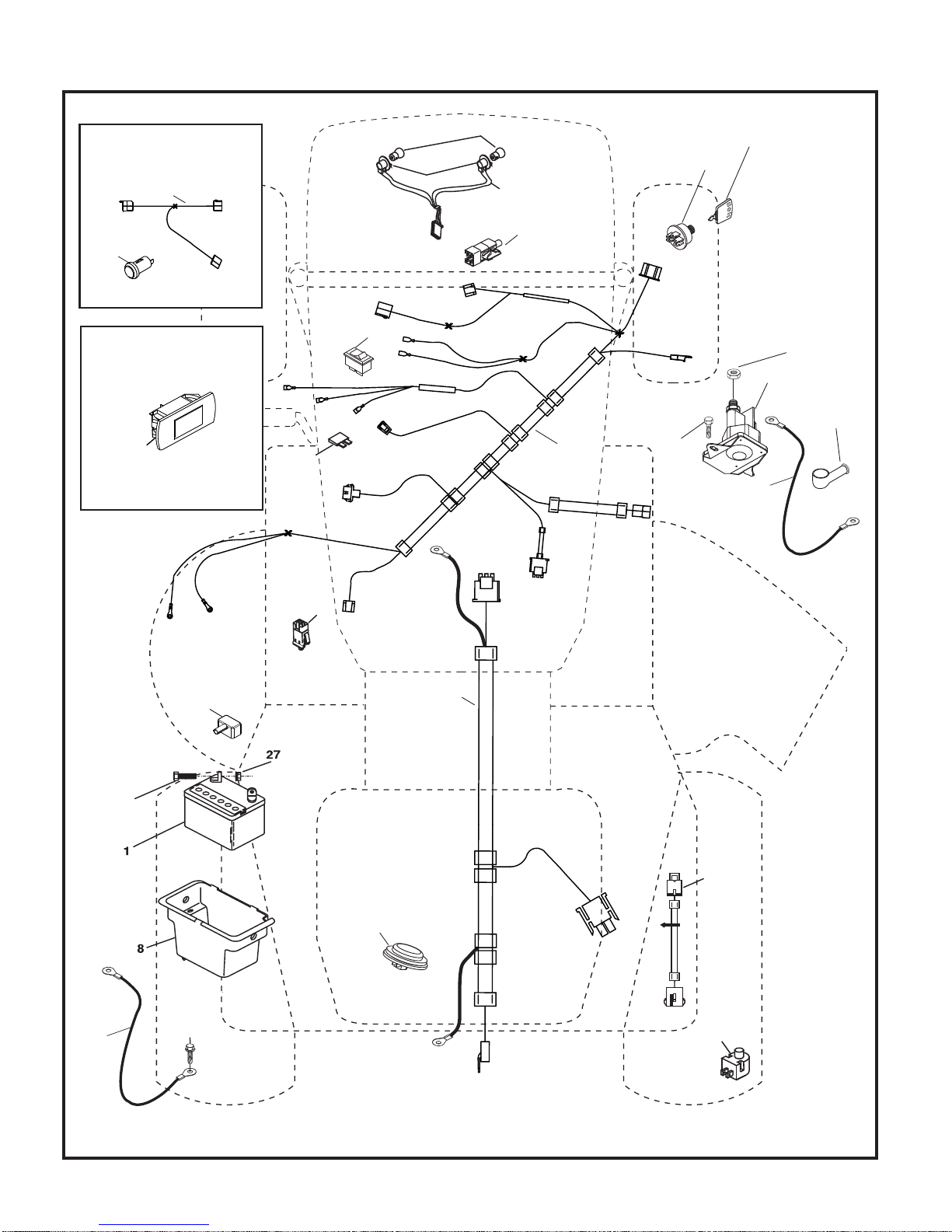

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
ELECTRICAL
30 33
34
22
79 21
41
42
26
43 27
40
71
16
87
25
T06S
90
28
55
With 12V Outlet Option
59
103
With Service Minder Option
4646
102
29
2
105

5
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 40 02-52 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
25 532 41 28-95 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 19 88-85 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-33 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 532 40 10-98 Harness Ign. Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover, Terminal
43 532 19 25-07 Solenoid
46 532 40 17-63 Gauge Serviceminder Hrmtr
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT
71 532 40 04-49 Harness Ign. Chassis
79 532 17 52-42 Socket Asm. Bulb
87 532 19 78-02 Switch Interlock
90 532 43 53-95 Cover Terminal
102 532 40 44-54 Harness Pigtail
105 532 40 75-68 Switch Reverse
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6

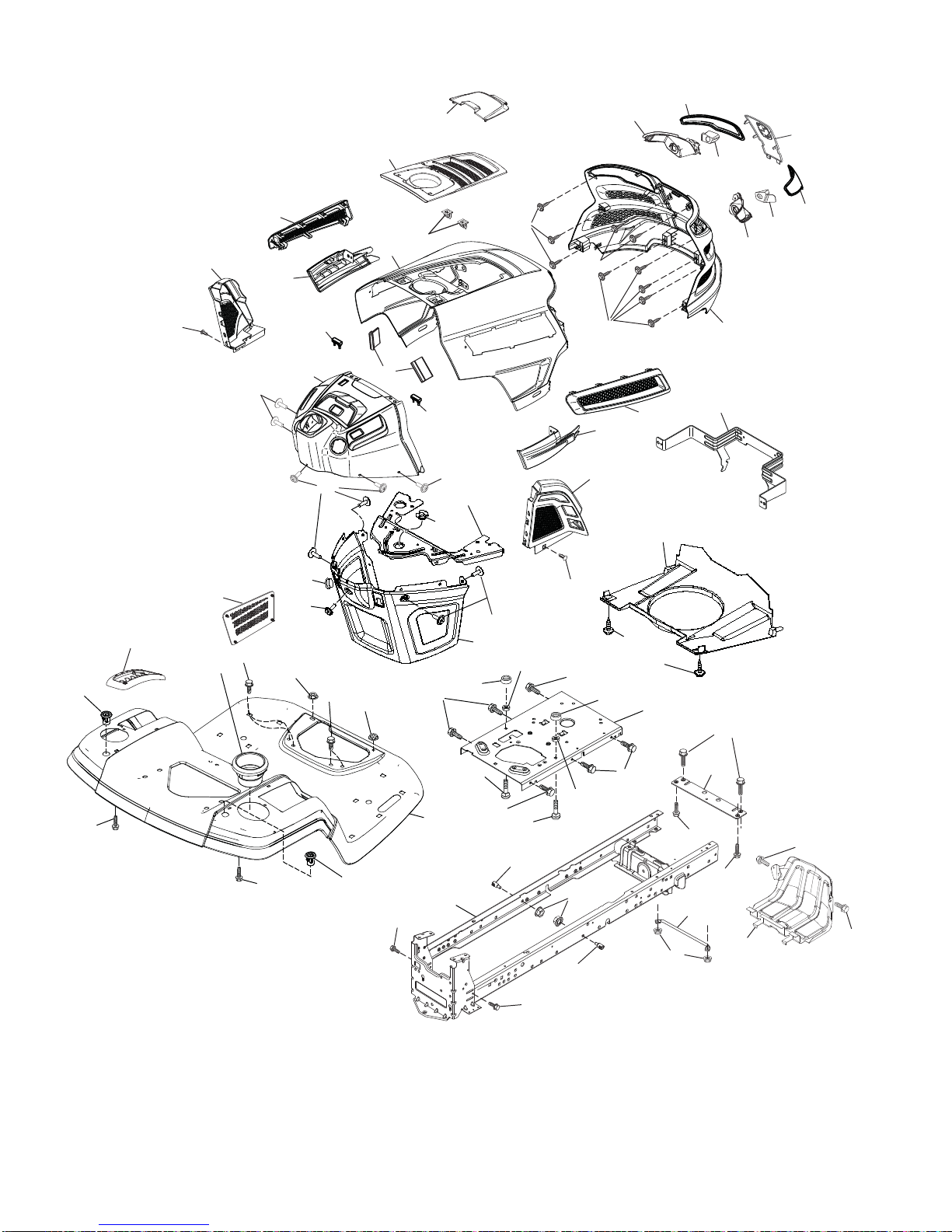

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
CHASSIS
68
68
68
68
183
183
236
236
34
chassis-tex_GT HUSQ_II_136
235
235
180
182
176 176
175
177
150
130
130
195
37
194
194
181
181
162
287
138 36
36
196
228
228
194
68
68
213
218
52
217
14
202
203
205
151
206
137
137
214
204
229 208
15
25
207
3
297
191
18
130
130
130
176
5
176
176
234
159
159
152
159
159
350
335
178
350
336

7
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
CHASSIS
KEY PART
NO. NO. DESCRIPTION
3 532 43 97-52 Applique Sub Asm.
5 532 43 74-81 Dash
14 532 44 11-77 Hood
15 532 43 97-33 Lens LH
18 532 43 77-62 Grille
25 532 44 33-85 Lens RH
34 580 91 08-01 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 44 12-06 Fender
52 873 68 05-00 Nut Lock 5/16-18
68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
130 532 41 63-58 Screw #10 x 0.750
137 532 40 75-90 Bumper Dash
138 532 43 97-47 Cupholder
150 532 43 97-31 Air Duct
151 532 43 66-70 Bracket Pivot
152 532 43 98-70 Shield Browning
159 817 00 06-12 Screw Hexwsh Thrd 3/8-16 x 3/4
162 532 14 24-32 Screw
175 532 19 63-04 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-27 Bushing Steering
178 532 19 97-82 Cargo Asm. Net
180 532 19 54-57 Chassis
181 532 43 97-46 Bushing Mtg. Fender Crgo
182 532 40 68-59 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4
191 532 43 74-55 Insert Reflective RH NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 41-37 Plug Hole Dash Lower
196 532 43 96-47 Console Asm. Deck Lift
202 532 43 97-28 Vent Side Hood RH
203 532 43 97-27 Vent Side Hood LH
204 532 44 06-65 Vent Top Hood
205 532 43 97-30 Skirt Hood Side RH
206 532 43 97-29 Skirt Hood Side LH
207 532 43 97-34 Bezel RH
208 532 43 97-35 Bezel LH
213 874 76 05-12 Bolt 5/16-18 x 3/4
214 532 19 91-45 Clip Retainer Tinner
217 532 40 91-67 Rod Pivot
218 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastner
229 532 44 14-63 Lid Extension
234 532 40 47-42 Bumper Hood
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Lock 5/16-18 unc
287 817 60 04-06 Screw 1/4-20 x 3/8
297 532 43 74-56 Insert Reflective LH
335 532 44 82-04 Cover RH
336 532 44 53-09 Cover LH
350 532 44 51-43 Clip X-mas Tree
KEY PART
NO. NO. DESCRIPTION

8

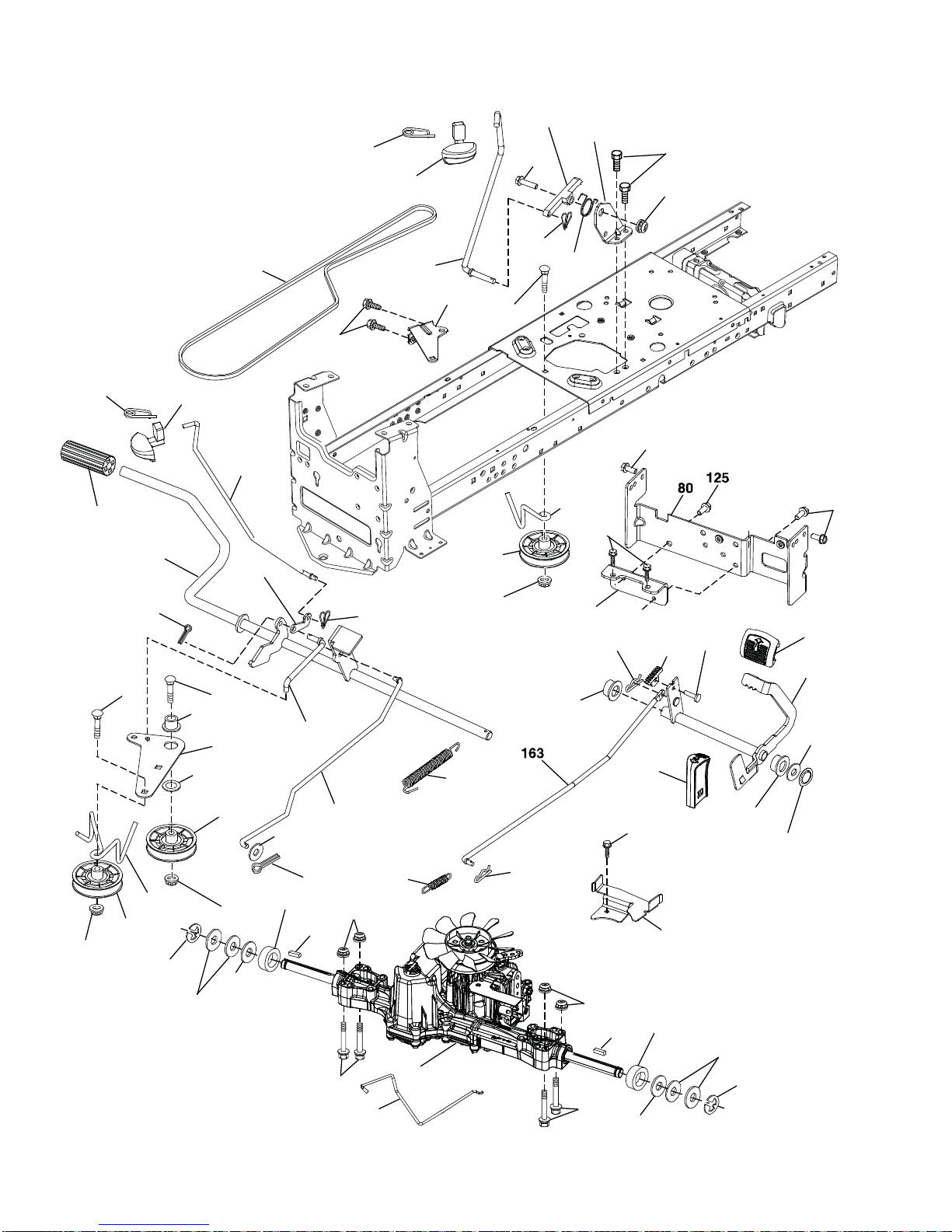

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
DRIVE
52
51
170
171
225
125
drive-tex_K46_pedal_87
2
2
73
73 33
205
1
116
33
230
230
183
183
205
116
56
213
221
160
206
26
207
209
92 125
116
64
188
161
35
184
167
160
42
29
15
159
159
221
186
189
49
187
50
51
52
51
190
185
125
226
227
125
208
210
214
125
215
153
166
211
211
222
17 153
99
216
143

9
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
DRIVE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 – – – – – – Transaxle, TUFFTORQ K46BT
(426120) (Order parts from
transaxle manufacturer.)
2 532 12 35-83 Key Square
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 41 36-78 Spring, Brake
26 532 19 96-79 Spring Return Cruise
29 532 40 38-06 Rod, Brake
33 812 00 00-01 Ring E
35 532 43 54-86 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove
56 532 13 09-69 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control
73 874 49 05-40 Bolt Hex 5/16-18 x 2 1/2 G.5
80 532 44 06-19 Strap Torque
92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25
99 532 41 57-42 Rod Spring Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw 5/16-18 x 1/2
153 532 12 47-88 Retainer Spring 1"
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
163 532 44 82-75 Rod Control
166 532 42 91-64 Nut Push
167 532 40 52-57 Latch Brake Parking
170 532 19 43-22 Keeper V-Idler
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
171 872 11 06-16 Bolt 3/8-16 unc x 2
183 532 13 70-57 Spacer Axle
184 532 44 14-55 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
206 532 19 78-67 Bracket Mount Latch Cruise
207 532 19 78-68 Latch Control Cruise
208 532 19 78-69 Gear Sector Control Cruise
209 532 19 95-92 Rod Control Cruise
210 532 40 09-80 Rocker Asm. Pedal Control
211 532 12 01-83 Bearing Nylon
213 532 40 31-19 Knob Control Cruise
214 532 42 12-63 Pedal Forward
215 532 40 17-23 Pedal Reverse
216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle
222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.
225 532 40 33-19 Keeper Belt Transaxle
226 532 40 15-64 Bracket Strap Torque
227 817 49 05-12 Screw 5/16-18 x 3/4
230 532 18 89-67 Washer .793 x 1.637 x 060

10
1
92
12
42
85
9
29
SPARK ARRESTER KIT
92
45
122
90
37
28
37
21
20
22
62
70
71
86
69
87
2
engine-tex_Kawa-2cyl_22
97
96
15
18
111
111

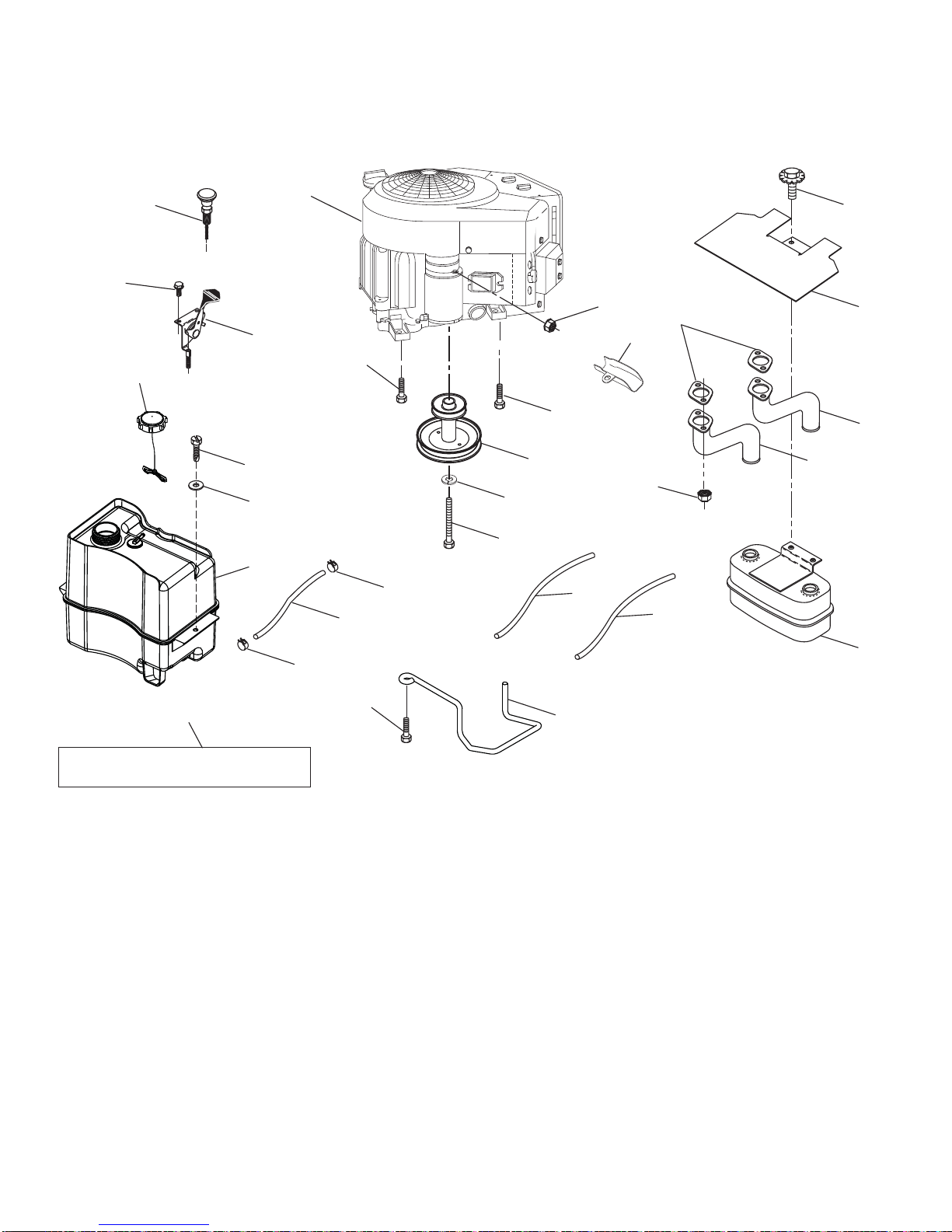

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
ENGINE

11
KEY PART
NO. NO. DESCRIPTION
1 – – – – – – Engine Kawa Model No. FR600V-AS11
(581477001) (Order parts from engine
manufacturer.)
2 532 44 59-62 Muffler
9 532 19 43-20 Keeper Belt Engine
12 532 40 54-72 Pulley Engine
15 532 43 30-07 Tank Fuel
18 532 43 85-96 Cap Asm
20 532 41 21-65 Control Throttle
21 532 41 63-58 Screw # 10 x 0.750
22 532 18 95-41 Choke Control
28 532 14 21-58 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
62 532 43 40-17 Shield Heat Muffler
69 532 17 81-51 Gasket
70 532 42 47-66 Tube Exhaust RH
71 532 42 47-65 Tube Exhaust LH
82 532 42 82-87 Valve Oil Drain
85 532 17 39-37 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr
86 532 18 43-62 Nut Hex Flange Toplock M8-1.25
87 537 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
90 817 00 06-16 Screw 3/8-16 x 1
92 817 12 06-16 Screw 3/8-16 x 1
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4-20 x 3/4
111 532 41 41-19 Purge Line Carb 3/16
122 532 42 19-22 Extension Drain Oil
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
ENGINE
NOTE: AllcomponentdimensionsgiveninU.S.inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Kawasaki 1-949-460-5688

12
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
STEERING ASSEMBLY
steering-tex_HUSQHR_5
6
5
13
13
53 8
9
87
9
87
62
4
70
68
69
67
67 66
15
15
14
14
61
2
6
35
59
58
16
28
13
22
64
21
51
26
1
45
19 60 63
57
57
63
122
122

13
KEY PART
NO. NO. DESCRIPTION
1 532 43 97-40 Wheel, Steering
2 532 19 59-68 Axle Cast Iron
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Washer, Thrust
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 40 82-19 Shaft Steering
19 532 19 47-29 Plate Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Steering Support
26 532 43 97-43 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
35 532 19 47-32 Gear, Sector Plate
45 819 18 38-12 Washer 9/16 ID x 2-3/8 OD 12 Ga.
51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf
53 532 18 89-67 WasherHardened.793 x 1.637x.060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
122 532 44 49-62 Cap Gear
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
STEERING ASSEMBLY

14
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43

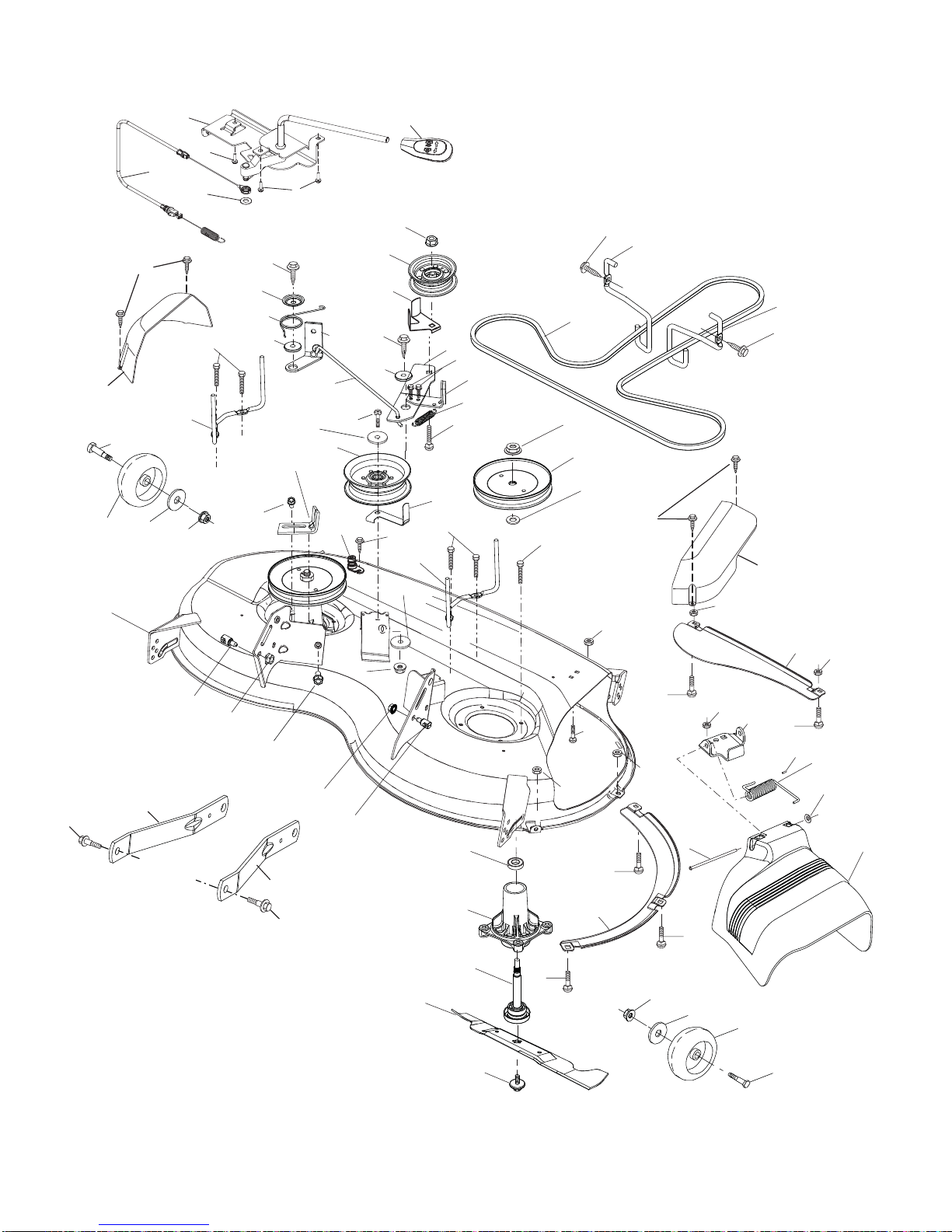

MOWER DECK
30
43
42
60
38
63
46
147
55
64
30
32
31
33
200
34
56 57
59
40
188
1
69
69
199
40
145
15
14
21
26
27
198
29
21
21
68
23
24
144
36
240
57
19
19
6
6
195
122
123
195
189
113
113
47
189
188
21
21
69
69
69
21
30
38
56
69
13
11
8
46_tex_lt_pred_11_r1
197
25
242 241
3
46
70
7
7
37
67
152
2
46
117
116
40 119
117 119
116
40

15
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 44 23-82 Mower Housing
2 532 40 55-07 Cover Mandrel LH
3 532 40 55-06 Cover Mandrel RH
6 532 19 51-86 Arm Suspension
7 532 41 63-58 Screw # 10 x 0.750
8 532 19 30-03 Bolt/Washer asm 7/16-20 unf
11 532 40 53-80 Blade Mower Hi Lift
13 532 19 28-72 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
19 532 19 65-39 Bolt, Shoulder
21 873 68 05-00 Nut
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 53-57 Shield, Deflector
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol Rolling Wsh Hd
31 532 18 76-90 Washer, Spacer
32 532 19 74-73 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 532 19 73-79 Pulley, Idler, Flat
37 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
38 532 43 25-20 Keeper Belt LH Mandrel
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
42 532 19 84-10 Spring Torsion Brake
43 532 19 72-56 Spring Torsion Retainer
46 532 13 77-29 Screw
47 532 19 72-50 Bracket Clutch Cable
55 532 19 72-49 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw Hexwsh Thd 3/8-16 x 1
59 532 14 10-43 Guard, Tuv Idler (94)
60 532 19 94-71 Arm Brake Mower LH
63 532 19 94-77 Arm Brake Mower
64 532 40 51-38 Linkage Brake
67 532 40 30-12 Handle, Clutch Cable
68 532 40 51-43 V-Belt
69 872 14 05-05 Bolt
70 532 19 99-72 Clutch Asm. Cable
113 817 00 05-10 Screw 5/16-18
116 532 19 34-06 Bolt, Shoulder
117 532 17 48-73 Wheel, Gauge
119 819 13 20-12 Washer 13/32 x 1-1/4 x 12 Ga.
122 532 19 72-58 Keeper Belt Eng. LH
123 532 19 72-59 Keeper Belt Eng. RH
144 532 19 92-04 Keeper Belt
145 532 19 31-97 Pulley Idler
147 532 40 18-72 Spring Return
152 532 43 51-10 Cable Clutch Manual w/Spr.
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
195 817 00 06-12 Screw 3/8-16 x 3/4
197 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
198 532 40 31-49 Baffle Center Front
199 532 40 31-50 Baffle Front RH
200 532 41 35-24 Washer 13/32 x 1 x 1/2 11 Ga.
240 874 52 06-36 Bolt 3/8-16 unc x 2-1/4 Gr. 5
241 532 15 29-27 Screw
242 532 41 55-98 Washout Port
- - 532 41 64-05 Quick Connect Coupling
- - 532 19 28-70 Mandrel Assembly (Includes hous-
ing, shaft assembly, and bearing
only - pulley/nut/washer and blade
bolt/washers not included)
- - 532 43 18-23 Replacement Mower, Complete
KEY PART
NO. NO. DESCRIPTION

16
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
MOWER LIFT
7
3
87
10
88
2
89
90 98
97
97
lift-tex_17_r3 *Key 91 may be substituted for Key 101
91
101*
87
100
89
89
87
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 580 96 23-01 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 19 51-81 Link Lift Susp Mower Rear
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
97 817 00 06-12 Screw 3/8-16 x .75 Smgml
Tap/R.Z
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Center Lock 3/8-16 unc
101 532 40 70-03 Link Asm Lift Fixed

17
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43

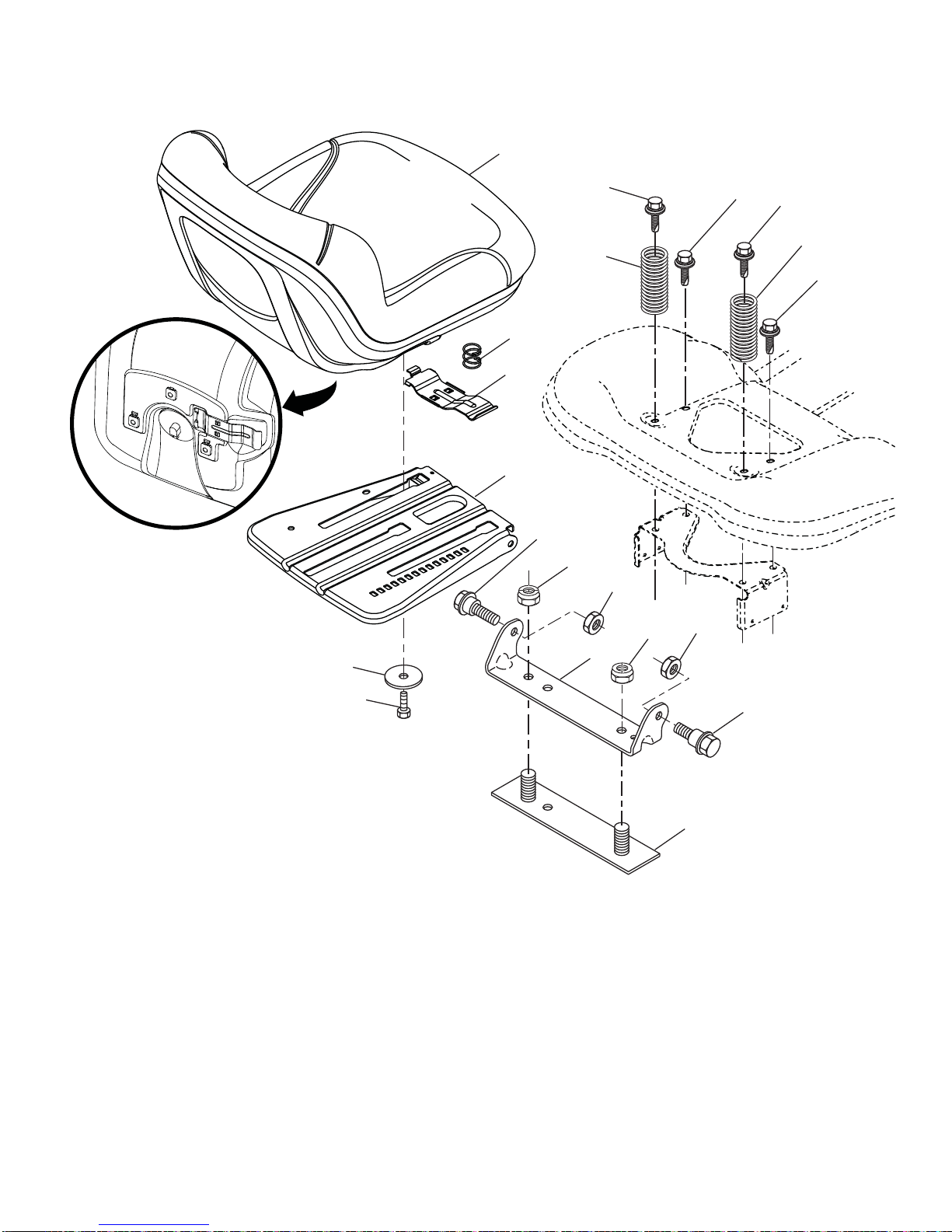

SEAT ASSEMBLY
1 532 43 98-22 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
seat-tex_6.5SL_3
44
43
8
8
6

18
TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire Front 15 x 6.0-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 13 84-68 Tire R 20 x 8-8 Turf Saver LT
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 41 16-57 Decal, Fender Warning
2 532 42 91-96 Decal, Hood
3 581 51 04-01 Decal, Hood Panel SD
4 532 17 05-63 Decal, Mower
5 532 42 38-29 Decal, Customer Respons.
6 581 48 02-01 Decal, Replacement
9 532 14 50-05 Decal, Battery Dnge/Poi
12 532 16 03-96 Decal, Mower V-Belt Schematic
- - 532 16 69-60 Decal, Bypass
- - 532 43 96-81 Pad, Footrest, LH
- - 532 43 96-82 Pad, Footrest, RH
- - 581 50 97-49 Manual, Operator's(English/
Spanish)
- - 581 50 98-49 Manual, Parts (English/Spanish)
9
12
2 5 6
3
4
2
1

08/31/2012 JM
