AIC Lynx User manual

UM_Lynx_v3.1_041119
Lynx
Server Motherboard
User's Manual

Content
Preface������������������������������������������������������������������������������������������������ ii
Safety Instructions ����������������������������������������������������������������������������� iii
About This Manual������������������������������������������������������������������������������ iv
Chapter 1� Product Features ��������������������������������������������������������������1
1�1 Componenets �����������������������������������������������������������������������������������1
1.2 Specications�����������������������������������������������������������������������������������2
1�3 Feature ���������������������������������������������������������������������������������������������3
Chapter 2� Hardware Setup ����������������������������������������������������������������4
2�1 Central Processiong Unit Setup���������������������������������������������������������4
2.1.1 Processor Support..............................................................................................4

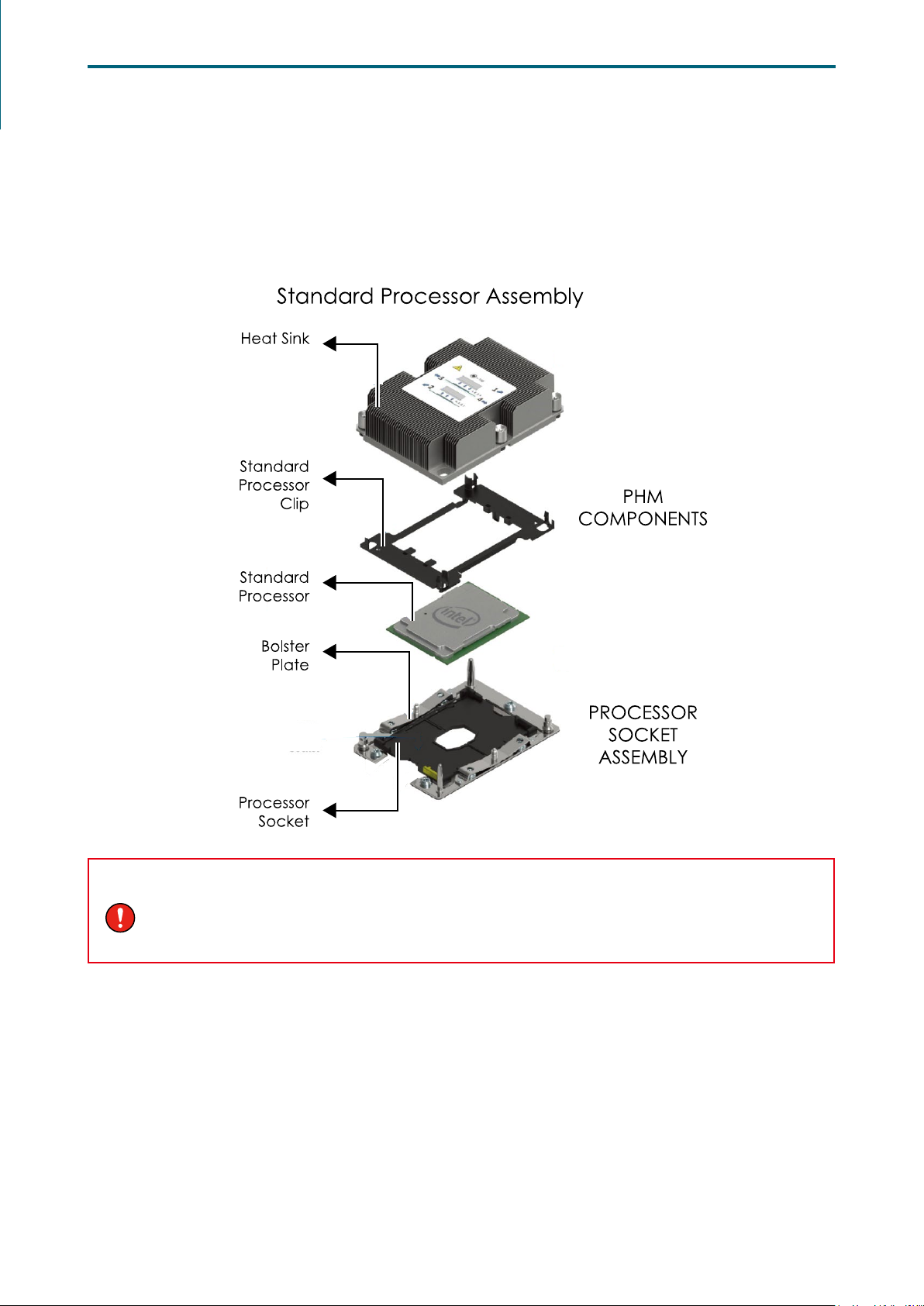

2.1.2 Processor Heat Sink Module and Processor Socket Assembly.......................5

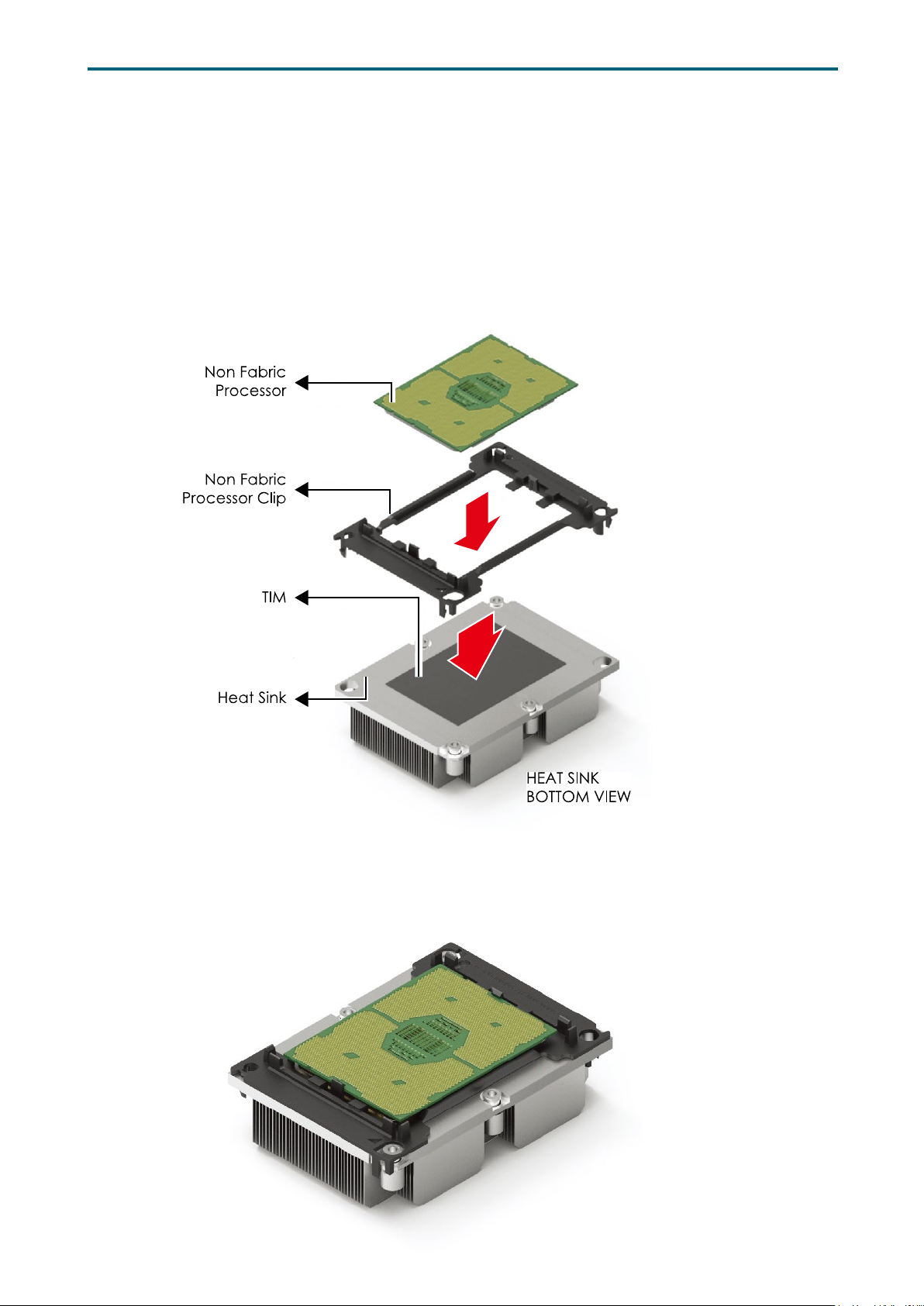

2.1.3 Processor Heat Sink Module..............................................................................6
2�2 System Memory Setup����������������������������������������������������������������������9

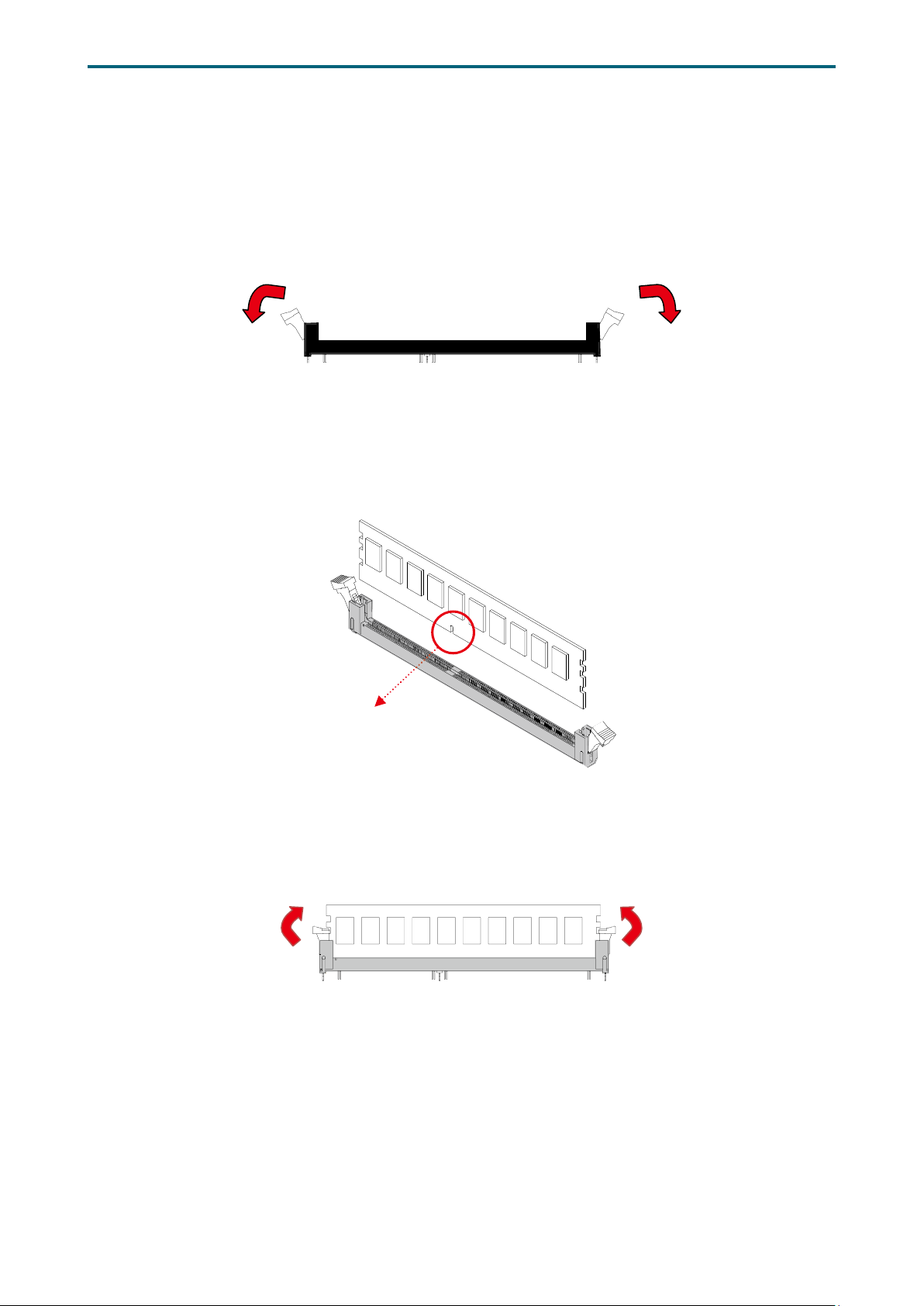

2.2.1 DIMM Installation ...............................................................................................9
2.2.2 DIMM Location ................................................................................................ 10

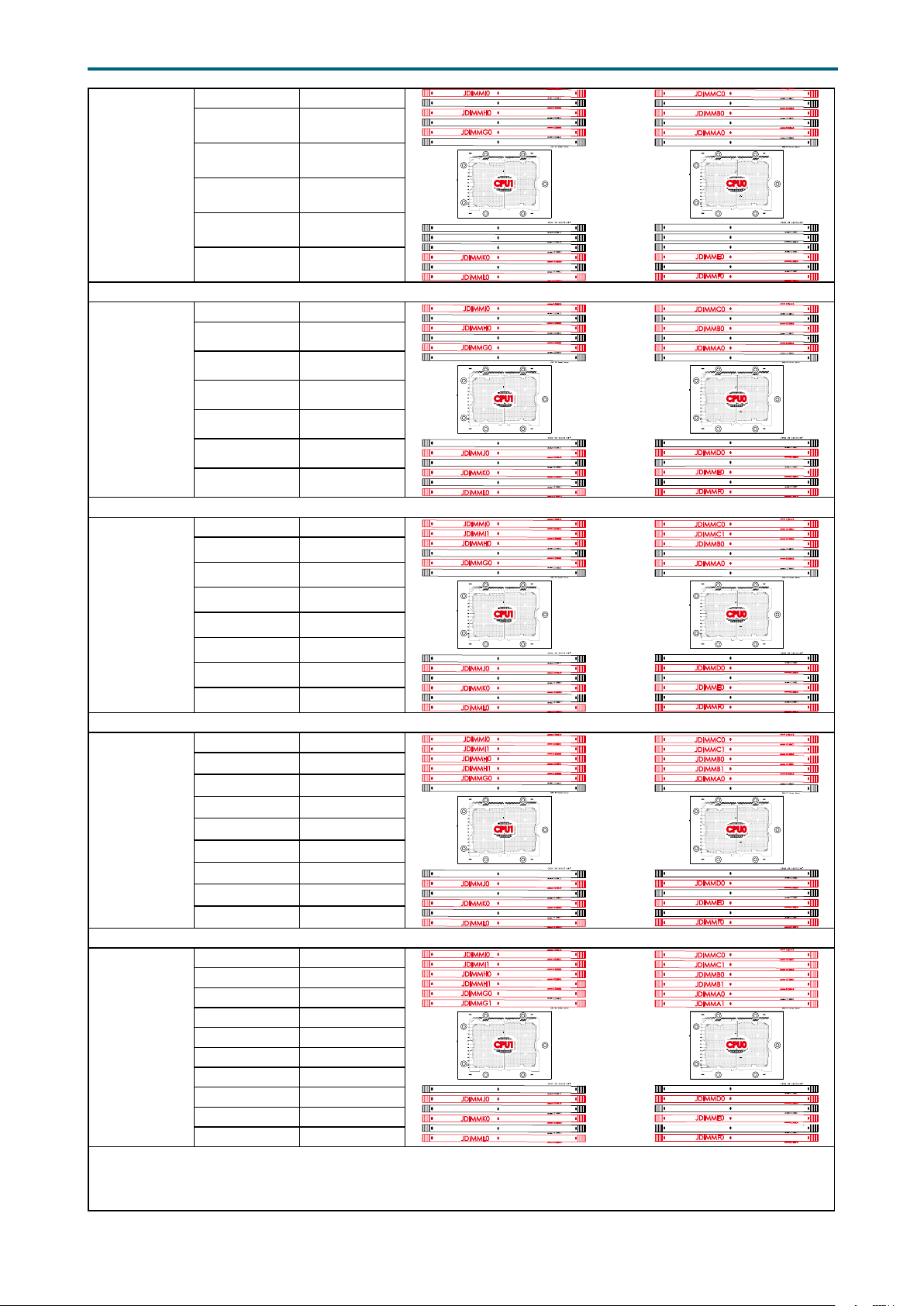

2.2.3 DIMM Slot Installation Order........................................................................... 11
Chapter 3� Hardware Settings ���������������������������������������������������������� 14
3�1 Motherboard Block Diagram������������������������������������������������������������14
3�2 Motherboard Content List ���������������������������������������������������������������15
3�3 Motherboard Layout������������������������������������������������������������������������17
3�4 Connector and Jumper��������������������������������������������������������������������18
3�5 System LED Indicator����������������������������������������������������������������������27
3.5.1 Internal LED...................................................................................................... 27
Chapter 4. BIOS Conguration Settings ������������������������������������������� 28
4�1 Navigation Keys������������������������������������������������������������������������������28
4�2 BIOS Menu��������������������������������������������������������������������������������������29
4.2.2 Startup.............................................................................................................. 29
4.2.3 Update.............................................................................................................. 32
4�3 Main ����������������������������������������������������������������������������������������������34
4.3.1 Main.................................................................................................................. 34
4�4 Advanced����������������������������������������������������������������������������������������35
4.4.1 Boot Conguration .......................................................................................... 35
4.4.2 Peripheral Conguration ................................................................................. 36
4.4.3 Video Conguration......................................................................................... 36
4.4.4 ACPI Table/Features Control........................................................................... 36
Table of Contents

4.4.5 System Event Log............................................................................................ 36
4.4.6 Debug Conguration........................................................................................ 39
4.4.7 OEMBOARD Function ...................................................................................... 39
4.4.8 SIO AST2500 ................................................................................................... 39
4.4.9 Socket Conguration ...................................................................................... 40
4.4.10 ME Conguration........................................................................................... 51
4.4.11 PCH Conguration......................................................................................... 53
4.4.12 H2O IPMI Conguration ................................................................................ 58
4.4.13 APEI Conguration ....................................................................................... 58
4.4.14 Console Redirection Setup............................................................................ 59
4�5 Security ������������������������������������������������������������������������������������������60
4.5.1 Security ............................................................................................................ 60
4�6 Power ���������������������������������������������������������������������������������������������61
4.6.1 Power ............................................................................................................... 61
4�7 Boot������������������������������������������������������������������������������������������������62
4.7.1 Boot .................................................................................................................. 62
4�8 Exit �������������������������������������������������������������������������������������������������63
4.8.1 Exit.................................................................................................................... 63
Chapter 5. BMC Conguration Settings�������������������������������������������� 64
5�1 Login ����������������������������������������������������������������������������������������������64
5�2 Web GUI ����������������������������������������������������������������������������������������65
5.2.1 Menu Bar.......................................................................................................... 65
5.2.2 User Information and Quick Button ............................................................... 66
5.2.3 Dashboard........................................................................................................ 67
5.2.4 Sensor .............................................................................................................. 67
5.2.5 FRU Information............................................................................................... 68
5.2.6 Logs and Reports ............................................................................................ 69
5.2.7 Settings ............................................................................................................ 70
5.2.8 Remote Control................................................................................................ 72
5.2.9 Power Control .................................................................................................. 76
5.2.10 Maintenance .................................................................................................. 77
5.2.11 Sign out .......................................................................................................... 79
5�3 Firmware Update�����������������������������������������������������������������������������80
Chapter 6� Technical Support����������������������������������������������������������� 81
Content

Copyright © 2018 AIC, Inc� All Rights Reserved�
This document contains proprietary information about
AIC products and is not to be disclosed or used except in
accordance with applicable agreements.

i
Document Release History
Release Date Version Update Content
November
2017 1 User's Manual release to public
March
2018 21. Gramnar Errors
2. Add About this Manual
January
2019 3
1. Datasheet
2. Hardware Settings update
3. SW update
April
2019 3.1 BIOS update.

ii
Copyright
No part of this publication may be reproduced, stored in a retrieval system, or transmitted
in any form or by any means, electronic, mechanical, photo-static, recording or otherwise,
without the prior written consent of the manufacturer.
Trademarks
All products and trade names used in this document are trademarks or registered
trademarks of their respective holders.
Changes
The material in this document is for information purposes only and is subject to change
without notice.
Warning
1. A shielded-type power cord is required in order to meet FCC emission limits and also
to prevent interference to the nearby radio and television reception. It is essential that
only the supplied power cord be used.
2. Use only shielded cables to connect I/O devices to this equipment.
3. You are cautioned that changes or modications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
Disclaimer
AIC shall not be liable for technical or editorial errors or omissions contained herein.
The information provided is provided "as is" without warranty of any kind. To the extent
permitted by law, neither AIC or its afliates, subcontractors or suppliers will be liable
for incidental, special or consequential damages including downtime cost; lost prots;
damages relating to the procurement of substitute products or services; or damages
for loss of data, or software restoration. The information in this document is subject to
change without notice.
Preface

iii
When installing, operating, or performing maintenance on this equipment, the following
safety precautions should always be observed in order to reduce the risk of fire, electric
shock, and personal injury.
Read and understand all instructions.
Observe warnings and instructions marked on the product.
• For proper mounting instructions, please consult the User’s Manual provided with this
product.
• Do NOT place this product on an unstable cart, stand, table or uneven surface that
might cause the product to fall and sustain serious damage.
• Only install the equipment identified in the User’s Manual. Use of other equipment could
cause improper connection of circuitry and may result in fire or personal injury.
• This product should only be operated with the type of power source indicated on the
marked label. If you are uncertain about which type of power supply is used in your
area, consult your dealer or local Power Company.
• Disconnect the power supply module before removing power from the system. Unplug
this product from the wall outlet before cleaning. Use a damp cloth for cleaning. Do not
use liquid cleaners or aerosol cleaners.
• Do not use this product near a water source, such as a faucet.
• Never spill liquids of any kind on this product.
• Never shove objects of any kind into this product’s open slots, as they may touch
dangerous voltage points or short out parts and could result in fire or electric shock.
• Do not block or cover slots and openings in this unit, as they were made for ventilation
and prevent this unit from overheating. Do not place this product in a built-in installation
unless proper ventilation is available.
• Do not disassemble this product. This product should only be taken apart by trained
personnel. Opening or removing covers and circuit boards may expose you to electric
shock or other risks. Incorrect reassembly can also cause electric shock when the unit
is subsequently used.
• Risk of explosion is possible if battery is replaced with an incompatible type. Dispose
of used batteries accordingly.
• This product is equipped with a three-wire grounding type plug, a plug with a third
(grounding) pin. As a safety feature, this plug is intended to fit only into a grounding
type power outlet. If you are unable to insert the plug into the outlet, contact your
electrician to replace the outlet. Do not remove the grounding type plug or use a 3-Prong
To 2-Prong Adapter to circumvent the safety feature; doing so may result in electric
shock and/or damage to this product.
Safety Instructions

iv
Thank you for selecting and purchasing the Lynx Serverboard.
This user's manual is provided for professional technicians to perform easy hardware
setup, basic system configurations, and quick software startup. This document pellucidly
presents a brief overview of the product design, device installation, and firmware settings
for the Lynx motherboard. For the latest version of this user's manual, please refer to the
AIC website: http://www.aicipc.com/en/productdetail/20870.
Chapter 1 Product Features
This chapter delivers the overall layout of the product, including the fundamental
components on the motherboard, design specifications, and noteworthy features. Lynx is
an ideal server grade motherboard that is specifically designed to accommodate diverse
enterprises for managing heavy workloads, databases, nearline applications, and cloud
deployments. This product supports the Intel®Xeon®Scalable Processors (Skylake
and next generation CPU) and Socket P0 (LGA-3647) with a memory support 24 DDR4
2400/2666 MHz DIMM accross 6 channels per CPU.
Chapter 2 Hardware Setup
This chapter displays an easy installation guide for assembling the CPU (Central
Processing Unit) and memory module. Utmost caution for proceeding to set up the
hardware is highly advised. The components on the motherboard are highly fragile and
vulnerable to exterior influence. Do not attempt to endanger the device by placing the
device in a potentially unstable or hazardous surroundings, including positioning the device
on an uneven grounds or humid environments.
Chapter 3 Motherboard Settings
This chapter elaborates the overall layout of the server motherboard, including multifarious
connectors, jumpers, and LED descriptions. These descriptions assist users to configure
different settings and functions of the motherboard, as well as to confirm the location of
each connector and jumper.
Chapter 4 BIOS Configuration Settings
This chapter introduces the key features of BIOS, including the descriptions and option
keys for diverse functions. These details provide users to effortlessly navigate and
configure the input/output devices.
Chapter 5 BMC Configuration Settings
This chapter illustrates the diverse functions of IPMI BMC, including the details on logging
into the web page and assorted definitions. These descriptions are helpful in configuring
various functions through Web GUI without entering the BIOS setup. For more information
of BMC configurations, please refer to BMC (Aspeed2500) User's Manual for a more
detailed description.
Chapter 6 Technical Support
For more information or suggestion, please contact the nearest AIC corporation
representative in your district or visit the AIC website: http://www.aicipc.com/en. It is our
greatest honor to provide the best service for our customers.
About This Manual

1
Chapter 1. Product FeaturesLynx User Manual
Lynx
Product specifications and features are subject to change without prior notice�
Spica User Manual
Chapter 1� Product Features
1�1 Componenets
Dimensions
mm : 424.18 x431.8
inches : 16.7 x 17
VGA Port
Serial Console
by MicroUSB
2 x RJ45
2 x USB 3.0 + RJ45
Dedicated NIC for BMC
2 x NGFF(M.2) M-Key
(2280, 2242 by additional
bracket) support SATA/
PCIe x2
OCP Mezzanine V2.0 (A+B)
Support PCIe Gen3 x16
(Share with Max I/O® #2)
OCP Mezzanine V2.0 (A+B+C)
Support PCIe Gen3 x16
(Share with Max I/O® #1)
AIC Max I/O® #1; (CPU0)
PCIe Gen3 Supports 48 Lanes
(Share with OCP Mezzanine)
12 x DDR4 DIMM Slots
6 Channels (for CPU0)
12 x DDR4 DIMM Slots
6 Channels (for CPU1)
LGA3647 Socket P0 for Intel®
Xeon® Processor Skylake-SP
(CPU0)
LGA3647 Socket P0 for Intel®
Xeon® Processor Skylake-SP
(CPU1)
AIC Max I/O® #2; (CPU1)
PCIe Gen3 Supports 48 Lanes
(Share with OCP Mezzanine)
12V Single Power-in
Interface Supports CRPS
10 x SATA 3.0
Connectors
Intel® Storm Lake 100Gbps
Host Fabric Interface
Intel® Storm Lake 100Gbps
Host Fabric Interface
4 x 12V AUX Power Output

2
Chapter 1. Product FeaturesLynx User Manual
System
Processor
Support
(Skylake and next gen. CPU)
Fabric Interface, Skylake-F SKU CPU
CPU TDP 205W
UPI Speeds10.4 GT/s, 9.6 GT/s
Socket Type Socket P0 (LGA-3647 Socket)
System
Memory
6 x memory channels per CPU,
2 x DIMM per channel
24 x DIMM slots support:
DDR4 2400/2666MHz RDIMM/LRDIMM
(feature supports up to DDR4 2933MHz
by next gen. process upgrade)
- up to 384GB RDIMM SRx4
- up to 768GB RDIMM DRx4
- up to 3072GB RDIMM 3DS 8Rx4/QRx4
- up to 1536GB LRDIMM QRx4
- up to 3072GB LRDIMM 3DS 8Rx4//QRx4
(Apache Pass) support
Expansion
Slots
2 x AIC Max I/O® support:
PCIe Gen3 total 96 lanes;
(each 48 lanes from CPU0 & CPU1)
x16 (share with Max I/O®)
(optional by PCH C624/C622 SKUs), as 10GbE
(KR/SFI/XFI) or 1GbE (KX)
bracket) support SATA/PCIe x2
System BIOS
BIOS Type Insyde UEFI BIOS
BIOS
Features
redirection
Mode
On-board
Devices
SATAIntel® Lewisburg PCH on-chip solution
10 x SATA 6.0 Gb/s
BMC
Aspeed AST2500 Advanced PCIe Graphics &
Remote Management Processor
Serial over LAN
Network
Controller
port GbE RJ45 connectors
Mezzanine extension
for BMC dedicated management port
Graphics
Aspeed AST2500 Advanced PCIe Graphics &
Remote Management Processor
Input/Output
Serial ATA10 x SATA 6.0 Gb/s ports
LAN
management
USB
2 x USB 3.0 Type-A connectors
2 x USB internal pin-header to support total
4 x USB3.0/USB2.0
1 x USB internal pin-header to support 2 x
USB 2.0
VGA
1 x external VGA port
1 x internal VGA pin-header
(share with external VGA port)
Serial Port 1 x external Micro-USB type B for COM port
2 x internal COM pin-headers
Others 1 x TPM 2.0 onboard
LYNX
1.2 Specications

3
Chapter 1. Product FeaturesLynx User Manual
The Lynx server board offers the latest Intel® Xeon® Scalable Processors technology
solutions with compelling performance and provides premium power and communications
infrastructure).
By implementing Intel® Xeon® Scalable Processors, fully integrated microarchitecture
with AIC MAX I/O® 2.0 which support up to 96 lanes of PCIe Gen3, Lynx server board can
maximize your I/O intensive application demand, providing six channels per CPU with
total twenty-four DIMM slots deployment which can support up to DDR4 2400/2666MHz
(feature supports up to DDR4 2933MHz by next gen. process upgrade).
Featured with ground breaking technologies including Intel® Next Generation
Microarchitecture and Instruction Set (AVX-512, VMD, QAT - optional by PCH SKU), Speed
Shift Technology, UPI link speeds up to 10.4GT/s, the Lynx server board enable next
generation server solutions with an incredible leap in performance.
• Supports Intel® Xeon® Scalable Processors for highest server performance and
improved power efficiency
• Supports 24 DDR4 DIMM slots for maximun memory performance
• AIC Max I/O® supports up to 96 PCIe Gen3 lanes (48 lanes from CPU0 + 48 lanes from
CPU1); both 16 lanes will be shared with OCP Mezzanine V2.0
• Supports two OCP Mezzaine V2.0 up to PCIe Gen3 x16 extension (Shared from Max I/
O®)
• Onboard dual GbE ports come from 2 x Intel® Ethernet Controller I210
• Supports two CRPS PSU direct connection for power input
• Onboard Baseboard Management Controller for system management and IPMI control
• Embedded components for 5+year long life
1�3 Feature

4
Chapter 2. Hardware SetupLynx User Manual
2�1�1 Processor Support
The server board includes two processor sockets (LGA-3647) that provides support for
Intel® Xeon® Processor Scalable Family processor and a Thermal Design Power (TDP) of up
to 165W on selected models.
2�1 Central Processiong Unit Setup
Spica User Manual
Chapter 2� Hardware Setup

5
Chapter 2. Hardware SetupLynx User Manual
2�1�2 Processor Heat Sink Module and Processor Socket Assembly
Each processor socket on the server board is pre-assembled with a loading mechanism that
is designed to secure the Processor Heat Sink Module (PHM) to the server board as shown
below.
WARNING
Previous generations of the Intel Xeon Processors and heatsinks are not compatible with the
Intel Server Board S2600BP Product Family. Processor installation requires that the processor
be attached to the installation onto the server board.

6
Chapter 2. Hardware SetupLynx User Manual
2�1�3 Processor Heat Sink Module
The PHM refers to the sub-assembly where the heat sink and processor are clipped
together onto the server board prior to installation. The PHM consists of the
components shown below.
Processor Heat Sink Module (PHM) Sub-Assembly
Processor Heatsink Module (PHM)

7
Chapter 2. Hardware SetupLynx User Manual
The PHM sits level with the processor socket assembly. The PHM is NOT installed
properly if it does not sit level with the processor socket assembly. Once the PHM is
seated over the processor socket assembly, the four heat sink torque screws must be
tightened in order as shown below.
Processor Heat Sink – Top View with Screw Tightening Order
NOTE
Failure to tighten the heatsink screws in the specified order may cause damage to the
processor socket assembly. Heat sink screws should be tighted to 12 in-lbs torque
according to the indicated order on the top of the heatsink label.


 

8
Chapter 2. Hardware SetupLynx User Manual
The Intel® Fabric Passive (IFP) Internal Cable Assembly enables high speed, low loss data
connections between the Intel® Xeon™ Phi™ processor (KNL-F) and chassis connections to
an external network interface via QSFP +28 style connectors. IFP internal cable assembly
enables a direct connection from an Intel processor to an Intel Fabric network.
Installation Instructions
1. Locate the CPU Socket on the motherboard. Install an Fabric processor on this socket as
shown below (marked 1) if you have not done so.
2. Locate the PCI-E slots the motherboard. Install an Host Fabric Interface (HFI) card on an
appropriate PCI-E slot of your choice.
3. Connect the HFI connector on the HFI cable to the JHFI1 header as show below (marked
3).
4. Connect the other end of the HFI cable to the connector (marked A) on the HFI card as
shown below. (Marked 4 ).
5. Connect the plug (marked 5) on one end of the Internal_Faceplate_to_the_Processor (IFP)
cable to the connector (marked B ) on the HFI card as shown below.
6. Connect the other end of IFP cable (marked 6) to the Fabric processor installed in CPU
Socket as shown below.
• HFI Drawing example�
• Cards & Cables are not included in the range of supply�
Fabric Processor
HFI
(Host Fabric Interface)
Sideband Cable
HFI Carrier Card
3. Connect the HFI connector
on the HFI cable to the onboard
JHFI1 header.
Install an Fabric Processo
r
2. Install an HFI card to a PCI-E slot
4. Connect another end of
the HFI cable to the
connector(A)
of the HFI card.
5. Connect one end of the
IFP cable to the connector(B)
of the HFI card.
6. Connect the other end of the
IFP cable to the Fabric Processor.
JHFI1
HFI Carrier Card
2�2 HFI Carrier Card for Host Fabric Interface (HFI) Supported

9
Chapter 2. Hardware SetupLynx User Manual
This server board supports 24 DDR4 2400/2666 Registered ECC SDRAM(RDIMM) / Load-
Reduced DIMM (LRDIMM).
2�2�1 DIMM Installation
Step 1 Unlock the dimm socket by pressing the retaining clips outward.
Step 2 Insert the memory module into the slot. Make sure that the dimm notch is
accurately positioned.
Step 3 Close the retaining clips to complete installation.
DIMM n
otch
2�2 System Memory Setup

10
Chapter 2. Hardware SetupLynx User Manual
2�2�2 DIMM Location
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMMK0
JDIMML1
JDIMML0
JDIMMC0
JDIMMC1
JDIMMB0
JDIMMB1
JDIMMA0
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMME0
JDIMMF1
JDIMMF0
CPU1
CPU0

11
Chapter 2. Hardware SetupLynx User Manual
DIMM
Numbers DIMM Numbers Placement
2 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
4 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_H0 JDIMM_B0
6 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_H0 JDIMM_B0
JDIMM_G0 JDIMM_A0
8 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_H0 JDIMM_B0
JDIMM_G0 JDIMM_A0
JDIMM_L0 JDIMM_F0
CPU0CPU0
CPU1CPU1
JDIMMC1
JDIMMB0
JDIMMB1
JDIMMA0
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMME0
JDIMMF1
JDIMMF0
JDIMMI1
JDIMMH0
JDIMMH1
JDIMMG0
JDIMMG1
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMMK0
JDIMML1
JDIMML0
CPU0CPU0
CPU1CPU1
JDIMMC1
JDIMMB1
JDIMMA0
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMME0
JDIMMF1
JDIMMF0
JDIMMI1
JDIMMH1
JDIMMG0
JDIMMG1
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMMK0
JDIMML1
JDIMML0
CPU0CPU0
CPU1CPU1
JDIMMC1
JDIMMB1
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMME0
JDIMMF1
JDIMMF0
JDIMMI1
JDIMMH1
JDIMMG1
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMMK0
JDIMML1
JDIMML0
CPU0CPU0CPU1CPU1
JDIMMC1
JDIMMB1
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMME0
JDIMMF1
JDIMMI1
JDIMMH1
JDIMMG1
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMMK0
JDIMML1
2�2�3 DIMM Slot Installation Order

12
Chapter 2. Hardware SetupLynx User Manual
10 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_H0 JDIMM_B0
JDIMM_G0 JDIMM_A0
JDIMM_K0 JDIMM_E0
JDIMM_L0 JDIMM_F0
12 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_H0 JDIMM_B0
JDIMM_G0 JDIMM_A0
JDIMM_J0 JDIMM_D0
JDIMM_K0 JDIMM_E0
JDIMM_L0 JDIMM_F0
14 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_I1 JDIMM_C1
JDIMM_H0 JDIMM_B0
JDIMM_G0 JDIMM_A0
JDIMM_J0 JDIMM_D0
JDIMM_K0 JDIMM_E0
JDIMM_L0 JDIMM_F0
16 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_I1 JDIMM_C1
JDIMM_H0 JDIMM_B0
JDIMM_H1 JDIMM_B1
JDIMM_G0 JDIMM_A0
JDIMM_J0 JDIMM_D0
JDIMM_K0 JDIMM_E0
JDIMM_L0 JDIMM_F0
18 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_I1 JDIMM_C1
JDIMM_H0 JDIMM_B0
JDIMM_H1 JDIMM_B1
JDIMM_G0 JDIMM_A0
JDIMM_G1 JDIMM_A1
JDIMM_J0 JDIMM_D0
JDIMM_K0 JDIMM_E0
JDIMM_L0 JDIMM_F0
CPU0CPU0
CPU1CPU1
JDIMMC1
JDIMMB1
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMMF1
JDIMMI1
JDIMMH1
JDIMMG1
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMML1
CPU0CPU0CPU1CPU1
JDIMMC1
JDIMMB1
JDIMMA1
JDIMMD1
JDIMME1
JDIMMF1
JDIMMI1
JDIMMH1
JDIMMG1
JDIMMJ1
JDIMMK1
JDIMML1
CPU0CPU0CPU1CPU1
JDIMMB1
JDIMMA1
JDIMMD1
JDIMME1
JDIMMF1
JDIMMH1
JDIMMG1
JDIMMJ1
JDIMMK1
JDIMML1
CPU0CPU0CPU1CPU1
JDIMMA1
JDIMMD1
JDIMME1
JDIMMF1
JDIMMG1
JDIMMJ1
JDIMMK1
JDIMML1
CPU0CPU0CPU1CPU1
JDIMMD1
JDIMME1
JDIMMF1
JDIMMJ1
JDIMMK1
JDIMML1
