AIC Pavo User manual
Pavo
Server MotherBoard
User's Manual
UM_Pavo_v1.2_101817
contents
CONTENTS
Safety Information �������������������������������������������������������������������������� i
About This User Manual����������������������������������������������������������������� ii
Chapter 1� Product Introduction ������������������������������������������������ 1
1�1 General Information���������������������������������������������������������������������������1
1.2 Specications �������������������������������������������������������������������������������������2
Chapter 2� Hardware Installation����������������������������������������������� 3
2�1 Central Processing Unit (CPU) �����������������������������������������������������������3
2�2 System Memory & SFF-8643���������������������������������������������������������������7
Chapter 3� Motherboard Settings��������������������������������������������� 11
3�1 Motherboard block diagram ����������������������������������������������������������11
3�2 Motherboard Layout ������������������������������������������������������������������������12
3�3 Motherboard Content List����������������������������������������������������������������13
3�4 Internal Connectors/Jumpers ��������������������������������������������������������14
3�5 LEDs���������������������������������������������������������������������������������������������������20
Chapter 4. BIOS Conguration and Settings ��������������������������� 24
4�1 Updating BIOS�����������������������������������������������������������������������������������26
Chapter 5. BMC Conguration and Settings��������������������������� 28
5�1 Method 1 (Use the BIOS setup) �������������������������������������������������������28
5�2 Method 2 (Use a Dos tool - Syscheck)�������������������������������������������31
5�3 Connect to BMC �������������������������������������������������������������������������������33
5�4 Updating BMC Firmware������������������������������������������������������������������37
Chapter 6� Technical Support��������������������������������������������������� 38
Copyright © 2017 AIC, Inc� All Rights Reserved�
This document contains proprietary information about
AIC products and is not to be disclosed or used except in
accordance with applicable agreements.
i
Safety Information
When installing, operating, or performing maintenance on this equipment, the
following safety precautions should always be observed in order to reduce the
risk of re, electric shock, and personal injury.
Read and understand all instructions.
• Observe warnings and instructions marked on the product.
• For proper mounting instructions, please consult the User’s Manual provided
with this product.
• Do NOT place this product on an unstable cart, stand, table or uneven
surface that might cause the product to fall and sustain serious damage.
• Only install the equipment identified in the User’s Manual. Use of other
equipment could cause improper connection of circuitry and may result in
re or personal injury.
• This product should only be operated with the type of power source
indicated on the marked label. If you are uncertain about which type
of power supply is used in your area, consult your dealer or local Power
Company.
• Disconnect the power supply module before removing power from the
system.
• Unplug this product from the wall outlet before cleaning. Use a damp cloth
for cleaning. Do not use liquid cleaners or aerosol cleaners.
• Do not use this product near a water source, such as a faucet.
• Never spill liquids of any kind on this product.
• Never shove objects of any kind into this product’s open slots, as they may
touch dangerous voltage points or short out parts and could result in re or
electric shock.
• Do not block or cover slots and openings in this unit, as they were made for
ventilation and prevent this unit from overheating. Do not place this product
in a built-in installation unless proper ventilation is available.
• Do not disassemble this product. This product should only be taken apart
by trained personnel. Opening or removing covers and circuit boards may
expose you to electric shock or other risks. Incorrect reassembly can also
cause electric shock when the unit is subsequently used.
• Risk of explosion is possible if battery is replaced with an incompatible type.
Dispose of used batteries accordingly.
• This product is equipped with a three-wire grounding type plug, a plug with
a third (grounding) pin. As a safety feature, this plug is intended to t only
into a grounding type power outlet. If you are unable to insert the plug into
the outlet, contact your electrician to replace the outlet. Do not remove the
grounding type plug or use a 3-Prong To 2-Prong Adapter to circumvent the
safety feature; doing so may result in electric shock and/or damage to this
product.
ii
About This User Manual
This document provides a detailed description of the Motherboard including:
• General Features of the Product
• Hardware Setup
• Motherboard Settings
• BIOS Conguration and Settings
• BMC Conguration and Settings
Product features and specications are subject to change without notice.
CAUTION :
risk of explosion if battery is replaced by an incorrect type.
dispose of used batteries according to the instructions.
After performing any installation or servicing, make sure the
enclosure are lock and screw in position, turn on the power.
1
Chapter 1 Product Introduction
Pavo User's Manual
1�1 General Information
Chapter 1� Product Introduction
Pavo, a server grade mother board supports Xeon Processor Scalable
Family
2
Chapter 1 Product Introduction
Pavo User's Manual
1.2 Specications
Chapter 2 Hardware Installation
3
Pavo User's Manual
Chapter 2� Hardware Installation
2�1 Central Processing Unit (CPU)
2.1.1 Processor Support
The server board includes two processor sockets (LGA3647) and can
support one or two of the Intel® Xeon® Processor Scalable Family, with a
Thermal Design Power (TDP) of up to 165W on selected models.
WARNING :
Previous generations o f the Intel® Xeon® processors, and previ-
ous generations o f Processor heat s inks are not compatible
with the Intel® Server Board S2600BP Product Family. Processor
installation requires that the processor b e attached t o the
processor heat sink using a specific processor carrier clip, prior
to installation onto the server board.
Chapter 2 Hardware Installation
4
Pavo User's Manual
2.1.2 Processor Heat Sink Module and Processor Socket Assembly
Each processor socket of the server board is pre-assembled with
a loading mechanism that allows to secure the placement of the
Processor Heat Sink Module (PHM) to the server board as shown below.
Chapter 2 Hardware Installation
5
Pavo User's Manual
2.1.3 Processor Heat Sink Module
The PHM refers to the sub-assembly where the heat sink and processor
are clipped together prior to installation onto the server board. The PHM
consists of the components shown below.
Processor Heat Sink Module (PHM) Sub-Assembly
Processor Heatsink Module (PHM)
Chapter 2 Hardware Installation
6
Pavo User's Manual
The PHM sits level with the processor socket assembly. The PHM is
NOT installed properly if it does not sit level with the processor socket
assembly. Once the PHM is seated over the processor socket assembly,
the four heat sink torque screws must be tightened in order as shown
below.
Processor Heat Sink – Top View with Screw Tightening Order
note :
Failure t o tighten the heat sink screws i n the specified order
may cause damage t o the processor socket assembly. Heat s ink
screws should b e tightened t o 12 In-Lbs T orque o n indicated
order on the top of the heat sink label.
Chapter 2 Hardware Installation
7
Pavo User's Manual

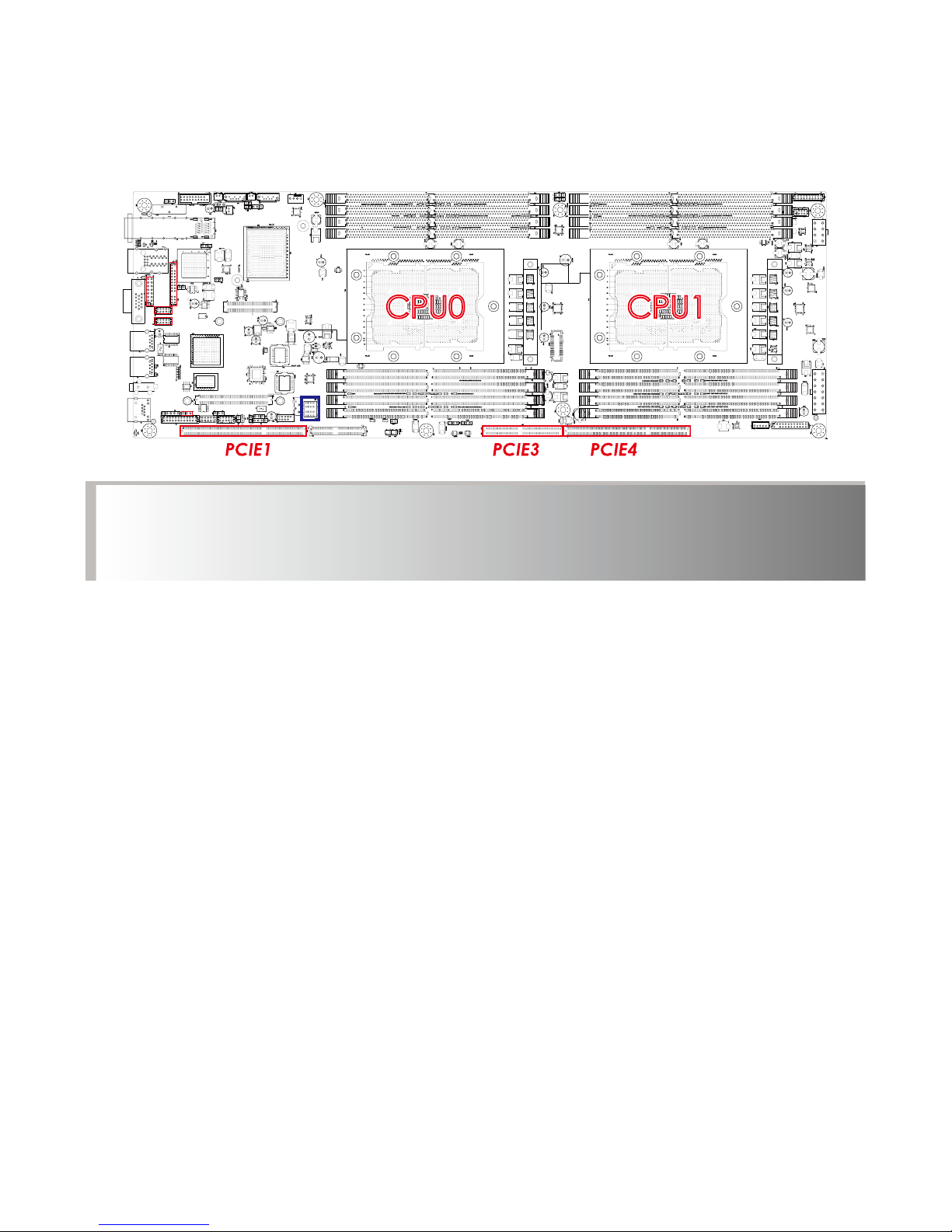

2�2 System Memory & SFF-8643
This server board supports up to sixteen DDR4 2400 and 2666 Registered
ECC DRAM / Load-Reduced DIMM (LRDIMM).
CPU0CPU0 CPU1CPU1
note :
In PAVO case, the 16 lanes from CPU#0 and the 8 lanes from CPU#1 are routed to
pcie slots 1.
The lanes from cpu#1 are routed to pcie slots 3/4.
Chapter 2 Hardware Installation
8
Pavo User's Manual

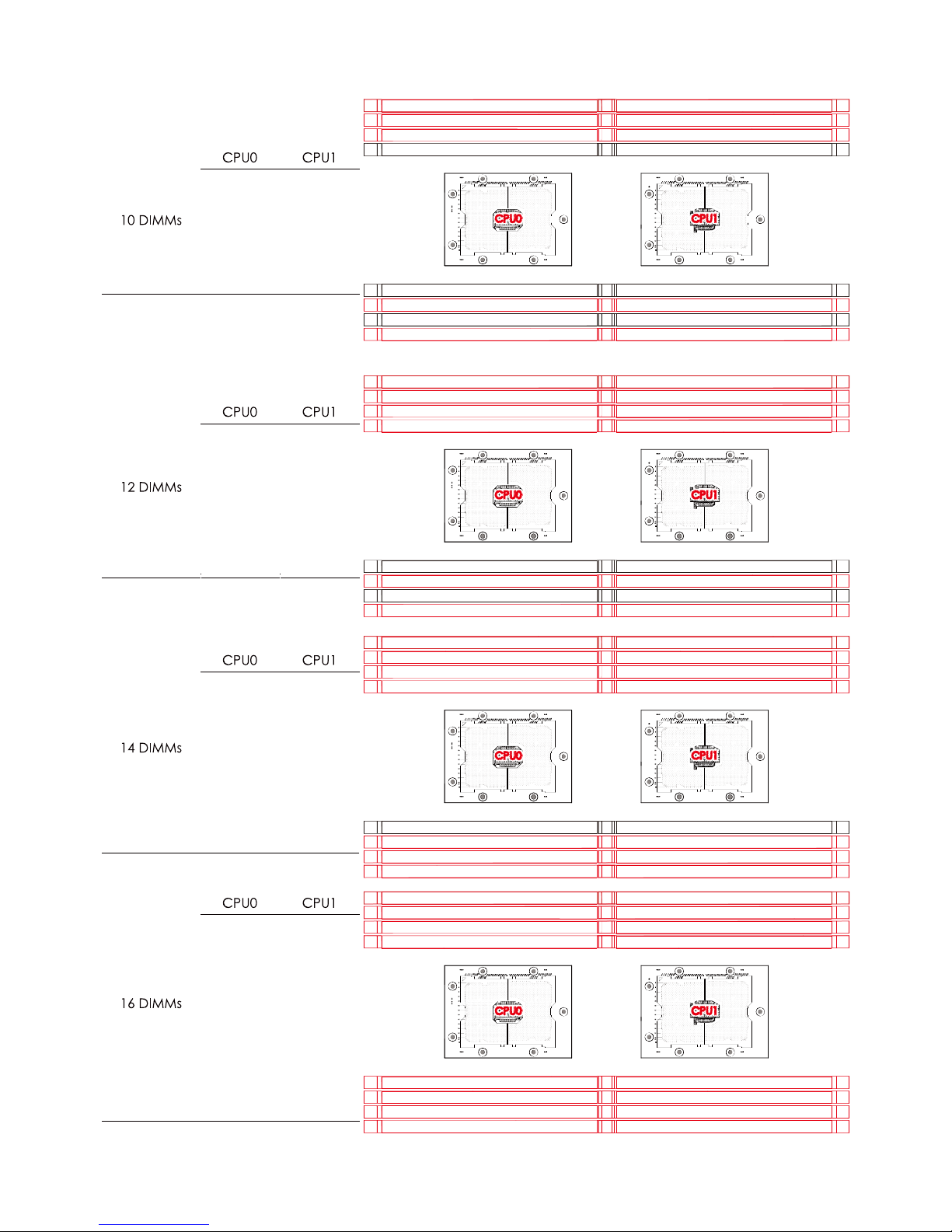

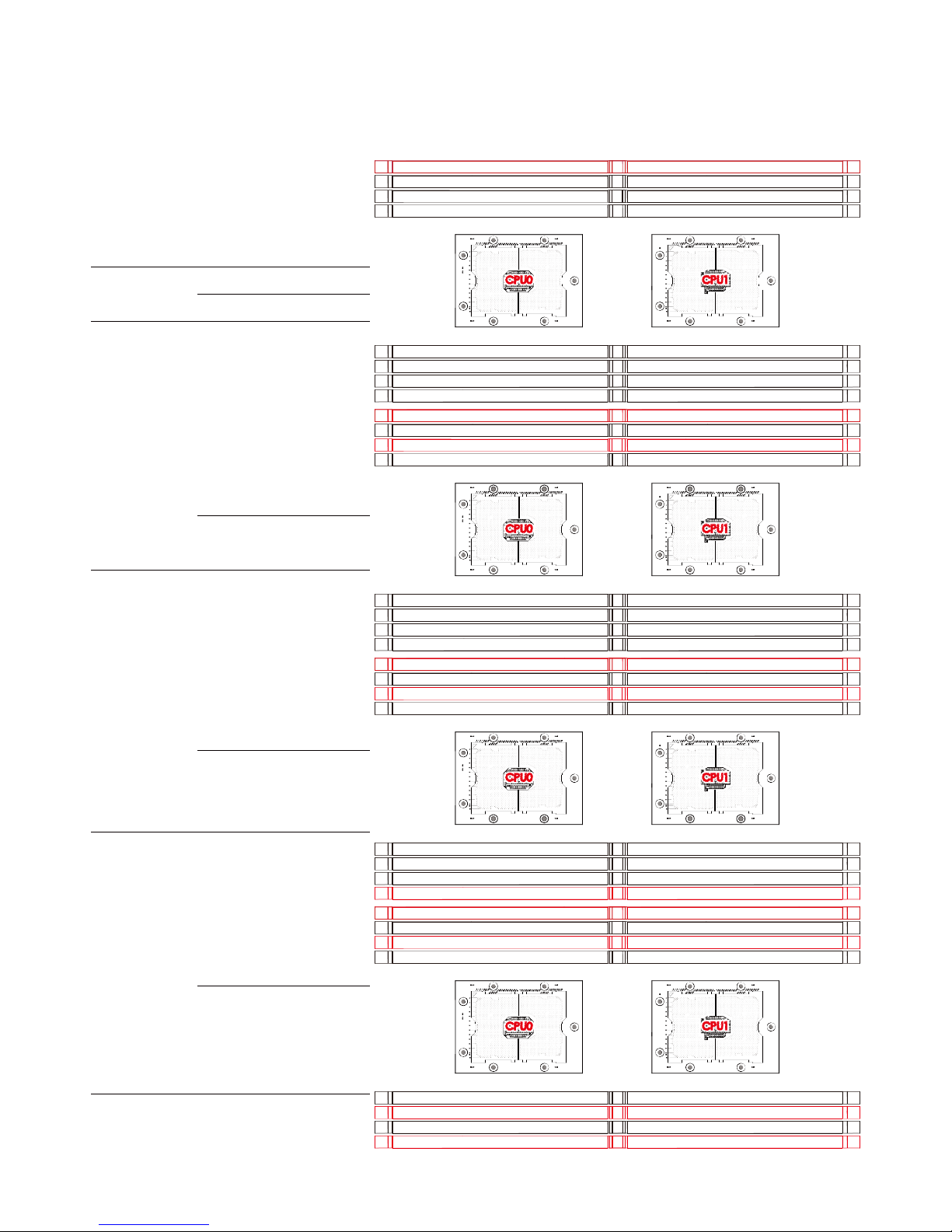

2.2.1 Populate DIMMs in the following order：
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
DIMM Numbers DIMM ARRANGMENT
2 DIMMs
CPU0 CPU1
JDIMM_C JDIMM_J
CPU0CPU0 CPU1CPU1
4 DIMMs
CPU0 CPU1
JDIMM_C JDIMM_J
JDIMM_A1 JDIMM_G1
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
6 DIMMs
CPU0 CPU1
JDIMM_C JDIMM_J
JDIMM_A1 JDIMM_G1
JDIMM_F JDIMM_M
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
8 DIMMs
CPU0 CPU1
JDIMM_CJDIMM_J
JDIMM_A1 JDIMM_G1
JDIMM_D1 JDIMM_K1
JDIMM_FJDIMM_M
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
Chapter 2 Hardware Installation
9
Pavo User's Manual
JDIMM_C
JDIMM_B
JDIMM_A1
JDIMM_D1
JDIMM_F
JDIMM_J
JDIMM_H
JDIMM_G1
JDIMM_K1
JDIMM_M
JDIMM_C
JDIMM_B
JDIMM_A1
JDIMM_A2
JDIMM_D1
JDIMM_E
JDIMM_F
JDIMM_J
JDIMM_H
JDIMM_G1
JDIMM_G2
JDIMM_K1
JDIMM_L
JDIMM_M
JDIMM_C
JDIMM_B
JDIMM_A1
JDIMM_A2
JDIMM_D2
JDIMM_D1
JDIMM_E
JDIMM_F
JDIMM_J
JDIMM_H
JDIMM_G1
JDIMM_G2
JDIMM_K2
JDIMM_K1
JDIMM_L
JDIMM_M
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
JDIMM_C
JDIMM_B
JDIMM_A1
JDIMM_A2
JDIMM_D1
JDIMM_F
JDIMM_J
JDIMM_H
JDIMM_G1
JDIMM_G2
JDIMM_K1
JDIMM_M
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
Chapter 2 Hardware Installation
10
Pavo User's Manual
2.2.2 DIMM Installation Procedure
Unlock a DIMM socket by pressing the retaining clips outward.
Insert module vertically and press down until it snaps into place.
Note: DIMM notch and socket bump must align as shown.
DIMM notch
Chapter 3 Motherboard Setting
11
Pavo User's Manual
Chapter 3� Motherboard Settings
This section describes the jumpers, internal connectors, and internal
LEDs setting on Pavo motherboard. Motherboard layout and important
jumper settings are listed as below.
3�1 Motherboard block diagram
SATA3 x6
USB3_3,3_4
USB2_3,2_4
PCIE x 16
SPI Interface SPI
SPI TPM
eSPI/USB2. 0
Lewisburg PCH
PCIE x 1
DMI x4
PCIE x 4
USB3.0 x2
(Front P anel)
USB2.0 x2
(Front P anel)
SATA3 x 6
(SFF8643 x 1 + SATA x 2)
USB3_1,3_2
USB2_1,2_2 CO M
eSPI/USB2.0 x2
PCIE x 1 ASPEED
AST250 0
VGA
Intel I350-AM2
PCIE x 4
RMII I nterface
RTL8201EL
NCSI I nterface
Rear RJ45
Rear RJ45
SFP+ 20G
USB3.0 x2
(Rear Panel)
USB2.0 x2
(Rear Panel)
USB2.0 x2
(Front P anel) USB2_5,2_6
Rear
RJ45
(BMC)
NCSI I nterfaceN CSI Interface
NC
BRIDGE BOARD
connector s lot 2
(USB2.0 x1 + S ATA x5)
SATA3 x 5
USB2_9
OCP 2.0 SLOT B
(PCIE x 8)
OCP 2.0 SLOT A
(PCIE x 8)
Channel A0,A1
Channel B
Channel C
Channel D0,D1
Channel E
Channel F
UPI 1 0.4GT/s
PCIE
#2
DDR4
DDR4
DDR4
DDR4
DDR4
DDR4
DMI x4
SOCKET P
SOCKET P
PCIE
#3
PCIE
#1
PCIE
#3
PCIE
#1
DDR 4
CPU 1
DDR 4
UPI 1 0.4GT/s
Channel G0,G1
Channel H
Channel J
Channel K0,K1
Channel L
Channel M
PCI Express x24
connector s lot 1
DDR4
DDR4
DDR4
DDR4
DDR4
DDR4
SKYLAKE-SP
CPU 0
SKYLAKE-SP
KTI0
KTI1 KTI1
KTI0
PCIE
#2
PCIE Gen3 x8
C,D
PCIE Gen3 x16
PCIE Gen3 x16
DMI Gen3 x4
PCIE Gen3 x16
PCI Express x24
connector s lot 4
PCIE Gen3 x8
A,B
PCIE Gen3 x8
C,D
PCIE Gen3 x 16
PAVO Block Diagram
PCIE Gen3 x16
PCI Express x16
connector s lot 3
PCIE Gen3 x8
A,B
NCSI InterfaceNC
Chapter 3 Motherboard Setting
12
Pavo User's Manual
3�2 Motherboard Layout
J10
J37
J20
J43
J17
J23
J15
J21
J35
J48
J31J31
J30
J30
J30
J31
J44
J52
J13
J7
J12
J11
J39
J36
J49
J14
J9
J18
J27
J24J24
J2002
J2001
J47
J16
J34
J42
J22
J51
J33
J86
J87
J85
J40
J81J45
Chapter 3 Motherboard Setting
13
Pavo User's Manual
3�3 Motherboard Content List
Connectors Location Connectors Location
1 Power Supply J87：12V & 5VSB
6A per pin. 23 ME Recovery
Mode J35
2 Power Supply J86：12V 24 AIC OPEN RACK
Header J40
3 Serial ATA J33, J34 25 FAN Front J39
4 Serial ATA J32 26 MDI PHY Front J85
5 Front Panel J81 27 SATA-DOM
Power J22, J42
6 VGA J7 28 LCM J9
7 COM1 J11 29 SGPIO J18
8 COM4 J12 30 SSGPIO J27
9 Front USB 3.0 J16 31 BMC Disable J30
10 Front USB 2.0 J49 32 Password Clear J31
11 DIMM Slots J56~J58, J61~J65,
J69~J76 33 PECI J44
12 CPU Sockets U55, U78 34 VRM SMB J24
13 Debug Port J13 35 All Node OFF J52
14 BMC Debug Port J14 36 PMBUS J45
15 Clear CMOS JJ10 37 BMC FAN J51
16 BMC IPMB J36 38 SATA DOM Set
Up J20, J43
17 Battery Socket BAT1 39 BIOS Recovery
Mode J37
18 Intruder J47 40 UART J17
19 SPI ROM Socket U25 41 BMC RESET J23
20 BMC ROM Socket U29 42 UID LED J15
21 Speaker J48 43 PCIE Hot-Plug
SMB (CPU0) J2001
22 FLASH Security
override J21 44 PCIE Hot-Plug
SMB (CPU1) J2002
Chapter 3 Motherboard Setting
14
Pavo User's Manual
3�4 Internal Connectors/Jumpers
J13
J7
J12
J11
J14
GND
GND
AVSYNCO
NC
GND
DDC_DATAO
DACGO
GND
DDC_CLKO
GND
VGA_5V
AHSYNCO
DACBO
GND
NC
DACRO
J7
GND
KEY
P5V
PCH_IO2
PCH_IO1
GND
SMB_PCH_SDA
ESPI_CS1
PCH_CLKRUN
ESPI_ALERT0
KEY
P3V3
ESPI_PME
ESPI_SEL
CLK_DP80
PCH_CS0_N
RST_PERST_N
PCH_ IO3
P3V3
PCH _IO0
SMB_PCH_SCL
P3V3_AUX
GND
ESPI_RESET
KEY
ESPI_ALERT1
ESPI_SMI
P5V_AUX
J13
A
DSR
RTS
CTS
RI
NC
DCD
RXD
TXD
DTR
GND
J12
DSR
RTS
CTS
RI
NC
DCD
RXD
TXD
DTR
GND
J11
TXD
RXD
GND
J14
E
Chapter 3 Motherboard Setting
15
Pavo User's Manual
Internal Connectors/Jumpers
J39
J36
J49
J14
J9
J18
J27
J24J24
J2002
J2001
GND
COM_OUT_RXD4
COM_OUT_TXD4
FP_RSTBTN_N
FP_PWRBTN_N
J9
GND
FAN_PWM5
FAN_PWM4
FAN_PWM3
FAN_TACH11
FAN_TACH10
FAN_TACH9
FAN_TACH8
FAN_TACH7
FAN_TACH6
I2CSCL
GND
GND
FAN_PWM2
FAN_PWM1
FAN_PWM0
FAN_TACH5
FAN_TACH4
FAN_TACH3
FAN_TACH2
FAN_TACH1
FAN_TACH0
I2CSDA
+3.3V_DUAL
J39
C
FM_SGPIO0_I2C_A0
FM_SGPIO0_I2C_A1
I2C14SCL
I2C14SDA
GND
P3V3_AUX
SGPIO_SATA0_DATA1
SGPIO_SATA0_DATA0
SGPIO_SATA0_LOAD
SGPIO_SATA0_CLOCK
J18
J18
J14
A
GND
RXD
TXD
J14
Other manuals for Pavo
2
Table of contents
Other AIC Motherboard manuals
