AIC Lynx User manual
Lynx
Server MotherBoard
User's Manual
UM_Lynx_v1.1_110617
contents
CONTENTS
Safety Information �������������������������������������������������������������������������� i
About This User Manual����������������������������������������������������������������� ii
Chapter 1� Product Introduction ������������������������������������������������ 1
1�1 General Information���������������������������������������������������������������������������1
1.2 Specications �������������������������������������������������������������������������������������2
Chapter 2� Hardware Installation����������������������������������������������� 3
2�1 Central Processing Unit (CPU) �����������������������������������������������������������3
2�2 HFI Carrier Card for Host Fabric Interface (HFI) Supported ������������7
2�3 System Memory����������������������������������������������������������������������������������8
Chapter 3� Motherboard Settings��������������������������������������������� 13
3�1 Motherboard block diagram ����������������������������������������������������������13

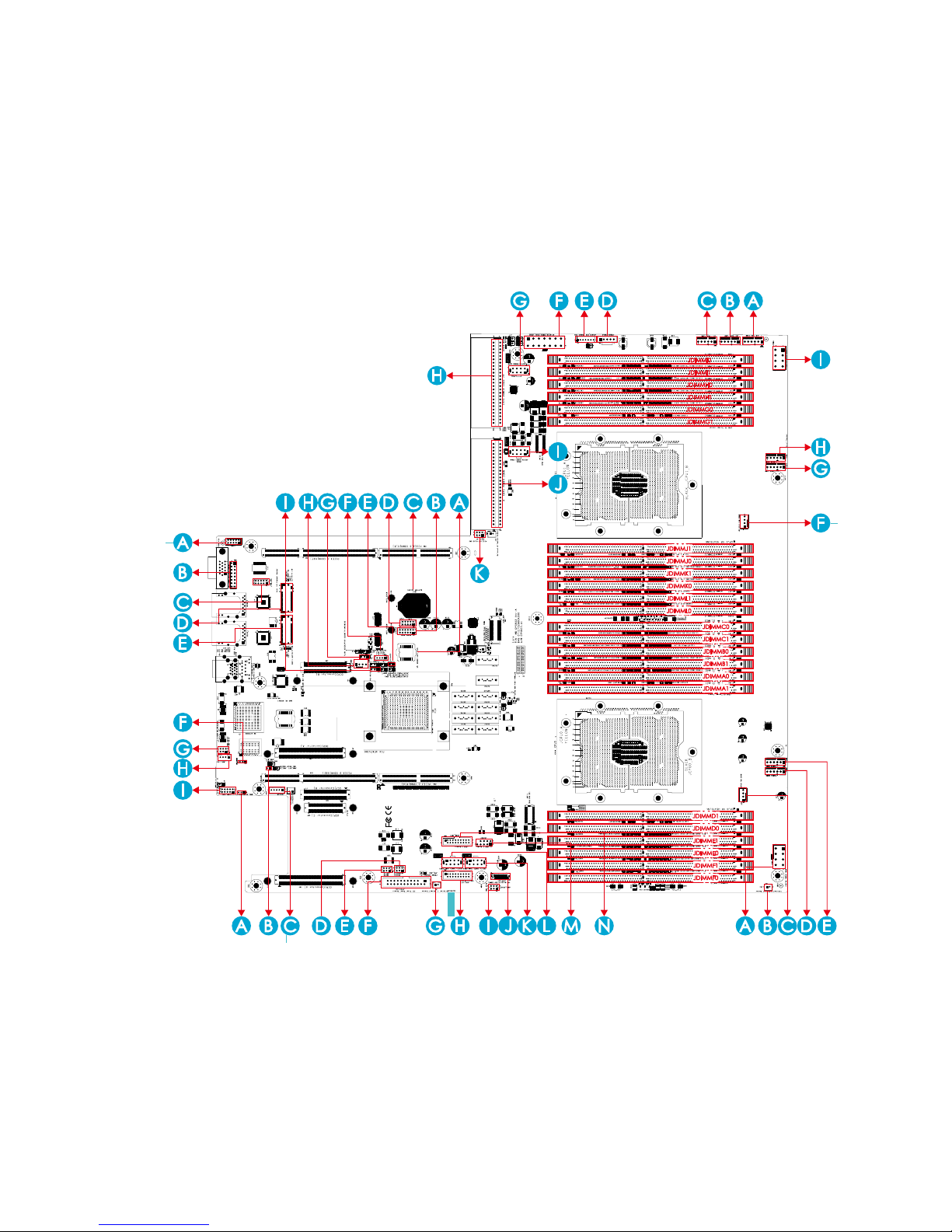

3�2 Motherboard Layout ������������������������������������������������������������������������14
3�3 Motherboard Content List����������������������������������������������������������������15
3�4 Internal Connectors/Jumpers ��������������������������������������������������������16
3�5 LEDs���������������������������������������������������������������������������������������������������32
Chapter 4. BIOS Conguration and Settings ��������������������������� 33
4�1 Updating BIOS�����������������������������������������������������������������������������������35
Chapter 5. BMC Conguration and Settings��������������������������� 37
5�1 Method 1 (Use the BIOS setup) �������������������������������������������������������37
5�2 Method 2 (Use a Dos tool - Syscheck)�������������������������������������������40
5�3 Connect to BMC �������������������������������������������������������������������������������42
5�4 Updating BMC Firmware������������������������������������������������������������������46
Chapter 6� Technical Support��������������������������������������������������� 47
Copyright © 2017 AIC, Inc� All Rights Reserved�
This document contains proprietary information about
AIC products and is not to be disclosed or used except in
accordance with applicable agreements.
i
Safety Information
When installing, operating, or performing maintenance on this equipment, the
following safety precautions should always be observed in order to reduce the
risk of re, electric shock, and personal injury.
Read and understand all instructions.
• Observe warnings and instructions marked on the product.
• For proper mounting instructions, please consult the User’s Manual provided
with this product.
• Do NOT place this product on an unstable cart, stand, table or uneven
surface that might cause the product to fall and sustain serious damage.
• Only install the equipment identified in the User’s Manual. Use of other
equipment could cause improper connection of circuitry and may result in
re or personal injury.
• This product should only be operated with the type of power source
indicated on the marked label. If you are uncertain about which type
of power supply is used in your area, consult your dealer or local Power
Company.
• Disconnect the power supply module before removing power from the
system.
• Unplug this product from the wall outlet before cleaning. Use a damp cloth
for cleaning. Do not use liquid cleaners or aerosol cleaners.
• Do not use this product near a water source, such as a faucet.
• Never spill liquids of any kind on this product.
• Never shove objects of any kind into this product’s open slots, as they may
touch dangerous voltage points or short out parts and could result in re or
electric shock.
• Do not block or cover slots and openings in this unit, as they were made for
ventilation and prevent this unit from overheating. Do not place this product
in a built-in installation unless proper ventilation is available.
• Do not disassemble this product. This product should only be taken apart
by trained personnel. Opening or removing covers and circuit boards may
expose you to electric shock or other risks. Incorrect reassembly can also
cause electric shock when the unit is subsequently used.
• Risk of explosion is possible if battery is replaced with an incompatible type.
Dispose of used batteries accordingly.
• This product is equipped with a three-wire grounding type plug, a plug with
a third (grounding) pin. As a safety feature, this plug is intended to t only
into a grounding type power outlet. If you are unable to insert the plug into
the outlet, contact your electrician to replace the outlet. Do not remove the
grounding type plug or use a 3-Prong To 2-Prong Adapter to circumvent the
safety feature; doing so may result in electric shock and/or damage to this
product.
ii
About This User Manual
This document provides a detailed description of the Motherboard including:
• General Features of the Product
• Hardware Setup
• Motherboard Settings
• BIOS Conguration and Settings
• BMC Conguration and Settings
Product features and specications are subject to change without notice.
CAUTION :
risk of explosion if battery is replaced by an incorrect type.
dispose of used batteries according to the instructions.
After performing any installation or servicing, make sure the
enclosure are lock and screw in position, turn on the power.
1
Chapter 1 Product Introduction
Lynx User's Manual

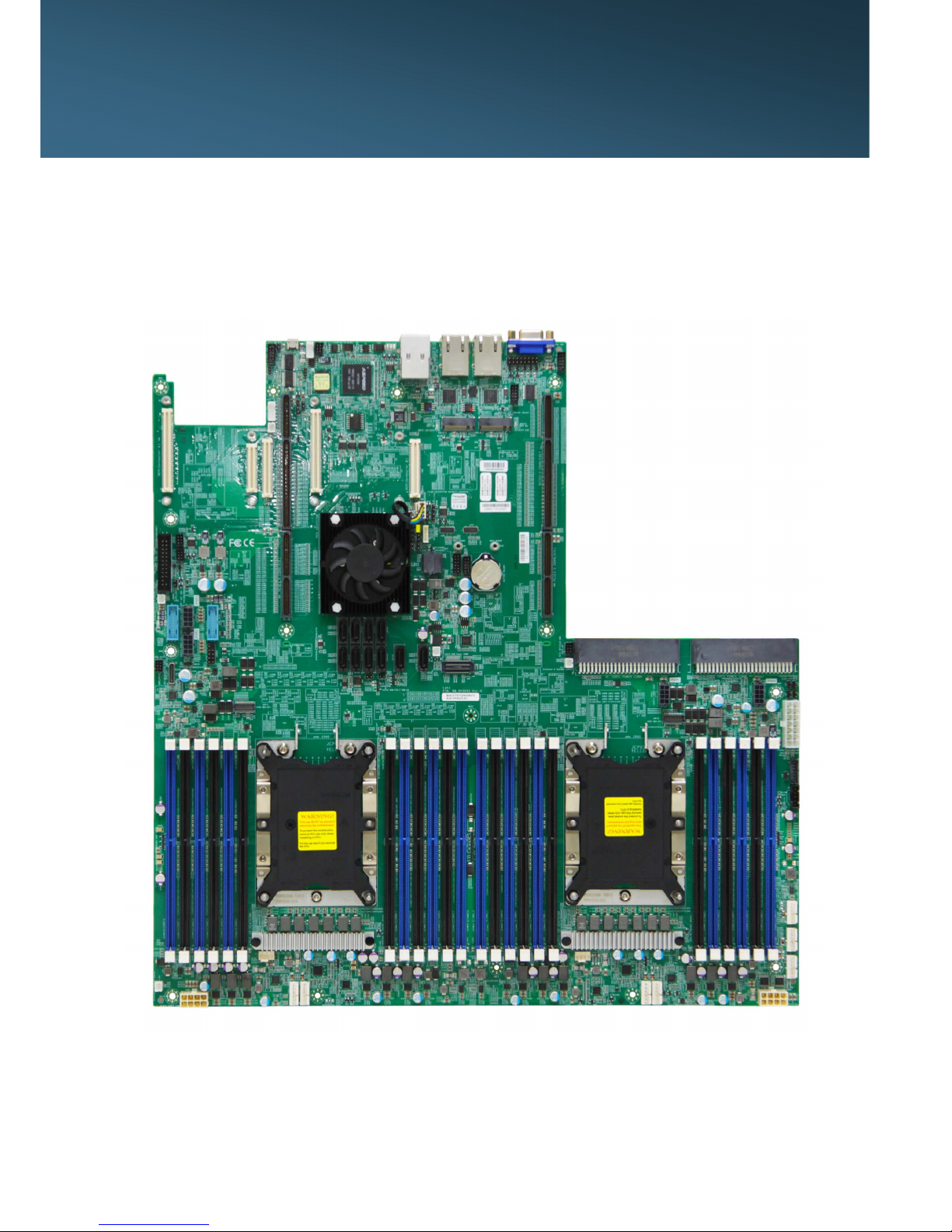

1�1 General Information
Chapter 1� Product Introduction
Lynx, a server grade mother board supports Xeon Processor Scalable Family
2
Chapter 1 Product Introduction
Lynx User's Manual
1.2 Specications
System
Processor
Support
• Intel® Xeon® Scalable Processors
(Platinum, Gold, Silver, Bronze)
• Support Intel® Storm Lake 100Gbps Host
F abric Interface, Skylake-F SKU CPU
UPI Speeds 9.6 GT/s, 10.4 GT/s
Socket Type Socket P0 (LGA-3647 Socket)
System
Memory
• DDR4 2400/2666 (2DPC) MHz
• Total 24 memory slots;
6 channel per CPU (2DPC)
• Up to 3TB 3DS ECC RDIMM/LRDIMM
Expansion
Slots
2 x AIC Max I/O™ support:
PCIe Gen3 total 96 lanes;
(each 48 lanes from CPU0 & CPU1)
• 2 x OCP Mezzanine V2.0 support PCIe Gen3 \
x16 (share with Max I/O™)
• One of OCP Mezzanine supports KR
(optional by PCH C624 SKU), as 10GbE
(KR/SFI/XFI) or 1GbE (KX)
System BIOS
BIOS Type Insyde UEFI BIOS
BIOS
Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• SRIOV
On-board
Devices
SATA Intel® Lewisburg PCH on-chip solution
•10 x SATA 6.0 Gb/s
IPMI
Aspeed AST2500 Advanced PCIe Graphics &
Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN,
Serial over LAN
• SMASH Support
• HTML5
• Redfish
Network
Controller
•Two Intel I210 Ethernet Controller support dual
port GbE RJ45 connectors
•Networking options provided via OCP
Mezzanine extension
•Realtek RTL8201E for BMC dedicate
management port
Graphics
Aspeed AST2500 Advanced PCIe Graphics &
Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
Input/Output
Serial ATA 10 x SATA6.0 Gb/s ports
LAN • 2 x GbE RJ45
• 1 x GbE RJ45 dedicated to BMC management
USB
•2 x USB 3.0 Type-A connectors
•2 x USB internal pin-header to support 4 x
USB 3.0/2.0
•1 x USB internal pin-header to support 2 x
USB 2.0
VGA
•1 x external VGA port
•1 x internal VGA pin-header
(share with external VGA port)
Serial Port •1 x external Micro-USB type B for COM port
•2 x internal COM pin-headers
Others •2 x NGFF (M.2) support PCIe Gen3 x2 / SATA
•1 x TPM 2.0 onboard
Chapter 2 Hardware Installation
3
Lynx User's Manual
Chapter 2� Hardware Installation
2�1 Central Processing Unit (CPU)
2.1.1 Processor Support
The server board includes two processor sockets (LGA3647) and can
support one or two of the Intel® Xeon® Processor Scalable Family, with a
Thermal Design Power (TDP) of up to 165W on selected models.
Chapter 2 Hardware Installation
4
Lynx User's Manual
2.1.2 Processor Heat Sink Module and Processor Socket Assembly
Each processor socket of the server board is pre-assembled with
a loading mechanism that allows to secure the placement of the
Processor Heat Sink Module (PHM) to the server board as shown below.
Non-Fabric Processor Assembly
Chapter 2 Hardware Installation
5
Lynx User's Manual

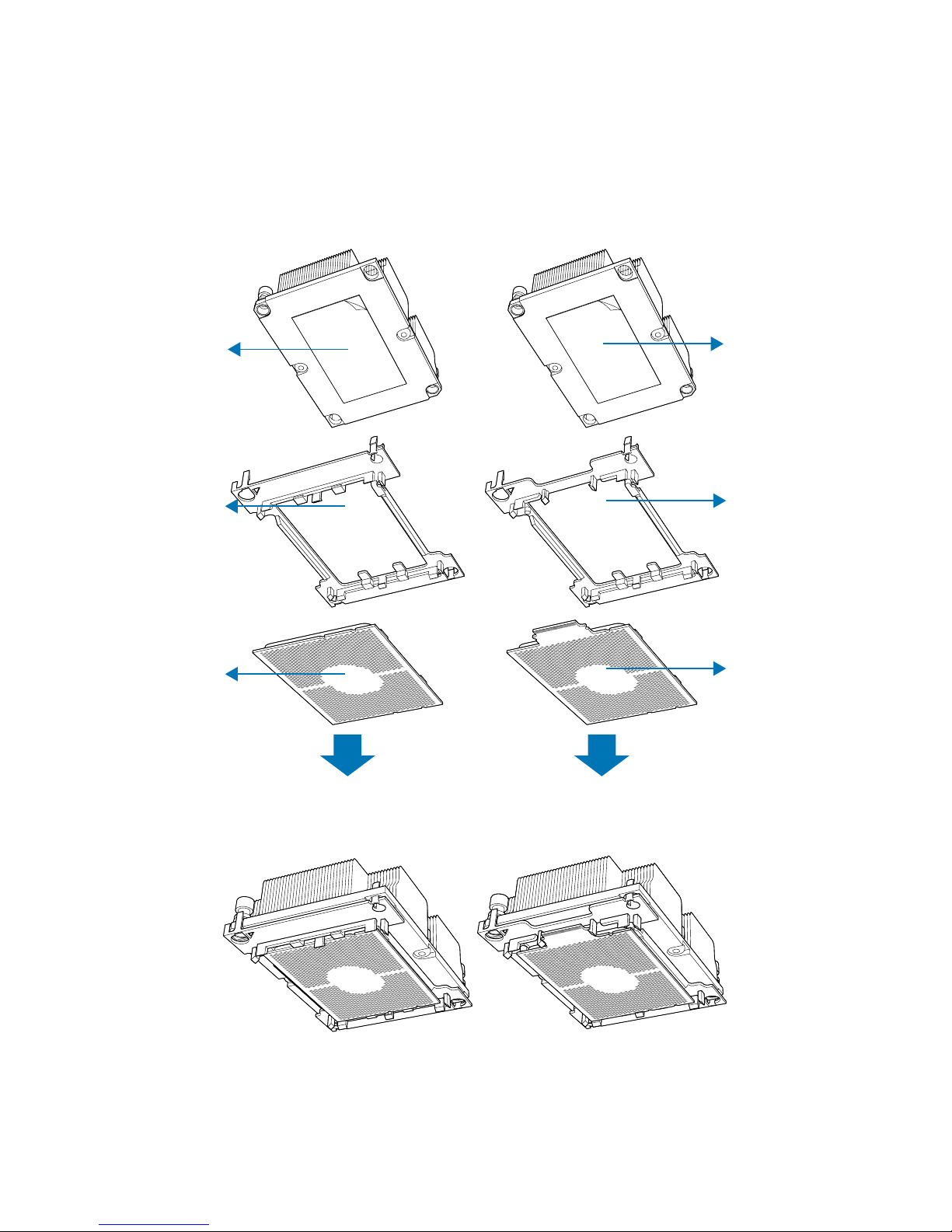

2.1.3 Processor Heat Sink Module
The PHM refers to the sub-assembly where the heat sink and processor
are clipped together prior to installation onto the server board. The PHM
consists of the components shown below.
Processor Heat Sink Module (PHM) Sub-Assembly
Processor Heatsink Module (PHM)
Bottom View for the Non-Fabric Processor Bottom View for the Fabric Processor
Non Fabric
Processor
Non Fabric
Processor Clip
Heat Sink
Fabric
Processor
Fabric
Processor Clip
Heat Sink
Chapter 2 Hardware Installation
6
Lynx User's Manual
The PHM sits level with the processor socket assembly. The PHM is
NOT installed properly if it does not sit level with the processor socket
assembly. Once the PHM is seated over the processor socket assembly,
the four heat sink torque screws must be tightened in order as shown
below.
Processor Heat Sink – Top View with Screw Tightening Order
Chapter 2 Hardware Installation
7
Lynx User's Manual
2�2 HFI Carrier Card for Host Fabric Interface (HFI) Supported
The Intel® Fabric Passive (IFP) Internal Cable Assembly enables high
speed, low loss data connections between the Intel® Xeon™ Phi™
processor (KNL-F) and chassis connections to an external network
interface via QSFP +28 style connectors. IFP internal cable assembly
enables a direct connection from an Intel processor to an Intel Fabric
network.
Installation Instructions
1. Locate CPU Socket on the motherboard. Install an Fabric processor
on this socket as shown below (marked 1) if you have not done so.
2. Locate the PCI-E slots the motherboard. Install an Host Fabric Interface
(HFI) card on an appropriate PCI-E slot of your choice.
3. Connect the HFI connector on the HFI cable to the onboard JHFI1
header as show below (marked 3).
4. Connect the other end of the HFI cable to the connector (marked A)
on the HFI card as shown below. (Marked 4 ).
5. Connect the plug (marked 5) on one end of the Internal_Faceplate_
to_the_Processor (IFP) cable to the connector (marked B ) on the HFI
card as shown below.
6. Connect the other end of IFP cable (marked 6) to the Fabric
processor installed in CPU Socket as shown below.
• HFI Drawing example�
• Cards & Cables are not included in the range of supply�
Fabric Processor
HFI
(Host Fabric Interface)
Sideband Cable
HFI Carrier Card
3. Connect the HFI connector
on the HFI cable to the onboard
JHFI1 header.
Install an Fabric Processo
r
2. Install an HFI card to a PCI-E slot
4. Connect another end of
the HFI cable to the
connector(A)
of the HFI card.
5. Connect one end of the
IFP cable to the connector(B)
of the HFI card.
6. Connect the other end of the
IFP cable to the Fabric Processor.
JHFI1
HFI Carrier Card
Chapter 2 Hardware Installation
8
Lynx User's Manual

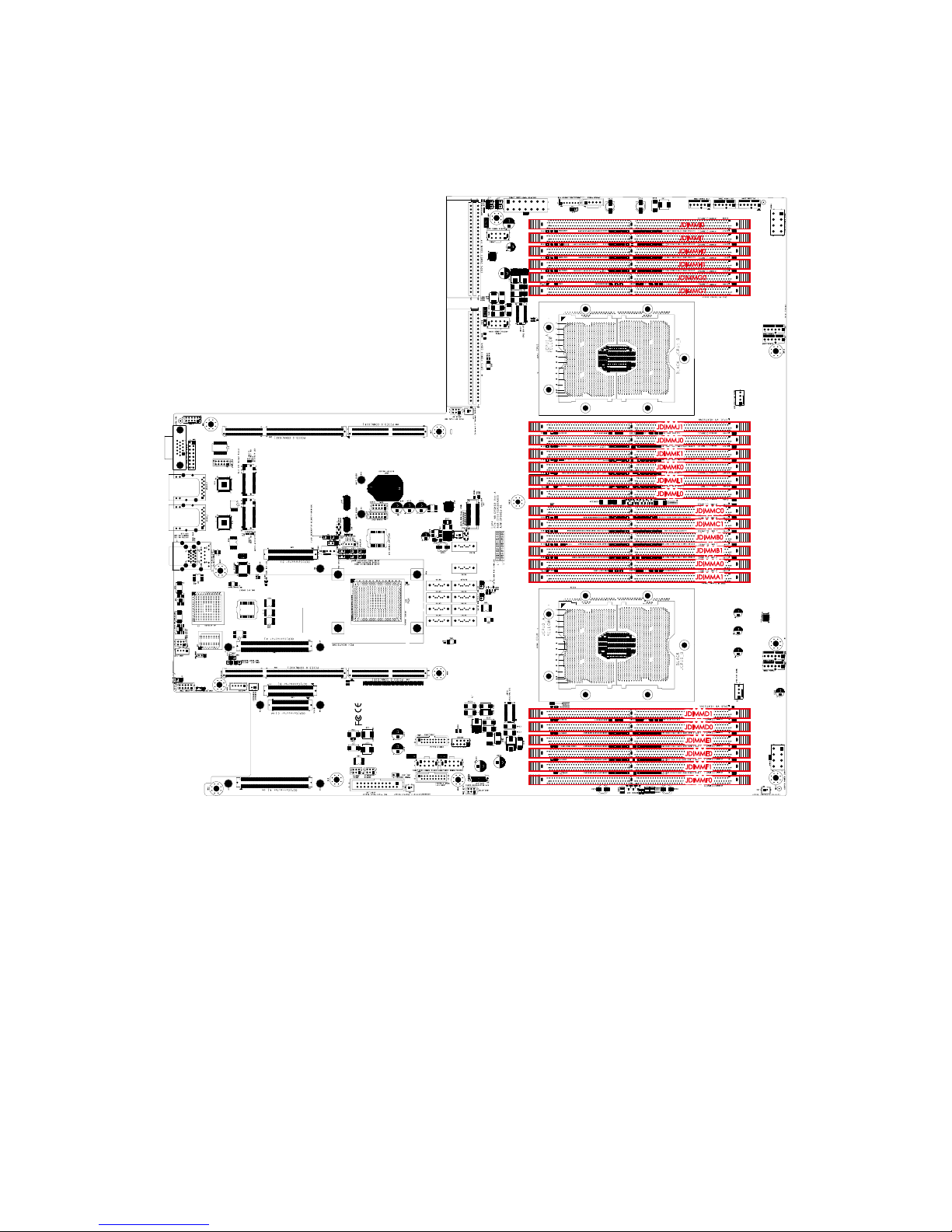

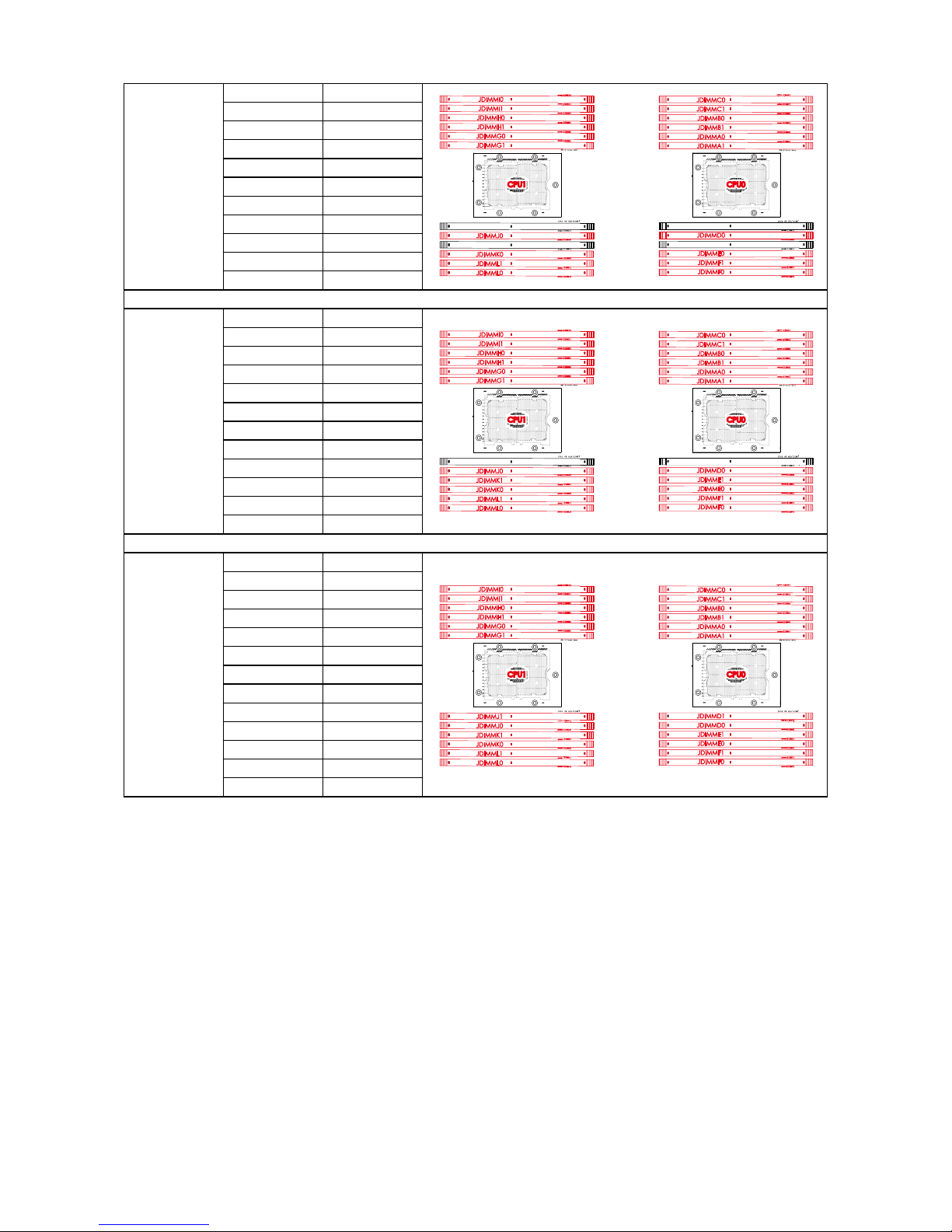

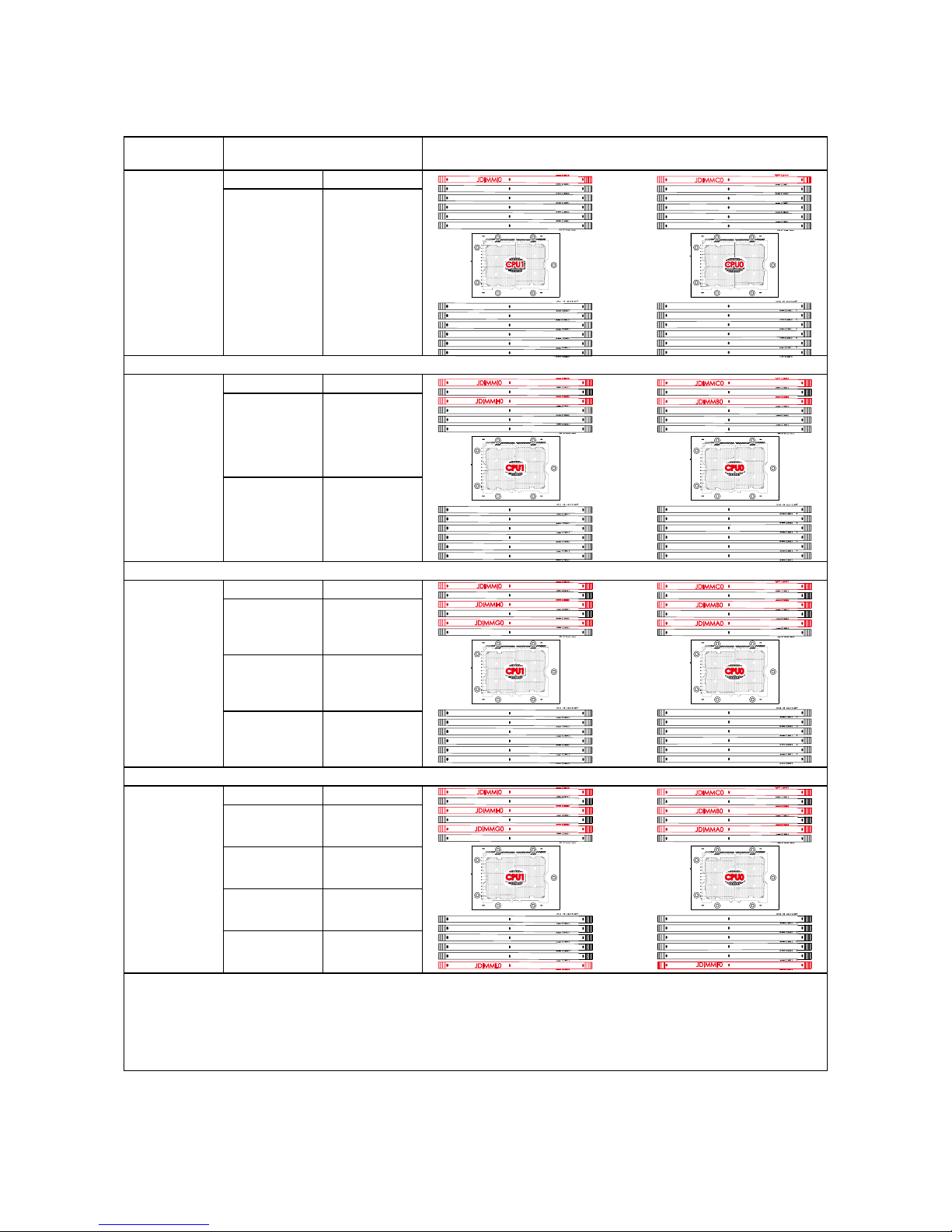

2�3 System Memory
This server board supports up to twenty-four DDR4 2400/2666 Registered
ECC SDRAM(RDIMM) / Load-Reduced DIMM (LRDIMM).
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMMK0
JDIMML1
JDIMML0
JDIMMC0
JDIMMC1
JDIMMB0
JDIMMB1
JDIMMA0
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMME0
JDIMMF1
JDIMMF0
Chapter 2 Hardware Installation
9
Lynx User's Manual
2.3.1 Populate DIMMs in the following order:
DIMM
Numbers DIMM Numbers Placement
2 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
4 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_H0 JDIMM_B0
6 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_H0 JDIMM_B0
JDIMM_G0 JDIMM_A0
8 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_H0 JDIMM_B0
JDIMM_G0 JDIMM_A0
JDIMM_L0 JDIMM_F0
CPU0CPU0
CPU1CPU1
JDIMMC1
JDIMMB0
JDIMMB1
JDIMMA0
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMME0
JDIMMF1
JDIMMF0
JDIMMI1
JDIMMH0
JDIMMH1
JDIMMG0
JDIMMG1
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMMK0
JDIMML1
JDIMML0
CPU0CPU0
CPU1CPU1
JDIMMC1
JDIMMB1
JDIMMA0
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMME0
JDIMMF1
JDIMMF0
JDIMMI1
JDIMMH1
JDIMMG0
JDIMMG1
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMMK0
JDIMML1
JDIMML0
CPU0CPU0
CPU1CPU1
JDIMMC1
JDIMMB1
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMME0
JDIMMF1
JDIMMF0
JDIMMI1
JDIMMH1
JDIMMG1
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMMK0
JDIMML1
JDIMML0
CPU0CPU0CPU1CPU1
JDIMMC1
JDIMMB1
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMME0
JDIMMF1
JDIMMI1
JDIMMH1
JDIMMG1
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMMK0
JDIMML1
Chapter 2 Hardware Installation
10
Lynx User's Manual
10 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_H0 JDIMM_B0
JDIMM_G0 JDIMM_A0
JDIMM_K0 JDIMM_E0
JDIMM_L0 JDIMM_F0
12 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_H0 JDIMM_B0
JDIMM_G0 JDIMM_A0
JDIMM_J0 JDIMM_D0
JDIMM_K0 JDIMM_E0
JDIMM_L0 JDIMM_F0
14 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_I1 JDIMM_C1
JDIMM_H0 JDIMM_B0
JDIMM_G0 JDIMM_A0
JDIMM_J0 JDIMM_D0
JDIMM_K0 JDIMM_E0
JDIMM_L0 JDIMM_F0
16 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_I1 JDIMM_C1
JDIMM_H0 JDIMM_B0
JDIMM_H1 JDIMM_B1
JDIMM_G0 JDIMM_A0
JDIMM_J0 JDIMM_D0
JDIMM_K0 JDIMM_E0
JDIMM_L0 JDIMM_F0
18 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_I1 JDIMM_C1
JDIMM_H0 JDIMM_B0
JDIMM_H1 JDIMM_B1
JDIMM_G0 JDIMM_A0
JDIMM_G1 JDIMM_A1
JDIMM_J0 JDIMM_D0
JDIMM_K0 JDIMM_E0
JDIMM_L0 JDIMM_F0
CPU0CPU0
CPU1CPU1
JDIMMC1
JDIMMB1
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMMF1
JDIMMI1
JDIMMH1
JDIMMG1
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMML1
CPU0CPU0CPU1CPU1
JDIMMC1
JDIMMB1
JDIMMA1
JDIMMD1
JDIMME1
JDIMMF1
JDIMMI1
JDIMMH1
JDIMMG1
JDIMMJ1
JDIMMK1
JDIMML1
CPU0CPU0CPU1CPU1
JDIMMB1
JDIMMA1
JDIMMD1
JDIMME1
JDIMMF1
JDIMMH1
JDIMMG1
JDIMMJ1
JDIMMK1
JDIMML1
CPU0CPU0CPU1CPU1
JDIMMA1
JDIMMD1
JDIMME1
JDIMMF1
JDIMMG1
JDIMMJ1
JDIMMK1
JDIMML1
CPU0CPU0CPU1CPU1
JDIMMD1
JDIMME1
JDIMMF1
JDIMMJ1
JDIMMK1
JDIMML1
Chapter 2 Hardware Installation
11
Lynx User's Manual
20 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_I1 JDIMM_C1
JDIMM_H0 JDIMM_B0
JDIMM_H1 JDIMM_B1
JDIMM_G0 JDIMM_A0
JDIMM_G1 JDIMM_A1
JDIMM_J0 JDIMM_D0
JDIMM_K0 JDIMM_E0
JDIMM_L1 JDIMM_F1
JDIMM_L0 JDIMM_F0
22 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_I1 JDIMM_C1
JDIMM_H0 JDIMM_B0
JDIMM_H1 JDIMM_B1
JDIMM_G0 JDIMM_A0
JDIMM_G1 JDIMM_A1
JDIMM_J0 JDIMM_D0
JDIMM_K1 JDIMM_E1
JDIMM_K0 JDIMM_E0
JDIMM_L1 JDIMM_F1
JDIMM_L0 JDIMM_F0
24 DIMMs
CPU1 CPU0
JDIMM_I0 JDIMM_C0
JDIMM_I1 JDIMM_C1
JDIMM_H0 JDIMM_B0
JDIMM_H1 JDIMM_B1
JDIMM_G0 JDIMM_A0
JDIMM_G1 JDIMM_A1
JDIMM_J1 JDIMM_D1
JDIMM_J0 JDIMM_D0
JDIMM_K1 JDIMM_E1
JDIMM_K0 JDIMM_E0
JDIMM_L1 JDIMM_F1
JDIMM_L0 JDIMM_F0
CPU0CPU0CPU1CPU1
JDIMMD1
JDIMME1
JDIMMJ1
JDIMMK1
CPU0CPU0CPU1CPU1
JDIMMD1
JDIMMJ1
CPU0CPU0CPU1CPU1
Chapter 2 Hardware Installation
12
Lynx User's Manual
2.3.2 DIMM Installation Procedure
Unlock a DIMM socket by pressing the retaining clips outward.
Insert module vertically and press down until it snaps into place.
Note: DIMM notch and socket bump must align as shown.
DIMM notch
Chapter 3 Motherboard Setting
13
Lynx User's Manual
Chapter 3� Motherboard Settings
This section describes the jumpers, internal connectors, and internal
LEDs setting on Pavo motherboard. Motherboard layout and important
jumper settings are listed as below.
3�1 Motherboard block diagram
Skylake-SP
(Cannonlake-SP)
RTL8201EL
10/100Mbps dedicate
management port
CPU1
LGA3647-0 Socket
CPU TDP 205W
KRx4
USB3#4
USB3#5
US B3.0(X2)
(Internal Box Header )
Port2(IOU1)
USB2#8
USB2#9
USB2.0(X2)
(Internal Pin He ad er )
Port1a (IOU0)
MUX x1
Debug port
TDP 19W
Lewisburg-4
PCH
SATA#9
SATA#8 USB3#2
USB3#3
SPI
NUVOTON
NPCT650
TPM 2.0
SPI Flash
W25Q128V
Skylake-SP
(Cannonlake-SP)
Port2a(IO U1)
Port1(IOU0 )
Platform Env ironment Contro l Inte rface(PECI)
Port3(IO U2) Port2 (IOU1)Port3(IO U2) Po rt1( IOU0)
USB3.0 Port #0~3
MUX
RJ45 x1
LPC/ eSPI
DIMM #C0
DIMM #C1
DIMM #B0
DIMM #B1
Edge Connector
(Interna l Box Header )
Port3a(IOU2)
SPI
RJ45 x1
US B(X2)
SPI2
RMII
Aspe ed AST2500
VGA CONN
VGA Pin Header
PCI Ex pr es s x 1
Pin Header
(COM1)
Micro USB
DIMM #F0
DIMM #F1
(1x3 pin)
COM2
Box Header
BMC De bug
DIMM #E1
DIMM #E0
(2x5 pin)
JCOM4
DIMM #D1
DIMM #D0
DIMM #I0
DIMM #I1
DIMM #H1
DIMM #H0
USB3.0(X2)
ADM213
ADM213
USB2.0 Port #4~5
COM5
DIMM #L0
DIMM #L1
DIMM #K1
DIMM #K0
(2x5 pin)
Box Header
DIMM #J1
DIMM #J0
DIMM #G0
ECC DDR4 (1866/2133/2400/2667)
DIMM #G1
COM1
ADM213
DDR4 x16
EDY4016AABG-DR-F-D
AST_USB Po rt #0~1 to PCH Port #4~5
LCM
COM4
(1x5 pin)
Pin Header
HFI1
HFI0
HFI1
Secure b oot key
I2C4
LM 95241CIM M
LM 95241CIM M-2
LM 95241CIM M-1
HFI0
SATA#7
SATA#6
USB2.0 Port #0~3
@5Gb/s
Omni-Path
Carrier
Card
CONN C
CONN A
CONN B
CONN B
CONN A
PCI Express x 16
PCI Express x 16
Port1a(IOU0)
Port1a(IO U0)
PCI Express x 16
PCI Express x 16
Steeri ng
Resistors
PCI Express x 16
PL-2303HXD
Port3a IOU2)
PCI Express x 8
Port3a(IOU2) Port2a(IO U1) Port1 a(IO U0)
Steering
Resistors
PCI Express x 16
Port3a( IOU2)
PCIEX48 Riser Slot
PCIEX48 Riser Slot
PCI Express x 8
Port3c(IOU2)
PCI Express x 8
Port3a(IO U2)
Steeri ng
Resistors
P0 CH2/DIMM0/A8
PCI Express x 16
P0 CH1/DIMM0/A4
P0 CH0/DIMM0/A0
Port2a( IOU1)
P0 CH0/DIMM1/A2
P0 CH2/DIMM1/AA
P0 CH1/DIMM1/A6
P1 CH3/DIMM0/A0
P1 CH4/DIMM1/A6
P1 CH5/DIMM1/AA
P1 CH4/DIMM0/A4
P1 CH3/DIMM1/A2
P1 CH5/DIMM0/A8
P0 CH5/DIMM1/AA
P0 CH4/DIMM1/A6
P0 CH3/DIMM0/A0
P0 CH4/DIMM0/A4
P0 CH3/DIMM1/A2
P0 CH5/DIMM0/A8
P1 CH0/DIMM0/A0
P1 CH1/DIMM0/A4
P1 CH2/DIMM0/A8
P1 CH0/DIMM1/A2
P1 CH1/DIMM1/A6
P1 CH2/DIMM1/AA
SATAPort #0~ 9
SATA#1
SATA#0
SATA#3
SATA#2
PCI-E GE N3@8GT /s
PCI Express x 2
DMI3 x 4
UPI0UPI1
UPI @10.4GT/s
UPI
UPI1 UPI0
UPI @10.4GT/s
UPI
SATA#4
CPU0
PCI Express x 8
USB3#1
USB3#0
DIMM #A1
DIMM #A0
ECC DDR4 (1866/2133/2400/2667)
Flash
S25FL2 56SAGMFI001
SATA#5
@6Gb/s
Pl
atform Environment Control Inte rf ace(PECI)
PCIE x2 or SATA x1
NGFF M.2 2242/2280
PCIE x2 or SATA x1
PCI- E GEN3 @8GT/s X2 & SATA @6Gb /s
NGFF M.2 2242/2280
PCI- E GEN3 @8GT/s X2 & SATA @6Gb /s
@6Gb/s
SATAPort #10
MUX x1PCI Express x 2
SATAPort #11
@6Gb /s
NGFF M.2 2242/2280
PCHPl acement
CPU0CPU1
DMI GEN3@8GT/s
LGA3647-0 Socket
SPI Flas h
W25Q 64BVSSIG
CPU TDP 205W
RJ45 x1
Port3c (IOU2)
CPU0_VRD
VR13
PCI Express x 1
i2 10
PCI Express x 1
NCSI
i2 10
XDP
CPU1_VRD
VR13
Chapter 3 Motherboard Setting
14
Lynx User's Manual
3�2 Motherboard Layout
JDIMMJ1
JDIMMJ0
JDIMMK1
JDIMMK0
JDIMML1
JDIMML0
JDIMMC0
JDIMMC1
JDIMMB0
JDIMMB1
JDIMMA0
JDIMMA1
JDIMMD1
JDIMMD0
JDIMME1
JDIMME0
JDIMMF1
JDIMMF0
JCOM4
JVGA_INT
JPWR_AUX
JNGFF2
JNGFF1
JBMC_I2C10
JBMC_GPIO1
JBMC_I2C1
JCOM1
AVSYNCO
JPWR2
JBMC_GPIO2
JUSB_INT1
J8
JFRNT_SSI
JSSGPIO
JLCM
JBUZZER
JBMC_DP
JSGPIO
JSYS_EXT
JPWR1
JUSB20
JUSB_INT2
J27
J28
JPWR6
J22
J24
J26
J25
J21
JPWR7
JPWR4
JPWR5
JPMBUS
JPMBUS_PDB
J23
J20
J19
J10
JPCIE_HP
J9
JPWR3
JPCH_GPIO
JSMB_VR
J4
JSPI_BIOS
JLPC_DP
JBAT
JESPI
JSPKR
JRAID_KEY
Chapter 3 Motherboard Setting
15
Lynx User's Manual
3�3 Motherboard Content List
Connectors Location Connectors Location
1 Power Supply JPWR6、JPWR7：12V 35 USB 2.0 JUSB20
2 Power Supply JPWR5：12V、
5VSB(6A per pin) 36 ESPI PORT JESPI
3 Power Supply J9、J10 37 HFI CONN JHFI1、JHFI2
4 SATA-DOM Power JDOM_PWR：5V 38 JNGFF CONN JNGFF1、JNGFF2
5 Serial ATA
SATA1、SATA2、
SATA3、SATA4、
SATA5、SATA6、
SATA7、SATA8、
SATA9、SATA10
39 Speaker JSPKR
6 IPMB JBMC_I2C1 40 PCH SGPIO JSGPIO
7 BMC I2C10 JBMC_I2C10 41 PCH SSGPIO JSSGPIO
8 VGA JVGA_INT 42 CPU0 Congurations JPG_LOCK
9 COM Port JCOM1、JCOM4 43 BMC Debug Port
Select J2
10 Front USB JUSB_INT1、
JUSB_INT2 44 Flash Descriptor
Security override J3
11 BMC GPIO JBMC_GPIO1、
JBMC_GPIO2 45 PCH FAN CONN J4
12 Front Panel JFRNT_SSI 46 No Reboot(Watch
Dog) J5
13 XDP CONN JCPU_XDP 47 ME Force Recovery
Mode J6
14 DIMM Sockets JEDEC Specied
DDR4 Connector 48 BIOS Recovery Mode J7
15 Debug Port JLPC_DP 49 External-1 Thermal
Sensor J8、J11、J24
16 BMC Debug Port JBMC_DP 50 SATA6 PIN-7 Power J12
17 Clear CMOS JCMOS 51 SATA5 PIN-7 Power J13
18 BMC Reset JBMC_RST 52 Power Supply PSKILL
Disable J14、J17
19 BMC Disable JBMC_DIS 53 Power Supply COM
BUS Disable J15、J16
20 Battery Socket JBAT 54 PS_ON Enable J18
21 LCM JLCM 55 FAN 3B CONN J19
22 Intruder JINTRUDER 56 FAN 3A CONN J20
23 PMBUS JPMBUS 57 CPU0 FAN CONN J21
24 BIOS SPI ROM Socket JSPI_BIOS 58 CPU1 FAN CONN J22
25 AUX Power JPWR_AUX 59 FAN 4 CONN J23
26 Backplane Power JPWR1、JPWR2、
JPWR3、JPWR4 60 FAN 1A CONN J25
27 Buzzer JBUZZER 61 FAN 1B CONN J26
28 Power Supply PMBUS JPMBUS_PDB 62 FAN 2A CONN J27
29 PCH GPIO JPCH_GPIO 63 FAN 2B CONN J28
30 VROC Key JRAID_KEY 64 OCP CONN (PCIE) CN1、CN2
31 PCIE Hot-Plug SMB JPCIE_HP 65 Riser CONN CN3、CN4
32 VRM SMB JSMB_VR 66 Riser CONN CN8、CN9
33 OCuLink CONN JSYS_EXT 67 OCP CONN (PCIE) CN5、CN6
34 NTB Congurations JNTB 68 OCP CONN
(KR Function) CN7
Other manuals for Lynx
1
Table of contents
Other AIC Motherboard manuals
