AIC PHOENIX User manual

Phoenix
Server MotherBoard
User’s Manual
UM_Phoenix_v.2_101915

Contents
Contents .............................................................................................................................................................i
About This User Manual.....................................................................................................................................ii
Chapter 1............................................................................................................................................................1
1.1 General Information...............................................................................................................................1
1.2 Specifications..........................................................................................................................................1
Chapter 2. ..........................................................................................................................................................3
2.1 Central Processing Unit (CPU) ................................................................................................................3
Chapter 3. ........................................................................................................................................................12
3.1 Motherboard block diagram ................................................................................................................12
3.2 Motherboard Layout ...........................................................................................................................12
3.3 Motherboard Content List...................................................................................................................13
3.4 Internal Connectors/Jumpers...............................................................................................................14
3.5 LEDs ......................................................................................................................................................19
Chapter4. .........................................................................................................................................................21
4.1 Updating BIOS ......................................................................................................................................23
Chapter 5. ........................................................................................................................................................25
5.1 Method 1 (Use the BIOS setup)............................................................................................................25
5.2 Method 2 (Use a Dos tool - Syscheck).................................................................................................28
5.3 Connect to BMC ...................................................................................................................................30
5.4 Updating BMC Firmware ......................................................................................................................34
Chapter 6. ........................................................................................................................................................35

i
Safety Information
When installing, operating, or performing maintenance on this equipment, basic safety
precautions, as listed below, should always be followed to reduce the risk of fire, electric
shock, and personal injuries.
Read and understand all instructions.
Observe warnings and instructions marked on the product.
For proper mounting instructions, please consult the User’s Manual provided with
the product.
Do not place this product on an unstable cart, stand or table which might cause
the product to fall and sustain serious damage.
Install only equipment identified in the User’s Manual provided with this product.
Use of other equipment might cause improper connection of circuitry that might
lead to fire or personal injuries.
This product should be operated only from the type of power source indicated on
the marked label. If you are uncertain about the type of power supply in your
area, consult your dealer or the local Power Company.
Disconnect the power supply module when removing power from the system.
Unplug this product from the wall outlet before cleaning. Use a damp cloth for
cleaning. Do not use liquid cleaners or aerosol cleaners.
Do not use this product near a water source such as a wet faucet.
Never push objects of any kind into this product through open slots as they may
touch dangerous voltage points or short out parts that could result in fire or
electric shock. Never spill liquids of any kind on the product.
Do not block or cover slots and openings in the unit as they are for ventilation to
protect the unit from overheating. Do not place the product in a built-in
installation unless proper ventilation is available.
To reduce the risk of electric shock, do not disassemble this product. Service
should only be performed by trained personnel. Opening or removing covers
and/or circuit boards may expose you to electric or other risks. Incorrect
reassembly can cause electric shock when the unit is subsequently used.
Risk of explosion is possible if battery is replaced with an incorrect type. Dispose
used batteries according to the instruction.
This product is equipped with a three-wire grounding type plug, a plug with a third
(grounding) pin. This plug is intended to fit only into a grounding type power
outlet. This is a safety feature. If you are unable to insert the plug into the outlet,
contact your electrician to replace the outlet. Do not defeat the safety purpose
by removing the grounding type plug. Do not use a 3-to-2 prong adapter at the
receptacle. Use of this type of adapter may result in risk of electric shock and/or
damage to this product.

ii
About This User Manual
This document provides a detailed description of the Phoenix including:
The General Features of the Product
Motherboard Settings
BIOS Configuration and Settings
BMC Configuration and Settings

1
Chapter 1.
Product Introduction
1.1 General Information
Phoenix, a server grade mother board supports two Intel®Xeon®processor E5-2600
V3 series.
1.2 Specifications
Dimensions (with chassis ears/protrusions)
W x D
mm : 424.2 x 157.5
inches : 16.7 x 6.2
Motherboard
Motherboard
Phoenix
Processor
Processor Support
Dual LGA2011-3 (Socket –R3) to support two Intel® Haswell - EP processors
E5-2600 V3 series
QPI/DMI Speeds
9.6 GT/s, 8 GT/s, 6.4 GT/s
Chipset
Chipset Support
Intel®C610 series chipset
System Memory
System Memory
• 4 memory channels per CPU socket, 2 channels with 2DPC + 2 channels
with 1DPC
• 12 DIMM slots support up to:
- 192GB (@4Gb) / 384GB (@8Gb) DDR4 1866/2133 RDIMM SR, DR
- 384GB (@4Gb) / 768GB (@8Gb) DDR4 2133 LRDIMM QR
BIOS
BIOS Type
•INSYDE 16MB

2
• SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features
• EFI 2.3 BIOS
• ACPI 1.0/2.0/3.0
• PXE 2.0
• WOL
•AC loss recovery
• IPMI KCS interface
• SMBIOS 2.0
• Serial console redirection
On-Board Devices
Serial ATA
Built-in SATA controller with RAID support on Intel®C610 series chipset
Support • 6 x SATA3 ports
IPMI
Aspeed AST2400 BMC
• Intelligent Platform Management Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH support
Network
Controllers
• Intel® 82599 10 GbE controller
• Intel® I210 PCIe single-port 1GbE controller
• Intel® I217 1GbE PHY
Graphics
Aspeed AST2400 graphics controller
• PCIe x1 VGA/2D controller
• 1920x1200@60Hz 32bpp
Rear I/O
LAN
2 x SFP+ (10 GbE)
2 x RJ45 ports
USB
2 x USB ports
VGA
1 x VGA port
Serial Port
1 x external DB-9 serial port
System Management
System
Management
• IPMI 2.0 compliance
• iKVM support (KVM over IP)
• Media redirection
• Smart fan speed control
• Remote power on/off/reset
• Temperature, fan, voltage, PSU sensor monitor
• System ID / System fail indicator
• SEL message alarm through mail
• SNMP support
• Intel NM
Operating Environment
Environmental
Specifications
• Operating Temperature: 0 ~ 45°C
• Operating Altitude Condition: 0 ~ 10K feet
• Storage Temperature: -20° ~ 80°C
• System Relative Humidity: 5% to 95% non-condensing

3
Chapter 2.
Hardware Setup
2.1 Central Processing Unit (CPU)
2.1.1 Removing the Processor Heatsink
The heatsink is attached to the server board or processor socket with captive fasteners.
Using a #2 Phillips* screwdriver, loosen the four screws located on the heatsink corners in a
diagonal manner using the following procedure:
˙Using a #2 Phillips* screwdriver, start with screw 1 and loosen it by giving it two rotations
and stop (see letter A).
˙Proceed to screw 2 and loosen it by giving it two rotations and stop (see letter B). Similarly,
loosen screws 3 and 4. Repeat steps A and B by giving each screw two rotations each time
until all screws are loosened.
• Lift the heatsink straight up (see letter C).

4

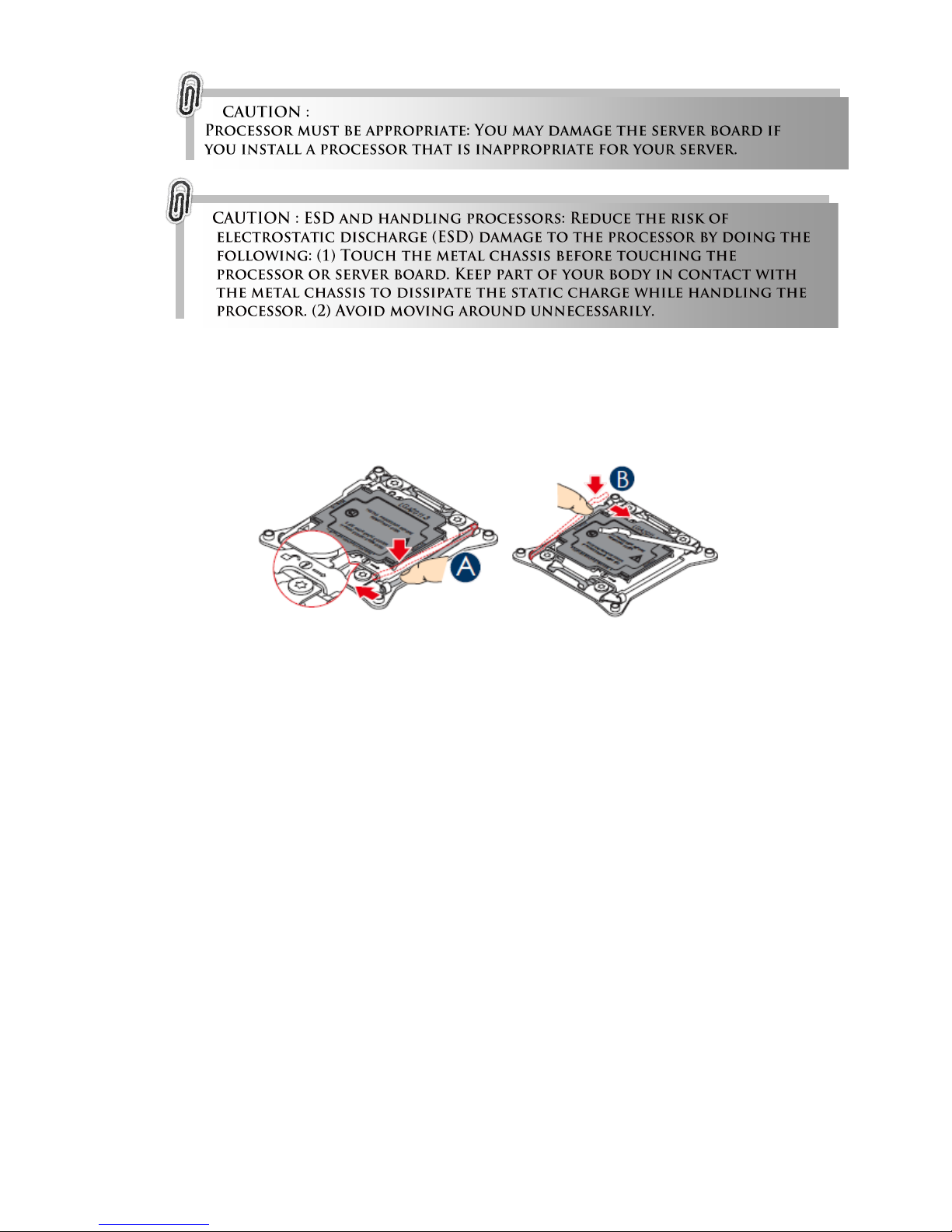

2.1.2 Installing the Processor
2.1.2.1 Unlatch the CPU Load Plate
Push the lever handle labeled “OPEN 1st” (see letter A) down and toward the CPU
socket. Rotate the lever handle up.
Repeat the steps for the second lever handle (see letter B).

5
2.1.2.2 Lift open the Load Plate
•Rotate the right lever handle down until it releases the Load Plate
(see letter A).
•While holding down the lever handle, with your other hand, lift open
the Load Plate (see letter B).

6

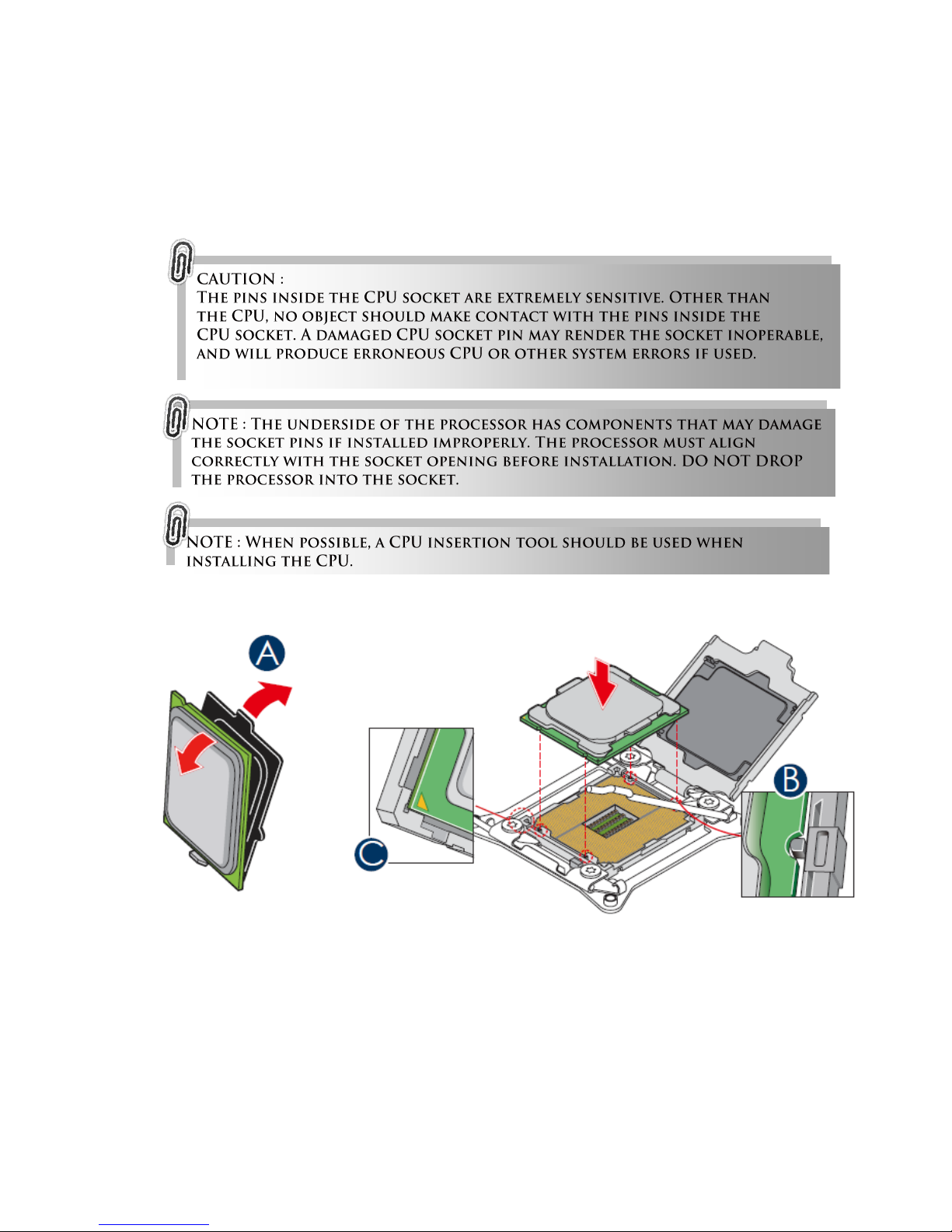

2.1.2.3 Install the Processor
•Remove the processor from its package.
•Carefully remove the protective cover from the bottom side of the CPU, taking care not
to touch any CPU contacts (see letter A).
•Orient the processor with the socket so that the processor cutouts match the four
orientation posts on the socket (see letter B). Note the location of a gold key at the corner
of the processor (see letter C). Carefully place (Do NOT drop) the CPU into the socket.

7
2.1.2.4 Remove the Socket Cover. Remove the socket cover from the load plate by
pressing it out.
2.1.2.5 Close the Load Plate. Carefully lower the load plate down over the processor.
2.1.2.6 Lock down the Load Plate
Push down on the locking lever on the CLOSE 1st side (see letter A). Slide the tip of the
lever under the notch in the load plate (see letter B). Make sure the load plate tab
engages under the socket lever when fully closed.
b.Repeat the steps to latch the locking lever on the other side (see letter C). Latch the
levers in the order as shown.

8
2.1.3 Installing the Processor Heatsink
If present, remove the protective film covering the Thermal Interface Material on the bottom
side of the heatsink (see letter A).
• Align the heatsink fins to the front and back of the chassis for correct airflow. The airflow
goes from front-to-back of the chassis (see letter B).
• Each heatsink has four captive fasteners and should be tightened in a diagonal manner
using the following procedure:
• Using a #2 Phillips* screwdriver, start with screw 1 and engage screw threads by giving it
two rotations and stop (see letter C). (Do not fully tighten.)
•Proceed to screw 2 and engage screw threads by giving it two rotations and stop (see
letter D). Similarly, engage screws 3 and 4.
• Repeat steps C and D by giving each screw two rotations each time until each screw is
lightly tightened up to a maximum of 8 inch-lbs torque (see letter E).

9
2.1.4 Removing the Processor

10
2.2 System Memory
This server board supports up to twelve DDR4 1333/1600/1866/2133 Registered ECC
SDRAM(RDIMM) / Load-Reduced DIMM (LRDIMM).
1. Populate DIMMs in the following order:
DIMM
Numbers
DIMM arrangement
2 DIMMs
CPU1
JCPU0
JDIMM_G0
JDIMM_A0
4 DIMMs
CPU1
JCPU0
JDIMM_G0
JDIMM_H0
JDIMM_A0
JDIMM_B0
6 DIMMs
CPU1
JCPU0
JDIMM_G0
JDIMM_H0
JDIMM_F0
JDIMM_A0
JDIMM_B0
JDIMM_D0

11
DIMM
Numbers
DIMM arrangement
8 DIMMs
CPU1
JCPU0
JDIMM_G0
JDIMM_H0
JDIMM_F0
JDIMM_E0
JDIMM_A0
JDIMM_B0
JDIMM_D0
JDIMM_C0
10 DIMMs
CPU1
JCPU0
JDIMM_G0
JDIMM_G1
JDIMM_H0
JDIMM_F0
JDIMM_E0
JDIMM_A0
JDIMM_A1
JDIMM_B0
JDIMM_D0
JDIMM_C0
12 DIMMs
CPU1
JCPU0
JDIMM_G0
JDIMM_G1
JDIMM_H0
JDIMM_H1
JDIMM_F0
JDIMM_E0
JDIMM_A0
JDIMM_A1
JDIMM_B0
JDIMM_B1
JDIMM_D0
JDIMM_C0
2. Unlock a DIMM socket by pressing the retaining clips outward.
3. Insert module vertically and press down until it snaps into place.
DIMM notch

12
Chapter 3.
Motherboard Settings
This section describes the jumpers, internal connectors, and internal LEDs setting on
Phoenix motherboard. Motherboard layout and important jumper settings are listed
as below.

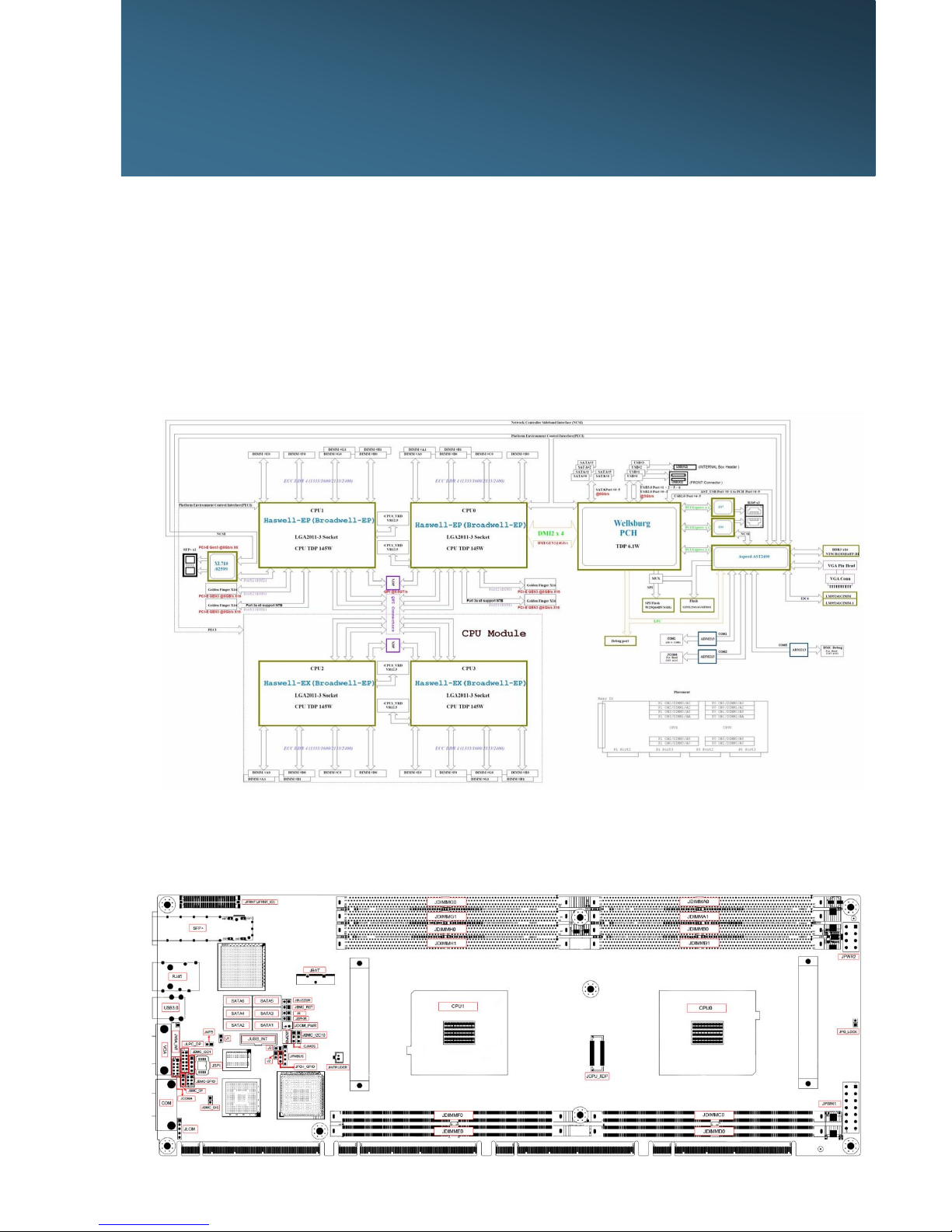

3.1 Motherboard block diagram
3.2 Motherboard Layout

13
3.3 Motherboard Content List
Connectors
Location
Connectors
Location
1
SFP+ Port (Dual Port)
SFP+
21
BMC_I2C10
JBMC_I2C10
2
Ethernet (Dual Port)
RJ45
22
BMC IPMI
JBMC_I2C1
3
USB Port (Dual Port)
USB3.0
23
Battery Socket
JBAT
4
COM Port
COM
24
Intruder
JINTRUDER
5
VGA Port
VGA
25
PMBUS
JPMBUS
6
Power Supply (2x7 pin)
JPWR1
26
SPI ROM Socket
JSPI
7
Power Supply (2x4 pin)
JPWR2
27
Speaker
JSPKR
8
SATA-DOM Power
JDOM_PWR
28
BMC Reset
JBMC_RST
9
Front IO
JFRNT/JFRNT_IO
29
BMC Disable
JBMC_DIS
10
Serial ATA (1~6)
SATA1~
SATA6
30
System PG Lock
JPG_LOCK
11
VGA Pin header
JVGA_INT
31
BMC Buzzer
JBUZZER
12
COM Port
JCOM4
32
BIOS Recovery Mode
J3
13
Front USB
JUSB_INT
33
ME Force Recovery Mode
J1
14
Intel® Debug Port
JCPU_XDP
34
Flash Descriptor Security
override
J4
15
CPU Sockets
CPU0/CPU1
35
No Reboot(Watch Dog)
J2
16
Debug port
JLPC_DP
36
NTB
(Non-Transparent Bridge)
JNTB
17
BMC debug Port
JBMC_DP
37
PCH GPIO
JPCH_GPIO
18
BMC GPIO
JBMC_GPIO
38
LCM(COM Port)
JLCM
19
SGPIO
JSGPIO
39
20
Clear CMOS
JCMOS
40

14
3.4 Internal Connectors/Jumpers
Connectors/Jumpers
Description
JFRNT
(JFRNT_IO)
Front IO
A1. GND
A2. GND
A3. GND
A4. GND
A5. UIDLED_OUT#
A6. HD_LED
A7. SYS_HEALTH#
A8. GND
A9. LAN1_TRAFFIC
A10. LAN2 TRAFFIC#
A11. LAN3 TRAFFIC#
A12. LAN4 TRAFFIC#
A13. PWM5
A14. PWM6
A15. FAN9_TACH
A16. FAN10_TACH
A17. FAN11_TACH
A18. FAN12_TACH
A19. GND
A20. I2C5SCL
A21. I2C5SDA
A22. PSU_SMBCLK_SUS
A23. PSU_SMBDAT_SUS
A24. I2C8SCL
A25. I2C8SDA
B1.SW_PWR_BTN#
B2.SW_RST_BTN#
B3. FP_NMI_BTN
B4. UID_SW_IN_N
B5. +3.3V_DUAL
B6. +3.3V
B7. STD_LED
B8. PWR_LED
B9. +3.3V
B10. +3.3V
B11. +3.3V_DUAL
B12. +3.3V_DUAL
B13. PWM1
B14. PWM2
B15. PWM3
B16. PWM4
B17. BMC_FAN1_TACH
B18. BMC_FAN2_TACH
B19. BMC_FAN3_TACH
B20. BMC_FAN4_TACH
B21. BMC_FAN5_TACH
B22. BMC_FAN6_TACH
B23. BMC_FAN7_TACH
B24. BMC_FAN8_TACH
B25. +5V_AUX
JPWR1
Power Supply
1.GND
2. GND
8. +12V
9. +12V

15
3. GND
4. GND
5. GND
6. GND
7. PS_ON#
10. +12V
11. +12V
12. +12V
13. +5V_AUX
14. POWER OK
JPWR2
Power Supply
1.GND
2. GND
3. GND
4. GND
5. +12V
6. +12V
7. +12V
8. +12V

16
Internal Connectors/Jumpers (Continued)
Connectors/Jumpers
Description
JPG_LOCK
System PG Lock
(Jumper)
Open/Normal (Default)
Short/Lock
J1
ME Force Recovery
Mode(Jumper)
Open/Normal (Default)
Short/ME Recovery Mode
J2
Watch dog(Jumper)
Open/Disable (Default)
Short/Enable
J3
BIOS Recovery Mode
(Jumper)
Open/Normal (Default)
Short/BIOS Recovery Mode
J4
Flash Descriptor
Security override
(Jumper)
Open/Normal (Default)
Short/Flash Security override
JNTB
NTB Configurations
(Jumper)
Open/Upstream por(Default)
Short/Downstream port
