AIC Pavo User manual

UM_Pavo_v4_121318
Pavo
Server Motherboard
User's Manual

Contents
Table of Contents
Preface����������������������������������������������������������������������������������������������� i
Safety Instructions ���������������������������������������������������������������������������� ii
About This Manual���������������������������������������������������������������������������� iii
Chapter 1� Product Features ��������������������������������������������������������������1
1.1 Components.............................................................................................1

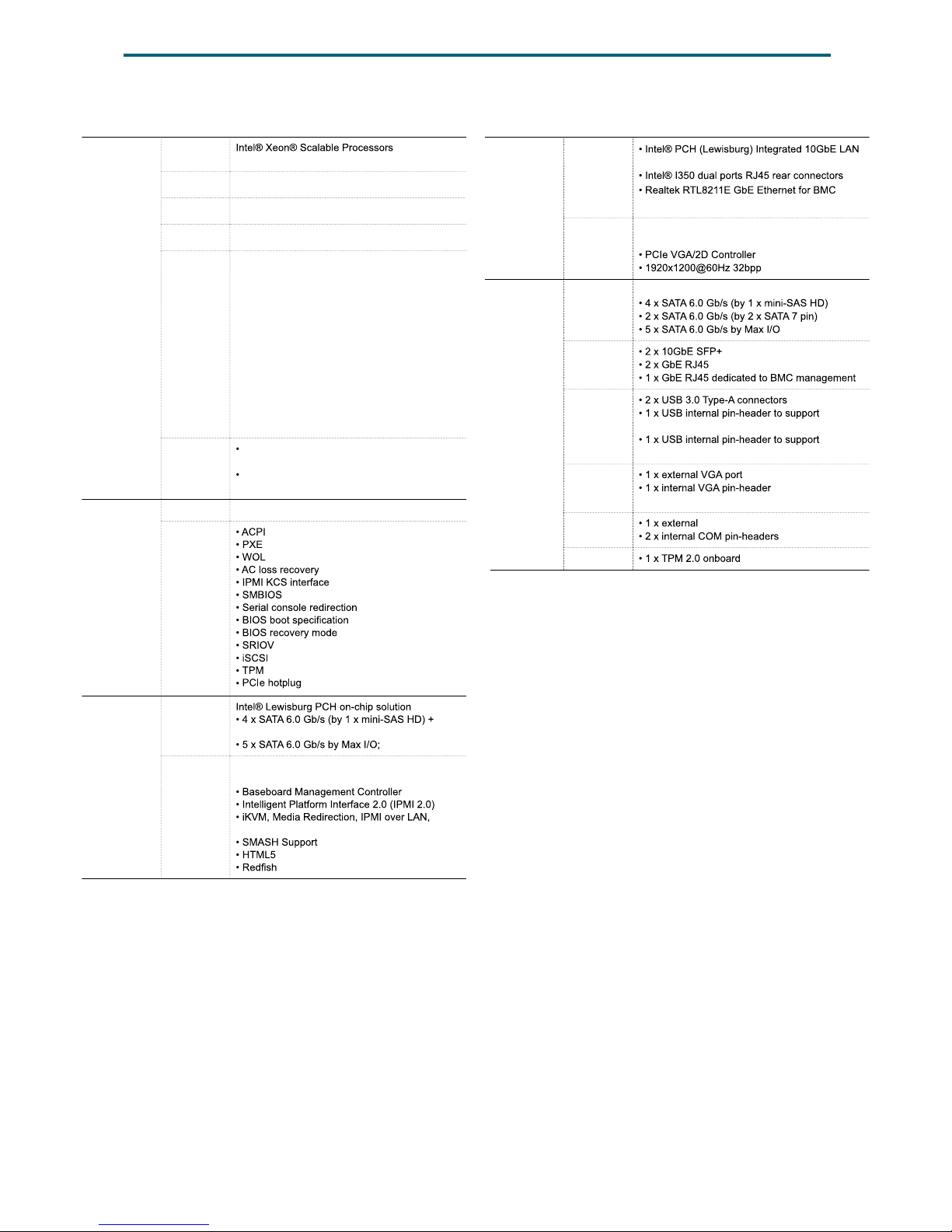

1.2 Specications ..........................................................................................2
1.3 Feature .....................................................................................................3
Chapter 2� Hardware Setup ����������������������������������������������������������������4
2.1 Central Processiong Unit Setup.............................................................. 4
2.1.1 Processor Support..............................................................................................4

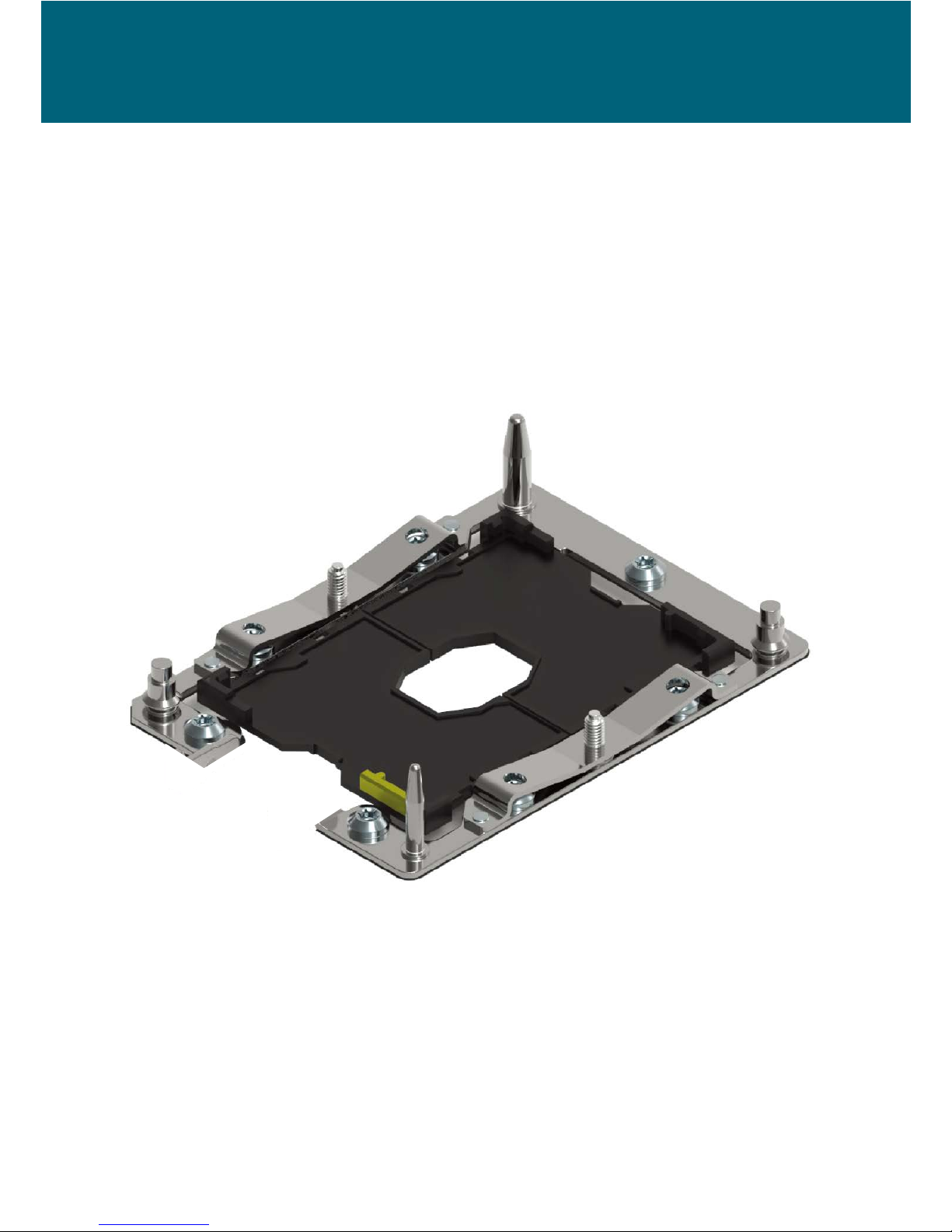

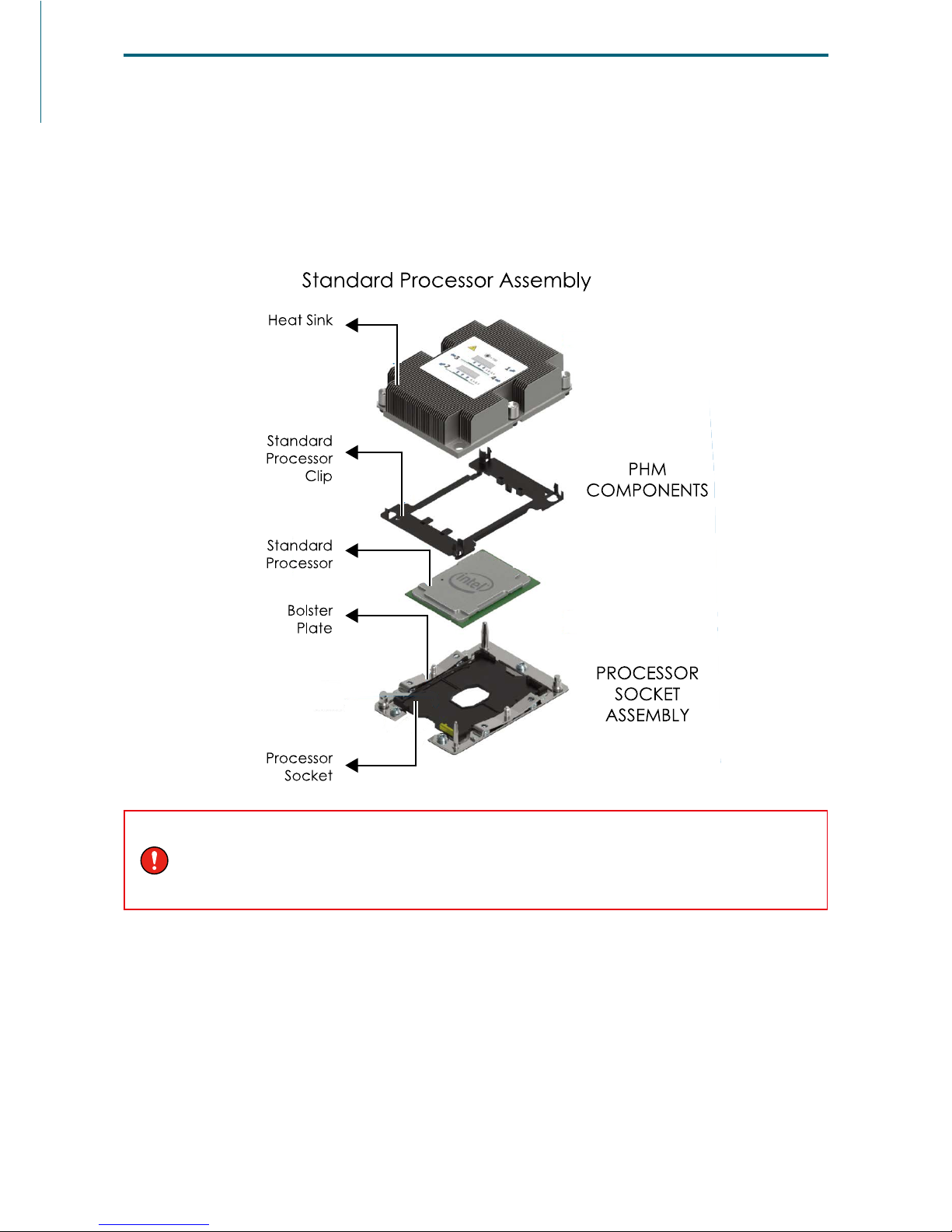

2.1.2 Processor Heat Sink Module and Processor Socket Assembly.......................5
2.1.3 Processor Heat Sink Module..............................................................................6
2.2 System Memory.......................................................................................8

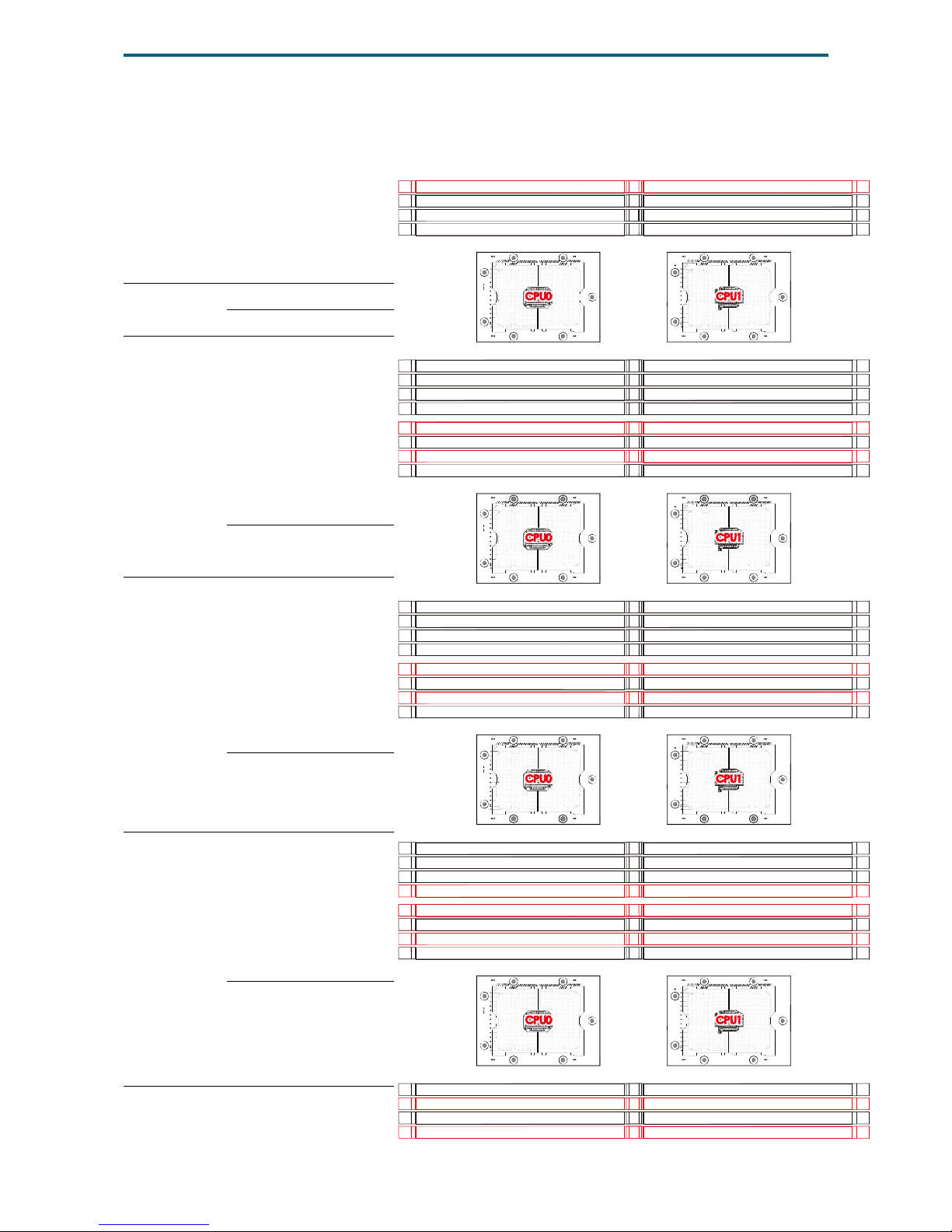

2.2.1 Recommended Dimm Installation Order...........................................................9
2.3 System Memory Setup ..........................................................................11
2.3.1 DIMM Installation ............................................................................................ 11
Chapter 3� Motherboard Settings ����������������������������������������������������� 12
3.1 Motherboard Block Diagram.................................................................12
3.2 Motherboard Content List .....................................................................13
3.3 Motherboard Layout ..............................................................................14
3.4 Internal Connectors/Jumpers..............................................................15
3.5 System LED Indicator ............................................................................20
3.5.1 Front Panel LED .............................................................................................. 20
3.5.2 Rear I350 LAN LEDs......................................................................................... 20
3.5.3 Rear PCH LAN LEDs......................................................................................... 21
3.5.4 Rear UID LED & Internal LED ........................................................................... 22
Chapter 4. BIOS Conguration Settings ������������������������������������������� 23
4.1 Navigation Keys.....................................................................................23
4.2 BIOS Setup .............................................................................................24
4.2.1 Menu................................................................................................................. 24
4.2.2 Startup.............................................................................................................. 24

4.2.3 Update.............................................................................................................. 27
4.3 Main .......................................................................................................29
4.3.1 Main.................................................................................................................. 29
4.4 Advanced................................................................................................30
4.4.1 Peripheral Conguration ................................................................................. 30
4.4.2 Video Conguration......................................................................................... 30
4.4.3 Socket Conguration....................................................................................... 30
4.4.4 PCH Conguration........................................................................................... 34
4.4.5 H2o IPMI Conguration................................................................................... 38
4.4.6 H2o Event Log Cong Manager ...................................................................... 39
4.5 Security ..................................................................................................40
4.5.1 Security ............................................................................................................ 40
4.6 Power......................................................................................................41
4.6.1 Power ............................................................................................................... 41
4.7 Boot ........................................................................................................42
4.7.1 Boot .................................................................................................................. 42
4.8 Exit..........................................................................................................43
4.8.1 Exit.................................................................................................................... 43
Chapter 5. BMC Conguration Settings�������������������������������������������� 44
5.1 Method 1 (Use the BIOS Setup) ............................................................44
5.2 Method 2 (Use a Dos Tool - Syscheck) ................................................47
5.3 Login.......................................................................................................49
5.4 Web GUI ................................................................................................50
5.4.1 Menu Bar.......................................................................................................... 50
5.4.2 User Information and Quick Button ............................................................... 51
5.4.3 Dashboard:....................................................................................................... 52
5.4.4 Sensor ............................................................................................................. 52
5.4.5 FRU Information............................................................................................... 52
5.4.6 Logs and Report .............................................................................................. 53
5.4.7 Settings ........................................................................................................... 53
5.4.8 KVM Mouse Setting ........................................................................................ 54
5.5 Firmware Update ...................................................................................56
5.5.1 Requirement..................................................................................................... 56
5.5.2 Update Guide ................................................................................................... 56
Contents

5.5.3 SOC Flash Update............................................................................................ 62
Chapter 6� Technical Support����������������������������������������������������������� 64

Copyright © 2017 AIC, Inc� All Rights Reserved�
This document contains proprietary information about
AIC products and is not to be disclosed or used except in
accordance with applicable agreements.

Document Release History
Release Date Version Update Content
2017 1 User's Manual release to public.
July
2017 2 1. BIOS update
December
2018 41. New Cover 2. Specication Update

i
Copyright
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photo-static, recording
or otherwise, without the prior written consent of the manufacturer.
Trademarks
All products and trade names used in this document are trademarks or registered
trademarks of their respective holders.
Changes
The material in this document is for information purposes only and is subject to change
without notice.
Warning
1. A shielded-type power cord is required in order to meet FCC emission limits and also
to prevent interference to the nearby radio and television reception. It is essential
that only the supplied power cord be used.
2. Use only shielded cables to connect I/O devices to this equipment.
3. You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the equipment.
Disclaimer
AIC shall not be liable for technical or editorial errors or omissions contained herein.
The information provided is provided "as is" without warranty of any kind. To the
extent permitted by law, neither AIC or its afliates, subcontractors or suppliers will be
liable for incidental, special or consequential damages including downtime cost; lost
profits; damages relating to the procurement of substitute products or services; or
damages for loss of data, or software restoration. The information in this document
is subject to change without notice.
Preface

ii
Safety Instructions
When installing, operating, or performing maintenance on this equipment, the following
safety precautions should always be taken into account in order to reduce the risk of re,
electric shock, and personal injury.
Carefully read the safety instructions below before using this product.
• Observe all of the warning and instruction signs distinctively marked on the product.
• Before performing system installations, please consult the User’s Manual provided
with this product.
• Do not place this product on an uneven or weak surface (unstable cart, stand, table,
ect.) that might induce the product to fall and sustain serious damage.
• Install only the equipment or device identied in the User’s Manual. Deploying other
equipment or device with this motherboard could invoke improper connection of
circuitry that leads to re or personal injury.
• This product should only be operated with the type of power source indicated on the
marked label. If you are questionable about which type of power supply is used in your
area, consult your dealer or local Power Company.
• Disconnect the power supply module before removing power from the system.
• Unplug this product from the wall outlet before cleaning. Use a damp cloth for
cleaning. Do not use liquid cleaners or aerosol cleaners.
• Do not use this product near a water source, including faucet and lavatory.
• Never spill liquids of any kind on this product.
• Never shove objects of any kind into this product’s open slots, as they may touch
dangerous voltage points or short out parts and could result in re or electric shock.
• Do not block or cover slots and openings in this unit, as they were made for ventilation
and prevent this unit from overheating. Do not place this product in a built-in
installation unless proper ventilation is available.
• Do not disassemble this product. This product should only be taken apart by trained
personnel. Opening or removing covers and circuit boards may expose you to electric
shock or other risks. Incorrect reassembly can also cause electric shock when the
unit is subsequently used.
• Risk of explosion is possible if battery is replaced with an incompatible type. Dispose
of used batteries accordingly.
• This product is equipped with a three-wire grounding type plug, a plug with a third
(grounding) pin. As a safety feature, this plug is intended to t only into a grounding
type power outlet. If you are unable to insert the plug into the outlet, contact your
electrician to replace the outlet. Do not remove the grounding type plug or use a
3-Prong To 2-Prong Adapter to circumvent the safety feature; doing so may result in
electric shock and/or damage to this product.

iii
Thank you for selecting and purchasing the Pavo Serverboard.
This user's manual is provided for professional technicians to perform easy hardware
setup, basic system congurations, and quick software startup. This document pellucidly
presents a brief overview of the product design, device installation, and rmware settings
for the Pavo motherboard. For the latest version of this user's manual, please refer to the
AIC website: http://www.aicipc.com/en/productdetail/20854.
Chapter 1 Product Features
This chapter delivers the overall layout of the product, including the fundamental
components on the motherboard, design specications, and noteworthy features. Virgo is
an ideal server grade motherboard that is specically designed to accommodate diverse
enterprises for managing heavy workloads, databases, nearline applications, and cloud
deployments. This product supports thee Intel®Xeon®Scalable Processors and Socket
P0 (LGA-3647) with a memory support 12 DDR4 2400/2666 MHz accross 6 channels per
CPU.
Chapter 2 Hardware Setup
This chapter displays an easy installation guide for assembling the CPU (Central
Processing Unit) and memorymodule. Utmost caution for proceeding to set up the
hardware is highly advised. The components on the motherboard are highly fragile and
vulnerable to exterior influence. Do not attempt to endanger the device by placing the
device in a potentially unstable or hazardous surroundings, including positioning the
device on an uneven grounds or humid environments.
Chapter 3 Motherboard Settings
This chapter elaborates the overall layout of the server motherboard, including
multifarious connectors, jumpers, and LED descriptions. These descriptions assist users
to congure different settings and functions of the motherboard, as well as to conrm the
location of each connector and jumper.
Chapter 4 BIOS Conguration Settings
This chapter introduces the key features of BIOS, including the descriptions and option
keys for diverse functions. These details provide users to effortlessly navigate and
congure the input/output devices.
Chapter 5 BMC Conguration Settings
This chapter illustrates the diverse functions of IPMI BMC, including the details on logging
into the web page and assorted denitions. These descriptions are helpful in conguring
various functions through Web GUI without entering the BIOS setup. For more information
of BMC congurations, please refer to IPMI BMC (Aspeed2500) User's Manual for a more
detailed description.
Chapter 6 Technical Support
For more information or suggestion, please contact the nearest AIC corporation
representative in your district or visit the AIC website: http://www.aicipc.com/en. It is our
greatest honor to provide the best service for our customers.
About This Manual

1
Chapter 1. Product FeaturesPavo User Manual
PAVO
Product features and specications are subject to change without notice.
LGA3647 Socket P0 for Intel
Xeon Processor Skylake-SP (CPU0)
8 x DDR4 DIMM Slots
6 Channels (for CPU0)
2 x 10GbE SFP+
2 x GbE RJ45
VGA Port
2 x USB 3.0
COM Port by
Audio Jack
RJ45 for BMC
Management
Aspeed AST2500
Video + BMC
AIC MAX I/O™ 2.0 PCIe Gen3 x
Total Supports 64 Lanes + 5 x SATA + 1 x USB 2.0
OCP Mezzanine V2.0 Connector
8 x DDR4 DIMM Slots
6 Channels (for CPU1)
1 x Mini-SAS HD
Supports 4 x SATA3
(Lewisburg)
2 x SATA3 LGA3647 Socket P0 for Intel
Xeon Processor Skylake-SP (CPU1)
Ursa User Manual

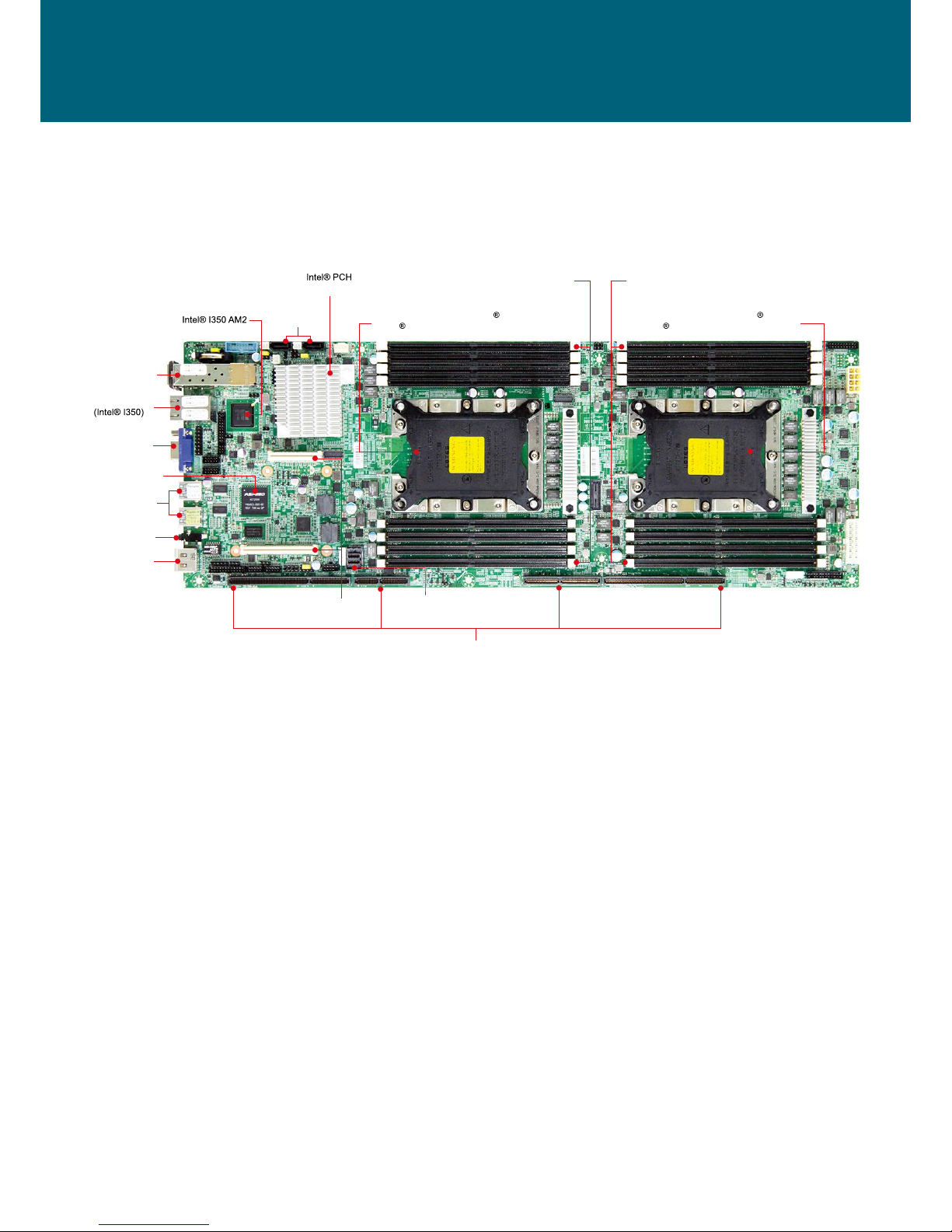

Chapter 1� Product Features
1�1 Components

2
Chapter 1. Product FeaturesPavo User Manual
1.2 Specications
System
Processor
Support (Skylake and next gen. CPU)
UPI Speeds 9.6 GT/s, 10.4 GT/s
Socket Type Socket P0 (LGA-3647 Socket)
System
Memory
A) 6 x memory channels per CPU,
2 channels with 2DPC + 4 channels with 1DPC
B) 16 x DIMM slots support:
DDR4 2400/2666 MHz RDIMM/LRDIMM
(feature support up to DDR4 2933 MHz by
next gen. process upgrade)
- up to 256GB RDIMM SRx4
- up to 512GB RDIMM DRx4
- up to 2048GB RDIMM 3DS 8Rx4
- up to 1024GB LRDIMM QRx4
- up to 2048GB LRDIMM 3DS 8Rx4
Expansion
Slots
1 x AIC Max I/O™ supports: PCIe Gen3
total 64 lanes + 5 x SATA + 1 x USB2.0
1 x OCP Mezzanine V2.0 support PCIe
Gen3 x16
System BIOS
BIOS Type Insyde UEFI BIOS
BIOS
Features
On-board
Devices
SATA2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
BMC
Aspeed AST2500 Advanced PCIe Graphics &
Remote Management Processor
Serial over LAN
On-board
Devices
Network
Controller
Controller with dual SFP+ rear connectors
dedicated management port
Graphics
Aspeed AST2500 Advanced PCIe Graphics &
Remote Management Processor
Input/Output
Serial ATA
11 x SATA 6.0 Gb/s ports
LAN
USB 2 x USB3.0/USB2.0
2 x USB 2.0
VGA
(share with external VGA port)
Serial Port
Other
C) Optane DC Persistent Memory
(Apache Pass) support
3.5mm Phone Jack for COM port
CPU TDP 165W

3
Chapter 1. Product FeaturesPavo User Manual
The Pavo server board integrates Intel® Xeon® Scalable processors and 16 DDR4 DIMM
2400/2666MHz (feature support up to DDR4 2933MHz by next generation processor
upgrade) to offer support for greater capacity, durability, and proficiency for our
customers. Highlighting Intel® Xeon® Scalable processors, which are emphasized for its
optimized performance, efciency, and security, this product enhances these advantages
by implementing the microarchitecture, AIC Max I/O™ 2.0 to maximize system expansion
and operating speed.
In addition to integrating speed and system expansion to the server board, Pavo offers
immediate and efficient management with Onboard Baseboard Management Controller
and greater I/O extension. Featuring IPMI 2.0 and Aspeed AST2500 Advanced PCIe
Graphics, the server board offers support for iKVM, Media Redirection, IPMI over LAN,
Serial over LAN, HTML5, and Redsh.
• Supports Intel® Xeon® Scalable Processors for highest server performance and
improved power efciency
• Supports 16 DDR4 DIMM slots for maximum memory performance
• AIC Max I/O™ supports 64 PCIe Gen3 lanes
• Supports one OCP Mezzanine V2.0 up to PCIe Gen3x16 extension
• Onboard dual 10GbE SFP+ ports by Intel® Lewisburg PCH and dual GbE ports by
Intel® Ethernet Controller I350
• Onboard Baseboard Management Controller for system management and IPMI control
•
• Embedded components for 5+ year long life
• Rackmount Technology Extension (RTX) form factor utilizes full internal chassis
volume for optimum I/O congurations
1�3 Feature

4
Chapter 2. Hardware Setup
Pavo User Manual
2�1�1 Processor Support
The server board includes two processor sockets (LGA3647) that provides one or two
processors of the Intel® Xeon® Processor Scalable Family and supports a Thermal Design
Power (TDP) of up to 165W on selected models.
2�1 Central Processiong Unit Setup
Spica User Manual
Chapter 2� Hardware Setup

5
Chapter 2. Hardware SetupPavo User Manual
2�1�2 Processor Heat Sink Module and Processor Socket Assembly
Each processor socket on the server board is pre-assembled with a loading mechanism
that is designed to secure the Processor Heat Sink Module (PHM) to the server board as
shown below.
WARNING
Previous generations of the Intel Xeon Processors and heatsinks are not compatible with the
Intel Server Board S2600BP Product Family. Processor installation requires that the proces-
sor be attached to the installation onto the server board.

6
Chapter 2. Hardware Setup
Pavo User Manual
2�1�3 Processor Heat Sink Module
The PHM refers to the sub-assembly where the heat sink and processor are clipped
together onto the server board prior to installation. The PHM consists of the
components shown below.
Processor Heat Sink Module (PHM) Sub-Assembly
Processor Heatsink Module (PHM)

7
Chapter 2. Hardware SetupPavo User Manual
The PHM sits level with the processor socket assembly. The PHM is NOT installed
properly if it does not sit level with the processor socket assembly. Once the PHM is
seated over the processor socket assembly, the four heat sink torque screws must be
tightened in order as shown below.
Processor Heat Sink – Top View with Screw Tightening Order
NOTE
Failure to tighten the heatsink screws in the specied order may cause damage to the
processor socket assembly. Heat sink screws should be tighted to 12 in-lbs torque
according to the indicated order on the top of the heatsink label.


 

8
Chapter 2. Hardware Setup
Pavo User Manual
This server board supports up to sixteen DDR4 2400 and 2666 Registered ECC DRAM/
Load-Reduced DIMM (LRDIMM).
CPU0CPU0 CPU1CPU1
DIMMC
DIMMB
DIMMA1
DIMMA2
2�2 System Memory
DIMMJ
DIMMH
DIMMG1
DIMMG2
DIMM_K2
DIMM_K1
DIMM_L
DIMM_M
DIMM_D2
DIMM_D1
DIMM_E
DIMM_F

9
Chapter 2. Hardware SetupPavo User Manual
2�2�1 Recommended Dimm Installation Order
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
DIMM Numbers DIMM ARRANGMENT
2 DIMMs
CPU0 CPU1
JDIMM_C JDIMM_J
CPU0CPU0 CPU1CPU1
4 DIMMs
CPU0 CPU1
JDIMM_C JDIMM_J
JDIMM_A1 JDIMM_G1
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
6 DIMMs
CPU0 CPU1
JDIMM_C JDIMM_J
JDIMM_A1 JDIMM_G1
JDIMM_F JDIMM_M
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
8 DIMMs
CPU0 CPU1
JDIMM_CJDIMM_J
JDIMM_A1 JDIMM_G1
JDIMM_D1 JDIMM_K1
JDIMM_FJDIMM_M
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2

10
Chapter 2. Hardware Setup
Pavo User Manual
JDIMM_C
JDIMM_B
JDIMM_A1
JDIMM_D1
JDIMM_F
JDIMM_J
JDIMM_H
JDIMM_G1
JDIMM_K1
JDIMM_M
JDIMM_C
JDIMM_B
JDIMM_A1
JDIMM_A2
JDIMM_D1
JDIMM_E
JDIMM_F
JDIMM_J
JDIMM_H
JDIMM_G1
JDIMM_G2
JDIMM_K1
JDIMM_L
JDIMM_M
JDIMM_C
JDIMM_B
JDIMM_A1
JDIMM_A2
JDIMM_D2
JDIMM_D1
JDIMM_E
JDIMM_F
JDIMM_J
JDIMM_H
JDIMM_G1
JDIMM_G2
JDIMM_K2
JDIMM_K1
JDIMM_L
JDIMM_M
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
JDIMM_C
JDIMM_B
JDIMM_A1
JDIMM_A2
JDIMM_D1
JDIMM_F
JDIMM_J
JDIMM_H
JDIMM_G1
JDIMM_G2
JDIMM_K1
JDIMM_M
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2
CPU0CPU0 CPU1CPU1
JDIMMD2 JDIMMK2
JDIMML
JDIMMM
JDIMMK1JDIMMD1
JDIMME
JDIMMF
JDIMMC
JDIMMB
JDIMMA1
JDIMMA2
JDIMMJ
JDIMMH
JDIMMG1
JDIMMG2

11
Chapter 2. Hardware SetupPavo User Manual
This server board supports 4 DIMM memory slots with 2 channel per CPU.
2�3�1 DIMM Installation
Step 1 Unlock the dimm socket by pressing the retaining clips outward.
Step 2 Insert the memory module into the slot. Make sure that the DIMM notch is
accurately positioned.
Step 3 Close the retaining clips to complete installation.
DIMM n
otch
2�3 System Memory Setup
