AIGOSTAR 8433325502058 User manual

INSTRUCTION MANUAL
Food Processor
MODEL: 8433325502058

1
IMPORTANT SAFEGUARDS
Before using the electrical appliance, the following basic
precautions should always be followed including the
following:
1. Read all instructions, and save it for future reference.
2. Before use, check that the voltage of wall outlet
corresponds to the one shown on the rating plate.
3. If the supply cord is damaged it must be replaced by
the manufacturer or a authorized service agent or a
qualified technician in order to avoid a hazard.
4. Do not let cord hang over edge of table or hot surface.
5. Always disconnect the blender from the supply if it is
left unattended and before assembling, disassembling or
cleaning;
6.Do not operate the appliance for other than its intended
use.
7. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
8. Children should be supervised to ensure that they do
not play with the appliance.
9. Do not allow children to use the blender without
supervision;
GB

2
10. Keep hands and utensils out of the processor bowl
when in use.
11. Never use your fingers to push food down the feed
tube. Always use the Pusher.
12. Before removing the lid from the bowl from the power
unit, switch off the unit, wait until the blades have come
to a complete stop.
13. Do not use the scraper while the unit is still running.
14. Be certain cover is securely locked into place before
operating appliance.
Do not attempt to defeat the cover interlock mechanism.
15. Do not open the cover until blades stop.
16. The blades and disc are extremely sharp, handle with
care. Always hold the blade assembly by the finger grip
or stem, away from the cutting edge, both when handling
and cleaning.
17. Always remove the blade assembly before pouring
contents from bowl.
18. Do not use outdoors.
19. Save these instructions.
HOUSEHOLD USE ONLY

3
Know your food processor
Shredding disc, slicing disc, food pusher, cutting blade, bowl, base, on, off/pulse, supply cord, cover
Food pusher: Use it to gently push the vegetables or meat down so as to facilitate the
processing of food. Never use finger to press the food.
Feeder: Cut the food into small pieces and insert it through the feeder.
Cover: The cover must be properly locked with Base before operating. Otherwise the
appliance can not be started. And never remove cover before the blade or disc has completely
stopped.
Shredding Disc: used for shredding of vegetables or grinding of hard cheese. Make sure the
shredding disc has been engaged with the Disc holder before operation. The explanation of
inserting or removing shredding disc from Disc holder is as below.
Slicing Disc: used for slicing potatoes, carrots and similar substance.
Disc holder: when shredding or slicing the disc must be properly engaged with the holder.
S blade ass’y: used for mincing the boneless meat, crushing the nuts, onion, garlic or
blending the gam. But never used for crushing the ice as this will damage the blade. It is suggest not
to grinding very hard substance or coffee beans.
Bowl: for containing the processed food.
Off/Pulse: Press it to terminate the operation. If you hold it down it is the Pulse function.
On: press this button to begin the operation.
Base: the base should never be placed into water for cleaning.
Food pusher
Feeder
Cover
Sbladeass’y
Off/Pulse
On
Shredding
disc
Slicing disc
Disc holder
Bowl
Base

4
Before first use
Carefully unpack the food processor and remove any package material or label or stickers. Cleaning
all the parts except Base following the instructions in Cleaning and Maintenance. Handle the blades
or disc with extreme care as they are sharp.
Using the food processor
The food processor can be used for mincing the meat, chopping the nut, shredding or slicing the
vegetables. Using the different attachment to perform different task.
1. mincin
g
the meat
a) position the bowl in base (Fig 1) and turn it until locks with the base as illustrated (Fig 2& Fig
3).
b) Place the blade onto the stem of bowl. Always holding the stem of blade as blades is
extremely sharp. See Fig4.
c
)
Close the cover. Place the cover in the illustrated direction and turn it until the tab of cover
lock with the Base. This is a safety feature which will enable the appliance can only operable
when the cover is properly in place. Please do not intend to damage it.
d) Then connect the appliance to power supply.
e) Cut the boneless meat into small pieces and insert it through the feed, use the Food pusher
to press it if necessary. When the On button is depressed the meat will be minced within
seconds. Never overfill the bowl, particularly for beef, the max weight per time can be
processed cannot exceed 300g and the max running time cannot exceed 30 seconds, and
minimum 1 minutes rest time must be maintained between two consecutive cycles.

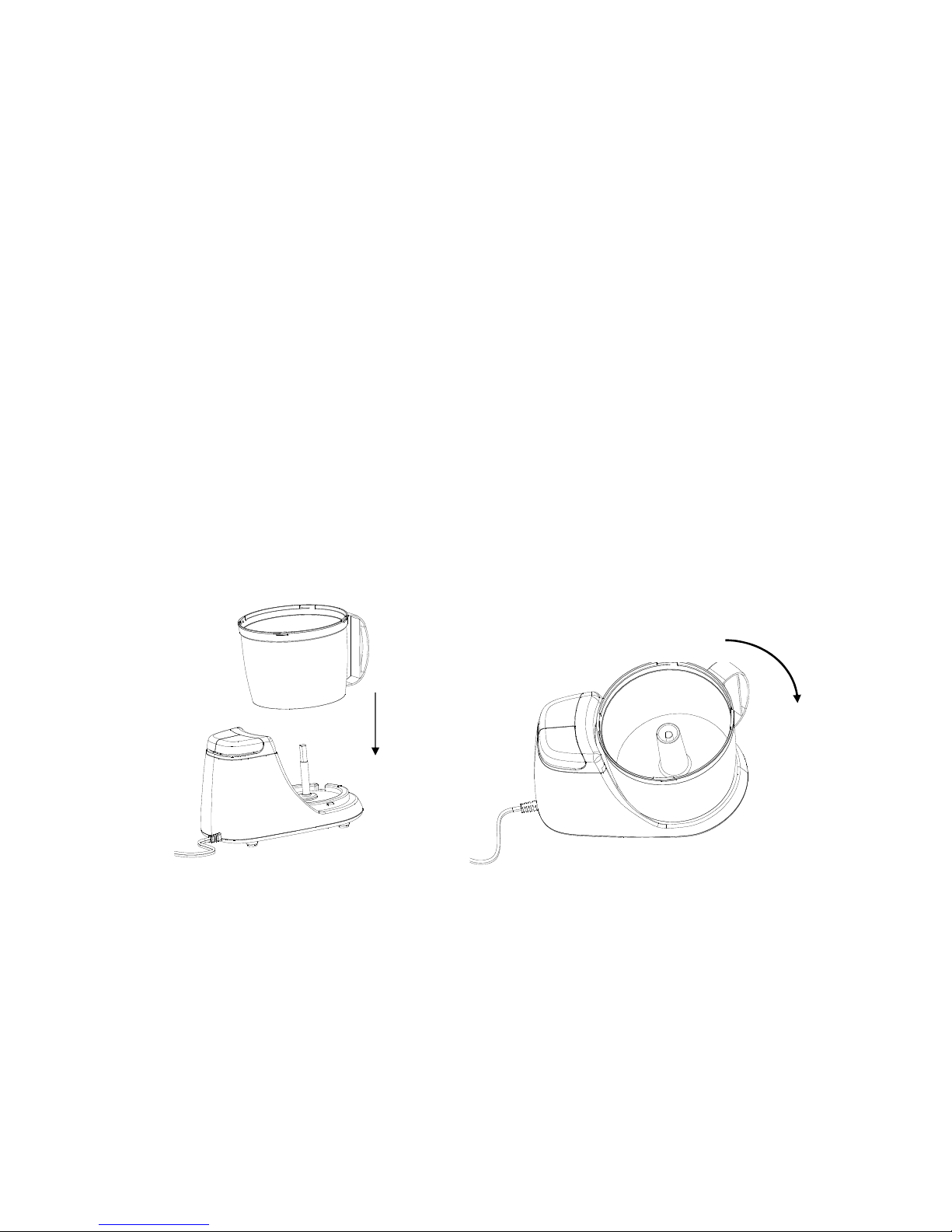

Fig 1 Fig 2
The bowl handle has been placed as illustrated
direction. Then turn it clockwise until the bowl has
engaged with the base.

5
Fig 3 Fig 4
Fig 5
2. slicin
g
a) Correctly position the bowl as illustrated above.
b) Assemble the Slicing disc on the Disc holder. Always align the right side with the Disc holder
first and then press down the left side of Slicing disc with a little force. See Fig 6. When
removing the disc, reverse the Disc holder as illustrated in Fig 7 and pressing the right side
of Slicing disc with force to release one side first.
c
)
Place the Disc holder into the center of bowl as illustrated in Fi
g
8 and then close the cover.
Make sure the cover is locked with the Base before operating.
d) Cut the vegetables like potato, carrots, into small cubes so that they can fit into the feed tube.
If the food is too large to fit into the feed tube never press it with force.
e) Pressing On to begin operation and the max running time cannot exceed 1 minutes, and
minimum2 minutes rest time must be maintained between two consecutive cycles.
3. shreddin
g
Operation is similar to that of slicing.
Turn the cover
clockwise until the
tab engaged into
theslotofBaseas
illustrated.

6

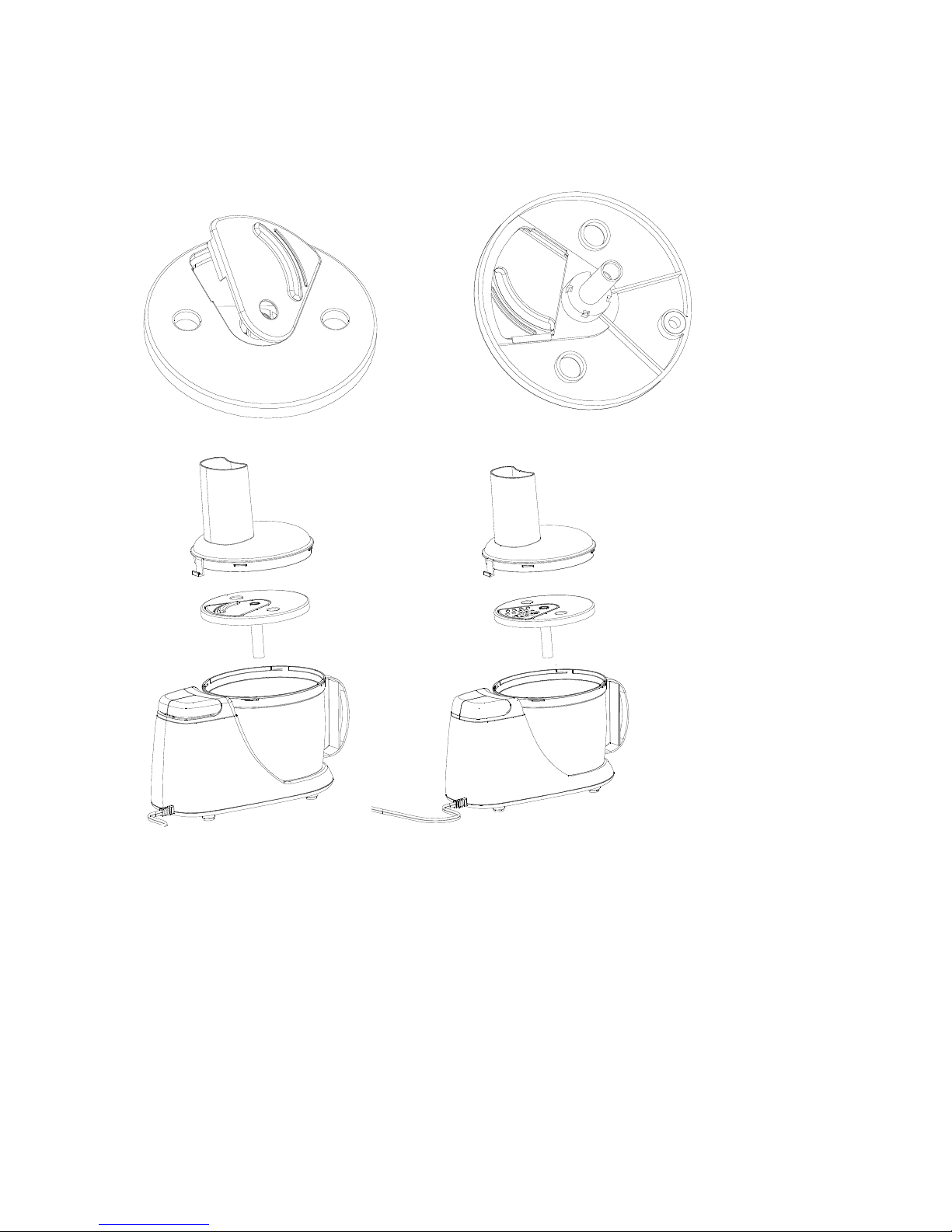

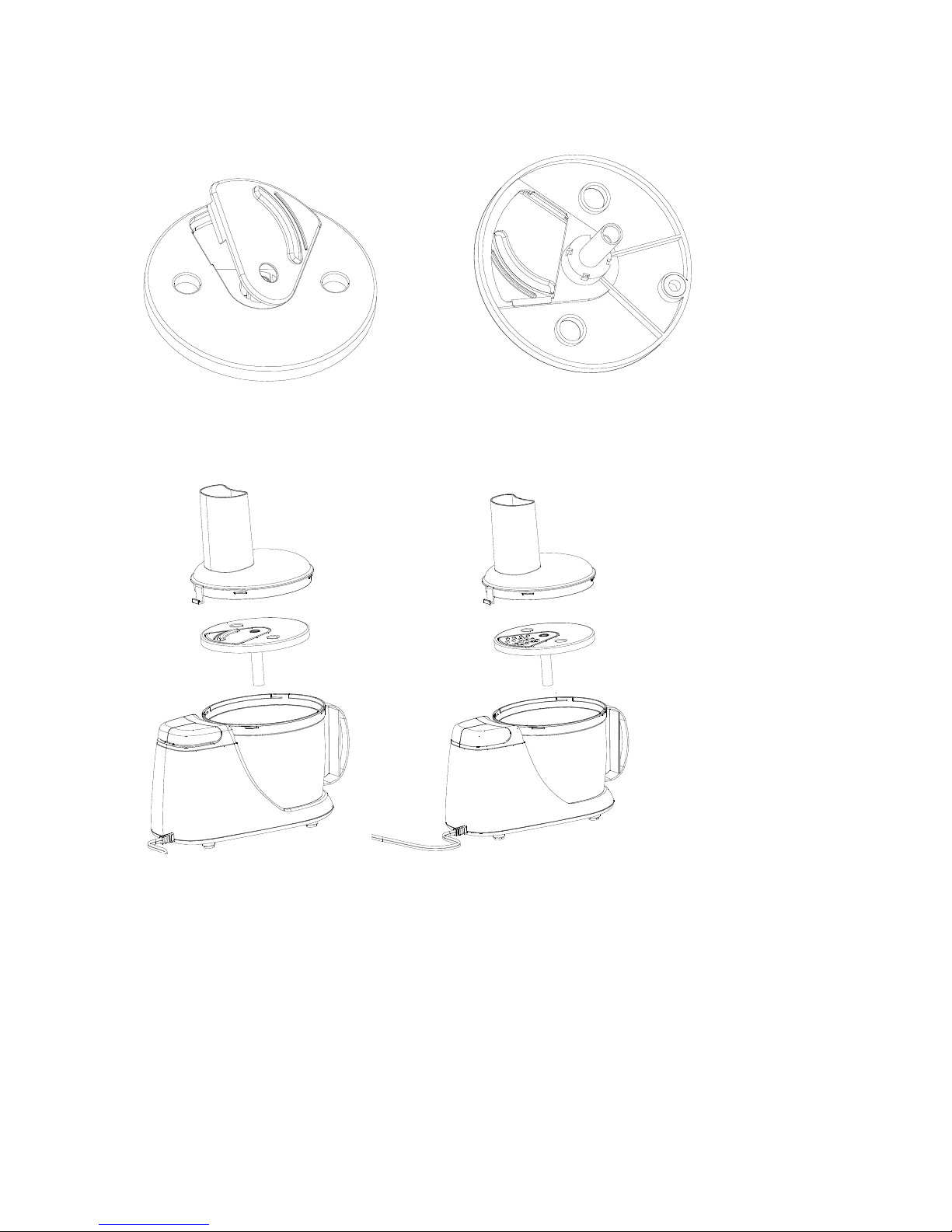

Fig 6 Fig 7
Fig 8 Fig 9
Cleaning and Maintenance
1. Switch off the appliance and disconnect the power supply before cleaning.
2. Empty the bowl and remove all attachment and immerse them in water for easier
cleaning except the Base. The shredding and slicing disc are dishwasher safe
component. Extreme caution must be taken when handling blade or disc as they
are very sharp.
3. wipe the outside of base with cloth and Never immerse it into water as electric
shock is possible to occur. Then dry thoroughly. Ensure the interlock area is free of

7
food particles
4. Some food ma
y
discolor the plastic of bowl. This is normal and will not harm the
plastic or effect the flavor of food. Rub with cloth dipped with vegetable oil to
remove discoloration.
Environment friendly disposal
WARRANTY: 2 YEARS

8
MEDIDAS DE SEGURIDAD IMPORTANTES
Antes de utilizar el aparato eléctrico, asegúrese de tomar
siempre las precauciones básicas, incluyendo las
siguientes:
1. Lea todas las instrucciones y guárdelo para futuras
consultas.
2. Antes de usar el aparato, compruebe que la tensión
de la toma de corriente corresponde a la que aparece en
la placa.
3. Si el cable de alimentación está dañado, debe ser
reemplazado por el fabricante o un agente de servicio
autorizado o un técnico cualificado con el fin de evitar
situaciones de peligro.
4.No permita que el cable cuelgue sobre el borde de la
mesa o en una superficie caliente.
5.Desconectar siempre la licuadora de la corriente
eléctrica si se deja desatendido y antes de montar,
desmontar o limpieza;
6.No utilice el aparato para otro motivo que para el que
está diseñado.
7. Este aparato no está diseñado para ser utilizado por
personas (incluidos niños) con capacidades físicas,
sensoriales o mentales reducidas, o falta de experiencia
y conocimiento, a menos que tengan supervisión o
instrucciones relativas al uso del aparato por una
persona responsable de su seguridad.
8.Los niños deben ser supervisados para asegurarse de
que no jueguen con el aparato.
ES
