WELCOMETOTHE AIPAS FAMILY
Please read this Owner’s Manual carefully before setting up your bicycle
and riding. You should become thoroughly familiar with the proper
operation of your Aipas eBike, its features, capabilities, and limitations. To
ensure a long, trouble-free life for your Aipas eBike, provide it with the
proper care and maintenance as described in this manual. Of course, it is
not practical or possible to warn you about all of the hazards associated
with operating or maintaining your Aipas eBike, for this, you must use
your own good judgment.
For replacement parts and accessories, you should always use Aipas
eBikes approved parts, as they have been specially
designed for your bicycle and manufactured to meet Aipas
eBikes’ demanding standards.
This manual should be considered a permanent part of your bicycle and
should remain with the bicycle when it is sold.
If you need any assistance, please do not hesitate to reach out to us.
CONTACT INFORMATION
Please record your bicycle’s serial number in the space below.

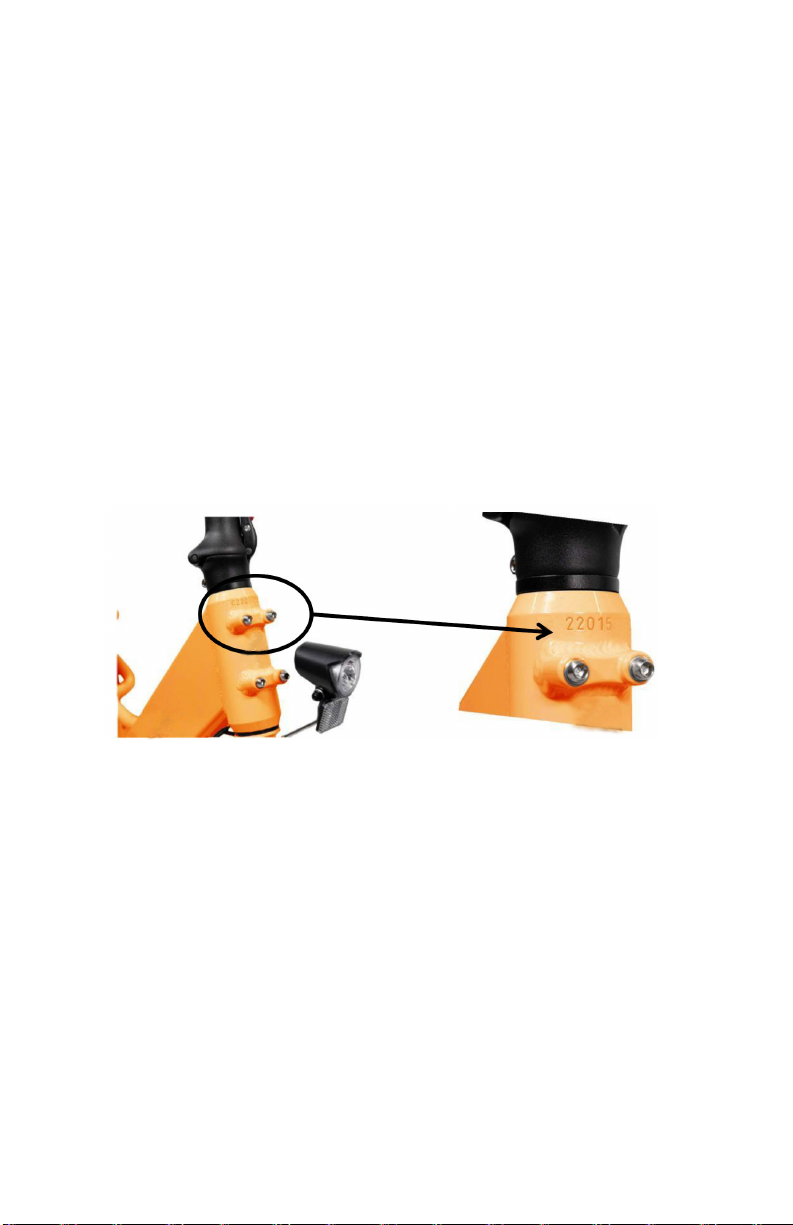

The serial number is located on the head tube of your bicycle.
Refer to “Serial Number” on page 17 for the location of the
serial num
Phone:(626) 702-6679
Website:www.aipasbike.com
ber.
SERIAL NUMBER
WWW.AIPASBIKE.COM
1
SAFETY
Read Owner’s Manual Before Riding
Read this entire owner’s manual before you take the first ride on your
new eBike and keep it for reference. This Ow ner’s Manual contains
important safety, performance, and service
information.
Like any sport, bicycling involves risk of injury and damage. By
choosing to ride a bicycle, you assume the responsibility of
that risk: you need to know and practice the rules of safe and
responsible riding as well as proper use and maintenance.
Proper use and maintenance of your bicycle reduces the risk of
injury. If you have any questions or do not understand any
aspect of using or maintaining your bike, take responsibility for
your safety and consult with your local bicycle shop, or contact
us for assistance.
This manual is not intended as a comprehensive use, service,
repair or maintenance manual. Please see your local bicycle
shop for all service, repairs, or maintenance. Your local
bicycle shop may also be able to refer you to classes, clinics,
or books on bicycle use, service, repair, and maintenance.
Your Aipas eBike is classified as an EPAC (Eccentrically Power
Assisted Cycle, otherwise known as a Pedelec), and is referred
to in this manual as a bicycle unless otherwise noted.
Regarding Regulations
It is the rider’s responsibility to obey the regulations that apply to
your Aipas eBike.
The regulations covering the use of your Aipas eBike vary by
state, and even municipality in certain locations. You must comply
with the local regulations related to the minimum age of the rider,
driver’s license, insurance, license plate, traffic, and maximum
speed regulations, and any other regulations. These
regulations may change at any time.
15
WWW.AIPASBIKE.COM
3
Intended Use
The intended use of your Aipas eBike is to be ridden by one
adult rider (age 18 and up) at an appropriate time and place
for general transportation and/or recreational use. Any other
use is prohibited and may result in SERIOUS INJURY or DEATH.
Your bicycle is NOT INTENDED for off-road or mountain bicycle
use, or for any kind of jumping. Some of these bicycles have
suspension features, but these features are designed only to
add comfort, not off-road capabilities.
Riders should be proficient cyclists (ages 18+), riding on paved
surfaces where the tires are always on the ground, on roadways,
or dedicated bicycle-only lanes where permitted by law (not on
pedestrian-use shared lanes or sidewalks). Your bicycle should
not be used to tow another bicycle. For trailer towing, consult this
Owner’s Manual and the trailer owner’s manual for towing
instructions and towing compatibility.
Safety Messages
To prevent serious injury or death:
•Read all safety warnings and all instructions.
•Always ride within your limits and the limits of your Aipas eBike.
•Bicycles are only for use by persons 18 years of age and
above.Riders must have the physical coordination,
reaction, and mental capabilities to control a bicycle and
manage traffic, in addition to managing road conditions and
sudden situations with respect to the laws and instructions
governing bicycle use. Persons with any mental or physical
conditions that may make them susceptible
to injury, impair their physical dexterity or mental capabilities
to recognize, understand, and follow safety instructions—or
understand the hazards inherent to its use—should not use
or be permitted to use products inappropriate for the ir
abilities.
WARNING!
15
WWW.AIPASBIKE.COM
4
•Never ride under the influence of drugs and/or alcohol.
•Consult a doctor before using the bicycle if you have any
medical condition or issue that affects your ability to safely
perform physical activities, or if you:
。are or may be pregnant;
。have heart, respiratory, back, joint, or other
orthopedic conditions;
。have high blood pressure;
。have difficulty with physical exercise; or
。have been instructed to restrict physical activity.
•Always keep small parts away from children. Some eBike
accessories may present a choking hazard to small children.
•Never modify your frame or bicycle in any way. Do not sand,
drill, file, or remove parts from your bicycle. Do not install
incompatible components or hardware.
•Always use proper lifting techniques to prevent injury. Your
eBike may be significantly heavier than a bicycle without a
battery pack and a motor.
•Take responsibility for your own SAFETY. If you have any
questions or do not understand any aspect of using or
maintaining your bicycle, contact Aipas eBikes at contact
service@Aipasbike.com or call (626) 702-6679.
Riding at Night
Riding at night comes with more risks than riding during the
day due to decreased visibility; riders are encouraged to
exercise increased caution in
•
nighttime conditions.
•Turn lights ON for safety. For increased visibility, ensure that
the front headlight and rear taillight are turned ON and adjusted
such that other people on the road can see them clearly. Also
check your front and rear wheel reflectors.
Riders should wear reflective clothing at night. You may want
to attach additional flashing lights to your clothing or
•
helmet.
WWW.AIPASBIKE.COM
5
Helmets
•Always wear a helmet. Wearing a helmet properly may reduce
the risk of a severe head injury. When riding, always wear a
helmet that meets or exceeds the standards of the Consumer
Product Safety Commission (CPSC). Check the manual that
comes with your helmet.
•Ensure your helmet fits your head and is properly secured. If
you attach a child’s seat to the bicycle, the child must wear a
properly fitted helmet at all times.
•Read your helmet manual to make sure it is adjusted
properly according to the fitting instructions provided by the
helmet manufacturer.
•A proper-fitting helmet should be comfortable and should
neither rock forward/backward nor side to side.
Follow eBike Regulations On and Off the Road
•Be aware of eBike regulations in your area. Generally, the
regulations for the use of an electric bicycle are the same
as those for a standard bicycle. However, there may be local
differences such as where you can ride, minimum rider age, or
required equipment and license and registration regulations. It
is your responsibility to know the local regulations that apply to
an electric bicycle and to obey them.
Ride at Your Own Risk and Use Common Sense
•Always keep both hands on the handlebar grips and the
brake levers so they are within reach while riding.
•Do not ride distracted. Always remain alert to all riding
conditions. Using the Display or other technology (including your
mobile phone or music player) could distract you from riding.
Only adjust the Display when stationary and in a safe start-up
position.
•Never use headphones or a cellphone to talk or text when riding.
•Always ride defensively. Watch out for potential obstacles that
could force you to swerve suddenly or lose control. Braking
while steering may reduce your ability to control your bicycle.
15
WWW.AIPASBIKE.COM
6
•Stop pedaling well before approaching corners to avoid
entering a corner too quickly. You should also pay particular
attention to terrain conditions as you may approach obstacles
faster than expected.
•Look ahead and brake sooner. You may be moving faster on
your eBike, and it may be heavier compared to a bicycle, which
means you may need to react and brake sooner when riding. Other
road users may not expect you to be traveling at higher speeds.
Riding faster may increase your risk of a crash.
Riding in Wet Conditions
Use caution when riding in wet conditions as it will take longer
to brake and to stop. Your tires may slip when turning. Ris k of
•
a crash is dramatically increased in wet conditions.
• Your electric bicycle can withstand light rain and small
splashes, but it is not designed to be subjected to inclement
weather, extremely heavy showers, or submersion in water. The
electric bike’s components have an IP rating of 65. Water
damage is not covered under the warranty.
Cargo and Electric Bike Safety
Cargo bikes handle differently than non-cargo bikes. Weight
distribution is most important for a safer experience on cargo
bikes. The payload is the total weight being carried on a cargo
bike and should be distributed across the cargo bike. When
carrying cargo that is not a passenger, it is best to position wei ght
as low on the bike as possible is best for handling. Also, utilizing
the front rack for some weight will help balance out large loads in
the rear of the bike and improve handling. The A6 has weight
carrying capabilities on the rear rack and front head tube rack
mount.
NEVER exceed the maximum total weight limit of 480 lbs (217
kg). The rear rack can hold a maximum of 300 lbs (136 kg). The
front rack can hold a maximum of 35 lbs (15 kg ). And, the rider
maximum weight is 445 lbs (202 kg).
See acceptable examples of weight distribut ion below.
WWW.AIPASBIKE.COM
7
Pre-Ride Safety Checklist
Aipas eBikes recommends going through each item on the pre-
ride safety checklist before and after each ride. Spending time
to make sure all of the bike’s components are in good working
order before a ride is a crucial step along the way to a safe
and fun ride.
This checklist is not intended to function as a detailed service
manual. Be sure to read your entire owner’s manual before riding
or repairing your bike. If you do not have the expertise required to
perform any of these checks, Aipas eBikes recommends having
your local bike shop mechanic perform a detailed safety check
of your bike in regular intervals. Ensure your local mechanic is
experienced and reputable.
口Before each ride, inspect your eBike for
damage. If damage is found, do not ride.
□Verify that the front and rear axles are secure.
口Check that the front and rear tire pressure is
within the recommended pressure range
printed on the tire sidewall.
口Pull the brake levers to ensure the brakes are
working properly and adjust if necessary.
口Visually inspect the bike for damage or anything
out of the ordinary.
口Turn on the lights, especially if riding at night.
口Make sure all hardware is tightened to the
recommended torque specifications found in
“Tightening Torque” on
page 27 of the owner’s manual.
口Verify that the stem folding latch is securely closed
and locked.
口Making sure adjustable stem is closed and
locked and that all hardware is tightened to torque
spec found in “Tightening Torque” on page 27.
WWW.AIPASBIKE.COM
9
Check that the seat post is inserted past the
minimum insertion point. The minimum insertion
point is labeled on the seat post.
Check that the seat post collar and clamp are
closed and tightened to 20 Nm (labeled as Seat
Rail Binder in “Tightening Torque” on page 27) or
till it leaves an impression on your hand.
Check that the seat cannot be twisted out of
position, and set the height to a safe position that
makes it easy to mount and dismount the bike.
Verify the quick-release pedals are locked in place.
Check the condition of the chain to see if it
needs cleaning or lubrication.
Wear a helmet and high visibility clothing.
Only carry the cargo you need. More weight will drai n the
NEVER exceed the maximum total weight limit of
480 lbs (204 kg). The rear rack can hold a maximum
of 300 lbs (136 kg). The front rack can hol d a
maximum of 35 lbs(15 kg). And, the rider maximum
weight is 330 lbs (150 kg). As an example, if you
have 40 lbs (18 kg) of cargo, then the maximum
weight of the rider remains 330 lbs (131 kg).
battery faster and affect how the bike handles.
Ensure all components are properly secured.
Make sure your battery is fully charged.
WWW.AIPASBIKE.COM
10
Warning Labels
There are warning labels on your Aipas eBike for your
protection. If a label is missing or is not legible, contact
Aipas eBikes for a replacement.
Stem label
Class 3Class 2 label label
States that recognize three classes of eBikes require a label to be
placed on the bicycle denoting the class of your Aipas eBike, the
motor’s wattage rating, and the top speed of your Aipas eBike. Your
bicycle comes as a Class 2 bi cycle by default and has a label with
this information posted under the carry handle, near the seat post
on the bicycle.
If you change your bicycle’s top speed, you must remove this
label from the bicycle and replace it with a Class 3 label,
detailing your Aipas eBike’s class, top pedal-assisted speed, and
motor wattage.
WWW.AIPASBIKE.COM
11
Warnings, and Caution Statements
This Manual contains many “Warnings” and “Cautions”
concerning the consequences of failure to maintain or inspect
your bicycle and of failure to follow safe cycling practices.
DANGER
WARNING
CAUTION
NOTICE
Indicates a hazardous situation that, if
not avoided,will result in death or
serious injury.
The combination of the safety alert
symbol and the word WARNING indicates
a hazardous situation that, if not avoided,
could result in death or serious injury.
The combination of the safety alert
symbol and the word CAUTION indicates a
hazardous situation that, if not avoided,
could result in minor or moderate injury,
or is an alert against unsafe practices.
The word CAUTION used without the
safety alert symbol indicates a situation
which, if not avoided, could result in
serious damage to the bicycle or the
voiding of your warranty.
Indicates information considered
important, but not hazard-related (e.g.
messages relating to property damage).
Symbol Index
Safety Alert Symbol. This symbol is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible serious injury or
death.
Safety Alert Symbol. Read, understand, and
follow the warnings and instructions in this
manual.
WARNING!
WWW.AIPASBIKE.COM
12
STARTING
Your bicycle comes fully assembled. These instructions are
intended to assist you in setting up and getting familiar w ith
your new bicycle.
After you make your first adjustments and inspect your
bicycle, we recommend seeking professional help from a
reputable and certified bicycle mechanic to check your
bicycle before your first ride.
Before removing the packaging material from your bicycle,
remove allitems from the box and make sure you have the
following:
In the box:
Aipas
A6 eBike
Aipas A6
eBike Charger
2 Battery Keys
per battery
WWW.AIPASBIKE.COM
14
If anything is missing or is damaged, contact Aipas
eBikes immediately for assistance.
For a video about how to setup your bicycle, visit our
YouTube page: Aipas eBikes
Serial Number
Your serial number is located on the head tube of the
bicycle as shown below. Please write it down inside the
front cover of this manual.
You may be asked for your bicycle’s serial number as part of a
warranty request. You may also be asked to provide this
number to law enforcement if your bicycle is stolen.
Setting Up Your eBike
NOTE: This manual is not intended to be an extensive
reference book about service, maintenance, and/or
repairs. You can find more information on our website:
Aipasbike.com
WWW.AIPASBIKE.COM
15

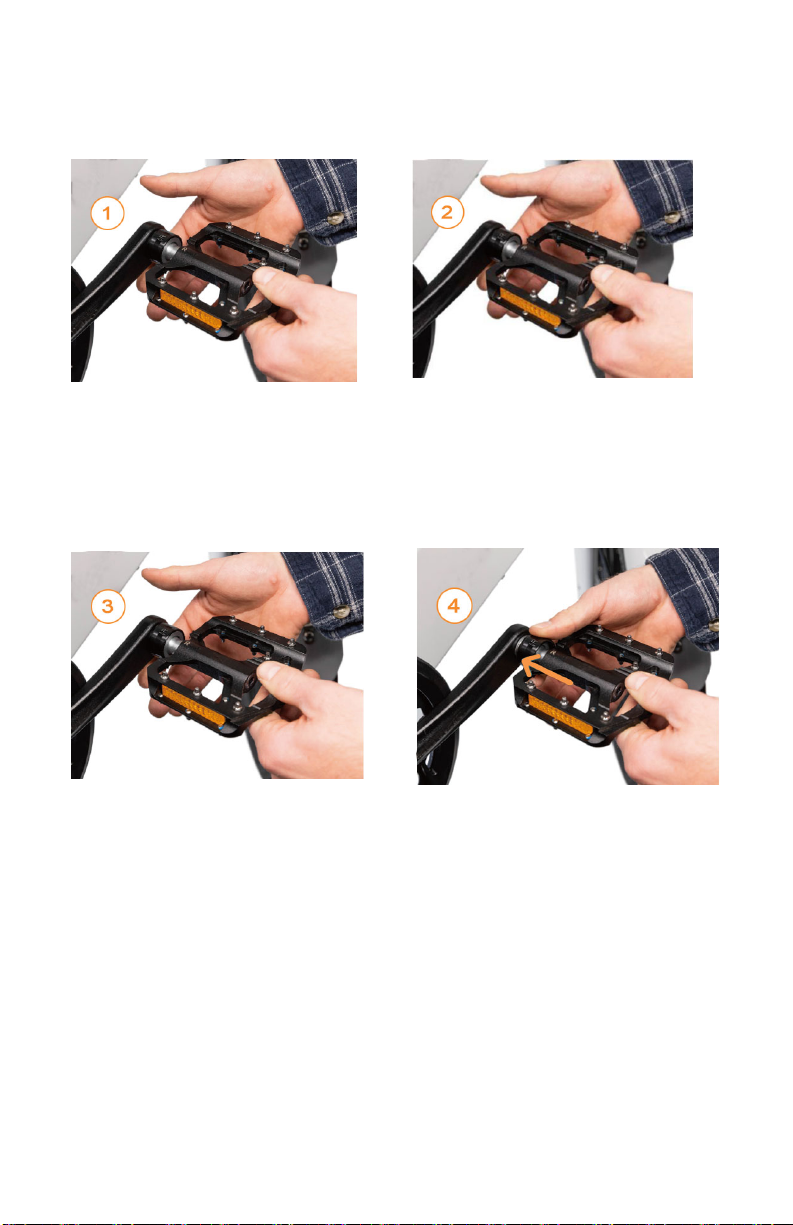

Removing Pedals
Pull the spring-loaded sleeve while also pulling the pedal
out from the hex slot.
Inserting Pedals
1. Pull the spring-loaded
sleeve and insert the pedal
axle while aligning the hex
pattern.
2. Be sure the sleeve
retracts, and give the
pedals a small tug to ensure
they are locked in.
WWW.AIPASBIKE.COM
16
Unfold the Stem
To unfold and secure in riding position:
1. Begin with handlebars in the folded down position.
2. Simply unfold the stem upward and press the l atch inward
until there is an audible click.
3. Give the latch a tug to ensure it is locked in pl ace.
If the latch does not stay, please contact the Aipas
Customer Service department for adjustment instructions.
WWW.AIPASBIKE.COM
17
Unlock the Stem Lever
1. Push the stem safety button up, toward the LCD display.
2. Keep the safety button pushed, as you pull the stem lever
away from the stem.
Lock the Stem Lever
1. To lock, push the stem lever down until you hear an audible click.
Ensure the stem lever is locked, by giving it a small tug.
WWW.AIPASBIKE.COM
19
Table of contents
