Air TEc SUTO S211 Manual
English
Instruction and Operation Manual
S211/S215/S220
Dew Point Transmitter
2
S211/S215/S220
Dear Customer,
Thank you for choosing our product.
The operating instructions must be read in full and carefully observed
before starting up the device. The manufacturer cannot be held liable
for any damage which occurs as a result of non-observance or non-
compliance with this manual.
Should the device be tampered with in any manner other than a
procedure which is described and specified in the manual, the warranty
is cancelled and the manufacturer is exempt from liability.
The device is destined exclusively for the described application.
SUTO offers no guarantee for the suitability for any other purpose.
SUTO is also not liable for consequential damage resulting from the
delivery, capability or use of this device.
S211/S215/S220
3
Table of contents
1 Safety Instructions..................................................................................................... 4
2 Registered Trademarks ............................................................................................ 6
3 Application ..................................................................................................................... 7
4 Features.......................................................................................................................... 7
5 Technical Data.............................................................................................................. 8
5.1 General ...................................................................................................................8
5.2 Electrical Data...................................................................................................... 9
5.3 Output Signals ..................................................................................................... 9
5.4 Accuracy...............................................................................................................10
6 Dimensional Drawing ..............................................................................................11
7 Determination of the Installation Point............................................................13
8 Installation...................................................................................................................14
8.1 Installation Requirements.............................................................................14
8.2 Installation Procedure.....................................................................................15
8.3 Electrical Connection.......................................................................................19
8.4 Connection between S211/S215/S220 and Customer Equipment
................................................................................................20
9 Signal Outputs ...........................................................................................................22
9.1 Analog Output....................................................................................................22
9.1.1 Scaling..........................................................................................................22
9.2 Modbus/RTU Interface....................................................................................22
9.2.1 Holding Register Table for Modbus/RTU .........................................23
9.2.2 Connect Modbus/RTU Devices to a Master ....................................26
10 Optional Accessories .............................................................................................30
10.1 Measuring Chambers....................................................................................30
10.2 Service Kit.........................................................................................................30
11 Calibration.................................................................................................................30
12 Maintenance .............................................................................................................31
13 Disposal or Waste ..................................................................................................31
4
S211/S215/S220
1 Safety Instructions
Please check if this instruction manual matches with the
product type.
Please observe all notes and instructions indicated in this
manual. It contains essential information which must be
observed before and during installation, operation and
maintenance. Therefore this instruction manual must be read carefully
by the technician as well as by the responsible user or qualified
personnel.
This instruction manual must be available at the operation site of the
Dew Point Transmitter at any time. In case of any obscurities or
questions, regarding this manual or the product, please contact the
manufacturer.
WARNING!
Compressed air!
Any contact with quickly escaping air or bursting
parts of the compressed air system can lead to
serious injuries or even death!
•
Do not exceed the maximum permitted pressure range (see
sensors label).
•
Only use pressure tight installation material.
•
Avoid that persons get hit escaping air or bursting parts of the
instrument.
•
The system must be pressure-less during maintenance work.
WARNING!
Voltage used for supply!
Any contact with energized parts of the product, may
lead to a electrical shock which can lead to serious
injuries or even death!
•
Consider all regulations for electrical installations.
•
The system must be disconnected from any power supply during
maintenance work.
•
Any electrical work on the system is only allowed by authorized
qualified personal.
S211/S215/S220
5
1
S
ATTENTION!
Permitted operating parameters!
Observe the permitted operating parameters, any
operation exceeding this parameters can lead to
malfunctions and may lead to damage on the
instrument or the system.
•
Do not exceed the permitted operating parameters.
•
Make sure the product is operated in its permitted limitations.
•
Do not exceed or undercut the permitted storage and operation
temperature and pressure.
General safety instructions
•
It is not allowed to use the product in explosive areas.
•
Please observe the national regulations before/during installation
and operation.
Remarks
•
It is not allowed to disassemble the product.
•
Always use spanner to mount the product properly.
ATTENTION!
Measurement values can be affected by malfunction!
The product must be installed properly and
frequently maintained, otherwise it may lead to
wrong measurement values, which can lead to
wrong results.
6
S211/S215/S220
Storage and transportation
•
Make sure that the transportation temperature of the instrument is
between -30 ... +70°C.
•
For transportation it is recommended to use the packaging which
comes with the instrument.
•
Please make sure that the storage temperature of the instrument
is between -20 ... +50°C.
•
Avoid direct UV and solar radiation during storage.
•
For the storage the humidity must be <95% rH, no condensation.
2
Registered Trademarks
SUTO®
Registered trademark of SUTO iTEC
MODBUS®
Registered trademark of the Modbus Organization, Hopkinton, USA
HART®
Registered trademark of the HART Communication Foundation, Austin,
USA
S211/S215/S220
7
3
Application
The S211 / S215 / S220 are three industrial Dew Point Transmitters
designed for measuring dew point and related parameters in
compressed air or industrial gases under specified operating conditions
(See next page ).
Parameter Default unit
Temperature °C
Humidity % rH
Dew point °C Td
Pressure (optional) bar(g)
Remark: You can change the units using the service kit
(optional) and the S4C-DP software.
The S211 / S215 / S220 Dew Point Transmitters are mainly used in
compressed air systems in the industrial environment, and not
developed to be used in explosive areas. To use them in explosive
areas, contact the manufacturer.
4
Features
•
Three Dew Point Transmitter models applicable for different
measuring ranges:
•
S211 measures down to -60°C Td
•
S215 measures down to -20°C Td
•
S220 measures down to -100°C Td
•
Optional display for on-site values. The display can be rotated
340° horizontally to ease your access to readings.
•
Various signal output options: 4 ... 20 mA 2-wire, 4 ... 20 mA 3-
wire, or 4 ... 20 mA 3-wire + Modbus/RTU.
•
Optional integrated pressure sensor.
•
IP65 casing provides robust protection in rough industrial
environment.
•
Very fast response time ensures safe and reliable indication
whenever dew points are out of valid ranges.
•
High accuracy of ± 2°C Td dew point.
8
S211/S215/S220
5
Technical Data
5.1 General
Parameters
Standard unit dew point: °C Td
Standard unit temperature: °C
other units: °F, K
Standard unit humidity: % rH
Standard unit pressure: bar (g)
Principle of measurement
Capacitive method and frequency method
Measuring range
Type
Range
S215
Dew point : -20 ... +50°C Td
Relative Humidity : 0 ... 90 % rH
Temperature : -30 ... +70°C
Pressure (option) : 0 ... 1.6 MPa
S211
Dew point : -60 ... +20°C Td
Relative Humidity : 0 ... 90 % rH
Temperature : -30 ... +70°C
Pressure (option) : 0 ... 1.6 MPa
S220
Dew point : -100 ... +20°C Td
Relative Humidity : 0 ... 90 % rH
Temperature : -30 ... +70°C
Pressure (option) : 0 ... 1.6 MPa
Sensor
S215 / S211: Polymer
S220: QCM + Polymer
Temperature sensor: Pt100
Pressure sensor: Piezo resistive type
Measuring medium
Air, Argon, O2, N2, CO2*
Response time (T90)
@4 l/min
S215
0 °C Td →-20 °C Td ≤50 sec
-20 °C Td →0 °C Td) ≤35 sec
S211
0 °C Td →-60 °C Td ≤ 280 sec
-60 °C Td →0 °C Td ≤65 sec
S220
0 °C Td →-80 °C Td ≤ 420 sec
-80 °C Td →0 °C Td ≤90 sec
S211/S215/S220
9
Ambient temperature
0 ... +50°C
Ambient humidity
0 ... 95% rH
Operating pressure
-0.1 ... 1.6 MPa
-0.1 ... 35.0 MPa optional for S215 / S211
Casing material
Casing: Aluminium alloy
Process thread: Stainless steel 1.4301 (SUS
304)
Display cover: PC + ABS
Protection class
IP65
Display (optional)
0.66” OLED display for displaying the
measured value and unit
340° horizontally rotatable**
Dimensions
See dimensional drawing on the page 11
Screwing thread
G ½” thread (ISO 228/1)
Weight
180 g
* For CO2, the measurement range of S211 is limited to -40°C Td
** The rotation force cannot exceed 3.0 N.m
5.2 Electrical Data
Power supply
15 ... 30 VDC
Current consumption
2-wire: 4 ... 20 mA
3-wire: 40 mA @ 24 VDC
3-wire with display: 50 mA @ 24 VDC
5.3 Output Signals
Analog output
4 ... 20
mA 3-wire or 4 ... 20 mA
2-wire
Analog output scaling
Type
Scaling
S211
4 mA
=
-60°C Td
20 mA
=
+20°C Td
S215
4 mA
=
-20°C Td
20 mA
=
+50°C Td
S220
4 mA
=
-100°C Td
20 mA
=
+20°C Td
Modbus output
Modbus/RTU
10
S211/S215/S220
Modbus communication
Mode: RTU
Baud rate: 19200
Device address: last 2 digits of serial number
Framing / parity / stop bit: 8 / N / 1
Response time: 1 second
Response delay: 0 ms
Interframe spacing: 7 char
5.4 Accuracy
Accuracy
Dew point:
±
1 °C Td (0 ... 20°C Td)
±
2 °C Td (-70 ... 0 / +20 ... +50 °C Td)
±
3 °C Td (-100 ... -70 °C Td)
Temperature: ± 0.3°C
Pressure: 0.5% FS
Repeatability of dew point
±0.5 °C
Stated accuracy at
Ambient/process temperature 23 °C ± 3 °C
Ambient/process humidity <95% rH, no
condensation
Airflow > 2 l/min at sensor tip
Flow rate
In order to reach a fast response time please
ensure a flow rate of 2... 5 l/min at the
sensor tip.
Note:
If the Measuring chamber A699 3491 is used,
this flow rate will be maintained by the
chamber at a pressure > 0.3 MPa.
S211/S215/S220
13
7
Determination of the Installation Point
In order to maintain the accuracy stated in the technical data, the
device must be installed correctly. The gas must flow on to the sensor
tip, otherwise it will lead to wrong measurement values. For further
instructions, please read chapter 8 carefully.
Please consider that enough space exists at your site for a convenient
installation.
ATTENTION!
Wrong measurement is possible if the instrument is
not installed correctly.
•
The device is for indoor use only! At an outdoor installation, it
must be protected from solar radiation and rain.
•
It is strongly recommend not to install S211 / S215 / S220
permanently in wet environment, which usually exists right after a
compressor outlet.
14
S211/S215/S220
8
Installation
Before installing the device, make sure that all components listed below
are included in your package.
Qty
Description
Item no. (Model dependent)
1
Dew Point Transmitter
S215 S211 S220
S699 1215 S699 1211 S699 1220
S699 2215 S699 2211 S699 2220
S699 3215 S699 3211 S699 3220
S699 4215 S699 4211 S699 4220
1
Depending on orders:
M12 plug or M12 cable
Plug: C219 0059
Cable: A553 0104/A553 0105
1
Instruction manual
No P/N
1
Calibration certificate
No P/N
Remark: The item number of the model varies depending on the
chosen measurement range and signal output.
8.1 Installation Requirements
The flowing air or gas must pass the sensor tip for a proper
measurement. This can be realized with a measurement chamber.
For an installation without the measuring chamber, you must insert the
device to the required depth, as described in section 8.2.
Remark:
The 3 Dew Point Transmitters models S211, S215 and S220 are offered
in different versions. Depending on the version the options might be
different, please see below table for an overview about the different
models, their signal output and available options.
Dew Point Transmitter versions
S699 1xxx Dew Point Transmitter with 2-wire analog & SDI output
S699 2xxx Dew Point Transmitter with 3-wire analog & SDI output
S699 3xxx Dew Point Transmitter with 3-wire analog & Modbus/RTU
output
S699 4xxx Dew Point Transmitter incl. integrated pressure sensor with
3-wire analog & Modbus/RTU output
S211/S215/S220
15
Options
A1381 High pressure option 0... 35.0 MPa (only available for S215 &
S211, not available for S699 4xxx versions)
A1387 OLED Display option for 3-wire Analog version
(only for S699 2xxx)
A1388 OLED Display option for 3-wire Analog & Modbus version
(only for S699 3xxx & S699 4xxx)
In any case, if you need support to choose the right model for your
application, please feel free to contact SUTO sales support.
8.2 Installation Procedure
The following steps explain the procedure of an appropriate installation.
Installation with the measurement chamber A699 3491
1. Mount the device on the
measurement chamber by
using the G1/2” connection.
2. Make sure the device is tightly
sealed, therefore the sealing
ring on the Dew Point
Transmitter must be used.
3. Connect the measuring
chamber to the compressed
air system using a quick
connector. Make sure the Dew
Point Transmitter is screwed
on the chamber before
connecting.
The measurement chamber
will create a purge flow.
16
S211/S215/S220
Installation with the by-pass measurement chamber A699 3493
For the model A699 3493, there are two installation methods:
Method 1: Full pass through by-pass installation
This method is to be used when the full air flow is passing through the
measuring chamber.
1. Connect the inlet of the chamber using a 6 mm teflon hose to your
system.
Note: The full flow must pass the measuring chamber. Ensure a
certain flow rate to get fast response time.
2. Connect the outlet of the chamber to your system using the 6 mm
hose quick connector.
See below figure for details.
S211/S215/S220
17
Method 2: By-pass installation
Note : In order to use the measurement chamber in a by-pass you
must ensure a pressure difference between P1 and P2 as indicated in
the picture below.
1. Connect the inlet of the chamber to your pipe system.
2. Connect the outlet of the chamber to your pipe system where the
pressure is known to be lower than the inlet pressure.
Note : The pressure difference P1 > P2 is needed to create a by-pass
flow through the chamber. If there is no pressure difference between P1
and P2, there will be no flow through the chamber and therefore the
response time will be very slow or the device will not even respond at
all to the dew point changes.
18
S211/S215/S220
Installation without the measurement chamber
•
Install the device only if
the system is pressure-
less.
•
Please check the size of
the nozzle and make sure
not less than 1/3 of the
sensor tip is inside of the
pipe.
Full flow installation. The sensor is in
the pipe.
•
The inner thread must be
G 1/2”.
Remarks
Please install the device only in
the recommended area, as
shown in the left picture.
The angle between the device
and the centre vertical line of the
tube must be greater than 30°.
An upside down installation is not
permitted.
Removal of the Dew Point Transmitter
Unscrew the device off the measurement chamber or from the nozzle.
Please make sure that the system is pressure-less before the Dew Point
Transmitter is removed.
S211/S215/S220
19
B
B
8.3 Electrical Connection
Connection pins of the M12 plug
Connection pins
(View onto the connector)
Pin assignment of the M12 plug
Dew Point Transmitter versions: S699 1215 / S699 1211 / S699
1220
Output signal: 2-wire analog output and SDI
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
SDI -V
(Analog loop)
+V
(Analog loop) N/A N/A
Brown White Blue Black Gray
Dew Point Transmitter versions: S699 2215 / S699 2211 / S699
2220
Output signal: 3-wire analog output and SDI
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
SDI -VB+V +Ia
4 … 20 mA
Brown White Blue Black Gray
Dew Point Transmitter versions: S699 3215 / S699 3211 / S699
3220 / S699 4215 / S699 4211/ S699 4220
Output signal: 3-wire analog output and Modbus/RTU
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
+Ia -V
4 … 20 mA +V D+
Modbus/RTU
D-
Modbus/RTU
Brown White Blue Black Gray
B
B
B
NA
20
S211/S215/S220
Legend to pin assignment
SDI
Digital signal (internal use)
+la
Active 4 …20 mA signal
-VB
Negative supply voltage
NA
Not applicable
+VB
Positive supply voltage
D+
Modbus/RTU data +
D-
Modbus/RTU data -
ATTENTION!
Do not screw the M12 plug using force. Otherwise, it
may damage the connecting pins.
8.4 Connection between S211/S215/S220 and Customer
Equipment

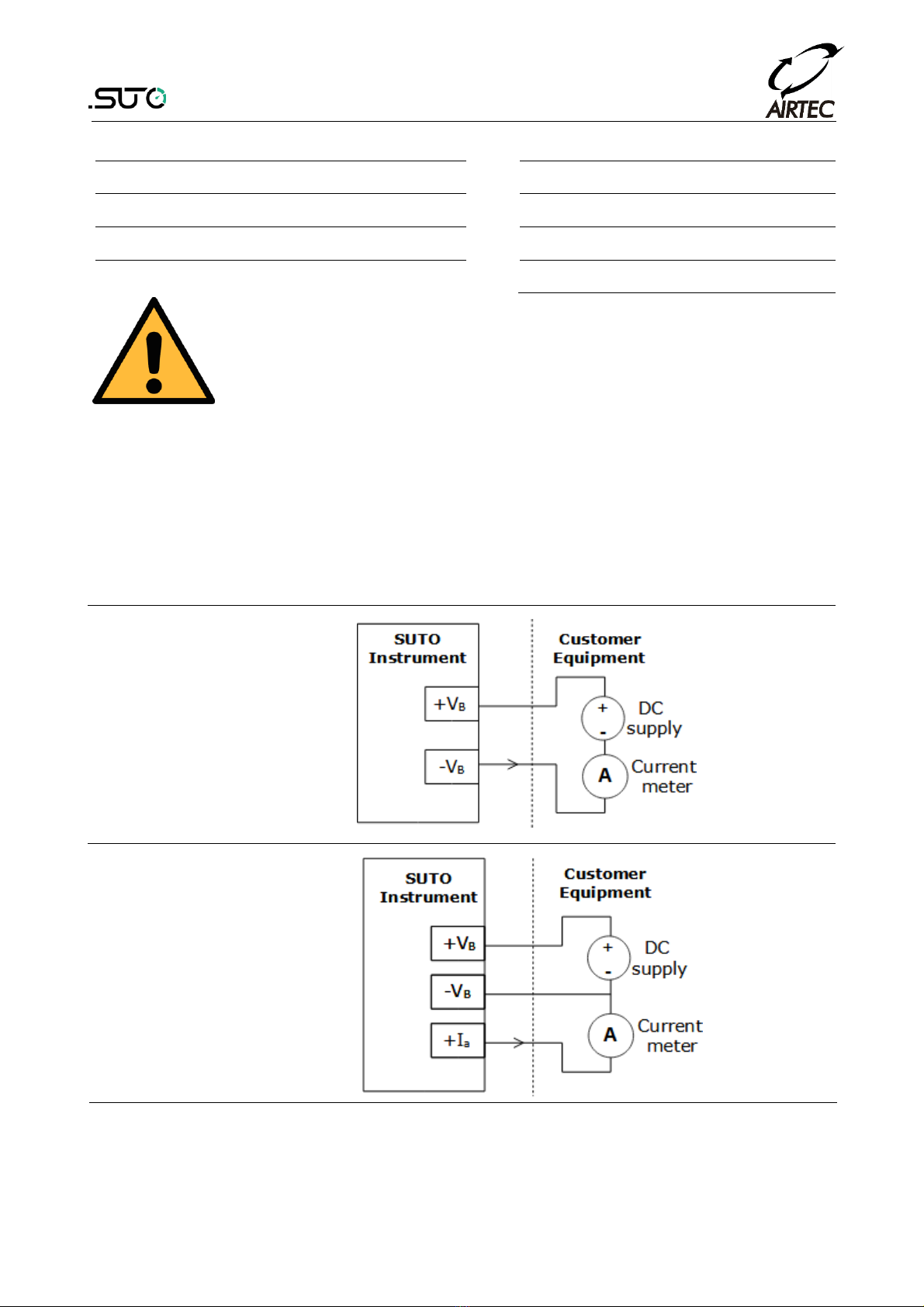

This section provides figures to show how outputs supported by the
S211/S215/S220 connect with the customer equipment.
In the following figures, the SUTO instrument indicates the
S211/S215/S220.
2-wire analog output
3-wire analog output
This manual suits for next models
2
Table of contents
