CHAPTER 3
LEVEL 2 MAINTENANCE
SECTION I LEVEL 2 MAINTENANCE OF THE SOLR®100% OXYGEN MASK
DISASSEMBLY/REPLACEMENT OF OXYGEN COMPONENTS
•Repair of component parts is limited to replacement of assemblies.
•Replace all assemblies that exhibit excessive wear such as; scratches, scores or otherwise damaged
surfaces that contact seals.
•Certain maintenance and repair procedures do not require complete disassembly of the oxygen mask.
NOTE
EXCESSIVE WEAR IS DEFINED AS ANY OBVIOUS DETERIORATION OR
DEFORMATION THAT MAY RENDER THE BAILOUT BOTTLE
INOPERATIVE. WHEN SERVICEABILITY OF A COMPONENT IS IN
DOUBT – REPLACE QUESTIONABLE COMPONENT.
Replacement of Exhaust Valve
NOTE
THE LOCKING WIRE MAY BE REMOVED BY OTHER MEANS, I.E.
PLIERS, IF AVAILABLE.
1. Using a knife, remove the locking wire from the exhaust cover and discard.

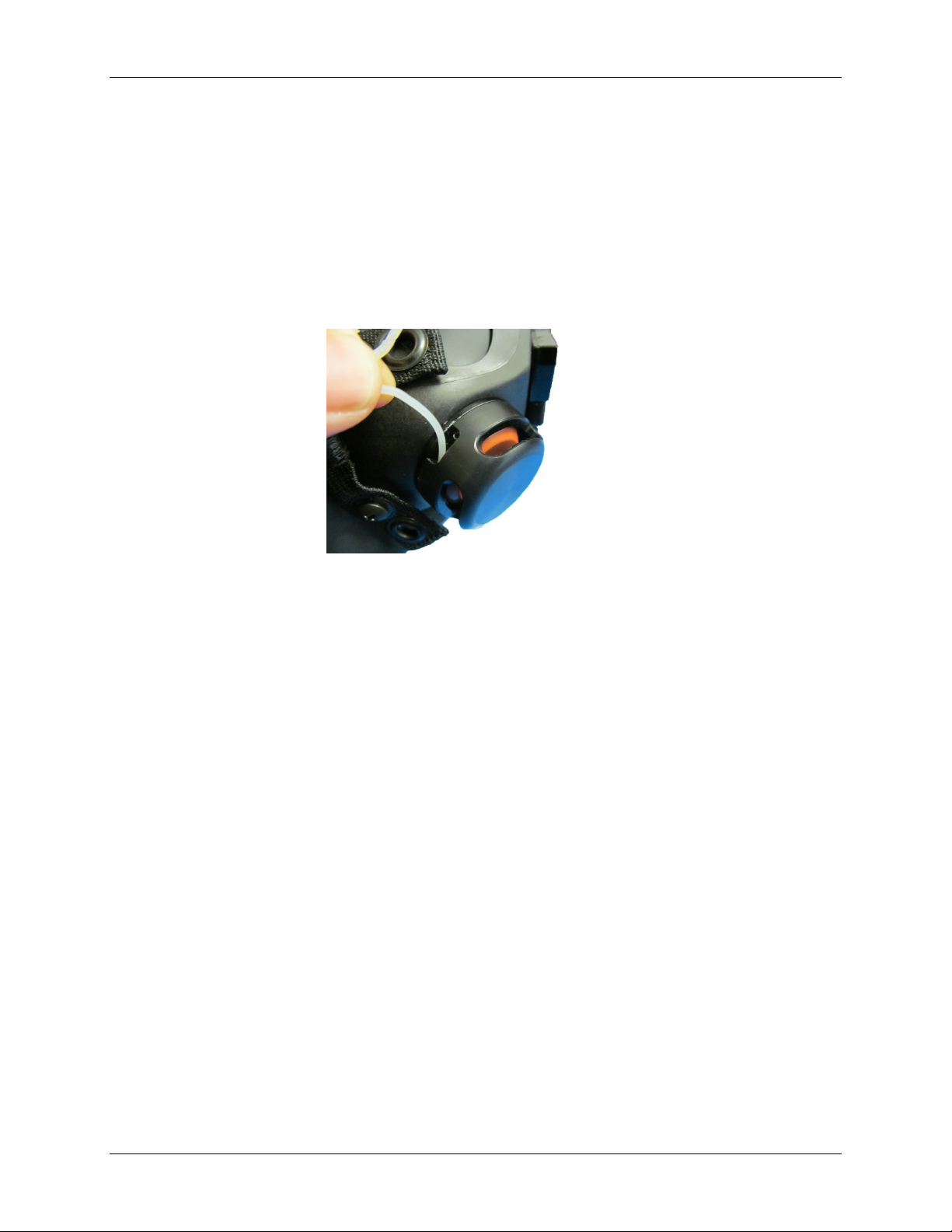

Figure 3-1 Remove Locking Wire from Exhaust Cover

TM0063-2 SOLR®100% OXYGEN MASK LEVEL 2
3-2 60410X
2. Remove the exhaust cover by hand and place in a clean and dry area.
3. Remove the damaged exhaust valve by hand and discard.
Figure 3-2 Discard Damaged Exhaust Valve
NOTE
DO NOT CUT THE STEM COMPLETELY OFF AND DO NOT CUT BELOW
THE RED LINE (FIGURE 3-3).
4. Cut off excess stem from the new exhaust valve.
Figure 3-3 Cut off Excess Stem
5. Insert new exhaust valve into exhaust port ensuring it is seated properly and the stem is fully inserted
in the hole by pressing firmly on the exhaust valve.
Figure 3-4 Ensure Exhaust Valve is Seated Properly

SOLR®100% OXYGEN MASK LEVEL 2 TM0063-2
60410X 3-3
6. Place exhaust cover on exhaust port.
NOTE
ENSURE THE HOLES ON THE EXHAUST COVER ARE FACING UPWARD.
7. Bend the locking wire in half.
8. Starting with the left side, insert new locking wire. Stop once it’s 1/2 to 1-inch from the bend.
9. Begin inserting the locking wire on the right side.
10. Continue pushing the locking wire the rest of the way in, until it is fully inserted and flush.
Figure 3-5 Install Locking Wire

TM0063-2 SOLR®100% OXYGEN MASK LEVEL 2
3-4 60410X

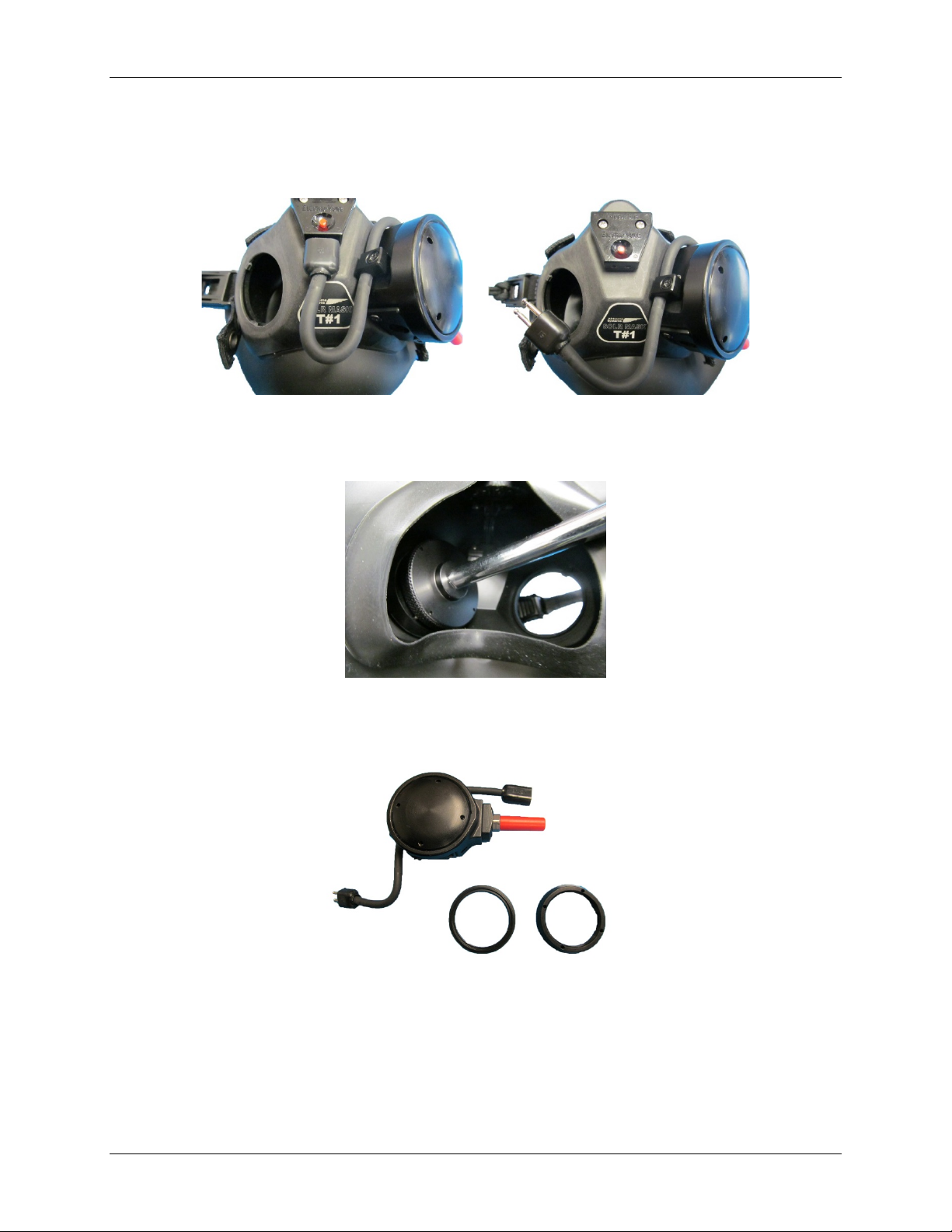

Removal of Exhaust Assembly
1. Place mask with the opening facing self.
Figure 3-6 Mask Facing Self
2. Gently bend the microphone upwards, exposing the exhaust and regulator locking rings.
Figure 3-7 Bend Microphone Up
3. Using the 1/4-inch driver with medium spanner wheel, remove exhaust assembly by turning the locking
ring counter clockwise.
Figure 3-8 Remove Exhaust Locking Ring

SOLR®100% OXYGEN MASK LEVEL 2 TM0063-2
60410X 3-5
4. Remove the locking ring, locking washer and exhalation assembly from the SOLR®mask and place the
parts in a container.
Figure 3-9 Locking Ring, Locking Washer and Exailation Assembly
NOTE
ENSURE SEALING RING IS IN PLACE

TM0063-2 SOLR®100% OXYGEN MASK LEVEL 2
3-6 60410X
Removal of Regulator Assembly
1. Press the red button on the microphone housing to disconnect the microphone.
Figure 3-10 Disconnect the Microphone
2. Flip the mask over and using the medium spanner wheel, remove the regulator valve assembly by
turning the locking ring counter clockwise.
Figure 3-11 Remove Regulator Locking Ring
3. Remove the regulator assembly, locking ring and locking washer and place in a container.
Figure 3-12 Regulator Assembly, Locking Ring and Locking Washer
NOTE
ENSURE SEALING RING IS IN PLACE

SOLR®100% OXYGEN MASK LEVEL 2 TM0063-2
60410X 3-7
4. Using a .T8 torx driver, remove the microphone cable from the regulator.
Figure 3-13 Remove Microphone Cable from Regulator

TM0063-2 SOLR®100% OXYGEN MASK LEVEL 2
3-8 60410X
Removal of Microphone Assembly
1. Using a #0 phillips screwdriver, remove the microphone housing by turning it counter clockwise.
Figure 3-14 Remove Microphone Assembly
2. Once the microphone housing is removed, proceed to remove the microphone and microphone gasket
by hand.

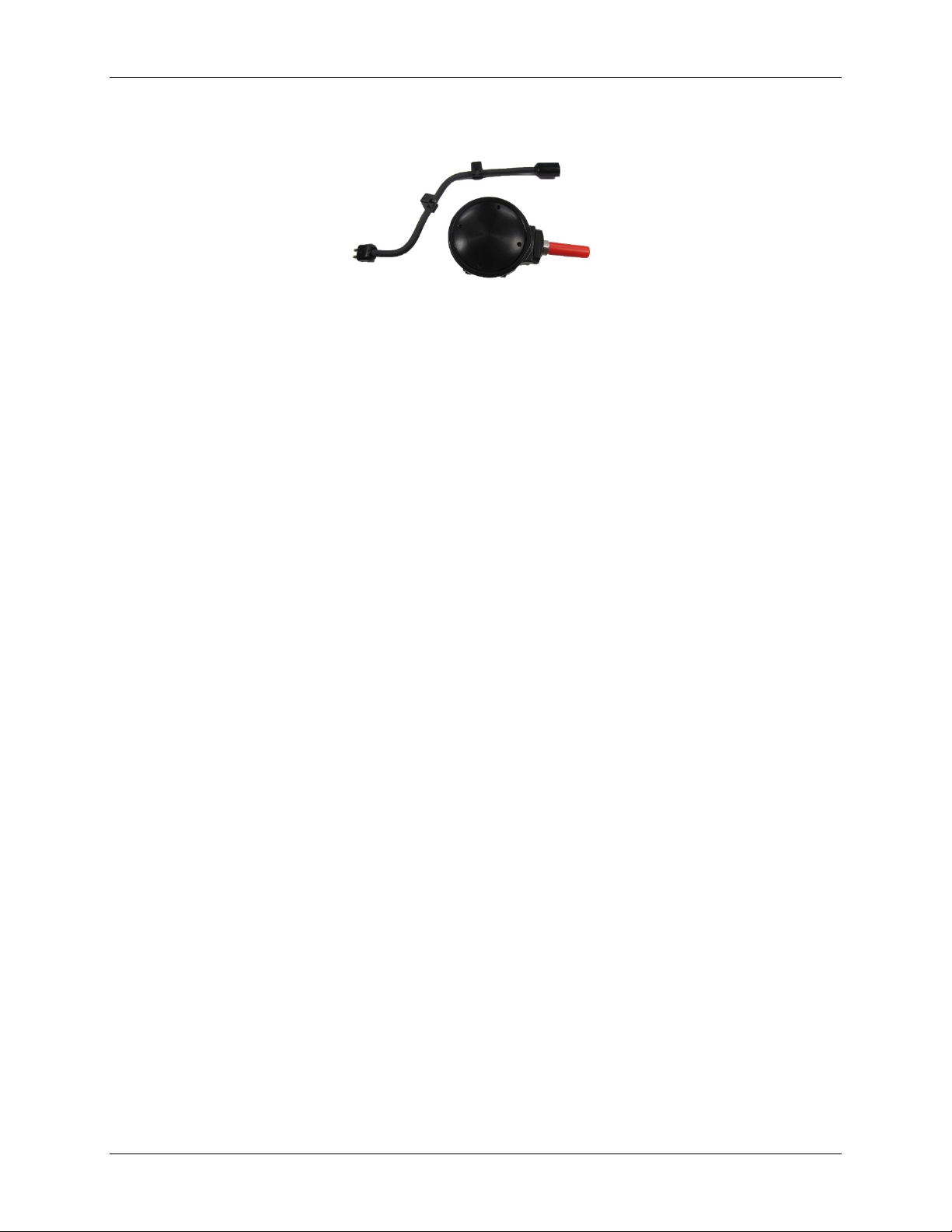

Figure 3-15 Microphone and Microphone Housing

SOLR®100% OXYGEN MASK LEVEL 2 TM0063-2
60410X 3-9
Removal of Face Straps and Hard Shell
1. Using a #2 phillips screwdriver, remove the screws from the adjustment straps by turning it counter
clockwise.
Figure 3-16 Remove Face Straps
2. Once the adjustment straps are removed, place them in a container.
Figure 3-17 Adjustment Straps
3. Place the hard and soft shell in clean and dry area.
Figure 3-18 Hard and Soft Shell

TM0063-2 SOLR®100% OXYGEN MASK LEVEL 2
3-10 60410X
