Aircraft Xaircraft x450 pro User manual

XAircraft X450 Pro

安装说明书

INSTRUCTION MANUAL

在使用XAircraft X450 Pro之前，请仔细阅读此说明书。

Read the manual carefully before using XAircraft X450 Pro.

2012-01 V1.2

产品安装须知 1

飞行须知 2

产品特性 4

产品售后服务 5

机身臂安装 7

机架安装 8

电调安装 9

飞控与AHRS安装 10

电路接线示意图 11

常见接收机接线示意图 12

遥控模式示意图 13

航向球安装 14

电池安装 14

无桨通电测试 15

螺旋桨安装 16

地面摇杆测试 17

姿态传感器工作状态测试 18

零部件清单 19

Content

Notice for Assembly 1

After-Sale Service 6

Before Flight 3

Features 4

Frame Arm Assembly 7

Frame Assembly 8

ESC Assembly 9

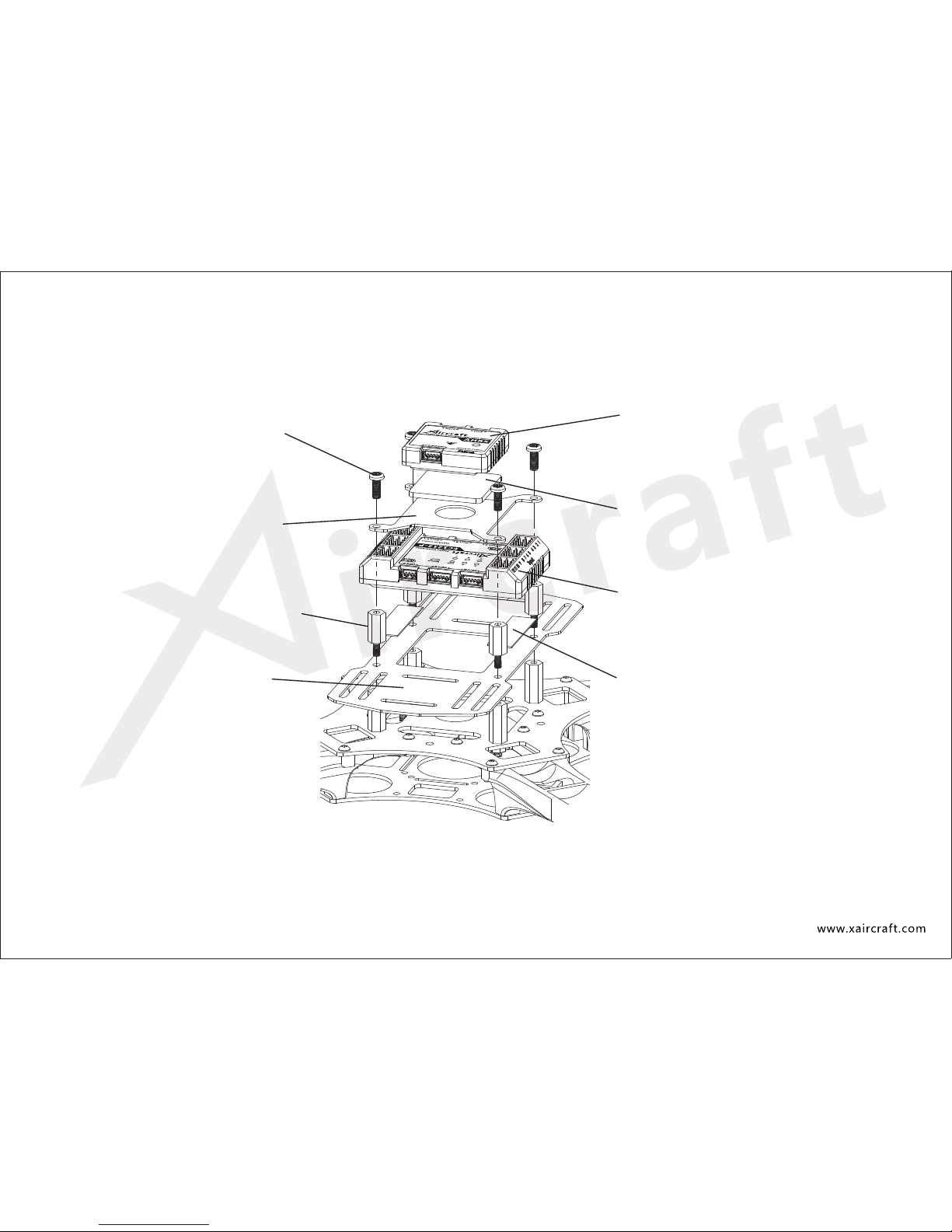

Flight Controller and AHRS Assembly 10

Circuit Wiring 11

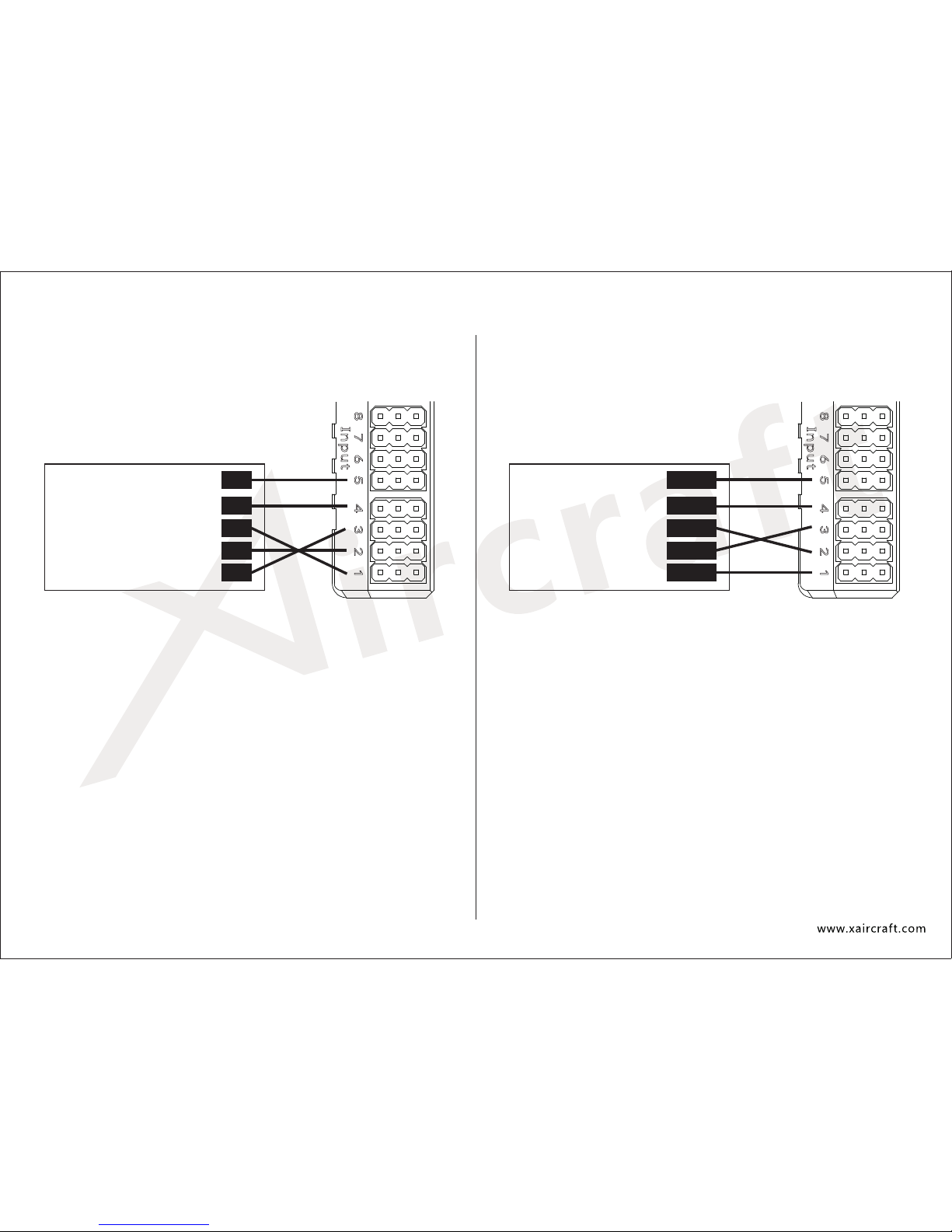

Common Receiver Wiring 12

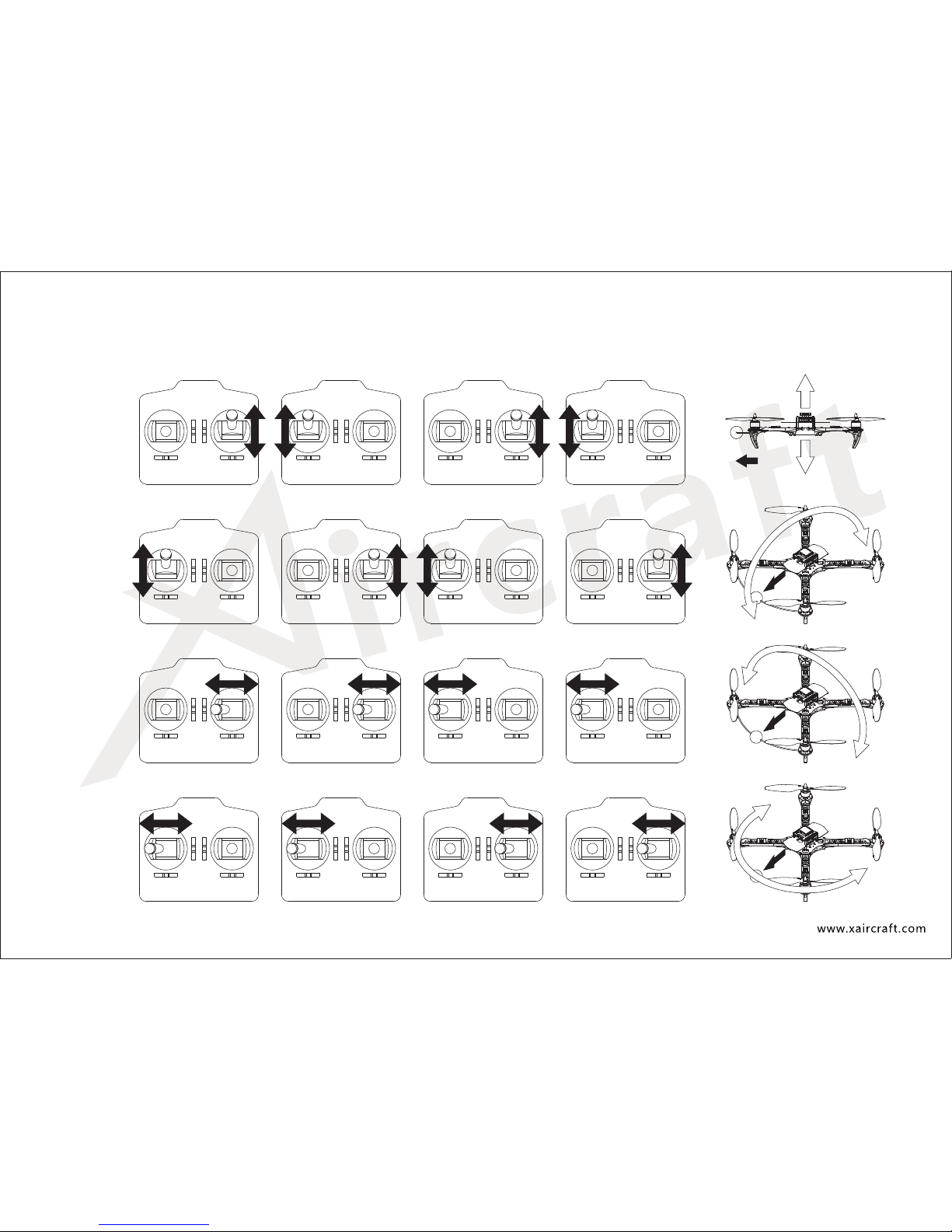

RC Mode Illustration 13

Heading Ball Assembly 14

Battery Installation 14

Power-on Test without Propellers 15

Propeller Assembly 16

Stick Function Test On Ground 17

AHRS Function Test 18

Part List 19

产品安装须知 Notice for Assembly

11.1V 3S 1500~5000mAh 锂电池（瞬时放电能力>15C)

11.1V 3S 1500~5000mAh

Li-Po Battery (Instant discharge capacity>15C)

遥控器 (4通以上)

Transmitter (4-channel or more)

接收机 (4通以上)

Receiver (4-channel or more)

自备遥控及电子设备

Radio transmitter and electronic equipment required for assembly

标志含义

The Meaning Of Symbols

六角螺丝刀

Hexagon Screw Driver

1.5mm/2.0mm

十字螺丝刀

Cross Screw Driver

尖嘴钳

Sharp nose pliers

自备工具

Additional tools required for assembly

M - M2001 ×2

M2×6mm 杯头内六角螺丝

M2×6mm Socket Screw

袋编号

Packet Number

物品编号与所需数量

Product Number and Quantity

建议使用螺丝胶加固

Suggested to use screw glue

for higher intensity

名称

Name

疏忽这些操作说明，可能导致设备损坏。

Mishandling instructions may result in damage.

疏忽这些操作说明，可能导致设备损坏或人员受伤。

Mishandling instructions may result in damage

or injur y.

飞行须知

免责声明 1. 检查螺旋桨是否安装正确和稳固。

1. 请在当地法律法规允许的范围内使用本产品，XAircraft不承担因任何非法 2. 检查接收机连线是否稳固。

使用导致的法律责任。 3. 检查电池扎带是否扎紧；检查电池电量是否充足。

2. 本产品属于遥控航模，请严格遵守航模产品的安全操作规范，XAircraft不4. 检查接收机是否扎紧。

承担因任何操作和使用控制上导致的任何性能、安全与法律责任。 5. 检查天线是否安装稳固。

3. 航模不是玩具，请在专业人员指导下飞行，并按本说明书安装和使用本产 6. 检查无刷电机与无刷电机调速器连接线是否稳固。

品，XAircraft不对因用户安装、配置、操作等导致的航模事故负责。　　另外，如果接收机的安装或电调（ESC）与飞行控制器的连接方式不是

XAircraft出厂默认的方式或更改过遥控器设置和飞行模式，请检查遥控器的各个通

安全注意事项道的操作和电机的反应是否一致。

　　X450 Pro在给您带来快乐飞行体验的同时也潜藏着一定的危险。X450 Pro在飞

行时具有一定的飞行速度，且螺旋桨转速高达4000RPM以上，具有极大的破坏力。飞行控制说明

无论您是初学者还是经验丰富的玩家，安全意识都应该铭记于心！ 1. 启动：把遥控器油门杆拉到最低后打开遥控器电源开关，然后接通X450

1. 熟悉飞行环境，远离障碍物及人群，并确认是否存在不安全因素，如高压 Pro的电源。轻微推杆以启动所有电机。

线、汽车、人群等。 2. 停止：油门杆收到最低，约1秒后四旋翼电机停止工作。断开X450 Pro电源

2. 勿疲劳、酒后或精神不佳时飞行，以免发生意外。后，再关闭遥控器电源开关。

3. 远离潮湿环境，切勿大风天气或雨天飞行，否则将造成电子设备故障发生危 3. 起飞或降落时一旦发生紧急情况，请立即把遥控器油门杆拉到最低，确保安

险。全。

4. 远离热源，以免造成电子设备或其它部件的损坏。 4. 前后左右与旋转等飞行控制与常规直升机等航模控制类似，但这些飞行动作

5. 初学阶段不要独自飞行。建议飞行之前先向有经验的飞行员获取帮助。是由各个相应通道独立控制的，请勿将遥控器设置为混控模式。

6. 准备救援工具，如手机、对讲机。

7. 请在安全起飞重量下飞行，切勿过载运行机器，以免发生危险。开始飞行

8. 飞行前必须检查设备是否正常，是否存在同频干扰。　　开关机程序：开机时必须先打开遥控器电源开关并将油门杆拉到最低，再接通

9. 远离运转中的机器，切勿用身体接触旋转中的电机或螺旋桨，更不要用手飞行器电源；关机时必须先断开飞行器电源，再关闭遥控器电源。不正确的开关机

抓。飞行时切勿穿宽松衣服以免与遥控器或螺旋桨发生牵扯造成意外。顺序可能造成飞行器失控而发生危险。

10. 在飞行前始终把遥控器油门杆保持在最低点。 1. 将油门杆拉到最低，打开摇控器电源开关。

11. 建议在无桨状态下试运行X450 Pro，检查遥控设备和电机的工作是否正 2. 接通X450 Pro的电源。

常，一切正常之后再安装螺旋桨，以免造成安全事故。 3. 轻推油门（切忌将油门杆瞬间推到很大），当所有电机都正常低速运转后，

12. 请使用XAircraft提供的零件，用户使用其它来源的零件或改装本产品需独轻推各操控杆以检查飞行器的动作和方向是否与您的操作一致。

立承担相应的飞行责任。

飞行前检查

　　在飞行前请务必检查各零部件是否完好，如发现部件老化或磨损，请勿飞行；

务必检查各个部件的安装情况，特别是以下部件的安装失误容易造成意外：

Before Flight

DISCLAIMER OF LIABILITY INSPECTIONS BEFORE FLIGHT

1. Using XAirctaft products within the limits permitted by local laws and PLEASE PAY ATTENTION TO THE AGING AND WORN PARTS, AND FLY WHEN THEY ALL

regulations. XAircraft is not responsible for any illegal activities. WORK WELL. PLEASE DO CHECK EVERY ASSEMBLY CAREFULLY BEFORE FLIGHT, especially

2. The X450 Pro is an aeromodelling product only. Please strictly follow the lapses in these parts will easily cause DANGER.

aeromodelling safe function rules, XAircraft does not hold responsible for any 1. Check that the propellers are secured properly.

control over its operation or usage. 2. Check that the receiver is receiving a stable signal.

3. Model aircraft are not toys! Fly under professional guidance and strictly follow 3. Check that the batter y is secured tightly and the batter y is fully charged.

instruction rules in this document. XAircraft is not responsible for consequences 4. Check that the receiver is attached correctly.

caused by improper install, wrong setting or operation. 5. Check the antenna is assembled tightly enough.

6. Check that the brushless motor and brushless ESC are secured to the airframe.

SAFETY CAUTIONS Before flight, please assemble receiver or connect ESC to FC as XAircraft factory defaults,

X450 Pro gives users an enjoyable fly experience but is potentially dangerous at the same if not, please DO CHECK the operations of Remote Control channels and consistence of

time. The blades rotate up to 4000RPM which can cause serious injuries or property motor reactions.

damage. Safety awareness should be firmly followed by all users regardless of flying

experience. FLIGHT CONTROL INSTRUCTION

1. Familiarize yourself with fly environment and any obstacles. Identify any 1. Start: Set the throttle stick to the lowest then turn on the transmitter. Connect

potential hazards such as power lines, cars, people, etc. the flight battery then slowly apply the throttle until all motors begin to run.

2. Do not fly the aircraft when fatigued, drunk or your mental state has been 2. Stop: Move the throttle stick to the minimum. All motors should stop to work in

compromised which may cause an accident. about one second. First cut off the X450 Pro then the RC powers off.

3. Stay away from wet areas. Do not fly in the rain or wet environments which can 3. Any emergency occurs when taking off or landing, please move the throttle stick

cause device failure and probably lead to danger. Do not fly at night or in windy to the lowest position immediately to keep safe.

conditions. 4. Flight control to the front, back, left and right is similar to the traditional RC

4. Stay away from any fire resulting in damage of the electronic parts or others helicopters but each motion is controlled by a separate channel. Do not use any

such as the flight battery. channel mixing in your RC transmitter such as v-tail or swashplate mixing etc.

5. Do not fly alone during your preliminar y flights. If you need help, please enlist

the aid of an experienced pilot before flying for the first time. START TO FLY

6. Prepare rescue tools such as cell phones or other communication devices which Power ON/OFF Operations: Before plugging in the quad you have to turn on the RC and

should you need to call for help. set the throttle stick to the lowest position. When powering off, you have to cut off the

7. Please fly under safe take-off weight, do not overload the aircraft which can lead aircraft first then the RC powers off. Disorder in the on and off procedure will cause an

to danger. accident.

8. Ensure all the equipment operates correctly before flight and that there is no 1. Place the aircraft on the ground. Put the throttle stick to the lowest position

transmitter interference or conflicts. then turn on the transmitter.

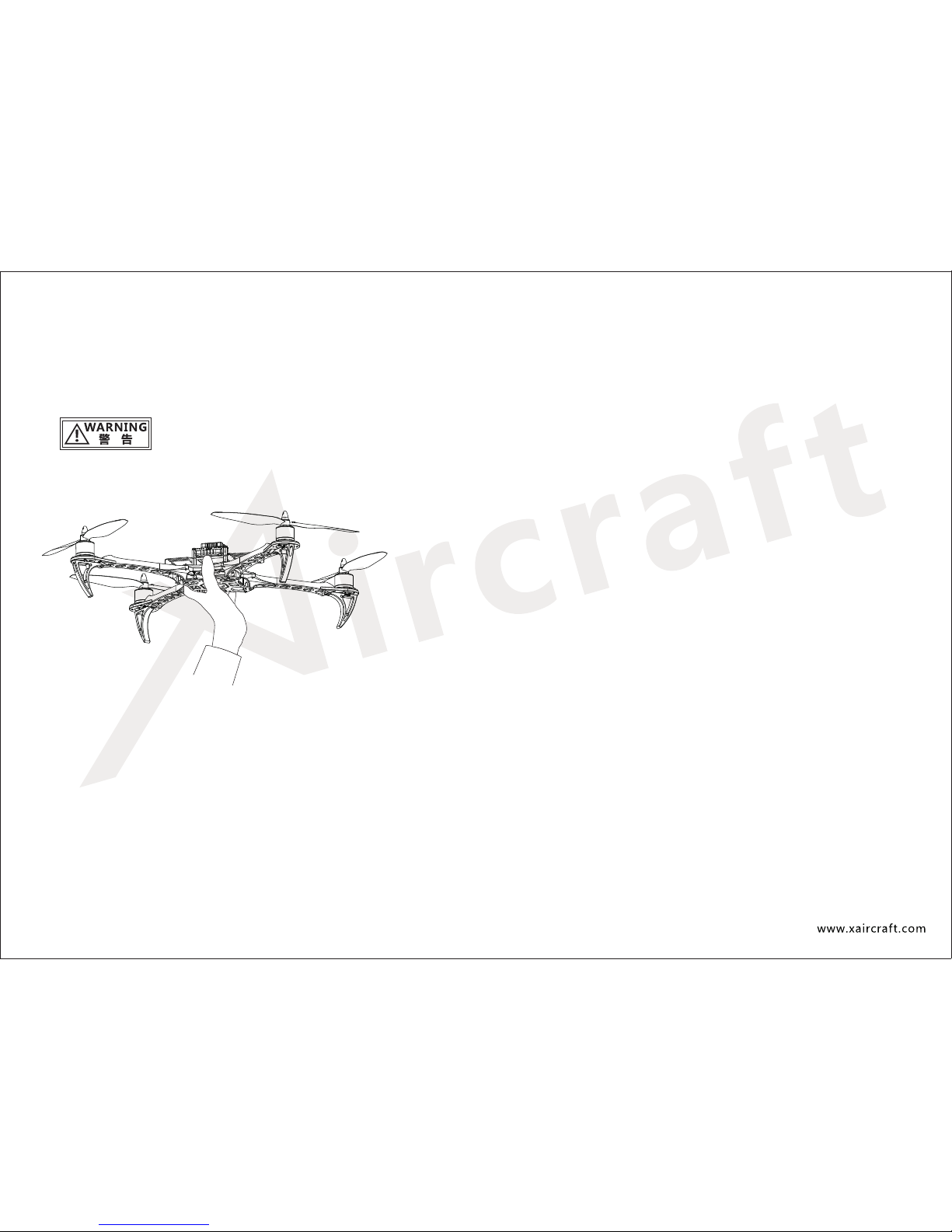

9. Do not touch any moving or powered parts. Do not try to catch the quadcopter 2. Connect the battery to the ESC board.

which has rotating motors or blades for example. Keep loose clothing away from 3. Start the Quad by applying power slowly with the throttle stick. When all the
