Airdog X5 User manual

Airdog X5
User Manual
Please Recycle
Warranty
Follow and like us on facebook
Official Website : www.AirdogUSA.com
Customer Service : [email protected]
Scan QR code for more Video Instructions
(Airdog Youtube channels)
The Company warrants this product to the original purchaser to be free from defects in workmanship and materials
under normal use and service (all except human matters) for 1 year from the date of receiving.
Phone : 1-800-SAFE AIR
(1-800-723-3247)
Address : AirdogUSA Service Center
154 Norton Avenue
Barberton, Ohio 44203

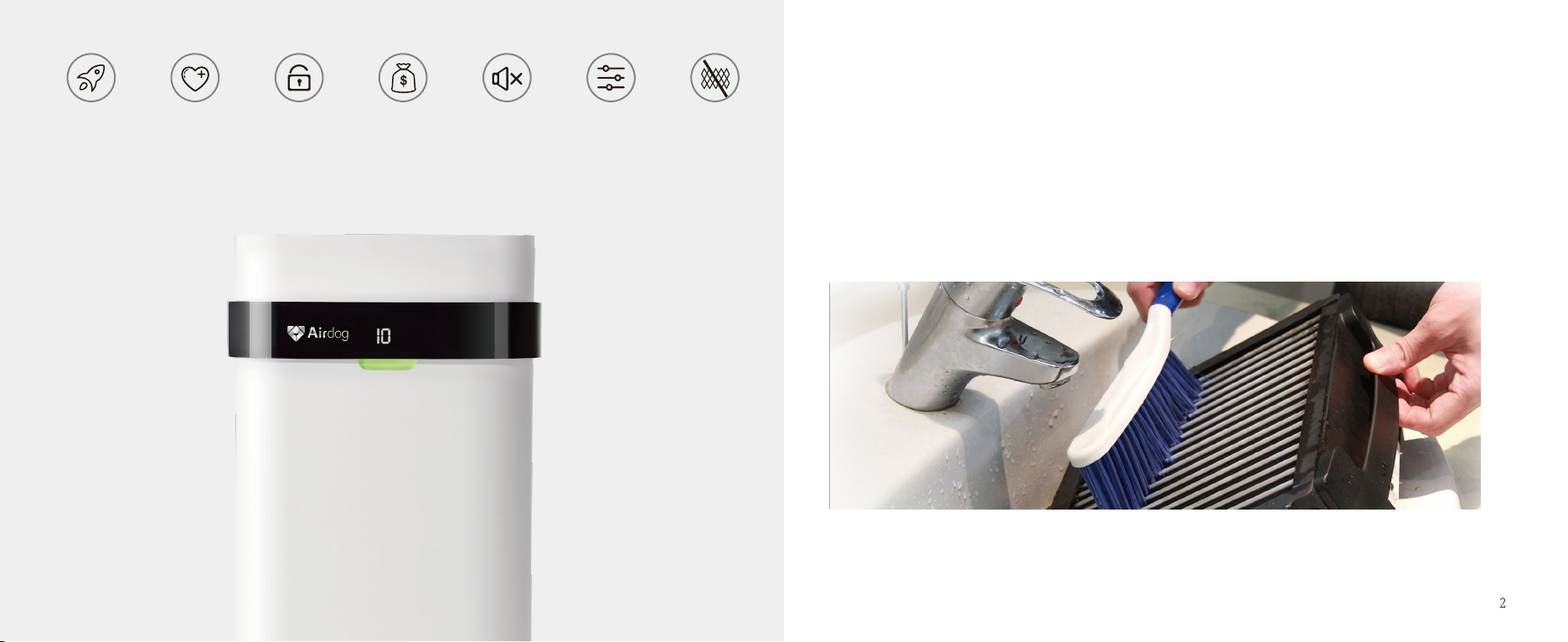

Higher Efficiency Real-time Data Budgets No HEPAChild Lock Automatically
Adjusts
Low Noise
We pushed the bounds of air purification technology to develop a best-in-class air purifier that combats the indoor air
pollutants found in every building. An optimized aerodynamic design enables high-volume airflow so that your air gets
cleaner more quietly and faster.
The Airdog X5 air purifier puts your health and the health of the environment first. You’ll stop inhaling everyday indoor air
pollutants and breathe cleaner air than with any of the more traditional air purifiers on the market (like HEPA). Plus you'll
save time, money, and the planet with our energy-efficient and WASTE-FREE design.
About Airdog X5
Just Wash! No more HEPA filters needed!
Easy-to-wash in a dishwasher or by hand.

Packing List
Components
Front/Side Back Internal Structure
Air Purifier Main Body × 1 Collecting Plates × 1 Remote Control × 1
Air Outlet Operation Panel
Handle
Indicator Light
Back Shroud
Sensor Tuyere AQI Sensor
Composite Catalyst
Ionization Wire Frame
Pre-Filter
Pull Handle
Air Inlet
Air Inlet
Display
Collecting Plates
Installation Guide
1. Take the collecting plates out of the foam box;
(If any styrofoam packaging pieces are on the plates, blow or brush them out before installing the collecting plates.)
2. Use the pull handle to open the back shroud (Pic 1);
3. Insert the collecting plates in the orientation described on the label (Pic 2);
4. Close the back shroud and place the air purifier in an open location to achieve the best cleaning effects.
Power Supply
100-240V~ 50-60Hz
* Always keep at least 20”of clearing around your Airdog
with no obstructions hindering the air intake flow.
>
20 Inches*

Air Purifier
Operation Instruction
Child Lock Indicator
To avoid children’s playful operation,under this mode
the operation button is locked.The air purifier could
only be controlled or unlocked by the remote control
or APP. Use remote control or APP to turn on the child
lock mode.
Auto Mode Indicator
When this light is on, the air purifier is running under
Automatic mode. It automatically senses the air
quality and adjusts its running speed according to the
air quality level. This is the most energy efficient
mode and we recommend keeping the purifier in this
mode most of time.
Power Button
A short press (approximately 1 second) turns the
power ON. A long press (over 3 seconds) turns the
power OFF. When power is ON, each short press
cycles through auto-mode ON/OFF, different fan
speeds, sleep mode, etc…Check indicator lights to
understand each operation mode.
Wind Speed Indicator Light
Left Light : Slow Mode
Middle Light : Mid-speed Mode
Right Light : High Speed Mode
ALL Lights : Turbo Mode
Sleep Mode Indicator
In sleep mode, your air purifier is still
cleaning your air but in a quieter low-speed
mode. Also to avoid light disturbance, all
display lights are OFF.
WIFI Light (Blue Light)
When the indicator is
flashing the purifier is in
pairing mode.
*Some Airdog X5 units do not
have WiFi capability installed.
Display and Air Quality Indicator Instruction
Green:
Excellent
AQI ≤ 50
AQI (Air Quality Index)
This is a calculated air quality index based on the
particle numbers that the sensor measures in the air.
Ranges from 0-500.
Wind Speed Indicator
L1-L4, slow to fast.
Cleaning reminder
When “C” appears on the display instead of AQI numbers, it
reminds you to wash the collecting plates. Press and hold
the “Reset” button for 6 seconds to cancel the reminder
once the collecting plates are washed or cleaned.
Fault Display
When “9XX” appears on the display instead of AQI numbers,
clean the unit and make sure to put every part back correctly
and make solid contact. Please move to the Full Cleaning
Cycle section for more cleaning details.
If “9XX” is still on the display after cleaning, please contact
Airdog Team: [email protected] for further help.
Yellow Green:
Good
50 < AQI ≤ 100
Yellow:
Moderately Polluted
100 < AQI ≤ 150
Red:
Hazardous
AQI > 150
AQI numbers are calculated based on the real time particles numbers� in some air volume
according to United States Environmental Protection Agency (EPA). The numbers could be
affected by the air flow speed,�air purifier position and ambient environment. AQI is an indicator
of air quality. As the AQI increases, an increasingly large percentage of the population �is likely to
experience increasingly severe adverse health effects.

Cleaning
Products
Cleaning - Fast Drying (FD) Collecting Plates (Optional)

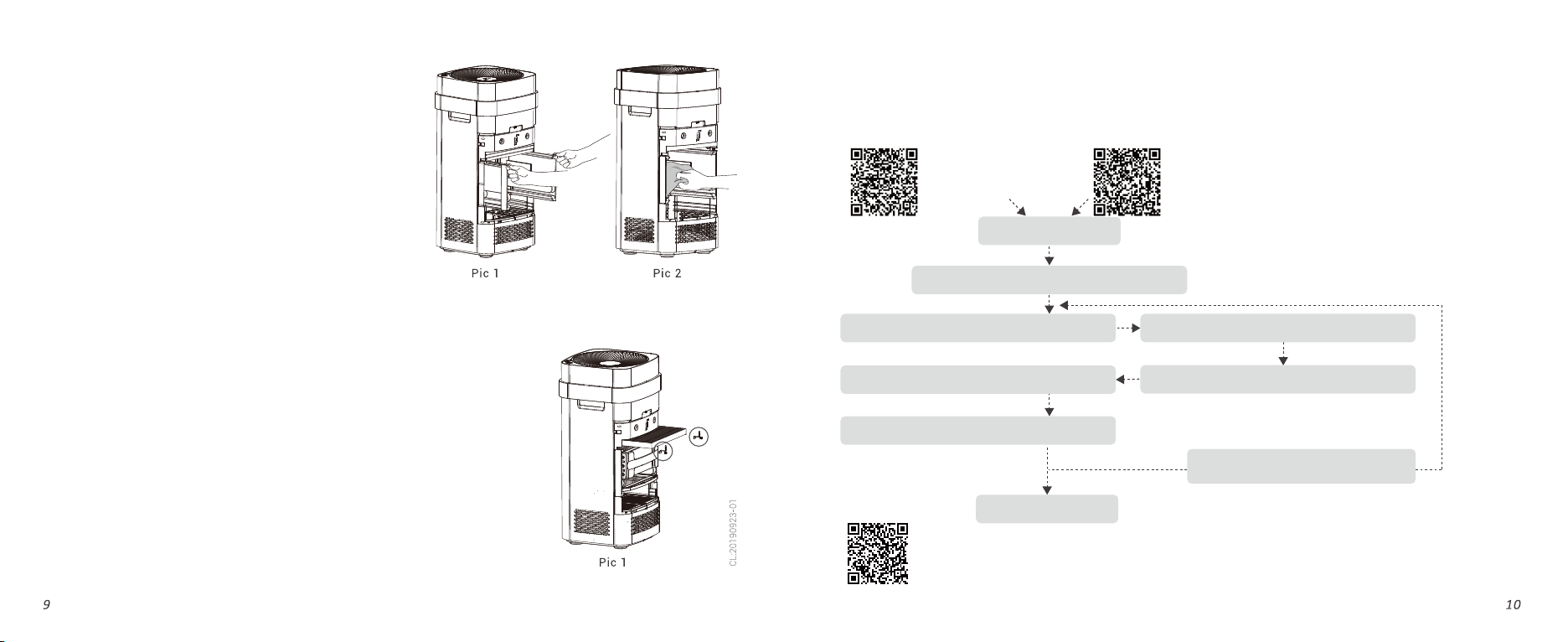

1. Take off Dirt Collector from Seat. (Pic 1)
2. Separate the upper and bottom parts of Dirt Collector. (Pic 2)
3. Wash the 2 parts of Dirt Collector. (Pic 3)
4. Wipe and fully dry all surfaces and corners of the Dirt Collector with a clean, non-abrasive cloth.
5. Assemble FD Collecting Plates and put it back into the unit. Close the unit’s back shroud.
Airdog air purifier has an embedded air quality sensor. To keep the air quality sensor reading
correctly, please clean the sensor as illustrated every 6 months, using a dry non-abrasive cloth
or with rubbing alcohol and a cotton swab / Q-tip as illustrated.
1. Clean the Ionization Wire Frame when the air purifier makes abnormal sounds such as “popping,”
“cracking,” “zapping,” etc.
2. Use a soft cloth or sponge to clean the Ionization Wire Frame track by sliding back and forth gently.
3. Insert the Ionization Wire Frame in the direction the labeling indicates.
Dirt Collector
Seat
Detergent
Cleaning - Air Quality Sensor
Cleaning - Wire Frame
Cleaning - Collecting Plates, Original (Optional)
1. Clean the collecting plates when needed and when the air purifier displays “ ”.
2. Turn off the power, open the back shroud and pull out the collecting plates ( Pic 1 ) .
3. Put the collecting plates into a container and use a non-abrasive cleaning brush to clean the external sheet metal
finishing with water ( Pic 3 ).
Remarks：
A. It is better to use a neutral detergent and soak the plates for about 10 minutes before brushing. Do not soak for too
long in order to protect the normal functioning of the plates ( Pic 2 ).
B. Choose a neutral detergent. DO NOT USE an abrasive, acidic, or corrosive detergent (such as laundry powder, etc).
C. The surface of the sheet metal may have small stains; these will not seriously affect the use of the air purifier.
4. Dry the collecting plates after cleaning. You can either use a hair dryer or natural sunlight ( recommend drying time is
over 24 hrs ).
5. Put the collecting plates back into the unit (once fully dried) in the direction the labeling indicates.

APP Setting (Optional)
Full Cleaning Cycle
Catalytic Layer
1. We recommend a complete cleaning every 6-12 months.
2. First, turn the power off and unplug the power supply. Open the back
shroud. Pull out the ionization wire frame and collecting plates. Pull
out the protective rubber sleeve as illustrated in (Pic 1).
3. Clean the ionization wire frame and collecting plates properly
according to the previous instructions.
4. Use a wet cloth to wipe down all surfaces of the protective rubber
sleeve, including notches. For better results, wash the entire rubber
sleeve in water.
5. Clean the inner walls of the air purifier with a wet cloth.
6. Wash the pre-filter in water, or clean it by a vacuum or gentle brush.
7. Dry the parts completely, then put them back in order.
The composite filter is composed of a composite catalyst and active carbon. In principle,
the catalyst is not involved in the reaction and should not be changed. However, the
catalytic effect will decrease if the catalyst becomes coated with dust, odor or
moisture. Protect this composite filter and help extend the catalytic life by using the
provided cover whenever it is not powered up or plugged in. A periodic “sunbath” in direct
outdoor sunlight for 1-2 hours may also help to reduce moisture build up and reactivate
the catalytic effect.
The shelf life of the composite filter depends on how much you use the purifier. Change
the composite every year or two, or whenever you notice a significant decrease in the
purifier’s ability to remove odors from the air.
Note:
Always turn off the power and unplug the unit before doing any cleaning or maintenance.
APP Setting - If your X5 has built-in WiFi. If not, the APP info will not be applicable.
Please keep your Wi-Fi on and make sure it is in 2.4GHZ to help you finish your App setting.
Note: App is not required in order for your product to function.
iOS
Scan to download Scan to download
Android
Open App
Use email address to set up an account
Click "+" on top right corner Select model
Enter WiFi name & password
Press "WiFi" button on remote
Start to pair
If failed, please keep the device live for
at least 5 minutes, and try again
Done
For more details, please check the Airdog Youtube channel for video instructions.

Q1: I am concerned about the product safety. May I know more details?
Airdog X5 is built around Safety 1st! We have implemented the following:
A. Smart control: The “smart electronics” control circuit continually monitors the current and voltage levels, and suppresses them whenever
there’s any abnormal situation;
B. Anti-fire: Airdog X5 is manufactured with the highest V0-grade fire retardant plastics housing;
C. Child lock: It prevents improper operations when children are playing around it;
D. International reputable third-party verification: Airdog X5 has passed safety test requirements including but not limited to CE, FCC, CQC, ETL,
etc.
Q2: Airdog X5 uses high voltage inside. Is that safe for home use?
Airdog X5 uses an advanced electronic design built around safety. The power consumption of Airdog is equivalent to only a small light bulb! It
has high voltage inside but very low current in the order of micro-amps. The high voltage runs on direct current to avoid any possible electronic
perturbation.
Q3 : Do I have any maintenance cost if I own an Airdog X5?
Airdog X5 was built to be a cost effective and environmentally green solution to reduce maintenance needs!
A. Collecting plates in Airdog X5 is a washable and reusable part, so no more need to spend money on expensive HEPA filters.
B. The composite catalyst layer is also reusable; you may put it directly under the sunlight for 1~2 hours to refresh it. However, some customers
might be very sensitive to any smell and desire to change the composite catalyst layer every 6-24 months to refresh the smell. The cost of the
catalyst layer is only a small fraction of the cost of HEPA. To replace the catalyst layer, please contact your sales resource where you bought
Airdog X5.
Q4: How can I know that my Airdog is really cleaning the air?
The best part of Airdog X5 air purifier is that you can see the effect with your own eyes! You will notice the AQI (Air Quality Index) number
decreasing when the air purifier is on. Also, after using X5 for a week, you can actually see many of the pollutants absorbed on the collecting
plates when you take the plates out to clean.
Q5: Why is the AQI display abnormal on the LCD screen? It’s displaying “-C-” or “9XX” instead of numbers?
Display of “-C-” means it is time to do a cleaning.
The “9XX” is an electronics abnormal signal. Please unplug the unit and do a full clean cycle and restart. If the “9XX” still exists, please contact
customer service for further instructions.
Q6: Why isn’t the AQI display changing number?
The dust accumulated on the sensor could cause the sensor to be insensitive to reading the air quality. Please clean the sensor with a dry
non-abrasive cloth or a cotton swab with alcohol.
Q7: I heard a “cracking” or “zapping” noise inside the unit. Is that normal?
The occasional “zapping” or “cracking” is normal when bigger particles enter the air purifier and are being zapped by the high voltage, similar to
when a bug zapper traps a bug. These sounds can also occur when your unit needs cleaned and dust or other particles build up inside your unit
on the wire frame, dust collector plates, inner rubber sleeve, or other internal parts. If the “cracking” or “zapping” noise is constant, you should do
a full cleaning cycle (detailed in previous section). Make sure that all parts in the unit are fully dried after you clean them to avoid any water in the
unit when you reinsert the parts. Approximately 80% of noise issues are caused by either dust/particle accumulation on the collecting plates
and/or inner chamber, or by wet collecting plates. Normally, a full and careful clean cycle will take care of this all.
Q8: When should I do a full cleaning cycle?
A. When “-C-” is on the display screen.
B. When “9XX” appears on the display screen even after cleaning the collecting plates.
C. “Cracking / zapping” sounds still exist after cleaning the collecting plates.
D. The unit shuts down and restarts automatically.
Note: Please refer to the “Full Cleaning Cycle” section in the user manual for details.
Q9: Can I clean Airdog X5 by putting the whole unit in the dishwasher?
No. You should not put the whole Airdog X5 unit into the dishwasher! Only the collecting plates part is OK to be washed by a full wash cycle. Please
make sure the collecting plates unit is fully dried before putting it back into your Airdog X5. There could be water residue inside of the collecting
plates even after the drying cycle, so always make sure to take the time to fully dry them.
Q10: How can I confirm that the collecting plates is fully dried?
There are 2 Collecting Plates options. If you have the Fast Drying (FD) Collecting Plates, you can easily take these apart according to the user
manual instructions to clean and dry the parts fully. FD Plates usually take less than 1 hour to dry, and even less time if you hand dry. For Original
Collecting Plates, these take much longer to dry so please put the collecting plates in a dry space for at least 24 hrs. You may put tissues or a paper
towel under the collecting plates to check if it is fully dried. Also, you may put the collecting plates on top of your Airdog X5 and turn the fan on
High to help it dry faster.
Q11: Why does Airdog App connection fail?
A. Airdog App does not support IPv6 network environment.
B. Make sure your Wi-Fi is in 2.4GHz.
C. The home Wi-Fi environment can be complicated. To verify if the smart control system is functional or not, you can use the hotspot on another
phone instead of the home Wi-Fi to try to make a connection. The hotspot could simplify connection complexity and verify the hardware functionality.
D. We have finished the App and server migration. Please double check the label on the back of your unit. If it is a green matrix code you are good
to download the “Airdog Pro” App and connect. If it is a blue matrix code, please check whether your firmware is upgraded or not.
For more details, please visit the Official Website for the App Guide.
Q&A

Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
For a Class B digital device or peripheral, the instructions furnished the user shall
include the following or similar statement, placed in a prominent location in the text of the manual:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and must not be co-located
or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with
antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
FCC Statement
This device complies with Part 15 of the FCC Rules.
KJ300F-X5
375 SQF or 35 m2
200 CFM or 350 m3/h
≤63
55
100-240V~ 50-60Hz
23.6
25.6 (H) * 12.4 (L) * 12.0 (W)
Model
Applicable area
CADR Particle
Noise (dB(A))
Rated Power (W)
Power
Weight (Lbs)
Size (Inches)
*Test according to GB/T 18801-2015
Technical Specification
Designed by Silicon Valley Air Expert
Manufactured by Anhui BeiAng Air Tech Ltd.
No.15, Exi Rd., San Shan District, Wuhu, Anhui
*
*
