Airdog X5 User manual

Airdog X5
GUIDE
Silicon Valley Air Expert
Please Recycle
Warranty
Follow and like us on facebook Follow us on InstagramFollow us on twitter
Official Website : http://airdogusa.com/
Customer Service : [email protected]
Scan QR code for more Video Instructions
(Airdog Youtube channels)
The Company warrants this product to the original purchaser to be free from defects in workmanship and
materials under normal use and service (all except human matters) for 1 year from the date of receiving.
USA

We pushed the bounds of air purification technology to develop a best-in-class air purifier that combats the indoor air
pollutants found in every building. An optimized aerodynamic design enables high-volume airflow so that your air gets
cleaner, faster and more quietly.
The Airdog X5 air purifier puts your health and the health of the environment first. You’ll stop inhaling everyday indoor air
pollutants and breathe cleaner air than with any of the more traditional air purifiers on the market (like HEPA). Plus you'll
save time, money, and the planet with our energy-efficient and WASTE-FREE design.
About Airdog X5
No more HEPA filters, just wash.
Higher Efficiency Real-time Date Budgets App ControlledNo HEPAChild Lock Automatically
Adjusts
Low Noise
２
Easy-to-wash in a dishwasher or by hand.

Packing List Installation Guide
Components
Front/Side Back Internal Structure

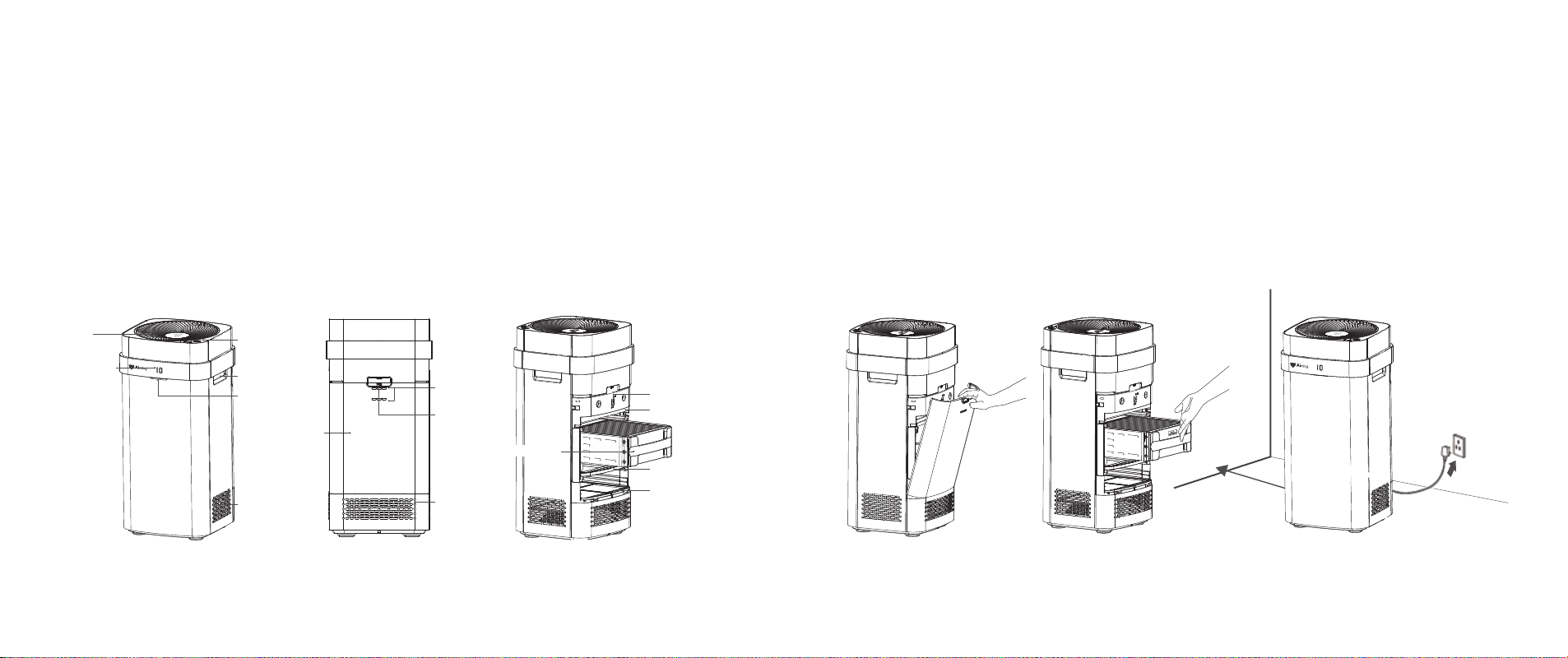

1. Take the collecting plates out of the foam box
―If any styrofoam packaging pieces are on the plates, blow or brush them out before installing the collecting plates;
2. Use the pull handle to open the back shroud (Pic1);
3. Insert the collecting plates in the orientation described on the label (Pic2);
4. Close the back shroud and place the air purifier in an open location to achieve the best cleaning effects.
Power Supply
100-240V~ 50-60Hz
>50cm
Air Purifier Main Body × 1 Collecting Plates× 1 Remote Control × 1 Cleaning Brush × 1
43
Air Outlet Operation Panel
Handle
Indicator Light
Back Shroud
Sensor Tuyere AQI Sensor
Composite Catalyst
Ionization Wire Frame
Pre-Filter
Pull Handle
Air Inlet
Air Inlet
Display
Collecting Plates
Pic 1 Pic 2 Pic 3

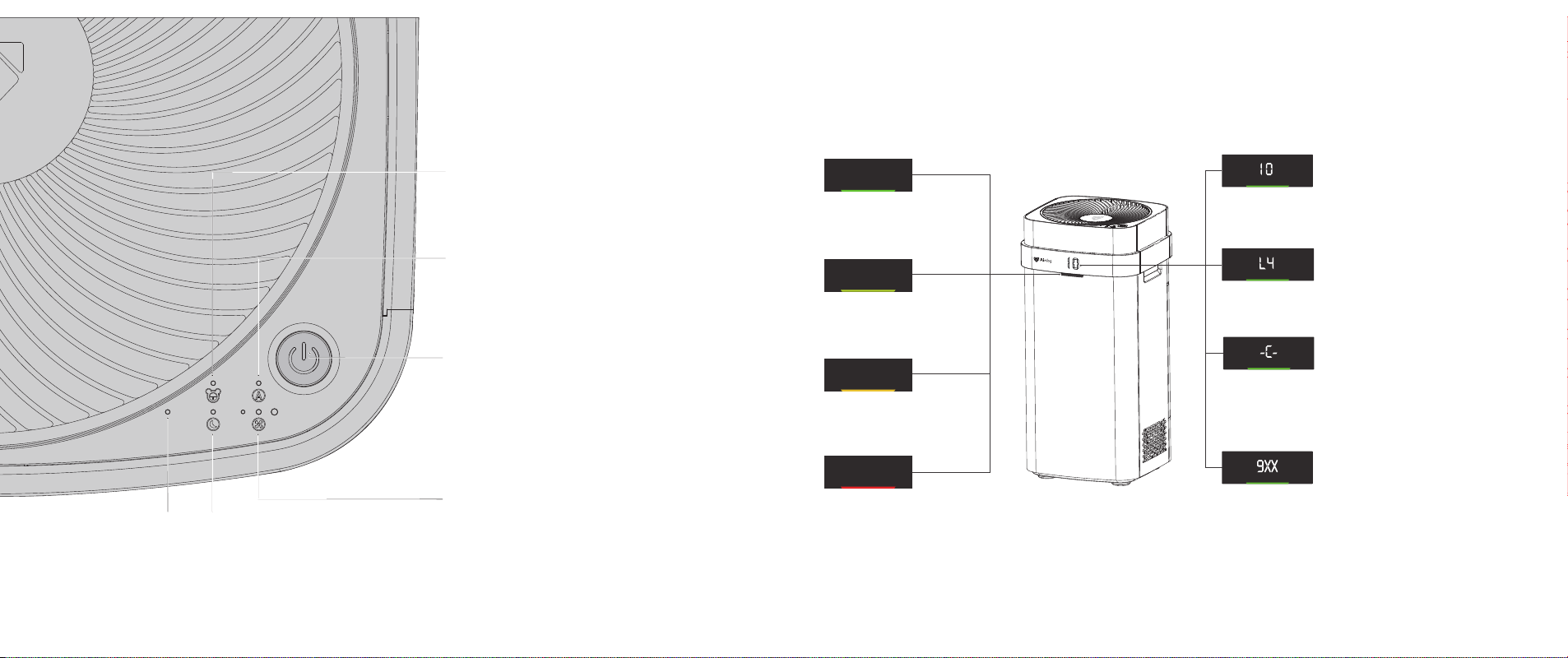

Display and Air Quality Indicator InstructionAir Purifier
Operation Instruction
Child Lock Indicator
To avoid children’s playful operation,under this mode
the operation button is locked.The air purifier could
only be controlled or unlocked by the remote control
or APP. Use remote control or APP to turn on the child
lock mode.
Green:
Excellent
AQI ≤ 50
AQI (Air Quality Index)
this is a calculated air quality index based on the
particle numbers that the sensor measures in the air.
Ranges from 0-500.
Wind Speed Indicator
L1-L4, slow to fast.
Cleaning reminder
When “C” appears on the display instead of AQI numbers, it
reminds you to wash the collecting plates. Press and hold
the “Reset” button for 6 seconds to cancel the reminder
once the collecting plates are washed or cleaned.
Fault Display
When “9XX” appears on the display instead of AQI numbers,
clean the unit and make sure to put every part back correctly
and make solid contact. Please move to the Full Cleaning
Cycle section for more cleaning details.
If “9XX” is still on the display after cleaning, please contact
Airdog Team: [email protected] for further
help.
Yellow Green:
Good
50 < AQI ≤ 100
Yellow:
Moderately Polluted
100 < AQI ≤ 150
Red:
Hazardous
AQI > 150
Auto Mode Indicator
When this light on, the air purifier is running under
automatic mode. It automatically senses the air
quality and adjusts its running speed according to the
air quality level. This is the most energy efficient
mode and we recommend keeping the purifier in this
mode most of time.
Power Switch
A short press ( approximately 1 second) turns the
power ON. A long press (over 3 seconds) turns the
power OFF. When power is ON, each short press
cycles through auto-mode ON/OFF, different fan
speeds, sleep mode, etc…Check indicator lights to
understand each operation mode.
Wind Speed Indicator Light
Left Light : Slow Mode
Middle Light : Mid-speed Mode
Right Light : High Speed Mode
ALL Lights : Turbo Mode
Sleep Mode Indicator
In sleep mode, your air purifier is still
cleaning your air but in quieter low-speed
mode. Also to avoid light disturbance, all
display lights are OFF.
WIFI Light (Blue Light)
When the indicator is
flashing the purifier is in
pairing mode;
65
AQI numbers are calculated based on the real time particles numbers� in some air volume
according to United States Environmental Protection Agency(EPA). � The numbers could be
affected by the air flow speed,�air purifier position and ambient environment. AQI is an indicator
of air quality. �As the AQI increases, an increasingly large percentage of the population �is likely to
experience increasingly severe adverse health effects.

Air Quality Sensor Cleaning
Ionization Wire Frame Cleaning
Collecting Plates Cleaning
Airdog air purifier has an embedded air quality
sensor. To keep the air quality sensor reading
correctly, please clean the sensor as illustrated
every 6 months, using dry or with rubbing alcohol
cotton swabs as illustrated.
1.We recommend you to clean the Ionization Wire Frame when the air purifier
appears abnormal sounds, such as ”popping or cracking” .
2.Use soft cloth or sponge to clean the Ionization Wire Frame track by sliding up-down gently.
3.Insert the Ionization Wire Frame in the direction of labeling.

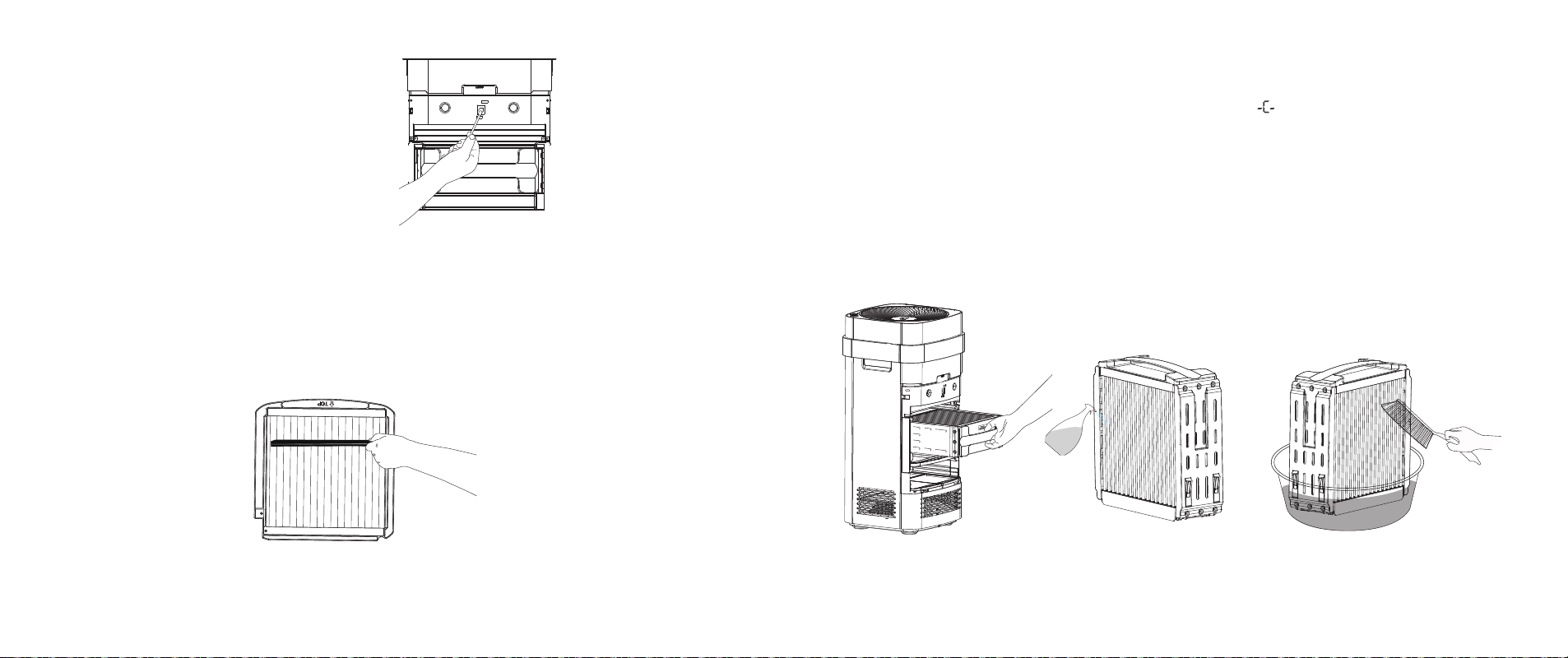

1. We recommend you to clean the collecting plates when the air purifier display “ ”.
2. Cut the power, open the back shroud and pull out the collecting plates ( Pic 1 ) .
3. Put collecting plates into a container and use a cleaning brush to clean external sheet metal finishing by water ( Pic 3 ).
Remarks：a. It is better to use detergent and soak for around 10 mins before brushing the collecting plates.Do not soak for too long in
order to protect the normal functions of collecting plates ( Pic 2 ).
b. Choose the neutral detergent. DO NOT USE corrosive detergent, such as daily laundry powder.
c. Do ignore the small stains on the surface of the sheet metal as it will not seriously affect the use of the air purifier.
4. Dry the collecting plates after cleaning, it can either use hair dryer or the nature sunlight ( recommend over 24 hrs ).
5. Put back the collecting plates in the direction of labeling.
87
Pic 1
Pic 1 Pic 2 Pic 3
Pic 1
Cleaning
Products

Full Cleaning Cycle App Setting
Catalytic Gauze Cleaning
1. We recommend a complete cleaning every 6-12 months.
2. First, unplug the power supply. Open the back shroud, pull out the
ionization wire frame and collecting plates. Pull out the protective
rubber sleeve as illustrated in (Pic 1).
3. Clean the ionization wire frame and collecting plates properly
according to the previous instructions.
4. Use a wet cloth to wipe down all surfaces of the protective rubber
sleeve, including notches. For better result, wash the entire rubber
sleeve in water.
5. Clean the inner walls of the air purifier with a wet cloth.
6. Wash the pre-filter in water, or clean it by vacuum.
7. Dry the parts completely, then put them back in order.
The composite filter is composed of a composite catalyst, and active carbon . In
principle the catalyst is not involved in the reaction and should not be changed.
However, if the catalyst becomes coated with dust, odor or moisture then the catalytic
effect will decrease. Protect the device with the provided cover whenever it is not
powered up to help extend the catalyst life. A periodic sunbath for 1-2 hour may also
help to reduce the moisture build up and reactivate the catalytic effect.
�The shelf life of the composite filter depends on how much you use the purifier.
Change the composite every year or two, or whenever you notice a significant
decrease in the purifier’s ability to remove odors from the air.
Note:
Please make sure the power has been cut off before any cleaning and maintenance
iOS
Scan to download Scan to download
Android
109
Pic 1
Pic 1
Pic 2

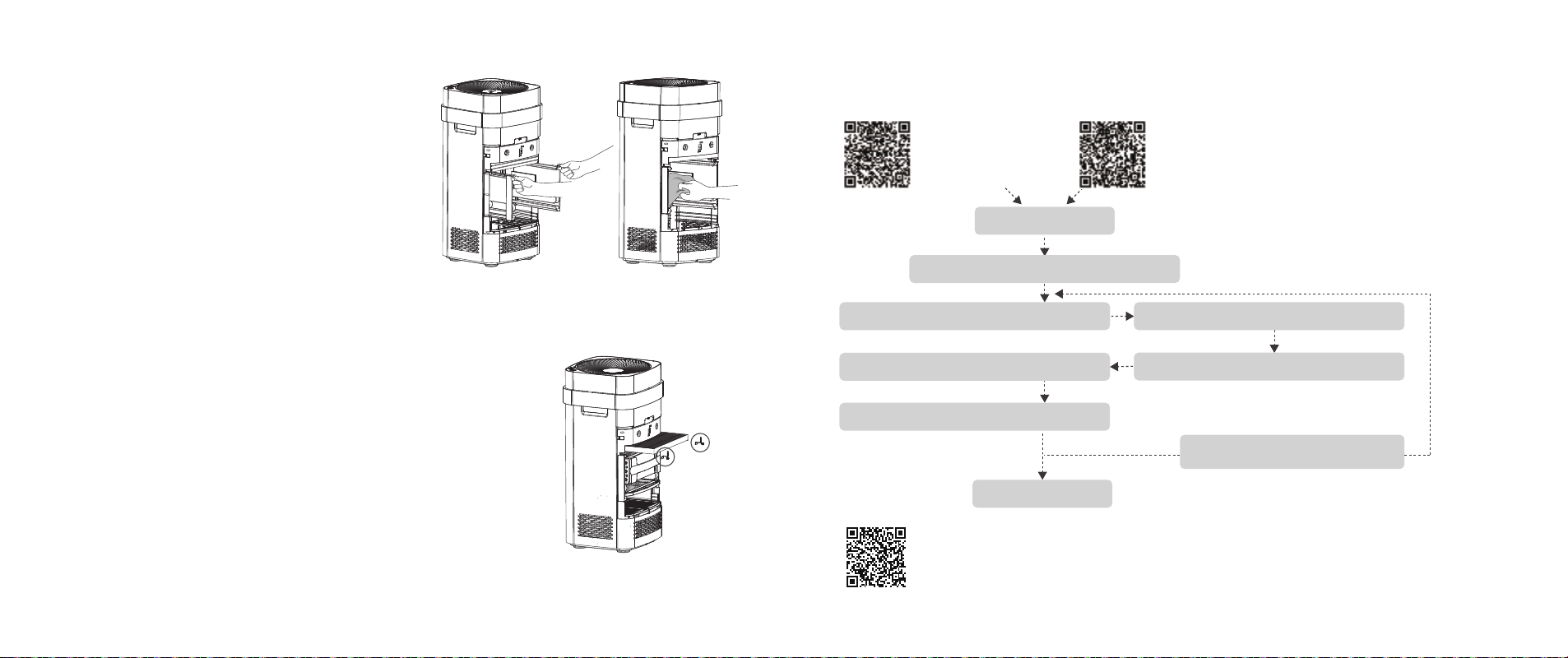

Open App
Use email address to set up an account
Click "+" on top right corner Select model
Enter WiFi name & password
Press "WiFi" button on remote
Start to pair
If failed, please keep the device live for
at least 5 minute, and try again
Done
CL:20170510-01
Please keep your Wi-Fi on to help you finish your App setting.
For convenience,
please check Airdog youtube channel for video instructions.

Q1: I am concerned about the product safety, may I know more details?
Airdog X5 is built around Safety 1st! We have implemented the following:
A.Smart control: The “smart electronics” control circuit continually monitors the current and voltage levels, and suppresses
them whenever there’s any abnormal situation;
B.Anti-fire: Airdog X5 is manufactured with the highest V0-grade fire retardant plastics housing;
C.Child lock: It prevents improper operations when children are playing around it;
D.International reputable third-party verification: Airdog X5 has passed safety test requirements including but not limited to
CE, FCC, CQC etc.
Q2: Airdog X5 uses high voltage inside, is it safe for home use?
Airdog X5 uses an advanced electronic design built around safety. The power consumption of Airdog is equivalent to a small
light bulb. It has high voltage inside but very low current in the order of micro-amps. The high voltage runs on direct current
to avoid any possible electronic perturbation.
Q3 : Do I have any maintenance cost if I own an Airdog X5?
Airdog X5 is a cost effective and environmental green solution.
A.Collecting plates in Airdog X5 is washable and reusable, so no more spending on HEPA filters and others.
Composite catalyst gauze is reusable, you may put it directly under the sunlight for 1~2 hours to refresh it. However, some
customers might be very sensitive to any smell and might have to change the composite catalyst layer every 6-24 months to
refresh the smell. The cost of the catalyst layer is only a small fraction of the cost of HEPA. To replace the catalyst layer,
please contact your sales resource where you bought Airdog X5.
Q4: How could I know that my air purifier is cleaning the air?
The best part of Airdog X5 air purifier is that you could see the effect by your own eyes! You will notice the AQI (Air Quality
Index) number decreasing when the air purifier is on. Also, after using X5 for a week, you can actually see many of the
pollutants absorbed on the collecting plates when you take the plates out of X5 to clean.
Q5: Why the AQI display is abnormal on LCD screen, display “-C-” or “9XX” instead of digits?
Display of “-C-” means it is time to do a cleaning.
The “9XX” is an electronics abnormal signal. Please unplug the unit and do a full clean cycle and restart. If the “9XX” still
exists, please contact customer service for further instructions.
Q6: Why isn’t the AQI display changing number?
The dust accumulated on the sensor could cause insensitivity of sensors. Please clean the sensor with a dry cloth or a cotton
swab with alcohol.
Q7: I heard a “cracking” or “zapping” noise inside the unit. Is that normal?
The occasional “zapping” or “cracking” is normal when the bigger particles enter the air purifier, being zapped by the high
voltage, similar to when a bug zapper traps a bug. However, if the “cracking” or “zapping” noise is constant, you should clean
the unit and make sure that all parts in the unit are fully dried after you clean the unit. 80% of the noise issues are caused by dust
accumulation on the collecting plates and/or inner chamber, or by wet collecting plates. Normally a full clean cycle will take care
of this all.
Q8: When should I do a full cleaning cycle?
A.When “-C-” is on the display screen.
B.“9XX” appears on the display screen even after cleaning the collecting plates.
C.Cracking sounds still exist after cleaning the collecting plates.
D.The unit shuts down and restarts automatically.
Note: Please refer to the “Full cleaning cycle” section in the user manual for details.
Q9: Can I clean Airdog X5 by putting the whole unit in the dishwasher?
You should not put the whole Airdog X5 unit into the dishwasher! Only the collecting plates is OK to be washed by a full wash
cycle. Please make sure the collecting plates unit is fully dried before putting it back into your Airdog X5. There could be water
residue inside of the collecting plates even after the drying cycle sometimes, so make sure to take the time to fully dry them.
Q10: How could I confirm that the collecting plates is fully dried?
Please put the collecting plates in a dry space for at least 24 hrs. You may put tissues or a paper towel under the collecting
plates to check if it is fully dried.
Q11: Why does Airdog App connection fail?
A.Airdog App does not support IPv6 network environment.
B.Make sure your Wi-Fi is in 2.4GHz.
C.The home Wi-Fi environment could be complicated. To verify if the smart control system is functional or not, you could use
the hotspot on another phone instead of the home Wi-Fi to make a connection. The hotspot could simplify connection
complexity and verify the hardware function.
D.We have finished the App and server migration. Please double check the label on the back of the unit, if it is a green matrix
code, you are good to download the “Airdog Pro”App and connect. If it is a blue matrix code, please check whether your firmware
is upgraded or not.
For more details, please visit the Official Website for the App Guide.
Q&A
1211

KJ300F-X5
375 SQF or 35 m2
200 CFM or 350 m3/h
≤63
55
100-240V~ 50-60Hz
10.7
0.65 (H) *0.316 (L) *0.306 (W)
Model
Applicable area
CADRParticle
Noise (dB(A))
Rated Power (W)
Power
Weight (kg)
Size (m)
*Test according to GB/T 18801-2015
Technical Specification
13 14
Designed by Silicon Valley Air Expert
Manufactured by Anhui BeiAng Air Tech Ltd.
No.15, Exi Rd., San Shan District, Wuhu, Anhui
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
For a Class B digital device or peripheral, the instructions furnished the user shall
include the following or similar statement, placed in a prominent location in the text of the manual:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and must not be co-located
or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with
antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
FCC Statement
This device complies with Part 15 of the FCC Rules.
*
*
