AIRfire ARMANfire FK-5-1-12 Mounting instructions

PRE-ENGINEERED SUPPRESSION SYSTEM
Installation and Maintenance User Manual
Automatic fire suppression system for small enclosure
applications (LPCB Certified up to 2m3)
FK-5-1-12

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 1 of 46

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 2 of 46
INTRODUCTION 5
1.1 GENERAL 5
1.2 HAZARD NOTICE 5
1.3 FUNCTION OF THE EXTINGUISHING SYSTEM 6
1.4 DIRECTIVES FOR USERS OF THE SYSTEM 6
1.4.1 INSTALLERS AND SERVICE PERSONNEL 6
1.4.2 FIRE SAFETY OPERATORS 7
SYSTEM DESIGN 9
2.1 GENERAL SYSTEM DATA 9
2.2 APPLICATION LIMITS 9
SYSTEM COMPONENTS 11

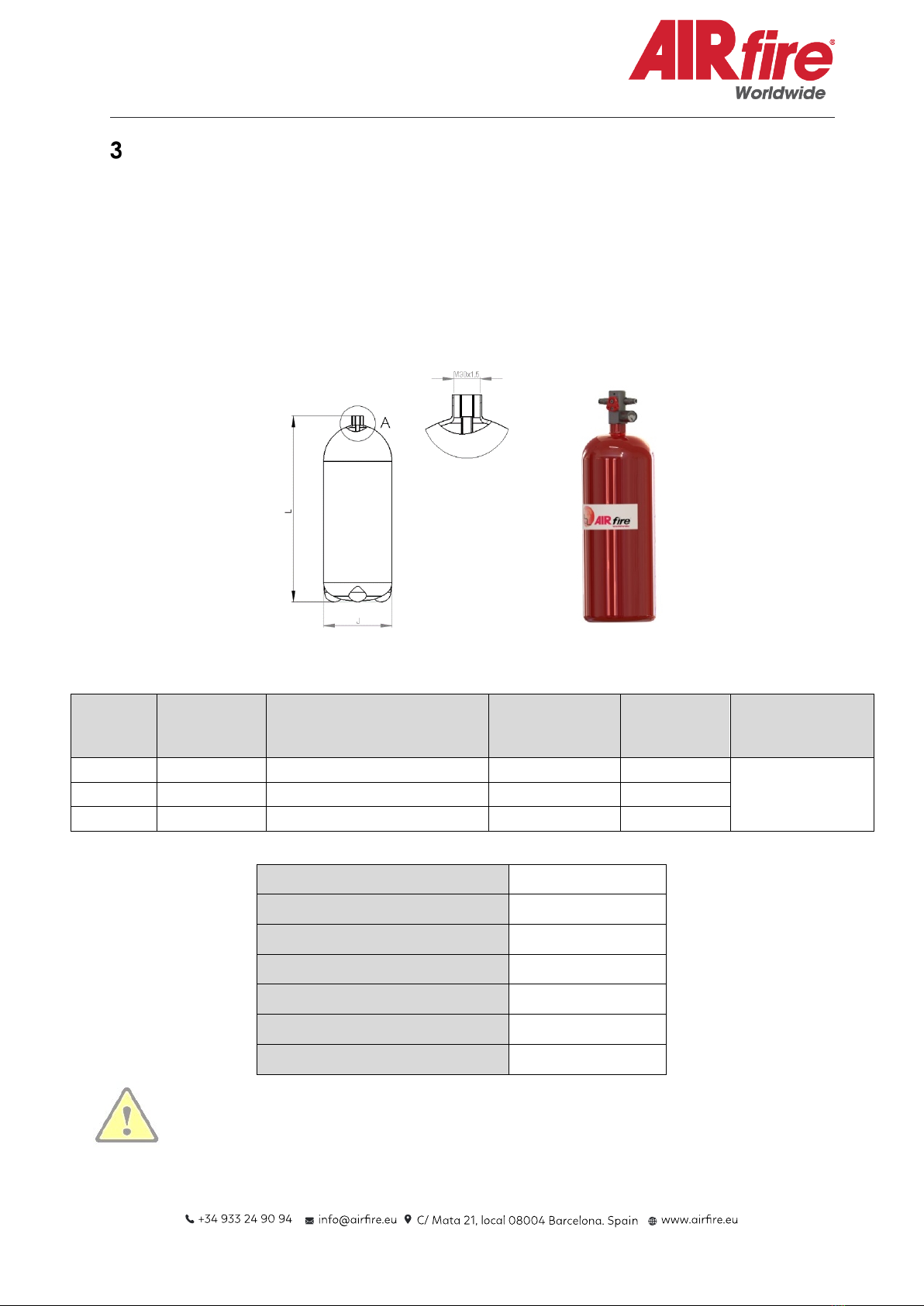

3.1 Extinguisher container – Cylinder (code: 03420X) 11
3.2 Cylinder valve (code: 0742A0) 12
3.3 Easydetect sensor tube (code: 125101) 13
3.4 Easydetect tube fittings 14
3.5 Cylinder brackets 14
3.6 Accessories 15
3.6.1 Signal transmitter (052004) 15
3.6.2 Pressure gauge with switch (05400X) 15
3.7 Starterkit – Installation/ maintenance tools 16
INSTALLATION 17
4.1 Goods reception 17
4.2 Mounting of the cylinder 17
4.2.1Fixing cylinder bracket 18
4.2.2 Mounting cylinder to bracket 18
4.3Installation of the Easydetect tube 19
4.3.1 Position/ routing instructions 19
4.3.2 Drilling enclosure wall to pass Easydetect tube 22
SYSTEM MONITORING 23
5.1.1 Signal contact of the cylinder valve 24
5.1.2 Monitoring using signal transmitter 25
5.1.3 Connection of pressure gauge with contacts 25
COMMISSIONING 27
6.1 Pressurising the Easydetect tube 27
6.2 Opening cylinder valve 28
6.3 Installation Quick Check 29
OPERATIONS 30
7.1 Automatic fire detection 30
SERVICING/ MAINTENANCE 31

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 3 of 46
8.1 Reinstatement work after system discharge 31
8.1.1 Replacement of single use components 31
8.1.2 Replenishing discharged extinguishing agent 31
8.2 Servicing after an interval 31
8.2.1 Service intervals 31
8.2.2 Maintenance schedule 32
8.2.3 Yearly check – System functionality check 32
8.2.4 Biannual check – Checking operational state of components 32
8.2.5 10year check – General maintenance 33
8.3 Service and maintenance records 33
APPROVAL AND MARKING OF SYSTEM 34
PRODUCT LIABILITY 34
ANNEX 1 – SYSTEM LAYOUT 36
ANNEX 2 – FK-5-1-12 FEATURES 37
ANNEX 3 – TRAINING PROGRAMME 42
ANNEX 4 – SERVICE AND MAINTENANCE CHECK LIST 43
ANNEX 5 – Caution label for protected enclosure 44
List of figures 45

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 4 of 46
Version
Amendment
date
Amendment Staff
1.0
21/04/20
Manual creation
A.Esteruelas
1.1
29/04/20
Vent area and temperature range updated
A.Esteruelas
IMPORTANT
The information contained in this manual is property of AIRfire Worldwide, who reserve the right to
carry out changes without prior notice. No reproduction, modification, total or partial translation
is allowed for any purpose than internal use. Every effort has been made to ensure accuracy of
information contained herein, however, AIRfire disclaims any liability for the use that may be made
of this information. Anyone using the data contained in this manual does so under their own
responsibility and assumes whatever consequence they may encounter.
Any questions concerning the information presented in this manual should be addressed to:
Thank you for your trust in AIRfire, your confidence increases our desire to follow ahead.
NOTE:
Unless otherwise stated, images/ diagrams are for illustrative purposes only. Colours and
dimensions may not represent the true product. Always verify Technical Datasheets for as-built
characteristics.
C/ Mata 21, Local
08004 – Barcelona – Spain
Tel: [phone]
[email protected]
www.airfire.eu

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 5 of 46
INTRODUCTION
1.1 GENERAL
The terms DANGER, WARNING, ATTENTION denote that non-compliance with the
warnings can cause severe injuries and even fatalities, or that there is the risk of
substantial material damage. All other notices shall also be observed to prevent
faults and resulting personal injuries and material damage.
Do not expose yourself or others to hazards. Carefully read the following safety instructions before
installing, operating or servicing the system equipment, to prevent accidents, personal injuries and
material damage. The fittings and the product itself shall only be used for the intended purposes.
Limits and values listed in these operating instructions shall be observed, particularly operating
pressures, ambient temperatures and dimensions of the system installation too. The company
AIRfire will accept no liability for damages resulting from improper use or non-compliance with the
instructions in this user manual.
1.2 HAZARD NOTICE
All work shall be performed by qualified personnel trained according to the operating instructions
throughout the service life of the system. Qualified personnel mean all persons officially trained by
AIRfire in the planning, installation, commissioning, operation and maintenance of the gas
suppression systems. Furthermore, the personnel shall comply with:
•Regional, national and internal regulations and safety standards.
•Use of appropriate safety equipment and work apparel.
These operating instructions are intended for all persons installing, operating and servicing the
products and fittings listed below. It is assumed that all involved in these tasks are aware of the
general rules and safety guidelines for handling gases and pressurized units. It is also assumed that
the personnel are acquainted with handling electrical components.
In case of difficulties with operating the pressure units that cannot be resolved by consulting these
instructions further information must be requested from the manufacturer, AIRfire.
Manipulate all vessels with extreme care, never assuming they are empty. Always as if
pressurised.
The manufacturer reserves the right to implement technical changes, improvements, and
amendments. Always consult the newest version of this user manual.
The extinguishing system described in this user manual may only be used for the
protection of enclosures meeting the designated system limits, otherwise the
protective function cannot be guaranteed.
Any modification of components and materials is prohibited, only parts which are
listed in this manual and properly functioning must be used. Unsuitable tools and working practices
entail risks for personnel injuries and malfunctions.
Ignoring these instructions can cause severe personal injuries and material damage.

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 6 of 46
1.3 FUNCTION OF THE EXTINGUISHING SYSTEM
The ARMANfire System is designed as a fixed fire suppression system, where the extinguishing agent
is stored in a pressurised vessel with nitrogen at an operating pressure of 18 bar. The nitrogen acts
as the propulsion gas expelling the extinguishing agent, as well as compensation for natural micro
leakages over time. The valve of the vessel is maintained shut by external pressure coming from
the Easydetect sensor tube.
The Easydetect sensor tube is a linear thermal detector mounted inside a defined enclosure (LPCB
certified volumes of up to 2m3) covering all risks within it to ensure rapid fire detection. If a fire
occurs in the enclosure, the sensor tube that is pressurised with nitrogen, (18 bar internal pressure,
as in the pressurised vessel) bursts due to the continuous heat rise. After it occurs, the extinguishing
agent is discharged from the same hole that the fire has produced in the Easydetect sensor tube.
Enclosures may only be operated with a properly installed and fully functional
extinguishing system so to avoid fire propagation to adjacent enclosures in case of a
fire.
Notes to take into consideration regarding ARMANfire systems:
• Regular visual inspections of the vessel pressures on the pressure gauges ensure the system
function and operation outside the service intervals.
• The extinguishing agent is clean agent in gaseous form when discharged, FK-5-1-12, it is
colourless, odourless and electrically non-conductive. It is non-toxic and leave no residue
upon discharge.
• The main extinguishing mechanisms of clean agent is by removing enough heat from the
fire and interrupting the combustion chain reaction.
1.4 DIRECTIVES FOR USERS OF THE SYSTEM
1.4.1 INSTALLERS AND SERVICE PERSONNEL
There are two different useful ways to use this manual. First, following the index accurately step by
step (mainly when it is the first system to be installed and the personnel has no previous
experience) and secondly, as a reference book. In both cases, it is necessary the use of the
drawings provided with the system for accurate, project specific installation.
Intention of this manual is to give specific instructions for installation, maintenance, and testing
requirements for AIRfire systems and components. In any case is intended to accomplish any
requirements of the applicable and mandatory standards of design and installation of systems.
AIRfire systems may only be installed by specialist companies with the required
expertise, qualified personnel trained by the manufacturer AIRfire directly.
The installer of the extinguishing system is responsible for the layout, dimensioning of the fire
extinguishing system, as well as determining the suitability of the fire protection application, the
correct installation and labelling of the approved installed system.
•AIRfire recommends always the adoption of safe working practices in accordance with
current health legislation and safety procedures. It is recommended that personnel in
charge of installation and maintenance of the fire extinguishing system should be properly
trained in its safe use and should read the whole of this manual before initiating any of the
operations mentioned above.

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 7 of 46
•During installation and maintenance operations personnel should be protected by
wearing protective clothing and shoes and when necessary helmet and gloves. Safety
glasses or facemask should be worn whenever holes are drilled for pipe supports or cylinder
bank brackets. Such protection is also needed when dealing with particle emission.
•All the equipment shall be installed in accordance with the design parameters. Systems
are made up of units tested within limitations. The system designer shall be consulted
whenever changes are planned for the system or area of protection.
•Any deviations exceeding the approved system parameters will automatically invalidate
the system approval.
The manufacturer and/or the installer of the fire extinguishing system shall deliver
technical documentation and system-specific operating instructions at the time of
commissioning the system to the End User.
In addition, the operating instructions to the individual components complementing the
information in this documentation must be observed.
Do not hesitate to contact AIRfire in case of overlapping, missing information or doubts.
1.4.2 FIRE SAFETY OPERATORS
The system components shall never be damaged, disassembled or readjusted during
operation of cleaning/ maintenance work. A qualified installation technician from the
installing company shall be contacted in case of doubt.
This manual is written for those who install, operate and maintain ARMANfire fire extinguishing
systems manufactured by AIRfire Worldwide. It contains system installation, operation and
maintenance instructions
ARMANfire fire suppression systems designed and manufactured by AIRfire are considered as
heavy-duty equipment, reliable and easy to mount, with simple test routines to check their
operating condition as described in this manual. However, AIRfire Worldwide wishes to clarify the
following points:
•All personnel who are assigned to the equipment shall be properly trained in its use,
inspection, tests and maintenance.
•AIRfire recommends always the adoption of safe working practice in accordance with
current health legislation and safety procedure. It is recommended that personnel in
charge of installation and maintenance of the fire extinguishing system should be properly
trained in its safe use and should read the whole of this manual before initiating any of the
operations mentioned above.
•All the equipment is installed in accordance with the project drawings. Systems are made
up of units tested within limitations. The system designer shall be consulted whenever
changes are required to the system or area of protection.
•An authorized installer or system designer shall be consulted after the system has
discharged.
Check the system for its functionality in regular intervals and before starting daily work. This
includes inspection of the vessel pressure on the pressure gauge and checking the red ball valve
position on the cylinder valve.

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 8 of 46
Never sever the sensor tube as this would trigger the extinguishing process.
The ball valve of the extinguishing system must never be shut by non-authorised staff as this
would prevent any extinguishing action.
Lever open – System operational
Lever shut – System out of
Figure 1 - Ball valve position
Valve closed
Valve opened

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 9 of 46
SYSTEM DESIGN
2.1 GENERAL SYSTEM DATA
Extinguishing agent used
(ISO name)
FK-5-1-12
Nomenclature 1,1,1,2,2,4,5,5,5-Nonafluoro-4-(Trifluorometil)-3-Pentamona
Chemical formula CF3 CF2 C (= O) CF (CF3) 2
System pressure (at 20 ºC) 18 bar
Operating temperature
range
-20 °C to +60 °C
Propelling gas Nitrogen (N2)
Toxicological information:
Property
Value
% by volume
FK-5-1-12
No Observed Adverse Effect Level (NOAEL) 10,0
Lowest Observed Adverse Effect Level (LOAEL) >10,0
2.2 APPLICATION LIMITS
Direct low-pressure application fixed fire suppression system, ARMANfire, is used for the protection
of small unoccupied defined enclosures such as electrical switchgear cabinets, server racking
and similar installations from small local flaming fire sources. The system uses a single method of
detection and delivery of the extinguishing agent to the fire ignition point., called Easydetect
tubing, a heat sensitive pneumatic detection tubing.
The ARMANfire system is intended solely to provide improved local fire protection that may occur
within enclosures of a defined volume and prevent possible fire propagation to adjacent
enclosures. It is not intended for use as whole room or building fire protection system. To guarantee
complete fire protection always, applicable fire safety codes shall be followed.
Limitations in the use of FK-5-1-12 extinguishing agent:
Agents may be used for extinguishing fires of all classes within limits. Unless relevant testing has
been carried out to satisfaction, FK-5-12 shall not be used on fires involving:
a) Chemicals containing their own supply of oxygen, such as cellulose nitrate;
b) Mixtures containing oxidizing materials, such as sodium chlorate or sodium nitrate;
c) Chemicals capable of undergoing autothermal decomposition, such as organic
peroxides;
d) Reactive metals (such as sodium, potassium, magnesium, titanium and zirconium),
reactive hydrides, or metal amides, some of which may react violently with some gaseous
extinguishants;
e) Environments where significant surface areas exist at temperatures greater than the
breakdown temperature of the extinguishing agent and are heated by means other
than the fire.

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 10 of 46
Limitations for the protected enclosure:
Maximum protected volume Up to 2 m3
Maximum free vent area
Up to 0.025 m2
0.0125 m2at the top level of the cabinet +
0.0125 m
2
at the bottom level of the cabinet
Design concentration, LPS 1666 Issue: 1.0 FK-5-1-12: 6.7%
There are system variants (sizes) available, characterised mainly by the size of the enclosure to be
protected and the quantity of extinguishing agent.
The variants should be selected according to the table below:
System code for FK-5-
1-12
Quantity of
agent
Maximum
protected volume
Maximum free vent
area
ARFFK501TB
1 Kg
Up to 1 m
3
Up to 0.025 m2
0.0125 m2at the top
level of the cabinet +
0.0125 m2at the
bottom level of the
cabinet
ARFFK502TB
2 Kg
Up to 2 m3
ARFFK503TB 3 Kg
ARFFK504TB
4 Kg
ARFFK506TB 6 Kg
Apart of the volume, it is important to consider the free vent areas (openings with no forced
ventilation) of the enclosure.
In case the protected enclosure has a forced ventilation system, the ARMANfire fixed
fire suppression system shall have a signal transmitter (052004) installed. This signal
transmitter shall turn off the forced ventilation when the system is activated.
In case of installation requirements where one or several values exceed the limits of
the system specified above, consult AIRfire. It may be possible to achieve the protection level by
installing additional systems.
The dimensions and numbers listed above are the system limits and shall be
followed.
They are confirmed having successfully completed the test procedures as specified
in LPCB, LPS 1666 Issue: 1.0. Within these limits a comprehensive and safe
extinguishing effect can be expected. In case individual or several limits are exceeded,
protection cannot be guaranteed.

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 11 of 46
SYSTEM COMPONENTS
The ARMANfire fixed fire suppression systems consist of various components that have been
examined and tested individually to guarantee reliability and suitability for use. After which they
have been tested assembled as systems according to requirements and test procedures set
forth by LPCB LPS 1666 Issue: 1.0.
3.1 Extinguisher container – Cylinder (code: 03420X)
There are some cylinder sizes available, selected according the enclosure volume to be
protected.
Dip tubes must be selected according to the cylinder used, otherwise there is risk that the
entire extinguishing agent is not expelled during system discharge.
Cylinder
type
Part
number
Cyl. volume/
Max. extinguishing
agent
Diameter [J]
(mm)
+/- 1%
Height [L]
(mm) Colour
1 034201 1.3 litre/ 1 kg of agent 80 314 (+/-2)
RAL 3000 (red)
2 034202 3,8 litres/ 2 or 3 kg of agent 140 305 (+/-2)
3
034203
7.5 litres/ 4 or 6 kg of agent
160
440 (+/-2)
Cylinder thread M30x1,5
Working pressure 24 bar
Test pressure 34.3 bar
Burst pressure 64.8 bar
Working temperature -20 ºC to +60 ºC
Dip tube inner diameter 12 mm
Dip tube thread connection M16x1.5
Figure 2 - Cylinder layout

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 12 of 46
Compensation volume
This is the volume of the propellent gas (Nitrogen) inside the cylinder above the extinguishing
agents.
The compensation volume has the following functions:
oProvide energy required to expel the extinguishing agent at the corresponding
extinguishing pressure.
oCompensation of micro leakages (e.g. natural diffusion through plastic and seals
due to permeability).
In case of excessive leakage, the compensation volume will shrink, and the extinguishing effect
will be reduced due to insufficient pressure. To prevent this, regular servicing is essential. In
addition, AIRfire recommends installing pressure gauges with electric contact to monitor the
pressure levels and to sound an alert signal in case of a drop of pressure below a minimum.
3.2 Cylinder valve (code: 0742A0)
This pneumatically actuated cylinder valve is the main component of the system due to its
connection between the Easydetect sensor tube and the cylinder. The valve will open upon a
drop-in pressure inside the sensor tube (burst due to heat rise/ flame) and opens allowing the
discharge of the extinguishing agent.
The valve includes a dry contact that provide electrical signal when the ball valve lever is closed.
That is why they must be connected to the fire alarm panel so to provide an alarm status when
the system is closed for maintenance procedures for example.
Pos. Description Value
A Sensor tube
connection Ø6 mm
B Ball valve lever Open – Close
(0º - 180º)
C Pressure gauge
Connection thread
M10x1
D
Cylinder
connection thread
M30x1.5
Figure 3 - Compensation volume
Figure 4 - Cylinder valve
Cylinder
Compensation volume to
pressurize the extinguishing agent
Extinguishing agent

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 13 of 46
If during servicing the ball valve lever (B) is closed, it must be ensured that the valve
will be reopened later; otherwise the suppression system is out of service and not
available in case of a fire. By employing the valve lever position monitoring dry contact
this risk can be avoided. If the valve is closed a signal is emitted.
3.3 Easydetect sensor tube (code: 125101)
Polymeric tubing with thermal detection capabilities. Easydetect sensor tube is made of high-tech
polymers especially developed for the use as a thermal linear detector in automatic fire
suppression systems. Due to thermal material properties and the inner over-pressure the sensor
tube bursts when touched by a flame or subjected to excessive heat increase.
Technical Specifications:
Marking:
The maximum Easydetect sensor tube length from the container outlet to the end of
any single detection tube run shall not exceed 10 m.
Only using AIRfire Easydetect tube and installing as indicated in this document, rapid
and efficient fire detection without the risk of false alarms is guaranteed.
Part number
125101
Dimensions Ø6x1 mm (inner Ø – 4 mm)
Recommended bending radius 150 mm (min. 100 mm)
Operating pressure 18 bar, max. 28 bar at Tmax
Operating temperature -20 ºC to +60 ºC
Bursting temperature 150 ºC
Permeability 10-4 mbar l / sec (Helium)
6
4
Figure 5 - Easydetect sensor tube
====== - ARMANfire - 125101 - WW/YYYY - XX – Detecting Tube – Tubo rivelatore –
Tubo de detección - Capteur de Feu – www.airfire.eu - ======

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 14 of 46
3.4 Easydetect tube fittings
To facilitate different system configurations and set ups, the following Easydetect tube fittings are
available:
3.5 Cylinder brackets
Bracket is used to fix the cylinders to the wall or to the ground. There are 3 models of brackets
depending on the cylinder size. For more details, see its data sheet TDS082XXX
Cylinder size
Bracket code
1.3 Litres
082301
3.8 Litres
0825A0
7.5 Litres
0825A1
Figure 6 - Easydetect tube fittings
Figure 7 - ARMANfire bracket
Elbow plug in
connector - 125201
Tee plug in
connector - 125202
Endo f line plug -
125203
Endo f line adapter
- 125204
End of line with pressure
gauge - 052003
Grommet - 125205
Tube attachement -
125206
Straight plug in
connector - 1255207

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 15 of 46
3.6 Accessories
3.6.1 Signal transmitter (052004)
Signal transmitter is used to send an electrical signal when the
pressure of the Easydetect tube decreases. With this signal, allows
real time monitoring of the system and know when it is discharged
or there is leakage in the Easydetect tube line. This device is
connected to the Easydetect tube through an end of line adapter
(125204).
3.6.2 Pressure gauge with switch (05400X)
Allows visual check of the pressure and includes a switch to send an electrical signal in case of
leak. This device can be mounted to the cylinder valve to monitor the pressure inside the cylinder
or at the End of line adapter (125204) to monitor the pressure in the Easydetect tube.
Designation
Pressure
gauge
N.O.
Pressure
gauge
N.O.
Code
054006 054007
Switching mode
without pressure
Open Close
Figure 8 – Signal transmitter
Figure 9 - Pressure gauge with contact

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 16 of 46
3.7 Starterkit – Installation/ maintenance tools
1. Special tube scissors – To cut the Easydetect tube correctly according specifications.
2. Deburring tool – To deburr the Easydetect tube for an easy quick coupling with fittings.
3. Multi-tool – For the installation of the system
4. Easyfill – For the pressurization of the Easydetect tube. It contains preferably nitrogen (N2).
5. Filling connector G1/8” – For the refilling of the extinguishing cylinders through Easydetect
tube outlet of the valve.
6. Filling connector M10 – For the pressurization of the Easydetect tube with the Easyfill
7. Filling adapter – Adapter to fill the Easyfill
8. Laser pointer – For the adjustment and alignment of the nozzles (Only for ARMANfire Chef
kitchen systems)
The Easyfill is used to provide pressurized gas (up to 200 bar) during installation and
servicing, since the Easydetect sensor tube must be filled before opening the
cylinder valve to avoid accidental discharge. In addition, the top-up pressurization
of the extinguishing agent within the cylinder the can be done with the Easyfill if no
other source is available.
Figure 10 - Starterkit

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 17 of 46
INSTALLATION
4.1 Goods reception
1. Check all the material is according to delivery documentation. If you have any doubts do
not hesitate to contact with AIRfire.
2. Carefully unpack the cylinder storing it in a safe place without removing the cap until
necessary. Carefully place the components of the system for easy manipulation.
WARNING: The cylinder is under pressure and must always be manipulated with great
care. The ball valve must always remain closed and secured during manipulation and
storage.
4.2 Mounting of the cylinder
The pressurized cylinder must be mounted and fastened securely in a vertical and upright position
for operation.
Specific ARMANfire brackets supplied by AIRfire or its distributors shall be used.
Horizontal mounting is not permissible as in this position the dip tube will only collect and expel a
fraction of the extinguishing agent not guaranteeing extinguishing of the fire.
Figure 11 - Mounting position

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 18 of 46
4.2.1 Fixing cylinder bracket
The cylinder bracket must be fixed to a firm wall, structure or support, capable to sustain complete
cylinder assembly weight.
Note: The screws must be suitable for the material they will be fixed to and installed according
specifications (not supplied by AIRfire).
4.2.2 Mounting cylinder to bracket
Carefully, locate cylinder into bracket and fasten clamp.
Figure 13 - Cylinder in bracket
Fixing
holes
Figure 12 - Cylinder in bracket

Technical Users Manual ARMANfire Cabinets FK-5-1-12 – TUMARFCABFK5EN – V1.1 – Date: 29/04/2020 Page 19 of 46
In case you couldn't fix the cylinder bracket to a firm wall, structure or support, AIRfire has special
floor bracket available. This bracket can be fixed to the floor.
4.3 Installation of the Easydetect tube
4.3.1 Position/ routing instructions
The Easydetect tube must be installed as close as possible to the fire hazards within the enclosure,
so that it may react rapidly upon flame detection. However, ensure that the tube is not mounted
too close to heat sources, this would result in accelerated degradation of the tube material
provoking unintended system activation.
Limits for sensor tube installation:
The end of the Easydetect tube not connected to the valve must be terminated with
an end-of-line adapter or plug. Use only AIRfire tube fittings, which are tested and
approved for the intended application.
Cylinder size Bracket code
3.8 Litres
0826A0
7.5 Litres
0826A1
Maximum tube length
10 m per valve outlet
Smallest permissible bending radius
100 mm
Maximum distance from a potential secondary fire source
within the cabinet
500 mm
Maximum activation height (MAH) above protected risk
150 mm
Maximum tube attachment spacing
250 mm
Fixing
holes
Figure 14 – Cylinder floor bracket
