Airrex AH-300 User manual

FAR INFRARED RAYS HEATER
USER'S MANUAL
MODEL : AH-300/600/700/800
▶Thank you for purchasing AiRREX Far Infrared Rays heater.
Please read this user's manual carefully before you operate this heater.
▶It is recommended you to put this manual on where the user can find easily.
▶It is obligatory that the user read "Notice for Safety" carefully before using,
and should be aware of this notice whenever using this heater.
▶This heater is designed for your country only. If you use it in another country
you have to check the electricity first, and if the electricity condition is same
you can use it.
▶Warranty card is enveloped in this manual.
▶The contents(features & specifications) in this manual are subject
to be changed without notice.

TABLE OF CONTENTS
■ NOTICE FOR SAFETY
■ TIPS BEFORE INSTALLATION
■ STRUCTURE & DESCRIPTION
· STRUTURE & DESCRIPTION FOR MODEL
· CONTROLLER
· REMOTE CONTROLLER
· REPLACING BATTERIES IN REMOTE CONTROLLER
■ HOW TO USE
· OPERATION & STOP
· TEMPERATURE CONTROL
· TIME CONTROL
· SELF DIAGNOSIS FOR THE SAFETY DEVICE
■ CLEANING & MAINTENANCE
■ DAILY CHECK POINTS & ADJUSTMENT
■ TROUBLE SHOOTING
■ SPECIFICATION & ELECTRICAL WIRING DIAGRAM
■ WARRANTY CARD
3
5
6~7
6
6
7
7
8~11
8
9
10
11
12
13~14
15~16
17
18

3
NOTICE FOR SAFETY
This is for protecting the user's safety, and preventing any property damage, please read carefully and follow
the instruction on this manual.
● It is classified as "Warning", and "Caution" by the contents.
: In case of misuse, it may cause a serious wounds or death.
♣Place this manual noticeably near the heater so that, if necessary, the user can always find it easily.
: In case of misuse, it may cause a slight injury or property damage.
Use AC 220/230V power supply only, otherwise.
(it may cause a fire or an electric shock.)
Do not use a damaged power cord or plug,
and a loose outlet.
(It may cause short, fire, a shock.)
Do not take out the plug with holding
the cord or by the wet hands.
(It may cause a fire or an electric shock)
Do not extend the power cord with
connecting another cable in the middle.
(It may cause a fire or an electric shock)
In case of cleaning you must take out the
plug from the outlet, wait until the heated
furnace is cooled down sufficiently.
(Otherwise, it may cause an electric shock or a burn)
Do not place or use any inflammable
near the heater including fuel, gas,
thinner, benzene, spray, solvents,
volatile organic compounds, etc.
(It is exposed to danger of fire or explosion.)
Put a plug into the outlet tightly
after removing any dirt on the plug.
(It may cause emitting smoke or a fire by
electrical short.)
Use the proper form of fuse. Otherwise
(it may cause malfunctioning or a fire.)
Do not fold the power cord hardly, or
put a heavy material on it.
(It may be damaged on the covering material
which might cause a fire, or an electric shock.)
Put a plug into the outlet tightly with Earth(-) only.
(It may cause an electric shock)
It is dangerous to turn OFF this heater
by taking out the power plug.
(it may cause a malfunction or electrical shock.
Please turn OFF using RUN/STOP button.)
Do not place any inflammable material
near the heater including curtain,
carpet, paper, match, clothes, etc.
(It is exposed to danger of fire.)
WARNING
Meaning of symbol
Forbidden Obligatory

4
NOTICE FOR SAFETY
WARNING
It is dangerous to put your hands or any
other thing into the grill or furnace, or
to apply a considerable shock or force to the heater.
(It is exposed to fire, burn, or electric shock.)
Do not place any electrical item or heavy
material on top of heater.
(It may cause malfunctioning or electrical shock,
or if the heavy material is fallen user can be injured.)
Do not move or transport during operation.
(It may cause a fire or a burn)
(In case of moving this heater you must turn OFF,
take out power plug before you move it.)
You must ventilate well while you are
using the heater, and do not use it in the
stuffy area where the ventilation is not possible.
(You need to ventilate with fresh air 1~2 times per hour.)
(In case of incomplete combustion due to the lack of
oxygen, carbon monoxide can be increased to cause
an accident from poisoning.)
In case of cleaning you must take out the
plug from the outlet, wait until the heated
furnace is cooled down sufficiently.
(Otherwise, it may cause an electric shock or a burn)
Do not use this heater for another
purpose other than heating.
(Do not use this heater for drying clothes
because it may cause a fire.)
(Do not use this heater for keeping pet animal
or plants warm.)
Do not place any inflammable vinyl
or plastic goods on top of heater,
or cover the heater grill with clothes.
(It is exposed to fire or burn.)
It is dangerous to use this heater for
a long time in the closed room or in
case there are children or the old and the weak.
(It is recommended that the user open
the windows to let fresh air in the room if
the room is stuffy.)
Do not touch any of the heated
material such as grill, furnace, etc.
- While the heater is operating or just after
extinguishing the grill and furnace are hot, so do
not touch any of those parts. (Especially pay
attention more to keep children away from
the hot materials)
- It may cause a burn.
It is recommended not to use this heater
in the highly elevated areas.
(Do not use this heater in the areas where
is higher than 1,500m from the sea level.)
(You need frequent ventilation in the areas of
700~1,500m from the sea level.)
(Due to the lack of oxygen, carbon monoxide
can be increased to cause an accident from
poisoning.)
It is dangerous to turn OFF this heater
by taking out the power plug.
(it may cause a malfunction or electrical shock.
Please turn OFF using RUN/STOP button.)
Pay attention to avoiding water into the
heater during cleaning.
(It may cause a fire or electric shock.)
Do not operate this heater while you are sleeping.
(Due to no ventilation while you are sleeping
the room easily get stuffy, and lack of oxygen.)
Do not use this heater on the unstable places.
(Do not use this heater on an inclined surface or
a shaking support.)
(This heater may fall down, which cause a fire or
malfunction.)
♣Place this manual noticeably near the heater so that, if necessary, the user can always find it easily.

5
NOTICE FOR SAFETY
TIPS BEFORE INSTALLATION....
Do not put this heater on unstable
surface of ground such as inclined or bumpy.
(The heater may not work properly.)
You must take out the plug from the
outlet, if there is a flash of lightening
or thunder or you don’t use it for a long time.
(Otherwise, it is exposed to the danger of
electrical shock, short circuit or a fire.)
Do not put an excessive physical shock to
the remote controller, nor disassemble it arbitrarily.
(it arbitrarily.)
Do not operate this heater in the
place where it gets wet by the humid such
as bathroom.
(It may cause an electrical short circuit or
an electrical shock accident.)
1. Make sure the safety in the place where you wish to use this heater.
▶ The ground surface and surrounding should be
plain and non-flammable, and solid.
▶ You need to have sufficient space surrounding the
heater at least 15cm from the wall and the left & right
side, at least 1m distance from the ceiling and the front
side without any obstacle.
▶ You need to use exhaust duct incase of operating
in small spaces.
(Recommended Duct specification :
75mmØ(Diameter) x 5meter long-aluminum duct)
(Be sure there must not be rain drops into the exhaust
duct end.)
(You must ventilate frequently with fresh air by opening
window or fan.)
▶ You must put an extinguisher beside the heater.
▶There must not be direct sun light, excessive heat near
the heater.
▶After you fix the installation, lock the caster for avoiding
unexpected movement.
▶Do not use this heater near fabri curtain, carpet or
plastic or vinyl curtain which may cover th heater in case
of falling down by the wind or by any physical force,
which may cause a fire.
2. You must use Diesel or kerosene as fuel.
▶If you use other fuel, it may cause an
excessive soot or trouble of malfunction.
▶ Incase of refueling make sure the
heater is turned OFF.
▶ To be made by the manufacturer or his service
agent who should be contacted if there is an oil
leakage.
▶ Regulations concerning the disposal of oil when
scrapping the appliance have to be followed.
3. The proper electricity is 220/230V, 50Hz. It will be
applied and adjusted as per customer's request.
You must supply power as per its requirement only
once it is adjusted.
▶ The heater must not be located immediately below
a socket-outlet.
▶ Positioned so that the plug is accessible.
Do not shower water to the heater
directly, nor use benzene, thinner, alcohol
for cleaning.
(Otherwise, it is exposed to the danger of
electrical shock, short circuit or a fire.)
In case of storing this heater, be sure that
you store it in the dry places indoor instead
of hot and humid environment.
(Otherwise, it gets rusty or goes into trouble.)
Call your local after sales service agent
in case the power cord is damaged.
(Otherwise, it is exposed to the danger of
electrical shock, short circuit or a fire.)
CAUTION
If the supply cord is damaged, it must
be replaced by the manufacturer or its
service agent or similarly qualified
person in order to avoid a hazard.

6
STRUCTURE & DESCRIPTION
STRUCTURE & DESCRIPTION FOR MODEL
Exhaust Duct
Heating
Tube
Safety Grille
Back Reflection
Oil tank
Side
Reflection
Bottom
Reflection
Power code
(a.c. 220/230V only)
Control Panel
CONTROLLER
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISFIRE
OVERHEAT
1. LED DISPLAY
It displays the status of temperature, time,
operation, and error, etc.
2. TEMPERATURE CONTROL MODE
It is lighten at the temperature control mode.
3. TIME CONTROL MODE
It is lighten at the time control mode.
4. IR RECEIVER FOR REMOTE CONTROLLER
5. ON / OFF
Run and stop button
6. TEMP/TIME SELECTION BUTTON
To select temperature or time control mode.
7. UP/DOWN
To set or change the temperature or time.
8. LOCK
If you push this lock button for 3sec,
the controller is locked. And if you push
again for 3sec. this fuction is released.
9. OFF TIMER
To select whether off timer mode is
operated or not.
10. OFF TIMER LED
To show whether off timer mode is
operating.
11. MISFIRE
It shows the misfire on the burner.
12. OPERATION LAMP
It is lighten on operation.
13. FUEL GAUGE DISPLAY
It displays fuel remain in 3 steps.
14. OVERHEATING
It shows overheating status if the
temperature goes up to 105℃.
15 TILT SENSOR
It is turned on in case of inclination
over 30deg. or an excessive motion
is detected.
16. LACK OF FUEL
It shows the remaining fuel amount.
17. LOCK LED
When the machine is in the lock
mode, the LED of this LOCK is
lighten.
overheating
sensor
(Automatic
Recovery)
Electronic
fuel pump
Fuel inlet
Fuel tank
Air suction
hole Igniter
Tilt sensor
Fuel gauge
burner
Flame
sensor(CdS)
Fuel filter
Control
panel

7
STRUCTURE & DESCRIPTION
REMOTE CONTROLLER
REPLACING BATTERIES IN REMOTE CONTROLLER
①②
Dry cell
ON/OFF
VALUE (TEMP/TIME)
UP/DOWN
TEMP/TIME
OFF TIMER
1. Open battery cover.
·Press ①part way in, in the direction shown by
the arrow, then pull the number ②part towards
the direction shown by the arrow.
2. Exchange Battery.
·Place as indicated +, -
3. Close cover
· push until cover "click".
■ Point remote control at machine receiver.
■ Remote control will not function where strong lights
such as 3 florescent, neon or strong sunlight
interferes. In this case use the remote control directly
in front of the receiver on the unit.
■ when the remote operates a "beep" sound
will confirm that the remote signal has been sent.
■ Remove batteries when you do not use the remote
control for long periods, as leakage can occur.
■ Ensure water and other liquids do not enter the
remote control.

8
HOW TO USE
OPERATION & STOP
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT
♣ Tip
· In order to be operated, the setting temperature should be higher than current temperature.
· After power On, the default mode is temperature control mode.
· During the operation if you push On/Off button, the heater is stop and the off timer fuction is
cancelled.
· The model equipped "pre-heater" is operating its heater for 1min. after burner ignition.
By this device, the oil warms up before being supplied to the burner, which improve remarkably
the ignition and inflammability.
The model equipped solenoid valve (by-pass device) makes the remaining oil returned to the oil tank.
For 10sec. from the time of burner off, the solenoid valve is operation, which makes remaining oil
returned to the oil tank, and by this device, the smell caused by unburned gas
are remarkably shrunk.
Cur Temp Set Temp / Time
Cur Temp Set Temp / Time
1. START WITH PRESSING "ON/OFF" SWITCH.
· Heater will be turned ON with "beep" sound, and
automatically operated.
· If you wish to stop the unit press "ON/OFF" switch
one more time.
2. SELECT THE DESIRED OPERATION TYPE USING
"TEMP/TIME" SWITCH.
3. Set the time or temperature by pressing ▲▼ switch.
· You can set the desired temperature between "0~40℃".
· Set the desired time limit between 15min ~ UP → ON
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT

9
HOW TO USE
This mode enables the user set the desired temperature,
and once it is fixed this heater works automatically with
running and stop repeatedly to meet this temperature.
(If power ON and Heater starts operation,the temperature control
mode will be operated as default.)
TEMPERATURE CONTROL
♣ Tip
·The current temp is less than -9℃(16℉), the dispaly of
the temp. is 'LO', and more than 50℃(99℉) it dispalys
as 'HI' (50℃is not same value as 99℉, actually 37℃is
same value as 99℉)
· The setting temperature is increased/decreased
1℃ by pushing of (▲/▼) button, if you push the
button more than for 2sec.
the value is increased/decreased 1℃ in 0.2 sec.
· If you push ▲and▼ button for 5sec.
simultaneously, the unit is converted from ℃
to ,℉or from ℉to ℃(The defaulte unit is ℃)
1. Push On/Off button.
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISFIRE
OVERHEAT
4. During operaton, the current temp. and setting temp.
both are displayed, and if you push On/Off button
and make the operation stop, only current temp.
is shown.
3. By pushing '▼▲' button, please select
desire temperature.
· The setting range : 0~40℃ · The default value : 25℃
· During the time you push ▼ or ▲, the setting
temperature is increased/decreased very fast.
· The range of current temp display : -9~50℃
2. By pusing Temp/Time button, please select
Temperature control mode.
· At that time, Temperature control lamp is lighten.
5. When the setting temp. is higher 2℃
than current temp., it starts operation, and
the setting temp. is less than 1℃than
current temp., the operation is stop.
· Current temp.＜ Setting temp. … Opeartion (+2℃)
· Current temp. ＞Setting temp. … Opearation stop (-1℃)
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT

HOW TO USE
TIME CONTROL
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT
TILT
LOCK
LOCK
Cur Temp Set Te mp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT
TILT
LOCK
LOCK
Cur Temp Set Te mp / Time
FUEL
EMPTY
MISSFIRE
OVERHEAT
Repetition time cycle can be set from 10min. to 55min.
1. Push On/Off button. 2. By pushing Temp/Time button, please select
Time control mode. At that time, Time control
lamp is lighten.
3. By pushing '▼▲' button, please select desire
repetition time. When you increase or decrease
the repeatition time by pushing '▼▲' button,
the time is blinking, and if you don't push
button for 3sec., this displayed blinking time is
set as 'Repetition time'. At that time, the former
Repetition time is automatically erased.
4. At the opertion mode, the opartion simbol and
repetition time both are displaed, and when you
make Off by pushing On/Off button, STOP simbol
(--) only displayed, When the heater is in
‘Interval Pause Time’, STOP symbol (--) and
repetition time both displayed.
5. The repitition time can be set from 10min. to 55min. The opeartion is as much as setting time, and
5min. pause time, which is repeated. When you increase one more from max. time 55min. It goes to
'Constant opeartion'. This means, without pause time, the opration is constantly made.
Operation for 20min. Operation for 20min. Operation for 20min.
Stop for 5min.
Start Stop for 5min.
Constant
operationer status
In case of setting the
repetition time as 20min.
Repetition time 20
means, every 20min.
Operation and 5min.
Pause
10

11
HOW TO USE
SELF-DIAGNOSIS FOR THE SAFETY DEVICE
1. AUTO CHECK FOR NOT BURNING - DISPLAY "Err"
· If not burning, it try to re-start, and if still not burning,
then Not burning lamp is ON and post fuggy is worked,
all other operation is stop.
2. SAFETY CHECKING SENSOR FOR OVER HEATING
· During the heater operation, if the inner temp is reached
to 105℃, the over-heating sensor is worked, and over
heating indication lamp is ON and all other function is
stop. (Displaying "Err")
(If time passing and the inner temp. is cool down below
the temp. which is detected by the over heating sensor,
automatically heater start to operation.)
3. AUTO CHECK FOR EXTERNAL IMPACT OR
PHYSICAL SHOCK AND INCLINATION
· Display "Err" If this heater is inclined more than 30°,
or strong external impact is applied to the heater,
tilt light is ON, post fuggy is worked, and all other
operation is stop
4. LACK OF FUEL LAMP - DISPLAY "OIL"
· If continuing operation even after display of the oil shortage
and amount of oil is reached to the below limitation level,
oil shoarge lamp is ON and post fuggy is worked and all
other operation is stop.
5. SAFETY OPERATION - DISPLAY "Er1"
· If detected fire before burner operation, post fuggy is
worked and all other operation is stop.
6. CHECK FOR TEMP. SENSOR - "Er2" DISPLAY
· If the temp. sensor which detects current temp. has
problem, display error and operation is only by Time
control operation. Display "Er2" and press On/Off button,
it go to Time control operation.
♣ Notice
· Post fuggy : For the safety purpose, ventilate out the remain
gas which is existing in burner side.
· When error message is displayed, please remove
the problem factors and press the On/Off button.
· Then, display error is disappear and lamp is off.
· buzzer sound is stop when press the ON/OFF button.
No Flame
No Flame
No Flame
Over Heat
TILT
Empty

12
CLEANING & MAINTENANCE
STORING
To store the heater, cool down the heater and plug out and wrap with plastic cover and keep in the well air-flowing place.
· You'd better consume all oil not to remain in.
To keep heater in outdoor or humidity
place is major cause of problem.
CLEANING & MAINTENANCE
In case that you keep the heater for a long time and you want to maintain it in clean status, please power off and
cool down the heater, and pull out the plug as the above picture and clean according to the following instruction.
· Please pull out the front grille by raising it and pull it out to the front.
· Please clean the heating reflection which is in the back side of heater and burner area.
(The burning pipe is coated by ceramic material so careful clean not to damange to the coating.)
※DO NOT DISASSEMBLE THE BURNING PARTS.
· Please wipe out the front controller area with soft wool.
· After finishing of cleaning, please assemble the front grille to the heater
To pull out the front grille, please raise
a little and pull it out.(Assembly is
opposition way.)

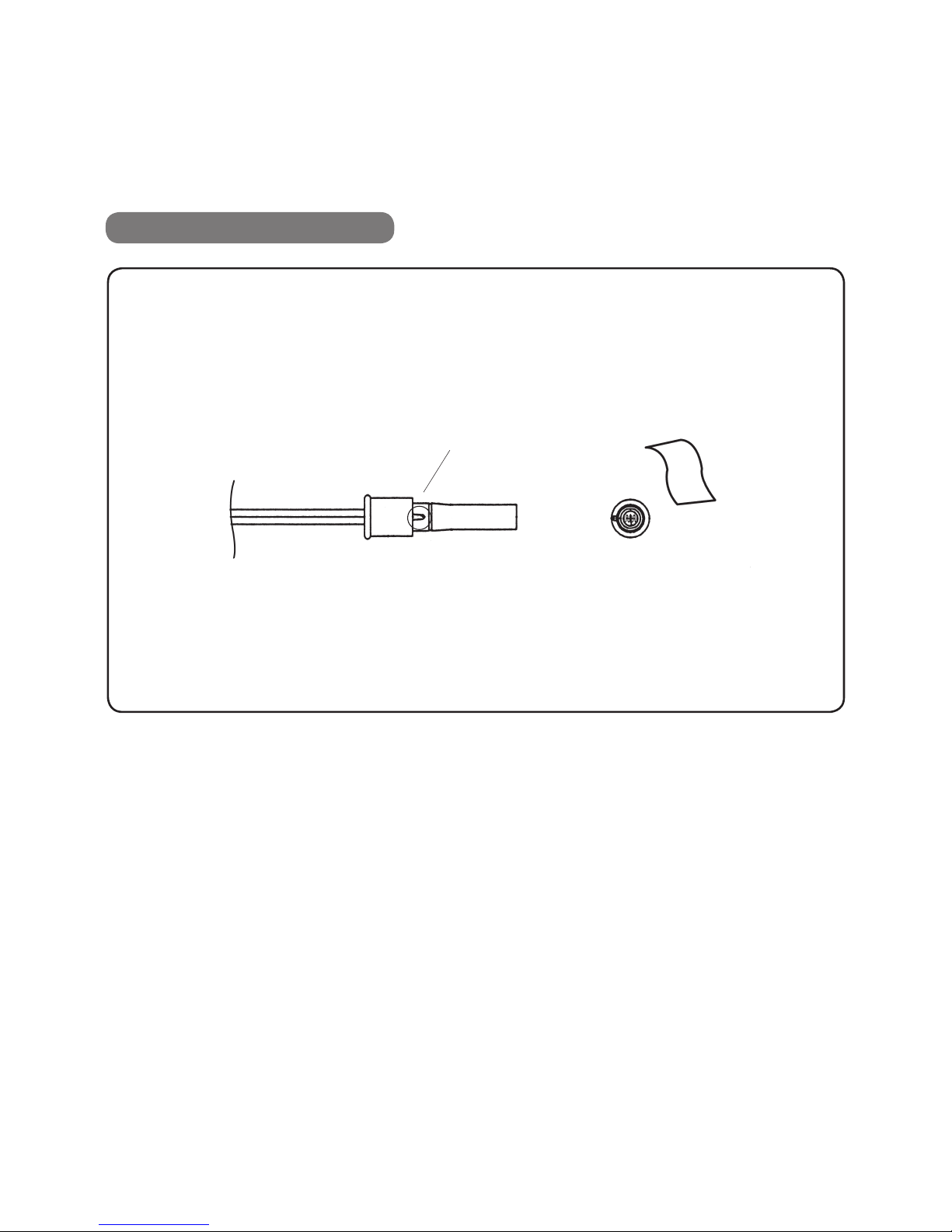

■ CLEAN OF FLAME SENSOR (CdS)
· If the detection part of CdS is contaminated by soot or other dirt, the performance can be lowered and it may
cause a problem.
· Please take out CdS carefully which is placed in lower part of burner.
· Please clean the detection part of CdS by soft clothes.
· Please be sure CdS is fixed correctly.? ( Mark "A" should be inserted fully.)
■ CHANGE OF COMPONENTS
· In case you need to change components, please contact us.
· In case repair or exchange of components, please contact the service center operated by our distributor or head office
· Do not try to repair this heater by non-licensed service personnel, because it may cause a worse condition,
so please contact local service center, or distributor that is designated by our company.
13
DAILY CHECK POINTS & ADJUSTMENT
DAILY CHECK POINTS
Soft
clothes
A

■ IN CASE OF SUDDEN STOP DURING OPERATION
· Please check if now is operating in the time control operation. If so, the heater can be rest for 5min.
· Please check if now the setting temp. is less than the current temp.
· Please check if the heater is stop by pressing On/Off switch by remote controller or front controller.
· Please check if the heater is stop by sleep timer function.
· Please check if the heater is stop by auto-self-checking.
■ AIR FLOW-OUT
In case that Electric pump so noisy and burner no ignition, main cause of the problem is air flow into the electric
pump and not distribute oil. If oil is all consumed without remaining in the tank, air can be flow into inside electric pump.
· The method to flow-out air
①Operate the heater
②When the electric pump operated, turn on the air outflow screw to counter-clockwise. And you wait till air flow out
and oil start to come out.
③When you see oil start to come out, turn off the air outflow screw to clockwise
(In case much air inside, please repeat same way 2~3times.)
■ DETAIL OF BURNER STRUCTURE
· When you contact service person with a problem, please refer the below detail structure of the burner.
14
DAILY CHECK POINTS & ADJUSTMENT
ADJUSTMENT
MOTOR ASS'Y
AIR SUCTION HOLE
FLAME SENSOR
FUEL HOSE
AIR RELEASE
SWITCH
ELECTRONIC PUMP
PRE-HEATER
FUEL FILTER
IGNITER
FLAME MONITOR
WINDOW
SOLENOID
VALVE

15
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
No Power supply? Check the power supply is proper.
(ex. 220/230V a.c. 50Hz)
Check power plug is Power plug into the outlet
disconnected
Is the Fuse short? Replace fuse with new one
(250V a.c. 3A)
"Lack of Fuel" light ON ? Lack of Fuel Fill it up with Kerosene or Diesel
♣ Do not mix or use together these two different fuel.
Is set temp. lower than Set the temp as higher than current
current temp? temp.
Misfire lamp ON? Air in the electric pump. Remove the air in the electric pump.
(Refer to page 19)
Overheating Lamp ON? Under operation of Ventilate with fresh air in the room,
overheating prevention and turn OFF the heater for a while
(Refer to page 16)
Inclination display Ground surface is inclined Replace the heater in plain ground
lamp ON? or not plain (Refer to page 16)
Can you see "Er2" Error on Temperature Select Timer control operation from
on the display? sensor temperature control mode.
(Refer to page 16)
Is fuel filter stuffy? Filter is contaminated Clean the filter with compressed air,
or replace with new one.
(Refer to page 18)
Is air suction valve Call after sales service agent.
adjusted excessively
or too small?
Voltage is low? In case of low voltage Burner will not work properly, so use
a booster to elevate voltage. (A/S)
NO
OPERATION
NO
FAN MOTOR
OPERATED.
NO
IGNITION
ON
BURNER
Is Power ON? Is Fuel enough? Is Flame sensor clean?
Please check below points before you think trouble
has been occurred.
TILT
LOCK
LOCK
Cur Temp Set Temp / Time
FUEL
EMPTY
MISFIRE
OVERHEAT

16
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
"Lack of Fuel" light ON? Running out of fuel Fill up the fuel.
Check if the fuel is It may cause less Drain the existing fuel, and fill with
Diesel or kerosene performance & trouble Diesel or kerosene only.
Water or any other It may cause less Replace the fuel with good quality one.
impurities on fuel? performance & trouble
Is flame sensor In different position, Place the sensor in original location.
located well? it causes an error.
Is flame sensor dirty? Error because of soot Call after sales service agent.
or dirt
Noise in fuel pump? Excessive air in the Remove the air in the electric pump.
pump and nozzle.
Check if the fuel is It may cause less Drain the existing fuel, and fill with
Diesel or kerosene performance & trouble Diesel or kerosene only.
Water or any other It may cause less Replace the fuel with good quality one.
impurities on fuel? performance & trouble
Is air suction valve
Error on Temperature sensor Call after sales service agent.
adjusted excessively
or too small?
Is tube clogged?
Smoke may flow backward Clean the tube by removing
soot inside of tube, or replace with
new one.
Is Fuel filter stuffy? Dirty filter with impurities Clean or replace with new one
and contamination.
Noise in fuel pump? Excessive air in the Remove the air in the electric pump.
pump and nozzle.
IMMEDIATE
STOP JUST
AFTER
IGNITION
EXCESSIVE
SOOT IS
GENERATED.
NOISE IN
BURNER

17
SPECIFICATION & ELECTRICAL WIRING DIAGRAM
♣ We recommend not use the heaters at less than -20℃, It may cause a misfire from the ignition step.
♣ The structure and description shall be changed without any notice for improvement of quality and performance.
♣ a.c. 220/230V only.
Y\W} Zh
%/8(
%/8(
AH-300 AH-600 AH-700 AH-800
CALORIC VALUE
FUEL CONSUMPTION 1.05~1.24 ( ℓ /h) 1.33~1.52 ( ℓ /h) 1.52~1.71 ( ℓ /h) 1.71~1.9 ( ℓ /h)
BURNER TYPE Electronic pump (pressurized spray type)
POWER SUPPLY a.c. 220/230V , 50Hz, Single Phase
ELECTRIC POWER CONSUMPTION 80W 80W 80W 80W
FUEL TANK SIZE 45 (ℓ) 45 (ℓ) 70 (ℓ) 70 (ℓ)
PRODUCT SIZE
(W x D x H)
WEIGHT 41 (kg) 48 (kg) 60 (kg) 65 (kg)
SAFETY DEVICE
Dual step overheating prevention, auto misfire detection, Excessive shock / Inclination sensor, Fuel shortage
CONTROL METHOD Digital MICOM controller
FUSE Fast short type ampere fuse, [a.c. 250V , 3A]
ITEM MODEL
950×305×1,120 (㎜) 1,300×350×1,250 (㎜) 950×305×1,000 (㎜)
12.7~15.1 kW/h
(11,000~13,000kcal/h)
16.3~18.6 kW/h
(14,000~16,000kcal/h)
18.6~21 kW/h
(16,000~18,000kcal/h)
21~23.3 kW/h
(18,000~20,000kcal/h)
1,300×350×1,370(㎜)

18
WARRANTY CARD
This AiRREX far infrared rays heater gives you more reliable performance and comfortableness,
and durability the more you use it, because it is produced under the strict quality assuarance
system including various inspection during production and after production and reliance test, etc.
In case you encounter any problem, please contact the local service agent, or a distributor.
If the problem is occurred due to the production failure, or natural malfunctioning, we will offer
you free repair service under our warranty clause.
1. Warranty period is 12 months after purchasing date.
- If the problem is occurred by the mistake or misuse of the customer,
we charge a repair cost even if it is within warranty period.
2. This warranty card is valid within your country.
3. Please keep this warranty card for better service in case of trouble.
4. Please contact your local distributor or after sales service agent.
5. Please fill out this form after purchase.
PRODUCT
SERIAL NO.
GENERAL
NAME OF COMPANY
TELEPHONE NO.
DISTRIBUTOR
PRICE U$
NAME
ADDRESS
TELEPHONE NO.
CUSTOMER
DESCRIPTION AIRREX Far Infrared Rays Heater
MODEL AH-300/600/700/800
DATE OF PURCHASE
WARRANTY PERIOD ( ) Months

19
memo

MANUFACTURER : HEPHZIBAH CO.,LTD IMPORTER : Rex Nordic Oy
(Juan-dong) 86, Gilpa-ro
71beon-gil, Nam-gu,
Incheon, Korea
TEL : [phone]
FAX : [phone]
E-mail : [email protected]
Website : www.airrex.biz
Flätbackantie 1, 04150 Martinkylä,
Finland
E-mail : [email protected]
Website : www.rexnordic.com
