Airtecnics K7 HEPA User manual

Please read this instruction manual carefully before carrying out
installation.
Give this manual to the end user.
SAFETY WARNING SYMBOLS
Attention, danger, warning
of security! ¡Danger!
Danger of injury! Attention! Do not get under the load.
High weight.
Important information.
INSTALLATION MANUAL, OPERATION AND MAINTENANCE
K7 HEPA & K7 HEPA OH+FC
purication unit
Caution! Wear protective glasses
UV-A: Ultraviolet radiation.

Instruction manual - Purier K7 770 HEPA
2

Instruction manual - Purier K7 770 HEPA 3
INDEX
indice
INSTALLATION ��������������������������������������������������������������������������������������������������������������������������������4
TRANSPORT AND STORAGE���������������������������������������������������������������������������������������������������������5
OPERATING INSTRUCTIONS���������������������������������������������������������������������������������������������������������5
ELECTRICAL SCHEMES�����������������������������������������������������������������������������������������������������������������6
DATASHEET�������������������������������������������������������������������������������������������������������������������������������������8
MAINTENANCE INSTRUCTIONS �������������������������������������������������������������������������������������������������12
REPAIRS AND REPLACEMENTS �������������������������������������������������������������������������������������������������13
ACCESSORIES������������������������������������������������������������������������������������������������������������������������������18
FAULTS AND SOLUTIONS ������������������������������������������������������������������������������������������������������������19
DECLARATION OF CONFORMITY �����������������������������������������������������������������������������������������������20
IDENTIFICATOR ����������������������������������������������������������������������������������������������������������������������������21
WARRANTY �����������������������������������������������������������������������������������������������������������������������������������21

Instruction manual - Purier K7 770 HEPA
4
INSTALLATION
Assembly, connection and disconnection, electrical wiring and maintenance must be
carried out exclusively by qualied personnel, following this instruction manual and
respecting the applicable regulations. In case of supplying a special control, a specic
manual is attached that must be used for its installation and operation.
It is necessary to remove the service grill to connect the equipment. The electrical
connection is made in an IP box located inside the equipment. The equipment
mountings are external (in the standard model, located on the top or rear of the
purier). The unit has a service door to place the lters and a second panel to carry
out repairs (see repairs section).
Instalation in false ceiling
Hanged installation

Instruction manual - Purier K7 770 HEPA 5
TRANSPORT AND STORAGE
OPERATING INSTRUCTIONS
Store in a dry place and protected from the environtment. If the packaging is opened, cover the purier
to protect it from dust� Do not step on or place heavy loads on it to avoid damage to the material�
Storage temperature between -20⁰C and + 40⁰C.
When transporting the material you must ensure that it is not damaged by the forklift (possible penetration of
the fork in the packaging)� Observe the instructions on the packaging�
To put the device into operation, just connect it to a voltage of 230Vx1 50 / 60Hz, as indicated in the
electrical diagram on the next page. This device works with a constant ow rate that the user does not
need to congure. The fan regulates itself to maintain a ow rate of 300m³ / h until the lters are dirty.
When the lters are no longer able to hold particles, a red light comes on. This indicates that dirty lters
should be replaced with clean ones. Furthermore, the team cannot guarantee that the ow (and consequently
the renewals / hour) will be maintained until clean lters are installed.
ATTENTION! Heavy object.
Do not stand under the suspended load during transport or assembly.
Power supply
Fixings
The K7 770 A HEPA air purier has a 3 meter, 3-way cable (line, neutral and ground) that must be connected
to a 230Vx1 50 / 60Hz power outlet�
A switch can be connected between the unit and the inlet power.Therefore you can disconnect the equipment
in a simple way�
The equipment has several external attachment points located in the casing, either in the top, front and back
sides� The anchor must be sized according to the device weights indicated on the technical data page (see
pages 6-7)� The installation can be carried out with threaded rods, tensioners or other supports (see section
“accessories”)�
Autoregulation
This unit provides a constant air ow of 300 m³ / h. As the lters get dirty, K7 770 A HEPA regulates itself to
maintain a constant ow.
The equipment is already factory adjusted by default. It only needs to be powered with 230Vx1 50 / 60Hz
current�

Instruction manual - Purier K7 770 HEPA
6

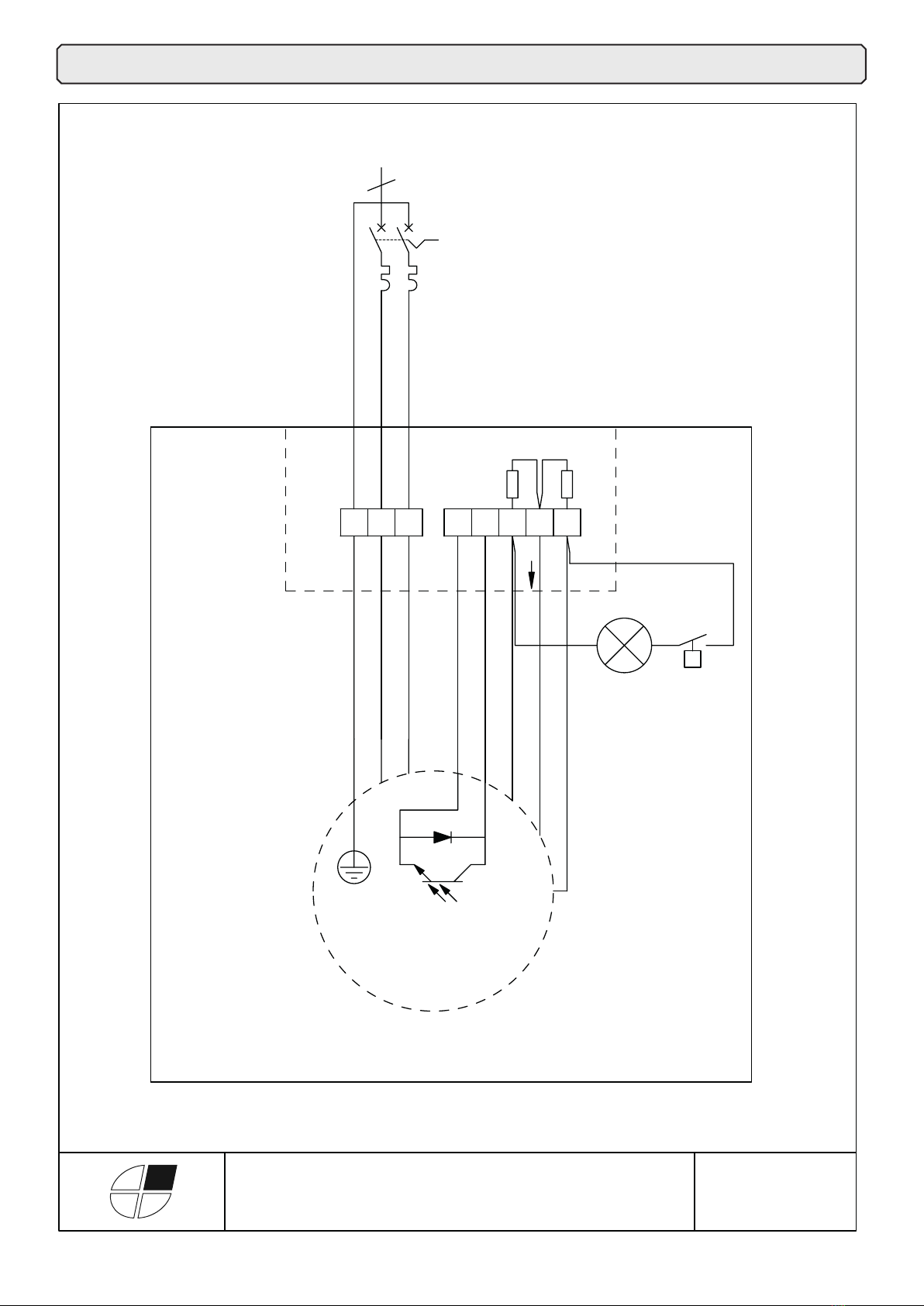

ELECTRICAL SCHEMES
R0 - 04/11/21
Doc. AIRDOM50106
1 1Pág./
ESQUEMAS ELÉCTRICOS DE UNIDADES DE VENTILACIÓN
de/
WIRING DIAGRAMS OF VENTILATIÓN UNITS
Page of
K7 770 HEPA Caudal constante Regulación fija
PE NL
PE
NL
Amarillo/verde
Azul
Negro
Q
3
230Vx1 / 50Hz
Caja de conexiones
K7 770 HEPA
Yellow
Orange
Black
White
Grey
RPM
GND0-10V 10V
RPM
15k0 4k7
5,5V
P
Filter alarm
GND
0-10V
+10V

Instruction manual - Purier K7 770 HEPA 7

Instruction manual - Purier K7 770 HEPA
8
DATASHEET

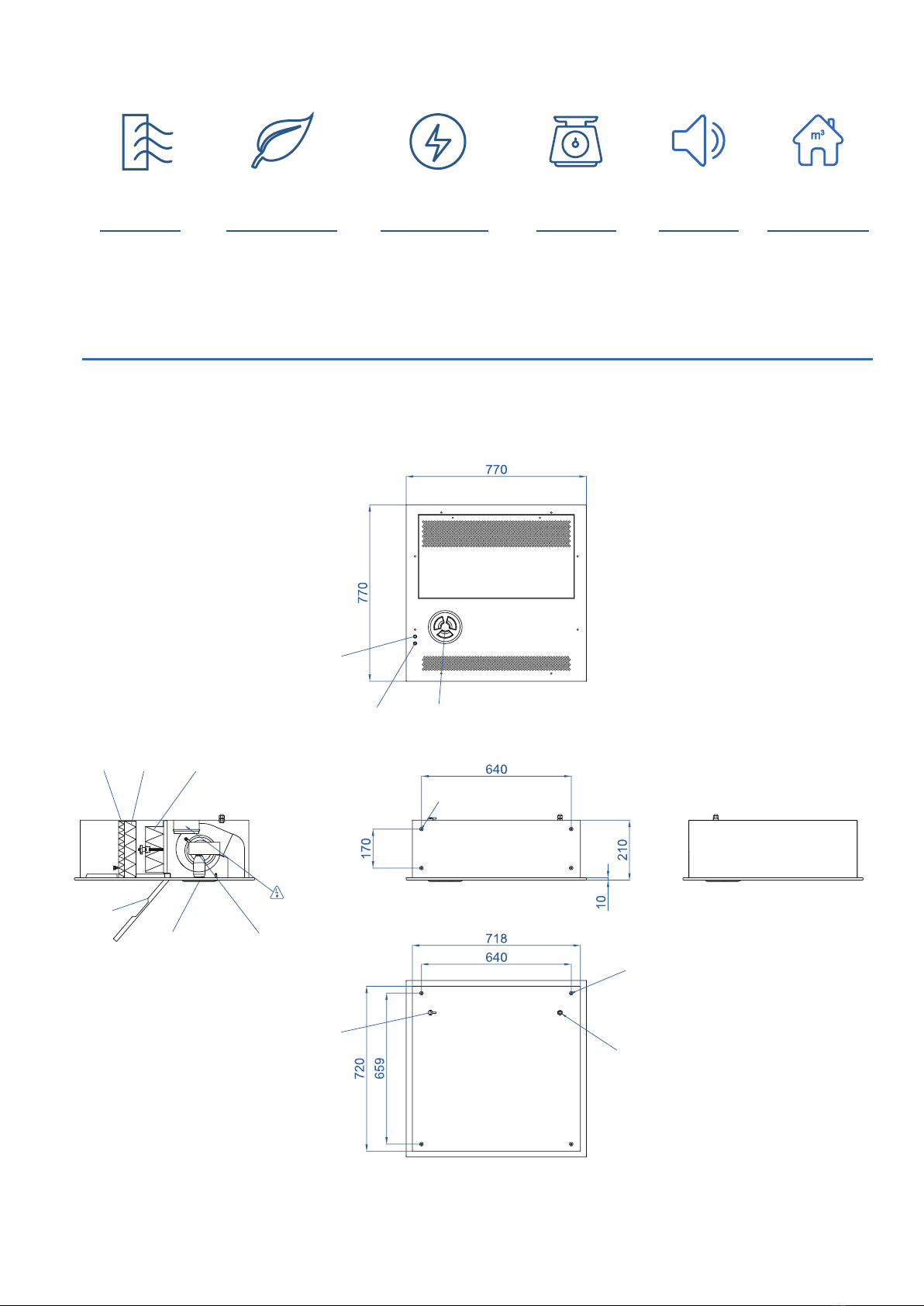

The device has a compact design with overall dimensions of 770 x 770 x 210 (mm).
Dimensions
640
170
210
10
G4 Filter F7 Filter H14 Filter
Internal
connection box
Power supply
Pressure tap
Filters door
Dirty lters indicator
(4x) M8
(4x) M8
Weight
(Kg)
Intensity
(A at 230V-50Hz)
320,7
Noise level
(dBA)
55
Airow
(m3/h)
Consumption
(W/h)
61300
K7 770 HEPA

Instruction manual - Purier K7 770 HEPA 9

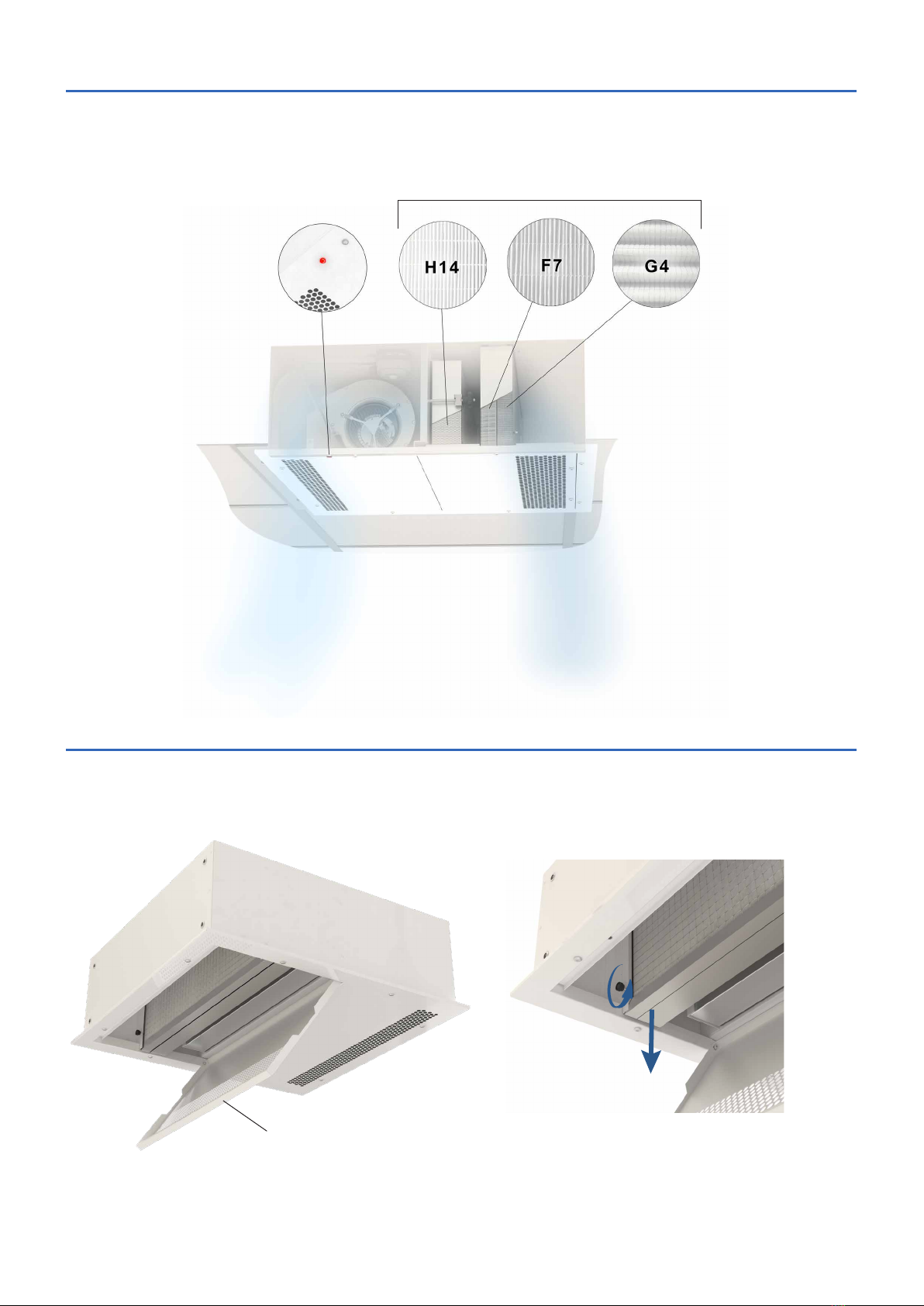

Functioning
The unit has 3 ltration stages: 2 pre-lters (G4 and F7) and an absolute lter (H14). The LED on the service panel indicates
the lter change to be carried out to maintain the eciency of the equipment.
Puried air outlet Air inlet
Filter
change indicator
Filtration stages
Quick lter attachment system
Maintenance
Filters door

Instruction manual - Purier K7 770 HEPA
10
The device has a compact design with overall dimensions of 770 x 770 x 210 (mm).
Dimensions
G4 Filter F7 Filter H14 Filter
Internal
connection box
Power supply
Pressure tap
Filters
door
Dirty lters
indicator
Empty cartridge
indicator
(4x) M8
(4x) M8
Weight
(Kg)
Intensity
(A at 230V-50Hz)
320,7
Noise level
(dBA)
55
Range
(m3)
850
Airow
(m3/h)
Consumption
(W/h)
61300
Cartridge
hatch
Cartridge
hatch
K7 770 HEPA OH+FC

Instruction manual - Purier K7 770 HEPA 11
Functioning
Three air and surface purication and disinfection systems in a single unit. Air recirculation through a HEPA lter and
expansion of hydroxyls thanks to active OH technology and photocatalysis fan guarantee a space free of pathogens and
other volatile organic compounds that pollute indoor air.
The LED on the service panel indicates either the lter or cartridge change to be carried out to maintain the eciency of
the equipment.
Puried air outlet Air inlet
Cartridge
hatch
OH active
technology
Photocatalysis
technology
Visual indicators
(lter and cartridge)
Filtration stages
Quick lter attachment system Cartridge hatch
Maintenance
Filters door

Instruction manual - Purier K7 770 HEPA
12
MAINTENANCE INSTRUCTIONS
For safety, before cleaning, disconnect the device from the power.
It is forbidden to open the service panel (risk of electric shock and trapping
in the fans). Repairs must be carried out exclusively by authorized personnel.
The interior of the device must not be cleaned with water or steam.
Exterior cleaning
It is recommended to clean the air inlet grille with a damp cloth� Cleaning must be done with the
unit o󰀨; the mixture of dust and moisture generates a paste that could enter and a󰀨ect the
internal components, rendering them unusable before the estimated deadline�
An annual cleaning of the air outlet area should be performed�
Cleaning of the unit casing should be done with a damp cloth and conventional detergent�
Do not use corrosive, caustic or acid-containing detergents�
The air inlet grille prevents objects from entering the internal area� A periodical checking is convenient to
ensure that it is free of any object that could prevent the entry of air (papers, plastics, etc�)�
Interior cleaning
In models with perforated grille, it is advisable to clean the inside of the unit with a vacuum cleaner, at least
once every two years (*), and by qualied personnel.
(*) This period of time is indicative, it depends on the conditions of each installation�
In places with a high number of suspended particles (a lot of dust and dirt) it is desirable increase the
frequency of interior cleaning.

Instruction manual - Purier K7 770 HEPA 13
The assembly and electrical connection must be carried out exclusively by
specialized professionals and observing these instructions.
Before carrying out any repairs, you must:
• Notify sta and indicate that work is in progress.
• Disconnect the current and protect the thermal magnet
(so that no one can actuate it by accident)
• Make sure there is no voltage on the unit.
• Make sure the fan has stopped.
• Use only original spare parts.

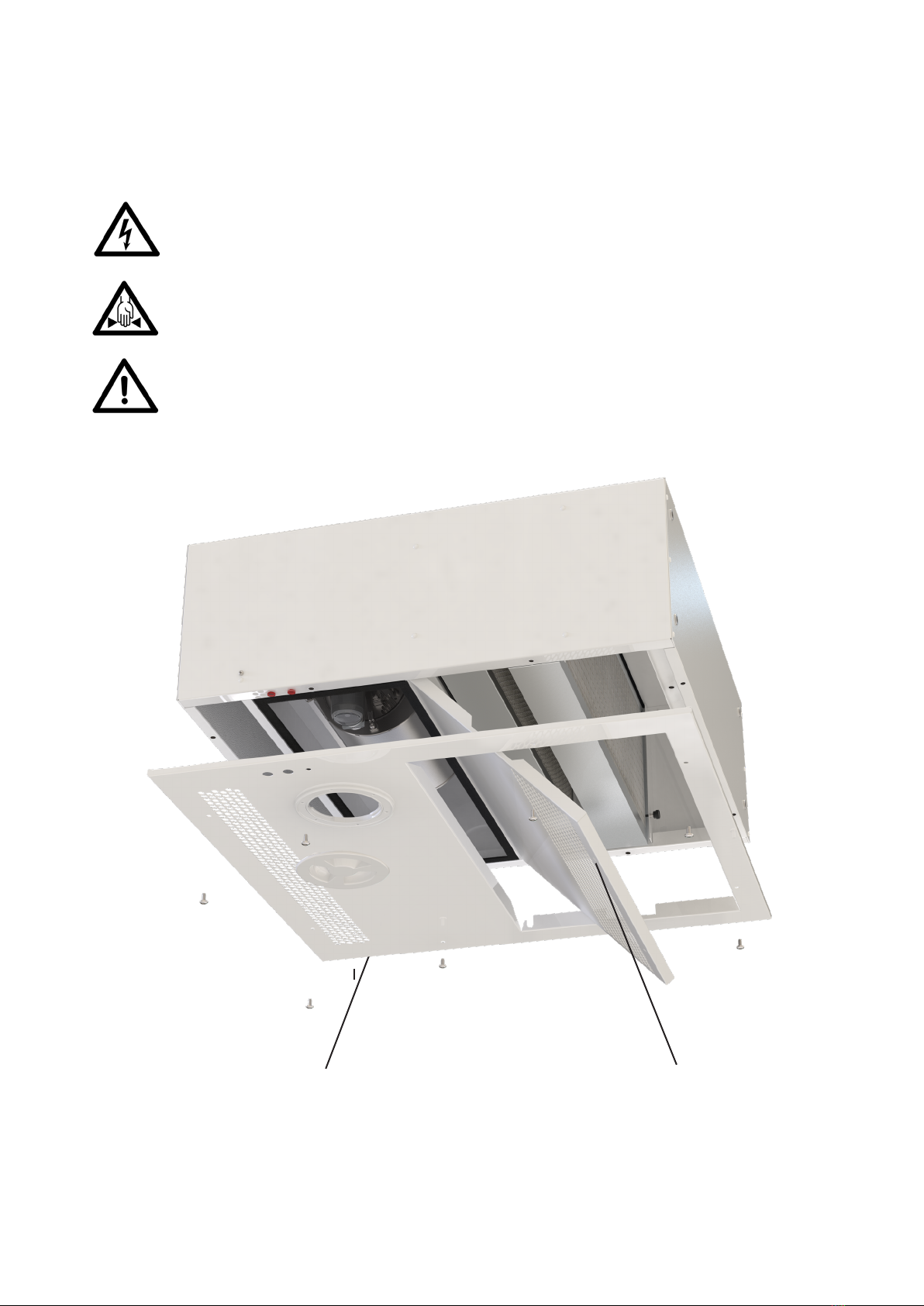

REPAIRS AND REPLACEMENTS
Filters door Service panel

Instruction manual - Purier K7 770 HEPA
14
The assembly and electrical connection must be carried out exclusively by
specialized professionals and observing these instructions.
Before carrying out any repairs, you must:
• Notify sta and indicate that work is in progress.
• Disconnect the current and protect the thermal magnet
(so that no one can actuate it by accident)
• Make sure there is no voltage on the unit.
• Make sure the fan has stopped.
• Use only original spare parts.
Service panel Filters door

Instruction manual - Purier K7 770 HEPA 15
1- Remove the screws�0-Filters doors 2- Gently, pull the grille down�
5- Loosen the threaded knobs
and staples of the absolute
5�1
5�2
Filters replacement
3- Loosen the threaded knobs
on the pre-lter.
Replace the used lters with the new ones following the steps described, in reverse order..
4- Remove prelters.
6- Remove the absolute lter
pulling gently�
The estimated useful life (*) of the lters under normal operating conditions is:
- Prelter G4: 500 hours.
- Compact lter F7: 1000 hours.
- Absolut lter H14: 3500 hours.
It is recommended to check the condition of the lters every six months, even if the stipulated time has not
passed or the lter change alarm has not triggered.
Before changing the lters, check and indicate that it is working and stop the unit with the corresponding
command�
(*) This period of time is indicative, it depends on the conditions of each installation� In places with a high number of
suspended particles (a lot of dust and dirt) it is desirable to increase the frequency of interior cleaning.

Instruction manual - Purier K7 770 HEPA
16
Fan replacement
Service panel opening
The service panel covers the inside of the unit� Through it you can access the fans and the connection box�
Before replacing the fan, it is necessary to notify that it is working, disconnect the current, make sure that
there is no voltage and the turbine does not rotate�
Open the service panel as indicated in the previous section�
The new fan is installed following the above procedure in reverse order, making sure that the connection in
the IP box is correct (follow instructions on page 4)�
2- Remove the screws
1- Remove the screws
1- Disconnect the fan power ca-
bles inside the connection box
0- Service panel
3- Remove fan
2- Gently remove the
service panel down

Instruction manual - Purier K7 770 HEPA 17
The cartridge only needs to be changed every 3 months. The level of the cartridge is controlled by a sensor that will warn
when the liquid runs out so that it can be replaced.
One of the technologies of the disinfection device is implemented with an ultraviolet ray emitting LED which, as it is inserted
inside the housing of the unit and uses low intensity powers, is completely harmless to humans, because its incidence is not
direct on living beings, but on the titanium dioxide coated fan.
According to UNE-EN 12198 the K7 is classied as category 0 but for the information of users and maintenance team its been
identied with category 1 label.
Additional Information
Optical radiation emission
Category 1
(EN 12198)
Classication of machinery according to emission levels (UNE-EN 12198)
Category Restrictions and
security measures Information and training
0 No restrictions No information required
1Restrictions: limited access, security
measures may be necessary.
Information on hazards, risks and side
eects
2Special restrictions and essential
security measures
Information on hazards, risks and side-
eects; training may be needed
Source: Spanish Normalization UNE-EN 12198
Cartridge replacement

Instruction manual - Purier K7 770 HEPA
18
ACCESSORIES
Supports and shock absorbers according to installation (see references in attached document)�
Standard cable clampSilentblock in angle
Silentblock rod damperRail support

Instruction manual - Purier K7 770 HEPA 19
Electrical power supply
If the equipment is not working, the error is most likely due to an incorrect
terminal power.
1 - Check that it has been connected to a live electrical outlet.
2 - Check that the current is compatible with the equipment and that the terminal block ca-
bles are connected according to the electrical diagram specied in this manual.
3- Check that voltage (230Vx1) reaches the equipment and, if not, check the power cables.
3.1 - If the equipment has voltage, but the fan does not rotate, check if there is 5.5V in
continuous between the yellow and black cables.
3.2 - In case there is no 5.5V, check that there is 10V in continuous between the oran-
ge and black cables. If there is 10V, one of the resistors has been damaged and must
be replaced.
3.3 - If there is no 10V, the fan’s 10V signal is damaged, the fan needs to be replaced.
Filters replacements
If the equipment has a luminous red signal light on, it means that the lters are fully dirty
and must be replaced (page 10).
FAULTS AND SOLUTIONS

Instruction manual - Purier K7 770 HEPA
20
DECLARATION OF CONFORMITY
Declaration of conformity / Declaración de conformidad
Manufacturer Motors i Ventiladors S.L. (AIRTÈCNICS)
Fabricante Conca de Barberà 6, Pol. Ind. Pla de la Bruguera
08211 Castellar del Vallès (Barcelona) Spain
We declare, under our sole responsibility, that the product
Declaramos, bajo nuestra única responsabilidad, que el producto
Air Purification Equipment
Equipo de Purificación del Aire
with models
con los modelos
K7 770 Hepa
is/are developed, designed and manufactured in accordance with the following directive(s)
ha(n) sido desarrollado(s), diseñado(s) y fabricado(s) de acuerdo con la(s) siguiente(s) directiva(s)
Low Voltage Directive 2014/35/UE
Directiva Baja Tensión 2014/35/UE
Electromagnetic Compatibility Directive 2014/30/UE
Directiva Compatibilidad Electromagnética 2014/30/UE
Restriction Certain Hazardous Substances Directive 2011/65/EU (RoHS)
Directiva Restricción Substancias Peligrosas 2011/65/EU
Eco-design Energy-related Products Directive 2009/125/EC
Directiva Diseño Ecológico Productos Con Energía 2009/125/CE
applying the following harmonized standards in particular
aplicando las siguientes normas harmonizadas en particular
LVD: EN 60335-1:2012 / AC:2014 / A11:2014 / A13:2017 / A14:2020
EN 60335-2-30:2009 / A11:2012
EN 60335-2-65:2003 / A1:2008 / A11:2012
EMC: EN 61000-3-11:2000
EN 61000-3-12:2011
EN 55014-1:2017
EN 55014-2:2015
RoHS: EN 50581:2012
Date / Fecha 01/12/2021
Name / Nombre Jordi Hierro
Position /Cargo Technical Manager / Director Técnico
