AIRTOX A-B59 User manual

Ａ－B５９ Assembly Manual
LACING SYSTEM

1
1.Thread the wire lace into the boots, and the ends of the
wire lacego through into the base of the reel knob.

2. Turn the knob and align the arrows to any of the four hooks.
2
3. Fix both ends of the wire lace to the reel
( 1 ) Pass the wire through hole 1
◎ Please check the reel is 4901
◎ The arrow is hole 1
1

3
( 3 ) Bend the wire lace straight
into hole 3 & 4
( 4 ) Thread wire’s terminal back
to hole 4 to the bottom
( 2 ) Thread the wire lace straight
through hole 1 & 2
1
243
ATTENTION

( 5 ) Keep your finger press on the loop, pull wire with your right hand to make
the loop slip to the bottom tightly
( 6 ) Pull the wire lace with your left hand to tighten the wirelace
( 7 ) Repeat above steps to the other side of wire lace
4

5
◎ 1. Pass the wire through the channel of the base
align in parallel and insert the four hooks to the grooves.
◎ 2. Turn the knob on the counterclockwise, and ensure that the arrow
on the top knob and the one on the base are aligned. After you
hear the "Click" sound, this means that the procedure is done.
4. Install knob body

6

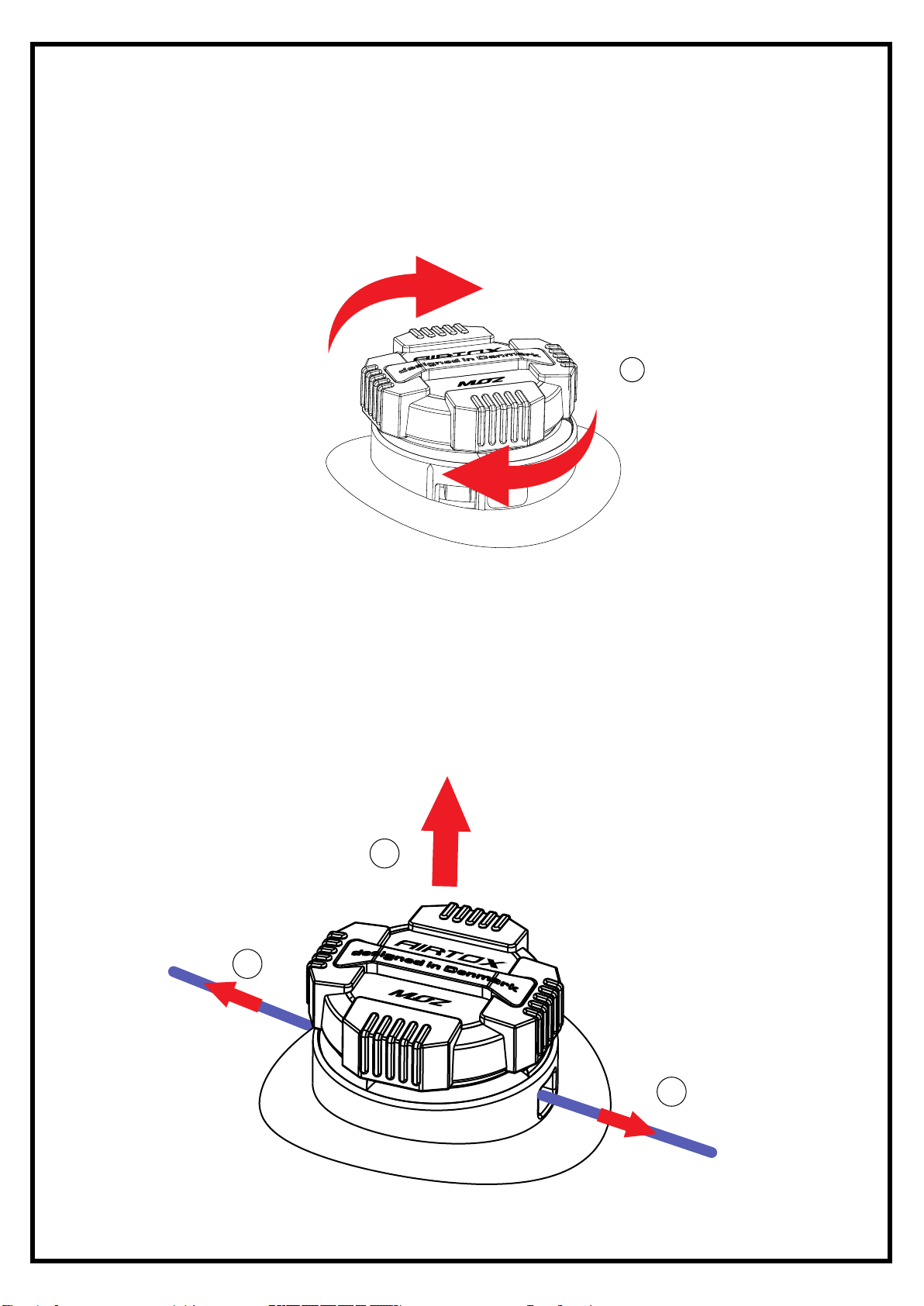

5. Function test - Tightening and Loosening
◎ 1. Turn the knob to clockwise direction to tighten the system
◎ 2. Pull up the knob to release the wire, and ensure that the wire can
get out from the reel easily.
◎ 3. Repeat this procedure 3 times to ensure that
the system is working smoothly.
2
3
1
3
