AIRTRONICS Blazer Sport User manual

2 Channel Systems Manual
R
INC
1185 Stanford Court, Anaheim, CA. 92805
Tel:[phone] Fax:[phone]
WWW.Airtronics.net

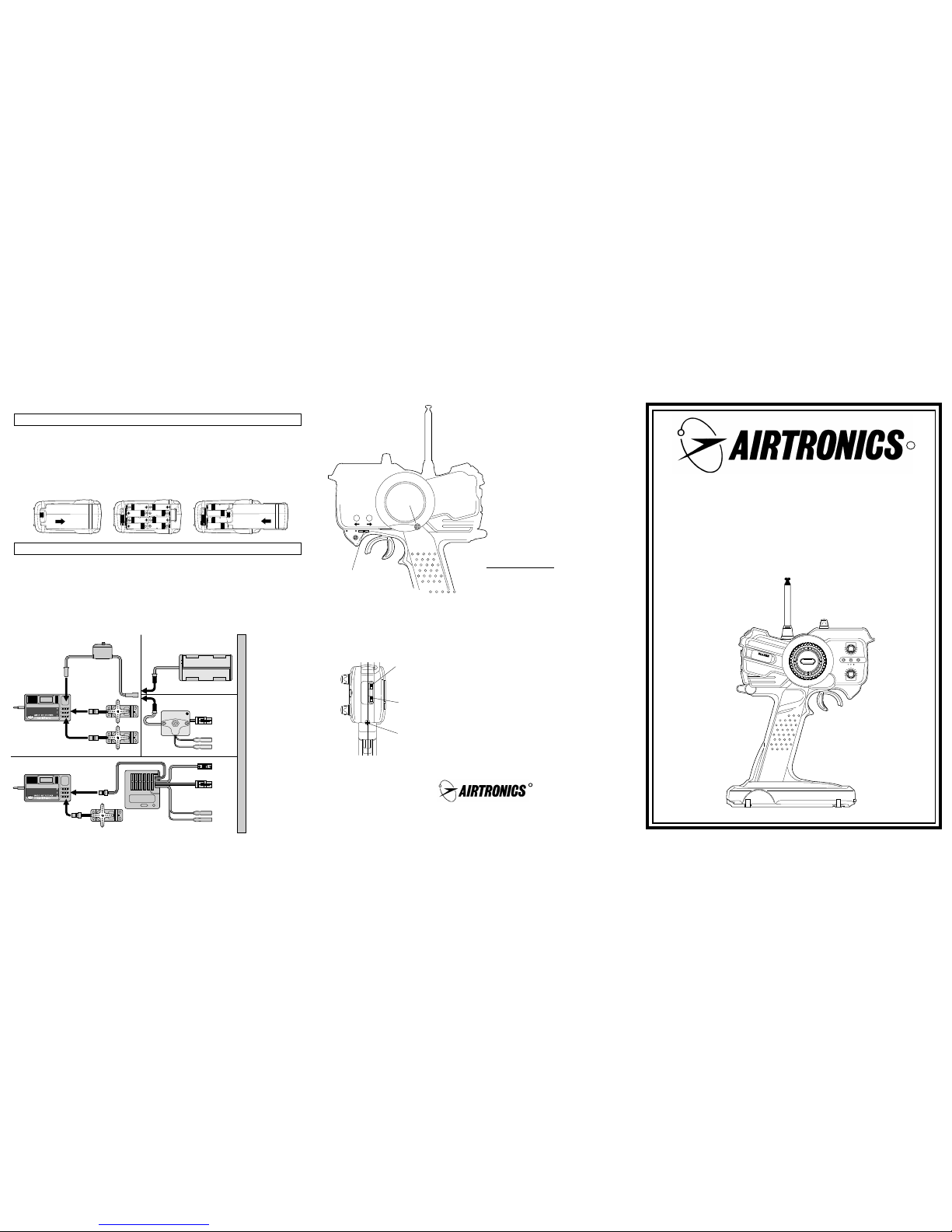

TRANSMITTER BATTERY INSTALLATION
RECEIVER AND SERVO CONNECTIONS
WARNINGS
DO NOT OPERATEYOUR SYSTEM IF SOMEONE
ELSE IS ON YOUR FREQUENCY AT THE SAM
TIME.
YOUR MODEL CAN CAUSE SERIOUS
DAMAGE OR INJURY SO PLEASE USE CAUTION
AND COURTESY AT ALL TIMES.
DO NOT EXPOSE THE RADIO SYSTEM TO WATER OR
EXCESSIVE MOISTURE.
PLEASE WATER PROOF THE RECEIVER AND SERVOS
BY PLACING THEM IN PLASTIC BAGS OR A WATER
TIGHT RADIO BOX WHEN OPERATING R/C BOAT MODELS.
IF YOU HAVE LITTLE OR NO EXPERIENCE OPERATING
R/C MODELS< WE STRONGLY RECOMMENDYOU SEEK
THE ASSISTANCE OF EXPERIENCED MODELERS OR
YOUR LOCAL HOBBY SHOP FOR GUIDANCE.
Troubleshooting Guide
If your radio system does not operate properly, please
check the following items:
1. Make sure the batteries are properly installed and
check the polarity (+ and -) again.
2. Check that both the transmitter and receiver power
switches are in the ON position.
3. Check the LED Power Indicators and make certain
that all three are on. If not, replace the batteries.
4. Make sure all the receiver and servo connections
are tight.
5. Make sure that the proper frequency crystals are
installed in the transmitter and receiver.
1. Press down on the battery cover and slide
in the direction of the arrow to remove.
2. Install 8 pieces “AA” size alkaline batteries as
indicated on the battery tray. Make sure to match
the polarity (+ and -) as shown in the battery
compartment or the transmitter will not function.
3. Install the battery cover in place and slide to close.
WARNING: Improper installation of transmitter batteries
can cause serious damage to your system.
Your Blazer or Blazer Sport R/C system is equipped
with a BEC receiver to eliminate the need for a
separate battery receiver pack, but you can use a
separate power supply if desired for your particular
model.The following diagram shows a typical
connection for the servos and receiver.
Note that the receiver antenna should be located at
least 2” (50 mm) away from any servo leads and
switches. In electric cars, we recommend that it be
at least 4” (100mm) from the electric motor.
Extend the receiver antenna to the full length. Failure
to do so will cause loss of control. Do not cut or bend the
receiver antenna.
Be careful to avoid any metal parts coming in contact
with the servo connectors as this will affect the
performance. Insulate the connectors with tape or use tie
wraps to avoid contact with metal car chassis.
Please follow the model manufactures recommendations
for the correct installation of your radio system in your
car or boat.
R
To Open slide cover Install Batteries To Close slide cover
A B
NP-ADJ
ST
NOR REV NOR REV
TH
Steering Reverse Switch
Throttle Reverse Switch
Throttle Trigger Adjustment
Trigger Set Screw must be
loosened before adjusting
Throttle Trigger Adjustment
50/50 or 70/30
(Forward and Reverse)
Trigger set
Screw
OPEN
OPEN
OFF
ON
92621
AIRTRONICS
92621
AIRTRONICS
Steering Servo
Contender
Speed Controller
Steering Servo
Throttle Servo
AA Dry Cell Battery Holder
Switch
To Battery
To Motor
Switch
B
#1
#2 Speed Controller
To Battery
To Motor
#2
#1
BLAZER
Sport
THE CHOICE OF CHAMPIONS
ST-TRIM
TM-TRIM
LOW FULL
ADVANCED TECHNOLOGY FOR NEW GENERATION
ERGONOMIC CONCEPTION
AIRTRONICS
S
por
t

SYSTEM FEATURES
SYSTEM SPECIFICATIONS
(A)Transmitter
Model: Blazer Sport
Output power: 500 MW
Modulation: AM/PPM
Power supply: 8 AA alkaline dry cells DC 12V
Weight: 14.46 ounces
Frequencies: 27 Mhz- 6 frequencies
75 MHz-30 frequencies
(B) Receiver (Mini BEC type)
Model: 92721Z (27 Mhz) or
92723Z (75 MHz)
Modulation: AM/PPM
Intermediate frequency: 455 KHz
Power supply: DC 6.0-8.4 V
Weight: 1.13 ounces
Dimensions: 1.9”(L) x 1.3”(W) x .75”(H)
(C) Servo
Model: 94102Z Heavy duty standard servo
Weight: 1.59 ounces
Speed: 0.18 sec. at 6.0V for 60 deg rotation
Torque: 50 oz./inches:
Operating Voltage 4.8~6.0
Power supply: 6.0 V throught BEC receiver
Dimensions: 1.54”(L) x .79”(W) x 1.42”(H)
(D) Accessories
97004 BEC switch harness
Frequency flag
Receiver dry battery holder
Instruction Manual
(E) Options
96315 Contender speed controller with reverse
96720 Grip Pad
99104 Deluxe wrist strap
96305Z BL-Racer Speed Controller with reverse
96316Z F-2000 Speed Controller with reverse
96301Z ES-01 Micro Speed Controller with reverse
Unique and functional pistol grip-
transmitter design
Well balanced for precise control
Well placed trim and rate functions
High power output
Color LED power indicators for easy reference
of battery condition
Retractable transmitter antenna
Servo reversing for easy installation
(70/30)Throttle trigger
Quick access transmitter crystal.
Lightweight, high performance mini receiver
Receiver includes BEC (Battery Eliminator Circuit)
which allows the use of a common power supply for
the model and receiver
High torque and high speed 94102Z servo
Receiver dry battery holder
NiCd Charger Jack in transmitter
We appreciate your purchase of this new
AIRTRONICS Blazer Sport Radio Control
System.These instructions are intended
to familiarize you with the many unique
features of this modern, state of the art
equipment.
Please read them carefully so you may
obtain maximum success and enjoyment
from its operation.
Please note that the Blazer Sport is designed
for comfort and precise control of all types of
model cars and boats.We wish you the best
of success with your radio system.
Enjoy! LED Power Indicators
These color indicators will give you a visual reference for
the condition of the transmitter batteries.
All three indicators (2 green and 1 red) will
be lit when the power is on and the
batteries are in their best condition.
Two indicators (1 green and 1 red) will be
lit when the power is on and the batteries
are losing capacity. Use caution when
operating you model, and replace the
batteries as soon as possible.
One indicator (red) will be lit when the power
is on and the batteries are dead or to weak to
power the transmitter. DO NOT attempt to
operate your model, and replace the batteries
immediately. If the batteries are improperly
installed, the LED indicators will not be lit.
Check your battery installation and/or
individual batteries. DO NOT mix old and new
batteries
Full
Mid
Low
Green
Green
Red
Red
Green
Red

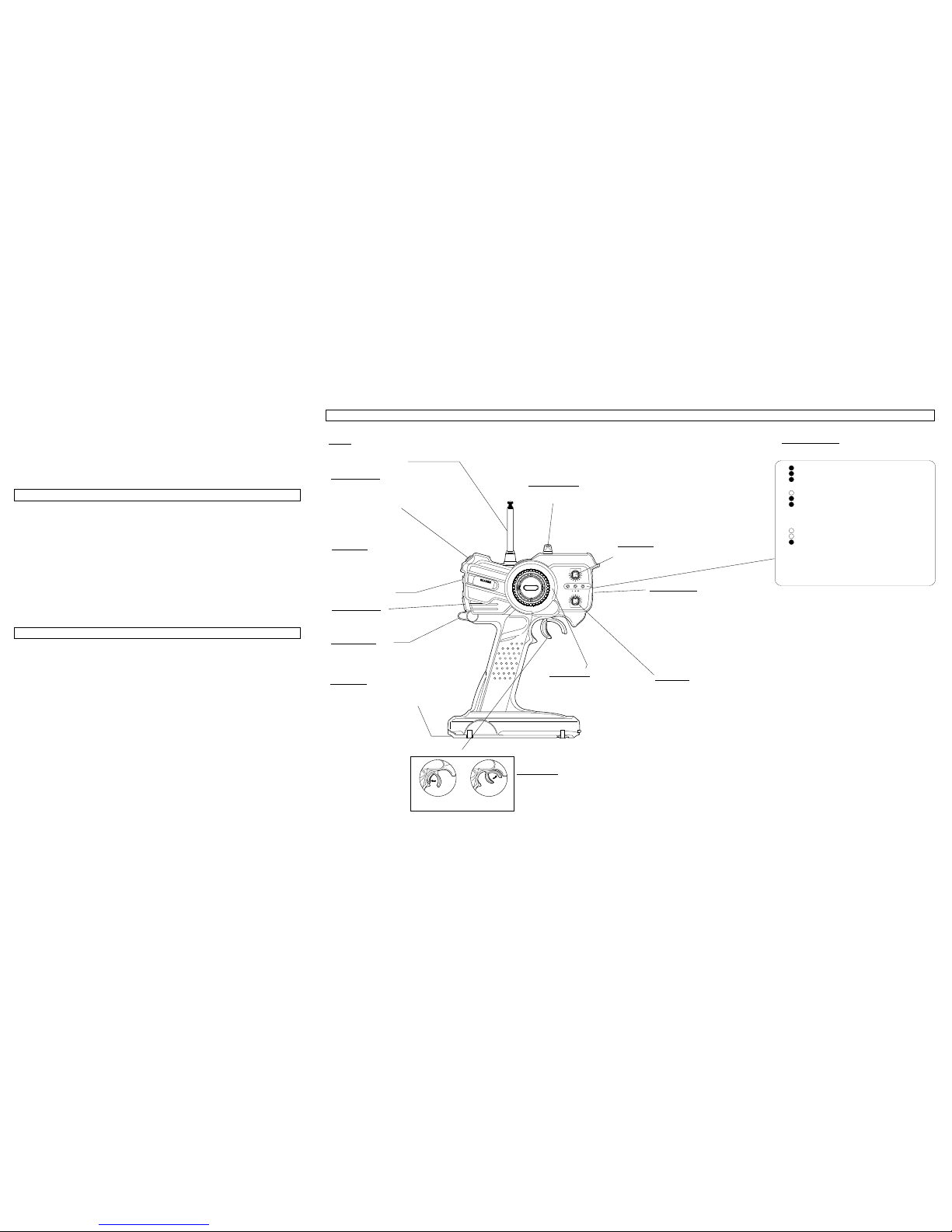

TRANSMITTER FUNCTIONS AND OPERATIONS
Antenna
Pull antenna up until it is fully extended before operating the system.
Failure to do so can cause loss of control
The power switch slides up to turn on
the transmitter.
When operating your model always
turn on the transmitter before the
receiver.This will prevent the model
from accidentally running away.
Power swicth
Attachment point for the optional 99104
Deluxe Wrist Strap.
Wrist Band Hook
The transmitter crystal can be
removed to change frequencies.
Use only genuine
AIRTRONICS crystals to insure
proper operation.
Transmitter crystal
Pull back for forward throttle.
Push forward for reverse
throttle/brake.
ThrottleTrigger
Slide battery cover open as indicated on
battery cover.Install batteries as indicated
on battery tray.
Battery Cover
Only to be used when NiCd batteries
are installed.
NiCd Charger Jack
Steering dual rate is used to change
steeringSensitivity
Steering Dual Rate
Is used to adjust the neutral point for
steering operation.
SteeringTrim
Is used to adjust the neutral point for
throttle / brake operation.
ThrottleTrim
Turn clockwise to make the model
turn right.Turn counter clockwise to
make the model turn left.
Steering Wheel
When the direction of the steering or
throttle movement is opposite from
the direction of steering wheel or
trigger movement, move the switch
to the rev or reverse position.This
will reverse the direction of the servo
movement and allow you to operate
the model in the normal fashion.
In most models, you can leave
these switches in the nor or normal
position.
Reverse Switches
THE CHOICE OF CHAMPIONS
ST-TRIM
TM-TRIM
LOW FULL
ADVANCED TECHNOLOGY FOR NEW GENERATION
ERGONOMIC CONCEPTION
TM-TRIM
TM-TRIM
Forward Reverse
AIRTRONICS
(Note) Dual Rate option not
on some models
