Airwell AWAU-YCZ218-H11 User manual

New Multi Splits Series
HKD/HND
Indoor units
CBD/CCD Indoor Units
XAD/XBD Indoor Units
DCD/DID Indoor Units
Outdoor Units
AWSI-HND007-N11
AWAU-YCZ218-H11(7SP091170)
AWAU-YCZ327-H11(7SP091171)
AWAU-YCZ430-H11(7SP091172)
AWAU-YCZ542-H11(7SP091173)
AWSI-HND009-N11
AWSI-HKD009-N11
AWSI-CCD009X-N11
AWSI-XBD009X-N11
AWSI-HND012-N11
AWSI-HKD012-N11
AWSI-CBD012-N11
AWSI-CCD012-N11
AWSI-XAD012-N11
AWSI-XBD012-N11
AWSI-DCD012-N11
AWSI-DID012-N11
AWSI-HND018-N11
AWSI-HKD018-N11
AWSI-CBD018X-N11
AWSI-XAD018X-N11
AWSI-HND024-N11
AWSI-HKD024-N11
REFRIGERANT
REFRIGERANT
R410A
HEATPUMP
REFRIGERANT
SM YCZ DCI 2-A.1 GB
JUNE 2017

Contents
Contents i
Part 1 General Information .................................................................................................... 1
Part 2 Indoor Units ............................................................................................................... 14
Part 3 Outdoor Units............................................................................................................. 80
Part 4 Installation.................................................................................................................. 98
Part 5 Electrical Control System....................................................................................... 104
※The specifications, designs, and information in this book are subject to change without notice for
product improvement.

General Information
General Information 1
Part 1
General Information
1. Model Lists.......................................................................................................................... 2
2. External Appearance.......................................................................................................... 3
2.1 Indoor Units ...................................................................................................................... 3
2.2 Outdoor Units.................................................................................................................... 3
3. Product specification......................................................................................................... 4
4. Matching Table.................................................................................................................. 13

Model Lists
2 General Information
1. Model Lists
1.1 Indoor Units
Cooling & Heating
Indoor units type
Indoor units model
Capacity(Btu/h)
Power supply
HKD indoor
AWSI-HKD009-N11
9000
220-240V 50Hz 1Ph
AWSI-HKD012-N11
12000
220-240V 50Hz 1Ph
AWSI-HKD018-N11
18000
220-240V 50Hz 1Ph
AWSI-HKD024-N11
24000
220-240V 50Hz 1Ph
HND indoor
AWSI-HND009-N11
9000
220-240V 50Hz 1Ph
AWSI-HND012-N11
12000
220-240V 50Hz 1Ph
AWSI-HND018-N11
18000
220-240V 50Hz 1Ph
AWSI-HND024-N11
24000
220-240V 50Hz 1Ph
Four-way cassette(compact)
AWSI-CCD009X-N11
9000
220-240V 50Hz 1Ph
AWSI-CBD012-N11
12000
220-240V 50Hz 1Ph
AWSI-CCD012-N11
12000
220-240V 50Hz 1Ph
AWSI-CBD018X-N11
18000
220-240V 50Hz 1Ph
Duct
AWSI-DCD012-N11
12000
220-240V 50Hz 1Ph
AWSI-DID012-N11
12000
220-240V 50Hz 1Ph
Console
AWSI-XBD009X-N11
9000
220-240V 50Hz 1Ph
AWSI-XAD012-N11
12000
220-240V 50Hz 1Ph
AWSI-XBD012-N11
12000
220-240V 50Hz 1Ph
AWSI-XAD018-N11
18000
220-240V 50Hz 1Ph
1.2 Outdoor Units
Universal Outdoor unit Model
Compressor type
Compressor Brand
Power supply
AWAU-YCZ218-H11
Twin-rotary
GMCC
220-240V 50Hz 1Ph
AWAU-YCZ327-H11
Twin-rotary
GMCC
220-240V 50Hz 1Ph
AWAU-YCZ430-H11
Twin-rotary
GMCC
220-240V 50Hz 1Ph
AWAU-YCZ542-H11
Twin-rotary
GMCC
220-240V 50Hz 1Ph

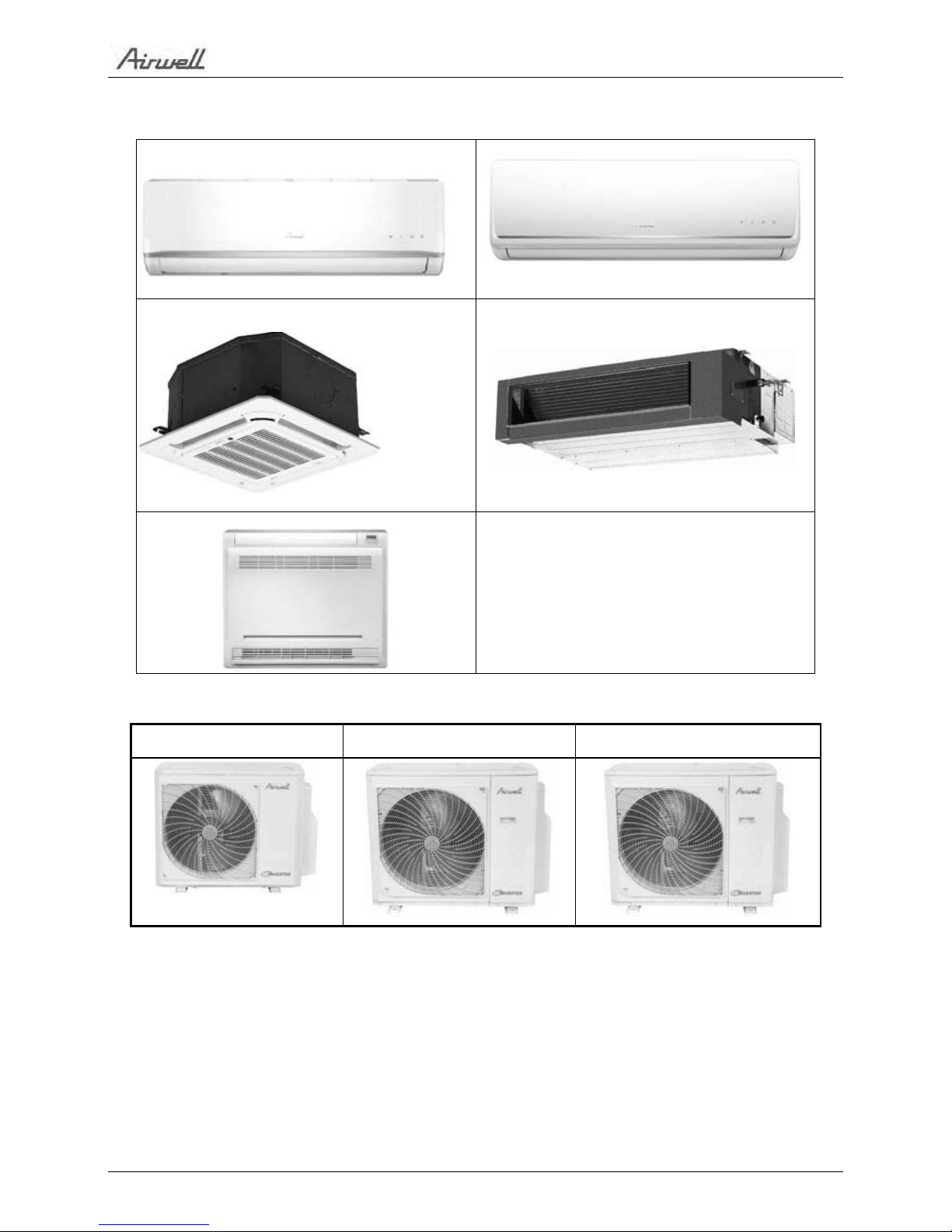

External Appearance
General Information 3
2. External Appearance
2.1 Indoor Units
HKD
HND
Four-way cassette(Compact)
Duct
Console
2.2 Outdoor Units
AWAU-YCZ218-H11(7SP091170)
AWAU-YCZ327-H11(7SP091171)
AWAU-YCZ430-H11(7SP091172)
AWAU-YCZ542-H11(7SP091173)

Product specification
4 General Information
3. Product specification
Model Outdoor Unit
AWAU-YCZ218-H11(7SP091170)
Model Indoor Unit
2 x AWSI-HND009-N11
2 x AWSI-HKD009-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Average
Average
Capacity (1)
kW
5.3
6.0
5.3
6
Pdesign
kW
5.3
5.5
5.3
5.0
SEER / SCOP (2)
W/W
7.4
4.0
6.1
3.8
Energy efficiency class
A++
A+
A+
A
Annual energy consumption
kWh
251
1855
304
1842
Tbiv
oC
N/A
-7
N/A
-7
Tol
oC
N/A
-15
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
25
Rated power input (Maximum power input)
kW
2.7
Rated current (Maximum current)
A
13.6
OUTDOOR
Refrigerant control
Capillary+EXV
Compressor type. model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
750
Air flow
H/L
m3/hr
2500
Sound power level(4)
H/L
dB(A)
63
Sound pressure level(5)
H/L
dB(A)
55
Dimensions
WxHxD
mm
845x702x363
Weight
kg
48
Package dimensions
LxWxH
mm
965x395x755
Packaged weight
kg
52
Stacking height
units
2 levels
Refrigerant type
R410A
Refrigerant charge (standard connecting
tubing length)
kg(15m)
2.0
Additional charge per 1 meter
gr / 1m
15m<L<30m 15g/m
Connection
s between
units
Liquid line
In.(mm)
2x1/4”(Φ6.35)
Suction line
In.(mm)
2x3/8”(Φ9.52)
Max. length for all rooms
m
30
Max. length for one indoor unit
m
20
Max. height
difference
between indoor
and outdoor unit
OU higher
than IU
m
10
OU lower
than IU
m
15
Max. height difference between
indoor units
m
10
Operation control type
Remote control

Product specification
General Information 5
Model Outdoor Unit
AWAU-YCZ327-H11(7SP091171)
Model Indoor Unit
3 x AWSI-HND009-N11
3 x AWSI-HKD009-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Average
Average
Capacity (1)
kW
7.8
8.5
7.8
8.5
Pdesign
kW
7.8
6.5
7.8
6.5
SEER / SCOP (2)
W/W
6.6
4.0
6.1
3.8
Energy efficiency class
A++
A+
A++
A
Annual energy consumption
kWh
414
2275
448
2395
Tbiv
oC
N/A
-7
N/A
-7
Tol
oC
N/A
-15
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
25
Rated power input (Maximum power input)
kW
3.4
Rated current (Maximum current)
A
17
OUTDOOR
Refrigerant control
Capillary+EXV
Compressor type. model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
3500
Sound power level(4)
H/L
dB(A)
67
Sound pressure level(5)
H/L
dB(A)
58
Dimensions
WxHxD
mm
946x810x410
Weight
kg
68
Package dimensions
LxWxH
mm
1090x500x865
Packaged weight
kg
73
Stacking height
units
2 levels
Refrigerant type
R410A
Refrigerant charge (standard connecting
tubing length)
kg(22.5m)
2.4
Additional charge per 1 meter
gr / 1m
22.5m<L<45m 15g/m
Connection
s between
units
Liquid line
In.(mm)
3x1/4”(Φ6.35)
Suction line
In.(mm)
3x3/8”(Φ9.52)
Max. length for all rooms
m
45
Max. length for one indoor unit
m
25
Max. height
difference
between indoor
and outdoor unit
OU higher
than IU
m
10
OU lower
than IU
m
15
Max. height difference between
indoor units
m
10
Operation control type
Remote control

Product specification
6 General Information
Model Outdoor Unit
AWAU-YCZ430-H11(7SP091172)
Model Indoor Unit
4 x AWSI-HND009-N11
4 x AWSI-HKD009-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Average
Average
Capacity (1)
kW
8.5
9.0
8.0
9.0
Pdesign
kW
8.5
7.2
8.0
7.2
SEER / SCOP (2)
W/W
6.6
4.0
5.6
3.8
Energy efficiency class
A++
A+
A+
A
Annual energy consumption
kWh
451
2520
500
2653
Tbiv
oC
N/A
-7
N/A
-7
Tol
oC
N/A
-15
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
25
Rated power input (Maximum power input)
kW
3.5
Rated current (Maximum current)
A
17.7
OUTDOOR
Refrigerant control
Capillary+EXV
Compressor type. model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
3500
Sound power level(4)
H/L
dB(A)
67
Sound pressure level(5)
H/L
dB(A)
58
Dimensions
WxHxD
mm
946x810x410
Weight
kg
70
Package dimensions
LxWxH
mm
1090x500x865
Packaged weight
kg
75
Stacking height
units
2 levels
Refrigerant type
R410A
Refrigerant charge (standard connecting
tubing length)
kg(30m)
2.4
Additional charge per 1 meter
gr / 1m
30m<L<60m 15g/m
Connection
s between
units
Liquid line
In.(mm)
4x1/4”(Φ6.35)
Suction line
In.(mm)
3x3/8”(Φ9.52)+1/2”(Φ12.7)
Max. length for all rooms
m
60
Max. length for one indoor unit
m
30
Max. height
difference
between indoor
and outdoor unit
OU higher
than IU
m
10
OU lower
than IU
m
15
Max. height difference between
indoor units
m
10
Operation control type
Remote control

Product specification
General Information 7
Model Outdoor Unit
AWAU-YCZ542-H11(7SP091173)
Model Indoor Unit
5 x AWSI-HND009-N11
5 x AWSI-HKD009-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Average
Average
Capacity (1)
kW
12.3
12.3
12.3
12.3
Pdesign
kW
12.3
9.6
12.3
9.6
SEER / SCOP (2)
W/W
6.6
4.0
5.6
3.8
Energy efficiency class
A++
A+
A+
A+
Annual energy consumption
kWh
652
3360
769
3537
Tbiv
oC
N/A
-7
N/A
-7
Tol
oC
N/A
-15
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
32
Rated power input (Maximum power input)
kW
4.7
Rated current (Maximum current)
A
23.7
OUTDOOR
Refrigerant control
Capillary+EXV
Compressor type. model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
950
Air flow
H/L
m3/hr
5500
Sound power level(4)
H/L
dB(A)
70
Sound pressure level(5)
H/L
dB(A)
60
Dimensions
WxHxD
mm
946x810x410
Weight
kg
76
Package dimensions
LxWxH
mm
1090x500x865
Packaged weight
kg
81
Stacking height
units
2 levels
Refrigerant type
R410A
Refrigerant charge (standard connecting
tubing length)
kg(37.5m)
3.6
Additional charge per 1 meter
gr / 1m
37.5m<L<80m 15g/m
Connection
s between
units
Liquid line
In.(mm)
4x1/4”(Φ6.35)
Suction line
In.(mm)
3x3/8”(Φ9.52)+1x1/2”(Φ12.7)
Max. length for all rooms
m
80
Max. length for one indoor unit
m
30
Max. height
difference
between indoor
and outdoor unit
OU higher
than IU
m
10
OU lower
than IU
m
15
Max. height difference between
indoor units
m
10
Operation control type
Remote control

Product specification
8 General Information
Model Indoor Unit
AWSI-HND007-N11
AWSI-HND009-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Cooling
Cooling
Heating
Capacity (4)
kW
2.05
2.34
2.65
2.8
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Crossflow x 1
Crossflow x 1
Fan speeds
Cooling
H/M/L
RPM
1000/900/680
1000/900/680
Heating
H/M/L
RPM
1000/900/680
1000/900/680
Air flow (1)
H/M/L
H/M/L
460/400/280
460/400/280
External static pressure
Min
Pa
0
0
Sound power level (2)
SH
dB(A)
53
53
Sound pressure level(3)
H/M/L/VL
dB(A)
35/31/25/21
35/31/25/21
Moisture removal
l/hr
1.0
1.0
Condensate drain tube I.D
mm
ODΦ17.5
ODΦ17.5
Dimensions
WxHxD
mm
750x280x198
835x280x198
Net Weight
kg
7.7
7.8
Package dimensions
LxWxH
mm
830x270x355
910x270x355
Packaged weight
kg
9.9
9.9
Operation control type
Remote control
Remote control
Model Indoor Unit
AWSI-HND012-N11
AWSI-HND018-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
3.54
3.7
5.3
5.5
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Crossflow x 1
Crossflow x 1
Fan speeds
Cooling
H/M/L
RPM
1000/850/700
1000/800/680
Heating
H/M/L
RPM
1000/850/700
1000/800/680
Air flow (1)
H/M/L
m3/hr
550/460/320
830/620/490
External static pressure
Min
Pa
0
0
Sound power level (2)
SH
dB(A)
53
62
Sound pressure level(3)
H/M/L/VL
dB(A)
36/32/26/21
42/36/30/23
Moisture removal
l/hr
1.0
1.3
Condensate drain tube I.D
mm
ODΦ17.5
ODΦ17.5
Dimensions
WxHxD
mm
835x280x198
990x315x218
Net Weight
kg
8.7
11.8
Package dimensions
LxWxH
mm
910x270x355
1065x300x400
Packaged weight
kg
11.2
15
Operation control type
Remote control
Remote control

Product specification
General Information 9
Model Indoor Unit
AWSI-HND024-N11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Capacity (4)
kW
7.05
7.3
Power supply
V
220-240
Ph
1
Hz
50
INDOOR
Fan type & quantity
Crossflow x 1
Fan speeds
Cooling
H/M/L
RPM
1000/900/700
Heating
H/M/L
RPM
1000/900/700
Air flow (1)
H/M/L
m3/hr
1050/950/700
External static pressure
Min
Pa
0
Sound power level (2)
SH
dB(A)
64
Sound pressure level(3)
H/M/L/VL
dB(A)
46/41/34/28
Moisture removal
l/hr
2.3
Condensate drain tube I.D
mm
ODΦ17.5
Dimensions
WxHxD
mm
1186x258x343
Net Weight
kg
15.6
Package dimensions
LxWxH
mm
1265x340 x420
Packaged weight
kg
20.6
Operation control type
Remote control
Model Indoor Unit
AWSI-HKD009-N11
(7SP023030)
AWSI-HKD012-N11
(7SP023031)
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
2.65
2.8
3.54
3.5
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Crossflow x 1
Crossflow x 1
Fan speeds
Cooling
H/M/L
RPM
1150 / 1000 / 800
1200 / 1050 / 800
Heating
H/M/L
RPM
1150 / 1000 / 800
1200 / 1050 / 800
Air flow (1)
H/M/L
m3/hr
430/380/320
480/430/390
External static pressure
Min
Pa
0
0
Sound power level (2)
SH
dB(A)
54
53
Sound pressure level(3)
H/M/L/VL
dB(A)
38/35/31/22
36/32/29/23
Moisture removal
l/hr
1.0
1.2
Condensate drain tube I.D
mm
ODΦ17.5
ODΦ17.5
Dimensions
WxHxD
mm
715x250x188
800x275x188
Net Weight
kg
6.5
7.4
Package dimensions
LxWxH
mm
775x260x324
865x265x350
Packaged weight
kg
8.2
9.5
Operation control type
Remote control
Remote control

Product specification
10 General Information
Model Indoor Unit
AWSI-HKD018-N11
(7SP023032)
AWSI-HKD024-N11
((7SP023033)
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
5
5.0
6.8
7.5
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Crossflow x 1
Crossflow x 1
Fan speeds
Cooling
H/M/L
RPM
1100 / 800 / 700
1180 / 1100 / 900
Heating
H/M/L
RPM
1100 / 800 / 700
1180 / 1100 / 900
Air flow (1)
H/M/L
m3/hr
610/540/460
890/820/650
External static pressure
Min
Pa
0
0
Sound power level (2)
SH
dB(A)
57
63
Sound pressure level(3)
H/M/L/VL
dB(A)
36/33/29/23
43/40/37/31
Moisture removal
l/hr
1.7
2.3
Condensate drain tube I.D
mm
ODΦ17.5
ODΦ17.5
Dimensions
WxHxD
mm
940x275x205
1045x315x235
Net Weight
kg
9
12
Package dimensions
LxWxH
mm
1015x265x350
1135x315x395
Packaged weight
kg
12.2
15.2
Operation control type
Remote control
Remote control
Model Indoor Unit
AWSI-DCD012-N11
AWSI-DID012-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
3.5
3.8
3.5
3.8
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Centrifugal fan x2
Centrifugal fan x2
Fan speeds
Cooling
H/M/L
RPM
1200/1070/1000
1100/940/760
Heating
H/M/L
RPM
1200/1070/1000
1100/940/760
Air flow (1)
H/M/L
m3/hr
560/440/410
680/580/450
External static pressure
Min
Pa
25(0~40)
25(0~45)
Sound power level (2)
SH
dB(A)
58
57
Sound pressure level(3)
H/M/L/VL
dB(A)
41/39/36
35/31/27
Moisture removal
l/hr
1.7
1.5
Condensate drain tube I.D
mm
ODΦ17.5
ODΦ25
Dimensions
WxHxD
mm
700x210x635
700x210x635
Net Weight
kg
18
18.4
Package dimensions
LxWxH
mm
915x655x290
915x655x290
Packaged weight
kg
22.8
22.7
Operation control type
Remote control
Remote control

Product specification
General Information 11
Model Indoor Unit
AWSI-XBD009X-N11
AWSI-XAD012-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
2.6
2.9
3.5
3.6
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Centrifugal fan x1
Centrifugal fan x1
Fan speeds
Cooling
H/M/L
RPM
810/780/680/530
810/780/680/530
Heating
H/M/L
RPM
810/780/680/530
810/780/680/530
Air flow (1)
H/M/L
m3/hr
710/680/580/450
700/640/560/440
External static pressure
Min
Pa
0
0
Sound power level (2)
SH
dB(A)
56
58
Sound pressure level(3)
H/M/L/VL
dB(A)
45/40/35
44/40/36
Moisture removal
l/hr
1.0
1.5
Condensate drain tube I.D
mm
ODФ16
ODФ16
Dimensions
WxHxD
mm
700×600×210
700x210x635
Net Weight
kg
13.5
15
Package dimensions
LxWxH
mm
810×305×710
810×305×710
Packaged weight
kg
18
20
Operation control type
Remote control
Wired remote control
Model Indoor Unit
AWSI-XBD012-N11
AWSI-XAD018X-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
3.5
3.8
4.7
5.0
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Centrifugal fan x1
Centrifugal fan x1
Fan speeds
Cooling
H/M/L
RPM
1100/940/760
950/850/750/600
Heating
H/M/L
RPM
1100/940/760
950/850/750/600
Air flow (1)
H/M/L
m3/hr
550/470/360
740/700/640/560
External static pressure
Min
Pa
0
0
Sound power level (2)
SH
dB(A)
58
60
Sound pressure level(3)
H/M/L/VL
dB(A)
44/40/36
45 /42/39
Moisture removal
l/hr
1.5
2.0
Condensate drain tube I.D
mm
ODФ16
ODФ16
Dimensions
WxHxD
mm
700×600×210
700x210x635
Net Weight
kg
15
15
Package dimensions
LxWxH
mm
810×305×710
810×305×710
Packaged weight
kg
20
20
Operation control type
Remote control
Wired remote control

Product specification
12 General Information
Model Indoor Unit
AWSI-CCD009X-N11
AWSI-CBD012-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
2.6
2.9
3.5
3.5
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Centrifugal fan x1
Centrifugal fan x1
Fan
speeds
Cooling
H/M/L
RPM
730/620/560
700/580/500
Heating
H/M/L
RPM
730/620/560
700/580/500
Air flow (1)
H/M/L
m3/hr
650/530/450
650/530/450
Sound power level (2)
SH
dB(A)
53
55
Sound pressure level(3)
H/M/L/VL
dB(A)
39/36/32
42/38/34
Moisture removal
l/hr
1.0
1.5
Condensate drain tube I.D
mm
ODΦ25
ODΦ25
Dimensions
WxHxD
mm
570x270x570
570x270x570
Net Weight
kg
14.5
16
Package dimensions
LxWxH
mm
655x655x290
655x655x290
Packaged weight
kg
17.3
19
Frame dimensions
WxHxD
mm
647x50x647
647x50x647
Frame net weight
kg
2.5
2.5
Frame package dimensions
LxWxH
mm
715x715x123
715x715x123
Frame packaged weight
kg
4.5
4.5
Operation control type
Remote control
Remote control
Model Indoor Unit
AWSI-CCD012-N11
AWSI-CBD018X-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
3.5
4.1
5.0
5.3
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Centrifugal fan x1
Centrifugal fan x1
Fan
speeds
Cooling
H/M/L
RPM
700/580/500
820/670/500
Heating
H/M/L
RPM
700/580/500
820/670/500
Air flow (1)
H/M/L
m3/hr
650/530/450
800/650/500
Sound power level (2)
SH
dB(A)
55
60
Sound pressure level(3)
H/M/L/VL
dB(A)
42/38/34
48/40/33
Moisture removal
l/hr
1.5
2.0
Condensate drain tube I.D
mm
ODΦ25
ODΦ25
Dimensions
WxHxD
mm
570x270x570
570x270x570
Net Weight
kg
16
16.5
Package dimensions
LxWxH
mm
655x655x290
655x655x290
Packaged weight
kg
18.6
19
Frame dimensions
WxHxD
mm
647x50x647
647x50x647
Frame net weight
kg
2.5
2.5
Frame package dimensions
LxWxH
mm
715x715x123
715x715x123
Frame packaged weight
kg
4.5
4.5
Operation control type
Remote control
Remote control

Matching Table
General Information 13
4. Matching Table
AWAU-YCZ218-H11
AWAU-YCZ327-H11
2 x IDU
2 x IDU
3 x IDU
7+7
9+9
9+18
7+7+18
7+12+18
9+12+12
7+9
9+12
12+12
7+9+12
9+9+9
9+12+18
7+12
9+18
12+18
7+9+18
9+9+12
12+12+12
7+18
12+12
18+18
7+12+12
9+9+18
AWAU-YCZ430-H11
2 x IDU
3 x IDU
4 x IDU
7+24
7+7+18
7+12+18
9+12+12
7+7+7+7
7+7+9+12
7+9+12+12
9+18
7+7+24
9+9+9
9+12+18
7+7+7+9
7+7+9+18
9+9+9+9
9+24
7+9+12
9+9+12
12+12+12
7+7+7+12
7+7+12+12
9+9+9+12
12+12
7+9+18
9+9+18
12+12+18
7+7+7+18
7+9+9+9
12+18
7+12+12
7+7+9+9
7+9+9+12
12+24
18+18
AWAU-YCZ542-H11
2x IDU
3 x IDU
4 x IDU
5 x IDU
18+18
7+7+24
7+7+7+18
7+12+12+18
7+7+7+7+9
7+7+9+9+12
7+9+9+12+12
18+24
7+9+24
7+7+7+24
7+12+18+18
7+7+7+7+12
7+7+9+9+18
7+9+9+12+18
7+12+18
7+7+9+18
7+12+18+24
7+7+7+7+18
7+7+9+9+24
7+9+12+12+12
7+12+24
7+7+9+24
9+9+9+9
7+7+7+7+24
7+7+9+12+12
7+9+12+12+18
7+18+18
7+7+12+12
9+9+9+12
7+7+7+9+9
7+7+9+12+18
7+12+12+12+12
9+9+18
7+7+12+24
9+9+9+18
7+7+7+9+12
7+7+9+12+24
9+9+9+9+9
9+9+24
7+7+12+18
9+9+9+24
7+7+7+9+18
7+7+9+18+18
9+9+9+9+12
9+12+12
7+7+18+18
9+9+12+12
7+7+7+9+24
7+7+12+12+12
9+9+9+9+18
9+12+18
7+7+18+24
9+9+12+18
7+7+7+12+12
7+7+12+12+18
9+9+9+12+12
9+12+24
7+9+9+12
9+9+12+24
7+7+7+12+18
7+9+9+9+9
9+9+9+12+18
9+18+18
7+9+9+18
9+9+18+18
7+7+7+12+24
7+9+9+9+12
9+9+12+12+12
12+12+12
7+9+9+24
9+12+12+12
7+7+7+18+18
7+9+9+9+18
9+12+12+12+12
12+12+18
7+9+12+12
9+12+12+18
7+7+9+9+9
7+9+9+9+24
12+12+24
7+9+12+18
9+12+12+24
12+18+18
7+9+12+24
9+12+18+18
12+18+24
7+9+18+18
12+12+12+12
18+18+18
7+9+18+24
12+12+12+18
7+12+12+12

Indoor Units
14 Indoor Units
Part 2
Indoor Units
HKD Type .............................................................................................................................. 15
HND Type .............................................................................................................................. 28
Light Commercial................................................................................................................. 41

HKD Type
Indoor Units 15
HKD Type
1. Function............................................................................................................................ 16
2. Dimensions....................................................................................................................... 17
3. Wiring Diagrams............................................................................................................... 19
4. Exploded View and Spare Part list.................................................................................. 20

Function
16 Indoor Units
1. Function
Killer Of Formaldehyde
Silver Ico Filter(O)
Vitamin C Filter(O)
3M HAM Filter(O)
Bio Filter(O)
Golden Fin(O)
Ionizer(O)
1W Standby
Louver Position Memory Function
Refrigerant Leakage Detect
Self-diag. Function
Hydrophilic Aluminum Fin
PTC Heating Belt(O)
Filter 2 ways of drainage
O: optional function

Dimensions
Indoor Units 17

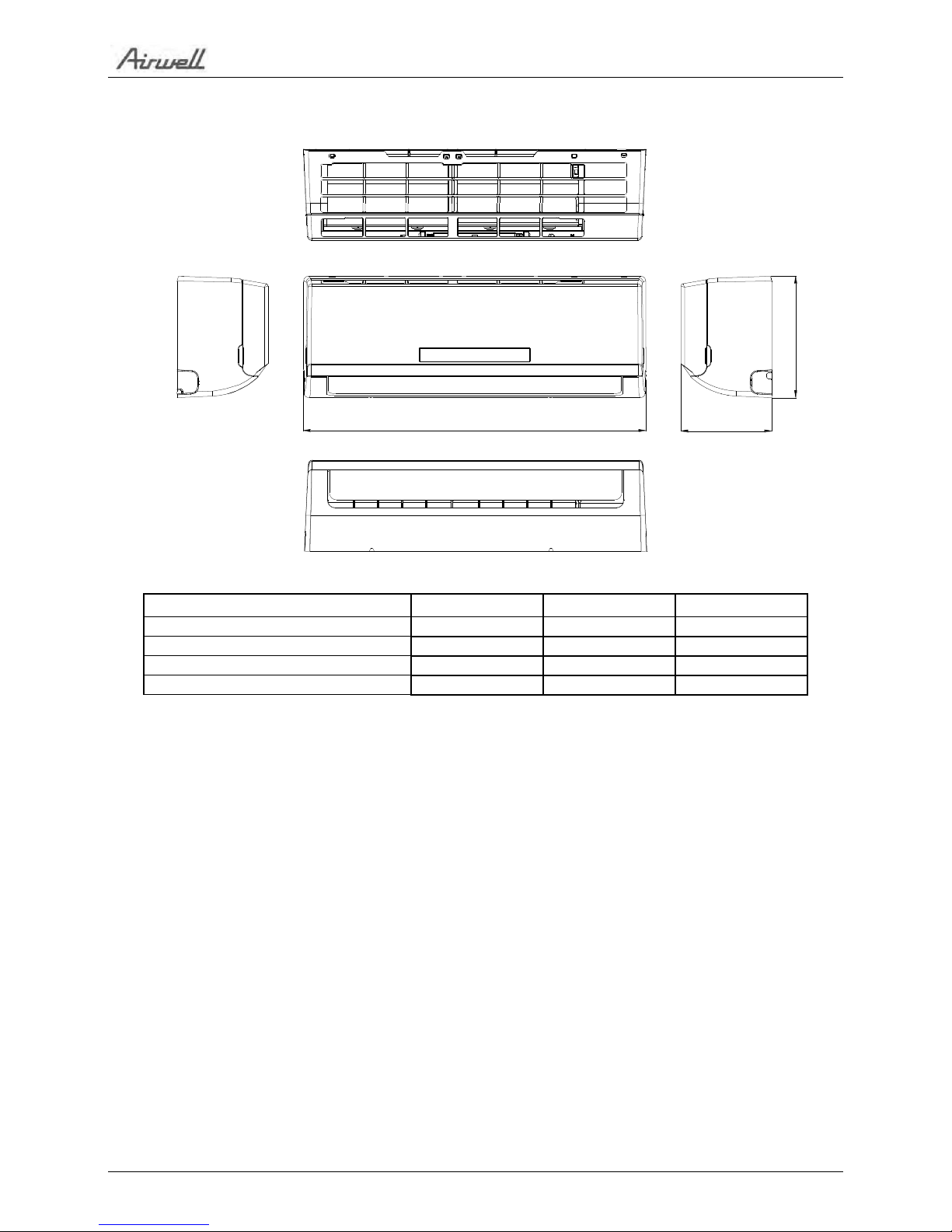

2. Dimensions
WD
H
For AWSI-HKD009-N11(7SP023030)
Model
W
D
H
AWSI-HKD009-N11(7SP023030)
715
188
250
AWSI-HKD012-N11(7SP023031)
800
188
275
AWSI-HKD018-N11(7SP023032)
940
205
275
AWSI-HKD024-N11(7SP023033)
1045
235
315

Dimensions
18 Indoor Units
For AWSI-HKD012-N11(7SP023031)
For AWSI-HKD018-N11(7SP023032)

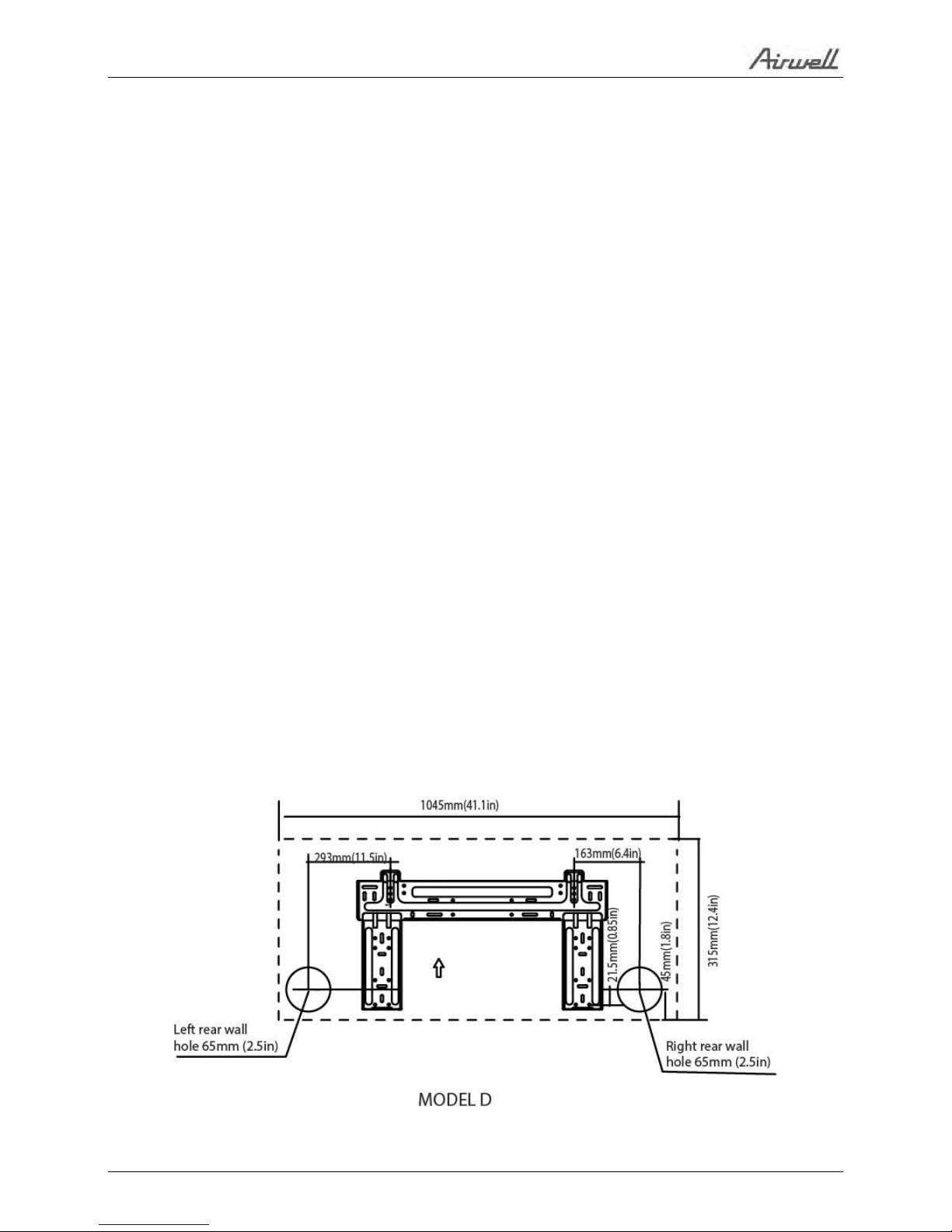

For AWSI-HKD024-N11(7SP023033)
