Airwell PNX 012 User manual

Multi Split Cinco DCI
Indoor Units Outdoor Units
Type Image Model Model
Wall mounted
PNX 009
CINCO 100 DCI
YAZ5036-H11
PNX 012
PNX 018
PNX 021
PNX 024
HFD 007
HFD 009
HFD 012
HFD 018
HAD 007
HAD 009
HAD 012
HAD 018
HAD 021
HAD 024
XLF 009
XLF 012
Cassette
CK 009
CK 012
CK 018
CK 021
CK 024
Floor /
Ceiling
PXD 009
PXD 012
PXD 018
PXD 021
PXD 024
Low
Silhouette
DLF 009
DLF 012
DLF 018
DLF 021
DLF 024
Ducted
DLS 018
DLS 021
DLS 024
MAY – 2010
REFRIGERANT
R410A
HEAT PUMP
SM CINCO 1-A.1 GB


A
LIST OF EFFECTIVE PAGES
SM CINCO 1-A.1 GB
LIST OF EFFECTIVE PAGES
Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page
(when none indicates no changes in the relevant page). All pages in the following list represent
effected/ non effected pages divided by chapters.
Dates of issue for original and changed pages are:
Original ....... 0 ........ MAY 2010
Total number of pages in this publication is 148 consisting of the following:
Page
No.
Revision
No. #
Page
No.
Revision
No. #
Page
No.
Revision
No. #
Title ....................... 1
A ........................... 1
i............................. 1
1-1 - 1-3 ................ 1
2-1 - 2-15 .............. 1
3-1 ........................ 1
4-1 - 4-7 ................ 1
5-1 - 5-38 .............. 1
6-1 - 6-4 ................ 1
7-1 ........................ 1
8-1 ........................ 1
9-1 - 9-2 ................ 1
10-1 ...................... 1
11-1....................... 1
12-1-12-41 ............ 1
13-1-13-15 ............ 1
14-1-14-6 .............. 1
15-1-15-3 .............. 1
16-1-16-5 ...............1
17-1 ...................... 1
Zero in this column indicates an original page.
*Due to constant improvements please note that the data on this service manual can be modified
with out notice.
**Photos are not contractual

i
TABLE OF CONTENTS
SM CINCO 1-A.1 GB
Table of Contents
1. INTRODUCTION ...................................................................................................1-1
2. PRODUCT DATA SHEET ......................................................................................2-1
3. RATING CONDITIONS..........................................................................................3-1
4. OUTLINE DIMENSIONS .......................................................................................4-1
5. PERFORMANCE DATA ........................................................................................5-1
6. PRESSURE CURVES ...........................................................................................6-1
7. SOUND LEVEL CHARACTERISTICS ..................................................................7-1
8. ELECTRICAL DATA..............................................................................................8-1
9. WIRING DIAGRAMS & ELECTRICAL CONNECTIONS ......................................9-1
10. REFRIGERATION DIAGRAMS.............................................................................10-1
11. TUBING CONNECTIONS......................................................................................11-1
12. CONTROL SYSTEM .............................................................................................12-1
13. TROUBLESHOOTING ..........................................................................................13-1
14. SERVICING ...........................................................................................................14-1
15. EXPLODED VIEWS AND SPARE PARTS LISTS.................................................15-1
16. OPTIONAL ACCESSORIES .................................................................................16-1
17. APPENDIX A .........................................................................................................17-1

1-1
INTRODUCTION
SM CINCO 1-A.1 GB
1. INTRODUCTION
1.1 General
The Cinco DCI Multi is a total Multi System in one unit: Duo/Trio/Quattro/Cinco.
The multi-split inverter is a high level technology product for residential and commercial application
offering comfort, low noise operation and energy saving.
1.2 Main Features
1.2.1 High Technology
 Sine wave form in both OFAN and Compressor drives.
 DC-BL-SL (DC Brush less Sensor less) Inverter Compressor.
 DC-BL Inverter Outdoor fan.
 Fuzzy Logic Control
1.2.2 System Features
 Variable cooling and heating capacity from 30% to 115% (of rated caoacity).
 High COP (“A” class energy rating)
 Low noise levels
 IAQ (Indoor Air Quality) features (LEX series)
 Lego concept - Products line of wall mounted, floor/ceiling, cassette, ducted with capacity
models of 2.2, 2.5, 3.5, 5.0, 6.0 and 7.2 kW.
 Networking connectivity.
 Pre-charged system up to 30m.
Tubing total length up to 80m / 25m length for each indoor brench.
Tubing height difference up to 30m / 15m heigth for each indoor brench.
 Dry contact inputs:
o Stand-by
o Night Mode (for silent operation in cool and heat mode)
o Power Shedding (to control maximum power consumption)
 Dry contact output:
o Alarm
o Base Heater
o Crank Case Heater
 Cooling operation at outdoor temperature down to -100C.
 Heating operation at outdoor temperature down to -150C.
 HMI Display (Human-Machine Interface) – consists of 7-segment shows both indoor and
outdoor diagnostics and setting up features.
 Installation test to detect installation errors and guidance to solve them.
 Monitoring softwear (PC port).
 EEV (Electronic Expansion Valve) for each indoor unit.
 Low and high pressure cut-off sensore for system protection.
1.3 Tubing Connections
 Flare type interconnecting tubing to be produced on site.
 For further details please refer to APPENDIX A on this manual, and to the relevant indoor
service Manual.

1-2
INTRODUCTION
SM CINCO 1-A.1 GB
1.4 Inbox Documentation
 Outdoor unit is supplied with its installation manual and flare type adaptor connectors.
 Each indoor unit is supplied with its own installation and operation manuals.

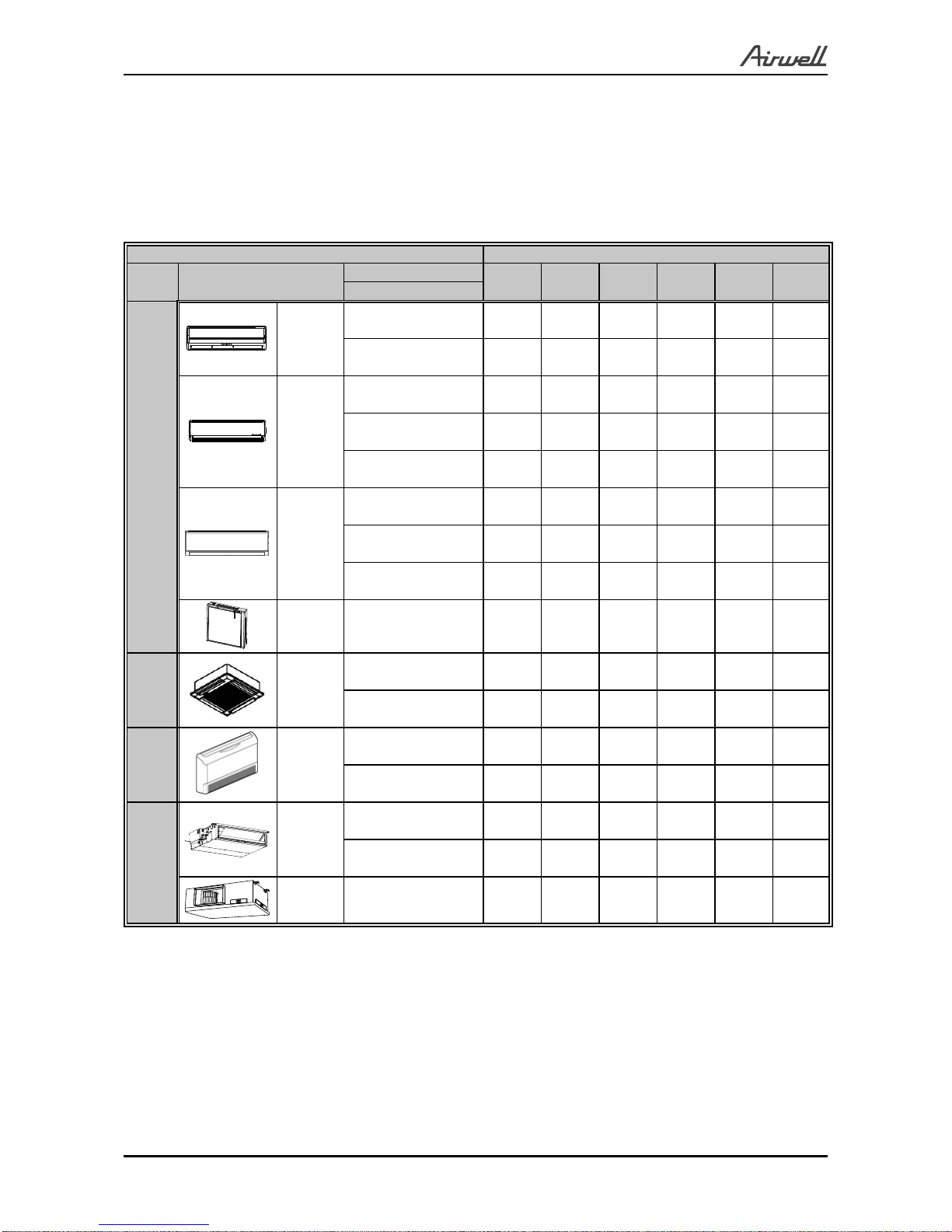

1.5 Matching Table
R410A
Indoor unit Indoor Unit Capacity [kW] (kBtu/h)
Type Model Dimensions 2.2 (7) 2.5 (9) 3.5 (12) 5.0 (18) 6.0 (21) 7.0 (24)
(W x D x H) mm
Wall- Mounted
LEX/
PNX
810x210x285 ♦♦
1060x221x295 ♦♦♦
HFD/
DELTA
680x185x250 ♦♦
840x185x250 ♦
900x205x295 ♦
HAD
676x188x250 ♦♦
840x188x250 ♦
1060x210x295 ♦♦♦
XLF/
TOP 570x160x570 ♦♦
Cassette
CK/ CN
575x575x219 ♦♦
575x575x270 ♦♦♦
Floor /
Ceiling
SX/
PXD
820x190x630 ♦♦
1200x190x630 ♦♦♦
Ducted
DLF/
LSN
750x629x200 ♦♦♦
1050x629x200 ♦♦
DLS/
DNG 790x749x256 ♦♦♦

1-3
INTRODUCTION
SM CINCO 1-A.1 GB
1.6 Indoor Unit combinations
Duo Trio Quattro Cinco
Unit D
Unit E
Unit A/B/C
Unit D
Unit E
Unit A/B
Unit C Unit D
Unit E
Unit A
Unit B Unit C Unit D
Unit E
18 18 7 7 21 7 7 7 12 7 7 7 7 7
18 21 7 7 24 7 7 7 18 7 7 7 7 9
18 24 7 9 21 7 7 7 21 7 7 7 7 12
21 21 7 9 24 7 7 7 24 7 7 7 7 18
21 24 7 12 18 7 7 9 12 7 7 7 9 9
24 24 7122177918777912
7122477921777918
7 18 18 7 7 9 24 7 7 7 12 12
718217 712127 7 9 9 9
718247 712187 7 9 912
9 9 18 7 7 12 21 7 7 9 12 12
9 9 21 7 7 18 18 7 9 9 9 9
9 9 24 7 9 9 12 7 9 9 9 12
9 12 18 7 9 9 18 7 9 9 12 12
912217992199999
9122479924999912
918187 912129 9 9 918
91821 7 9 1218 9991212
91824 7 9 1221
92121 9 9 9 9
12 12 12 9 9 9 12
12 12 18 9 9 9 18
12 12 21 9 9 9 21
12 12 24 9 9 9 24
12 18 18 9 9 12 12
12 18 21 9 9 12 18
9 9 12 21
9 9 18 18
9121212
9121218
12 12 12 12

2-1
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2. PRODUCT DATA SHEET
2.1 Outdoor Unit Specifications.
Model Cinco 100 DCI / YAZ5036-H11
Operation Mode Cooling Heating
Starting Current A < 10
Circuit Breaker Current A 25
Power Supply V/Ph/Hz 220-240V/ 1PH / 50Hz
INDOOR
See DCI Single
OUTDOOR
Refrigerant control Electronic expansion valve
Compressor type Twin Rotary DC Inverter
Model Sanyo C-7RVN153HOW
Protection device Outdoor SW control, HPS, LPS
Heat exchanger Hydrophilic corrugated fins ,Grooved tubes
Fan x No. Propeller x 2
Airflow m3/hr 4,150
Motor output W 2 x 50
Sound level (1) Pressure dB(A) 57 59
Power 68 69
Dimensions WxDxH mm 900 x 970 x 340
Weight Kg 80
Package WxDxH mm 985 x 1020 x 435
Packaged Weight Kg 85
Units per pallet Units 6
Stacking height Units 2
TUBING
Refrigerant Charge (Precharged) g (m) 3,000 (30m)
Additional charge (30-80m) g 400
Tube size
O.D.
Liquid mm 5 x 6.35
Suction mm 3x 9.53 + 2x 12.7
Connection
method
between the
indoor and
outdoor units
Indoor & outdoor Flared
Height difference between indoor
units Max.15m
Height difference between indoor &
outdoor Max.15m
Tubing length Max.25m for one unit and 80m total
Operation control type LCD Remote Control
Heating elements kW BH 70W (Optional)
Others
Notes:
(1) Sound pressure level measured at 1 meter distance from unit at nominal (cool/heat) conditions.

2-2
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.2 Outdoor Unit Capacity
2.2.1 Cinco (HAD)
Model ODU Cinco 100 DCI / YAZ5036-H11
IDU HAD 22+ HAD 22+ HAD 22 + HAD 22+ HAD 22
Operation Mode Cooling Heating
Capacity (2) Nominal (minimum–Maximum) Btu/hr 32,400 (13,650 -34,800) 38,560 (13,650-37,530)
kW 9.5 (4.0-10.2) 11.3 (4.0-11.5)
Total Input W 2,940 (780-3,500) 2,940 (780-3,500)
E.E.R (Cooling) / C.O.P (Heating) W/W 3.05 3.80
Running Current (3) A 13.0 13.0
2.2.2 Cinco (LEX)
Model ODU Cinco 100 DCI / YAZ5036-H11
IDU LEX 25+ LEX 25+ LEX 25 + LEX 25+ LEX 25
Operation Mode Cooling Heating
Capacity (2) Nominal (minimum–Maximum) Btu/hr 34,120 (14,710-37,530) 40,940 (14,710-42,650)
kW 10.0(4.3-11.0) 12.0 (4.3-12.5)
Total Input W 2,940 (780-3,500) 2,940 (780-3,500)
E.E.R (Cooling) / C.O.P (Heating) W/W 3.15 4.20
Running Current (3) A 13.0 13.0
2.2.3 Quattro (LEX)
Model ODU Quattro 100 DCI / YAZ5036-H11
IDU LEX 25+LEX 25+LEX 25 +LEX 25
Operation Mode Cooling Heating
Capacity (2) Nominal (minimum–Maximum) Btu/hr 30,030 (11,600-33,440) 34,120 (11,600-35,830)
kW 8.8 (3.4-9.8) 10.0 (3.4-10.5)
Total Input W 2,330 (810-2,670) 2,080 (810-2,670)
E.E.R (Cooling) / C.O.P (Heating) W/W 3.77 4.63
Running Current (3) A 10.4 9.25
2.2.4 Trio (LEX)
Model ODU Trio 100 DCI / YAZ5036-H11
IDU LEX 35+LEX 35+LEX 35
Operation Mode Cooling Heating
Capacity (2) Nominal (minimum–Maximum) Btu/hr 29,000 (10,240-32,410) 35,480 (10,240-38,810)
kW 8.5 (3.0-9.5) 10.4 (3.0-11.4)
Total Input W 2,510 (720-2,910) 2,390 (720-2,910)
E.E.R (Cooling) / C.O.P (Heating) W/W 3.38 4.35
Running Current (3) A 11.2 10.6

2-3
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.2.5 Duo (LEX 50)
Model ODU Duo 100 DCI / YAZ5036-H11
IDU LEX 50 +LEX 50
Operation Mode Cooling Heating
Capacity (2) Nominal (minimum–Maximum) Btu/hr 30,710(9,030-37,530) 35,960 (9,030-39,240)
kW 9.0 (2.6-11.0) 10.0 (2.6-11.5)
Total Input W 3,000 (590-3,160) 2,940 (590-3,160)
E.E.R (Cooling) / C.O.P (Heating) W/W 3.0 3.58
Running Current (3) A 13.3 13.1
2.2.6 Duo (LEX 60)
Model ODU Duo 100 DCI / YAZ5036-H11
IDU LEX 60+LEX 60
Operation Mode Cooling Heating
Capacity (2) Nominal (minimum–Maximum) Btu/hr 31,560 (9,630-37,530) 36,370 (9,630-40,090)
kW 9.3 (2.8-11.0) 10.7 (2.8-11.8)
Total Input W 3,170 (550-3,200) 3,020 (550-3,200)
E.E.R (Cooling) / C.O.P (Heating) W/W 2.92 3.53
Running Current (3) A 14.05 13.4
2.2.7 Duo (LEX 72)
Model ODU Duo 100 DCI / YAZ5036-H11
IDU LEX 72+LEX 72
Operation Mode Cooling Heating
Capacity (2) Nominal (minimum–Maximum) Btu/hr 32,410 (10,240-37,530) 36,780 (10,240-40,940)
kW 9.5 (3.0-11.0) 10.8 (3.0-12.0)
Total Input W 3,330 (550-3,400) 3,090 (550-3,440)
E.E.R (Cooling) / C.O.P (Heating) W/W 2.85 3.49
Running Current (3) A 14.8 13.7
Notes:
(2) Rating conditions in accordance with ISO 5151, ISO 13253 (for ducted units) EN 14511 and EUROVENT.
(3) Running Current is measured in nominal conditions at 230V

2-4
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.3 Indoor Units Data
2.3.1 PNX009 DCI Specifications
Model Indoor Unit PNX009 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1050/900/800
Air flow(1) H/M/L m3/hr 530/430/330
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 51/ - /39
Sound pressure level(3) H/M/L dB(A) 39/ - /26
Moisture removal l/hr 1
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 810x285x210
Net Weight kg 11.5
Package dimensions WxHxD mm 870x356x282
Packaged weight kg 14
Units per pallet units 28
Stacking height units 7 levels
2.3.2 PNX012 DCI Specifications
Model Indoor Unit PNX012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1100/950/800
Air flow(1) H/M/L m3/hr 550/450/350
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 52/ - /39
Sound pressure level(3) H/M/L dB(A) 40/ - /26
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 810x285x210
Net Weight kg 11.5
Package dimensions WxHxD mm 870x356x282
Packaged weight kg 14
Units per pallet units 28
Stacking height units 7 levels
2.3.3 PNX018 DCI Specifications
Model Indoor Unit PNX018 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1200/1050/900
Air flow(1) H/M/L m3/hr 850/700/550
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 55/51/47
Sound pressure level(3) H/M/L dB(A) 43/39/34
Moisture removal l/hr 2
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 1060x295x221
Net Weight kg 15
Package dimensions WxHxD mm 1125x360x295
Packaged weight kg 18
Units per pallet units 16
Stacking height units 8 levels

2-5
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.3.4 PNX021 DCI Specifications
Model Indoor Unit / Type PNX021 DCI / Wall Mounted
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Crossflow *1
Fan speed H/M/L RPM 1250 1100 1000
Airflow(2) H/M/L m3/hr 900 760 620
External static pressure Min-Nom-Max Pa -
Sound Power Level(3) H/M/L dB (A) 56 53 48
Sound Pressure Level (4) H/M/L dB (A) 45 40 34
Moisture removal l/h 2.0
Condensate Drain Tube I.D. mm 16
Dimensions W/H/D mm 1060 295 221
Weight kg 15
Package Dimensions W/H/D mm 1125 360 295
Packeged wight Kg 18
Units per pallet 16
Stacking Height Units 8
2.3.5 PNX024 DCI Specifications
Model Indoor Unit / Type PNX024 DCI / Wall Mounted
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Crossflow *1
Fan speed H/M/L RPM 1300 1150 1000
Airflow(2) H/M/L m3/hr 950 800 650
External static pressure Min-Nom-Max Pa -
Sound Power Level(3) H/M/L dB (A) 60 54 47
Sound Pressure Level (4) H/M/L dB (A) 47 41 34
Moisture removal l/h 2.5
Condensate Drain Tube I.D. mm 16
Dimensions W/H/D mm 1060 295 221
Weight kg 15
Package Dimensions W/H/D mm 1125 360 295
Packeged wight Kg 18
Units per pallet 16
Stacking Height Units 8
2.3.6 HFD007 DCI Specifications
Model Indoor Unit / Type HFD007 DCI / Wall Mounted
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Crossflow x1
Fan speed H/M/L RPM 1100 950 800
Airflow(2) H/M/L m3/hr 400 350 300
External static pressure Min-Nom-Max Pa -
Sound Power Level(3) H/M/L dB (A) 49 46 43
Sound Pressure Level (4) H/M/L dB (A) 36 33 30
Moisture removal l/h 1.0
Condensate Drain Tube I.D. mm 16
Dimensions W/H/D mm 680 250 185
Weight kg 7
Package Dimensions W/H/D mm 740 265 320
Packeged wight Kg 10
Units per pallet 36
Stacking Height Units 9

2-6
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.3.7 HFD009 DCI Specifications
Model Indoor Unit HFD009 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1200/1050/850
Air flow(1) H/M/L m3/hr 420/350/270
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 54/50/47
Sound pressure level(3) H/M/L dB(A) 39/35/32
Moisture removal l/hr 1
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 680x250x185
Net Weight kg 7
Package dimensions WxHxD mm 740x320x265
Packaged weight kg 10
Units per pallet units 36 units per pallet
Stacking height units 9 levels
2.3.8 HFD012 DCI Specifications
Model Indoor Unit HFD012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1200/1000/850
Air flow(1) H/M/L m3/hr 550/450/350
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 56/50/46
Sound pressure level(3) H/M/L dB(A) 39/33/29
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 840x250x185
Net Weight kg 8
Package dimensions WxHxD mm 930x320x265
Packaged weight kg 11
Units per pallet units 36 units per pallet
Stacking height units 9 levels
2.3.9 HFD018 DCI Specifications
Model Indoor Unit HFD018 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1230/1100/900
Air flow(1) H/M/L m3/hr 720/620/480
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 56/54/47
Sound pressure level(3) H/M/L dB(A) 44/41/34
Moisture removal l/hr 2
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 900x295x205
Net Weight kg 11
Package dimensions WxHxD mm 960x360x270
Packaged weight kg 14
Units per pallet units 24 units per pallet
Stacking height units 8 levels

2-7
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.3.10 HAD007 DCI Specifications
Model Indoor Unit / Type HAD007 DCI / Wall Mounted
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Crossflow x1
Fan speed H/M/L RPM 1100 950 800
Airflow(2) H/M/L m3/hr 400 350 300
External static pressure Min-Nom-Max Pa -
Sound Power Level(3) H/M/L dB (A) 49 46 43
Sound Pressure Level (4) H/M/L dB (A) 36 33 30
Moisture removal l/h 0.9
Condensate Drain Tube I.D. mm 16
Dimensions W/H/D mm 680 250 185
Weight kg 7
Package Dimensions W/H/D mm 740 265 320
Packeged wight Kg 10
Units per pallet 36
Stacking Height Units 9
2.3.11 HAD009 DCI Specifications
Model Indoor Unit HAD009 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1150/1000/800
Air flow(1) H/M/L m3/hr 420/350/270
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 54
Sound pressure level(3) H/M/L dB(A) 40/35/29
Moisture removal l/hr 1.0
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 680 x250 X188
Net Weight kg 7
Package dimensions WxHxD mm 740x310x248
Packaged weight kg 10
Units per pallet units 32
Stacking height units 8
2.3.12 HAD012 DCI Specifications
Model Indoor Unit HAD012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1150/950/750
Air flow(1) H/M/L m3/hr 550/450/350
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 56
Sound pressure level(3) H/M/L dB(A) 40/34/28
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 840x250x188
Net Weight kg 8
Package dimensions WxHxD mm 900x310x248
Packaged weight kg 11
Units per pallet units 32
Stacking height units 8

2-8
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.3.13 HAD021 DCI Specifications
Model Indoor Unit / Type HAD021 DCI / Wall Mounted
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Crossflow *1
Fan speed H/M/L RPM 1250 1100 1000
Airflow(2) H/M/L m3/hr 900 760 620
External static pressure Min-Nom-Max Pa -
Sound Power Level(3) H/M/L dB (A) 56 53 48
Sound Pressure Level (4) H/M/L dB (A) 45 40 34
Moisture removal l/h 2.0
Condensate Drain Tube I.D. mm 16
Dimensions W/H/D mm 1060 295 221
Weight kg 15
Package Dimensions W/H/D mm 1125 360 295
Packeged wight Kg 18
Units per pallet 16
Stacking Height Units 8
2.3.14 HAD024 DCI Specifications
Model Indoor Unit / Type HAD024 DCI / Wall Mounted
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Crossflow *1
Fan speed H/M/L RPM 1300 1150 1000
Airflow(2) H/M/L m3/hr 950 800 650
External static pressure Min-Nom-Max Pa -
Sound Power Level(3) H/M/L dB (A) 60 54 47
Sound Pressure Level (4) H/M/L dB (A) 47 41 34
Moisture removal l/h 2.5
Condensate Drain Tube I.D. mm 16
Dimensions W/H/D mm 1060 295 221
Weight kg 15
Package Dimensions W/H/D mm 1125 360 295
Packeged wight Kg 18
Units per pallet 16
2.3.15 XLF009 DCI Specifications
Model Indoor Unit XLF009 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Helicoid x 1
Fan speeds H/M/L RPM 520/490/450
Air flow(1) H/M/L m3/hr 390/370/330
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 55
Sound pressure level(3) H/M/L dB(A) 38/35/32
Moisture removal l/hr 1
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 570x570x160
Net Weight kg 13.5
Package dimensions WxHxD mm 700x700x255
Packaged weight kg 15.5
Units per pallet units 16
Stacking height units 8levels

2-9
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.3.16 XLF012 DCI Specifications
Model Indoor Unit XLF012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Helicoid x 1
Fan speeds H/M/L RPM 540/510/450
Air flow(1) H/M/L m3/hr 400/370/310
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 56
Sound pressure level(3) H/M/L dB(A) 39/36/33
Moisture removal l/hr 1.6
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 570x570x160
Net Weight kg 14
Package dimensions WxHxD mm 700x700x255
Packaged weight kg 16
Units per pallet units 16
Stacking height units 8evels
2.3.17 CK009 DCI Specifications
Model Indoor Unit CK009 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 550/500/450 600/520/450
Air flow(1) H/M/L m3/hr 420/370/320 470/390/320
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 49 49
Sound pressure level(3) H/M/L dB(A) 32/30/28 34/31/28
Moisture removal l/hr 0.7
Condenstate drain tube I.D mm 20
Dimensions WxHxD mm 575X575X219(625X625X40/725X725X40)
Net Weight kg 12.9(2.2/2.7)
Package dimensions WxHxD mm 681X681X297(700X700X103/800X800X103)
Packaged weight kg 16.2(3.4/4.2)
Units per pallet units 12
Stacking height units 6 levels
2.3.18 CK012 DCI Specifications
Model Indoor Unit CK012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 600/520/450 650/550/450
Air flow(1) H/M/L m3/hr 470/390/320 510/420//320
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 51 51
Sound pressure level(3) H/M/L dB(A) 34/31/28 36/32/28
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 20
Dimensions WxHxD mm 575X575X219(625X625X40/725X725X40)
Net Weight kg 12.9(2.2/2.7)
Package dimensions WxHxD mm 681X681X297(700X700X103/800X800X103)
Packaged weight kg 16.2(3.4/4.2)
Units per pallet units 12
Stacking height units 6 levels

2-10
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.3.19 CK018 DCI Specifications
Model Indoor Unit CK018 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 680/620/550 680/620/550
Air flow(1) H/M/L m3/hr 620/560/500 620/560/500
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 54 54
Sound pressure level(3) H/M/L dB(A) 36/33/30 36/33/30
Moisture removal l/hr 2.0
Condenstate drain tube I.D mm 20
Dimensions WxHxD mm 575X575X270(625X625X40/725X725X40)
Net Weight kg 15.2(2.2/2.7)
Package dimensions WxHxD mm 681X681X348(700X700X103/800X800X103)
Packaged weight kg 18.7(3.4/4.2)
Units per pallet units 12
Stacking height units 6 levels
2.3.20 CK021 DCI Specifications
Model Indoor Unit / Type CK021 DCI / Cassette
Operation Mode Cool Heat
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Centrifulgal *1
Fan speed H/M/L RPM 800 / 710 / 600 800 / 700 / 600
Airflow(2) H/M/L m3/hr 800 800
External static pressure Min-Nom-Max Pa -
Sound Power Level(3) H/M/L dB (A) 58 58
Sound Pressure Level (4) H/M/L dB (A) 41 / 33 41 / 33
Moisture removal l/h 2.6
Condensate Drain Tube I.D. mm 20
Dimensions W/H/D mm 575x575x219 (625x625x40 / 725x725x40
Weight kg 15.2 (2.2 / 2.7)
Package Dimensions W/H/D mm 681x681x297 (700x700x103 / 800x800x103
Packeged wight Kg 17.7 (3.4 / 4.2)
Units per pallet 12
Stacking Height Units 6
2.3.21 CK024 DCI Specifications
Model Indoor Unit / Type CK024 DCI / Cassette
Operation Mode Cool Heat
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Centrifulgal *1
Fan speed H/M/L RPM 850 / 750 / 650 850 / 750 / 650
Airflow(2) H/M/L m3/hr 830 830
External static pressure Min-Nom-Max Pa -
Sound Power Level(3) H/M/L dB (A) 60 60
Sound Pressure Level (4) H/M/L dB (A) 43 / 35 43 / 35
Moisture removal l/h 2.6
Condensate Drain Tube I.D. mm 20
Dimensions W/H/D mm 575x575x219 (625x625x40 / 725x725x40
Weight kg 15.2 (2.2 / 2.7)
Package Dimensions W/H/D mm 681x681x297 (700x700x103 / 800x800x103
Packeged wight Kg 18.7 (3.4 / 4.2)
Units per pallet 12
Stacking Height Units 6

2-11
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.3.22 SX009 DCI Specifications
Model Indoor Unit SX009 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 760/670/500
Air flow(1) H/M/L m3/hr 400/350/300
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 54/49/41
Sound pressure level(3) H/M/L dB(A) 42/37/29
Moisture removal l/hr 1
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 820x630x190
Net Weight kg 21
Package dimensions WxHxD mm 920x726x273
Package weight kg 25
Units per pallet units 14units per pallet
Units stacking units 7 levels
2.3.23 SX012 DCI Specifications
Model Indoor Unit SX012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 830/760/500
Air flow(1) H/M/L m3/hr 450/400/300
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 56/53/41
Sound pressure level(3) H/M/L dB(A) 45/41/30
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 820x630x190
Net Weight kg 22
Package dimensions WxHxD mm 920x726x273
Package weight kg 26
Units per pallet units 14units per pallet
Units stacking units 7 levels
2.3.24 SX018 DCI Specifications
Model Indoor Unit SX018 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 1050/950/700
Air flow(1) H/M/L m3/hr 870/750/600
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 65/60/53
Sound pressure level(3) H/M/L dB(A) 51/48/40
Moisture removal l/hr 2
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 1200x630x190
Net Weight kg 30
Package dimensions WxHxD mm 1300x726x273
Package weight  kg 35
Units per pallet units 7units per pallet
Units stacking units 7 levels

2-12
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.3.25 SX021 DCI Specifications
Model Indoor Unit / Type SX012 DCI / Floor-Ceiling
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Centrifugal x2
Fan speed H/M/L RPM 1300 1200 1050
Airflow(2) H/M/L m3/hr 1020 930 760
External static pressure Min-Nom-Max Pa -
Sound Power Level(3) H/M/L dB (A) 67 / 64 / 60
Sound Pressure Level (4) H/M/L dB (A) 56 / 53 / 49
Moisture removal l/h 2.5
Condensate Drain Tube I.D. mm 16
Dimensions W/H/D mm 1200 630 190
Weight kg 32
Package Dimensions W/H/D mm 1300 726 273
Packeged wight Kg 36
Units per pallet 7
Stacking Height Units 7
2.3.26 SX024 DCI Specifications
Model Indoor Unit / Type SX024 DCI / Floor-Ceiling
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Centrifugal x2
Fan speed H/M/L RPM 1300 1200 1050
Airflow(2) H/M/L m3/hr 1020 930 760
External static pressure Min-Nom-Max Pa -
Sound Power Level(3) H/M/L dB (A) 67 / 64 / 60
Sound Pressure Level (4) H/M/L dB (A) 56 / 53 / 49
Moisture removal l/h 2.5
Condensate Drain Tube I.D. mm 16
Dimensions W/H/D mm 1200 630 190
Weight kg 32
Package Dimensions W/H/D mm 1300 726 273
Packeged wight Kg 36
Units per pallet 7
Stacking Height Units 7
2.3.27 DLF009 DCI Specifications
Model Indoor Unit DLF009 DCI
Installation Method of Pipe DUCTED
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 920/810/740
Air flow(1) H/M/L m3/hr 620/560/490
External static pressure Min -Max Pa 0-30
Sound power level(2) H/M/L dB(A) 50/47/44
Sound pressure level(3) H/M/L dB(A) 29/26/23
Moisture removal l/hr 0.5
Condenstate drain tube I.D mm 19
Dimensions WxHxD mm 750x630x200
Net Weight kg 20
Package dimensions WxHxD mm 885x695x226
Package weight kg 23
Units per pallet units 14units per pallet
Units stacking units 7 levels

2-13
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.3.28 DLF012 DCI Specifications
Model Indoor Unit DLF012 DCI
Installation Method of Pipe DUCTED
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 980/860/730
Air flow(1) H/M/L m3/hr 650/580/490
External static pressure Min-Max Pa 0-30
Sound power level(2) H/M/L dB(A) 53/49/45
Sound pressure level(3) H/M/L dB(A) 31/27/24
Moisture removal l/hr 1.0
Condenstate drain tube I.D mm 19
Dimensions WxHxD mm 750x630x200
Net Weight kg 20
Package dimensions WxHxD mm 885x695x226
Package weight kg 23
Units per pallet units 14units per pallet
Units stacking units 7 levels
2.3.29 DLF018 DCI Specifications
Model Indoor Unit DLF018 DCI
Installation Method of Pipe DUCTED
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 1100/980/860
Air flow(1) H/M/L m3/hr 710/600/540
External static pressure Min-Max Pa 0-40
Sound power level(2) H/M/L dB(A) 54/51/48
Sound pressure level(3) H/M/L dB(A) 35/32/29
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 19
Dimensions WxHxD mm 750x630x200
Net Weight kg 21
Package dimensions WxHxD mm 885x695x226
Package weight kg 24
Units per pallet units 14units per pallet
Units stacking units 7 levels
2.3.30 DLF021 DCI Specifications
Model Indoor Unit / Type DLF021 DCI / Low Silouhette
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Centrifugal x2
Fan speed H/M/L RPM 1170 1050 960
Airflow(2) H/M/L m3/hr 1100 950 880
External static pressure Min-Nom-Max Pa 0-40
Sound Power Level(3) H/M/L dB (A) 59 55 53
Sound Pressure Level (4) H/M/L dB (A) 38 34 32
Moisture removal l/h 1.7
Condensate Drain Tube I.D. mm 19
Dimensions W/H/D mm 1050 630 200
Weight kg 25
Package Dimensions W/H/D mm 1185 695 226
Packeged wight Kg 28
Units per pallet 14
Stacking Height Units 7

2-14
PRODUCT DATA SHEET
SM CINCO 1-A.1 GB
2.3.31 DLF024 DCI Specifications
Model Indoor Unit / Type DLF024 DCI / Low Silouhette
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Centrifugal x2
Fan speed H/M/L RPM 1200 1050 980
Airflow(2) H/M/L m3/hr 115 950 900
External static pressure Min-Nom-Max Pa 0-40
Sound Power Level(3) H/M/L dB (A) 63 59 56
Sound Pressure Level (4) H/M/L dB (A) 39 35 32
Moisture removal l/h 2.0
Condensate Drain Tube I.D. mm 19
Dimensions W/H/D mm 1050 630 200
Weight kg 25
Package Dimensions W/H/D mm 1185 695 226
Packeged wight Kg 28
Units per pallet 14
Stacking Height Units 7
2.3.32 DLS018 DCI Specifications
Model Indoor Unit DLS018 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 630/530/425
Air flow(1) H/M/L m3/hr 1170/875/730
External static pressure Min Pa 25
Sound power level(2) H/M/L dB(A) 55/53/50
Sound pressure level(3) H/M/L dB(A) 42/37/34
Moisture removal l/hr 1.0
Condenstate drain tube I.D mm 22
Dimensions WxHxD mm 770x690x260
Net Weight kg 29
Package dimensions WxHxD mm 959x854x315
Packaged weight kg 31
Units per pallet units 6
Stacking height units 6
2.3.33 DLS021 DCI Specifications
Model Indoor Unit / Type DLS021 DCI / Ducted
Installation Method of pipe FLARE
Power Supply V/Ph/Hz 220-240 / 1/ 50
INDOOR
Fan Type & Quantity Centrifugal x1
Fan speed H/M/L RPM 680 530 425
Airflow(2) H/M/L m3/hr 1225 875 710
External static pressure Min-Nom-Max Pa 25-70
Sound Power Level(3) H/M/L dB (A) 60 / 53 / 50
Sound Pressure Level (4) H/M/L dB (A) 43 / 37 / 34
Moisture removal l/h 1.2
Condensate Drain Tube I.D. mm 19
Dimensions W/H/D mm 790 749 256
Weight kg 29
Package Dimensions W/H/D mm 959 854 315
Packeged wight Kg 31
Units per pallet 6
Stacking Height Units 6
