SERVICE MANUAL
IMPORTANT NOTE:
Read this manual carefully before installing or operating your new air conditioning unit. Make sure to
save this manual for future referenc
High Wall Type Indoor Unit (N platform)
HVVA Range R410a
English Manual
e.
HVVA-025/022N-01M22
HVVA-035N-01M22
HVVA-050/045N-01M22
HVVA-070N-01M22
22.AW.HVVA.022-090.R410A.SM.EN.12.12.Rev01
HVVA-090N-01M22

238
1. High Wall Type Indoor Unit (N platform)
1.1 Feature
• Wider capacity range from 1.5kW to 9.0kW, meeting variable capacity needs.
• Built-in EEV and easy support clip, enabling easy installation
• DC fan motor for low sound level and higher efciency
• Long distance and 3D air supplying,
• Quick cooling & heating

239
Indoor Unit (N platform)
High Wall Type
1.2 Specication
MODEL HVVA-022N-01M22 HVVA-025N-01M22
Power supply V-Ph-Hz 1/220~240/50/60 1/220~240/50/60
Cooling
Capacity kBtu/h 7.5 9.5
Capacity kW 2.2 2.8
Power Input W 43 43
Current A 0.15 0.15
Heating
Capacity kBtu/h 8.5 10.9
Capacity kW 2.5 3.2
Power Input W 43 43
Current A 0.15 0.15
Heating capacity at low temp. kW 2.0 2.5
Operating current A 0.15 0.15
Power consumption kW 0.043 0.043
Indoor
Motor
Brand Broad-ocean Broad-ocean
Model ZWK465A00402 ZWK465A00402
Type DC DC
Insulation Class E E
IP Class IP41 IP41
Power Input W 38 38
Power output W 30 30
Capacitor μF / /
Speed (High/Middle/Low) rpm 1000/850/700 1000/850/700
Indoor
Fan
Brand
Type Cross Cross
Quantity 1 1
Indoor
Coil
a. Number of rows 2 2
b. Tube pitch(a)x row pitch(b) mm 26.6*1.4 26.6*1.4
c. Fin spacing mm 1.4 1.4
d. Fin type (code) Hydrophilic aluminum Hydrophilic aluminum
e. Tube outside dia. and type mm Ф7 Inner groove tube Ф7 Inner groove tube
f. Coil length x height x width mm / /
g. Number of circuits 2 2
/
/

240
HVVA-022N-01M22 HVVA-025N-01M22
Cabinet
Cabinet Coating Type Plastic Plastic
Cabinet Salt Spray Test
Duration Hour / /
Control Box IP Class IP20 IP20
Construction
Sheet Metal Thickness / /
Drain Pan Material ABS ABS
Drain Pan Insulation 15 15
Drain Pump Option no no
Branch Outlet Option yes yes
Indoor Wall
Material Plastic Plastic
Thickness mm / /
Double or Single Skin Single Single
Air Filter
Material PP PP
Mesh 100 100
Pressure Drop Pa 5 5
Piping
dimension
Liquid pipe mm 6.35 6.35
Gas pipe mm 9.52 9.52
Drain hose mm 16.8 16.8
Fresh air dimension mm / /
Sound pressure level (H/M/L) dB(A) 35/31/29 36/31/29
Sound power level (H/M/L) dB(A) 50/47/42 52/48/44
Standard static pressure Pa 0 0
Indoor air ow (H/M/L) m3/h 550/480/420 600/530/470
Dimension (W*H*D) mm 855/208/280 855/200/280
Packing (W*H*D) mm 954/279/355 954/279/355
Net weight kg 9.9 9.9
Gross weight kg 12 12
Nominal condition: indoor temperature (cooling): 27DB (°C)/19WB (°C), indoor temperature (heating): 20DB (°C)
Outdoor temperature (cooling): 35DB (°C)/24WB (°C), outdoor temperature (heating): 7DB (°C)/6WB (°C)
The noise level will be measured in the third octave band limited values, using a Real Time Analyser calibrated
sound intensity meter. It is a sound pressure noise level.

241
Indoor Unit (N platform)
High Wall Type
MODEL HVVA-035N-01M22 HVVA-045N-01M22 HVVA-050N-01M22
Power supply V-Ph-Hz 1/220~240/50/60 1/220~240/50/60 1/220~240/50/60
Cooling
Capacity kBtu/h 12.3 15.3 19.1
Capacity kW 3.6 4.5 5.6
Power Input W 43 57 57
Current A 0.15 0.5 0.5
Heating
Capacity kBtu/h 13.6 17.1 21.5
Capacity kW 4 5 6.3
Power Input W 43 57 57
Current A 0.15 0.5 0.5
Heating capacity at low temp. kW 3.2 4.0 5.0
Operating current A 0.15 0.5 0.5
Power consumption kW 0.043 0.057 0.057
Indoor
Motor
Brand Broad-ocean Broad-ocean Broad-ocean
Model ZWK465A00402 ZWK465A00411 ZWK465A00411
Type DC DC DC
Insulation Class E E E
IP Class IP41 IP40 IP40
Power Input W 38 52 52
Power output W 30 40 40
Capacitor μF / / /
Speed (High/Middle/Low) rpm 1200/1000/700 1000/800/700 1000/800/700
Indoor
Fan
Brand
Type Cross Cross Cross
Quantity 1 1 1
Indoor
Coil
a. Number of rows 2 2 2
b. Tube pitch(a)x row pitch(b) mm 26.6*1.4 26.6*1.4 26.6*1.4
c. Fin spacing mm 1.4 1.4 1.4
d. Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Hydrophilic aluminum
e. Tube outside dia. and type mm Ф7 Inner groove tube Ф7 Inner groove tube Ф7 Inner groove tube
f. Coil length x height x width mm / / /
g. Number of circuits 2 5 5
/
//

242
MODEL HVVA-035N-01M22 HVVA-045N-01M22 HVVA-050N-01M22
Cabinet
Cabinet Coating Type Plastic Plastic Plastic
Cabinet Salt Spray Test
Duration Hour / / /
Control Box IP Class IP20 IP20 IP20
Construction
Sheet Metal Thickness / / /
Drain Pan Material ABS ABS ABS
Drain Pan Insulation 15 15 15
Drain Pump Option no no no
Branch Outlet Option yes yes yes
Indoor Wall
Material Plastic Plastic Plastic
Thickness mm / / /
Double or Single Skin Single Single Single
Air Filter
Material PP PP PP
Mesh 100 100 100
Pressure Drop Pa 5 5 5
Piping
dimension
Liquid pipe mm 6.35 6.35 6.35
Gas pipe mm 12.7 12.7 12.7
Drain hose mm 16.8 16.8 16.8
Fresh air dimension mm / / /
Sound pressure level (H/M/L) dB(A) 37/33/29 39/36/34 40/39/35
Sound power level (H/M/L) dB(A) 54/51/50 56/53/51 57/54/52
Standard static pressure Pa 0 0 0
Indoor air ow (H/M/L) m3/h 630/560/500 800/720/650 920/800/720
Dimension (W*H*D) mm 855/200/280 1115/243/336 1115/243/336
Packing (W*H*D) mm 954/279/355 1206/342/418 1206/342/418
Net weight kg 9.9 15.8 15.8
Gross weight kg 12 18.9 18.9
Nominal condition: indoor temperature (cooling): 27DB (°C)/19WB (°C), indoor temperature (heating): 20DB (°C)
Outdoor temperature (cooling): 35DB (°C)/24WB (°C), outdoor temperature (heating): 7DB (°C)/6WB (°C)
The noise level will be measured in the third octave band limited values, using a Real Time Analyser calibrated
sound intensity meter. It is a sound pressure noise level.

243
MODEL HVVA-070N-01M22 HVVA-090N-01M22
Power supply V-Ph-Hz 1/220~240/50/60 1/220~240/50/60
Cooling
Capacity kBtu/h 24.2 30.7
Capacity kW 7.1 9
Power Input W 57 99
Current A 0.5 0.59
Heating
Capacity kBtu/h 27.3 34.1
Capacity kW 8 10
Power Input W 57 99
Current A 0.5 0.59
Heating capacity at low temp. kW 6.3 8.0
Operating current A 0.5 0.59
Power consumption kW 0.057 0.099
Indoor
Motor
Brand Broad-ocean Broad-ocean
Model ZWK465A00411 ZWK465B200014
Type DC DC
Insulation Class E E
IP Class IP40 IP41
Power Input W 52 94
Power output W 40 70
Capacitor μF / /
Speed (High/Middle/Low) rpm 1200/1000/700 1250/900/700
Indoor
Fan
Brand
Type Cross
Quantity 1 2
Indoor
Coil
a. Number of rows 2 2
b. Tube pitch(a)x row pitch(b) mm 26.6*1.4 26.6*1.4
c. Fin spacing mm 1.4 1.4
d. Fin type (code) Hydrophilic aluminum Hydrophilic aluminum
e. Tube outside dia. and type mm Ф7 Inner groove tube Ф7 Inner groove tube
f. Coil length x height x width mm / /
g. Number of circuits 5 6
Cross
/
/

244
MODEL HVVA-070N-01M22 HVVA-090N-01M22
Cabinet
Cabinet Coating Type Plastic Plastic
Cabinet Salt Spray Test
Duration Hour / /
Control Box IP Class IP20 IP20
Construction
Sheet Metal Thickness / /
Drain Pan Material ABS ABS
Drain Pan Insulation 15 15
Drain Pump Option no no
Branch Outlet Option yes yes
Indoor Wall
Material Plastic Plastic
Thickness mm / /
Double or Single Skin Single Single
Air Filter
Material PP PP
Mesh 100 100
Pressure Drop Pa 5 5
Piping
dimension
Liquid pipe mm 9.52 9.52
Gas pipe mm 15.88 15.88
Drain hose mm 16.8 16.8
Fresh air dimension mm / /
Sound pressure level (H/M/L) dB(A) 44/40/36 49/44/41
Sound power level (H/M/L) dB(A) 58/56/54 61/58/54
Standard static pressure Pa 0 0
Indoor air ow (H/M/L) m3/h 1010/920/800 1600/1500/1400
Dimension (W*H*D) mm 1115/243/336 1316/270/365
Packing (W*H*D) mm 1206/342/418 1403/384/463
Net weight kg 15.8 21.8
Gross weight kg 18.9 26.3
Nominal condition: indoor temperature (cooling): 27DB (°C)/19WB (°C), indoor temperature (heating): 20DB (°C)
Outdoor temperature (cooling): 35DB (°C)/24WB (°C), outdoor temperature (heating): 7DB (°C)/6WB (°C)
The noise level will be measured in the third octave band limited values, using a Real Time Analyser calibrated
sound intensity meter. It is a sound pressure noise level.

245
1.3 Dimension
A
C
B
Model A B C
HVVA-025/022N-01M22
HVVA-035N-01M22 855 200 280
HVVA-050/045N-01M22
HVVA-070N-01M22 1115 243 336
HVVA-090N-01M22 1316 270 365

246
1.4 Piping diagram
TC2
EEV
Liquid pipe Gas pipe
TC1
Fan
TA
 
Filter Filter
Indoor heat exchanger

247

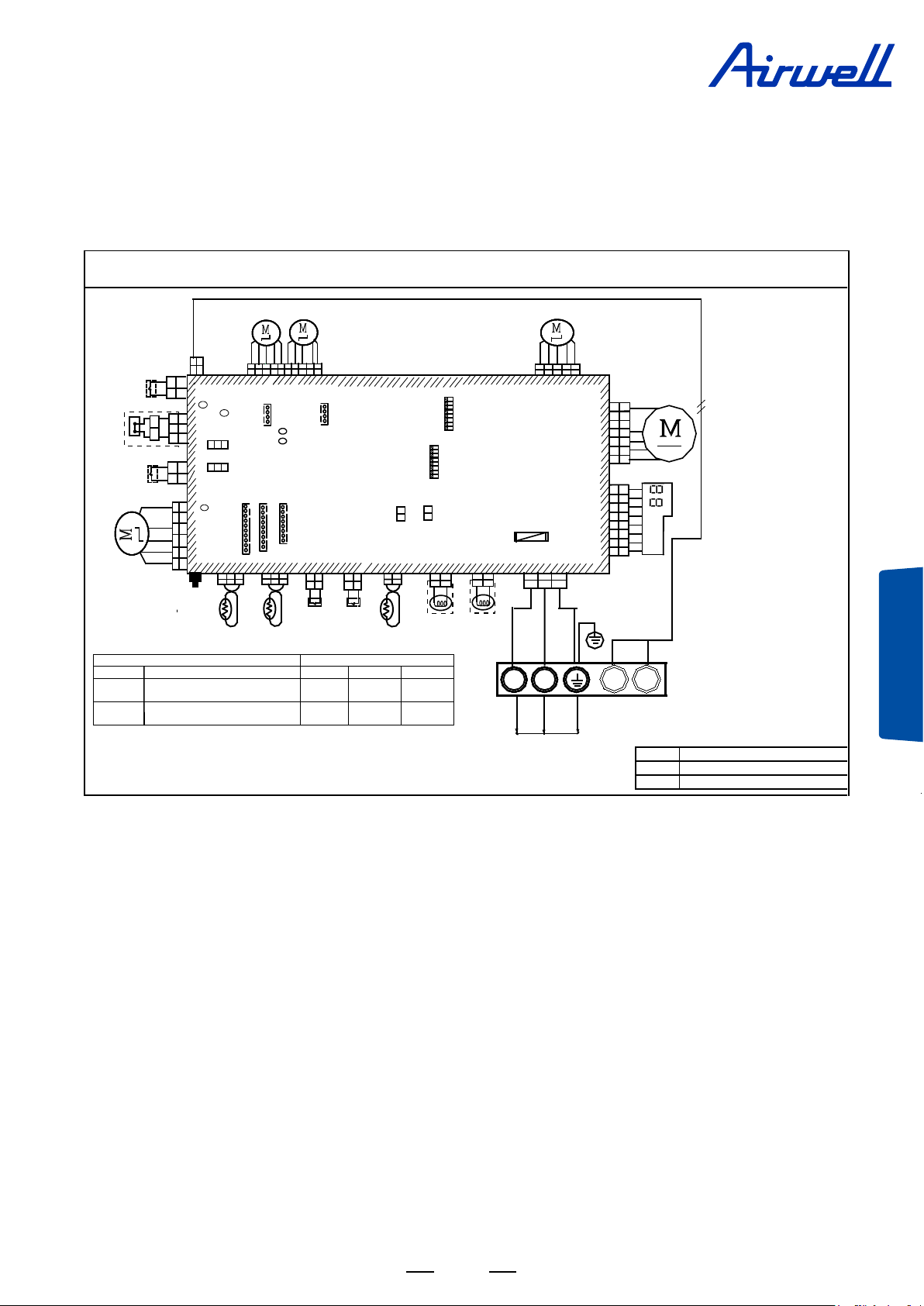

1.5 Wiring diagram
LED1、2
LED3、4
LED5
220-240V~，50/60Hz
To Power Supply
(To O.D unit)
*Dashed parts are optional
Colours：
B:Black
BL:Blue Y:Yellow
G:Green
R:Red
WH:White
LED Definition
Wired controller &Indoor unit
Indoor unit &Outdoor unit
Error indicate
LED5
LED2
PCB
321 2
LED3
1
LED4
3
SW03
2(N)
Y/ G
12
1 2
FUSE
2 50
VACT5A
12
12
P Q
CN1
B WH
A
CN21-2
B
1
12
254
354
3
HW
CN31 CN31-1
1(L) 3 4
13 5
1 3 5
CN35
WH
SV0
L N
12
2
1
PM2.5
1
TC1 TAI
CN 18
B
Liquid Pipe
Sensor
1
2
3
3
2
CN 19
G
Gas Pipe
Sensor
TC2
LED1
CN21
CN22
HW
CN 8 WH
5
3
11
3
5
66
22
44
DCFAN
77
1 12
254
354
3
6 6
CN 10
PMV
SW4
YJ
CN 16
FS
CN 13
67109
8
109
8
7
6
CN 46-1
WH
1
12
254
354
3
CN 11
WH
CN5
1
B
WH R WH
CN34
WH
CN14
B
C
AB C
12
1 2
CN 36
G
R
WH
R
RK
CN38
Y
12
CN17
WH
12
CN5
Y
1 2
2
1
1
1
2
3
3
2
Ambient
Sensor
1
2
2
1
CN 20
G
12
12
CN38
Y
TC3
12
12
CN17
WH
TC5
NO
SW01
NO
L-RXD
CN31-1
WH
5
3
11
3
5
66
22
44
77
88
Panel selection Setting Method
MODEL
N panel
F panel
DISPLAY BOARD POSITION CN36 CN17 CN38
In the center of the panel
In the bottom right of the panel short
circuit
open
circuit
short
circuit
short
circuit
open
circuit
open
circuit
HVVA-XXXN-01M22 PCB code: 0151800244B
Panel
Left / right swingUp / down swing

248
1.6 Electric characteristics
Units Power supply Indoor fan motor Power input (W)
Model Phase FQY Voltage Volt.
range MCA MFA Output (W) FLA Cooling Heating
HVVA-022N-01M22 1 50/60 220 198~242 0.18 0.56 30 0.14 43 43
HVVA-025N-01M22 1 50/60 220 198~242 0.18 0.56 30 0.14 43 43
HVVA-035N-01M22 1 50/60 220 198~242 0.18 0.56 30 0.14 43 43
HVVA-045N-01M22 1 50/60 220 198~242 0.24 0.76 40 0.19 57 57
HVVA-050N-01M22 1 50/60 220 198~242 0.24 0.76 40 0.19 57 57
HVVA-070N-01M22 1 50/60 220 198~242 0.24 0.76 40 0.19 57 57
HVVA-090N-01M22 1 50/60 220 198~242 0.4 1.28 70 0.32 99 99
Symbols:
MCA: Min. circuit amps (A)
MFA: Max. fuse amps of circuit breaker Output: Fan motor rated output (w) FLA: Full load amps (A)
Notes:
1. Voltage range
The units are applicable for the electrical systems where voltage supplied to unit is in the range.
2. Maximum allowable voltage unbalance between phases is 2%.
3. MCA=1.25*FLA MFA≤4*FLA.
4. Power supply uses the circuit breaker.

249
1.7 Air velocity and temperature distribution
a. Cooling / Air velocity distribution
Blowy angle: 25
2.4m
0m 5.5m
1.5m/s
1.0m/s
0.5m/s
b. Cooling / Temperature distribution
Blowy angle: 25
2.4m
0m 5.5m
22°C
25°C
27°C

250
c. Heating / Air velocity distribution
Blowy angle: 65
2.4m
0m 5.5m
1.5m/s
1.0m/s
0.5m/s
d. Cooling / Temperature distribution
Blowy angle: 65
2.4m
0m 5.5m
27°C
25°C
22°C

251
1.8 Sound pressure level1
) Testing illustrate:
80004000200010005002501256363636363636363
70
60
50
40
30
20
10
H
M
L
OctavebandsoundpressureleveldB
Octavebandcenterfrequency(Hz)
Limitof
audible
continuous
noise
NC-60
NC-50
NC-40
NC-30
NC-20
80004000200010005002501256363636363636363
70
60
50
40
30
20
10
M
L
H
OctavebandsoundpressureleveldB
Octavebandcenterfrequency(Hz)
Limitof
audible
continuous
noise
NC-60
NC-50
NC-40
NC-30
NC-20
80004000200010005002501256363636363636363
70
60
50
40
30
20
10
Limitof
audible
continuous
noise
Octavebandcenterfrequency(Hz)
H
M
L
OctavebandsoundpressureleveldB
NC-60
NC-50
NC-40
NC-30
NC-20
0.8m
1m
2) Testing condition:
a: Unit running in the normal condition
b: Test in the semi-anechoic chamber
c: Noise level varies from the actual factors such as room structure, etc.
3) Sound curves:
HVVA-022~035N-01M22 HVVA-045~070N-01M22 HVVA-090N-01M22

252
Actual inlet grille and display board may vary from the one shown in the manual according to the product
1.9 Installation
1.9.1 Parts and functions
purchased.
Signal receiver hole
2 Ambient temp.display
When receiving the remote
control signal, display the set
temperature.
*Remote signal receiver
(A beeping sound is generated when a signal from
remote controller is received.)
*Power indicator (Lights up when unit starts.)
*Timer mode indicator (Lights up when Timer operation is selected.)
*Operation mode indicator (lights up when the compressor is on.)
*Ambient temp display
When receiving the remote control signal, display the set temperature.
. COOL display
HEAT display
HEALTH display
DRY display
Indoor Unit
Display board A
Emergency Switch
Air Purifying Filter (inside)
Inlet
Inlet grille
Outlet
Horizontal ap
(Adjust up and down air ow.
Don't adjust it manually)
Display board
(inside)
Vertical blade
(adjust left and right air ow)
Anion generator
(inside)
Display board B

253
• If the air conditioner is transferred to a new user, this manual shall be transferred to the user, together with the
conditioner.
• Before installation, be sure to read Safety Considerations in this manual for proper installation.
• The safety considerations stated below is divided into“ Warning” and “ Attention” The matters on severe
accidents caused from wrong installation, which is likely to lead to death or serious injury, are listed in “
Warning”. However, the matters listed in “ Attention” are also likely causing the severe accidents. In general,
both of them are the important items related to the security, which should be strictly abided by.
• After the installation, perform test run to make sure everything is in normal conditions, and then operate and
maintain the air conditioner in accordance with the User Manual. The User Manual should be delivered to the
user for proper keeping.
• Please ask the special maintenance station for installation and repair. Water leakage, electric shocks or re
accidents might be caused from improper installation if you conduct the installation by your own.
• The installation should be conducted properly according to this manual. Water leakage, electric shocks or re
accidents might be caused from improper installation.
• Please make sure to install the air conditioner on the place where can bear the weight of the air conditioner. The
air conditioner can’t be installed on the grids such as the non-special metal burglar-proof net. The place with
insufcient support strength might cause the dropdown of the machine, which may lead to personal injuries.
• The installation should be ensured against typhoons and earthquakes, etc. The installation unconformable to the
requirements will lead to accidents due to the turnover of the machine.
• Specic cables should be used for reliable connections of the wirings. Please x the terminal connections reliably
to avoid the outside force applied on the cables from being impressed on the cables. Improper connections and
xings might lead to such accidents as heating or re accidents.
• Correct shapes of wirings should be kept while the embossed shape is not allowed. The wirings should be reliably
connected to avoid the cover and the plate of the electrical cabinet lapping the wiring. Improper installation might
cause such accidents as heating or re accidents.
• While placing or reinstalling the air conditioner, except the specic refrigerant (R410A), don’t let the air go into the
refrigeration cycle system. The air in the refrigeration cycle system might lead to the cracking or personal injuries
due to abnormal high pressure of the refrigeration cycle system.
• During installation, please use the accompanied spare parts or specic parts. If not, water leakage, electric
shocks, re accidents or refrigerant leakage might be caused.
• Don't drain the water from the drainpipe to the waterspout where may exist harmful gases such as sulfureted gas
to avoid the harmful gases entering into the room.
• During installation, if refrigerant leakage occurs, ventilation measures should be taken, for the refrigerant gas
might generate harmful gases upon contacting the ame.
• After installation, check if any refrigerant leakage exists. If the refrigerant gas leaks in the room, such things as air
blowing heaters and stoves, etc. may generate harmful gases.
1.9.2 Safety

254
• Don't install the air conditioner at the places where the ammable gases may leak. In case the gas leakage
occurs around the machine, such accidents as re disasters may be caused.
• The drainpipe should be properly mounted according to this manual as to ensure the smooth drainage. In
addition, heat preservation should be taken to avoid condensation. Improper drainpipe mounting might cause
water leakage, which will get the articles at home wet.
• The refrigerant gas pipe and liquid pipe should be heat insulated to preserve heat. For inappropriate heat
insulation, the water caused from the condensation will drop to get the article at home wet.
• The air conditioner should be effectively grounded. Electric shocks may occur if the air conditioner is ungrounded
or inappropriately grounded. The wire for earthing shouldn't be connected to the connections on the gas pipe,
water pipe, lightning rod or telephone.
• The breaker for electricity leakage should be mounted. If not, accidents such as electric shocks may happen.
• The installed air conditioner should be checked for electricity leakage by being powered.
• when the water discharge hole be blocked or the lter becomes dirty, there maybe leads to condensing water
drop down, and at the same time there maybe some drops of water spit out.
• In case of ambient dew point temperature greater than 28 degrees Celsius or humidity greater than 80%, there
maybe cause condensation drops or blow out, electrical or moisture sensitive items shouldn't be put below.

255

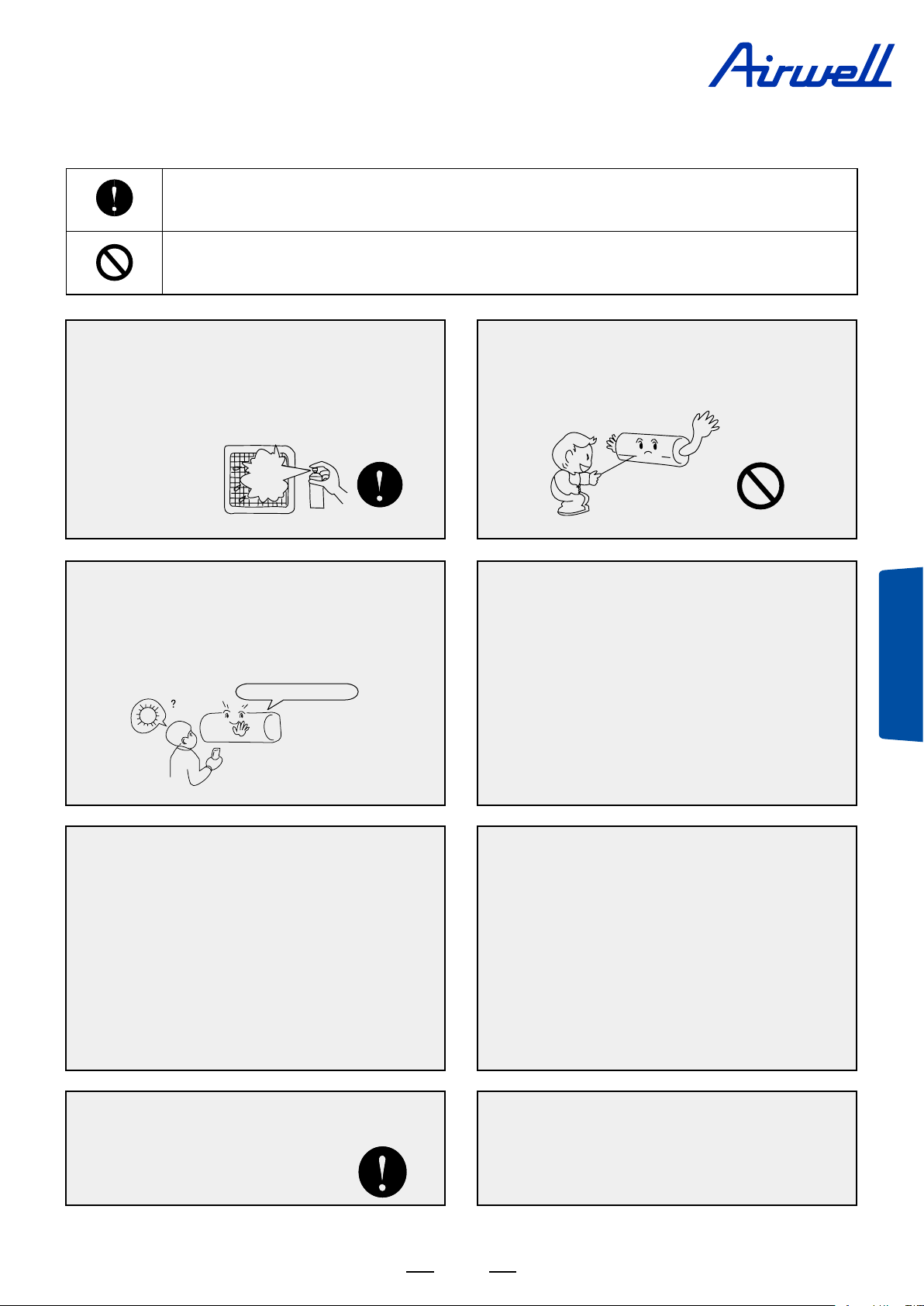

Items with this warning sign concerning the product's safety and the personal security must be
performed strictly.
Items with this forbidding sign refer to absolutely forbidden behaviors. If not, they may cause
machine damage or endanger operator's personal safety.
Clean the lter regularly.
Cooling or heating performance will be degraded
if the lter is blocked, resulting in large power
consumption, failure, and water dripping
at freezing.
Don't touch the outlet while the ap is moving. Don't
put anything in the grid in case danger may occur.
Avoid cold wind from blowing out.
During heating running, the fan of indoor units will
not rotate immediately as to prevent cold wind from
blowing out.
Changing Wind Speeds:
In the state of refrigerating, with automatic blowing
mode, the wind speed automatically decreases when
the room temperature approaches the setting.
In the state of heating, when the room temperature
reaches the setting temperature the compressor
stops working and the fan turns to low wind or
stops. Wind speed changes automatically in the
dehumidifying mode.
Regulating Wind Direction:
It is recommended not to make the wind deector
downwards for a long time to avoid condensation at
air outlet port during refrigerating or dehumidifying.
Water dropping might appear at the air outlet port in
refrigerating or dehumidifying mode.
Defrosting:
During heating running, the air conditioner would
defrost automatically if there is frost on heat
exchanger of outdoor units.
Do not rotate fans of both indoor units and outdoor
units during defrosting.
After nishing defrosting, the air conditioner will
resume running automatically.
The machine operation must be controlled by the
control.
Hints:
As air conditioners absorb heat from the environment
and release it to the room, heating effects will be
inuenced by the temperature in and out of the room.
Wait for a monent

256

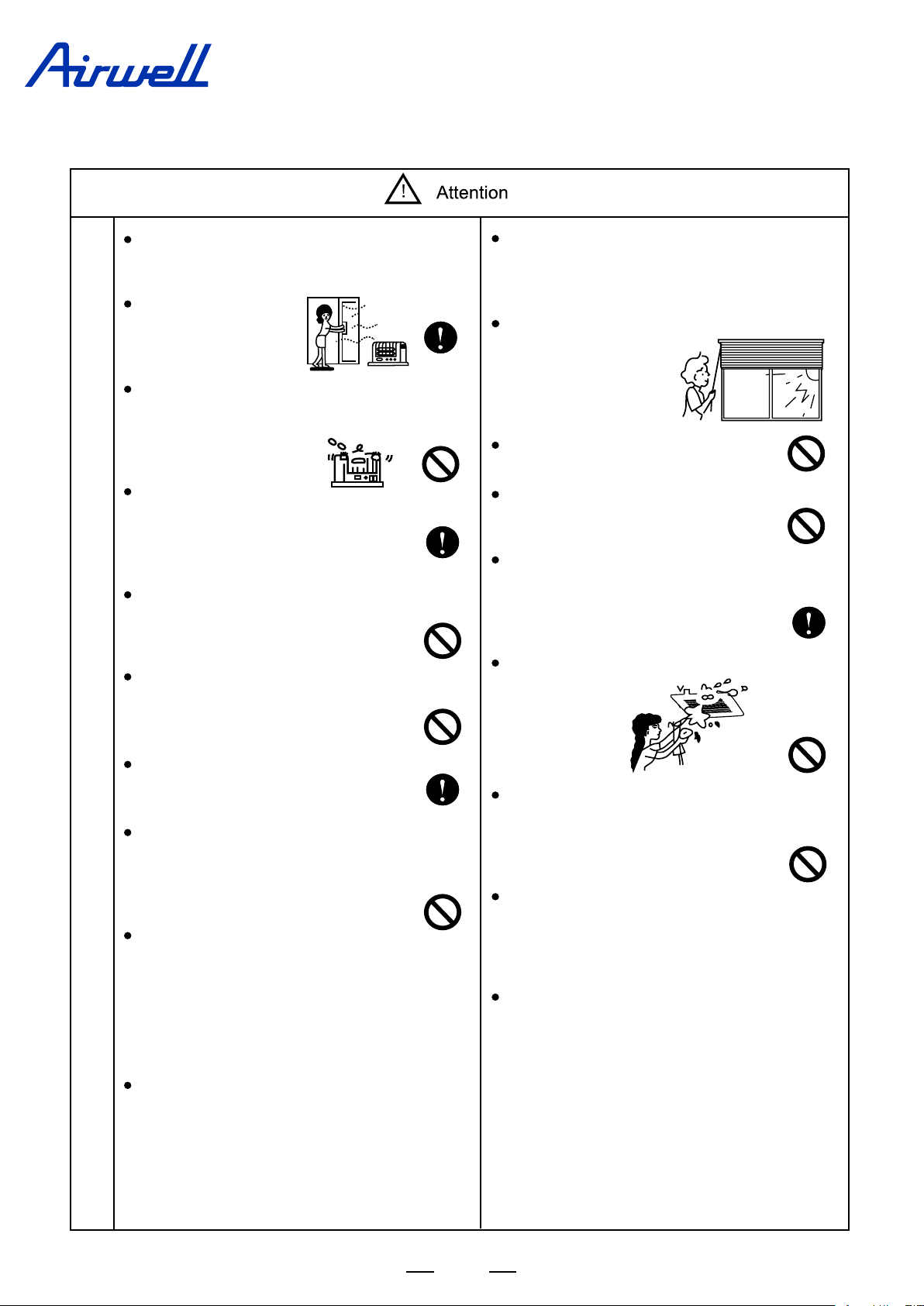

Notices during Operation
It is not allowed to put any heating apparatus
under the indoor units, for the heat may cause
distortion of the units.
3-minute protection
To protect the unit, compressor can be actuated
with at least 3-minute delay after stopping.
Close the window to avoid outdoor air getting in.
Curtains or window
shutters can be put
down to avoid the
sunshine.
Do not touch the switch with the wet
hand to avoid power shock.
Stop running and switch off the manual power
switch when cleaning the unit.
During the operation of the control unit, don't
switch off the manual power switch and the
controller can be used. Please do not press the
liquid crystal zone of controller to
prevent damage
Cleaning the unit with water may cause electric
shock.
Do not put ammable spray close to the air
conditioner.
Don't inject ammable spray towards the air
conditioner, which may
cause re.
Stopping fan rotation
The unit which stops operating will actuate the
fan for a 2-8 min swing every 30-60 minutes for
protecting the unit while other indoor unit are in
the operating state.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
Flammable apparatus should not be placed in
the place where the air conditioner wind could
reach directly, or incomplete burning
of the apparatus
may be caused.
Check the mount table
of the air conditioner for damage for a long
period of operation.
If placed on the damaged table, the
unit may drop down causing damage.
Plants and animals should not be put to the
place where wind of the air conditioner blows
directly, otherwise damage to
them may be caused.
It cannot be used for the preservation of food,
living creature, precise instrument and artworks,
etc, otherwise damage
may occur.
Use the fuse with proper capacity.
Metal wires and copper wires, etc.,
may cause re or other faults.
Do not use water heater or like next to the
indoor unit and the wired controller. Water/
power leakage or short circuit may happen if the
steam generating apparatus is working
next to machine.
Defrosting during heating
To improve the heating effect, the outdoor unit
will perform defrosting automatically when frost
appears on the outdoor unit during heating
(approximately 2-10 min).
During defrosting, the fan of the indoor unit runs
at a low speed or stops while that of the outdoor
unit stops running.
Power should be cut off when the air conditioner
is left unused for a long period.
Power will be consumed if the air conditioner
is not powered off. The power switch of the
outdoor unit switch should be powered on 12
hours in advance before operation to protect the
unit after a long period of storage.
Pay attention to the
aeration condition to
avoid anoxic symptom.
