Airwell XLM9STA User manual

AUTO
OFF
ON
IFEEL
IFEEL
AUTO
6
AIR CONDITIONER SPLIT WALL MOUNTED
PROGRAMMING AND OPERATION MANUAL
INSTALLATION INSTRUCTIONS
XLM9 TO 14 RCA(STA) / GCXLM9 TO 14RCA (STA)

Introduction
System Description
Modes of Operation, Functions and Features
Use of Wireless Remote Control
On-unit indicators and controls
Remote Control
Operation procedure
Turning on the Air Conditioner
Ventilating Operation
Cooling Operation
Cooling Operation with Auto Fan Mode
Heating Opeeration
Heating Operation With Auto Fan Mode
Auto Cooling / Heating Operation
Dry Operation
Selecting The Temperature
I FEEL Function
Sleep Function
Timer Operation
Timer Operating Modes
Room Temperature Display
Air Direction Operation
Turning off the Air Conditioner
On unit Operation
Current Clock Time Set
Lock Function
Fresh Air Function
Ionizer and Electrostatic Filter
Strong Function
Protection Modes
Care and Maintenance
Operating Tips
Precautions
Before Calling For Service
1
2
3
5
6
7
8
8
8
8
8
8
8
9
9
9
9
9
10
10
11
11
11
12
12
12
13
14
11
If your air conditioner is for
cooling only,please
disregard the heating
instructions
Please read these instructions
before operating the air
conditioner
11
CONTENTS
10
15
16
17

The air conditioner is designed for various uses:
Cooling in summer.
Dehumidifying at high humidity conditions.
Heating.
Ventilation
Tis air conditioner must be
grounded to protect against
electrical shock.
Installation of the air
conditioner must be
performed by an experienced
air conditioning installer,
observing good refrigeration
practice.
Electrical connections and
power cord replacement
should only be made by
authorized electricians and in
accordance with electrical
regulations and local codes.
Failure to comply with the
manufacturer's installation
and operation instructions
could affect the performance
of the air conditioner and the
validity of the warranty.
IMPORTANT NOTICE:
'
INTRODUCTION
OPERATING TEMPERATURE
RANGE:
Cooling: O O
21 43 C
Heating: O O
-7 21 C
(According to T temperature condition)
1
1
AUTO

1.Air intake grillr
2.Air filter
3.Supply air flap
4.Air outlet
5.Unit's indicators
6.Horizontal Air flow
Deflecting lovers
7.On unit's controls
8.Power cord
9.Outdoor unet air intake
10.Power cable
11.control wire
12.Air-fresg controls wire
(optional)
13.Liquid line
14.Suction line
15.Air-fresh hose (optional)
16.Drain hose
17.Outdoor unit air outlet
18.Remote controls holder
19.Remote control
20.lonizer
21.Air purifying filter
22.Electrostatic filter
SYSTEM DESCRIPTION
2
19
18
9
10
11
12
13
14
15
16
17
7
8
20 21 22
1
2
3
4
5
6
COOLCOOL
HEATHEAT
RESETRESET
MODEMODE
MODE
AM
PM
ON
OFF
AM
IFEEL
AUTO
AUTO

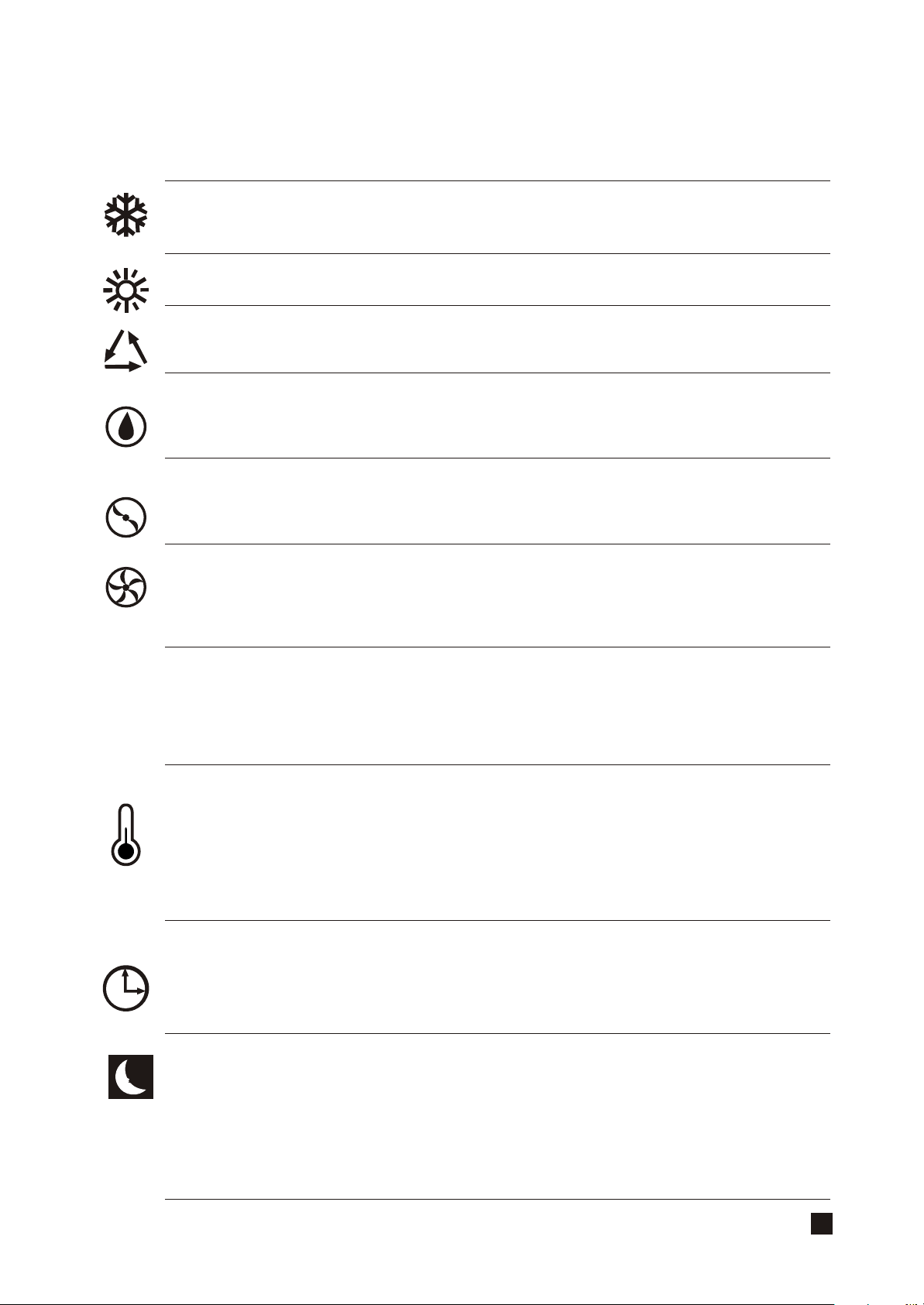

COOL Cools, dehumidifies and filters the room air. Maintains desired room
temperature.
MODES OF OPERATION, FUNCTIONS
AND FEATURES
SLEEP Designed to create comfortable sleeping conditions. When in COOLING mode,
the temperature rises one degree centigrade after each consecutive hour, for
to three hours, from the start of the mode. The temperature rise prevents the
feeling of over-cooling while sleeping (when your body is at rest). In HEATING
mode the reverse occurs; the air conditioner lowers its temperature one-degree
every hour. When in SLEEP mode, the air conditioner will be automatically turned
off after have operated for seven hours. The result is a more comfortable and
invigorating sleep, which leaves you feeling fresh and energetic on the next
morning.
TIMER Real time control and display, automatically turns the air conditioner ON and
OFF according to the time of day setting, ensuring comfort conditions before
returning home, without wasting electricity. It turns the air conditioner off
automatically when sleeping.
I FEEL Switches the temperature sensing point to the place where the remote
control is located. (For general air conditioner, the temperature sensor is only
located behind the air intake grille). This function is designed to provide a
personalized by transmitting the temperature control command from the location
Remote Control and the unit is done by infra-red signal. Therefore, in using
next to you. The communication between the Remote Control and the unit is done
by infra-rd signal. Therefore, in using this function, the Remote Control should
always be aimed , without obstructions at the air conditioner.
In HEATING and in AUTO FAN,the fan will be turned off when the compressor
is not in operation and will not be restarted,unless the indoor coil reaches
adequate temperature.This HOT KEEP feature prevents uncomfortable cold air
drafts.Use of AUTO FAN is,threfore,recommended when the air conditioner
is in HEATING mode.
The air conditioner automatically selects the FAN speed in accordance to the
room temperature.At the start,the unit operates at high fan speed.As the room
air approaches to the desired temperature,the fan switches automatically to
a lower speed for quieter operation.
FAN Recirculates and filters the room air. Maintains constant air movement in
the room.
DRY Dehumidifies and softly cools the room In DRY Mode, the air conditioner
operates at an inceased dehumidifying power. This function is recommended
to be used when temperature is rather low but the humidity is high.
AUTO Automatically switches from COOLING to HEATING or from HEATING to
COOLING, maintaining the desired temperature according to the room conditions.
HEATING Heats and filters the room air. Maintains the desired room temperature.
AUTO FAN
HOT KEEP
3

ROOM
TEMPERATURE
Measures and displays room temperature.
BUZZER A soft buzzer will sound from the indoor unit display to indicate that a command
sent by the remote control has been accepted and stored in the unit s memory.
This feature may be easily cancelled by the user from the display panel.
3-MIN
DELAYED RUN
This compressor is protected by a three-minute delayed restart.
MEMORY The microprocessor retains the last data entry whether or not the unit is plugged
in. Therefore, when the unit restarts after a power distruption or failure, it will
resume operating in the same mode as before the power was disrupted.
LOCK Freezes the last operation setting on the remote control. When LOCK is
activated, the remote control will not be able to control the air-conditioner.
AUTO FLAP The air flap (louvers) is automatically positioned for the most suitable blow-out
angle, when COOL, HEAT, DRY or FAN modes are selected. When the air
conditioner is turned off, the flap will close automatically for an aesthetic
appearance.
VERTICAL AIR
SWING
Automatic swing of supply air in vertical direction. The flap moves automatically
in upward and downward direction to spread the conditioned air evenly
throughout the room.
ON UNIT
OPERATION
The air conditoner can be aturned ON for COOLING or HEATING or be turned
OFF directly form the indoor unit display panel without the use of the remote
control.
HORIZONTAL
AIR SWING
Automatic swing of Horizontal air flow in Horizontal direction.
The flap move automatically in right and left direction to spread the conditioned
air evenly throughout the room.
ELECTROSTATIC
FILTER
IONIZER Ionizer make the air more fresh and more comfort.
lide switch (O) to the ON position to activate the ionizer. The blue light
indicator (N) on the unit will light up indicating the ionizer in operation. To
cancel the operation set slide switch to OFF position.
Important Notice:When the air-conditioner is turned OFF or if the indoor
fan stops operation the IONIZER stops automatically.
4
They are capable of capturing small particles down to 0.1 microns,
Such as atmospheric and house hold dust,coal dust,insecticide dust,
mites,pollen,pet dander,tobacco saoke particles,cooking smoke and
grease,mold fungi,bacteria,viruses and more.

Prior to operating your air
conditioner,make sure of
the following procedures:
Insert the plug of indoor
unit to power supply properly.
Indicator (C) on air conditioner
lights on,indicating air conditioner
is ready to receive signals from
remote control.
The red tab protecting the
remote control batteries has
been removed.
For clock setting,see page 11.
Use the remote control in the holder
when unit is not in use.
Remote control can be slipped in or
out of its holder.
Aim at the infrared signal receiver on the room air conditioner when operating.
The remote control signal can be received at a distance of up to about 8m.
Be sure that there are no obstructions between the remote control and signal
receiver.
Do not drop or throw the remote control.
Do not place the remote control in a location exposed to direct sunlight, or next
to a heating unit, and/or other heat sources.
Do not expose the signal receiver (D) on the display panel of the air conditioner
to a strong light such as fluorescent lamp or sunlight.
WIRELESS REMOTE CONTROL PUTS ALL
FUNTIONS AT YOUR FINGERTIPS.
USE OF WIRELESS REMOTE CONTROL
PRIOR TO
OPERATION
REMOTE CONTROL
HOLDER
5
AUTO
OFF
ON
IFEEL
IFEEL
AUTO
AUTO
OFF
ON
IFEEL

ON-UNIT INDICATORS AND CONTROLS
I
J
K
L
M
COOL
ESF-EN
RESET
HEAT
MODE
A B C D E F
G H
AUTO
AUTO
A. Signal receiver
Receiver signals from the
remote control.
B. Timer indicator
Lights up during timer and
sleep operation.
C. Stand-by indicator
Lights up when the unit is
connected to power.
D. LCD operation display
E. Filter indicator
Lights up when air filter
requires cleaning.
F. Fresh-air indicator
Lights up when the fresh-air
operation.
G. Ionizer indicator
Lights up during the ionizer is
open.
H. Ionizer on/off
Used to swich the ionizer.
I. Cooling indicator
Lights up only when mode
(L) is pressed.
J. Reset button
Press to turn off the filter
indicator or cancel the
buzzer announcer.
K. Heating indicator
Lights up when mode (L) is
pressed.
L. Unit mode button
Used to switch the unit for
cooling or heating without
the remote control.
M. Electrostatic filter safety button
Turn off the Electrostatic filter
when you open the grille.
6

START/STOP button
Operation mode selection button
COOLING
HEATING
AUTO COOL/HEAT
DRY
FAN
I FEEL temperature sensing
mode button
FAN SPEED and AUTO FAN button
Room temperature Up button
Room temperature DOWN button
SLEEP button
Airflow direction AUTO-CONTROL
button
HORIZONTAL Airflow direction
AUTO-CONTROL button
IONIZER button
TIMER button
TIMER SET button
LCD operation display
I FEEL sensor
Infrared signal transmitter
ROOM temperature display button
FRESH AIR button
STRONG button
CLOCK button
Transmission sign
1
2
3
4
5
6
7
8
9
.
.
.
.
.
.
.
.
REMOTE CONTROL
Note: Open the cover to reach the control buttons.
10
19
18
17
16
15
14
13
12
11
AUTO
OFFON
IFEEL
ROOM
IFEEL
SLEEP
TIMER
SET
STRONG
ION
F/AIR
MODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
AUTO
OFF
ON
IFEEL
7

TURNING ON THE AIR CONDITIONER
Press START/STOP button (1) to turn on the air conditioner on. Indicator (A) on
the air conditioner will light up,indicating that the unit is in operation.Note
that the LCDoperation display (13) will always show the last mode of operation
and previous function used.
Follow the instructions if you choose to change the control settings;otherwise,
the air condetioner will start and operate in the same mode and functions
prior to being turned offf.
VENTILATING OPERATION
Select the ventilating mode by pressing MODE button (2). Switch to the
desired fan speed by pressing FAN speed button (4).
COOLING OPERATION
Select the COOLING mode by pressing MODE button (2). Switch to the
desired FAN SPEED or to AUTO FAN by pressing button (4). Select suitable
temperature setting.
COOLING OPERATION WITH AUTO FAN MODE
This operation starts with the highest air flow in order to quickly lower the
room temperature. It will then automatically switch to the low air flow to
quietly maintain the selected temperature.
HEATING OPERATION
Select the HEATING mode by pressing MODE button (2). Switch to the
desired FAN SPEED or to AUTO FAN by pressing FAN button (4). Select
suitable temperature setting.
OPERATION PROCEDURE
HEATING OPERATION WITH AUTO FAN MODE
This operation starts with the highest air flow in order to quickly raise the
room temperature. It will then automatically switch to a lower air flow to
quietly maintain the selected temperature. HEATING with AUTO FAN will
automatically provide the user with the HOT KEEP function. The fan will be
turned off when the indoor coil temperature is not sufficiently hot to prevent
uncomfortable cold air drafts.
8
AUTO
OFF
ON
IFEEL
ROOM
IFEEL
SLEEP
TIMER
SET
CLEAR
ION
F/AIR
MODE
AUTO
OFF
ON
IFEEL
ROOM
IFEEL
SLEEP
TIMER
SET
CLEAR
ION
F/AIR
MODE
AUTO
OFF
ON
IFEEL
ROOM
IFEEL
SLEEP
TIMER
SET
CLEAR
ION
F/AIR
MODE
AUTO
OFF
ON
IFEEL
ROOM
IFEEL
SLEEP
TIMER
SET
CLEAR
ION
F/AIR
MODE
AUTO
OFF
ON
IFEEL
ROOM
IFEEL
SLEEP
TIMER
SET
CLEAR
ION
F/AIR
MODE
AUTO
OFF
ON
IFEEL
ROOM
IFEEL
SLEEP
TIMER
SET
CLEAR
ION
F/AIR
MODE
