SERVICE MANUAL
DATA
BASIC CD MECHANISM : CDC02AW1
STEREO CAR CD RECEIVER
CDC-MP3R
S/M Code No. 09-00B-351-8N1
YZ(ST)

-2-

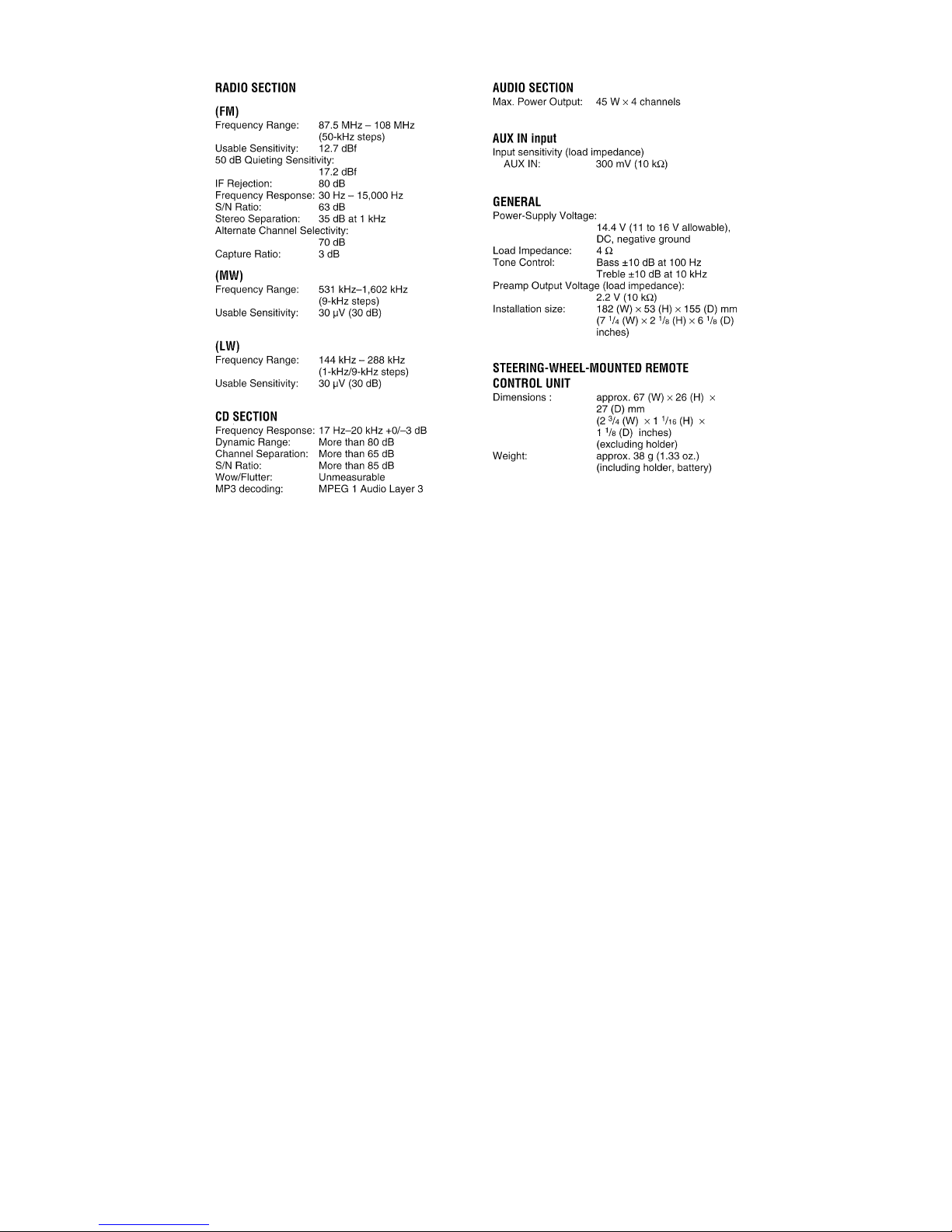

SPECIFICATIONS
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES/PACKAGE LIST
1 8Z-KC1-030-010 CASE,DFP -C
2 8Z-KT1-616-010 CONN ASSY,16P B52
3 8Z-KC1-231-110 HLDR,HALF -C
4 8Z-KC1-235-010 HLDR,REAR MTG
5 8A-KCG-905-010 IB,INST,YZ (9L)-I
6 8A-KC5-901-010 IB,YZ(9L) MP3R
7 8Z-KC1-232-010 KEY,REMOVE -C
8 87-B10-141-010 NUT,5 TYPE-2
9 8Z-KC1-244-010 S-SCREW,5*6 TH+ TAPPING ST
10 8Z-KC1-250-010 S-SCREW,HEXAGON
REF. NO PART NO. KANRI DESCRIPTION
NO.
11 87-B10-216-010 U+2.6-4.0 ZINC BLK (BH M2.6)
12 87-B10-143-010 UT1+5-15 W/O SLOT
13 87-B10-144-010 W,5.2-10-0.5
14 87-B10-145-010 W-SPR,5.3-8.5-1.5
*15 R8-AZR-191-040 AZR-1 RCKC1NF
*NOTE: This remote controller is not an accessory part .
It is an individual model.
•
Design and specifications are subject to change without
notice.

-3-
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT

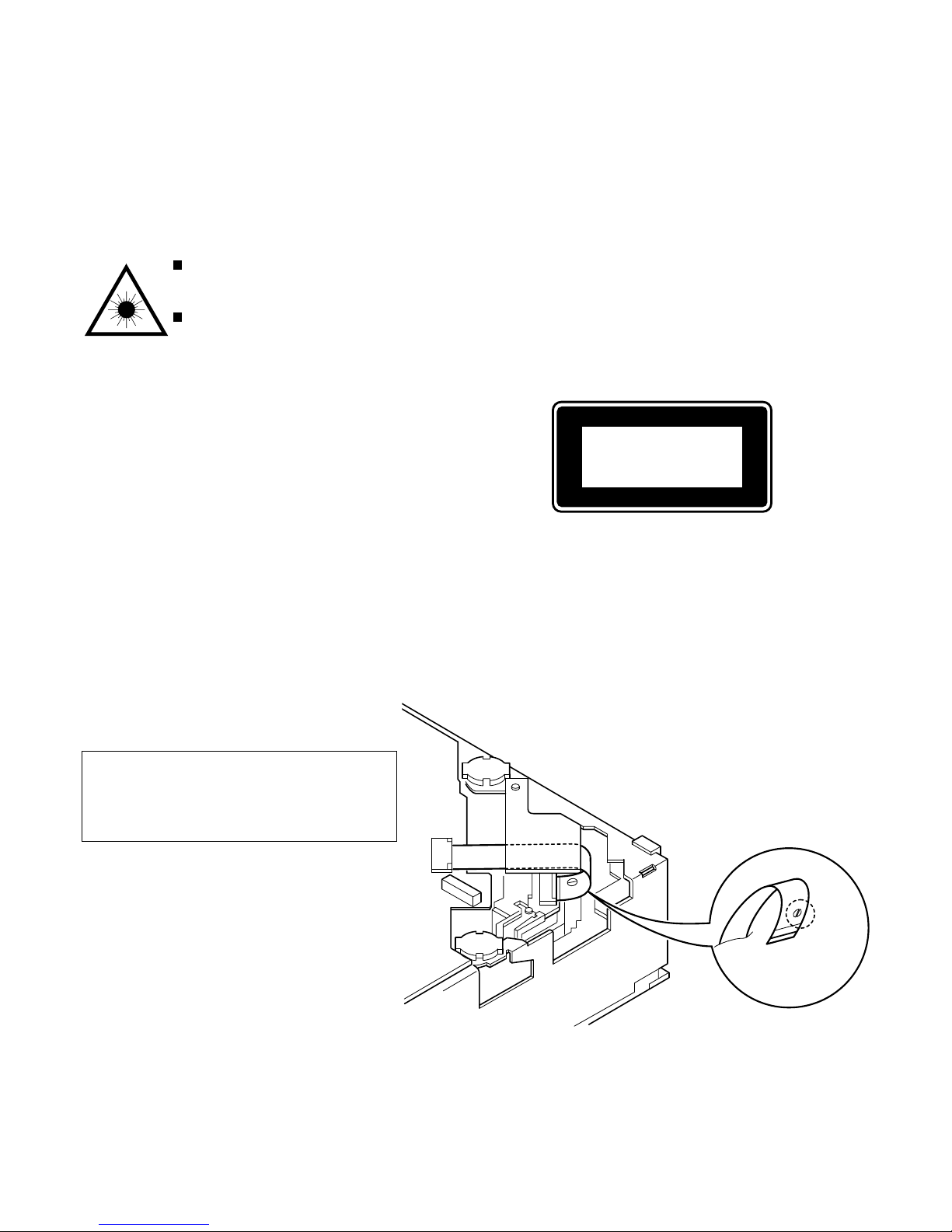

Precaution to replace Optical block
(KSS-710A)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
Solder

-4-
REF. NO PART NO. KANRI DESCRIPTION
NO. REF. NO PART NO. KANRI DESCRIPTION NO.
IC
87-017-888-080 IC,NJM4558MD
87-020-784-080 C-IC,TC4053BF
87-A20-712-040 C-IC,BA6417F
87-A20-905-040 C-IC,BA033FP
87-A21-161-040 C-IC,BA6392FP
87-A21-190-040 C-IC,PQ20WZ1U
87-A21-467-040 C-IC,CXA2581N
87-A21-532-030 C-IC,LC75817W-8720
87-A21-533-030 C-IC,CXD2587Q
87-A21-562-010 IC,LA4743B
87-A21-599-010 C-IC,LC89513K
87-A21-621-010 C-IC,MAS3507D-G10
87-A21-624-080 C-IC,SN74AHC1G08 DCK
87-A21-714-030 C-IC,DAC3550A-C2
87-A21-728-040 C-IC,SN74LVC07A
87-A21-875-030 C-IC,UPD784216AYGC-101-8EU
87-A21-876-030 C-IC,UPD178018AGC-568-3B9
87-A21-941-030 C-IC,UT62L1024LC-70LL
87-A21-942-030 C-IC,T15L256A-70P
87-A90-951-010 RCR UNIT,SBX1971-52
88-KT1-606-080 IC,PST994D
88-KT1-607-080 C-IC,SAA6579T
8Z-KT1-622-010 C-IC,LC75374E
TRANSISTOR
87-A30-011-080 C-TR,DTB113ZK
87-A30-218-080 TR,2SB1237Q
87-A30-248-040 C-TR,2SB1197KQ
87-A30-273-040 C-TR,DTC124EKA
87-A30-279-040 C-TR,DTC314TK
87-A30-282-040 C-TR,DTA114TKA
87-A30-287-040 C-TR,DTC114TKA
87-A30-289-040 C-TR,2SA1037AK(R)
87-A30-298-010 TR,2SD2396
87-A30-299-080 TR,2SB1326
87-A30-301-080 TR,2SD1862
87-A30-302-040 C-TR,2SD1758-F5
87-A30-427-040 C-TR,DTC114EKA
87-A30-455-040 C-TR,DTA144EKA
89-211-323-080 C-TR,2SB1132R
89-211-821-040 C-TR,2SB1182Q
89-324-122-040 C-TR,2SC2412KR
DIODE
87-001-783-080 DIODE,1N4002
87-017-932-080 ZENER,MTZJ6.2B
87-020-331-080 C-DIODE,DAN202K
87-020-465-080 DIODE,1SS133
87-070-136-080 ZENER,MTZJ5.1B
87-070-334-080 ZENER,MTZJ10B
87-A40-189-080 DIODE,1SR139-400
87-A40-235-080 ZENER,MTZJ9.1C
87-A40-250-080 C-DIODE,DAN217
87-A40-344-080 ZENER,MTZJ6.2C
87-A40-523-080 ZENER,MTZJ9.1B
87-A40-624-080 ZENER,MTZJ10A
87-A40-650-080 ZENER,MTZJ6.8A
87-A40-798-010 DIODE,1N5402 (3A/200V)
87-A40-817-040 C-ZENER,STZ6.8N
87-A40-871-080 ZENER,MTZJ5.6C
MAIN C.B
C101 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C102 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C104 87-010-185-080 C-CAP,S 3900P-50 K B
C105 87-010-244-040 CAP,E 22-16 M 5L SRE
C106 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C107 87-010-498-040 CAP,E 10-16 M 5L SRE
C109 87-010-555-040 CAP,E 100-10 M 5L SRE
C110 87-010-185-080 C-CAP,S 3900P-50 K B
C111 87-010-220-080 C-CAP,S 0.018-25 K B
C112 87-010-220-080 C-CAP,S 0.018-25 K B
C113 87-010-494-040 CAP,E 1-50 M 5L SRE
C114 87-010-494-040 CAP,E 1-50 M 5L SRE
C115 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C116 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C117 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C118 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C119 87-016-669-080 C-CAP,S 0.1-25 K B
C131 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C132 87-016-669-080 C-CAP,S 0.1-25 K B
C133 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C134 87-010-495-040 CAP,E 2.2-50 M 5L SRE
C135 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C151 87-012-149-080 C-CAP,S 30P-50 J CH
C152 87-010-315-080 C-CAP,S 27P-50 J CH GRM
C153 87-010-495-040 CAP,E 2.2-50 M 5L SRE
C154 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C155 87-010-175-080 C-CAP,S 560P-50 J SL
C156 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C157 87-010-553-040 CAP,E 47-16 M 5L SRE
C158 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C210 87-016-669-080 C-CAP,S 0.1-25 K B
C211 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C212 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C241 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C242 87-010-553-040 CAP,E 47-16 M 5L SRE
C251 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C252 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C260 87-010-498-040 CAP,E 10-16 M 5L SRE
C263 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C264 87-010-553-040 CAP,E 47-16 M 5L SRE
C265 87-010-498-040 CAP,E 10-16 M 5L SRE
C266 87-010-194-080 C-CAP,S 0.047-25 Z F
C267 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C268 87-010-498-040 CAP,E 10-16 M 5L SRE
C269 87-010-555-040 CAP,E 100-10 M 5L SRE
C270 87-010-555-040 CAP,E 100-10 M 5L SRE
C291 87-010-553-040 CAP,E 47-16 M 5L SRE
C292 87-010-498-040 CAP,E 10-16 M 5L SRE
C401 87-010-494-040 CAP,E 1-50 M 5L SRE
C402 87-010-494-040 CAP,E 1-50 M 5L SRE
C403 87-010-494-040 CAP,E 1-50 M 5L SRE
C404 87-010-494-040 CAP,E 1-50 M 5L SRE
C405 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C406 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C407 87-010-494-040 CAP,E 1-50 M 5L SRE
C408 87-010-494-040 CAP,E 1-50 M 5L SRE
C409 87-010-498-040 CAP,E 10-16 M 5L SRE
C410 87-010-498-040 CAP,E 10-16 M 5L SRE
C411 87-010-494-040 CAP,E 1-50 M 5L SRE
C412 87-010-494-040 CAP,E 1-50 M 5L SRE
C413 87-010-498-040 CAP,E 10-16 M 5L SRE
C414 87-010-498-040 CAP,E 10-16 M 5L SRE
C415 87-010-498-040 CAP,E 10-16 M 5L SRE
C416 87-010-498-040 CAP,E 10-16 M 5L SRE
C417 87-010-498-040 CAP,E 10-16 M 5L SRE
C418 87-010-498-040 CAP,E 10-16 M 5L SRE
C419 87-010-498-040 CAP,E 10-16 M 5L SRE
C420 87-010-555-040 CAP,E 100-10 M 5L SRE
C421 87-010-805-080 C-CAP,S 1-16 Z F
C422 87-010-805-080 C-CAP,S 1-16 Z F
C423 87-010-805-080 C-CAP,S 1-16 Z F
C424 87-010-805-080 C-CAP,S 1-16 Z F
C425 87-012-140-080 C-CAP,S 470P-50 J CH
ELECTRICAL MAIN PARTS LIST

-5-
REF. NO PART NO. KANRI DESCRIPTION
NO. REF. NO PART NO. KANRI DESCRIPTION NO.
C426 87-012-140-080 C-CAP,S 470P-50 J CH
C427 87-012-140-080 C-CAP,S 470P-50 J CH
C428 87-012-140-080 C-CAP,S 470P-50 J CH
C429 87-010-498-040 CAP,E 10-16 M 5L SRE
C430 87-010-498-040 CAP,E 10-16 M 5L SRE
C431 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C432 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C433 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C434 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C435 87-A11-177-080 C-CAP,S 0.15-16 K B
C436 87-A11-177-080 C-CAP,S 0.15-16 K B
C437 87-A11-177-080 C-CAP,S 0.15-16 K B
C438 87-A11-177-080 C-CAP,S 0.15-16 K B
C439 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C440 87-012-141-080 C-CAP,S 0.22-16 Z F C2012
C441 87-012-141-080 C-CAP,S 0.22-16 Z F C2012
C461 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C462 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C463 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C464 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C495 87-010-498-040 CAP,E 10-16 M 5L SRE
C501 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C502 87-010-194-080 C-CAP,S 0.047-25 Z F
C503 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C504 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C551 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C552 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C553 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C554 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB
C555 87-010-175-080 C-CAP,S 560P-50 J SL
C556 87-010-175-080 C-CAP,S 560P-50 J SL
C557 87-010-175-080 C-CAP,S 560P-50 J SL
C558 87-010-175-080 C-CAP,S 560P-50 J SL
C559 87-010-498-040 CAP,E 10-16 M 5L SRE
C560 8A-KC7-623-000 CAP,E 2200-16 125 BT
C561 87-010-805-080 C-CAP,S 1-16 Z F
C562 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C563 87-010-074-040 CAP,E 4.7-35 M 5L SRE
C564 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C565 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C567 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C571 87-012-368-080 C-CAP,S 0.1-50 Z F
C572 87-012-368-080 C-CAP,S 0.1-50 Z F
C573 87-012-368-080 C-CAP,S 0.1-50 Z F
C574 87-012-368-080 C-CAP,S 0.1-50 Z F
C591 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C907 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C908 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C909 87-010-315-080 C-CAP,S 27P-50 J CH GRM
C910 87-016-039-010 CAP,DL 0.022F-5.5 Z 70
C911 87-010-315-080 C-CAP,S 27P-50 J CH GRM
C912 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C913 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C914 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C915 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C916 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C917 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C918 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C919 87-010-498-040 CAP,E 10-16 M 5L SRE
C921 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C922 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C923 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C924 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C925 87-010-498-040 CAP,E 10-16 M 5L SRE
C927 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C928 87-010-178-080 C-CAP,S 1000P-50 K B C2012
CN251 8A-KT1-645-010 CONN ASSY,8P ISO-BLACK-B
CN501 8A-KT1-646-010 CONN ASSY,8P ISO-WHITE-B
CON901 87-A60-861-080 C-CONN,20P 08-6224-020-001
CON902 87-A60-182-010 CONN,16P H TKC-F16P-E3
D909 87-027-262-010 LED,TLR124 RED
! F281 8Z-KC1-621-010 FUSE,15A 32V
FFC901 88-KC4-641-010 FF-CABLE, 20P 1.0 90MM
J101 8Z-KT1-614-010 ANT,AW-002
J451 87-A61-224-110 JACK,PIN 4P XR-401
J951 8A-KC7-620-010 JACK,DIN 13 P SKDS1302
L101 87-003-143-080 COIL,4.7UH K LAL02
L104 8Z-KT1-619-010 COIL,68MH K7-D
L201 8Z-KT1-615-010 FLTR,AMORPHOUS -CHOKE
L251 87-003-045-080 COIL,22UH K LAL04
L252 87-003-149-080 COIL,47UH J LAL02
L401 87-003-143-080 COIL,4.7UH K LAL02
L404 87-003-102-080 COIL,10UH J LAL02
L901 87-A50-079-080 COIL,22UH (CECS)
PL901 8Z-KT1-641-010 LAMP,T-3
SFR101 87-024-437-080 SFR,100K H RH063MC
SW901 87-A91-070-010 SW,TACT SKHHLV
SW903 87-036-109-010 SW,MICRO SPPB61
TU101 8A-KC8-623-010 TU UNIT, FAE347-A15
X151 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309
X901 87-A70-175-010 VIB,XTAL 4.5MHZ AT-49
FRONT C.B
C701 87-010-196-080 CHIP CAPACITOR,0.1-25
C702 87-010-805-080 CAP, S 1-16
C703 87-010-805-080 CAP, S 1-16
C704 87-010-805-080 CAP, S 1-16
C705 87-010-194-080 CAP, CHIP 0.047
C706 87-010-194-080 CAP, CHIP 0.047
C707 87-010-194-080 CAP, CHIP 0.047
C708 87-012-156-080 C-CAP,S 220P-50 CH
C709 87-010-194-080 CAP, CHIP 0.047
C710 87-010-197-080 CAP, CHIP 0.01 DM
C711 87-010-197-080 CAP, CHIP 0.01 DM
C712 87-010-197-080 CAP, CHIP 0.01 DM
C713 87-A11-062-080 C-CAP,S 2.2-16 Z F
CON701 8Z-KT1-612-010 CONN,16P CAM-C73
D719 87-A40-813-040 C-LED,SEC1E01C BLUE
D720 87-A40-813-040 C-LED,SEC1E01C BLUE
D721 87-A40-813-040 C-LED,SEC1E01C BLUE
D725 87-017-827-070 C-LED,SEC1201C RED
D726 87-017-827-070 C-LED,SEC1201C RED
D727 87-017-827-070 C-LED,SEC1201C RED
LCD701 8A-KC6-610-010 LCD,AKC-7(DOT)
PL701 8Z-KT1-651-010 LAMP,9V-85MA
PL702 8Z-KT1-651-010 LAMP,9V-85MA
SW701 87-A90-001-080 C-SW,TACT SKQMAL
SW702 87-036-251-080 SW,T CT 6X3.5 160
SW703 87-036-251-080 SW,T CT 6X3.5 160
SW704 87-036-251-080 SW,T CT 6X3.5 160
SW705 87-A90-001-080 C-SW,TACT SKQMAL
SW706 87-036-251-080 SW,T CT 6X3.5 160
SW707 87-036-251-080 SW,T CT 6X3.5 160
SW708 87-A90-001-080 C-SW,TACT SKQMAL
SW709 87-036-251-080 SW,T CT 6X3.5 160
SW710 87-036-251-080 SW,T CT 6X3.5 160
SW711 87-036-251-080 SW,T CT 6X3.5 160
SW712 87-036-251-080 SW,T CT 6X3.5 160
SW713 87-A90-001-080 C-SW,TACT SKQMAL
SW714 87-036-251-080 SW,T CT 6X3.5 160
SW715 87-036-251-080 SW,T CT 6X3.5 160
SW716 87-A91-597-010 SW,RTRY SIM-026MT
MP3 C.B
C601 87-A10-263-080 C-CAP,U 0.1-16ZF
C602 87-A10-263-080 C-CAP,U 0.1-16ZF
C603 87-A10-263-080 C-CAP,U 0.1-16ZF
C604 87-A10-263-080 C-CAP,U 0.1-16ZF

-6-
REF. NO PART NO. KANRI DESCRIPTION
NO. REF. NO PART NO. KANRI DESCRIPTION NO.
C605 87-012-274-080 CHIP CAP,U 1000P-50B
C606 87-012-274-080 CHIP CAP,U 1000P-50B
C621 87-010-880-080 C-CAP,E 47-6.3 MF
C622 87-A10-263-080 C-CAP,U 0.1-16ZF
C623 87-A10-263-080 C-CAP,U 0.1-16ZF
C624 87-A10-263-080 C-CAP,U 0.1-16ZF
C625 87-A10-263-080 C-CAP,U 0.1-16ZF
C626 87-A10-263-080 C-CAP,U 0.1-16ZF
C627 87-A10-263-080 C-CAP,U 0.1-16ZF
C628 87-A10-263-080 C-CAP,U 0.1-16ZF
C629 87-A10-263-080 C-CAP,U 0.1-16ZF
C630 87-A10-263-080 C-CAP,U 0.1-16ZF
C631 87-010-880-080 C-CAP,E 47-6.3 MF
C651 87-016-287-080 C-CAP,TN 3.3-6.3 F93
C652 87-012-286-080 CAP, U 0.01-25
C653 87-010-880-080 C-CAP,E 47-6.3 MF
C654 87-A10-263-080 C-CAP,U 0.1-16ZF
C655 87-A10-263-080 C-CAP,U 0.1-16ZF
C656 87-012-178-080 C-CAP,U 18P-50 CH
C657 87-012-178-080 C-CAP,U 18P-50 CH
C658 87-A10-263-080 C-CAP,U 0.1-16ZF
C659 87-016-317-080 C-CAP,TN 2.2-6.3
C660 87-A10-263-080 C-CAP,U 0.1-16ZF
C661 87-010-880-080 C-CAP,E 47-6.3 MF
C662 87-A10-263-080 C-CAP,U 0.1-16ZF
C663 87-012-271-080 CAP, U 560P-50
C664 87-012-271-080 CAP, U 560P-50
C665 87-012-193-080 C-CAP,U 82P-50 CH
C666 87-012-193-080 C-CAP,U 82P-50 CH
C667 87-012-335-080 C-CAP,U 270P-50 SL
C668 87-012-335-080 C-CAP,U 270P-50 SL
C669 87-012-274-080 CHIP CAP,U 1000P-50B
C670 87-012-274-080 CHIP CAP,U 1000P-50B
C803 87-A10-711-080 C-CAP,E 100-6.3 M MF
C804 87-012-274-080 CHIP CAP,U 1000P-50B
C805 87-A10-260-080 C-CAP,U 0.1-16 K B
C806 87-012-280-080 CAP, U 3300P-50
C808 87-A10-263-080 C-CAP,U 0.1-16ZF
C809 87-010-880-080 C-CAP,E 47-6.3 MF
C811 87-A10-263-080 C-CAP,U 0.1-16ZF
C812 87-012-165-080 CAP 3P
C813 87-A10-263-080 C-CAP,U 0.1-16ZF
C815 87-A10-263-080 C-CAP,U 0.1-16ZF
C816 87-010-880-080 C-CAP,E 47-6.3 MF
C817 87-010-880-080 C-CAP,E 47-6.3 MF
C831 87-012-199-080 CAP 220P
C832 87-A10-504-080 C-CAP,U 0.047-16 K B
C833 87-012-199-080 CAP 220P
C834 87-012-199-080 CAP 220P
C835 87-016-669-080 C-CAP,S 0.1-25 K B
C836 87-012-199-080 CAP 220P
C837 87-012-280-080 CAP, U 3300P-50
C838 87-A10-504-080 C-CAP,U 0.047-16 K B
C839 87-010-880-080 C-CAP,E 47-6.3 MF
C840 87-A10-263-080 C-CAP,U 0.1-16ZF
C841 87-A10-263-080 C-CAP,U 0.1-16ZF
C842 87-016-526-080 C-CAP,S 0.47-16 BK
C843 87-012-198-080 CAP 180P
C844 87-012-198-080 CAP 180P
C845 87-012-273-080 C-CAP,U 820P-50 B
C846 87-012-273-080 C-CAP,U 820P-50 B
C847 87-016-563-080 C-CAP,TN 10-10 SV A
C848 87-016-563-080 C-CAP,TN 10-10 SV A
C849 87-012-188-080 C-CAP,U 47P-50 CH
C850 87-012-188-080 C-CAP,U 47P-50 CH
C851 87-016-317-080 C-CAP,TN 2.2-6.3
C852 87-016-317-080 C-CAP,TN 2.2-6.3
C853 87-012-274-080 CHIP CAP,U 1000P-50B
C854 87-012-274-080 CHIP CAP,U 1000P-50B
C855 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C856 87-012-286-080 CAP, U 0.01-25
C857 87-A10-711-080 C-CAP,E 100-6.3 M MF
C858 87-A10-263-080 C-CAP,U 0.1-16ZF
C861 87-A10-263-080 C-CAP,U 0.1-16ZF
C862 87-A10-711-080 C-CAP,E 100-6.3 M MF
C871 87-A10-419-080 C-CAP,TN 1-16 A TCF
C872 87-A10-419-080 C-CAP,TN 1-16 A TCF
C873 87-016-526-080 C-CAP,S 0.47-16 BK
C874 87-A10-263-080 C-CAP,U 0.1-16ZF
C875 87-A10-260-080 C-CAP,U 0.1-16 K B
C876 87-A10-260-080 C-CAP,U 0.1-16 K B
C877 87-010-880-080 C-CAP,E 47-6.3 MF
C878 87-A10-263-080 C-CAP,U 0.1-16ZF
C879 87-012-274-080 CHIP CAP,U 1000P-50B
C880 87-010-880-080 C-CAP,E 47-6.3 MF
C881 87-A12-424-080 C-CAP,E 220-10 M 4B SE1A221
C882 87-A10-263-080 C-CAP,U 0.1-16ZF
C883 87-A10-263-080 C-CAP,U 0.1-16ZF
C884 87-012-274-080 CHIP CAP,U 1000P-50B
C885 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C886 87-A10-263-080 C-CAP,U 0.1-16ZF
C887 87-A10-263-080 C-CAP,U 0.1-16ZF
C888 87-A10-263-080 C-CAP,U 0.1-16ZF
C899 87-010-880-080 C-CAP,E 47-6.3 MF
CN801 87-A61-125-080 C-CONN,16P H FLZ-SM1-TB
CN891 87-A61-220-080 C-CONN,20P H 52271-2090
L621 87-A50-536-080 C-COIL,10UH K LQH3C24
L622 87-A50-536-080 C-COIL,10UH K LQH3C24
L651 87-A50-499-080 C-COIL,S 4.7UH K LQG21N
L652 87-A50-536-080 C-COIL,10UH K LQH3C24
L801 87-A50-536-080 C-COIL,10UH K LQH3C24
L802 87-A50-536-080 C-COIL,10UH K LQH3C24
L831 87-A50-536-080 C-COIL,10UH K LQH3C24
L832 87-A50-536-080 C-COIL,10UH K LQH3C24
L833 87-A50-536-080 C-COIL,10UH K LQH3C24
L871 87-A50-367-080 C-COIL, 10UH LQG21F
L881 87-A50-536-080 C-COIL,10UH K LQH3C24
S861 87-A91-627-080 SW,PUSH MPU10372MLBO
X601 87-A70-266-080 C-VIB,CER 6.25MHZ CSTRC-MG05
X651 87-A70-267-080 C-VIB,XTAL 14.725MHZ CX-53F
X831 87-A70-261-080 C-VIB,CER 16.93MHZ CSTCW-MX03T
CONN C.B
CON601 8Z-KT1-613-010 CONN,16P CAM-C74
CON602 87-A60-910-010 C-CONN,16P V TKC-F16X-H2
AUX C.B
J751 85-HRL-623-010 JACK,3.5 BLK ST BLK
W751 8A-KC7-611-010 F-CABLE,3P (AUX)
EJECT C.B
D950 87-A40-641-010 LED,SLR-332MG GRN
SW950 87-A90-001-080 C-SW,TACT SKQMAL
W1001 8Z-KC1-613-010 F-CABLE,3P (EJECT)
SENSOR C.B
SW1 87-A91-627-080 SWITCH
SW2 87-A91-627-080 SWITCH

-7-
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
B
C
E
2SA1037
2SC2412
DTA144EK
DTA144TKA
DTC114EK
B C E
2SD2396
B
C
E
2SD1758
E C B
2SB1326
B
C
E
2SB1132
E C B
2SB1237
2SD1862
DTC114TKA
DTC314TK
2SB1197KQ
DTB113ZK
DTC124EKA
2SB1182Q

-8-
WIRING-1 (MAIN 1/2)
181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16151413121110987654321

-9-
WIRING-2 (MAIN 2/2)
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

-10-
SCHEMATIC DIAGRAM-1 (MAIN)

-11-
WIRING-3 (FRONT 1/2)
181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16151413121110987654321

-12-
WIRING-4 (FRONT 2/2)
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

-13-
SCHEMATIC DIAGRAM-2 (FRONT)

-14-

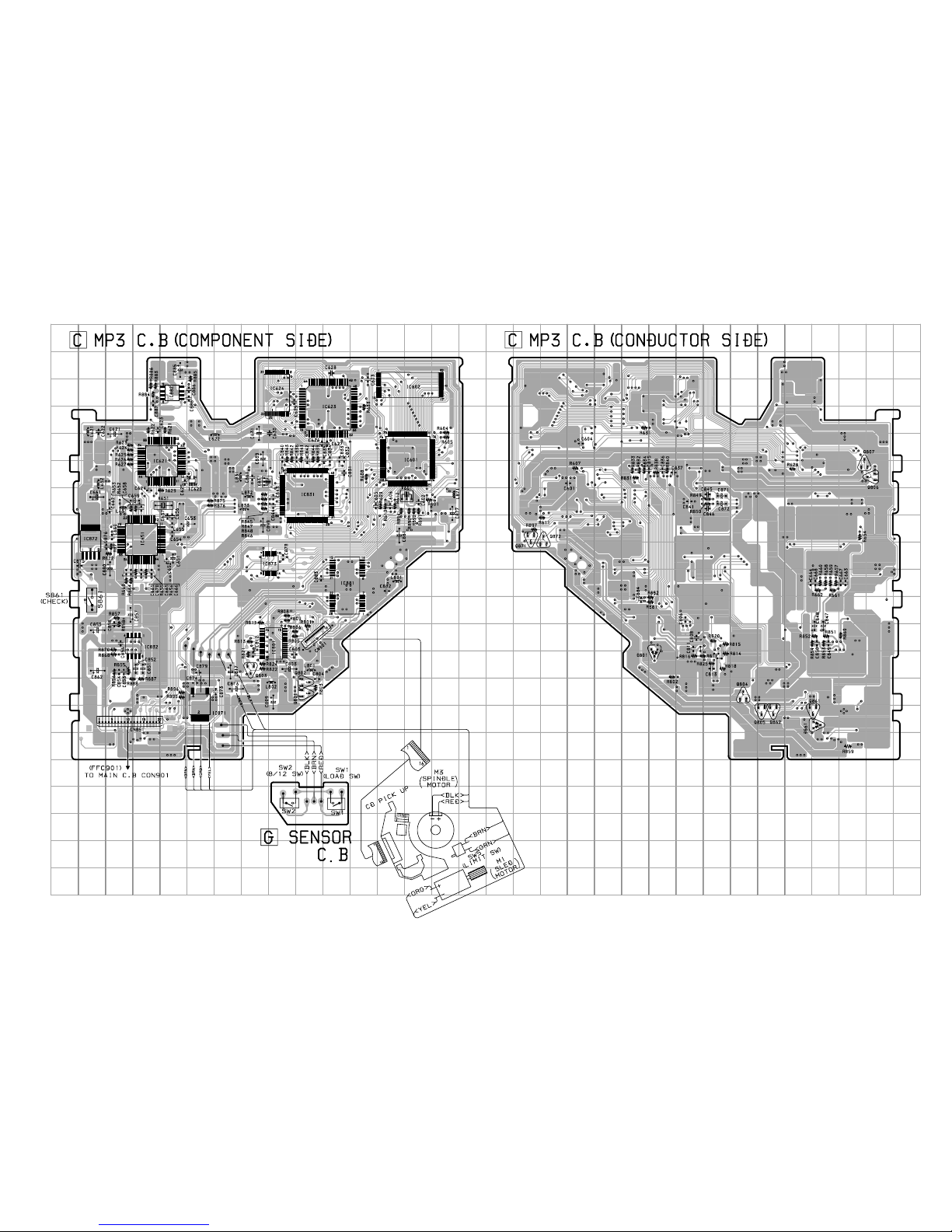

WIRING-5 (MP3)
876543211345678
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
2
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
9 10111213141516910111213141516

-15-
SCHEMATIC DIAGRAM-3 (MP3 1/2)

-16-

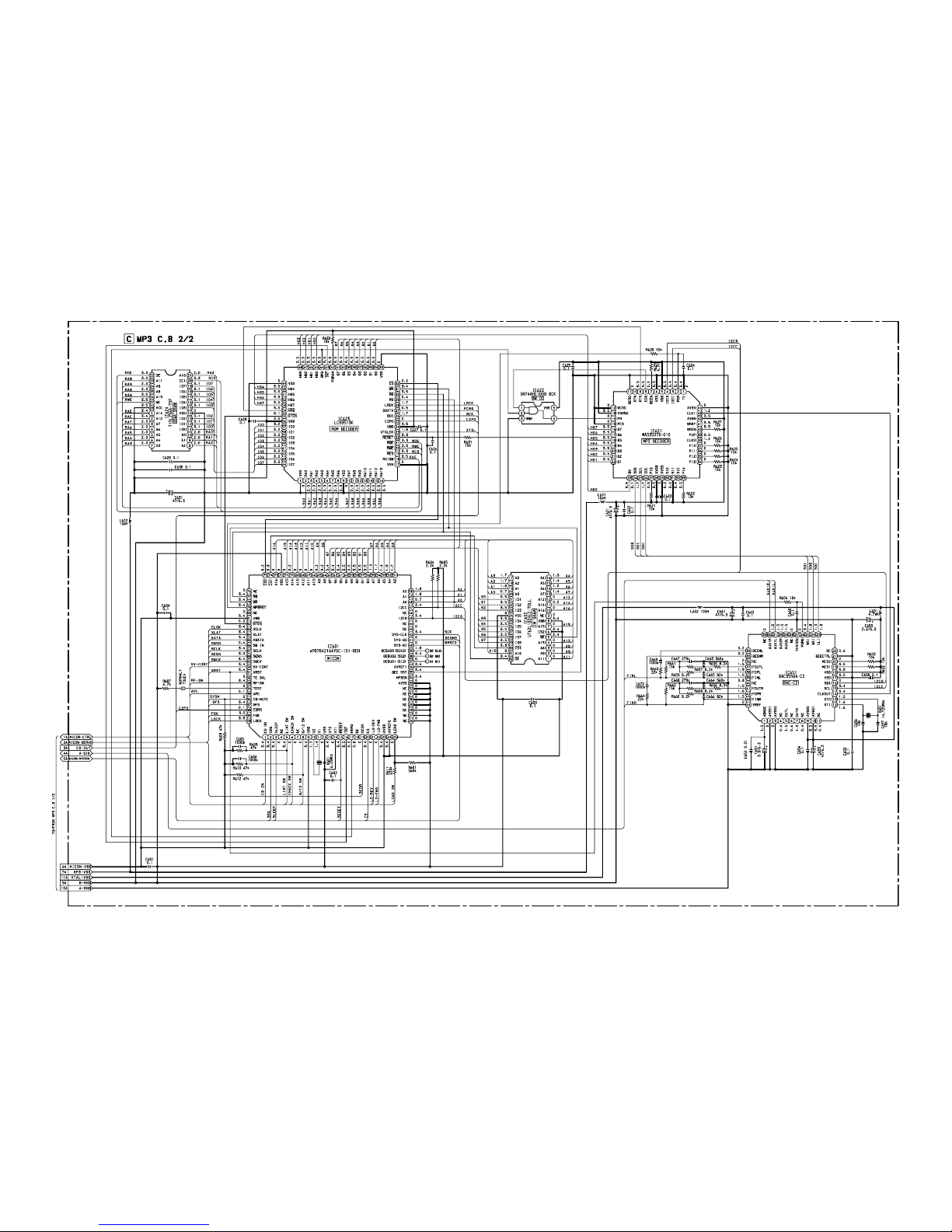

SCHEMATIC DIAGRAM-4 (MP3 2/2)

-17-

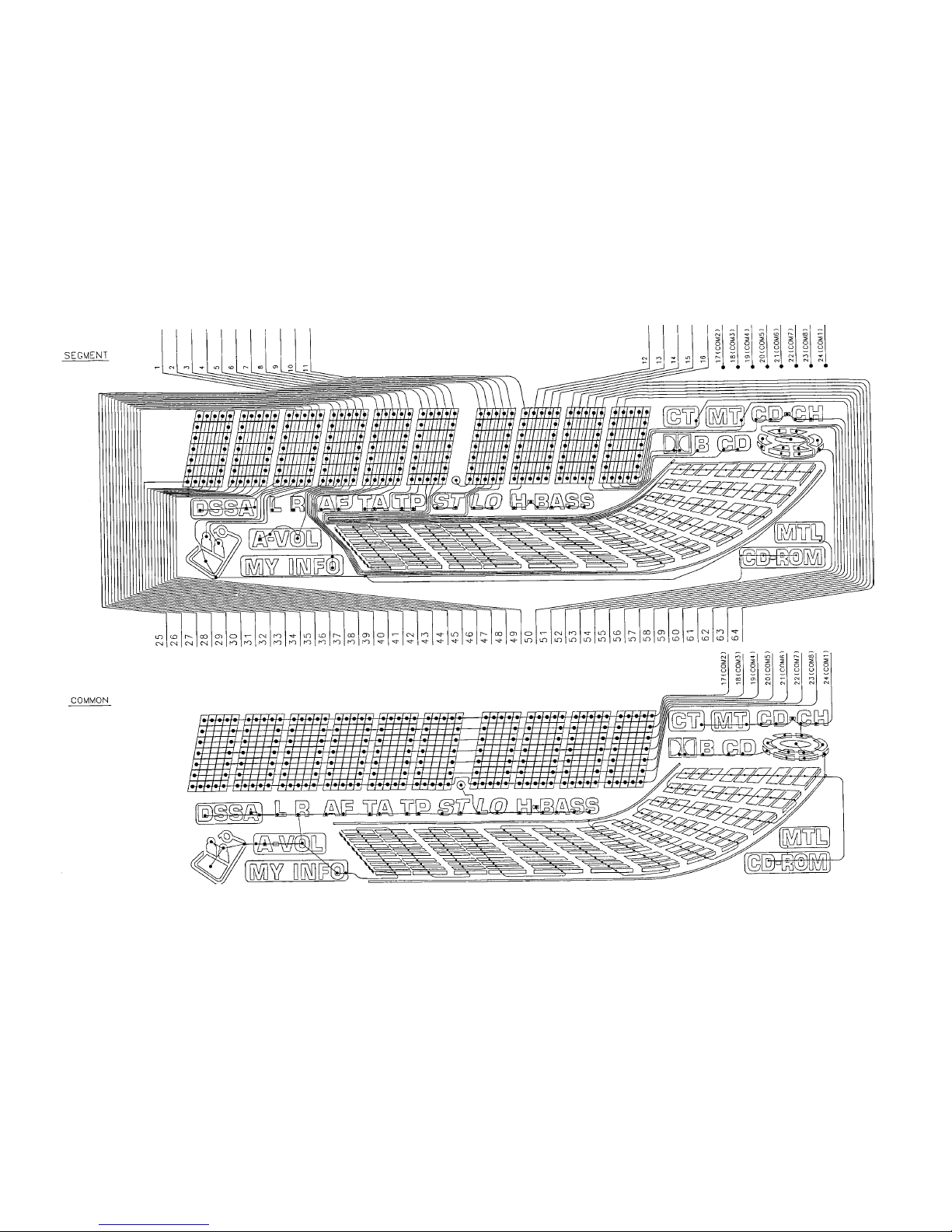

LCD DISPLAY

-18-
IC BLOCK DIAGRAM
IC,PQ20WZ1U
VCC 4Y4A5Y5A6Y6A
GND3Y3A2Y2A1Y1A
3456
12 11 10 98
13
14
127
IC, SN74LVC07A
IC, NJM4558MD IC, LA4743B
IC, BA6392FP
IC, BA6417F
IC, TC4053BF
11
10
9
6
8 7
14
12
13
2
1
5
3
4
15
16

-19-
IC, LC75374E
IC, SAA6579T
QUALITY BIT
GENERATOR OSCILLATOR
AND
DIVIDER
RECONSTRUCTION
FILTER
57KHz
BANDPASS
(8th ORDER)
ANTI-
ALIASING
FILTER
DIFFERENTIAL
DECODER
BIPHASE
SYMBOL
DECODER
COSTAS LOOP
VARIABLE AND
FIXED DIVIDER
CLOCK REGENERATION
AND SYNC
REFERENCE
VOLTAGE
TEST LOGIC AND OUTPUT
SELECTOT SWITCH
CLOCKED
COMPARATOR
91016 15 12 11
12 3 45 6 7 8
14 13
QUAL
DATA
Vref
MUX
VDD
GND
CIN
SCOUT
MODE TEST GND VDD X IN X OUT T57 CL
SHIFT REGISTER

-20-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
IC, UPD178018AGC-568-3B9
Pin No. Pin Name I/O Description
IC DESCRIPTION
I
I
I
I
O
O
I
O
I
O
O
I
O
O
O
O
O
O
—
—
—
—
O
O
O
O
O
I
I
—
I
I
—
O
O
—
O
I
I
O
RDS AF signal input and FM/AM S meter signal input.
Voltage input for level indicator. Pulled down when not used.
Detects microphone input for auto volume operation. Pulled down when not used.
CD changer connection check. Pulled down when not used.
Output communication timing signal output to CD changer. (Hi=TX, Low=RX).
Synchronous clock signal output to CD changer.
Data input from CD changer. Pulled down when not used.
Data output to CD changer.
Synchronous clock signal input from CD changer. Pull down when not used.
LCD DRV (LC75854W) CE output.
Clock selection for CDS and LCD DRV (LC75854W). (Hi=CDS, Low=LCD).
CDS and LCD DRV (LC75854W) data input.
CDS and LCD DRV (LC75854W) data output.
CDS and LCD DRV (LC75854W) synchronous clock output.
CD changer ACC signal output.
Muting output to power amp.
Standby/muting output to power amp.
Unit power control output.
Not connected.
Not connected.
Ground for port.
Power supply for port.
Audio muting output.
AM/FM power switching output. (Hi =AM, Low=FM).
Radio power switching output. (Low=radio mode).
Hi output during RDS AF operation.
Output to request IF count signal.
AM IF count signal input.
FM IF count signal input.
Power supply for PLL.
FM local oscillation input.
AM local oscillation input.
Ground for PLL.
Error output from charge pump.
Error output from charge pump.
Ground.
LOC/DX switching output during radio seek. (Hi=LOC, Low=DX).
Stereo signal input during FM reception. (Hi=MONO, Low=ST) /Broadcast detection
signal input during FM/AM seek. (Hi=detect broadcast).
Mute control from external. Low=20dB MUTE. Pull up when not used.
CS signal output.
FM/AM S-M
LEVEL-M
A-VOL CONT
CD CONNECT
CD DISP SEL
CD CLO
CD DI
CD DO
CD CLI
LCD CE
CLK SEL
CDS DI/LCD DI
CDS DO/LCD DO
CDS CLO/LCD CLO
CD ACC CONT
POWER MUTE
ST-BY MUTE
POWER CONT
CONT 1
CONT 2
GND PORT
VDD PORT
MUTE
BAND CONT
RADIO CONT
RDS MODE
IF REQ
AM IF
FM IF
VDD PLL
FM OSC
AM OSC
GND PLL
EO 0
EO 1
GND
LOC/DX
ST IND/SD IN
PHONE MUTE
CDS CS
