SERVICE MANUAL
D HS-JS380
STEREORADIO
CASSETTE RECORDER BASIC TAPE MECHANISM : 7ZM-5 R3N
S/M Code No. 09-989-299-3FP
MODEL CODE: 88HJ7-0134
REVISION

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
ACCESSORIES / PACKAGE LIST
1 88-HJ7-906-010 -- IB,D (J)-IN<D>
1 88-HJ7-903-010 IB,Y (ESF)-I<YZ>
1 88-HJ7-904-010 IB,Y (GID)-I<YZ>
1 88-HJ7-905-010 IB,Y (POHCZ)-I<YZ>
1 88-HJ7-902-010 IB,YJ (ESC)-I<YH,YJ>
1 88-HJ7-908-010 IB,YL (ESP)-IN<YL>
1 88-HJ7-901-010 IB,YU (ESF)-I<YU>
2 87-B30-139-010 -- HEADPHONE,HP-M007(TL)<EXCEPT YU>
2 87-B30-081-010 HEADPHONE,HP-M009(S)<YU>
3 87-041-083-110 1F CM-S40A
4 88-HJ7-951-010 -- CASE,CARRYING(NEW)

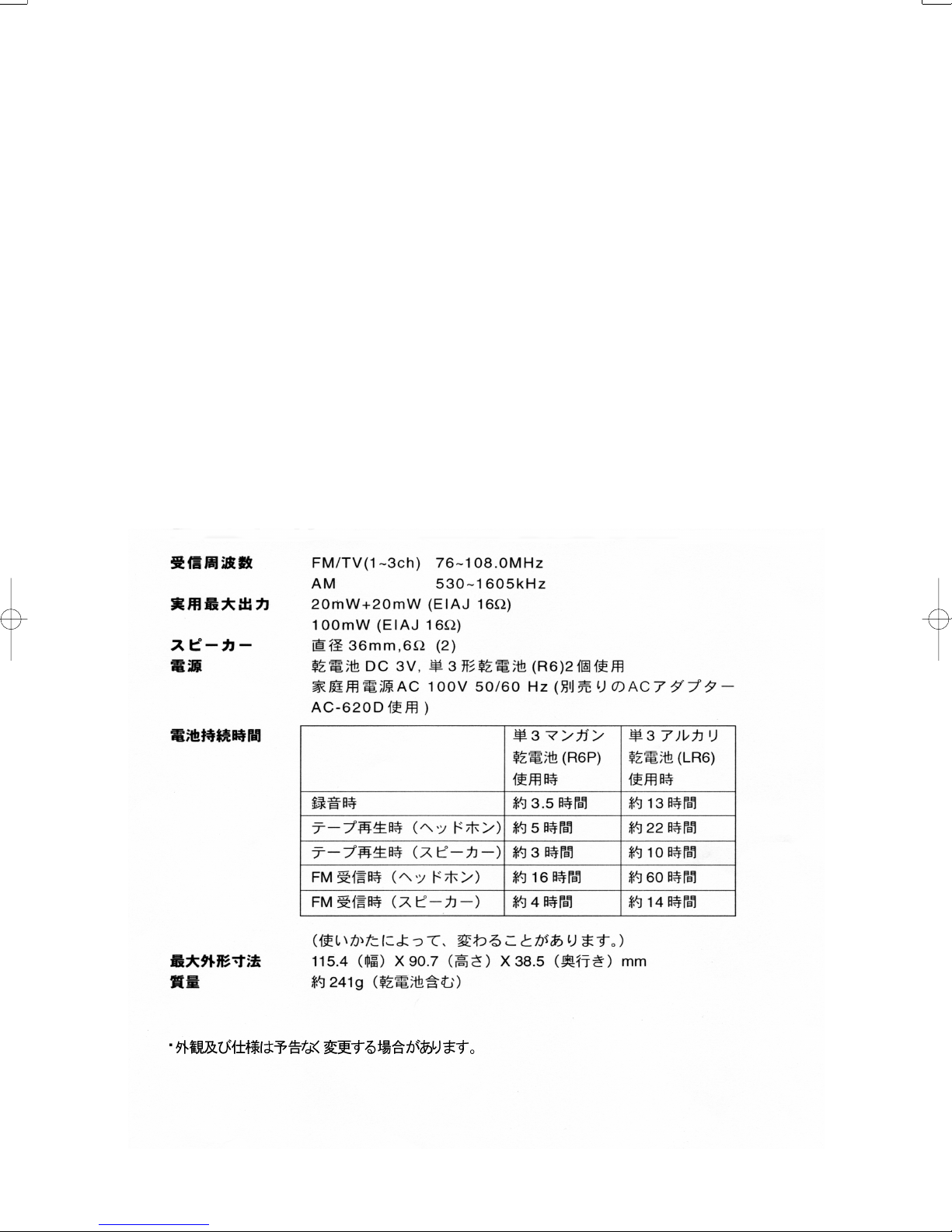

SPECIFICATIONS<D>
2
8HJ7A4sizeJ.p65 98/09/23, Œß‘O 08:59Page 2 AdobePageMaker6.5J/Win


A
B


DISASSEMBLY INSTRUCTIONS
3
*
KNOB, RTRY TUN
MAIN C.B
*
*
8HJ7A4sizeJ.p65 98/09/23, Œß‘O 08:59Page 3 AdobePageMaker6.5J/Win

4


FRONT
C.B
COVER, MIC
CUSHION, MIC
MIC
HLDR, MIC
NET, MIC
FRONT C.B
MAIN C.B
8HJ7A4sizeJ.p65 98/09/23, Œß‘O 09:00Page 4 AdobePageMaker6.5J/Win

5


MIC CHASSIS
MIC
GND
MIC
MIC
KNOB,
RTRY TUN
BAT, CONTACT (+)
Connector
SFR 51
Motor
FRONT C.B
MAIN C.B
FRONT
C.B
MAIN C.B
8HJ7A4sizeJ.p65 98/09/23, Œß‘O 09:00Page 5 AdobePageMaker6.5J/Win

6

TUN-CAP
KNOB, RTRY TUN
GEAR, TUN
POINTER, TUN
8HJ7A4sizeJ.p65 98/09/23, Œß‘O 09:00Page 6 AdobePageMaker6.5J/Win

7
BLOCK DIAGRAM - 1
8HJ7A4sizeJ.p65 98/09/23, Œß‘O 09:00Page 7 AdobePageMaker6.5J/Win

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
ELECTRCAL MAIN PARTS LIST
IC
87-001-943-080 1F IC,TA8155F
87-A20-532-040 1D IC,LB1977M
87-A20-851-040 1C C-IC,TA2111F
87-017-643-080 1B IC,MM1206XF
87-002-232-080 1C IC,NJM2073M
87-001-371-080 1C IC,LA4533M
87-A20-968-040 -- C-IC,AN 7322S
TRANSISTOR
89-502-094-040 -- C-FET,2SK209Y
87-026-261-080 0E C-TR,RN1404
87-026-225-080 1A FET,2SJ106GR
87-026-263-080 0E C-TR,RN1410
87-A30-060-080 -- C-TR,KTC3875GR
87-A30-159-080 0E C-TR,KTA1298Y
87-A30-061-080 -- C-TR,KTA1504GR
89-112-134-040 -- TR,2SA1213Y
87-026-235-080 0E C-TR,DTC114EK<D,YZ>
89-333-266-080 0E CHIP TR,2SC3326B
DIODE
87-020-027-080 0E CHIP-DIODE 1SS184
87-020-339-080 0E CHIP DIODE,1SS226
MAIN C.B
88-HJ7-616-010 -- FF-CABLE, 10P
BPF101 87-008-406-080 BPF GFMB1<EXCEPT D>
BPF101 81-HW1-628-080 1B CHIP BAND PASE FILTER<D>
C1 87-010-180-080 0E C-CAP,S 1500P-50 BK<D,YZ>
C1 87-010-178-080 CHIP CAP 1000P<YU,YL,YH,YJ>
C2 87-010-180-080 0E C-CAP,S 1500P-50 BK<D,YZ>
C2 87-010-178-080 CHIP CAP 1000P<YU,YL,YH,YJ>
C3 87-016-462-080 0E C-CAP,S 1-16 F
C4 87-016-462-080 0E C-CAP,S 1-16 F
C5 87-010-322-080 0E C-CAP,S 100P-50 CH
C6 87-010-322-080 0E C-CAP,S 100P-50 CH
C7 87-010-177-080 0E C-CAP,S 820P-50 SL
C8 87-010-177-080 0E C-CAP,S 820P-50 SL
C9 87-010-426-080 0E C-CAP,S 0.012-25 K B<D,YZ>
C9 87-010-191-080 CAP,CHIP 0.015<YU,YL,YH,YJ>
C10 87-010-426-080 0E C-CAP,S 0.012-25 K B<D,YZ>
C10 87-010-191-080 CAP,CHIP 0.015<YU,YL,YH,YJ>
C11 87-A10-418-080 0E C-CAP,TN 22-4 A TCF
C12 87-A10-418-080 0E C-CAP,TN 22-4 A TCF
C13 87-010-194-080 0E CAP, CHIP 0.047
C14 87-010-194-080 0E CAP, CHIP 0.047
C15 87-016-462-080 0E C-CAP,S 1-16 F
C16 87-016-462-080 0E C-CAP,S 1-16 F
C17 87-016-462-080 0E C-CAP,S 1-16 F
C18 87-016-462-080 0E C-CAP,S 1-16 F
C20 87-012-140-080 0E CAP 470P
C21 87-010-178-080 0E CHIP CAP 1000P
C22 87-A10-584-080 1A C-CAP,TN 100-4V
C23 87-A10-422-080 0E C-CAP,TN 10-4 A TCF
C24 87-A10-422-080 0E C-CAP,TN 10-4 A TCF
C25 87-016-462-080 0E C-CAP,S 1-16 F
C26 87-016-462-080 0E C-CAP,S 1-16 F
C27 87-010-179-080 0E CAP,CHIP S B1200P
C28 87-010-179-080 0E CAP,CHIP S B1200P
C29 87-010-503-040 0E CAP,E 220-4 GAS
C30 87-016-461-080 0E C-CAP,S 0.47-16F
C31 87-016-462-080 0E C-CAP,S 1-16 F
C32 87-A10-418-080 0E C-CAP,TN 22-4 A TCF
C33 87-016-462-080 0E C-CAP,S 1-16 F Z<D,YZ>
C34 87-016-462-080 0E C-CAP,S 1-16 F Z<D,YZ>
C36 87-A10-418-080 0E C-CAP,TN 22-4 A TCF
C51 87-A10-201-080 0E C-CAP,S0.33-16 KB
C53 87-016-669-080 0E C-CAP,S 0.1-25 K B
C54 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C55 87-016-526-080 0E C-CAP,S 0.47-16 BK
C56 87-010-992-080 0E C-CAP,S 0.047-25 B
C57 87-010-503-040 0E CAP,E 220-4 GAS
C58 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C59 87-016-669-080 0E C-CAP,S 0.1-25 K B
C60 87-016-669-080 0E C-CAP,S 0.1-25 K B
C61 87-016-669-080 0E C-CAP,S 0.1-25 K B
C101 87-010-145-080 C-CAP,S 1P-50 CH<YU,YL,YH,YJ>
C101 87-010-147-080 0E C-CAP,S 3P-50 CH<D,YZ>
C102 87-012-150-080 C-CAP,S 20P-50 CH<YU,YL,YH,YJ>
C102 87-010-314-080 0E C-CAP,S 22P-50 CH<D,YZ>
C103 87-010-312-080 0E C-CAP,S 15P-50 CH<D>
C103 87-012-159-080 C-CAP,S 24P-50 CH<YU,YL,YH,YJ>
C103 87-010-315-080 C-CAP,S 27P-50 CH<YZ>
C104 87-010-150-080 C-CAP,S 6P-50 CH<YU>
C104 87-010-152-080 0E C-CAP,S 8P-50 CH<EXCEPT YU>
C105 87-010-197-080 0E CAP, CHIP 0.01 DM
C106 87-016-462-080 0E C-CAP,S 1-16 F
C107 87-010-178-080 0E CHIP CAP 1000P
C108 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C109 87-016-462-080 0E C-CAP,S 1-16 F
C110 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C111 87-010-426-080 0E C-CAP,S 0.012-25 B
C112 87-010-426-080 0E C-CAP,S 0.012-25 B
C113 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F
C114 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F
C115 87-016-462-080 0E C-CAP,S 1-16 F
C116 87-A10-466-080 0E C-CAP,TN 3.3-6.3 A TCF
C117 87-016-461-080 0E C-CAP,S 0.47-16F
C118 87-010-178-080 0E CHIP CAP 1000P
C119 87-010-503-040 0E CAP,E 220-4 GAS
C120 87-010-197-080 0E C-CAP,S 0.01 B K
C123 87-010-149-080 C-CAP,S 5P CH<YZ>
C125 87-010-178-080 C-CAP,S 1000P-50 BK<EXCEPT D>
C126 87-010-174-080 0E C-CAP,S 470P-50 SL
C129 87-010-175-080 0E C-CAP,S 560P-50 SL
C132 87-010-322-080 C-CAP,S 100P-50 SL<YL,YH,YJ,YZ>
C133 87-010-322-080 0E C-CAP,S 100-50 CH<EXCEPT YU>
C401 87-012-142-080 0E CAP, S 0.33-16
C402 87-012-142-080 0E CAP, S 0.33-16
C404 87-016-462-080 0E C-CAP,S 1-16 F
C451 87-016-462-080 0E C-CAP,S 1-16 F
C501 87-016-462-080 C-CAP,S 1-16 F<YZ>
C502 87-016-462-080 0E C-CAP,S 1-16 F
C503 87-010-197-080 0E CAP, CHIP 0.01 DM
C504 87-010-942-080 0E E/CAP GAS 47-4
C651 87-010-589-040 -- CAP,E 330-2
C653 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F
C654 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F
C655 87-016-468-080 -- C-CAP,TN 33-4 F93 B
C656 87-010-178-080 0E CHIP CAP 1000P
C657 87-010-822-040 0E CAP,E 220-4 MMJ
C701 87-A10-418-080 0E C-CAP,TN 22-4 A TCF
C702 87-010-197-080 0E CAP, CHIP 0.01 DM
C703 87-010-184-080 0E CHIP CAPACITOR 3300P(K)
C704 87-010-197-080 0E CAP, CHIP 0.01 DM
C705 87-010-183-080 0E C-CAP,S 2700P B K
C706 87-010-197-080 0E CAP, CHIP 0.01 DM
C707 87-012-156-080 0E C-CAP,S 220-50 CH
C708 87-010-197-080 0E CAP, CHIP 0.01 DM
C709 87-010-501-040 0E E/CAP GAS 47-4
C710 87-A10-419-080 0E C-CAP,TN 1-16 A TCF
C711 87-A10-419-080 0E C-CAP,TN 1-16 A TCF
C712 87-010-198-080 0E C-CAP,S 0.022-25 K B
C713 87-010-198-080 0E C-CAP,S 0.022-25 K B
C714 87-016-462-080 0E C-CAP,S 1-16 F
8
8HJ7A4sizeJ.p65 98/09/23, Œß‘O 09:00Page 8 AdobePageMaker6.5J/Win

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
910
TRANSISTOR ILLUSTRATION
CE
B
2SA1213
C
E
B
2SC3326
DTC114
KTA1298
KTA1504
KTC3875
RN1404
RN1410
SD
G
2SJ106
2SK209
C715 87-016-462-080 0E C-CAP,S 1-16 F
C716 87-A10-422-080 0E C-CAP,TN 10-4 A TCF
C751 87-016-462-080 0E C-CAP,S 1-16 F
C752 87-016-462-080 0E C-CAP,S 1-16 F
C753 87-010-426-080 0E C-CAP,S 0.012-25 BK<D,YZ>
C753 87-010-193-080 C-CAP 0.033<YU,YL,YH,YJ>
C755 87-010-426-080 0E C-CAP,S 0.012-25 B
C756 87-012-365-080 0E C-CAP,S 0.027-25 BK<D,YZ>
C756 87-010-195-080 C-CAP,S 0.068-25 F<YU,YL,YH,YJ>
C757 87-A10-422-080 C-CAP,TN 10-4<YU,YL,YH,YJ>
C757 87-A10-418-080 0E C-CAP,TN 22-4 A TCF<D,YZ>
C758 87-010-195-080 0E C-CAP,S 0.068-25 F
C759 87-010-942-080 0E E/CAP GAS 47-4
C760 87-A10-418-080 0E C-CAP,TN 22-4 A TCF
C761 87-010-195-080 0E C-CAP,S 0.068-25 F
CF101 87-A90-849-080 -- C-FLTR,PFWCC 455J3
CF102 87-A90-812-010 -- FLTR,KIT
CON101 87-A60-661-010 -- CONN,3P H (ZR)
J1 87-A60-122-010 0E JACK,DC 3.8
J2 85-HRL-623-010 0E JACK,3.5 ST BLK
J701 87-A60-474-010 -- JACK,3.5MM 5PINSTEREO
L1 87-003-240-080 0E C-COIL,S 3.3UH
L2 87-003-240-080 0E C-COIL,S 3.3UH
L3 87-003-240-080 0E C-COIL,S 3.3UH
L51 87-003-089-010 0E CHOKE COIL
L101 88-HJ7-614-010 -- BAR-ANT,MW
L102 88-HJ7-610-010 COIL,FM RF<EXCEPT D>
L102 88-HJ7-617-010 -- COIL,FM RF D<D>
L103 88-HJ7-611-010 COIL,FM OSC<EXCEPT D>
L103 88-HJ7-618-010 -- COIL,FM OSC D<D>
L104 87-A50-288-080 -- C-COIL,AM OSC 270UH
L105 87-A90-934-010 -- IFT,MW 5L H6.4
L601 87-003-089-010 0E CHOKE COIL
L651 87-003-089-010 0E CHOKE COIL
L701 87-A50-289-080 -- C-COIL,OSC 50 KHZ
LED451 87-A90-276-080 0E C-LED,SML-210MT GRN
LED452 87-A90-711-080 -- C-LED,SML-210YTT YEL
LED453 87-A90-278-080 0E C-LED,SML-210VT RED
M701 82-TP3-609-010 1C ECM
PVC1 87-A90-851-010 TUN-CAP,7.5-20P<EXCEPT D>
PVC1 87-A90-899-010 -- TUN-CAP,7.5-40P<D>
SFR51 87-A90-734-080 -- C-SFR,33K B RH03AXAN4X
SW1 87-A90-850-010 -- SW,SL 2-2-3 SSSS8
SW2 87-036-123-080 0E CHIP SLIDE SWITCH,1-1-2
SW3 87-A90-423-010 -- SW,LEAF
SW4 87-A90-564-010 -- SW,LEAF MUTE
SW5 87-A90-422-010 -- SW,SL 2-2-2
SW51 87-036-123-080 0E CHIP SLIDE SWITCH,1-1-2
SW501 87-036-145-080 CHIP SWITCH SLIDE 1-1-3<YZ>
SW701 87-036-082-010 1A SLIDE SWITCH, 2-2-2
TH51 87-A90-542-080 -- C-THMS,NTH5G2M35A472K04TE
VR1 87-A90-915-080 -- VR,RTRY 20KCX2
FRONT C.B
C601 87-010-197-080 0E CHIP CAPACITOR S 0.01-25 BK
C602 87-010-197-080 0E CHIP CAPACITOR S 0.01-25 BK
C603 87-010-184-080 0E C-CAP,S 3300P-50 BK
C604 87-010-184-080 0E C-CAP,S 3300P-50 BK
C605 87-010-197-080 0E CAP, CHIP 0.01 DM
C606 87-010-197-080 0E CAP, CHIP 0.01 DM
C607 87-A10-422-080 0E C-CAP,TN 10-4 A TCF
C608 87-A10-422-080 0E C-CAP,TN 10-4 A TCF
C609 87-010-197-080 0E CAP, CHIP 0.01 DM
C610 87-010-197-080 0E CAP, CHIP 0.01 DM
C611 87-016-461-080 0E C-CAP,S 0.47-16F
C612 87-016-461-080 0E C-CAP,S 0.47-16F
C613 87-010-197-080 0E CAP, CHIP 0.01 DM
C614 87-010-197-080 0E CAP, CHIP 0.01 DM
C615 82-HJ5-612-010 0E CAP,E 470-4 3.5MM
SP601 88-HJ7-613-010 -- SPKR, 8OHM
SP602 88-HJ7-613-010 -- SPKR, 8OHM
SW601 87-036-146-080 1A C-SLIDE SWITCH 1-1-4
HEAD FLEX C.B
PH1 88-HJ7-615-010 1H HEAD ASSY,7ZM-5 R3N
BAR ANT C.B
88
1608
2125
3216
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
:A
:A
0.55
Resistor
Dimensions

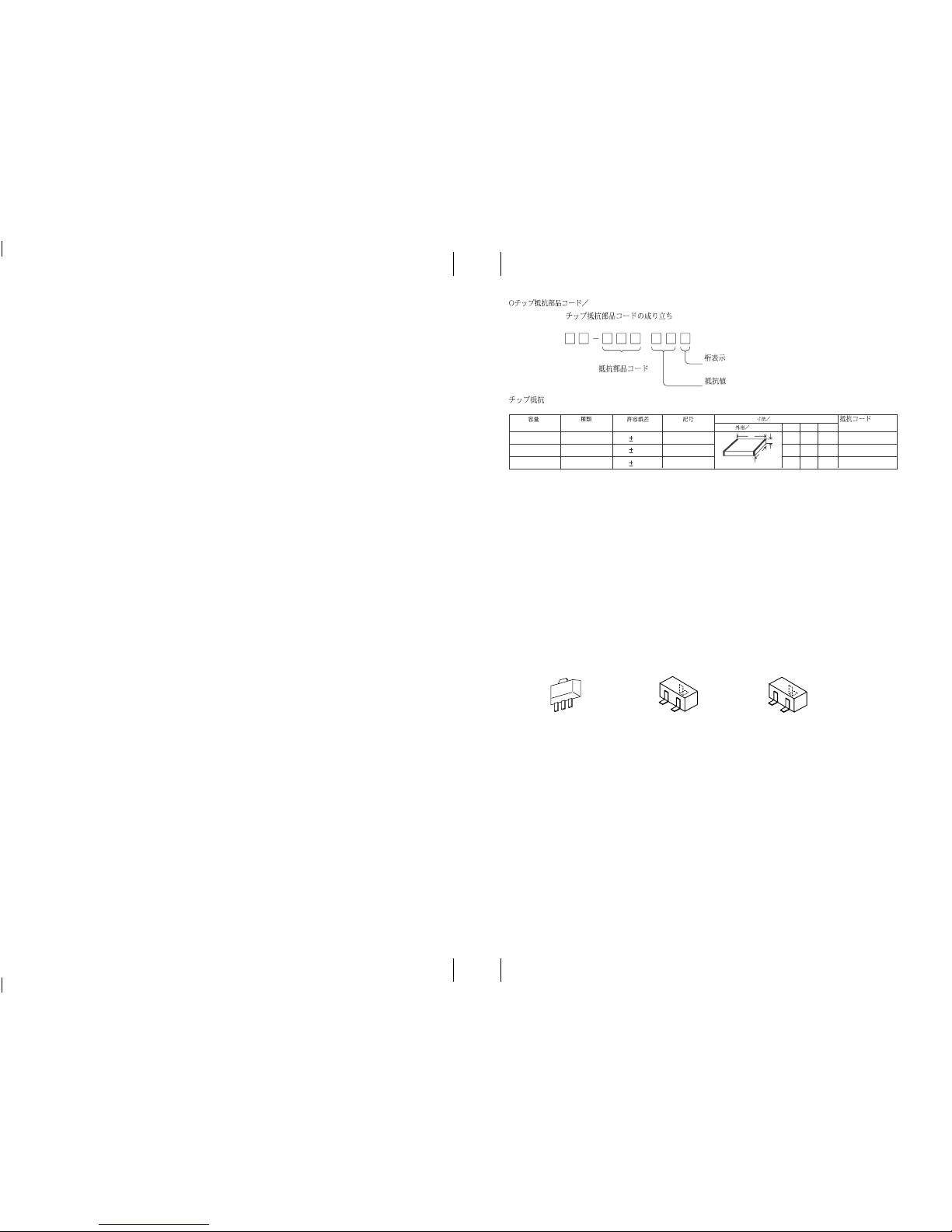

CHIP RESISTOR PART CODE
Chip Resistor Part Coding
A
Resistor Code Figure
Value of resistor
Chip resistor
Wattage
1/16W
1/10W
1/8W
Type Tolerance
5%
5%
5%
Symbol
CJ
CJ
CJ
Form
Lt
W
L
W
t

11 12
SCHEMATIC DIAGRAM - 2 <MAIN : D, YZ>

13 14
WIRING - 1 <MAIN : D, YZ>
8HJ7A3sizeJ.p65 98/09/23, Œß‘O 08:533

15 16

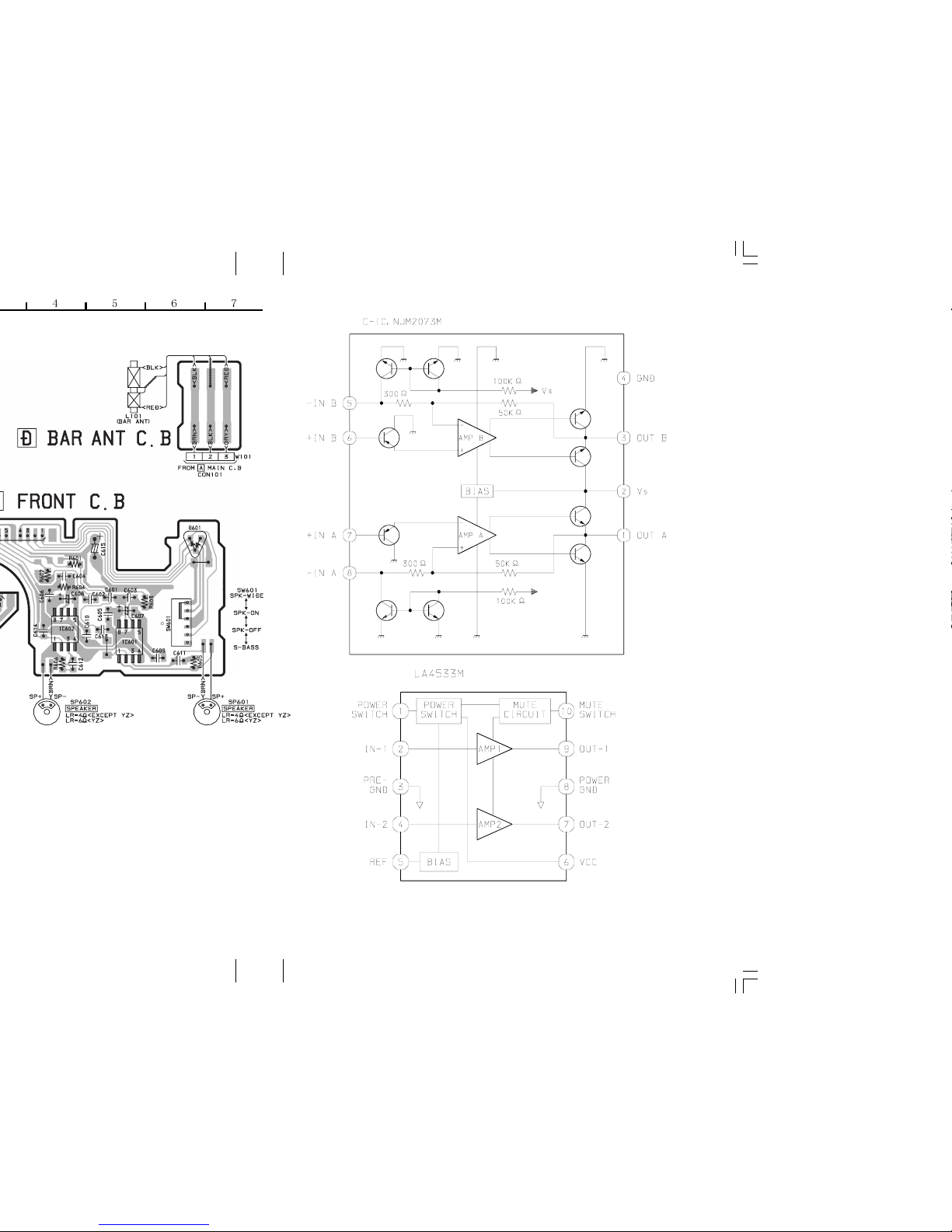

WIRING - 2 <FRONT> IC BLOCK DIAGRAM - 2
8HJ7A3sizeJ.p65 98/09/23, Œß‘O 08:564

PRACTICAL SERVICE FIGURE
<TUNER SECTION>
Sensitivity :
(IHF, THD 3%) F M Less than 19dB
[at 76 / 90 / 108MHz]<D>
[at 88 / 96 / 108MHz]<EXCEPT D>
(S/N 10dB) A M Less than 59dB [at 600kHz]
Less than 59dB [at 1000kHz]
Less than 56dB [at 1400kHz]
Intermediate frequency : F M 10.7MHz ± 0.1MHz
A M 455kHz ± 3kHz
FM stereo separation : More than 16dB
[at 98.0MHz]<EXCEPT D>
[at 90MHz]<D>
<TAPE SECTION>
Tape speed : 3015Hz ± 60Hz
Wow & flutter : Less than 0.45% (RMS)
Take-up torque : 23 ~ 40g-cm (FWD, REV)
F.F torque : 80 ~ 150g-cm
Rew torque : 80 ~ 150g-cm
Back tension : 1.5 ~ 4.5g-cm (FWD, REV)
S/N ratio : More than 43dB (PB, DC)
More than 23dB (REC/PB, DC)
Distortion : Less than 3% (PB, DC)
Less than 10% (REC/PB, DC)
Noise level : Less than 7.0mV
(Vol MAX, PB, DC)
Less than 22.0mV
(VOL MAX, REC/PB, DC)
Frequency response : 63Hz + 1/-6dB ~ 8kHz + 4/-4dB
(NORMAL)
63Hz + 1/-6dB ~ 10kHz + 4/-4dB
(CrO2, METAL)
Test tape : TTA 100
TTA 210
TTA 320 (120µ)/310 (70µ)
TTA 602
17
SFR 51
AMAIN C.B
PHONES
L104
L103 PVC1
TC103
TC101
TC104
TC102
(BAR ANT)
J2
L102
L105
1
2
3
3
L101
5
4
62
6
ADJUSTMENT<D>
8HJ7A4sizeJ.p65 98/09/23, Œß‘O 09:00Page 9 AdobePageMaker6.5J/Win

MECHANICAL EXPLODED VIEW 1 / 1
18
1
HS-JS385
B
17
18
MAIN C.B
D
A
A
CHAS,TUN
19
20
E
21
22
7
6
8
9
5
C
A
10
7ZM-5 R3N
15
14
13
11
12
16
2
3
BAR ANT C.B
L101
C
4
24
23
25
26
27
FRONT C.B
B
B
CB
28
33
34
31
32 a
30
29
AA
35
36 M701
37
38
27
27 SP601
SP602
B
B
A
A
a
8HJ7A4sizeJ.p65 98/09/23, Œß‘O 09:00Page 10 AdobePageMaker6.5J/Win

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
MECHANICAL PARTS LIST 1 / 1
1 88-HJ7-005-010 -- WINDOW,CASS
2 88-HJ7-001-010 -- LID,CASS
3 83-HRJ-202-010 0E T-SP,CLICK
4 88-HJ7-213-010 -- HLDR,BAR-ANT
5 88-HJ7-040-010 -- PLATE,IND DIR
6 81-HK9-208-210 0E SPR-P,CASS A
7 88-HJ7-002-010 FRAME,CTR<YU,YL,YH,YJ>
7 88-HJ7-029-010 1C FRAME,CTR S<D>
7 88-HJ7-028-010 FRAME,CTR YZ<YZ>
8 88-HJ7-021-010 -- KNOB,SL DIR
9 88-HJ7-020-010 -- KNOB,SL PAUSE
10 88-HJ7-209-010 -- HLDR,BAT
11 88-HJ7-009-010 -- BTN,REC
12 88-HJ7-010-010 -- BTN,PLAY
13 88-HJ7-011-010 -- BTN,STOP
14 88-HJ7-012-010 -- BTN,REW
15 88-HJ7-013-010 -- BTN,FF
16 88-HJ7-210-010 -- LEVER,PAUSE
17 88-HJ7-207-010 -- BAT-CONTACT,+
18 88-HJ7-208-010 -- BAT-CONTACT,-
19 88-HJ7-205-010 -- COVER, TUN
20 88-HJ7-015-010 -- KNOB,RTRY TUN
21 88-HJ7-014-010 -- POINTER,TUN
22 88-HJ7-202-010 -- GEAR,TUN
23 88-HJ7-045-010 -- KNOB,SL FM
24 88-HJ7-018-010 KNOB,SL EGS<YZ>
25 88-HJ7-032-010 CABI,FR<YU,YL,YH,YJ>
25 88-HJ7-033-010 1B CABI,FR S<D>
25 88-HJ7-003-010 CABI,FR YZ<YZ>
26 88-HJ7-004-010 -- LID,BAT
27 88-HJ7-214-010 -- HLDR,SPKR
28 88-HJ7-022-010 -- LENS,LED
29 88-HJ7-217-010 0E GAUZE PANEL,L
30 88-HJ7-216-010 0E GAUZE PANEL,R
31 88-HJ7-007-010 PANEL,SPKR<EXCEPT D>
31 88-HJ7-042-010 1H PANEL,SPKR S<D>
32 88-HJ7-016-010 -- KNOB,SL SB
33 88-HJ7-006-010 WINDOW,TUN<YL,YH,YJ>
33 88-HJ7-036-010 -- WINDOW,TUN S<D>
33 88-HJ7-034-010 WINDOW,TUN WYU<YU>
33 88-HJ7-035-010 WINDOW,TUN YZ<YZ>
34 88-HJ7-017-010 -- KNOB,SL FN
35 88-HJ7-008-010 -- NET,MIC
36 88-HJ7-203-010 -- HLDR,MIC
37 88-HJ7-212-010 -- CUSHION,MIC
38 88-HJ7-204-010 -- COVER, MIC
A 87-067-384-010 0E SCREWVT1.4-3.5HL
B 87-067-732-010 0E TAPPING SCREW, VT1.4-3
C 87-067-527-010 0E SCREW,VT+1.4-2.5(B)
D 87-266-533-310 0E SCREW V+1.7-6
E 87-264-525-310 0E SCREW, V+1.7-2.5
19 20
SPRING APPLICATION POSITION
87-ZM5-368-010
SPR-T,PLAY L REC
87-ZM5-374-010
SPR-T,LEVER LOCK REC
87-ZM5-378-010
SPR-C, GEAR REC
87-ZM5-361-010
SPR-T, PINCH L REC 87-ZM5-362-010
SPR-T, PINCH R REC
87-ZM5-277-310
SPR-C, SLIP 2
87-ZM5-250-310
SPR-T, LEVER T-UP 87-ZM5-379-010
SPR-T, REW REC
87-ZM5-247-010
SPR-T, AUTO 2
87-ZM5-245-110
SPR-T, DIR
87-ZM5-246-110
SPR-T, AUTO
87-ZM5-243-010
SPR-T, FF
87-ZM5-378-010
SPR-C, GEAR REC
87-ZM5-363-010
SPR-T, REC SEARCH L
87-ZM5-366-110
SPR-T, REC OFF
87-ZM5-367-010
SPR-T, HEAD POSITION L
87-ZM5-377-010
SPR-T, HEAD POSITION R
87-ZM5-364-010
SPR-T, RVS REC SLE
87-ZM5-365-010
SPR-T,BTN REC

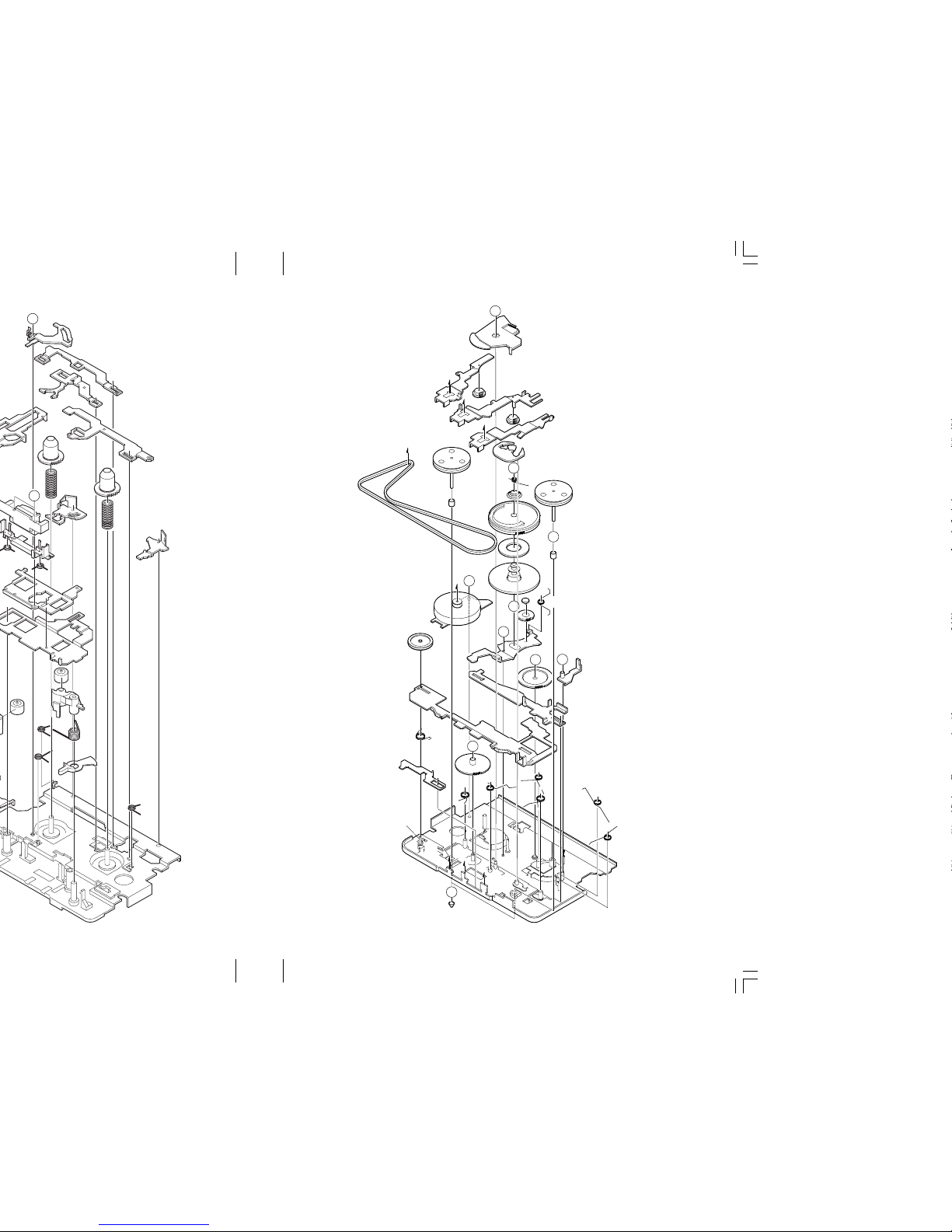

MECHANISM EXPLODED VIEW 1 / 1
21 22
A
1
2
34
9
8
4
C
5
6
6
7
7
HEAD FLEX. C.B
44
A
52
51
53
10
46
48
49
47
55
56
57
58
54
60
59
A
A
E
G
a
b
c
abc
40
B
33
39
37
36
35
34
13
14
15
16
17
12 20
18
19 38
21
22
23
24
A
25
26
27 28
28
29 30
31
E
43
41
42
42
32
d
d
11
A
45
45
fe
D
62
61
H
50
8HJ7A3sizeJ.p65 98/09/23, Œß‘O 08:566

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
TAPE MECHANISM PARTS LIST 1 / 1
23
1 87-ZM5-314-110 0E LEVER,MODE SEL REC
2 87-ZM5-361-010 0E SPR-T,PINCH L REC
3 87-ZM5-351-010 0E ARM,PINCH L REC
4 87-ZM5-279-110 0E ROLLER ASSY,PINCH L
5 87-ZM5-324-110 1A LEVER,PLAY MS
6 87-ZM5-378-010 0E SPR-C,BT REC
7 87-ZM5-354-110 0E GEAR,REEL REC
8 87-ZM5-352-010 0E ARM,PINCH R REC
9 87-ZM5-362-010 0E SPR-T,PINCH R REC
10 87-ZM5-391-010 0E BTN,DIR KNOB R3
11 87-ZM5-221-110 0E GEAR,IDL A
12 87-ZM5-222-210 0E GEAR,IDL B
13 87-ZM5-339-010 1A LEVER ASSY,DIR TP
14 85-ZM1-212-110 0E PULLY PM 2
15 87-ZM5-335-110 0E LEVER,LOCK REC
16 M8-6ZS-391-000 1H ABL-63B
17 87-ZM5-208-310 0E LEVER ASSY,T-UP
18 87-ZM5-223-010 0E GEAR,PLAY
19 87-ZM5-259-210 0E CAP,PLAY
20 87-ZM5-216-010 0E LEVER,PLAY SW
21 87-ZM5-359-010 0E GEAR,SLIP REC
22 87-ZM5-229-010 0E FELT,CLUTCH
23 87-ZM5-344-010 0E GEAR,SLIP REC
24 87-ZM5-277-310 0E SPR-C,SLIP 2
25 87-ZM5-246-110 0E SPR-T,AUTO
26 87-ZM5-214-410 0E LEVER,AUTO
27 87-ZM5-204-310 1A LEVER ASSY,FF
28 87-ZM5-225-410 0E GEAR,FF/REW
29 87-ZM5-349-110 1A LEVER ASSY,REW REC
30 87-ZM5-332-110 0E LEVER,STOP REC
31 87-ZM5-261-610 0E LEVER,AUTO 2 S
32 87-ZM5-253-010 0E BELT,MAIN
33 87-ZM5-258-010 0E CAP,CAPSTAN
34 87-ZM5-245-110 0E SPR-T,DIR
35 87-ZM5-243-010 0E SPR-T,FF
36 87-ZM5-247-010 0E SPR-T,AUTO 2
37 87-ZM5-379-010 0E SPR-T,REW REC
38 87-ZM5-250-310 0E SPR-T,LEVER T-UP
39 87-ZM5-374-010 0E SPR-T,LEVER LOCK REC
40 87-ZM5-368-010 0E SPR-T,PLAY L REC
41 87-ZM5-236-010 1A FLY-WHL,R
42 87-ZM5-345-010 1A CAPSTAN,REC 1.8-0
43 87-ZM5-235-010 1A FLY-WHL,L
44 87-ZM5-301-410 1C CHAS ASSY,OUT-SERT REC
45 87-ZM5-260-110 0E CLR,BEARING
46 87-ZM5-329-010 0E LEVER,HEAD
47 87-ZM5-313-110 0E HLDR,HEAD
48 87-ZM5-367-010 0E SPR-T,HEAD POSITION L
49 87-ZM5-377-010 0E SPR-T,HEAD POSITION R
50 87-ZM5-240-110 0E SHAFT,PULLEY
51 87-ZM5-364-010 0E SPR-T,RVS REC SLE
52 87-ZM5-366-110 0E SPR-T,REC OFF
53 87-ZM5-363-010 0E SPR-T,REC SEARCH L
54 87-ZM5-311-010 0E LEVER,REC OFF
55 87-ZM5-336-110 1A LEVER,BTN TP REC
56 87-ZM5-323-010 0E LEVER,REC GUARD
57 87-ZM5-328-010 0E LEVER,TRANSMIT
58 87-ZM5-327-010 0E LEVER,RVS REC SEL
59 87-ZM5-322-010 0E LEVER,REC SEARCH R
60 87-ZM5-321-010 0E LEVER,REC SEARCH L
61 87-ZM5-365-010 0E SPR-T,BTN REC
62 87-ZM5-330-010 0E LEVER,CUE REV
A 87-B10-136-010 0E W-P,1.09-3.1-0.4
B 87-B10-070-010 0E W-P,1.55-2.9-0.25 SLIT
C 87-ZM5-385-010 0E S-SCREW,EH+1.4-10.1
D 87-B10-180-010 0E W-L,2.5-3.2-0.05 RED
E 87-B10-135-010 0E W-P,1.17-3-0.35
E 87-B10-151-010 0E W-PVC,1.09-3.1-0.3
G 87-ZM5-271-110 0E S-SCREW,1.4-2.6 -STP
H 87-B10-107-010 0E W-L,1.96-4.2-0.1
8HJ7A4sizeJ.p65 98/09/23, Œß‘O 09:00Page 11 AdobePageMaker6.5J/Win

211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
L
Printed in Singapore
A4
9630472 931261
8HJ7A4sizeJ.p65 98/09/23, Œß‘O 09:00Page 12 AdobePageMaker6.5J/Win
