SERVICE MANUAL

DATA

• BASIC TYPE MECHANISM: 8ZM-3 P2N,

P6NF,P7NF

HS-TX506

HS-TX606

YU,YZ,YL,YH,YJ

STEREO CASSETTE PLAYER

S/M Code No. 09-001-427-4T1

SIMPLE

•Replace this Service Manual with “Revision Publishing” when it is issued.

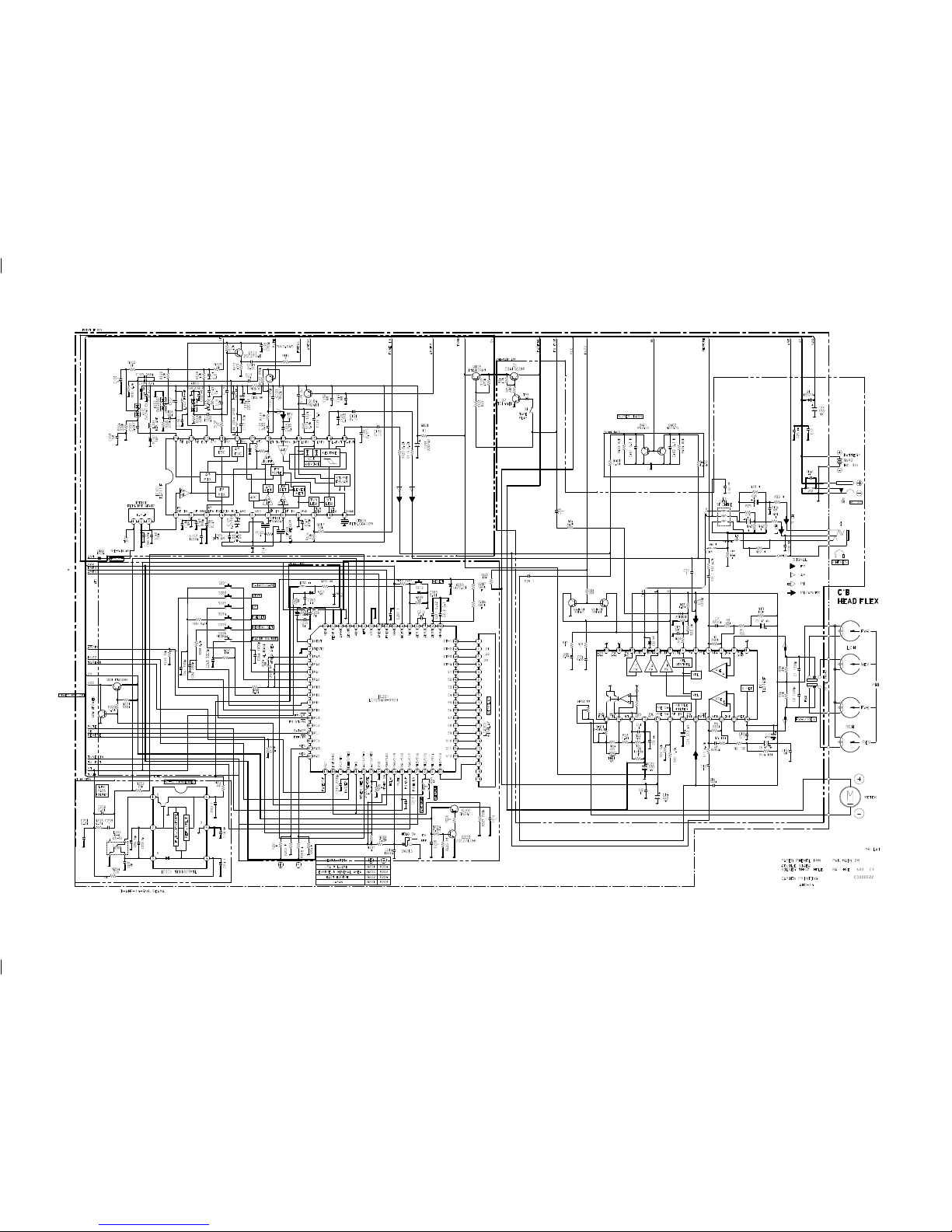

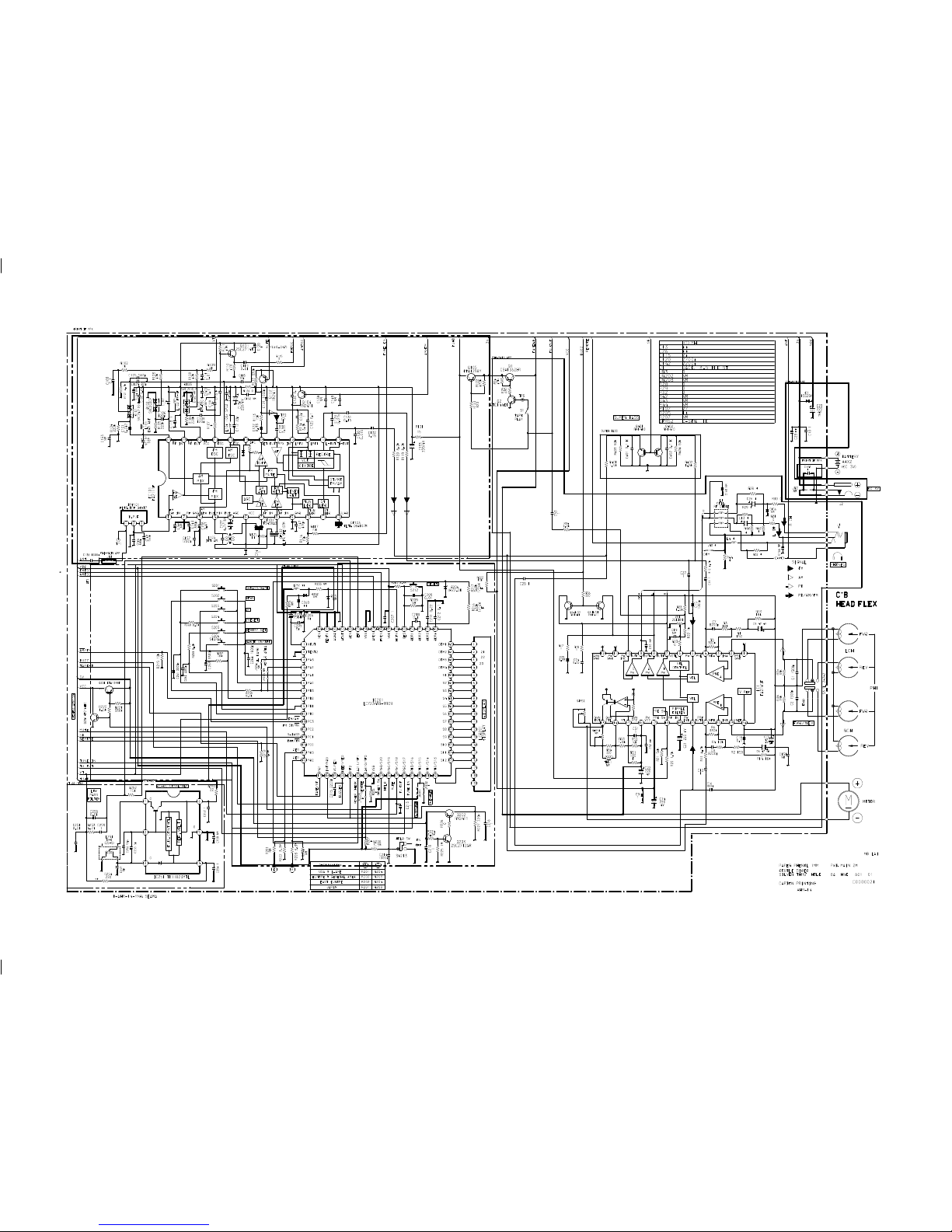

ELECTRICAL PARTS LIST - 1/2

NOTE: The characters in the suffix column indicate the part usage.

506YUBSF ...............XX..................................A...................

506YL1BSF ..............XX...................................B..................

606YZ1BSF ..............XX....................................C.................

506YL1SF ...............XX.....................................D................

506YH1SF ...............XX......................................E...............

506YLBSF ...............XX.......................................F..............

506YZ1BSF ..............XX........................................G.............

506YZ1BLMF .............XX.........................................H............

506YJ1LMF ..............XX..........................................I...........

506YZ1SF ...............XX...........................................J..........

506YZ1LMF ..............XX............................................K.........

606YZ1SF ...............XX.............................................L........

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 1 87-012-276-080 CAP, CHIP SS 1500 PBK ABCDEFGHIJKL........

C 2 87-012-276-080 CAP, CHIP SS 1500 PBK ABCDEFGHIJKL........

C 7 87-012-285-080 C-CAP,U 8200P-50 B ABCDEFGHIJKL........

C 8 87-012-285-080 C-CAP,U 8200P-50 B ABCDEFGHIJKL........

C 9 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 6 87-A11-189-080 C-CAP,TN 47-4 BM004R ABCDEFGHIJKL........

C 5 87-A11-189-080 C-CAP,TN 47-4 BM004R ABCDEFGHIJKL........

C 14 87-010-503-040 CAP,E 220-4 GAS ABCDEFGHIJKL........

C 13 87-010-503-040 CAP,E 220-4 GAS ..C........L........

C 16 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGHIJKL........

C 15 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGHIJKL........

C 18 87-A10-263-080 C-CAP,U 0.1-16ZF ABCDEFGHIJKL........

C 10 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 17 87-A11-189-080 C-CAP,TN 47-4 BM004R ABCDEFGHIJKL........

C 26 87-010-503-040 CAP,E 220-4 GAS ..C........L........

C 21 87-010-503-040 CAP,E 220-4 GAS ABCDEFGHIJKL........

C 22 87-010-853-080 C-CAP,220-4V H5.5 ABCDEFGHIJKL........

C 23 87-A10-489-040 CAP,E 220-4 7L SR ABCDEFGHIJKL........

C 25 87-A10-706-080 C-CAP,U 0.33U-16 F Z ABCDEFGHIJKL........

C 24 87-A10-706-080 C-CAP,U 0.33U-16 F Z ABCDEFGHIJKL........

C 27 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 28 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 51 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

D 1 87-001-142-080 DIODE,1SS294 (100MA) ABCDEFGHIJKL........

IC 1 87-A21-387-040 C-IC,TA2145F ABCDEFGHIJKL........

J 1 87-A60-437-010 JACK,3.5 BLK ST W/O SW 4P(1637 ..C........L........

J 1 87-A60-438-010 JACK,3.5 BLK ST W/O SW (1537) AB.DEFGHIJK.........

J 2 87-A61-124-010 JACK,DC DIA2.75 BLK TC ....E...............

L 4 87-003-240-080 C-COIL,S 3.3UH ..C........L........

L 1 87-A50-038-010 COIL,RF CHOKE ABCDEFGHIJKL........

Q 2 87-026-210-080 CHIP-TR,DTC144EK ABCDEFGHIJKL........

Q 3 87-026-264-080 C-TR,RN1411 ABCDEFGHIJKL........

Q 4 87-026-264-080 C-TR,RN1411 ABCDEFGHIJKL........

Q 1 87-A30-085-070 C-TR,CSA1362GR ABCDEFGHIJKL........

R 51 87-022-335-080 C-RES,S180-1/10W F ABCDEFGHIJKL........

S 1 87-A91-077-010 SW,LEAF ABCDEFGHIJKL........

S 3 87-A91-191-010 SW,SL 2-2-2 SK22D04 ABCDEFGHIJKL........

SFR 51 87-A91-571-080 C-SFR,1K V RH03AVA ABCD.FGHIJKL........

SFR 52 87-A91-571-080 C-SFR,1K V RH03AVA ....E...............

VR 1 87-A91-581-010 VR,RTRY 20KBX1 ABCDEFGHIJKL........

BPF 101 87-A91-682-010 FLTR,GFWB7-C1 ABCDEFGHIJKL........

C 107 87-012-162-080 C-CAP,U 1P-50 CK ABCDEFGHIJKL........

C 104 87-012-193-080 C-CAP,U 82P-50 CH ABCDEFGHIJKL........

C 106 87-012-196-080 C-CAP,U 120P-50 CH ABCDEFGHIJKL........

C 108 87-012-196-080 C-CAP,U 120P-50 CH ABCDEFGHIJKL........

C 105 87-012-271-080 CAP, U 560P-50 ABCDEFGHIJKL........

C 102 87-012-286-080 CAP, U 0.01-25 ABCDEFGHIJKL........

C 103 87-A10-263-080 C-CAP,U 0.1-16ZF ABCDEFGHIJKL........

C 101 87-A10-504-080 C-CAP,U 0.047-16 K B ABCDEFGHIJKL........

C 115 87-012-164-080 C-CAP,U 2P-50 CK ABCDEFGHIJKL........

C 110 87-012-172-080 CAPACITOR CHIP U 10P CH ABCDEFGHIJKL........

C 113 87-012-172-080 CAPACITOR CHIP U 10P CH ABCDEFGHIJKL........

C 112 87-012-180-080 C-CAP,U 22P-50 CH ABCDEFGHIJKL........

C 114 87-012-286-080 CAP, U 0.01-25 ABCDEFGHIJKL........

C 119 87-012-286-080 CAP, U 0.01-25 ABCDEFGHIJKL........

C 118 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 129 87-010-784-080 C-CAP,U 0.012-25 B ABCDEFGHIJKL........

C 121 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGHIJKL........

C 120 87-012-279-080 C-CAP,U 2700P-50 B ABCDEFGHIJKL........

C 123 87-A10-025-080 C-CAP,U 0.22-16Z F ABCDEFGHIJKL........

C 122 87-A10-025-080 C-CAP,U 0.22-16Z F ABCDEFGHIJKL........

C 125 87-A10-263-080 C-CAP,U 0.1-16ZF ABCDEFGHIJKL........

C 126 87-A10-263-080 C-CAP,U 0.1-16ZF ABCDEFGHIJKL........

C 127 87-A10-420-080 C-CAP,TN 4.7-4 A TCF ABCDEFGHIJKL........

C 124 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 133 87-010-503-040 CAP,E 220-4 GAS ABCDEFGHIJKL........

C 130 87-010-784-080 C-CAP,U 0.012-25 B ABCDEFGHIJKL........

C 132 87-010-788-080 C-CAP,U 0.033-2.5F ABCDEFGHIJKL........

C 131 87-010-788-080 C-CAP,U 0.033-2.5F ABCDEFGHIJKL........

C 136 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGHIJKL........

C 139 87-A10-263-080 C-CAP,U 0.1-16ZF ABCDEFGHIJKL........

C 134 87-A10-489-040 CAP,E 220-4 7L SR ABCDEFGHIJKL........

C 138 87-A10-827-080 C-CAP,U 0.47-6.3 K B ABCDEFGHIJKL........

C 143 87-012-269-080 C-CAP,U 390P-50 B ABCDEFGHIJKL........

C 147 87-012-270-080 CAP, U 470P-50 ABCDEFGHIJKL........

ELECTRICAL PARTS LIST - 2/2

C 148 87-012-271-080 CAP, U 560P-50 ABCDEFGHIJKL........

C 146 87-012-272-080 C-CAP,U 680P-50 B ABCDEFGHIJKL........

C 142 87-012-278-080 C-CAP,U 2200P-50 B ....E...............

C 140 87-A10-263-080 C-CAP,U 0.1-16ZF ABCDEFGHIJKL........

C 141 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 157 87-012-275-080 C-CAP,U 1200P-50 B ABCDEFGHIJKL........

CF 101 87-A90-710-010 FLTR,AM IF PFS450A3 ABCDEFGHIJKL........

CF 102 87-A91-728-010 FLTR,KIT KMFC5184-A ABCDEFGHIJKL........

D 101 87-A40-462-040 C-VARI-CAP,SVC347(S) ABCDEFGHIJKL........

D 102 87-A40-484-070 C-VARI-CAP,SVC203CP ABCDEFGHIJKL........

D 103 87-A40-484-070 C-VARI-CAP,SVC203CP ABCDEFGHIJKL........

IC 101 87-A20-851-040 C-IC,TA2111F ABCDEFGHIJKL........

L 104 87-005-742-080 COIL,100UH J SP02 ABCDEFGHIJKL........

L 105 87-A90-663-010 IFT,MW 5L H6.4 ABCDEFGHIJKL........

L 102 8A-HRE-604-010 COIL,FM RF ABCDEFGHIJKL........

L 103 8A-HRE-605-010 COIL,OSC FM ABCDEFGHIJKL........

L 101 8Z-HRC-605-010 BAR-ANT,MW ABCDEFGHIJKL........

Q 102 87-026-268-080 C-TR,RN2411 ABCDEFGHIJKL........

Q 104 87-026-268-080 C-TR,RN2411 ABCDEFGHIJKL........

Q 105 87-A30-159-080 C-TR,KTA1298Y ABCDEFGHIJKL........

Q 101 89-327-143-080 TR,2SC2714 (0.1W) ABCDEFGHIJKL........

VC 101 87-A91-183-080 C-TRIMMER,CER 10P TZC03 ABCDEFGHIJKL........

C 259 87-010-452-080 CAPACITOR,1-16 ABCDEFGHIJKL........

C 255 87-012-167-080 C-CAP,U 5P-50 CH ABCDEFGHIJKL........

C 257 87-012-170-080 C-CAP,U 8P-50 CH ABCDEFGHIJKL........

C 258 87-012-286-080 CAP, U 0.01-25 ABCDEFGHIJKL........

C 251 87-012-286-080 CAP, U 0.01-25 ABCDEFGHIJKL........

C 256 87-012-337-080 C-CAP,U 56P-50 CH ABCDEFGHIJKL........

C 254 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 252 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

IC 251 87-A20-904-080 C-IC,TK11823MTL ABCDEFGHIJKL........

L 251 87-A50-443-080 C-COIL,D-D(C5-S) ABCDEFGHIJKL........

C 205 87-012-170-080 C-CAP,U 8P-50 CH ABCDEFGHIJKL........

C 206 87-012-170-080 C-CAP,U 8P-50 CH ABCDEFGHIJKL........

C 209 87-012-286-080 CAP, U 0.01-25 ABCDEFGHIJKL........

C 207 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 214 87-012-274-080 CHIP CAP,U 1000P-50B ABCDEFGHIJKL........

C 215 87-012-278-080 C-CAP,U 2200P-50 B ABCDEFGHIJKL........

C 211 87-A10-025-080 C-CAP,U 0.22-16Z F ABCDEFGHIJKL........

C 212 87-A10-263-080 C-CAP,U 0.1-16ZF ABCDEFGHIJKL........

C 210 87-A10-263-080 C-CAP,U 0.1-16ZF ABCDEFGHIJKL........

C 213 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 216 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 218 87-A11-056-080 C-CAP,U 1-10 Z F ABCDEFGHIJKL........

C 264 87-012-277-080 C-CAP, U 1800P-50 B ABCDEFGHIJKL........

C 262 87-012-278-080 C-CAP,U 2200P-50 B ABCDEFGHIJKL........

C 261 87-012-278-080 C-CAP,U 2200P-50 B ABCDEFGHIJKL........

C 263 87-012-280-080 CAP, U 3300P-50 ABCDEFGHIJKL........

D 206 87-A40-260-080 C-ZENER,UDZ2.0B ABCDEFGHIJKL........

IC 201 87-A21-595-010 C-IC,LC72349G-9909 ABCDEFGHIJKL........

LCD 201 8A-HRE-603-010 LCD,ASSY(BAND/TU) 17P ABCDEFGHIJKL........

Q 204 87-026-210-080 CHIP-TR,DTC144EK ABCDEFGHIJKL........

Q 202 87-026-268-080 C-TR,RN2411 ABCDEFGHIJKL........

Q 201 87-A30-159-080 C-TR,KTA1298Y ABCDEFGHIJKL........

Q 203 89-327-125-080 CHIP TR,2SC2712GR ABCDEFGHIJKL........

R 207 87-022-289-080 C-RES U180K 1/16WF ..C........L........

R 217 87-022-295-080 C-RES,U 560K-1/16W F ABCDEFGHIJKL........

R 216 87-022-296-080 C-RES,U 680K-1/16W F ABCDEFGHIJKL........

S 206 87-A90-232-080 C-SW,TACT SKQRAA ABCDEFGHIJKL........

SW 213 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 ABCDEFGHIJKL........

X 201 87-A70-173-010 VIB,XTAL 75KHZ DT-261 ABCDEFGHIJKL........

C 401 87-A10-263-080 C-CAP,U 0.1-16ZF ABCDEFGHIJKL........

C 402 87-A10-263-080 C-CAP,U 0.1-16ZF ABCDEFGHIJKL........

Q 401 87-026-263-080 C-TR,RN1410 ABCDEFGHIJKL........

Q 402 87-026-263-080 C-TR,RN1410 ABCDEFGHIJKL........

MECHANICAL PARTS LIST - 1/1
