SERVICE MANUAL
DATA
REVISION
HS-TX506
HS-TX606
YU,YZ,YL,YH,YJ
YZ
STEREO RADIO
CASSETTE PLAYER BASIC TAPE MECHANISM : 8ZM-3 P6NF, P7NF
S/M Code No. 09-003-427-4R1
•This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-001-427-4T1)

• Design and specifications are subject to change without notice.
SPECIFICATIONS
Frequency range: For using in Europe and other countries
AM: 531 - 1,602 kHz (9 kHz step)
FM1, FM2: 87.5 - 108 MHz (50 kHz step)
For using in North and South America
AM: 530 - 1,710 kHz (10 kHz step)
FM1, FM2: 87.5 - 108.1 MHz (200 kHz step)
For using in Japan
AM : 531 - 1,629 kHz (9 kHz step)
FM1, FM2 : 76 - 108 MHz (100 kHz step in 76 - 90 MHz, 50 kHz step in 90 - 108 MHz)<YU>
Maximum output: 4 mW + 4 mW (EIAJ 16 ohms)<YZ>
15 mW + 15 mW (EIAJ 32 ohms)<YU>
Power source: DC 3V using two R6 (AA) dry cell batteries
Battery life
(EIAJ 1 mW output): Aprox. 5 hours using R6P (size AA) manganese batteries
Approx. 24 hours using LR6 (size AA) alkaline batteries
Maximum dimensions: 111.3 (W) x 88 (H) x 32.5 (D) mm
(4 1/2 x 3 1/2 x 1 5/16 in.)
Weight Approx. 141g (4.94 oz) excluding batteries
If can’t understand for Description please kindly refer to “ REFERENCE NAME LIST ”.
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PARTNO.
1 8A-HRE-901-010 IB,YL(3L) IN<YL>
1 8A-HRE-902-010 IB,YJ(EC) IN<YJ>
1 8A-HRE-903-010 IB,YZ(ESF) IN<506YZ>
1 8A-HRE-904-010 IB,YZ (GID) IN<506YZ>
1 8A-HRE-905-010 IB,YZ (PHNCZ) IN<506YZ>
1 8A-HRE-906-010 IB,YU (3L) IN<YU>
1 8A-HRE-908-010 IB,YH (ECC) IN<YH>
1 8A-HRE-909-010 IB,YZ (ESF) 606 IN<606YZ>
1 8A-HRE-910-010 IB,YZ (GID) 606 IN<606YZ>
1 8A-HRE-911-010 IB,YZ (PHNCZ) 606 IN<606YZ>
2 8A-HRE-951-010 RC UNIT,RC606<606YZ>
3 8Z-HRB-050-110 CLIP,BELT ASSY
4 87-B30-255-010 HEADPHONE,HP-M007B (S)
4 87-B30-081-110 HEADPHONE, HP-M009 (S)<YU, [BSF]YL>
4 87-B30-336-010 HEADPHONE,HP-M041 (S)<606YZ>
– 2 –

DESCRIPTION
REF. NO. KANRI
NO.
PARTNO. DESCRIPTIONREF. NO. KANRI
NO.
PARTNO.
ELECTRICAL MAIN PARTS LIST 1 / 1
IC
87-A21-387-040 C-IC,TA2145F
87-A20-851-040 C-IC,TA2111F
87-A21-595-010 C-IC,LC72349G-9909
87-A20-904-080 C-IC,TK11823MTL
TRANSISTOR
87-A30-085-070 C-TR,CSA1362GR
87-026-210-080 C-TR,DTC144EK
87-026-264-080 C-TR,RN1411
89-327-143-080 C-TR,2SC2714O
87-026-268-080 C-TR,RN2411
87-A30-159-080 C-TR,KTA1298Y
89-327-125-080 C-TR,2SC2712GR
87-026-263-080 C-TR,RN1410
DIODE
87-001-142-080 DIODE,1SS294 (100MA)
87-A40-260-080 C-ZENER,UDZ2.0B
MAIN C.B
BPF101 87-A91-682-010 FLTR,GFWB7-C1
C1 87-012-276-080 CAP, CHIP SS 1500P-50
C2 87-012-276-080 CAP, CHIP SS 1500P-50
C5 87-A11-189-080 C-CAP,TN 47-4 BM004R
C6 87-A11-189-080 C-CAP,TN 47-4 BM004R
C7 87-012-285-080 C-CAP,U 8200P-50 B
C8 87-012-285-080 C-CAP,U 8200P-50 B
C9 87-A11-056-080 C-CAP,U 1-10 Z F
C10 87-A11-056-080 C-CAP,U 1-10 Z F
C11 87-A11-056-080 C-CAP,U 1-10 Z F
C12 87-A11-056-080 C-CAP,U 1-10 Z F
C13 87-010-503-040 CAP,E 220-4 GAS<606YZ>
C14 87-010-503-040 CAP,E 220-4 GAS
C15 87-012-274-080 CHIP CAP,U 1000P-50B
C16 87-012-274-080 CHIP CAP,U 1000P-50B
C17 87-A11-189-080 C-CAP,TN 47-4 BM004R
C18 87-A10-263-080 C-CAP,U 0.1-16ZF
C21 87-010-503-040 CAP,E 220-4 GAS
C22 87-010-853-080 C-CAP,220-4V H5.5
C23 87-A10-489-040 CAP,E 220-4 7L SR
C24 87-A10-706-080 C-CAP,U 0.33U-16 F Z
C25 87-A10-706-080 C-CAP,U 0.33U-16 F Z
C26 87-010-503-040 CAP,E 220-4 GAS<606YZ>
C27 87-A11-056-080 C-CAP,U 1-10 Z F
C28 87-A11-056-080 C-CAP,U 1-10 Z F
C51 87-A11-056-080 C-CAP,U 1-10 Z F
C53 87-A11-056-080 C-CAP,U 1-10 Z F
C101 87-A10-504-080 C-CAP,U 0.047-16 K B
C102 87-012-286-080 C-CAP, U 0.01-25
C103 87-A10-263-080 C-CAP,U 0.1-16ZF
C104 87-012-188-080 C-CAP,U 47P-50 CH
C105 87-012-271-080 CAP, U 560P-50
C106 87-012-196-080 C-CAP,U 120P-50 CH
C107 87-012-162-080 C-CAP,U 1P-50 CK
C108 87-012-196-080 C-CAP,U 120P-50 CH
C110 87-012-172-080 C-CAP,U 10P-50 CH
C112 87-012-180-080 C-CAP,U 22P-50 CH
C113 87-012-172-080 C-CAP,U 10P-50 CH
C114 87-012-286-080 C-CAP,U 0.01-25
C115 87-012-164-080 C-CAP,U 2P-50 CK
C118 87-A11-056-080 C-CAP,U 1-10 Z F
C119 87-012-286-080 C-CAP,U 0.01-25
C120 87-012-279-080 C-CAP,U 2700P-50 B
C121 87-012-274-080 C-CAP,U 1000P-50B
C122 87-A10-825-080 C-CAP,U 33-6.3 K B
C123 87-A10-825-080 C-CAP,U 33-6.3 K B
C124 87-A11-056-080 C-CAP,U 1-10 Z F
C125 87-A10-263-080 C-CAP,U 0.1-16ZF
C126 87-A10-263-080 C-CAP,U 0.1-16ZF
C127 87-A10-420-080 C-CAP,TN 4.7-4 A TCF
C129 87-010-785-080 C-CAP,U 0.015-25 B
C130 87-010-785-080 C-CAP,U 0.015-25 B
C131 87-A10-781-080 C-CAP,U 0.015-10 K B
C132 87-A10-781-080 C-CAP,U 0.015-10 K B
C133 87-010-503-040 CAP,E 220-4 GAS
C134 87-A10-489-040 CAP,E 220-4 7L SR
C136 87-012-274-080 CHIP CAP,U 1000P-50B
C138 87-A10-827-080 C-CAP,U 0.47-6.3 K B
C140 87-A10-263-080 C-CAP,U 0.1-16ZF
C141 87-A11-056-080 C-CAP,U 1-10 Z F
C142 87-012-278-080 C-CAP,U 2200P-50 B<YH>
C143 87-012-269-080 C-CAP,U 390P-50 B
C146 87-012-272-080 C-CAP,U 680P-50 B
C147 87-012-270-080 CAP, U 470P-50
C148 87-012-271-080 C-CAP,U 560P-50
C157 87-012-275-080 C-CAP,U 1200P-50 B
C205 87-012-170-080 C-CAP,U 8P-50 CH
C206 87-012-170-080 C-CAP,U 8P-50 CH
C207 87-A11-056-080 C-CAP,U 1-10 Z F
C209 87-012-286-080 C-CAP,U 0.01-25
C210 87-A10-263-080 C-CAP,U 0.1-16ZF
C211 87-A10-025-080 C-CAP,U 0.22-16Z F
C212 87-A10-263-080 C-CAP,U 0.1-16ZF
C213 87-A11-056-080 C-CAP,U 1-10 Z F
C214 87-012-274-080 C-CAP,U 1000P-50B
C215 87-012-278-080 C-CAP,U 2200P-50 B
C216 87-A11-056-080 C-CAP,U 1-10 Z F
C218 87-A11-056-080 C-CAP,U 1-10 Z F
C251 87-012-286-080 C-CAP, U 0.01-25
C252 87-A11-056-080 C-CAP,U 1-10 Z F
C254 87-A11-056-080 C-CAP,U 1-10 Z F
C255 87-012-167-080 C-CAP,U 5P-50 CH
C256 87-012-337-080 C-CAP,U 56P-50 CH
C257 87-012-170-080 C-CAP,U 8P-50 CH
C258 87-012-286-080 C-CAP, U 0.01-25
C259 87-010-452-080 C-CAP, 1-16
C261 87-012-278-080 C-CAP,U 2200P-50 B
C262 87-012-278-080 C-CAP,U 2200P-50 B
C263 87-012-280-080 C-CAP,U 3300P-50
C264 87-012-277-080 C-CAP, U 1800P-50 B
C401 87-A10-260-080 C-CAP,U 0.1-16 K B
C402 87-A10-260-080 C-CAP,U 0.1-16 K B
CF101 87-A90-710-010 FLTR,AM IF PFS450A3
D101 87-A40-462-040 C-VARI-CAP,SVC347(S)
D102 87-A40-484-070 C-VARI-CAP,SVC203CP
D103 87-A40-484-070 C-VARI-CAP,SVC203CP
J1 87-A60-437-010 JACK,3.5 BLK ST W/O SW4P<EXCEPT 606YZ>
J1 87-A60-438-010 JACK,3.5 BLK ST W/O SW<606YZ>
J2 87-A61-124-010 JACK,DC DIA2.75 BLK TC<YH>
L1 87-A50-605-010 COIL,RF CHOKE
L4 87-003-240-080 C-COIL,S 3.3UH<606YZ>
L101 8Z-HRC-605-010 BAR-ANT,MW
L102 8A-HRE-604-010 COIL,FM RF
L103 8A-HRE-605-010 COIL,OSC FM
L104 87-005-742-080 COIL,100UH J SP02
L105 87-A90-663-010 IFT,MW 5L H6.4
L251 87-A50-443-080 C-COIL,D-D(C5-S)
LCD201 8A-HRE-603-010 LCD,ASSY(BAND/TU) 17P
R51 87-022-335-080 C-RES,S180-1/10W F
R207 87-022-289-080 C-RES U180K 1/16WF<606YZ>
R216 87-022-296-080 C-RES,U 680K-1/16W F
R217 87-022-295-080 C-RES,U 560K-1/16W F
S1 87-A91-077-010 SW,LEAF
S3 87-A91-191-010 SW,SL 2-2-2 SK22D04
S206 87-A90-232-080 C-SW,TACT SKQRAA
SFR51 87-A91-571-080 C-SFR,1K V RH03AVA<EXCEPT YH>
SFR52 87-A91-571-080 C-SFR,1K V RH03AVA<YH>
– 3 –

DESCRIPTION
REF. NO. KANRI
NO.
PARTNO. DESCRIPTIONREF. NO. KANRI
NO.
PARTNO.
SW213 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 T1.4
VC101 87-A91-183-080 C-TRIMMER,CER 10P TZC03
VR1 87-A91-581-010 VR,RTRY 20KBX1
X201 87-A70-173-010 VIB,XTAL 75KHZ DT-261
TRANSISTOR ILLUSTRATION
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ 1.0 0.5 0.35 104
Lt
W
2SC2712
2SC2714
CSA1362
DTC144
KTA1298
RN2411
RN1411
RN1410
B
E
C
– 4 –

WIRING - 1 (MAIN: EXCEPT YH)
14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
PP
QQ
RR
SS
TT
UU
– 5 –

SECHEMATIC DIAGRAM - 1 <MAIN: EXCEPT YH>
– 6 –

14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
PP
QQ
RR
SS
TT
UU
WIRING - 2 (MAIN: YH)
– 7 –

SECHEMATIC DIAGRAM - 2 <MAIN: YH>
– 8 –

LCD DISPLAY
– 9 –

– 10 –
Pin No. Pin Name I/O Description
IC, LC72349G-9909
1 XOUT - Crystal 75kHz oscillator pin.
2 TEST2 - Connected to ground.
3 PA3 I Key matrix input.
4 PA2 I Key matrix input.
5 PA1 I Key matrix input.
6 PA0 I Key matrix input.
7 PB3 O Key return timing output. (Not used)
8 PB2 O Key return timing output.
9 PB1 O Key return timing output.
10 PB0 O Key return timing output.
11 FM / AM O 'H' : FM out, 'L' : AM out.
12 FM ST / MN O 'H' : FM Stereo out, 'L' : FM Mono out. (Not used)
13 S-BASS ON / OFF O S-BASS switching output. 'H' : OFF, 'L': ON.
14 NC - Not connected.
15 DES I These two input ports determine the destination.
16 DES I
17 TAPE I In Clock mode: 'H' = LCD display TAPE. 'L' = LCD BLANK.
18 POWER CHECK 1 I Power check input port.
19 NC - Not connected.
20 BUZZER O Buzzer output.
21 POWER CHECK 2 I Power check input port.
22 POWER CHECK 3 I Constant 0.7V reference voltage for power check function.
23 REMOTE I A / D in for remote controller.
24 GND - Ground terminal.
25 POWER SW O 'H' : Power Off, 'L' : Power On.
26 HOLD I 'H' : Hold Off, 'L' : Hold On.
27 MUTE O 'H' : Mute Off, 'L' : Mute On.
28 TU OUT O 'H' : Tuner Off, 'L' : Tuner On.
29 TUNE IN I 'L' : LCD displays 'TUNED'.
30 S15 O 'L' : Game enable, 'H' : Game disable.
31 S14 O LCD segment output.
32 S13 O LCD segment output.
33 S12 O LCD segment output.
34 S11 O LCD segment output.
35 S10 O LCD segment output.
36 S9 O LCD segment output.
37 S8 O LCD segment output.
38 S7 O LCD segment output.
39 S6 O LCD segment output.
40 S5 O LCD segment output.
41 S4 O LCD segment output.
42 S3 O LCD segment output.
IC DESCRIPTION

Pin No. Pin Name I/O Description
43 S2 O LCD segment output.
44 S1 O LCD segment output.
45 COM4 O LCD commn output 4.
46 COM3 O LCD commn output 3.
47 COM2 O LCD commn output 2.
48 COM1 O LCD commn output 1.
49 DBR4 - LCD reference voltage.
50 DBR3 - LCD reference voltage.
51 DBR2 - Voltage doubler boosting.
52 DBR1 - Voltage doubler boosting.
53 RESET I System reset input.
54 HCTR - Pulse out.
55 VDD - Supply voltage terminal.
56 FMIN I FM oscillator signal input.
57 AMIN I AM oscillator signal input.
58 GND - Ground terminal.
59 PLL OUT O Phase comparison output.
60 LPF OUT I LPF output.
61 VT I VT input.
62 GND - Ground terminal.
63 TEST 1 - Connected to ground.
64 XIN - Crystal 75kHz oscillator pin.
– 11 –

VOLTAGE CHART
IC, TA2145F IC, TA2111F
PIN NO. A M F M TAPE
1 0.822 0.822 0
20 0 0
3 0.353 0.353 0
4 2.431 2.431 0
50 0 0
6 2.837 2.837 0
7 2.322 2.322 0
8 2.835 2.835 0
90 0 0
10 2.833 2.833 0
11 0 0 0
12 2.059 2.059 0
13 1.205 1.205 0
14 1.133 1.133 0
15 2.143 2.143 0
16 2.074 2.074 0
17 0.699 0.699 0
18 1.102 1.102 0
19 0.348 0.348 0
20 2.836 2.836 0
21 2.849 2.849 0
22 2.836 2.836 0
23 2.836 2.836 0
24 2.836 2.836 0
PIN NO. A M F M TAPE
10 0 0
2 1.163 1.163 1.163
3 1.162 1.162 1.162
4 1.13 1.13 1.13
5 1.162 1.162 1.162
6 0.91 0.91 0.91
7 1.139 1.139 1.139
8 1.121 1.121 1.121
9 1.167 1.167 1.167
10 1.164 1.164 1.164
11 0 0 0
12 0 0 0
13 0 0 1.3
14 0 0 1.68
15 0 0 2.5
16 0 0 3
17 3 3 3
18 2.866 2.866 0
19 2.557 2.557 2.557
20 1.162 1.162 1.162
21 1.13 1.13 1.13
22 1.162 1.162 1.162
23 1.163 1.163 1.163
24 1.163 1.163 1.163
PIN NO. A M F M TAPE
(530kHz) (530kHz)
10 0 0
2 0.773 0.758 0
30 0 0
4 1.334 3.147 0
50 0 0
6 2.652 2.676 0
IC, TK11823MTL
– 12 –

PIN NO. A M F M TAPE
33 1.5 1.5 1.5
34 1.5 1.5 1.5
35 1.5 1.5 1.5
36 1.5 1.5 1.5
37 1.5 1.5 1.5
38 1.5 1.5 1.5
39 1.5 1.5 1.5
40 1.5 1.5 1.5
41 1.5 1.5 1.5
42 1.5 1.5 1.5
43 1.5 1.5 1.5
44 1.5 1.5 15
45 1.52 1.52 1.52
46 1.52 1.52 1.52
47 1.52 1.52 1.52
48 1.52 1.52 1.52
49 1.52 1.52 1.52
50 3 3 3
51 1.982 1.982 1.982
52 0.5 0.5 0.5
53 2.2 2.2 2.2
54 0 0 0.27
55 2.86 2.86 2.86
56 0 0 0
57 0 0 0
58 0 0 0
59 0 0 0
60 0 0 0
61 0 0 0
62 0 0 0
63 0 0 0
64 1.356 1.356 1.356
IC, LC72349G-9909
PIN NO. A M F M TAPE
1 1.385 1.385 1.385
20 0 0
3 0.7 0.7 0.3
4 0.8 0.7 0.3
5 0.8 0.7 0.3
6 0.7 0.7 0.3
7 0.7 0.7 0.3
8 2.928 2.895 2.762
9 2.928 2.895 2.762
10 2.929 2.895 2.762
11 2.702 2.702 0
12 2.738 2.738 0
13 2.622(SB OFF) H/L 0(SB ON) H/L
14 2.738 2.738 2.738
15 2.109 2.109 2.109
16 0 0 0
17 0 0 3
18 3 3 3
19 0 0 0
20 0 0 0
21 3 3 3
22 0.54 0.54 0.54
23 0 0 0
24 0 0 0
25 2.199 2.199 177
26 2.861 2.861 2.861
27 2.861 2.861 2.861
28 2.861 2.861 2.861
29 2.829 2.829 0
30 2.861 2.861 2.861
31 1.5 1.5 1.5
32 1.5 1.5 1.5
– 13 –

ADJUSTMENT
<RADIO SECTION>
1. AM IF Adjustment
L105 ................................................................................... 450kHz
2. AM Tracking Adjustment
L101 ................................................................................. 630kHz
VC101 ............................................................................. 1440kHz
3. FM VT Adjustment
Settings: •Test point TP1 (VT)
Adjustment location ............................................................... L103
Method: Set to FM 76MHz, and adjust L103 so that the test
point becomes 1.0V ± 0.1V. Then set to FM108.1MHz
and check that the test point is 9V +1V/-2V.
4. FM Tracking Adjustment
L102 .................................................................................. 76MHz
<TAPE PLAYER SECTION>
5. Tape Speed Adjustment
Settings: •Test tape : TTA–100
•Test point : PHONES (J001)
•Adjustment location : SFR51
•Super Bass: OFF
•Tape select: NORM
•Volume: Non-clip (MAX-10dB
down)
Method: Play back the test tape and adjust SFR51 for
3000Hz ± 10Hz (FWD) and 3000Hz ± 20Hz
(REV). Then confirm WOW is less than 0.50%.
– 14 –

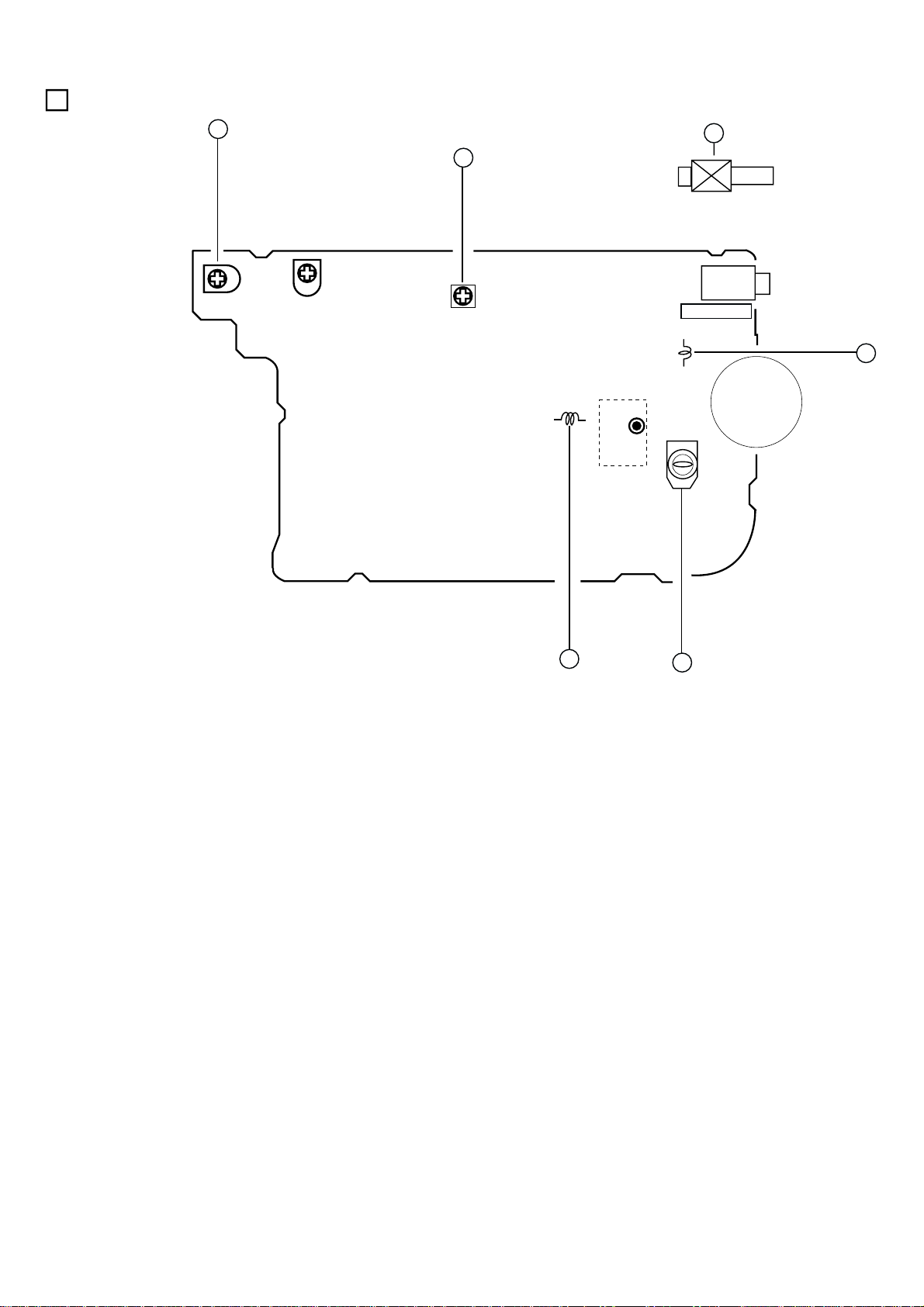

AMAIN C.B
L105
L 103
L 102
VC 101
TP1(VT)
1
5
J001
SFR 51<EXCEPT YH>
L 101
2
(BAR ANTENNA)
* Other side of P.C.B
*
VR 001
3
2
4
PHONES
SFR 52<YH ONLY>

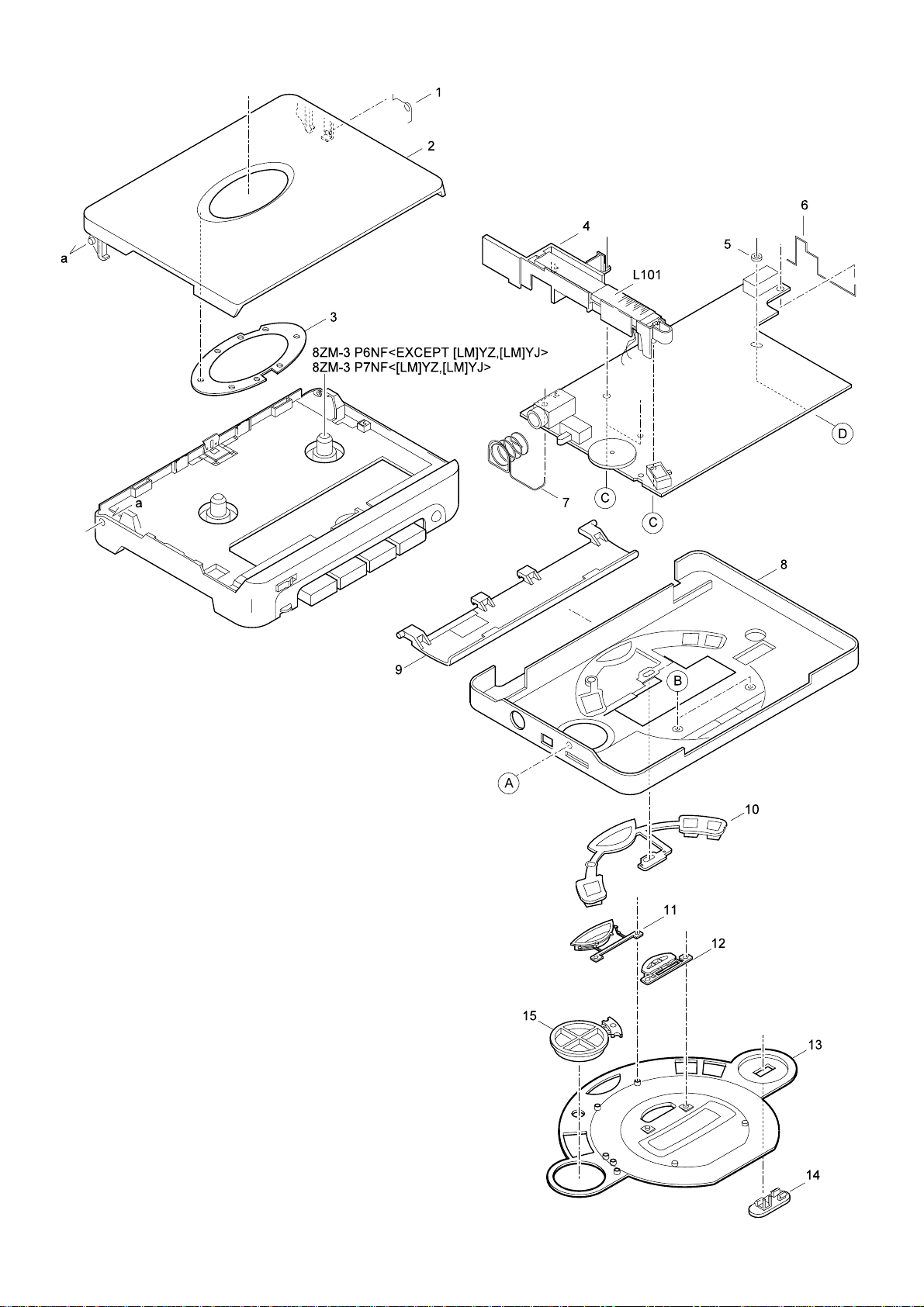

MECHANICAL EXPLODED VIEW 1 / 1
–15 –

DESCRIPTION
REF. NO. KANRI
NO.
PARTNO. DESCRIPTIONREF. NO. KANRI
NO.
PARTNO.
1 8A-HRH-209-010 SPR-T,CASS
2 8A-HRE-043-010 LID,CASS LM<[LM]YJ>
2 8A-HRE-044-010 LID,CASS YUS<[S]YU,[S]YL,[S]YH>
2 8A-HRE-041-010 LID,CASS YZ LM<[LM]YZ>
2 8A-HRE-040-010 LID,CASS YZ S<[S]6YZ ,[S]YZ>
3 8Z-HRB-002-010 WINDOW,CASS
4 8Z-HRB-201-110 HLDR,BAR-ANT
5 8Z-HRB-223-010 W,2-9-0.5 W/ADH
6 8Z-HRB-208-010 BAT-CONTACT,P
7 8Z-HRB-209-010 BAT-CONTACT,M
8 8A-HRE-001-010 CABI,FRONT<[S]YU,[S]YL>
8 8A-HRE-020-010 CABI,FRONT YH<[S]YH>
8 8A-HRE-024-010 CABI,FRONT YJ LM 506<[LM]YJ>
8 8A-HRE-023-010 CABI,FRONT YZ LM 506<[LM]YZ>
8 8A-HRE-022-010 CABI,FRONT YZ S 506<[S]YZ>
8 8A-HRE-021-010 CABI,FRONT YZ S 606<[S]6YZ>
9 8Z-HRB-005-110 LID,BAT SIL<EXCEPT [LM]YZ,[LM]YJ>
9 8A-HRE-042-010 LID,BATT LM<[LM]YZ,[LM]YJ>
10 8A-HRE-005-010 BTN,PRESET
11 8A-HRE-004-010 CAP, PRESET
12 8A-HRB-007-010 CAP, SB
13 8A-HRE-002-010 WINDOW,LCD
14 8A-HRE-003-010 KNOB,SL HOLD
15 8A-HRB-005-010 CAP, FUNCTION
A 87-B10-048-010 VT2+1.4-3 (3) CR HL
B 87-067-384-010 SCREWVT1.4-3.5HL
C 87-B10-196-010 VT2+1.4-4 BLK (3) HL
D 87-264-527-310 V 1.7-3 SCREW
MECHANICAL PARTS LIST 1 / 1
Basic color Color Basic color Color Basic color Color
symbol symbol symbol
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange
COLOR NAME TABLE
–16 –

<8ZM-3 P6NF, P7NF>
24
26
25 W-P,1.16-2.8-0.4
31
32
33
27 30
34
36
35
37 39
33
28
38
29
21
22
23
20
19
18
17
15
14
16
13
12
11
10
23
8
42
41
43
40
7
5
6
52
44
45
46
47
48
49
50
51
2
1
3
4
A9
TAPE MECHANISM EXPLODED VIEW 1 / 1
–17 –

DESCRIPTION
REF. NO. KANRI
NO.
PARTNO. DESCRIPTIONREF. NO. KANRI
NO.
PARTNO.
TAPE MECHANISM PARTS LIST 1 / 1
1 8A-HRE-010-010 FRAME,CENTER B<P6NF>
1 8A-HRE-011-010 FRAME,CENTER L<P7NF>
2 8Z-HRB-207-110 SPR-P,CASS
3 88-ZM3-253-110 SPR-C,BT L
4 88-ZM3-274-010 GEAR,REEL A
5 87-A91-379-010 MOT,BCY3B-13
6 88-ZM3-236-010 PULLEY,MOT S
7 88-ZM3-263-210 BELT,S
8 88-ZM3-243-010 SPR-T,PLAY BACK
9 88-ZM3-217-110 ARM,PINCH L
10 88-ZM3-241-110 SPR-T,PINCH L
11 88-ZM3-003-110 LEVER,REW
12 88-ZM3-246-110 SPR-T,FF REW
13 87-A80-115-010 F-CABLE,5P P2
14 87-A91-019-010 HEAD ASSY,PH 8ZM-3
15 88-ZM3-211-010 LEVER,DIR
16 88-ZM3-001-110 LEVER,PLAY
17 88-ZM3-213-310 LEVER,T-UP
18 88-ZM3-225-110 GEAR,PLAY
19 88-ZM3-224-210 GEAR,TRANSMIT
20 88-ZM3-002-110 LEVER,FF
21 88-ZM3-242-210 SPR-T,PINCH R
22 88-ZM3-218-010 ARM,PINCH R
23 88-ZM3-271-010 ROLLER ASSY,PINCH
24 88-ZM3-220-010 BTN,MODE SEL
25 88-ZM3-267-010 SHAFT,PULLEY TWIN
26 88-ZM3-234-010 PULLEY,BELT TWIN
27 88-ZM3-212-010 LEVER,LOCK
28 88-ZM3-245-110 SPR-T,LOCK
29 88-ZM3-201-210 CHAS ASSY,OUTSERT P
30 88-ZM3-216-010 LEVER,SW
31 88-ZM3-221-110 GEAR,AUTO
32 88-ZM3-240-010 FLY-WHL,R S
33 88-ZM3-266-010 CAPSTAN, 1.5-NS
34 88-ZM3-248-010 SPR-T,AUTO CHOOSE
35 88-ZM3-215-110 LEVER,AUTO KICK
36 88-ZM3-262-010 BELT,L
37 88-ZM3-244-010 SPR-T,DIR
38 88-ZM3-219-010 BTN,DIR KNOB
39 88-ZM3-239-010 FLY-WHL,L S
40 88-ZM3-226-010 GEAR,IDLE
41 88-ZM3-004-110 LEVER,STOP
42 88-ZM3-255-110 SPR-C,STOP
43 88-ZM3-214-010 LEVER,AUTO FIND
44 88-ZM3-238-010 CAP,SLIP
45 88-ZM3-252-010 SPR-C,SHIFT
46 88-ZM3-251-310 SPR-C,SLIP
47 88-ZM3-222-110 GEAR,SLIP FAST
48 88-ZM3-269-110 FELT,SLIP
49 88-ZM3-237-110 CLR,SLIP
50 88-ZM3-247-010 SPR-T,AUTO FIND
51 88-ZM3-223-010 GEAR,SLIP SLOW
52 8Z-HRB-202-110 HLDR,DC JACK
A 87-B10-196-010 VT2+1.4-4 BLK (3) HL
<8ZM-3 P6NF, P7NF>
–18 –

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
9920594 0251431 Printed in Singapore
