SERVICE MANUAL
DATA
XP-SP920
XP-SP921
AU
AU
SIMPLE
S/M Code No. 09-011-443-3T1
• Replace this Service manual with “Revision Publishing” when it is issued.
COMPACT DISC PLAYER BASIC CD MECHANISM : DA23LH

 2 
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
! O ACCESSORY 87-B30-282-010 2A AC ADAPTOR,AC-D603UNC AUBSF XP-SP920
! O ACCESSORY 87-B30-282-010 2A AC ADAPTOR,AC-D603UNC AUBSF XP-SP921
O ACCESSORY 87-B30-481-010 -- HEADPHONE,HP-M034 S AUBSF XP-SP920
O ACCESSORY 87-B30-481-010 -- HEADPHONE,HP-M034 S AUBSF XP-SP921
O ACCESSORY 8B-HC3-952-010 2M CASE,CARR NG (SP921) AUBSF XP-SP921
X APPEARANCE 8A-HC3-211-010 0E PLATE,SUPPORT L AUBSF XP-SP920
X APPEARANCE 8A-HC3-211-010 0E PLATE,SUPPORT L AUBSF XP-SP921
X APPEARANCE 8A-HC3-212-010 0E PLATE,SUPPORT R AUBSF XP-SP920
X APPEARANCE 8A-HC3-212-010 0E PLATE,SUPPORT R AUBSF XP-SP921
X APPEARANCE 8B-HC3-001-010 -- L D,CD AUBSF XP-SP920
X APPEARANCE 8B-HC3-001-010 -- L D,CD AUBSF XP-SP921
X APPEARANCE 8B-HC3-004-010 -- L D,BAT AUBSF XP-SP920
X APPEARANCE 8B-HC3-004-010 -- L D,BAT AUBSF XP-SP921
X APPEARANCE 8B-HC3-005-010 -- PANEL,L D 920 AUBSF XP-SP920
X APPEARANCE 8B-HC3-006-010 -- W NDOW,D SPLAY AUBSF XP-SP920
X APPEARANCE 8B-HC3-006-010 -- W NDOW,D SPLAY AUBSF XP-SP921
X APPEARANCE 8B-HC3-007-010 -- R NG,L D RBR AUBSF XP-SP920
X APPEARANCE 8B-HC3-007-010 -- R NG,L D RBR AUBSF XP-SP921
O APPEARANCE 8B-HC3-011-010 -- BTN,CONT RBR AUBSF XP-SP920
O APPEARANCE 8B-HC3-011-010 -- BTN,CONT RBR AUBSF XP-SP921
O APPEARANCE 8B-HC3-014-010 -- L D ASSY,CD 920 AUBSF XP-SP920
O APPEARANCE 8B-HC3-015-010 -- L D ASSY,CD 921 AUBSF XP-SP921
O APPEARANCE 8B-HC3-016-010 -- CAB ASSY,CENTER AUBSF XP-SP920
O APPEARANCE 8B-HC3-016-010 -- CAB ASSY,CENTER AUBSF XP-SP921
O APPEARANCE 8B-HC3-018-010 -- CAP, HP RBR AUBSF XP-SP920
O APPEARANCE 8B-HC3-018-010 -- CAP, HP RBR AUBSF XP-SP921
O APPEARANCE 8B-HC3-019-010 -- CAP, DC RBR AUBSF XP-SP920
O APPEARANCE 8B-HC3-019-010 -- CAP, DC RBR AUBSF XP-SP921
O APPEARANCE 8B-HC3-020-010 0E PLATE,L D CD C AUBSF XP-SP920
O APPEARANCE 8B-HC3-020-010 0E PLATE,L D CD C AUBSF XP-SP921
X APPEARANCE 8B-HC3-027-010 -- PANEL,L D 921 AUBSF XP-SP921
O APPEARANCE 8B-HC3-202-010 -- LEVER,LOCK AUBSF XP-SP920
O APPEARANCE 8B-HC3-202-010 -- LEVER,LOCK AUBSF XP-SP921
O APPEARANCE 8Z-HC3-016-010 -- COVER, LEVER LOCK AUBSF XP-SP920
O APPEARANCE 8Z-HC3-016-010 -- COVER, LEVER LOCK AUBSF XP-SP921
O APPEARANCE 8Z-HC3-228-010 0E HLDR,LEVER LOCK AUBSF XP-SP920
O APPEARANCE 8Z-HC3-228-010 0E HLDR,LEVER LOCK AUBSF XP-SP921
X APPEARANCE * 8B-HC3-002-010 -- CAB ,CENTER AUBSF XP-SP920
X APPEARANCE * 8B-HC3-002-010 -- CAB ,CENTER AUBSF XP-SP921
O APPEARANCE * 8B-HC3-003-010 2A CAB ,BOTTOM AUBSF XP-SP920
O APPEARANCE * 8B-HC3-003-010 2A CAB ,BOTTOM AUBSF XP-SP921
O APPEARANCE * 8B-HC3-012-010 0E PLATE,L D CD A AUBSF XP-SP920
O APPEARANCE * 8B-HC3-012-010 0E PLATE,L D CD A AUBSF XP-SP921
O APPEARANCE * 8B-HC3-013-010 0E PLATE,L D CD B AUBSF XP-SP920
O APPEARANCE * 8B-HC3-013-010 0E PLATE,L D CD B AUBSF XP-SP921
O AUD O C 0701 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP920
O AUD O C 0701 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP921
O AUD O C 0702 87-012-276-080 0E C-CAP,U 1500P-50 K B AUBSF XP-SP920
O AUD O C 0702 87-012-276-080 0E C-CAP,U 1500P-50 K B AUBSF XP-SP921
O AUD O C 0703 87-012-276-080 0E C-CAP,U 1500P-50 K B AUBSF XP-SP920
O AUD O C 0703 87-012-276-080 0E C-CAP,U 1500P-50 K B AUBSF XP-SP921
O AUD O C 0704 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP920
O AUD O C 0704 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP921
O AUD O C 0705 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP920
O AUD O C 0705 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP921
O AUD O C 0706 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O AUD O C 0706 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O AUD O C 0707 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP920
O AUD O C 0707 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP921
O AUD O C 0708 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP920
O AUD O C 0708 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP921
O AUD O C 0709 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP920
O AUD O C 0709 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP921
O AUD O C 0710 87-016-426-080 0E C-CAP,E 47-4 M WX AUBSF XP-SP920
O AUD O C 0710 87-016-426-080 0E C-CAP,E 47-4 M WX AUBSF XP-SP921
O AUD O C 0711 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP920
O AUD O C 0711 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP921
X AUD O C 0712 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP920
X AUD O C 0712 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP921
X AUD O C 0713 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP920

 3 
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
X AUD O C 0713 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP921
O AUD O C 0715 87-016-421-080 0E C-CAP,E 10-16 M WX AUBSF XP-SP920
O AUD O C 0715 87-016-421-080 0E C-CAP,E 10-16 M WX AUBSF XP-SP921
O AUD O C 0716 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O AUD O C 0716 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O AUD O C 0717 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O AUD O C 0717 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O AUD O C 0718 87-016-431-080 0E C-CAP,E 220-4 M WX AUBSF XP-SP920
O AUD O C 0718 87-016-431-080 0E C-CAP,E 220-4 M WX AUBSF XP-SP921
O AUD O C 0719 87-016-431-080 0E C-CAP,E 220-4 M WX AUBSF XP-SP920
O AUD O C 0719 87-016-431-080 0E C-CAP,E 220-4 M WX AUBSF XP-SP921
O AUD O C 0720 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP920
O AUD O C 0720 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP921
O AUD O C 0721 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP920
O AUD O C 0721 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP921
O AUD O C 0722 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP920
O AUD O C 0722 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP921
O AUD O C 0723 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP920
O AUD O C 0723 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP921
O AUD O C 0724 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP920
O AUD O C 0724 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP921
X AUD O FB 0701 88-118-000-080 0E C-JUMPER,S AUBSF XP-SP920
X AUD O FB 0701 88-118-000-080 0E C-JUMPER,S AUBSF XP-SP921
X AUD O FB 0702 88-118-000-080 0E C-JUMPER,S AUBSF XP-SP920
X AUD O FB 0702 88-118-000-080 0E C-JUMPER,S AUBSF XP-SP921
X AUD O FB 0703 88-118-000-080 0E C-JUMPER,S AUBSF XP-SP920
X AUD O FB 0703 88-118-000-080 0E C-JUMPER,S AUBSF XP-SP921
X AUD O FB 0704 88-118-000-080 0E C-JUMPER,S AUBSF XP-SP920
X AUD O FB 0704 88-118-000-080 0E C-JUMPER,S AUBSF XP-SP921
S AUD O C 0701 87-A21-085-040 1C C- C,TA2120FN AUBSF XP-SP920
S AUD O C 0701 87-A21-085-040 1C C- C,TA2120FN AUBSF XP-SP921
O AUD O J 0701 87-A61-339-010 1A JACK,3.5 GRN ST W/O SW AUBSF XP-SP920
O AUD O J 0701 87-A61-339-010 1A JACK,3.5 GRN ST W/O SW AUBSF XP-SP921
X AUD O R 0701 88-108-339-080 0E C-RES,U 3.3-1/16W J AUBSF XP-SP920
X AUD O R 0701 88-108-339-080 0E C-RES,U 3.3-1/16W J AUBSF XP-SP921
X AUD O R 0702 88-108-222-080 0E C-RES,U 2.2K-1/16W J AUBSF XP-SP920
X AUD O R 0702 88-108-222-080 0E C-RES,U 2.2K-1/16W J AUBSF XP-SP921
X AUD O R 0703 88-108-222-080 0E C-RES,U 2.2K-1/16W J AUBSF XP-SP920
X AUD O R 0703 88-108-222-080 0E C-RES,U 2.2K-1/16W J AUBSF XP-SP921
X AUD O R 0704 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X AUD O R 0704 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X AUD O R 0705 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X AUD O R 0705 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X AUD O R 0706 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X AUD O R 0706 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X AUD O R 0709 88-108-479-080 0E C-RES,U 4.7-1/16W J AUBSF XP-SP920
X AUD O R 0709 88-108-479-080 0E C-RES,U 4.7-1/16W J AUBSF XP-SP921
X AUD O R 0710 88-108-479-080 0E C-RES,U 4.7-1/16W J AUBSF XP-SP920
X AUD O R 0710 88-108-479-080 0E C-RES,U 4.7-1/16W J AUBSF XP-SP921
X AUD O R 0711 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X AUD O R 0711 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X AUD O R 0712 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X AUD O R 0712 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X AUD O R 0713 88-118-189-080 0E C-RES,S 1.8-1/10W J AUBSF XP-SP920
X AUD O R 0713 88-118-189-080 0E C-RES,S 1.8-1/10W J AUBSF XP-SP921
X AUD O R 0714 88-118-189-080 0E C-RES,S 1.8-1/10W J AUBSF XP-SP920
X AUD O R 0714 88-118-189-080 0E C-RES,S 1.8-1/10W J AUBSF XP-SP921
X AUD O R 0715 88-108-102-080 0E C-RES,U 1K-1/16W J AUBSF XP-SP920
X AUD O R 0715 88-108-102-080 0E C-RES,U 1K-1/16W J AUBSF XP-SP921
X AUD O R 0720 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X AUD O R 0720 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X AUD O R 0721 88-108-102-080 0E C-RES,U 1K-1/16W J AUBSF XP-SP920
X AUD O R 0721 88-108-102-080 0E C-RES,U 1K-1/16W J AUBSF XP-SP921
X AUD O R 0731 88-108-392-080 0E C-RES,U 3.9K-1/16W J AUBSF XP-SP920
X AUD O R 0731 88-108-392-080 0E C-RES,U 3.9K-1/16W J AUBSF XP-SP921
X AUD O R 0732 88-108-392-080 0E C-RES,U 3.9K-1/16W J AUBSF XP-SP920
X AUD O R 0732 88-108-392-080 0E C-RES,U 3.9K-1/16W J AUBSF XP-SP921
O CHARGE C 0101 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP920
O CHARGE C 0101 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP921
O CHARGE C 0102 87-A11-031-080 0E C-CAP,E 100-16 M WX AUBSF XP-SP920

 4 
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
O CHARGE C 0102 87-A11-031-080 0E C-CAP,E 100-16 M WX AUBSF XP-SP921
O CHARGE C 0103 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP920
O CHARGE C 0103 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP921
O CHARGE C 0104 87-A11-031-080 0E C-CAP,E 100-16 M WX AUBSF XP-SP920
O CHARGE C 0104 87-A11-031-080 0E C-CAP,E 100-16 M WX AUBSF XP-SP921
O CHARGE C 0106 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP920
O CHARGE C 0106 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP921
S CHARGE D 0101 87-A40-270-080 0E C-D ODE,MC2838 AUBSF XP-SP920
S CHARGE D 0101 87-A40-270-080 0E C-D ODE,MC2838 AUBSF XP-SP921
S CHARGE D 0102 87-017-520-080 0E C-D ODE,SFPB52 AUBSF XP-SP920
S CHARGE D 0102 87-017-520-080 0E C-D ODE,SFPB52 AUBSF XP-SP921
O CHARGE J 0101 87-A61-340-010 1A JACK,DC AUBSF XP-SP920
O CHARGE J 0101 87-A61-340-010 1A JACK,DC AUBSF XP-SP921
S CHARGE Q 0101 87-A30-429-040 0E C-TR,DTC123JKA AUBSF XP-SP920
S CHARGE Q 0101 87-A30-429-040 0E C-TR,DTC123JKA AUBSF XP-SP921
S CHARGE Q 0102 87-A30-075-080 0E C-TR,2SA1235F AUBSF XP-SP920
S CHARGE Q 0102 87-A30-075-080 0E C-TR,2SA1235F AUBSF XP-SP921
S CHARGE Q 0103 89-211-323-080 1A C-TR,2SB1132R AUBSF XP-SP920
S CHARGE Q 0103 89-211-323-080 1A C-TR,2SB1132R AUBSF XP-SP921
S CHARGE Q 0104 89-416-643-080 0E C-TR,2SD1664R AUBSF XP-SP920
S CHARGE Q 0104 89-416-643-080 0E C-TR,2SD1664R AUBSF XP-SP921
S CHARGE Q 0105 87-A30-076-080 0E C-TR,2SC3052F AUBSF XP-SP920
S CHARGE Q 0105 87-A30-076-080 0E C-TR,2SC3052F AUBSF XP-SP921
X CHARGE R 0101 88-108-102-080 0E C-RES,U 1K-1/16W J AUBSF XP-SP920
X CHARGE R 0101 88-108-102-080 0E C-RES,U 1K-1/16W J AUBSF XP-SP921
X CHARGE R 0102 88-108-224-080 0E C-RES,U 220K-1/16W J AUBSF XP-SP920
X CHARGE R 0102 88-108-224-080 0E C-RES,U 220K-1/16W J AUBSF XP-SP921
X CHARGE R 0103 88-118-689-080 0E C-RES,S 6.8-1/10W J AUBSF XP-SP920
X CHARGE R 0103 88-118-689-080 0E C-RES,S 6.8-1/10W J AUBSF XP-SP921
X CHARGE R 0104 88-118-100-080 0E C-RES,S 10-1/10W J AUBSF XP-SP920
X CHARGE R 0104 88-118-100-080 0E C-RES,S 10-1/10W J AUBSF XP-SP921
X CHARGE R 0105 88-138-399-080 0E C-RES, 3.9-1/4W J AUBSF XP-SP920
X CHARGE R 0105 88-138-399-080 0E C-RES, 3.9-1/4W J AUBSF XP-SP921
X CHARGE R 0106 88-108-561-080 0E C-RES,U 560-1/16W J AUBSF XP-SP920
X CHARGE R 0106 88-108-561-080 0E C-RES,U 560-1/16W J AUBSF XP-SP921
X CHARGE R 0107 88-108-102-080 0E C-RES,U 1K-1/16W J AUBSF XP-SP920
X CHARGE R 0107 88-108-102-080 0E C-RES,U 1K-1/16W J AUBSF XP-SP921
O CHARGE S 0101 87-A92-085-010 0E SW,M CRO ESE11SV1 AUBSF XP-SP920
O CHARGE S 0101 87-A92-085-010 0E SW,M CRO ESE11SV1 AUBSF XP-SP921
X D SC TRANSPORT M8-ZZK-F95-070 -- DA23LH AUBSF XP-SP920
X D SC TRANSPORT M8-ZZK-F95-070 -- DA23LH AUBSF XP-SP921
O DR VER C 0601 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP920
O DR VER C 0601 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP921
O DR VER C 0602 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP920
O DR VER C 0602 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP921
O DR VER C 0603 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP920
O DR VER C 0603 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP921
O DR VER CN 0601 87-099-522-080 1A C-CONN,6P V ZH-SM3 AUBSF XP-SP920
O DR VER CN 0601 87-099-522-080 1A C-CONN,6P V ZH-SM3 AUBSF XP-SP921
S DR VER C 0601 87-A21-449-040 1E C- C,AN8746SA AUBSF XP-SP920
S DR VER C 0601 87-A21-449-040 1E C- C,AN8746SA AUBSF XP-SP921
X DR VER R 0601 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP920
X DR VER R 0601 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP921
X DR VER R 0602 88-108-100-080 0E C-RES,U 10-1/16W J AUBSF XP-SP920
X DR VER R 0602 88-108-100-080 0E C-RES,U 10-1/16W J AUBSF XP-SP921
X DR VER R 0610 88-108-100-080 0E C-RES,U 10-1/16W J AUBSF XP-SP920
X DR VER R 0610 88-108-100-080 0E C-RES,U 10-1/16W J AUBSF XP-SP921
X DR VER R 0611 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X DR VER R 0611 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
O EASS C 0451 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O EASS C 0451 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
S EASS C 0451 87-A21-140-010 2P C- C,MSM51V17400D AUBSF XP-SP920
S EASS C 0451 87-A21-140-010 2P C- C,MSM51V17400D AUBSF XP-SP921
X EASS R 0451 88-118-100-080 0E C-RES,S 10-1/10W J AUBSF XP-SP920
X EASS R 0451 88-118-100-080 0E C-RES,S 10-1/10W J AUBSF XP-SP921
O KEY CN 0801 87-A61-241-080 1B C-CONN,26P H 52437-2691 AUBSF XP-SP920
O KEY CN 0801 87-A61-241-080 1B C-CONN,26P H 52437-2691 AUBSF XP-SP921
O KEY LCD0801 8A-HC3-605-010 1C LCD,AHC-3 AUBSF XP-SP920
O KEY LCD0801 8A-HC3-605-010 1C LCD,AHC-3 AUBSF XP-SP921
X KEY R 0801 88-108-392-080 0E C-RES,U 3.9K-1/16W J AUBSF XP-SP920

 5 
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
X KEY R 0801 88-108-392-080 0E C-RES,U 3.9K-1/16W J AUBSF XP-SP921
X KEY R 0802 88-108-273-080 0E C-RES,U 27K-1/16W J AUBSF XP-SP920
X KEY R 0802 88-108-273-080 0E C-RES,U 27K-1/16W J AUBSF XP-SP921
X KEY R 0803 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP920
X KEY R 0803 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP921
X KEY R 0804 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP920
X KEY R 0804 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP921
X KEY R 0805 88-108-823-080 0E C-RES,U 82K-1/16W J AUBSF XP-SP920
X KEY R 0805 88-108-823-080 0E C-RES,U 82K-1/16W J AUBSF XP-SP921
X KEY R 0806 88-108-184-080 0E C-RES,U 180K-1/16W J AUBSF XP-SP920
X KEY R 0806 88-108-184-080 0E C-RES,U 180K-1/16W J AUBSF XP-SP921
X KEY R 0807 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP920
X KEY R 0807 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP921
X KEY R 0808 88-108-683-080 0E C-RES,U 68K-1/16W J AUBSF XP-SP920
X KEY R 0808 88-108-683-080 0E C-RES,U 68K-1/16W J AUBSF XP-SP921
X KEY R 0809 88-108-184-080 0E C-RES,U 180K-1/16W J AUBSF XP-SP920
X KEY R 0809 88-108-184-080 0E C-RES,U 180K-1/16W J AUBSF XP-SP921
X KEY R 0810 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP920
X KEY R 0810 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP921
O KEY S 0801 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP920
O KEY S 0801 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP921
O KEY S 0802 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP920
O KEY S 0802 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP921
O KEY S 0803 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP920
O KEY S 0803 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP921
O KEY S 0804 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP920
O KEY S 0804 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP921
O KEY S 0805 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP920
O KEY S 0805 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP921
O KEY S 0806 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP920
O KEY S 0806 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP921
O KEY S 0807 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP920
O KEY S 0807 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP921
O KEY S 0808 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP920
O KEY S 0808 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP921
O KEY S 0809 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP920
O KEY S 0809 87-A90-232-080 0E C-SW,TACT SKQRAA AUBSF XP-SP921
O KNOB 8B-HC3-008-010 -- R NG,KNOB RTRY AUBSF XP-SP920
O KNOB 8B-HC3-008-010 -- R NG,KNOB RTRY AUBSF XP-SP921
O KNOB 8B-HC3-009-010 -- KNOB,RTRY LOCK AUBSF XP-SP920
O KNOB 8B-HC3-009-010 -- KNOB,RTRY LOCK AUBSF XP-SP921
O KNOB 8B-HC3-010-010 -- KNOB,RTRY HOLD AUBSF XP-SP920
O KNOB 8B-HC3-010-010 -- KNOB,RTRY HOLD AUBSF XP-SP921
X LBL,POP 8B-HC3-970-010 -- LBL,POP AU AUBSF XP-SP920
X LBL,POP 8B-HC3-970-010 -- LBL,POP AU AUBSF XP-SP921
O M CON * 8B-HC3-605-010 0E FF-CABLE,26P 0.5 70MM AUBSF XP-SP920
O M CON * 8B-HC3-605-010 0E FF-CABLE,26P 0.5 70MM AUBSF XP-SP921
O M CON C 0302 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O M CON C 0302 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O M CON C 0303 87-010-787-080 0E C-CAP,U 0.022-25 K B AUBSF XP-SP920
O M CON C 0303 87-010-787-080 0E C-CAP,U 0.022-25 K B AUBSF XP-SP921
O M CON C 0304 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O M CON C 0304 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O M CON C 0305 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP920
O M CON C 0305 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP921
O M CON C 0306 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP920
O M CON C 0306 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP921
O M CON C 0307 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP920
O M CON C 0307 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP921
O M CON C 0308 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP920
O M CON C 0308 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP921
O M CON C 0309 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP920
O M CON C 0309 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP921
O M CON C 0310 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP920
O M CON C 0310 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP921
O M CON C 0312 87-012-282-080 0E C-CAP,U 4700P-50 K B AUBSF XP-SP920
O M CON C 0312 87-012-282-080 0E C-CAP,U 4700P-50 K B AUBSF XP-SP921
X M CON C 0315 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP920
X M CON C 0315 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP921
O M CON CN 0301 87-A61-241-080 1B C-CONN,26P H 52437-2691 AUBSF XP-SP920

 6 
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
O M CON CN 0301 87-A61-241-080 1B C-CONN,26P H 52437-2691 AUBSF XP-SP921
S M CON D 0301 87-A40-590-040 0E C-D ODE,HRW0202A AUBSF XP-SP920
S M CON D 0301 87-A40-590-040 0E C-D ODE,HRW0202A AUBSF XP-SP921
S M CON D 0302 87-A40-590-040 0E C-D ODE,HRW0202A AUBSF XP-SP920
S M CON D 0302 87-A40-590-040 0E C-D ODE,HRW0202A AUBSF XP-SP921
S M CON D 0304 87-A40-270-080 0E C-D ODE,MC2838 AUBSF XP-SP920
S M CON D 0304 87-A40-270-080 0E C-D ODE,MC2838 AUBSF XP-SP921
S M CON C 0301 8B-HC3-610-010 1H C- C,MN101C439AL AUBSF XP-SP920
S M CON C 0301 8B-HC3-610-010 1H C- C,MN101C439AL AUBSF XP-SP921
O M CON L 0302 87-A50-367-080 0E C-CO L, 10UH LQG21F AUBSF XP-SP920
O M CON L 0302 87-A50-367-080 0E C-CO L, 10UH LQG21F AUBSF XP-SP921
S M CON Q 0301 87-A30-075-080 0E C-TR,2SA1235F AUBSF XP-SP920
S M CON Q 0301 87-A30-075-080 0E C-TR,2SA1235F AUBSF XP-SP921
X M CON R 0301 88-108-274-080 0E C-RES,U 270K-1/16W J AUBSF XP-SP920
X M CON R 0301 88-108-274-080 0E C-RES,U 270K-1/16W J AUBSF XP-SP921
X M CON R 0302 88-108-473-080 0E C-RES,U 47K-1/16W J AUBSF XP-SP920
X M CON R 0302 88-108-473-080 0E C-RES,U 47K-1/16W J AUBSF XP-SP921
X M CON R 0303 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X M CON R 0303 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X M CON R 0304 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP920
X M CON R 0304 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP921
X M CON R 0306 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP920
X M CON R 0306 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP921
X M CON R 0307 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP920
X M CON R 0307 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP921
X M CON R 0308 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP920
X M CON R 0308 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP921
X M CON R 0310 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP920
X M CON R 0310 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP921
X M CON R 0311 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP920
X M CON R 0311 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP921
X M CON R 0312 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP920
X M CON R 0312 88-108-333-080 0E C-RES,U 33K-1/16W J AUBSF XP-SP921
X M CON R 0313 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X M CON R 0313 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X M CON R 0314 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP920
X M CON R 0314 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP921
X M CON R 0315 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X M CON R 0315 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X M CON R 0316 88-108-224-080 0E C-RES,U 220K-1/16W J AUBSF XP-SP920
X M CON R 0316 88-108-224-080 0E C-RES,U 220K-1/16W J AUBSF XP-SP921
X M CON R 0317 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP920
X M CON R 0317 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP921
X M CON R 0318 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X M CON R 0318 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X M CON R 0321 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP920
X M CON R 0321 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP921
X M CON R 0322 88-108-124-080 0E C-RES,U 120K-1/16W J AUBSF XP-SP920
X M CON R 0322 88-108-124-080 0E C-RES,U 120K-1/16W J AUBSF XP-SP921
X M CON R 0323 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X M CON R 0323 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X M CON R 0324 88-108-102-080 0E C-RES,U 1K-1/16W J AUBSF XP-SP920
X M CON R 0324 88-108-102-080 0E C-RES,U 1K-1/16W J AUBSF XP-SP921
X M CON R 0325 88-108-274-080 0E C-RES,U 270K-1/16W J AUBSF XP-SP920
X M CON R 0325 88-108-274-080 0E C-RES,U 270K-1/16W J AUBSF XP-SP921
X M CON R 0326 88-108-473-080 0E C-RES,U 47K-1/16W J AUBSF XP-SP920
X M CON R 0326 88-108-473-080 0E C-RES,U 47K-1/16W J AUBSF XP-SP921
X M CON R 0327 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X M CON R 0327 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X M CON R 0328 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X M CON R 0328 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
O M CON S 0302 87-A91-457-280 1C C-SW,SL 1-1-3 SS-350-A13B-C-T AUBSF XP-SP920
O M CON S 0302 87-A91-457-280 1C C-SW,SL 1-1-3 SS-350-A13B-C-T AUBSF XP-SP921
O OTHERS 87-HC3-211-010 0E R NG,KNOB RBR AUBSF XP-SP920
O OTHERS 87-HC3-211-010 0E R NG,KNOB RBR AUBSF XP-SP921
X OTHERS 8A-HC3-203-010 -- R NG,KNOB RBR AUBSF XP-SP920
X OTHERS 8A-HC3-203-010 -- R NG,KNOB RBR AUBSF XP-SP921
O OTHERS 8A-HC3-204-010 0E JO NT,RTRY HOLD AUBSF XP-SP920
O OTHERS 8A-HC3-204-010 0E JO NT,RTRY HOLD AUBSF XP-SP921
O OTHERS 8A-HC3-213-010 -- JO NT,RTRY LOCK AUBSF XP-SP920

 7 
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
O OTHERS 8A-HC3-213-010 -- JO NT,RTRY LOCK AUBSF XP-SP921
O OTHERS 8A-HC3-215-010 0E JO NT,LCD AHC-3-A AUBSF XP-SP920
O OTHERS 8A-HC3-215-010 0E JO NT,LCD AHC-3-A AUBSF XP-SP921
O OTHERS 8B-HC3-201-010 -- HLDR,BTN AUBSF XP-SP920
O OTHERS 8B-HC3-201-010 -- HLDR,BTN AUBSF XP-SP921
O OTHERS 8B-HC3-203-010 -- PLATE,BOTTOM AUBSF XP-SP920
O OTHERS 8B-HC3-203-010 -- PLATE,BOTTOM AUBSF XP-SP921
O OTHERS 8B-HC3-205-010 -- PLATE,LCD AUBSF XP-SP920
O OTHERS 8B-HC3-205-010 -- PLATE,LCD AUBSF XP-SP921
O OTHERS 8B-HC3-206-010 -- SPR,L D CD (SP) AUBSF XP-SP920
O OTHERS 8B-HC3-206-010 -- SPR,L D CD (SP) AUBSF XP-SP921
O OTHERS 8B-HC3-207-010 -- SPR-E,LOCK AUBSF XP-SP920
O OTHERS 8B-HC3-207-010 -- SPR-E,LOCK AUBSF XP-SP921
O OTHERS 8B-HC3-208-010 -- BAT-CONTACT,(+) AUBSF XP-SP920
O OTHERS 8B-HC3-208-010 -- BAT-CONTACT,(+) AUBSF XP-SP921
O OTHERS 8B-HC3-209-010 -- BAT-CONTACT,(-) AUBSF XP-SP920
O OTHERS 8B-HC3-209-010 -- BAT-CONTACT,(-) AUBSF XP-SP921
O OTHERS 8B-HC3-210-010 -- BAT-CONTACT,(+)(-) AUBSF XP-SP920
O OTHERS 8B-HC3-210-010 -- BAT-CONTACT,(+)(-) AUBSF XP-SP921
X OTHERS 8B-HC3-211-010 -- SH,HLDR BTN AUBSF XP-SP920
X OTHERS 8B-HC3-211-010 -- SH,HLDR BTN AUBSF XP-SP921
O OTHERS 8Z-HC1-225-010 0E DMPR,MECHA(SP) AUBSF XP-SP920
O OTHERS 8Z-HC1-225-010 0E DMPR,MECHA(SP) AUBSF XP-SP921
O OTHERS 8Z-HC3-207-010 0E PLATE,RTRY A AUBSF XP-SP920
O OTHERS 8Z-HC3-207-010 0E PLATE,RTRY A AUBSF XP-SP921
O OTHERS 8Z-HC3-208-010 0E PLATE,RTRY B AUBSF XP-SP920
O OTHERS 8Z-HC3-208-010 0E PLATE,RTRY B AUBSF XP-SP921
O OTHERS 8Z-HC3-216-010 1D HLDR ASSY,LOCK AUBSF XP-SP920
O OTHERS 8Z-HC3-216-010 1D HLDR ASSY,LOCK AUBSF XP-SP921
X OTHERS 8Z-HC3-217-010 -- HLDR,LOCK AUBSF XP-SP920
X OTHERS 8Z-HC3-217-010 -- HLDR,LOCK AUBSF XP-SP921
X OTHERS 8Z-HC3-218-010 -- PLATE,LOCK C AUBSF XP-SP920
X OTHERS 8Z-HC3-218-010 -- PLATE,LOCK C AUBSF XP-SP921
X OTHERS 8Z-HC3-219-010 -- PLATE,LOCK L AUBSF XP-SP920
X OTHERS 8Z-HC3-219-010 -- PLATE,LOCK L AUBSF XP-SP921
X OTHERS 8Z-HC3-220-010 -- PLATE,LOCK R AUBSF XP-SP920
X OTHERS 8Z-HC3-220-010 -- PLATE,LOCK R AUBSF XP-SP921
X OTHERS 8Z-HC3-221-010 -- SHAFT,PLT LOCK AUBSF XP-SP920
X OTHERS 8Z-HC3-221-010 -- SHAFT,PLT LOCK AUBSF XP-SP920
X OTHERS 8Z-HC3-221-010 -- SHAFT,PLT LOCK AUBSF XP-SP921
X OTHERS 8Z-HC3-221-010 -- SHAFT,PLT LOCK AUBSF XP-SP921
X OTHERS 8Z-HC3-222-010 -- SHAFT,PLT LOCK C AUBSF XP-SP920
X OTHERS 8Z-HC3-222-010 -- SHAFT,PLT LOCK C AUBSF XP-SP921
X OTHERS 8Z-HC3-223-010 -- PLATE ASSY,LOCK L AUBSF XP-SP920
X OTHERS 8Z-HC3-223-010 -- PLATE ASSY,LOCK L AUBSF XP-SP921
X OTHERS 8Z-HC3-224-010 -- PLATE ASSY,LOCK R AUBSF XP-SP920
X OTHERS 8Z-HC3-224-010 -- PLATE ASSY,LOCK R AUBSF XP-SP921
X PACK NG 8B-HC3-851-010 -- COVER,TOP 921 AUBSF AUBSF XP-SP920
X PACK NG 8B-HC3-851-010 -- COVER,TOP 921 AUBSF AUBSF XP-SP921
X PACK NG 8B-HC3-852-010 -- COVER,BOTTOM 921 AUBSF AUBSF XP-SP920
X PACK NG 8B-HC3-852-010 -- COVER,BOTTOM 921 AUBSF AUBSF XP-SP921
X PACK NG 8B-HC3-853-010 -- BD,PR NTED 921AUBSF AUBSF XP-SP921
X PACK NG 8B-HC3-854-010 -- CTN,OUTER 921AUBSF AUBSF XP-SP921
X PACK NG 8B-HC3-855-010 -- PAD,PART T ON AUBSF AUBSF XP-SP920
X PACK NG 8B-HC3-855-010 -- PAD,PART T ON AUBSF AUBSF XP-SP921
X PACK NG 8B-HC3-856-010 -- BD,PR NTED 920AUBSF AUBSF XP-SP920
X PACK NG 8B-HC3-857-010 -- CTN,OUTER 920AUBSF AUBSF XP-SP920
X PACK NG 93-704-282-010 1A BAG,FOAMED 0.31-300-450 AUBSF XP-SP920
X PACK NG 93-704-282-010 1A BAG,FOAMED 0.31-300-450 AUBSF XP-SP921
X PLATE 84-711-909-010 1A LBL DATE CODE AUBSF XP-SP920
X PLATE 84-711-909-010 1A LBL DATE CODE AUBSF XP-SP921
X PLATE 87-B40-154-010 0E LBL,BAR-CODE CU AUBSF XP-SP920
X PLATE 87-B40-154-010 0E LBL,BAR-CODE CU AUBSF XP-SP921
X PLATE 87-B40-282-010 0E LBL,BAR-CODE AU 35X8 AUBSF XP-SP920
X PLATE 87-B40-282-010 0E LBL,BAR-CODE AU 35X8 AUBSF XP-SP921
X PLATE 8B-HC3-024-010 -- LBL,SPEC AUF 921 AUBSF XP-SP921
X PLATE 8B-HC3-025-010 -- LBL,SPEC AUF 920 AUBSF XP-SP920
O POWER SUPPLY C 0201 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O POWER SUPPLY C 0201 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O POWER SUPPLY C 0202 87-A11-974-080 0E C-CAP,E 22-16 M 5.5L MV AUBSF XP-SP920

 8 
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
O POWER SUPPLY C 0202 87-A11-974-080 0E C-CAP,E 22-16 M 5.5L MV AUBSF XP-SP921
O POWER SUPPLY C 0203 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O POWER SUPPLY C 0203 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O POWER SUPPLY C 0204 87-016-430-080 0E C-CAP,E 100-6.3 M 5.5L WX AUBSF XP-SP920
O POWER SUPPLY C 0204 87-016-430-080 0E C-CAP,E 100-6.3 M 5.5L WX AUBSF XP-SP921
O POWER SUPPLY C 0206 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O POWER SUPPLY C 0206 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O POWER SUPPLY C 0207 87-A10-505-040 0E CAP,E 220-6.3 105 SF AUBSF XP-SP920
O POWER SUPPLY C 0207 87-A10-505-040 0E CAP,E 220-6.3 105 SF AUBSF XP-SP921
O POWER SUPPLY C 0208 87-016-422-080 0E C-CAP,E 22-6.3 M WX AUBSF XP-SP920
O POWER SUPPLY C 0208 87-016-422-080 0E C-CAP,E 22-6.3 M WX AUBSF XP-SP921
O POWER SUPPLY C 0209 87-A10-260-080 0E C-CAP,U 0.1-16 K B AUBSF XP-SP920
O POWER SUPPLY C 0209 87-A10-260-080 0E C-CAP,U 0.1-16 K B AUBSF XP-SP921
O POWER SUPPLY C 0210 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP920
O POWER SUPPLY C 0210 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP921
O POWER SUPPLY C 0211 87-010-787-080 0E C-CAP,U 0.022-25 K B AUBSF XP-SP920
O POWER SUPPLY C 0211 87-010-787-080 0E C-CAP,U 0.022-25 K B AUBSF XP-SP921
O POWER SUPPLY C 0212 87-012-266-080 0E C-CAP,U 220P-50 K B GRM AUBSF XP-SP920
O POWER SUPPLY C 0212 87-012-266-080 0E C-CAP,U 220P-50 K B GRM AUBSF XP-SP921
O POWER SUPPLY C 0213 87-A11-062-080 0E C-CAP,S 2.2-16 Z F AUBSF XP-SP920
O POWER SUPPLY C 0213 87-A11-062-080 0E C-CAP,S 2.2-16 Z F AUBSF XP-SP921
O POWER SUPPLY C 0214 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O POWER SUPPLY C 0214 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O POWER SUPPLY C 0215 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP920
O POWER SUPPLY C 0215 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP921
S POWER SUPPLY D 0202 87-A40-590-040 0E C-D ODE,HRW0202A AUBSF XP-SP920
S POWER SUPPLY D 0202 87-A40-590-040 0E C-D ODE,HRW0202A AUBSF XP-SP921
S POWER SUPPLY D 0203 87-A40-590-040 0E C-D ODE,HRW0202A AUBSF XP-SP920
S POWER SUPPLY D 0203 87-A40-590-040 0E C-D ODE,HRW0202A AUBSF XP-SP921
S POWER SUPPLY D 0205 87-A40-590-040 0E C-D ODE,HRW0202A AUBSF XP-SP920
S POWER SUPPLY D 0205 87-A40-590-040 0E C-D ODE,HRW0202A AUBSF XP-SP921
S POWER SUPPLY C 0201 87-A21-448-040 1F C- C,BH6554FV AUBSF XP-SP920
S POWER SUPPLY C 0201 87-A21-448-040 1F C- C,BH6554FV AUBSF XP-SP921
O POWER SUPPLY L 0201 87-A50-355-080 0E C-CO L,330UH LQH3C AUBSF XP-SP920
O POWER SUPPLY L 0201 87-A50-355-080 0E C-CO L,330UH LQH3C AUBSF XP-SP921
O POWER SUPPLY L 0202 87-A50-330-080 1D C-CO L,100UH-D75C AUBSF XP-SP920
O POWER SUPPLY L 0202 87-A50-330-080 1D C-CO L,100UH-D75C AUBSF XP-SP921
O POWER SUPPLY L 0203 87-A50-355-080 0E C-CO L,330UH LQH3C AUBSF XP-SP920
O POWER SUPPLY L 0203 87-A50-355-080 0E C-CO L,330UH LQH3C AUBSF XP-SP921
S POWER SUPPLY Q 0201 89-113-695-680 1A C-TR,2SA1369(G/H) AUBSF XP-SP920
S POWER SUPPLY Q 0201 89-113-695-680 1A C-TR,2SA1369(G/H) AUBSF XP-SP921
S POWER SUPPLY Q 0202 87-A30-332-040 1A C-TR,CPH3106 AUBSF XP-SP920
S POWER SUPPLY Q 0202 87-A30-332-040 1A C-TR,CPH3106 AUBSF XP-SP921
S POWER SUPPLY Q 0203 87-A30-278-040 1A C-FET,2SK2980 AUBSF XP-SP920
S POWER SUPPLY Q 0203 87-A30-278-040 1A C-FET,2SK2980 AUBSF XP-SP921
S POWER SUPPLY Q 0204 87-A30-278-040 1A C-FET,2SK2980 AUBSF XP-SP920
S POWER SUPPLY Q 0204 87-A30-278-040 1A C-FET,2SK2980 AUBSF XP-SP921
X POWER SUPPLY R 0201 88-108-224-080 0E C-RES,U 220K-1/16W J AUBSF XP-SP920
X POWER SUPPLY R 0201 88-108-224-080 0E C-RES,U 220K-1/16W J AUBSF XP-SP921
X POWER SUPPLY R 0202 88-108-221-080 0E C-RES,U 220-1/16W J AUBSF XP-SP920
X POWER SUPPLY R 0202 88-108-221-080 0E C-RES,U 220-1/16W J AUBSF XP-SP921
X POWER SUPPLY R 0203 88-108-100-080 0E C-RES,U 10-1/16W J AUBSF XP-SP920
X POWER SUPPLY R 0203 88-108-100-080 0E C-RES,U 10-1/16W J AUBSF XP-SP921
X POWER SUPPLY R 0204 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP920
X POWER SUPPLY R 0204 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP921
X POWER SUPPLY R 0205 88-108-181-080 0E C-RES,U 180-1/16W J AUBSF XP-SP920
X POWER SUPPLY R 0205 88-108-181-080 0E C-RES,U 180-1/16W J AUBSF XP-SP921
O POWER SUPPLY R 0206 87-022-243-080 0E C-RES,U 15K-1/16W F AUBSF XP-SP920
O POWER SUPPLY R 0206 87-022-243-080 0E C-RES,U 15K-1/16W F AUBSF XP-SP921
X POWER SUPPLY R 0207 88-108-152-080 0E C-RES,U 1.5K-1/16W J AUBSF XP-SP920
X POWER SUPPLY R 0207 88-108-152-080 0E C-RES,U 1.5K-1/16W J AUBSF XP-SP921
X POWER SUPPLY R 0208 88-108-274-080 0E C-RES,U 270K-1/16W J AUBSF XP-SP920
X POWER SUPPLY R 0208 88-108-274-080 0E C-RES,U 270K-1/16W J AUBSF XP-SP921
O POWER SUPPLY R 0209 87-022-239-080 0E C-RES,U 10K-1/16W F AUBSF XP-SP920
O POWER SUPPLY R 0209 87-022-239-080 0E C-RES,U 10K-1/16W F AUBSF XP-SP921
X POWER SUPPLY R 0210 88-108-822-080 0E C-RES,U 8.2K-1/16W J AUBSF XP-SP920
X POWER SUPPLY R 0210 88-108-822-080 0E C-RES,U 8.2K-1/16W J AUBSF XP-SP921
X POWER SUPPLY R 0211 88-108-154-080 0E C-RES,U 150K-1/16W J AUBSF XP-SP920
X POWER SUPPLY R 0211 88-108-154-080 0E C-RES,U 150K-1/16W J AUBSF XP-SP921
X POWER SUPPLY R 0212 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920

 9 
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
X POWER SUPPLY R 0212 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X POWER SUPPLY R 0213 88-108-154-080 0E C-RES,U 150K-1/16W J AUBSF XP-SP920
X POWER SUPPLY R 0213 88-108-154-080 0E C-RES,U 150K-1/16W J AUBSF XP-SP921
X POWER SUPPLY R 0214 88-108-223-080 0E C-RES,U 22K-1/16W J AUBSF XP-SP920
X POWER SUPPLY R 0214 88-108-223-080 0E C-RES,U 22K-1/16W J AUBSF XP-SP921
X POWER SUPPLY R 0215 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X POWER SUPPLY R 0215 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X PR NTED DU 87-056-146-010 0E SH,CAUT ON HP-N AUBSF XP-SP920
X PR NTED DU 87-056-146-010 0E SH,CAUT ON HP-N AUBSF XP-SP921
X PR NTED DU 87-B50-054-010 1D WARR-CARD,USA CUST/PORTABLE AUBSF XP-SP920
X PR NTED DU 87-B50-054-010 1D WARR-CARD,USA CUST/PORTABLE AUBSF XP-SP921
O PR NTED DU 8B-HC3-901-010 -- B,U(3L)S AUBSF XP-SP920
O PR NTED DU 8B-HC3-901-010 -- B,U(3L)S AUBSF XP-SP921
X PR NTED DU 8B-HC4-920-010 0E SH,JOG(ESF)S AUBSF XP-SP920
X PR NTED DU 8B-HC4-920-010 0E SH,JOG(ESF)S AUBSF XP-SP921
X PWB * 8B-HC3-601-010 -- PWB,MA N 2M AUBSF XP-SP920
X PWB * 8B-HC3-601-010 -- PWB,MA N 2M AUBSF XP-SP921
X PWB * 8B-HC3-602-010 -- PWB,KEY 4M AUBSF XP-SP920
X PWB * 8B-HC3-602-010 -- PWB,KEY 4M AUBSF XP-SP921
O SCREW 86-HSB-226-010 0E S-SCREW,L D AUBSF XP-SP920
O SCREW 86-HSB-226-010 0E S-SCREW,L D AUBSF XP-SP921
O SCREW 87-067-359-010 0E S-SCREW,+1.4-2.5 CR BLK AUBSF XP-SP920
O SCREW 87-067-359-010 0E S-SCREW,+1.4-2.5 CR BLK AUBSF XP-SP921
O SCREW 87-067-384-010 0E VT2+1.4-3.5 SWCH HL AUBSF XP-SP920
O SCREW 87-067-384-010 0E VT2+1.4-3.5 SWCH HL AUBSF XP-SP921
O SCREW 87-067-732-010 0E VT2+1.4-3 CR BLK HL AUBSF XP-SP920
O SCREW 87-067-732-010 0E VT2+1.4-3 CR BLK HL AUBSF XP-SP921
O SCREW 87-067-869-010 0E V+1.7-8 SWCH/ZN BLK HL AUBSF XP-SP920
O SCREW 87-067-869-010 0E V+1.7-8 SWCH/ZN BLK HL AUBSF XP-SP921
O SCREW 87-067-963-010 0E S-SCREW,H NGE+1.7-2.5 SWCH/CR AUBSF XP-SP920
O SCREW 87-067-963-010 0E S-SCREW,H NGE+1.7-2.5 SWCH/CR AUBSF XP-SP921
O SCREW 88-HSA-227-010 0E S-SCREW,1.7-4 HL BLK AUBSF XP-SP920
O SCREW 88-HSA-227-010 0E S-SCREW,1.7-4 HL BLK AUBSF XP-SP921
O SCREW * 87-067-736-010 0E S-SCREW,+1.4-2 BLK NLOCK AUBSF XP-SP920
O SCREW * 87-067-736-010 0E S-SCREW,+1.4-2 BLK NLOCK AUBSF XP-SP920
O SCREW * 87-067-736-010 0E S-SCREW,+1.4-2 BLK NLOCK AUBSF XP-SP920
O SCREW * 87-067-736-010 0E S-SCREW,+1.4-2 BLK NLOCK AUBSF XP-SP921
O SCREW * 87-067-736-010 0E S-SCREW,+1.4-2 BLK NLOCK AUBSF XP-SP921
O SCREW * 87-067-736-010 0E S-SCREW,+1.4-2 BLK NLOCK AUBSF XP-SP921
O SERVO C 0401 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP920
O SERVO C 0401 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP921
O SERVO C 0402 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O SERVO C 0402 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O SERVO C 0403 87-016-431-080 0E C-CAP,E 220-4 M WX AUBSF XP-SP920
O SERVO C 0403 87-016-431-080 0E C-CAP,E 220-4 M WX AUBSF XP-SP921
O SERVO C 0405 87-A10-260-080 0E C-CAP,U 0.1-16 K B AUBSF XP-SP920
O SERVO C 0405 87-A10-260-080 0E C-CAP,U 0.1-16 K B AUBSF XP-SP921
O SERVO C 0406 87-012-271-080 0E C-CAP,U 560P-50 K B AUBSF XP-SP920
O SERVO C 0406 87-012-271-080 0E C-CAP,U 560P-50 K B AUBSF XP-SP921
O SERVO C 0407 87-010-787-080 0E C-CAP,U 0.022-25 K B AUBSF XP-SP920
O SERVO C 0407 87-010-787-080 0E C-CAP,U 0.022-25 K B AUBSF XP-SP921
O SERVO C 0408 87-A10-260-080 0E C-CAP,U 0.1-16 K B AUBSF XP-SP920
O SERVO C 0408 87-A10-260-080 0E C-CAP,U 0.1-16 K B AUBSF XP-SP921
O SERVO C 0409 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B AUBSF XP-SP920
O SERVO C 0409 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B AUBSF XP-SP921
O SERVO C 0410 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP920
O SERVO C 0410 87-012-286-080 0E C-CAP,U 0.01-25 K B AUBSF XP-SP921
O SERVO C 0411 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O SERVO C 0411 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O SERVO C 0412 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP920
O SERVO C 0412 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP921
O SERVO C 0413 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O SERVO C 0413 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O SERVO C 0415 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O SERVO C 0415 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O SERVO C 0418 87-012-184-080 0E C-CAP,U 33P-50 J CH AUBSF XP-SP920
O SERVO C 0418 87-012-184-080 0E C-CAP,U 33P-50 J CH AUBSF XP-SP921
O SERVO C 0419 87-012-184-080 0E C-CAP,U 33P-50 J CH AUBSF XP-SP920
O SERVO C 0419 87-012-184-080 0E C-CAP,U 33P-50 J CH AUBSF XP-SP921
O SERVO C 0421 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920

 10 
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
O SERVO C 0421 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O SERVO C 0422 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O SERVO C 0422 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O SERVO C 0423 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O SERVO C 0423 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O SERVO C 0501 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP920
O SERVO C 0501 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP921
O SERVO C 0502 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP920
O SERVO C 0502 87-010-831-080 0E C-CAP,U 0.1-16 Z F AUBSF XP-SP921
O SERVO C 0503 87-010-787-080 0E C-CAP,U 0.022-25 K B AUBSF XP-SP920
O SERVO C 0503 87-010-787-080 0E C-CAP,U 0.022-25 K B AUBSF XP-SP921
O SERVO C 0504 87-010-787-080 0E C-CAP,U 0.022-25 K B AUBSF XP-SP920
O SERVO C 0504 87-010-787-080 0E C-CAP,U 0.022-25 K B AUBSF XP-SP921
O SERVO C 0505 87-012-276-080 0E C-CAP,U 1500P-50 K B AUBSF XP-SP920
O SERVO C 0505 87-012-276-080 0E C-CAP,U 1500P-50 K B AUBSF XP-SP921
O SERVO C 0506 87-012-198-080 0E C-CAP,U 180P-50 J CH AUBSF XP-SP920
O SERVO C 0506 87-012-198-080 0E C-CAP,U 180P-50 J CH AUBSF XP-SP921
O SERVO C 0507 87-012-273-080 0E C-CAP,U 820P-50 K B AUBSF XP-SP920
O SERVO C 0507 87-012-273-080 0E C-CAP,U 820P-50 K B AUBSF XP-SP921
O SERVO C 0508 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP920
O SERVO C 0508 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP921
O SERVO C 0509 87-012-281-080 0E C-CAP,U 3900P-50 K B GRM AUBSF XP-SP920
O SERVO C 0509 87-012-281-080 0E C-CAP,U 3900P-50 K B GRM AUBSF XP-SP921
O SERVO C 0510 87-012-283-080 0E C-CAP,U 5600P-50 K B AUBSF XP-SP920
O SERVO C 0510 87-012-283-080 0E C-CAP,U 5600P-50 K B AUBSF XP-SP921
O SERVO C 0511 87-A11-228-080 0E C-CAP,U 0.027-25 K B AUBSF XP-SP920
O SERVO C 0511 87-A11-228-080 0E C-CAP,U 0.027-25 K B AUBSF XP-SP921
O SERVO C 0512 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP920
O SERVO C 0512 87-016-429-080 0E C-CAP,E 100-4 M WX AUBSF XP-SP921
O SERVO C 0513 87-A11-228-080 0E C-CAP,U 0.027-25 K B AUBSF XP-SP920
O SERVO C 0513 87-A11-228-080 0E C-CAP,U 0.027-25 K B AUBSF XP-SP921
O SERVO C 0514 87-A10-828-080 0E C-CAP,U 0.33-6.3 K B AUBSF XP-SP920
O SERVO C 0514 87-A10-828-080 0E C-CAP,U 0.33-6.3 K B AUBSF XP-SP921
O SERVO C 0515 87-A10-260-080 0E C-CAP,U 0.1-16 K B AUBSF XP-SP920
O SERVO C 0515 87-A10-260-080 0E C-CAP,U 0.1-16 K B AUBSF XP-SP921
O SERVO C 0516 87-012-180-080 0E C-CAP,U 22P-50 J CH AUBSF XP-SP920
O SERVO C 0516 87-012-180-080 0E C-CAP,U 22P-50 J CH AUBSF XP-SP921
O SERVO C 0517 87-012-180-080 0E C-CAP,U 22P-50 J CH AUBSF XP-SP920
O SERVO C 0517 87-012-180-080 0E C-CAP,U 22P-50 J CH AUBSF XP-SP921
O SERVO C 0520 87-016-426-080 0E C-CAP,E 47-4 M WX AUBSF XP-SP920
O SERVO C 0520 87-016-426-080 0E C-CAP,E 47-4 M WX AUBSF XP-SP921
O SERVO C 0521 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP920
O SERVO C 0521 87-012-274-080 0E C-CAP,U 1000P-50 K B AUBSF XP-SP921
O SERVO C 0522 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP920
O SERVO C 0522 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP921
O SERVO C 0523 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP920
O SERVO C 0523 87-A10-047-080 0E C-CAP,U 1-10 Z F AUBSF XP-SP921
O SERVO CN 0501 87-009-214-080 1C C-CONN,16P 52207 AUBSF XP-SP920
O SERVO CN 0501 87-009-214-080 1C C-CONN,16P 52207 AUBSF XP-SP921
S SERVO C 0401 87-A21-874-010 2M C- C,MN35530 AUBSF XP-SP920
S SERVO C 0401 87-A21-874-010 2M C- C,MN35530 AUBSF XP-SP921
S SERVO C 0501 87-A21-873-040 1E C- C,AN8399SA AUBSF XP-SP920
S SERVO C 0501 87-A21-873-040 1E C- C,AN8399SA AUBSF XP-SP921
O SERVO L 0401 87-A50-367-080 0E C-CO L, 10UH LQG21F AUBSF XP-SP920
O SERVO L 0401 87-A50-367-080 0E C-CO L, 10UH LQG21F AUBSF XP-SP921
O SERVO L 0402 87-A50-012-080 0E C-CO L, 100UH LQH3C AUBSF XP-SP920
O SERVO L 0402 87-A50-012-080 0E C-CO L, 100UH LQH3C AUBSF XP-SP921
O SERVO L 0501 87-A50-012-080 0E C-CO L, 100UH LQH3C AUBSF XP-SP920
O SERVO L 0501 87-A50-012-080 0E C-CO L, 100UH LQH3C AUBSF XP-SP921
O SERVO L 0502 87-A50-367-080 0E C-CO L, 10UH LQG21F AUBSF XP-SP920
O SERVO L 0502 87-A50-367-080 0E C-CO L, 10UH LQG21F AUBSF XP-SP921
S SERVO Q 0501 87-A30-287-040 0E C-TR,DTC114TKA AUBSF XP-SP920
S SERVO Q 0501 87-A30-287-040 0E C-TR,DTC114TKA AUBSF XP-SP921
S SERVO Q 0504 87-A30-282-040 0E C-TR,DTA114TKA AUBSF XP-SP920
S SERVO Q 0504 87-A30-282-040 0E C-TR,DTA114TKA AUBSF XP-SP921
S SERVO Q 0510 87-A30-377-040 0E C-TR,2SB815B7 AUBSF XP-SP920
S SERVO Q 0510 87-A30-377-040 0E C-TR,2SB815B7 AUBSF XP-SP921
X SERVO R 0401 88-108-363-080 0E C-RES,U 36K-1/16W J AUBSF XP-SP920
X SERVO R 0401 88-108-363-080 0E C-RES,U 36K-1/16W J AUBSF XP-SP921
X SERVO R 0402 88-108-683-080 0E C-RES,U 68K-1/16W J AUBSF XP-SP920

 11 
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
X SERVO R 0402 88-108-683-080 0E C-RES,U 68K-1/16W J AUBSF XP-SP921
X SERVO R 0403 88-108-222-080 0E C-RES,U 2.2K-1/16W J AUBSF XP-SP920
X SERVO R 0403 88-108-222-080 0E C-RES,U 2.2K-1/16W J AUBSF XP-SP921
X SERVO R 0404 88-108-391-080 0E C-RES,U 390-1/16W J AUBSF XP-SP920
X SERVO R 0404 88-108-391-080 0E C-RES,U 390-1/16W J AUBSF XP-SP921
X SERVO R 0405 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP920
X SERVO R 0405 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP921
X SERVO R 0406 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP920
X SERVO R 0406 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP921
X SERVO R 0407 88-108-470-080 0E C-RES,U 47-1/16W J AUBSF XP-SP920
X SERVO R 0407 88-108-470-080 0E C-RES,U 47-1/16W J AUBSF XP-SP921
X SERVO R 0410 88-108-331-080 0E C-RES,U 330-1/16W J AUBSF XP-SP920
X SERVO R 0410 88-108-331-080 0E C-RES,U 330-1/16W J AUBSF XP-SP921
X SERVO R 0412 88-108-101-080 0E C-RES,U 100-1/16W J AUBSF XP-SP920
X SERVO R 0412 88-108-101-080 0E C-RES,U 100-1/16W J AUBSF XP-SP921
O SERVO R 0501 87-022-223-080 0E C-RES,U 2.2K-1/16W F AUBSF XP-SP920
O SERVO R 0501 87-022-223-080 0E C-RES,U 2.2K-1/16W F AUBSF XP-SP921
O SERVO R 0502 87-022-223-080 0E C-RES,U 2.2K-1/16W F AUBSF XP-SP920
O SERVO R 0502 87-022-223-080 0E C-RES,U 2.2K-1/16W F AUBSF XP-SP921
O SERVO R 0503 87-022-223-080 0E C-RES,U 2.2K-1/16W F AUBSF XP-SP920
O SERVO R 0503 87-022-223-080 0E C-RES,U 2.2K-1/16W F AUBSF XP-SP921
O SERVO R 0504 87-022-223-080 0E C-RES,U 2.2K-1/16W F AUBSF XP-SP920
O SERVO R 0504 87-022-223-080 0E C-RES,U 2.2K-1/16W F AUBSF XP-SP921
O SERVO R 0505 87-022-239-080 0E C-RES,U 10K-1/16W F AUBSF XP-SP920
O SERVO R 0505 87-022-239-080 0E C-RES,U 10K-1/16W F AUBSF XP-SP921
O SERVO R 0506 87-022-239-080 0E C-RES,U 10K-1/16W F AUBSF XP-SP920
O SERVO R 0506 87-022-239-080 0E C-RES,U 10K-1/16W F AUBSF XP-SP921
X SERVO R 0507 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP920
X SERVO R 0507 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP921
X SERVO R 0508 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP920
X SERVO R 0508 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP921
X SERVO R 0509 88-108-223-080 0E C-RES,U 22K-1/16W J AUBSF XP-SP920
X SERVO R 0509 88-108-223-080 0E C-RES,U 22K-1/16W J AUBSF XP-SP921
X SERVO R 0510 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP920
X SERVO R 0510 88-108-104-080 0E C-RES,U 100K-1/16W J AUBSF XP-SP921
X SERVO R 0511 88-108-223-080 0E C-RES,U 22K-1/16W J AUBSF XP-SP920
X SERVO R 0511 88-108-223-080 0E C-RES,U 22K-1/16W J AUBSF XP-SP921
X SERVO R 0512 88-108-562-080 0E C-RES,U 5.6K-1/16W J AUBSF XP-SP920
X SERVO R 0512 88-108-562-080 0E C-RES,U 5.6K-1/16W J AUBSF XP-SP921
X SERVO R 0513 88-108-222-080 0E C-RES,U 2.2K-1/16W J AUBSF XP-SP920
X SERVO R 0513 88-108-222-080 0E C-RES,U 2.2K-1/16W J AUBSF XP-SP921
X SERVO R 0514 88-108-222-080 0E C-RES,U 2.2K-1/16W J AUBSF XP-SP920
X SERVO R 0514 88-108-222-080 0E C-RES,U 2.2K-1/16W J AUBSF XP-SP921
X SERVO R 0515 88-108-100-080 0E C-RES,U 10-1/16W J AUBSF XP-SP920
X SERVO R 0515 88-108-100-080 0E C-RES,U 10-1/16W J AUBSF XP-SP921
X SERVO R 0516 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP920
X SERVO R 0516 88-108-103-080 0E C-RES,U 10K-1/16W J AUBSF XP-SP921
X SERVO R 0523 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP920
X SERVO R 0523 88-108-000-080 0E C-JUMPER,U AUBSF XP-SP921
O SERVO X 0401 87-A70-315-080 1A C-V B,CER 16.93MHZ CSACWMX03-T AUBSF XP-SP920
O SERVO X 0401 87-A70-315-080 1A C-V B,CER 16.93MHZ CSACWMX03-T AUBSF XP-SP921

 12 

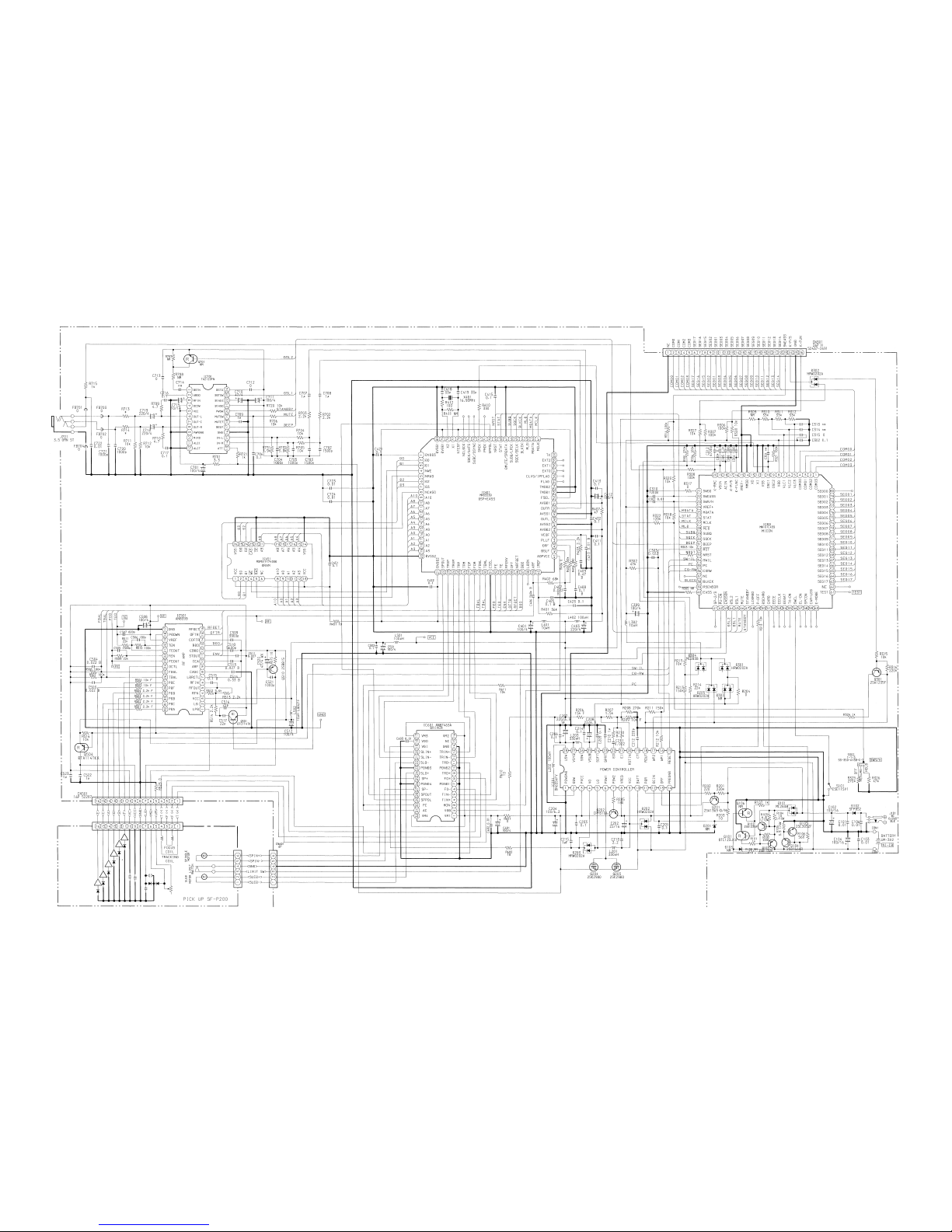

SCHEMATIC DIAGRAM  1 (MAIN)

 13 
SCHEMATIC DIAGRAM  2 (LID)

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9820543
