Aiwa XD-DV170 User manual

SERVICE MANUAL
DATA
DVD PLAYER
XD-DV170
S/M Code No. 09-00A-350-7T3
AEZ(S), AK(S),
ALH(S),AHR(S)
BASIC DVD/CD MECHANISM : DV32BF
SIMPLE

-2-
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES LIST
1 8A-AV6-910-010 IB,HR (E/CK/CH) -DV170<HR(S)>
1 8A-AV6-911-010 IB,LH (ESP) -DV170<LH(S)>
1 8A-AV6-906-010 IB,K (E) -DV170<K(S)>
1 8A-AV6-907-010 IB,EZ (9L) -DV170<Z(S)>
2 8A-AV6-620-010 RC UNIT,RC-AVL01<EXCEPT HR(S)>
2 8A-AV6-622-010 RC UNIT,RC-AVL06<HR(S)>
!!
!!
!3 87-B30-415-010 AC ADAPTOR,AC-D1003ENC
!!
!!
!3 87-050-076-010 AC CORD SET ASSY,E
!!
!!
!3 87-AV1-641-010 ADAPTOR,RGB-RCA YKS11-0027<K(S),Z(S)>
4 87-050-052-010 CORD,PIN 1.5M Y/W/R 3P
!!
!!
!5 87-A91-017-010 PLUG,CONVERSION JT-0476<HR(S),LH(S)>
!!
!!
!5 87-099-726-010 PLUG,ADPTR CONV(K)<K(S)>

-3-
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN30cmFROMTHESURFACEOFTHEOBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel: Usynlig laserst ling ved bning,
n rsikkerhedsafbrydereerudeaffunktion.
Undg uds ttelse for str ling.
VAROITUS!
Laiteen K ytt minen muulla kuin t ss k ytt ohjeessa
mainitulla tavalla saataa altistaa k yt-t j n
turvallisuusluokan 1 ylitt v lle n kym tt m lle
lasers teilylle.
VARNING!
Om apparaten anv nds p annat s tt n vad som
specificeras i denna bruksanvising, kan anv ndaren
uts ttas f r osynling laserstr lning, som verskrider
gr nsen f r laserklass 1.
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L utillisation de commandes, r glages ou proc dures
autresque ceuxsp cifi speut entra nerune dangereuse
exposition aux radiations.
ADVARSEL!
Usynliglaserst lingved bning,n rsikkerhedsafbrydereer
ude af funktion. Undg uds ttelse for str ling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
Bodyorclotheselectrostaticpotentialcould
ruinlaserdiodeintheopticalblock.Besure
groundbodyand workbench, andusecare
the clothes do not touch the diode.

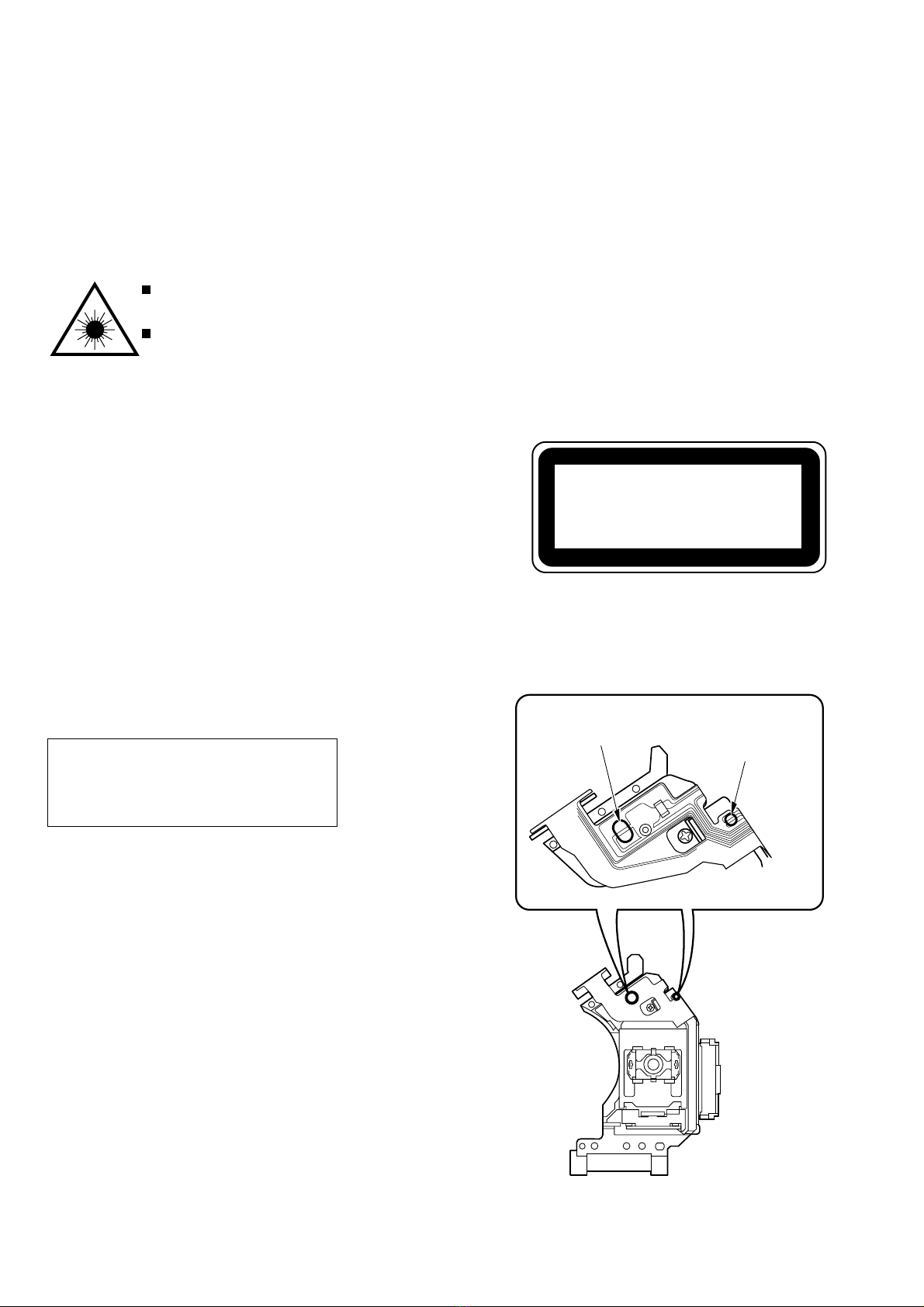

1) After the connection, remove solder
shown in the figures below.
Precaution to replace Optical block
Solder short land for
DVD laser diode Solder short land for
CD laser diode
(SF-HD3AV/HD3AVC)
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

-4-
ELECTRICAL MAIN PARTS LIST
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
IC
87-A21-032-080 C-IC,S-8520B28MC
87-A20-925-040 C-IC,BA05FP
87-A20-905-040 C-IC,BA033FP
87-A21-764-040 C-IC,BA00ASFP
87-A20-080-040 C-IC,TC74HC14AF
87-017-027-040 C-IC,TC7W08F
8A-ZA7-804-010 C-IC,LC87F72C8A
87-A21-697-040 C-IC,TC7SHU04F
8A-ZA7-803-010 C-IC,LC78660W
8A-ZA7-802-040 C-IC,LC324265AT-25DV
87-A21-309-040 C-IC,HD74LV74A
8A-ZA7-800-010 C-IC,LA9702W-MPB
87-017-917-080 C-IC,BU4066BCF
8A-ZA7-801-040 C-IC,LA6556L-TE-L
88-KT1-608-010 C-IC,LC75854W
87-A21-245-010 IC,RPM6938-V4
87-017-853-040 C-IC,NJM2100V<HR>
8A-ZA7-602-040 C-IC,HN58X2416FPI
8Z-AV2-628-010 C-IC,HD6412350F20
87-A20-185-040 C-IC,PST600DMT
87-001-551-080 C-IC,TC7S08F
8A-AV6-626-010 IC,P-ROMAAV-6(3)<HR>
8A-AV6-625-010 IC,P-ROMAAV-6(E)<K,EZ>
8A-AV6-628-010 IC,P-ROMAAV-6(VER.17B)<LH>
8A-AV6-605-030 C-IC,UT611024LC-12
87-A20-957-040 C-IC,SN74LV245APW
87-A21-755-040 C-IC,SN74LV541APW
8Z-AV2-630-010 C-IC,L64021D
87-A21-617-010 C-IC,HY57V161610DTC-8
87-A20-689-080 C-IC,PCM1723
87-A21-613-040 C-IC,SN74LV04APW
87-A21-362-040 C-IC,NJM2100M(TE2)
87-017-585-080 C-IC,NJM4580E<LH,K,EZ>
87-A21-103-040 C-IC,MM1454XFBE
8A-AV6-614-040 C-IC,YSS915C-PK28MP-1<HR>
87-A21-754-010 C-IC,MC44722AVFU
87-A20-582-010 IC,GP1F31TJ
87-017-453-080 C-IC,NJM2267M
87-017-750-080 C-IC,MM1041XM
TRANSISTOR
87-A30-382-040 C-FET,FTS1002
89-110-372-080 C-TR,2SA1037K(R)
89-211-323-080 C-TR,2SB1132R
89-333-265-040 C-TR,2SC3326A
87-A30-516-040 C-FET,3LN01C-TB
87-026-210-080 C-TR,DTC144EK
89-341-165-080 C-TR,2SC4116GR
89-115-864-080 C-TR,2SA1586Y
89-333-265-080 C-TR,2SC3326A<HR>
87-026-227-080 C-TR,DTA114EK
87-026-342-080 C-TR,DTC144EU
89-342-132-080 C-TR,2SC4213B
87-026-211-080 C-TR,DTA144EK
89-324-123-080 C-TR,2SC2412KS
DIODE
87-017-779-080 C-DIODE,1SS355
87-017-990-080 C-DIODE,U2FWJ44N
87-A40-797-040 C-DIODE,SBE001
87-001-166-080 C-DIODE,1SS301
87-001-165-080 C-DIODE,1SS300
MAIN C.B
C0002 87-016-669-080 C-CAP,S 0.1-25 K B
C0003 87-010-831-080 C-CAP,U 0.1-16 Z F
C0005 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV
C0006 87-A12-416-080 C-CAP,E 100U-25 M 7.7L UD
C0007 87-016-669-080 C-CAP,S 0.1-25 K B
C0008 87-A12-416-080 C-CAP,E 100U-25 M 7.7L UD
C0009 87-016-669-080 C-CAP,S 0.1-25 K B
C0010 87-012-286-080 C-CAP,U 0.01-25 K B
C0012 87-A11-282-080 C-CAP,S 1-16 K B
C0015 87-A11-282-080 C-CAP,S 1-16 K B
C0016 87-010-831-080 C-CAP,U 0.1-16 Z F
C0017 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV
C0018 87-010-831-080 C-CAP,U 0.1-16 Z F
C0019 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV
C0020 87-A11-282-080 C-CAP,S 1-16 K B
C0021 87-010-831-080 C-CAP,U 0.1-16 Z F
C0022 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV
C0023 87-010-831-080 C-CAP,U 0.1-16 Z F
C0024 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV
C0026 87-010-831-080 C-CAP,U 0.1-16 Z F
C0027 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV
C0028 87-010-831-080 C-CAP,U 0.1-16 Z F
C0029 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV
C0100 87-012-274-080 C-CAP,U 1000P-50 K B
C0101 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0102 87-010-831-080 C-CAP,U 0.1-16 Z F
C0103 87-010-831-080 C-CAP,U 0.1-16 Z F
C0104 87-012-180-080 C-CAP,U 22P-50 J CH
C0105 87-012-180-080 C-CAP,U 22P-50 J CH
C0106 87-010-831-080 C-CAP,U 0.1-16 Z F
C0107 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0108 87-010-831-080 C-CAP,U 0.1-16 Z F
C0109 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0110 87-010-831-080 C-CAP,U 0.1-16 Z F
C0111 87-012-195-080 C-CAP,U 100P-50 J CH
C0112 87-010-831-080 C-CAP,U 0.1-16 Z F
C0113 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0114 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0115 87-010-831-080 C-CAP,U 0.1-16 Z F
C0116 87-012-172-080 C-CAP,U 10P-50 D CH
C0117 87-012-172-080 C-CAP,U 10P-50 D CH
C0118 87-012-172-080 C-CAP,U 10P-50 D CH
C0119 87-012-172-080 C-CAP,U 10P-50 D CH
C0120 87-012-172-080 C-CAP,U 10P-50 D CH
C0121 87-012-172-080 C-CAP,U 10P-50 D CH
C0122 87-012-172-080 C-CAP,U 10P-50 D CH
C0123 87-012-172-080 C-CAP,U 10P-50 D CH
C0124 87-012-172-080 C-CAP,U 10P-50 D CH
C0125 87-012-172-080 C-CAP,U 10P-50 D CH
C0126 87-012-286-080 C-CAP,U 0.01-25 K B
C0127 87-012-286-080 C-CAP,U 0.01-25 K B
C0128 87-012-286-080 C-CAP,U 0.01-25 K B
C0129 87-012-286-080 C-CAP,U 0.01-25 K B
C0130 87-012-286-080 C-CAP,U 0.01-25 K B
C0201 87-010-831-080 C-CAP,U 0.1-16 Z F
C0202 87-A11-031-080 C-CAP,E 100-16 M WX
C0203 87-010-831-080 C-CAP,U 0.1-16 Z F
C0205 87-010-831-080 C-CAP,U 0.1-16 Z F
C0206 87-A11-031-080 C-CAP,E 100-16 M WX
C0208 87-016-430-080 C-CAP,E 100-6.3 M 5.5L WX
C0209 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX
C0211 87-010-831-080 C-CAP,U 0.1-16 Z F
C0217 87-010-831-080 C-CAP,U 0.1-16 Z F
C0218 87-010-831-080 C-CAP,U 0.1-16 Z F
C0219 87-A12-344-080 C-CAP,E 100-6.3 VC PX
C0220 87-012-274-080 C-CAP,U 1000P-50 K B
C0221 87-012-274-080 C-CAP,U 1000P-50 K B
C0222 87-010-831-080 C-CAP,U 0.1-16 Z F
C0224 87-012-277-080 C-CAP,U 1800P-50 K B GRM
C0225 87-012-274-080 C-CAP,U 1000P-50 K B
C0226 87-012-274-080 C-CAP,U 1000P-50 K B
C0227 87-012-274-080 C-CAP,U 1000P-50 K B

-5-
C0228 87-012-274-080 C-CAP,U 1000P-50 K B
C0229 87-012-274-080 C-CAP,U 1000P-50 K B
C0231 87-012-274-080 C-CAP,U 1000P-50 K B
C0232 87-012-274-080 C-CAP,U 1000P-50 K B
C0233 87-010-831-080 C-CAP,U 0.1-16 Z F
C0234 87-010-831-080 C-CAP,U 0.1-16 Z F
C0235 87-012-174-080 C-CAP,U 12P-50 J CH
C0236 87-012-174-080 C-CAP,U 12P-50 J CH
C0237 87-010-831-080 C-CAP,U 0.1-16 Z F
C0238 87-010-829-080 C-CAP,U 0.047-16 Z F
C0239 87-010-829-080 C-CAP,U 0.047-16 Z F
C0240 87-010-831-080 C-CAP,U 0.1-16 Z F
C0241 87-010-831-080 C-CAP,U 0.1-16 Z F
C0242 87-012-286-080 C-CAP,U 0.01-25 K B
C0243 87-012-197-080 C-CAP,U 150P-50 J CH
C0244 87-010-831-080 C-CAP,U 0.1-16 Z F
C0245 87-010-831-080 C-CAP,U 0.1-16 Z F
C0246 87-010-831-080 C-CAP,U 0.1-16 Z F
C0247 87-010-831-080 C-CAP,U 0.1-16 Z F
C0248 87-010-831-080 C-CAP,U 0.1-16 Z F
C0249 87-010-831-080 C-CAP,U 0.1-16 Z F
C0250 87-010-831-080 C-CAP,U 0.1-16 Z F
C0251 87-010-831-080 C-CAP,U 0.1-16 Z F
C0252 87-010-831-080 C-CAP,U 0.1-16 Z F
C0253 87-010-831-080 C-CAP,U 0.1-16 Z F
C0254 87-010-831-080 C-CAP,U 0.1-16 Z F
C0255 87-010-831-080 C-CAP,U 0.1-16 Z F
C0256 87-012-282-080 C-CAP,U 4700P-50 K B
C0257 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX
C0259 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX
C0260 87-012-286-080 C-CAP,U 0.01-25 K B
C0261 87-012-286-080 C-CAP,U 0.01-25 K B
C0300 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX
C0301 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX
C0302 87-010-831-080 C-CAP,U 0.1-16 Z F
C0303 87-010-831-080 C-CAP,U 0.1-16 Z F
C0304 87-012-274-080 C-CAP,U 1000P-50 K B
C0305 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0307 87-012-274-080 C-CAP,U 1000P-50 K B
C0308 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0311 87-010-831-080 C-CAP,U 0.1-16 Z F
C0312 87-012-271-080 C-CAP,U 560P-50 K B
C0313 87-012-271-080 C-CAP,U 560P-50 K B
C0314 87-012-271-080 C-CAP,U 560P-50 K B
C0315 87-012-271-080 C-CAP,U 560P-50 K B
C0316 87-012-271-080 C-CAP,U 560P-50 K B
C0317 87-012-282-080 C-CAP,U 4700P-50 K B
C0318 87-012-271-080 C-CAP,U 560P-50 K B
C0319 87-012-196-080 C-CAP,U 120P-50 J CH
C0320 87-A11-031-080 C-CAP,E 100-16 M WX
C0321 87-010-831-080 C-CAP,U 0.1-16 Z F
C0322 87-012-196-080 C-CAP,U 120P-50 J CH
C0323 87-010-831-080 C-CAP,U 0.1-16 Z F
C0324 87-012-197-080 C-CAP,U 150P-50 J CH
C0330 87-012-184-080 C-CAP,U 33P-50 J CH
C0332 87-012-197-080 C-CAP,U 150P-50 J CH
C0333 87-012-184-080 C-CAP,U 33P-50 J CH
C0334 87-012-191-080 C-CAP,U 68P-50 J CH
C0335 87-012-199-080 C-CAP,U 220P-50 J CH
C0336 87-012-197-080 C-CAP,U 150P-50 J CH
C0337 87-012-188-080 C-CAP,U 47P-50 J CH
C0338 87-012-174-080 C-CAP,U 12P-50 J CH
C0339 87-012-195-080 C-CAP,U 100P-50 J CH
C0340 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0341 87-012-193-080 C-CAP,U 82P-50 J CH
C0342 87-012-180-080 C-CAP,U 22P-50 J CH
C0343 87-012-270-080 C-CAP,U 470P-50 K B
C0344 87-012-195-080 C-CAP,U 100P-50 J CH
C0345 87-012-197-080 C-CAP,U 150P-50 J CH
C0346 87-012-196-080 C-CAP,U 120P-50 J CH
C0347 87-012-165-080 C-CAP,U 3P-50 C CH
C0348 87-010-831-080 C-CAP,U 0.1-16 Z F
C0349 87-010-843-080 C-CAP,E 1-50 M 5.5L MV
C0350 87-010-831-080 C-CAP,U 0.1-16 Z F
C0351 87-010-831-080 C-CAP,U 0.1-16 Z F
C0352 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX
C0353 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX
C0354 87-012-164-080 C-CAP,U 2P-50 C CH
C0355 87-A11-031-080 C-CAP,E 100-16 M WX
C0356 87-012-176-080 C-CAP,U 15P-50 J CH
C0357 87-010-831-080 C-CAP,U 0.1-16 Z F
C0358 87-012-274-080 C-CAP,U 1000P-50 K B
C0359 87-012-274-080 C-CAP,U 1000P-50 K B
C0400 87-010-831-080 C-CAP,U 0.1-16 Z F
C0401 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX
C0402 87-010-831-080 C-CAP,U 0.1-16 Z F
C0403 87-010-831-080 C-CAP,U 0.1-16 Z F
C0404 87-A11-968-080 C-CAP,E 220-16 M UR
C0405 87-010-831-080 C-CAP,U 0.1-16 Z F
C0406 87-010-831-080 C-CAP,U 0.1-16 Z F
C0407 87-012-199-080 C-CAP,U 220P-50 J CH
C0408 87-012-199-080 C-CAP,U 220P-50 J CH
C0409 87-012-199-080 C-CAP,U 220P-50 J CH
C0410 87-012-199-080 C-CAP,U 220P-50 J CH
C0424 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0425 87-010-831-080 C-CAP,U 0.1-16 Z F
C0426 87-010-831-080 C-CAP,U 0.1-16 Z F
C0427 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0601 87-012-286-080 C-CAP,U 0.01-25 K B
C0602 87-012-286-080 C-CAP,U 0.01-25 K B
C0604 87-012-286-080 C-CAP,U 0.01-25 K B
C0605 87-012-286-080 C-CAP,U 0.01-25 K B
C0608 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0609 87-012-286-080 C-CAP,U 0.01-25 K B
C0612 87-012-286-080 C-CAP,U 0.01-25 K B
C0613 87-012-286-080 C-CAP,U 0.01-25 K B
C0614 87-012-172-080 C-CAP,U 10P-50 D CH
C0615 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0617 87-012-172-080 C-CAP,U 10P-50 D CH
C0619 87-012-286-080 C-CAP,U 0.01-25 K B
C0620 87-012-286-080 C-CAP,U 0.01-25 K B
C0623 87-012-286-080 C-CAP,U 0.01-25 K B
C0624 87-012-286-080 C-CAP,U 0.01-25 K B
C0625 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0626 87-012-286-080 C-CAP,U 0.01-25 K B
C0627 87-012-286-080 C-CAP,U 0.01-25 K B
C0628 87-012-286-080 C-CAP,U 0.01-25 K B
C0630 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0632 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0634 87-012-286-080 C-CAP,U 0.01-25 K B
C0639 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0640 87-012-286-080 C-CAP,U 0.01-25 K B
C0641 87-012-286-080 C-CAP,U 0.01-25 K B
C0642 87-012-286-080 C-CAP,U 0.01-25 K B
C0643 87-010-197-080 C-CAP,S 0.01-25 K B C2012<K,EZ>
C0702 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0703 87-A11-031-080 C-CAP,E 100-16 M WX
C0704 87-012-286-080 C-CAP,U 0.01-25 K B
C0705 87-012-286-080 C-CAP,U 0.01-25 K B
C0706 87-012-286-080 C-CAP,U 0.01-25 K B
C0707 87-012-278-080 C-CAP,U 2200P-50 K B
C0708 87-012-286-080 C-CAP,U 0.01-25 K B
C0709 87-012-286-080 C-CAP,U 0.01-25 K B
C0710 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0711 87-012-286-080 C-CAP,U 0.01-25 K B
C0712 87-012-286-080 C-CAP,U 0.01-25 K B
C0713 87-012-286-080 C-CAP,U 0.01-25 K B
C0714 87-012-286-080 C-CAP,U 0.01-25 K B
C0715 87-012-286-080 C-CAP,U 0.01-25 K B
C0716 87-012-286-080 C-CAP,U 0.01-25 K B
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.

-6-
C0717 87-012-286-080 C-CAP,U 0.01-25 K B
C0718 87-012-286-080 C-CAP,U 0.01-25 K B
C0719 87-012-286-080 C-CAP,U 0.01-25 K B
C0720 87-012-286-080 C-CAP,U 0.01-25 K B
C0721 87-012-286-080 C-CAP,U 0.01-25 K B
C0722 87-012-286-080 C-CAP,U 0.01-25 K B
C0723 87-012-286-080 C-CAP,U 0.01-25 K B
C0724 87-012-286-080 C-CAP,U 0.01-25 K B
C0725 87-012-170-080 C-CAP,U 8P-50 D CH
C0726 87-012-196-080 C-CAP,U 120P-50 J CH
C0730 87-010-831-080 C-CAP,U 0.1-16 Z F<HR>
C0731 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0732 87-012-286-080 C-CAP,U 0.01-25 K B
C0733 87-012-196-080 C-CAP,U 120P-50 J CH
C0734 87-012-170-080 C-CAP,U 8P-50 D CH
C0735 87-012-286-080 C-CAP,U 0.01-25 K B
C0736 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0737 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0738 87-012-196-080 C-CAP,U 120P-50 J CH
C0739 87-010-831-080 C-CAP,U 0.1-16 Z F<HR>
C0741 87-010-831-080 C-CAP,U 0.1-16 Z F
C0744 87-010-831-080 C-CAP,U 0.1-16 Z F
C0745 87-010-831-080 C-CAP,U 0.1-16 Z F
C0759 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0760 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0771 87-012-278-080 C-CAP,U 2200P-50 K B
C0772 87-012-278-080 C-CAP,U 2200P-50 K B
C0773 87-012-279-080 C-CAP,U 2700P-50 K B GRM
C0774 87-012-279-080 C-CAP,U 2700P-50 K B GRM
C0775 87-012-267-080 C-CAP,U 270P-50 K B GRM
C0776 87-012-267-080 C-CAP,U 270P-50 K B GRM
C0777 87-010-458-080 C-CAP,E 2.2-50 M MV
C0778 87-010-458-080 C-CAP,E 2.2-50 M MV
C0779 87-A11-974-080 C-CAP,E 22-16 M 5.5L MV
C0780 87-A11-974-080 C-CAP,E 22-16 M 5.5L MV
C0781 87-012-186-080 C-CAP,U 39P-50 J CH
C0782 87-012-186-080 C-CAP,U 39P-50 J CH
C0783 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0784 87-010-831-080 C-CAP,U 0.1-16 Z F
C0785 87-010-831-080 C-CAP,U 0.1-16 Z F
C0786 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0787 87-010-831-080 C-CAP,U 0.1-16 Z F
C0788 87-010-831-080 C-CAP,U 0.1-16 Z F
C0789 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0790 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0791 87-012-195-080 C-CAP,U 100P-50 J CH
C0792 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0793 87-012-286-080 C-CAP,U 0.01-25 K B
C0794 87-012-286-080 C-CAP,U 0.01-25 K B
C0795 87-A11-974-080 C-CAP,E 22-16 M 5.5L MV
C0800 87-012-286-080 C-CAP,U 0.01-25 K B
C0801 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0802 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0803 87-010-831-080 C-CAP,U 0.1-16 Z F
C0804 87-010-831-080 C-CAP,U 0.1-16 Z F
C0806 87-010-831-080 C-CAP,U 0.1-16 Z F
C0810 87-012-286-080 C-CAP,U 0.01-25 K B
C0811 87-016-428-080 C-CAP,E 47-16 M 5.5L WX
C0812 87-012-286-080 C-CAP,U 0.01-25 K B
C0817 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0818 87-012-286-080 C-CAP,U 0.01-25 K B
C0819 87-012-186-080 C-CAP,U 39P-50 J CH
C0820 87-012-182-080 C-CAP,U 27P-50 J CH
C0834 87-012-184-080 C-CAP,U 33P-50 J CH
C0835 87-012-174-080 C-CAP,U 12P-50 J CH
C0836 87-012-178-080 C-CAP,U 18P-50 J CH
C0837 87-012-184-080 C-CAP,U 33P-50 J CH
C0838 87-012-174-080 C-CAP,U 12P-50 J CH
C0839 87-012-178-080 C-CAP,U 18P-50 J CH
C0844 87-012-168-080 C-CAP,U 6P-50 D CH
C0950 87-012-286-080 C-CAP,U 0.01-25 K B
C0951 87-010-848-080 C-CAP,E 10-16 M 5.5L MV
C0952 87-010-846-080 C-CAP,E 4.7-35 M 5.5L MV
C0953 87-A11-974-080 C-CAP,E 22-16 M 5.5L MV
C0954 87-A11-031-080 C-CAP,E 100-16 M WX
C0955 87-012-286-080 C-CAP,U 0.01-25 K B
C0956 87-010-846-080 C-CAP,E 4.7-35 M 5.5L MV
C0957 87-A11-974-080 C-CAP,E 22-16 M 5.5L MV
C0958 87-A11-031-080 C-CAP,E 100-16 M WX
C0959 87-012-286-080 C-CAP,U 0.01-25 K B
C0960 87-012-286-080 C-CAP,U 0.01-25 K B
C0961 87-010-831-080 C-CAP,U 0.1-16 Z F
CN0100 87-A61-476-080 C-CONN,10P V WHT BM10B-SRSS-TB
CN0300 87-A61-459-080 C-CONN,33P H XF2H-3315-1
CN0402 87-A61-337-080 C-CONN,9P V WHT PH-SM3-TB
CN0600 87-009-984-080 C-CONN,2P V WHT ZR
CN0601 87-A60-777-010 CONN,14P B TMC-D(P)
CN0700 87-099-578-080 C-CONN,4P V ZH-SM3<HR>
CNA0402 8A-ZGD-607-010 CONN ASSY,9P PH
CNA0601 8A-AV6-617-010 CONN ASSY,2P V WHT LID (CHINA)<HR,LH>
CNA0601 8A-AV6-618-010 CONN ASSY,2P V WHT LID U (CHIN<K,EZ>
CNA0700 8A-AV6-615-010 CONN ASSY,4P ZR KARAOKE<HR>
FB0001 87-A91-720-080 C-F-BEAD, FBMJ3216HS800-T
FB0002 87-A91-720-080 C-F-BEAD, FBMJ3216HS800-T
FB0003 87-A91-720-080 C-F-BEAD, FBMJ3216HS800-T
FB0005 87-A91-720-080 C-F-BEAD, FBMJ3216HS800-T
FB0006 87-A91-720-080 C-F-BEAD, FBMJ3216HS800-T
FB0007 87-A91-720-080 C-F-BEAD, FBMJ3216HS800-T
FB0008 87-A91-720-080 C-F-BEAD, FBMJ3216HS800-T
FB0201 87-A91-720-080 C-F-BEAD, FBMJ3216HS800-T
FB0731 87-A91-480-080 C-F-BEAD, BK1608 HS121
FB0737 87-A91-480-080 C-F-BEAD, BK1608 HS121
FB0739 87-A91-480-080 C-F-BEAD, BK1608 HS121
FFC0001 8A-AV6-607-010 FLEX-PWB,33P RF
J0001 87-A61-165-010 JACK,DC 4.75 BLK 10.5
J0606 87-A61-145-010 C-SOCKET,IC 2-44P IC179-44600
J0950 87-A60-127-010 JACK,Y/CYKF51-5503
J0951 87-A61-473-010 JACK,PIN 3P WHT YKC21-5816
L0003 87-A50-545-080 C-COIL,47UH-D124C
L0004 84-HD1-620-080 C-COIL, 22UH M D75C
L0005 87-A50-395-080 C-COIL,100UHD73C-636CY
L0006 87-A50-395-080 C-COIL,100UHD73C-636CY
L0100 87-A50-667-080 C-COIL, 1.0UH K FLC32
L0201 87-A50-395-080 C-COIL,100UHD73C-636CY
L0202 87-A91-720-080 C-F-BEAD, FBMJ3216HS800-T
L0203 87-A50-668-080 C-COIL, 2.2UH K FLC32
L0300 87-A50-395-080 C-COIL,100UHD73C-636CY
L0301 87-005-811-080 C-COIL, 10UH FLC32
L0302 87-005-811-080 C-COIL, 10UH FLC32
L0400 87-A50-667-080 C-COIL, 1.0UH K FLC32
L0600 87-A50-667-080 C-COIL, 1.0UH K FLC32
L0601 87-A50-667-080 C-COIL, 1.0UH K FLC32
L0602 87-A50-667-080 C-COIL, 1.0UH K FLC32
L0603 87-A50-667-080 C-COIL, 1.0UH K FLC32
L0700 87-A50-667-080 C-COIL, 1.0UH K FLC32
L0701 87-A50-667-080 C-COIL, 1.0UH K FLC32
L0702 87-A50-668-080 C-COIL, 2.2UH K FLC32
L0704 87-A50-668-080 C-COIL, 2.2UH K FLC32
L0705 87-005-815-080 C-COIL, 22UH J FLC32
L0800 87-A50-668-080 C-COIL, 2.2UH K FLC32
L0801 87-005-815-080 C-COIL, 22UH J FLC32
L0802 87-005-811-080 C-COIL, 10UH FLC32
L0803 87-005-817-080 C-COIL, 33UH J FLC32
L0805 87-005-816-080 C-COIL, 27UH J FLC32
L0806 87-005-816-080 C-COIL, 27UH J FLC32
L0810 87-005-816-080 C-COIL, 27UH J FLC32
L0811 87-005-816-080 C-COIL, 27UH J FLC32
L0950 87-005-815-080 C-COIL, 22UH J FLC32
R0005 87-022-247-080 C-RES,U 22K-1/16W F
R0006 87-022-284-080 C-RES,U 68K-1/16W F
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.

-7-
R0012 87-022-284-080 C-RES,U 68K-1/16W F
R0013 87-022-285-080 C-RES,U 82K-1/16W F
R0020 87-022-241-080 C-RES,U 12K-1/16W F
R0021 87-022-223-080 C-RES,U 2.2K-1/16W F
S0950 87-A90-166-010 SW,SL SLD-12-500H<HR,K,EZ>
X0100 87-A70-284-080 C-VIB,XTAL 10MHZ HC-49/U03C
X0200 87-A70-283-080 C-VIB,XTAL 16.9344MHZ HC-49/U0
X0600 87-A70-194-080 C-VIB,XTAL 20MHZ HC-49/U03C
X0700 87-A70-195-080 C-VIB,XTAL 27MHZ HC-49/U03C

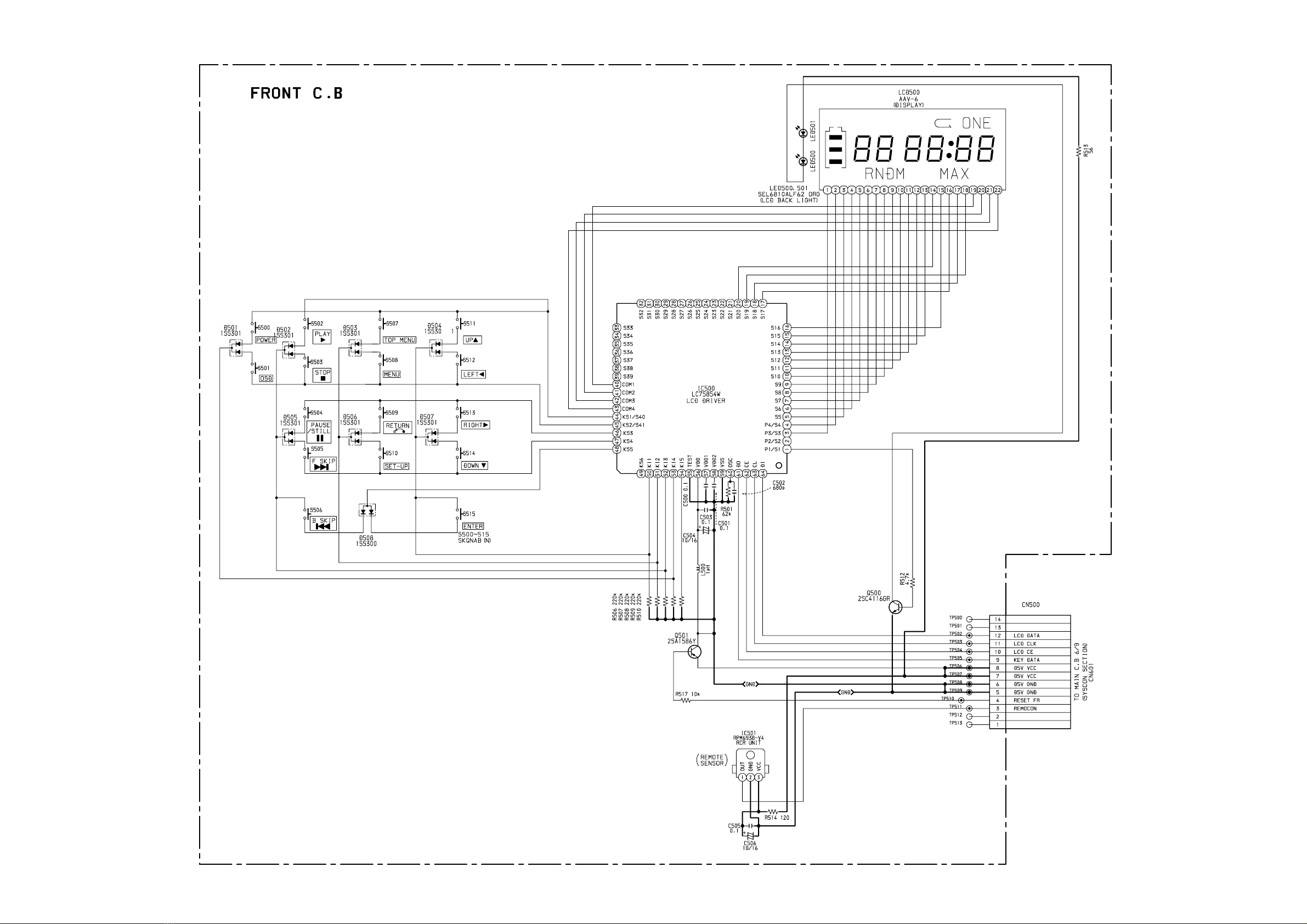

FRONT C.B
C0500 87-010-831-080 C-CAP,U 0.1-16 Z F
C0501 87-010-831-080 C-CAP,U 0.1-16 Z F
C0502 87-012-272-080 C-CAP,U 680P-50 K B GRM
C0503 87-010-831-080 C-CAP,U 0.1-16 Z F
C0504 87-010-498-080 CAP,E 10-16 M 5L SRE
C0505 87-010-831-080 C-CAP,U 0.1-16 Z F
C0506 87-010-498-080 CAP,E 10-16 M 5L SRE
CN0500 87-A60-769-010 CONN,14P B TMC-D(X)
L0500 87-005-184-080 COIL,1UH K EL0606
LCD0500 8A-AV6-608-010 LCD,AAV-6
LED0500 87-A40-943-010 LED,SEL6810ALF62 ORG
LED0501 87-A40-943-010 LED,SEL6810ALF62 ORG
S0500 87-A90-164-080 SW,TACT SKQNAB(N)
S0501 87-A90-164-080 SW,TACT SKQNAB(N)
S0502 87-A90-164-080 SW,TACT SKQNAB(N)
S0503 87-A90-164-080 SW,TACT SKQNAB(N)
S0504 87-A90-164-080 SW,TACT SKQNAB(N)
S0505 87-A90-164-080 SW,TACT SKQNAB(N)
S0506 87-A90-164-080 SW,TACT SKQNAB(N)
S0507 87-A90-164-080 SW,TACT SKQNAB(N)
S0508 87-A90-164-080 SW,TACT SKQNAB(N)
S0509 87-A90-164-080 SW,TACT SKQNAB(N)
S0510 87-A90-164-080 SW,TACT SKQNAB(N)
S0511 87-A90-164-080 SW,TACT SKQNAB(N)
S0512 87-A90-164-080 SW,TACT SKQNAB(N)
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
S0513 87-A90-164-080 SW,TACT SKQNAB(N)
S0514 87-A90-164-080 SW,TACT SKQNAB(N)
S0515 87-A90-164-080 SW,TACT SKQNAB(N)
KARAOKE C.B
C0553 87-012-286-080 C-CAP,U 0.01-25 K B<HR>
C0554 87-010-380-080 CAP,E 47-16 M 11L SME<HR>
C0555 87-010-545-080 CAP,E 0.22-50 M 11L SME<HR>
C0556 87-012-276-080 C-CAP,U 1500P-50 K B<HR>
C0557 87-010-545-080 CAP,E 0.22-50 M 11L SME<HR>
C0558 87-010-382-080 CAP,E 22-25 M 11L SME<HR>
C0559 87-010-404-080 CAP,E 4.7-50 M 11L SME<HR>
C0560 87-010-380-080 CAP,E 47-16 M 11L SME<HR>
C0561 87-012-286-080 C-CAP,U 0.01-25 K B<HR>
C0562 87-010-545-080 CAP,E 0.22-50 M 11L SME<HR>
C0563 87-012-276-080 C-CAP,U 1500P-50 K B<HR>
C0564 87-010-545-080 CAP,E 0.22-50 M 11L SME<HR>
C0566 87-010-404-080 CAP,E 4.7-50 M 11L SME<HR>
C0573 87-010-401-080 CAP,E 1-50 M 11L SME<HR>
C0580 87-012-278-080 C-CAP,U 2200P-50 K B<HR>
C0581 87-012-278-080 C-CAP,U 2200P-50 K B<HR>
C0582 87-012-273-080 C-CAP,U 820P-50 K B<HR>
C0583 87-012-273-080 C-CAP,U 820P-50 K B<HR>
CN0550 87-009-410-010 CONN,4P ZH V<HR>
J0551 87-A61-502-010 JACK,3.5 BLK MONO W/SW<HR>
J0552 87-A61-502-010 JACK,3.5 BLK MONO W/SW<HR>
L0550 87-005-440-080 COIL,47UH K FLR50<HR>
VR0571 87-A90-462-010 VR,RTRY 30KCX2 H RK14J12A0<HR>
VR0572 87-A90-462-010 VR,RTRY 30KCX2 H RK14J12A0<HR>
VR0573 87-A90-462-010 VR,RTRY 30KCX2 H RK14J12A0<HR>
88
A

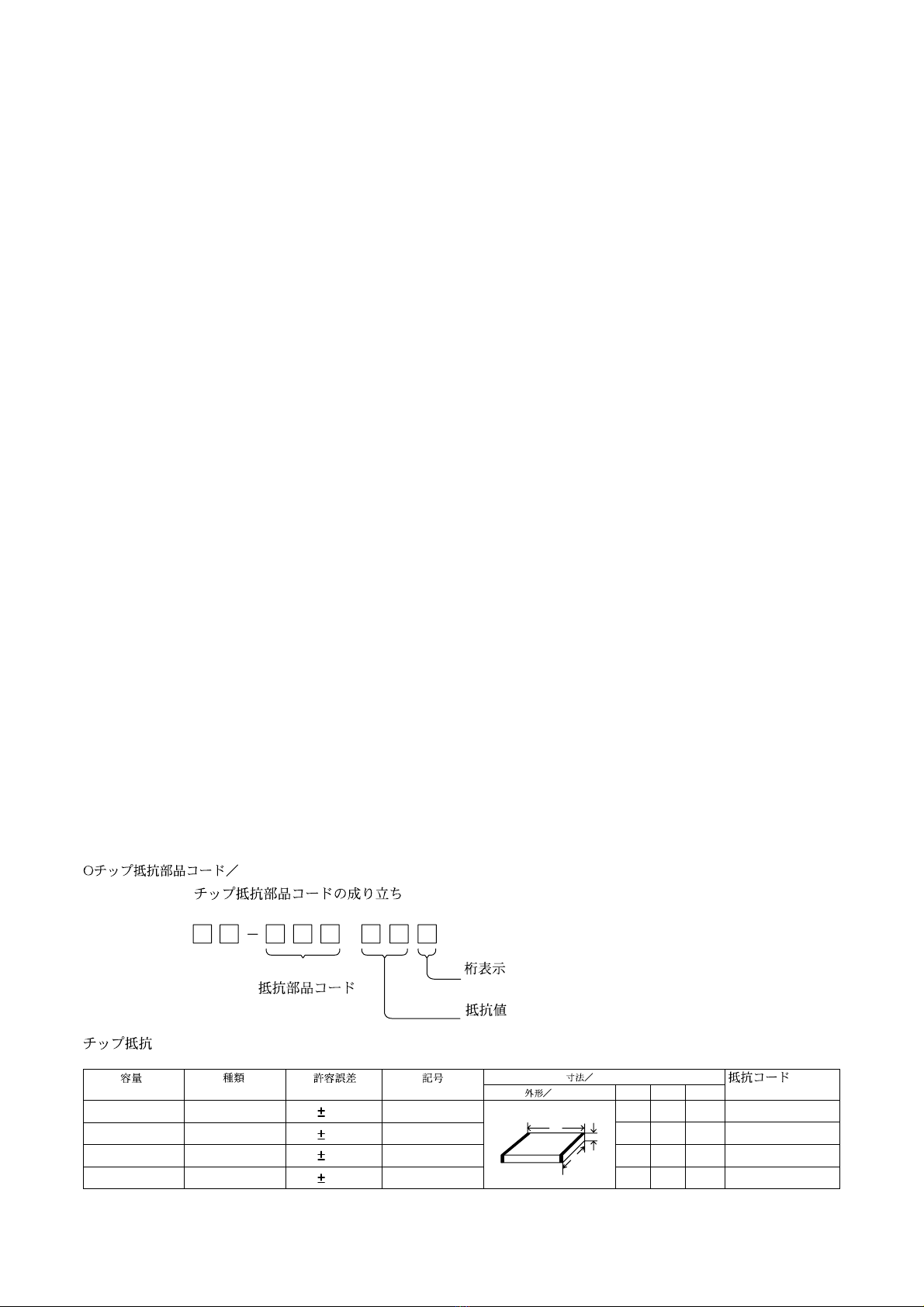

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W

-8-

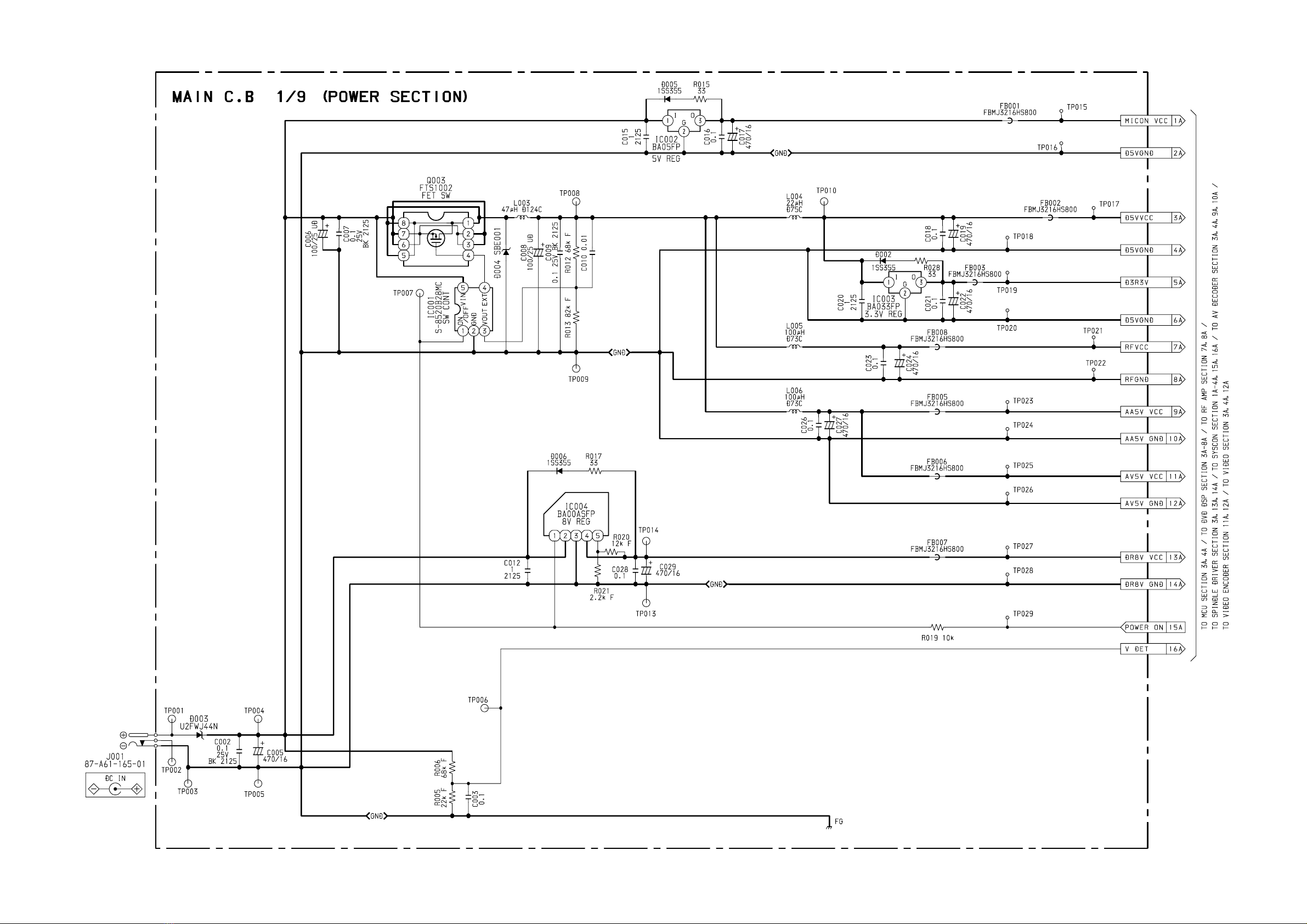

SCHEMATIC DIAGRAM - 1 (MAIN C.B -1/9)

-9-
SCHEMATIC DIAGRAM - 2 (MAIN C.B -2/9)

-10-
SCHEMATIC DIAGRAM - 3 (MAIN C.B -3/9)

-11-
SCHEMATIC DIAGRAM - 4 (MAIN C.B -4/9)
H

-12-
SCHEMATIC DIAGRAM - 5 (MAIN C.B -5/9)

-13-
SCHEMATIC DIAGRAM - 6 (MAIN C.B -6/9)
C643
0.01

-14-

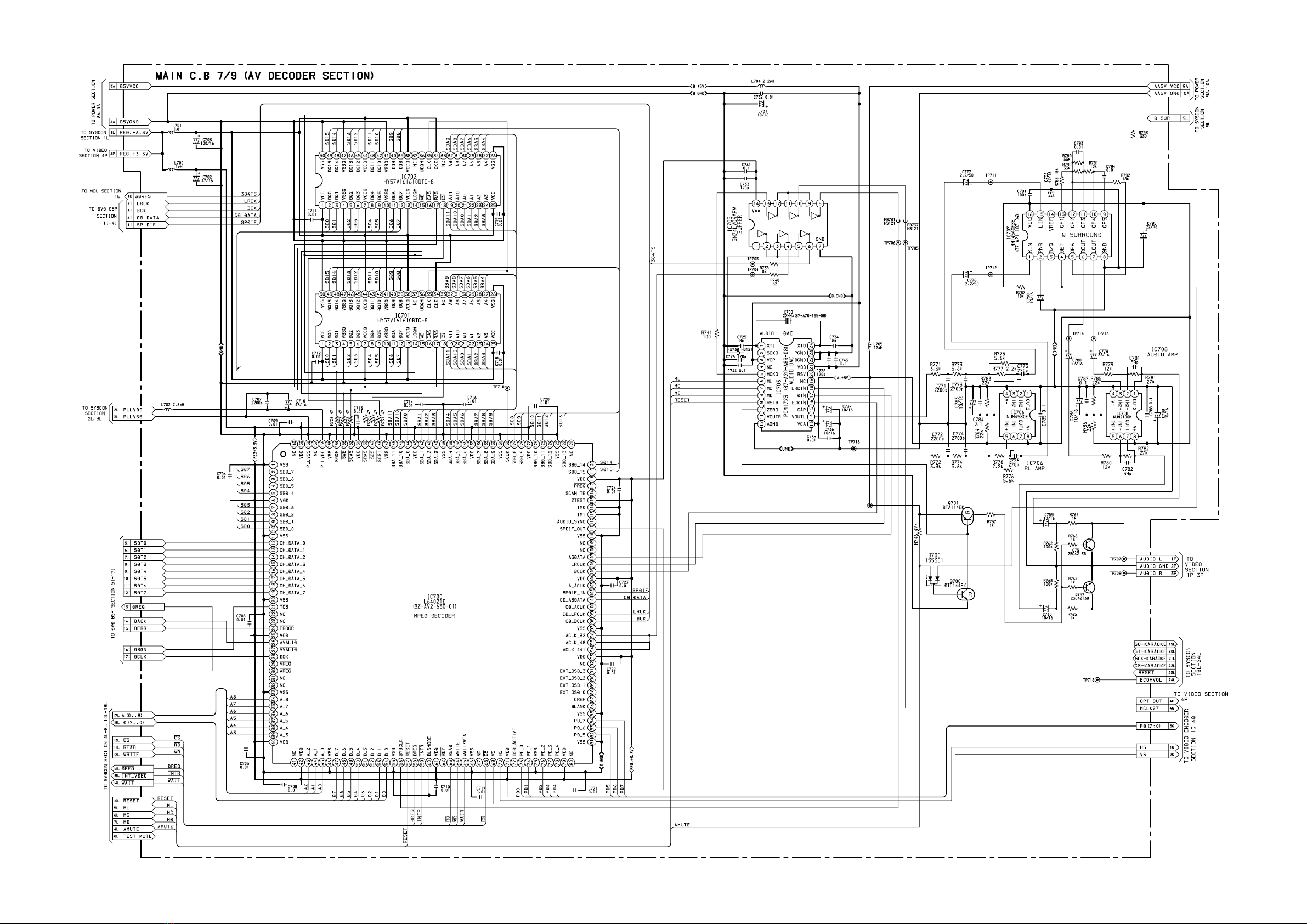

SCHEMATIC DIAGRAM - 7 (MAIN C.B -7/9)
TP715

-15-
SCHEMATIC DIAGRAM - 8 (MAIN C.B -8/9)
VFU

-16-
SCHEMATIC DIAGRAM - 9 (MAIN C.B -9/9)
T952
4BLH-023
T951
4BLH-023
T954
4BLH-023
T955
4BLH-023
T953
4BLH-023

-17-
SCHEMATIC DIAGRAM - 10 (FRONY C.B)

-18-
SCHEMATIC DIAGRAM - 11 (DVD MECHANISM SECTION)

-19-
MECHANICAL MAIN PARTS LIST 1/1
REF. NO PART NO. KANRI DESCRIPTION
NO.
1 8A-AV6-007-010 WINDOW,LID
2 8A-AV6-005-110 LID,DISK
3 8A-AV6-001-010 CABI,TOP
4 8A-AV6-216-010 SPR-T,LID 2<HR(S),LH(S)>
4 8A-AV6-205-010 SPR-T,LID<K(S),Z(S)>
5 87-036-389-010 SW,PUSH 1-1-1 R8120125
6 87-063-164-010 OIL-DMPR,
7 8A-AV6-006-010 WINDOW,LCD
8 8A-AV6-003-010 CABI,FRONT<EXCEPT HR(S)>
8 8A-AV6-011-010 CABI,FRONT HR<HR(S)>
9 8A-AV6-008-010 BADGE,AIWA 25 SIL
10 8A-AV6-009-010 KEY,POWER
11 8A-AV6-608-010 LCD,AAV-6
12 8A-AV6-010-010 KEY,PLAY
13 8A-AV6-012-010 KEY,ENTER
14 8A-AV6-202-010 LENS,LCD
15 8A-AV6-201-010 HLDR,LCD
16 8A-AV6-002-010 CABI,CNTR<LH(S)>
16 8A-AV6-013-010 CABI,CNTR W/SW<EXCEPT LH(S)>
17 8A-AV6-014-010 CABI,BTTM HR<HR(S)>
17 8A-AV6-020-010 CABI,BTTM LH<LH(S)>
17 8A-AV6-018-110 CABI,BTTM K<K(S)>
17 8A-AV6-019-110 CABI,BTTM EZ<Z(S)>
18 8A-AV6-215-010 FOOT,19-1.5
19 87-A91-554-010 COVER,2-44P IC179-44600
20 87-HC4-014-010 COVER, OPT
21 8A-AV6-299-010 MECHA,DVDTEMP
A 8A-ZG1-201-010 S-SCREW,MECH 880
B 87-067-581-010 TAPPING SCREW, BVT2+3-15
C 87-B10-307-010 VFT2+2.6-12 W/O SLOT<K(S),Z(S)>
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:[phone]
920074 Printed in Singapore
