SERVICE MANUAL
DATA
DVD PLAYER
XD-DV485
XD-DV480
XD-DV480
S/M Code No. 09-01C-358-1N4
HT (NH)
HT (NH)
LH (NH)
BASIC DVD/CD MECHANISM: DP-4RM
XD-DV485 XD-DV480
www.freeservicemanuals.info
1/3/16
Published in Heiloo, Holland.

-2-
TABLE OF CONTENTS
SPECIFICATIONS ........................................................................................................................................................................... 3
PROTECTION OF EYES FROM LASER BEAM DURING SERVING ............................................................................................ 4
ACCESSORIES LIST ...................................................................................................................................................................... 5
DISASSEMBLY INSTRUCTIONS ............................................................................................................................................. 6 ~ 7
ELECTRICAL MAIN PARTS LIST ........................................................................................................................................... 8 ~ 21
TRANSISTOR ILLUSTRATION ..................................................................................................................................................... 22
BLOCK DIAGRAM - 1 (OVERALL) ............................................................................................................................................... 23
BLOCK DIAGRAM - 2 (POWER) .................................................................................................................................................. 24
BLOCK DIAGRAM - 3 (RF/CD DSP/DVD) .................................................................................................................................... 25
BLOCK DIAGRAM - 4 (AUDIO) .................................................................................................................................................... 26
BLOCK DIAGRAM - 5 (KARAOKE) .............................................................................................................................................. 27
BLOCK DIAGRAM - 6 (MPEG) ..................................................................................................................................................... 28
BLOCK DIAGRAM - 7 (µ-COM) .................................................................................................................................................... 29
WIRE HARNESS DIAGRAM ......................................................................................................................................................... 30
SCHEMATIC DIAGRAM - 1 (MAIN - 1/4, DRIVE & RF SECTION) ............................................................................................... 31
SCHEMATIC DIAGRAM - 2 (MAIN - 2/4, DVD DSP SECTION) ................................................................................................... 32
SCHEMATIC DIAGRAM - 3 (MAIN - 3/4, MPEG SECTION) ........................................................................................................ 33
SCHEMATIC DIAGRAM - 4 (MAIN - 4/4, MAIN µ-COM SECTION) ............................................................................................. 34
SCHEMATIC DIAGRAM - 5 (INTERFACE - 1/4, AUDIO SECTION)............................................................................................. 37
SCHEMATIC DIAGRAM - 6 (INTERFACE - 2/4, FRONT CONTROL, KEY, POWER LED SECTION) ........................................ 38
SCHEMATIC DIAGRAM - 7 (INTERFACE - 3/4, JACK SECTION)............................................................................................... 39
SCHEMATIC DIAGRAM - 9 (INTERFACE - 4/4, POWER SECTION) .......................................................................................... 40
WIRING - 1 (MAIN C.B) -Top View-............................................................................................................................................... 35
WIRING - 2 (MAIN C.B) -Bottom View- ......................................................................................................................................... 36
WIRING - 3 (INTERFACE C.B) ..................................................................................................................................................... 41
WIRING - 4 (KEY, POWER LED C.B) ........................................................................................................................................... 42
WAVEFORMS ....................................................................................................................................................................... 43 ~ 44
VOLTAGE CHART ................................................................................................................................................................. 45 ~ 51
LCD DISPLAY ............................................................................................................................................................................... 52
IC BLOCK DIAGRAM ............................................................................................................................................................ 53 ~ 55
IC DESCRIPTION .................................................................................................................................................................56 ~ 77
MECHANICAL EXPLODED VIEW 1/1 .......................................................................................................................................... 78
MECHANICAL MAIN PARTS LIST 1/1 ......................................................................................................................................... 79
COLOR NAME TABLE .................................................................................................................................................................. 80
DVD MECHANISM EXPLODED VIEW 1/1 ................................................................................................................................... 81
DVD MECHANISM MAIN PARTS LIST 1/1................................................................................................................................... 82
OTHER PARTS LIST 1/1............................................................................................................................................................... 83
ELECTRICAL TROUBLESHOOTING GUIDE ....................................................................................................................... 84 ~ 93
DVD MECHANISM PARTS LOCATION ........................................................................................................................................ 94
DVD MECHANISM DISASSEMBLY ......................................................................................................................................95 ~ 97
DVD MECHANISM ADJUSTMENT ....................................................................................................................................... 98 ~ 99
www.freeservicemanuals.info
1/3/16
Published in Heiloo, Holland.

-3-
SPECIFICATIONS
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic” and the double-
D symbol are trademarks of Dolby Laboratories.
Confidential unpublished works. ©1992-1997 Dolby
Laboratories. All rights reserved.
Manufactured under license from Digital Theater
Systems, Ino. US Pat. No. 5,451,942 and other
worldwide patents issued and pending. “DTS” and
“DTS Digital Surround” are trademarks of Digital
Theater Systems, Inc.© 1996 Digital Theater
systems, Ino. All rights reserved.
Power supply 110 ~ 240 V AC, 50/60 Hz
Power consumption
Power consumption
in standby mode 2.9 W
16 W
Weight 2.9 kg
External dimensions 430 ×88 ×244 mm (w ×h ×d)
Signal format PAL/NTSC
Supported discs DVD video discs
12 cm (single-sided single-layer,
single-sided double-layer,
double-sided-double layer)
8 cm (single-sided single-layer,
single-sided double-layer,
double-sided-double layer)
Compact discs (CD-DA, video CD)
12 cm and 8 cm discs
S video output Y output: 1 Vp-p (75 ohms, sync
negative)
C output: 0.3 Vp-p
1 Mini Din 4 pin
Video output Video composite output
1 Vp-p (75 ohms, sync negative)
1 RCA jack
Video component output
Y output: 1 Vp-p (75 ohms, sync
negative)
C
B
,C
R
output: 0.7 Vp-p (75 ohms)
1 RCA jacks (C
B
,C
R
, Y)
Audio output Digital output
0.5 Vp-p (75 ohms)
1 Fiber optical connector
Analog output
2.0 Vrms (1kHz, 0dB, 330
ohms)
2 RCA jacks (L/R)
Audio output characteristics
Signal to noise ratio
More than 100 dB (EIAJ)
Dynamic range
More than 90 dB (EIAJ)
Harmonic distortion
0.008%
Frequency range:
CD / VCD: 4Hz to 20 kHz
DVD: 4Hz to 22kHz (48kHz
sampling)
4Hz to 44kHz (96kHz
sampling)
Wow and flutter: unmeasurable
Operating conditions
Design and specifications are subject to change without notice.
Laser Semiconductor Laser, wavelength
650/780 nm
1 RCA jack
5 °C to 35 °C
www.freeservicemanuals.info
1/3/16
Published in Heiloo, Holland.

-4-

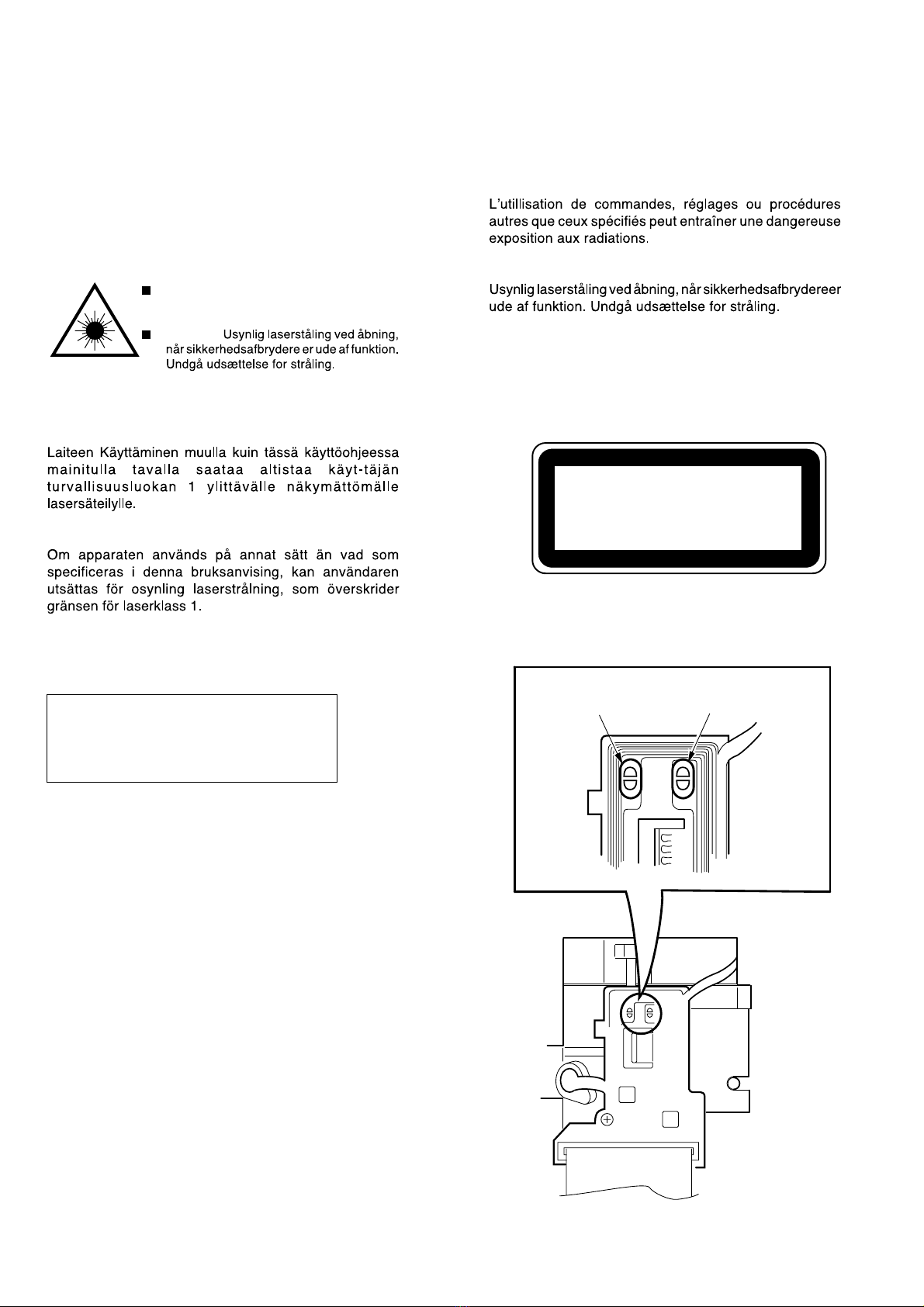

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel:
VAROITUS!
VARNING!
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
ADVARSEL!
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
Bodyor clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care
the clothes do not touch the diode.
1) After the connection, remove solder
shown in the figures below.
Precaution to replace Optical block
Solder short for
DVD laser diode
Solder short for
CD laser diode
(PVR-202T)
www.freeservicemanuals.info
1/3/16
Published in Heiloo, Holland.

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-5-
ACCESSORIES PARTS LIST -1/1
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
O 1 S8-35R-S00-23P IB,XD-DV480 LHNHC a . .
O 1 S8-35R-S00-26D IB,XD-DV480 HTNHK . b .
O 1 S8-35R-S00-26S IB,DKA4121P AA1TAA . . c
O 2 S7-11R-2N0-56A REMOTE CONTROLLER ASSEMBL D1( a b .
O 2 S7-11R-2N0-56D RC UNIT,XD-DV487HR . . c
O 3 S6-11R-1G0-01A PLUG ASSY 1WAY YELLOW GLOBAL a b c
O 4 S6-11R-2G0-01A PLUG ASSY 2WAY RED/WHITE a b c
www.freeservicemanuals.info
1/3/16
Published in Heiloo, Holland.

-6-
Tray Door
Disc Tray
Stopper
Stopper
Stopper
Front Panel
CABINET DISASSEMBLY
1. Top Case
1. Release 7 screws (A). (See Fig. 2-1)
2. Lift the top case with holding the back of it,
and remove it in the direction of the arrow.
Fig. 2-1
Fig. 2-2
Fig. 2-3
3. Front Panel (XD-DV480)
1. Eject the disc tray. (See Fig. 2-2)
2. Remove the tray door. (See Fig. 2-2)
3. Pull the front panel toward you while pressing
7 stoppers to disengage, and remove the front
panel. (See Fig. 2-3)
2.Tray Door
1.The AC cord is connected and a power switch is
turned on.
2.Eject the disc tray.
3.Lift up the tray door in the direction of the arrow.
DISASSEMBLY -1/2
Stopper
Stopper
Stopper
Spring
Buttom
Front Panel
Fig. 2-4
3. Front Panel (XD-DV485)
1. Eject the disc tray. (See Fig. 2-2)
2. Remove the tray door. (See Fig. 2-2)
3. Remove the three knobus and three springs.
4. Pull the front panel toward you while pressing
7 stoppers to disengage, and remove the front
panel. (See Fig. 2-4)
Top Case
(A)
(A)
(A)
(A)
(A)
(A)
(A)
www.freeservicemanuals.info
1/3/16
Published in Heiloo, Holland.

-7-
DISASSEMBLY -2/2
Main Circuit Board
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
Power Code
DVD Mechansm
Interface
Circuit Board
(D)
(D)
P3401
PMD02
P5901
PMD03
Key
Circuit Board
Power Led
Circuit Board
(E)
(E)
(E) (E)
Fig. 2-5
Fig. 2-6
1. Disassembling of Main Circuit Board
and Interface Board
1. Remove the top case.(See Fig. 2-1)
2. Remove 12 screw (C).
3. Remove FF-cable (PMD02, PMD03), and
remove the DVD MECHANISM.
4. Remove 2 connector (P3401, P5901) and
remove Main Circuit Board from Interface Board.
5. Remove 2 screw (D).
6. Remove Interface Board from the chassis.
CIRCUIT BOARD DISASSEMBLY 2. Key and Power Led Circuit Board
1. Remove the front panel.(See Fig. 2-3)
2. Release 5 screws (E), remove the Key and
Power Led circuit board.
www.freeservicemanuals.info
1/3/16
Published in Heiloo, Holland.

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-8-
ELECTRICAL PARTS LIST - 1/14
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE O BC 101 S6-360-04C-000 COIL,BFS3550R2FD8 a b c
INTERFACE S BD 101 87-070-173-010 DIODE,S1WBA60 a b c
INTERFACE O C 100 87-010-415-010 CAP,10M-50V a b c
INTERFACE ! O C 101 S6-240-88N-000 CAP,MPX104K 275VAC a b c
INTERFACE ! O C 102 S6-240-88N-000 CAP,MPX104K 275VAC a b .
INTERFACE ! O C 103 S0-2TF-H68-0M0 CAP,E 68UF-400V a b c
INTERFACE X C 104 SC-N22-3AK-948 CAP,0.022UF 50V a b c
INTERFACE ! O C 105 87-016-375-010 CAP,0.01UF-630V a b c
INTERFACE ! O C 106 S6-240-87B-000 CAP,100P-1KV a b c
INTERFACE X C 109 SC-Q47-32K-409 CAP,0.047UF-50V a b c
INTERFACE ! O C 114 87-012-379-010 CAP,3300PF-400V a b c
INTERFACE O C 116 87-016-134-080 CAP,E 470UF-25V M FM a . .
INTERFACE O C 116 87-010-387-010 CAP,E 470UF-25V KME . b c
INTERFACE O C 118 87-010-060-080 CAP,E 100-16V a . .
INTERFACE O C 118 87-010-112-080 CAP,E 100-16V . b c
INTERFACE O C 119 87-010-408-040 CAP,E 47UF-50V a b c
INTERFACE O C 121 SC-E22-76F-638 CAP,E 220UF-16V a b c
INTERFACE O C 123 SC-E10-86F-6CM CAP,E 1000UF-16V M FM5 BU a . .
INTERFACE O C 123 87-010-237-910 CAP,E 1000UF-16V . b c
INTERFACE O C 124 SC-E10-86F-6CM CAPE 1000UF-16V M FM5 BU a . .
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE O C 124 87-010-237-910 CAP,E 1000UF-16V . b c
INTERFACE O C 125 87-010-375-080 CAP,E 330-10V a b c
INTERFACE O C 126 87-016-134-080 CAP,E 470UF-25V M FM a . .
INTERFACE O C 126 87-010-387-010 CAP,E 470UF-25V KME . b c
INTERFACE O C 127 87-010-385-010 CAP,E 220UF-25V a b c
INTERFACE X C 128 SC-Q47-32K-409 CAP,0.047UF-50V a b c
INTERFACE O C 129 SC-E47-7CD-638 CAP,E 470UF-10V a b c
INTERFACE O C 130 87-010-060-080 CAP,E 100-16V a . .
INTERFACE O C 130 87-010-112-080 CAP,E 100-16V . b c
INTERFACE O C 131 87-010-060-080 CAP,E 100-16V a . .
INTERFACE O C 131 87-010-112-080 CAP,E 100-16V . b c
INTERFACE O C 134 87-010-060-080 CAP,E 100-16V a . .
INTERFACE O C 134 87-010-112-080 CAP,E 100-16V . b c
INTERFACE O C 137 SC-E47-7CD-638 CAP,E 470UF-10V a b c
INTERFACE O C 140 SC-E47-7CD-638 CAP,E 470UF-10V a b c
INTERFACE X C 403 SC-N10-40K-948 CAP,0.1UF-50V a b c
INTERFACE O C 405 87-A10-205-080 CAP,E 470-6.3V a . .
INTERFACE O C 405 SC-E47-7CC-618 CAP,E 470U-6.3V . b c
INTERFACE X C 406 SC-N10-30F-678 CAP,0.01-16V a b c
INTERFACE O C 407 87-010-552-040 CAP,E 22-16V a b c
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE O C 408 87-015-681-080 CAP,E 10-16V a b c
INTERFACE O C 409 87-A10-205-080 CAP,E 470-6.3V a . .
INTERFACE O C 409 SC-E47-7CC-618 CAP,E 470U-6.3V . b c
INTERFACE O C 410 87-010-552-040 CAP,E 22-16V a b c
INTERFACE X C 411 SC-N10-20K-518 CAP,1000P-50V a b c
INTERFACE X C 412 SC-N10-10K-418 CAP,100P-50V a b c
INTERFACE O C 413 87-015-681-080 CAP,E 10-16V a b c
INTERFACE X C 414 SC-N10-40K-948 CAP,0.UF-50V a b c
INTERFACE O C 415 87-015-681-080 CAP,E 10-16V a b c
INTERFACE X C 416 SC-N10-20K-518 CAP,1000P-50V a b c
INTERFACE X C 417 SC-N10-10K-418 CAP,100P-50V a b c
INTERFACE X C 418 SC-N39-20F-668 CAP,3900P-16V a b c
INTERFACE O C 419 87-010-552-040 CAP,E 22-16V a b c
INTERFACE X C 420 SC-N39-20F-668 CAP,3900P-16V a b c
INTERFACE O C 421 87-010-552-040 CAP,E 22-16V a b c
INTERFACE O C 422 87-015-681-080 CAP,E 10-16V a b c
INTERFACE X C 424 SC-N10-40K-948 CAP,0.1UF-50V a b c
INTERFACE X C 425 SC-N10-30F-678 CAP,0.01-16V a b c
INTERFACE X C 428 SC-N10-40K-948 CAP,0.1UF-50V a b c
INTERFACE O C 429 87-015-684-080 CAP,E 47-16V a b c
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE O C 430 87-015-684-080 CAP,E 47-16V a b c
INTERFACE O C 603 87-A10-205-080 CAP,E 470-6.3V a . .
INTERFACE O C 603 SC-E47-7CC-618 CAP,E 470U-6.3V . b c
INTERFACE X C 606 SC-N10-40K-948 CAP,0.1UF-50V a b c
INTERFACE O C 613 87-A10-205-080 CAP,E 470-6.3V a . .
INTERFACE O C 613 SC-E47-7CC-618 CAP,E 470U-6.3V . b c
INTERFACE O C 614 87-A10-205-080 CAP,E 470-6.3V a . .
INTERFACE O C 614 SC-E47-7CC-618 CAP,E 470U-6.3V . b c
INTERFACE O C 615 87-A10-205-080 CAP,E 470-6.3V a . .
INTERFACE O C 615 SC-E47-7CC-618 CAP,E 470U-6.3V . b c
INTERFACE O C 801 87-015-681-080 CAP,E 10-16V . . c
INTERFACE O C 802 87-010-112-080 CAP,E 100-16V . . c
INTERFACE O C 803 87-015-681-080 CAP,E 10-16V . . c
INTERFACE O C 804 87-015-681-080 CAP,E 10-16V . . c
INTERFACE X C 805 SC-N10-30F-678 CAP,0.01-16V . . c
INTERFACE O C 806 87-010-112-080 CAP,E 100-16V . . c
INTERFACE O C 807 87-015-681-080 CAP,E 10-16V . . c
INTERFACE O C 810 87-015-681-080 CAP,E 10-16V . . c
INTERFACE O C 813 87-015-684-080 CAP,E 47-16V . . c
INTERFACE X C 817 SC-N10-30F-678 CAP,0.01-16V . . c
www.freeservicemanuals.info
1/3/16
Published in Heiloo, Holland.

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-9-
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE X C 821 SC-N10-30F-678 CAP,0.01-16V . . c
INTERFACE O C 824 87-015-681-080 CAP,E 10-16V . . c
INTERFACE X C 901 SC-N10-40K-948 CAP,0.1UF-50V a b c
INTERFACE O C 902 87-015-681-080 CAP,E 10-16V a b c
INTERFACE X C 905 SC-N10-40K-948 CAP,0.1UF-50V a b c
INTERFACE X C 906 SC-N10-40K-948 CAP,0.1UF-50V a b c
INTERFACE O C 907 87-015-684-080 CAP,E 47-16V a b c
INTERFACE O C 908 87-015-684-080 CAP,E 47-16V a b c
INTERFACE O C 909 SC-E47-64J-638 CAP,E 47UF-35V a b c
INTERFACE X C 910 SC-N10-40K-948 CAP,0.1UF-50V a b c
INTERFACE X C 911 SC-N10-40K-948 CAP,0.1UF-50V a b c
INTERFACE O C 912 87-015-684-080 CAP,E 47-16V a b c
INTERFACE S D 101 SD-R40-070-9AA DIODE,10SP07U(SUF4007SP) a b c
INTERFACE S D 102 SD-D01-000-9AC DIODE,EU01W a b c
INTERFACE O D 106 SD-R20-200-0AB DIODE,HER202 BK a b c
INTERFACE S D 107 SD-D01-000-9AC DIODE,EU01W a b c
INTERFACE S D 108 SD-D01-000-9AC DIODE,EU01W a b c
INTERFACE O D 109 SD-RSA-000-20A DIODE,FMB-G24H LF651 a b c
INTERFACE O D 110 SD-R18-020-9AA DIODE,ERA18-02KFRB a b c
INTERFACE O D 112 SD-R15-402-0BA DIODE,1N5402 a b c
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE O D 113 SD-R15-402-0BA DIODE,1N5402 a b c
INTERFACE O D 114 SD-RRE-000-29A DIODE,1N17 a b c
INTERFACE O D 115 SD-RRE-000-29A DIODE,1N17 a b c
INTERFACE O D 603 87-020-465-080 DIODE,1SS133 a b c
INTERFACE O D 604 87-020-465-080 DIODE,1SS133 a b c
INTERFACE O DIG901 S3-02R-V10-3D0 DIGITRON 7-BT-273GNS FUTABA S a b c
INTERFACE ! O F 101 S5-850-11T-000 FUSE,1600MA 250V a b c
INTERFACE ! S F 102 IC,ROHM ICP-N10 T104 TP IC DE a b c
INTERFACE X F 103 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE ! S F 104 IC,ROHM ICP-N20 T104 TP IC DE a b c
INTERFACE O F 602 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF a b c
INTERFACE O F 603 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF a b c
INTERFACE O F 604 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF a b c
INTERFACE O F 605 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF a b c
INTERFACE O F 606 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF a b c
INTERFACE O F 607 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF a b c
INTERFACE O F 608 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF a b c
INTERFACE O F 612 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF a b c
INTERFACE O F 613 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF a b c
INTERFACE O F 801 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF . . c
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE O F 802 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF . . c
INTERFACE O F 803 S2-00H-JC9-01A SAM,FILTER CFI06B1H101MF . . c
INTERFACE ! O FH 101 S5-860-08B-000 HOLDER,FUSE CLIP a b c
INTERFACE ! O FH 102 S5-860-08B-000 HOLDER,FUSE CLIP a b c
INTERFACE ! S IC 101 SI-PMG-FA0-05A IC,KA5M0365R-YDTU a b c
INTERFACE ! O IC 102 S2-309-024-040 SENSORLTV-817B PHOTO COU a . .
INTERFACE O IC 102 S5-00R-DB0-10A SNSR,PHOTO PC123YN2 . b c
INTERFACE O IC 104 SI-SS4-310-00A IC,KA431AZ a b c
INTERFACE O IC 105 SI-SS7-808-00H IC,KA78R08 4P a . .
INTERFACE S IC 105 SI-PMG-FA0-16A IC,KA78R08TSTU . b c
INTERFACE O IC 106 SI-SS7-833-00A IC,CKA78R33TU a . .
INTERFACE S IC 106 SI-PMG-FA0-15A IC,KA78R33TSTU . b c
INTERFACE O IC 107 SI-SS7-833-00A IC,CKA78R33TU a . .
INTERFACE S IC 107 SI-PMG-FA0-15A IC,KA78R33TSTU . b c
INTERFACE O IC 401 SI-BB1-716-00A IC,PCM1716E 28P a b c
INTERFACE S IC 402 87-002-348-010 IC,NJM4580D a b c
INTERFACE S IC 403 SI-SS7-812-00E IC,KA78R12 a . .
INTERFACE S IC 403 SI-PMG-FA0-17A IC,KA78R12TSTU . b c
INTERFACE S IC 801 SI-RH3-308-00A IC,ROHM BA3308 . . c
INTERFACE O IC 901 SI-MCR-NE0-02C IC,UPD780232GC-043-8BT a b c
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE O IC 902 87-001-196-010 IC,KIA7042P a b c
INTERFACE X J 107 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X J 1A1 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X J 1A2 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X J 1A3 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X J 1A4 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X J 1A5 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X J 1A6 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X J 630 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X J 804 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X J 901 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X J 902 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE O JK 601 S6-12R-L00-7A0 JACK,FIBER OPTIC GP1FA550TZ a b c
INTERFACE O JK 602 S6-12R-C00-6G0 JACK,RCA a b c
INTERFACE ! O L 101 S6-161-45M-000 FILTER(CIRC) V-04350 LS a b c
INTERFACE O L 102 S6-330-88G-000 COIL,CHOCK TP 5MM a b c
INTERFACE O L 103 S6-330-88D-000 COIL,20UH a b c
INTERFACE O L 401 87-005-208-080 COIL,100 a b c
INTERFACE O L 603 87-003-097-080 COIL,1.0M 2.3-3.4-5 a b c
INTERFACE O L 604 87-003-097-080 COIL,1.0M 2.3-3.4-5 a b c
ELECTRICAL PARTS LIST - 2/14
www.freeservicemanuals.info
1/3/16
Published in Heiloo, Holland.

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-10-
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE O L 901 87-005-208-080 COIL,100 a b c
INTERFACE O L 902 87-005-208-080 COIL,100 a b c
INTERFACE O MJ 801 S6-12R-B00-3A0 JACK,HEADPHONE . . c
INTERFACE O MJ 802 S6-12R-B00-3A0 JACK,HEADPHONE . . c
INTERFACE O P 4301 S6-30R-BE0-240 CONN,BOAR2254-30P-T a b c
INTERFACE O P 9501 S6-30R-BE0-240 CONN,BOAR2254-30P-T a b c
INTERFACE O P 9902 S5-617-11D-000 CONN,GIL-S-04P-S2T2-EF a b c
INTERFACE O P 9904 S5-617-11C-000 CONNECTOR WAFER,G/S GIL-S-03P a b c
INTERFACE O Q 107 ST-R11-510-0AA TR,KSB1151-Y a b c
INTERFACE S Q 108 ST-R31-990-9AF TR,KTC3199-BL a b c
INTERFACE S Q 401 ST-R12-670-9AC TR,KTA1267-GR a b c
INTERFACE S Q 402 ST-R12-670-9AC TR,KTA1267-GR a b c
INTERFACE S Q 403 ST-R31-990-9AF TR,KTC3199-BL a b c
INTERFACE S Q 404 ST-R31-990-9AF TR,KTC3199-BL a b c
INTERFACE S Q 405 ST-R31-990-9AF TR,KTC3199-BL a b c
INTERFACE S Q 406 ST-R31-990-9AF TR,KTC3199-BL a b c
INTERFACE S Q 407 ST-R31-990-9AF TR,KTC3199-BL a b c
INTERFACE S Q 607 ST-R31-990-9AF TR,KTC3199-BL a b c
INTERFACE S Q 608 ST-R31-990-9AF TR,KTC3199-BL a b c
INTERFACE S Q 615 ST-R12-670-9AC TR,KTA1267-GR a b c
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE ! O R 101 S6-140-07A-000 RES,CEM 2.7/2W a b c
INTERFACE O R 104 SR-S56-02K-619 RES,56K-2W a b c
INTERFACE X R 110 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X R 112 SR-D03-91F-608 RES,3.9-1/6W a b c
INTERFACE X R 114 SR-D10-03F-608 RES,100K-1/6W a b c
INTERFACE S R 115 SR-D05-61F-608 RESISTOR,FIXED CARBON FILM 5. a b c
INTERFACE X R 120 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 121 SR-D12-01F-608 RES,1.2K-1/6W a b c
INTERFACE O R 122 SR-S12-00J-619 RES,M/F 120-1W a b c
INTERFACE X R 123 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 124 SR-D33-00F-608 RES,330-1/6W a b c
INTERFACE X R 125 SR-D39-01F-608 RES,3.9K-1/6W a b c
INTERFACE X R 126 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 127 SR-N36-01E-408 RES,3.6K-1/8W a b c
INTERFACE X R 128 SR-N33-01F-408 RES,3.3K-1/6W a b c
INTERFACE X R 130 SR-D10-02F-608 RES,10K-1/6W a b c
INTERFACE X R 131 SR-D22-03F-608 RES,220K-1/6W a b c
INTERFACE X R 132 SR-D22-03F-608 RES,220K-1/6W a b c
INTERFACE X R 140 SR-D10-02F-608 RES,10K-1/6W a b c
INTERFACE X R 141 SR-D10-02F-608 RES,10K-1/6W a b c
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE X R 144 SR-D33-00F-608 RES,330-1/6W a b c
INTERFACE X R 145 SR-D47-00F-608 RES,470-1/6W a b c
INTERFACE X R 401 SR-D01-02F-608 RES,10-1/6W a b c
INTERFACE X R 402 SR-D47-01F-608 RES,4.7K-1/6W a b c
INTERFACE X R 403 SR-D01-02F-608 RES,10-1/6W a b c
INTERFACE X R 404 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X R 406 SR-D10-02F-608 RES,10K-1/6W a b c
INTERFACE X R 407 SR-D56-01F-608 RES,5.6K-1/6W a b c
INTERFACE X R 408 SR-D22-01F-608 RES,2.2K-1/6W a b c
INTERFACE X R 409 SR-D82-01F-608 RES,8.2K-1/6W a b c
INTERFACE X R 411 SR-D82-01F-608 RES,8.2K-1/6W a b c
INTERFACE X R 412 SR-D68-01F-608 RES,6.8K-1/6W a b c
INTERFACE X R 413 SR-D15-02F-608 RES,15K-1/6W a b c
INTERFACE X R 414 SR-D56-01F-608 RES,5.6K-1/6W a b c
INTERFACE X R 415 SR-D47-01F-608 RES,4.7K-1/6W a b c
INTERFACE X R 416 SR-D15-02F-608 RES,15K-1/6W a b c
INTERFACE X R 417 SR-D68-01F-608 RES,6.8K-1/6W a b c
INTERFACE X R 418 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 419 SR-D33-00F-608 RES,330-1/6W a b c
INTERFACE X R 420 SR-D33-00F-608 RES,330-1/6W a b c
XD-DV480 XD-DV480 XD-DV485
LHNHC HTNHK HTNHK
INTERFACE X R 421 SR-D10-02F-608 RES,10K-1/6W a b c
INTERFACE X R 422 SR-D22-01F-608 RES,2.2K-1/6W a b c
INTERFACE X R 423 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 424 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 425 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 426 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 427 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 429 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X R 430 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X R 432 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X R 601 SR-D47-02F-608 RES,47K-1/6W a b c
INTERFACE X R 604 S8-740-00T-000 WIRE,COPPER 0.6 ROLL a b c
INTERFACE X R 605 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 606 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 607 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 608 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 609 SR-D10-01F-608 RES,1.0K-1/6W a b c
INTERFACE X R 618 SR-D10-03F-608 RES,100K-1/6W a b c
INTERFACE X R 619 SR-D10-03F-608 RES,100K-1/6W a b c
INTERFACE X R 620 SR-D22-00F-608 RES,220-1/6W a b c
ELECTRICAL PARTS LIST - 3/14
www.freeservicemanuals.info
1/3/16
Published in Heiloo, Holland.
