SERVICE MANUAL

SPECIFICATIONS

XD-P15

RM-Z400A/RM-Z400E

AEP Model

UK Model

E Model

Hong Kong Model

Singapore Model

CD/DVD PLAYER

System

Laser: Semiconductor laser

Signal format system: NTSC/PAL

Audio characteristics

Frequency response: DVD VIDEO (PCM

96 kHz): 2 Hz to 44 kHz (±1.0 dB)/DVD

VIDEO (PCM 48 kHz): 2 Hz to 22 kHz

(±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB)

Signal-to-noise ratio (S/N ratio): 115 dB

(LINE OUT L/R (AUDIO) jacks only)

Harmonic distortion: 0.003 %

Dynamic range: DVD VIDEO: 103 dB/CD:

99 dB

Wow and flutter: Less than detected value

(±0.001% W PEAK)

The signals from LINE OUT L/R (AUDIO)

jacks are measured. When you play PCM

sound tracks with a 96 kHz sampling

frequency, the output signals from the

DIGITAL OUT (OPTICAL) jack are

converted to 48 kHz sampling frequency.

Outputs

(Jack name: Jack type/Output level/Load

impedance)

LINE OUT (AUDIO): Phono jack/2 Vrms/

Over 10 kilohms

DIGITAL OUT (OPTICAL): Optical

output jack/–18 dBm (wave length

660 nm)

COMPONENT VIDEO OUT (Y, C

, C

Phono jack/Y: 1.0 Vp-p/C

, C

0.7 Vp-p/75 ohms

LINE OUT (VIDEO): Phono jack/1.0 Vp-p/

75 ohms

S VIDEO OUT: 4-pin mini DIN/

Y: 1.0 Vp-p/C: 0.3 Vp-p (PAL),

0.286 Vp-p (NTSC)/75 ohms

General

Power requirements:

110 –240 V AC, 50/60 Hz

Power consumption: 10 W

Dimensions (approx.):

215×55×300 mm (width/height/depth)

incl. projecting parts

Mass (approx.): 2.0 kg

Operating temperature: 5ºC to 35ºC

Operating humidity: 25% to 80%

Supplied accessories

See page 8-9 .

Specifications and design are subject to

change without notice.

— 2 —

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINEWITH

MARK 0ON THE SCHEMATIC DIAGRAMS AND INTHE PARTS

LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE

COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS

APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY.

1. Check the area ofyour repairfor unsoldered or poorly-soldered

connections. Checkthe entireboard surfacefor soldersplashes

and bridges.

2. Check the interboard wiring to ensure that no wires are

"pinched" or contact high-wattage resistors.

3. Look for unauthorized replacement parts, particularly

transistors, that were installed during a previous repair. Point

them out to the customer and recommend their replacement.

4. Look for parts which, through functioning, show obvious signs

of deterioration. Point them out to the customer and

recommend their replacement.

5. Check the B+ voltage to see it is at the values specified.

6. Flexible Circuit Board Repairing

•Keep the temperature of the soldering iron around 270˚C

during repairing.

•Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

•Be careful not to apply force on the conductor when soldering

or unsoldering.

SAFETY CHECK-OUT

After correcting the original service problem, perform the following

safety checks before releasing the set to the customer.

CAUTION

Use of controls or adjustments or performance of procedures

otherthan thosespecifiedhereinmay result in hazardous radiation

exposure.

WARNING!!

WHEN SERVICING, DO NOT APPROACHTHE LASER EXITWITH

THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO

CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE

FROM A DISTANCE OF MORETHAN 25 cm FROMTHE SURFACE

OFTHE OBJECTIVE LENS ONTHE OPTICAL PICK-UP BLOCK.

CAUTION:

The use of optical instrument with this product will increase eye

hazard.

Unleaded solder

Boards requiring use of unleaded solder are printed with the lead-

free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size.)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

•Unleaded solder melts at a temperature about 40°C higher than

ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350°C.

Caution: The printed pattern (copper foil) may peel away if the

heated tip is applied for too long, so be careful!

•Strong viscosity

Unleaded solder is more viscous (sticky, less prone to flow) than

ordinary solder so use caution not to let solder bridges occur such

as on IC pins, etc.

•Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

—3 —

TABLE OF CONTENTS

1. GENERAL

Precautions·············································································1-1

About This Manual ································································1-1

This player Can Play the Following Discs·····························1-1

Notes About the Discs ···························································1-2

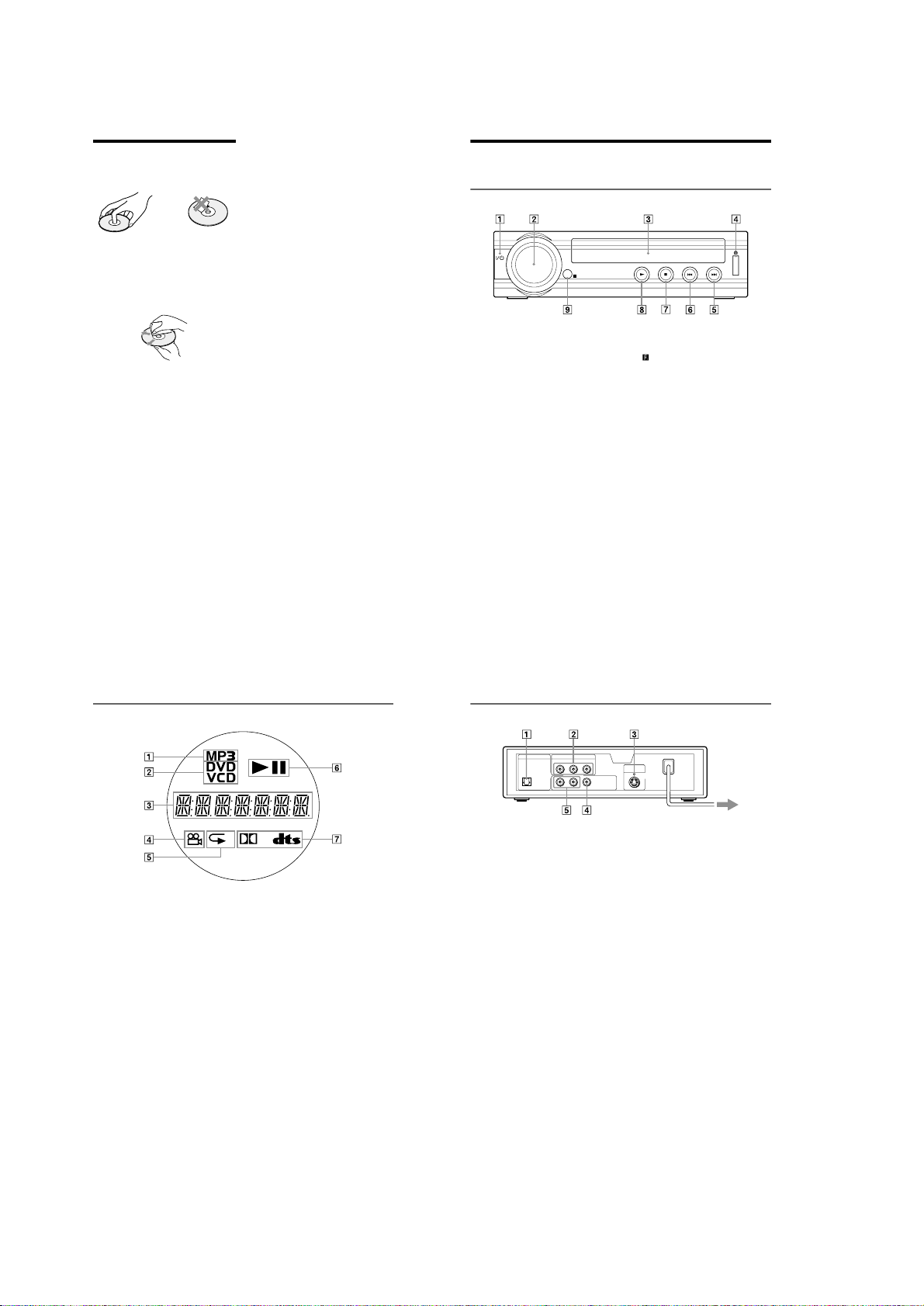

Index to Parts and Controls····················································1-2

Guide to the Control Menu Display (Magic Pad)··················1-3

Hookups·····················································································1-4

Hooking Up the Player ··························································1-4

Step 1: Unpacking ·································································1-4

Step 2: Inserting Batteries into the Remote ···························1-4

Step 3: Connecting the Video Cords ······································1-4

Step 4: Connecting the Audio Cords ·····································1-5

Step 5: Connecting the Mains Lead·······································1-6

Step 6: Quick Setup ·······························································1-6

Attaching the Stand ·······························································1-6

Playing Discs ·············································································1-7

Playing Discs ·········································································1-7

Resuming Playback from the Point WhereYou Stopped

the Disc (Disc Resume) ·························································1-7

Using the DVD’s Menu ·························································1-7

Playing VIDEO CDs with PBC Functions (PBC Playback) ··

1-8

Playing an MP3 Audio Track·················································1-8

Various Play Mode Functions (Programme Play,

Shuffle Play, Repeat Play, A-B Repeat Play)·························1-8

Searching for a Scene ······························································1-10

Searching for a Particular Point on a Disc

(Scan, Slow-motion Play, Search, Freeze Frame) ···············1-10

Searching for a Title/Chapter/Track/Scene, etc ···················1-10

Searching by Scene (VISUAL VIEWER) ···························1-10

Viewing Information About the Disc·······································1-11

Checking the Playing Time and Remaining Time ···············1-11

Sound Adjustments ··································································1-11

Changing the Sound·····························································1-11

Virtual Surround Settings ····················································1-12

Enjoying Movies ·····································································1-12

Changing the Angles····························································1-12

Displaying the Subtitles ·······················································1-12

Adjusting the Playback Picture (PICTURE MODE)···········1-12

Locking Discs ··········································································1-13

Limiting Playback by Children (PARENTAL CONTROL) ···

1-13

Settings and Adjustments ························································1-13

Using the Setup Display ······················································1-13

Setting the Display or Sound Track Language

(LANGUAGE SETUP) ·······················································1-14

Settings for the Display (SCREEN SETUP) ·······················1-14

Custom Settings (CUSTOM SETUP) ·································1-14

Settings for the Sound (AUDIO SETUP) ····························1-14

Additional Information ····························································1-15

Troubleshooting ···································································1-15

Self-diagnosis Function (When letters/numbers

appear in the display)···························································1-15

Glossary ···············································································1-16

2. DISASSEMBLY

2-1.

UPPER CASE ASSEMBLY, LOWER CASE ASSEMBLY ··

2-2

2-2. COVER············································································2-2

2-3. SWITCHING REGULATOR ··········································2-3

2-4. MB-108 BOARD·····························································2-3

2-5. COVER TRAY ASSEMBLY ··········································2-4

2-6. MD SECTION·································································2-4

2-7. OPTICAL DEVICE (KHM-290AAA) ···························2-5

2-8. DC MOTOR ····································································2-5

2-9. AV-079 BOARD ······························································2-6

2-10. INTERNAL VIEW ··························································2-7

2-11. CIRCUIT BOARDS LOCATION ···································2-8

3. BLOCK DIAGRAMS

3-1. RF/SYSCON BLOCK DIAGRAM ·································3-1

3-2. VIDEO/AUDIO BLOCK DIAGRAM ····························3-3

4. PRINTEDWIRING BOARDS AND

SCHEMATIC DIAGRAMS

4-1. FRAME SCHEMATIC DIAGRAM································4-1

4-2. PRINTED WIRING BOARDS AND

SCHEMATIC DIAGRAM ··············································4-3

WAVEFORMS ································································4-4

•AV-079 (1/3) (VIDEO AMP)

SCHEMATIC DIAGRAM ······························4-5

•AV-079 (2/3) (AUDIO OUT)

SCHEMATIC DIAGRAM ······························4-7

•AV-079 (3/3) (I/F CONTROL)

SCHEMATIC DIAGRAM ······························4-9

•AV-079 (VIDEO AMP, AUDIO OUT, I/F CONTROL)

PRINTED WIRING BOARD ·······················4-11

•LED-004 (BACK LIGHT)

SCHEMATIC DIAGRAM ····························4-13

•LED-004 (BACK LIGHT)

PRINTED WIRING BOARD ·······················4-14

•FR-204 (FUNCTION)

SCHEMATIC DIAGRAM ····························4-15

•FR-204 (FUNCTION)

PRINTED WIRING BOARD ·······················4-17

•MB-108 (1/6) (DVD/CD RF AMP)

SCHEMATIC DIAGRAM ····························4-19

•MB-108 (2/6) (F/T COIL DRIVE, SP/SL/LD MOTOR

DRIVE)SCHEMATIC DIAGRAM ····························4-21

•MB-108 (3/6) (SYSTEM CONTROL)

SCHEMATIC DIAGRAM ····························4-23

•MB-108 (4/6) (ARP, SERVO DSP)

SCHEMATIC DIAGRAM ····························4-25

•MB-108 (5/6) (AV DECODER)

SCHEMATIC DIAGRAM ····························4-27

•MB-108 (6/6) (16M SDRAM, 2-CH DAC, PLL)

SCHEMATIC DIAGRAM ····························4-29

•POWER BLOCK (HS6S2F)

SCHEMATIC DIAGRAM ····························4-31

5. IC PIN FUNCTION DESCRIPTION

5-1. I/F CONTROL IC (AV-079 BOARD

IC404:TMP86CK74AFG-4R87)·····································5-1

5-2. SYSTEM CONTROL PIN FUNCTION (MB-108 BOARD

IC104: MB91307RPFV-G-BND-E1) ······························5-3

8. REPAIR PARTS LIST

8-1. EXPLODED VIEWS ······················································8-1

8-1-1.OVERALL SECTION·····················································8-1

8-1-2.MD SECTION·································································8-2

8-2. ELECTRICAL PARTS LIST ··········································8-3

AV-079 ·············································································8-3

FR-204·············································································8-5

LED-004 ··········································································8-5

MB-108 ···········································································8-5

MS-128 ············································································8-9

—4 —

SERVICE NOTE

Refer to 2-1.to remove the upper case assembly and the lower case assembly.

2) I

nsert a driver into the aperture of the chassis, and move the lever of chuck cam in the

direction of arrow A

Pull the tray in the direction of arrow

B, and remove the disk.

TO TAKE OUT A CASSETTE WHEN NOT EJECT (FORCE EJECT)

The lever of

chuck cam

Tray

Aperture of the chassi

1-1

SECTION 1

GENERAL

XD-P15

This section is extracted from

instruction manual.(3-084-198-61)

Precautions

On safety

•Caution –The use of optical instruments

with this product will increase eye hazard.

•Should any solid object or liquid fall into

the cabinet, unplug the player and have it

checked by qualified personnel before

operating it any further.

On power sources

•The player is not disconnected from the AC

power source (mains) as long as it is

connected to the wall outlet, even if the

player itself has been turned off.

•If you are not going to use the player for a

long time, be sure to disconnect the player

from the wall outlet. To disconnect the AC

power cord (mains lead), grasp the plug

itself; never pull the cord.

On placement

•Place the player in a location with adequate

ventilation to prevent heat build-up in the

player.

•Do not place the player on a soft surface

such as a rug that might block the

ventilation holes.

•Do not place the player in a location near

heat sources, or in a place subject to direct

sunlight, excessive dust, or mechanical

shock.

•Do not install the appliance in a confined

space, such as a bookcase or built-in

cabinet.

On operation

•If the player is brought directly from a cold

to a warm location, or is placed in a very

damp room, moisture may condense on the

lenses inside the player. Should this occur,

the player may not operate properly. In this

case, remove the disc and leave the player

turned on for about half an hour until the

moisture evaporates.

•When you move the player, take out any

discs. If you don’t, the disc may be

damaged.

On adjusting volume

Do not turn up the volume while listening to

a section with very low level inputs or no

audio signals. If you do, the speakers may be

damaged when a peak level section is played.

On cleaning

Clean the cabinet, panel, and controls with a

soft cloth slightly moistened with a mild

detergent solution. Do not use any type of

abrasive pad, scouring powder or solvent

such as alcohol or benzine.

On cleaning discs

Do not use a commercially available cleaning

disc. It may cause a malfunction.

If you have any questions or problems

concerning your player, please consult your

nearest Aiwa dealer.

IMPORTANT NOTICE

Caution: This player is capable of holding a

stillvideoimage or on-screendisplayimage

on your television screen indefinitely. If

you leave the still video image or on-screen

display image displayed on your TV for an

extended period of time you risk permanent

damage to your television screen. Plasma

Display Panel televisions and projection

televisions are susceptible to this.

About This Manual

•Operations and displays differ slightly,

depending on where the model is sold.

European models are used for illustration

purposes unless otherwise specified. Any

difference in operation is clearly indicated

in the text, for example, “(European models

only).”

•Instructions in this manual describe the

controls on the remote. You can also use the

controls on the player if they have the same

or similar names as those on the remote.

•“DVD”may be used as a general term for

DVD VIDEOs, DVD-RWs/DVD-Rs, and

DVD+RWs/DVD+Rs.

•The meaning of the icons used in this

manual is described below:

* MP3 (MPEG1 Audio Layer 3) is a standard

format defined by ISO/MPEG which compresses

audio data.

This Player Can Play the

Following Discs

“DVD VIDEO”is a trademark.

Region code

Your player has a region code printed on the

back of the unit and only will play DVD

VIDEO discs (playback only) labelled with

identical region codes. This system is used to

protect copyrights.

DVDs labelled will also play on this

player.

If you try to play any other DVD, the message

“Playback prohibited by area limitations.”

will appear on the TV screen. Depending on

the DVD, no region code indication may be

labelled even though playing the DVD is

prohibited by area restrictions.

Icon Meaning

Functions available for DVD

VIDEOs and DVD-RWs/

DVD-Rs in video mode or

DVD+RWs/DVD+Rs

FunctionsavailableforVIDEO

CDs, Super VCDs, or CD-Rs/

CD-RWs in video CD format

or Super VCD format

Functions available for music

CDs or CD-Rs/CD-RWs in

music CD format

Functions available for DATA

CDs (CD-ROMs/CD-Rs/CD-

RWs containing MP3* audio

tracks)

Format of discs

DVD VIDEO

VIDEO CD

Music CD

ALL

AC 00V-00V 00/00Hz

MODEL NO.

NO.

0-000-000-00

XRegion code

Example of discs that the player

cannot play

The player cannot play the following discs:

•All CD-ROMs (including PHOTO CDs)/

CD-Rs/CD-RWs other than those recorded

in the following formats:

–music CD format

–video CD format

–MP3 format that conforms to ISO9660*

Level 1/Level 2, or its extended format,

Joliet

•Data part of CD-Extras

•DVD-RWs in VR mode

•DVD-ROMs

•DVD Audio discs

•HD layer on Super Audio CDs

* A logical format of files and folders on CD-

ROMs, defined by ISO (International Standard

Organization).

Also, the player cannot play the following

discs:

•A DVD with a different region code.

•A disc that has a non-standard shape (e.g.,

card, heart).

•A disc with paper or stickers on it.

•A disc that has the adhesive of cellophane

tape or a sticker still left on it.

Notes

• Notes about DVD-RWs/DVD-Rs, DVD+RWs/

DVD+Rs or CD-Rs/CD-RWs

Some DVD-RWs/DVD-Rs, DVD+RWs/

DVD+Rs, or CD-Rs/CD-RWs cannot be played

on this player due to the recording quality or

physical condition of the disc, or the

characteristics of the recording device and

authoring software.

The disc will not play if it has not been correctly

finalized. For more information, see the operating

instructions for the recording device. Note that

discs created in the Packet Write format cannot be

played.

• Music discs encoded with copyright protection

technologies

This product is designed to playback discs that

conform to the Compact Disc (CD) standard.

Recently, various music discs encoded with

by some record companies. Please be aware that

among those discs, there are some that do not

conform to the CD standard and may not be

playable by this product.

ote on playback operations of

DVDs and VIDEO CDs

Some playback operations of DVDs and

VIDEO CDs may be intentionally set by

software producers. Since this player plays

DVDs and VIDEO CDs according to the disc

contents the software producers designed,

some playback features may not be available.

Also, refer to the instructions supplied with

the DVDs or VIDEO CDs.

Copyrights

This product incorporates copyright

protection technology that is protected by

method claims of certain U.S. patents, other

intellectual property rights owned by

Macrovision Corporation, and other rights

owners. Use of this copyright protection

technology must be authorized by

Macrovision Corporation, and is intended for

home and other limited viewing uses only

unless otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

1-2

otes About the Discs

•To keep the disc clean, handle the disc by its

edge. Do not touch the surface.

•Do not expose the disc to direct sunlight or

heat sources such as hot air ducts, or leave it

in a car parked in direct sunlight as the

temperature may rise considerably inside

the car.

•After playing, store the disc in its case.

•Clean the disc with a cleaning cloth.

Wipe the disc from the centre out.

•Do not use solvents such as benzine,

thinner,commercially available cleaners,or

anti-static spray intended for vinyl LPs.

Index to Parts and Controls

For more information, refer to the pages indicated in parentheses.

Front panel

A[/1(on/standby) button (28)

BFront panel display (10)

CDisc tray (28)

DZ(open/close) button (28)

E>(next) button (29, 40)

F.(previous) button (29, 40)

Gx(stop) button (29)

HN(play) button (28)

I(remote sensor) (16)

,continued

Front panel display

ALights up when playing MP3 audio

tracks (33)

BDisc type

CCurrent title/chapter/scene/track/

playing time, or other disc information

(45)

DLights up when you can change the

angle (50)

EPlay mode (Lights up during Repeat

Play or A-B Repeat Play) (35)

FPlaying status

GCurrent audio signal (47)

zHint

You can adjust the lighting of the front panel

display by setting “DIMMER”in “CUSTOM

SETUP”(page 58).

Rear panel

ADIGITAL OUT (OPTICAL) jack

(22, 23, 24)

BCOMPONENT VIDEO OUT (Y, CB,

CR) jacks (17).

CS VIDEO OUT jack (17)

DLINE OUT (VIDEO) jack (17)

ELINE OUT L/R (AUDIO) jacks (21,

22, 23)

DIGITAL OUT

OPTICAL

PCM/DTS/MPEG/

DOLBY DIGITAL

COMPONENT VIDEO OUT

LINE OUT

S VIDEO

OUT

RAUDIO VIDEO

,continued

1-3

Remote

AZOPEN/CLOSE button (28)

BNumber buttons (31)

The number 5 button has a tactile dot.*

CCLEAR button (35)

DSUBTITLE button (50)

EAUDIO button (47)

F./>PREV/NEXT (previous/

next) buttons (29)

Gm/MSCAN/SLOW

buttons (40)

HXPAUSE button (29)

IHPLAY button (28)

The Hbutton has a tactile dot.*

JC/X/x/cbuttons (31)

KDISPLAY button (13)

LTOP MENU button (31)

M[/1(on/standby) button (28)

NTIME/TEXT button (44)

OPICTURE MODE button (51)

PANGLE button (50)

QSUR (surround) button (49)

RVISUAL VIEWER button (43)

SREPEAT button (38)

TINSTANT SEARCH/STEP

button (29, 40)

UINSTANT REPLAY/STEP

button (29, 40)

VxSTOP button (29)

WENTER button (25)

XORETURN button (32)

YMENU button (31, 33)

* Use the tactile dot as a reference when operating

the player.

Guide to the Control Menu Display (Magic Pad)

Use the Control Menu to select a function and to view related information. Press DISPLAY

repeatedly to turn on or change the Control Menu display as follows:

Control Menu Display

The Control Menu display 1 and 2 will show different items depending on the disc type. For

details about each item, please refer to the pages in parentheses.

Example: Control Menu display 1 when playing a DVD.

* Displays the scene number for VIDEO CDs

(PBC is on), track number for VIDEO CDs/

CDs, album number for DATA CDs.

** Displays the index number for VIDEO CDs/

CDs, MP3 audio track number for DATA CDs.

Control Menu display 1

Control Menu display 2 (DVD/VIDEO CD only)

Control Menu display off

OFF

1: ENGLISH

2: FRENCH

3: SPANISH

OFF

1 8 ( 3 4 )

1 2 ( 2 7 )

1 : 3 2 : 5 5

DVD VIDEO

Select: Cancel:

SUBTITLE ENTER RETURN

Currently playing chapter number

Playing time

Total number of chapters**

Options

Current setting

Total number of titles*Playback status

(NPlayback,

XPause,

xStop, etc.)

Function name of

selected Control

Menu item

Operation message

Selected item

Control Menu items Type of disc

being played

Currently playing title number*

,continued

List of control menu items

Item Item Name, Function, Relevant Disc Type

TITLE (page 41)/SCENE (page 41)/TRACK (page 41)

Selects the title, scene, or track to be played.

CHAPTER (page 41)/INDEX (page 41)

Selects the chapter or index to be played.

ALBUM (page 33)

Selects the album to be played.

TRACK (page 41)

Selects the track to be played.

INDEX (page 41)

Selects the index to be played.

TIME/TEXT (page 41)

Checks the elapsed time and the remaining playback time.

Input the time code for picture and music searching.

Displays the DVD/CD text or the DATA CD’s track name.

AUDIO (page 47)

Changes the audio setting.

SUBTITLE (page 50)

Displays the subtitles.

Changes the subtitle language.

ANGLE (page 50)

Changes the angle.

PARENTAL CONTROL (page 52)

Set to prohibit playback on this player.

SETUP (page 55)

QUICK Setup (page 25)

Use Quick Setup to choose the desired languageof the on-screen display, the aspect

ratio of the TV, and the audio output signal.

CUSTOM Setup

In addition to the Quick Setup setting, you can adjust various other settings.

RESET

Returns the settings in “SETUP”to the default setting.

PROGRAM (page 35)

Selects the title, chapter, or track to play in the order you want.

SHUFFLE (page 37)

Plays the title, chapter, or track in random order.

REPEAT (page 38)

Plays the entire disc (all titles/all tracks/all albums) repeatedly or one title/chapter/

track/album repeatedly.

A-B REPEAT (page 39)

Specifies the parts you want to play repeatedly.

The following is a list of menu items that are displayed by pressing dedicated buttons on the

remote.

zHint

The icon indicator lights up in green

when you select any item

except “OFF.”(“VIRTUAL SURROUND,”

“PROGRAM,”“SHUFFLE,”“REPEAT”and “A-

B REPEAT”only). The “ANGLE”indicator lights

up in green only when the angles can be changed.

The “PICTURE MODE”indicator lights up in

green when any setting other than “STANDARD”

is selected.

Item Button on the

Remote Item Name, Function, Relevant Disc Type

SUR VIRTUAL SURROUND (page 49)

Selects the surround functions.


MODE PICTURE MODE (page 51)

Adjusts the video signal from the player. You can select the

picture quality that best suits the programme you are watching.

VISUAL

VIEWER VISUAL VIEWER (page 43)

Divides the screen into 9 subscreens to help you find the scene

you want quickly.

1-4

Hookups

Hooking Up the Player

Follow Steps 1 to 6 to hook up and adjust the settings of the player.

Notes

•Plug cords securely to prevent unwanted noise.

•Refer to the instructions supplied with the components to be connected.

•You cannot connect this player to a TV that does not have a SCART (EURO AV) or video input jack.

•Be sure to disconnect the mains lead of each component before connecting.

Step 1: Unpacking

Check that you have the following items:

•Audio/video cord (pinplug u3 ypinplug u3) (1)

•Remote commander (remote) (1)

•R6 (size AA) batteries (2)

•Stand (1)

•Screw (1)

•A EURO AV adapter is included with European models.

Step 2: Inserting Batteries into the Remote

You can control the player using the supplied remote. Insert two R6 (size AA) batteries by

matching the 3and #ends on the batteries to the markings inside the compartment. When

using the remote, point it at the remote sensor on the player.

Notes

•Do not leave the remote in an extremely hot or humid place.

•Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

•Do not expose the remote sensor to direct light from the sun or a lighting apparatus. Doing so may cause a

malfunction.

•If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage

from battery leakage and corrosion.

Hookups

Step 3: Connecting the Video Cords

Connect this player to your TV monitor, projector,or AV amplifier (receiver) using avideo cord.

Select one of the patterns Athrough D, according to the input jack on your TV monitor,

projector, or AV amplifier (receiver).

DIGITAL OUT

OPTICAL

PCM/DTS/MPEG/

DOLBY DIGITAL

COMPONENT VIDEO OUT

LINE OUT

S VIDEO

OUT

RAUDIO VIDEO

l: Signal flow

TV, projector, or AV

amplifier (receiver)

Componentvideo

cord (not

supplied)

toCOMPONENT

VIDEO OUT

to S VIDEO OUT

TV, projector, or AV

amplifier (receiver)

S VIDEO

cord (not

supplied)

(green)

(blue)

(red)

(green)

(blue)

(red)

(green) (blue) (red)

TV, projector, or AV

amplifier (receiver)

EURO AV adapter

(suppliedwithEuropean

models)

Audio/video cord

(supplied)

(yellow)

Audio/video cord

(supplied)

(yellow)

CD/DVD player

(yellow)

to LINE

OUT

(VIDEO)

,continued

A If you are connecting to a video input jack

Connect the yellow plug of the audio/video cord (supplied) to the yellow (video) jacks. You will

enjoy standard quality images.

Use the red and white plugs to connect to the audio input jacks (page 21). (Do this if you are

connecting to a TV only.)

B If you are connecting to an S VIDEO input jack

Connect an S VIDEO cord (not supplied). You will enjoy high quality images.

C If you are connecting to a SCART (EURO AV) input jack (European models

only)

Connect the EURO AV adapter (supplied with European models) to the SCART (EURO AV)

input jack of the TV, and connect the player and the EURO AV adapter using the audio/video

cord (supplied). Connect the yellow plug of the audio/video cord to the yellow (video) jack. Use

the red and white plugs to connect the audio input jacks (page 21).

D If you are connecting to a monitor, projector, or AV amplifier (receiver)

having component video input jacks (Y, CB, CR)

Connect the component via the COMPONENT VIDEO OUT jacks using a component video

cord (not supplied) or three video cords (not supplied) of the same kind and length. You will

enjoy accurate color reproduction and high quality images.

When connecting to a standard 4:3 screen TV

Depending on the disc, the image may not fit your TV screen. If you want to change the aspect

ratio, please refer to page 57.

To change the colour system (Asian/Oceanian models only)

If the on-screen menu of the player does not appear on the connected TV, switch the player’s

colour system to match the colour system of the TV (NTSC or PAL).

Yellow (Video)

White (L)

Red (R)

Yellow (Video)

White (L)

Red (R)

EURO AV adapter Red (R)

White (L)

Yellow (Video)

TV Yellow (Video)

White (L)

Red (R)

Green

Blue

Red

Green

Blue

Red

Hookups

First turn off the player by pressing @/1, and then press @/1again while holding down xon the

player. The player turns back on, and the name of the colour system scrolls across the front panel

display.

Note

Do not connect the player to a VCR. If you pass the player signals via the VCR, you may not receive a clear

image on the TV screen. If your TV only has one audio/video input jack, connect the player to this jack.

For European models:

When you play a disc recorded in the NTSC colour system, the player outputs the video

signal or the Setup Display etc. in the NTSC colour system and the picture may not appear

on the PAL colour system televisions. In this case, open the tray and remove the disc.

VCR

CD/DVD player TV

Connect

directly

1-5

Step 4: Connecting the Audio Cords

Refer to the chart below to select the connection that best suits your system. Be sure to also read

the instructions for the components you wish to connect.

Select a connection

Select one of the following connections, through .

* Manufactured under license from Dolby

Laboratories. “Dolby,”“Pro Logic,”and the

double-D symbol are trademarks of Dolby

Laboratories.

** “DTS”and “DTS Digital Out”are trademarks

of Digital Theater Systems, Inc.

Components to be connected Connection Your setup (example)

•Surround effects: VIRTUAL SURROUND

WIDE (page 49)

(page 21)

Stereo amplifier (receiver) and two speakers

MD deck/DAT deck

(page 22)

AV amplifier (receiver) having a Dolby*

Surround (Pro Logic) decoder and 3 to 6

speakers

•Surround effects: Dolby Surround (Pro Logic)

(page 64)

(page 23)

AV amplifier (receiver) with digital input jacks

having a Dolby Digital, DTS**, or MPEG audio

decoder and 6 speakers

•Surround effects:

–Dolby Digital (5.1ch) (page 64)

–DTS (5.1ch) (page 64)

–MPEG audio (5.1ch) (page 65)

(page 24)

A D

Hookups

Connecting to your TV

This connection will use your TV speakers for sound.

* The yellow plug is used for video signals (page

17).

zHint

When connecting to a monaural TV, use a stereo-

mono conversion cord (not supplied). Connect the

LINE OUT L/R (AUDIO) jacks to the TV’s audio

input jack.

DIGITAL OUT

OPTICAL

PCM/DTS/MPEG/

DOLBY DIGITAL

COMPONENT VIDEO OUT

LINE OUT

S VIDEO

OUT

RAUDIO VIDEO

LINE OUT

RAUDIO VIDEO

l: Signal flow

CD/DVD player

Audio/video

cord (supplied)

to audio input

(yellow)*

(white) (yellow)*

to LINE OUT

L/R (AUDIO)

(red)

(white)

(red)

For European models:

Use the EURO AV adapter (supplied)

to connect to the SCART (EURO AV)

input jack on the TV.

,continued

Connecting to a stereo amplifier (receiver) and 2 speakers/Connecting to

an MD deck or DAT deck

If the stereo amplifier (receiver) has audio input jacks L and R only, use . If the amplifier

(receiver) has a digital input jack, or when connecting to an MD deck or DAT deck, use .

In this case, you can also connect the player directly to the MD deck or DAT deck without using

your stereo amplifier (receiver).

zHint

In connection , you can use the supplied

audio/video cord instead of using a separate audio

cord.

B-1 B-2

DIGITAL OUT

OPTICAL

PCM/DTS/MPEG/

DOLBY DIGITAL

COMPONENT VIDEO OUT

LINE OUT

S VIDEO

OUT

RAUDIO VIDEO

B-1

B-2

DIGITAL OUT

OPTICAL

PCM/DTS/MPEG/

DOLBY DIGITAL

LINE OUT

RAUDIO VIDEO

CD/DVD player

Stereo amplifier (receiver)

MD deck/DAT deck

Front (L)

Front (R)

[Speakers]

(white)

(red)

(red) (white)

Stereo audio cord

(not supplied)

to audio input

to optical digital

input

Optical digital cord

(not supplied)

l: Signal flow

to LINE OUT L/R (AUDIO)

to DIGITAL OUT

(OPTICAL)

B-1

Hookups

Connecting to an AV amplifier (receiver) having a Dolby Surround (Pro

Logic) decoder and 3 to 6 speakers

You can enjoy the Dolby Surround effects only when playing Dolby Surround audio or multi-

channel audio (Dolby Digital) discs.

If your amplifier (receiver) has L and R audio input jacks only, use . If your amplifier

(receiver) has a digital input jack, use .

zHint

In connection , you can use the supplied

audio/video cord instead of using a separate audio

cord.

Note

When connecting 6 speakers, replace the monaural

rear speaker with a centre speaker, 2 rear speakers

and a subwoofer.

C-1

C-2

DIGITAL OUT

OPTICAL

PCM/DTS/MPEG/

DOLBY DIGITAL

COMPONENT VIDEO OUT

LINE OUT

S VIDEO

OUT

RAUDIO VIDEO

C-1

C-2

DIGITAL OUT

OPTICAL

PCM/DTS/MPEG/

DOLBY DIGITAL

LINE OUT

RAUDIO VIDEO

CD/DVD player

Amplifier (receiver) with

Dolby Surround decoder

Front (R)

[Speakers]

(white)

(red)

(red) (white)

Stereo

audio cord (not

supplied)

to audio input

toopticaldigital

input

Optical digital cord

(not supplied)

l: Signal flow

to DIGITAL OUT

(OPTICAL)

[Speakers]

Front (L)Rear (mono)CentreSubwooferRear (R)Rear (L)

to LINE OUT L/R (AUDIO)

C-1

,continued

1-6

Connecting to an AV amplifier (receiver) with a digital input jack having

a Dolby Digital, MPEG audio or DTS decoder and 6 speakers

This connection will allow you to use the Dolby Digital, MPEG audio, or DTS decoder function

of your AV amplifier (receiver). You are not able to enjoy the surround effects of this player.

zHint

Use connection when connecting to 7 or

more speakers. (6.1 ch or more)

Note

After you have completed the connection, be sure to

set “DOLBY DIGITAL”to “DOLBY DIGITAL”

and “DTS”to “ON”in Quick Setup (page 25). If

your AV amplifier (receiver) has an MPEG audio

decoder function, set “MPEG”to “MPEG”(page

60). Otherwise, no sound or a loud noise will come

from the speakers.

DIGITAL OUT

OPTICAL

PCM/DTS/MPEG/

DOLBY DIGITAL

COMPONENT VIDEO OUT

LINE OUT

S VIDEO

OUT

RAUDIO VIDEO

DIGITAL OUT

OPTICAL

PCM/DTS/MPEG/

DOLBY DIGITAL

Front (R)

Front (L)

Rear (R)

AV amplifier (receiver) having a decoder

Subwoofer Centre

Optical digital cord (not supplied)

[Speakers]

CD/DVD player

l: Signal flow

Rear (L)

to optical digital input

to DIGITAL OUT

(OPTICAL)

[Speakers]

Hookups

Step 5: Connecting the Mains Lead

When you have finished connecting all of the components, plug the player and TV mains lead

(power cord) into the mains.

zHint

If the player is to be used in the upright position, attach the supplied stand (page 27).

Step 6: Quick Setup

Follow the steps below to make the minimum number of basicadjustments for using the player.

To skip an adjustment, press >. To return to the previous adjustment, press ..

The on-screen display differs depending on the player model. European models are used for

illustration unless otherwise specified.

1Turn on the TV.

2Press [/1.

3Switch the input selector on your

TV so that the signal from the

player appears on the TV screen.

“Press [ENTER] to run QUICK SETUP”

appears at the bottom of the screen. If this

message does not appear, select

“QUICK”under“SETUP”in the Control

Menu to run Quick Setup (page 56).

4Press ENTER without inserting a

disc.

The Setup Display for selecting the

language used in the on-screen display

appears.

Theavailable languages differdepending

upon the player model.

ENTER

LANGUAGE SETUP

OSD:

MENU:

AUDIO:

SUBTITLE: ITALIANO

ESPAÑOL

NEDERLANDS

DANSK

SVENSKA

FRANÇAIS

ENGLISH

DEUTSCH

,continued

5Press X/xto select a language.

The player uses the language selected

here to display the menu and subtitles as

well.

6Press ENTER.

The Setup Display for selecting the

aspect ratio of the TV to be connected

appears.

Example: Asian/Oceanian models

7Press X/xto select the setting that

matches your TV type.

◆If you have a wide-screen TV or a 4:3

standard TV with a wide-screen mode

•16:9 (page 57)

◆If you have a 4:3 standard TV

•4:3 LETTER BOX or 4:3 PAN SCAN

(page 57)

8Press ENTER.

The Setup Display for selecting the type

of jack used to connect your amplifier

(receiver) appears.

9Press X/xto select the type of jack

(if any) you are using to connect to

an amplifier (receiver), then press

ENTER.

Choose the item that matches the audio

connection you selected on pages 21 to

24 ( through ).

•If you connect just a TV and nothing

else, select “NO.”Quick Setup is

finished and connections are complete.

•Select “LINE OUTPUT L/R

(AUDIO).”Quick Setup is finished and

connections are complete.

•Select “DIGITAL OUTPUT.”The

SetupDisplayfor “DOLBY DIGITAL”

appears.

10Press X/xto select the type of

Dolby Digital signal you wish to

send to your amplifier (receiver).

Choose the signal that matches the audio

connection you selected on pages 22 to

24 ( through ).

•D-PCM (page 60)

•DOLBY DIGITAL (only if the

amplifier (receiver) has a Dolby Digital

decoder) (page 60)

11Press ENTER.

“DTS”is selected.

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

16:9

4:3 PAN SCAN

COLOR SYSTEM: 4:3 LETTER BOX

16:9

YES

Is this player connected to an amplifier

(receiver) ? Select the type of jack you

are using.

LINE OUTPUT L/R (AUDIO)

DIGITAL OUTPUT

A D

B-1 C-1

B-2 C-2 D

B D

AUDIO SETUP

AUDIO ATT:

AUDIO DRC:

DIGITAL OUT:

DOLBY DIGITAL:

MPEG:

OFF

STANDARD

DOWNMIX: DOLBY SURROUND

D-PCM

DTS: DOLBY DIGITAL

D-PCM

B-2 C-2

AUDIO SETUP

AUDIO ATT:

AUDIO DRC:

DIGITAL OUT:

DOLBY DIGITAL:

MPEG:

OFF

STANDARD

DOWNMIX: DOLBY SURROUND

D-PCM

PCM

DTS: OFF

OFF

Hookups

12Press X/xto select whether or

not you wish to send a DTS signal

to your amplifier (receiver).

Choose the item that matches the audio

connection you selected on pages 22 to

24 ( through ).

•OFF (page 60)

•ON (only if the amplifier (receiver) has

a DTS decoder) (page 60)

13Press ENTER.

Quick Setup is finished. All connections

and setup operations are complete.

If your AV amplifier (receiver) has an

MPEG audio decoder, set “MPEG”to

“MPEG”(page 60).

Enjoying the surround sound

effects

To enjoy the surround sound effects of this

player or your amplifier (receiver), set the

following items as described below for the

audio connection you selected on pages 22 to

24( through ). Each oftheseis the

default setting and does not need to be

adjusted when you first connect the player.

Refer to page 55 for using the Setup Display.

Audio Connection (pages 21 to 24)

•No additional settings are needed.

•Set “DOWNMIX”to “DOLBY

SURROUND”(page 59)

•If the sound distorts even when the volume

is turned down, set “AUDIO ATT”to “ON”

(page 59)

•Set “DOWNMIX”to “DOLBY

SURROUND”(page 59)

•Set “DIGITAL OUT”to “ON”(page 59)

Attaching the Stand

You can use the player laid flat, or in an

upright position. Be sure to attach the

supplied stand when using in the upright

position.

1Attach the stand to the screw hole

on the player using the supplied

screw.

2Place the player on the stand.

Notes

•Use the supplied stand only when you use the

player in an upright position. Do not attach the

stand when you use the player laid flat.

•To move the player, hold the player itself. If you

hold the stand, it may break.

•Do not use the player in an upright position

without attaching the stand. The player will be

unstable and may fall over.

•Keep the screws out of reach of children as they

may swallow them.

B D

B-2 C-2

B D

B-1 C-1

B-2 C-2 D

1-7

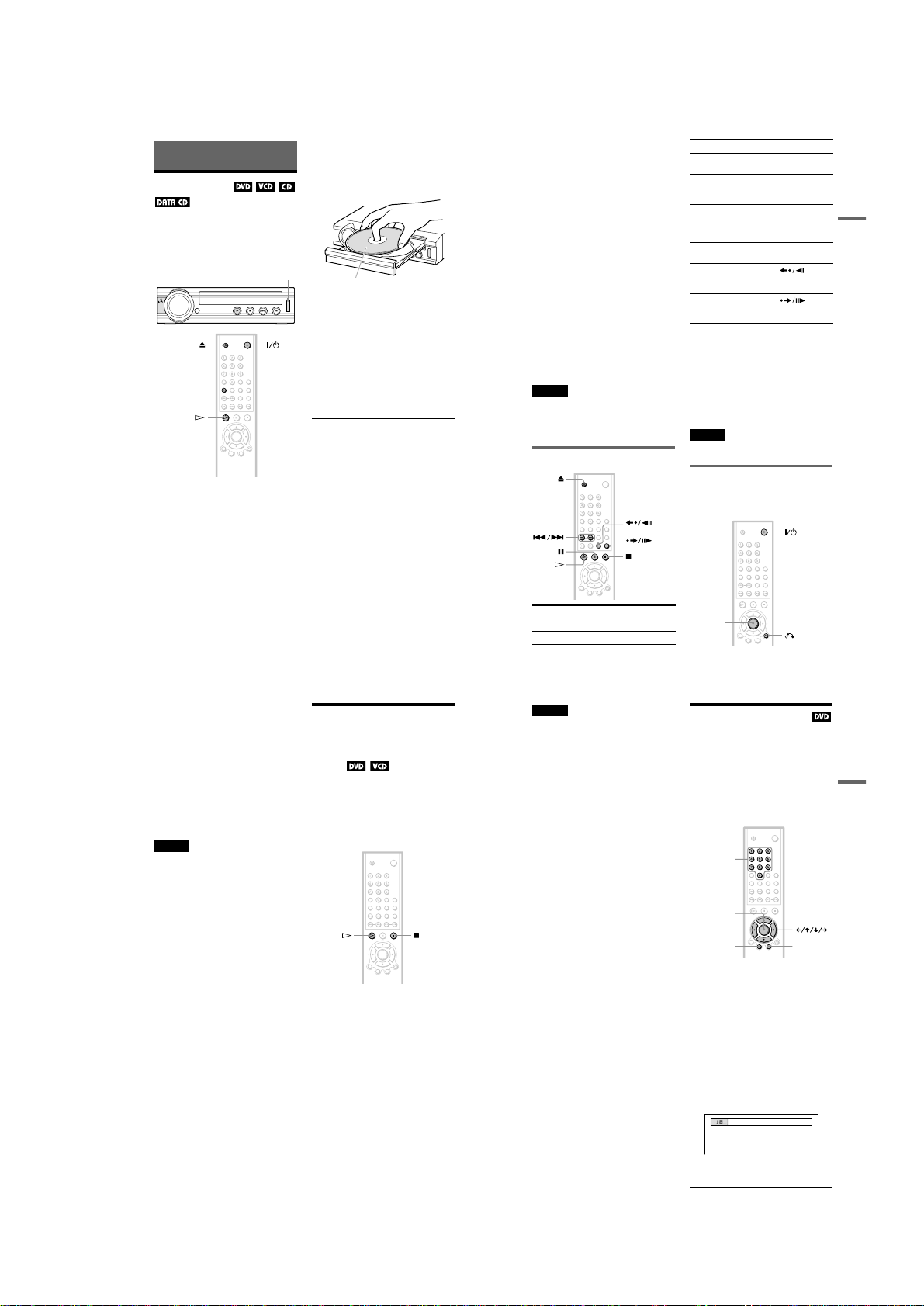

Playing Discs

Depending on the DVD or VIDEO CD, some

operations may be different or restricted.

Referto theoperating instructions supplied

with your disc.

1Turn on your TV.

2Press [/1.

The player turns on.

3Switch the input selector on your

TV so that the signal from the

player appears on the TV screen.

◆When using an amplifier (receiver)

Turn on the amplifier (receiver) and

select the appropriate channel so that you

can hear sound from the player.

4Press Zon the player, and place a

disc on the disc tray.

Place the disc within the groove of the

tray. Do not try to close the trayif the disc

is incorrectly set.

Make sure the disc is held within the

groove of the tray when using the player

in the upright position also.

5Press H.

The disc tray closes, and the player starts

playback (continuous play). Adjust the

volume on the TV or the amplifier

(receiver).

Depending on the disc, a menu may

appear on the TV screen. For DVDs, see

page 31. For VIDEO CDs, see page 32.

To turn off the player

Press [/1. The player enters standby mode.

zHint

You can have the player turn off automatically

whenever you leave it in stop mode for more than

30 minutes. To turn on this function, set “AUTO

POWER OFF”in “CUSTOM SETUP”to “ON”

(page 58).

Notes on playing DTS sound tracks on a CD

•When playing DTS-encoded CDs,

excessive noise will be heard from the

analog stereo jacks. To avoid possible

damage to the audio system, the consumer

should take proper precautions when the

analog stereo jacks of the player are

connected to an amplification system. To

enjoyDTS Digital Surround™playback,an

external 5.1-channel decoder system must

be connected to the digital jack of the

player.

AUDIO

[/1NWith the playback side facing down

Playing Discs

•Set the sound to “STEREO”using the

AUDIO button when you play DTS sound

tracks on a CD (page 47).

•Do not play DTS sound tracks without first

connecting the player to an audio

component having a built-in DTS decoder.

The player outputs the DTS signal via the

DIGITAL OUT (OPTICAL) jack even if

“DTS”in“AUDIO SETUP”issetto “OFF”

in the Setup Display (page 60), and may

affect your ears or cause your speakers to be

damaged.

Notes on playing DTS sound tracks on a

DVD

•DTS audio signals are output only through

the DIGITAL OUT (OPTICAL) jack.

•When you play a DVD with DTS sound

tracks, set “DTS”to “ON”in “AUDIO

SETUP”(page 60).

•If you connect the player to audio

equipment without a DTS decoder, do not

set “DTS”to “ON”in “AUDIO SETUP”

(page 60). A loud noise may come out from

the speakers, affecting your ears or causing

the speakers to be damaged.

Notes

•Be sure to use an adapter (not supplied) when

playing an 8cm CD on the player positioned

upright.

•To play an 8cm DVD, do not use an adapter, and

play on the player laid flat.

Additional operations

* ForDVDVIDEOsandthe DVD-RWs/DVD-Rs

only

** ForDVDVIDEOsandtheDVD-RWs/DVD-Rs

or DVD+RWs only

zHints

•The Instant Replay function is useful when you

want to review a scene or dialog that you missed.

•The Instant Search function is useful when you

want to pass over a scene that you don’t want to

watch.

Note

You may not be able to use the Instant Replay or

Instant Search function with some scenes.

Locking the disc tray (Child

Lock)

You can lock the disc tray to prevent children

from opening it.

To Operation

Stop Press x

Pause Press X

INSTANT REPLAY

INSTANT SEARCH

Resume play after

pause Press Xor H

Gotothenextchapter,

track, or scene in

continuous play mode

Press >

Go back to the

previous chapter,

track, or scene in

continuous play mode

Press .

Stop play and remove

the disc Press Z

Replay the previous

scene* Press

INSTANT REPLAY

during playback

Briefly fast forward

the current scene** Press

INSTANT SEARCH

during playback

To Operation

RETURN

ENTER

,continued

When the player is in standby mode, press

ORETURN, ENTER, and [/1in this order

on the remote.

The player turns on and “LOCKED”appears

on the front panel display. The Zbutton on

the player or the remote does not work while

the Child Lock is set.

To unlock the disc tray

When the player is in standby mode, press

ORETURN, ENTER, and then [/1again.

“UNLOCKED”appears in the front panel

display.

Note

Even if you select “RESET”under “SETUP”in the

Control Menu (page 56), the disc tray remains

locked.

Resuming Playback from

the Point Where You

Stopped the Disc (Disc

Resume)

Theplayer stores thepointwhere you stopped

the disc for up to 6 discs and resumes

playback the next time you insert the same

disc.When you storearesume playback point

for the seventh disc, the resume playback

point for the first disc is deleted.

1While playing a disc, press xto

stop playback.

“RESUME”appears on the front panel

display.

2Press H.

The player starts playback from the point

where you stopped the disc in step 1.

zHints

•To play from the beginning of the disc, press x

twice, then press H.

•For CDs and DATA CDs, the player remembers

the resume playback point for the current disc

unless the disc tray is opened, the mains lead

(power cord) is disconnected, or only for DATA

CDs, the player enters standby mode.

Playing Discs

Notes

•“DISC RESUME”in “CUSTOM SETUP”must

be set to “ON”(default) for this function to work

(page 58).

•The resume playback point for the current disc is

cleared when:

–you change the play mode.

–you change the settings on the Setup Display.

•This function may not work with some discs.

•Resume Play does not work during Shuffle Play

and Programme Play.

•If “DISC RESUME”in “CUSTOM SETUP”is

set to “ON”and you playback a recorded disc

such as DVD-RW, the player may playback other

recorded discs from the same resume point. To

play from the beginning, press xtwice and then

press H.

sing the DVD’s Menu

A DVD is divided into long sections of a

picture or a music feature called “titles.”

When you play a DVD which contains

several titles, you can select the title youwant

using the TOP MENU button.

When you play DVDs that allow you to select

items such as the language for the subtitles

and the language for the sound, select these

items using the MENU button.

1Press TOP MENU or MENU.

The disc’s menu appears on the TV

screen.

The contents of the menu vary from disc

to disc.

2Press C/X/x/cor the number

buttons to select the item you want

to play or change.

If you press the number buttons, the

following display appears.

Press the number buttons to select the

item you want.

3Press ENTER.

ENTER

TOP MENU

Number

buttons

1-8

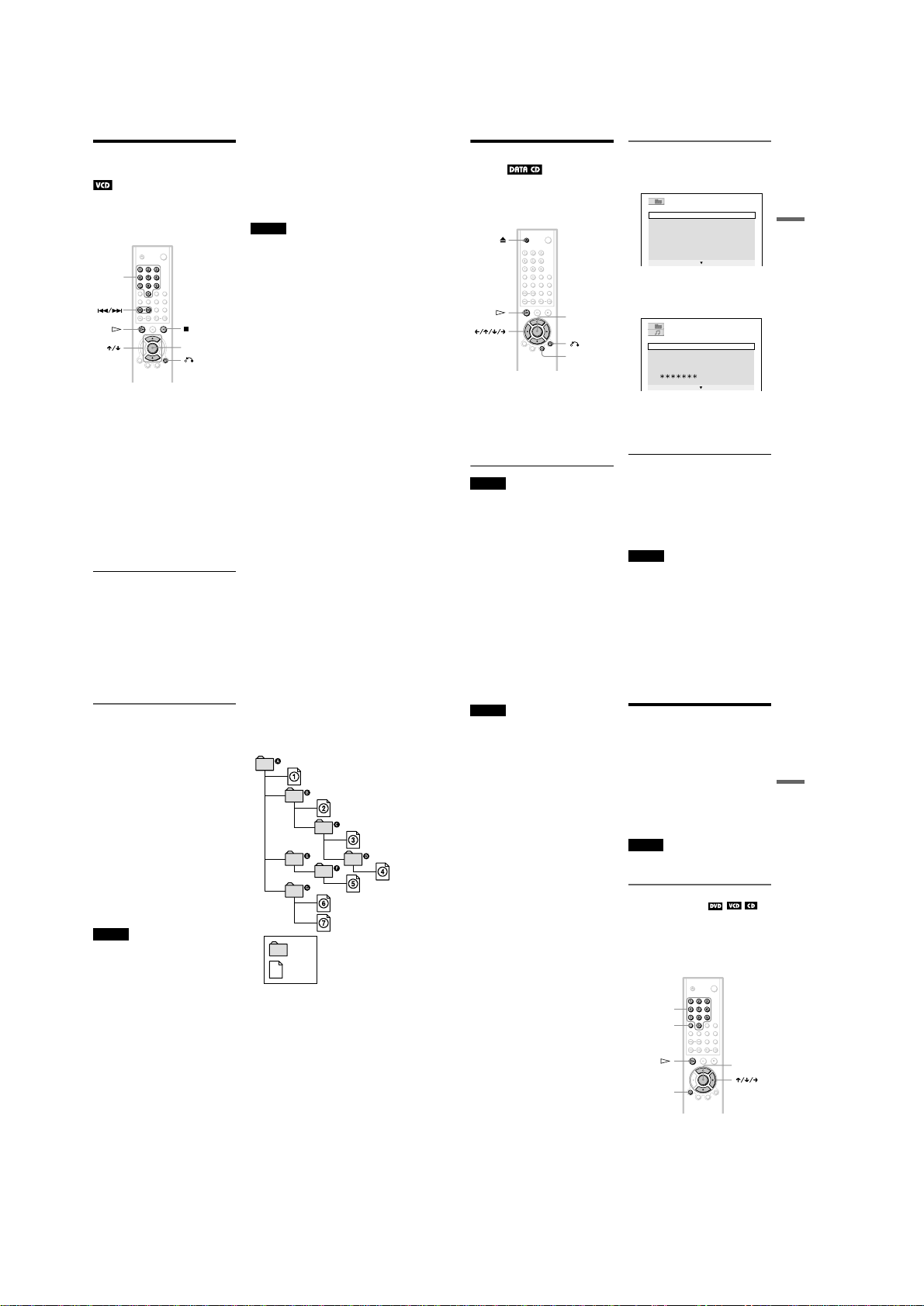

Playing VIDEO CDs with

PBC Functions (PBC Playback)

PBC (Playback Control) allows you to play

VIDEO CDs interactively by following the

menu on the TV screen.

1Start playing a VIDEO CD with PBC

functions.

The menu for your selection appears.

2Select the item number you want

by pressing X/xor the number

buttons.

3Press ENTER.

4Follow the instructions in the

menu for interactive operations.

Refertothe instructions supplied with the

disc, as the operating procedure may

differ depending on the VIDEO CD.

To return to the menu

Press ORETURN.

zHint

To play without using PBC, press ./> or the

number buttons while the player is stopped to select

a track, then press H or ENTER.

“Play without PBC”appears on the TV screen and

the player starts continuous play. You cannot play

still pictures such as a menu.

To return to PBC playback, press xtwice then

press H.

Notes

•Depending on the VIDEO CD, “Press ENTER”in

step 3 may appear as “Press SELECT”in the

instructions supplied with the disc. In this case,

press H.

•The PBC functions of Super VCDs do not work

with this player. Super VCDs are played in

continuous play mode only.

ENTER

RETURN

Number

buttons

Playing Discs

Playing an MP3 Audio

Track

You can play back DATA CDs (CD-ROMs/

CD-Rs/CD-RWs) recorded in MP3 (MPEG 1

Audio Layer 3) format.

1Press Zand place a DATA CD on

the disc tray.

2Press H.

The disc tray closes, and the player starts

to play the first MP3 audio track in the

first album on the disc.

Notes

•ThisplayercanplayMP3audiotracksrecordedin

the following sampling frequencies: 32 kHz,

44.1 kHz, 48 kHz.

•The playback order may be different from the

edited order. See “The playback order of MP3

audio tracks”on the next page for details.

Selecting an album and track

1Press MENU.

The list of MP3 albums recorded on the

DATA CD appears.

2Select an album using X/xand press

ENTER.

The list of tracks contained in the album

appears.

3Select a track using X/xand press

ENTER.

The selected track starts playing. When a

track or album is being played, its title is

shaded.

To go to the next or previous page

Press cor C.

To return to the previous display

Press ORETURN.

To turn off the display

Press MENU.

Notes

•Only the letters in the alphabet and numbers can

be used for album or track names. Anything else

is displayed as an “*.”

•ID3 tags cannot be displayed.

ENTER

RETURN

1 ( 3 0 )

ROCK BEST HIT

KARAOKE

JAZZ

R&B

MY FAVORITE SONGS

CLASSICAL

SALSA OF CUBA

BOSSANOVA

J A Z Z

1 (9 0 )

01SHE IS SPECIAL

02ALL YOU NEED IS ...

03SPICY LIFE

04HAPPY HOUR

05RIVER SIDE

07TAKE TIME,TAKE TIME

,continued

About MP3 audio tracks

YoucanplayMP3 audio tracks onCD-ROMs

or CD-Rs/CD-RWs. However, the discs must

be recorded according to ISO9660 level 1,

level 2, or Joliet format for the player to

recognize the tracks.

You can also play discs recorded in Multi

Session.

See the instructions of the CD-R/CD-RW

device or recording software (not supplied)

for details on the recording format.

To play a Multi Session CD

This player can play Multi Session CDs when

an MP3 audio track is located in the first

session. Any subsequent MP3 audio track,

recorded in later sessions, can also be played

back.

When audio tracks and images in music CD

format or video CD format are recorded in the

first session, only the first session will be

played back.

Notes

•If you put the extension “.MP3”to data not in

MP3 format, the player cannot recognize the data

properly and will generate a loud noise which

could damage your speaker system.

•The player cannot play audio tracks in MP3PRO

format.

The playback order of MP3 audio tracks

The playback order of albums and tracks

recorded on a DATA CD is as follows.

◆Structure of disc contents

When you insert a DATA CD and press H,

the numbered tracks are played sequentially,

from 1through 7. Any sub-albums/tracks

contained within a currently selected album

take priority over the next album in the same

tree.(Example: Ccontains Dso4isplayed

before 5.)

When you press MENU and the list of MP3

albums appears (page 33), the albums are

arranged in the following order: AtBt

CtDtFtG. Albums that do not

contain tracks (such as album E) do not

appear in the list.

zHints

•If you add numbers (01, 02, 03, etc.) to the front

of the track file names, the tracks will be played in

that order.

•Since a disc with many trees takes longer to start

playback, it is recommended that you create

albums of no more than two trees.

ROOT

Tree 1 Tree 2 Tree 3 Tree 4 Tree 5

album

track

Playing Discs

Notes

•Depending on the software you use to create the

DATA CD, the playback order may differ from

the illustration above.

•The playback order above may not be applicable

if there are more than a total of 999 albums and

tracks in the DATA CD.

•The player can recognize up to 499 albums (the

player will count just albums, including albums

that do not contain MP3 audio tracks). The player

will not play any albums beyond the first 499

albums. Of the first 499 albums, the player will

play no more than a combined total of 999 albums

and tracks.

Various Play Mode

Functions (Programme Play,

Shuffle Play, Repeat Play, A-B Repeat

Play)

You can set the following play modes:

•Programme Play (page 35)

•Shuffle Play (page 37)

•Repeat Play (page 38)

•A-B Repeat Play (page 39)

Note

The play mode is cancelled when:

–you open the disc tray.

–the player enters standby mode by pressing [/1.

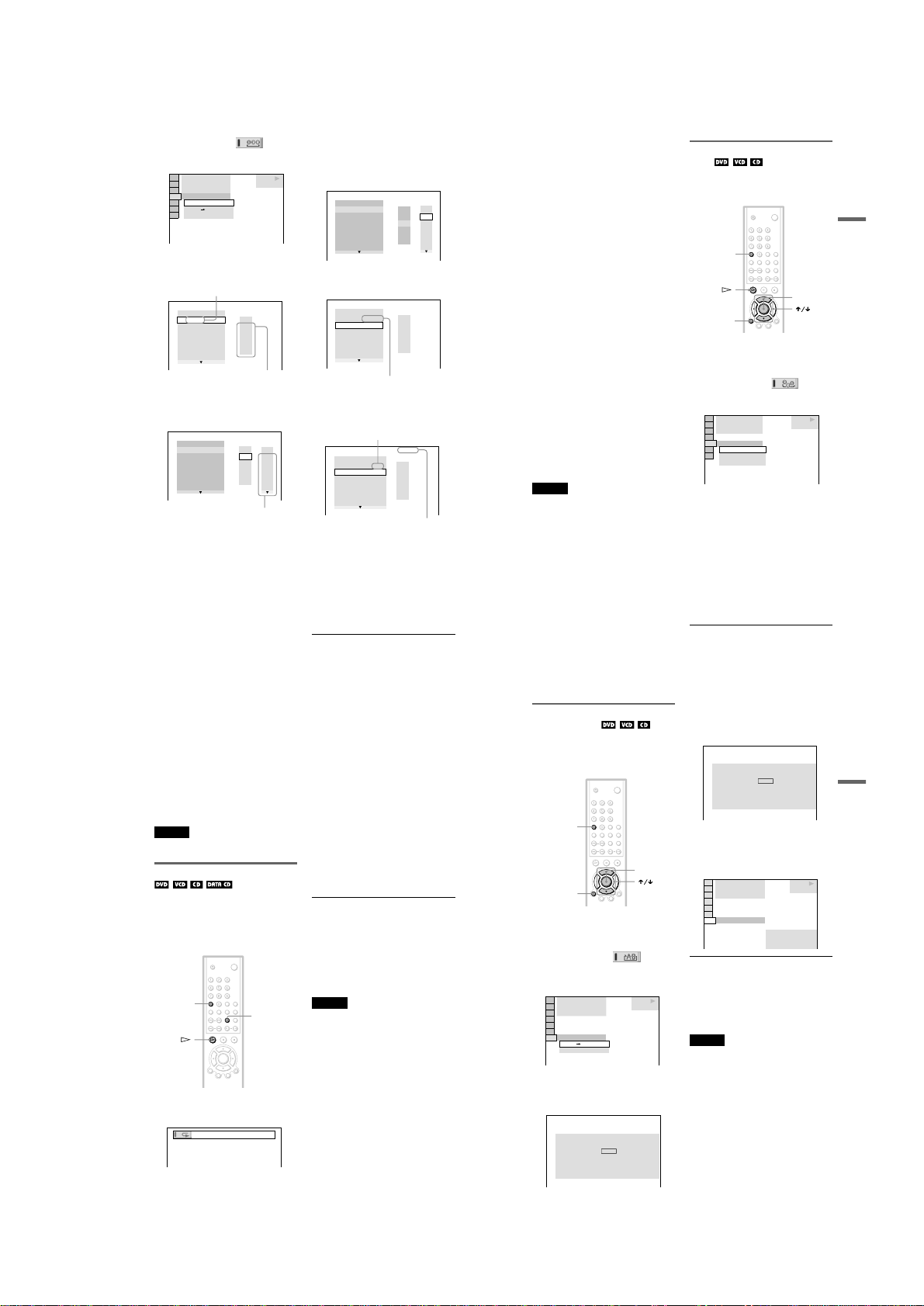

Creating your own programme

(Programme Play)

You can play the contents of a disc in the

order you want by arranging the order of the

titles, chapters, or tracks on the disc to create

your own programme. You can programme

up to 99 titles, chapters, and tracks.

1Press DISPLAY twice (when playing a

CD, press once).

The Control Menu appears.

DISPLAY

ENTER

CLEAR

Number

buttons

,continued

1-9

2Press X/xto select

(PROGRAM), then press ENTER.

The options for “PROGRAM”appear.

3Press X/xto select “SET t,” then

press ENTER.

4Press c.

The cursor moves to the title or track row

“T”(in this case, “01”).

5Select the title, chapter, or track you

want to programme.

◆When playing a DVD

For example, select chapter “03”of title

“02.”

Press X/x or the number buttons to select

“02”under “T,”then press ENTER.

Next, press X/xor the number buttons to

select “03”under “C,”then press

ENTER.

◆When playing a VIDEO CD or CD

For example, select track “02.”

Press X/xor the number buttons to select

“02”under “T,”then press ENTER.

6To programme other titles, chapters,

or tracks, repeat steps 4 to 5.

The programmed titles, chapters, and

tracks are displayed in the selected order.

7Press Hto start Programme Play.

Programme Play begins.

When the programme ends, you can

restart the same programme again by

pressing H.

OFF

SET

1 8 ( 3 4 )

1 2 ( 2 7 )

1 : 3 2 : 5 5

DVD VIDEO

PROGRAM

1. TITLE

ALL CLEAR

2. TITLE ––

3. TITLE ––

4. TITLE ––

5. TITLE ––

6. TITLE ––

7. TITLE ––

––

“TRACK”is displayed when you play

a VIDEO CD or CD.

Titles or tracks

recorded on a disc

PROGRAM

1. TITLE ––

ALL CLEAR

2. TITLE ––

3. TITLE ––

4. TITLE ––

5. TITLE ––

6. TITLE ––

7. TITLE ––

ALL

––

Chapters recorded on a disc

PROGRAM

1. TITLE ––

ALL CLEAR

2. TITLE ––

3. TITLE ––

4. TITLE ––

5. TITLE ––

6. TITLE ––

7. TITLE ––

ALL

––

PROGRAM

1. TITLE 0 2 –0 3

ALL CLEAR

2. TITLE ––

3. TITLE ––

4. TITLE ––

5. TITLE ––

6. TITLE ––

7. TITLE ––

Selected title and chapter

PROGRAM

1. TRACK 0 2

ALL CLEAR

2. TRACK ––

3. TRACK ––

4. TRACK ––

5. TRACK ––

6. TRACK ––

7. TRACK ––

0:15:30

––

Selected track

Total time of the programmed tracks

Playing Discs

To return to normal play

Press CLEAR, or select “OFF”in step 3. To

play the same programme again, select “ON”

in step 3 and press ENTER.

To turn off the display

Press DISPLAY repeatedly until the display

is turned off.

To change or cancel a programme

1Follow steps 1 through 3 of “Creating

your own programme (Programme

Play).”

2Selectthe programme numberof the title,

chapter, or track you want to change or

cancel using X/x or the number buttons,

and press c.

3Follow step 5 for new programming. To

cancel a programme, select “--”under

“T,”then press ENTER.

To cancel all the titles, chapters, or tracks

in the programmed order

1Follow steps 1 through 3 of “Creating

your own programme (Programme

Play).”

2Press X and select “ALL CLEAR.”

3Press ENTER.

zHint

You can do Repeat Play or Shuffle Play of the

programmed titles, chapters, or tracks. During

Programme Play, follow the steps of “Repeat Play”

(page 38) or “Shuffle Play”(page 37).

Notes

•When playing Super VCDs, the total time of the

programmed tracks does not appear on the screen.

•You cannot use this function with VIDEO CDs

with PBC playback.

Playing in random order (Shuffle

Play)

You can have the player “shuffle”titles,

chapters, or tracks. Subsequent “shuffling”

may produce a different playing order.

1Press DISPLAY twice during playback

(when playing a CD, press once).

The Control Menu appears.

2Press X/x to select

(SHUFFLE), then press ENTER.

The options for “SHUFFLE”appear.

3Press X/xto select the item to be

shuffled.

◆When playing a DVD

•TITLE

•CHAPTER

◆When playing a VIDEO CD or CD

•TRACK

◆When Programme Play is activated

•ON: shuffles titles, chapters, or tracks

selected in Programme Play.

4Press ENTER.

Shuffle Play starts.

ENTER

CLEAR

DISPLAY

1 8 ( 3 4 )

1 2 ( 2 7 )

1 : 3 2 : 5 5

OFF

CHAPTER

TITLE

OFF

DVD VIDEO

,continued

To return to normal play

Press CLEAR, or select “OFF”in step 3.

To turn off the Control Menu

Press DISPLAY repeatedly until the Control

Menu is turned off.

zHints

•You can set Shuffle Play while the player is

stopped. After selecting the “SHUFFLE”option,

press H. Shuffle Play starts.

•Up to 200 chapters in a disc can be played in

random order when “CHAPTER”is selected.

Note

You cannot use this function with VIDEO CDs with

PBC playback.

Playing repeatedly (Repeat Play)

You can play all of the titles or tracks on a

disc or a single title, chapter, or track

repeatedly.

You can use a combination of Shuffle or

Programme Play modes.

1Press REPEAT during playback.

The following display appears.

2Press REPEAT repeatedly to select the

item to be repeated.

◆When playing a DVD

•DISC: repeats all of the titles.

•TITLE: repeats the current title on a

disc.

•CHAPTER: repeats the current

chapter.

◆When playing a VIDEO CD or CD

•DISC: repeats all of the tracks.

•TRACK: repeats the current track.

◆When playing a DATA CD (MP3 audio)

•DISC: repeats all of the albums.

•ALBUM: repeats the current album.

•TRACK: repeats the current track.

◆When Programme Play or Shuffle Play

is activated

•ON: repeats Programme Play or

Shuffle Play.

To return to normal play

Press CLEAR, or select “OFF”in step 2.

zHints

•You can set Repeat Play while the player is

stopped. After selecting the “REPEAT”option,

press H. Repeat Play starts.

•You can also select “REPEAT”from the Control

Menu (page 13).

Note

You cannot use this function with VIDEO CDs with

PBC playback.

CLEAR

REPEAT

DISC

Playing Discs

Repeating a specific portion (A-

B Repeat Play)

You can play a specific portion of a title,

chapter or track repeatedly. (This function is

useful when you want to memorize lyrics,

etc.)

1Press DISPLAY twice during playback

(when playing a CD, press once).

The Control Menu appears.

2Press X/xto select (A-B

REPEAT), then press ENTER.

The options for “A-B REPEAT”

appear.

3Press X/xto select “SET t,”then

press ENTER.

The “A-B REPEAT”setting display

appears.

4During playback, when you find the

starting point (point A) of the portion to

be played repeatedly, press ENTER.

The starting point (point A) is set.

5When you reach the ending point

(point B), press ENTER again.

The set points are displayed and the

player starts repeating this specific

portion.

To return to normal play

Press CLEAR, or select “OFF”in step 3.

To turn off the Control Menu

Press DISPLAY repeatedly until the Control

Menu is turned off.

Note

When you set A-B Repeat Play, the settings for

Shuffle Play, Repeat Play, and Programme Play are

cancelled.

CLEAR

ENTER

DISPLAY

SET

OFF

1 8 ( 3 4 )

1 2 ( 2 7 )

1 : 3 2 : 5 5

DVD VIDEO

Set point A with

A-B REPEAT

ENTER

A: 18 –1 : 32 : 55

CHAPTER

TIME

Set point B with .

ENTER

A-B REPEAT

1 8 ( 3 4 )

1 2 ( 2 7 )

DVD VIDEO

A: 18 –1 : 32 : 55

B: 18 –1 : 34 : 30

CHAPTER

TIME

1 : 3 4 : 3 0

1-10

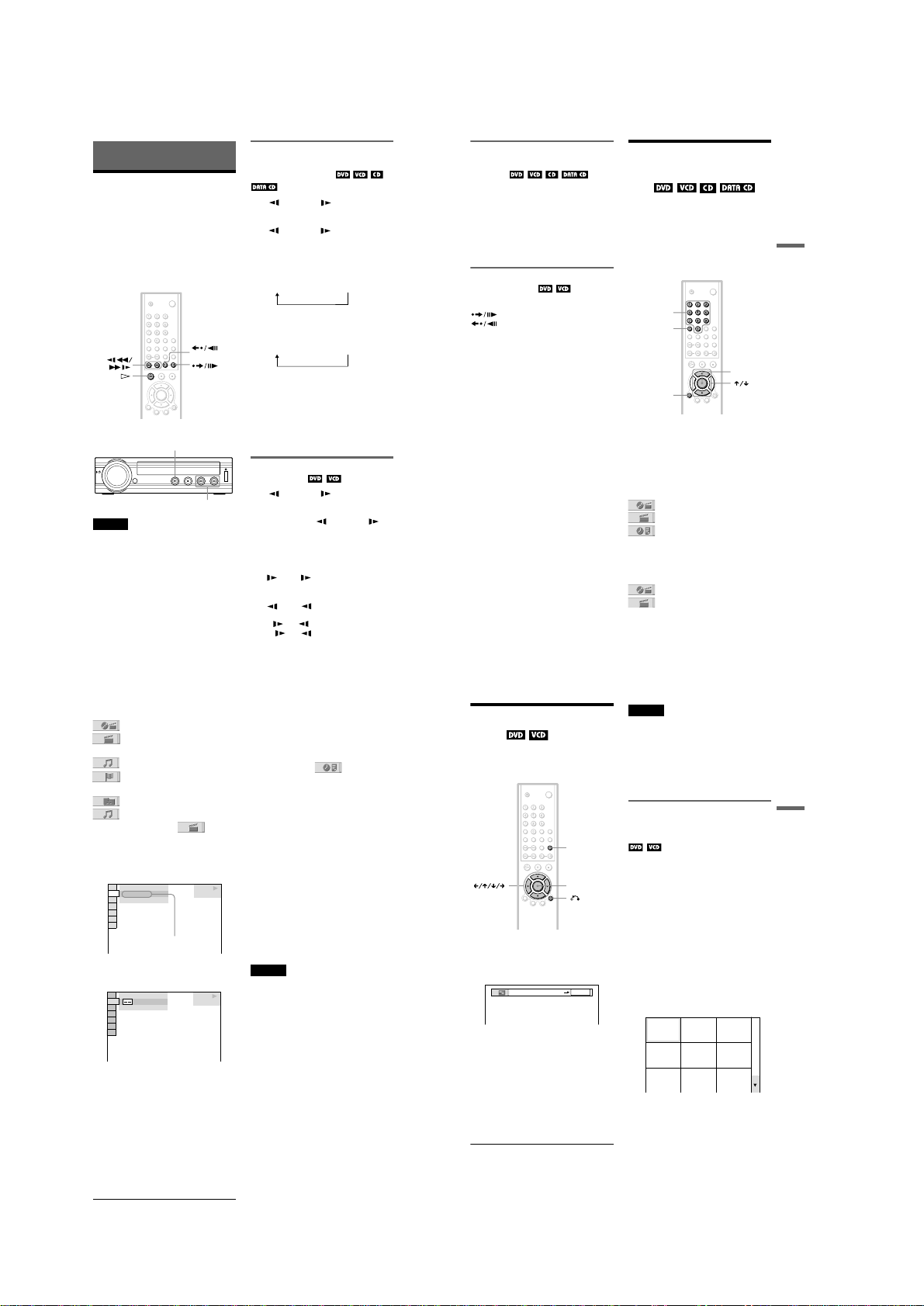

Searching for a Scene

Searching for a

Particular Point on a

Disc (Scan, Slow-motion Play,

Search, Freeze Frame)

You can quickly locate a particular point on a

discbymonitoring the picture orplayingback

slowly.

Note

Depending on the DVD/VIDEO CD, you may not

be able to do some of the operations described.

Locating a point quickly by

playing a disc in fast forward or

fast reverse (Scan)

Press mor Mwhile playing a

disc. When you find the point you want, press

Hto return to normal speed. Each time you

press mor Mduring scan, the

playback speed changes (The actual speeds

differ depending on the disc type). With each

press the indication changes as follows:

Playback direction

Opposite direction

The “u2B”/“u2b”playback speed is about

twice the normal speed.

The “3M”/“3m”playback speed is faster

than“2M”/“2m”andthe“2M”/“2m”

playback speed is faster than “1M”/

“1m.”

Watching frame by frame (Slow-

motion Play)

Press mor Mwhen the player is

in pause mode. To return to the normal speed,

press H.

Each time you press m or M

during Slow-motion play, the playback speed

changes.Twospeeds are available.Witheach

press the indication changes as follows:

Playback direction

2 y1

Opposite direction (DVD only)

2 y1

The “2 ”/“2”playback speed is slower

than “1 ”/“1.”

STEP

./>

u2Bt1Mt2Mt3M

3M(DVD/VIDEO CD only)

u2B(DVD/CD only)

u2bt1mt2mt3m

3m(DVD/VIDEO CD only)

u2b(DVD only)

Searching for a Scene

Locating a point quickly using

the PREV (previous)/ EXT button

(Search)

You can search for a particular point on a disc

using ./>on the player.

During playback, press and hold >on the

player to locate a point in the playback

direction, or press and hold .to locate a

pointinthe opposite direction.Whenyoufind

the point you want, release the button to

return to normal playback speed.

Playing one frame at a time

(Freeze Frame)

When the player is in the pause mode, press

STEP to go to the next frame. Press

STEP to go to the preceding frame

(DVDonly). If youholdthebutton down, you

can view the frames in succession. To return

to normal playback, press H.

Searching for a Title/

Chapter/Track/Scene,

etc.

You can search a DVD by title or chapter, and

you can search a VIDEO CD/CD/DATA CD

by track, index, or scene. As titles and tracks

are assigned unique numbers on the disc, you

can select the desired one by entering its

number. Or, you can search for a scene using

the time code.

1Press DISPLAY.

The Control Menu appears.

2Press X/xto select the search

method.

◆When playing a DVD

TITLE

CHAPTER

TIME/TEXT

Select “TIME/TEXT”to search for a starting

point by inputting the time code.

◆When playing a VIDEO CD without PBC

playback

TRACK

INDEX

CLEAR

ENTER

DISPLAY

Number

buttons

,continued

◆When playing a VIDEO CD with PBC

Playback

SCENE

INDEX

◆When playing a CD

TRACK

INDEX

◆When playing a DATA CD (MP3 audio)

ALBUM

TRACK

Example: when you select

CHAPTER

“** (**)”is selected (** refers to a number).

The number in parentheses indicates the total

number of titles, chapters, tracks, indexes or

scenes.

3Press ENTER.

“** (**)”changes to “-- (**).”

4Press X/xor the number buttons

to select the title, chapter, track,

index, or scene number you want

to search.

If you make a mistake

Cancel the number by pressing CLEAR,

then select another number.

5Press ENTER.

The player starts playback from the

selected number.

To turn off the Control Menu

Press DISPLAY repeatedly until the Control

Menu is turned off.

To search for a scene using the time code

(DVD only)

1In step 2, select TIME/TEXT.

“T **:**:**”(playing time of the current

title) is selected.

2Press ENTER.

“T **:**:**”changes to “T --:--:--.”

3Input the time code using the number

buttons, then press ENTER.

For example, to find the scene at 2 hours,

10 minutes, and 20 seconds after the

beginning, just enter “2:10:20.”

zHints

•When the Control Menu display is turned off, you

can search for a chapter (DVD) or track (CD) by

pressing the number buttons and ENTER.

•You can display the first scene of titles, chapters,

or tracks recorded on the disc on a screen divided

into 9 sections. You can start playback directly by

selecting one of the scenes. For details, see

“Searching by Scene (VISUAL VIEWER)”on

the next page.

Notes

•Thetitle, chapter, or track number displayed is the

same number recorded on the disc.

•You cannot search for a scene on a DVD+RW

using the time code.

1 8 ( 3 4 )

1 2 ( 2 7 )

DVD VIDEO

1 : 3 2 : 5 5

Selected row

DVD VIDEO

1 2 ( 2 7 )

1 : 3 2 : 5 5

( 3 4 )

Searching for a Scene

Searching by Scene (VISUAL

VIEWER)

Youcan divide thescreeninto 9subscreens

and find the desired scene quickly.

1Press VISUAL VIEWER during

playback.

The following display appears.

2Press VISUAL VIEWER repeatedly

to select the item.

Refer to the explanations given for each

item in the following sections.

•CHAPTER VIEWER (for DVD only)

•TITLE VIEWER (for DVD only)

•TRACK VIEWER (for VIDEO CD

only)

3Press ENTER.

To return to normal play

Press O RETURN.

Notes

•If you play a Video CD (PBC on) with Visual

Viewer, and you press ORETURN, PBC

playback will be cancelled, and the disc will start

to play from the beginning without PBC.

•The “VISUAL VIEWER”is not available when

playing Super VCDs.

•Depending on the disc, you may not be able to

select all functions.

•The sound is muted when using this function.

Scanning the title, chapter, or

track (TITLE VIEWER, CHAPTER

VIEWER, TRACK VIEWER)

You can divide the screen into 9 subscreens

and display the first scene of titles, chapters,

or tracks.

Youcan also playbackfrom the selected title,

chapter, or track. After performing step 3 of

“Searching by Scene (VISUAL VIEWER)”

above, select the scene using C/X/x/cand

press ENTER.

zHint

If there are more than 9 titles, chapters, or tracks, V

is displayed at the bottom right.

To display the additional titles, chapters, or tracks,

select the bottom right scene (the position 9) and

press x. To return to the previous scene, select the

top left scene (the position 1) and press X.

RETURN

VISUAL

VIEWER

ENTER

CHAPTER VIEWER

ENTER

1-11

Viewing Information About the

Disc

Checking the Playing

Time and Remaining

Time

You can check the playing time and

remaining time of the current title, chapter, or

track. Also, you can check the DVD/CD text

or track name (MP3 audio) recorded on the

disc.

1Press TIME/TEXT during playback.

The following display appears.

2Press TIME/TEXT repeatedly to

change the time information.

Thedisplay and the kindsoftime that you

can change depend on the disc you are

playing.

◆When playing a DVD

•T

(hours: minutes: seconds)

Playing time of the current title

•T–

Remaining time of the current title

•C

Playing time of the current chapter

•C–

Remaining time of the current chapter

◆When playing a VIDEO CD (with PBC

functions)

•

(minutes: seconds)

Playing time of the current scene

◆When playing a VIDEO CD (without

PBC functions) or CD

•T

(minutes: seconds)

Playing time of the current track

•T–

Remaining time of the current track

•D

Playing time of the current disc

•D–

Remaining time of the current disc

◆When playing a DATA CD (MP3 audio)

•

(minutes: seconds)

Playing time of the current track

◆When playing a Super VCD

•T

(minutes: seconds)

Playing time of the current track

To check the DVD/CD text or track and

album names (MP3 audio)

Press TIME/TEXT repeatedly in step 2 to

display text recorded on the DVD/CD/DATA

CD.

The DVD/CD text appears only when text is

recorded in the disc. You cannot change the

text. If the disc does not contain text, “NO

TEXT”appears.

TIME/TEXT

T 1:01:57

Time

information

BRAHMS SYMPHONY

Viewing Information About the Disc

Checking the information on the

front panel display

You can view the time information and text

displayed on the TV screen also on the front

panel display. The information on the front

panel display changes as follows when you

change the time information on your TV

screen.

When playing a DVD

When playing a DATA CD (MP3 audio)

When playing a VIDEO CD (without PBC

functions) or CD

zHints

•When playing VIDEO CDs with PBC functions, the

scene number or the playing time are displayed.

•Long text that does not fit in a single line will

scroll across the front panel display.

•You can also check the time information and text

using the Control Menu (page 13).

Notes

•Depending on the type of disc being played, the

DVD/CD text or track name may not be

displayed.

•The player can only display the first level of the

DVD/CD text, such as the disc name or title.

•Playing time of MP3 audio tracks may not be

displayed correctly.

Playing time of the current title

Remaining time of the current title

Playing time of the current chapter

Remaining time of the current

chapter

Text

Current title and chapter number

(returns to top automatically)

Playing time and number of the

current track

Track name

Playing time and number of the

current track

Remaining time of the current

track

Remaining time of the disc

Text

Playing time of the disc

Current track and index number

(returns to top automatically)

,continued

Checking the play information of

a DATA CD

By pressing TIME/TEXT while playing MP3

audio tracks on a DATA CD, you can display

the audio bit rate (the amount of data per

second of the current audio).

T 17:30 128k

JAZZ

RIVER SIDE

Bit rate

Album name Track name

Sound Adjustments

Changing the Sound

When playing a DVD recorded in multiple

audio formats (PCM, Dolby Digital, MPEG

audio, or DTS), you can change the audio

format. If the DVD is recorded with

multilingual tracks, you can also change the

language.

With CDs, DATA CDs, or VIDEO CDs, you

can select the sound from the right or left

channel and listen to the sound of the selected

channel through both the right and left

speakers. For example, when playing a disc

containing a song with the vocals on the right

channel and the instruments on the left

channel, you can hear the instruments from

both speakers by selecting the left channel.

1Press AUDIO during playback.

The following display appears.

2Press AUDIO repeatedly to select

the desired audio signal.

◆When playing a DVD

Depending on the DVD, the choice of

language varies.

When 4 digits are displayed, they

indicate a language code. Refer to

“Language Code List”on page 67 to see

which language the code represents.

Whenthesamelanguageis displayed two

or more times, the DVD is recorded in

multiple audio formats.

◆When playing a VIDEO CD, CD, or

DATA CD (MP3 audio)

The default setting is underlined.

•STEREO: The standard stereo sound

•1/L: The sound of the left channel

(monaural)

•2/R: The sound of the right channel

(monaural)

◆When playing a Super VCD

The default setting is underlined.

•1:STEREO: The stereo sound of the

audio track 1

•1:1/L: The sound of the left channel of

the audio track 1 (monaural)

•1:2/R: The sound of the right channel of

the audio track 1 (monaural)

•2:STEREO: The stereo sound of the

audio track 2

•2:1/L: The sound of the left channel of

the audio track 2 (monaural)

•2:2/R: The sound of the right channel of

the audio track 2 (monaural)

zHint

You can also select “AUDIO”from the Control

Menu (page 13).

Note

While playing a Super VCD on which the audio

track 2 is not recorded, no sound will come out

when you select “2:STEREO,”“2:1/L,”or “2:2/R.”

DISPLAY

AUDIO

1:ENGLISH

,continued

1-12

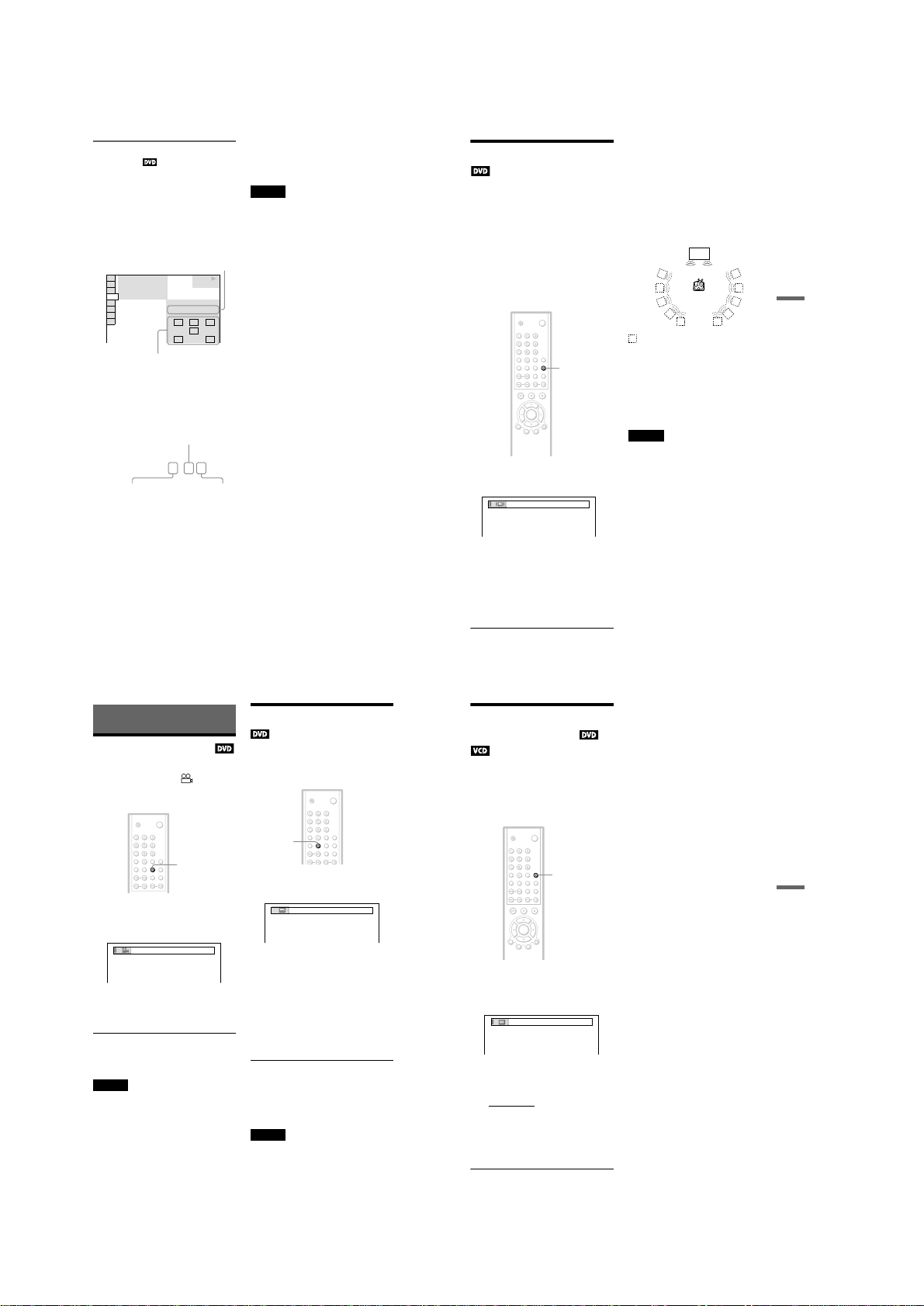

Displaying the audio information

of the disc

Press DISPLAY during playback to display

the Control Menu. Select “AUDIO”using

X/x.The channels being played aredisplayed

on the screen.

For example, in Dolby Digital format,

multiplesignalsrangingfrom monaural to5.1

channel signals can be recorded on a DVD.

Depending on the DVD, the number of the

recorded channels may differ.

*“PCM,”“MPEG,”“DTS,”or “DOLBY

DIGITAL”is displayed.

In the case of “DOLBY DIGITAL,”the

channels in the playing track are displayed by

numbers as follows:

For Dolby Digital 5.1ch:

** The letters in the programme format display

indicate the following sound components:

L: Front (left)

R: Front (right)

C: Centre

LS: Rear (left)

RS: Rear (right)

S: Rear (monaural): The rear component

of the Dolby Surround processed

signal and the Dolby Digital signal

LFE: Low Frequency Effect signal

zHint

For Dolby Digital and DTS, “LFE”is always

enclosed in a solid line regardless of the LFE signal

component being output.

Note

If “DTS”is set to “OFF”in “AUDIO SETUP,”the

DTS track selection option will not appear on the

screen even if the disc contains DTS tracks (page

60).

DVD VIDEO

1: ENGLISH

1 8 ( 3 4 )

1 2 ( 2 7 )

1 : 3 2 : 5 5

LRC

DOLBY DIGITAL 3/2.1

PROGRAM FORMAT

LFE

LS RS

Current audio format*

Currently playing programme format**

DOLBY DIGITAL

3 / 2

LFE (Low Frequency

Effect) component 1

Rear component 2

Front component

2+ Centre

component 1

Sound Adjustments

Virtual Surround Settings

When you connect a stereo TV or 2 front

speakers, Virtual Surround lets you enjoy

surround sound effects by using sound

imaging to create virtual rear speakers from

the sound of the front speakers (L: left, R:

right) without using actual rear speakers.

If the player is set up to output the signal from

the DIGITAL OUT (OPTICAL) jack, the

surround effect will only be heard when

“DOLBY DIGITAL”is set to “D-PCM”and

“MPEG”is set to “PCM”in “AUDIO

SETUP”(page 60).

1Press SUR during playback.

The following display appears.

2Press SUR repeatedly to select

one of the Virtual Surround

sounds.

Referto the following explanationsgiven

for each item.

•WIDE

•NIGHT

To cancel the setting

Select “OFF”in step 2.

◆WIDE

Creates virtual rear speakers from the sound

of the front speakers (L, R) without using

actual rear speakers. The virtual speakers are

reproduced as shown in the illustration

below.

This mode is effective when the distance

between the front L and R speakers is short,

such as with built-in speakers on a stereo TV.

: Virtual speaker

◆NIGHT

Large sounds, such as explosions, are

suppressed, but the quieter sounds are

unaffected. This feature is useful when you

want to hear the dialog and enjoy the

surround sound effects of “WIDE”at low

volume.

Notes

•When the playing signal does not contain asignal

for the rear speakers, the surround effects will be

difficult to hear.

•When you select one of the Virtual Surround

modes, turn off the surround setting of the

connected TV or amplifier (receiver).

•Make sure that your listening position is between

and at an equal distance from your speakers, and

that the speakers are located in similar

surroundings.

•Not all discs will respond to the “NIGHT”

function in the same way.

•When you use the DIGITAL OUT (OPTICAL)

jack to listen to MPEG audio signals and set

“MPEG”to MPEG in “AUDIO SETUP”, no

sound will come from your speakers if you select

one of the Virtual Surround modes.

SUR

WIDE

Enjoying Movies

Changing the Angles

If various angles (multi-angles) for a scene

are recorded on the DVD, “”appears in

the front panel display. This means that you

can change the viewing angle.

1Press ANGLE during playback.

The number of the angle appears on the

display.

2Press ANGLE repeatedly to select

the angle number.

The scene changes to the selected angle.

zHint

You can also select “ANGLE”from the Control

Menu (page 13).

Note

Depending on the DVD, you may not be able to

change the angles even if multi-angles are recorded

on the DVD.

Displaying the Subtitles

If subtitles are recorded on the discs, you can

change the subtitles or turn them on and off

whenever you want while playing a DVD.

1Press SUBTITLE during playback.

The following display appears.

2Press SUBTITLE repeatedly to

select the setting.

◆When playing a DVD

Select the language.

Depending on the DVD, the choice of

language varies.

When 4 digits are displayed, they

indicate a language code. Refer to

“Language Code List”on page 67 to see

which language the code represents.

To turn off the subtitles

Select “OFF”in step 2.

zHint

You can also select “SUBTITLE”from the Control

Menu (page 13).

Note

Depending on the DVD, you may not be able to

change the subtitles even if multilingual subtitles

are recorded on it. You also may not be able to turn

them off.

ANGLE

SUBTITLE

1:ENGLISH

Enjoying Movies

Adjusting the Playback

Picture (PICTURE MODE)

You can adjust the videosignal ofthe DVD or

VIDEO CD from the player to obtain the

picture quality you want. Choose the setting

that best suits the programme you are

watching.

1Press PICTURE MODE during

playback.

The following display appears.

2Press PICTURE MODE repeatedly

to select the setting you want.

The default setting is underlined.

•STANDARD: displays a standard

picture.

•DYNAMIC: produces a bold dynamic

picture by increasing the picture

contrast and the colour intensity.

•CINEMA: enhances details in dark

areas by increasing the black level.

zHint

When you watch a movie, “CINEMA”is

recommended.


MODE

DYNAMIC

1-13

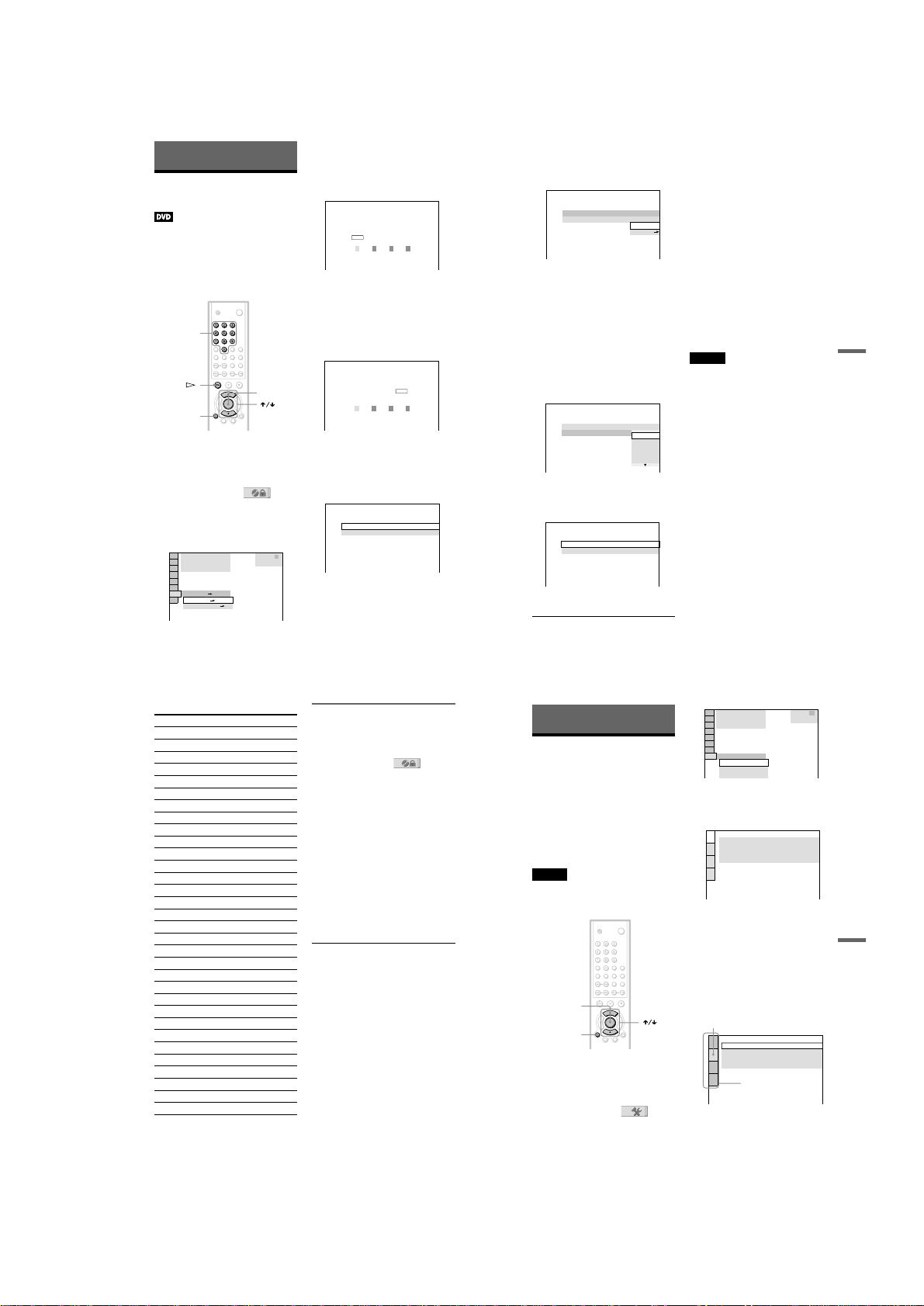

Locking Discs

Limiting Playback by

Children (PARE TAL CO TROL)

The “PARENTAL CONTROL”function

allows you to set a playback limitation level.

Playback of some DVDs can be limited

accordingtoapredeterminedlevelsuch as the

age of the users. Scenes may be blocked or

replaced with different scenes.

1Press DISPLAY while the player is

in stop mode.

The Control Menu appears.

2Press X/xto select

(PARENTAL CONTROL), then press

ENTER.

The options for “PARENTAL

CONTROL”appear.

3Press X/xto select “PLAYER t,”

then press ENTER.

◆If you have not entered a password

The display for registering a new

password appears.

Enter a 4-digit password using the

number buttons, then press ENTER.

The display for confirming the password

appears.

◆When you have already registered a

password

The display for entering the password

appears.

4Enter or re-enter your 4-digit

password using the number

buttons, then press ENTER.

The display for setting the playback

limitation level appears.

DISPLAY

ENTER

Number

buttons

PASSWORD

PLAYER

DVD VIDEO

1 8 ( 3 4 )

1 2 ( 2 7 )

1 : 3 2 : 5 5

PLAYER

PARENTAL CONTROL

Enter a new 4-digit password, then

press

ENTER

PARENTAL CONTROL

Enter password, then press

ENTER

PARENTAL CONTROL

LEVEL: OFF

USA

STANDARD:

Locking Discs

5Press X/xto select “STANDARD,”

then press ENTER.

The selection items for “STANDARD”

are displayed.

6Press X/xto select a geographic

area as the playback limitation

level, then press ENTER.

The area is selected.

When you select “OTHERS t,”select

and enter a standard code in the table on

page 54 using the number buttons.

7Press X/xto select “LEVEL,”then

press ENTER.

The selection items for “LEVEL”are

displayed.

8Select the level you want using

X/x, then press ENTER.

Parental Control setting is complete.

The lower the value, the stricter the

limitation.

To turn off the Parental Control function

Set “LEVEL”to “OFF”in step 8.

To play a disc for which Parental Control is

set

1Insert the disc and press H.

The display for entering your password

appears.

2Enter your 4-digit password using the

number buttons, then press ENTER.

The player starts playback.

zHint

If you forget your password, remove the disc and

repeat steps 1 to 3 of “Limiting Playback by

Children (PARENTAL CONTROL).”When you

are asked to enter your password, enter “199703”

using the number buttons, then press ENTER. The

display will ask you to enter a new 4-digit

password. After you enter a new 4-digit password,

replace the disc in the player and press H. When

the display for entering your password appears,

enter your new password.

Notes

•When you play discs which do not have the

Parental Control function, playback cannot be

limited on this player.

•Depending on the disc, you may be asked to

change the parental control level while playing

the disc. In this case, enter your password, then

change the level. If the Resume Play mode is

cancelled, the level returns to the previous level.

PARENTAL CONTROL

LEVEL: OFF

USA

STANDARD: USA

OTHERS

PARENTAL CONTROL

LEVEL: OFF

OFF

STANDARD: 8:

NC17

PARENTAL CONTROL

LEVEL:

STANDARD: USA

4: PG13

,continued

Area Code Changing the password

1Press DISPLAY while the player is in

stop mode.

The Control Menu appears.

2Press X/xto select

(PARENTAL CONTROL), then press

ENTER.

The options for “PARENTAL

CONTROL”appear.

3Press X/x to select “PASSWORD

t,”then press ENTER.

The display for entering the password

appears.

4Enter your 4-digit password using the

number buttons, then press ENTER.

5Enter a new 4-digit password using the

number buttons, then press ENTER.

6To confirm your password, re-enter it

using the number buttons, then press

ENTER.

If you make a mistake entering your

password

Press Cbefore you press ENTER and input

the correct number.

If you make a mistake

Press O RETURN.

To turn off the display

Press DISPLAY repeatedly until the display

is turned off.

Standard Code number

Argentina 2044

Australia 2047

Austria 2046

Belgium 2057

Brazil 2070

Canada 2079

Chile 2090

China 2092

Denmark 2115

Finland 2165

France 2174

Germany 2109

India 2248

Indonesia 2238

Italy 2254

Japan 2276

Korea 2304

Malaysia 2363

Mexico 2362

Netherlands 2376

New Zealand 2390

Norway 2379

Pakistan 2427

Philippines 2424

Portugal 2436

Russia 2489

Singapore 2501

Spain 2149

Sweden 2499

Switzerland 2086

Thailand 2528

United Kingdom 2184

Settings and Adjustments

Using the Setup Display

By using the Setup Display, you can make

various adjustments to items such as picture

andsound.You can alsoseta language forthe

subtitles and the Setup Display, among other

things. For details on each Setup Display

item, see pages 56 to 60.

The on-screen displays differ depending on

the player model. Note the differences

indicated in the text, for example, “Asian

models only.”

Note

Playback settings stored in the disc take priority

over the Setup Display settings and not all the

functions described may work.

1Press DISPLAY when the player is

in stop mode.

The Control Menu appears.

2Press X/xto select

(SETUP), then press ENTER.

The options for “SETUP”appear.

3Press X/xto select “CUSTOM,”

then press ENTER.

The Setup Display appears.

4Press X/xto select the setup item

from the displayed list:

“LANGUAGE SETUP,”“SCREEN

SETUP,”“CUSTOM SETUP,”or

“AUDIO SETUP.”Then press

ENTER.

The Setup item is selected.

Example: “SCREEN SETUP”(Asian/

Oceanian models)

ENTER

DISPLAY

( 47 )

: :

QUICK

CUSTOM

DVD VIDEO

RESET

QUICK

LANGUAGE SETUP

OSD:

MENU:

AUDIO:

SUBTITLE:

ENGLISH

ORIGINAL

ENGLISH

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

16:9

JACKET PICTURE

COLOR SYSTEM: AUTO

Selected item

Setup items

,continued

1-14

5Select an item using X/x, then

press ENTER.

The options for the selected item appear.

Example: “TV TYPE”(Asian/Oceanian

models)

6Select a setting using X/x, then

press ENTER.

The setting is selected and setup is

complete.

Example: “4:3 PAN SCAN”(Asian/

Oceanian models)

To turn off the display

Press DISPLAY repeatedly until the display

is turned off.

To enter the Quick Setup mode

Select “QUICK”in Step 3. Follow from Step

5 of the Quick Setup explanation to make

basic adjustment (page 25).

To reset all the “SETUP”settings

1Select “RESET”in step 3 and press

ENTER.

2Select “YES”using X/x.

You can also quit the process and return

to the Control Menu by selecting “NO”

here.

3Press ENTER.

All the settings explained on pages 56 to

60 return to the default settings. Do not

press [/1while resetting the player,

which takes a few seconds to complete.

Setting the Display or

Sound Track Language

(LA GUAGE SETUP)

“LANGUAGE SETUP”allows you to set

variouslanguagesfor the on-screen display or

sound track.

Select “LANGUAGE SETUP”in the Setup

Display. To use the display, see “Using the

Setup Display”(page 55).

◆OSD (On-Screen Display)

Switches the display language on the screen.

◆MENU (DVD only)

You can select the desired language for the

disc’s menu.

◆AUDIO (DVD only)

Switches the language of the sound track.

When you select “ORIGINAL,”the language

given priority in the disc is selected.

◆SUBTITLE (DVD only)

Switchesthelanguageof the subtitle recorded

on the DVD.

When you select “AUDIO FOLLOW,”the

languagefor the subtitleschangesaccording to

the language you selected for the sound track.

zHint

If you select “OTHERS t”in “MENU,”

“SUBTITLE,”or “AUDIO,”select and enter a

language code from “Language Code List”on

page 67 using the number buttons.

Note

When you select a language in “MENU,”

“SUBTITLE,”or “AUDIO”that is not recorded on

a DVD, one of the recorded languages will be

automatically selected.

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

16:9

4:3 PAN SCAN

COLOR SYSTEM: 4:3 LETTER BOX

16:9

Options

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

4:3 PAN SCAN

JACKET PICTURE

COLOR SYSTEM: AUTO

Selected setting

LANGUAGE SETUP

OSD:

MENU:

AUDIO:

SUBTITLE:

ENGLISH

ORIGINAL

ENGLISH

Settings and Adjustments

Settings for the Display

(SCREE SETUP)

Choose settings according to the TV to be

connected.

Select “SCREEN SETUP”in the Setup

Display. To use the display, see “Using the

Setup Display”(page 55).

The default settings are underlined.

Example: Asian/Oceanian models

◆TV TYPE

Selects the aspect ratio of the connected TV

(4:3 standard or wide).

Note

Depending on the DVD, “4:3 LETTER BOX”may

be selected automatically instead of “4:3 PAN

SCAN”or vice versa.

◆COLOR SYSTEM (VIDEO CD only)

(Asian/Oceanian models only)

Selects the colour system when you play a

VIDEO CD.

Notes

•You cannot change the colour system for DVDs.

•You can change the colour system of this player

according to the connected TV (page 17).

◆SCREEN SAVER

Thescreen saver imageappears when youleave

the player in pause or stop mode for 15 minutes,

or when you play back a CD or DATA CD

(MP3 audio) for more than 15 minutes. The

screen saver will help prevent your display

device from becoming damaged (ghosting).

Press

to turn off the screen saver.

◆BACKGROUND

Selects the background colour or picture on

the TV screen in stop mode or while playing

a CD or DATA CD (MP3 audio).

16:9 Select this when you connect a

wide-screen TV or a TV with a

wide mode function.

4:3

LETTER

BOX

Select this when you connect a

4:3 screen TV. Displays a wide

picture with bands on the upper

and lower portions of the

screen.

4:3

PAN SCAN Select this when you connect a

4:3 screen TV. Automatically

displays the wide picture on the

entire screen and cuts off the

portions that do not fit.

SCREEN SETUP

TV TYPE:

COLOR SYSTEM: 16:9

AUTO

SCREEN SAVER:

BACKGROUND: ON

JACKET PICTURE

16:9

4:3 LETTER BOX

4:3 PAN SCAN

AUTO

Outputs the video signal in the

systemoftheVIDEOCD,either

PAL or NTSC. If your TV is the

DUAL system, select AUTO.

PAL

Changes the video signal of an

NTSC VIDEO CD and outputs

it in the PAL system.

NTSC

Changes the video signal of a

PAL VIDEO CD and outputs it

in the NTSC system.

ON Turns on the screen saver.

OFF Turns off the screen saver.

JACKET

PICTURE The jacket picture (still picture)

appears, but only when the

jacket picture is already

recorded on the disc (CD-

EXTRA, etc.). If the disc does

not contain a jacket picture, the

“GRAPHICS”picture appears.

GRAPHICS

A preset picture stored in the

player appears.

BLUE The background colour is blue.

BLACK The background colour is black.

Custom Settings (CUSTOM

SETUP)

Use this to set up playback related and other

settings.

Select “CUSTOM SETUP”in the Setup

Display. To use the display, see “Using the

Setup Display”(page 55).

The default settings are underlined.

◆AUTO POWER OFF

Switches the Auto Power Off setting on or

off. For Asian/Oceanian models, the default

setting is “OFF.”

◆AUTO PLAY

Switches the Auto Play setting on or off. This

function is useful when the player is

connected to a timer (not supplied).

◆DIMMER

Adjusts the lighting of the front panel display.

◆PAUSE MODE (DVD only)

Selects the picture in pause mode.

◆TRACK SELECTION (DVD only)

Gives the sound track which contains the

highestnumberof channels priority whenyou

play a DVD on which multiple audio formats

(PCM, MPEG audio, DTS, or Dolby Digital

format) are recorded.

Notes

•When you set the item to “AUTO,”the language

may change. The “TRACK SELECTION”setting

has higher priority than the “AUDIO”settings in

“LANGUAGE SETUP”(page 56).

•If you set “DTS”in “AUDIO SETUP”to “OFF”

(page 60), the DTS sound track is not played even

if you set “TRACK SELECTION”to “AUTO.”

•If PCM, DTS, MPEG audio, and Dolby Digital

sound tracks have the same number of channels,

the player selects PCM, DTS, Dolby Digital, and

MPEG audio sound tracks in this order.

◆DISC RESUME (DVD/VIDEO CD only)

Switches the Disc Resume setting on or off.

Resume playback can be stored in memory

for up to 6 different DVD/VIDEO CD discs

(page 30).

ON The player enters standby mode

when left in stop mode for more

than 30 minutes.

OFF Switches this function off.

ON Automatically starts playback

when the player is turned on.

BRIGHT Makes the lighting bright.

DARK Makes the lighting dark.

OFF Turns the lighting off.

CUSTOM SETUP

AUTO POWER OFF:

AUTO PLAY:

DIMMER:

OFF

BRIGHT

AUTO

PAUSE MODE: OFF

TRACK SELECTION: ON

DISC RESUME:

AUTO The picture, including subjects

that move dynamically, is

output with no jitter. Normally

select this position.

FRAME The picture, including subjects

that do not move dynamically,

is output in high resolution.

OFF No priority given.

AUTO Priority given.

ON Stores the resume setting in

memoryforupto six discs. (The

settings remain in memoryeven

if you select OFF.)

OFF Does not store the resume

setting in memory. Playback

restarts at the resume point only

for the current disc in the player.

Settings and Adjustments

Settings for the Sound

(AUDIO SETUP)

“AUDIOSETUP”allowsyouto set thesound

according to the playback and connection

conditions.

Select “AUDIO SETUP”in the Setup

Display. To use the display, see “Using the

Setup Display”(page 55).

The default settings are underlined.

◆AUDIO ATT (attenuation)

If the playback sound is distorted, set this

item to “ON.”The player reduces the audio

output level.

This function affects the output of the LINE

OUT L/R (AUDIO) jacks.

◆AUDIO DRC (Dynamic Range Control)

(DVD only)

Makes the sound clear when the volume is

turned down when playing a DVD that

conforms to “AUDIO DRC.”This affects the

output from the following jacks:

–LINE OUT L/R (AUDIO) jacks

–DIGITAL OUT (OPTICAL) jack only when

“DOLBY DIGITAL”is set to “D-PCM”

(page 60).

◆DOWNMIX (DVD only)

Switches the method for mixing down to 2

channels when you play a DVD which has

rear sound elements (channels) or is recorded

in Dolby Digital format. For details on the

rear signal components, see “Displaying the

audio information of the disc”(page 48). This

function affects the output of the following

jacks:

–LINE OUT L/R (AUDIO) jacks

–DIGITAL OUT (OPTICAL) jack when

“DOLBY DIGITAL”is set to “D-PCM”

(page 60).

◆DIGITAL OUT

Selects if audio signals are output via the

DIGITAL OUT (OPTICAL) jack.

Setting the digital output signal

Switches the method of outputting audio

signals when you connect a component such

as an amplifier (receiver) or MD deck with a

digital input jack.

For connection details, see page 20.

Select “DOLBY DIGITAL,”“MPEG,”and

“DTS”after setting “DIGITAL OUT”to

“ON.”

OFF Normally, select this position.

ON Select this when the playback sound

from the speakers is distorted.

STANDARD Normally select this position.

TV MODE Makes the low sounds clear

even if you turn the volume

down.

WIDE

RANGE Gives you the feeling of being

at a live performance.

AUDIO SETUP

AUDIO ATT:

AUDIO DRC:

DIGITAL OUT:

OFF

STANDARD

DOWNMIX: DOLBY SURROUND

DOLBY DIGITAL:

MPEG: D-PCM

PCM

DTS: OFF

DOLBY

SUR-

ROUND

Normally, select this position.

Multi-channel audio signals are

output to two channels for

enjoying surround sounds.

NORMAL Multi-channel audio signals are

downmixed to two channels for

use with your stereo.

ON Normally select this position. When

you select “ON,”see “Setting the

digital output signal”for further

settings.

OFF The influence of the digital circuit

upon the analog circuit is minimal.

AUDIO SETUP

AUDIO ATT:

AUDIO DRC:

DOLBY DIGITAL:

MPEG:

OFF

STANDARD

DOWNMIX: DOLBY SURROUND

D-PCM

PCM

DTS: OFF

DIGITAL OUT: ON

,continued

1-15

If you connect a component that does not

conform to the selected audio signal, a loud

noise (or no sound) will come out from the

speakers, damaging your ears or speakers.

◆DOLBY DIGITAL (DVD only)

Selects the type of Dolby Digital signal.

◆MPEG (DVD only)

Selects the type of MPEG audio signal.

◆DTS (DVD only)

Selects whether or not to output DTS signals.

Note

WhenyouusetheDIGITALOUT(OPTICAL)jack

to listen to MPEG audio signals and set “MPEG”to

MPEG in “AUDIO SETUP”, no sound will come

from your speakers if you select one of the Virtual

Surround mode.

D-PCM Select this when the player is

connected to an audio

component without a built-in

DolbyDigitaldecoder.Youcan

select whether the signals

conform to Dolby Surround

(Pro Logic) or not by making

adjustments to the

“DOWNMIX”item in

“AUDIO SETUP”(page 59).

DOLBY

DIGITAL Select this when the player is

connected to an audio

component with a built-in

Dolby Digital decoder.

PCM Select this when the player is

connected to an audio

component without a built-in

MPEG decoder. If you play

MPEG audio sound tracks, the

player outputs stereo signals

via the DIGITAL OUT

(OPTICAL) jack.

MPEG Select this when the player is

connected to an audio

component with a built-in

MPEG decoder.

OFF Select this when the player is

connected to an audio

component without a built-in

DTS decoder.

ON Select this when the player is

connected to an audio

component with a built-in DTS

decoder.

Additional Information

Troubleshooting

If you experience any of the following

difficulties while using the player, use this

troubleshooting guide to help remedy the

problem before requesting repairs. Should

any problem persist, consult your nearest

Aiwa dealer.

Power

The power is not turned on.

,Check that the mains lead is connected

securely.


There is no picture/picture noise appears.

,Re-connect the connecting cord securely.

,The connecting cords are damaged.

,Check the connection to your TV (page 17)

and switch the input selector on your TV so

that the signal from the player appears on

the TV screen.

,The disc is dirty or flawed.

,If the picture output from your player goes

through your VCR to get to your TV or if

you are connected to a combination TV/

VIDEO player, the copy-protection signal

applied to some DVD programmes could

affect picture quality. If you still experience

problems even when you connect your

player directly to your TV, please try

connecting your player to your TV’s S

VIDEO input (page 17).

,(For Asian/Oceanian models only)

If the colour system of your player does not

match with that of your TV, change the

colour system of the player. For details, see

page 18. (You cannot change the colour

system of the DVD disc itself.)

Even though you set the aspect ratio in “TV

TYPE”of “SCREEN SETUP,”the picture

does not fill the screen.

,The aspect ratio of the disc is fixed on your

DVD.

Sound

There is no sound.

,Re-connect the connecting cord securely.

,The connecting cord is damaged.

,The player is connected to the wrong input

jack on the amplifier (receiver) (page 22,

23, 24).

,The amplifier (receiver) input is not

correctly set.

,The player is in pause mode or in Slow-

motion Play mode.

,The player is in fast forward or fast reverse

mode.

,If the audio signal does not come through

theDIGITALOUT(OPTICAL)jack,check

the audio settings (page 59).

,While playing a Super VCD on which the

audio track 2 is not recorded, no sound will

come out when you select “2:STEREO,”

“2:1/L,”or “2:2/R.”

Sound is noisy.

,When playing a CD with DTS sound tracks,

noise will come from the LINE OUT L/R

(AUDIO) jacks or DIGITAL OUT

(OPTICAL) jack (page 28).

Sound distortion occurs.

,Set “AUDIO ATT”in “AUDIO SETUP”to

“ON”(page 59).

The sound volume is low.

,The sound volume is low on some DVDs.

The sound volume may improve if you set

“AUDIO DRC”to “TV MODE”(page 59).

,Set “AUDIO ATT”in “AUDIO SETUP”to

“OFF”(page 59).

,continued

Operation

The remote does not function.

,The batteries in the remote are weak.

,There are obstacles between the remote and

the player.

,The distance between the remote and the

player is too far.

,The remote is not pointed at the remote

sensor on the player.

,The remote sensor of the player is exposed

to strong light.

The disc does not play.

,The disc is turned over.

Insert the disc with the playback side facing

the disc tray (page 28).

,The disc is skewed.

The player cannot play certain discs (page 7).

,TheregioncodeontheDVDdoesnot match

the player (page 7).

,Moisture has condensed inside the player

(page 3)

,The player cannot play a recorded disc that

is not correctly finalized

(page 7)

The MP3 audio track cannot be played

(page 33).

,The DATA CD is not recorded in the MP3

format that conforms to ISO9660 Level 1/

Level 2 or Joliet.

,The MP3 audio track does not have the

extension “.MP3.”

,The data is not formatted in MP3 even

though it has the extension “.MP3.”

,The data is not MPEG1 Audio Layer 3 data.

,The player cannot play audio tracks in

MP3PRO format.

The title of the MP3 audio album or track

is not correctly displayed.

The player can only display numbers and

alphabet. Other characters are displayed as

“*.”

The disc does not start playing from the

beginning.

,ProgrammePlay,ShufflePlay, Repeat Play,

or A-B Repeat Play has been selected (page

35).

,Resume play has taken effect (page 30).

The player starts playing the disc

automatically.

,The disc features an auto playback function.

,“AUTO PLAY”in “CUSTOM SETUP”is

set to “ON”(page 58).

Playback stops automatically.

,While playing discs with an auto pause

signal, the player stops playback at the auto

pause signal.

You cannot perform some functions such

as Stop, Search, Slow-motion Play,

Repeat Play, Shuffle Play, or Programme

Play.

,Depending on the disc, you may not be able

to do some of the operations above. See the

operating manual that comes with the disc.

The language for the sound track cannot

be changed.

,Try using the DVD’s menu instead of the

direct selection button on the remote (page

31).

,Multilingual tracks are not recorded on the

DVD being played.

,The DVD prohibits the changing of the

language for the sound track.

The subtitle language cannot be changed

or turned off.

,Try using the DVD’s menu instead of the

direct selection button on the remote (page

31).

,Multilingual subtitles are not recorded on

the DVD being played.

,The DVD prohibits the changing of the

subtitles.

The angles cannot be changed.

,Try using the DVD’s menu instead of the

direct selection button on the remote (page

31).

,Multi-angles are not recorded on the DVD

being played.

,The angle can only be changed when the

“”indicator lights up on the front panel

display (page 10).

,The DVD prohibits changing of the angles.

Additional Information

The player does not operate properly.

,When static electricity, etc., causes the

player to operate abnormally, unplug the

player.

5 numbers or letters are displayed on the

screen and on the front panel display.

,The self-diagnosis function was activated.

(See the table on page 63.)

The disc tray does not open and “LOCKED”

appears on the front panel display.

,Child Lock is set (page 29).

The disc tray does not open and “TRAY

LOCKED”appears on the front panel

display.

,Contact your Aiwa dealer or local

authorized Aiwa service facility.

“Data error”appears on the TV screen

when playing a DATA CD.

,The MP3 audio track you want to play is

broken.

,The data is not MPEG1 Audio Layer 3 data.

Self-diagnosis Function

(When letters/numbers appear in the

display)

When the self-diagnosis function is activated

to prevent the player from malfunctioning, a

five-character service number (e.g., C 13 50)

with a combination of a letter and four digits

appears on the screen and the front panel

display. In this case, check the following

table.

First three

characters of

the service

number

Cause and/or corrective

action

C 13 The disc is dirty.

,Clean the disc with a soft

cloth (page 8).

C 31 The disc is not inserted

correctly.

,Re-insert the disc

correctly.

E XX

(xx is a number) To prevent a malfunction, the

player has performed the

self-diagnosis function.

,Contact your nearest

Aiwa dealer or local

authorized Aiwa service

facility and give the 5-

character service number.

Example: E 61 10

C:13:50

1-16E

Glossary

Chapter (page 10)

Sections of a picture or a music feature that

are smaller than titles. A title is composed of

several chapters. Depending on the disc, no

chapters may be recorded.

Dolby Digital (page 20, 60)

Digital audio compression technology

developed by Dolby Laboratories. This

technology conforms to multi-channel

surround sound. The rear channel is stereo

and there is a discrete subwoofer channel in

this format. Dolby Digital provides the same

multi discrete channels of high quality digital

audio found in Dolby Digital cinema audio

systems. Good channel separation is realized

because all of the channel data are recorded

discretely and little deterioration is realized

because all channel data processing is digital.

Dolby Surround (Pro Logic) (page 20)

Audio signal processing technology that

Dolby Laboratories developed for surround

sound. When the input signal contains a

surround component, the Pro Logic process

outputs the front, centre and rear signals. The

rear channel is monaural.

DTS (page 20, 60)

Digital audio compression technology that

DigitalTheaterSystems, Inc. developed. This

technology conforms to multi-channel

surround sound. The rear channel is stereo

and there is a discrete subwoofer channel in

this format. DTS provides the same multi

discrete channels of high quality digital

audio.

Good channel separation is realized because

all of the channel data is recorded discretely

and little deterioration is realized because all

channel data processing is digital.

DVD VIDEO (page 6)

A disc that contains up to 8 hours of moving

pictures even though its diameter is the same

as a CD.

The data capacity of a single-layer and single-

sided DVD is 4.7 GB (Giga Byte), which is 7

times that of a CD. The data capacity of a

double-layer and single-sided DVD is 8.5

GB, a single-layer and double-sided DVD is

9.4 GB, and double-layer and double-sided

DVD is 17GB.

Thepicture data uses theMPEG2format, one

of the worldwide standards of digital

compression technology. The picture data is

compressed to about 1/40 (average) of its

original size. The DVD also uses a variable

rate coding technology that changes the data

to be allocated according to the status of the

picture. Audio information is recorded in a

multi-channel format, such as Dolby Digital,

allowing you to enjoy a more real audio

presence.

Furthermore, various advanced functions

such as the multi-angle, multilingual, and

Parental Control functions are provided with

the DVD.

DVD-RW (page 6)

A DVD-RW is a recordable and rewritable

disc that is the same size as a DVD VIDEO.

The DVD-RW has two different modes: VR

mode and Video mode. DVD-RWs created in

Video mode have the same format as a DVD

VIDEO, while discs created in VR (Video

Recording) mode allow the contents to be

programmed or edited.

DVD+RW (page 6)

A DVD+RW (plus RW) is a recordable and

rewritable disc. DVD+RWs use a recording

formatthatis comparable to theDVDVIDEO

format.

Index (CD) / Video Index (VIDEO CD)

(page 13)

A number that divides a track into sections to

easily locate the point you want on a CD or

VIDEO CD. Depending on the disc, no index

may be recorded.

Additional Information

MPEG audio (page 20, 60)

International standard coding system used to

compress audio digital signals authorized by

ISO/IEC. MPEG 1 conforms to up to 2-

channel stereo. MPEG 2, used on DVDs,

conforms to up to 7.1-channel surround.

Scene (page 10)

On a VIDEO CD with PBC (playback

control) functions, the menu screens, moving

pictures and still pictures are divided into

sections called “scenes.”

Title (page 10)

The longest section of a picture or music

feature on a DVD, movie, etc., in video

software, or the entire album in audio

software.

Track (page 10)

Sections of a picture or a music feature on a

CD or VIDEO CD (the length of a song).

This manual suits for next models

Table of contents

Popular DVD Player manuals by other brands

Marantz

Marantz DV4600 brochure

SV2000

SV2000 CSV205DT owner's manual

Desay

Desay DS-5701 owner's manual

Samsung

Samsung DVD-P731M user guide

Philips

Philips DVP3166 user manual

Sandstrom

Sandstrom S92PDT12E instruction manual

NATIVE UNION

NATIVE UNION PLAY instruction manual

Harman Kardon

Harman Kardon DVD 25 owner's manual

LG DV457 manual

Luxtronic

Luxtronic AV 719 instruction manual

T+A

T+A DVD 1230 R user manual

Panasonic

Panasonic DVDRV26 - DIG. VIDEO DISCPLAYE Service manual

Pioneer

Pioneer DV-49AV - Elite DVD Player Service manual

Toshiba

Toshiba SD-190ESE owner's manual

Philips

Philips DVP5166K/74 manual

Philips

Philips DVP3110/93 user manual

LG DP430 owner's manual

Oppo

Oppo DV-970HD user manual

Aiwa XD-P15 User manual

Popular DVD Player manuals by other brands
