S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

AM-F70

• BASIC MD MECHANISM: 8ZG–2 R1 • TYPE: D

S/M Code No. 09–98B–311–20A

MINIDISC RECORDER

ELECTRICAL MAIN PARTS LIST - 1/3

NOTE: The characters in the suffix column indicate the part usage.

D ......................OO..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

* 8Z-HM1-606-010 2A PWB,FLEX TACT A...................

* 8Z-HM1-608-010 1H PWB,FLEX EL A...................

* 8Z-HM1-610-010 1B PWB,FLEX MECHA A...................

LCD 0 8Z-HM1-605-010 2B LCD,ZHM-1 COG A...................

C 109 87-010-787-080 0E CAP, U 0.022-25 A...................

C 108 87-012-286-080 0E CAP, U 0.01-25 A...................

C 103 87-016-296-080 1A C-CAP,TN 22-4SV(A) A...................

C 102 87-016-296-080 1A C-CAP,TN 22-4SV(A) A...................

C 106 87-016-296-080 1A C-CAP,TN 22-4SV(A) A...................

C 100 87-016-296-080 1A C-CAP,TN 22-4SV(A) A...................

C 107 87-A10-504-080 0E C-CAP,U 0.047-16 K B A...................

C 104 87-A11-046-080 1B C-CAP,TN 100U-4 M F95 B A...................

C 119 87-010-787-080 0E CAP, U 0.022-25 A...................

C 116 87-012-195-080 0E C-CAP,U 100P-50CH A...................

C 111 87-012-282-080 0E CAP, U 4700P-50 A...................

C 113 87-012-282-080 0E CAP, U 4700P-50 A...................

C 117 87-012-286-080 0E CAP, U 0.01-25 A...................

C 118 87-012-286-080 0E CAP, U 0.01-25 A...................

C 115 87-016-448-080 1A C-CAP,TN 2.2-10 F95P A...................

C 110 87-A10-353-080 0E C-CAP,U0.22-10KB A...................

C 114 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 112 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 120 87-012-284-080 0E CAP, U 6800P-50 A...................

C 123 87-012-286-080 0E CAP, U 0.01-25 A...................

C 122 87-012-286-080 0E CAP, U 0.01-25 A...................

C 121 87-A10-504-080 0E C-CAP,U 0.047-16 K B A...................

CN 100 87-A60-470-080 1B C-CONN,22P H SFV2ST A...................

IC 100 87-A20-707-010 2B C-IC,CXA2523AR A...................

IC 101 87-A20-710-040 1B C-IC,S-8110AMP A...................

L 100 87-A50-360-080 0E C-COIL, 47UH K NLFC252018 A...................

L 102 87-A50-360-080 0E C-COIL, 47UH K NLFC252018 A...................

Q 102 87-026-644-080 0E C-TR,DTA144EE A...................

Q 101 87-A30-148-080 0E C-TR,2SC4738GR A...................

Q 100 89-115-884-080 0E CHIP -TRANSISTER 2SA1588Y A...................

R 108 87-022-294-080 0E C-RES,U 470K 1-16W F A...................

R 114 87-022-223-080 0E CHIP RES 2.2K 1/16W F A...................

R 116 87-022-223-080 0E CHIP RES 2.2K 1/16W F A...................

R 115 87-022-223-080 0E CHIP RES 2.2K 1/16W F A...................

C 206 87-012-270-080 0E CAP, U 470P-50 A...................

C 202 87-012-280-080 0E CAP, U 3300P-50 A...................

C 208 87-012-286-080 0E CAP, U 0.01-25 A...................

C 200 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 201 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 205 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 203 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 209 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 204 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B A...................

C 207 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B A...................

C 216 87-010-785-080 0E C-CAP,U0.015-25BK A...................

C 211 87-012-180-080 0E C-CAP,U 22P-50 CH A...................

C 210 87-012-180-080 0E C-CAP,U 22P-50 CH A...................

C 217 87-012-274-080 0E CHIP CAP,U 1000P-50B A...................

C 218 87-012-274-080 0E CHIP CAP,U 1000P-50B A...................

C 214 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 212 87-A11-050-080 1A C-CAP,TN 47U-4 M F95 A A...................

IC 200 87-A20-708-010 2D C-IC,CXD2652AR A...................

IC 204 87-A21-027-040 1B C-IC,TC7W66FU A...................

IC 203 87-A21-140-010 2P C-IC,MSM51V17400D A...................

L 200 87-A50-359-080 0E C-COIL, 22UH K NLFC252018 A...................

Q 205 87-026-644-080 0E C-TR,DTA144EE A...................

Q 202 87-A30-147-080 0E C-TR,2SA1832GR A...................

Q 200 87-A30-147-080 0E C-TR,2SA1832GR A...................

Q 201 87-A30-147-080 0E C-TR,2SA1832GR A...................

X 200 87-A70-160-080 1C C-VIB,XTAL 22.5792MHZ FCX-03 A...................

C 400 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 416 87-012-278-080 0E C-CAP,U 2200P-50 B A...................

C 414 87-012-278-080 0E C-CAP,U 2200P-50 B A...................

C 415 87-012-278-080 0E C-CAP,U 2200P-50 B A...................

C 418 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 417 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 419 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 413 87-A10-353-080 0E C-CAP,U0.22-10KB A...................

C 411 87-A11-070-080 0E C-CAP,U 0.033-16 K B A...................

C 412 87-A11-070-080 0E C-CAP,U 0.033-16 K B A...................

C 422 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 425 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 424 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 423 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 429 87-A11-046-080 1B C-CAP,TN 100U-4 M F95 B A...................

C 421 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 420 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 432 87-016-296-080 1A C-CAP,TN 22-4SV(A) A...................

C 431 87-016-448-080 1A C-CAP,TN 2.2-10 F95P A...................

C 430 87-A11-046-080 1B C-CAP,TN 100U-4 M F95 B A...................

CN 200 87-A60-763-080 1A C-CONN,14P H SFV1ST A...................

IC 400 87-A21-024-010 2B C-IC,BD6601KV A...................

ELECTRICAL MAIN PARTS LIST - 2/3

IC 401 87-A21-199-040 1B C-IC,LB1638M A...................

L 416 87-A50-011-080 0E C-COIL,47UH LQH3C A...................

L 415 87-A50-012-080 0E C-COIL,100UH LQH3C A...................

L 414 87-A50-358-080 0E C-COIL, 10UH K NLFC252018 A...................

L 411 87-A50-358-080 0E C-COIL, 10UH K NLFC252018 A...................

L 413 87-A50-358-080 0E C-COIL, 10UH K NLFC252018 A...................

L 412 87-A50-358-080 0E C-COIL, 10UH K NLFC252018 A...................

L 417 87-A50-359-080 0E C-COIL, 22UH K NLFC252018 A...................

C 500 87-012-266-080 0E C-CAP,U 220P-50 B A...................

C 504 87-012-278-080 0E C-CAP,U 2200P-50 B A...................

C 507 87-012-286-080 0E CAP, U 0.01-25 A...................

C 503 87-012-286-080 0E CAP, U 0.01-25 A...................

C 501 87-016-296-080 1A C-CAP,TN 22-4SV(A) A...................

C 502 87-016-448-080 1A C-CAP,TN 2.2-10 F95P A...................

C 506 87-016-564-080 1B C-CAP,10-6.3 PSN A...................

C 509 87-A10-504-080 0E C-CAP,U 0.047-16 K B A...................

C 508 87-A10-504-080 0E C-CAP,U 0.047-16 K B A...................

C 505 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 510 87-012-270-080 0E CAP, U 470P-50 A...................

C 512 87-016-449-080 1A C-CAP,TN 10-4 F95 P A...................

C 511 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

CN 300 87-A60-472-080 1A C-CONN,6P H SFV1ST A...................

D 502 87-A40-124-080 0E C-DIODE,RB501V-40 A...................

D 501 87-A40-412-040 0E C-DIODE,SB05-05CP A...................

D 500 87-A40-412-040 0E C-DIODE,SB05-05CP A...................

IC 500 87-A20-719-040 1H C-IC,MPC18A20VM A...................

L 501 87-A50-011-080 0E C-COIL,47UH LQH3C A...................

L 500 87-A50-361-080 0E C-COIL, 100UH K NLFC252018 A...................

Q 504 87-026-645-080 0E C-TR,DTC144EE A...................

Q 501 87-A30-150-080 1C C-FET,XTDF2N06HD A...................

Q 500 87-A30-150-080 1C C-FET,XTDF2N06HD A...................

R 506 87-022-217-080 0E C-RES,U 1.2K-1/16W F A...................

R 502 87-022-227-080 0E C-RES,U 3.3K-1/16W F A...................

R 507 87-022-237-080 0E C-RES,U 8.2K-1/16W F A...................

R 509 87-022-241-080 0E CHIP RESTOR 12K 1/16W F A...................

R 508 87-022-243-080 0E CHIP RES,U 15K-1/16W F A...................

C 707 87-012-337-080 0E C-CAP,U 56P-50 CH A...................

C 705 87-012-337-080 0E C-CAP,U 56P-50 CH A...................

C 708 87-012-337-080 0E C-CAP,U 56P-50 CH A...................

C 706 87-012-337-080 0E C-CAP,U 56P-50 CH A...................

C 709 87-016-296-080 1A C-CAP,TN 22-4SV(A) A...................

C 700 87-A11-046-080 1B C-CAP,TN 100U-4 M F95 B A...................

C 701 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 703 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 702 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 704 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 710 87-016-296-080 1A C-CAP,TN 22-4SV(A) A...................

C 713 87-016-296-080 1A C-CAP,TN 22-4SV(A) A...................

C 712 87-016-449-080 1A C-CAP,TN 10-4 F95 P A...................

C 711 87-016-449-080 1A C-CAP,TN 10-4 F95 P A...................

C 716 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 715 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 714 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 717 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 730 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 755 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 756 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 770 87-012-337-080 0E C-CAP,U 56P-50 CH A...................

C 771 87-012-337-080 0E C-CAP,U 56P-50 CH A...................

C 774 87-016-296-080 1A C-CAP,TN 22-4SV(A) A...................

C 772 87-016-296-080 1A C-CAP,TN 22-4SV(A) A...................

C 778 87-A10-048-080 1A C-CAP,TN 22-4 F95 S A...................

C 779 87-A10-048-080 1A C-CAP,TN 22-4 F95 S A...................

C 777 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 773 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 776 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 775 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 782 87-016-446-080 1C C-CAP,TN 220-4 F95 G A...................

C 783 87-016-446-080 1C C-CAP,TN 220-4 F95 G A...................

C 788 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 787 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 784 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

IC 700 87-A21-034-040 2M C-IC,UDA1341TS A...................

IC 701 87-A21-036-040 1B C-IC,R1110N251B-TR A...................

IC 770 87-A21-029-040 1D C-IC,BA3577FV A...................

J 730 87-A60-475-010 2M JACK,GP1F562R A...................

J 780 87-A60-682-010 1B JACK,3.5 ST 7P A...................

L 710 87-003-245-080 0E C-COIL,22UH A...................

L 730 87-A50-362-080 1A C-COIL,ACM2520-601-2P A...................

L 731 87-A50-362-080 1A C-COIL,ACM2520-601-2P A...................

L 770 87-A50-362-080 1A C-COIL,ACM2520-601-2P A...................

L 771 87-A50-362-080 1A C-COIL,ACM2520-601-2P A...................

Q 701 87-026-527-080 0E C-TR,HN1A01FU(G) A...................

Q 700 87-026-527-080 0E C-TR,HN1A01FU(G) A...................

Q 702 87-A30-033-080 0E C-FET,2SK2035 A...................

Q 731 87-026-645-080 0E C-TR,DTC144EE A...................

Q 730 87-026-647-080 0E C-TR,DTA123JE A...................

S 730 87-A90-703-080 0E C-SW,SL 1-1-3 SSSS813-B-2B A...................

BAT 300 87-B30-197-010 1E BAT,ML614 A...................

C 307 87-012-286-080 0E CAP, U 0.01-25 A...................

C 308 87-012-286-080 0E CAP, U 0.01-25 A...................

C 303 87-012-286-080 0E CAP, U 0.01-25 A...................

ELECTRICAL MAIN PARTS LIST - 3/3

C 304 87-012-286-080 0E CAP, U 0.01-25 A...................

C 306 87-012-286-080 0E CAP, U 0.01-25 A...................

C 305 87-012-286-080 0E CAP, U 0.01-25 A...................

C 309 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 302 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 316 87-012-172-080 0E CAPACITOR CHIP U 10P CH A...................

C 314 87-012-186-080 0E C-CAP,U 39P-50 CH A...................

C 315 87-012-286-080 0E CAP, U 0.01-25 A...................

C 318 87-012-286-080 0E CAP, U 0.01-25 A...................

C 319 87-012-286-080 0E CAP, U 0.01-25 A...................

C 312 87-012-286-080 0E CAP, U 0.01-25 A...................

C 313 87-012-286-080 0E CAP, U 0.01-25 A...................

C 311 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 310 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 317 87-A11-049-080 0E C-CAP,U 1-6.3 K B A...................

C 320 87-012-286-080 0E CAP, U 0.01-25 A...................

C 355 87-012-195-080 0E C-CAP,U 100P-50CH A...................

C 354 87-012-196-080 0E C-CAP,U 120P-50 CH A...................

C 350 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 353 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 351 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

CN 400 87-A60-471-080 1A C-CONN,8P H SFV2ST A...................

CN 500 87-A60-542-080 1A C-CONN,10P H SFV2ST A...................

CN 600 87-A60-762-080 1A C-CONN,6P H SFV1ST A...................

D 300 87-017-636-080 0E C-DIODE,RB731U A...................

D 303 87-A40-556-080 0E C-LED,CL-270HR RED A...................

D 350 87-A40-562-040 0E C-DIODE,HSU83TRF A...................

IC 302 87-A21-030-040 1B C-IC,S-93C46AMFN A...................

IC 304 87-A21-094-040 1E C-IC,HMMD4425M-L3S A...................

IC 303 87-A21-100-040 1D C-IC,S-3531A A...................

IC 300 8Z-HM1-609-010 2M C-IC,CXP81952 A...................

L 300 87-A50-355-080 0E C-COIL,330UH LQH3C A...................

Q 303 87-026-536-080 0E C-TR,RN4910 A...................

Q 302 87-026-644-080 0E C-TR,DTA144EE A...................

Q 304 87-026-644-080 0E C-TR,DTA144EE A...................

Q 305 87-026-654-080 0E C-TR,DTC114TE A...................

Q 301 87-A30-033-080 0E C-FET,2SK2035 A...................

R 304 87-022-239-080 0E C-RES U 10K-1/16WF A...................

S 301 87-A90-330-080 0E C-SW,SL 1-1-2 SSSS81 A...................

S 300 87-A90-330-080 0E C-SW,SL 1-1-2 SSSS81 A...................

S 304 87-A90-953-080 0E C-SW,PUSH MPU10992MLB1 A...................

S 303 87-A90-953-080 0E C-SW,PUSH MPU10992MLB1 A...................

X 300 87-030-358-080 1C C-VIB,XTAL 32.768KHZ A...................

X 301 87-A70-159-080 1A C-VIB,CER 12.0MHZ CSTCV A...................

C 606 87-012-274-080 0E CHIP CAP,U 1000P-50B A...................

C 604 87-012-274-080 0E CHIP CAP,U 1000P-50B A...................

C 607 87-012-286-080 0E CAP, U 0.01-25 A...................

C 605 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 601 87-A11-045-080 1B C-CAP,TN 47U-10 M F95 B A...................

C 608 87-A11-050-080 1A C-CAP,TN 47U-4 M F95 A A...................

C 600 87-A11-067-080 0E C-CAP,S 1-10 K B A...................

C 611 87-A11-050-080 1A C-CAP,TN 47U-4 M F95 A A...................

C 620 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

C 622 87-A10-260-080 0E C-CAP,U 0.1-16 K B A...................

D 602 87-017-850-080 0E C-DIODE,DAP222 A...................

D 603 87-017-850-080 0E C-DIODE,DAP222 A...................

D 601 87-017-852-080 1A C-DIODE,HRW0502A A...................

F 601 87-A90-745-080 1B C-FUSE,750MA 13.2V MINISMDC075 A...................

F 600 87-A90-745-080 1B C-FUSE,750MA 13.2V MINISMDC075 A...................

IC 604 87-A20-674-040 1A C-IC,S-80825ANNP-EDN A...................

IC 602 87-A21-032-080 1C C-IC,S-8520B28MC A...................

IC 603 87-A21-035-040 1B C-IC,R1110N281B-TR A...................

IC 600 87-A21-038-040 1B C-IC,NJU7014R-TE2 A...................

IC 601 87-A21-081-040 1A C-IC,NJM2130F A...................

IC 605 87-A21-102-040 1A C-IC,S-80828ANNP-EDR-T2 A...................

J 600 87-A60-544-010 1A JACK,DC 4.0 Y 6.3 A...................

L 602 87-A50-271-080 1B C-COIL,ACM4532-801-2P A...................

L 600 87-A50-290-080 1A C-COIL,56UHC5-Q3L A...................

Q 606 87-026-644-080 0E C-TR,DTA144EE A...................

Q 607 87-026-644-080 0E C-TR,DTA144EE A...................

Q 601 87-026-644-080 0E C-TR,DTA144EE A...................

Q 605 87-026-645-080 0E C-TR,DTC144EE A...................

Q 602 87-A30-147-080 0E C-TR,2SA1832GR A...................

Q 608 87-A30-148-080 0E C-TR,2SC4738GR A...................

Q 603 87-A30-181-040 0E C-TR,DTA114TEA A...................

Q 600 87-A30-187-080 1C C-FET,MTDF1N02HD A...................

Q 604 87-A30-236-040 1C C-FET,MTDF1P02HD A...................

R 601 87-022-287-080 0E C-RES,U 120K-1/16W F A...................

R 600 87-022-288-080 0E C-RES,U 150K-1/16WF A...................

R 609 87-022-288-080 0E C-RES,U 150K-1/16WF A...................

R 610 87-022-284-080 0E C-RES,U 68K 1-16W F A...................

S 600 87-A90-232-080 0E C-SW,TACT SKQRAA A...................

CN 50 87-A60-542-080 1A C-CONN,10P H SFV2ST A...................

S 54 87-A91-006-080 0E C-SW,PUSH MPU11120MLB1 A...................

S 51 87-A91-006-080 0E C-SW,PUSH MPU11120MLB1 A...................

S 50 87-A91-006-080 0E C-SW,PUSH MPU11120MLB1 A...................

S 52 87-A91-008-080 1A C-SW,PUSH 2-1-1 SPVE4.1 A...................

S 53 87-A91-009-080 1A C-SW,PUSH 2-1-1 SPVE5.2 A...................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

D ......................OO..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-HM1-001-010 2M PANEL ASSY,TOP A...................

8Z-HM1-004-010 1E FRAME,CENTER A...................

8Z-HM1-006-010 1C LID,BATT A...................

8Z-HM1-017-010 PANEL ASSY,TOP S ....................

8Z-HM1-018-010 PANEL,TOP S ....................

8Z-HM1-020-010 FRAME,CENTER B ....................

8Z-HM1-021-010 LID,BATT S ....................

8Z-HM1-008-010 1C KEY,CONT MAIN A...................

8Z-HM1-009-010 1B KEY,CONT SUB A...................

8Z-HM1-010-010 1B KEY,VOL A...................

8Z-HM1-011-010 1B KNOB,RTRY JOG A...................

8Z-HM1-005-010 1C WINDOW,DISP A...................

8Z-HM1-003-010 2M PANEL,BOT A...................

8Z-HM1-038-010 PANEL,BOT HC S ....................

8Z-HM1-012-010 1B KNOB,SL EJECT A...................

8Z-HM1-013-010 1B KNOB,SL REC A...................

8Z-HM1-014-010 0E KNOB,LEVER REC A...................

8Z-HM1-022-010 0E KNOB,SL HOLD H A...................

8Z-HM1-023-010 0E KNOB,SL SEL H A...................

8Z-HM1-007-010 0E LENS,REC A...................

87-078-053-010 0E PW 2.5-0.7-0.25 SLT A...................

8Z-HM1-201-010 1D BOX ASSY,BATT A...................

8Z-HM1-204-010 1D FRAME ASSY,FR A...................

8Z-HM1-208-010 1E FRAME ASSY,R A...................

8Z-HM1-212-010 1A FRAME,L A...................

8Z-HM1-213-010 1D HLDR ASSY,TOP A...................

8Z-HM1-218-010 0E HINGE,BATT A...................

8Z-HM1-220-010 0E BAT-CONTACT,+ A...................

8Z-HM1-222-010 0E BAT-CONTACT,- A...................

8Z-HM1-225-010 0E SHAFT,HINGE BATT A...................

8Z-HM1-226-010 0E SPR-C,EJECT A...................

8Z-HM1-227-010 SPR-C,LOCK A...................

8Z-HM1-229-010 0E SPR-T,LEVER SW A...................

8Z-HM1-234-010 0E DMPR,G MECHA A...................

8Z-HM4-226-010 0E HLDR,PWB A...................

87-067-360-010 0E SCREW+1.4-3.5(BK) A...................

87-263-505-310 0E SCREW, V+1.4-2.5 A...................

87-353-507-310 0E VT2+1.4-3 CHROME A...................

87-HM1-242-010 0E S-SCREW,1.4-2.0CR A...................

87-HM1-243-010 0E S-SCREW,1.4-1.4CRNL A...................

87-HM1-254-010 0E S-SCREW,1.4-1.4CR A...................

* 8Z-HM1-235-010 0E S-SCREW,DMPR A...................

* 8Z-HM1-236-010 0E S-SCREW,+1.4-1.2 SWCH CR A...................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

D ......................OO..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-HM1-901-010 1D IB,D A...................

8Z-HM1-902-010 1A CARD,CUST F70 A...................

8Z-HM1-905-010 1D IB,HC(ECK) ....................

87-041-064-010 2B MIC,CM-S20 A A...................

87-B30-047-010 2A AC ADAPTOR,AC-D401 NC A...................

87-B30-111-010 2E BAT,LIB-902 A...................

87-B30-177-010 2B AC ADAPTOR,AC-D401HC ....................

87-B30-205-010 2M HEADPHONE,HP-M031A A...................

87-B30-231-010 CABLE, OP-W2S ....................

87-HM1-951-210 2M BOX ASSY,BAT 7HM-1 A...................

8Z-HM4-605-010 2D RC UNIT,RC-HX30 ....................

8Z-HM4-608-010 2D RC UNIT,RC-HX30 N A...................

8Z-HM4-951-010 1C STRAP,RC-HX30 A...................

8Z-HM4-952-010 1H BAG,CARRING A...................

SCHEMATIC DIAGRAM _1 (MAIN 1/2)

SCHEMATIC DIAGRAM _2 (MAIN 2/2)

PrintedinSingapore

Tokyo Japan

9420025

Other manuals for AM-F70 - ANNEXE 23

Table of contents

Other Aiwa Mini Disc Recorder manuals

Aiwa

Aiwa AM-C80 User manual

Aiwa

Aiwa AM-F70 - ANNEXE 23 User manual

Aiwa

Aiwa AM-F5 User manual

Aiwa

Aiwa AM-F80 User manual

Aiwa

Aiwa AM-LM918 User manual

Aiwa

Aiwa AM-NX9 User manual

Aiwa

Aiwa AM-F80 User manual

Aiwa

Aiwa AM-F65 User manual

Aiwa

Aiwa AM-LM99 User manual

Aiwa

Aiwa AM-C75 User manual

Aiwa

Aiwa AM-F90 User manual

Aiwa

Aiwa AM-F75 Building instructions

Aiwa

Aiwa AM-F80 User manual

Aiwa

Aiwa AM-C75 AEZ User manual

Aiwa

Aiwa AM-F80 User manual

Aiwa

Aiwa AM-F70 - ANNEXE 23 Building instructions

Aiwa

Aiwa AM-C80 User manual

Aiwa

Aiwa AM-C75 User manual

Aiwa

Aiwa AM-C80 User manual

Popular Mini Disc Recorder manuals by other brands

Denon

Denon DMD-1000 operating instructions

Onkyo

Onkyo MD-2521 instruction manual

Sony

Sony MDS-302 - Hi-fi Mini Disc Service manual

Kenwood

Kenwood 1050MD instruction manual

Sharp

Sharp IM-DR420H Operation manual

HHB

HHB Portadisc MDP500 Service manual

Yamaha

Yamaha MDX-M5 owner's manual

Onkyo

Onkyo MD-105TX instruction manual

Onkyo

Onkyo MD-121 instruction manual

Pioneer

Pioneer MJ-D508 operating instructions

Sony

Sony 158MDXC800 operating instructions

Sony

Sony MDX-C800REC Installation/connections

Pioneer

Pioneer MJ-D707 operating instructions

Kenwood

Kenwood DM-SE7 instruction manual

Kenwood

Kenwood DM-SE7 instruction manual

Kenwood

Kenwood DMF-9020 instruction manual

Sony

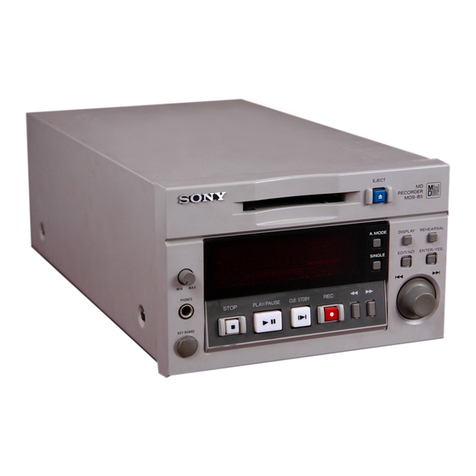

Sony MDS-B5 Service manual

Onkyo

Onkyo MD-2321 instruction manual
