S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with "Revision Publishing" when it is issued.

AM-F80

• TYPE: AHC,AHK,AHR,

AK,AEZ

S/M Code No. 09–99A–419–2T2

PORTABLE MD RECORDER

• BASIC CD MECHANISM: ZZG-A R1

ELECTRICAL MAIN PARTS LIST - 1/4

NOTE: The characters in the suffix column indicate the part usage.

HC .....................XX...................................B..................

HR .....................XX....................................C.................

HK .....................XX.....................................D................

AK .....................XX......................................E...............

EZG ....................XX.......................................F..............

EZN ....................XX........................................G.............

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

* 8A-HM1-605-010 LCD,AHM-1 COG ABCDEFG.............

* 8A-HM1-606-010 PWB,FLEX TACT ABCDEFG.............

* 8A-HM1-608-010 PWB,FLEX EL ABCDEFG.............

* 8A-HM1-610-010 PWB,FLEX MECHA ABCDEFG.............

C 109 87-010-787-080 0E CAP, U 0.022-25 ABCDEFG.............

C 100 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 106 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 102 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 103 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 107 87-A10-504-080 0E C-CAP,U 0.047-16 K B ABCDEFG.............

C 108 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 104 87-A11-046-080 1B C-CAP,TN 100U-4 M F95 B ABCDEFG.............

C 119 87-010-787-080 0E CAP, U 0.022-25 ABCDEFG.............

C 116 87-012-195-080 0E C-CAP,U 100P-50CH ABCDEFG.............

C 111 87-012-282-080 0E CAP, U 4700P-50 ABCDEFG.............

C 113 87-012-282-080 0E CAP, U 4700P-50 ABCDEFG.............

C 115 87-016-448-080 1A C-CAP,TN 2.2-10 F95P ABCDEFG.............

C 114 87-A10-353-080 0E C-CAP,U0.22-10KB ABCDEFG.............

C 110 87-A10-353-080 0E C-CAP,U0.22-10KB ABCDEFG.............

C 118 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 117 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 112 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 120 87-012-284-080 0E CAP, U 6800P-50 ABCDEFG.............

C 121 87-A10-504-080 0E C-CAP,U 0.047-16 K B ABCDEFG.............

C 122 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 123 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 130 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

CN 100 87-A61-141-080 C-CONN,22P H 54550-2290 ABCDEFG.............

IC 100 87-A20-707-010 2B C-IC,CXA2523AR ABCDEFG.............

IC 101 87-A20-710-040 1B C-IC,S-8110AMP ABCDEFG.............

L 102 87-A50-360-080 0E C-COIL, 47UH K NLFC252018 ABCDEFG.............

L 100 87-A50-360-080 0E C-COIL, 47UH K NLFC252018 ABCDEFG.............

L 130 87-A50-360-080 0E C-COIL, 47UH K NLFC252018 ABCDEFG.............

Q 102 87-026-644-080 0E C-TR,DTA144EE ABCDEFG.............

Q 101 87-A30-148-080 0E C-TR,2SC4738GR ABCDEFG.............

Q 100 89-115-884-080 0E CHIP -TRANSISTER 2SA1588Y ABCDEFG.............

R 108 87-022-294-080 0E C-RES,U 470K 1-16W F ABCDEFG.............

R 116 87-022-223-080 0E CHIP RES 2.2K 1/16W F ABCDEFG.............

R 114 87-022-223-080 0E CHIP RES 2.2K 1/16W F ABCDEFG.............

R 115 87-022-223-080 0E CHIP RES 2.2K 1/16W F ABCDEFG.............

C 206 87-012-270-080 0E CAP, U 470P-50 ABCDEFG.............

C 208 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 202 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 209 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 205 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 207 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B ABCDEFG.............

C 204 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B ABCDEFG.............

C 203 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 210 87-012-169-080 0E C-CAP,U 7P-50 CH ABCDEFG.............

C 211 87-012-169-080 0E C-CAP,U 7P-50 CH ABCDEFG.............

C 218 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............

C 217 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............

C 214 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 215 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 212 87-A11-050-080 1A C-CAP,TN 47U-4 M F95 A ABCDEFG.............

C 216 87-A11-070-080 0E C-CAP,U 0.033-16 K B ABCDEFG.............

C 221 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 220 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 222 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

IC 204 87-A21-027-040 1B C-IC,TC7W66FU ABCDEFG.............

IC 201 87-A21-036-040 1B C-IC,R1110N251B-TR ABCDEFG.............

IC 200 87-A21-349-010 C-IC,CXD2660GA ABCDEFG.............

IC 202 87-A21-461-040 C-IC,RQ5RW18BHA04 ABCDEFG.............

L 200 87-A50-359-080 0E C-COIL, 22UH K NLFC252018 ABCDEFG.............

Q 205 87-026-644-080 0E C-TR,DTA144EE ABCDEFG.............

R 221 87-A91-358-080 0E C-F-BEAD, BK1005HM102 .B..................

X 200 87-A70-238-080 C-VIB,XTAL 22.5792MHZ SX-5B ABCDEFG.............

C 400 87-016-447-080 1A C-CAP,TN 1-16 F95 P ABCDEFG.............

C 404 87-016-448-080 1A C-CAP,TN 2.2-10 F95P ABCDEFG.............

C 405 87-016-448-080 1A C-CAP,TN 2.2-10 F95P ABCDEFG.............

C 406 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 402 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 401 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 407 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 454 87-010-787-080 0E CAP, U 0.022-25 ABCDEFG.............

C 453 87-010-787-080 0E CAP, U 0.022-25 ABCDEFG.............

C 456 87-016-449-080 1A C-CAP,TN 10-4 F95 P ABCDEFG.............

C 451 87-A10-057-080 1B C-CAP,TN 100-4 F95 E ABCDEFG.............

C 455 87-A10-504-080 0E C-CAP,U 0.047-16 K B ABCDEFG.............

C 457 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 464 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............

ELECTRICAL MAIN PARTS LIST - 2/4

C 463 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............

C 462 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............

C 461 87-012-280-080 0E CAP, U 3300P-50 ABCDEFG.............

C 460 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

CN 200 87-A61-140-080 C-CONN,10P H 54548-1090 ABCDEFG.............

D 400 87-A40-124-080 0E C-DIODE,RB501V-40 ABCDEFG.............

D 450 87-017-852-080 1A C-DIODE,HRW0502A ABCDEFG.............

IC 400 87-A21-548-040 C-IC,MPC17A39L ABCDEFG.............

IC 451 87-017-857-080 1A IC,TC7S04FU ABCDEFG.............

IC 450 87-A20-813-040 1H C-IC,CXA8048N ABCDEFG.............

L 404 87-A50-013-080 0E C-COIL,560UH LQH3C ABCDEFG.............

L 402 87-A50-358-080 0E C-COIL, 10UH K NLFC252018 ABCDEFG.............

L 401 87-A50-358-080 0E C-COIL, 10UH K NLFC252018 ABCDEFG.............

L 403 87-A50-358-080 0E C-COIL, 10UH K NLFC252018 ABCDEFG.............

L 400 87-A50-358-080 0E C-COIL, 10UH K NLFC252018 ABCDEFG.............

L 405 87-A50-361-080 0E C-COIL, 100UH K NLFC252018 ABCDEFG.............

L 450 87-A50-355-080 0E C-COIL,330UH LQH3C ABCDEFG.............

Q 451 87-026-521-080 0E CHIP TR HN1COLF U(GR) ABCDEFG.............

Q 450 89-113-625-080 0E TR,2SA1362GR(120MHZ,0. ABCDEFG.............

C 500 87-012-266-080 0E C-CAP,U 220P-50 B ABCDEFG.............

C 504 87-012-278-080 0E C-CAP,U 2200P-50 B ABCDEFG.............

C 501 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 502 87-016-448-080 1A C-CAP,TN 2.2-10 F95P ABCDEFG.............

C 506 87-016-564-080 1B C-CAP,10-6.3 PSN ABCDEFG.............

C 509 87-A10-504-080 0E C-CAP,U 0.047-16 K B ABCDEFG.............

C 508 87-A10-504-080 0E C-CAP,U 0.047-16 K B ABCDEFG.............

C 503 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 507 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 505 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 510 87-012-270-080 0E CAP, U 470P-50 ABCDEFG.............

C 512 87-016-449-080 1A C-CAP,TN 10-4 F95 P ABCDEFG.............

C 513 87-016-449-080 1A C-CAP,TN 10-4 F95 P ABCDEFG.............

C 511 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

CN 300 87-A61-136-080 C-CONN,6P H 54550-0690 ABCDEFG.............

D 502 87-A40-124-080 0E C-DIODE,RB501V-40 ABCDEFG.............

D 501 87-A40-412-040 0E C-DIODE,SB05-05CP ABCDEFG.............

D 500 87-A40-412-040 0E C-DIODE,SB05-05CP ABCDEFG.............

IC 500 87-A20-719-040 1H C-IC,MPC18A20VM ABCDEFG.............

L 501 87-A50-011-080 0E C-COIL,47UH LQH3C ABCDEFG.............

L 500 87-A50-361-080 0E C-COIL, 100UH K NLFC252018 ABCDEFG.............

Q 504 87-026-645-080 0E C-TR,DTC144EE ABCDEFG.............

Q 501 87-A30-150-080 1C C-FET,XTDF2N06HD ABCDEFG.............

Q 500 87-A30-150-080 1C C-FET,XTDF2N06HD ABCDEFG.............

R 506 87-022-217-080 0E C-RES,U 1.2K-1/16W F ABCDEFG.............

R 502 87-022-227-080 0E C-RES,U 3.3K-1/16W F ABCDEFG.............

R 507 87-022-237-080 0E C-RES,U 8.2K-1/16W F ABCDEFG.............

R 508 87-022-243-080 0E CHIP RES,U 15K-1/16W F ABCDEFG.............

R 509 87-022-255-080 0E C-RES,U 47K-1/16W F ABCDEFG.............

C 707 87-012-337-080 0E C-CAP,U 56P-50 CH ABCDEFG.............

C 708 87-012-337-080 0E C-CAP,U 56P-50 CH ABCDEFG.............

C 705 87-012-337-080 0E C-CAP,U 56P-50 CH ABCDEFG.............

C 706 87-012-337-080 0E C-CAP,U 56P-50 CH ABCDEFG.............

C 709 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 700 87-A11-046-080 1B C-CAP,TN 100U-4 M F95 B ABCDEFG.............

C 701 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 702 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 704 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 703 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 713 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 710 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 711 87-016-449-080 1A C-CAP,TN 10-4 F95 P ABCDEFG.............

C 712 87-016-449-080 1A C-CAP,TN 10-4 F95 P ABCDEFG.............

C 716 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 715 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 714 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 717 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 730 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 753 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............

C 754 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............

C 755 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 756 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 770 87-012-337-080 0E C-CAP,U 56P-50 CH ABCDEFG.............

C 771 87-012-337-080 0E C-CAP,U 56P-50 CH ABCDEFG.............

C 772 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 774 87-016-296-080 1A C-CAP,TN 22-4SV(A) ABCDEFG.............

C 779 87-A10-048-080 1A C-CAP,TN 22-4 F95 S ABCDEFG.............

C 778 87-A10-048-080 1A C-CAP,TN 22-4 F95 S ABCDEFG.............

C 777 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 773 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 775 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 776 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 785 87-A10-048-080 1A C-CAP,TN 22-4 F95 S ABCDEFG.............

C 787 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 784 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 788 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 783 87-A11-318-080 C-CAP,TN 220U-2.5 SVB2 ABCDEFG.............

C 782 87-A11-318-080 C-CAP,TN 220U-2.5 SVB2 ABCDEFG.............

IC 700 87-A21-034-040 2M C-IC,UDA1341TS ABCDEFG.............

IC 701 87-A21-036-040 1B C-IC,R1110N251B-TR ABCDEFG.............

IC 770 87-A21-029-040 1D C-IC,BA3577FV ABCDEFG.............

J 730 87-A61-070-010 JACK,JFJ7001 ABCDEFG.............

J 780 87-A60-682-010 1B JACK,3.5 ST 7P ABCDEFG.............

ELECTRICAL MAIN PARTS LIST - 3/4

L 710 87-003-245-080 0E C-COIL,22UH ABCDEFG.............

L 730 87-A50-362-080 1A C-COIL,ACM2520-601-2P ABCDEFG.............

L 731 87-A50-362-080 1A C-COIL,ACM2520-601-2P ABCDEFG.............

L 770 87-A50-362-080 1A C-COIL,ACM2520-601-2P ABCDEFG.............

L 771 87-A50-362-080 1A C-COIL,ACM2520-601-2P ABCDEFG.............

Q 700 87-026-527-080 0E C-TR,HN1A01FU(G) ABCDEFG.............

Q 701 87-026-527-080 0E C-TR,HN1A01FU(G) ABCDEFG.............

Q 702 87-A30-033-080 0E C-FET,2SK2035 ABCDEFG.............

Q 731 87-026-645-080 0E C-TR,DTC144EE ABCDEFG.............

Q 730 87-026-647-080 0E C-TR,DTA123JE ABCDEFG.............

Q 770 87-026-528-080 0E C-TR,RN1905 ABCDEFG.............

S 730 87-A90-703-080 0E C-SW,SL 1-1-3 SSSS813-B-2B ABCDEFG.............

BAT 300 87-B30-197-010 1E BAT,ML614 ABCDEFG.............

C 305 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 303 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 304 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 307 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 309 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 302 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 308 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 306 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 316 87-012-169-080 0E C-CAP,U 7P-50 CH ABCDEFG.............

C 314 87-012-186-080 0E C-CAP,U 39P-50 CH ABCDEFG.............

C 315 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 318 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 312 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 313 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 319 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 310 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 311 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 317 87-A11-049-080 0E C-CAP,U 1-6.3 K B ABCDEFG.............

C 321 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............

C 320 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 355 87-012-195-080 0E C-CAP,U 100P-50CH ABCDEFG.............

C 354 87-012-197-080 0E C-CAP,U 150P-50 CH ABCDEFG.............

C 350 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 351 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 353 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

CN 400 87-A61-138-080 C-CONN,9P H 54550-0990 ABCDEFG.............

CN 500 87-A61-139-080 C-CONN,10P H 54550-1090 ABCDEFG.............

CN 600 87-A61-137-080 C-CONN,6P H 54548-0690 ABCDEFG.............

D 300 87-017-636-080 0E C-DIODE,RB731U ABCDEFG.............

D 350 87-A40-562-040 0E C-DIODE,HSU83TRF ABCDEFG.............

IC 302 87-A21-030-040 1B C-IC,S-93C46AMFN ABCDEFG.............

IC 303 87-A21-100-040 1D C-IC,S-3531A ABCDEFG.............

IC 304 87-A21-308-040 C-IC,HMMD4425M-L4S ABCDEFG.............

IC 300 8A-HM1-609-010 C-IC,CXP81952M ABCDEFG.............

L 300 87-A50-355-080 0E C-COIL,330UH LQH3C ABCDEFG.............

Q 303 87-026-536-080 0E C-TR,RN4910 ABCDEFG.............

Q 302 87-026-644-080 0E C-TR,DTA144EE ABCDEFG.............

Q 304 87-026-644-080 0E C-TR,DTA144EE ABCDEFG.............

Q 305 87-026-654-080 0E C-TR,DTC114TE ABCDEFG.............

Q 301 87-A30-033-080 0E C-FET,2SK2035 ABCDEFG.............

R 304 87-022-239-080 0E C-RES U 10K-1/16WF ABCDEFG.............

S 301 87-A90-330-080 0E C-SW,SL 1-1-2 SSSS81 ABCDEFG.............

S 300 87-A90-330-080 0E C-SW,SL 1-1-2 SSSS81 ABCDEFG.............

S 303 87-A91-419-080 C-SW,PUSH MPU11121MLB1 ABCDEFG.............

S 304 87-A91-419-080 C-SW,PUSH MPU11121MLB1 ABCDEFG.............

X 301 87-A70-100-080 1B C-VIB,CER 12.0MHZ PBRC-BR-A ABCDEFG.............

X 300 87-A70-227-080 C-VIB,XTAL 32.768KHZ CM200S-6P ABCDEFG.............

C 606 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............

C 604 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............

C 607 87-A10-561-080 0E C-CAP,V 0.01U-16 K B ABCDEFG.............

C 605 87-A10-770-080 C-CAP,V 0.1-10 K B ABCDEFG.............

C 601 87-A11-045-080 1B C-CAP,TN 47U-10 M F95 B ABCDEFG.............

C 608 87-A11-050-080 1A C-CAP,TN 47U-4 M F95 A ABCDEFG.............

C 600 87-A11-067-080 0E C-CAP,S 1-10 K B ABCDEFG.............

C 611 87-A11-050-080 1A C-CAP,TN 47U-4 M F95 A ABCDEFG.............

C 620 87-A10-260-080 0E C-CAP,U 0.1-16 K B ABCDEFG.............

C 622 87-A10-260-080 0E C-CAP,U 0.1-16 K B ABCDEFG.............

D 602 87-017-850-080 0E C-DIODE,DAP222 ABCDEFG.............

D 603 87-017-850-080 0E C-DIODE,DAP222 ABCDEFG.............

D 601 87-017-852-080 1A C-DIODE,HRW0502A ABCDEFG.............

F 600 87-A90-745-080 1B C-FUSE,750MA 13.2V MINISMDC075 ABCDEFG.............

F 601 87-A90-745-080 1B C-FUSE,750MA 13.2V MINISMDC075 ABCDEFG.............

IC 604 87-A20-674-040 1A C-IC,S-80825ANNP-EDN ABCDEFG.............

IC 602 87-A21-032-080 1C C-IC,S-8520B28MC ABCDEFG.............

IC 603 87-A21-035-040 1B C-IC,R1110N281B-TR ABCDEFG.............

IC 600 87-A21-038-040 1B C-IC,NJU7014R-TE2 ABCDEFG.............

IC 601 87-A21-081-040 1A C-IC,NJM2130F ABCDEFG.............

IC 605 87-A21-102-040 1A C-IC,S-80828ANNP-EDR-T2 ABCDEFG.............

J 600 87-A60-544-010 1A JACK,DC 4.0 Y 6.3 ABCDEFG.............

L 602 87-A50-271-080 1B C-COIL,ACM4532-801-2P ABCDEFG.............

L 600 87-A50-290-080 1A C-COIL,56UHC5-Q3L ABCDEFG.............

Q 601 87-026-644-080 0E C-TR,DTA144EE ABCDEFG.............

Q 606 87-026-644-080 0E C-TR,DTA144EE ABCDEFG.............

Q 607 87-026-644-080 0E C-TR,DTA144EE ABCDEFG.............

Q 605 87-026-645-080 0E C-TR,DTC144EE ABCDEFG.............

Q 609 87-026-645-080 0E C-TR,DTC144EE ABCDEFG.............

Q 602 87-A30-147-080 0E C-TR,2SA1832GR ABCDEFG.............

Q 608 87-A30-148-080 0E C-TR,2SC4738GR ABCDEFG.............

Q 603 87-A30-181-040 0E C-TR,DTA114TEA ABCDEFG.............

ELECTRICAL MAIN PARTS LIST - 4/4

Q 600 87-A30-187-080 1C C-FET,MTDF1N02HD ABCDEFG.............

Q 604 87-A30-236-040 1C C-FET,MTDF1P02HD ABCDEFG.............

Q 610 87-A30-262-080 1B C-FET,FDC634P ABCDEFG.............

R 601 87-022-287-080 0E C-RES,U 120K-1/16W F ABCDEFG.............

R 600 87-022-288-080 0E C-RES,U 150K-1/16WF ABCDEFG.............

R 609 87-022-288-080 0E C-RES,U 150K-1/16WF ABCDEFG.............

R 619 87-022-249-080 0E C-RES U27K 1/16WF ABCDEFG.............

R 610 87-022-284-080 0E C-RES,U 68K 1-16W F ABCDEFG.............

S 600 87-A90-232-080 0E C-SW,TACT SKQRAA ABCDEFG.............

CN 50 87-A61-139-080 C-CONN,10P H 54550-1090 ABCDEFG.............

S 52 87-A91-008-080 1A C-SW,PUSH 2-1-1 SPVE4.1 ABCDEFG.............

S 53 87-A91-009-080 1A C-SW,PUSH 2-1-1 SPVE5.2 ABCDEFG.............

S 50 87-A91-419-080 C-SW,PUSH MPU11121MLB1 ABCDEFG.............

S 51 87-A91-419-080 C-SW,PUSH MPU11121MLB1 ABCDEFG.............

S 54 87-A91-420-080 C-SW,PUSH MPU11120MLA1 ABCDEFG.............

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

HC .....................XX...................................B..................

HR .....................XX....................................C.................

HK .....................XX.....................................D................

AK .....................XX......................................E...............

EZG ....................XX.......................................F..............

EZN ....................XX........................................G.............

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-HM1-001-010 PANEL ASSY,TOP ABCD................

8A-HM1-003-010 FRAME,CENTER ABCD................

8A-HM1-004-010 LID,BATT ABCD................

8A-HM1-026-010 FRAME,CENTER EZ ....EFG.............

8A-HM1-041-010 PANEL ASSY,TOP N ....E.G.............

8A-HM1-043-010 PANEL ASSY,TOP G .....F..............

8A-HM1-056-010 LID,BATT N ....E.G.............

8A-HM1-057-010 LID,BATT G .....F..............

8A-HM1-007-010 KEY,CONT MAIN ABCDEFG.............

8A-HM1-008-010 KEY,CONT SUB ABCDEFG.............

8A-HM1-009-010 KEY,SEARCH ABCDEFG.............

8A-HM1-010-010 KNOB,RTRY JOG ABCDEFG.............

8A-HM1-006-110 WINDOW,DISP ABCD................

8A-HM1-061-010 WINDOW,DISP N ....E.G.............

8A-HM1-062-010 WINDOW,DISP G .....F..............

8A-HM1-011-010 LENS,REC ABCDEFG.............

8A-HM1-005-010 PANEL,BOT A...................

8A-HM1-031-010 PANEL,BOT HC .BCD................

8A-HM1-033-010 PANEL,BOT U ....................

8A-HM1-034-010 PANEL,BOT EZ N ....E.G.............

8A-HM1-035-010 PANEL,BOT EZ G .....F..............

8A-HM1-012-010 KNOB,SL EJECT ABCDEFG.............

8A-HM1-013-010 KNOB,SL REC ABCDEFG.............

8A-HM1-014-010 KNOB,LEVER REC ABCDEFG.............

8A-HM1-015-010 KNOB,SL HOLD ABCDEFG.............

8A-HM1-016-010 KNOB,SL SEL ABCD................

8A-HM1-066-010 KNOB,SL SEL N ....E.G.............

8A-HM1-067-010 KNOB,SL SEL G .....F..............

8A-HM1-203-010 HINGE,PANEL TOP ABCDEFG.............

8A-HM1-206-110 FRAME ASSY,FR ABCDEFG.............

8A-HM1-216-010 FRAME,R ABCDEFG.............

8A-HM1-225-010 HLDR,LCD ABCDEFG.............

8A-HM1-232-010 COVER, BATT BOX ABCDEFG.............

8A-HM1-233-010 BAT-CONTACT,BOX ABCDEFG.............

8A-HM1-234-110 HINGE,BATT ABCDEFG.............

8A-HM1-235-110 SHAFT,HINGE BATT ABCDEFG.............

8A-HM1-236-010 BAT-CONTACT,+ ABCDEFG.............

8A-HM1-237-010 BAT-CONTACT,- ABCDEFG.............

8A-HM1-238-010 COVER, BATT + ABCDEFG.............

8A-HM1-239-110 COVER, BATT - ABCDEFG.............

8A-HM1-242-010 SPR-E,REC ABCDEFG.............

8A-HM1-243-010 PLATE,JOG ABCDEFG.............

8A-HM1-244-010 SPR-T,OPEN ABCDEFG.............

8A-HM1-250-010 SPR-E,LOCK B ABCDEFG.............

8A-HM1-272-010 W-L,1.7-3.6-0.05 W/ADH ABCDEFG.............

8A-HM1-285-010 W-L,1.7-3.6-0.4 ABCDEFG.............

8Z-HM1-248-010 0E W-P,0.7-2.5-0.13 ABCDEFG.............

8Z-HM4-226-010 0E HLDR,PWB ABCDEFG.............

8Z-HM4-230-010 0E SPR-E,EJECT ABCDEFG.............

* 8A-HM1-226-010 HLDR ASSY,TOP ABCDEFG.............

* 8A-HM1-229-010 HLDR,PANEL ABCDEFG.............

87-067-746-010 0E SCREW,M 1.4-2(H0.5) ABCDEFG.............

87-078-052-010 0E S-SCREW+1.4-3.5HL(B) ABCDEFG.............

87-HM1-242-010 0E S-SCREW,1.4-2.0CR ABCDEFG.............

87-HM1-243-010 0E S-SCREW,1.4-1.4CRNL ABCDEFG.............

87-HM1-254-010 0E S-SCREW,1.4-1.4CR ABCDEFG.............

8A-HM1-291-010 S-SCREW,1.4-1.0 CR ABCDEFG.............

8A-HM3-222-010 S-SCREW,+1.4-3.0 CR ABCDEFG.............

* 88-ZG2-256-010 0E S-SCREW,+1.4-3.5 ABCDEFG.............

* 8Z-HM1-236-010 0E S-SCREW,+1.4-1.2 SWCH CR ABCDEFG.............

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

HC .....................XX...................................B..................

HR .....................XX....................................C.................

HK .....................XX.....................................D................

AK .....................XX......................................E...............

EZG ....................XX.......................................F..............

EZN ....................XX........................................G.............

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-HM1-901-110 IB,D A...................

8A-HM1-904-010 IB,HC (ECK)I .B..................

8A-HM1-905-010 IB,HR (ECA)I ..CD................

8A-HM1-907-010 IB,EZ (EGF)I ....EFG.............

8A-HM1-908-010 IB,EZ (SID)I .....FG.............

8A-HM1-909-010 IB,EZ (PHNCZ)I .....FG.............

87-041-064-010 2B MIC,CM-S20 A A...................

87-A90-312-010 PLUG,CONVERSION WTN-1157R1 ..C.................

87-B30-047-110 2A AC ADAPTOR,AC-D401 NC A...................

87-B30-111-010 2E BAT,LIB-902 ABCDEFG.............

87-B30-142-010 2A AC ADAPTOR,AC-D401U NC ....................

87-B30-143-110 2M AC ADAPTOR,AC-D401E NC .....FG.............

87-B30-144-010 2M AC ADAPTOR,AC-D401K NC ...DE...............

87-B30-159-010 2B AC ADAPTOR,AC-D401HR ..C.................

87-B30-177-010 2B AC ADAPTOR,AC-D401HC .B..................

87-B30-231-010 1F CABLE, OP-W2S .BCDEFG.............

87-B30-248-010 2M HEADPHONE,HP-M038 ....................

87-B30-297-010 HEADPHONE,HP-M031 H ABCDEFG.............

8A-HM1-612-010 ADAPTOR,DC-550A ....................

8A-HM1-951-010 BOX ASSY,BAT AHM-1 .BCD................

8A-HM1-955-010 BOX ASSY,BAT AHM-1 D A...................

8A-HM1-957-010 BOX ASSY,BAT AHM-1 N ....E.G.............

8A-HM1-959-010 BOX ASSY,BAT AHM-1 G .....F..............

8A-HM3-952-010 BAG,CARRING ABCDEFG.............

8Z-HM4-605-010 2D RC UNIT,RC-HX30 ABCD.F..............

8Z-HM4-608-010 2D RC UNIT,RC-HX30 N ....E.G.............

8Z-HM4-951-010 1C STRAP,RC-HX30 A...................

SCHEMATIC DIAGRAM _1 (MAIN)

SCHEMATIC DIAGRAM _2 (FLEX)

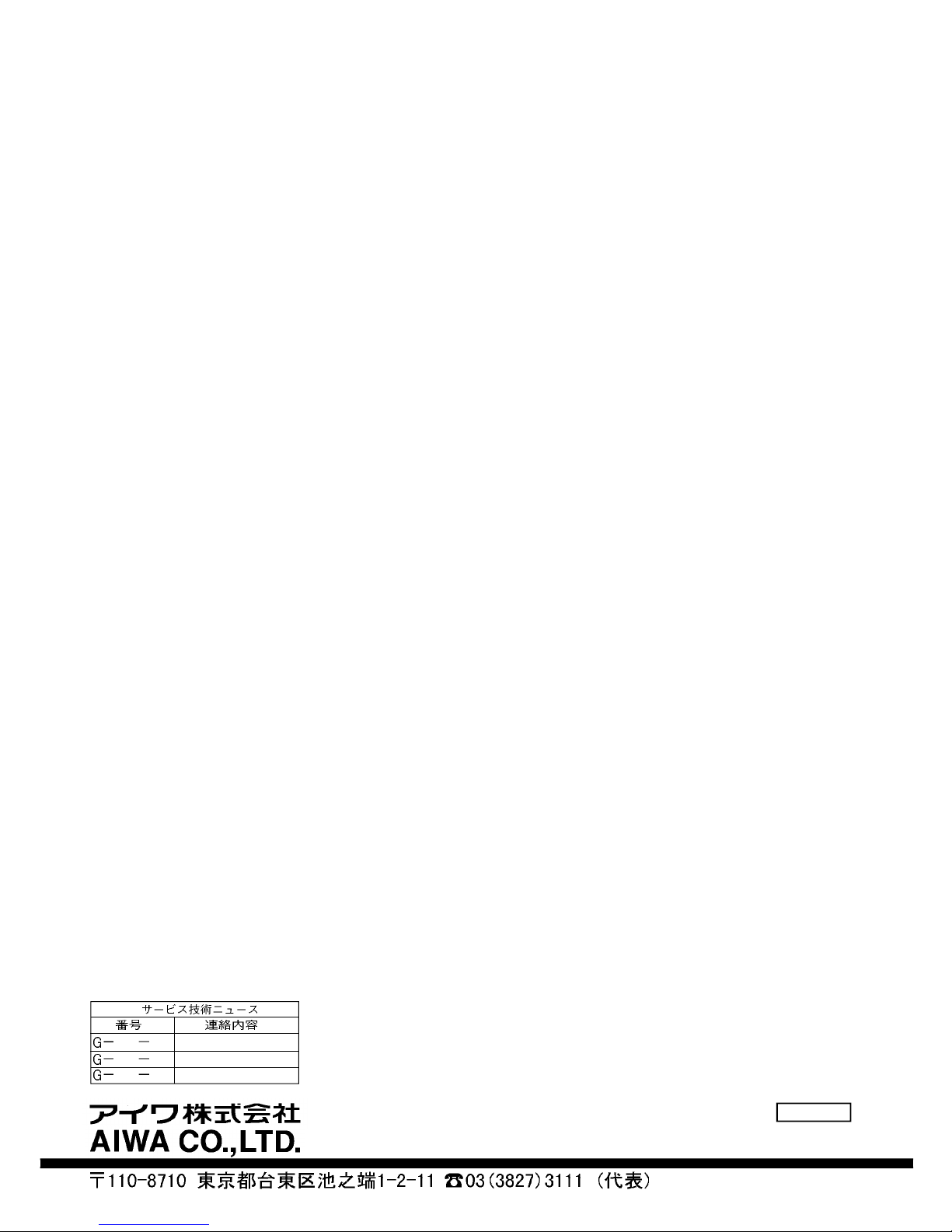

PrintedinSingapore

Tokyo Japan

9301978

Other manuals for AM-F80

Table of contents

Other Aiwa Mini Disc Recorder manuals

Aiwa

Aiwa AM-F65 User manual

Aiwa

Aiwa AM-F70 - ANNEXE 23 Building instructions

Aiwa

Aiwa AM-F5 User manual

Aiwa

Aiwa AM-F80 User manual

Aiwa

Aiwa AM-F80 User manual

Aiwa

Aiwa AM-NX9 User manual

Aiwa

Aiwa AM-F75 Building instructions

Aiwa

Aiwa AM-F80 User manual

Aiwa

Aiwa AM-C80 User manual

Aiwa

Aiwa AM-F90 User manual

Aiwa

Aiwa AM-LM99 User manual

Aiwa

Aiwa AM-F70 - ANNEXE 23 Building instructions

Aiwa

Aiwa AM-C80 User manual

Aiwa

Aiwa AM-C75 User manual

Aiwa

Aiwa AM-F70 - ANNEXE 23 User manual

Aiwa

Aiwa AM-C75 AEZ User manual

Aiwa

Aiwa AM-C80 User manual

Aiwa

Aiwa AM-LM918 User manual

Aiwa

Aiwa AM-C75 User manual

Popular Mini Disc Recorder manuals by other brands

Sony

Sony MZ-B50 operating instructions

JVC

JVC XM-448BK instructions

Sharp

Sharp MD-MT831H Operation manual

Panasonic

Panasonic SJ-MR250 operating instructions

Sharp

Sharp MD-SR50H Operation manual

Onkyo

Onkyo MD-101A Service manual

Kenwood

Kenwood DM-SE7 instruction manual

Sony

Sony MZ-1 operating instructions

Sony

Sony Hi-MD Walkman MZ-RH10 Supplemental notes

Sharp

Sharp MD-MS701W Service manual

Sharp

Sharp MD-MT821H Bedienungsanleitung

Kenwood

Kenwood DM-SE7 Service manual

Yamaha

Yamaha MDX-595 Service manual

Sharp

Sharp IM-DR410H Operation manual

Sharp

Sharp MD-MT200H Operation manual

Sony

Sony MZ-B100 - Minidisc Business Product Recorder Specifications
