S E R V I C E M A N U A L
SIMPLE MANUAL
NSX-S707
NSX-S708
• BASIC TAPE MECHANISM: 2ZM-3MK2 YPR4N
• BASIC CD MECHANISM: 4ZG-1 Z4DSHNC • TYPE : EZ,K (707),
EZ (708)
S/M Code No.09–985–276–3FE
COMPACT DISC STEREO
CASSETTE RECEIVER
NSX-S707
SPEAKERSYSTEM CD
CASSEIVER
SX–ANS706
REMOTE
CONTROLLER
NSX-S708 CX-NS708
(TYPE : EZ) SX–ANS707
CX-NS707
(TYPE : EZ,K) RC - 7AS06
•Replace this Service Manual with "Revision Publishing" when it is issued.
• If requiring information about the CD mechanism, see Service Manual of
4ZG-1, S/M Code No. 09-983-249-3OT.
ELECTRICAL MAIN PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
KSTE ...................XX...................................B..................
EZSE ...................XX....................................C.................
8EZE ...................XX.....................................D................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-NF5-210-010 GUIDE,LED A...................
88-NF6-203-010 GUIDE,LED JOG A...................
88-NF6-204-010 GUIDE,LED OPE A...................
88-NF6-204-110 GUIDE,LED OPE ....................
88-NF6-205-010 GUIDE,FL 40-150- 9 A...................
C 101 87-010-075-040 CAP,E 10-16 5L A...................
C 105 87-010-178-080 CHIP CAP 1000P A...................
C 109 87-010-194-080 CAP, CHIP 0.047 A...................
C 107 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 104 87-010-494-040 CAP,E 1-50 GAS A...................
C 106 87-A10-189-040 CAP,E 220-10 A...................
C 114 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 115 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 112 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 113 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 111 87-010-320-080 CHIP CAP 68P A...................
C 116 87-010-405-040 CAP,E 10-50 A...................
C 110 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 117 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 121 87-010-194-080 CAP, CHIP 0.047 A...................
C 122 87-010-194-080 CAP, CHIP 0.047 A...................
C 124 87-010-555-040 CAP,E 100-10 GAS A...................
C 151 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 201 87-010-178-080 CHIP CAP 1000P A...................
C 202 87-010-194-080 CAP, CHIP 0.047 A...................
C 204 87-010-404-040 CAP,E 4.7-50 SME A...................
C 205 87-010-404-040 CAP,E 4.7-50 SME A...................
C 203 87-010-408-040 CAP,E 47-50 SME A...................
C 219 87-012-145-080 CAP, CHIP S 270P CH A...................
C 211 87-012-145-080 CAP, CHIP S 270P CH A...................
C 225 87-012-145-080 CAP, CHIP S 270P CH A...................
C 220 87-012-145-080 CAP, CHIP S 270P CH A...................
C 222 87-012-145-080 CAP, CHIP S 270P CH A...................
C 221 87-012-145-080 CAP, CHIP S 270P CH A...................
C 377 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 375 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 376 87-012-158-080 C-CAP,S 390P-50 CH A...................
C 404 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 408 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 406 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
D 102 87-A40-269-080 C-DIODE,MC2836 A...................
D 104 87-A40-270-080 C-DIODE,MC2838 A...................
D 105 87-A40-270-080 C-DIODE,MC2838 A...................
D 105 87-A40-504-040 C-DIODE,KDS184 ....................
D 104 87-A40-504-040 C-DIODE,KDS184 ....................
D 102 87-A40-505-040 C-DIODE,KDS181 ....................
D 103 87-A40-509-080 ZENER,MTZJ6.8C A...................
D 313 87-A40-269-080 C-DIODE,MC2836 A...................
D 317 87-A40-269-080 C-DIODE,MC2836 A...................
D 314 87-A40-269-080 C-DIODE,MC2836 A...................
D 316 87-A40-269-080 C-DIODE,MC2836 A...................
D 311 87-A40-269-080 C-DIODE,MC2836 A...................
D 310 87-A40-269-080 C-DIODE,MC2836 A...................
D 312 87-A40-269-080 C-DIODE,MC2836 A...................
D 315 87-A40-269-080 C-DIODE,MC2836 A...................
D 316 87-A40-505-040 C-DIODE,KDS181 ....................
D 317 87-A40-505-040 C-DIODE,KDS181 ....................
D 314 87-A40-505-040 C-DIODE,KDS181 ....................
D 313 87-A40-505-040 C-DIODE,KDS181 ....................
D 310 87-A40-505-040 C-DIODE,KDS181 ....................
D 311 87-A40-505-040 C-DIODE,KDS181 ....................
D 315 87-A40-505-040 C-DIODE,KDS181 ....................
D 312 87-A40-505-040 C-DIODE,KDS181 ....................
D 328 87-A40-470-080 DIODE,1SS254 A...................
D 326 87-A40-470-080 DIODE,1SS254 A...................
D 701 87-A40-269-080 C-DIODE,MC2836 A...................
D 701 87-A40-505-040 C-DIODE,KDS181 ....................
FL 201 88-NF6-611-010 FL,BJ610GK A...................
IC 102 87-070-083-010 IC,GP1U281X A...................
IC 101 88-NF7-690-010 C-IC,LC866560W-5G73 A...................
IC 101 88-NF7-750-010 C-IC,LC866560W-5H26 ....................
IC 371 87-A20-083-010 IC,BA3835S A...................
IC 402 87-017-915-080 IC,BU4094BCF A...................
IC 401 87-017-915-080 IC,BU4094BCF A...................
IC 403 87-017-915-080 IC,BU4094BCF A...................
IC 404 87-070-289-040 IC,BU 2092F A...................
LED 413 87-070-201-080 LED,SLP9118C-51-S-T1 A...................
LED 414 87-070-201-080 LED,SLP9118C-51-S-T1 A...................
LED 411 87-070-201-080 LED,SLP9118C-51-S-T1 A...................
LED 412 87-070-201-080 LED,SLP9118C-51-S-T1 A...................
LED 415 87-070-201-080 LED,SLP9118C-51-S-T1 A...................
LED 417 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
ELECTRICAL MAIN PARTS LIST - 2
LED 419 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
LED 425 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
LED 421 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
LED 423 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
LED 427 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
LED 429 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN A...................
LED 428 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN A...................
LED 429 87-A40-448-080 LED,SLR-56PTT31 GRN ....................
LED 428 87-A40-448-080 LED,SLR-56PTT31 GRN ....................
LED 438 87-070-197-080 LED,SLP7118C-51-S-T1 A...................
LED 439 87-070-197-080 LED,SLP7118C-51-S-T1 A...................
LED 435 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN A...................
LED 432 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN A...................
LED 434 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN A...................
LED 431 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN A...................
LED 436 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN A...................
LED 433 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN A...................
LED 437 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN A...................
LED 430 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN A...................
LED 432 87-A40-448-080 LED,SLR-56PTT31 GRN ....................
LED 436 87-A40-448-080 LED,SLR-56PTT31 GRN ....................
LED 431 87-A40-448-080 LED,SLR-56PTT31 GRN ....................
LED 437 87-A40-448-080 LED,SLR-56PTT31 GRN ....................
LED 434 87-A40-448-080 LED,SLR-56PTT31 GRN ....................
LED 433 87-A40-448-080 LED,SLR-56PTT31 GRN ....................
LED 435 87-A40-448-080 LED,SLR-56PTT31 GRN ....................
LED 430 87-A40-448-080 LED,SLR-56PTT31 GRN ....................
LED 442 87-070-197-080 LED,SLP7118C-51-S-T1 A...................
LED 443 87-070-197-080 LED,SLP7118C-51-S-T1 A...................
LED 441 87-070-197-080 LED,SLP7118C-51-S-T1 A...................
LED 440 87-070-197-080 LED,SLP7118C-51-S-T1 A...................
LED 444 87-070-278-010 LED,SLZ-738A-24-S A...................
LED 449 87-070-278-010 LED,SLZ-738A-24-S A...................
LED 447 87-070-278-010 LED,SLZ-738A-24-S A...................
LED 446 87-070-278-010 LED,SLZ-738A-24-S A...................
LED 445 87-070-290-010 LED,SLZ 936-30-S A...................
LED 448 87-070-290-010 LED,SLZ 936-30-S A...................
Q 102 87-026-263-080 C-TR,RN1410 A...................
Q 104 87-026-610-080 TR,KTC3198GR A...................
Q 103 87-A30-071-080 C-TR,RT1N 144C A...................
Q 101 87-A30-087-080 C-FET,2SK2158 A...................
Q 301 87-A30-076-080 C-TR,2SC3052F A...................
Q 404 87-026-580-080 C-TR,DTA123JK A...................
Q 403 87-026-580-080 C-TR,DTA123JK A...................
Q 406 87-026-580-080 C-TR,DTA123JK A...................
Q 405 87-026-580-080 C-TR,DTA123JK A...................
Q 407 87-026-580-080 C-TR,DTA123JK A...................
Q 401 87-A30-073-080 C-TR,RT1N 141C A...................
Q 402 87-A30-073-080 C-TR,RT1N 141C A...................
Q 408 87-A30-075-080 C-TR,2SA1235F A...................
Q 419 87-A30-074-080 C-TR,RT1P 141C A...................
Q 423 87-A30-074-080 C-TR,RT1P 141C A...................
Q 422 87-A30-074-080 C-TR,RT1P 141C A...................
Q 424 87-A30-074-080 C-TR,RT1P 141C A...................
Q 420 87-A30-074-080 C-TR,RT1P 141C A...................
Q 421 87-A30-074-080 C-TR,RT1P 141C A...................
Q 704 87-A30-073-080 C-TR,RT1N 141C A...................
Q 703 87-A30-085-070 C-TR,CSA1362GR A...................
Q 702 87-A30-085-070 C-TR,CSA1362GR A...................
Q 701 89-112-965-080 TR,2SA1296 (0.75W) A...................
S 102 87-A90-535-010 SW,RTRY EC16B24304 A...................
S 101 87-A90-792-010 SW,RTRY EC12E12244 ENCORDER A...................
S 101 87-A90-894-010 SW,RTRY EC12E12444 ....................
S 314 87-A90-095-080 SW,TACT EVQ11G04M A...................
X 101 87-A70-070-080 VIB,CER 5.76MHZ CRHF A...................
C 505 87-010-180-080 C-CER 1500P A...................
C 509 87-010-181-080 CAP,CHIP S 1800P A...................
C 504 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 508 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 506 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 507 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 502 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 501 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 503 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 515 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 516 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 510 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 518 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 519 87-010-263-040 CAP,E 100-10 A...................
C 512 87-010-374-040 CAP,E 47-10 A...................
C 514 87-010-401-040 CAP,E 1-50 SME A...................
C 513 87-010-401-040 CAP,E 1-50 SME A...................
C 511 87-010-544-040 CAP,E 0.1-50 SME A...................
C 523 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................
C 602 87-010-186-080 CAP,CHIP 4700P A...................
C 608 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 605 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 607 87-010-321-080 CHIP CAPACITOR,82P(J) A...................
C 606 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 603 87-010-405-040 CAP,E 10-50 A...................
C 601 87-010-405-040 CAP,E 10-50 A...................
C 604 87-010-406-040 CAP,E 22-50 SME A...................
ELECTRICAL MAIN PARTS LIST - 3
C 609 87-010-545-040 CAP,E 0.22-50 SME A...................
C 612 87-010-176-080 C-CAP,S 680P-50 SL ....................
C 611 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 614 87-010-248-040 CAP,E 220-10 SME A...................
C 652 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 653 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 651 87-010-401-040 CAP,E 1-50 SME A...................
D 501 87-017-931-080 ZENER,MTZJ5.6B A...................
D 601 87-A40-470-080 DIODE,1SS254 A...................
D 651 87-A40-470-080 DIODE,1SS254 A...................
FB 601 87-008-372-080 FILTER, EMI BL OIRNI A...................
IC 501 87-A20-613-040 C-IC,BU9262AFS A...................
IC 601 87-017-888-080 IC,NJM4558MD A...................
J 602 87-A60-284-010 JACK,3.5MO (MSC) A...................
J 601 87-A60-284-010 JACK,3.5MO (MSC) A...................
J 601 87-A60-651-010 JACK,3.5MONO ....................
J 602 87-A60-651-010 JACK,3.5MONO ....................
L 501 87-005-212-080 COIL,220UH A...................
Q 602 87-A30-075-080 C-TR,2SA1235F A...................
Q 601 87-A30-087-080 C-FET,2SK2158 A...................
Q 603 87-A30-087-080 C-FET,2SK2158 A...................
Q 651 87-A30-076-080 C-TR,2SC3052F A...................
C 902 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 901 87-010-263-040 CAP,E 100-10 A...................
C 903 87-010-313-080 CAP, CHIP 18P A...................
C 905 87-010-400-040 CAP,E 0.47-50 A...................
C 904 87-012-155-080 C-CAP 180P-50CH A...................
D 901 87-070-136-080 ZENER,MTZJ5.1B A...................
D 902 87-A40-470-080 DIODE,1SS254 A...................
IC 901 88-NF5-615-040 C-IC,MSM6654A-521GS-KR1 A...................
L 901 87-007-340-010 COIL,CLOCK 4.19MHZ A...................
88-NF7-633-210 PWB, AC1 (LH) ....................
FC 101 87-A90-505-080 FUSE CLAMP,TP00351-51 .BCD................
FC 102 87-A90-505-080 FUSE CLAMP,TP00351-51 .BCD................
PR 103 87-026-682-080 PROTECTOR,10A 60V491 ABCD................
PR 104 87-026-682-080 PROTECTOR,10A 60V491 ABCD................
PR 102 87-026-682-080 PROTECTOR,10A 60V491 ABCD................
PR 101 87-026-682-080 PROTECTOR,10A 60V491 ABCD................
PR 104 87-026-691-080 FUSE,10A 125V 251 ....................
PR 103 87-026-691-080 FUSE,10A 125V 251 ....................
PR 101 87-026-691-080 FUSE,10A 125V 251 ....................
PR 102 87-026-691-080 FUSE,10A 125V 251 ....................
T 101 87-A60-317-010 TERMINAL, 1P MSC .BCD................
T 102 87-A60-317-010 TERMINAL, 1P MSC .BCD................
W 104 85-NF5-628-010 F-CABLE 7P-2.5 ABCD................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ABCD................
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCD................
C 109 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 105 87-012-368-080 C-CAP,S 0.1-50 F ABCD................
C 106 87-012-368-080 C-CAP,S 0.1-50 F ABCD................
C 108 87-012-368-080 C-CAP,S 0.1-50 F ABCD................
C 107 87-012-368-080 C-CAP,S 0.1-50 F ABCD................
C 101 87-016-657-090 CAP,E 3300-71 A.CD................
C 102 87-016-657-090 CAP,E 3300-71 A.CD................
C 104 87-016-658-090 CAP,E 4700-35 SMG ABCD................
C 103 87-016-658-090 CAP,E 4700-35 SMG ABCD................
C 112 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 111 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 110 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 119 87-010-260-080 CAP, ELECT 47-25V ABCD................
C 118 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 114 87-010-385-080 CAP, ELECT 220-25V .BCD................
C 113 87-010-385-080 CAP, ELECT 220-25V .BCD................
C 115 87-010-385-080 CAP, ELECT 220-25V .BCD................
C 116 87-010-385-080 CAP, ELECT 220-25V .BCD................
C 117 87-010-430-080 CAP, ELECT 100-63 ABCD................
C 124 87-010-112-080 CAP, ELECT 100-16V ABCD................
C 125 87-010-235-080 CAP,E 470-16 SME ABCD................
C 123 87-010-247-080 CAP, ELECT 100-50V ABCD................
C 120 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 121 87-012-140-080 CAP 470P ABCD................
C 130 87-010-194-080 CAP, CHIP 0.047 .BCD................
C 131 87-010-194-080 CAP, CHIP 0.047 .BCD................
C 151 87-016-520-090 CAP,E 3300-65 .B..................
C 152 87-016-520-090 CAP,E 3300-65 .B..................
D 102 87-017-654-060 DIODE,GBU6J ABCD................
D 108 87-070-274-080 DIODE,1N4003 SEM ABCD................
D 109 87-070-274-080 DIODE,1N4003 SEM ABCD................
D 107 87-070-274-080 DIODE,1N4003 SEM ABCD................
D 106 87-070-274-080 DIODE,1N4003 SEM ABCD................
D 101 87-A40-115-060 DIODE,RS603M ABCD................
D 104 87-A40-269-080 C-DIODE,MC2836 A...................
D 105 87-A40-270-080 C-DIODE,MC2838 A...................
D 103 87-A40-470-080 DIODE,1SS254 ABCD................
D 105 87-A40-504-040 C-DIODE,KDS184 .BCD................
D 104 87-A40-505-040 C-DIODE,KDS181 .BCD................
D 116 87-A40-269-080 C-DIODE,MC2836 A...................
D 110 87-A40-341-080 ZENER,MTZJ 36 A ABCD................
D 112 87-A40-345-080 ZENER,MTZJ10C ABCD................
D 116 87-A40-505-040 C-DIODE,KDS181 .BCD................
D 120 87-A40-004-080 ZENER,MTZJ16A ABCD................
Q 103 87-026-610-080 TR,KTC3198GR ABCD................
ELECTRICAL MAIN PARTS LIST - 4
Q 107 87-A30-075-080 C-TR,2SA1235F ABCD................
Q 109 87-A30-075-080 C-TR,2SA1235F ABCD................
Q 104 87-A30-076-080 C-TR,2SC3052F ABCD................
Q 106 87-A30-076-080 C-TR,2SC3052F ABCD................
Q 108 87-A30-076-080 C-TR,2SC3052F ABCD................
Q 105 87-A30-196-080 TR,2SC4115SRS ABCD................
Q 101 89-213-702-010 TR,2SB1370 (1.8W) ABCD................
Q 102 89-213-702-010 TR,2SB1370 (1.8W) ABCD................
Q 112 87-026-609-080 TR,KTA1266GR ABCD................
Q 111 87-026-609-080 TR,KTA1266GR ABCD................
Q 114 87-A30-075-080 C-TR,2SA1235F ABCD................
Q 110 87-A30-076-080 C-TR,2SC3052F ABCD................
R 123 87-A00-261-080 RES,M/F 0.56-1W J ....................
RY 101 87-045-389-010 RELAY,OSA-SS-212DM5 A...................
RY 101 87-A90-464-010 RELAY, DG12D2-O(M) .BCD................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ....................
C 209 87-010-546-080 CAP, ELECT 0.33-50V ABCD................
C 212 87-010-183-080 C-CAP,S 2700P-50 B ABCD................
C 211 87-010-183-080 C-CAP,S 2700P-50 B ABCD................
C 214 87-010-186-080 CAP,CHIP 4700P ABCD................
C 213 87-010-186-080 CAP,CHIP 4700P ABCD................
C 217 87-010-260-080 CAP, ELECT 47-25V A...................
C 218 87-010-260-080 CAP, ELECT 47-25V A...................
C 215 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 216 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 210 87-010-546-080 CAP, ELECT 0.33-50V ABCD................
C 217 87-A10-899-080 CAP,E 47-25 M BP SME .BCD................
C 218 87-A10-899-080 CAP,E 47-25 M BP SME .BCD................
C 225 87-010-176-080 C-CAP,S 680P-50 SL .BCD................
C 226 87-010-176-080 C-CAP,S 680P-50 SL .BCD................
C 228 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 224 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 223 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 221 87-010-213-080 C-CAP,S 0.015-50 B .BCD................
C 222 87-010-213-080 C-CAP,S 0.015-50 B .BCD................
C 229 87-A10-812-080 C-CAP,S 220P-200 J CH ABCD................
C 233 87-010-544-080 CAP, ELECT 0.1-50V ABCD................
C 234 87-010-544-080 CAP, ELECT 0.1-50V ABCD................
C 237 87-012-368-080 C-CAP,S 0.1-50 F ABCD................
C 238 87-012-368-080 C-CAP,S 0.1-50 F ABCD................
C 239 87-012-368-080 C-CAP,S 0.1-50 F ABCD................
C 230 87-A10-812-080 C-CAP,S 220P-200 J CH ABCD................
C 248 87-010-178-080 CHIP CAP 1000P .BCD................
C 247 87-010-178-080 CHIP CAP 1000P .BCD................
C 241 87-010-318-080 C-CAP,S 47P-50 CH .BCD................
C 242 87-010-318-080 C-CAP,S 47P-50 CH .BCD................
C 248 87-012-145-080 CAP, CHIP S 270P CH A...................
C 247 87-012-145-080 CAP, CHIP S 270P CH A...................
C 240 87-012-368-080 C-CAP,S 0.1-50 F ABCD................
C 280 87-010-188-080 CAP,CHIP 6800P ABCD................
C 299 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
D 214 87-070-136-080 ZENER,MTZJ5.1B ABCD................
D 213 87-070-136-080 ZENER,MTZJ5.1B ABCD................
D 217 87-A40-470-080 DIODE,1SS254 ABCD................
D 215 87-A40-470-080 DIODE,1SS254 ABCD................
D 216 87-A40-470-080 DIODE,1SS254 ABCD................
D 218 87-A40-470-080 DIODE,1SS254 ABCD................
D 221 87-A40-270-080 C-DIODE,MC2838 A...................
D 220 87-A40-345-080 ZENER,MTZJ10C ABCD................
D 227 87-A40-470-080 DIODE,1SS254 ABCD................
D 226 87-A40-488-080 DIODE,1SS244 ABCD................
D 225 87-A40-488-080 DIODE,1SS244 ABCD................
D 221 87-A40-504-040 C-DIODE,KDS184 .BCD................
D 232 87-A40-184-090 DIODE,RK34(F) ABCD................
D 231 87-A40-184-090 DIODE,RK34(F) ABCD................
D 233 87-A40-470-080 DIODE,1SS254 ABCD................
D 234 87-A40-470-080 DIODE,1SS254 ABCD................
D 280 87-A40-470-080 DIODE,1SS254 ABCD................
D 299 87-A40-470-080 DIODE,1SS254 ABCD................
D 295 87-A40-470-080 DIODE,1SS254 ABCD................
J 203 87-033-240-010 TERMINAL,SP 4P32SV1-05 ABCD................
J 201 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT ABCD................
J 202 87-A60-547-010 JACK,PIN 4P R/W/B A...................
J 202 87-A60-641-010 JACK,PIN 4P R/W/B JALCO .BCD................
L 202 87-003-383-010 COIL,1UH-S ABCD................
L 201 87-003-383-010 COIL,1UH-S ABCD................
Q 211 87-A30-076-080 C-TR,2SC3052F ABCD................
Q 212 87-A30-076-080 C-TR,2SC3052F ABCD................
Q 214 87-A30-076-080 C-TR,2SC3052F ABCD................
Q 213 87-A30-076-080 C-TR,2SC3052F ABCD................
Q 217 87-A30-097-010 TR,FN 1016 ABCD................
Q 218 87-A30-097-010 TR,FN 1016 ABCD................
Q 219 87-A30-098-010 TR,FP 1016 ABCD................
Q 216 87-A30-190-080 TR,CC5551 ABCD................
Q 215 87-A30-190-080 TR,CC5551 ABCD................
Q 227 87-A30-072-080 C-TR,RT1P 144C ABCD................
Q 226 87-A30-075-080 C-TR,2SA1235F ABCD................
Q 225 87-A30-076-080 C-TR,2SC3052F ABCD................
Q 220 87-A30-098-010 TR,FP 1016 ABCD................
Q 222 87-A30-106-070 C-TR,CMBT5551 ABCD................
Q 221 87-A30-106-070 C-TR,CMBT5551 ABCD................
Q 224 87-A30-162-010 FET,2SK2937 ABCD................
ELECTRICAL MAIN PARTS LIST - 5
Q 223 87-A30-162-010 FET,2SK2937 ABCD................
Q 295 87-026-232-080 TR,DTA144WK A...................
Q 299 87-A30-073-080 C-TR,RT1N 141C ABCD................
Q 291 87-A30-074-080 C-TR,RT1P 141C .BCD................
Q 290 87-A30-107-070 C-TR,CMBT5401 ABCD................
Q 295 87-A30-221-040 C-TR,DTA114WK .BCD................
R 237 87-A00-262-080 RES,M/F 0.15-2W J ABCD................
R 239 87-A00-262-080 RES,M/F 0.15-2W J ABCD................
R 238 87-A00-262-080 RES,M/F 0.15-2W J ABCD................
R 240 87-A00-262-080 RES,M/F 0.15-2W J ABCD................
RY 201 87-A90-713-010 RELAY,12V DQ12D1-OS(M) ABCD................
TH 202 87-A90-221-080 C-THMS,100K .BCD................
TH 201 87-A90-221-080 C-THMS,100K .BCD................
C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 304 87-012-157-080 C-CAP,S 330P-50 CH ABCD................
C 303 87-012-157-080 C-CAP,S 330P-50 CH ABCD................
C 315 87-010-178-080 CHIP CAP 1000P ABCD................
C 316 87-010-178-080 CHIP CAP 1000P ABCD................
C 314 87-010-179-080 CAP,CHIP S B1200P .BCD................
C 313 87-010-179-080 CAP,CHIP S B1200P .BCD................
C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 312 87-010-198-080 CAP, CHIP 0.022 ABCD................
C 311 87-010-198-080 CAP, CHIP 0.022 ABCD................
C 319 87-012-141-080 CHIP-CAPACITOR,0.22-16F .BCD................
C 318 87-012-142-080 CAP, S 0.33-16 .BCD................
C 317 87-012-142-080 CAP, S 0.33-16 .BCD................
C 324 87-010-260-080 CAP, ELECT 47-25V ABCD................
C 325 87-010-370-080 CAP,E 330-6.3 SME ABCD................
C 328 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 327 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 321 87-012-141-080 CHIP-CAPACITOR,0.22-16F .BCD................
C 320 87-012-141-080 CHIP-CAPACITOR,0.22-16F .BCD................
C 322 87-012-141-080 CHIP-CAPACITOR,0.22-16F .BCD................
C 322 87-016-492-080 C-CAP,S 0.33-16 FZ A...................
C 321 87-016-492-080 C-CAP,S 0.33-16 FZ A...................
C 335 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 336 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 354 87-010-175-080 CAP 560P ABCD................
C 359 87-010-183-080 C-CAP,S 2700P-50 B ABCD................
C 358 87-010-183-080 C-CAP,S 2700P-50 B ABCD................
C 357 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 356 87-010-260-080 CAP, ELECT 47-25V ABCD................
C 351 87-012-140-080 CAP 470P ABCD................
C 352 87-012-140-080 CAP 470P ABCD................
C 355 87-012-349-080 C-CAP,S 1000P-50 CH ABCD................
C 360 87-010-183-080 C-CAP,S 2700P-50 B ABCD................
C 371 87-010-177-080 C-CAP,S 820P-50 SL .BCD................
C 372 87-010-177-080 C-CAP,S 820P-50 SL .BCD................
C 379 87-010-382-080 CAP, ELECT 22-25V A...................
C 375 87-010-545-080 CAP, ELECT 0.22-50V .BCD................
C 376 87-010-545-080 CAP, ELECT 0.22-50V .BCD................
C 373 87-016-083-080 C-CAP,S 0.15-16 RK A...................
C 374 87-016-083-080 C-CAP,S 0.15-16 RK A...................
C 385 87-010-184-080 CHIP CAPACITOR 3300P(K) .BCD................
C 381 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 383 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 382 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 382 87-010-318-080 C-CAP,S 47P-50 CH ABCD................
C 380 87-010-382-080 CAP, ELECT 22-25V A...................
C 384 87-010-402-080 CAP, ELECT 2.2-50V ABCD................
C 387 87-012-145-080 CAP, CHIP S 270P CH ABCD................
C 392 87-010-319-080 C-CAP,S 56P-50 CH ....................
C 393 87-010-319-080 C-CAP,S 56P-50 CH ....................
C 394 87-010-319-080 C-CAP,S 56P-50 CH ....................
C 391 87-010-319-080 C-CAP,S 56P-50 CH ....................
D 352 87-A40-269-080 C-DIODE,MC2836 A...................
D 351 87-A40-470-080 DIODE,1SS254 ABCD................
D 352 87-A40-505-040 C-DIODE,KDS181 .BCD................
FB 301 87-008-372-080 FILTER, EMI BL OIRNI .BCD................
IC 302 87-A20-355-010 IC,CXA1553P .BCD................
IC 303 87-A20-783-040 C-IC,BA7762AFS ABCD................
L 301 87-A50-049-010 COIL,TRAP 85K(COI) ABCD................
L 302 87-A50-049-010 COIL,TRAP 85K(COI) ABCD................
L 351 87-007-342-010 COIL,OSC 85K BIAS ABCD................
Q 359 87-026-610-080 TR,KTC3198GR ABCD................
Q 357 87-026-610-080 TR,KTC3198GR ABCD................
Q 358 87-026-610-080 TR,KTC3198GR ABCD................
Q 356 87-A30-076-080 C-TR,2SC3052F ABCD................
Q 353 87-A30-087-080 C-FET,2SK2158 ABCD................
Q 354 87-A30-087-080 C-FET,2SK2158 ABCD................
Q 351 87-A30-087-080 C-FET,2SK2158 ABCD................
Q 355 87-A30-105-080 C-TR,RT1P 441C ABCD................
Q 383 87-A30-075-080 C-TR,2SA1235F A...................
SFR 306 87-A90-433-080 SFR,50K H NVZ6TLTA ABCD................
SFR 305 87-A90-433-080 SFR,50K H NVZ6TLTA ABCD................
SFR 304 87-A90-557-080 SFR,33K H HOKU .BCD................
SFR 302 87-A90-557-080 SFR,33K H HOKU .BCD................
SFR 303 87-A90-557-080 SFR,33K H HOKU .BCD................
SFR 301 87-A90-557-080 SFR,33K H HOKU .BCD................
C 404 87-010-182-080 C-CAP,S 2200P-50 B ABCD................
C 403 87-010-182-080 C-CAP,S 2200P-50 B ABCD................
C 406 87-010-193-080 CHIP CAPACITOR,0.033 ABCD................
ELECTRICAL MAIN PARTS LIST - 6
C 405 87-010-193-080 CHIP CAPACITOR,0.033 ABCD................
C 409 87-010-380-080 CAP, ELECT 47-16V ABCD................
C 402 87-010-401-080 CAP, ELECT 1-50V .BCD................
C 401 87-010-401-080 CAP, ELECT 1-50V .BCD................
C 407 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 408 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 412 87-010-112-080 CAP, ELECT 100-16V ABCD................
C 415 87-010-184-080 CHIP CAPACITOR 3300P(K) ABCD................
C 416 87-010-184-080 CHIP CAPACITOR 3300P(K) ABCD................
C 410 87-010-380-080 CAP, ELECT 47-16V ABCD................
C 411 87-010-405-080 CAP, ELECT 10-50V ABCD................
IC 401 87-A20-804-040 C-IC,NJM2152M ABCD................
C 516 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 458 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 457 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 703 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 704 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 701 87-010-381-080 CAP, ELECT 330-16V ABCD................
C 702 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 714 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 713 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 711 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 715 87-010-322-080 C-CAP,S 100P-50 CH ABCD................
C 723 87-010-178-080 CHIP CAP 1000P ABCD................
C 725 87-010-178-080 CHIP CAP 1000P ABCD................
C 727 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 728 87-010-248-080 CAP, ELECT 220-10V ABCD................
C 722 87-010-312-080 C-CAP,S 15P-50 CH ABCD................
C 721 87-010-312-080 C-CAP,S 15P-50 CH ABCD................
D 721 87-A40-234-080 ZENER,MTZJ5.6A ABCD................
D 722 87-A40-470-080 DIODE,1SS254 .BCD................
IC 721 86-NFZ-655-010 IC,LC72131D(Z) ABCD................
Q 711 87-A30-196-080 TR,2SC4115SRS ABCD................
X 721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 ABCD................
C 758 87-010-149-080 C-CAP,S 5P-50 CH ABCD................
C 756 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 755 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 757 87-010-318-080 C-CAP,S 47P-50 CH ABCD................
C 759 87-012-154-080 C-CAP,S 150P-50 CH ....................
C 759 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 763 87-010-194-080 CAP, CHIP 0.047 ABCD................
C 761 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 766 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 768 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 765 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 764 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 767 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 769 87-010-408-080 CAP, ELECT 47-50V ABCD................
C 760 87-012-154-080 C-CAP,S 150P-50 CH ....................
C 760 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 773 87-010-179-080 CAP,CHIP S B1200P ABCD................
C 772 87-010-194-080 CAP, CHIP 0.047 ABCD................
C 774 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 777 87-010-400-080 CAP, ELECT 0.47-50V ABCD................
C 779 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 778 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 775 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 771 87-010-407-080 CAP, ELECT 33-50V ABCD................
C 770 87-015-821-080 C-CAP 0.047 ABCD................
C 787 87-010-184-080 CHIP CAPACITOR 3300P(K) .B..................
C 788 87-010-184-080 CHIP CAPACITOR 3300P(K) .B..................
C 788 87-010-186-080 CAP,CHIP 4700P ..CD................
C 787 87-010-186-080 CAP,CHIP 4700P ..CD................
C 780 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 784 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 785 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 786 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 781 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 782 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 783 87-015-819-080 CAPACITOR,0.01 ABCD................
C 793 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 793 87-010-178-080 CHIP CAP 1000P .B..................
C 793 87-010-180-080 C-CER 1500P .BCD................
C 797 87-010-181-080 CAP,CHIP S 1800P A...................
C 798 87-010-181-080 CAP,CHIP S 1800P A...................
C 799 87-010-194-080 CAP, CHIP 0.047 ABCD................
C 796 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 791 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 794 87-010-406-080 CAP, ELECT 22-50 ABCD................
C 795 87-010-596-080 CAP, S 0.047-16 ABCD................
D 773 87-A40-470-080 DIODE,1SS254 ABCD................
IC 771 87-A20-438-010 IC,LA1837 A...................
IC 771 87-A20-913-010 IC,LA1837NL .BCD................
L 771 87-A50-266-010 COIL,FM DET-2N(TOK) ABCD................
L 772 87-A90-052-010 FLTR,CFMT-450A(TOK) ....................
L 772 87-A90-733-010 FLTR,PCFAZH-450 (TOK) ABCD................
L 781 87-005-847-080 COIL,2.2UH(CECS) ABCD................
L 792 87-A50-027-010 COIL,1 POLE MPX(TOK) .BCD................
L 791 87-A50-027-010 COIL,1 POLE MPX(TOK) .BCD................
X 771 87-030-354-010 VIB,CF BFU 450C ....................
C 859 87-010-197-080 CAP, CHIP 0.01 DM ..CD................
ELECTRICAL MAIN PARTS LIST - 7
C 865 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD................
C 867 87-010-197-080 CAP, CHIP 0.01 DM ..CD................
C 869 87-010-314-080 C-CAP,S 22P-50V ..CD................
C 868 87-010-316-080 C-CAP,S 33P-50 CH ..CD................
C 864 87-010-405-080 CAP, ELECT 10-50V ..CD................
C 866 87-010-405-080 CAP, ELECT 10-50V ..CD................
C 863 87-012-140-080 CAP 470P ..CD................
C 862 87-012-156-080 C-CAP,S 220P-50 CH ..CD................
C 861 87-012-156-080 C-CAP,S 220P-50 CH ..CD................
IC 851 87-A20-440-040 C-IC,BU1920FS ..CD................
Q 852 87-A30-073-080 C-TR,RT1N 141C ..CD................
Q 853 87-A30-076-080 C-TR,2SC3052F ..CD................
Q 851 87-A30-076-080 C-TR,2SC3052F ..CD................
X 851 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309 ..CD................
C 829 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 828 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 820 87-010-408-080 CAP, ELECT 47-50V ABCD................
C 942 87-010-151-080 C-CAP,S 7P-50 CH .BCD................
C 947 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 940 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 941 87-010-314-080 C-CAP,S 22P-50V ....................
C 949 87-014-049-080 CAP,PP 470P-100 J .BCD................
C 944 87-014-051-080 CAPACITOR (PP), 560P ....................
C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 952 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 956 87-010-263-080 CAP, ELECT 100-10V ....................
C 957 87-010-311-080 CAP 12P .BCD................
C 954 87-010-400-080 CAP, ELECT 0.47-50V ....................
C 950 87-014-073-080 CAP,PP 4700P-100 J ....................
C 961 87-010-152-080 C-CAP,S 8P-50 CH A...................
C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 962 87-010-401-080 CAP, ELECT 1-50V .BCD................
CF 802 82-785-747-010 CF MS2 GHY R .BCD................
CF 802 87-008-261-010 FILTER, SFE10.7MA5-A A...................
CF 801 87-008-261-010 FILTER, SFE10.7MA5-A A...................
CF 801 87-008-423-010 CERAMIC FILTER, SFE10.7 .BCD................
D 942 87-A40-270-080 C-DIODE,MC2838 ....................
D 944 87-A40-470-080 DIODE,1SS254 .BCD................
D 942 87-A40-504-040 C-DIODE,KDS184 .BCD................
FFE 801 A8-6ZA-193-030 6ZA-1 FEVNM ....................
FFE 801 A8-6ZA-195-130 6ZA-1 YFEENM ....................
FFE 801 A8-6ZA-19C-170 6ZA-1 YFEENC .BCD................
FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM A...................
FFE 801 A8-8ZA-191-030 8ZA-1 YFEUNM ....................
J 801 87-033-239-010 TERMINAL,HSP-154V-2 A...................
J 802 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05 ....................
J 802 87-A60-427-010 TERMINAL,ANT PAL 2P YKD31-0429 .BCD................
L 832 86-NFZ-694-080 COIL,2.2UH K CECS A...................
L 832 87-005-847-080 COIL,2.2UH(CECS) .BCD................
L 943 87-005-372-080 COIL S 1MHM ....................
L 942 87-A50-019-010 COIL,OSC LW(COI) .BCD................
L 941 87-A50-020-010 COIL,ANT LW(COI) .BCD................
L 941 87-A50-022-010 COIL,ANT SW(COI) ....................
L 944 87-A50-159-010 COIL,10MH K C2B ....................
L 942 87-A50-173-010 COIL,OSC SW-N(COI) ....................
L 981 87-NF4-650-010 COIL,AM PACK 4N(TOK) A...................
L 981 87-NF4-651-010 COIL,AM PACK2N(TOM) .BCD................
L 981 88-NF8-625-010 COIL,AM PACK3N(TOK) ....................
Q 807 87-A30-072-080 C-TR,RT1P 144C ABCD................
Q 805 89-327-143-080 TR,2SC2714 (0.1W) ABCD................
Q 942 87-A30-075-080 C-TR,2SA1235F ....................
Q 943 87-A30-075-080 C-TR,2SA1235F ....................
Q 944 87-A30-076-080 C-TR,2SC3052F ....................
Q 949 87-A30-076-080 C-TR,2SC3052F ....................
Q 945 87-A30-076-080 C-TR,2SC3052F ....................
Q 948 87-A30-086-070 C-TR,CSD1306E .BCD................
Q 947 89-505-434-540 C-FET,2SK543(4/5) .BCD................
Q 951 87-A30-074-080 C-TR,RT1P 141C .BCD................
TC 941 87-011-220-080 TRIMMER CAP 20P VTC ....................
TC 942 87-011-221-080 CAP, TRIMMER 30P .BCD................
87-NF4-625-010 PWB,PT NF4 (85-60) A...................
FC 103 87-033-147-010 FUSE CLAMP A...................
FC 102 87-033-147-010 FUSE CLAMP A...................
FC 104 87-033-147-010 FUSE CLAMP A...................
FC 101 87-033-147-010 FUSE CLAMP A...................
S 101 87-A90-165-010 SW,SL 1-2-3 SWS2301 A...................
T 101 87-A60-317-010 TERMINAL, 1P MSC A...................
T 102 87-A60-317-010 TERMINAL, 1P MSC A...................
C 602 87-010-180-080 C-CER 1500P ABCD................
C 601 87-010-180-080 C-CER 1500P ABCD................
C 606 87-010-318-080 C-CAP,S 47P-50 CH .BCD................
C 605 87-010-318-080 C-CAP,S 47P-50 CH .BCD................
C 607 87-010-318-080 C-CAP,S 47P-50 CH .BCD................
C 608 87-010-318-080 C-CAP,S 47P-50 CH .BCD................
C 619 87-010-185-080 C-CAP,S 3900P-50 B ABCD................
C 614 87-016-081-080 C-CAP,S 0.1-16 RK ABCD................
C 613 87-016-081-080 C-CAP,S 0.1-16 RK ABCD................
C 618 88-710-989-810 CAP,M 0.056-50 J TFL ABCD................
C 617 88-710-989-810 CAP,M 0.056-50 J TFL ABCD................
C 620 87-010-185-080 C-CAP,S 3900P-50 B ABCD................
C 622 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 621 87-010-401-080 CAP, ELECT 1-50V ABCD................
ELECTRICAL MAIN PARTS LIST - 8
C 629 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 626 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 625 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 637 87-010-183-080 C-CAP,S 2700P-50 B ABCD................
C 636 87-010-194-080 CAP, CHIP 0.047 ABCD................
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 630 87-010-213-080 C-CAP,S 0.015-50 B ABCD................
C 632 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 633 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 631 87-010-992-080 C-CAP,S 0.047-25 B ABCD................
C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 667 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 662 87-010-322-080 C-CAP,S 100P-50 CH .BCD................
C 664 87-010-322-080 C-CAP,S 100P-50 CH .BCD................
C 663 87-010-322-080 C-CAP,S 100P-50 CH .BCD................
C 661 87-010-322-080 C-CAP,S 100P-50 CH .BCD................
D 601 87-A40-002-080 ZENER,MTZJ5.1C ABCD................
D 602 87-A40-438-080 ZENER,MTZJ4.7A ABCD................
IC 601 87-A20-954-040 C-IC,M62445FP-601 ABCD................
J 601 87-A60-402-010 JACK,PIN 6P R/W HSP-246V30 A...................
J 601 87-A60-426-010 JACK,PIN 6P YKC21-3835 .BCD................
Q 601 87-026-609-080 TR,KTA1266GR ABCD................
ELECTRICAL MAIN PARTS LIST - 1 (FRONT ASSY 8ZZ-4)
NOTE: The characters in the suffix column indicate the part usage.
EZSM ...................XX..................................A...................
KSTM ...................XX...................................B..................
EZ1M ...................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 101 87-010-075-040 CAP,E 10-16 5L ABC.................
C 105 87-010-178-080 CHIP CAP 1000P ABC.................
C 109 87-010-194-080 CAP, CHIP 0.047 ABC.................
C 108 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 103 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 102 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 107 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 104 87-010-494-040 CAP,E 1-50 GAS ABC.................
C 106 87-A10-189-040 CAP,E 220-10 ABC.................
C 114 87-010-182-080 C-CAP,S 2200P-50 B ABC.................
C 115 87-010-182-080 C-CAP,S 2200P-50 B ABC.................
C 119 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 118 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 112 87-010-312-080 C-CAP,S 15P-50 CH ABC.................
C 113 87-010-316-080 C-CAP,S 33P-50 CH ABC.................
C 111 87-010-320-080 CHIP CAP 68P ABC.................
C 116 87-010-405-040 CAP,E 10-50 ABC.................
C 110 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
C 117 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
C 121 87-010-194-080 CAP, CHIP 0.047 ABC.................
C 122 87-010-194-080 CAP, CHIP 0.047 ABC.................
C 120 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 124 87-010-555-040 CAP,E 100-10 GAS ABC.................
C 151 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 201 87-010-178-080 CHIP CAP 1000P ABC.................
C 202 87-010-194-080 CAP, CHIP 0.047 ABC.................
C 205 87-010-404-040 CAP,E 4.7-50 SME ABC.................
C 204 87-010-404-040 CAP,E 4.7-50 SME ABC.................
C 203 87-010-408-040 CAP,E 47-50 SME ABC.................
C 375 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 371 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 377 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 373 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 372 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 376 87-012-158-080 C-CAP,S 390P-50 CH ABC.................
C 408 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 404 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 406 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
D 102 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 104 87-A40-270-080 C-DIODE,MC2838 ABC.................
D 105 87-A40-270-080 C-DIODE,MC2838 ABC.................
D 107 87-A40-470-080 DIODE,1SS254 ABC.................
D 101 87-A40-470-080 DIODE,1SS254 A.C.................
D 108 87-A40-470-080 DIODE,1SS254 A.C.................
D 106 87-A40-470-080 DIODE,1SS254 ABC.................
D 103 87-A40-509-080 ZENER,MTZJ6.8C ABC.................
D 310 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 311 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 316 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 315 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 312 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 317 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 314 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 313 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 328 87-A40-470-080 DIODE,1SS254 ABC.................
D 325 87-A40-470-080 DIODE,1SS254 A.C.................
D 372 87-A40-470-080 DIODE,1SS254 ABC.................
D 373 87-A40-470-080 DIODE,1SS254 ABC.................
D 371 87-A40-470-080 DIODE,1SS254 ABC.................
D 374 87-A40-470-080 DIODE,1SS254 ABC.................
D 404 87-A40-470-080 DIODE,1SS254 ABC.................
D 405 87-A40-470-080 DIODE,1SS254 ABC.................
D 402 87-A40-470-080 DIODE,1SS254 ABC.................
D 401 87-A40-470-080 DIODE,1SS254 ABC.................
D 403 87-A40-470-080 DIODE,1SS254 ABC.................
D 701 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 801 87-A40-470-080 DIODE,1SS254 A.C.................
FL 201 88-NF6-611-010 FL,BJ610GK ABC.................
IC 102 87-070-083-010 IC,GP1U281X ABC.................
IC 101 88-NF7-690-010 C-IC,LC866560W-5G73 ABC.................
IC 371 87-A20-083-010 IC,BA3835S ABC.................
IC 401 87-017-915-080 IC,BU4094BCF ABC.................
IC 402 87-017-915-080 IC,BU4094BCF ABC.................
IC 403 87-017-915-080 IC,BU4094BCF ABC.................
IC 404 87-070-289-040 IC,BU 2092F ABC.................
LED 409 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 401 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 406 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 405 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 403 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 402 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
ELECTRICAL MAIN PARTS LIST - 2 (FRONT ASSY 8ZZ-4)
LED 407 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 404 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 408 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 410 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 413 87-070-201-080 LED,SLP9118C-51-S-T1 ABC.................
LED 411 87-070-201-080 LED,SLP9118C-51-S-T1 ABC.................
LED 414 87-070-201-080 LED,SLP9118C-51-S-T1 ABC.................
LED 415 87-070-201-080 LED,SLP9118C-51-S-T1 ABC.................
LED 412 87-070-201-080 LED,SLP9118C-51-S-T1 ABC.................
LED 419 87-070-281-080 LED,SLZ736A-25-S-T1 ABC.................
LED 417 87-070-281-080 LED,SLZ736A-25-S-T1 ABC.................
LED 423 87-070-281-080 LED,SLZ736A-25-S-T1 ABC.................
LED 425 87-070-281-080 LED,SLZ736A-25-S-T1 ABC.................
LED 421 87-070-281-080 LED,SLZ736A-25-S-T1 ABC.................
LED 427 87-070-281-080 LED,SLZ736A-25-S-T1 ABC.................
LED 429 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN ABC.................
LED 428 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN ABC.................
LED 439 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 438 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 434 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN ABC.................
LED 437 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN ABC.................
LED 433 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN ABC.................
LED 435 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN ABC.................
LED 432 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN ABC.................
LED 431 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN ABC.................
LED 436 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN ABC.................
LED 430 87-A40-446-040 LED,SLP-7131F-81H-S-T1 P-GRN ABC.................
LED 442 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 441 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 443 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 440 87-070-197-080 LED,SLP7118C-51-S-T1 ABC.................
LED 447 87-070-278-010 LED,SLZ-738A-24-S ABC.................
LED 444 87-070-278-010 LED,SLZ-738A-24-S ABC.................
LED 446 87-070-278-010 LED,SLZ-738A-24-S ABC.................
LED 449 87-070-278-010 LED,SLZ-738A-24-S ABC.................
LED 445 87-070-290-010 LED,SLZ 936-30-S ABC.................
LED 448 87-070-290-010 LED,SLZ 936-30-S ABC.................
Q 102 87-026-263-080 C-TR,RN1410 ABC.................
Q 104 87-026-610-080 TR,KTC3198GR ABC.................
Q 103 87-A30-071-080 C-TR,RT1N 144C ABC.................
Q 101 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 301 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 406 87-026-580-080 C-TR,DTA123JK ABC.................
Q 404 87-026-580-080 C-TR,DTA123JK ABC.................
Q 403 87-026-580-080 C-TR,DTA123JK ABC.................
Q 407 87-026-580-080 C-TR,DTA123JK ABC.................
Q 405 87-026-580-080 C-TR,DTA123JK ABC.................
Q 401 87-A30-073-080 C-TR,RT1N 141C ABC.................
Q 402 87-A30-073-080 C-TR,RT1N 141C ABC.................
Q 409 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 408 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 415 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 414 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 417 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 411 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 419 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 418 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 413 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 410 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 416 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 412 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 424 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 423 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 422 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 420 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 421 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 704 87-A30-073-080 C-TR,RT1N 141C ABC.................
Q 702 87-A30-085-070 C-TR,CSA1362GR ABC.................
Q 703 87-A30-085-070 C-TR,CSA1362GR ABC.................
Q 701 89-112-965-080 TR,2SA1296 (0.75W) ABC.................
S 102 87-A90-535-010 SW,RTRY EC16B24304 ABC.................
S 101 87-A90-792-010 SW,RTRY EC12E12244 ENCORDER ABC.................
S 304 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 303 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 307 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 302 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 309 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 306 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 301 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 308 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 305 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 311 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 312 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 313 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 314 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 310 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 328 87-A90-095-080 SW,TACT EVQ11G04M A.C.................
S 322 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 323 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 329 87-A90-095-080 SW,TACT EVQ11G04M A.C.................
S 324 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 327 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 325 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 321 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 326 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 330 87-A90-095-080 SW,TACT EVQ11G04M A.C.................
S 333 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 347 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 341 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 344 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 349 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 342 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 345 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 346 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 348 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 343 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 355 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 351 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 354 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 350 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 353 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 352 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
X 101 87-A70-070-080 VIB,CER 5.76MHZ CRHF ABC.................
C 505 87-010-180-080 C-CER 1500P ABC.................
C 509 87-010-181-080 CAP,CHIP S 1800P ABC.................
C 504 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 508 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 507 87-010-213-080 C-CAP,S 0.015-50 B ABC.................
C 506 87-010-213-080 C-CAP,S 0.015-50 B ABC.................
C 501 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
C 502 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
C 503 87-012-393-080 C-CAP,S 0.22-16 R K ABC.................
C 516 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 515 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 518 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 510 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 519 87-010-263-040 CAP,E 100-10 ABC.................
C 512 87-010-374-040 CAP,E 47-10 ABC.................
C 513 87-010-401-040 CAP,E 1-50 SME ABC.................
C 514 87-010-401-040 CAP,E 1-50 SME ABC.................
C 511 87-010-544-040 CAP,E 0.1-50 SME ABC.................
C 523 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABC.................
C 602 87-010-186-080 CAP,CHIP 4700P ABC.................
C 608 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 605 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 607 87-010-321-080 CHIP CAPACITOR,82P(J) ABC.................
C 606 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 601 87-010-405-040 CAP,E 10-50 ABC.................
C 603 87-010-405-040 CAP,E 10-50 ABC.................
C 604 87-010-406-040 CAP,E 22-50 SME ABC.................
C 609 87-010-545-040 CAP,E 0.22-50 SME ABC.................
C 612 87-010-176-080 C-CAP,S 680P-50 SL ABC.................
C 611 87-010-177-080 C-CAP,S 820P-50 SL ABC.................
C 614 87-010-248-040 CAP,E 220-10 SME ABC.................
C 610 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 653 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 652 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 651 87-010-401-040 CAP,E 1-50 SME ABC.................
D 501 87-017-931-080 ZENER,MTZJ5.6B ABC.................
D 601 87-A40-470-080 DIODE,1SS254 ABC.................
D 651 87-A40-470-080 DIODE,1SS254 ABC.................
FB 601 87-008-372-080 FILTER, EMI BL OIRNI ABC.................
IC 501 87-A20-613-040 C-IC,BU9262AFS ABC.................
IC 601 87-017-888-080 IC,NJM4558MD ABC.................
J 601 87-A60-284-010 JACK,3.5MO (MSC) ABC.................
J 602 87-A60-284-010 JACK,3.5MO (MSC) ABC.................
L 501 87-005-212-080 COIL,220UH ABC.................
Q 602 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 603 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 601 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 651 87-A30-076-080 C-TR,2SC3052F ABC.................
C 902 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 901 87-010-263-040 CAP,E 100-10 ABC.................
C 903 87-010-313-080 CAP, CHIP 18P ABC.................
C 905 87-010-400-040 CAP,E 0.47-50 ABC.................
C 904 87-012-155-080 C-CAP 180P-50CH ABC.................
D 901 87-070-136-080 ZENER,MTZJ5.1B ABC.................
D 902 87-A40-470-080 DIODE,1SS254 ABC.................
IC 901 88-NF5-615-040 C-IC,MSM6654A-521GS-KR1 ABC.................
L 901 87-007-340-010 COIL,CLOCK 4.19MHZ ABC.................
ELECTRICAL MAIN PARTS LIST - 3 (FRONT ASSY 8ZZ-4)
MECHANICAL PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
KSTE ...................XX...................................B..................
EZSE ...................XX....................................C.................
8EZE ...................XX.....................................D................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
86-NF6-007-010 WINDOW,TOP ABCD................
86-NF6-101-010 WINDOW TOP UL ....................
87-NB8-005-010 PANEL,LEFT ABCD................
87-NB8-051-010 PANEL,LEFT U ....................
87-NF6-021-010 PANEL,TOP ABCD................
88-NF6-001-010 CABI,FR U ....................
88-NF6-002-010 CABI,REAR USTNM ....................
88-NF6-003-010 BOX,CASS 1 A...................
88-NF6-004-010 BOX,CASS 2 A...................
88-NF6-005-010 PANEL,FR A...................
88-NF6-006-010 PANEL,TRAY ABCD................
88-NF6-007-010 PANEL,CD A...................
88-NF6-012-010 WINDOW,DISPLAY ....................
88-NF6-013-010 WINDOW,CASS 1 A...................
88-NF6-014-010 WINDOW,CASS 2 A...................
88-NF6-018-010 CABI,FR H A...................
88-NF6-018-110 CABI,FR H ....................
88-NF6-058-010 CABI,REAR LHSTNM A...................
88-NF6-059-010 CABI,REAR HRJSTNM ....................
88-NF6-060-010 CABI,REAR KSTNE .B..................
88-NF6-061-010 CABI,REAR EZSTNE 707 ..C.................
88-NF6-062-010 CABI,REAR VJSTNM ....................
88-NF6-064-010 CABI,REAR LHSTNM 708 ....................
88-NF6-065-010 CABI,REAR HEJSTNM 706 ....................
88-NF6-066-010 CABI,FR E ....................
88-NF6-069-010 PANEL,FR K ....................
88-NF6-070-010 WINDOW,DSPLY H 708 ....................
88-NF6-071-010 WINDOW,DSPLY H 706 ....................
88-NF6-072-010 CABI,REAR USTN ....................
88-NF6-073-010 WINDOW,DSPLY H 707 A...................
88-NF6-075-010 CABI,REAR EZSTNE 708 ...D................
88-NF6-076-010 CABI,REAR HEJSTNM 707 ....................
88-NF6-077-010 CABI,REAR HRSTNM 706 ....................
88-NF6-078-010 CABI,REAR HRJSTNM 708 ....................
88-NF8-047-010 PANEL,RIGHT 2 ABCD................
88-NF8-048-010 PANEL,RIGHT 2 U ....................
88-NF6-015-010 KNOB,RTRY VOL A...................
88-NF6-015-110 KNOB,RTRY VOL ....................
88-NF6-016-010 KNOB,RTRY JOG A...................
88-NF6-016-110 KNOB,RTRY JOG ....................
88-NF6-017-010 RING,VOL A...................
88-NF6-021-010 KEY,ASSY DISC A...................
88-NF6-025-010 KEY,OPEN A...................
88-NF6-026-010 KEY,POWER A...................
88-NF6-027-010 KEY,BBE A...................
88-NF6-029-010 KEY,JOG A...................
88-NF6-030-010 KEY,ASSY FUN A...................
88-NF6-036-010 KEY,MIC A...................
88-NF6-037-010 KEY,REC A...................
88-NF6-038-010 KEY,KARAOKE A...................
88-NF6-040-010 KEY,REC E ....................
88-NF6-041-010 KEY,ASSY OPE A...................
81-532-080-010 LABEL, CASS. COMPT A...................
86-NF6-061-010 REFLECTOR,CASS A...................
88-NF6-008-010 PLATE,CASS 1 A...................
88-NF6-009-010 PLATE,CASS 2 A...................
88-NF6-050-010 REFLECTOR,JOG A...................
88-NF6-079-010 LBL,CPA 708 ....................
CN 0 87-NF6-616-010 CONN ASSY,8P RPB ABCD................
84-ZG1-245-210 CAP,OPTICAL ABCD................
82-NF5-218-010 SPR-T,EJECT 1 (SIN) ABCD................
82-NF5-219-010 SPR-T,EJECT 2 (SIN) ABCD................
82-NF5-229-010 PLATE,LOCK A...................
86-NF9-224-010 SPR-C,LOCK A...................
87-NF4-216-010 HLDR,LOCK 1 A...................
87-NF4-217-010 HLDR,LOCK 2 A...................
87-NF8-220-010 DMPR,150 A...................
87-067-641-010 UTT2+3-8(W/O SLOT)BL ABCD................
87-067-688-010 BVTT+3-6 ABCD................
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCD................
87-078-019-010 S-SCREW,IT+4-6 ABCD................
87-591-094-410 TAPPING SCREW, QIT+3-6 ....................
87-721-096-410 QT2+3-10 GLD ABCD................
87-721-097-410 QT2+3-12 GLD ABCD................
87-NF4-224-010 S-SCREW,IT3B+3-8 CU ABCD................
85-NF5-617-010 CABLE,FFC 6P-1.25 A...................
85-NF5-618-010 CABLE,FFC 13P-1.25 A...................
87-085-185-010 BUSHING, AC CORD (E) ABCD................
87-085-189-010 BUSHING, CORD (U) ....................
87-098-274-010 LABEL FUSE 6A-125V ....................
88-906-241-110 FF-CABLE,6P 1.25 ABCD................
88-915-221-110 FF-CABLE, 15P 1.25 220MM A...................
C 205 87-010-402-010 CAP,ELECT 2.2-50SME .BCD................
C 206 87-010-402-010 CAP,ELECT 2.2-50SME .BCD................
F 101 87-035-367-010 FUSE, 3.15A 250V .B..................
F 101 87-035-368-010 FUSE, 4A 250V A.CD................
F 102 87-035-368-010 FUSE, 4A 250V A.CD................
F 101 87-035-491-010 FUSE,6A 125V D UL ....................
PT 101 88-NF6-621-010 PT,8NF-6 U ....................
PT 101 88-NF6-622-010 PT,8NF-6 HR ....................
PT 101 88-NF6-623-010 PT,8NF-6 EZ ..CD................
PT 101 88-NF6-624-010 PT,8NF-6 LH A...................
PT 101 88-NF6-626-010 PT,8NF-6 KVG .B..................
W 101 87-050-034-010 AC CORD ASSY,E ..CD................
W 101 87-050-053-010 AC CORD ASSY,U-2 ....................
W 101 87-050-079-010 AC-CORD ASSY,E A...................
W 101 87-A80-023-010 AC CORD,ASSY K 3P W .B..................
87-NF5-210-010 GUIDE,LED A...................
88-NF6-203-010 GUIDE,LED JOG A...................
88-NF6-204-010 GUIDE,LED OPE A...................
88-NF6-204-110 GUIDE,LED OPE ....................
88-NF6-205-010 GUIDE,FL 40-150- 9 A...................
W 104 85-NF5-628-010 F-CABLE 7P-2.5 ABCD................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ABCD................
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCD................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ....................
MECHANICAL PARTS LIST - 2
MECHANICAL PARTS LIST - 1 (FRONT ASSY 8ZZ-4)
NOTE: The characters in the suffix column indicate the part usage.
EZSM ...................XX..................................A...................
KSTM ...................XX...................................B..................
EZ1M ...................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-NF6-003-010 BOX,CASS 1 ABC.................
88-NF6-004-010 BOX,CASS 2 ABC.................
88-NF6-007-010 PANEL,CD ABC.................
88-NF6-013-010 WINDOW,CASS 1 ABC.................
88-NF6-014-010 WINDOW,CASS 2 ABC.................
88-NF6-020-010 WINDOW,DISPLAY E 707 A...................
88-NF6-066-010 CABI,FR E ABC.................
88-NF6-068-010 PANEL,FR E A.C.................
88-NF6-069-010 PANEL,FR K .B..................
88-NF6-073-010 WINDOW,DSPLY H 707 .B..................
88-NF6-074-010 WINDOW,DSPLY E 708 ..C.................
88-NF6-015-010 KNOB,RTRY VOL ABC.................
88-NF6-016-010 KNOB,RTRY JOG ABC.................
88-NF6-017-010 RING,VOL ABC.................
88-NF6-021-010 KEY,ASSY DISC ABC.................
88-NF6-025-010 KEY,OPEN ABC.................
88-NF6-026-010 KEY,POWER ABC.................
88-NF6-027-010 KEY,BBE ABC.................
88-NF6-029-010 KEY,JOG ABC.................
88-NF6-030-010 KEY,ASSY FUN ABC.................
88-NF6-036-010 KEY,MIC ABC.................
88-NF6-038-010 KEY,KARAOKE .B..................
88-NF6-039-010 KEY,RDS A.C.................
88-NF6-040-010 KEY,REC E ABC.................
88-NF6-055-010 KEY,ASSY PLAY ABC.................
88-NF6-057-010 KEY,ASSY PAUSE ABC.................
81-532-080-010 LABEL, CASS. COMPT ABC.................
86-NF6-061-010 REFLECTOR,CASS ABC.................
88-NF6-008-010 PLATE,CASS 1 ABC.................
88-NF6-009-010 PLATE,CASS 2 ABC.................
88-NF6-050-010 REFLECTOR,JOG ABC.................
82-NF5-229-010 PLATE,LOCK ABC.................
86-NF9-224-010 SPR-C,LOCK ABC.................
87-NF4-216-010 HLDR,LOCK 1 ABC.................
87-NF4-217-010 HLDR,LOCK 2 ABC.................
87-NF8-220-010 DMPR,150 ABC.................
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABC.................
85-NF5-617-010 CABLE,FFC 6P-1.25 ABC.................
85-NF5-618-010 CABLE,FFC 13P-1.25 ABC.................
88-915-221-110 FF-CABLE, 15P 1.25 220MM ABC.................
DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
TAPE MECHANISM PART LIST - 1
1 82-ZM3-301-519 CHAS ASSY,M2
2 82-ZM1-258-110 SPR-T,PINCH L
3 82-ZM1-341-110 LVR ASSY,PINCH L2
4 82-ZM1-333-010 PLATE,LINK 2
5 82-ZM1-266-11K LVR,DIR
6 82-ZM1-214-010 SPR-T,DIR
7 82-ZM1-206-81K CHAS,HEAD
8 82-ZM3-307-019 CUSH-G,DIA3.7-8-3.2
9 82-ZM1-269-219 SPR-T,BRG
10 82-ZM1-219-119 SPR-T,LINK
11 82-ZM1-210-119 GEAR,H T
12 82-ZM1-213-019 SPR-T,HEAD
13 82-ZM1-207-619 GUIDE,TAPE
14 86-ZM4-206-010 S-SCREW,AZIMUTH
15 82-ZM1-314-119 PLATE,HEAD
16 82-ZM1-208-119 HLDR,HEAD
17 82-ZM1-218-019 SPR-E,HB
18 82-ZM1-263-110 LVR,EJECT L (DECK 1)
18 82-ZM1-264-010 LVR,EJECT R (DECK 2)
19 82-ZM1-222-21K LVR,PLAY
20 82-ZM1-217-319 REEL TABLE
21 82-ZM1-244-510 SPR-C,BT
22 82-ZM1-285-310 SPR-C,BT L
23 82-ZM1-257-019 SPR-T,CAS
24 82-ZM1-241-319 LVR,MC
25 82-ZM1-242-019 LVR,CAS
26 82-ZM1-243-019 LVR,STOP
27 82-ZM1-344-110 LVR ASSY,PINCH R2
28 82-ZM1-259-110 SPR-T,PINCH R
29 82-ZM1-240-11K LVR,REC (DECK 2)
31 82-ZM1-255-319 SPR-E,LVR DIR
32 82-ZM3-305-01K GEAR,CAM M2
33 82-ZM1-227-21K LVR,TRIG
34 82-ZM3-306-11K LVR,FR M2
35 82-ZM1-265-119 SPR-E,TRIG
36 82-ZM1-236-019 CAPSTAN N 2-41.5
37 82-ZM1-239-019 CAPSTAN N 2.2-41.7
38 82-ZM1-322-019 SPR-T,FR60
39 82-ZM1-220-219 GEAR,IDLER
40 82-ZM3-616-019 RING MAGNET 4
41 82-ZM1-216-31K GEAR,REEL
42 87-A90-319-010 HEAD,PH HADKH2 FPC
42 87-A90-320-010 HEAD,RPH HADKH5 FPC
43 82-ZM1-225-21K GEAR,FR
44 82-ZM1-226-019 GEAR,REW
45 82-ZM3-333-310 SLIP DISK ASSY 2
46 82-ZM1-338-010 BELT FR4
47 82-ZM1-349-110 FLY-WHL,R W(DECK 2)
47 82-ZM3-338-110 FLY-WHL,R3 W(DECK 1)
48 82-ZM1-348-010 FLY-WHL,L W(DECK 2)
48 82-ZM1-348-010 FLY-WHL,L W(DECK 1)
49 82-ZM3-329-210 BELT,SBU R2
50 82-ZM1-245-210 HLDR,IC
51 87-045-347-019 MOT,SHU2L 70(M1)
52 82-ZM3-221-010 PULLEY,MOT 2M
53 82-ZM1-288-019 SH,1.63-3.2-0.5 SLT
54 80-ZM6-243-019 SH,1.75-3.6-0.5 SLT
55 82-ZM3-335-210 PULLEY,COUPLER M3(DECK 1)
56 82-ZM3-337-010 BELT,SBU MOT 2
57 82-ZM3-339-010 SHAFT,COUPLER N3(DECK 1)
58 86-ZM1-206-010 BELT,MAIN L
59 82-ZM3-340-010 SH,BELT D2
A 85-ZM3-202-010 S-SCREW,TG
B 80-ZM6-207-019 V+1.6-7
C 82-ZM3-318-019 S-SCRW MOTOR M2
D 87-B10-043-010 W-P,0.99-4-0.25 SLT
E 82-ZM3-334-010 PW,2.16-6-0.4
ACCESSORIES / PACKAGE LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
KSTE ...................XX...................................B..................
EZSE ...................XX....................................C.................
8EZE ...................XX.....................................D................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-NF6-866-010 CTN,PRINTED 706HRSTNM ....................
88-NF6-867-010 CTN,PRINTED VJSTNM ....................
88-NF6-868-010 CTN,PRINTED 708HRJSTNM ....................
87-056-177-010 LIST,FACILITY-A3 .BCD................
87-B50-043-010 LIST,FACILITY-A5 ....................
88-NF6-901-010 IB,H(ECA)M ....................
88-NF6-901-210 IB,H(ECA)M ....................
88-NF6-902-010 IB,LH(ESP)M A...................
88-NF6-902-110 IB,LH(ESP)M ....................
88-NF6-903-010 IB,U(ESF)M ....................
88-NF6-903-110 IB,U(ESF)M ....................
88-NF6-905-010 IB,K(E)E .B..................
88-NF6-906-010 IB,E(9L)E ..CD................
88-NF6-907-010 IB,V(ER)M ....................
88-NF6-976-010 LBL,POP VJL ....................
87-006-269-010 AM LOOP ANT (UN) ....................
87-043-095-010 WIRE ANTENNA ....................
87-043-106-010 WIRE, FM ANT (Z) .BCD................
87-043-115-010 ANT,FEEDER FM ....................
87-099-789-010 PLUG,ADPTR IR44 ....................
87-A90-064-010 FEEDER-ANT,FM(SHS) A...................
87-A90-312-010 PLUG,CONVERSION WTN-1157R1 A...................
87-NF6-635-010 RC UNIT,RC-7AS06 ABCD................
ANT 0 87-006-225-010 AM LOOP ANT NC2 ABCD................

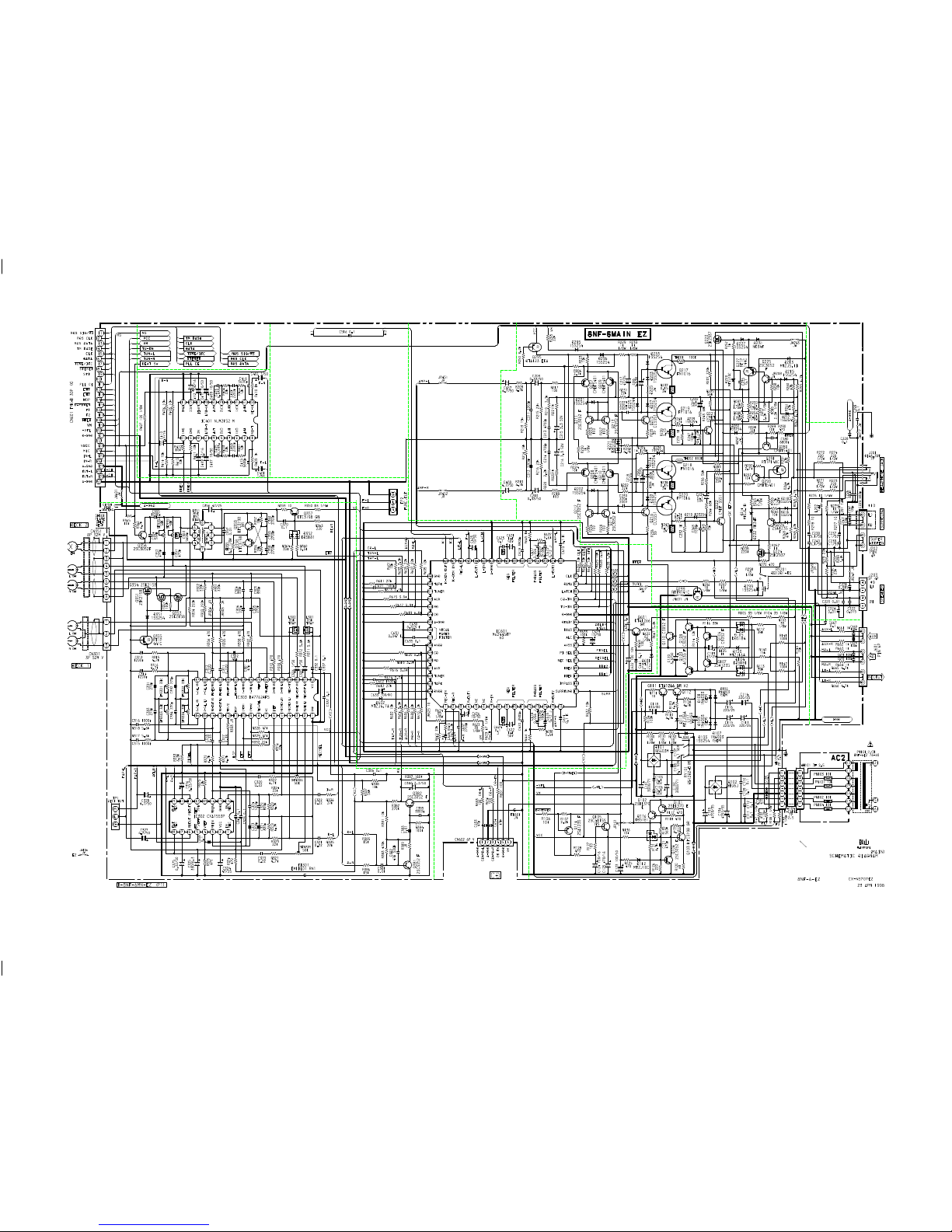

SCHEMATIC DIAGRAM _1 (MAIN : EZ)
SCHEMATIC DIAGRAM _2 (MAIN : K)

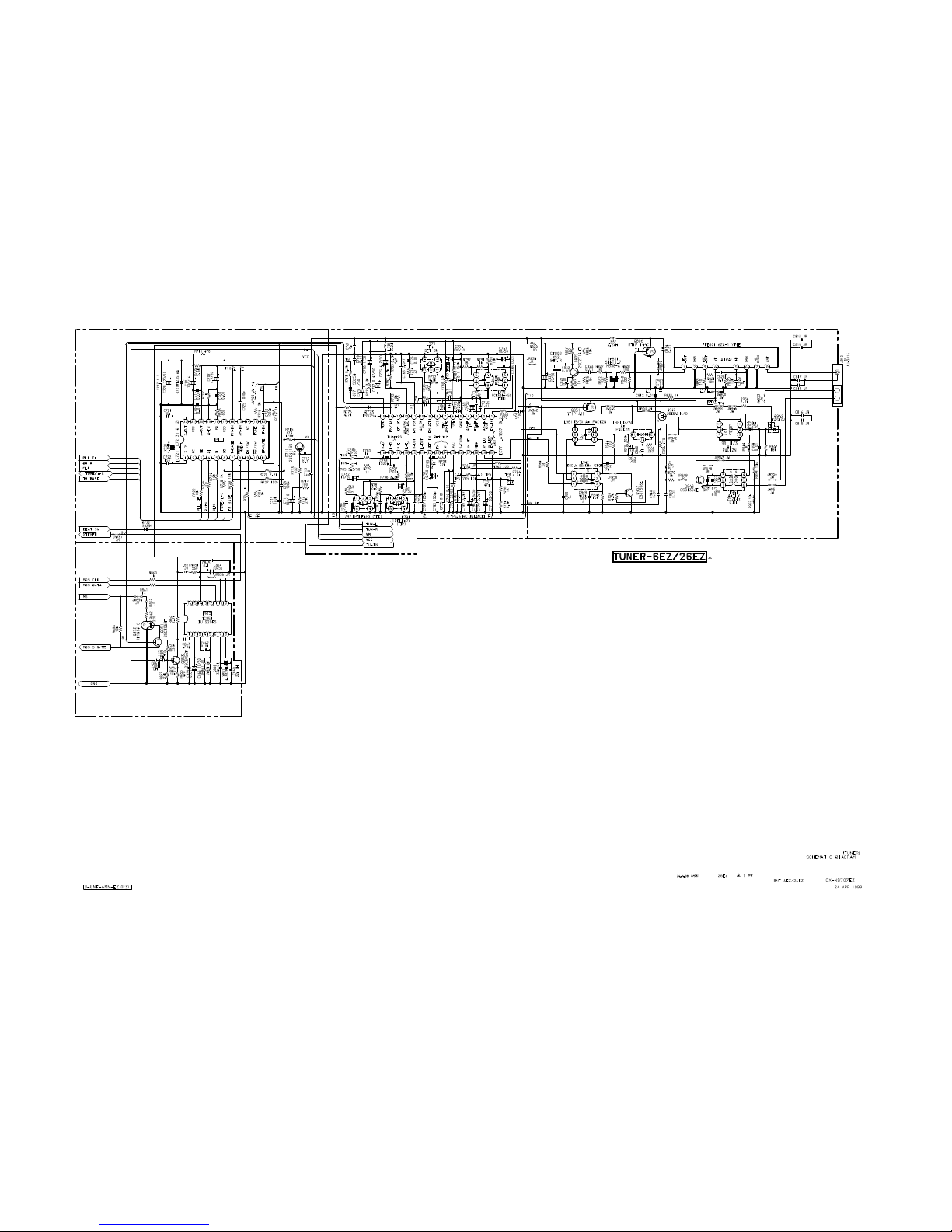

SCHEMATIC DIAGRAM _3 (TUNER : EZ)
This manual suits for next models
5
Table of contents
Other Aiwa Portable Stereo System manuals
Popular Portable Stereo System manuals by other brands
JVC
JVC RV-B55 GY/BU/LTD instructions
auna
auna Spacewoofer instruction manual
Magnavox
Magnavox AZ9055 - Portable Radio Cass Rec user manual
Audiovox Electronics
Audiovox Electronics Shuttle Boom Box SIR-BB3 user guide
Enabling Devices
Enabling Devices Naxa 393 user guide
Panasonic
Panasonic RXED90 - RADIO CASSETTE W/CD operating instructions
