S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with "Revision Publishing" when it is issued.
NSX-S989
• TYPE:EZ<S989>
EZ,K<S999>
S/M Code No. 09–993–404–2T2
COMPACT DISC /
STEREO CASSETTE RECEIVER
ELECTRICAL MAIN PARTS LIST - 1/7
NOTE: The characters in the suffix column indicate the part usage.
HR .....................XX..................................A...................
LH .....................XX...................................B..................
U ......................XX....................................C.................
K ......................XX.....................................D................
89EZ ...................XX......................................E...............
99EZ ...................XX.......................................F..............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 606 87-010-112-040 CAP,E 100-16 ABC.E...............
C 601 87-010-186-080 CAP,CHIP 4700P ABC.E...............
C 607 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.E...............
C 605 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.E...............
C 603 87-010-320-080 CHIP CAP 68P ABC.E...............
C 602 87-010-405-040 CAP,E 10-50 ABC.E...............
C 604 87-010-546-040 CAP,E 0.33-50 ABC.E...............
C 652 87-010-183-080 C-CAP,S 2700P-50 B ABC.E...............
C 653 87-010-213-080 C-CAP,S 0.015-50 B ABC.E...............
FB 601 87-A50-190-080 C-COIL,S BLM21A102S ABC.E...............
J 601 87-A60-651-010 JACK,3.5MONO ABC.E...............
J 602 87-A60-651-010 JACK,3.5MONO ABC.E...............
Q 604 87-A30-075-080 C-TR,2SA1235F ABC.E...............
Q 603 87-A30-076-080 C-TR,2SC3052F ABC.E...............
Q 602 87-A30-076-080 C-TR,2SC3052F ABC.E...............
Q 601 87-A30-087-080 C-FET,2SK2158 ABC.E...............
* 8Z-NF5-207-010 HLDR,PWB PT ABCDEF..............
C 1 87-010-387-080 CAP,E 470-25 SME ABCDEF..............
C 8 87-016-520-000 CAP,E 3300-65 M SMG ..C.................
C 9 87-016-520-000 CAP,E 3300-65 M SMG ..C.................
C 9 87-A10-231-090 CAP,E 3300-80 AB.DEF..............
C 8 87-A10-231-090 CAP,E 3300-80 AB.DEF..............
C 5 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEF..............
C 3 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEF..............
C 4 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEF..............
C 6 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEF..............
C 31 87-010-403-080 CAP, ELECT 3.3-50V ABCDEF..............
C 33 87-A10-479-080 CAP,CER 2200P-250 M E KH ABCDEF..............
CN 1 87-A60-851-010 CONN,9P V VH ABCDEF..............
D 4 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
D 5 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
D 2 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
D 1 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
D 3 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
D 6 87-A40-549-090 DIODE,RBA-1002 ABCDEF..............
D 32 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
D 31 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
PR 4 87-026-682-080 PROTECTOR,10A 60V491 AB.DEF..............
PR 5 87-026-682-080 PROTECTOR,10A 60V491 AB.DEF..............
PR 2 87-026-682-080 PROTECTOR,10A 60V491 AB.DEF..............
PR 3 87-026-682-080 PROTECTOR,10A 60V491 AB.DEF..............
PR 3 87-026-691-080 FUSE,10A 125V 251 ..C.................
PR 4 87-026-691-080 FUSE,10A 125V 251 ..C.................
PR 2 87-026-691-080 FUSE,10A 125V 251 ..C.................
PR 5 87-026-691-080 FUSE,10A 125V 251 ..C.................
PR 1 87-A91-276-080 FUSE,125MA 125V F 251 ..C.................
PT 2 8Z-NF8-661-010 PT,SUB ZNF-8(U) ..C.................
PT 2 8Z-NF8-662-010 PT,SUB ZNF-8(E) ...DEF..............
PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) AB..................
Q 31 87-026-245-080 TR,DTC114ES ABCDEF..............
Q 32 87-A30-198-080 TR,KTC3199GR ABCDEF..............
RY 2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR ..CDEF..............
RY 1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 AB..................
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 AB..................
T 1 87-A60-317-010 TERMINAL, 1P MSC ABCDEF..............
T 2 87-A60-317-010 TERMINAL, 1P MSC ABCDEF..............
* 88-NF5-204-010 GUIDE,FL ABC.E...............
* 8Z-NF5-201-010 GUIDE,FUN ABC.E...............
* 8Z-NF5-202-010 GUIDE,JOG ABC.E...............
* 8Z-NF5-203-010 GUIDE,CD ABC.E...............
* 8Z-NF5-208-010 GUIDE,OPE ABC.E...............
C 106 87-010-154-080 CAP CHIP 10P ABC.E...............
C 103 87-010-178-080 CHIP CAP 1000P ABC.E...............
C 105 87-010-316-080 C-CAP,S 33P-50 CH ABC.E...............
C 108 87-010-560-040 CAP,E 10-50 GAS ABC.E...............
C 115 87-010-198-080 CAP, CHIP 0.022 ABC.E...............
C 116 87-010-493-040 CAP,E 0.47-50 GAS ABC.E...............
C 117 87-010-498-040 CAP,E 10-16 GAS ABC.E...............
C 112 87-016-081-080 C-CAP,S 0.1-16 RK ABC.E...............
C 113 87-A11-242-040 CAP,E 220-10 M 5L SRM ABC.E...............
C 118 87-A11-242-040 CAP,E 220-10 M 5L SRM ABC.E...............
C 122 87-010-178-080 CHIP CAP 1000P ABC.E...............
C 121 87-012-368-080 C-CAP,S 0.1-50 F ABC.E...............
C 152 87-010-194-080 CAP, CHIP 0.047 ....................
C 154 87-010-264-040 CAP,E 100-10 5L ABC.E...............
C 151 87-012-369-080 C-CAP,S 0.047-50F ABC.E...............
C 186 87-010-182-080 C-CAP,S 2200P-50 B ABC.E...............
C 185 87-010-197-080 CAP, CHIP 0.01 DM ABC.E...............
C 202 87-010-177-080 C-CAP,S 820P-50 SL ABC.E...............
C 223 87-010-408-040 CAP,E 47-50 SME ABC.E...............
C 222 87-010-421-040 CAP,E 4.7-50 5L ABC.E...............
ELECTRICAL MAIN PARTS LIST - 2/7
C 221 87-010-421-040 CAP,E 4.7-50 5L ABC.E...............
C 224 87-012-369-080 C-CAP,S 0.047-50F ABC.E...............
C 387 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.E...............
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.E...............
C 382 87-012-158-080 C-CAP,S 390P-50 CH ABC.E...............
C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.E...............
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.E...............
C 404 87-010-319-080 C-CAP,S 56P-50 CH ABC.E...............
C 403 87-010-319-080 C-CAP,S 56P-50 CH ABC.E...............
C 405 87-010-319-080 C-CAP,S 56P-50 CH ABC.E...............
C 406 87-010-322-080 C-CAP,S 100P-50 CH ABC.E...............
C 407 87-010-322-080 C-CAP,S 100P-50 CH ABC.E...............
C 408 87-010-322-080 C-CAP,S 100P-50 CH ABC.E...............
CN 101 87-099-720-010 CONN,30P TYK-B(P) ABC.E...............
CN 104 87-A60-140-010 CONN,15P V FE ABC.E...............
CN 302 87-A60-131-010 CONN,6P V FE ABC.E...............
CN 301 87-A60-131-010 CONN,6P V FE ABC.E...............
CN 901 87-A60-138-010 CONN,13P V FE ABC.E...............
D 107 87-A40-270-080 C-DIODE,MC2838 ABC.E...............
D 109 87-A40-509-080 ZENER,MTZJ6.8C ABC.E...............
D 318 87-020-465-080 DIODE,1SS133 (110MA) ABC.E...............
D 385 87-017-932-080 ZENER,MTJ6.2B ABC.E...............
D 701 87-A40-269-080 C-DIODE,MC2836 ABC.E...............
FL 201 8Z-NF5-611-010 FL,BJ686GK-ZNF5 ABC.E...............
IC 103 87-A20-951-010 IC,TSOP1838RF1 ABC.E...............
IC 101 8Z-NF7-605-010 C-IC,LC876572W-**** ABC.E...............
IC 380 87-A21-023-040 C-IC,BA3835F ABC.E...............
IC 401 87-A21-021-040 C-IC,BU2099FV ABC.E...............
IC 402 87-A21-021-040 C-IC,BU2099FV ABC.E...............
L 101 87-A50-333-010 COIL,OSC 9.43MHZ ABC.E...............
LED 293 87-A40-589-040 LED,SLR-56VCT31 RED ABC.E...............
LED 418 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.E...............
LED 417 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.E...............
LED 416 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.E...............
LED 419 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.E...............
LED 420 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.E...............
LED 421 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.E...............
LED 434 87-A40-563-010 LED,SEL6515C-LF62 PGRN ABC.E...............
LED 433 87-A40-563-010 LED,SEL6515C-LF62 PGRN ABC.E...............
LED 435 87-A40-563-010 LED,SEL6515C-LF62 PGRN ABC.E...............
LED 436 87-A40-563-010 LED,SEL6515C-LF62 PGRN ABC.E...............
LED 461 87-A40-564-010 LED,SEL6215S-LF62 RED ABC.E...............
LED 462 87-A40-564-010 LED,SEL6215S-LF62 RED ABC.E...............
LED 474 87-A40-608-040 LED,SLV-312VC RED ABC.E...............
LED 471 87-A40-609-040 LED,SLV-312MC PG ABC.E...............
LED 473 87-A40-609-040 LED,SLV-312MC PG ABC.E...............
LED 475 87-A40-609-040 LED,SLV-312MC PG ABC.E...............
LED 481 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.E...............
LED 487 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.E...............
LED 483 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.E...............
LED 484 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.E...............
LED 482 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.E...............
LED 486 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.E...............
LED 485 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.E...............
LED 488 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.E...............
Q 102 87-026-610-080 TR,KTC3198GR ABC.E...............
Q 108 87-A30-073-080 C-TR,RT1N 141C ABC.E...............
Q 104 87-A30-087-080 C-FET,2SK2158 ABC.E...............
Q 101 87-A30-087-080 C-FET,2SK2158 ABC.E...............
Q 103 87-A30-087-080 C-FET,2SK2158 ABC.E...............
Q 262 87-A30-159-080 C-TR,KTA1298Y ABC.E...............
Q 266 87-A30-202-080 C-TR,RT1P441C ABC.E...............
Q 301 87-A30-076-080 C-TR,2SC3052F ABC.E...............
Q 703 87-A30-159-080 C-TR,KTA1298Y ABC.E...............
Q 702 87-A30-159-080 C-TR,KTA1298Y ABC.E...............
Q 701 87-A30-200-080 TR,2SA1585SR ABC.E...............
R 210 87-012-157-080 C-CAP,S 330P-50 CH ABC.E...............
R 212 87-012-157-080 C-CAP,S 330P-50 CH ABC.E...............
R 213 87-012-157-080 C-CAP,S 330P-50 CH ABC.E...............
S 101 87-A90-535-010 SW,RTRY EC16B24304 ABC.E...............
S 102 8Z-MA4-612-010 SW,RTRY REO 121SL10-12 ABC.E...............
S 305 87-A90-164-080 SW,TACT SKQAB(N) ABC.E...............
S 304 87-A90-164-080 SW,TACT SKQAB(N) ABC.E...............
S 306 87-A90-164-080 SW,TACT SKQAB(N) ABC.E...............
C 802 87-010-176-080 C-CAP,S 680P-50 SL ABC.E...............
C 803 87-010-187-080 CAP CHIP S5600P ABC.E...............
C 807 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.E...............
C 804 87-010-213-080 C-CAP,S 0.015-50 B ABC.E...............
C 806 87-010-401-040 CAP,E 1-50 SME ABC.E...............
C 809 87-012-155-080 C-CAP 180P-50CH ABC.E...............
C 801 87-012-156-080 C-CAP,S 220P-50 CH ABC.E...............
C 810 87-010-263-040 CAP,E 100-10 ABC.E...............
C 811 87-010-382-040 CAP,E 22-25 SME ABC.E...............
C 812 87-010-560-040 CAP,E 10-50 GAS ABC.E...............
D 801 87-017-931-080 ZENER,MTZJ5.6B ABC.E...............
IC 801 87-A21-051-040 C-IC,BU9990-03FS ABC.E...............
L 801 87-A50-093-010 COIL,CLOCK 5.76MHZ ABC.E...............
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 305 87-012-145-080 CAP, CHIP S 270P CH ABCDEF..............
C 306 87-012-145-080 CAP, CHIP S 270P CH ABCDEF..............
C 304 87-012-157-080 C-CAP,S 330P-50 CH ABCDEF..............
C 303 87-012-157-080 C-CAP,S 330P-50 CH ABCDEF..............
ELECTRICAL MAIN PARTS LIST - 3/7
C 315 87-010-178-080 CHIP CAP 1000P ABCDEF..............
C 316 87-010-178-080 CHIP CAP 1000P ABCDEF..............
C 313 87-010-179-080 CAP,CHIP S B1200P ABCDEF..............
C 314 87-010-179-080 CAP,CHIP S B1200P ABCDEF..............
C 312 87-010-198-080 CAP, CHIP 0.022 ABCDEF..............
C 311 87-010-198-080 CAP, CHIP 0.022 ABCDEF..............
C 319 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABCDEF..............
C 317 87-012-142-080 CAP, S 0.33-16 ABCDEF..............
C 318 87-012-142-080 CAP, S 0.33-16 ABCDEF..............
C 324 87-010-260-080 CAP, ELECT 47-25V ABCDEF..............
C 325 87-010-370-080 CAP,E 330-6.3 SME ABCDEF..............
C 328 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 327 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 320 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABCDEF..............
C 322 87-012-142-080 CAP, S 0.33-16 ABCDEF..............
C 321 87-012-142-080 CAP, S 0.33-16 ABCDEF..............
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 335 87-010-401-080 CAP, ELECT 1-50V ABCDEF..............
C 336 87-010-401-080 CAP, ELECT 1-50V ABCDEF..............
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 354 87-010-175-080 CAP 560P ABCDEF..............
C 359 87-010-183-080 C-CAP,S 2700P-50 B ABCDEF..............
C 358 87-010-183-080 C-CAP,S 2700P-50 B ABCDEF..............
C 357 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 356 87-010-260-080 CAP, ELECT 47-25V ABCDEF..............
C 351 87-012-140-080 CAP 470P ABCDEF..............
C 352 87-012-140-080 CAP 470P ABCDEF..............
C 355 87-012-349-080 C-CAP,S 1000P-50 CH ABCDEF..............
C 360 87-010-183-080 C-CAP,S 2700P-50 B ABCDEF..............
C 363 87-A10-292-080 CAP,M 5600P-50 J ABCDEF..............
C 372 87-010-175-080 CAP 560P ABCDEF..............
C 371 87-010-175-080 CAP 560P ABCDEF..............
C 373 87-010-179-080 CAP,CHIP S B1200P ABCDEF..............
C 374 87-010-179-080 CAP,CHIP S B1200P ABCDEF..............
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 375 87-010-545-080 CAP, ELECT 0.22-50V ABCDEF..............
C 376 87-010-545-080 CAP, ELECT 0.22-50V ABCDEF..............
C 385 87-010-184-080 CHIP CAPACITOR 3300P(K) ABCDEF..............
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 381 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 383 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 382 87-010-318-080 C-CAP,S 47P-50 CH ABCDEF..............
C 384 87-010-402-080 CAP, ELECT 2.2-50V ABCDEF..............
C 388 87-012-156-080 C-CAP,S 220P-50 CH ABCDEF..............
C 393 87-012-145-080 CAP, CHIP S 270P CH ABCDEF..............
C 392 87-012-145-080 CAP, CHIP S 270P CH ABCDEF..............
C 391 87-012-145-080 CAP, CHIP S 270P CH ABCDEF..............
C 394 87-012-145-080 CAP, CHIP S 270P CH ABCDEF..............
CN 301 87-099-827-010 CONN,3P S2M-3W ABCDEF..............
CN 351 87-099-832-010 CONN,8P S2M-8W ABCDEF..............
D 352 87-A40-269-080 C-DIODE,MC2836 ABCDEF..............
FB 301 87-008-372-080 FILTER, EMI BL OIRNI ...DEF..............
IC 302 87-A20-355-010 IC,CXA1553P ABCDEF..............
IC 303 87-A20-783-040 C-IC,BA7762AFS ABCDEF..............
L 302 87-A50-049-010 COIL,TRAP 85K(COI) ABCDEF..............
L 301 87-A50-049-010 COIL,TRAP 85K(COI) ABCDEF..............
L 351 87-007-342-010 COIL,OSC 85K BIAS ABCDEF..............
Q 359 87-026-610-080 TR,KTC3198GR ABCDEF..............
Q 357 87-026-610-080 TR,KTC3198GR ABCDEF..............
Q 358 87-026-610-080 TR,KTC3198GR ABCDEF..............
Q 356 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 353 87-A30-087-080 C-FET,2SK2158 ABCDEF..............
Q 354 87-A30-087-080 C-FET,2SK2158 ABCDEF..............
Q 351 87-A30-087-080 C-FET,2SK2158 ABCDEF..............
Q 355 87-A30-105-080 C-TR,RT1P 441C ABCDEF..............
SFR 305 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDEF..............
SFR 306 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDEF..............
SFR 302 87-A90-557-080 SFR,33K H HOKU ABCDEF..............
SFR 304 87-A90-557-080 SFR,33K H HOKU ABCDEF..............
SFR 303 87-A90-557-080 SFR,33K H HOKU ABCDEF..............
SFR 301 87-A90-557-080 SFR,33K H HOKU ABCDEF..............
SFR 351 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDEF..............
SFR 352 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDEF..............
C 408 87-010-188-080 CAP,CHIP 6800P ABCDEF..............
C 407 87-010-188-080 CAP,CHIP 6800P ABCDEF..............
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 402 87-010-260-080 CAP, ELECT 47-25V ABCDEF..............
C 404 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 406 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 405 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 403 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 409 87-012-140-080 CAP 470P ABCDEF..............
C 415 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 416 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 419 87-010-260-080 CAP, ELECT 47-25V ABCDEF..............
C 412 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 414 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 413 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 411 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
ELECTRICAL MAIN PARTS LIST - 4/7
C 417 87-010-956-080 CHIP-CAP,S 0.068-25B ABCDEF..............
C 418 87-010-956-080 CHIP-CAP,S 0.068-25B ABCDEF..............
C 410 87-012-140-080 CAP 470P ABCDEF..............
D 402 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
D 401 87-A40-269-080 C-DIODE,MC2836 ABCDEF..............
IC 401 87-A21-022-040 C-IC,BA3880FS ABCDEF..............
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 458 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 451 87-010-401-080 CAP, ELECT 1-50V ABCDEF..............
C 453 87-010-545-080 CAP, ELECT 0.22-50V AB.DEF..............
C 454 87-010-545-080 CAP, ELECT 0.22-50V AB.DEF..............
C 456 87-010-546-080 CAP, ELECT 0.33-50V AB.DEF..............
C 455 87-010-546-080 CAP, ELECT 0.33-50V AB.DEF..............
C 459 87-A10-300-080 CAP,M 0.027-50 J ..C.................
C 459 87-A10-301-080 CAP,M 0.033-50 J AB.DEF..............
C 456 87-A10-305-080 CAP,M 0.068-50 J ..C.................
C 455 87-A10-305-080 CAP,M 0.068-50 J ..C.................
C 465 87-A10-298-080 CAP,M 0.018-50 J ..C.................
C 466 87-A10-298-080 CAP,M 0.018-50 J ..C.................
C 460 87-A10-300-080 CAP,M 0.027-50 J ..C.................
C 460 87-A10-301-080 CAP,M 0.033-50 J AB.DEF..............
C 466 87-A10-303-080 CAP,M 0.047-50 J AB.DEF..............
C 465 87-A10-303-080 CAP,M 0.047-50 J AB.DEF..............
IC 451 87-A21-031-040 C-IC,BU4551BF ABCDEF..............
JW 464 87-070-136-080 ZENER,MTZJ5.1B ABCDEF..............
Q 451 87-A30-104-080 C-TR,RT1N 441C ABCDEF..............
87-067-579-010 TAPPING SCREW, BVT2+3-8 ABCDEF..............
C 5 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 6 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 3 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 4 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 1 87-012-369-080 C-CAP,S 0.047-50F ABCDEF..............
C 2 87-012-369-080 C-CAP,S 0.047-50F ABCDEF..............
C 9 87-016-658-000 CAP,E 4700-35 M SMG ....................
C 9 87-016-658-090 CAP,E 4700-35 SMG ABCDEF..............
C 10 87-016-658-000 CAP,E 4700-35 M SMG ....................
C 10 87-016-658-090 CAP,E 4700-35 SMG ABCDEF..............
C 29 87-010-247-080 CAP, ELECT 100-50V ABCDEF..............
C 28 87-010-263-080 CAP, ELECT 100-10V ABCDEF..............
C 24 87-010-385-080 CAP, ELECT 220-25V ABCDEF..............
C 23 87-010-385-080 CAP, ELECT 220-25V ABCDEF..............
C 22 87-010-385-080 CAP, ELECT 220-25V ABCDEF..............
C 21 87-010-385-080 CAP, ELECT 220-25V ABCDEF..............
C 25 87-010-430-080 CAP, ELECT 100-63 ABCDEF..............
C 27 87-012-140-080 CAP 470P ABCDEF..............
C 30 87-010-112-080 CAP, ELECT 100-16V ABCDEF..............
C 31 87-010-235-080 CAP,E 470-16 SME ABCDEF..............
C 61 87-010-260-080 CAP, ELECT 47-25V ABCDEF..............
C 62 87-010-496-080 CAP,E 3.3-50 5L ABCDEF..............
C 93 87-010-380-080 CAP, ELECT 47-16V ABCDEF..............
C 91 87-010-401-080 CAP, ELECT 1-50V ABCDEF..............
CN 1 87-A60-739-010 CONN,13P JL-BT ABCDEF..............
CN 91 87-A60-109-010 CONN,2P V S2M-2W ABCDEF..............
CNA 1 8Z-NF8-669-010 CONN ASSY,9P VH ABCDEF..............
D 9 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
D 8 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
D 5 87-070-274-080 DIODE,1N4003 SEM ABCDEF..............
D 3 87-070-274-080 DIODE,1N4003 SEM ABCDEF..............
D 4 87-070-274-080 DIODE,1N4003 SEM ABCDEF..............
D 6 87-070-274-080 DIODE,1N4003 SEM ABCDEF..............
D 7 87-A40-341-080 ZENER,MTZJ 36 A ABCDEF..............
D 1 87-A40-549-090 DIODE,RBA-1002 ABCDEF..............
D 10 87-A40-345-080 ZENER,MTZJ10C ABCDEF..............
D 64 87-070-274-080 DIODE,1N4003 SEM ABCDEF..............
D 63 87-A40-004-080 ZENER,MTZJ16A ABCDEF..............
D 62 87-A40-269-080 C-DIODE,MC2836 ABCDEF..............
D 61 87-A40-270-080 C-DIODE,MC2838 ABCDEF..............
D 91 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
D 92 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
JW 16 87-008-372-080 FILTER, EMI BL OIRNI AB.DEF..............
Q 1 87-026-609-080 TR,KTA1266GR ABCDEF..............
Q 2 87-026-609-080 TR,KTA1266GR ABCDEF..............
Q 5 87-026-610-080 TR,KTC3198GR ABCDEF..............
Q 7 87-A30-075-080 C-TR,2SA1235F ABCDEF..............
Q 6 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 9 87-A30-234-080 TR,CSC4115BC ABCDEF..............
Q 67 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 65 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 63 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 92 87-026-609-080 TR,KTA1266GR ABCDEF..............
Q 91 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
R 20 87-A00-261-080 RES,M/F 0.56-1W J ..C.................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABCDEF..............
C 101 87-010-178-080 CHIP CAP 1000P ABCDEF..............
C 102 87-010-178-080 CHIP CAP 1000P ABCDEF..............
C 127 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 126 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 125 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 128 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 132 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 131 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 133 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
ELECTRICAL MAIN PARTS LIST - 5/7
C 134 87-010-406-080 CAP, ELECT 22-50 ABCDEF..............
L 101 87-003-383-010 COIL,1UH-S ABCDEF..............
L 102 87-003-383-010 COIL,1UH-S ABCDEF..............
Q 101 87-A30-257-080 C-TR,2SD1306E ABCDEF..............
Q 102 87-A30-257-080 C-TR,2SD1306E ABCDEF..............
Q 127 87-A30-075-080 C-TR,2SA1235F ABCDEF..............
R 146 87-A00-440-050 RES,220-1/2W J RP ABCDEF..............
R 143 87-A00-440-050 RES,220-1/2W J RP ABCDEF..............
R 145 87-A00-440-050 RES,220-1/2W J RP ABCDEF..............
R 144 87-A00-440-050 RES,220-1/2W J RP ABCDEF..............
C 204 87-010-177-080 C-CAP,S 820P-50 SL AB.DEF..............
C 203 87-010-177-080 C-CAP,S 820P-50 SL AB.DEF..............
C 203 87-012-140-080 CAP 470P ..C.................
C 204 87-012-140-080 CAP 470P ..C.................
C 229 87-010-993-080 C-CAP,S 0.056-25 B ABCDEF..............
C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 230 87-010-993-080 C-CAP,S 0.056-25 B ABCDEF..............
C 236 87-016-285-080 CAP,E 47-100SME ABCDEF..............
C 235 87-016-285-080 CAP,E 47-100SME ABCDEF..............
CN 201 87-A60-739-010 CONN,13P JL-BT ABCDEF..............
D 212 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
D 213 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
J 203 87-033-240-010 TERMINAL,SP 4P32SV1-05 ABCDEF..............
J 201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM ABCDEF..............
J 204 87-A60-750-010 JACK,PIN 4P R/W BLUE ABCDEF..............
L 201 87-003-383-010 COIL,1UH-S ABCDEF..............
L 202 87-003-383-010 COIL,1UH-S ABCDEF..............
Q 201 87-A30-257-080 C-TR,2SD1306E ABCDEF..............
Q 202 87-A30-257-080 C-TR,2SD1306E ABCDEF..............
Q 221 87-A30-073-080 C-TR,RT1N 141C ABCDEF..............
Q 223 87-A30-105-080 C-TR,RT1P 441C ABCDEF..............
RY 201 87-045-382-010 RELAY,OUAZ-SH-112L ABCDEF..............
C 602 87-010-183-080 C-CAP,S 2700P-50 B ABCDEF..............
C 601 87-010-183-080 C-CAP,S 2700P-50 B ABCDEF..............
C 619 87-010-185-080 C-CAP,S 3900P-50 B ABCDEF..............
C 611 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 613 87-016-081-080 C-CAP,S 0.1-16 RK ABCDEF..............
C 614 87-016-081-080 C-CAP,S 0.1-16 RK ABCDEF..............
C 618 87-A10-305-080 CAP,M 0.068-50 J ABCDEF..............
C 617 87-A10-305-080 CAP,M 0.068-50 J ABCDEF..............
C 620 87-010-185-080 C-CAP,S 3900P-50 B ABCDEF..............
C 627 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 622 87-010-401-080 CAP, ELECT 1-50V ABCDEF..............
C 621 87-010-401-080 CAP, ELECT 1-50V ABCDEF..............
C 626 87-010-405-080 CAP, ELECT 10-50V ABCDEF..............
C 629 87-010-405-080 CAP, ELECT 10-50V ABCDEF..............
C 625 87-010-405-080 CAP, ELECT 10-50V ABCDEF..............
C 623 87-A10-773-080 CAP,M 0.10-50 J ABCDEF..............
C 624 87-A10-773-080 CAP,M 0.10-50 J ABCDEF..............
C 637 87-010-183-080 C-CAP,S 2700P-50 B ABCDEF..............
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 630 87-010-213-080 C-CAP,S 0.015-50 B ABCDEF..............
C 633 87-010-263-080 CAP, ELECT 100-10V ABCDEF..............
C 632 87-010-263-080 CAP, ELECT 100-10V ABCDEF..............
C 631 87-010-992-080 C-CAP,S 0.047-25 B ABCDEF..............
C 636 87-010-992-080 C-CAP,S 0.047-25 B ABCDEF..............
C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 640 87-010-314-080 C-CAP,S 22P-50V ABCDEF..............
CN 604 87-099-570-010 CONN,13P TUC-P13P-B1 ABC.................
CN 601 87-099-719-010 CONN,30P TYK-B(X) ABCDEF..............
CN 602 87-A60-131-010 CONN,6P V FE ABCDEF..............
CN 605 87-A60-189-010 CONN,16P V TUC-P16P-B1 ...DEF..............
D 601 87-A40-002-080 ZENER,MTZJ5.1C ABCDEF..............
D 603 87-A40-234-080 ZENER,MTZJ5.6A ABCDEF..............
D 602 87-A40-438-080 ZENER,MTZJ4.7A ABCDEF..............
IC 601 87-A21-202-040 C-IC,M62445AFP ABCDEF..............
J 601 87-A60-402-010 JACK,PIN 6P R/W HSP-246V30 ABCDEF..............
Q 601 87-026-609-080 TR,KTA1266GR ABCDEF..............
Q 603 87-A30-087-080 C-FET,2SK2158 ...DEF..............
Q 604 87-A30-142-040 C-TR,DTA123EKA ABCDEF..............
Q 602 87-A30-269-040 C-FET,2SJ461-T1 ...DEF..............
C 707 87-010-180-080 C-CER 1500P ABCDEF..............
C 702 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 706 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 709 87-010-213-080 C-CAP,S 0.015-50 B ABCDEF..............
C 708 87-010-213-080 C-CAP,S 0.015-50 B ABCDEF..............
C 701 87-010-263-080 CAP, ELECT 100-10V ABCDEF..............
C 703 87-010-319-080 C-CAP,S 56P-50 CH ABCDEF..............
C 704 87-010-319-080 C-CAP,S 56P-50 CH ABCDEF..............
C 705 87-012-393-080 C-CAP,S 0.22-16 R K ABCDEF..............
C 711 87-010-181-080 CAP,CHIP S 1800P ABCDEF..............
C 718 87-010-183-080 C-CAP,S 2700P-50 B ABCDEF..............
C 717 87-010-183-080 C-CAP,S 2700P-50 B ABCDEF..............
C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 710 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 714 87-010-374-080 CAP, ELECT 47-10V ABCDEF..............
C 715 87-010-494-080 CAP ELECT GAS 1/50 ABCDEF..............
C 716 87-010-494-080 CAP ELECT GAS 1/50 ABCDEF..............
C 713 87-010-544-080 CAP, ELECT 0.1-50V ABCDEF..............
ELECTRICAL MAIN PARTS LIST - 6/7
C 735 87-010-178-080 CHIP CAP 1000P ABCDEF..............
C 732 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 733 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 736 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 738 87-010-318-080 C-CAP,S 47P-50 CH ABCDEF..............
C 731 87-010-560-080 CAP,E 10-50 GAS ABCDEF..............
C 734 87-012-156-080 C-CAP,S 220P-50 CH ABCDEF..............
C 741 87-010-178-080 CHIP CAP 1000P ABCDEF..............
D 701 87-A40-234-080 ZENER,MTZJ5.6A ABCDEF..............
IC 701 87-A20-613-040 C-IC,BU9262AFS ABCDEF..............
L 701 87-005-448-080 COIL 220UH,K ABCDEF..............
Q 732 87-A30-075-080 C-TR,2SA1235F ABCDEF..............
Q 731 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
C 901 87-010-402-080 CAP, ELECT 2.2-50V ABCDEF..............
C 902 87-010-402-080 CAP, ELECT 2.2-50V ABCDEF..............
C 904 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 903 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 905 87-010-404-080 CAP, ELECT 4.7-50V ABCDEF..............
C 909 87-016-460-080 C-CAP,S 0.22-16 B ABCDEF..............
C 907 87-016-669-080 C-CAP,S 0.1-25 K B ABCDEF..............
C 908 87-016-669-080 C-CAP,S 0.1-25 K B ABCDEF..............
C 919 87-010-183-080 C-CAP,S 2700P-50 B ABCDEF..............
C 915 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 916 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 918 87-010-198-080 CAP, CHIP 0.022 ABCDEF..............
C 917 87-010-198-080 CAP, CHIP 0.022 ABCDEF..............
C 914 87-010-956-080 CHIP-CAP,S 0.068-25B ABCDEF..............
C 913 87-010-956-080 CHIP-CAP,S 0.068-25B ABCDEF..............
C 912 87-012-365-080 C-CAP,S 0.027-25VBK ABCDEF..............
C 911 87-012-365-080 C-CAP,S 0.027-25VBK ABCDEF..............
C 910 87-016-460-080 C-CAP,S 0.22-16 B ABCDEF..............
C 927 87-010-112-080 CAP, ELECT 100-16V ABCDEF..............
C 923 87-010-178-080 CHIP CAP 1000P ABCDEF..............
C 924 87-010-178-080 CHIP CAP 1000P ABCDEF..............
C 926 87-010-182-080 C-CAP,S 2200P-50 B ABCDEF..............
C 925 87-010-182-080 C-CAP,S 2200P-50 B ABCDEF..............
C 920 87-010-183-080 C-CAP,S 2700P-50 B ABCDEF..............
C 921 87-010-188-080 CAP,CHIP 6800P ABCDEF..............
C 922 87-010-188-080 CAP,CHIP 6800P ABCDEF..............
C 928 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEF..............
C 929 87-010-322-080 C-CAP,S 100P-50 CH ABCDEF..............
C 931 87-010-322-080 C-CAP,S 100P-50 CH ABCDEF..............
C 930 87-010-322-080 C-CAP,S 100P-50 CH ABCDEF..............
CN 901 87-099-568-010 CONN,11P TUC-P11P-B1 ABCDEF..............
IC 901 87-A20-869-040 C-IC,M62449FP ABCDEF..............
PN 901 87-A60-546-010 CONN,11P H GRY TUC-P11X-C1 ABCDEF..............
C 209 87-010-322-080 C-CAP,S 100P-50 CH ABCDEF..............
C 203 87-010-405-080 CAP, ELECT 10-50V ..C.................
C 204 87-010-405-080 CAP, ELECT 10-50V ..C.................
C 203 87-010-408-080 CAP, ELECT 47-50V ABCDEF..............
C 204 87-010-408-080 CAP, ELECT 47-50V ABCDEF..............
C 211 87-010-260-080 CAP, ELECT 47-25V ABCDEF..............
C 212 87-010-260-080 CAP, ELECT 47-25V ABCDEF..............
C 210 87-010-322-080 C-CAP,S 100P-50 CH ABCDEF..............
C 219 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 214 87-A10-812-080 C-CAP,S 220P-200 J CH ABCDEF..............
C 213 87-A10-812-080 C-CAP,S 220P-200 J CH ABCDEF..............
C 222 87-010-178-080 CHIP CAP 1000P ..C.................
C 221 87-010-178-080 CHIP CAP 1000P ..C.................
C 220 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 299 87-010-197-080 CAP, CHIP 0.01 DM ABCDEF..............
C 306 87-010-185-080 C-CAP,S 3900P-50 B ABCDEF..............
C 304 87-010-403-080 CAP, ELECT 3.3-50V ABCDEF..............
C 308 87-010-403-080 CAP, ELECT 3.3-50V ABCDEF..............
C 314 87-010-260-080 CAP, ELECT 47-25V ABCDEF..............
C 310 87-010-322-080 C-CAP,S 100P-50 CH ABCDEF..............
C 312 87-A10-946-080 C-CAP,S 220P-100 J CH ABCDEF..............
C 322 87-010-186-080 CAP,CHIP 4700P ABCDEF..............
C 320 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 405 87-010-185-080 C-CAP,S 3900P-50 B ABCDEF..............
C 409 87-010-322-080 C-CAP,S 100P-50 CH ABCDEF..............
C 407 87-010-403-080 CAP, ELECT 3.3-50V ABCDEF..............
C 403 87-010-403-080 CAP, ELECT 3.3-50V ABCDEF..............
C 413 87-010-260-080 CAP, ELECT 47-25V ABCDEF..............
C 419 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 411 87-A10-946-080 C-CAP,S 220P-100 J CH ABCDEF..............
C 421 87-010-186-080 CAP,CHIP 4700P ABCDEF..............
C 502 87-012-368-080 C-CAP,S 0.1-50 F ABCDEF..............
C 501 87-016-299-080 CAP,E 10-100 SME ABCDEF..............
C 503 87-016-299-080 CAP,E 10-100 SME ABCDEF..............
CN 101 87-A60-727-010 CONN,13P JL-R ABCDEF..............
CN 102 87-A60-727-010 CONN,13P JL-R ABCDEF..............
D 208 87-A40-488-080 DIODE,1SS244 ABCDEF..............
D 207 87-A40-488-080 DIODE,1SS244 ABCDEF..............
D 212 87-020-331-080 CHIP-DIODE,DAN202K ABCDEF..............
D 312 87-A40-270-080 C-DIODE,MC2838 ABCDEF..............
D 310 87-A40-488-080 DIODE,1SS244 ABCDEF..............
D 411 87-A40-488-080 DIODE,1SS244 ABCDEF..............
D 501 87-070-136-080 ZENER,MTZJ5.1B ABCDEF..............
D 502 87-070-136-080 ZENER,MTZJ5.1B ABCDEF..............
D 504 87-A40-274-010 DIODE,FMB-G16L ABCDEF..............
D 507 87-A40-274-010 DIODE,FMB-G16L ABCDEF..............
ELECTRICAL MAIN PARTS LIST - 7/7
D 509 87-A40-345-080 ZENER,MTZJ10C ABCDEF..............
D 503 87-A40-345-080 ZENER,MTZJ10C ABCDEF..............
D 514 87-020-465-080 DIODE,1SS133 (110MA) ABCDEF..............
Q 101 89-213-702-010 TR,2SB1370 (1.8W) ABCDEF..............
Q 102 89-213-702-010 TR,2SB1370 (1.8W) ABCDEF..............
Q 209 87-A30-190-080 TR,CC5551 ABCDEF..............
Q 201 87-A30-268-040 C-TR,2SA1514K(S) ABCDEF..............
Q 202 87-A30-268-040 C-TR,2SA1514K(S) ABCDEF..............
Q 208 87-A30-268-040 C-TR,2SA1514K(S) ABCDEF..............
Q 207 87-A30-268-040 C-TR,2SA1514K(S) ABCDEF..............
Q 219 87-A30-097-010 TR,FN 1016 ABCDEF..............
Q 214 87-A30-098-010 TR,FP 1016 ABCDEF..............
Q 213 87-A30-098-010 TR,FP 1016 ABCDEF..............
Q 210 87-A30-190-080 TR,CC5551 ABCDEF..............
Q 220 87-A30-097-010 TR,FN 1016 ABCDEF..............
Q 221 87-A30-106-070 C-TR,CMBT5551 ABCDEF..............
Q 222 87-A30-106-070 C-TR,CMBT5551 ABCDEF..............
Q 298 87-A30-268-040 C-TR,2SA1514K(S) ABCDEF..............
Q 308 87-A30-075-080 C-TR,2SA1235F ABCDEF..............
Q 302 87-A30-075-080 C-TR,2SA1235F ABCDEF..............
Q 318 87-A30-119-040 C-TR,2SC3906K R ABCDEF..............
Q 312 87-A30-190-080 TR,CC5551 ABCDEF..............
Q 314 87-A30-214-010 TR,2SB1344 ABCDEF..............
Q 316 87-A30-215-010 TR,2SD2025 ABCDEF..............
Q 324 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 326 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 407 87-A30-075-080 C-TR,2SA1235F ABCDEF..............
Q 401 87-A30-075-080 C-TR,2SA1235F ABCDEF..............
Q 403 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 405 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 417 87-A30-119-040 C-TR,2SC3906K R ABCDEF..............
Q 411 87-A30-190-080 TR,CC5551 ABCDEF..............
Q 413 87-A30-214-010 TR,2SB1344 ABCDEF..............
Q 415 87-A30-215-010 TR,2SD2025 ABCDEF..............
Q 425 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 423 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 503 87-A30-072-080 C-TR,RT1P 144C ABCDEF..............
Q 506 87-A30-074-080 C-TR,RT1P 141C ABCDEF..............
Q 505 87-A30-075-080 C-TR,2SA1235F ABCDEF..............
Q 504 87-A30-076-080 C-TR,2SC3052F ABCDEF..............
Q 502 87-A30-186-010 FET,2SK3053 ABCDEF..............
Q 501 87-A30-186-010 FET,2SK3053 ABCDEF..............
Q 507 87-A30-268-040 C-TR,2SA1514K(S) ABCDEF..............
Q 601 87-A30-074-080 C-TR,RT1P 141C ABCDEF..............
Q 602 87-A30-268-040 C-TR,2SA1514K(S) ABCDEF..............
R 226 87-A00-262-080 RES,M/F 0.15-2W J ABCDEF..............
R 228 87-A00-262-080 RES,M/F 0.15-2W J ABCDEF..............
R 225 87-A00-262-080 RES,M/F 0.15-2W J ABCDEF..............
R 227 87-A00-262-080 RES,M/F 0.15-2W J ABCDEF..............
R 239 87-A00-262-080 RES,M/F 0.15-2W J ABCDEF..............
R 242 87-A00-262-080 RES,M/F 0.15-2W J ABCDEF..............
R 326 87-A00-258-080 RES,M/F 0.22-1W J ABCDEF..............
R 328 87-A00-258-080 RES,M/F 0.22-1W J ABCDEF..............
R 340 87-A00-258-080 RES,M/F 0.22-1W J ABCDEF..............
R 429 87-A00-258-080 RES,M/F 0.22-1W J ABCDEF..............
R 427 87-A00-258-080 RES,M/F 0.22-1W J ABCDEF..............
R 441 87-A00-258-080 RES,M/F 0.22-1W J ABCDEF..............
TH 302 87-A91-042-080 C-THMS,100K 55001 ABCDEF..............
TH 401 87-A91-042-080 C-THMS,100K 55001 ABCDEF..............
MECHANICAL PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
HR .....................XX..................................A...................
LH .....................XX...................................B..................
U ......................XX....................................C.................
K ......................XX.....................................D................
89EZ ...................XX......................................E...............
99EZ ...................XX.......................................F..............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-NF5-001-010 CABI,FR U ABC.E...............
8Z-NF5-002-010 BOX,CASS 1 ABC.E...............
8Z-NF5-003-010 BOX,CASS 2 ABC.E...............
8Z-NF5-004-010 CABI,STEEL ..CDEF..............
8Z-NF5-005-010 CABI,REAR USTNM ..C.................
8Z-NF5-006-010 PANEL,TRAY ABCDEF..............
8Z-NF5-007-010 PANEL,CASS 1 ABC.E...............
8Z-NF5-008-010 PANEL,CASS 2 ABC.E...............
8Z-NF5-009-010 WINDOW,DISPLAY ..C.................
8Z-NF5-010-010 WINDOW,CASS 1 ABC.E...............
8Z-NF5-011-010 WINDOW,CASS 2 ABC.E...............
8Z-NF5-012-010 PANEL,CD ABC.E...............
8Z-NF5-013-010 RING,VOL ABC.E...............
8Z-NF5-015-010 PANEL,JOG ABC.E...............
8Z-NF5-031-010 WINDOW,DISPLAY H AB..................
8Z-NF5-032-010 CABI,STEEL HR AB..................
8Z-NF5-042-010 PANEL,FUN ABC.E...............
8Z-NF5-056-010 PANEL,FR ABC.................
8Z-NF5-057-010 PANEL,DIRECT ABC.E...............
8Z-NF5-058-010 WINDOW,DISPLAY RDS ....................
8Z-NF5-059-010 PANEL,FR RDS ....E...............
8Z-NF5-060-010 WINDOW,DISPLAY EZ 989 ....E...............
8Z-NF5-061-010 CABI,REAR LHSTNM .B..................
8Z-NF5-062-010 CABI,REAR EZSTNE .....F..............
8Z-NF5-064-010 CABI,REAR KSTNE ...D................
8Z-NF5-065-010 CABI,REAR HRJSTNM A...................
8Z-NF5-069-010 CABI,REAR EZSTM ....................
8Z-NF5-073-010 PANEL,DISC ABC.E...............
8Z-NF5-076-010 CABI,REAR EZSTM 989 ....E...............
8Z-NF5-078-010 CABI,REAR LHST ....................
8Z-NF5-014-010 KNOB,RTRY VOL ABC.E...............
8Z-NF5-016-010 KNOB,RTRY JOG ABC.E...............
8Z-NF5-018-010 KEY,ECHO ABC.E...............
8Z-NF5-020-010 KEY,ASSY POWER ABC.E...............
8Z-NF5-021-010 KEY,MIC ABC.E...............
8Z-NF5-022-010 KEY,OPEN ABC.E...............
8Z-NF5-024-010 KEY,AMP ABC.................
8Z-NF5-025-010 KEY,RDS ....E...............
8Z-NF5-030-010 KEY,DISC ABC.E...............
8Z-NF5-035-010 KEY,ASSY OPE ABC.E...............
8Z-NF5-043-010 KEY,FUN ABC.E...............
8Z-NF5-050-010 KEY,ASSY JOG ABC.E...............
81-532-080-010 LABEL, CASS. COMPT ABC.E...............
86-NF6-061-010 REFLECTOR,CASS ABC.E...............
8Z-NF5-026-010 REFLECTOR,FUN ABC.E...............
8Z-NF5-027-010 REFLECTOR,CD ABC.E...............
87-NF6-616-010 CONN ASSY,8P RPB ABCDEF..............
84-ZG1-245-210 CAP,OPTICAL ABCDEF..............
82-NF5-218-010 SPR-T,EJECT 1 (SIN) ABCDEF..............
82-NF5-219-010 SPR-T,EJECT 2 (SIN) ABCDEF..............
82-NF5-229-010 PLATE,LOCK ABC.E...............
86-NF9-224-010 SPR-C,LOCK ABC.E...............
87-064-185-010 HLDR,WIRE ABCDEF..............
87-NF4-216-010 HLDR,LOCK 1 ABC.E...............
87-NF4-217-010 HLDR,LOCK 2 ....................
87-NF4-217-110 HLDR,LOCK 2 ABC.E...............
87-NF4-221-010 HLDR,CABLE ABCDEF..............
87-NF8-220-010 DMPR,150 ABC.E...............
88-NF5-208-010 HLDR,PWB-M N ABCDEF..............
8Z-NF5-214-010 HLDR,HT F ABCDEF..............
8Z-NF5-215-010 HLDR,HT R ABCDEF..............
8Z-NF5-219-010 HLDR,FAN ABCDEF..............
87-067-584-010 TAPPING SCREW, BVT2+3-6 ABC.E...............
87-067-641-010 UTT2+3-8(W/O SLOT)BL ABCDEF..............
87-067-688-010 BVTT+3-6 ABCDEF..............
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDEF..............
87-067-758-010 BVT2+3-12 W/O SLOT ABC.E...............
87-078-191-010 S-SCREW,IT+4-10 ABCDEF..............
87-591-094-410 TAPPING SCREW, QIT+3-6 ABCDEF..............
87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) ABCDEF..............
87-721-097-410 QT2+3-12 GLD ABCDEF..............
87-723-096-410 QT2+3-10W/O SLOT BL ABCDEF..............
87-NF4-224-010 S-SCREW,IT3B+3-8 CU ABCDEF..............
87-085-185-010 BUSHING, AC CORD (E) AB.DEF..............
87-085-189-010 BUSHING, CORD (U) ..C.................
87-099-811-010 PLUG,ADPTR CONV(K) ...D................
87-A91-314-010 FAN,3110GL-B4W-B34-H02 ABCDEF..............
88-906-301-110 FF-CABLE,6P-1.25 ABC.E...............
88-906-601-110 FF-CABLE, 6P 1.25 600MM ABCDEF..............
88-913-551-110 FF-CABLE, 13P 1.25 550MM ABC.E...............
88-915-181-110 FF-CABLE,15P 1.25 ABC.E...............
ACCESSORIES / PACKAGE LIST - 1/1
PT 1 8Z-NF5-601-010 PT,U ZNF-5 ..C.................
PT 1 8Z-NF5-602-010 PT,LH ZNF-5 .B..................
PT 1 8Z-NF5-603-010 PT,HE ZNF-5 A...................
PT 1 8Z-NF5-604-010 PT,EZ ZNF-5 ...DEF..............
W 1 87-050-079-010 AC-CORD ASSY,E AB.DEF..............
W 1 87-A80-110-010 AC CORD ASSY,U SPT-2W ..C.................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ABCDEF..............
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABCDEF..............
MECHANICAL PARTS LIST - 2/2
NOTE: The characters in the suffix column indicate the part usage.
HR .....................XX..................................A...................
LH .....................XX...................................B..................
U ......................XX....................................C.................
K ......................XX.....................................D................
89EZ ...................XX......................................E...............
99EZ ...................XX.......................................F..............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-NF5-901-010 IB,H(ECA)M A...................
8Z-NF5-902-010 IB,LH(ESP)M .B..................
8Z-NF5-903-010 IB,U(ESF)M ..C.................
8Z-NF5-905-010 IB,K(E)E ...D................
8Z-NF5-906-010 IB,EZ(9L)E .....F..............
8Z-NF5-916-010 IB,EZ(9L)M ....E...............
87-006-225-010 AM LOOP ANT NC2 .BCDEF..............
87-006-269-010 AM LOOP ANT (UN) A...................
87-043-095-010 WIRE ANTENNA A...................
87-043-106-010 WIRE, FM ANT (Z) ...DEF..............
87-043-115-010 ANT,FEEDER FM ABC.................
87-A91-017-010 PLUG,CONVERSION JT-0476 AB..................
8Z-NF5-702-010 RC UNIT,RC-ZAS04 ABCDEF..............

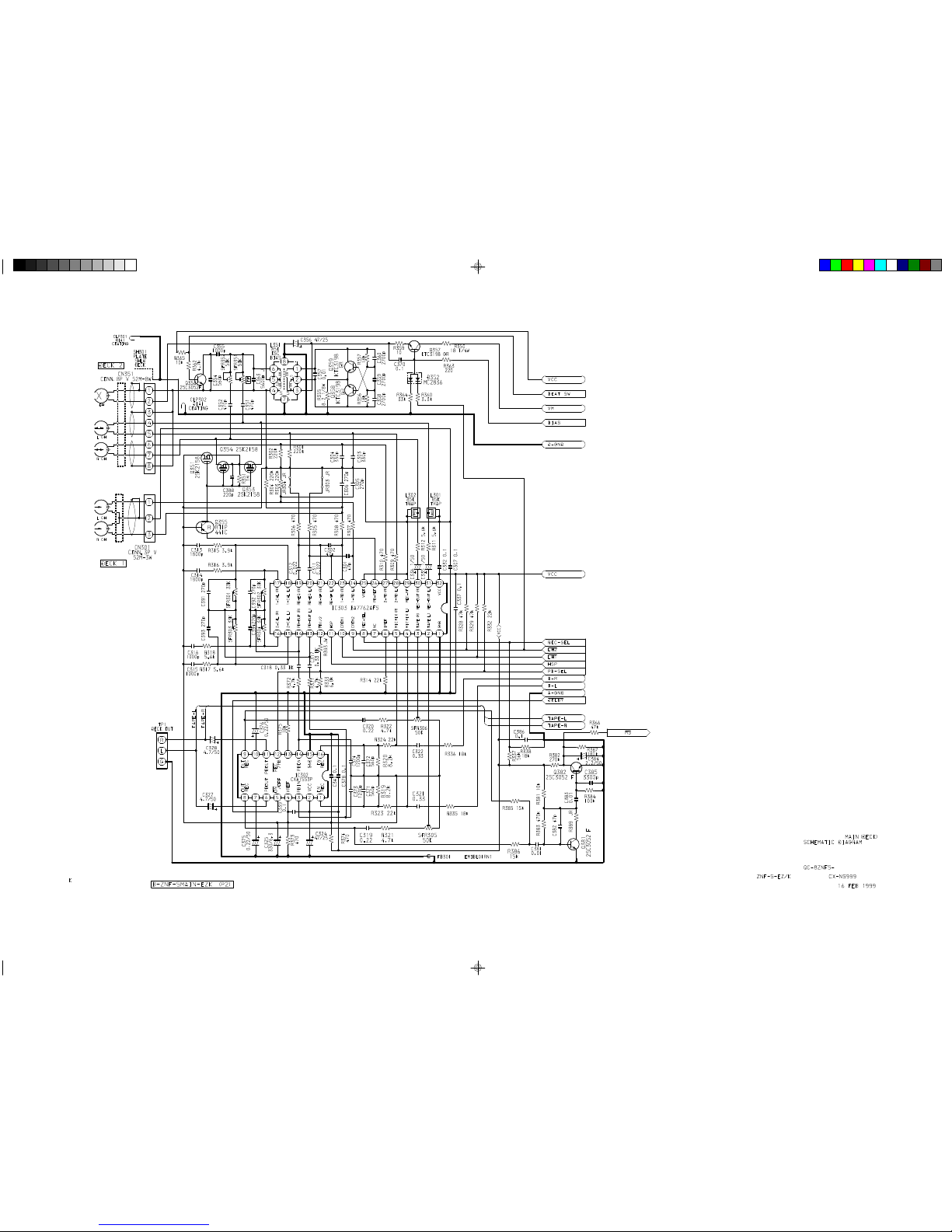

SCHEMATIC DIAGRAM _1 (MAIN 1/3 : EZ,K)
SCHEMATIC DIAGRAM _2 (MAIN 2/3 : EZ,K)
SCHEMATIC DIAGRAM _3 (MAIN 3/3 : EZ,K)

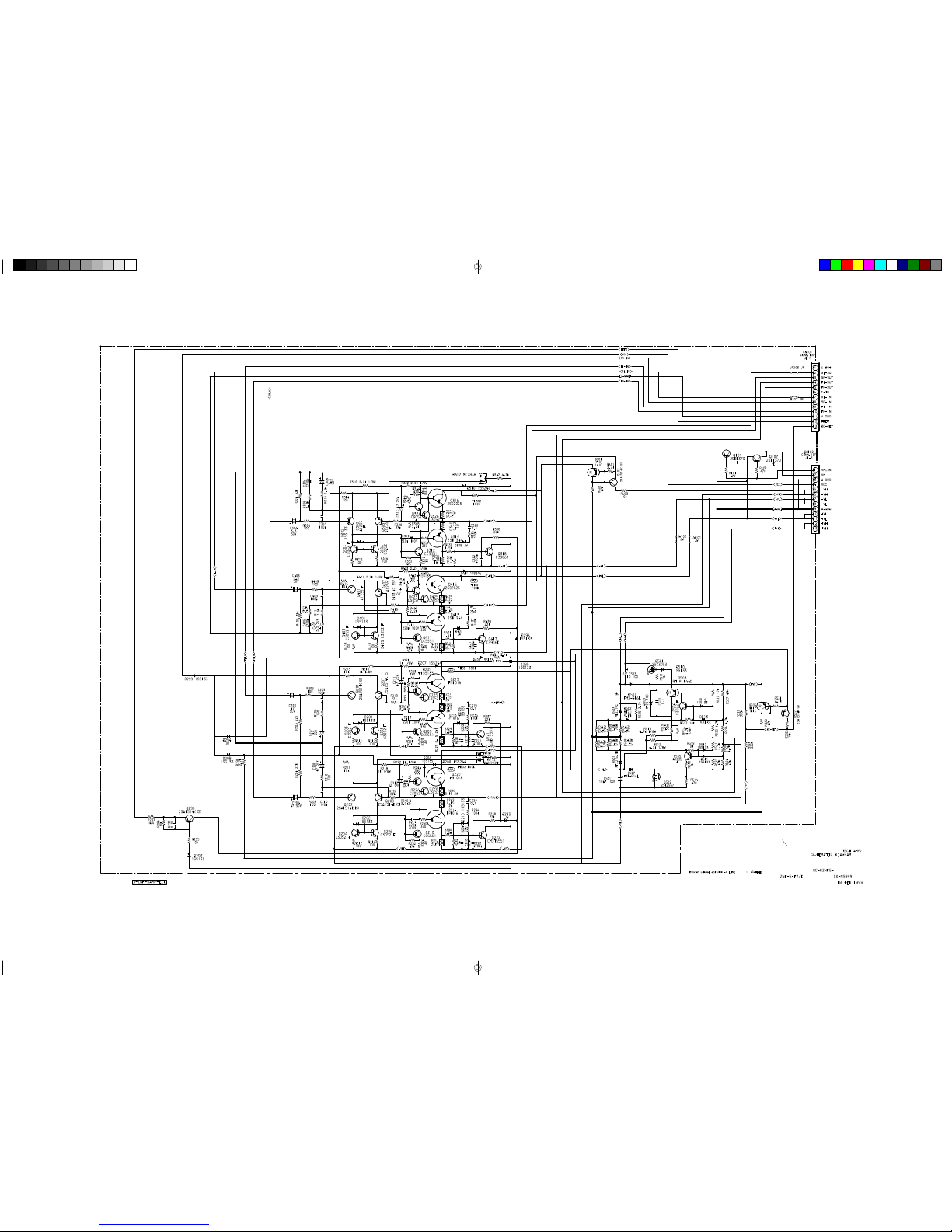

SCHEMATIC DIAGRAM _4 (AMP : EZ,K)
SCHEMATIC DIAGRAM _5 (PT : EZ,K)
SCHEMATIC DIAGRAM _6 (FRONT : EZ,K)
PrintedinSingapore
Tokyo Japan
4
9301896
Table of contents
Other Aiwa Receiver manuals
