SERVICE MANUAL
DATA
STEREO AV RECEIVER
AV-D77 U,EZ
S/M Code No. 09-007-429-6R2
REVISION
• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
AV-D77 (U,EZ), (S/M Code No. 09-004-429-6T2).

– 2 –
TABLE OF CONTENT
SPECIFICATIONS ................................................................................................................................................................ 3
ELECTRICAL MAIN PARTS LIST ............................................................................................................................. 4 ~ 14
TRANSISTOR ILLUSTRATION ......................................................................................................................................... 15

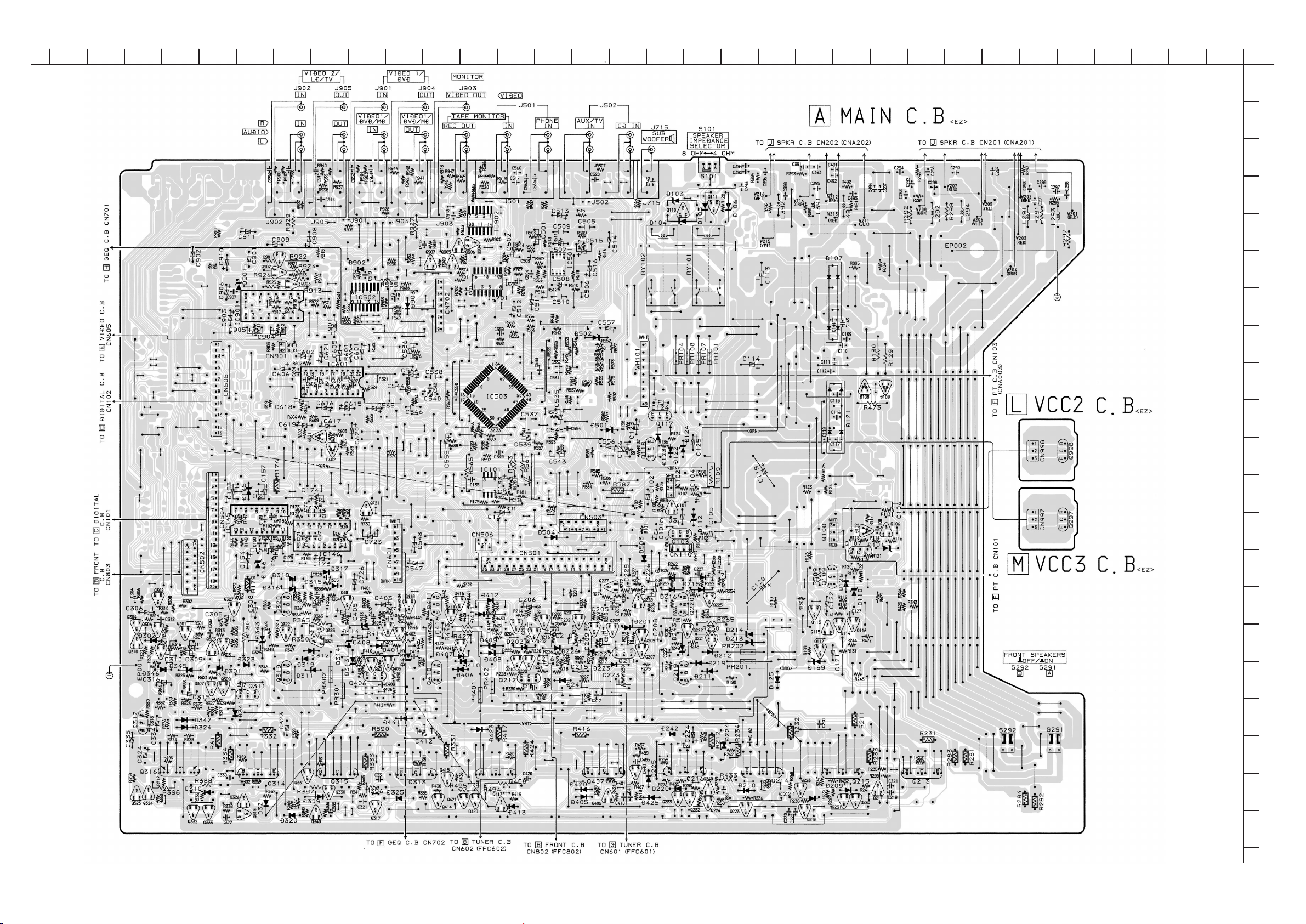

WIRING – 1 (U: MAIN / VCC2 / VCC3).............................................................................................................................. 16
SCHEMATIC DIAGRAM – 1 (U: MAIN 1/2) ...................................................................................................................... 17
SCHEMATIC DIAGRAM – 2 (U: MAIN 2/2 / VCC2 / VCC3) ............................................................................................. 18
WIRING – 2 (EZ: MAIN / VCC2 / VCC3)............................................................................................................................ 19
SCHEMATIC DIAGRAM – 3 (EZ: MAIN 1/2) .................................................................................................................... 20
SCHEMATIC DIAGRAM – 4 (EZ: MAIN 2/2 / VCC2 / VCC3) ........................................................................................... 21
WIRING – 3 (FRONT) ........................................................................................................................................................ 22
SCHEMATIC DIAGRAM – 5 (FRONT) ............................................................................................................................. 23
WIRING – 4 (DIGITAL) ...................................................................................................................................................... 24
SCHEMATIC DIAGRAM – 6 (DIGITAL) ............................................................................................................................ 25
WIRING – 5 (VOLUME / VIDEO / GEQ) ............................................................................................................................ 26
SCHEMATIC DIAGRAM – 7 (VOLUME / VIDEO / GEQ) ................................................................................................. 27
WIRING – 6 (U: PT) ........................................................................................................................................................... 28
SCHEMATIC DIAGRAM – 8 (U: PT)................................................................................................................................. 29
WIRING – 7 (EZ: PT) ......................................................................................................................................................... 30
SCHEMATIC DIAGRAM – 9 (EZ: PT)............................................................................................................................... 31
WIRING – 8 (U: TUNER) ................................................................................................................................................... 32
SCHEMATIC DIAGRAM – 10 (U: TUNER) ....................................................................................................................... 33
WIRING – 9 (EZ: TUNER) ................................................................................................................................................. 34
SCHEMATIC DIAGRAM – 11 (EZ : TUNER) .................................................................................................................... 35
WIRING – 10 (U: S-VIDEO) ............................................................................................................................................... 36
SCHEMATIC DIAGRAM –12 (U: S-VIDEO) ..................................................................................................................... 37
WIRING – 11 (SPKR)......................................................................................................................................................... 38
SCHEMATIC DIAGRAM –13 (SPKR) ............................................................................................................................... 39
WIRING – 12 (U: AC) ......................................................................................................................................................... 40
SCHEMATIC DIAGRAM –14 (U: AC) ............................................................................................................................... 41
IC BLOCK DIAGRAM................................................................................................................................................ 42 ~ 44
FL (BJ759GK) GRID ASSIGNMENT AND ANODE CONNECTION ......................................................................... 45, 46
IC DESCRIPTION ...................................................................................................................................................... 47 ~ 51
ADJUSTMENT (TUNER / FRONT) .................................................................................................................................... 52
MECHANICAL EXPLODED VIEW 1 / 1 ........................................................................................................................... 53
MECHANICAL PARTS LIST 1 / 1 .................................................................................................................................... 54
ACCESSORIES / PACKAGE LIST .................................................................................................................................... 55

– 3 –
FM tuner section
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
AM(MW) Tuner section
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
LW Tuner section (EZ)
Tuning range 144 kHz to 290 kHz
sable sensitivity 1400µV/m
Antenna Loop antenna
Amplifier section
Power output [Stereo Mode]
Front
U: 170 watts per channel, Min. RMS at
8 ohms, from 40 Hz to 20 kHz, with no
more than 0.9 % Total Harmonic
Distortion
EZ: Rated : 160 W + 160 W (8 ohms,
T.H.D 1%, 1 kHz/DIN 45500)
Reference : 190 W + 190 W (8 ohms,
T.H.D 10%, 1 kHz/DIN 45324)
DIN MUSIC POWER : 310 W + 310 W
[Dolby Digital Surround or Dolby
Pro Logic Mode]
Front
U: 120 watts per channel, Min. RMS at
8 ohms, from 40 Hz to 20 kHz, with no
more than 0.9 % Total Harmonic
Distortion
EZ: Rated : 100 W + 100 W (8 ohms,
T.H.D 1%, 1 kHz/DIN 45500)
Reference : 120 W + 120 W (8 ohms,
T.H.D 10%, 1 kHz/DIN 45324)
DIN MUSIC POWER : 155 W + 155 W
Rear (Surround)
U: 120 watts per channel, Min. RMS at
8 ohms, 1 kHz, with no more than 0.9 %
Total Harmonic Distortion
EZ: Rated : 100 W + 100 W (8 ohms,
T.H.D 1%, 1 kHz/DIN 45500)
Reference : 120 W + 120 W (8 ohms,
T.H.D 10%, 1 kHz/DIN 45324)
DIN MUSIC POWER : 155 W + 155 W
Center
U: 120 watts, Min. RMS at 8 ohms, 1
kHz, with no more than 0.9 % Total
Harmonic Distortion
EZ: Rated : 100 W (8 ohms T.H.D 1%,
1 kHz/DIN 45500)
Reference : 120 W (8 ohms,T.H.D 10%,
1 kHz/DIN 45324)
DIN MUSIC POWER : 155 W
Total harmonic distortion U: 0.08 % (85 W, 1 kHz, 8 ohms, Front)
EZ: 0.08 % (80 W, 1 kHz, 8 ohms,
Front)
Inputs AUDIO IN
PHONO : 2.5 mV, adjustable
(47 kohms)
VIDEO 1/DVD/MD, VIDEO 2/
LD/TV, VIDEO 3, CD : 300 mV,
adjustable (47 kohms)
TAPE MONITOR : 350 mV,
adjustable (47 kohms)
U: AUX : 230 mV,
adjustable (47 kohms)
EZ: AUX : 250 mV,
adjustable (47 kohms)
SPECIFICATIONS
DIGITAL IN
COAXIAL (VIDEO 2) :
OPTICAL (VIDEO 1) :
OPTICAL (VIDEO 3) :
U: accept linear PCM signals
and bit stream of Dolby Digital
and DTS Surround (32 kHz,
44.1 kHz, 48 kHz and 96 kHz)
EZ: accept linear PCM signals
and bit stream of Dolby Digital
Surround (32 kHz, 44.1 kHz,
48 kHz and 96 kHz)
VIDEO IN : 1 Vp-p (75 ohms)
Outputs AUDIO OUT (REC OUT) : 300 mV
(1 kohm)
VIDEO OUT (MONITOR) : 1 Vp-p
(75 ohms)
SUB WOOFER : 5.0 V
FRONT SPEAKERS IMP : 8 / 4 ohms
selectable (front speakers A and B ) :
with the SPEAKER IMPEDANCE
SELECTOR set to 4 ohms, accepts
speakers of 4 ohms.
with the SPEAKER IMPEDANCE
SELECTOR set to 8 ohms, accepts
speakers of 8 ohms or more
SURROUND SPEAKERS IMP : 8 ohms
(surround speakers) : accepts
speakers of 8 ohms or more
CENTER SPEAKER IMP : 8 / 4 ohms :
selectable with the SPEAKER
IMPEDANCE SELECTOR set to
4 ohms, accepts speakers of 4 ohms.
with the SPEAKER IMPEDANCE
SELECTOR set to 8 ohms, accepts
speakers of 8 ohms or more
PHONES (stereo jack) : accepts
headphones of 32 ohms or more
Muting -20 dB
General
Power requirements U: 120 V AC, 60 Hz
EZ: 230 V AC, 50 Hz
Power consumption U: 270 W
EZ: 290 W
Power consumption in ECO OFF : U: 55 W, EZ: 43 W
standby mode ECO ON : U: 1.4 W, EZ: 1.3 W
Dimensions 430 x 155 x 402 mm
(W xH xD) (17 x 61/8 x 157/8 in.)
Weight U: 12.5kg (27 lb 9 oz.)
EZ: 12.4 kg
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
• Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.

– 4 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTION
REF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-502-010 C-IC,YSD917
87-A21-500-010 C-IC,YSS912<U>
87-A21-501-010 C-IC,YSS902<EZ>
87-A21-503-010 C-IC,AK4527VQ
87-020-903-010 IC,NJM7805FA
87-017-022-080 C-IC,NJM2068M-D(T1)
87-020-784-080 C-IC,TC4053BF
87-A21-504-010 IC,GP1F37R1
87-001-604-080 C-IC,TC74HCU04M
87-002-298-080 C-IC,TC74HC00AF
87-A20-736-010 IC,BA033S
87-A21-499-040 C-IC,SN74HC153A
87-A20-715-010 IC,M62439SP
87-017-726-080 C-IC,BU4052BCF
87-A21-202-040 C-IC,M62445AFP
87-A21-481-040 C-IC,HD74HC4051FP
87-017-915-080 C-IC,BU4094BCF
8A-AR2-601-010 C-IC,UPD780228GF-066<U>
8A-AR3-601-110 C-IC,UPD780228GF-071<EZ>
87-A20-440-040 C-IC,BU1920FS<EZ>
87-070-083-010 IC,GP1U281X
87-A20-820-010 IC,BA7625
87-017-917-080 C-IC,BU4066BCF
87-A20-437-010 C-IC,M62431FP
87-A20-913-010 IC,LA1837NL
87-070-127-110 IC,LC72131D
87-A20-056-010 IC,BA3880S
TRANSISTOR
87-A30-197-080 TR,KTA1267GR
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
89-110-372-080 C-TR,2SA1037K(R)
87-A30-071-080 C-TR,RT1N 144C
89-503-602-080 C-FET,2SK360E<EZ>
89-213-702-010 TR,2SB1370E
87-A30-083-080 TR,CSD1489B
87-A30-085-040 C-TR,CSA1362GR<U>
87-A30-075-080 C-TR,2SA1235F
87-A30-076-080 C-TR,2SC3052F
87-A30-196-080 TR,2SC4115SRS
87-A30-074-080 C-TR,RT1P 141C
87-026-610-080 TR,KTC3198GR
87-A30-073-080 C-TR,RT1N 141C
87-A30-086-070 C-TR,CSD1306E
87-026-609-080 TR,KTA1266GR
87-A30-257-080 C-TR,2SD1306E
87-A30-107-070 C-TR,CMBT5401
87-A30-190-080 TR,CC5551
87-A30-106-070 C-TR,CMBT5551
87-A30-186-010 FET,2SK3053
87-A30-072-080 C-TR,RT1P 144C
87-026-236-080 C-TR,DTC124EK
87-026-232-080 C-TR,DTA144WK
87-026-608-080 C-TR,DTC123JK
89-112-965-080 TR,2SA1296GR
87-A30-087-080 C-FET,2SK2158
89-327-143-080 TR,2SC2714O
DIODE
87-020-465-080 DIODE,1SS133
87-A40-291-080 DIODE,1N4148M (CPT)
87-A40-345-080 ZENER,MTZJ10C
87-A40-269-080 C-DIODE,MC2836
87-A40-115-060 DIODE,RS603M
87-A40-270-080 C-DIODE,MC2838
87-A40-002-080 ZENER,MTZJ5.1C
87-A40-004-080 ZENER,MTZJ16A<U>
87-A40-003-080 ZENER,MTZJ4.3A<EZ>
87-A40-335-080 ZENER,MTZJ11C T-72
87-A40-224-010 DIODE,GBU8DL
87-070-274-080 DIODE,1N4003 SEM
87-A40-435-080 ZENER,MTZJ30D
87-A40-347-080 ZENER,MTZJ2.2B
87-A40-341-080 ZENER,MTZJ36A
87-A40-646-010 DIODE,FMB-G16L
87-070-136-080 ZENER,MTZJ5.1B
87-A40-344-080 ZENER,MTZJ6.2C
87-A40-488-080 DIODE,1SS244
87-A40-348-080 ZENER,MTZJ3.3A
87-A40-438-080 ZENER,MTZJ4.7A
87-017-931-080 ZENER,MTZJ5.6B
87-027-686-080 ZENER,HZ12A1
87-017-148-080 ZENER,HZS61L
MAIN C.B <U>
C101 87-010-235-080 CAP,E 470-16 M SME
C102 87-010-235-080 CAP,E 470-16 M SME
C103 87-010-384-080 CAP,E 100-25 M 11L SME
C104 87-016-128-080 CAP,E 22-25 M 105 KME
C105 87-010-247-080 CAP,E 100-50 M SME
C106 87-010-384-080 CAP,E 100-25 M 11L SME
C107 87-010-263-080 CAP,E 100-10 M 11L SME
C108 87-012-140-080 C-CAP,S 470P-50 J CH
C109 87-012-368-080 C-CAP,S 0.1-50 Z F
C110 87-012-368-080 C-CAP,S 0.1-50 Z F
C111 87-012-368-080 C-CAP,S 0.1-50 Z F
C112 87-012-368-080 C-CAP,S 0.1-50 Z F
C113 87-A12-300-010 CAP,E 3900-35 LXZ
C114 87-A12-300-010 CAP,E 3900-35 LXZ
C115 87-012-368-080 C-CAP,S 0.1-50 Z F
C116 87-012-368-080 C-CAP,S 0.1-50 Z F
C117 87-012-368-080 C-CAP,S 0.1-50 Z F
C118 87-012-368-080 C-CAP,S 0.1-50 Z F
C119 87-A11-316-090 CAP,E 8200-85
C120 87-A11-316-090 CAP,E 8200-85
C121 87-010-260-080 CAP,E 47-25 M 11L SME
C122 87-010-403-080 CAP,E 3.3-50 M 11L SME
C123 87-010-384-080 CAP,E 100-25 M 11L SME
C124 87-010-384-080 CAP,E 100-25 M 11L SME
C125 87-A10-417-080 CAP,E 47-63 SME
C126 87-010-263-080 CAP,E 100-10 M 11L SME
C127 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C128 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C131 87-010-544-080 CAP,E 0.1-50 M 11L SME
C133 87-010-404-080 CAP,E 4.7-50 M 11L SME
C135 87-012-368-080 C-CAP,S 0.1-50 Z F
C136 87-012-368-080 C-CAP,S 0.1-50 Z F
C143 87-A10-712-080 C-CAP,S 0.22-50 Z F
C144 87-A10-712-080 C-CAP,S 0.22-50 Z F
C149 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C150 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C153 87-010-401-080 CAP,E 1-50 M 11L SME
C154 87-010-401-080 CAP,E 1-50 M 11L SME
C155 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C156 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C157 87-010-408-080 CAP,E 47-50 M 11L SME
C158 87-010-248-080 CAP,E 220-10 M 11L SME
C159 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C169 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C170 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C171 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C172 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C173 87-010-405-080 CAP,E 10-50 M 11L SME

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C174 87-010-401-080 CAP,E 1-50 M 11L SME
C175 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C203 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C204 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C205 87-010-405-080 CAP,E 10-50 M 11L SME
C206 87-010-405-080 CAP,E 10-50 M 11L SME
C208 87-016-299-080 CAP,E 10-100 M SME
C209 87-010-406-080 CAP,E 22-50 M 11L SME
C210 87-010-406-080 CAP,E 22-50 M 11L SME
C211 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C212 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C215 87-A10-897-080 CAP,E 100-25 BP SME
C216 87-A10-897-080 CAP,E 100-25 BP SME
C217 87-A10-516-080 C-CAP,S 100P-200 J CH
C218 87-A10-516-080 C-CAP,S 100P-200 J CH
C221 87-016-526-080 C-CAP,S 0.47-16 BK
C222 87-016-526-080 C-CAP,S 0.47-16 BK
C223 87-010-402-080 CAP,E 2.2-50 M 11L SME
C224 87-010-402-080 CAP,E 2.2-50 M 11L SME
C225 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C226 87-016-251-080 CAP,E 220-16 M SMG
C227 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C228 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C229 87-016-251-080 CAP,E 220-16 M SMG
C230 87-A10-354-080 C-CAP,S 0.047-50 K B
C231 87-A10-354-080 C-CAP,S 0.047-50 K B
C285 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C287 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C288 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C289 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C290 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C291 87-012-368-080 C-CAP,S 0.1-50 Z F
C292 87-012-368-080 C-CAP,S 0.1-50 Z F
C293 87-012-368-080 C-CAP,S 0.1-50 Z F
C294 87-012-368-080 C-CAP,S 0.1-50 Z F
C295 87-012-368-080 C-CAP,S 0.1-50 Z F
C296 87-012-368-080 C-CAP,S 0.1-50 Z F
C297 87-012-368-080 C-CAP,S 0.1-50 Z F
C298 87-012-368-080 C-CAP,S 0.1-50 Z F
C303 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C304 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C305 87-010-405-080 CAP,E 10-50 M 11L SME
C306 87-010-405-080 CAP,E 10-50 M 11L SME
C308 87-016-299-080 CAP,E 10-100 M SME
C309 87-010-406-080 CAP,E 22-50 M 11L SME
C310 87-010-406-080 CAP,E 22-50 M 11L SME
C311 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C312 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C315 87-A10-897-080 CAP,E 100-25 BP SME
C316 87-A10-897-080 CAP,E 100-25 BP SME
C317 87-A10-516-080 C-CAP,S 100P-200 J CH
C318 87-A10-516-080 C-CAP,S 100P-200 J CH
C321 87-016-526-080 C-CAP,S 0.47-16 BK
C322 87-016-526-080 C-CAP,S 0.47-16 BK
C323 87-010-402-080 CAP,E 2.2-50 M 11L SME
C324 87-010-402-080 CAP,E 2.2-50 M 11L SME
C325 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C327 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C328 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C330 87-A10-354-080 C-CAP,S 0.047-50 K B
C331 87-A10-354-080 C-CAP,S 0.047-50 K B
C334 87-A10-918-080 CAP,E 100-16 SMG
C335 87-A10-918-080 CAP,E 100-16 SMG
C385 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C391 87-012-368-080 C-CAP,S 0.1-50 Z F
C392 87-012-368-080 C-CAP,S 0.1-50 Z F
C393 87-012-368-080 C-CAP,S 0.1-50 Z F
C394 87-012-368-080 C-CAP,S 0.1-50 Z F
C395 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C396 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C402 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C403 87-010-405-080 CAP,E 10-50 M 11L SME
C405 87-010-406-080 CAP,E 22-50 M 11L SME
C406 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C408 87-A10-897-080 CAP,E 100-25 BP SME
C409 87-A10-516-080 C-CAP,S 100P-200 J CH
C411 87-016-526-080 C-CAP,S 0.47-16 BK
C412 87-010-402-080 CAP,E 2.2-50 M 11L SME
C413 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C414 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C416 87-016-299-080 CAP,E 10-100 M SME
C420 87-A10-354-080 C-CAP,S 0.047-50 K B
C485 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C491 87-012-368-080 C-CAP,S 0.1-50 Z F
C492 87-012-368-080 C-CAP,S 0.1-50 Z F
C493 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C501 87-010-404-080 CAP,E 4.7-50 M 11L SME
C502 87-010-404-080 CAP,E 4.7-50 M 11L SME
C503 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C504 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C511 87-010-404-080 CAP,E 4.7-50 M 11L SME
C512 87-010-404-080 CAP,E 4.7-50 M 11L SME
C513 87-010-260-080 CAP,E 47-25 M 11L SME
C514 87-010-260-080 CAP,E 47-25 M 11L SME
C515 87-010-370-080 CAP,E 330-6.3 M SME
C516 87-010-370-080 CAP,E 330-6.3 M SME
C517 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C518 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C519 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C520 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C531 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C532 87-010-992-080 C-CAP,S 0.047-25 K B MK212
C533 87-015-785-080 C-CAP, 0.1-25 Z F C3216
C535 87-010-404-080 CAP,E 4.7-50 M 11L SME
C536 87-010-404-080 CAP,E 4.7-50 M 11L SME
C539 87-010-401-080 CAP,E 1-50 M 11L SME
C540 87-010-401-080 CAP,E 1-50 M 11L SME
C541 87-010-185-080 C-CAP,S 3900P-50 K B
C542 87-010-185-080 C-CAP,S 3900P-50 K B
C547 87-010-404-080 CAP,E 4.7-50 M 11L SME
C548 87-010-404-080 CAP,E 4.7-50 M 11L SME
C549 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C550 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C554 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C555 87-010-405-080 CAP,E 10-50 M 11L SME
C556 87-010-248-080 CAP,E 220-10 M 11L SME
C557 87-010-405-080 CAP,E 10-50 M 11L SME
C559 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C560 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C561 87-012-140-080 C-CAP,S 470P-50 J CH
C562 87-012-140-080 C-CAP,S 470P-50 J CH
C565 87-010-404-080 CAP,E 4.7-50 M 11L SME
C566 87-010-404-080 CAP,E 4.7-50 M 11L SME
C601 87-010-378-080 CAP,E 10-16 M 11L SME
C602 87-010-378-080 CAP,E 10-16 M 11L SME
C603 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C604 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C605 87-010-405-080 CAP,E 10-50 M 11L SME
C606 87-010-405-080 CAP,E 10-50 M 11L SME
C607 87-012-140-080 C-CAP,S 470P-50 J CH
C608 87-012-140-080 C-CAP,S 470P-50 J CH
C609 87-010-188-080 C-CAP,S 6800P-50 K B
C610 87-010-188-080 C-CAP,S 6800P-50 K B
C611 87-010-197-080 C-CAP,S 0.01-25 K B
C612 87-010-195-080 C-CAP,S 0.068-25 Z F
C613 87-010-195-080 C-CAP,S 0.068-25 Z F
C614 87-010-197-080 C-CAP,S 0.01-25 K B
C615 87-010-404-080 CAP,E 4.7-50 M 11L SME
C616 87-010-404-080 CAP,E 4.7-50 M 11L SME
C617 87-010-404-080 CAP,E 4.7-50 M 11L SME

– 6 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C618 87-010-404-080 CAP,E 4.7-50 M 11L SME
C619 87-010-404-080 CAP,E 4.7-50 M 11L SME
C620 87-010-101-080 CAP,E 220-16 M SME
C621 87-010-260-080 CAP,E 47-25 M 11L SME
C701 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C702 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C723 87-010-401-080 CAP,E 1-50 M 11L SME
C726 87-010-405-080 CAP,E 10-50 M 11L SME
C745 87-012-368-080 C-CAP,S 0.1-50 Z F
C746 87-012-368-080 C-CAP,S 0.1-50 Z F
C901 87-010-406-080 CAP,E 22-50 M 11L SME
C902 87-010-406-080 CAP,E 22-50 M 11L SME
C903 87-010-406-080 CAP,E 22-50 M 11L SME
C904 87-010-406-080 CAP,E 22-50 M 11L SME
C905 87-010-406-080 CAP,E 22-50 M 11L SME
C906 87-010-260-080 CAP,E 47-25 M 11L SME
C907 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C908 87-010-387-080 CAP,E 470-25 M SME
C909 87-010-371-080 CAP,E 470-6.3 M SME
C910 87-010-371-080 CAP,E 470-6.3 M SME
C911 87-010-371-080 CAP,E 470-6.3 M SME
C912 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C913 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C914 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C915 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
CN110 87-A60-621-010 CONN,4P V 2MM JMT
CN112 87-009-031-010 CONN,3P V WHT PH
CN501 87-A60-039-010 CONN,32P V 9604S-32C
CN502 87-A60-054-010 CONN,14P V 9604S-14C
CN503 87-A60-056-010 CONN,12P V 9604S-12C
CN504 87-099-574-010 CONN,20P TUC-P20P-B1
CN505 87-A60-189-010 CONN,16P V TUC-P16P-B1
CN510 87-A60-063-010 CONN,4P V 9604S-04C
CN601 87-A60-627-010 CONN,10P V 2MM JMT
CN702 87-099-668-010 CONN,9P TUC-P 9P-B1
CN901 87-A60-619-010 CONN,2P V 2MM JMT
CNA201 8Z-AR4-606-010 CONN ASSY,8P VH
CNA202 8Z-AR4-605-010 CONN ASSY,6P VH
FB501 87-008-372-080 FLTR,EMI BL01 RN1
FB602 87-008-372-080 FLTR,EMI BL01 RN1
J501 87-A60-947-010 JACK,PIN 4P W/R GLD
J502 87-A60-947-010 JACK,PIN 4P W/R GLD
J715 87-A61-059-010 JACK,PIN 1P BLK W/O SW GLD
J901 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J902 87-A60-950-010 JACK,PIN 3P R/W/Y W/E GLD
J903 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J904 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J905 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
JW177 87-008-372-080 FLTR,EMI BL01 RN1
L291 87-003-383-010 COIL,1UH K
L292 87-003-383-010 COIL,1UH K
L293 87-003-383-010 COIL,1UH K
L294 87-003-383-010 COIL,1UH K
L391 87-003-383-010 COIL,1UH K
L392 87-003-383-010 COIL,1UH K
L491 87-003-383-010 COIL,1UH K
L901 87-005-239-080 COIL,100UH K LAL03
PR101 87-026-691-080 FUSE,10A 125V 251
PR104 87-026-691-080 FUSE,10A 125V 251
PR107 87-026-691-080 FUSE,10A 125V 251
PR108 87-026-691-080 FUSE,10A 125V 251
PR201 87-026-691-080 FUSE,10A 125V 251
PR202 87-026-691-080 FUSE,10A 125V 251
PR301 87-026-691-080 FUSE,10A 125V 251
PR302 87-026-691-080 FUSE,10A 125V 251
PR401 87-026-691-080 FUSE,10A 125V 251
PR402 87-026-691-080 FUSE,10A 125V 251
Q102 8Z-NFT-604-110 CONN ASSY,3P SURR
Q108 8Z-AR1-670-010 CONN ASSY,3P VM
R109 87-029-060-080 RES,FUSE 33-1/4W J
R143 87-A00-259-080 RES,M/F 0.33-1W J
R176 87-A00-401-050 RES,M/F 390-1W J VTP
R179 87-A00-402-050 RES,M/F 560-1W J VTP
R211 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R212 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R231 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R232 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R233 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R234 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R281 87-A00-126-080 RES,M/F 220-1W J VTP
R282 87-A00-126-080 RES,M/F 220-1W J VTP
R283 87-A00-126-080 RES,M/F 220-1W J VTP
R284 87-A00-126-080 RES,M/F 220-1W J VTP
R331 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R332 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R333 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R334 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R416 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R417 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R424 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R587 87-A00-126-080 RES,M/F 220-1W J VTP
R590 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R611 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R902 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
R905 87-010-317-080 C-CAP,S 39P-50 J CH
RY101 87-A90-454-010 RELAY, 12V DJ12D2-O(M)
RY102 87-A90-454-010 RELAY, 12V DJ12D2-O(M)
RY281 87-A91-686-010 RELAY, G5PA-28(OMRON)
RY481 87-A91-686-010 RELAY, G5PA-28(OMRON)
RY801 87-A91-686-010 RELAY, G5PA-28(OMRON)
S101 86-SP8-611-010 SW,SL 1-1-2
S291 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES
S292 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES
TH201 87-A91-081-080 C-THMS,100K-K 20P
TH202 87-A91-081-080 C-THMS,100K-K 20P
TH301 87-A91-081-080 C-THMS,100K-K 20P
TH302 87-A91-081-080 C-THMS,100K-K 20P
TH401 87-A91-081-080 C-THMS,100K-K 20P
W003 8A-AR3-654-010 CONN ASSY,9P VH
WH101 87-A90-510-010 HLDR,WIRE 2.5-9P
MAIN C.B <EZ>
C101 87-010-235-080 CAP,E 470-16 M SME
C102 87-010-235-080 CAP,E 470-16 M SME
C103 87-010-384-080 CAP,E 100-25 M 11L SME
C104 87-016-128-080 CAP,E 22-25 M 105 KME
C105 87-010-247-080 CAP,E 100-50 M SME
C106 87-010-384-080 CAP,E 100-25 M 11L SME
C108 87-012-140-080 C-CAP,S 470P-50 J CH
C109 87-012-368-080 C-CAP,S 0.1-50 Z F
C110 87-012-368-080 C-CAP,S 0.1-50 Z F
C111 87-012-368-080 C-CAP,S 0.1-50 Z F
C112 87-012-368-080 C-CAP,S 0.1-50 Z F
C113 87-A12-300-090 CAP,E 3900-35 LXZ
C114 87-A12-300-090 CAP,E 3900-35 LXZ
C115 87-012-368-080 C-CAP,S 0.1-50 Z F
C116 87-012-368-080 C-CAP,S 0.1-50 Z F
C117 87-012-368-080 C-CAP,S 0.1-50 Z F
C118 87-012-368-080 C-CAP,S 0.1-50 Z F
C119 87-A11-991-090 CAP,E 7500-85 105 KMG
C120 87-A11-991-090 CAP,E 7500-85 105 KMG
C121 87-010-260-080 CAP,E 47-25 M 11L SME
C122 87-010-403-080 CAP,E 3.3-50 M 11L SME
C123 87-010-384-080 CAP,E 100-25 M 11L SME
C124 87-010-384-080 CAP,E 100-25 M 11L SME
C125 87-A10-417-080 CAP,E 100-50 M SME
C126 87-010-263-080 CAP,E 100-10 M 11L SME
C127 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C131 87-010-544-080 CAP,E 0.1-50 M 11L SME
!
!
!
!
!
!
!
!
!
!

– 7 –
C133 87-010-404-080 CAP,E 4.7-50 M 11L SME
C135 87-012-368-080 C-CAP,S 0.1-50 Z F
C136 87-012-368-080 C-CAP,S 0.1-50 Z F
C143 87-A10-712-080 C-CAP,S 0.22-50 Z F
C144 87-A10-712-080 C-CAP,S 0.22-50 Z F
C149 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C150 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C153 87-010-401-080 CAP,E 1-50 M 11L SME
C154 87-010-401-080 CAP,E 1-50 M 11L SME
C155 87-010-196-080 C-CAP,S 0.1-25 Z F
C156 87-010-196-080 C-CAP,S 0.1-25 Z F
C157 87-010-408-080 CAP,E 47-50 M 11L SME
C158 87-010-248-080 CAP,E 220-10 M 11L SME
C159 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C169 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C170 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C171 87-010-196-080 C-CAP,S 0.1-25 Z F
C172 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C173 87-010-405-080 CAP,E 10-50 M 11L SME
C174 87-010-401-080 CAP,E 1-50 M 11L SME
C175 87-010-196-080 C-CAP,S 0.1-25 Z F
C203 87-010-178-080 C-CAP,S 1000P-50 K B
C204 87-010-178-080 C-CAP,S 1000P-50 K B
C205 87-010-405-080 CAP,E 10-50 M 11L SME
C206 87-010-405-080 CAP,E 10-50 M 11L SME
C208 87-A11-937-080 CAP,E 10-100 KME
C209 87-010-406-080 CAP,E 22-50 M 11L SME
C210 87-010-406-080 CAP,E 22-50 M 11L SME
C211 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C212 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C215 87-A10-897-080 CAP,E 100-25 BP SME
C216 87-A10-897-080 CAP,E 100-25 BP SME
C217 87-A10-516-080 C-CAP,S 100P-200 J CH
C218 87-A10-516-080 C-CAP,S 100P-200 J CH
C221 87-016-526-080 C-CAP,S 0.47-16 BK
C222 87-016-526-080 C-CAP,S 0.47-16 BK
C223 87-010-402-080 CAP,E 2.2-50 M 11L SME
C224 87-010-402-080 CAP,E 2.2-50 M 11L SME
C225 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C226 87-016-251-080 CAP,E 220-16 M SMG
C227 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C228 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C229 87-016-251-080 CAP,E 220-16 M SMG
C230 87-A10-354-080 C-CAP,S 0.047-50 K B
C231 87-A10-354-080 C-CAP,S 0.047-50 K B
C285 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C287 87-010-191-080 C-CAP,S 0.015-50 Z F GRM
C288 87-010-191-080 C-CAP,S 0.015-50 Z F GRM
C289 87-010-191-080 C-CAP,S 0.015-50 Z F GRM
C290 87-010-191-080 C-CAP,S 0.015-50 Z F GRM
C291 87-012-368-080 C-CAP,S 0.1-50 Z F
C292 87-012-368-080 C-CAP,S 0.1-50 Z F
C293 87-012-368-080 C-CAP,S 0.1-50 Z F
C294 87-012-368-080 C-CAP,S 0.1-50 Z F
C295 87-012-368-080 C-CAP,S 0.1-50 Z F
C296 87-012-368-080 C-CAP,S 0.1-50 Z F
C297 87-012-368-080 C-CAP,S 0.1-50 Z F
C298 87-012-368-080 C-CAP,S 0.1-50 Z F
C303 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C304 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C305 87-010-405-080 CAP,E 10-50 M 11L SME
C306 87-010-405-080 CAP,E 10-50 M 11L SME
C308 87-016-299-080 CAP,E 10-100 M SME
C309 87-010-406-080 CAP,E 22-50 M 11L SME
C310 87-010-406-080 CAP,E 22-50 M 11L SME
C311 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C312 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C315 87-A10-897-080 CAP,E 100-25 BP SME
C316 87-A10-897-080 CAP,E 100-25 BP SME
C317 87-A10-516-080 C-CAP,S 100P-200 J CH
C318 87-A10-516-080 C-CAP,S 100P-200 J CH
C321 87-016-526-080 C-CAP,S 0.47-16 BK
C322 87-016-526-080 C-CAP,S 0.47-16 BK
C323 87-010-402-080 CAP,E 2.2-50 M 11L SME
C324 87-010-402-080 CAP,E 2.2-50 M 11L SME
C325 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C327 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C328 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C330 87-A10-354-080 C-CAP,S 0.047-50 K B
C331 87-A10-354-080 C-CAP,S 0.047-50 K B
C334 87-A10-918-080 CAP,E 100-16 SMG
C335 87-A10-918-080 CAP,E 100-16 SMG
C385 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C391 87-012-368-080 C-CAP,S 0.1-50 Z F
C392 87-012-368-080 C-CAP,S 0.1-50 Z F
C393 87-012-368-080 C-CAP,S 0.1-50 Z F
C394 87-012-368-080 C-CAP,S 0.1-50 Z F
C395 87-010-191-080 C-CAP,S 0.015-50 Z F GRM
C396 87-010-191-080 C-CAP,S 0.015-50 Z F GRM
C397 87-012-368-080 C-CAP,S 0.1-50 Z F
C398 87-012-368-080 C-CAP,S 0.1-50 Z F
C402 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C403 87-010-405-080 CAP,E 10-50 M 11L SME
C405 87-010-406-080 CAP,E 22-50 M 11L SME
C406 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C408 87-A10-897-080 CAP,E 100-25 BP SME
C409 87-A10-516-080 C-CAP,S 100P-200 J CH
C411 87-016-526-080 C-CAP,S 0.47-16 BK
C412 87-010-402-080 CAP,E 2.2-50 M 11L SME
C413 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C414 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C416 87-A11-937-080 CAP,E 10-100 KME
C420 87-A10-354-080 C-CAP,S 0.047-50 K B
C485 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C491 87-012-368-080 C-CAP,S 0.1-50 Z F
C492 87-012-368-080 C-CAP,S 0.1-50 Z F
C493 87-010-191-080 C-CAP,S 0.015-50 Z F GRM
C494 87-012-368-080 C-CAP,S 0.1-50 Z F
C501 87-010-404-080 CAP,E 4.7-50 M 11L SME
C502 87-010-404-080 CAP,E 4.7-50 M 11L SME
C503 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C504 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C511 87-010-404-080 CAP,E 4.7-50 M 11L SME
C512 87-010-404-080 CAP,E 4.7-50 M 11L SME
C513 87-010-260-080 CAP,E 47-25 M 11L SME
C514 87-010-260-080 CAP,E 47-25 M 11L SME
C515 87-010-370-080 CAP,E 330-6.3 M SME
C516 87-010-370-080 CAP,E 330-6.3 M SME
C517 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C518 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C519 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C520 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C531 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C532 87-010-992-080 C-CAP,S 0.047-25 K B MK212
C533 87-015-785-080 C-CAP, 0.1-25 Z F C3216
C535 87-010-404-080 CAP,E 4.7-50 M 11L SME
C536 87-010-404-080 CAP,E 4.7-50 M 11L SME
C539 87-010-401-080 CAP,E 1-50 M 11L SME
C540 87-010-401-080 CAP,E 1-50 M 11L SME
C541 87-010-185-080 C-CAP,S 3900P-50 K B
C542 87-010-185-080 C-CAP,S 3900P-50 K B
C547 87-010-404-080 CAP,E 4.7-50 M 11L SME
C548 87-010-404-080 CAP,E 4.7-50 M 11L SME
C549 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C550 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C554 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C555 87-010-405-080 CAP,E 10-50 M 11L SME
C556 87-010-248-080 CAP,E 220-10 M 11L SME
C557 87-010-405-080 CAP,E 10-50 M 11L SME
C559 87-010-183-080 C-CAP,S 2700P-50 K B GRM
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO.KANRI
NO.
KANRI
NO.

– 8 –
C560 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C561 87-012-140-080 C-CAP,S 470P-50 J CH
C562 87-012-140-080 C-CAP,S 470P-50 J CH
C565 87-010-404-080 CAP,E 4.7-50 M 11L SME
C566 87-010-404-080 CAP,E 4.7-50 M 11L SME
C601 87-010-378-080 CAP,E 10-16 M 11L SME
C602 87-010-378-080 CAP,E 10-16 M 11L SME
C603 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C604 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C605 87-010-405-080 CAP,E 10-50 M 11L SME
C606 87-010-405-080 CAP,E 10-50 M 11L SME
C607 87-012-140-080 C-CAP,S 470P-50 J CH
C608 87-012-140-080 C-CAP,S 470P-50 J CH
C609 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C610 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C611 87-010-197-080 C-CAP,S 0.01-25 K B
C612 87-010-195-080 C-CAP,S 0.068-25 Z F
C613 87-010-195-080 C-CAP,S 0.068-25 Z F
C614 87-010-197-080 C-CAP,S 0.01-25 K B
C615 87-010-404-080 CAP,E 4.7-50 M 11L SME
C616 87-010-404-080 CAP,E 4.7-50 M 11L SME
C617 87-010-404-080 CAP,E 4.7-50 M 11L SME
C618 87-010-404-080 CAP,E 4.7-50 M 11L SME
C619 87-010-404-080 CAP,E 4.7-50 M 11L SME
C620 87-010-101-080 CAP,E 220-16 M SME
C621 87-010-260-080 CAP,E 47-25 M 11L SME
C701 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C702 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C723 87-010-401-080 CAP,E 1-50 M 11L SME
C726 87-010-405-080 CAP,E 10-50 M 11L SME
C745 87-012-368-080 C-CAP,S 0.1-50 Z F
C746 87-012-368-080 C-CAP,S 0.1-50 Z F
C901 87-010-406-080 CAP,E 22-50 M 11L SME
C902 87-010-406-080 CAP,E 22-50 M 11L SME
C903 87-010-406-080 CAP,E 22-50 M 11L SME
C904 87-010-406-080 CAP,E 22-50 M 11L SME
C905 87-010-406-080 CAP,E 22-50 M 11L SME
C906 87-010-260-080 CAP,E 47-25 M 11L SME
C907 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C908 87-010-387-080 CAP,E 470-25 M SME
C909 87-010-371-080 CAP,E 470-6.3 M SME
C910 87-010-371-080 CAP,E 470-6.3 M SME
C911 87-010-371-080 CAP,E 470-6.3 M SME
C912 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C913 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C914 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C915 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C951 87-010-322-080 C-CAP,S 100P-50 J CH
C952 87-010-322-080 C-CAP,S 100P-50 J CH
C953 87-010-322-080 C-CAP,S 100P-50 J CH
C954 87-010-322-080 C-CAP,S 100P-50 J CH
CN110 87-A60-621-010 CONN,4P V 2MM JMT
CN501 87-A60-553-010 CONN,35P V 9604S-35C
CN502 87-A60-054-010 CONN,14P V 9604S-14C
CN503 87-A60-056-010 CONN,12P V 9604S-12C
CN504 87-099-574-010 CONN,20P TUC-P20P-B1
CN505 87-A60-189-010 CONN,16P V TUC-P16P-B1
CN506 87-A60-063-010 CONN,04P V 9604S-04C
CN601 87-A60-627-010 CONN,10P V 2MM JMT
CN702 87-099-668-010 CONN,9P TUC-P 9P-B1
CN901 87-A60-619-010 CONN,2P V 2MM JMT
CNA003 8A-AR3-654-010 CONN ASSY,9P VH
CNA201 8Z-AR4-606-010 CONN ASSY,8P VH
CNA202 8Z-AR4-605-010 CONN ASSY,6P VH
FB501 87-008-372-080 FLTR,EMI BL01 RN1
FB602 87-008-372-080 FLTR,EMI BL01 RN1
J501 87-A60-947-010 JACK,PIN 4P W/R GLD
J502 87-A60-947-010 JACK,PIN 4P W/R GLD
J715 87-A61-059-010 JACK,PIN 1P BLK W/O SW GOLD
J901 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J902 87-A60-950-010 JACK,PIN 3P R/W/Y W/E GLD
J903 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J904 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J905 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
JW177 87-008-372-080 FLTR,EMI BL01 RN1
L291 87-003-383-010 COIL,1UH K
L292 87-003-383-010 COIL,1UH K
L293 87-003-383-010 COIL,1UH K
L294 87-003-383-010 COIL,1UH K
L391 87-003-383-010 COIL,1UH K
L392 87-003-383-010 COIL,1UH K
L491 87-003-383-010 COIL,1UH K
L901 87-005-239-080 COIL,100UH K LAL03
PR101 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR104 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR107 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR108 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR201 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR202 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR301 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR302 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR401 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR402 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
Q102 8Z-NFT-604-110 CONN ASSY,3P SURR
Q108 8Z-AR1-670-010 CONN ASSY,3P VM
R109 87-029-060-080 RES,FUSE 33-1/4W J
R176 87-A00-401-050 RES,M/F 390-1W J VTP
R179 87-A00-373-050 RES,M/F 270-1W J VTP
R180 87-A00-403-080 RES,M/F 560-1W J T52L25.5
R211 87-A00-598-010 RES,M/F 0.15-3W JRZ
R212 87-A00-598-010 RES,M/F 0.15-3W JRZ
R231 87-A00-598-010 RES,M/F 0.15-3W JRZ
R232 87-A00-598-010 RES,M/F 0.15-3W JRZ
R233 87-A00-598-010 RES,M/F 0.15-3W JRZ
R234 87-A00-598-010 RES,M/F 0.15-3W JRZ
R281 87-A00-126-080 RES,M/F 220-1W J VTP
R282 87-A00-126-080 RES,M/F 220-1W J VTP
R283 87-A00-126-080 RES,M/F 220-1W J VTP
R284 87-A00-126-080 RES,M/F 220-1W J VTP
R331 87-A00-598-010 RES,M/F 0.15-3W JRZ
R332 87-A00-598-010 RES,M/F 0.15-3W JRZ
R333 87-A00-598-010 RES,M/F 0.15-3W JRZ
R334 87-A00-598-010 RES,M/F 0.15-3W JRZ
R416 87-A00-598-010 RES,M/F 0.15-3W JRZ
R417 87-A00-598-010 RES,M/F 0.15-3W JRZ
R424 87-A00-598-010 RES,M/F 0.15-3W JRZ
R587 87-A00-126-080 RES,M/F 220-1W J VTP
R590 87-A00-598-010 RES,M/F 0.15-3W JRZ
R611 87-A00-598-010 RES,M/F 0.15-3W JRZ
R902 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
R905 87-010-317-080 C-CAP,S 39P-50 J CH
RY101 87-A90-454-010 RELAY, 12V DJ12D2-O(M)
RY102 87-A90-454-010 RELAY, 12V DJ12D2-O(M)
S101 86-SP8-611-010 SW,SL 1-1-2
S291 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES
S292 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES
TH201 87-A91-081-080 C-THMS,100K-K 20P
TH202 87-A91-081-080 C-THMS,100K-K 20P
TH301 87-A91-081-080 C-THMS,100K-K 20P
TH302 87-A91-081-080 C-THMS,100K-K 20P
TH401 87-A91-081-080 C-THMS,100K-K 20P
W003 8A-AR3-654-010 CONN ASSY,9P VH
WH101 87-A90-510-010 HLDR,WIRE 2.5-9P
FRONT C.B
C707 87-010-382-040 CAP,E 22-25 M 11L SME
C708 87-010-382-040 CAP,E 22-25 M 11L SME
C709 87-010-382-040 CAP,E 22-25 M 11L SME
C710 87-010-382-040 CAP,E 22-25 M 11L SME
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO. KANRI
NO.
KANRI
NO.
!
!
!
!
!
!
!
!
!
!

– 9 –
C711 87-010-263-040 CAP,E 100-10 M 11L SME
C712 87-010-382-040 CAP,E 22-25 M 11L SME
C714 87-010-560-040 CAP,E 10-50 M 5L MA
C715 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C716 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C717 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C718 87-015-699-040 CAP,E 10-50 M 7L SRA
C719 87-015-699-040 CAP,E 10-50 M 7L SRA
C720 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C721 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C722 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C723 87-010-405-040 CAP,E 10-50 M 11L SME
C801 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C802 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C803 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C805 87-010-198-080 C-CAP,S 0.022-25 K B C2012<EZ>
C805 87-012-141-080 C-CAP,S 0.22-16 Z F C2012<U>
C806 87-010-400-040 CAP,E 0.47-50 M 11L SME
C807 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C808 87-010-498-040 CAP,E 10-16 M 5L SRE
C809 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C810 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C811 87-A10-189-040 CAP,E 220-10 M 5L
C812 87-A10-189-040 CAP,E 220-10 M 5L
C814 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C816 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C817 87-012-155-080 C-CAP,S 180P-50 J CH GRM
C818 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C819 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C820 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C821 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C822 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C823 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C824 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C825 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C826 87-010-405-040 CAP,E 10-50 M 11L SME
C827 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C828 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C829 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C830 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C831 87-A10-189-040 CAP,E 220-10 M 5L
C832 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C834 87-012-368-080 C-CAP,S 0.1-50 Z F
C835 87-012-368-080 C-CAP,S 0.1-50 Z F
C836 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C837 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C838 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C839 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C840 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C841 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C842 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C843 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C844 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C845 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C846 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C849 87-012-368-080 C-CAP,S 0.1-50 Z F
C850 87-010-408-040 CAP,E 47-50 M 11L SME
C852 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C853 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C854 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C855 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C856 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C857 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C858 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C859 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C860 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C861 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C862 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C864 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C866 87-012-140-080 C-CAP,S 470P-50 J CH
CN801 87-A60-079-010 CONN,08P H 9604S-08F
CN802 87-A61-195-010 CONN,35P H 9604S-35C<EZ>
CN802 87-A60-064-010 CONN,32P H 9604S-32F<U>
CN803 87-099-755-010 CONN,14P H 9604
CN805 87-A60-076-010 CONN,12P H 9604S-12F
FL801 8A-AR1-602-010 FL,BJ759GK
L801 87-A50-434-010 COIL,CLK 4.19M(TOKO)
LED703 87-A40-317-010 LED,SLR-342VCT31 RED
LED704 87-A40-317-080 LED,SLR-342VCT31 RED
LED705 87-A40-317-080 LED,SLR-342VCT31 RED
LED706 87-A40-317-080 LED,SLR-342VCT31 RED
LED707 87-A40-317-080 LED,SLR-342VCT31 RED
LED708 87-A40-317-080 LED,SLR-342VCT31 RED
LED709 87-A40-317-080 LED,SLR-342VCT31 RED
LED710 87-A40-317-080 LED,SLR-342VCT31 RED
LED711 87-A40-317-080 LED,SLR-342VCT31 RED
LED712 87-A40-317-080 LED,SLR-342VCT31 RED
S801 87-A90-095-080 SW,TACT EVQ11G04M
S802 87-A90-095-080 SW,TACT EVQ11G04M
S803 87-A90-095-080 SW,TACT EVQ11G04M<EZ>
S804 87-A90-095-080 SW,TACT EVQ11G04M<EZ>
S805 87-A90-095-080 SW,TACT EVQ11G04M<EZ>
S806 87-A90-095-080 SW,TACT EVQ11G04M
S807 87-A90-095-080 SW,TACT EVQ11G04M
S808 87-A90-095-080 SW,TACT EVQ11G04M
S809 87-A90-095-080 SW,TACT EVQ11G04M
S812 87-A90-095-080 SW,TACT EVQ11G04M
S813 87-A90-095-080 SW,TACT EVQ11G04M
S814 87-A90-095-080 SW,TACT EVQ11G04M
S815 87-A90-095-080 SW,TACT EVQ11G04M
S816 87-A90-095-080 SW,TACT EVQ11G04M
S817 87-A90-095-080 SW,TACT EVQ11G04M
SW801 87-A91-646-010 SW,RTRY EC12E12204
SW802 87-A91-647-010 SW,RTRY EC12E12504
DIGITAL C.B
C100 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C101 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C102 87-010-374-080 CAP,E 47-10 M 11L SME
C105 87-012-140-080 C-CAP,S 470P-50 J CH
C106 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C107 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C108 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C109 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C110 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C111 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C112 87-010-404-080 CAP,E 4.7-50 M 11L SME
C113 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C114 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C115 87-010-374-080 CAP,E 47-10 M 11L SME
C118 87-010-402-080 CAP,E 2.2-50 M 11L SME
C119 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C120 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C121 87-010-263-080 CAP,E 100-10 M 11L SME
C122 87-010-311-080 C-CAP,S 12P-50 J CH GRM
C123 87-010-313-080 C-CAP,S 18P-50 J CH GRM
C125 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C126 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C127 87-010-101-080 CAP,E 220-16 M SME
C128 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C129 87-010-101-080 CAP,E 220-16 M SME
C130 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C131 87-010-263-080 CAP,E 100-10 M 11L SME
C132 87-010-263-080 CAP,E 100-10 M 11L SME
C133 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C135 87-010-101-080 CAP,E 220-16 M SME
C136 87-010-263-080 CAP,E 100-10 M 11L SME
C137 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C138 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO. KANRI
NO.
KANRI
NO.

– 10 –
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO.
C139 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C140 87-010-552-040 CAP,E 22-16 M 5L SRE
C141 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C142 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C143 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C144 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C145 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C146 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C147 87-010-405-080 CAP,E 10-50 M 11L SME
C148 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C149 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C150 87-010-405-080 CAP,E 10-50 M 11L SME
C151 87-010-405-080 CAP,E 10-50 M 11L SME
C152 87-010-405-080 CAP,E 10-50 M 11L SME
C153 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C154 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C155 87-A10-369-080 C-CAP,S 0.47-16 K B
C156 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C157 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C158 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C159 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C160 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C161 87-010-405-080 CAP,E 10-50 M 11L SME
C162 87-010-405-080 CAP,E 10-50 M 11L SME
C163 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C164 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C165 87-A10-369-080 C-CAP,S 0.47-16 K B
C166 87-010-405-080 CAP,E 10-50 M 11L SME
C167 87-010-405-080 CAP,E 10-50 M 11L SME
C168 87-010-401-080 CAP,E 1-50 M 11L SME
C169 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C170 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C171 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C172 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C173 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C174 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C175 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C176 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C177 87-A10-369-080 C-CAP,S 0.47-16 K B
C178 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C179 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C180 87-010-405-080 CAP,E 10-50 M 11L SME
C181 87-010-405-080 CAP,E 10-50 M 11L SME
C182 87-010-405-080 CAP,E 10-50 M 11L SME
C183 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C184 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C185 87-010-405-080 CAP,E 10-50 M 11L SME
C186 87-010-405-080 CAP,E 10-50 M 11L SME
C187 87-016-083-080 C-CAP,S 0.15-16 K R
C188 87-016-083-080 C-CAP,S 0.15-16 K R
C189 87-016-083-080 C-CAP,S 0.15-16 K R
C190 87-010-405-080 CAP,E 10-50 M 11L SME
C191 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C192 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C193 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C194 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C195 87-010-405-080 CAP,E 10-50 M 11L SME
C196 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C197 87-010-405-080 CAP,E 10-50 M 11L SME
C198 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C199 87-A10-369-080 C-CAP,S 0.47-16 K B
C201 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C202 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C203 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C204 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C205 87-A10-369-080 C-CAP,S 0.47-16 K B
C206 87-010-401-080 CAP,E 1-50 M 11L SME
C207 87-010-405-080 CAP,E 10-50 M 11L SME
C208 87-010-405-080 CAP,E 10-50 M 11L SME
C209 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C210 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C211 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C212 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C213 87-A10-369-080 C-CAP,S 0.47-16 K B
C214 87-010-405-080 CAP,E 10-50 M 11L SME
C215 87-010-405-080 CAP,E 10-50 M 11L SME
C216 87-010-405-080 CAP,E 10-50 M 11L SME
C219 87-010-993-080 C-CAP,S 0.056-25 K B MK212
C220 87-A10-369-080 C-CAP,S 0.47-16 K B
C221 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C222 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C223 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C224 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C227 87-010-405-080 CAP,E 10-50 M 11L SME
C228 87-010-405-080 CAP,E 10-50 M 11L SME
C236 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C237 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C238 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C239 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C240 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C241 87-010-405-080 CAP,E 10-50 M 11L SME
C242 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C243 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C245 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C250 87-018-131-080 CAP,TU C 1000P-50 K B<EZ>
C253 87-010-263-080 CAP,E 100-10 M 11L SME
C254 87-010-196-080 C-CAP,S 0.1-25 Z F<EZ>
C255 87-010-378-080 CAP,E 10-16 M 11L SME
C268 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C272 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C273 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C274 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C275 87-010-263-080 CAP,E 100-10 M 11L SME
C278 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C280 87-010-401-080 CAP,E 1-50 M 11L SME
C281 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C282 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C288 87-010-314-080 C-CAP,S 22P-50 J CH GRM<EZ>
C291 87-010-314-080 C-CAP,S 22P-50 J CH GRM<EZ>
C292 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C301 87-010-401-080 CAP,E 1-50 M 11L SME
C302 87-010-762-080 CAP,E 220-10 M SME
C317 87-016-462-080 C-CAP,S 1-16 Z F
C318 87-016-462-080 C-CAP,S 1-16 Z F
C336 87-010-405-080 CAP,E 10-50 M 11L SME
C337 87-010-405-080 CAP,E 10-50 M 11L SME
C338 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C339 87-010-405-080 CAP,E 10-50 M 11L SME
C340 87-010-405-080 CAP,E 10-50 M 11L SME
C341 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C342 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C343 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C344 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C403 87-010-401-080 CAP,E 1-50 M 11L SME
C404 87-008-372-080 FLTR,EMI BL01 RN1<U>
CN101 87-099-563-010 CONN,20P TUC-P20X-B1
CN102 87-A60-190-010 CONN,16P H TUC-P16X-B1
CN103 8Z-AR1-635-010 CONN ASSY,4P (DTS,AC-3)
CN105 87-A60-060-010 CONN,07P V 9604S-07C
FB103 87-008-372-080 FLTR,EMI BL01 RN1
FB104 87-008-372-080 FLTR,EMI BL01 RN1<EZ>
FB105 87-008-474-080 F-BEAD, BL02RN1-R62T2 EMI
FB108 87-008-474-080 F-BEAD, BL02RN1-R62T2 EMI
FB110 87-008-372-080 FLTR,EMI BL01 RN1
FB111 87-008-372-080 FLTR,EMI BL01 RN1
FB112 87-005-212-080 COIL,220UH K EL0606
J101 87-A61-143-010 JACK,PIN 1P ORN GLD
JR121 87-010-178-080 C-CAP,S 1000P-50 K B C2012
JR157 87-005-840-080 C-COIL,S BLM21A10<U>
JW177 87-008-372-080 FLTR,EMI BL01 RN1<U>

– 11 –
JW179 87-008-372-080 FLTR,EMI BL01 RN1<U>
L102 87-A50-095-010 COIL,68UH RCR875D
L103 87-005-274-080 COIL,68UH K LAL03
L104 87-008-501-080 FLTR, DSS306-55
L106 87-008-372-080 FLTR,EMI BL01 RN1
L107 87-008-501-080 FLTR, DSS306-55
L108 87-008-501-080 FLTR, DSS306-55
X102 87-A70-243-010 VIB,XTAL 24.576MHZ
VOLUME C.B
C601 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C602 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C603 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C604 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C605 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C606 87-010-805-080 C-CAP,S 1-16 Z F
C607 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C608 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C610 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C611 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C612 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C613 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C614 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C615 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C634 87-010-374-080 CAP,E 47-10 M 11L SME
C635 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN601 87-A60-076-010 CONN,12P H 9604S-12F
CN603 87-A60-080-010 CONN,07P H 9604S-07F
S601 87-A90-095-080 SW,TACT EVQ11G04M
S602 87-A90-095-080 SW,TACT EVQ11G04M
SW601 87-A91-645-010 SW,RTRY EC12E24304NON-CLICK
VIDEO C.B
C501 87-A11-148-080 CAP,TC U 0.1-50 Z F
C502 87-A11-148-080 CAP,TC U 0.1-50 Z F
C503 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C504 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C507 87-A11-148-080 CAP,TC U 0.1-50 Z F
C651 87-010-178-080 C-CAP,S 1000P-50 K B<EZ>
C652 87-010-178-080 C-CAP,S 1000P-50 K B<EZ>
CN604 87-099-201-010 CONN,8P H BLK 6216
CN605 8A-AR3-652-010 CONN ASSY,2P -VIDEO 3
J501 87-A60-948-010 JACK,PIN 3P R/W/Y GLD
J603 87-A60-550-010 JACK,DIA6.3 BLK ST W/SW KM
PT C.B <U>
C1 87-010-237-080 CAP,E 1000-16 M SME
C2 87-010-403-080 CAP,E 3.3-50 M 11L SME
C3 87-A11-148-080 CAP,TC U 0.1-50 Z F
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
C7 87-A10-922-090 CAP,CER 0.01-250 M F KH
CN101 88-805-042-690 CONN ASSY,4P
CN103 87-A61-057-010 CONN,9P V THL-P09P-A1
CNA1 8A-AR3-651-010 CONN ASSY,2P AC-OUTLET
F101 87-035-494-010 FUSE,10A 125V T 237
FC101 87-A90-160-080 FUSE CLAMP,FC 51F
FC102 87-A90-160-080 FUSE CLAMP,FC 51F
PR1 87-A91-276-080 FUSE,125MA 125V F 251
PR105 87-A90-210-080 FUSE,7A 125V 251
PR106 87-A90-210-080 FUSE,7A 125V 251
PR115 87-A90-210-080 FUSE,7A 125V 251
PR116 87-A90-210-080 FUSE,7A 125V 251
PT2 8Z-NF8-661-010 PT,SUB ZNF-8(U)
PT101 8A-AR1-605-010 PT,AAR-1(U)
RY1 87-A91-368-010 RELAY,ACDC12V DG12D1-O(M)-2
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO.
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
PT C.B <EZ>
C1 87-010-237-080 CAP,E 1000-16 M SME
C2 87-010-403-080 CAP,E 3.3-50 M 11L SME
C3 87-A11-148-080 CAP,TC U 0.1-50 Z F
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
C7 87-A10-922-090 CAP,CER 0.01-250 M F KH
C141 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN101 88-805-042-690 CONN ASSY,4P
CN103 87-A61-057-010 CONN,9P V THL-P09P-A1
F101 87-035-370-010 FUSE,6.3A 250V T
FC101 87-A90-160-080 FUSE CLAMP,FC 51F
FC102 87-A90-160-080 FUSE CLAMP,FC 51F
PR105 87-A90-195-080 PROTECTOR,7A 491SERIES 60V
PR106 87-A90-195-080 PROTECTOR,7A 491SERIES 60V
PR115 87-A90-195-080 PROTECTOR,7A 491SERIES 60V
PR116 87-A90-195-080 PROTECTOR,7A 491SERIES 60V
PT2 8Z-NF8-659-010 PT,SUB ZNF-8(E) TAM
PT101 8A-AR1-609-010 PT,AAR-1(EZ) (KAMI)
RY1 87-A91-368-010 RELAY,AC12V DG12D1-O(M)-2
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
TUNER C.B <U>
C701 87-010-260-080 CAP, ELECT 47-25V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C703 87-012-286-080 CAP, U 0.01-25
C704 87-012-286-080 CAP, U 0.01-25
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-263-080 CAP, ELECT 100-10V
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-012-286-080 CAP, U 0.01-25
C714 87-012-286-080 CAP, U 0.01-25
C717 87-012-286-080 CAP, U 0.01-25
C719 87-012-286-080 CAP, U 0.01-25
C721 87-012-176-080 CAP 15P
C722 87-012-176-080 CAP 15P
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C755 87-012-286-080 CAP, U 0.01-25
C756 87-012-286-080 CAP, U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C761 87-010-196-080 CHIP CAPACITOR,0.1-25
C763 87-010-829-080 CAP, U 0.047-16
C764 87-012-337-080 C-CAP,U 56P-50 CH
C765 87-012-286-080 CAP, U 0.01-25
C769 87-010-408-080 CAP, ELECT 47-50 M 11L
C770 87-010-829-080 CAP, U 0.047-16
C771 87-010-383-080 CAP, ELECT 33-25 M 11L
C772 87-010-829-080 CAP, U 0.047-16
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C776 87-012-286-080 CAP, U 0.01-25
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-012-286-080 CAP, U 0.01-25
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

– 12 –
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO.
C784 87-012-286-080 CAP, U 0.01-25
C785 87-010-805-080 CAP, S 1-16
C786 87-010-805-080 CAP, S 1-16
C787 87-012-280-080 CAP, U 3300P-50
C788 87-012-280-080 CAP, U 3300P-50
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-273-080 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-194-080 C-CAP,S 0.047-25 ZF
C796 87-010-403-080 CAP, ELECT 3.3-50V
C797 87-012-278-080 CAP, U 2200P-50
C798 87-012-278-080 CAP, U 2200P-50
C799 87-010-829-080 CAP, U 0.047-16
C812 87-012-286-080 CAP, U 0.01-25
C813 87-010-196-080 CHIP CAPACITOR,0.1-25
C814 87-012-286-080 CAP, U 0.01-25
C819 87-010-197-080 CAP, CHIP 0.01 DM
C820 87-010-260-080 CAP, ELECT 47-25V
C821 87-012-286-080 CAP, U 0.01-25
C822 87-012-286-080 CAP, U 0.01-25
C823 87-012-286-080 CAP, U 0.01-25
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-012-170-080 C-CAP,U 8P-50 CH
CF801 87-008-261-010 FILTER, SFE10.7MA5-A
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN601 87-099-028-010 CONN,11P 6216 H
FFE801 A8-8ZA-190-030 8ZA-1 FEUNM
J801 87-A60-657-010 TERMINAL,4P HSP-154V5-02
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-733-010 FLTR,PCFAZH-450
L781 87-005-847-080 COIL,2.2UH(CECS)
L791 87-A50-209-010 COIL,1 POLE MPX(MIT)
L792 87-A50-209-010 COIL,1 POLE MPX(MIT)
L832 87-005-847-080 COIL,2.2UH(CECS)
L981 87-NF4-650-010 COIL,AM PACK4N(TOK)
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
TUNER C.B <EZ>
C701 87-010-260-080 CAP,ELECT 47-25V
C702 87-010-404-080 CAP,ELECT 4.7-50V
C703 87-012-286-080 CAP,U 0.01-25
C704 87-012-286-080 CAP,U 0.01-25
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-263-080 CAP,ELECT 100-10V
C712 87-010-196-080 C-CAP,S 0.1-25 ZF
C713 87-012-286-080 CAP,U 0.01-25
C714 87-012-286-080 CAP,U 0.01-25
C715 87-012-195-080 C-CAP,U 100P-50CH
C717 87-012-286-080 CAP,U 0.01-25
C719 87-012-286-080 CAP,U 0.01-25
C720 87-012-195-080 C-CAP,U 100P-50CH
C721 87-012-176-080 CAP,15P
C722 87-012-176-080 CAP,15P
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP,ELECT 220-10V
C753 87-012-195-080 C-CAP,U 100P-50 J CH
C755 87-012-286-080 CAP,U 0.01-25
C756 87-012-286-080 CAP,U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C761 87-010-196-080 C-CAP,S 0.1-25 ZF
C762 87-012-286-080 CAP,U 0.01-25
C763 87-010-829-080 CAP,U 0.047-16
C765 87-012-286-080 CAP,U 0.01-25
C766 87-012-286-080 CAP,U 0.01-25
C768 87-012-286-080 CAP,U 0.01-25
C769 87-010-260-080 CAP,ELECT 47-25V
C770 87-010-829-080 CAP,U 0.047-16
C771 87-010-383-080 CAP,ELECT 33-25V
C772 87-010-829-080 CAP,U 0.047-16
C773 87-015-785-080 C-CAP,0.1-25 ZF
C774 87-010-263-080 CAP,ELECT 100-10V
C775 87-010-404-080 CAP,ELECT 4.7-50V
C776 87-012-286-080 CAP,U 0.01-25
C777 87-010-400-080 CAP,E 0.47-50 M 11L SME
C778 87-010-401-080 CAP,ELECT 1-50V
C779 87-010-401-080 CAP,ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP,ELECT 10-50V
C782 87-010-405-080 CAP,ELECT 10-50V
C783 87-012-286-080 CAP,U 0.01-25
C784 87-012-286-080 CAP,U 0.01-25
C785 87-010-805-080 C-CAP,S 1-6 ZF
C786 87-010-805-080 C-CAP,S 1-6 ZF
C787 87-012-280-080 C-CAP,U 3300P-50 B
C788 87-012-280-080 C-CAP,U 3300P-50 B
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP,ELECT 10-50V
C793 87-012-274-080 C-CAP,U 1000P-50 B
C794 87-010-406-080 CAP,ELECT 22-50
C795 87-010-829-080 CAP,U 0.047-16 ZF
C796 87-010-403-080 CAP,ELECT 3.3-50V
C797 87-012-276-080 C-CAP,U 1500P-50 KB
C798 87-012-276-080 C-CAP,U 1500P-50 KB
C799 87-010-829-080 CAP,U 0.047-16
C800 87-010-383-080 CAP,ELECT 33-25V
C812 87-012-286-080 CAP,U 0.01-25
C814 87-012-286-080 CAP,U 0.01-25
C818 87-010-196-080 CHIP CAPACITOR,0.1-25
C820 87-010-260-080 CAP,ELECT 47-25V
C821 87-012-286-080 CAP,U 0.01-25
C822 87-012-286-080 CAP,U 0.01-25
C823 87-012-286-080 CAP,U 0.01-25
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-012-286-080 C-CAP,U 0.01-25 KB
C861 87-012-199-080 C-CAP,U 220P-50 J CH
C862 87-012-199-080 C-CAP,U 220P-50 J CH
C863 87-012-270-080 C-CAP,U 470P-50 KB
C864 87-010-405-080 CAP,E 10-50 M 11L SME
C865 87-010-196-080 C-CAP,S 0.1-25 ZF
C866 87-010-405-080 CAP,E 10-50 M 11L SME
C867 87-012-286-080 C-CAP,U 0.01-25 KB
C868 87-012-184-080 C-CAP,U 33P-50 J CH
C869 87-012-180-080 C-CAP,U 22P-50 J CH
C940 87-012-286-080 C-CAP,U 0.01-25 KB
C942 87-012-172-080 C-CAP,U 10P-50 D CH
C947 87-012-286-080 C-CAP,U 0.01-25 KB
C949 87-A10-039-080 C-CAP,U 470P-50 J CH
C952 87-012-286-080 C-CAP,U 0.01-25 KB
C958 87-012-186-080 C-CAP,S 0.01-25 KB
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C962 87-010-401-080 CAP,E 1-50 M 11L SME
CF801 87-008-423-010 FLTR,CF SFE10.7MS3G-A
CF802 82-785-747-010 CF,MS2 GHY R
CN601 87-099-029-010 CONN,12P H BLK 6216
CN602 87-099-211-010 CONN,4P V BLK 6216
FFC601 88-912-161-110 FF-CABLE,12P 1.25 160
FFC602 88-904-181-110 FF-CABLE,4P 1.25

– 13 –
FFE801 A8-6ZA-191-130 6ZA-1 FEENM
J802 87-033-241-010 TERMINAL,ANT 2P AJ-2039
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-733-010 FLTR,PCFAZH-450(TOK)
L781 87-005-847-080 COIL,2.2UH K CECS
L791 87-A50-027-010 COIL,1 POLE MPX(TOK)
L792 87-A50-027-010 COIL,1 POLE MPX(TOK)
L832 87-005-847-080 COIL,2.2UH K CECS
L941 87-A50-020-010 COIL,ANT LW(COI)252KHZ
L942 87-A50-019-010 COIL,OSC LW(COI) 856KHZ
L981 87-NF4-651-110 COIL,AM PACK 2N(TOM)
TC942 87-A91-658-010 TRIMMER,30P 4.0X4.5 ECRL
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
X851 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309
GEQ C.B
C758 87-010-404-080 CAP, ELECT 4.7-50V
C759 87-012-368-080 C-CAP,S 0.1-50 F
C761 87-010-198-080 CAP, CHIP 0.022
C762 87-010-197-080 CAP, CHIP 0.01 DM
C764 87-010-185-080 C-CAP,S 3900P-50 B
C765 87-010-194-080 CAP, CHIP 0.047
C766 87-010-181-080 CAP,CHIP S 1800P
C767 87-010-198-080 CAP, CHIP 0.022
C768 87-010-994-080 C-CAP,S 680P-50 CH
C769 87-010-188-080 CAP,CHIP 6800P
C770 87-012-145-080 CAP, CHIP S 270P CH
C771 87-010-183-080 C-CAP,S 2700P-50 B
C772 87-012-145-080 CAP, CHIP S 270P CH
C773 87-010-188-080 CAP,CHIP 6800P
C774 87-010-994-080 C-CAP,S 680P-50 CH
C775 87-010-198-080 CAP, CHIP 0.022
C776 87-010-181-080 CAP,CHIP S 1800P
C777 87-010-194-080 CAP, CHIP 0.047
C778 87-010-185-080 C-CAP,S 3900P-50 B
C780 87-010-197-080 CAP, CHIP 0.01 DM
C782 87-010-183-080 C-CAP,S 2700P-50 B
C783 87-010-198-080 CAP, CHIP 0.022
C786 87-010-402-080 CAP, ELECT 2.2-50V
C787 87-010-402-080 CAP, ELECT 2.2-50V
C788 87-010-260-080 CAP, ELECT 47-25V
C789 87-010-260-080 CAP, ELECT 47-25V
C790 87-010-260-080 CAP, ELECT 47-25V
C791 87-010-405-080 CAP, ELECT 10-50V
C792 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-368-080 C-CAP,S 0.1-50 F
C794 87-012-368-080 C-CAP,S 0.1-50 F
C797 87-010-322-080 C-CAP,S 100P-50 CH
C798 87-010-322-080 C-CAP,S 100P-50 CH
C799 87-010-322-080 C-CAP,S 100P-50 CH
CN701 87-099-670-010 CONN,9P TUC-P9X-B1
CN702 8A-AR3-653-010 CONN ASSY,10P (GEQ)
S-VIDEO C.B <U>
C601 87-010-382-080 CAP, ELECT 22-25V
C602 87-010-382-080 CAP, ELECT 22-25V
C603 87-010-322-080 C-CAP,S 100P-50 CH
C604 87-010-322-080 C-CAP,S 100P-50 CH
C605 87-010-371-080 CAP, ELECT 470-6.3V
C606 87-010-371-080 CAP, ELECT 470-6.3V
C607 87-010-382-080 CAP, ELECT 22-25V
C608 87-010-382-080 CAP, ELECT 22-25V
C609 87-010-322-080 C-CAP,S 100P-50 CH
C610 87-010-322-080 C-CAP,S 100P-50 CH
C611 87-010-371-080 CAP, ELECT 470-6.3V
C612 87-010-371-080 CAP, ELECT 470-6.3V
C613 87-010-322-080 C-CAP,S 100P-50 CH
C614 87-010-322-080 C-CAP,S 100P-50 CH
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO.
C615 87-010-371-080 CAP, ELECT 470-6.3V
C616 87-010-371-080 CAP, ELECT 470-6.3V
C617 87-010-196-080 C-CAP,S 0.1-25
C618 87-010-387-080 CAP, E 470-25 SME
C619 87-010-382-080 CAP, ELECT 22-25V
C620 87-010-382-080 CAP, ELECT 22-25V
C621 87-010-382-080 CAP, ELECT 22-25V
C622 87-010-382-080 CAP, ELECT 22-25V
C623 87-010-263-080 CAP, ELECT 100-10V
C624 87-010-196-080 C-CAP,S 0.1-25
C639 87-010-382-080 CAP, ELECT 22-25V
C640 87-010-382-080 CAP, ELECT 22-25V
CN601 87-A60-063-010 CONN,04P V 9604S-04C
J801 87-A61-213-010 JACK,Y/C YKF51-5501
J802 87-A61-213-010 JACK,Y/C YKF51-5501
J803 87-A61-213-010 JACK,Y/C YKF51-5501
J804 87-A61-213-010 JACK,Y/C YKF51-5501
J805 87-A60-127-010 JACK,Y/CYKF51.5504
L601 87-003-136-080 COIL,100UH K LAL04
SPKR C.B
CN201 87-099-799-010 CONN,8P V B 8P-VH
CN202 87-009-663-010 CONN,6P V VH
J901 87-A61-051-010 TERMINAL,SPKR LTS0820-1003<EZ>
J901 87-033-210-010 TERMINAL,SPKR 8P LTS0810-1002<U>
J902 87-A60-965-010 TERMINAL,SP 6P LTS0620-2002<EZ>
J902 87-A61-172-010 TERMINAL,SP 6P LTS0610-1002<U>
AC C.B <U>
C11 87-A11-155-080 CAP, TC U 0.01-16 Z F
C102 87-A10-922-090 CAP, CER 0.01-250 M F KH
CN104 87-099-448-010 CONN,2P V TV
CNA101 88-805-036-010 CONN ASSY,3P
F102 87-035-482-010 FUSE,1A 125V T 237
F103 87-035-482-010 FUSE,1A 125V T 237
FC103 87-033-147-010 FUSE CLAMP,MT-20
FC104 87-033-147-010 FUSE CLAMP,MT-20
FC105 87-033-147-010 FUSE CLAMP,MT-20
FC106 87-033-147-010 FUSE CLAMP,MT-20
J101 87-A61-192-010 OUTLET,AC CCT 1304-0202
RY6 87-A90-977-010 RELAY,AC12V DG12D1-O(M)
VCC2 C.B
CN998 87-049-919-010 CONN,3P V WHT EH
VCC3 C.B
CN997 87-049-919-010 CONN,3P V WHT EH
!
!
!
!
!
!
!
!
!
!

– 14 –
88
A

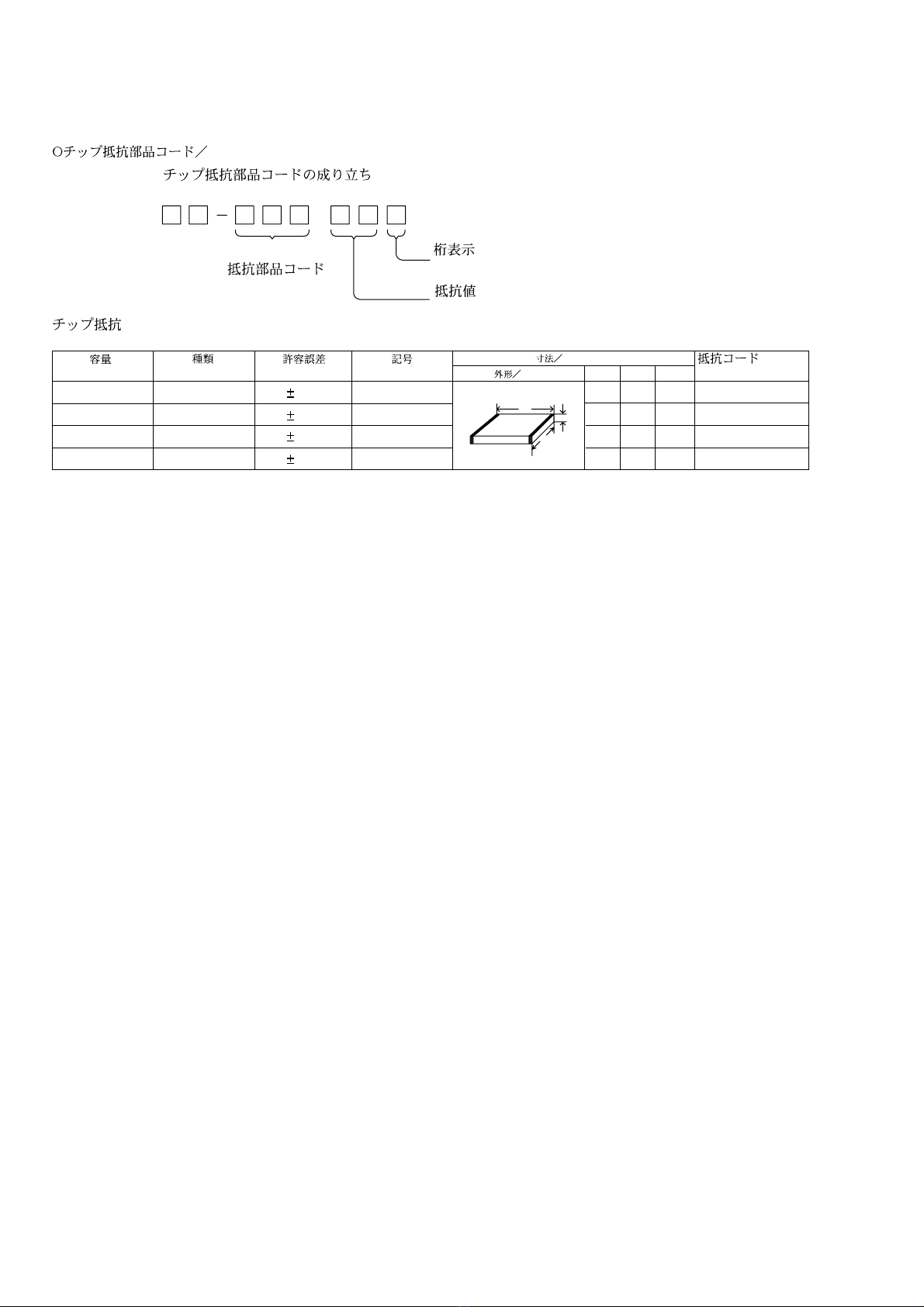

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W

– 15 –
TRANSISTOR ILLUSTRATION
E C B
CC5551
2SA1296
KTA1266
KTC3198
2SB1370 DTC114ES
2SC4115
KTC3199
KTA1267
B C E E C B E C B
DGS
2SK3053
E
B
C
2SA1037
2SA1235
2SC3052
2SC2714
2SD1306
CMBT5401
CMBT5551
CSA1362
CSD1306
DTA144WK
DTC123JK
DTC124EK
RT1N144C
RT1N141C
RT1P141C
RT1P144C
2SK2158
S
D
G
CSD1489
S
D
G
2SK360E

– 16 –
WIRING – 1 (U : MAIN / VCC2 / VCC3) 101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 17 –
SCHEMATIC DIAGRAM-1 (U:MAIN1/2)

– 18 –
SCHEMATIC DIAGRAM - 2 (U: MAIN 2/2 / VCC2 / VCC3)

– 19 –
WIRING – 2 (EZ : MAIN / VCC2 / VCC3) 101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 20 –
SCHEMATIC DIAGRAM-3 (EZ:MAIN1/2)
