SERVICE MANUAL
STEREO RADIO RECEIVER
CR-LA33
S/M Code No. 09-007-348-7T1
YZ1(S,L)YH1(S,L,P)
YJ1(S,L,P)YL1(S)
YHT1(S,L,P)
SIMPLE
• Replace this Service Manual with ”Revision Publishing” when it is issued.

ELECTRICAL MAIN PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
YZ1<S> .................XX..................................A...................
YZ1<L> .................XX...................................B..................
YH1<S> .................XX....................................C.................
YH1<L> .................XX.....................................D................
YH1<P> .................XX......................................E...............
YHT1<S> ................XX.......................................F..............
YHT1<L> ................XX........................................G.............
YH1<P> .................XX.........................................H............
YJ1<S> .................XX..........................................I...........
YJ1<L> .................XX...........................................J..........
YJ1<P> .................XX............................................K.........
YL1<S> .................XX.............................................L........
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
BPF 1 8A-RCE-613-010 FLTR,GFMB5 88-108 ABCDEFGHIJKL........
BPF 1 8A-RCE-619-010 FLTR,GFWB3 76-108 ....................
C 6 87-010-787-080 0E CAP, U 0.022-25 ABCDEFGHIJKL........
C 7 87-010-787-080 0E CAP, U 0.022-25 ABCDEFGHIJKL........
C 3 87-012-165-080 0E CAP 3P ABCDEFGHIJKL........
C 4 87-012-167-080 0E C-CAP,U 5P-50 CH ABCDEFGHIJKL........
C 5 87-012-167-080 0E C-CAP,U 5P-50 CH ABCDEFGHIJKL........
C 2 87-012-172-080 0E CAPACITOR CHIP U 10P CH ....................
C 1 87-012-178-080 0E C-CAP,U 18P-50 CH ABCDEFGHIJKL........
C 9 87-012-191-080 0E CHIP CAP 68 PF ABCDEFGHIJKL........
C 10 87-010-403-010 0E CAP,E 3.3-50 SME ABCDEFGHIJKL........
C 18 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGHIJKL........
C 12 87-012-271-080 0E CAP, U 560P-50 ABCDEFGHIJKL........
C 17 87-012-273-080 0E C-CAP,U 820P-50 B ABCDEFGHIJKL........
C 13 87-012-287-080 0E C-CAP,U 0.015-25 F ABCDEFGHIJKL........
C 16 87-A10-263-080 0E C-CAP,U 0.1-16ZF ABCDEFGHIJKL........
C 19 87-A10-263-080 0E C-CAP,U 0.1-16ZF ABCDEFGHIJKL........
C 14 87-A10-263-080 0E C-CAP,U 0.1-16ZF ABCDEFGHIJKL........
C 22 87-010-503-010 0E CAP,E 220-4 GAS ABCDEFGHIJKL........
C 29 87-010-787-080 0E CAP, U 0.022-25 ABCDEFGHIJKL........
C 23 87-010-787-080 0E CAP, U 0.022-25 ABCDEFGHIJKL........
C 26 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGHIJKL........
C 25 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGHIJKL........
C 28 87-010-830-080 0E C-CAP,U 0.068-16F ABCDEFGHIJKL........
C 27 87-010-830-080 0E C-CAP,U 0.068-16F ABCDEFGHIJKL........
C 20 87-012-287-080 0E C-CAP,U 0.015-25 F ABCDEFGHIJKL........
C 21 87-012-287-080 0E C-CAP,U 0.015-25 F ABCDEFGHIJKL........
C 24 87-A10-031-080 0E C-CAP,U 0.01-25 KB ABCDEFGHIJKL........
C 31 87-010-787-080 0E CAP, U 0.022-25 ABCDEFGHIJKL........
C 30 87-012-186-080 0E C-CAP,U 39P-50 CH ABCDEFGHIJKL........
C 107 87-010-587-010 0E C-CAP 100-2 ABCDEFGHIJKL........
C 109 87-010-587-010 0E C-CAP 100-2 ABCDEFGHIJKL........
C 108 87-010-587-010 0E C-CAP 100-2 ABCDEFGHIJKL........
C 104 87-012-278-080 0E C-CAP,U 2200P-50 B ABCDEFGHIJKL........
C 103 87-012-278-080 0E C-CAP,U 2200P-50 B ABCDEFGHIJKL........
C 111 87-010-587-010 0E C-CAP 100-2 ABCDEFGHIJKL........
C 110 87-010-787-080 0E CAP, U 0.022-25 ABCDEFGHIJKL........
CF 2 87-A91-087-010 0E FLTR,PFS 450A6 B ABCDEFGHIJKL........
CF 3 8A-RCE-617-010 FLTR,CDA10.7 MG18-A ABCDEFGHIJKL........
CF 1 8A-RCE-618-010 FLTR,SFT10.7 MS23H-A ABCDEFGHIJKL........
IC 1 87-001-815-080 1C IC,TA7371AF ABCDEFGHIJKL........
IC 2 87-017-789-080 2A IC,TA2022FN ABCDEFGHIJKL........
IC 3 87-A21-126-040 1B C-IC,NJM2096M ABCDEFGHIJKL........
J 1 8A-RCE-611-010 JACK,3.5 ST W/O SW ABCDEFGHIJKL........
L 6 87-005-894-080 0E C-COIL,S 1.0UH K ABCDEFGHIJKL........
L 7 87-005-894-080 0E C-COIL,S 1.0UH K ABCDEFGHIJKL........
L 8 87-005-894-080 0E C-COIL,S 1.0UH K ABCDEFGHIJKL........
L 5 87-005-910-080 0E C-COIL,S 22UH M LK2125 ABCDEFGHIJKL........
L 4 8A-RCE-601-010 COIL,AM OSC ABCDEFGHIJKL........
L 1 8A-RCE-604-010 COIL,FM RF ABCDEFGHIJKL........
L 2 8A-RCE-605-010 COIL,FM OSC D ....................
L 2 8A-RCE-606-010 COIL,FM OSC EX ABCDEFGHIJKL........
L 3 8A-RCE-607-010 BAR-ANT,ARC-14 ABCDEFGHIJKL........
Q 3 87-A30-314-040 C-TR,BC847CT116 ABCDEFGHIJKL........
Q 2 87-A30-314-040 C-TR,BC847CT116 ABCDEFGHIJKL........
Q 4 87-A30-314-040 C-TR,BC847CT116 ABCDEFGHIJKL........
Q 5 87-A30-486-040 C-TR,BC857B ABCDEFGHIJKL........
Q 6 87-A30-486-040 C-TR,BC857B ABCDEFGHIJKL........
Q 7 89-327-143-080 0E TR,2SC2714 (0.1W) ABCDEFGHIJKL........
Q 1 89-503-025-080 1A CHIP FET,2SK302 GR ABCDEFGHIJKL........
SW 1 8A-RCE-609-010 SW,2-2 ABCDEFGHIJKL........
SW 2 8A-RCE-610-010 SW,2-3 ABCDEFGHIJKL........
T 2 8A-RCE-602-010 COIL,AM IFT ABCDEFGHIJKL........
T 1 8A-RCE-603-010 COIL,FM IFT ABCDEFGHIJKL........
VC 1 8A-RCE-615-010 TUN-CAP,40P-82P-160P 16 ....................
VC 1 8A-RCE-616-010 TUN-CAP,20P-82P-160P 16 ABCDEFGHIJKL........
VR 1 8A-RCE-608-010 VR,RTRY 50KX2 H ABCDEFGHIJKL........
VR 2 8A-RCE-614-010 SFR,10K ABCDEFGHIJKL........

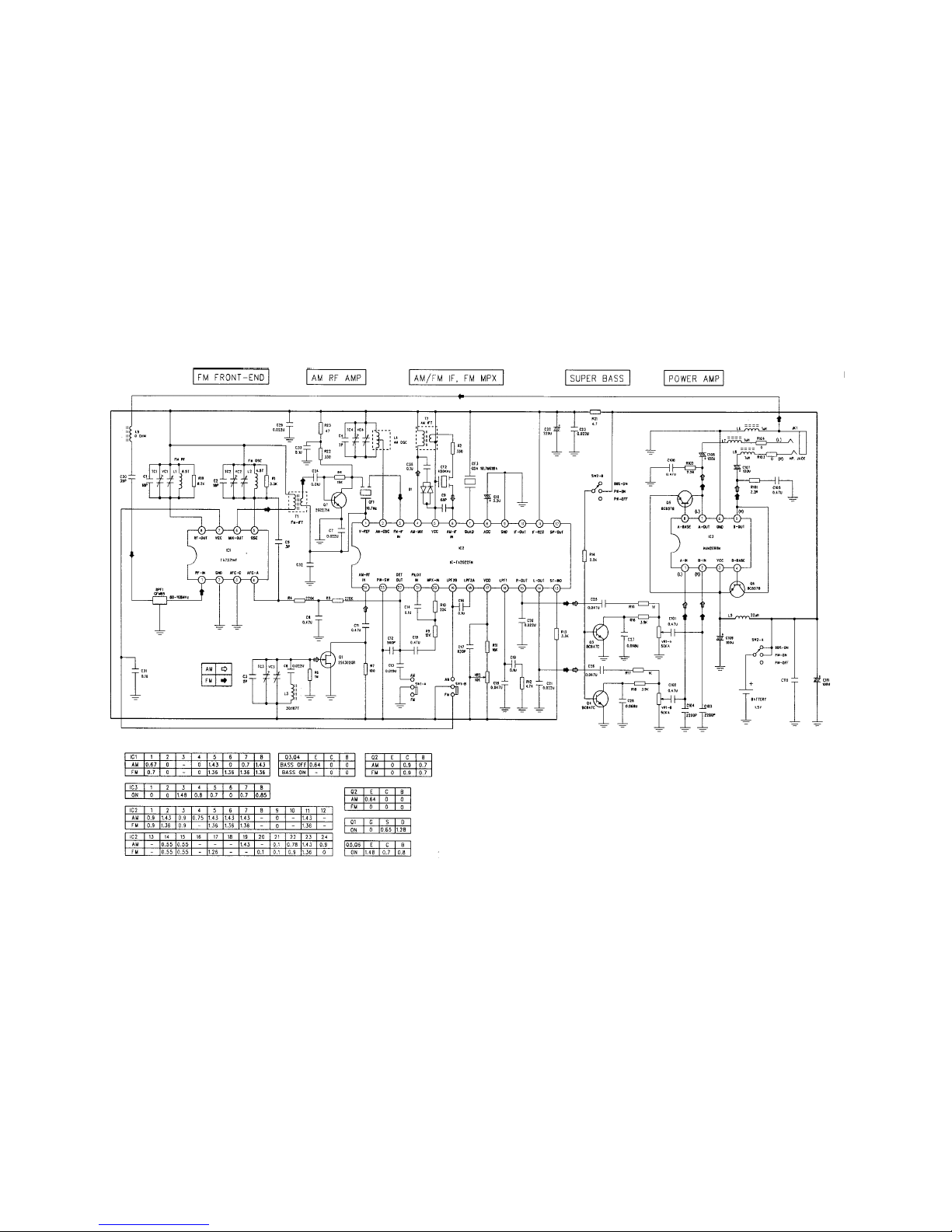

SCHEMATIC DIAGRAM-1(YZ)

SCHEMATIC DIAGRAM-2 (Except YZ)

MECHANICAL PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
YZ1<S> .................XX..................................A...................
YZ1<L> .................XX...................................B..................
YH1<S> .................XX....................................C.................
YH1<L> .................XX.....................................D................
YH1<P> .................XX......................................E...............
YHT1<S> ................XX.......................................F..............
YHT1<L> ................XX........................................G.............
YH1<P> .................XX.........................................H............
YJ1<S> .................XX..........................................I...........
YJ1<L> .................XX...........................................J..........
YJ1<P> .................XX............................................K.........
YL1<S> .................XX.............................................L........
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8A-RCD-006-010 POINTER, ABCDEFGHIJKL........
8A-RCD-007-010 KNOB,SL POW ABCDEFGHIJKL........
8A-RCD-008-010 KNOB,SL BAND ABCDEFGHIJKL........
8A-RCD-009-010 KNOB,RTRY TUN ABCDEFGHIJKL........
8A-RCD-010-010 CLIP, ABCDEFGHIJKL........
8A-RCE-003-010 PANEL,FRONT D S A.C..F..I..L........
8A-RCE-004-010 DOOR,BATT D S A.C..F..I..L........
8A-RCE-005-010 WINDOW,D S ....................
8A-RCE-006-010 CABI,FRONT YU S A.C..F..I..L........
8A-RCE-007-010 CABI,REAR YU S ....................
8A-RCE-008-010 WINDOW,YU S ....................
8A-RCE-009-010 CABI,REAR YZ S A...................
8A-RCE-010-010 WINDOW,YZ S A.C..F..I..L........
8A-RCE-011-010 CABI,REAR YJ S ........I...........
8A-RCE-012-010 CABI,FRONT YZ L .B.D..G..J..........
8A-RCE-013-010 CABI,REAR YZ L .B..................
8A-RCE-014-010 PANEL,FRONT YZ L .B.D..G..J..........
8A-RCE-015-010 DOOR,BATT YZ L .B.D..G..J..........
8A-RCE-016-010 WINDOW,YZ L .B.D..G..J..........
8A-RCE-017-010 CABI,REAR YH L ...D..G.............
8A-RCE-018-010 CABI,REAR YJ L .........J..........
8A-RCE-019-010 CABI,FRONT YH P ....E..H..K.........
8A-RCE-020-010 CABI,REAR YH P ....E..H............
8A-RCE-021-010 PANEL,FRONT YJ P ....E..H..K.........
8A-RCE-022-010 DOOR,BATT YH P ....E..H..K.........
8A-RCE-023-010 WINDOW,YH P ....E..H..K.........
8A-RCE-024-010 CABI,REAR YJ P ..........K.........
8A-RCE-025-010 CABI,REAR YH S ..C..F.....L........
* 8A-RCE-001-010 CABI,FRONT D S ....................
* 8A-RCE-002-010 CABI,REAR D S ....................
8A-RCD-201-010 GEAR,PVC ABCDEFGHIJKL........
8A-RCD-202-010 COVER, TUN KNOB ABCDEFGHIJKL........
8A-RCD-203-010 HLDR,BAR-ANT ABCDEFGHIJKL........
8A-RCD-204-010 HLDR,KNOB SL ABCDEFGHIJKL........
8A-RCD-205-010 BAT-CONTACT,+ ABCDEFGHIJKL........
8A-RCD-206-010 BAT-CONTACT,- ABCDEFGHIJKL........
87-262-523-310 0E V+1.7-2 3 BLK ABCDEFGHIJKL........
87-B10-026-010 0E VT2+1.7-8 CR HL ABCDEFGHIJKL........
87-B10-306-010 VFT2+1.7-3 W/O BLACK ABCDEFGHIJKL........

ACCESSORIES LIST
NOTE: The characters in the suffix column indicate the part usage.
YZ1<S> .................XX..................................A...................
YZ1<L> .................XX...................................B..................
YH1<S> .................XX....................................C.................
YH1<L> .................XX.....................................D................
YH1<P> .................XX......................................E...............
YHT1<S> ................XX.......................................F..............
YHT1<L> ................XX........................................G.............
YH1<P> .................XX.........................................H............
YJ1<S> .................XX..........................................I...........
YJ1<L> .................XX...........................................J..........
YJ1<P> .................XX............................................K.........
YL1<S> .................XX.............................................L........
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8A-RCE-901-010 IB,YU(3L)C ....................
8A-RCE-902-010 IB,YHJ(ECC)C ..CDEFGHIJK.........
8A-RCE-904-010 IB,YL(3L)C ...........L........
8A-RCE-905-010 IB,YZ(6L)C AB..................
8A-RCE-906-010 IB,YZ(3L)C AB..................
8A-RCE-908-010 IB,D ....................
87-B30-198-010 1H HEADPHONE,HP-M032(T) ....E..H..K.........
87-B30-240-010 1H HEADPHONE,HP-M035 A.C..F..I..L........
87-B30-300-010 HEADPHONE,HP-M035 LT .B.D..G..J..........

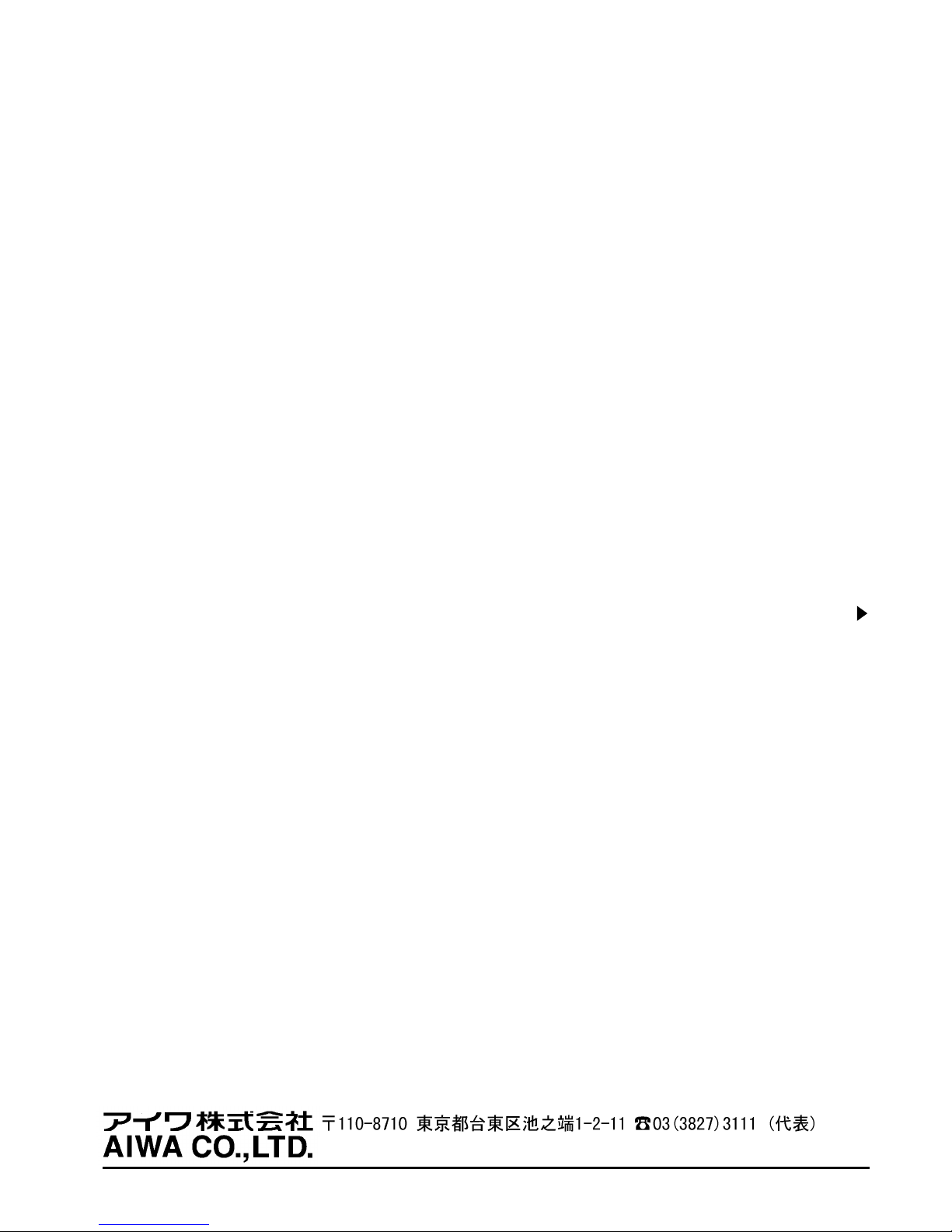

2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:[phone]
H251701
Printed in Singapore
