Aiwa XR-M70 User manual

•TYPE:EZ
MD / CD STEREO SYSTEM
XR-M70
S/M Code No.09-987-270-4T3
•BASIC MD MECHANISM:7ZG-9 A1
SIMPLE MANUAL
Replace this Service Manual with "Revision Publishing" when it is issued.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

3
SPECIFICATIONS
•
Design and specifications are subject to change without
notice.
•
The word “BBE” and the “BBE symbol” are trademarks
of BBE Sound,Inc.
Under license from BBE Sound,Inc.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

56
REF. NO PART NO. KANRI DESCRIPTION
NO.
SPEAKER PARTS LIST 1/1
1 88-CLB-941-010 PANEL,FR W
2 88-CL1-953-010 SPKR,100
3 88-CL1-954-010 SPKR,60
4 88-CL1-943-010 COVER,TOP
5 88-CLB-959-010 GRILLE,FRAME B ASSY
6 88-CLB-958-010 GRILLE,FRAME T ASSY
7 88-CLB-957-010 GRILLE,FRAME W ASSY
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

57
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES/PACKAGE LIST
1 S8-CLB-910-400 INSTRUCTION BOOK(70EZS)
2 S8-CLR-EMB-000 RC,RC-M70(EX)
3 S0-27N-F90-000 ANT,LOOP AM
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

51
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
MECHANICAL PARTS LIST 1/2
1 S8-CL1-050-020 CAB,BOTTOM CD
2 S8-CL1-080-200 DOOR,CD
3 S8-CL1-090-000 WINDOW,CD
4 S8-CLB-030-100 CAB,TOP CD
5 S8-CL1-150-000 GEAR,DOOR CD
6 S8-CL1-160-000 GEAR,DOOR CD
7 S8-CL1-170-000 GEAR,DOOR CD
8 S8-CL1-630-000 BELT,PULLEY CD 48-1.6-1.6
9 S8-CL1-180-000 GEAR,DOOR CD
10 S1-215-370-000 MOTOR RF-370CA-15370 12V
11 S8-CL1-070-000 CHASSIS CD
12 S8-CL1-450-000 HOLDER REMOTE SENSOR
13 S8-CL1-460-020 CLAMP CABLE
14 S0-000-020-000 SW,MICRO MQS-2
15 S8-CL1-120-010 KNOB,EJECT CD(GRY)
16 S8-CL1-110-100 KNOB,SKIP
17 S7-CD3-400-000 COVER OPTICAL
18 S7-CD3-390-000 HOLDER OPTICAL
19 S8-CL1-640-000 FOOT,RUBBER 10-10-3
20 S8-CL1-100-200 KNOB,PLAY SET(B)
21 S8-CLB-040-000 PANEL FRONT CD
22 S8-CL1-480-000 LENS,SENSOR REMOTE
23 S8-CLB-010-100 PLATE COVER FRONT CD
24 S8-CL1-800-000 BADGE AIWA
A 87-081-438-010 FW,3-6-0.4
B 87-352-095-010 SCREW,ST3-8
C 87-741-097-410 SCREW,ST3-12
D 87-743-074-410 SCREW,ST2.6-8
E 87-741-096-010 SCREW,3-10MM PM
F 87-251-092-410 SCREW,M3-4
G 87-261-074-010 SCREW,ST2.6-8MM BB
H 87-743-073-410 SCREW,ST2.6-6
I 87-342-076-010 SCREW,ST2.6-12MM PAB
J 87-B10-026-010 SCREW,ST1.7-8
K 87-353-533-310 SCREW,ST1.7-5
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

52
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
MECHANICAL PARTS LIST 2/2
1 S8-CL1-350-010 KEY,SOUND
2 S0-000-010-010 SW,MIRCO MLS-1
3 S8-CL1-390-010 KEY,SET-FUNCTION
4 S8-CL1-380-100 KEY,SET-F.F
6 S8-CL1-660-000 BRACKET CORD AC
5 S8-CL1-370-100 KEY,SET-CD(GRY)
7 S8-CL1-800-000 BADGE AIWA
8 S8-CL1-200-020 PANEL CONTROL TOP
9 S8-CLB-710-100 PLATE PANEL CONTROL
10 S8-CL1-230-010 KEY,JOG GREY
11 S8-CL1-280-200 CAB,TOP AMP(B)
12 S8-CLB-760-200 PLATE PANEL FRONT AMP
13 S8-CL1-190-100 LENS,DISPLAY
14 S8-CL1-210-000 TRAY,PANEL CONTROL
15 S8-CL1-020-010 PANEL FRONT AMP
16 S8-CL1-400-010 KNOB,POWER(GRY)
17 S8-CL1-060-020 CAB,BOTTOM AMP
18 S0-041-510-000 LCD,DISPLAY
19 S8-CL1-680-000 BKT DISPLAY LCD
20 S8-CL1-640-000 FOOT,RUBBER 10-10-3
! 21 S5-866-361-400 POWER TF EI-66/36 230V
! 21 S1-667-260-000 PT,EL EI-16
22 S1-000-900-090 COOLING FAN
23 S8-CL1-240-020 BRACKET FAN
24 S0-408-000-020 BUSHING AC CORD(BLK)
! 25 S2-201-200-000 CORD,POWER 6.5 VDE
26 S8-CL1-220-000 CHASSIS PANEL CONTROL
27 S0-611-190-000 MOTOR,FF-050SH-11190
28 S8-CL1-410-000 PULLEY MOTOR TRAY
29 S8-CL1-620-000 BELT,PULLEY AMP
30 S8-CL1-420-000 GEAR,TRAY
31 S8-CL1-430-000 CENTER GEAR TRAY
32 S8-CL1-890-000 PLATE SUPPOTR X`FORMER
A 87-357-036-010 SCREW ST 2-8
B 87-268-508-310 SCREW,ST1.4-3.5
C 87-352-095-010 SCREW,ST3-8
D 87-741-097-410 SCREW,ST3-12
E 87-261-075-010 SCREW,ST2.6-10MM BB
F 87-255-169-410 SCREW,4-6
G 87-261-094-410 SCREW,M3-6
H 87-352-097-210 SCREW,ST3-12
I 87-261-074-010 SCREW,ST2.6-8MM BB
J 87-067-911-010 SCREW,ST1.7-10
K 87-078-157-010 SCREW,ST3-16
L 87-253-095-410 SCREW 3-8
M 87-751-096-410 SCREW,3-10
N 87-251-094-410 SCREW,ST3-6
O 87-078-044-010 FW,3.2-8-1
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

7
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
S8-320-570-000 IC,TA2057N
S8-492-570-000 IC,TC9257F
S9-187-230-010 IC,TMP87CM23F-2336
87-017-726-080 IC,BU4052BCF
87-001-607-080 IC,BA4558F-E2
87-070-101-010 IC,TC9284AF
87-070-134-010 IC,TA2065F
87-A20-157-010 IC,TA2092N
S9-187-400-020 IC,TMP87CM40AF-4A78
87-001-982-010 IC,TA7291S
S4-038-540-000 IC,BH3854AFS
87-A20-056-010 IC,BA3880S
87-022-899-010 IC,STK4122MK2
TRANSISTOR
89-327-143-080 C-TR,2SC2714
87-026-230-010 C-TR,DTA114YK
89-502-114-080 C-FET,2SK211-Y/GR
89-502-094-080 C-FET,2SK209Y
89-327-126-080 C-TR,2SC2712GR
87-026-213-010 C-TR,DTC114YK
87-026-200-080 TR,DTC114ES
S7-855-000-020 TR,PE8550B,C
87-026-239-080 C-TR,DTC114TK/TKA
89-111-625-080 C-TR,2SA1162GR
S7-805-000-020 TR,PE8050B,C,D
89-213-702-010 TR,2SB1370E/F
DIODE
87-027-513-010 ZENER,IN5232B 5.6V1/2W
87-070-136-080 ZENER,5.1V
82-135-799-010 DIODE,IN4148
S0-100-221-200 ZENER,2.2V
82-596-799-010 DI,1N4001B
S0-100-560-000 ZENER,5.6V
87-020-511-010 ZENER,05AZ4.7V
S0-100-821-200 ZENER,8.2V,1/2W
S3-MTZ-J91-BM0 ZENER,9.1V
S0-254-010-000 DIODE,1N5401BL
S0-100-680-010 ZENER,6.8V MTZJ6.8B
TUNER C.B
C109 87-010-380-010 CAP,E 47-16V
C120 87-015-975-010 CAP,E 220-6.3V
C121 87-010-075-040 CAP,E 10-16V
C126 87-010-221-010 CAP,E 470-10V
C129 87-010-071-040 CAP,E 1-50V
C130 87-010-071-040 CAP,E 1-50V
C135 87-010-074-080 CAP,E 4.7-35V
C137 87-010-074-080 CAP,E 4.7-35V
C141 87-015-975-010 CAP,E 220-6.3V
C142 87-010-074-080 CAP,E 4.7-35V
C148 87-010-380-010 CAP,E 47-16V
C168 87-010-071-040 CAP,E 1-50V
C282 87-010-079-010 CAP,E 100-6.3V
C288 87-010-075-040 CAP,E 10-16V
CF1 S0-001-070-010 CER,FILTER
CF2 S0-001-070-010 CER,FILTER
CF102 S6-010-700-010 CER,RESO CDA10.7MG43-A
CF103 S6-004-560-050 CER,RESO CSB456F29
CON2 S0-401-540-000 SPKR,TERMINAL 4P
CON102 S0-524-180-900 B-B HEADER 9PI
FE1 A8-8ZA-191-030 TUNER FM 8ZA-1
IFT101 87-A90-245-010 IFT,CFAZH-450
IFT105 S7-NF8-020-240 IFT,AM PACK 4 455BFR-121
L101 87-003-098-080 INDUCTOR,2.2UH
L112 87-003-147-010 COIL,22UH
L113 87-005-196-080 INDUCTOR,10UH
L281 87-005-696-080 INDUCTOR,100UH
PT281 S1-667-260-000 PT,EL EI-16
SFR101 S1-030-850-000 SFR,10K
X101 S6-072-000-000 X’TAL 7.2 MHz
POWER C.B
C807 87-010-404-010 CAP,E 4.7-50V
C808 87-010-404-010 CAP,E 4.7-50V
C815 87-010-546-080 CAP,E 0.33-50V
C816 87-010-546-080 CAP,E 0.33-50V
C819 87-010-038-010 CAP,E 22-25V
C821 87-010-380-010 CAP,E 47-16V
C822 87-010-263-080 ELECT CAP 100-10V
C824 87-A10-189-080 CAP,E 220-10V
C825 87-010-545-010 CAP,E 0.22-50V
C826 87-010-545-010 CAP,E 0.22-50V
C835 87-010-380-010 CAP,E 47-16V
C837 87-010-404-010 CAP,E 4.7-50V
C838 87-010-404-010 CAP,E 4.7-50V
C839 87-010-404-010 CAP,E 4.7-50V
C840 87-010-404-010 CAP,E 4.7-50V
C842 87-A10-189-080 CAP,E 220-10V
C843 87-010-399-090 CAP,E 3300-35V
C844 87-010-398-090 CAP,E 2200-35V
C849 87-010-249-010 CAP,E 470-16V
C850 87-A10-189-080 CAP,E 220-10V
C852 87-010-221-010 CAP,E 470-10V
C854 87-010-038-010 CAP,E 22-25V
C858 87-010-403-010 CAP,E 3.3-50V
C862 87-010-388-010 CAP,E 1000-25V
C865 87-010-237-010 CAP,E 1000-16V
! FR801 S1-250-300-000 FUSE,PROTECTOR
! FR802 S1-250-300-000 FUSE,PROTECTOR
! FR803 S1-250-300-000 FUSE,PROTECTOR
J801 S0-055-301-200 CONN,BOARD TO BOARD 12P
J803 S0-524-180-800 B-B HEADER 8PI
J804 S0-528-070-700 CONN,FFC 7P
J805 S0-011-171-700 CONN,SOCKET FFC 17P
AMP C.B
C903 87-010-037-010 CAP,E 10-50V
C904 87-010-045-010 CAP,E 100-25V
C905 87-010-045-010 CAP,E 100-25V
C913 87-A10-818-040 CAP,E 100-16V
C914 87-A10-818-040 CAP,E 100-16V
C915 87-010-075-040 CAP,E 10-16V
C916 87-010-075-040 CAP,E 10-16V
C917 87-010-037-010 CAP,E 10-50V
C918 87-010-380-010 CAP,E 47-16V
C919 87-010-393-010 CAP,E 100-35V
C921 87-A10-818-040 CAP,E 100-16V
C923 87-010-045-010 CAP,E 100-25V
C924 87-A10-818-040 CAP,E 100-16V
C925 87-010-380-010 CAP,E 47-16V
C926 87-A10-818-040 CAP,E 100-16V
C927 87-010-494-010 CAP,E 1-50V
J908 S0-401-400-000 CONN,PIN 4P
M1 S0-611-190-000 MOTOR,FF-050SH-11190
M2 S1-000-900-090 COOLING FAN
R956 S2-054-100-010 THERMISTOR T5D410K45JBPDA-0
DISPLAY C.B
BL201 S0-904-100-000 EL BACKLIGHT 114-36
C204 87-010-782-010 CAP,E 47000-5.5V
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

8
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C205 87-010-079-010 CAP,E 100-6.3V
C207 87-010-071-040 CAP,E 1-50V
C208 87-010-071-040 CAP,E 1-50V
FC3 S0-702-501-000 FFC CABLE 7P 250MM
FC4 S0-701-801-000 FFC CABLE 7P 180MM
H201 S0-532-900-900 B-B RECEPTACLE 9P
H202 S0-528-060-700 CONN,FFC 7P
H203 S0-532-900-800 B-B RECEPTACLE 8P
H204 S0-528-060-700 CONN,FFC 7P
J201 S0-035-183-500 HP,JACK ST 3.5MM
L201 87-003-097-010 COIL,1UH
LCD201 S0-041-380-000 LCD DISPLAY
SW201 SK-HH9-010-000 SW,TACT KSM0612A
SW202 SK-HH9-010-000 SW,TACT KSM0612A
SW203 SK-HH9-010-000 SW,TACT KSM0612A
SW204 SK-HH9-010-000 SW,TACT KSM0612A
SW205 S0-000-010-010 SW,MIRCO MLS-1
X201 S3-327-680-000 X,TAL 32.768KHZ
X202 S0-008-000-000 CER,RESO 8 MHZ
KEY C.B
H301 S0-528-070-700 CONN,FFC 7P
SW302 SK-HH9-010-000 SW,TACT KSM0612A
SW310 SK-HH9-010-000 SW,TACT KSM0612A
SW311 SK-HH9-010-000 SW,TACT KSM0612A
SW312 SK-HH9-010-000 SW,TACT KSM0612A
SW313 SK-HH9-010-000 SW,TACT KSM0612A
SW314 SK-HH9-010-000 SW,TACT KSM0612A
SW315 SK-HH9-010-000 SW,TACT KSM0612A
SW316 SK-HH9-010-000 SW,TACT KSM0612A
SW317 SK-HH9-010-000 SW,TACT KSM0612A
SW318 SK-HH9-010-000 SW,TACT KSM0612A
SW351 SH-132-032-000 ROTARY ENCORDER
SPEAKER C.B
J603 S0-202-130-000 JACK,PIN 3P
PT C.B
J604 S0-702-000-000 CONN,PIN 7P
J614 S0-532-650-200 HEADER MOLEX 2P
! PT801 S5-866-361-400 POWER TF EI-66/36 230V
FUSE C.B
! S4-000-010-000 AC CONTACT TERMINAL
! S7-900-000-000 FUSE HOLDER
! F901 S0-050-200-020 FUSE,500/250V
CD MAIN C.B
C507 87-010-404-010 CAP,E 4.7-50V
C508 87-010-404-010 CAP,E 4.7-50V
C518 87-010-037-010 CAP,E 10-50V
C521 87-010-263-080 ELECT CAP 100-10V
C523 87-010-263-080 ELECT CAP 100-10V
C527 87-010-221-010 CAP,E 470-10V
C533 87-010-263-080 ELECT CAP 100-10V
C540 87-010-380-010 CAP,E 47-16V
C541 87-010-037-010 CAP,E 10-50V
C547 87-010-549-010 CAP,E 47-6.3V
C549 87-010-549-010 CAP,E 47-6.3V
C555 87-010-244-040 CAP,E 22-16V
C555 87-015-716-010 CAP,E 22-16V
C556 87-010-549-010 CAP,E 47-6.3V
C558 87-010-037-010 CAP,E 10-50V
C561 87-010-406-080 ELECT CAP 22-50V
C566 87-010-263-080 ELECT CAP 100-10V
C569 87-010-248-080 ELECT CAP 220-10V
C574 87-010-047-010 CAP,E 100-50V
C575 87-010-047-010 CAP,E 100-50V
C707 87-010-401-010 CAP,E 1-50V
C708 87-010-401-010 CAP,E 1-50V
C713 87-010-075-040 CAP,E 10-16V
C714 87-A10-189-080 CAP,E 220-10V
C727 87-010-782-010 CAP,E 47000-5.5V
C728 87-010-263-080 ELECT CAP 100-10V
C736 87-010-401-010 CAP,E 1-50V
C737 87-010-401-010 CAP,E 1-50V
C743 87-010-075-040 CAP,E 10-16V
C751 87-010-401-010 CAP,E 1-50V
C752 87-010-401-010 CAP,E 1-50V
C755 87-015-716-010 CAP,E 22-16V
C761 87-010-075-040 CAP,E 10-16V
C770 87-010-401-010 CAP,E 1-50V
C771 87-010-401-010 CAP,E 1-50V
C772 87-010-075-040 CAP,E 10-16V
CON701 S0-524-181-200 B-B HEADER 12P
CON702 S1-78C-L12-010 CONN-PLUG FC SMK 17P
FC1 S1-401-201-000 FFC CABLE 14P 120MM
FC2 S0-801-201-000 FFC CABLE 8P 120MM
H501 S0-000-151-510 CONN,SNAP-IN 15P
H502 S0-000-020-210 HEADER JST 2P
H503 S0-000-020-220 HEADER JST 2P(RED)
H504 S0-000-020-230 HEADER JST 2P(BLU)
H703 S0-000-020-230 HEADER JST 2P(BLU)
L501 87-005-696-080 INDUCTOR,100UH
L502 S0-035-341-000 COIL,BEAD 100MHZ
L503 S0-035-341-000 COIL,BEAD 100MHZ
M701 S1-215-370-000 MOTOR RF-370CA-15370 12V
RN701 S2-291-030-000 RES,NETWORK EXB-Z9E103J
RN702 S2-291-030-000 RES,NETWORK EXB-Z9E103J
SW701 S0-000-020-000 SW,MICRO MQS-2
SW702 S0-000-020-000 SW,MICRO MQS-2
VR501 87-024-171-080 SFR,5K
VR502 87-024-176-080 SFR,100K
VR503 87-024-176-080 SFR,100K
VR504 87-024-176-080 SFR,100K
X501 S0-016-930-000 CER,RESO
X701 S3-327-680-000 X,TAL 32.768KHZ
X703 S0-008-000-000 CER,RESO 8 MHZ
FUNCTION C.B
C401 87-010-401-010 CAP,E 1-50V
C402 87-010-401-010 CAP,E 1-50V
C407 87-010-401-010 CAP,E 1-50V
C408 87-010-401-010 CAP,E 1-50V
C411 87-A10-818-040 CAP,E 100-16V
C412 87-A10-818-040 CAP,E 100-16V
C413 87-010-075-040 CAP,E 10-16V
C414 87-010-075-040 CAP,E 10-16V
C415 87-010-401-010 CAP,E 1-50V
C416 87-010-401-010 CAP,E 1-50V
CON401 S0-532-901-200 B-B RECEPTACLE 12P
J401 S0-202-460-010 JACK,PIN 3Px2
PANEL C.B
C601 87-010-053-810 CAP,E 1-50V
H705 S2-001-WR0-700 HEADER 7P
REM601 S0-006-380-000 RC,PHOTO RECEIVER
SW601 SK-HH9-010-000 SW,TACT KSM0612A
SW602 SK-HH9-010-000 SW,TACT KSM0612A
SW603 SK-HH9-010-000 SW,TACT KSM0612A
SW604 SK-HH9-010-000 SW,TACT KSM0612A
SW605 SK-HH9-010-000 SW,TACT KSM0612A
SW607 SK-HH9-130-000 SW,PB(CSDSR510,515)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

9
REF. NO PART NO. KANRI DESCRIPTION
NO.
OPTICAL C.B
C801 87-010-263-080 ELECT CAP 100-10V
LED801 87-A40-123-010 LED,SLZ-8128A-01-B
S5-030-650-000 SFR,50K
SO-020-160-000 TERMINAL PUSH 2P
S6-240-500-500 C-CAP,24PF-50V
87-010-067-080 CAP,E 0.1-50V

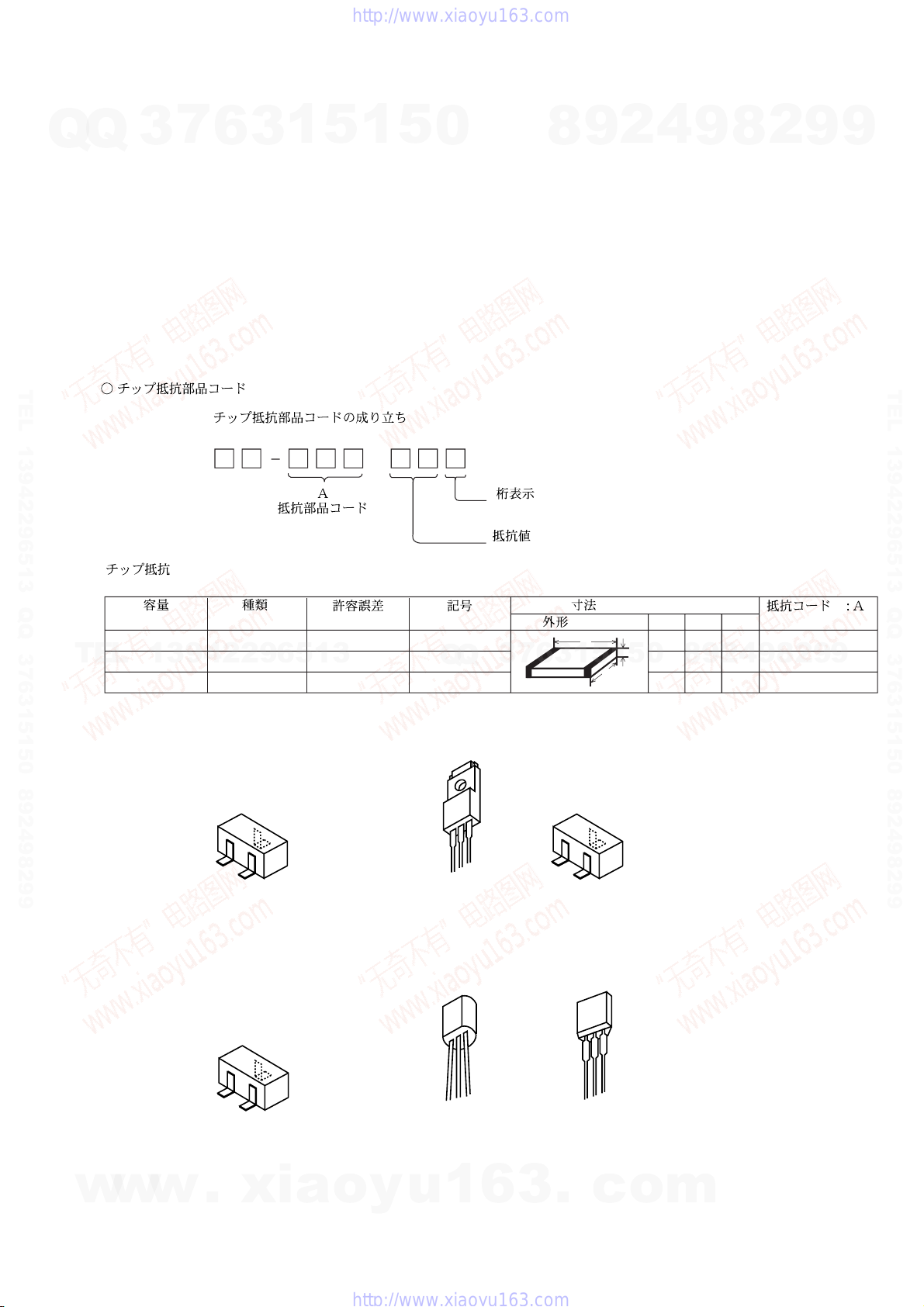

TRANSISTOR ILLUSTRATION
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
W
Resistor Code
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
L
1.6
2
3.2
W
0.8
1.25
1.6
t
0.45
0.45
0.55
108
118
128
88
t
L
/ CHIP RESISTOR PART CODE
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance Symbol / Diamensions (mm)
/ Form Resistor Code : A
2SB1370
B C E
E C B
PE8050
PE8550
E C B
DTC114ES
DTC124ES
BE
C
2SA1162
2SC2712
2SC2714
S
G
D
2SK211
D
G
S
2SK209DTA114YK
DTC114TK/TKA
DTC114YK
87-010-400-010 CAP,E 0.47-50V
87-005-696-080 COIL,100UH
87-005-366-010 COIL,FM 1UH
S0-091-340-070 IFT A7BRRCS-A9134
87-NF4-651-010 IFT AM PACK(RF BLOCK)
S5-866-361-400 POWER TF EI66/36 230V
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

2827
SCHEMATIC DIAGRAM-4 (CD MAIN)
+B
GND VC
VC
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
