SERVICE MANUAL

DATA

NSX-T96

SIMPLE

S/M Code No. 09-005-426-5T3

• Replace this Service manual with “Revision Publishing” when it is issued.

COMPACT DISC

STEREO CASSETTE RECEIVER BASIC TAPE MECHANISM :2ZM-3MK2 YPR4NM

BASIC CD MECHANISM : 6ZG-1 YZRNDM

ELECTRICAL MAIN PARTS LIST - 1/8

NOTE: The characters in the suffix column indicate the part usage.

LHSK2M .................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 603 87-010-112-040 CAP,E 100-16 A...................

C 602 87-010-186-080 CAP,CHIP 4700P A...................

C 601 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 606 87-010-320-080 CHIP CAP 68P A...................

C 604 87-010-405-040 CAP,E 10-50 A...................

C 605 87-010-546-040 CAP,E 0.33-50 A...................

C 608 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 621 87-010-178-080 CHIP CAP 1000P A...................

CN 602 87-A60-082-010 CONN,05P H 9604S-05F A...................

J 601 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM A...................

J 602 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM A...................

L 601 87-003-216-080 F-BEAD,BLO1RM1 A...................

Q 604 87-A30-075-080 C-TR,2SA1235F A...................

Q 602 87-A30-076-080 C-TR,2SC3052F A...................

Q 603 87-A30-076-080 C-TR,2SC3052F A...................

Q 601 87-A30-087-080 C-FET,2SK2158 A...................

C 161 87-010-178-080 CHIP CAP 1000P A...................

C 162 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 407 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 410 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 417 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 424 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 423 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 501 87-010-178-080 CHIP CAP 1000P A...................

C 502 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 531 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 532 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

CN 104 87-099-750-010 CONN,15P V 9604SC A...................

CN 302 87-A60-059-010 CONN,08P V 9604S-08C A...................

IC 401 87-070-289-040 IC,BU 2092F A...................

IC 402 87-A21-021-040 C-IC,BU2099FV A...................

LED 101 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 422 87-A40-831-010 LED,SELU1E10CXM-LF70 BLUE-DEF A...................

LED 421 87-A40-831-010 LED,SELU1E10CXM-LF70 BLUE-DEF A...................

LED 445 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 446 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 441 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 447 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 443 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 448 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 440 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 444 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 442 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 449 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 455 87-A40-809-040 LED,LTL-307KK PGRN A...................

LED 451 87-A40-809-040 LED,LTL-307KK PGRN A...................

LED 452 87-A40-809-040 LED,LTL-307KK PGRN A...................

LED 454 87-A40-809-040 LED,LTL-307KK PGRN A...................

LED 453 87-A40-809-040 LED,LTL-307KK PGRN A...................

LED 456 87-A40-809-040 LED,LTL-307KK PGRN A...................

LED 463 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 464 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 461 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 462 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 465 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 521 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF A...................

LED 522 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF A...................

Q 109 87-A30-087-080 C-FET,2SK2158 A...................

Q 401 87-A30-075-080 C-TR,2SA1235F A...................

S 252 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 101 87-A91-740-010 SW,RTRY EC12E24308-30MM A...................

SW 501 87-A91-739-010 SW,RTRY EC12E12404-25MM RT A...................

C 1 87-010-387-080 CAP,E 470-25 SME A...................

C 6 87-010-917-000 CAP,E 3300-50 M SMG A...................

C 7 87-010-917-000 CAP,E 3300-50 M SMG A...................

C 16 87-010-403-040 CAP,E 3.3-50 SME A...................

C 22 87-A10-231-090 CAP,E 3300-80 A...................

C 23 87-A10-231-090 CAP,E 3300-80 A...................

C 37 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................

C 38 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................

CN 2 87-A61-108-010 CONN,5P V TID-A A...................

CN 1 87-A61-110-010 CONN,9P V TID-A A...................

D 2 87-017-447-010 DIODE,GBU4DL A...................

D 3 87-017-654-060 DIODE,GBU6J A...................

D 8 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 4 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 5 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 7 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 6 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 9 87-020-465-080 DIODE,1SS133 (110MA) A...................

ELECTRICAL MAIN PARTS LIST - 2/8

FC 3 87-033-213-080 CLAMP, FUSE A...................

FC 4 87-033-213-080 CLAMP, FUSE A...................

PR 8 87-026-682-080 PROTECTOR,10A 60V491 A...................

PR 5 87-026-682-080 PROTECTOR,10A 60V491 A...................

PR 6 87-A90-195-080 PROTECTOR 7A 125V 49 A...................

PR 5 87-A90-195-080 PROTECTOR 7A 125V 49 A...................

PT 2 8A-NF8-662-010 PT,SUB ANF-8 (E) A...................

Q 1 87-026-245-080 TR,DTC114ES A...................

Q 2 87-A30-198-080 TR,KTC3199GR A...................

RY 1 87-A90-976-010 RELAY,AC12V SDT-S-112LMR A...................

T 2 87-A60-317-010 TERMINAL, 1P MSC A...................

T 1 87-A60-317-010 TERMINAL, 1P MSC A...................

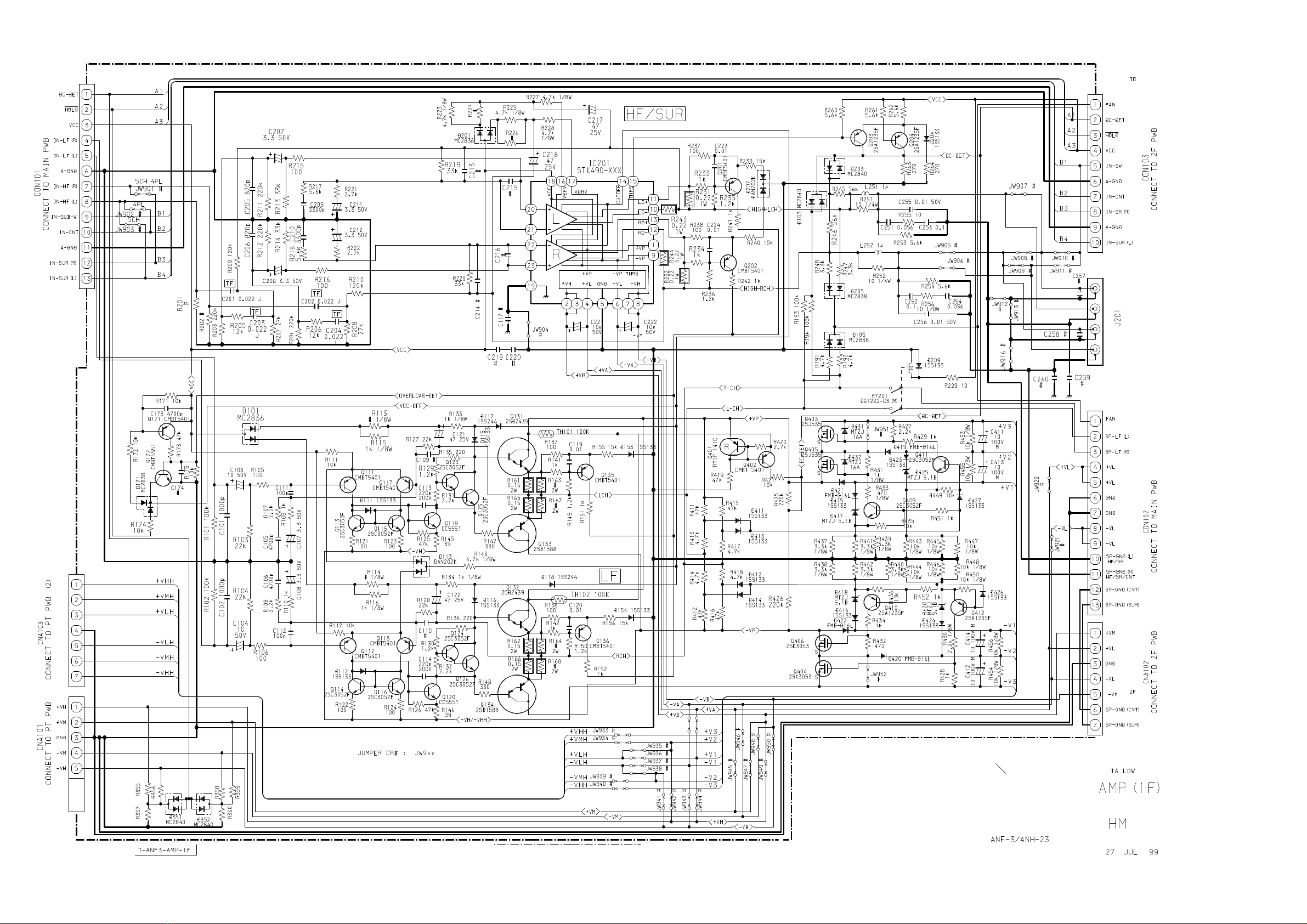

C 101 87-010-188-080 CAP,CHIP 6800P A...................

C 102 87-010-188-080 CAP,CHIP 6800P A...................

C 107 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 108 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 103 87-010-405-080 CAP, ELECT 10-50V A...................

C 104 87-010-405-080 CAP, ELECT 10-50V A...................

C 119 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 112 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 111 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 114 87-A10-812-080 C-CAP,S 220P-200 J CH A...................

C 113 87-A10-812-080 C-CAP,S 220P-200 J CH A...................

C 120 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 121 87-010-260-080 CAP, ELECT 47-25V A...................

C 122 87-010-260-080 CAP, ELECT 47-25V A...................

C 174 87-010-186-080 CAP,CHIP 4700P A...................

C 173 87-010-186-080 CAP,CHIP 4700P A...................

C 209 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 205 87-010-187-080 CAP CHIP S5600P A...................

C 206 87-010-187-080 CAP CHIP S5600P A...................

C 207 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 208 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 210 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 218 87-010-260-080 CAP, ELECT 47-25V A...................

C 217 87-010-260-080 CAP, ELECT 47-25V A...................

C 212 87-010-401-080 CAP, ELECT 1-50V A...................

C 211 87-010-401-080 CAP, ELECT 1-50V A...................

C 216 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 215 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 223 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 224 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 221 87-016-100-080 CAP,E 10-50 BP A...................

C 222 87-016-100-080 CAP,E 10-50 BP A...................

C 249 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 256 87-010-190-080 S CHIP F 0.01 A...................

C 255 87-010-190-080 S CHIP F 0.01 A...................

C 252 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 253 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 254 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 251 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 414 87-A10-119-080 CAP,E 10-100 REA A...................

C 413 87-A10-119-080 CAP,E 10-100 REA A...................

CNA 101 8A-NF8-652-010 CONN ASSY,7P TID-A(480) ....................

CNA 103 8A-NF8-656-010 CONN ASSY,5P TID-A 400 A...................

CON 101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3 A...................

CON 102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3 A...................

D 101 87-A40-269-080 C-DIODE,MC2836 A...................

D 103 87-A40-313-080 C-DIODE,MC 2840 A...................

D 113 87-020-331-080 CHIP-DIODE,DAN202K A...................

D 117 87-A40-488-080 DIODE,1SS244 A...................

D 118 87-A40-488-080 DIODE,1SS244 A...................

D 171 87-A40-270-080 C-DIODE,MC2838 A...................

D 202 87-020-331-080 CHIP-DIODE,DAN202K A...................

D 204 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 201 87-A40-269-080 C-DIODE,MC2836 A...................

D 205 87-A40-270-080 C-DIODE,MC2838 A...................

D 203 87-A40-313-080 C-DIODE,MC 2840 A...................

D 412 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 414 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 411 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 410 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 413 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 419 87-A40-747-080 ZENER,UZ5.1BSB A...................

D 418 87-A40-751-080 ZENER,UZ6.2BSB A...................

D 417 87-A40-764-080 ZENER,UZ10BSC A...................

D 421 87-A40-646-010 DIODE,FMB-G16L A...................

D 422 87-A40-646-010 DIODE,FMB-G16L A...................

D 428 87-A40-764-080 ZENER,UZ10BSC A...................

D 431 87-020-465-080 DIODE,1SS133 (110MA) A...................

IC 201 87-A21-398-010 IC,STK490-110 A...................

J 201 87-A61-148-010 JACK,PIN 4P R/W BLUE A...................

JW 944 87-A90-896-080 F-BEAD, 035600STY7 A...................

L 251 87-A50-610-010 COIL,1UH K(MDEC) A...................

L 252 87-A50-610-010 COIL,1UH K(MDEC) A...................

Q 113 87-A30-076-080 C-TR,2SC3052F A...................

ELECTRICAL MAIN PARTS LIST - 3/8

Q 115 87-A30-076-080 C-TR,2SC3052F A...................

Q 116 87-A30-076-080 C-TR,2SC3052F A...................

Q 114 87-A30-076-080 C-TR,2SC3052F A...................

Q 112 87-A30-107-070 C-TR,CMBT5401 A...................

Q 111 87-A30-107-070 C-TR,CMBT5401 A...................

Q 117 87-A30-107-070 C-TR,CMBT5401 A...................

Q 118 87-A30-107-070 C-TR,CMBT5401 A...................

Q 119 87-A30-190-080 TR,CC5551 A...................

Q 120 87-A30-190-080 TR,CC5551 A...................

Q 131 87-A30-097-010 TR,FN 1016 A...................

Q 132 87-A30-097-010 TR,FN 1016 A...................

Q 133 87-A30-098-010 TR,FP 1016 A...................

Q 134 87-A30-098-010 TR,FP 1016 A...................

Q 135 87-A30-107-070 C-TR,CMBT5401 A...................

Q 136 87-A30-107-070 C-TR,CMBT5401 A...................

Q 172 87-A30-106-040 C-TR,CMBT5551 A...................

Q 171 87-A30-107-070 C-TR,CMBT5401 A...................

Q 203 87-A30-075-080 C-TR,2SA1235F A...................

Q 202 87-A30-107-070 C-TR,CMBT5401 A...................

Q 201 87-A30-107-070 C-TR,CMBT5401 A...................

Q 409 87-A30-076-080 C-TR,2SC3052F A...................

Q 402 87-A30-107-070 C-TR,CMBT5401 A...................

Q 406 87-A30-186-010 FET,2SK3053 A...................

Q 405 87-A30-186-010 FET,2SK3053 A...................

Q 401 87-A30-484-080 C-TR,KRA102S A...................

Q 403 87-A30-484-080 C-TR,KRA102S A...................

Q 410 87-A30-075-080 C-TR,2SA1235F A...................

R 165 87-A00-418-010 RES,M/F 0.15-3W J A...................

R 162 87-A00-418-010 RES,M/F 0.15-3W J A...................

R 161 87-A00-418-010 RES,M/F 0.15-3W J A...................

R 166 87-A00-418-010 RES,M/F 0.15-3W J A...................

R 232 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 231 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 243 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 244 87-A00-258-080 RES,M/F 0.22-1W J A...................

TH 102 87-A91-042-080 C-THMS,100K 55001 A...................

TH 101 87-A91-042-080 C-THMS,100K 55001 A...................

WH 103 87-A90-459-010 HLDR,WIRE 2.5-5P A...................

WH 101 87-A90-460-010 HLDR,WIRE 2.5-7P ....................

* 8Z-NF3-210-010 GUIDE,FL A...................

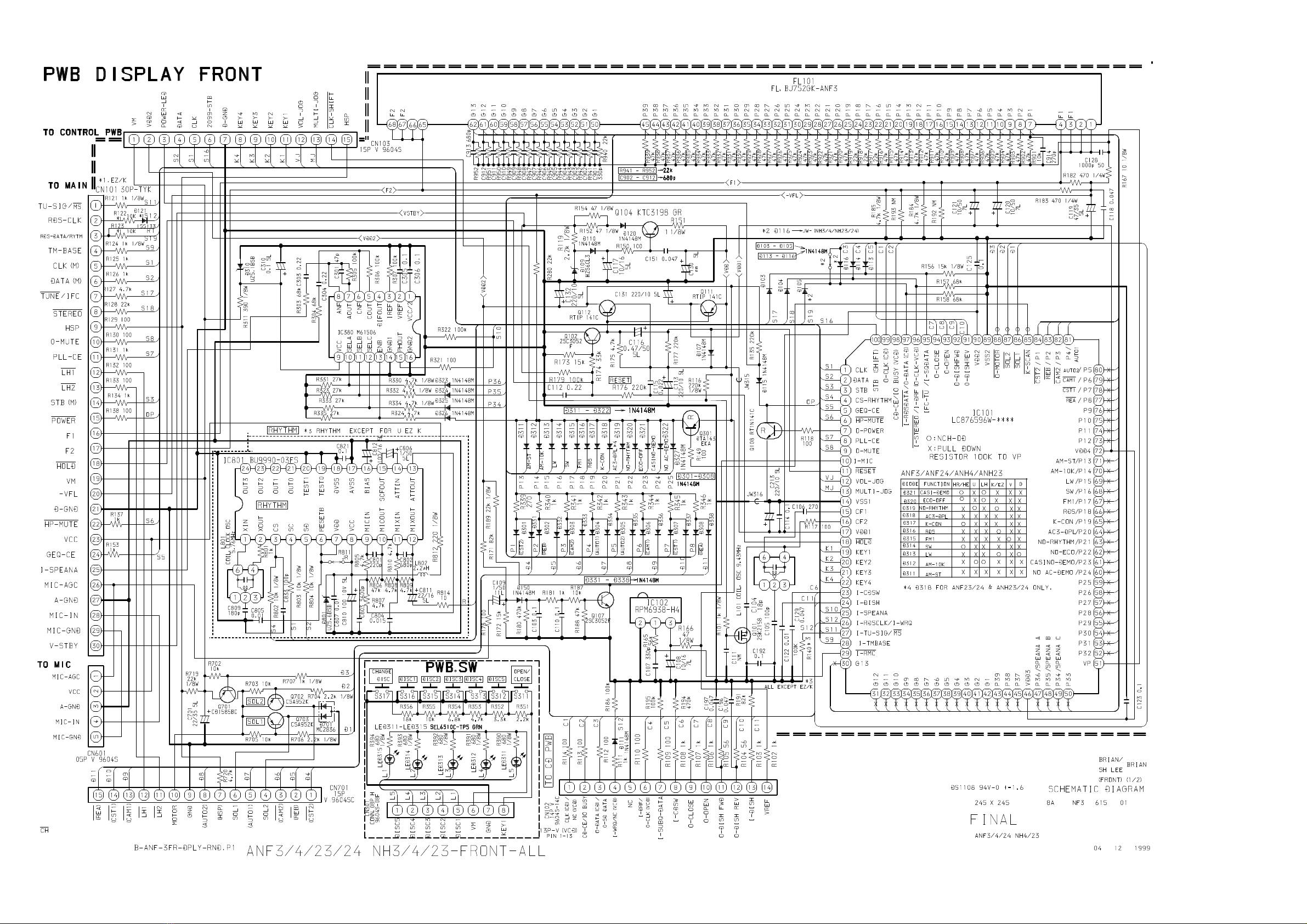

C 103 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 104 87-010-313-080 CAP, CHIP 18P A...................

C 105 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 109 87-010-401-040 CAP,E 1-50 SME A...................

C 106 87-012-145-080 CAP, CHIP S 270P CH A...................

C 107 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 108 87-015-681-040 E/CAP 10-16 A...................

C 118 87-010-194-080 CAP, CHIP 0.047 A...................

C 115 87-010-198-080 CAP, CHIP 0.022 A...................

C 116 87-010-493-040 CAP,E 0.47-50 GAS A...................

C 117 87-010-498-040 CAP,E 10-16 GAS A...................

C 112 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 119 87-A10-797-040 CAP,E 47-35 M 5L SRM A...................

C 128 87-010-178-080 CHIP CAP 1000P A...................

C 129 87-010-194-080 CAP, CHIP 0.047 A...................

C 122 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 120 87-015-699-040 CAP,E 10-50 7L A...................

C 121 87-015-699-040 CAP,E 10-50 7L A...................

C 131 87-A10-189-040 CAP,E 220-10 A...................

C 132 87-A10-189-040 CAP,E 220-10 A...................

C 151 87-010-194-080 CAP, CHIP 0.047 A...................

C 196 87-010-194-080 CAP, CHIP 0.047 A...................

C 197 87-010-194-080 CAP, CHIP 0.047 A...................

C 192 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z A...................

C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 303 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 304 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 310 87-010-067-040 CAP,E 0.1-50 5L A...................

C 701 87-010-981-040 CAP,E 22-35 5L SRE A...................

C 901 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 912 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 913 87-010-176-080 C-CAP,S 680P-50 SL A...................

CN 101 87-099-720-010 CONN,30P TYK-B(P) A...................

CN 103 87-099-750-010 CONN,15P V 9604SC A...................

CN 102 87-A60-054-010 CONN,14P V 9604S-14C A...................

CN 301 87-A60-079-010 CONN,08P H 9604S-08F A...................

CN 601 87-A60-062-010 CONN,05P V 9604S-05C A...................

CN 701 87-099-750-010 CONN,15P V 9604SC A...................

D 109 87-017-154-080 ZENER,HZS6C3L A...................

D 310 87-A40-747-080 ZENER,UZ5.1BSB A...................

D 338 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 337 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 701 87-A40-269-080 C-DIODE,MC2836 A...................

FL 101 8A-NF3-613-010 FL,BJ752GK-ANF3 A...................

IC 102 87-A21-482-010 IC,RPM6938-H4 A...................

IC 101 8A-NF3-635-010 C-IC,LC876580W-**** A...................

IC 380 87-A21-577-040 C-IC,M61506FP A...................

ELECTRICAL MAIN PARTS LIST - 4/8

JR 102 83-XM1-617-080 C-COIL,BK2125HM601 ....................

L 101 87-A50-333-010 COIL,OSC 9.43MHZ A...................

LED 315 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 311 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 312 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 314 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 313 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

Q 104 87-026-610-080 TR,KTC3198GR A...................

Q 102 87-A30-076-080 C-TR,2SC3052F A...................

Q 107 87-A30-076-080 C-TR,2SC3052F A...................

Q 101 87-A30-087-080 C-FET,2SK2158 A...................

Q 108 87-A30-468-080 C-TR,KRC102S-RTK A...................

Q 111 87-A30-074-080 C-TR,RT1P 141C A...................

Q 112 87-A30-074-080 C-TR,RT1P 141C A...................

Q 301 87-A30-276-040 C-TR,DTA143EKA A...................

Q 702 87-A30-318-080 TR,CSA952K A...................

Q 703 87-A30-318-080 TR,CSA952K A...................

Q 701 87-A30-329-080 TR,CD1585BC A...................

S 313 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 316 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 312 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 317 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 314 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 311 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 315 87-A90-095-080 SW,TACT EVQ11G04M A...................

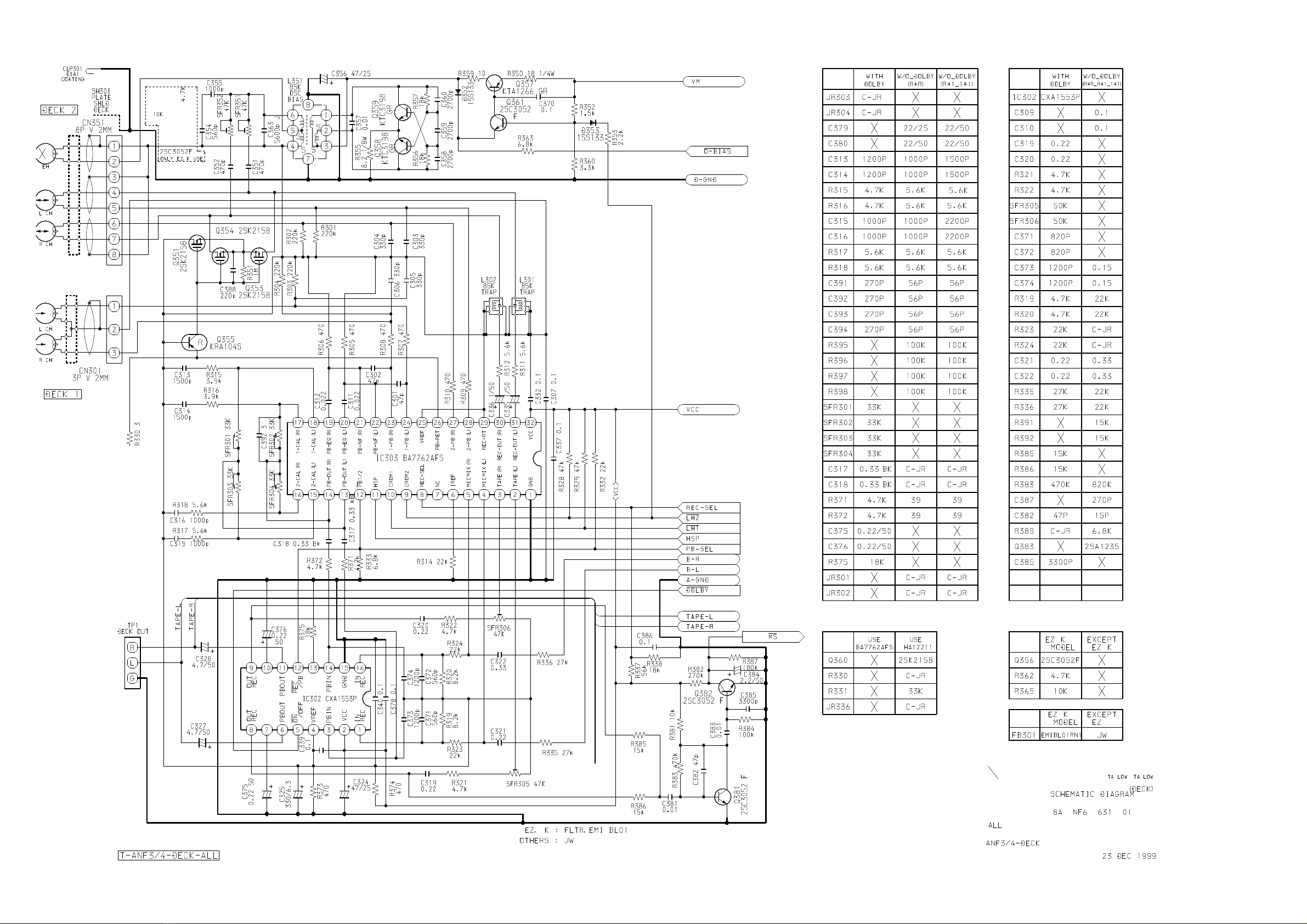

C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 302 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 306 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 305 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 303 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 304 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 315 87-010-178-080 CHIP CAP 1000P A...................

C 316 87-010-178-080 CHIP CAP 1000P A...................

C 313 87-010-180-080 C-CER 1500P A...................

C 314 87-010-180-080 C-CER 1500P A...................

C 311 87-010-198-080 CAP, CHIP 0.022 A...................

C 312 87-010-198-080 CAP, CHIP 0.022 A...................

C 319 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................

C 317 87-A10-201-080 C-CAP,S0.33-16 KB A...................

C 318 87-A10-201-080 C-CAP,S0.33-16 KB A...................

C 324 87-010-260-080 CAP, ELECT 47-25V A...................

C 325 87-010-370-080 CAP,E 330-6.3 SME A...................

C 327 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 328 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 320 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................

C 322 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................

C 321 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................

C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 336 87-010-401-080 CAP, ELECT 1-50V A...................

C 335 87-010-401-080 CAP, ELECT 1-50V A...................

C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 354 87-010-175-080 CAP 560P A...................

C 358 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 359 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 357 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 356 87-010-260-080 CAP, ELECT 47-25V A...................

C 351 87-012-140-080 CAP 470P A...................

C 352 87-012-140-080 CAP 470P A...................

C 355 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 360 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 372 87-010-175-080 CAP 560P A...................

C 371 87-010-175-080 CAP 560P A...................

C 374 87-010-179-080 CAP,CHIP S B1200P A...................

C 373 87-010-179-080 CAP,CHIP S B1200P A...................

C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 376 87-010-545-080 CAP, ELECT 0.22-50V A...................

C 375 87-010-545-080 CAP, ELECT 0.22-50V A...................

C 385 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 381 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 383 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 382 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 384 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 388 87-012-156-080 C-CAP,S 220P-50 CH A...................

CN 301 87-A60-620-010 CONN,3P V 2MM JMT A...................

CN 351 87-A60-625-010 CONN,8P V 2MM JMT A...................

D 353 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 352 87-020-465-080 DIODE,1SS133 (110MA) A...................

FB 301 87-008-372-080 FILTER, EMI BL OIRNI A...................

IC 302 87-A20-355-010 IC,CXA1553P A...................

IC 303 87-A20-783-040 C-IC,BA7762AFS A...................

L 301 87-A50-625-010 COIL,TRAP 85KHZ (SANWA) A...................

L 302 87-A50-625-010 COIL,TRAP 85KHZ (SANWA) A...................

ELECTRICAL MAIN PARTS LIST - 5/8

L 351 87-007-342-010 COIL,OSC 85K BIAS A...................

Q 357 87-026-609-080 TR,KTA1266GR A...................

Q 358 87-026-610-080 TR,KTC3198GR A...................

Q 359 87-026-610-080 TR,KTC3198GR A...................

Q 355 87-A30-063-080 C-TR,KRA104S A...................

Q 356 87-A30-076-080 C-TR,2SC3052F A...................

Q 353 87-A30-087-080 C-FET,2SK2158 A...................

Q 351 87-A30-087-080 C-FET,2SK2158 A...................

Q 354 87-A30-087-080 C-FET,2SK2158 A...................

SFR 302 87-024-355-080 SFR,33K DIA6 H A...................

SFR 301 87-024-355-080 SFR,33K DIA6 H A...................

SFR 303 87-024-355-080 SFR,33K DIA6 H A...................

SFR 304 87-024-355-080 SFR,33K DIA6 H A...................

SFR 306 87-024-356-080 SFR,47K DIA6 H A...................

SFR 305 87-024-356-080 SFR,47K DIA6 H A...................

C 104 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 105 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 115 87-010-401-080 CAP, ELECT 1-50V A...................

C 112 87-010-401-080 CAP, ELECT 1-50V A...................

C 111 87-010-401-080 CAP, ELECT 1-50V A...................

C 116 87-010-401-080 CAP, ELECT 1-50V A...................

C 121 87-010-406-080 CAP, ELECT 22-50 A...................

C 122 87-010-406-080 CAP, ELECT 22-50 A...................

C 152 87-010-260-080 CAP, ELECT 47-25V A...................

C 161 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 162 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 163 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 178 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 177 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 174 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 172 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 171 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 173 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 175 87-A11-572-080 C-CAP,S 0.015-50 K B A...................

C 176 87-A11-572-080 C-CAP,S 0.015-50 K B A...................

CN 101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3 A...................

D 101 87-020-465-080 DIODE,1SS133 (110MA) A...................

J 102 87-A60-238-010 TERMINAL,SP 4P (MSC) A...................

J 103 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM A...................

L 101 87-A50-610-010 COIL,1UH K(MDEC) A...................

L 102 87-A50-610-010 COIL,1UH K(MDEC) A...................

Q 103 87-A30-076-080 C-TR,2SC3052F A...................

Q 108 87-A30-076-080 C-TR,2SC3052F A...................

Q 109 87-A30-076-080 C-TR,2SC3052F A...................

Q 107 87-A30-076-080 C-TR,2SC3052F A...................

Q 104 87-A30-076-080 C-TR,2SC3052F A...................

Q 101 87-A30-086-040 C-TR,CSD1306E A...................

Q 102 87-A30-086-040 C-TR,CSD1306E A...................

Q 106 87-A30-269-040 C-FET,2SJ461-T1 A...................

Q 105 87-A30-269-040 C-FET,2SJ461-T1 A...................

Q 113 87-A30-075-080 C-TR,2SA1235F A...................

Q 110 87-A30-076-080 C-TR,2SC3052F A...................

Q 115 87-A30-076-080 C-TR,2SC3052F A...................

Q 114 87-A30-105-080 C-TR,RT1P 441C A...................

R 117 87-012-142-080 CAP, S 0.33-16 A...................

R 118 87-012-142-080 CAP, S 0.33-16 A...................

R 164 87-A00-441-050 RES,270-1/2W J RP A...................

R 161 87-A00-441-050 RES,270-1/2W J RP A...................

R 162 87-A00-441-050 RES,270-1/2W J RP A...................

R 163 87-A00-441-050 RES,270-1/2W J RP A...................

C 974 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 973 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 979 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 971 87-010-381-080 CAP, ELECT 330-16V A...................

C 972 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 982 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 984 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 983 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 987 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 981 87-010-260-080 CAP, ELECT 47-25V A...................

C 993 87-010-178-080 CHIP CAP 1000P A...................

C 995 87-010-178-080 CHIP CAP 1000P A...................

C 997 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 991 87-010-312-080 C-CAP,S 15P-50 CH A...................

C 992 87-010-312-080 C-CAP,S 15P-50 CH A...................

C 999 87-A11-155-080 CAP,TC U 0.01-16 Z F A...................

D 804 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 991 87-017-149-080 ZENER,HZS6A2L A...................

IC 991 87-070-127-110 IC,LC72131 D A...................

JW 991 87-003-216-080 F-BEAD,BLO1RM1 A...................

Q 981 87-A30-234-080 TR,CSC4115BC A...................

X 991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 A...................

C 779 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 774 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 773 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 771 87-010-263-080 CAP, ELECT 100-10V A...................

C 788 87-010-149-080 C-CAP,S 5P-50 CH A...................

ELECTRICAL MAIN PARTS LIST - 6/8

C 780 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 789 87-A10-592-080 C-CAP,S 0.015-50 J B A...................

C 791 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 797 87-010-405-080 CAP, ELECT 10-50V A...................

C 799 87-010-407-080 CAP, ELECT 33-50V A...................

C 790 87-A10-592-080 C-CAP,S 0.015-50 J B A...................

C 803 87-010-198-080 CAP, CHIP 0.022 A...................

C 804 87-010-263-080 CAP, ELECT 100-10V A...................

C 807 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 809 87-010-401-080 CAP, ELECT 1-50V A...................

C 808 87-010-401-080 CAP, ELECT 1-50V A...................

C 801 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 800 87-012-369-080 C-CAP,S 0.047-50F A...................

C 802 87-012-369-080 C-CAP,S 0.047-50F A...................

C 819 87-010-179-080 CAP,CHIP S B1200P A...................

C 818 87-010-180-080 C-CER 1500P A...................

C 810 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 815 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 816 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 811 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 812 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 820 87-010-179-080 CAP,CHIP S B1200P A...................

C 824 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 821 87-010-405-080 CAP, ELECT 10-50V A...................

C 825 87-010-596-080 CAP, S 0.047-16 A...................

C 823 87-012-349-080 C-CAP,S 1000P-50 CH A...................

D 803 87-020-465-080 DIODE,1SS133 (110MA) A...................

IC 801 87-A21-560-010 IC,LA1844L-A A...................

L 801 87-A50-608-010 COIL,FM DET-N(TOK) A...................

L 802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK) A...................

L 811 87-005-847-080 COIL,2.2UH(CECS) A...................

L 822 87-A50-027-010 COIL,1 POLE MPX(TOK) A...................

L 821 87-A50-027-010 COIL,1 POLE MPX(TOK) A...................

Q 802 87-A30-076-080 C-TR,2SC3052F A...................

Q 801 87-A30-076-080 C-TR,2SC3052F A...................

R 790 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 869 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 875 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 877 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 879 87-010-314-080 C-CAP,S 22P-50V A...................

C 878 87-010-316-080 C-CAP,S 33P-50 CH A...................

C 876 87-010-405-080 CAP, ELECT 10-50V A...................

C 874 87-010-405-080 CAP, ELECT 10-50V A...................

C 873 87-012-140-080 CAP 470P A...................

C 872 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 871 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 870 87-018-131-080 CAP, CER 1000P-50V A...................

IC 861 87-A20-440-040 C-IC,BU1920FS A...................

L 861 87-005-847-080 COIL,2.2UH(CECS) A...................

Q 863 87-A30-076-080 C-TR,2SC3052F A...................

Q 861 87-A30-076-080 C-TR,2SC3052F A...................

Q 862 87-A30-468-080 C-TR,KRC102S-RTK A...................

X 861 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309 A...................

C 831 87-010-406-080 CAP, ELECT 22-50 A...................

C 849 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 844 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 842 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 852 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 851 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 853 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 850 87-010-260-080 CAP, ELECT 47-25V A...................

C 860 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 942 87-010-149-080 C-CAP,S 5P-50 CH A...................

C 948 87-012-140-080 CAP 470P A...................

C 957 87-010-311-080 CAP 12P A...................

C 961 87-010-152-080 C-CAP,S 8P-50 CH ....................

C 962 87-010-401-080 CAP, ELECT 1-50V A...................

C 963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z A...................

CF 832 82-785-747-010 CF MS2 GHY R A...................

CF 831 87-008-423-010 CERAMIC FILTER, SFE10.7 A...................

D 944 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 942 87-A40-270-080 C-DIODE,MC2838 A...................

FFE 831 A8-6ZA-191-130 6ZA-1 FEENM A...................

J 831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 ....................

J 832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05 A...................

L 832 87-005-847-080 COIL,2.2UH(CECS) A...................

L 942 87-A50-019-010 COIL,OSC LW(COI) A...................

L 941 87-A50-020-010 COIL,ANT LW(COI) A...................

L 951 8A-NF8-668-010 COIL,AM PACK 2(TOK) A...................

Q 836 87-A30-489-080 C-TR,KRA107S A...................

Q 835 89-327-143-080 TR,2SC2714 (0.1W) A...................

Q 948 87-A30-086-040 C-TR,CSD1306E A...................

Q 952 87-A30-086-040 C-TR,CSD1306E A...................

Q 951 87-A30-484-080 C-TR,KRA102S A...................

Q 953 89-503-602-080 C-FET,2SK360E A...................

TC 942 87-011-253-080 TRIMER,30P LAR A...................

C 3 87-012-368-080 C-CAP,S 0.1-50 F A...................

ELECTRICAL MAIN PARTS LIST - 7/8

C 4 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 26 87-010-990-080 CAP,E 33-100 SME A...................

C 28 87-010-990-080 CAP,E 33-100 SME A...................

C 25 87-010-990-080 CAP,E 33-100 SME A...................

C 27 87-010-990-080 CAP,E 33-100 SME A...................

C 22 87-016-035-090 CAP, E 6800-35 VR A...................

C 21 87-016-035-090 CAP, E 6800-35 VR A...................

C 26 87-016-300-080 CAP,E 22-100 SME A...................

C 28 87-016-300-080 CAP,E 22-100 SME A...................

C 32 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 34 87-010-247-080 CAP, ELECT 100-50V A...................

C 31 87-010-263-080 CAP, ELECT 100-10V A...................

C 36 87-010-381-080 CAP, ELECT 330-16V A...................

C 39 87-010-393-080 CAP, ELECT 100-35V A...................

C 38 87-010-393-080 CAP, ELECT 100-35V A...................

C 35 87-010-406-080 CAP, ELECT 22-50 A...................

C 40 87-010-190-080 S CHIP F 0.01 A...................

C 60 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 82 87-010-260-080 CAP, ELECT 47-25V A...................

C 81 87-010-374-080 CAP, ELECT 47-10V A...................

C 80 87-010-401-080 CAP, ELECT 1-50V A...................

CN 1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3 A...................

CN 92 87-A60-619-010 CONN,2P V 2MM JMT A...................

CNA 3 87-049-919-010 CONN,3P EH V WHT A...................

CNA 2 8A-NF3-640-110 CONN ASSY,3P (VM) ANF-3 A...................

CNA 1 8A-NF8-653-010 CONN ASSY,9P TID-A(480) A...................

D 1 87-A40-673-090 DIODE,D10XB20 A...................

D 28 87-A40-553-080 DIODE,1N4003 LES A...................

D 25 87-A40-553-080 DIODE,1N4003 LES A...................

D 27 87-A40-553-080 DIODE,1N4003 LES A...................

D 26 87-A40-553-080 DIODE,1N4003 LES A...................

D 29 87-A40-781-080 ZENER,UZ36BSA A...................

D 30 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 34 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 32 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 35 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 33 87-070-274-080 DIODE,1N4003 SEM A...................

D 31 87-A40-764-080 ZENER,UZ10BSC A...................

D 60 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 64 87-A40-269-080 C-DIODE,MC2836 A...................

D 63 87-A40-270-080 C-DIODE,MC2838 A...................

D 65 87-A40-768-080 ZENER,UZ16BSA A...................

D 85 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 84 87-020-465-080 DIODE,1SS133 (110MA) A...................

Q 5 87-026-610-080 TR,KTC3198GR A...................

Q 8 87-A30-075-080 C-TR,2SA1235F A...................

Q 6 87-A30-076-080 C-TR,2SC3052F A...................

Q 2 87-A30-217-010 TR,2SB1436(R) A...................

Q 1 87-A30-217-010 TR,2SB1436(R) A...................

Q 9 87-A30-318-080 TR,CSA952K A...................

Q 10 87-A30-076-080 C-TR,2SC3052F A...................

Q 13 89-213-702-010 TR,2SB1370 (1.8W) A...................

Q 14 89-213-702-010 TR,2SB1370 (1.8W) A...................

Q 63 87-A30-075-080 C-TR,2SA1235F A...................

Q 61 87-A30-075-080 C-TR,2SA1235F A...................

Q 60 87-A30-076-080 C-TR,2SC3052F A...................

Q 62 87-A30-076-080 C-TR,2SC3052F A...................

Q 64 87-A30-076-080 C-TR,2SC3052F A...................

Q 81 87-A30-076-080 C-TR,2SC3052F A...................

Q 84 87-A30-218-080 TR,2SB1237(Q) A...................

WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................

C 604 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 606 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 605 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 603 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 616 87-010-180-080 C-CER 1500P A...................

C 613 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 617 87-010-198-080 CAP, CHIP 0.022 A...................

C 619 87-010-263-080 CAP, ELECT 100-10V A...................

C 612 87-010-369-080 C-CAP,S 0.033-25 K B A...................

C 618 87-010-401-080 CAP, ELECT 1-50V A...................

C 611 87-010-956-080 CHIP-CAP,S 0.068-25B A...................

C 614 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 621 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 628 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 627 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 624 87-010-401-080 CAP, ELECT 1-50V A...................

C 623 87-010-401-080 CAP, ELECT 1-50V A...................

C 629 87-010-992-080 C-CAP,S 0.047-25 B A...................

C 626 87-010-992-080 C-CAP,S 0.047-25 B A...................

C 620 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 632 87-010-185-080 C-CAP,S 3900P-50 B A...................

C 631 87-010-185-080 C-CAP,S 3900P-50 B A...................

C 630 87-010-383-080 CAP, ELECT 33-25V A...................

C 639 87-010-405-080 CAP, ELECT 10-50V A...................

C 637 87-A10-307-080 CAP,M 0.1-50 J A...................

C 636 87-A10-307-080 CAP,M 0.1-50 J A...................

ELECTRICAL MAIN PARTS LIST - 8/8

C 638 87-A10-307-080 CAP,M 0.1-50 J A...................

C 635 87-A10-307-080 CAP,M 0.1-50 J A...................

C 641 87-010-401-080 CAP, ELECT 1-50V A...................

C 642 87-010-401-080 CAP, ELECT 1-50V A...................

C 673 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 672 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 671 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 680 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

CN 605 87-099-568-010 CONN,11P TUC-P11P-B1 A...................

CN 601 87-099-719-010 CONN,30P TYK-B(X) A...................

CN 602 87-A60-131-010 CONN,6P V FE A...................

D 603 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 602 87-A40-438-080 ZENER,MTZJ4.7A A...................

IC 601 87-A21-452-030 C-IC,BD3876KS2 A...................

J 601 87-A60-885-010 JACK,PIN 6P R/W MSC A...................

JW 646 87-A90-896-080 F-BEAD, 035600STY7 A...................

JW 659 87-A90-896-080 F-BEAD, 035600STY7 A...................

Q 601 87-026-610-080 TR,KTC3198GR A...................

Q 609 87-A30-075-080 C-TR,2SA1235F A...................

Q 608 87-A30-075-080 C-TR,2SA1235F A...................

Q 607 87-A30-075-080 C-TR,2SA1235F A...................

Q 606 87-A30-086-070 C-TR,CSD1306E A...................

Q 605 87-A30-086-070 C-TR,CSD1306E A...................

Q 603 87-A30-087-080 C-FET,2SK2158 A...................

Q 602 87-A30-269-040 C-FET,2SJ461-T1 A...................

C 506 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 502 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 501 87-010-263-080 CAP, ELECT 100-10V A...................

C 505 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................

C 503 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 504 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 508 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 509 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 507 87-A11-550-080 C-CAP,S 820P-50 K B A...................

C 518 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 517 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 510 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 514 87-010-374-080 CAP, ELECT 47-10V A...................

C 516 87-010-401-080 CAP, ELECT 1-50V A...................

C 515 87-010-401-080 CAP, ELECT 1-50V A...................

C 513 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 512 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 511 87-A11-550-080 C-CAP,S 820P-50 K B A...................

C 535 87-010-178-080 CHIP CAP 1000P A...................

C 532 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 536 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 533 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 538 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 531 87-010-560-080 CAP,E 10-50 GAS A...................

C 534 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 541 87-010-178-080 CHIP CAP 1000P A...................

D 501 87-A40-747-080 ZENER,UZ5.1BSB A...................

FB 501 87-008-372-080 FILTER, EMI BL OIRNI A...................

IC 501 87-A21-018-040 C-IC,M65849BFP631D A...................

Q 532 87-A30-075-080 C-TR,2SA1235F A...................

Q 531 87-A30-076-080 C-TR,2SC3052F A...................

C 201 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 202 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 205 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 209 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 207 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 208 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 219 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 216 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 215 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 218 87-010-198-080 CAP, CHIP 0.022 A...................

C 217 87-010-198-080 CAP, CHIP 0.022 A...................

C 214 87-010-956-080 CHIP-CAP,S 0.068-25B A...................

C 213 87-010-956-080 CHIP-CAP,S 0.068-25B A...................

C 211 87-012-365-080 C-CAP,S 0.027-25VBK A...................

C 212 87-012-365-080 C-CAP,S 0.027-25VBK A...................

C 210 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 227 87-010-112-080 CAP, ELECT 100-16V A...................

C 223 87-010-178-080 CHIP CAP 1000P A...................

C 224 87-010-178-080 CHIP CAP 1000P A...................

C 226 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 225 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 220 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 222 87-010-188-080 CAP,CHIP 6800P A...................

C 221 87-010-188-080 CAP,CHIP 6800P A...................

C 228 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 229 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 230 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 231 87-010-322-080 C-CAP,S 100P-50 CH A...................

CN 201 87-A60-546-010 CONN,11P H GRY TUC-P11X-C1 A...................

IC 201 87-A20-869-040 C-IC,M62449FP A...................

This manual suits for next models

Table of contents

Popular Stereo Receiver manuals by other brands

Teac

Teac AG-680 Service manual

Kenwood

Kenwood KR-V888D instruction manual

Teac

Teac AGV1050 owner's manual

Sony

Sony STR-435 operating instructions

Pioneer

Pioneer Elite SC-68 Service manual

Pioneer

Pioneer SX-1250 operating instructions

Marantz

Marantz CINEMA 70S owner's manual

Kenwood

Kenwood KMDX92 instruction manual

Yamaha

Yamaha RX-830 owner's manual

Pioneer

Pioneer AVH-Z7250BT owner's manual

Denon

Denon AVR-1311 owner's manual

Denon

Denon AVR-S760H owner's manual

Denon

Denon AVR-X7200W Service manual

Sony

Sony XAV-1500 operating instructions

Radio Shack

Radio Shack DX-399 owner's manual

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver operating instructions

Pioneer

Pioneer SX-1000TA operating instructions

Yamaha

Yamaha MusicCast TSR-5B3D owner's manual
