SERVICE MANUAL
DATA
•Replace this Service Manual with ”Revision Publishing” when it is issued.
COMPACT DISC STEREO
CASSETTE RECEIVER
BASIC TAPE MECHANISM : 2ZM-3 PR4NM
BASIC CD MECHANISM : AZG-1 ZR3RDM
CX-NHMT75 U
S/M Code No. 09-002-425-9T1
SIMPLE
CXNHMT75co.p65 01-Feb-00, 12:47 PM1

ELECTRICAL MAIN PARTS LIST - 1/8
NOTE: The characters in the suffix column indicate the part usage.
USM ....................XX..................................A...................
KANR
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 606 87-010-112-040 CAP,E 100-16 A...................
C 608 87-010-178-080 CHIP CAP 1000P A...................
C 601 87-010-186-080 CAP,CHIP 4700P A...................
C 609 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 607 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 603 87-010-320-080 CHIP CAP 68P A...................
C 602 87-010-405-040 CAP,E 10-50 A...................
C 604 87-010-546-040 CAP,E 0.33-50 A...................
C 621 87-010-178-080 CHIP CAP 1000P A...................
C 652 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 653 87-010-213-080 C-CAP,S 0.015-50 B A...................
FB 601 87-008-372-080 FILTER, EMI BL OIRNI A...................
J 601 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM A...................
J 602 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM A...................
Q 604 87-A30-075-080 C-TR,2SA1235F A...................
Q 602 87-A30-076-080 C-TR,2SC3052F A...................
Q 603 87-A30-076-080 C-TR,2SC3052F A...................
Q 601 87-A30-087-080 C-FET,2SK2158 A...................
C 1 87-010-387-080 CAP,E 470-25 SME A...................
C 7 87-A10-627-000 CAP,E 2200-50 M SMG A...................
C 6 87-A10-627-000 CAP,E 2200-50 M SMG A...................
C 5 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 4 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 8 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 9 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 16 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 13 87-016-657-090 CAP,E 3300-71 A...................
C 12 87-016-657-090 CAP,E 3300-71 A...................
C 11 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 10 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
CN 2 87-A61-108-010 CONN,5P V TID-A A...................
CN 1 87-A61-110-010 CONN,9P V TID-A A...................
D 2 87-A40-547-090 DIODE,D5SBA20 A...................
D 1 87-A40-548-090 DIODE,D3SBA20 A...................
D 6 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 8 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 5 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 7 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 4 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 9 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 16 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 18 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 19 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 12 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 17 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 11 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 15 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 14 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 10 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 13 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 20 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 21 87-A40-736-080 DIODE,1N4148M(SEM) A...................
PT 2 8A-NF8-661-010 PT,SUB ANF-8 (U) A...................
Q 1 87-026-245-080 TR,DTC114ES A...................
Q 2 87-A30-198-080 TR,KTC3199GR A...................
RY 2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR A...................
T 1 87-A60-317-010 TERMINAL, 1P MSC A...................
T 2 87-A60-317-010 TERMINAL, 1P MSC A...................
C 102 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 101 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 105 87-010-186-080 CAP,CHIP 4700P A...................
C 106 87-010-186-080 CAP,CHIP 4700P A...................
C 108 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 107 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 104 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 103 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 119 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 113 87-010-405-080 CAP, ELECT 10-50V A...................
C 114 87-010-405-080 CAP, ELECT 10-50V A...................
C 115 87-016-299-080 CAP,E 10-100 SME A...................
C 116 87-016-299-080 CAP,E 10-100 SME A...................
C 120 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 133 87-010-186-080 CAP,CHIP 4700P A...................
C 153 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 205 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 206 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 207 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 208 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 211 87-010-260-080 CAP, ELECT 47-25V A...................
C 212 87-010-260-080 CAP, ELECT 47-25V A...................
C 217 87-010-405-080 CAP, ELECT 10-50V A...................
C 218 87-010-405-080 CAP, ELECT 10-50V A...................
C 223 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 224 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 222 87-010-405-080 CAP, ELECT 10-50V A...................
C 221 87-010-405-080 CAP, ELECT 10-50V A...................

ELECTRICAL MAIN PARTS LIST - 2/8
C 251 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 254 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 253 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 252 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
CN 103 87-A60-131-010 CONN,6P V FE A...................
CN 102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3 A...................
CN 101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3 A...................
CNA 103 8A-NF8-655-010 CONN ASSY,7P TID-A(150) A...................
CNA 101 8A-NF8-656-010 CONN ASSY,5P TID-A 400 A...................
D 101 87-A40-269-080 C-DIODE,MC2836 A...................
D 103 87-A40-313-080 C-DIODE,MC 2840 A...................
D 150 87-A40-270-080 C-DIODE,MC2838 A...................
D 201 87-A40-269-080 C-DIODE,MC2836 A...................
D 203 87-A40-313-080 C-DIODE,MC 2840 A...................
D 204 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 402 87-017-978-080 DIODE,1N4003 A...................
D 403 87-017-978-080 DIODE,1N4003 A...................
D 401 87-A40-270-080 C-DIODE,MC2838 A...................
IC 101 87-A21-355-010 IC,STK490-140 A...................
IC 201 87-A21-397-010 IC,STK490-070 A...................
J 201 87-A61-160-010 JACK,PIN 4P R/W/B/B KM A...................
L 251 87-003-383-010 COIL,1UH-S A...................
L 252 87-003-383-010 COIL,1UH-S A...................
Q 102 87-A30-107-070 C-TR,CMBT5401 A...................
Q 101 87-A30-107-070 C-TR,CMBT5401 A...................
Q 151 87-A30-106-070 C-TR,CMBT5551 A...................
Q 150 87-A30-107-070 C-TR,CMBT5401 A...................
Q 204 87-A30-075-080 C-TR,2SA1235F A...................
Q 203 87-A30-075-080 C-TR,2SA1235F A...................
Q 202 87-A30-107-070 C-TR,CMBT5401 A...................
Q 201 87-A30-107-070 C-TR,CMBT5401 A...................
Q 401 87-A30-075-080 C-TR,2SA1235F A...................
Q 402 87-A30-075-080 C-TR,2SA1235F A...................
R 129 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 130 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 181 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 182 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 232 87-A00-257-080 RES,M/F 0.15-1W J A...................
R 231 87-A00-257-080 RES,M/F 0.15-1W J A...................
WH 101 87-A90-459-010 HLDR,WIRE 2.5-5P A...................
WH 102 87-A90-460-010 HLDR,WIRE 2.5-7P A...................
C 160 87-010-186-080 CAP,CHIP 4700P A...................
C 201 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 208 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 205 87-010-260-080 CAP, ELECT 47-25V A...................
C 209 87-010-260-080 CAP, ELECT 47-25V A...................
C 202 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 204 87-010-406-080 CAP, ELECT 22-50 A...................
C 206 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 212 87-010-178-080 CHIP CAP 1000P A...................
C 211 87-010-178-080 CHIP CAP 1000P A...................
C 210 87-010-260-080 CAP, ELECT 47-25V A...................
C 253 87-010-190-080 S CHIP F 0.01 A...................
C 251 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 252 87-A11-595-080 C-CAP,S 0.056-50 K B A...................
CN 104 87-A60-131-010 CONN,6P V FE A...................
CN 101 87-A61-109-010 CONN,7P V TID-A A...................
D 160 87-A40-270-080 C-DIODE,MC2838 A...................
D 209 87-017-495-080 DIODE,IN5393 A...................
D 205 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 207 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 208 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 204 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 203 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 210 87-017-495-080 DIODE,IN5393 A...................
D 218 87-017-495-080 DIODE,IN5393 A...................
D 219 87-017-495-080 DIODE,IN5393 A...................
D 214 87-A40-313-080 C-DIODE,MC 2840 A...................
D 216 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 211 87-A40-754-080 ZENER,UZ6.8BSC A...................
D 212 87-A40-754-080 ZENER,UZ6.8BSC A...................
J 102 87-A60-573-010 JACK,PIN 1P ORN A...................
L 251 87-003-383-010 COIL,1UH-S A...................
Q 161 87-A30-106-080 C-TR,CMBT5551 A...................
Q 160 87-A30-107-070 C-TR,CMBT5401 A...................
Q 201 87-A30-075-080 C-TR,2SA1235F A...................
Q 203 87-A30-075-080 C-TR,2SA1235F A...................
Q 207 87-A30-076-080 C-TR,2SC3052F A...................
Q 202 87-A30-076-080 C-TR,2SC3052F A...................
Q 204 87-A30-076-080 C-TR,2SC3052F A...................
Q 208 87-A30-076-080 C-TR,2SC3052F A...................
Q 206 87-A30-190-080 TR,CC5551 A...................
Q 209 87-A30-256-010 TR,2SD1933 A...................
Q 214 87-A30-074-080 C-TR,RT1P 141C A...................
Q 217 87-A30-075-080 C-TR,2SA1235F A...................
Q 215 87-A30-075-080 C-TR,2SA1235F A...................
Q 213 87-A30-107-070 C-TR,CMBT5401 A...................
Q 210 87-A30-255-010 TR,2SB1342 A...................
Q 212 87-A30-255-010 TR,2SB1342 A...................
Q 211 87-A30-256-010 TR,2SD1933 A...................

ELECTRICAL MAIN PARTS LIST - 3/8
R 218 87-A00-257-080 RES,M/F 0.15-1W J A...................
TH 201 87-A91-042-080 C-THMS,100K 55001 A...................
C 101 87-010-190-080 S CHIP F 0.01 A...................
C 109 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 103 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 102 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 105 87-010-406-040 CAP,E 22-50 SME A...................
C 106 87-010-493-040 CAP,E 0.47-50 GAS A...................
C 104 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 107 87-A10-189-040 CAP,E 220-10 A...................
C 108 87-A10-189-040 CAP,E 220-10 A...................
C 110 87-010-178-080 CHIP CAP 1000P A...................
C 115 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 116 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 119 87-010-498-040 CAP,E 10-16 GAS A...................
C 118 87-012-145-080 CAP, CHIP S 270P CH A...................
C 112 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 113 87-012-369-080 C-CAP,S 0.047-50F A...................
C 121 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 120 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 122 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 123 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 182 87-010-178-080 CHIP CAP 1000P A...................
C 181 87-010-180-080 C-CER 1500P A...................
C 183 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 202 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 203 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 204 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 205 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 211 87-012-140-080 CAP 470P A...................
C 222 87-010-404-040 CAP,E 4.7-50 SME A...................
C 223 87-010-408-040 CAP,E 47-50 SME A...................
C 221 87-010-421-040 CAP,E 4.7-50 5L A...................
C 224 87-012-369-080 C-CAP,S 0.047-50F A...................
C 385 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 387 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 383 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 384 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 382 87-010-320-080 CHIP CAP 68P A...................
C 392 87-010-320-080 CHIP CAP 68P A...................
C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 403 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 407 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 404 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 406 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 405 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 408 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 701 87-010-260-040 CAP,E 47-25 SME A...................
CN 104 87-099-017-010 CONN, 15P 6216 V A...................
CN 102 8A-NF7-605-010 CONN ASSY,4P V 80MM A...................
CN 901 87-A60-138-010 CONN,13P V FE A...................
CON 101 87-099-720-010 CONN,30P TYK-B(P) A...................
D 105 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 106 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 107 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 108 87-A40-752-080 ZENER,UZ6.2BSC A...................
D 302 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 306 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 307 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 303 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 308 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 305 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 304 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 301 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 309 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 316 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 315 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 311 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 310 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 313 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 312 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 314 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 318 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 322 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 330 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 383 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 384 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 381 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 382 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 385 87-A40-802-080 ZENER,UZ5.1BSC A...................
D 701 87-A40-269-080 C-DIODE,MC2836 A...................
FL 201 8A-NF7-601-010 FL,BJ754GNK A...................
IC 101 8A-NF6-605-010 C-IC,LC876572V-XXX A...................
IC 251 87-A21-482-010 IC,RPM6938-H4 A...................
IC 380 87-A21-577-040 C-IC,M61506FP A...................
IC 402 87-070-289-040 IC,BU 2092F A...................
IC 401 87-A21-021-040 C-IC,BU2099FV A...................
L 101 87-A50-333-010 COIL,OSC 9.43MHZ A...................
LED 404 87-017-733-080 LED,SEL1250SM A...................
LED 401 87-017-733-080 LED,SEL1250SM A...................

ELECTRICAL MAIN PARTS LIST - 4/8
LED 403 87-017-733-080 LED,SEL1250SM A...................
LED 402 87-017-733-080 LED,SEL1250SM A...................
LED 405 87-017-733-080 LED,SEL1250SM A...................
LED 416 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 417 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 418 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 419 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 423 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 424 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 422 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 420 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 421 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 440 87-A40-563-010 LED,SEL6515C-LF62 PGRN A...................
LED 441 87-A40-563-010 LED,SEL6515C-LF62 PGRN A...................
LED 442 87-A40-563-010 LED,SEL6515C-LF62 PGRN A...................
LED 443 87-A40-563-010 LED,SEL6515C-LF62 PGRN A...................
LED 445 87-A40-564-010 LED,SEL6215S-LF62 RED A...................
LED 444 87-A40-564-010 LED,SEL6215S-LF62 RED A...................
LED 450 87-A40-589-040 LED,SLR-56VCT31 RED A...................
LED 451 87-A40-589-040 LED,SLR-56VCT31 RED A...................
LED 453 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF A...................
LED 452 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF A...................
LED 454 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF A...................
LED 455 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF A...................
LED 499 87-017-733-080 LED,SEL1250SM A...................
Q 107 87-026-610-080 TR,KTC3198GR A...................
Q 103 87-A30-073-080 C-TR,RT1N 141C A...................
Q 104 87-A30-074-080 C-TR,RT1P 141C A...................
Q 108 87-A30-074-080 C-TR,RT1P 141C A...................
Q 105 87-A30-074-080 C-TR,RT1P 141C A...................
Q 102 87-A30-076-080 C-TR,2SC3052F A...................
Q 101 87-A30-087-080 C-FET,2SK2158 A...................
Q 705 87-A30-318-080 TR,CSA952K A...................
Q 704 87-A30-318-080 TR,CSA952K A...................
Q 701 87-A30-329-080 TR,CD1585BC A...................
S 101 87-A91-709-010 SW,RTRY 1-2-24 RE012103 PV A...................
S 102 87-A91-710-010 SW,RTRY 1-2-12 RE012103 PV A...................
S 303 87-A91-024-180 SW,TACT KSH0611BT A...................
S 305 87-A91-024-180 SW,TACT KSH0611BT A...................
S 302 87-A91-024-180 SW,TACT KSH0611BT A...................
S 304 87-A91-024-180 SW,TACT KSH0611BT A...................
S 301 87-A91-024-180 SW,TACT KSH0611BT A...................
S 306 87-A91-024-180 SW,TACT KSH0611BT A...................
S 310 87-A91-024-180 SW,TACT KSH0611BT A...................
S 311 87-A91-024-180 SW,TACT KSH0611BT A...................
S 312 87-A91-024-180 SW,TACT KSH0611BT A...................
S 313 87-A91-024-180 SW,TACT KSH0611BT A...................
S 324 87-A91-024-180 SW,TACT KSH0611BT A...................
S 327 87-A91-024-180 SW,TACT KSH0611BT A...................
S 322 87-A91-024-180 SW,TACT KSH0611BT A...................
S 328 87-A91-024-180 SW,TACT KSH0611BT A...................
S 321 87-A91-024-180 SW,TACT KSH0611BT A...................
S 326 87-A91-024-180 SW,TACT KSH0611BT A...................
S 323 87-A91-024-180 SW,TACT KSH0611BT A...................
S 325 87-A91-024-180 SW,TACT KSH0611BT A...................
S 333 87-A91-024-180 SW,TACT KSH0611BT A...................
S 334 87-A91-024-180 SW,TACT KSH0611BT A...................
S 345 87-A91-024-180 SW,TACT KSH0611BT A...................
S 346 87-A91-024-180 SW,TACT KSH0611BT A...................
S 342 87-A91-024-180 SW,TACT KSH0611BT A...................
S 347 87-A91-024-180 SW,TACT KSH0611BT A...................
S 344 87-A91-024-180 SW,TACT KSH0611BT A...................
S 343 87-A91-024-180 SW,TACT KSH0611BT A...................
S 341 87-A91-024-180 SW,TACT KSH0611BT A...................
S 349 87-A91-024-180 SW,TACT KSH0611BT A...................
S 351 87-A91-024-180 SW,TACT KSH0611BT A...................
S 355 87-A91-024-180 SW,TACT KSH0611BT A...................
S 350 87-A91-024-180 SW,TACT KSH0611BT A...................
S 353 87-A91-024-180 SW,TACT KSH0611BT A...................
S 354 87-A91-024-180 SW,TACT KSH0611BT A...................
S 352 87-A91-024-180 SW,TACT KSH0611BT A...................
C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 302 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 303 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 306 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 304 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 305 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 316 87-010-179-080 CAP,CHIP S B1200P A...................
C 314 87-010-179-080 CAP,CHIP S B1200P A...................
C 315 87-010-179-080 CAP,CHIP S B1200P A...................
C 313 87-010-179-080 CAP,CHIP S B1200P A...................
C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 312 87-010-198-080 CAP, CHIP 0.022 A...................
C 311 87-010-198-080 CAP, CHIP 0.022 A...................
C 324 87-010-260-080 CAP, ELECT 47-25V A...................
C 325 87-010-370-080 CAP,E 330-6.3 SME A...................
C 328 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 327 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 321 87-012-142-080 CAP, S 0.33-16 A...................
C 322 87-012-142-080 CAP, S 0.33-16 A...................

ELECTRICAL MAIN PARTS LIST - 5/8
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 336 87-010-401-080 CAP, ELECT 1-50V A...................
C 335 87-010-401-080 CAP, ELECT 1-50V A...................
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 354 87-010-175-080 CAP 560P A...................
C 355 87-010-178-080 CHIP CAP 1000P A...................
C 359 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 358 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 357 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 356 87-010-260-080 CAP, ELECT 47-25V A...................
C 352 87-012-140-080 CAP 470P A...................
C 351 87-012-140-080 CAP 470P A...................
C 360 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 363 87-A10-292-080 CAP,M 5600P-50 J A...................
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 379 87-010-382-080 CAP, ELECT 22-25V A...................
C 374 87-016-083-080 C-CAP,S 0.15-16 RK A...................
C 373 87-016-083-080 C-CAP,S 0.15-16 RK A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 381 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 383 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 382 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 380 87-010-382-080 CAP, ELECT 22-25V A...................
C 384 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 387 87-012-145-080 CAP, CHIP S 270P CH A...................
C 388 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 393 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 392 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 391 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 394 87-010-319-080 C-CAP,S 56P-50 CH A...................
CN 301 87-A60-620-010 CONN,3P V 2MM JMT A...................
CN 351 87-A60-625-010 CONN,8P V 2MM JMT A...................
D 352 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 353 87-A40-736-080 DIODE,1N4148M(SEM) A...................
IC 303 87-A20-783-040 C-IC,BA7762AFS A...................
L 301 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 302 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 351 87-007-342-010 COIL,OSC 85K BIAS A...................
Q 357 87-026-609-080 TR,KTA1266GR A...................
Q 359 87-026-610-080 TR,KTC3198GR A...................
Q 358 87-026-610-080 TR,KTC3198GR A...................
Q 354 87-A30-087-080 C-FET,2SK2158 A...................
Q 351 87-A30-087-080 C-FET,2SK2158 A...................
Q 353 87-A30-087-080 C-FET,2SK2158 A...................
Q 355 87-A30-105-080 C-TR,RT1P 441C A...................
Q 361 87-A30-076-080 C-TR,2SC3052F A...................
Q 383 87-A30-075-080 C-TR,2SA1235F A...................
Q 381 87-A30-076-080 C-TR,2SC3052F A...................
Q 382 87-A30-076-080 C-TR,2SC3052F A...................
SFR 352 87-A90-433-080 SFR,50K H NVZ6TLTA A...................
SFR 351 87-A90-433-080 SFR,50K H NVZ6TLTA A...................
C 115 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 116 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 173 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 172 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 171 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 174 87-012-368-080 C-CAP,S 0.1-50 F A...................
CN 101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3 A...................
J 102 87-A60-238-010 TERMINAL,SP 4P (MSC) A...................
J 101 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM A...................
L 101 87-003-383-010 COIL,1UH-S A...................
L 102 87-003-383-010 COIL,1UH-S A...................
Q 113 87-A30-075-080 C-TR,2SA1235F A...................
Q 112 87-A30-086-040 C-TR,CSD1306E A...................
Q 111 87-A30-086-040 C-TR,CSD1306E A...................
R 163 87-A00-441-050 RES,270-1/2W J RP A...................
R 162 87-A00-441-050 RES,270-1/2W J RP A...................
R 161 87-A00-441-050 RES,270-1/2W J RP A...................
R 164 87-A00-441-050 RES,270-1/2W J RP A...................
C 973 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 974 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 979 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 971 87-010-381-080 CAP, ELECT 330-16V A...................
C 972 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 982 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 987 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 983 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 984 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 981 87-010-260-080 CAP, ELECT 47-25V A...................
C 993 87-010-178-080 CHIP CAP 1000P A...................
C 995 87-010-178-080 CHIP CAP 1000P A...................
C 997 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 998 87-010-260-080 CAP, ELECT 47-25V A...................
C 991 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 992 87-010-312-080 C-CAP,S 15P-50 CH A...................
D 804 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 991 87-017-149-080 ZENER,HZS6A2L A...................
IC 991 87-070-127-110 IC,LC72131 D A...................
Q 981 87-A30-234-080 TR,CSC4115BC A...................

ELECTRICAL MAIN PARTS LIST - 6/8
R 993 87-010-322-080 C-CAP,S 100P-50 CH A...................
R 991 87-010-322-080 C-CAP,S 100P-50 CH A...................
R 995 87-010-322-080 C-CAP,S 100P-50 CH A...................
X 991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 A...................
C 773 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 774 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 772 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 771 87-010-263-080 CAP, ELECT 100-10V A...................
C 788 87-010-149-080 C-CAP,S 5P-50 CH A...................
C 785 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 783 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 782 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 786 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 784 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 789 87-A11-530-080 C-CAP,S 0.018-50 J B A...................
C 791 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 795 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 796 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 792 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 798 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 793 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 797 87-010-405-080 CAP, ELECT 10-50V A...................
C 799 87-010-407-080 CAP, ELECT 33-50V A...................
C 790 87-A11-530-080 C-CAP,S 0.018-50 J B A...................
C 803 87-010-198-080 CAP, CHIP 0.022 A...................
C 804 87-010-263-080 CAP, ELECT 100-10V A...................
C 807 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 809 87-010-401-080 CAP, ELECT 1-50V A...................
C 808 87-010-401-080 CAP, ELECT 1-50V A...................
C 801 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 802 87-012-369-080 C-CAP,S 0.047-50F A...................
C 800 87-012-369-080 C-CAP,S 0.047-50F A...................
C 819 87-010-179-080 CAP,CHIP S B1200P A...................
C 810 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 814 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 816 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 815 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 812 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 811 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 823 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 820 87-010-179-080 CAP,CHIP S B1200P A...................
C 821 87-010-405-080 CAP, ELECT 10-50V A...................
C 824 87-010-405-080 CAP, ELECT 10-50V A...................
C 825 87-010-596-080 CAP, S 0.047-16 A...................
D 803 87-A40-736-080 DIODE,1N4148M(SEM) A...................
IC 801 87-A21-415-010 IC,LA1843 A...................
L 801 87-A50-540-010 COIL,FM DET(TOK) A...................
L 802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK) A...................
L 811 87-005-847-080 COIL,2.2UH(CECS) A...................
L 821 87-A50-209-010 COIL,1POLE MPX(MIT) A...................
L 822 87-A50-209-010 COIL,1POLE MPX(MIT) A...................
Q 801 87-A30-076-080 C-TR,2SC3052F A...................
Q 802 87-A30-076-080 C-TR,2SC3052F A...................
R 790 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 846 87-010-190-080 S CHIP F 0.01 A...................
C 849 87-010-190-080 S CHIP F 0.01 A...................
C 843 87-010-190-080 S CHIP F 0.01 A...................
C 848 87-010-190-080 S CHIP F 0.01 A...................
C 845 87-010-190-080 S CHIP F 0.01 A...................
C 847 87-010-190-080 S CHIP F 0.01 A...................
C 844 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 842 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 859 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 858 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 852 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 853 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 851 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 850 87-010-260-080 CAP, ELECT 47-25V A...................
C 860 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 961 87-010-152-080 C-CAP,S 8P-50 CH A...................
C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z A...................
CF 831 87-008-261-010 FILTER, SFE10.7MA5-A A...................
CF 832 87-008-261-010 FILTER, SFE10.7MA5-A A...................
FFE 831 A8-8ZA-190-030 8ZA-1 FEUNM A...................
J 831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 A...................
L 832 87-005-847-080 COIL,2.2UH(CECS) A...................
L 951 8A-NF8-667-010 COIL,AM PACK 4(TOK) A...................
Q 836 87-A30-072-080 C-TR,RT1P 144C A...................
Q 835 89-327-143-080 TR,2SC2714 (0.1W) A...................
C 3 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 4 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 26 87-010-260-080 CAP, ELECT 47-25V A...................
C 27 87-010-260-080 CAP, ELECT 47-25V A...................
C 28 87-010-260-080 CAP, ELECT 47-25V A...................
C 25 87-010-260-080 CAP, ELECT 47-25V A...................
C 22 87-016-658-000 CAP,E 4700-35 M SMG A...................
C 21 87-016-658-000 CAP,E 4700-35 M SMG A...................
C 36 87-010-112-080 CAP, ELECT 100-16V A...................
C 32 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 31 87-010-263-080 CAP, ELECT 100-10V A...................

ELECTRICAL MAIN PARTS LIST - 7/8
C 33 87-010-263-080 CAP, ELECT 100-10V A...................
C 35 87-010-380-080 CAP, ELECT 47-16V A...................
C 38 87-010-384-080 CAP, ELECT 100-25V A...................
C 34 87-010-384-080 CAP, ELECT 100-25V A...................
C 39 87-010-384-080 CAP, ELECT 100-25V A...................
C 40 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 60 87-010-403-080 CAP, ELECT 3.3-50V A...................
CN 1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3 A...................
CNA 1 8A-NF8-653-010 CONN ASSY,9P TID-A(480) A...................
D 1 87-017-654-060 DIODE,GBU6J A...................
D 26 87-A40-553-080 DIODE,1N4003 LES A...................
D 25 87-A40-553-080 DIODE,1N4003 LES A...................
D 27 87-A40-553-080 DIODE,1N4003 LES A...................
D 28 87-A40-553-080 DIODE,1N4003 LES A...................
D 29 87-A40-781-080 ZENER,UZ36BSA A...................
D 33 87-A40-553-080 DIODE,1N4003 LES A...................
D 32 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 30 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 34 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 31 87-A40-764-080 ZENER,UZ10BSC A...................
D 64 87-A40-269-080 C-DIODE,MC2836 A...................
D 63 87-A40-270-080 C-DIODE,MC2838 A...................
D 61 87-A40-313-080 C-DIODE,MC 2840 A...................
D 62 87-A40-313-080 C-DIODE,MC 2840 A...................
D 60 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 65 87-A40-768-080 ZENER,UZ16BSA A...................
Q 1 87-026-609-080 TR,KTA1266GR A...................
Q 2 87-026-609-080 TR,KTA1266GR A...................
Q 5 87-026-610-080 TR,KTC3198GR A...................
Q 8 87-A30-075-080 C-TR,2SA1235F A...................
Q 7 87-A30-075-080 C-TR,2SA1235F A...................
Q 6 87-A30-076-080 C-TR,2SC3052F A...................
Q 9 87-A30-318-080 TR,CSA952K A...................
Q 4 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 3 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 10 87-A30-076-080 C-TR,2SC3052F A...................
Q 63 87-A30-075-080 C-TR,2SA1235F A...................
Q 61 87-A30-075-080 C-TR,2SA1235F A...................
Q 60 87-A30-076-080 C-TR,2SC3052F A...................
Q 62 87-A30-076-080 C-TR,2SC3052F A...................
Q 64 87-A30-076-080 C-TR,2SC3052F A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
C 402 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 401 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 409 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 407 87-010-401-080 CAP, ELECT 1-50V A...................
C 408 87-010-401-080 CAP, ELECT 1-50V A...................
C 404 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 403 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 406 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 405 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 410 87-010-112-080 CAP, ELECT 100-16V A...................
C 417 87-010-221-080 CAP, ELECT 470-10V A...................
C 411 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 412 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 413 87-010-401-080 CAP, ELECT 1-50V A...................
C 415 87-010-492-080 CAP,E 0.33-50 M 5L SRE A...................
C 416 87-010-492-080 CAP,E 0.33-50 M 5L SRE A...................
C 414 87-010-494-080 CAP ELECT GAS 1/50 A...................
C 419 87-A10-800-080 C-CAP,S 6800P-16 J B CM A...................
C 418 87-A10-891-080 CAP,E 4.7-25 SME(K) A...................
C 425 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 421 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 420 87-010-374-080 CAP, ELECT 47-10V A...................
C 424 87-010-374-080 CAP, ELECT 47-10V A...................
C 429 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 422 87-A10-804-080 C-CAP,S 0.1-25 J B A...................
C 439 87-010-805-080 CAP, S 1-16 A...................
C 431 87-010-971-080 C-CAP,S 4700P-50 B J A...................
C 437 87-010-971-080 C-CAP,S 4700P-50 B J A...................
C 430 87-012-142-080 CAP, S 0.33-16 A...................
C 438 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 432 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 435 87-A11-182-080 C-CAP,S 0.27-16 J B A...................
C 434 87-A11-182-080 C-CAP,S 0.27-16 J B A...................
C 433 87-A11-183-080 C-CAP,S 0.12-16 J B A...................
C 436 87-A11-183-080 C-CAP,S 0.12-16 J B A...................
C 440 87-010-401-080 CAP, ELECT 1-50V A...................
C 447 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 446 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 449 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 444 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 445 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 448 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 443 87-A10-229-080 C-CAP,S 0.68-10 K W5 A...................
C 441 87-A10-799-080 C-CAP,S 5600P-16 J B CM A...................
C 442 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................
C 453 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 457 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 454 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 450 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 456 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................

ELECTRICAL PARTS LIST - 8/8
C 455 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................
C 451 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................
C 452 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................
C 466 87-010-194-080 CAP, CHIP 0.047 A...................
C 463 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 461 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 465 87-016-552-080 C-CAP,S 0.082-16 B K A...................
C 468 87-A10-060-080 C-CAP,S 0.18-16 K B A...................
C 467 87-A10-201-080 C-CAP,S0.33-16 KB A...................
C 479 87-010-179-080 CAP,CHIP S B1200P A...................
C 478 87-010-494-080 CAP ELECT GAS 1/50 A...................
C 489 87-010-133-080 CAP, ELECT 2.2-50V A...................
C 481 87-010-179-080 CAP,CHIP S B1200P A...................
C 482 87-010-179-080 CAP,CHIP S B1200P A...................
C 480 87-010-179-080 CAP,CHIP S B1200P A...................
C 483 87-010-494-080 CAP ELECT GAS 1/50 A...................
C 491 87-010-133-080 CAP, ELECT 2.2-50V A...................
C 492 87-010-133-080 CAP, ELECT 2.2-50V A...................
D 402 87-A40-747-080 ZENER,UZ5.1BSB A...................
D 401 87-A40-760-080 ZENER,UZ9.1BSA A...................
D 410 87-020-465-080 DIODE,1SS133 (110MA) A...................
IC 401 87-A21-097-040 C-IC,M62463AFP A...................
IC 431 87-A21-015-040 C-IC,M62491FP A...................
J 431 87-A60-746-010 JACK,PIN 6P R/W,R/W, O/B A...................
Q 401 87-A30-086-070 C-TR,CSD1306E A...................
Q 402 87-A30-086-070 C-TR,CSD1306E A...................
Q 404 87-A30-086-070 C-TR,CSD1306E A...................
Q 403 87-A30-202-080 C-TR,RT1P441C A...................
Q 431 87-A30-086-070 C-TR,CSD1306E A...................
R 407 87-022-214-080 C-RES S100K-1/10WF A...................
R 445 87-010-195-080 C-CAP,S 0.068-25 F A...................
C 609 87-010-181-080 CAP,CHIP S 1800P A...................
C 610 87-010-181-080 CAP,CHIP S 1800P A...................
C 616 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 613 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 619 87-010-263-080 CAP, ELECT 100-10V A...................
C 618 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 611 87-010-598-080 C-CAP,S 0.068-16VRK A...................
C 617 87-012-369-080 C-CAP,S 0.047-50F A...................
C 612 87-016-369-080 C-CAP,S 0.033-25 B K A...................
C 614 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 621 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 627 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 628 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 624 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 623 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 620 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 629 87-A11-590-080 C-CAP,S 0.047-16 K B A...................
C 626 87-A11-590-080 C-CAP,S 0.047-16 K B A...................
C 632 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 631 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 630 87-010-383-080 CAP, ELECT 33-25V A...................
C 639 87-010-405-080 CAP, ELECT 10-50V A...................
C 636 87-A10-307-080 CAP,M 0.1-50 J A...................
C 637 87-A10-307-080 CAP,M 0.1-50 J A...................
C 638 87-A10-307-080 CAP,M 0.1-50 J A...................
C 635 87-A10-307-080 CAP,M 0.1-50 J A...................
C 642 87-010-401-080 CAP, ELECT 1-50V A...................
C 641 87-010-401-080 CAP, ELECT 1-50V A...................
C 644 87-010-401-080 CAP, ELECT 1-50V A...................
C 679 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 673 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 671 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 672 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 682 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 680 87-010-197-080 CAP, CHIP 0.01 DM A...................
CN 602 87-099-194-010 CONN,6P 6216V A...................
CN 601 87-099-719-010 CONN,30P TYK-B(X) A...................
D 603 87-A40-736-080 DIODE,1N4148M(SEM) A...................
D 602 87-A40-745-080 ZENER,UZ4.7BSA A...................
D 601 87-A40-802-080 ZENER,UZ5.1BSC A...................
IC 601 87-A21-452-040 C-IC,BD3876KS2 A...................
J 601 87-A60-885-010 JACK,PIN 6P R/W MSC A...................
Q 601 87-026-610-080 TR,KTC3198GR A...................
Q 608 87-A30-075-080 C-TR,2SA1235F A...................
Q 609 87-A30-075-080 C-TR,2SA1235F A...................
Q 607 87-A30-075-080 C-TR,2SA1235F A...................
Q 606 87-A30-086-040 C-TR,CSD1306E A...................
Q 605 87-A30-086-040 C-TR,CSD1306E A...................
C 535 87-010-178-080 CHIP CAP 1000P A...................
C 536 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 533 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 531 87-010-560-080 CAP,E 10-50 GAS A...................
C 534 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 541 87-010-178-080 CHIP CAP 1000P A...................
Q 532 87-A30-075-080 C-TR,2SA1235F A...................
Q 531 87-A30-076-080 C-TR,2SC3052F A...................

MECHANICAL PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
USM ....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-CE3-023-010 BADGE,AIWA 30N SILV A...................
8A-NF7-003-010 BOX,CASS 1 A...................
8A-NF7-004-010 BOX,CASS 2 A...................
8A-NF7-005-010 PANEL,TRAY U A...................
8A-NF7-008-010 PANEL,CD A...................
8A-NF7-010-010 WINDOW,CASS 1 A...................
8A-NF7-011-010 WINDOW,CASS 2 A...................
8A-NF7-012-010 PANEL,DIRECT A...................
8A-NF7-112-010 PANEL,RIGHT V-2 A...................
8A-NF8-005-010 PANEL,TOP A...................
8A-NF8-006-010 WINDOW,TOP A...................
8A-NF8-007-010 PANEL,LEFT V-2 A...................
8A-NFU-003-010 CABI,FR U A...................
8A-NFU-005-010 PANEL,REAR USM A...................
8A-NFU-006-010 WINDOW,DISP U A...................
8A-NFU-007-010 COVER, REAR UM A...................
8A-NFU-008-010 PANEL,ASSY FR U A...................
8A-NF7-021-010 KEY,BBE A...................
8A-NF7-023-010 KEY,ENTER A...................
8A-NF7-024-010 KEY,SURROUND A...................
8A-NF7-026-010 KEY,ASSY OPE A...................
8A-NF7-029-010 KEY,GEQ A...................
8A-NF7-034-010 KEY,MIC A...................
8A-NF7-035-010 KEY,ASSY FUN A...................
8A-NF7-041-010 KEY,ASSY CD A...................
8A-NF7-048-010 KNOB,RTRY ASSY JOG A...................
8A-NF7-049-010 KNOB,RTRY ASSY VOL A...................
8A-NFU-002-010 KEY,PRO A...................
81-532-080-010 LABEL, CASS. COMPT A...................
86-NF6-061-010 REFLECTOR,CASS A...................
8Z-NFT-002-010 PLATE,PRO A...................
87-NF6-615-010 CONN ASSY,3P PB A...................
87-NF6-616-010 CONN ASSY,8P RPB A...................
84-ZG1-245-210 CAP,OPTICAL A...................
82-NF5-218-010 SPR-T,EJECT 1 (SIN) A...................
82-NF5-219-010 SPR-T,EJECT 2 (SIN) A...................
82-NF5-229-010 PLATE,LOCK A...................
86-NF9-224-010 SPR-C,LOCK A...................
87-064-185-010 HLDR,WIRE A...................
87-084-077-010 NYLON RIVET, 3.5-4.5 A...................
87-085-221-010 FOOT,H13.5 A...................
87-NF4-216-010 HLDR,LOCK 1 A...................
87-NF4-217-110 HLDR,LOCK 2 A...................
87-NF4-221-010 HLDR,CABLE A...................
8A-NF7-207-010 HLDR,HT L A...................
8A-NF7-208-010 HLDR,HT R A...................
8A-NF7-209-010 HLDR,PWB-M BTM A...................
8A-NF7-219-010 HLDR,IC2 A...................
8A-NF7-225-010 HLDR,PWB PT 85S A...................
8Z-NB8-240-010 COVER, PL A...................
8Z-NB8-254-010 COVER, PL M3 A...................
8Z-NF6-210-010 DMPR,150 N A...................
* 8A-NF8-206-010 HLDR,PWB M A...................
87-067-581-010 TAPPING SCREW, BVT2+3-15 A...................
87-067-641-010 UTT2+3-8(W/O SLOT)BL A...................
87-067-688-010 BVTT+3-6 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-078-191-010 S-SCREW,IT+4-10 A...................
87-721-097-410 QT2+3-12 GLD A...................
87-723-096-410 QT2+3-10W/O SLOT BL A...................
87-NF4-224-010 S-SCREW,IT3B+3-8 CU A...................
87-NF5-203-110 GUIDE,FL(*) A...................
8A-NF7-213-010 GUIDE,FUN A...................
8A-NF7-214-010 GUIDE,OPE A...................
87-067-001-010 FW,3.1-5.4-1 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
85-NF5-617-010 CABLE,FFC 6P-1.25 A...................
85-NF5-618-010 CABLE,FFC 13P-1.25 A...................
87-A91-422-010 BUSHING,AC CORD(U) A...................
88-906-151-110 FF-CABLE,6P 1.25 A...................
88-915-171-110 FF-CABLE, 15P 1.25 170MM A...................
PT 101 8A-NFU-621-010 PT,ANF-27 U A...................
W 101 87-A80-110-010 AC CORD ASSY,U SPT-2W A...................
WH 101 87-A90-459-010 HLDR,WIRE 2.5-5P A...................
WH 102 87-A90-460-010 HLDR,WIRE 2.5-7P A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................

ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
USM ....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8A-NFU-903-010 IB,U(ESF)M A...................
87-006-225-010 AM LOOP ANT NC2 A...................
87-043-115-010 ANT,FEEDER FM A...................
8Z-NFV-702-010 RC UNIT,RC-ZAS05 A...................

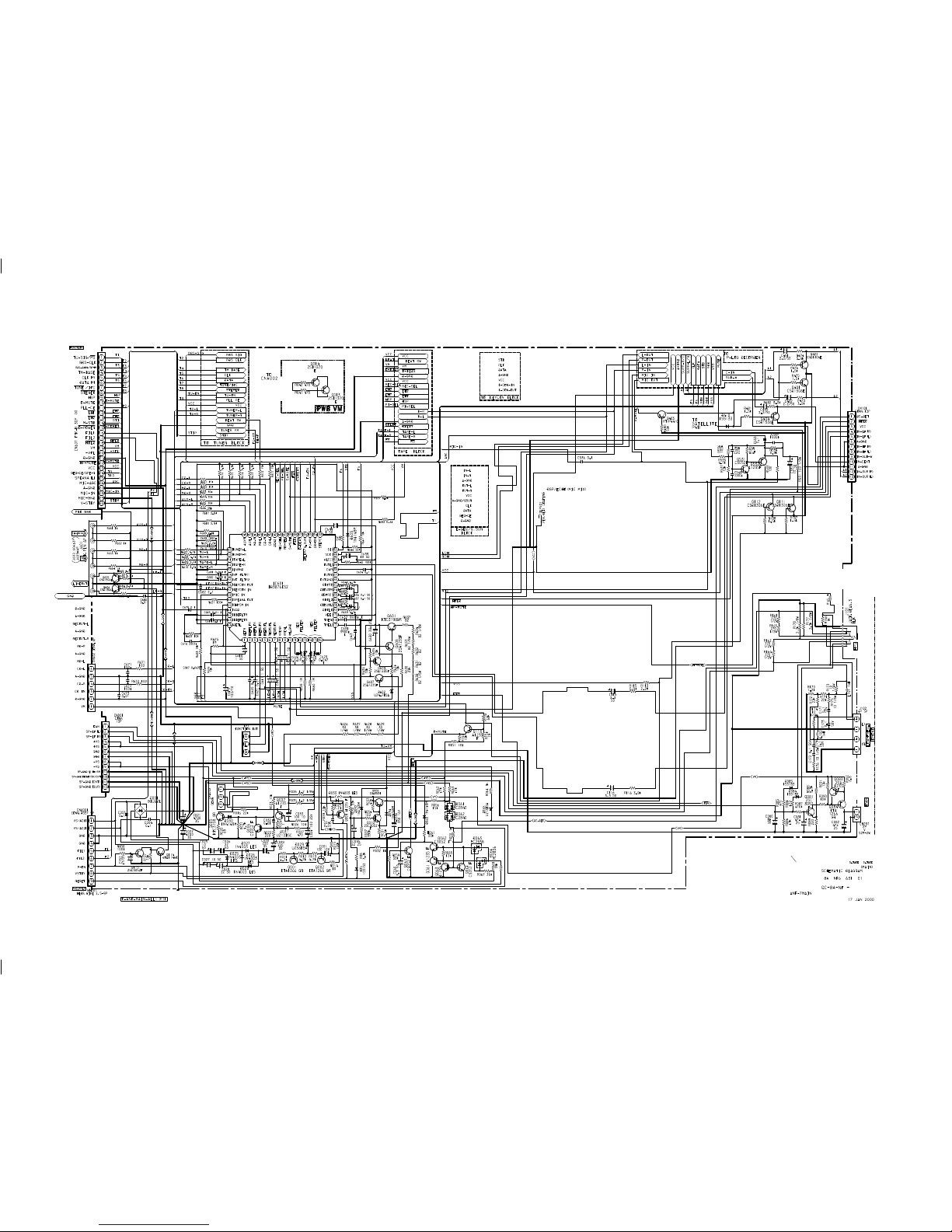

SCHEMATIC DIAGRAM _1 (MAIN 1/4 : AMP SECTION)

SCHEMATIC DIAGRAM _2 (MAIN 2/4 : DECK SECTION)

SCHEMATIC DIAGRAM _3 (MAIN 3/4 : PROLOGIC)

SCHEMATIC DIAGRAM _4 (MAIN 4/4 : TUNER SECTION)

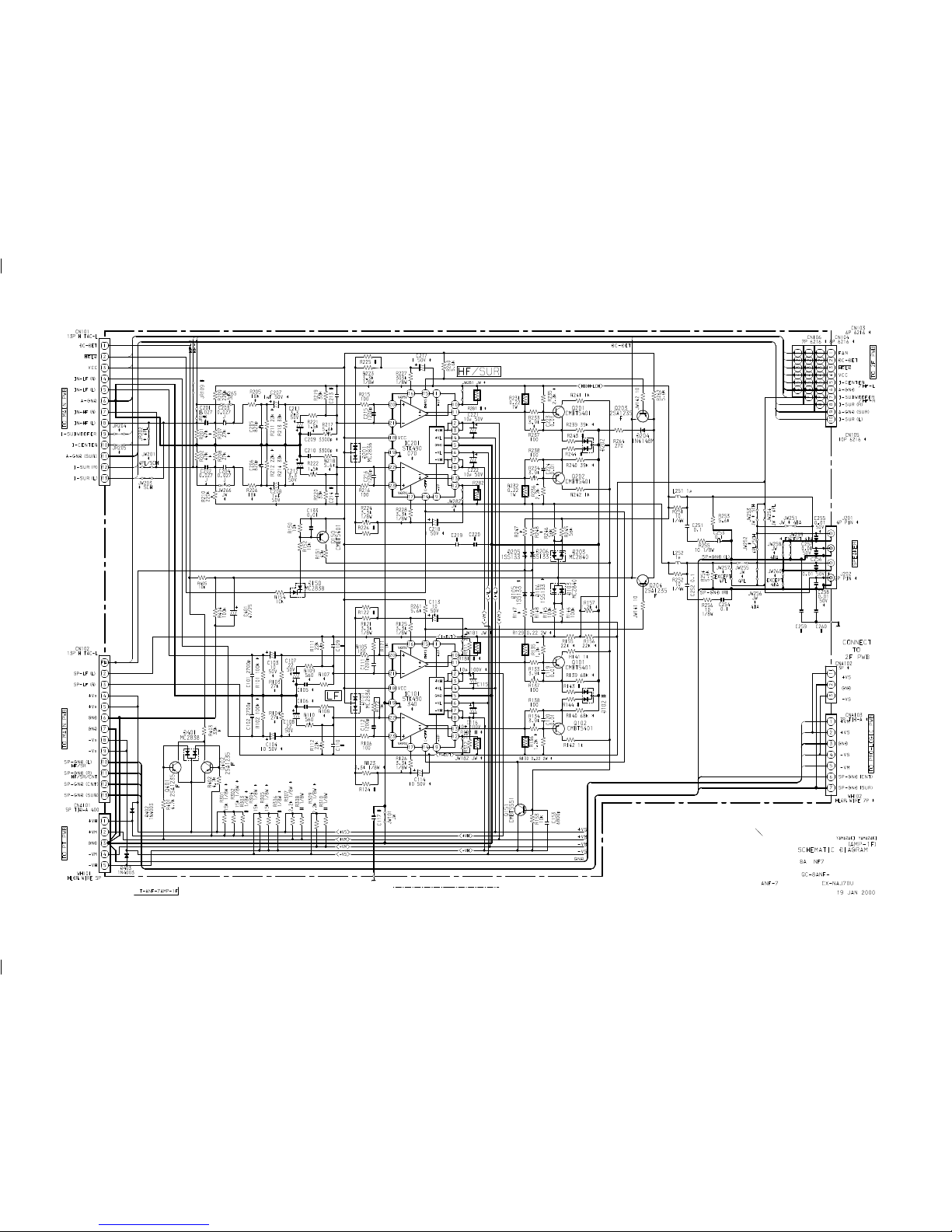

SCHEMATIC DIAGRAM _5 (AMP)

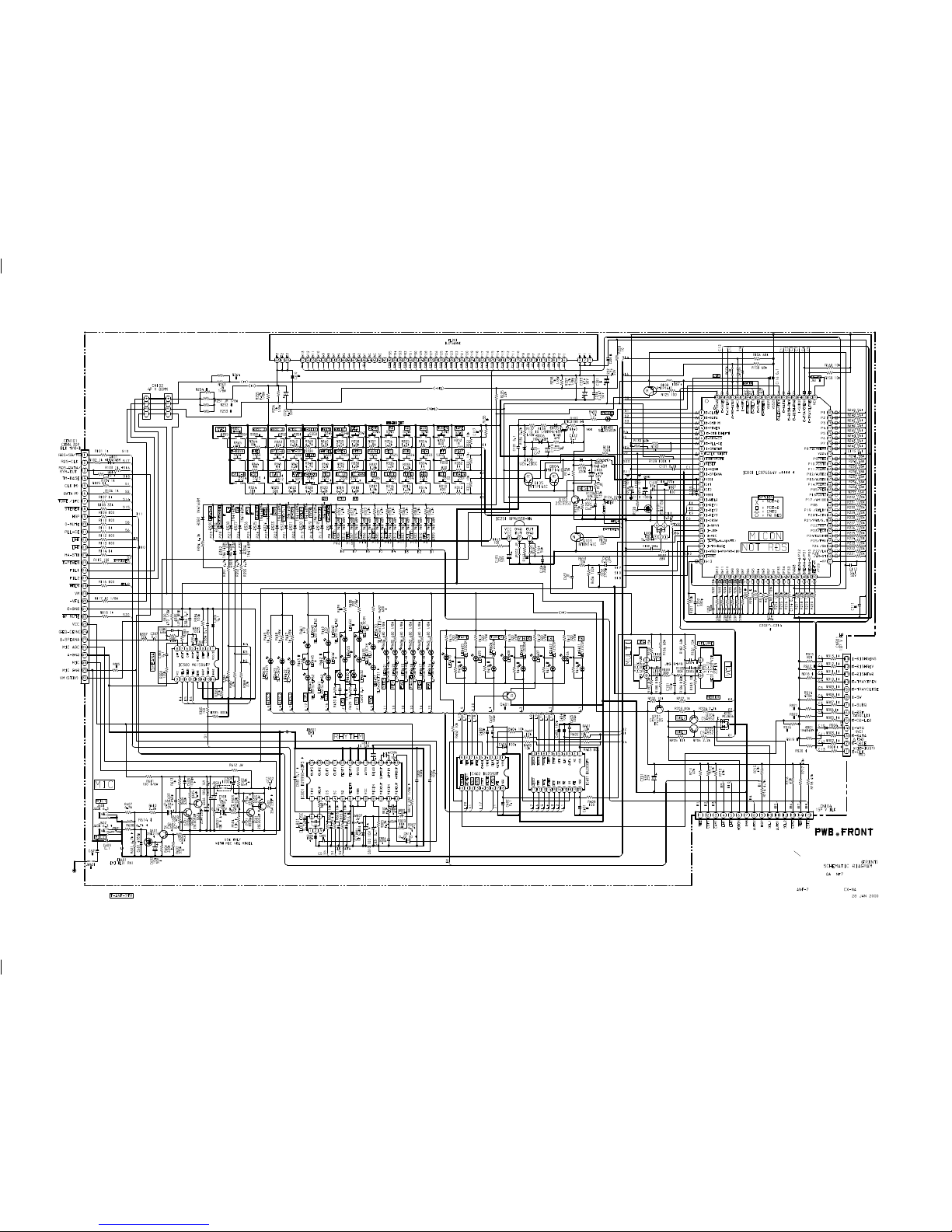

SCHEMATIC DIAGRAM _6 (FRONT)

SCHEMATIC DIAGRAM _7 (FRONT TABLE)

SCHEMATIC DIAGRAM _8 (1F AMP)

SCHEMATIC DIAGRAM _9 (1F AMP TABLE)
