SERVICE MANUAL

DATA

•Replace this Service Manual with ”Revision Publishing” when it is issued.

BASIC TAPE MECHANISM : ZZM-3 PR1NM / 6ZM-3 PR2NM

BASIC CD MECHANISM : AZG-1 ZD8RDM

COMPACT DISC STEREO

CASSETTE RECEIVER

NSX-SZ30

NSX-SZ30E

S/M Code No. 09-001-423-3T2

SIMPLE

SYSTEM TAPE MECHANISM

NSX-SZ30<HR>

NSX-SZ30E<HA>

6ZM-3 PR2NM

ZZM-3 PR1NM

ELECTRICAL MAIN PARTS LIST - 1/6

NOTE: The characters in the suffix column indicate the part usage.

HRJSM ..................XX..................................A...................

EHA ....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 402 87-010-112-040 CAP,E 100-16 AB..................

C 401 87-010-186-080 CAP,CHIP 4700P AB..................

C 409 87-010-265-040 CAP,E 33-16 SME AB..................

C 404 87-010-320-080 CHIP CAP 68P AB..................

C 408 87-010-322-080 C-CAP,S 100P-50 CH AB..................

C 407 87-010-405-040 CAP,E 10-50 AB..................

C 406 87-010-544-040 CAP,E 0.1-50 SME AB..................

C 405 87-010-544-040 CAP,E 0.1-50 SME AB..................

C 403 87-010-545-040 CAP,E 0.22-50 SME AB..................

C 413 87-010-177-080 C-CAP,S 820P-50 SL AB..................

C 410 87-012-369-080 C-CAP,S 0.047-50F AB..................

EMI 401 87-008-372-080 FILTER, EMI BL OIRNI AB..................

J 401 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM AB..................

Q 404 87-A30-075-080 C-TR,2SA1235F AB..................

Q 402 87-A30-075-080 C-TR,2SA1235F AB..................

Q 403 87-A30-076-080 C-TR,2SC3052F AB..................

Q 406 87-A30-076-080 C-TR,2SC3052F AB..................

Q 401 87-A30-076-080 C-TR,2SC3052F AB..................

Q 405 87-A30-087-080 C-FET,2SK2158 AB..................

VR 401 86-NFA-607-010 VR,RTRY 10K15AX1 1 V XV0121PVN AB..................

C 1 87-010-387-080 CAP,E 470-25 SME ABC.................

C 31 87-010-403-080 CAP, ELECT 3.3-50V ABC.................

CN 1 87-A61-110-010 CONN,9P V TID-A ABC.................

D 4 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 1 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 3 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 2 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 5 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 32 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 31 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

PT 2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI ABC.................

Q 31 87-026-245-080 TR,DTC114ES ABC.................

Q 32 87-A30-198-080 TR,KTC3199GR ABC.................

RY 1 87-A91-339-010 RELAY,AC DC12V G5PA-2 ABC.................

S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 ABC.................

T 1 87-A60-317-010 TERMINAL, 1P MSC ABC.................

T 2 87-A60-317-010 TERMINAL, 1P MSC ABC.................

C 104 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 101 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 102 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 107 87-010-493-040 CAP,E 0.47-50 GAS ABC.................

C 103 87-010-498-040 CAP,E 10-16 GAS ABC.................

C 108 87-012-393-080 C-CAP,S 0.22-16 R K ABC.................

C 153 87-010-198-080 CAP, CHIP 0.022 ABC.................

C 154 87-010-246-040 CAP,E 47-35 SME ABC.................

C 155 87-010-404-040 CAP,E 4.7-50 SME ABC.................

C 156 87-010-404-040 CAP,E 4.7-50 SME ABC.................

C 362 87-010-178-080 CHIP CAP 1000P ABC.................

C 361 87-010-178-080 CHIP CAP 1000P ABC.................

C 371 87-010-178-080 CHIP CAP 1000P ABC.................

C 372 87-010-178-080 CHIP CAP 1000P ABC.................

C 601 87-010-382-040 CAP,E 22-25 SME ABC.................

C 801 87-010-195-080 C-CAP,S 0.068-25 F ABC.................

C 802 87-010-195-080 C-CAP,S 0.068-25 F ABC.................

C 806 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 805 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 804 87-010-402-040 CAP,E 2.2-50 SME ABC.................

C 803 87-010-402-040 CAP,E 2.2-50 SME ABC.................

C 907 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 906 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 901 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 903 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 908 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 905 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 904 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 902 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 909 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 911 87-010-178-080 CHIP CAP 1000P ABC.................

C 916 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 912 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 915 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 917 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 919 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 913 87-010-248-040 CAP,E 220-10 SME ABC.................

C 914 87-010-248-040 CAP,E 220-10 SME ABC.................

C 910 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 921 87-010-186-080 CAP,CHIP 4700P ABC.................

C 920 87-012-369-080 C-CAP,S 0.047-50F ABC.................

C 951 87-010-312-080 C-CAP,S 15P-50 CH ABC.................

C 953 87-012-140-080 CAP 470P ABC.................

C 952 87-012-155-080 C-CAP 180P-50CH ABC.................

C 963 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 961 87-010-378-040 CAP,E 10-16 ABC.................

C 962 87-012-157-080 C-CAP,S 330P-50 CH ABC.................

CN 104 87-A60-057-010 CONN,11P V 9604S-11C ABC.................

ELECTRICAL MAIN PARTS LIST - 2/6

CN 701 87-099-720-010 CONN,30P TYK-B(P) ABC.................

CN 731 87-099-015-010 CONN,13P 6216V ABC.................

D 103 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 104 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 101 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 102 87-A40-752-080 ZENER,UZ6.2BSC ABC.................

D 601 87-A40-269-080 C-DIODE,MC2836 ABC.................

D 654 87-A40-269-080 C-DIODE,MC2836 ABC.................

D 652 87-A40-269-080 C-DIODE,MC2836 ABC.................

D 653 87-A40-269-080 C-DIODE,MC2836 ABC.................

D 651 87-A40-269-080 C-DIODE,MC2836 ABC.................

D 703 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 702 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 732 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 733 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 989 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 987 87-A40-736-080 DIODE,1N4148M(SEM) AB..................

D 981 87-A40-736-080 DIODE,1N4148M(SEM) ..C.................

D 990 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

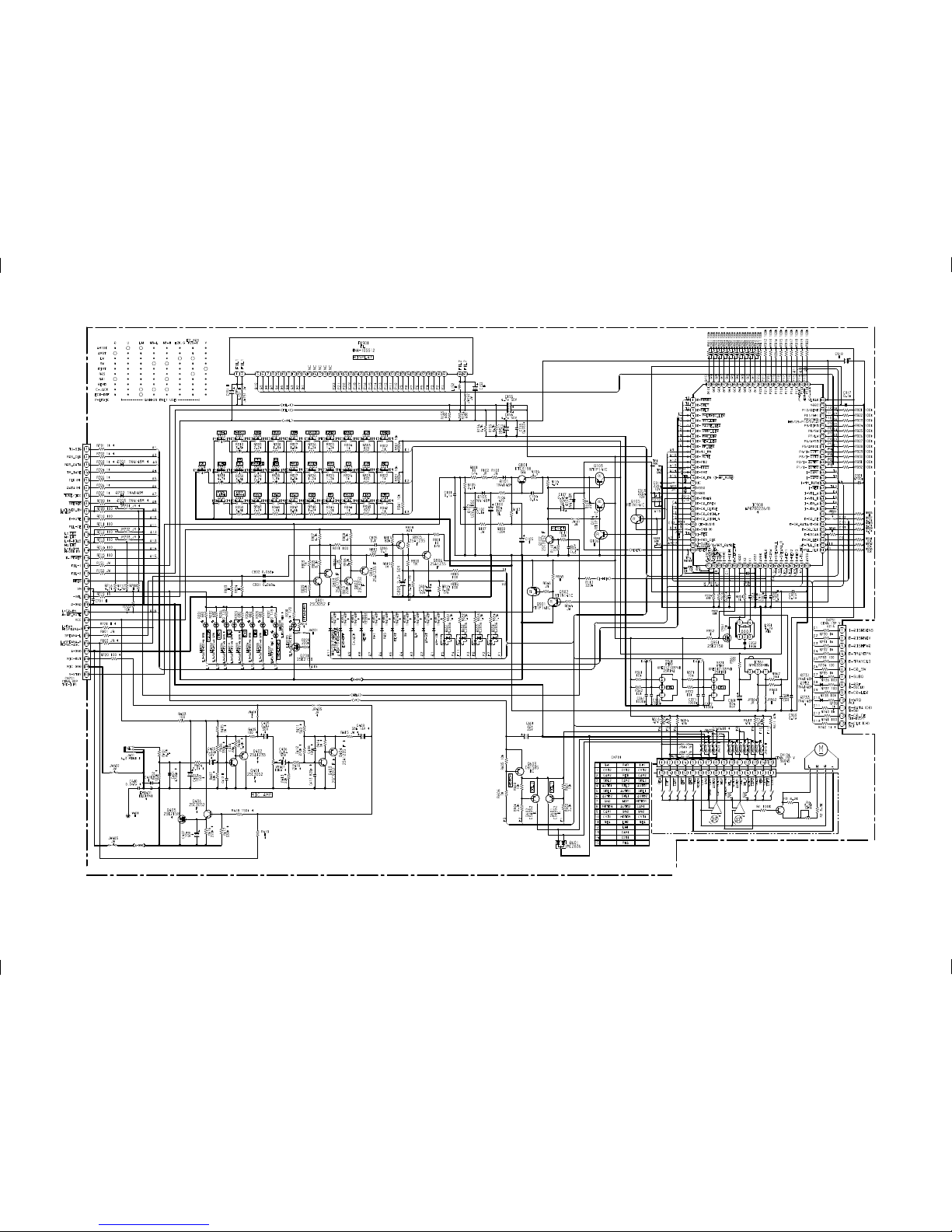

FL 901 8A-NF9-605-010 FL,HNA-10SS12 ABC.................

IC 901 8A-NF9-601-110 C-IC,UPD780226GF-012-3BA ABC.................

IC 901 8A-NF9-604-010 C-IC,UPD780226-*** ....................

IC 961 87-A21-482-010 IC,RPM6938-H4 ABC.................

L 951 87-A50-434-010 COIL,CLK 4.19M(TOKO) ABC.................

LED 209 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................

LED 204 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................

LED 201 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................

LED 206 87-A40-619-040 LED,SLR-56PT-T31-W GRN AB..................

LED 205 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................

LED 202 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................

LED 203 87-A40-619-040 LED,SLR-56PT-T31-W GRN AB..................

LED 210 87-A40-619-040 LED,SLR-56PT-T31-W GRN ..C.................

Q 101 87-026-610-080 TR,KTC3198GR ABC.................

Q 102 87-A30-076-080 C-TR,2SC3052F ABC.................

Q 105 87-A30-468-080 C-TR,KRC102S-RTK ABC.................

Q 104 87-A30-484-080 C-TR,KRA102S ABC.................

Q 103 87-A30-484-080 C-TR,KRA102S ABC.................

Q 201 87-A30-087-080 C-FET,2SK2158 ABC.................

Q 601 87-A30-318-080 TR,CSA952K ABC.................

Q 602 87-A30-318-080 TR,CSA952K ABC.................

Q 603 87-A30-329-080 TR,CD1585BC ABC.................

Q 803 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 805 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 806 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 804 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 802 87-A30-076-080 C-TR,2SC3052F ABC.................

Q 801 87-A30-076-080 C-TR,2SC3052F ABC.................

Q 902 87-A30-468-080 C-TR,KRC102S-RTK ABC.................

Q 901 87-A30-484-080 C-TR,KRA102S ABC.................

Q 951 87-A30-087-080 C-FET,2SK2158 ABC.................

S 304 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 306 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 307 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 303 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 308 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 305 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 301 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 302 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 309 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 323 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 325 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 322 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 324 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 321 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 326 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 344 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 347 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 348 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 343 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 349 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 345 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 342 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 341 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 346 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 350 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

S 361 87-A91-633-010 SW,RTRY XRE012103PVB25FINA 1-2 ABC.................

S 371 87-A91-632-010 SW,RTRY XRE012103PVB25FINB 1-2 ABC.................

C 303 87-010-178-080 CHIP CAP 1000P ABC.................

C 302 87-010-178-080 CHIP CAP 1000P ABC.................

C 301 87-010-178-080 CHIP CAP 1000P ABC.................

C 304 87-010-178-080 CHIP CAP 1000P ABC.................

C 307 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 308 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 309 87-010-318-080 C-CAP,S 47P-50 CH ABC.................

C 313 87-010-188-080 CAP,CHIP 6800P ABC.................

C 314 87-010-188-080 CAP,CHIP 6800P ABC.................

C 315 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 310 87-010-318-080 C-CAP,S 47P-50 CH ABC.................

C 318 87-010-546-080 CAP, ELECT 0.33-50V ABC.................

C 317 87-010-546-080 CAP, ELECT 0.33-50V ABC.................

C 326 87-010-198-080 CAP, CHIP 0.022 ABC.................

C 327 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

ELECTRICAL MAIN PARTS LIST - 3/6

C 360 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 399 87-012-140-080 CAP 470P ABC.................

C 409 87-010-182-080 C-CAP,S 2200P-50 B ABC.................

C 407 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 408 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 406 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 405 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 403 87-010-321-080 CHIP CAPACITOR,82P(J) ABC.................

C 404 87-010-321-080 CHIP CAPACITOR,82P(J) ABC.................

C 401 87-010-544-080 CAP, ELECT 0.1-50V ABC.................

C 402 87-010-544-080 CAP, ELECT 0.1-50V ABC.................

C 410 87-010-182-080 C-CAP,S 2200P-50 B ABC.................

C 411 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 412 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 455 87-010-183-080 C-CAP,S 2700P-50 B ABC.................

C 453 87-010-183-080 C-CAP,S 2700P-50 B ABC.................

C 454 87-010-183-080 C-CAP,S 2700P-50 B ABC.................

C 456 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 452 87-010-382-080 CAP, ELECT 22-25V ABC.................

C 460 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 461 87-012-158-080 C-CAP,S 390P-50 CH ABC.................

C 462 87-012-158-080 C-CAP,S 390P-50 CH ABC.................

CN 301 87-A60-620-010 CONN,3P V 2MM JMT ABC.................

CN 351 87-A60-625-010 CONN,8P V 2MM JMT ABC.................

D 401 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

IC 301 87-A21-419-040 C-IC,NJM14558MD-TE2 ABC.................

IC 401 87-A21-419-040 C-IC,NJM14558MD-TE2 ABC.................

L 451 87-007-342-010 COIL,OSC 85K BIAS ABC.................

Q 306 87-A30-062-080 C-TR,KRC104S ABC.................

Q 309 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 303 87-A30-090-080 FET,2SK2541 ABC.................

Q 304 87-A30-090-080 FET,2SK2541 ABC.................

Q 308 87-A30-091-080 FET,2SJ460 ABC.................

Q 301 87-A30-091-080 FET,2SJ460 ABC.................

Q 302 87-A30-091-080 FET,2SJ460 ABC.................

Q 305 87-A30-091-080 FET,2SJ460 ABC.................

Q 307 87-A30-091-080 FET,2SJ460 ABC.................

Q 310 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 443 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 444 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 451 87-A30-318-080 TR,CSA952K ABC.................

Q 454 89-333-317-880 TR,2SC3331 (0.5W) ABC.................

Q 453 89-333-317-880 TR,2SC3331 (0.5W) ABC.................

SFR 451 87-A90-432-080 SFR,30K H NVZ6TLTA ABC.................

SFR 452 87-A90-432-080 SFR,30K H NVZ6TLTA ABC.................

C 973 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 974 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 979 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 971 87-010-381-080 CAP, ELECT 330-16V ABC.................

C 972 87-010-404-080 CAP, ELECT 4.7-50V ABC.................

C 982 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 989 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 987 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 984 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 983 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 981 87-010-260-080 CAP, ELECT 47-25V ABC.................

C 993 87-010-178-080 CHIP CAP 1000P ABC.................

C 995 87-010-178-080 CHIP CAP 1000P ABC.................

C 997 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 998 87-010-260-080 CAP, ELECT 47-25V ABC.................

C 992 87-010-312-080 C-CAP,S 15P-50 CH ABC.................

C 991 87-010-312-080 C-CAP,S 15P-50 CH ABC.................

C 999 87-A11-155-080 CAP,TC U 0.01-16 Z F ABC.................

D 804 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 991 87-017-149-080 ZENER,HZS6A2L ABC.................

IC 991 87-070-127-110 IC,LC72131 D ABC.................

Q 981 87-A30-234-080 TR,CSC4115BC ABC.................

R 993 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

R 991 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

R 995 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

X 991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 ABC.................

C 772 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 771 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 788 87-010-149-080 C-CAP,S 5P-50 CH ABC.................

C 785 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 786 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 783 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 784 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 782 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 789 87-A11-532-080 C-CAP,S 0.022-50 J B AB..................

C 789 87-A12-052-080 C-CAP,S 0.033-25 J B ..C.................

C 791 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 796 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 798 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 795 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 792 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 793 87-010-404-080 CAP, ELECT 4.7-50V ABC.................

C 797 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 799 87-010-407-080 CAP, ELECT 33-50V ABC.................

C 790 87-A11-532-080 C-CAP,S 0.022-50 J B AB..................

C 790 87-A12-052-080 C-CAP,S 0.033-25 J B ..C.................

C 802 87-010-194-080 CAP, CHIP 0.047 ABC.................

ELECTRICAL MAIN PARTS LIST - 4/6

C 803 87-010-198-080 CAP, CHIP 0.022 ABC.................

C 804 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 807 87-010-400-080 CAP, ELECT 0.47-50V ABC.................

C 809 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 808 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 801 87-010-403-080 CAP, ELECT 3.3-50V ABC.................

C 800 87-012-369-080 C-CAP,S 0.047-50F ABC.................

C 810 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 814 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 815 87-010-400-080 CAP, ELECT 0.47-50V ABC.................

C 816 87-010-400-080 CAP, ELECT 0.47-50V ABC.................

C 823 87-010-177-080 C-CAP,S 820P-50 SL ABC.................

C 821 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 824 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 825 87-010-596-080 CAP, S 0.047-16 ABC.................

D 803 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

IC 801 87-A21-560-010 IC,LA1844L-A ABC.................

L 801 87-A50-608-010 COIL,FM DET-N(TOK) ABC.................

L 802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK) ..C.................

L 802 87-A91-552-010 FLTR,CFMT-450AL (TOK) AB..................

L 811 87-005-847-080 COIL,2.2UH(CECS) ABC.................

R 790 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 844 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 842 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 859 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 858 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 852 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 853 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 851 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 850 87-010-260-080 CAP, ELECT 47-25V ABC.................

C 860 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 948 87-010-148-080 CAP, CHIP S 75P SL AB..................

C 945 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 940 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 943 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 947 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 941 87-010-314-080 C-CAP,S 22P-50V AB..................

C 946 87-010-971-080 C-CAP,S 4700P-50 B J AB..................

C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 952 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 953 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 956 87-010-263-080 CAP, ELECT 100-10V AB..................

C 954 87-010-400-080 CAP, ELECT 0.47-50V AB..................

C 961 87-010-152-080 C-CAP,S 8P-50 CH ..C.................

C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 962 87-010-401-080 CAP, ELECT 1-50V AB..................

C 964 87-010-854-080 C-CAP,S 560PCH AB..................

C 963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z ABC.................

CF 831 87-008-261-010 FILTER, SFE10.7MA5-A ABC.................

CF 832 87-008-261-010 FILTER, SFE10.7MA5-A ABC.................

D 941 87-A40-736-080 DIODE,1N4148M(SEM) AB..................

D 951 87-A40-618-080 VARI-CAP,SVC 348(S/T) AB..................

FFE 831 A8-8ZA-190-030 8ZA-1 FEUNM ABC.................

FFE 831 A8-8ZA-191-030 8ZA-1 YFEUNM ....................

J 831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 ABC.................

J 940 87-A60-633-010 CONN,2P H 2.5MM JMT AB..................

L 832 87-005-847-080 COIL,2.2UH(CECS) ABC.................

L 941 87-A50-022-010 COIL,ANT SW(COI) AB..................

L 944 87-A50-159-010 COIL,10MH K C2B AB..................

L 943 87-A50-522-080 COIL,1MH K CEC AB..................

L 942 87-A50-550-010 COIL,OSC SW-2N(COI) AB..................

L 952 87-A50-430-010 COIL,ANT MW(3BSW) AB..................

L 953 87-A50-431-010 COIL,OSC MW(3BSW) AB..................

L 951 8A-NF8-667-010 COIL,AM PACK 4(TOK) ..C.................

Q 837 87-A30-072-080 C-TR,RT1P 144C AB..................

Q 836 87-A30-072-080 C-TR,RT1P 144C ABC.................

Q 835 89-327-143-080 TR,2SC2714 (0.1W) ABC.................

Q 941 87-A30-074-080 C-TR,RT1P 141C AB..................

Q 942 87-A30-075-080 C-TR,2SA1235F AB..................

Q 943 87-A30-075-080 C-TR,2SA1235F AB..................

Q 944 87-A30-076-080 C-TR,2SC3052F AB..................

Q 945 87-A30-076-080 C-TR,2SC3052F AB..................

Q 949 87-A30-076-080 C-TR,2SC3052F AB..................

Q 948 87-A30-086-040 C-TR,CSD1306E AB..................

Q 946 87-A30-086-040 C-TR,CSD1306E AB..................

Q 951 87-A30-074-080 C-TR,RT1P 141C AB..................

Q 950 87-A30-086-040 C-TR,CSD1306E AB..................

Q 953 89-503-602-080 C-FET,2SK360E AB..................

TC 943 87-011-253-080 TRIMER,30P LAR AB..................

TC 941 87-011-254-080 TRIMER,20P LAR AB..................

C 9 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 6 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 5 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 4 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 3 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 11 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 10 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 12 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 19 87-A12-036-000 CAP,E 2200-63 SMG ABC.................

C 26 87-010-247-080 CAP, ELECT 100-50V ABC.................

C 25 87-010-385-080 CAP, ELECT 220-25V ABC.................

C 22 87-A10-520-000 CAP,E 3300-35 M SMG ABC.................

ELECTRICAL MAIN PARTS LIST - 5/6

C 21 87-A10-520-000 CAP,E 3300-35 M SMG ABC.................

C 20 87-A12-036-000 CAP,E 2200-63 SMG ABC.................

C 38 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 32 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 34 87-010-247-080 CAP, ELECT 100-50V ABC.................

C 31 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 35 87-010-380-080 CAP, ELECT 47-16V ABC.................

C 36 87-010-381-080 CAP, ELECT 330-16V ABC.................

C 30 87-010-430-080 CAP, ELECT 100-63 ABC.................

C 61 87-010-260-080 CAP, ELECT 47-25V ABC.................

C 60 87-010-403-080 CAP, ELECT 3.3-50V ABC.................

C 97 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

CNA 1 8A-NF8-653-010 CONN ASSY,9P TID-A(480) ABC.................

D 18 87-A40-455-090 DIODE,RL203 GW ABC.................

D 17 87-A40-455-090 DIODE,RL203 GW ABC.................

D 15 87-A40-455-090 DIODE,RL203 GW ..C.................

D 16 87-A40-455-090 DIODE,RL203 GW ..C.................

D 19 87-A40-455-090 DIODE,RL203 GW ABC.................

D 14 87-A40-455-090 DIODE,RL203 GW ..C.................

D 13 87-A40-455-090 DIODE,RL203 GW ..C.................

D 13 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

D 15 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

D 14 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

D 16 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

D 20 87-A40-455-090 DIODE,RL203 GW ABC.................

D 26 87-A40-553-080 DIODE,1N4003 LES ABC.................

D 27 87-A40-553-080 DIODE,1N4003 LES ABC.................

D 29 87-A40-776-080 ZENER,UZ27BSD ABC.................

D 33 87-A40-553-080 DIODE,1N4003 LES ABC.................

D 35 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 30 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 34 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 31 87-A40-764-080 ZENER,UZ10BSC ABC.................

D 64 87-A40-269-080 C-DIODE,MC2836 ABC.................

D 63 87-A40-270-080 C-DIODE,MC2838 ABC.................

D 62 87-A40-313-080 C-DIODE,MC 2840 ABC.................

D 61 87-A40-313-080 C-DIODE,MC 2840 ABC.................

D 65 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 60 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

D 66 87-A40-854-080 ZENER,UZ15BSA ABC.................

D 76 87-A40-313-080 C-DIODE,MC 2840 ABC.................

D 72 87-A40-313-080 C-DIODE,MC 2840 ABC.................

D 71 87-A40-313-080 C-DIODE,MC 2840 ABC.................

Q 2 87-026-609-080 TR,KTA1266GR ABC.................

Q 1 87-026-609-080 TR,KTA1266GR ABC.................

Q 9 87-026-609-080 TR,KTA1266GR ABC.................

Q 5 87-026-610-080 TR,KTC3198GR ABC.................

Q 8 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 6 87-A30-076-080 C-TR,2SC3052F ABC.................

Q 3 89-213-702-010 TR,2SB1370 (1.8W) ABC.................

Q 4 89-213-702-010 TR,2SB1370 (1.8W) ..C.................

Q 10 87-A30-076-080 C-TR,2SC3052F ABC.................

Q 63 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 61 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 65 87-A30-075-080 C-TR,2SA1235F ABC.................

Q 64 87-A30-076-080 C-TR,2SC3052F ABC.................

Q 60 87-A30-076-080 C-TR,2SC3052F ABC.................

Q 62 87-A30-076-080 C-TR,2SC3052F ABC.................

WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABC.................

C 606 87-010-179-080 CAP,CHIP S B1200P AB..................

C 605 87-010-179-080 CAP,CHIP S B1200P AB..................

C 605 87-010-184-080 CHIP CAPACITOR 3300P(K) ..C.................

C 606 87-010-184-080 CHIP CAPACITOR 3300P(K) ..C.................

C 609 87-010-213-080 C-CAP,S 0.015-50 B ABC.................

C 615 87-010-154-080 CAP CHIP 10P ABC.................

C 610 87-010-213-080 C-CAP,S 0.015-50 B ABC.................

C 617 87-010-221-080 CAP, ELECT 470-10V ABC.................

C 616 87-010-221-080 CAP, ELECT 470-10V ABC.................

C 618 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 612 87-010-545-080 CAP, ELECT 0.22-50V ABC.................

C 613 87-010-545-080 CAP, ELECT 0.22-50V ABC.................

C 614 87-010-545-080 CAP, ELECT 0.22-50V ABC.................

C 611 87-010-545-080 CAP, ELECT 0.22-50V ABC.................

C 631 87-010-185-080 C-CAP,S 3900P-50 B ABC.................

C 632 87-010-185-080 C-CAP,S 3900P-50 B ABC.................

C 634 87-016-369-080 C-CAP,S 0.033-25 B K ABC.................

C 633 87-016-369-080 C-CAP,S 0.033-25 B K ABC.................

C 630 87-016-669-080 C-CAP,S 0.1-25 K B ABC.................

C 669 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 673 87-010-182-080 C-CAP,S 2200P-50 B AB..................

C 671 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 672 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 677 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 670 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

CN 601 87-099-719-010 CONN,30P TYK-B(X) ABC.................

CN 602 87-A60-131-010 CONN,6P V FE ABC.................

D 601 87-A40-739-080 ZENER,UZ2.7BSA ABC.................

D 602 87-A40-739-080 ZENER,UZ2.7BSA ABC.................

IC 601 87-A21-401-040 C-IC,M61503FP ABC.................

J 602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN ABC.................

Q 607 87-A30-076-080 C-TR,2SC3052F ABC.................

Q 606 87-A30-090-080 FET,2SK2541 ABC.................

ELECTRICAL MAIN PARTS LIST - 6/6

Q 605 87-A30-090-080 FET,2SK2541 ABC.................

R 653 87-A11-144-080 CAP,TC U 0.1-50 K B ABC.................

R 654 87-A11-144-080 CAP,TC U 0.1-50 K B ABC.................

C 919 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 102 87-010-185-080 C-CAP,S 3900P-50 B ABC.................

C 101 87-010-185-080 C-CAP,S 3900P-50 B ABC.................

C 106 87-010-187-080 CAP CHIP S5600P ABC.................

C 105 87-010-187-080 CAP CHIP S5600P ABC.................

C 107 87-010-404-080 CAP, ELECT 4.7-50V ABC.................

C 108 87-010-404-080 CAP, ELECT 4.7-50V ABC.................

C 103 87-010-545-080 CAP, ELECT 0.22-50V ABC.................

C 104 87-010-545-080 CAP, ELECT 0.22-50V ABC.................

C 112 87-010-391-080 CAP,E 10-35 SME ABC.................

C 111 87-010-391-080 CAP,E 10-35 SME ABC.................

C 114 87-010-405-080 CAP, ELECT 10-50V AB..................

C 113 87-010-405-080 CAP, ELECT 10-50V AB..................

C 114 87-010-866-080 CAP, ELECT 10-63 ..C.................

C 113 87-010-866-080 CAP, ELECT 10-63 ..C.................

C 119 87-012-369-080 C-CAP,S 0.047-50F AB..................

C 119 87-016-369-080 C-CAP,S 0.033-25 B K ..C.................

C 129 87-010-191-080 C-CAP,S 0.015-50 F ABC.................

C 126 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 128 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 125 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 127 87-012-368-080 C-CAP,S 0.1-50 F ABC.................

C 120 87-012-369-080 C-CAP,S 0.047-50F AB..................

C 120 87-016-369-080 C-CAP,S 0.033-25 B K ..C.................

C 133 87-010-186-080 CAP,CHIP 4700P ABC.................

C 130 87-010-191-080 C-CAP,S 0.015-50 F ABC.................

C 132 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 131 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 140 87-010-182-080 C-CAP,S 2200P-50 B ABC.................

C 141 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

D 101 87-A40-269-080 C-DIODE,MC2836 ABC.................

D 109 87-A40-270-080 C-DIODE,MC2838 ..C.................

D 116 87-A40-270-080 C-DIODE,MC2838 ABC.................

IC 101 87-A21-398-010 IC,STK490-110 ABC.................

J 203 87-A60-238-010 TERMINAL,SP 4P (MSC) ABC.................

J 202 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT ABC.................

L 102 87-A50-610-010 COIL,1UH K(MDEC) ABC.................

L 101 87-A50-610-010 COIL,1UH K(MDEC) ABC.................

Q 126 87-A30-107-070 C-TR,CMBT5401 ABC.................

Q 124 87-A30-107-070 C-TR,CMBT5401 ABC.................

Q 123 87-A30-107-070 C-TR,CMBT5401 ABC.................

Q 130 87-A30-106-040 C-TR,CMBT5551 ABC.................

R 129 87-A00-669-080 RES,M/F 0.22-2W J RA ..C.................

R 132 87-A00-257-080 RES,M/F 0.15-1W J AB..................

R 131 87-A00-257-080 RES,M/F 0.15-1W J AB..................

R 130 87-A00-669-080 RES,M/F 0.22-2W J RA ..C.................

R 131 87-A00-669-080 RES,M/F 0.22-2W J RA ..C.................

R 132 87-A00-669-080 RES,M/F 0.22-2W J RA ..C.................

R 145 87-A00-440-050 RES,220-1/2W J RP ABC.................

R 144 87-A00-440-050 RES,220-1/2W J RP ABC.................

R 143 87-A00-440-050 RES,220-1/2W J RP ABC.................

R 146 87-A00-440-050 RES,220-1/2W J RP ABC.................

C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 669 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 670 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 107 87-010-404-080 CAP, ELECT 4.7-50V ....................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

HRJSM ..................XX..................................A...................

EHA ....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

87-CE3-023-010 BADGE,AIWA 30N SILV ABC.................

8A-NF8-005-010 PANEL,TOP ABC.................

8A-NF8-007-010 PANEL,LEFT V-2 ABC.................

8A-NF8-008-010 PANEL,RIGHT V-2 ABC.................

8A-NF9-001-010 CABI,FR U ..C.................

8A-NF9-003-010 BOX,CASS 1 ..C.................

8A-NF9-004-010 BOX,CASS 2 ABC.................

8A-NF9-014-010 PANEL,TRAY ABC.................

8A-NF9-017-010 PANEL,JOG ABC.................

8A-NF9-047-010 BOX,CASS 1 H AB..................

8A-NFX-001-110 CABI,REAR LHSM ....................

8A-NFX-003-010 CABI,REAR HRJSM A...................

8A-NFX-004-110 CABI,REAR LHFD ....................

8A-NFX-005-010 CABI,REAR LH W/O SPEC ..C.................

8A-NFX-006-010 CABI,FR H AB..................

8A-NFX-007-010 CABI,REAR HRSM .B..................

8A-NF9-008-010 KEY,POWER ABC.................

8A-NF9-009-010 KEY,FUN ABC.................

8A-NF9-010-110 KEY,ASSY OPE 1 WAY ..C.................

8A-NF9-015-010 KNOB,RTRY MIC AB..................

8A-NF9-016-010 KNOB,RTRY VOL ABC.................

8A-NF9-018-010 KNOB,RTRY JOG ABC.................

8A-NF9-019-010 KEY,SYNC ABC.................

8A-NF9-020-010 KEY,CD ABC.................

8A-NF9-022-010 REFLECTOR,ECO ABC.................

8A-NF9-023-010 KEY,ASSY OPE REV AB..................

8A-NF9-026-110 KEY,ENTER ABC.................

81-532-080-010 LABEL, CASS. COMPT ABC.................

8A-NF8-006-010 WINDOW,TOP ABC.................

8A-NF9-006-010 WINDOW,CASS 1 ABC.................

8A-NF9-007-010 WINDOW,CASS 2 ABC.................

8A-NF9-021-010 PLATE,MIC AB..................

8A-NF9-039-010 WINDOW,CD ABC.................

8A-NFX-002-010 WINDOW,DISP LH ABC.................

8A-NFX-015-010 WINDOW,DISP HA KIT ....................

8A-NFX-016-010 WINDOW,DISP LH KIT ....................

84-ZG1-245-210 CAP,OPTICAL ABC.................

82-NF5-229-010 PLATE,LOCK ABC.................

86-NF6-211-010 HLDR,IC T1.6 ABC.................

86-NF9-224-010 SPR-C,LOCK ABC.................

87-064-080-010 WIRE, BINDER ABC.................

87-NF4-216-010 HLDR,LOCK 1 ABC.................

87-NF4-217-110 HLDR,LOCK 2 ABC.................

87-NF4-221-010 HLDR,CABLE ABC.................

8A-NF8-206-010 HLDR,PWB M ABC.................

8A-NF8-207-010 SPR-T,EJECT 1 ABC.................

8A-NF8-208-010 SPR-T,EJECT 2 ABC.................

8A-NF8-209-010 OIL-DMPR,120 ABC.................

8A-NF9-211-010 HLDR,PWB PT HI ABC.................

8Z-NB8-240-010 COVER, PL ABC.................

87-067-581-010 TAPPING SCREW, BVT2+3-15 ABC.................

87-067-641-010 UTT2+3-8(W/O SLOT)BL ABC.................

87-067-689-010 TAPPING SCREW, BVTT+3-8 ABC.................

87-067-703-010 TAPPING SCREW, BVT2+3-10 ABC.................

87-078-191-010 S-SCREW,IT+4-10 ABC.................

87-721-096-410 QT2+3-10 GLD ABC.................

87-721-097-410 QT2+3-12 GLD ABC.................

87-723-096-410 QT2+3-10W/O SLOT BL ABC.................

87-NF4-224-010 S-SCREW,IT3B+3-8 CU ABC.................

87-067-581-010 TAPPING SCREW, BVT2+3-15 ....................

87-067-641-010 UTT2+3-8(W/O SLOT)BL ....................

87-067-689-010 TAPPING SCREW, BVTT+3-8 ....................

87-067-703-010 TAPPING SCREW, BVT2+3-10 ....................

87-721-096-410 QT2+3-10 GLD ....................

87-721-097-410 QT2+3-12 GLD ....................

87-723-096-410 QT2+3-10W/O SLOT BL ....................

82-NF7-210-110 GUIDE,FL (*) ABC.................

8A-NF9-201-010 GUIDE,OPE 1 WAY ..C.................

8A-NF9-203-010 GUIDE,OPE REV AB..................

87-085-185-010 BUSHING, AC CORD (E) ABC.................

88-906-251-110 FF-CABLE,6P 1.25 ABC.................

88-911-101-110 FF-CABLE,11P 1.25 ABC.................

88-913-301-110 FF-CABLE,13P-1.25 ABC.................

PT 1 8A-NF9-614-010 PT,ANF-9 HR-HI AB..................

PT 1 8A-NF9-616-010 PT,ANF-9 LH-HI ..C.................

W 1 87-A80-092-010 AC CORD ASSY,E BLK SUN FAI AB..................

W 1 87-A80-105-010 AC CORD ASSY,AZ ..C.................

WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABC.................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

HRJSM ..................XX..................................A...................

EHA ....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-NF9-902-010 IB,LH(ESP)M ..C.................

8A-NFX-901-010 IB,H(ECA)M -30 AB..................

8A-NFX-911-010 IB,HA(S)NEA -SZ30E ....................

8A-NFX-912-010 IB,LH(P)CCE -SZ30J ....................

87-006-268-010 AM-LOOP ANT NC (UN) ....................

87-043-115-010 ANT,FEEDER FM ABC.................

87-A90-119-010 ANT,WIRE SW(5M) AB..................

87-A91-017-010 PLUG,CONVERSION JT-0476 AB..................

8Z-NF9-701-210 RC UNIT,ZAS02 ABC.................

ANT 0 87-006-225-010 AM LOOP ANT NC2 ..C.................

ANT 0 87-006-226-010 AM-LOOPANT C0 AB..................

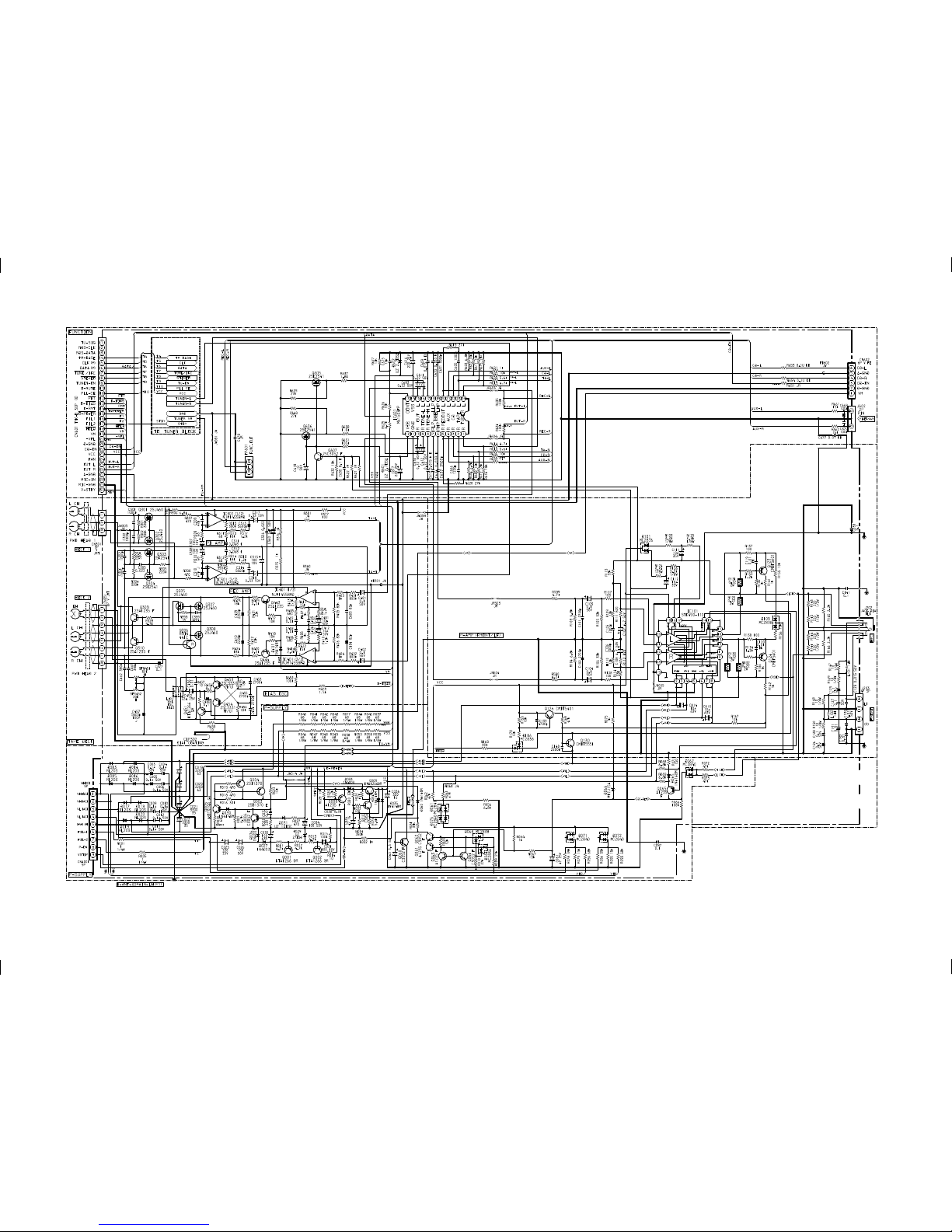

SCHEMATIC DIAGRAM _1 (MAIN <HA>)

Other manuals for NSX-SZ30

This manual suits for next models

Table of contents

Popular Stereo Receiver manuals by other brands

Marantz

Marantz CINEMA 70S owner's manual

Kenwood

Kenwood KMDX92 instruction manual

Yamaha

Yamaha RX-830 owner's manual

Pioneer

Pioneer AVH-Z7250BT owner's manual

Yamaha

Yamaha RX-750 owner's manual

Denon

Denon AVR-1311 owner's manual

Denon

Denon AVR-S760H owner's manual

Denon

Denon AVR-X7200W Service manual

Pioneer

Pioneer SC-LX904 Initial setup guide

Sony

Sony XAV-1500 operating instructions

Radio Shack

Radio Shack DX-399 owner's manual

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver operating instructions

Pioneer

Pioneer SX-1000TA operating instructions

Yamaha

Yamaha MusicCast TSR-5B3D owner's manual

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver operating instructions

Sony

Sony STR-DG500 - Multi Channel Av Receiver Service manual

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Brochure & specs

Pioneer

Pioneer SX-838 Service manual

Aiwa NSX-SZ30 User manual

Popular Stereo Receiver manuals by other brands
